Documentatie atasata la

Rigole de dus cu scurgere in pardoseala sau perete GEBERIT

Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon

Limba: Engleza

926 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

Geberit Sanitary Systems Catalogue 2015/2016 Valid from 1 April 2015 Geberit Kombifix Geberit Duofix Geberit GIS Geberit Concealed Cisterns Geberit Actuator Plates and WC Flush Controls Geberit Monolith Geberit Exposed Cisterns Geberit Cisterns for Low-Height Furniture Geberit Fill Valves and Flush Valves Systems Geberit Urinal Systems Geberit Washbasin Taps Geberit Floor Drainage Systems Geberit Waste Fittings Geberit AquaClean Appendix Geberit Kombifix 1. Geberit Kombifix 1.1 Installation elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 1.1.1 1.1.5 Elements for WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Accessory overview: Geberit Kombifix elements for WCs . . . . . . . . . . . . . . . . . . . . 6 Elements for washbasins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pagina 1-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 2 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

. . . . 12 Elements for bidets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Elements for urinals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Accessory overview: Geberit Kombifix elements for urinals . . . . . . . . . . . . . . . . . 13 Elements for showers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 1.2 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 1.2.1 For fastenings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 1.1.2 1.1.3 1.1.4 5 Geberit Kombifix Installation elements Elements for WCs 1.1 Installation elements 1.1.1 Elements for WCs Accessory overview: Geberit Kombifix elements for WCs Actuator plate

Pagina 2-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 3 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

s of the Sigma series Actuator plates of the Omega series Actuator plates of the Delta series Set of leg supports Set of studs with foot plate Concealed outlet for drywall and solid wall construction → p. 70 → p. 82 → p. 86 → p. 17 → p. 17 → p. 281 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü 110.350.00.5 Element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm 110.340.00.5 Element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm, with leg supports 110.772.00.1 Element for wall-hung WC, 109 cm, with Sigma concealed cistern 8 cm 110.020.00.1 Element for wall-hung WC, 106 cm, with Omega concealed cistern 12 cm 110.001.00.1 Element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm, adjustable in depth 110.011.00.1 Element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm, adjustable in depth 110.170.00.1 Element for wall-hung WC, 110 cm, with Delta

Pagina 3-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 4 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ü concealed cistern 12 cm, with leg supports 110.171.00.1 Element for wall-hung WC, 110 cm, with Delta concealed cistern 12 cm 110.150.00.1 Element for wall-hung WC, 109 cm, with Delta concealed cistern 8 cm 6 Geberit Kombifix Elements for WCs Installation elements Geberit Kombifix element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm 12 42 R½ Geberit Kombifix element for wall-hung WC, 108 cm, with Sigma concealed cistern 12 cm, with leg supports 9 100 12 42 R½ 100 9 100 100 76 18/23 5 5 +2 108 1045 41 −1 76 18/23 5 23 5 +2 108 1045 41 −1 23 0 0 0 0 65 195 65 ≥ 30 195 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, powder-coated, with four fixing brackets • Fastening for connection bend can be mo

Pagina 4-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

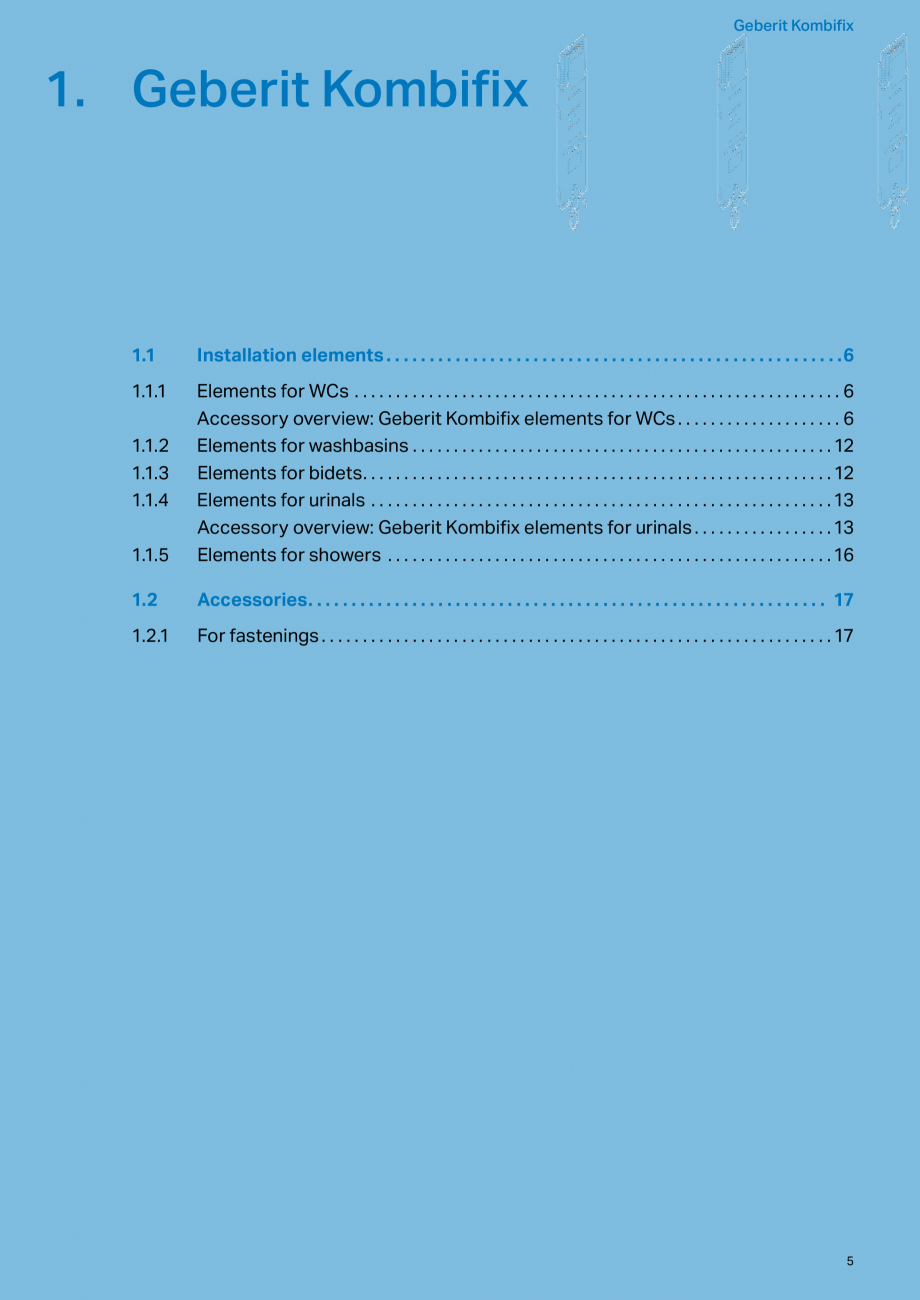

Pagina 5 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

unted from front • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data ≥ 30 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, powder-coated, with four fixing brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free install

Pagina 5-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

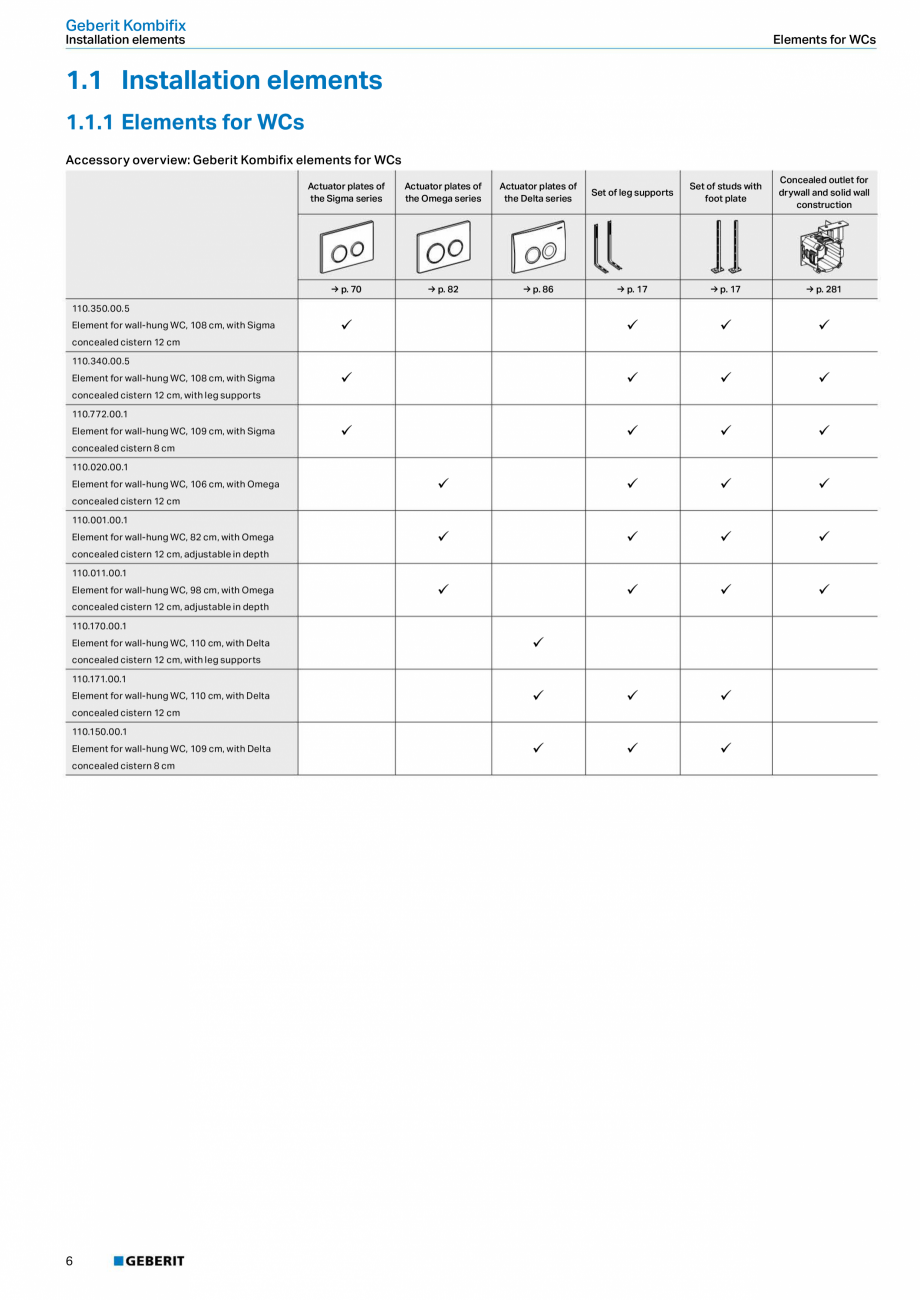

Pagina 6 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flow pressure 0.1-10 bar Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume factory setting 6 and 3 l 3-4 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Flush volume small adjustment range Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Filling segment • 2 protection plugs • 2 threaded rods M12 • Fastening material Art.

Pagina 6-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

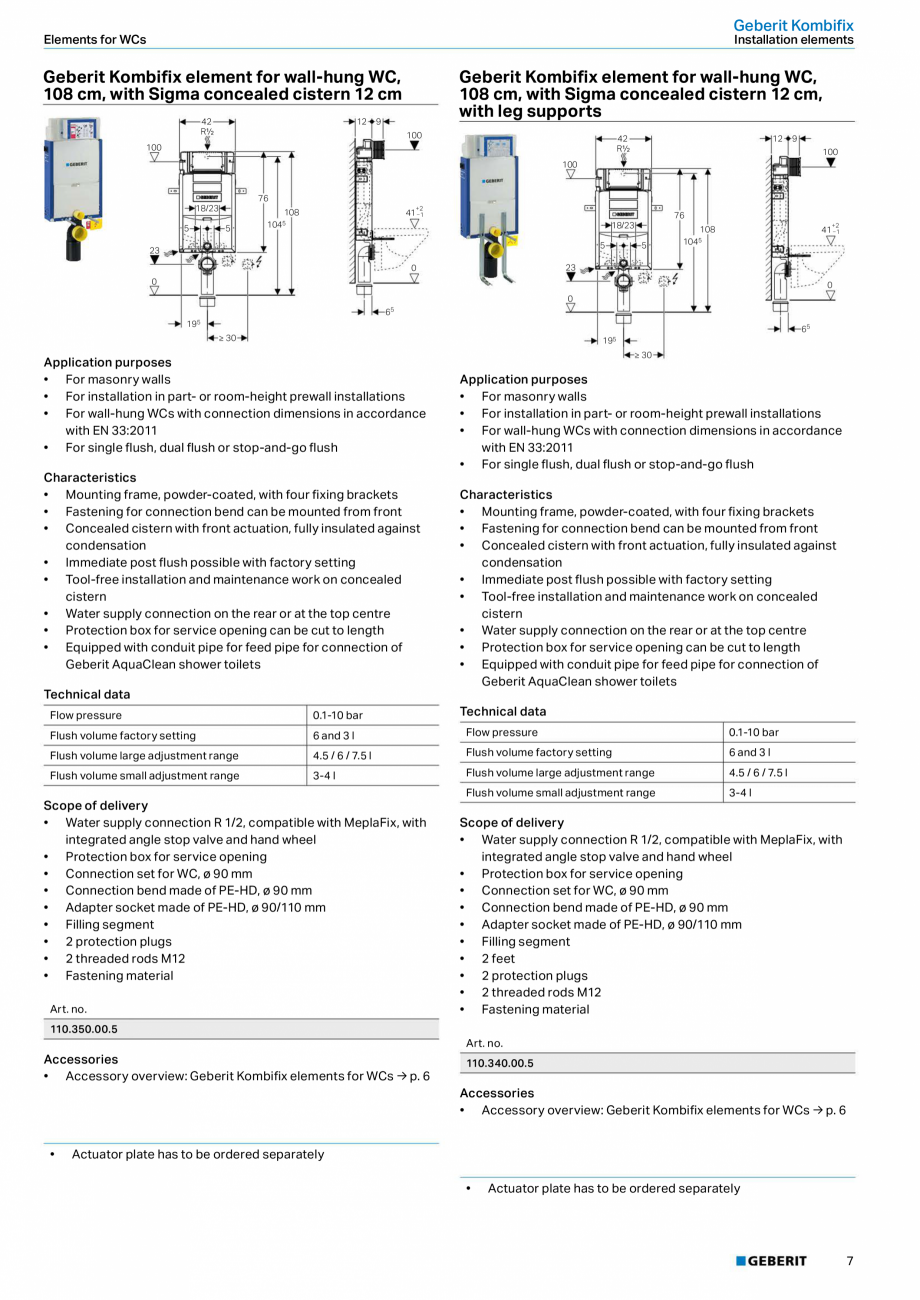

Pagina 7 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

no. Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Filling segment • 2 feet • 2 protection plugs • 2 threaded rods M12 • Fastening material 110.350.00.5 Art. no. Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 110.340.00.5 Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 • Actuator plate has to be ordered separately • Actuator plate has to be ordered separately 7 Geberit Kombifix Installation elements Elements for WCs Geberit Kombifix element for wall-hung WC, 109 cm, with Sigma concealed cistern 8 cm 1-5 8 505 Geberit Kombifix element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm 42 15–205 12–205 ≤ 91 100 8 R1/2 75 R½ 100 1

Pagina 7-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

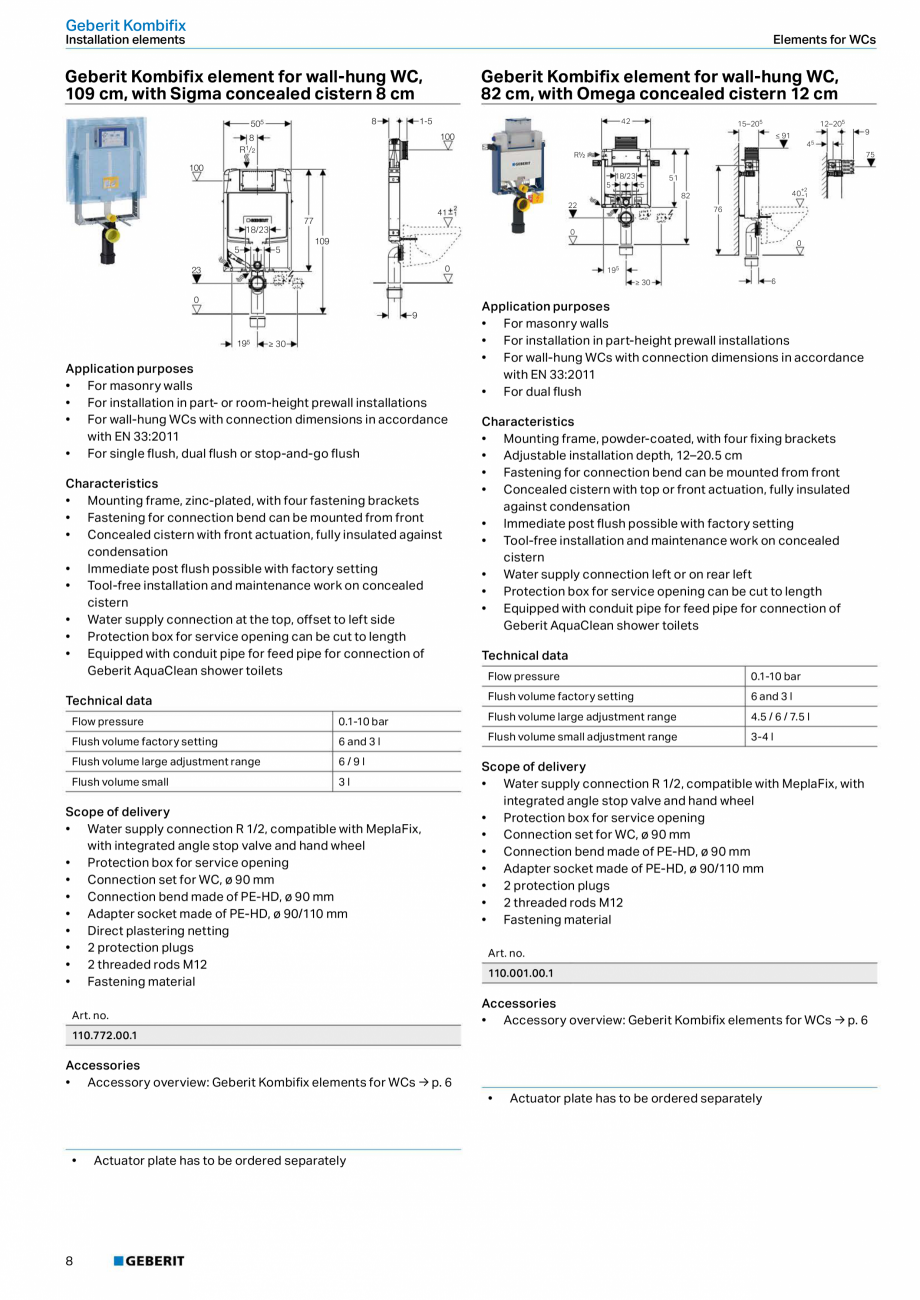

Pagina 8 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

8/23 5 5 51 +2 40 −1 82 77 18/23 5 5 22 41 76 0 109 0 0 23 195 6 ≥ 30 0 9 195 9 45 ≥ 30 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection at the top, offset to left side • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Application purposes • For masonry walls • For installation in part-height p

Pagina 8-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

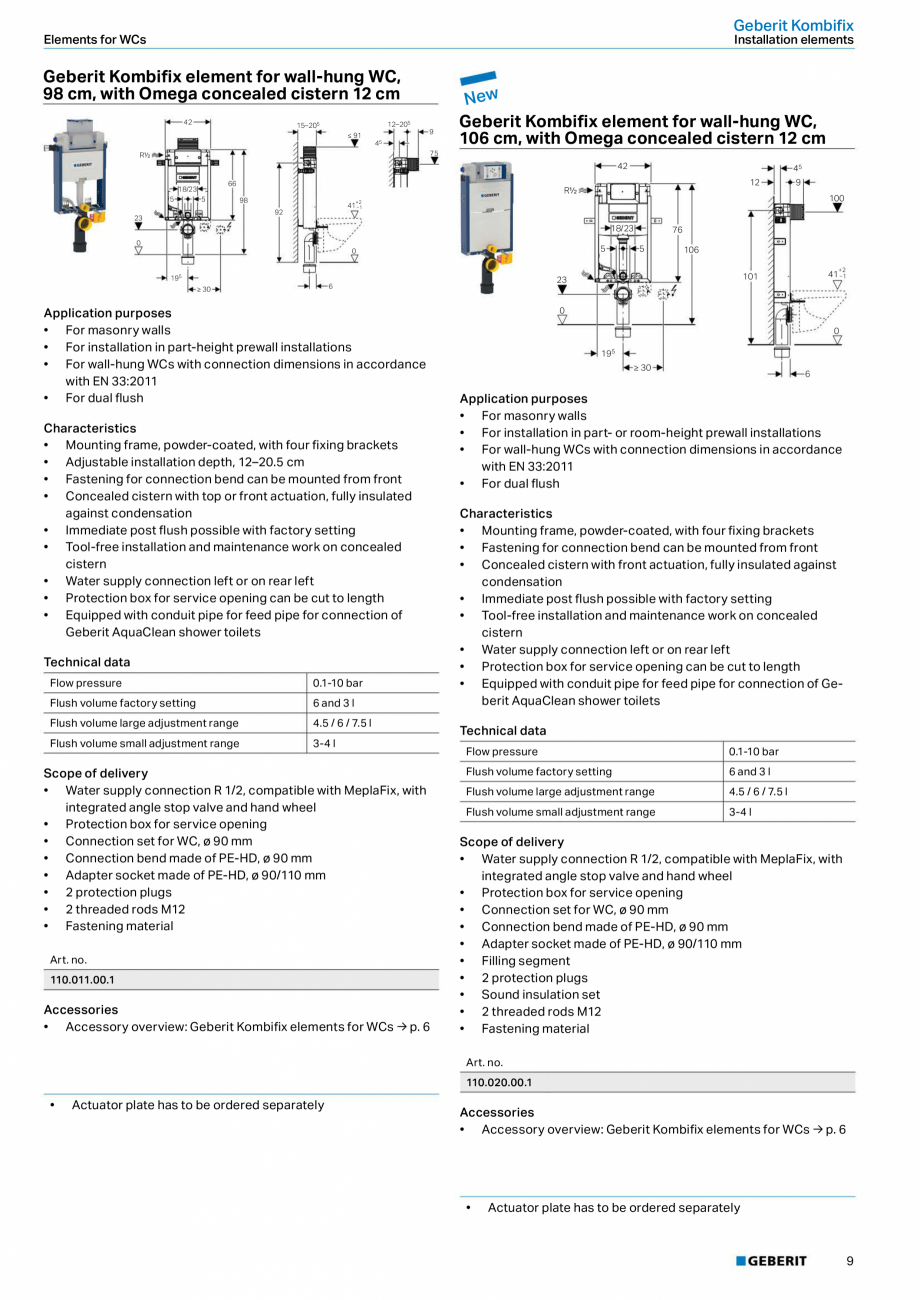

Pagina 9 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

rewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For dual flush Characteristics • Mounting frame, powder-coated, with four fixing brackets • Adjustable installation depth, 12–20.5 cm • Fastening for connection bend can be mounted from front • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l 0.1-10 bar Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume factory setting 6 and 3 l Flush volume small adjustment range 3-4 l Flush volume large adjustment range 6/9l Fl

Pagina 9-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

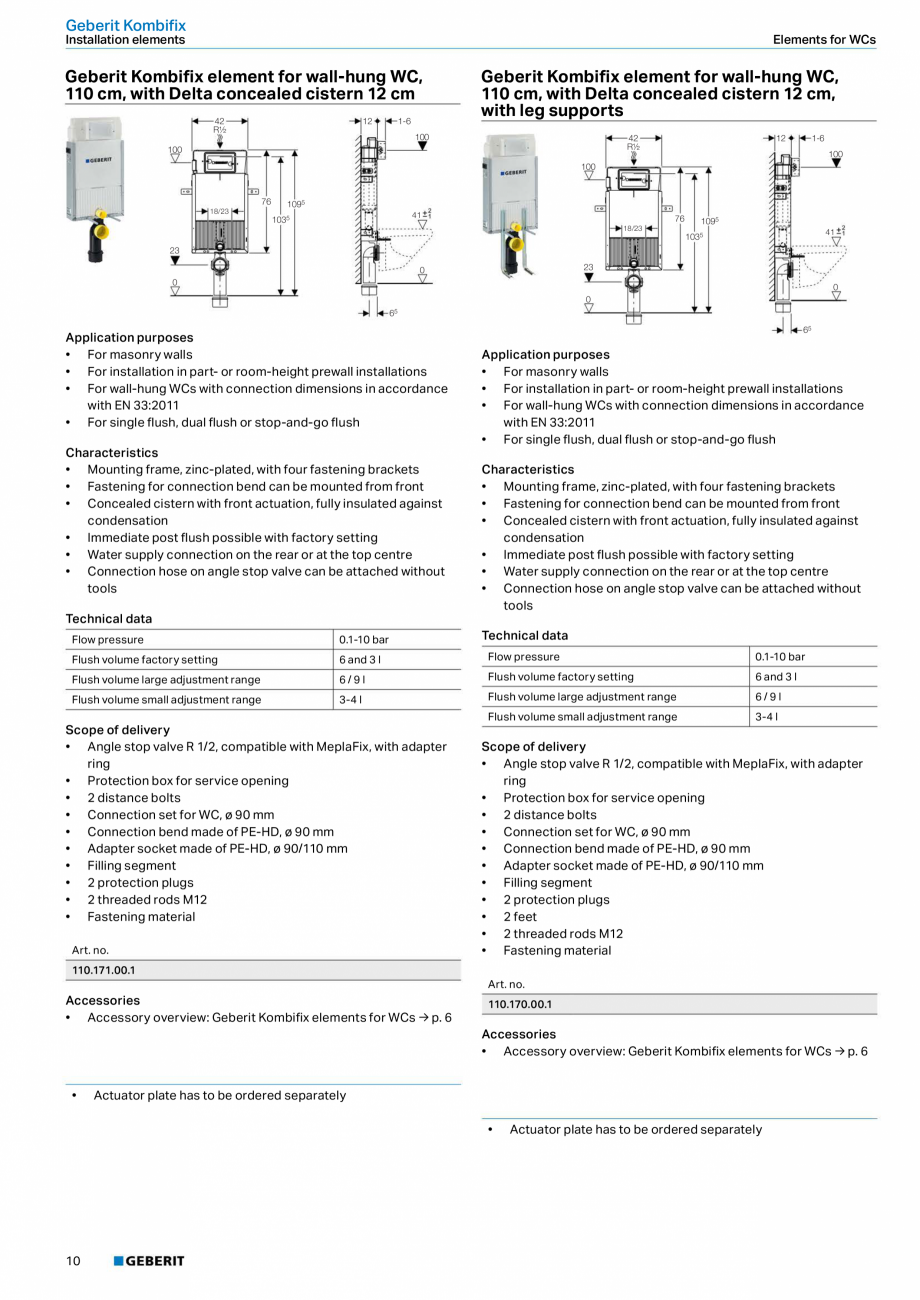

Pagina 10 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ush volume small 3l Technical data Flow pressure Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Direct plastering netting • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 110.001.00.1 Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 110.772.00.1 Accessories • Accessory overview: Geberit Kombifix elements for

Pagina 10-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

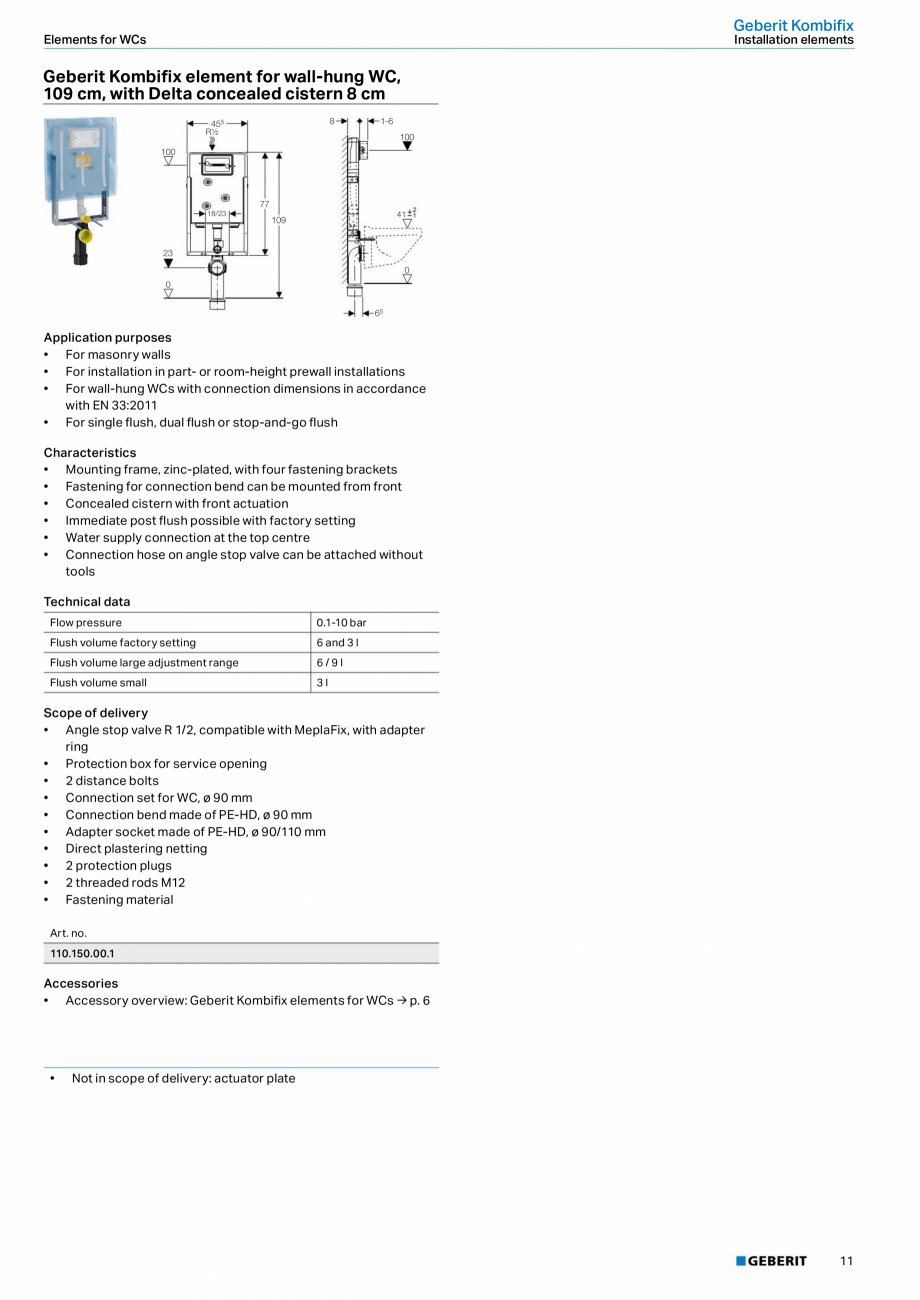

Pagina 11 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

WCs → p. 6 • • 8 Actuator plate has to be ordered separately Actuator plate has to be ordered separately Geberit Kombifix Elements for WCs Installation elements Geberit Kombifix element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm 42 12–205 15–205 ≤ 91 9 45 N ew Geberit Kombifix element for wall-hung WC, 106 cm, with Omega concealed cistern 12 cm 75 R½ 42 66 18/23 5 5 45 12 R½ 98 92 23 9 100 +2 41 −1 18/23 0 5 0 195 Application purposes • For masonry walls • For installation in part-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For dual flush Characteristics • Mounting frame, powder-coated, with four fixing brackets • Adjustable installation depth, 12–20.5 cm • Fastening for connection bend can be mounted from front • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory

Pagina 11-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

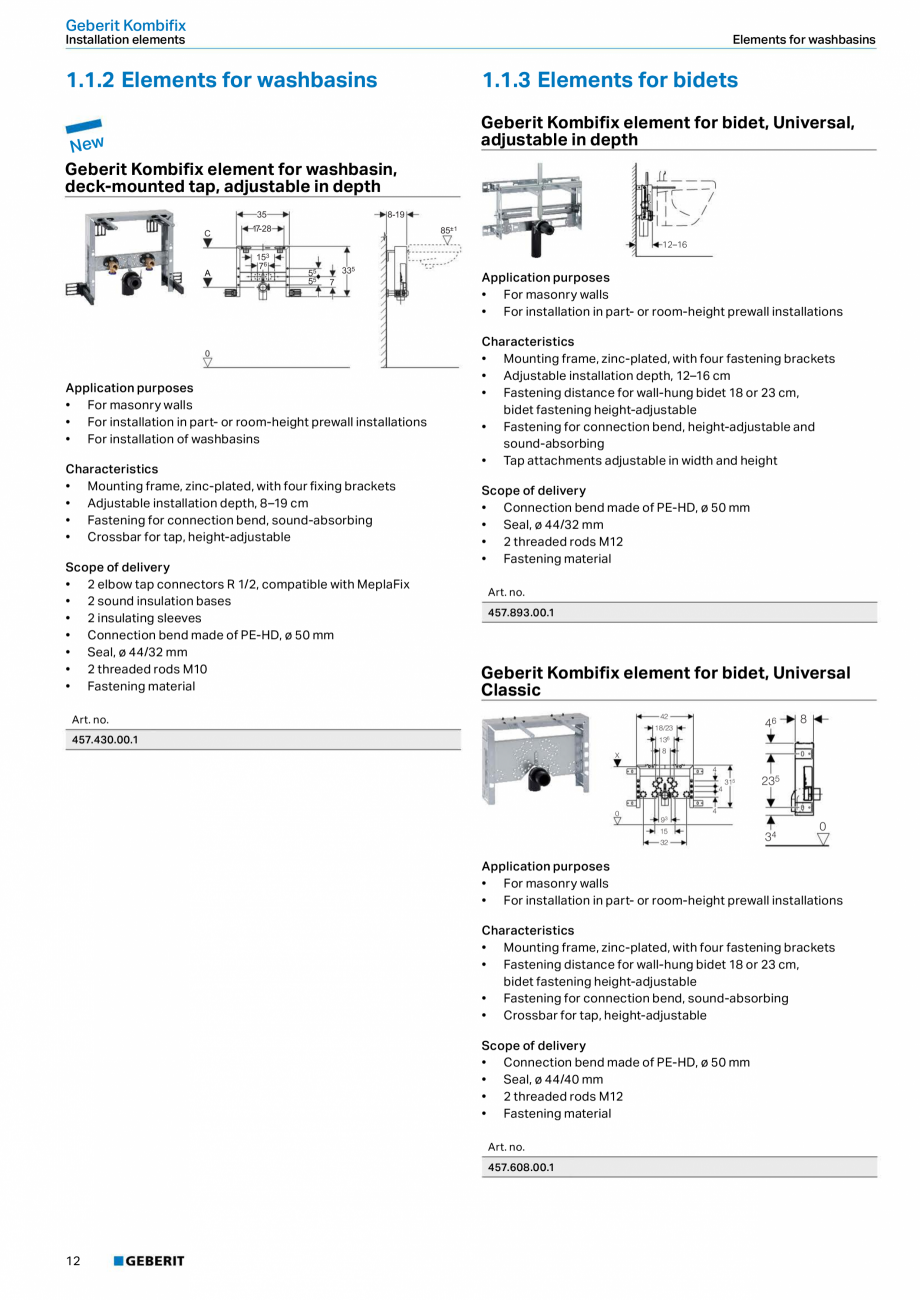

Pagina 12 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 110.011.00.1 Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 106 +2 41 −1 101 23 6 ≥ 30 76 5 0 0 195 ≥ 30 6 Applicat

Pagina 12-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 13 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ion purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For dual flush Characteristics • Mounting frame, powder-coated, with four fixing brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with Mep

Pagina 13-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 14 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

laFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Filling segment • 2 protection plugs • Sound insulation set • 2 threaded rods M12 • Fastening material Art. no. 110.020.00.1 • Actuator plate has to be ordered separately Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 • Actuator plate has to be ordered separately 9 Geberit Kombifix Installation elements Elements for WCs Geberit Kombifix element for wall-hung WC, 110 cm, with Delta concealed cistern 12 cm 12 42 R½ 1-6 Geberit Kombifix element for wall-hung WC, 110 cm, with Delta concealed cistern 12 cm, with leg supports 100 12 42 R½ 100 1-6 100 100 76 18/23 1095 41 1035 76 18/23 1095 41 1035 23 23 0 0 0 0 65 Application purposes • For masonry walls • For installation in part- or room-hei

Pagina 14-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 15 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ght prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Water supply connection on the rear or at the top centre • Connection hose on angle stop valve can be attached without tools Technical data 65 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front ac

Pagina 15-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 16 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

tuation, fully insulated against condensation • Immediate post flush possible with factory setting • Water supply connection on the rear or at the top centre • Connection hose on angle stop valve can be attached without tools Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flow pressure 0.1-10 bar Flush volume large adjustment range 6/9l Flush volume factory setting 6 and 3 l Flush volume small adjustment range 3-4 l Flush volume large adjustment range 6/9l Flush volume small adjustment range 3-4 l Scope of delivery • Angle stop valve R 1/2, compatible with MeplaFix, with adapter ring • Protection box for service opening • 2 distance bolts • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Filling segment • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. Scope of delivery • Angle stop valve R 1/2, compatible with Mep

Pagina 16-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 17 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

laFix, with adapter ring • Protection box for service opening • 2 distance bolts • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Filling segment • 2 protection plugs • 2 feet • 2 threaded rods M12 • Fastening material 110.171.00.1 Art. no. Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 110.170.00.1 Accessories • Accessory overview: Geberit Kombifix elements for WCs → p. 6 • Actuator plate has to be ordered separately • 10 Actuator plate has to be ordered separately Geberit Kombifix Elements for WCs Installation elements Geberit Kombifix element for wall-hung WC, 109 cm, with Delta concealed cistern 8 cm 8 455 R½ 1-6 100 100 77 18/23 41 109 23 0 0 65 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:20

Pagina 17-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 18 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

11 • For single flush, dual flush or stop-and-go flush Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Fastening for connection bend can be mounted from front • Concealed cistern with front actuation • Immediate post flush possible with factory setting • Water supply connection at the top centre • Connection hose on angle stop valve can be attached without tools Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6/9l Flush volume small 3l Scope of delivery • Angle stop valve R 1/2, compatible with MeplaFix, with adapter ring • Protection box for service opening • 2 distance bolts • Connection set for WC, ø 90 mm • Connection bend made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Direct plastering netting • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 110.150.00.1 Accessories • Accessory overview: Geber

Pagina 18-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 19 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

it Kombifix elements for WCs → p. 6 • Not in scope of delivery: actuator plate 11 Geberit Kombifix Installation elements Elements for washbasins 1.1.2 Elements for washbasins 1.1.3 Elements for bidets Geberit Kombifix element for bidet, Universal, adjustable in depth N ew Geberit Kombifix element for washbasin, deck-mounted tap, adjustable in depth 35 C 8-19 17-28 85±1 12–16 A 153 76 55 55 335 7 0 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For installation of washbasins Characteristics • Mounting frame, zinc-plated, with four fixing brackets • Adjustable installation depth, 8–19 cm • Fastening for connection bend, sound-absorbing • Crossbar for tap, height-adjustable Scope of delivery • 2 elbow tap connectors R 1/2, compatible with MeplaFix • 2 sound insulation bases • 2 insulating sleeves • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M

Pagina 19-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 20 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

10 • Fastening material Application purposes • For masonry walls • For installation in part- or room-height prewall installations Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Adjustable installation depth, 12–16 cm • Fastening distance for wall-hung bidet 18 or 23 cm, bidet fastening height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Tap attachments adjustable in width and height Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M12 • Fastening material Art. no. 457.893.00.1 Geberit Kombifix element for bidet, Universal Classic 42 Art. no. 46 18/23 457.430.00.1 8 136 X 8 4 4 0 315 235 4 93 15 32 34 0 Application purposes • For masonry walls • For installation in part- or room-height prewall installations Characteristics • Mounting frame, zinc-plated, with four fastening brackets • Fastening distance for wall-hung bide

Pagina 20-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 21 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

t 18 or 23 cm, bidet fastening height-adjustable • Fastening for connection bend, sound-absorbing • Crossbar for tap, height-adjustable Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/40 mm • 2 threaded rods M12 • Fastening material Art. no. 457.608.00.1 12 Geberit Kombifix Elements for urinals Installation elements 1.1.4 Elements for urinals Accessory overview: Geberit Kombifix elements for urinals Urinal flush controls with electronic flush actuation, battery operation Element for urinal, 109-127 cm, Universal Urinal flush controls with pneumatic flush actuation Urinal flush control with electronic flush actuation, mains operation, hidden, Universal Inlet crossbar for urinal, with spray head Set of studs with foot plate → p. 174 457.611.00.1 Urinal flush controls with electronic flush actuation, mains operation → p. 178 → p. 182 → p. 176 → p. 42 → p. 17 ü ü ü ü ü ü ü 457.689.00.1 Element for urinal, 10

Pagina 21-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

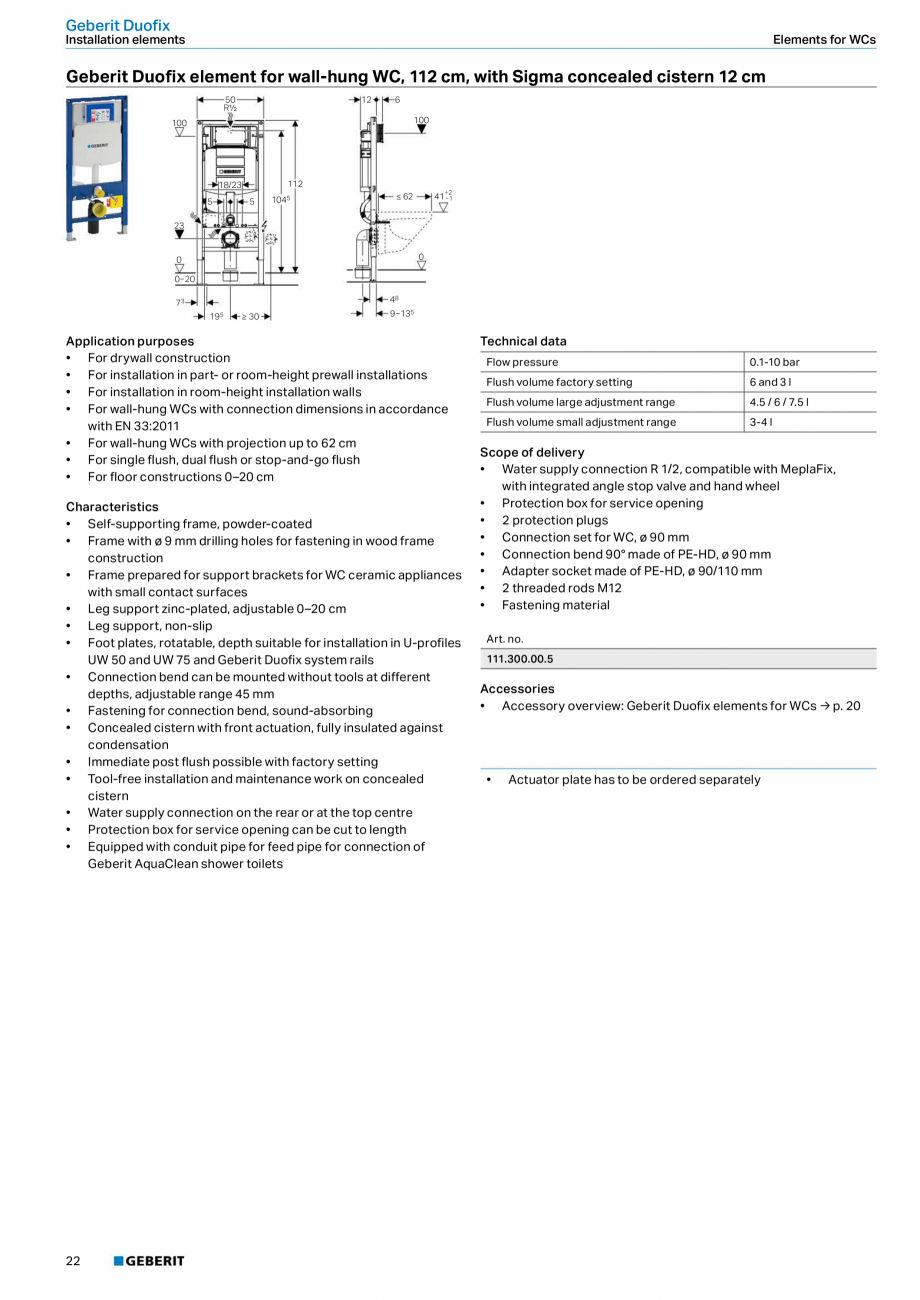

Pagina 22 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

9–127 cm, Universal, for ü hidden urinal control 457.686.00.1 Element for urinal, 109–127 cm, Universal, with ü exposed flushing valve 13 Geberit Kombifix Installation elements Elements for urinals Geberit Kombifix element for urinal, 109-127 cm, Universal 42 Geberit Kombifix element for urinal, 109–127 cm, Universal, for hidden urinal control 42 8-125 8-125 9 9-29 R1/2 17-37 min. 9 75-33 75 9 100-118 100 R1/2 max. 81 min. 31 max. 65 109-127 100 109-127 75-33 0 0 0 0 0-20 0-20 75 Application purposes • For masonry walls • For installation in part- or room-height prewall installations Characteristics • Mounting frame, zinc-plated, with four fixing brackets • Stop valve with throttle pre-mounted • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and soundabsorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be re

Pagina 22-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 23 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

trofitted with accessories to fit urinals with spray head Technical data Flow pressure 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Water supply connection R 1/2 • Protection box for service opening • Connection set for urinal, with urinal trap • Connection bend made of PE-HD, ø 50/63 mm • Seal, ø 57/50 mm • 2 protection plugs • 2 threaded rods M8 • Fastening material Art. no. 457.611.00.1 Accessories • Accessory overview: Geberit Kombifix elements for urinals → p. 13 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For Geberit urinal flush controls for covered installation, vandal-resistant Characteristics • Mounting frame, zinc-plated, with four fixing brackets • Stop valve with throttle pre-mounted • Service opening behind uri

Pagina 23-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 24 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

nal • Flexible flush hose with guide and integrated check valve • Equipped with conduit pipe to connect the sensor in the trap to the urinal flush control • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and soundabsorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be retrofitted with accessories to fit urinals with spray head Technical data Flow pressure 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Water supply connection R 1/2 • Protection box for service opening • Connection set for urinal, with urinal trap • Connection bend made of PE-HD, ø 50/63 mm • Seal, ø 57/50 mm • 2 protection plugs • 2 threaded rods M8 • Fastening material Art. no. 457.689.00.1 Accessories �

Pagina 24-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 25 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

�� Accessory overview: Geberit Kombifix elements for urinals → p. 13 14 Geberit Kombifix Elements for urinals Installation elements Geberit Kombifix element for urinal, 109–127 cm, Universal, with exposed flushing valve 42 8-125 min. 112-130 R1/2 75-33 100 109-127 0 0 75 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For exposed flushing valves Characteristics • Mounting frame, zinc-plated, with four fixing brackets • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools Scope of delivery • Water supply connection R 1/2 • Sealing washer • Connection set for urinal, with urinal trap • Connection bend made of PE-HD, ø 50/63 mm • Seal, ø 57/50 mm • 2 protection plugs • 2 threaded rods M8 • Fastening material Art. no. 457.686.00.1 Accessories • Accessory ove

Pagina 25-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 26 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

rview: Geberit Kombifix elements for urinals → p. 13 15 Geberit Kombifix Installation elements Elements for showers 1.1.5 Elements for showers Geberit Kombifix element for shower, with wall drain, floor construction height from 65 mm 9 53 8 4 355 355 35 6 168 0 3 Application purposes • For drainage of floor-even showers • For solid walls, drywalls, or prewalls in solid and drywall construction • For composite seals • For floor constructions of 65–90 mm Technical data Discharge rate Characteristics • Deviating from the requirements from EN 1253, the depth of water seal is just 30 mm • Minimum screed height at inlet 65 mm • Plaster thickness 5–30 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Height-adjustable element • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems • Adjustable inle

Pagina 26-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 27 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

t height of trap 0.4 l/s Depth of water seal 30 mm Scope of delivery • Straight connector, made of PE-HD, ø 40 mm • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 457.536.00.1 To order additionally • Ready-to-fit set Geberit Kombifix element for shower, with wall drain, floor construction height from 90 mm 9 8 53 4 355 355 5 9 193 0 3 Application purposes • For drainage of floor-even showers • For solid walls, drywalls, or prewalls in solid and drywall construction • For composite seals • For floor constructions 90–200 mm Characteristics • Quality-monitored in accordance with EN 1253-3 • Minimum screed height at inlet 90 mm • Plaster thickness 5–30 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Height-adjustable element • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for c

Pagina 27-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

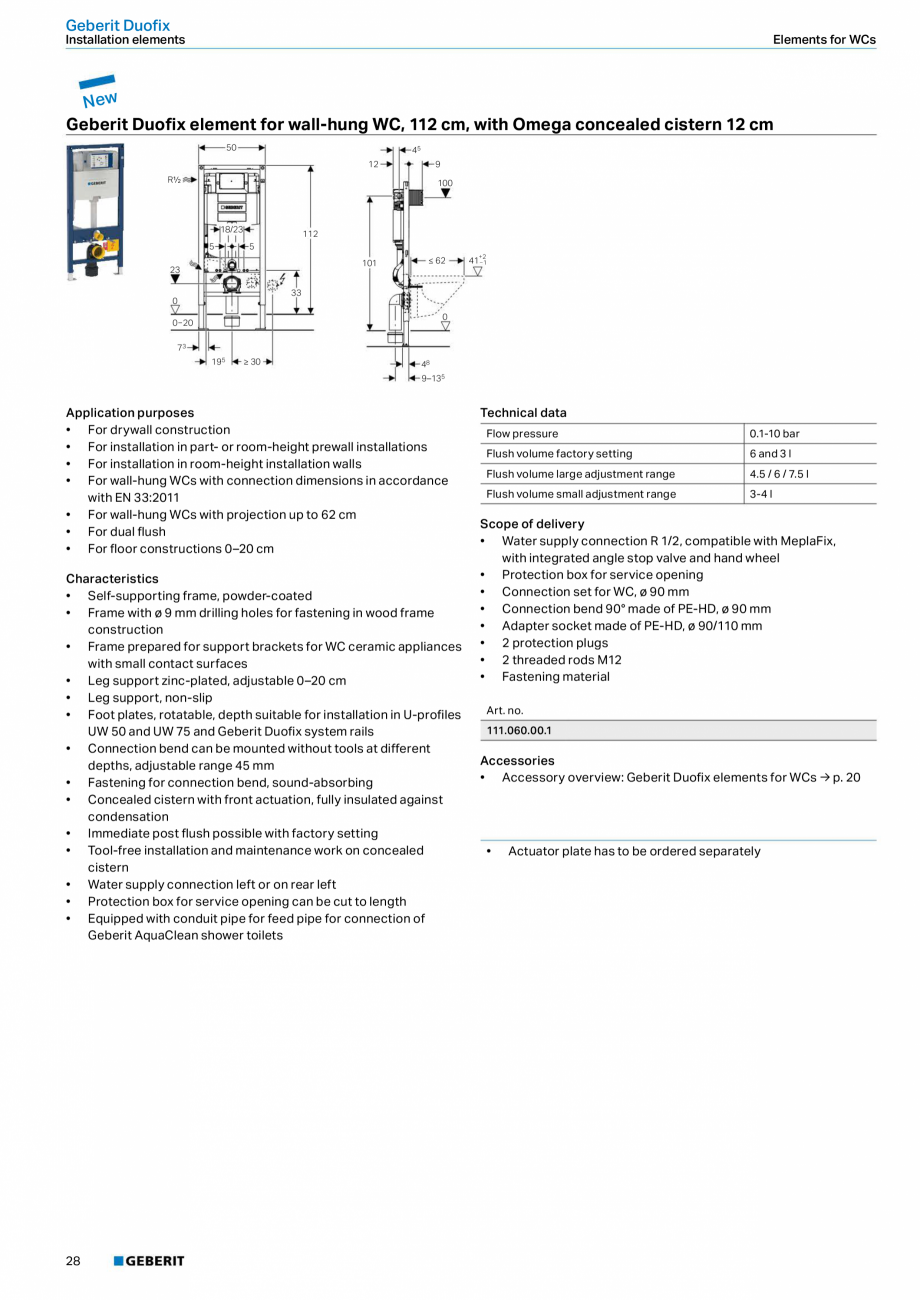

Pagina 28 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

onnecting sealing systems • Adjustable inlet height of trap 16 Technical data Discharge rate 0.8 l/s Depth of water seal 50 mm Scope of delivery • Straight connector, made of PE-HD, ø 50 mm • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 457.534.00.1 To order additionally • Ready-to-fit set Geberit Kombifix For fastenings Accessories 1.2 Accessories 1.2.1 For fastenings Geberit Kombifix set of leg supports Geberit sound insulation set for wall-hung WC 0.3 s 40 49 42 4 15 Application purposes • For masonry walls • For free-standing positioning of Geberit Kombifix installation elements • For Geberit Kombifix elements for wall-hung WC or bidet • For floor constructions 0–15 cm Application purposes • For structure-borne sound insulation of WCs and bidets • For WCs and bidets with fastening distance 18 or 23 cm Characteristics • White Technical data Material Characteristics • Zinc-plated PE-E Scope of de

Pagina 28-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 29 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

livery • 2 washers • 2 sound insulation sleeves • Sound insulation mat Scope of delivery • Set of 2 pieces Art. no. Art. no. 457.888.26.1 156.050.00.1 s [mm] 6 Geberit Kombifix set of studs with foot plate 25 86 15 7 Application purposes • For masonry walls • For free-standing positioning of Geberit Kombifix installation elements • For floor constructions 0–25 cm Characteristics • Zinc-plated Technical data Material Steel Scope of delivery • Set of 2 pieces Art. no. 457.872.26.1 17 Geberit Duofix 2. Geberit Duofix 2.1 Installation elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.1.1 2.1.7 Elements for WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Accessory overview: Geberit Duofix elements for WCs . . . . . . . . . . . . . . . . . . . . .20 Elements for washbasins . . . . . . . . . . . . . . . . . . . . .

Pagina 29-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

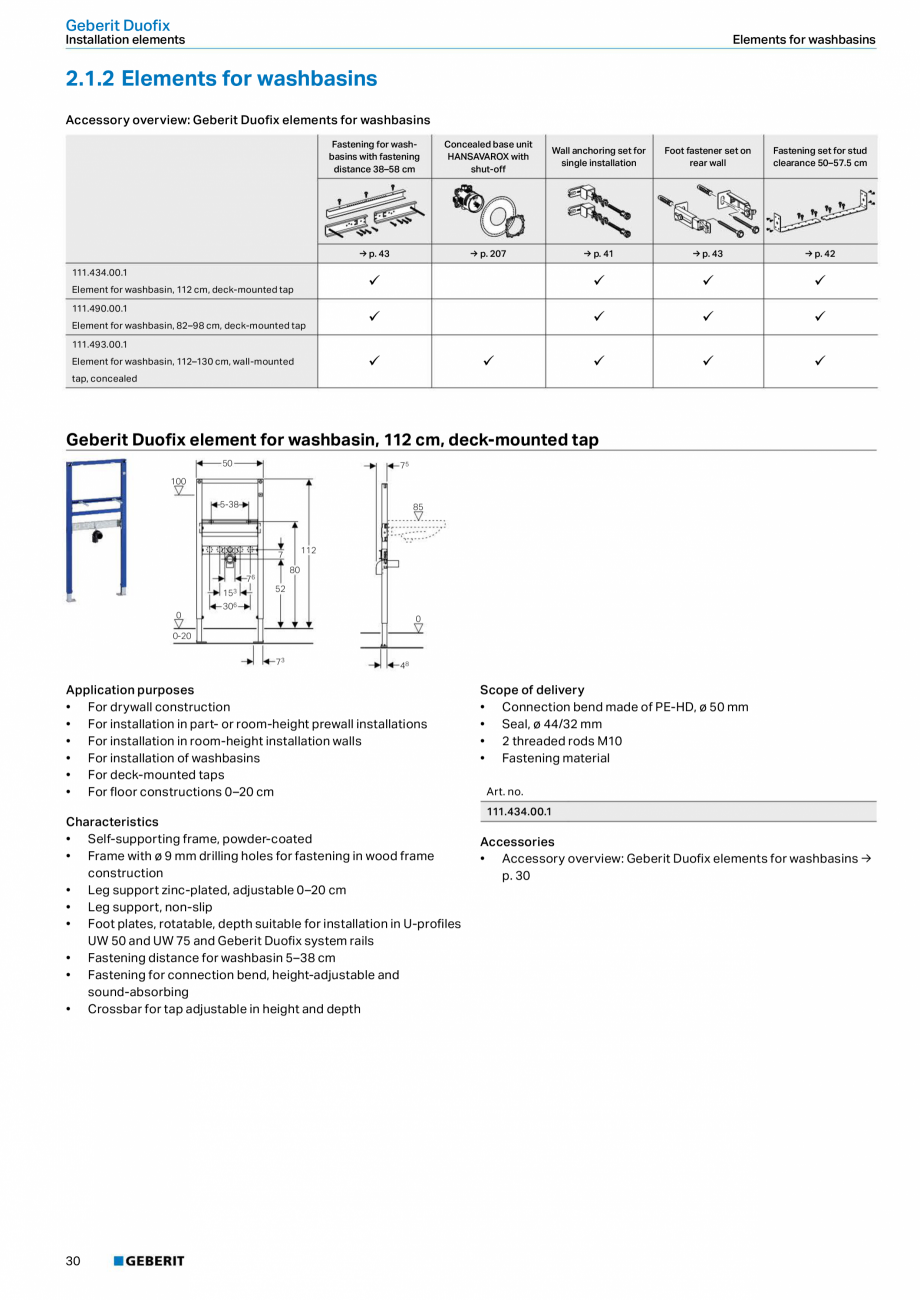

Pagina 30 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Accessory overview: Geberit Duofix elements for washbasins . . . . . . . . . . . . . .30 Elements for bidets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Elements for urinals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Accessory overview: Geberit Duofix elements for urinals . . . . . . . . . . . . . . . . . . .33 Elements for showers, with wall drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Elements for showers and bathtubs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Accessory overview: Geberit Duofix elements for showers and bathtubs . . .40 Elements for loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 2.2 Accessories. . . . . . . . . .

Pagina 30-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 31 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 2.2.1 For installation elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 2.1.2 2.1.3 2.1.4 2.1.5 2.1.6 19 Geberit Duofix Installation elements Elements for WCs 2.1 Installation elements 2.1.1 Elements for WCs Accessory overview: Geberit Duofix elements for WCs Actuator plates of the Sigma series Actuator plates of the Omega series Actuator plates of the Delta series Set of support brackets for WC ceramic appliances with small contact surfaces → p. 70 → p. 82 → p. 86 → p. 43 111.300.00.5 Element for wall-hung WC, 112 cm, with Sigma concealed ü ü ü1) ü cistern 12 cm 111.370.00.5 Element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, for odour extraction with recirculating air 111.390.00.5 Element for wall-hung WC, 112 cm, with Sigma concealed ü cistern 12 cm, corner constr

Pagina 31-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

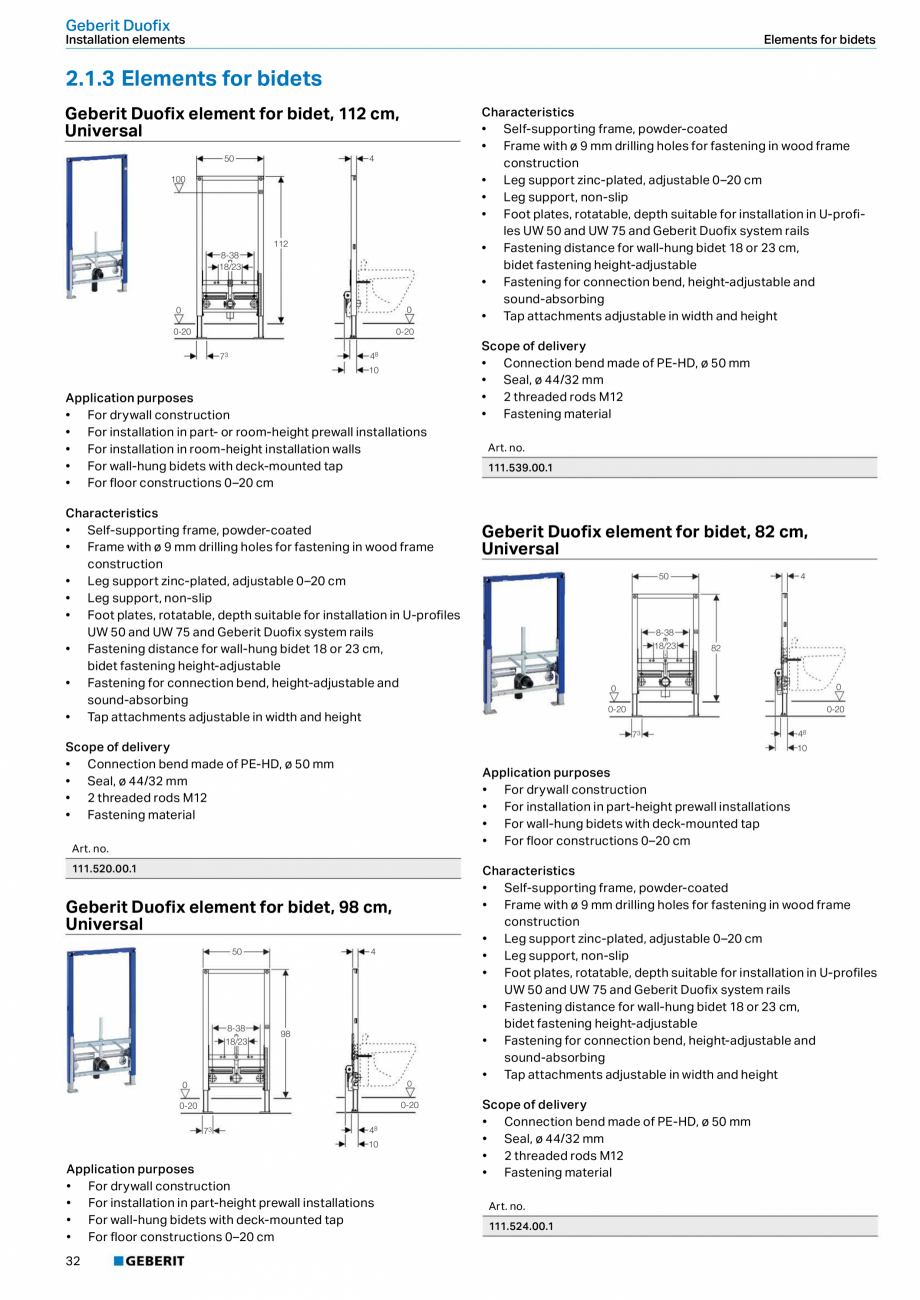

Pagina 32 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

uction 111.726.00.1 Element for wall-hung WC, 112 cm, with Sigma concealed ü cistern 8 cm 111.060.00.1 Element for wall-hung WC, 112 cm, with Omega concealed ü ü ü ü ü ü cistern 12 cm 111.030.00.1 Element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm 111.003.00.1 Element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm 458.160.00.1 Element for wall-hung WC, 112 cm, with Delta concealed cistern 12 cm, without crossbar for panelling support 1) Not suitable for Geberit actuator plate Sigma60 20 ü ü Geberit Duofix Elements for WCs Installation elements Wall anchoring set for single installation Wall anchoring set for single installation, for elements without fixed crossbar Foot fastener set on rear wall Fastening set for stud clearance 50–57.5 cm Concealed outlet for drywall and solid wall construction → p. 41 → p. 41 → p. 43 → p. 42 → p. 281 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü

Pagina 32-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

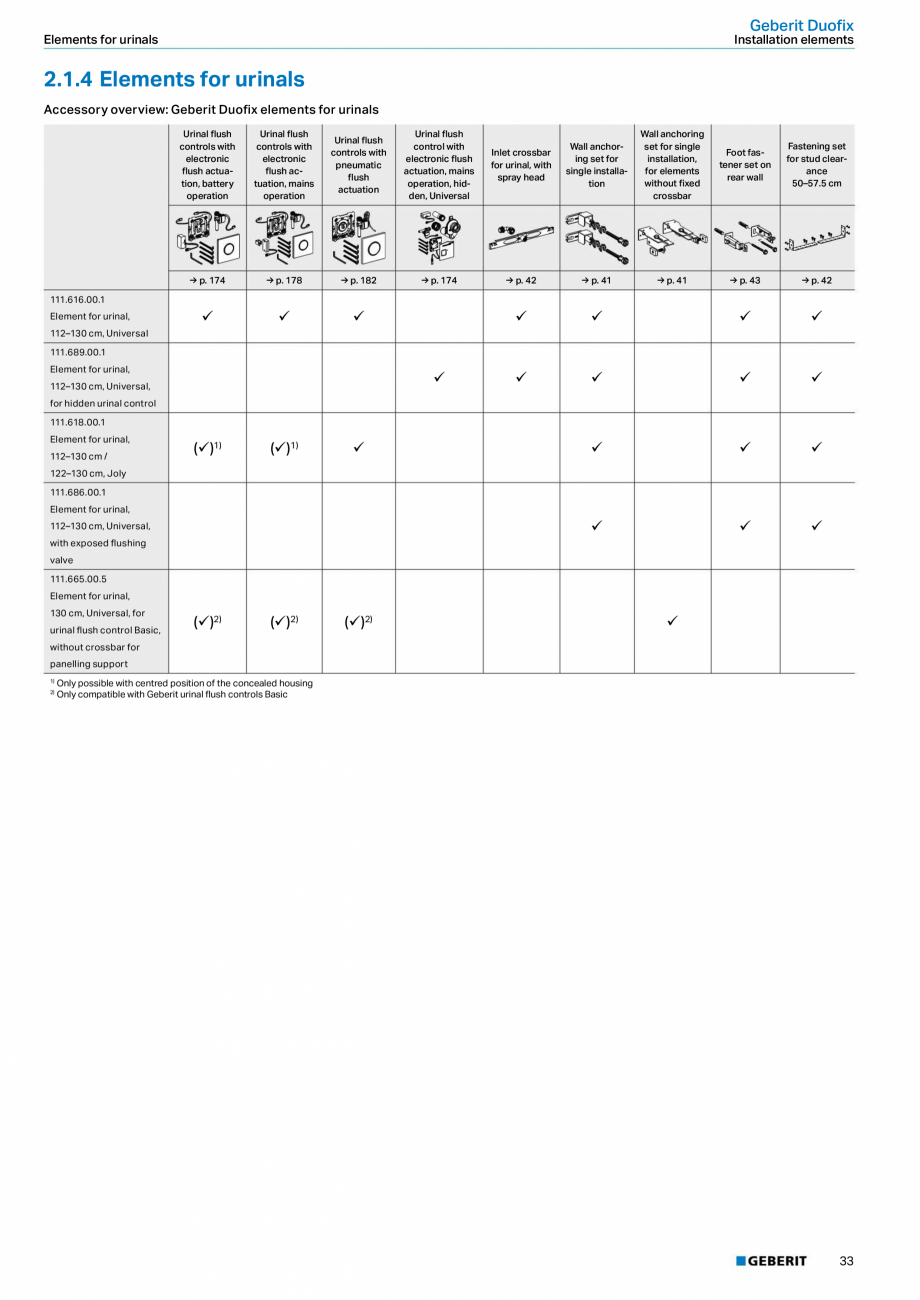

Pagina 33 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ü ü ü ü ü 21 Geberit Duofix Installation elements Elements for WCs Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm 12 50 R½ 6 100 100 112 18/23 5 5 1045 +2 41 −1 ≤ 62 23 0 0 0−20 48 73 195 ≥ 30 9−135 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotata

Pagina 33-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 34 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ble, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 22 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for

Pagina 34-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

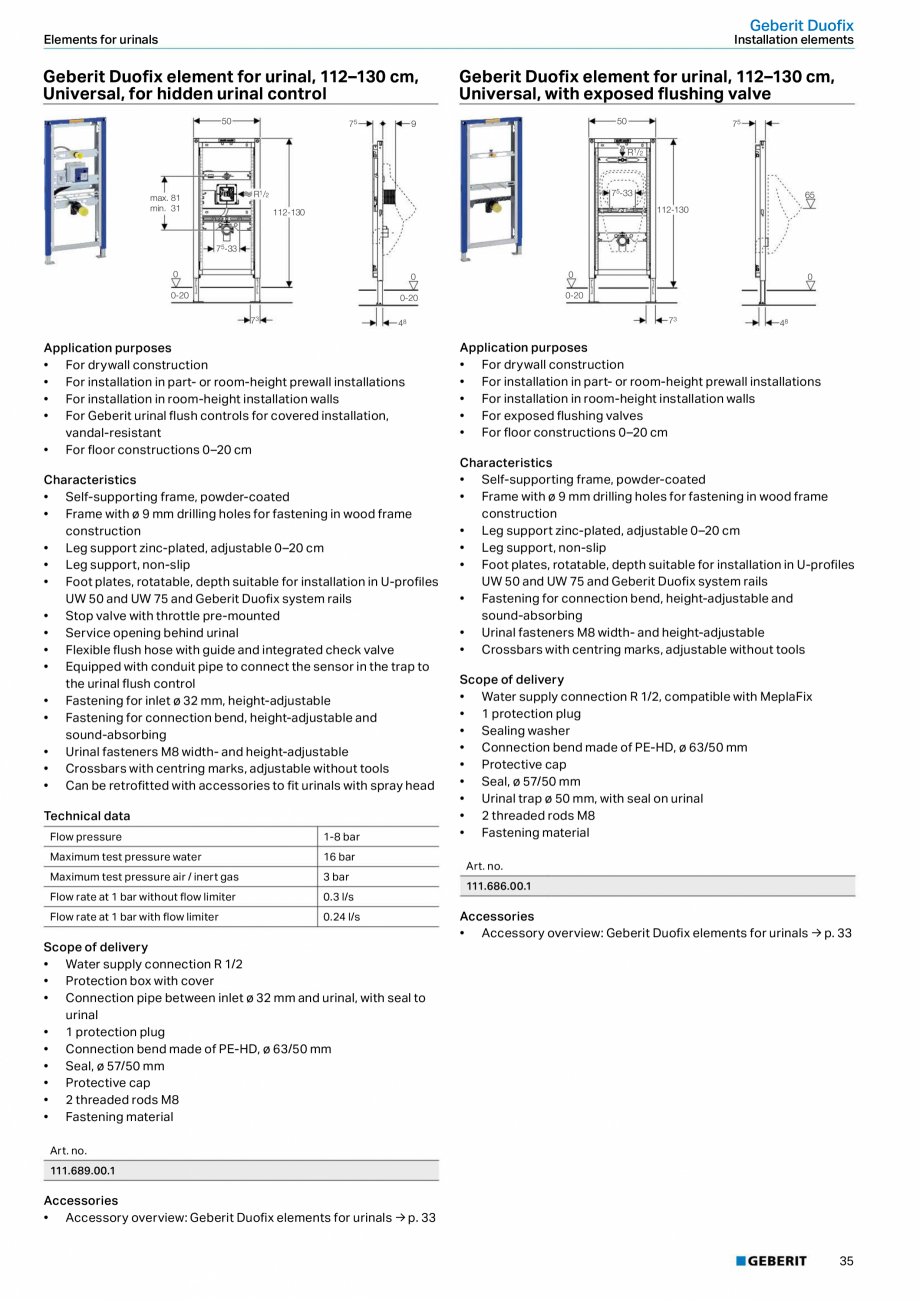

Pagina 35 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

service opening • 2 protection plugs • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Fastening material Art. no. 111.300.00.5 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, for odour extraction with recirculating air 12 50 R½ 6 100 100 18/23 5 5 112 +2 41 −1 ≤ 62 23 0 0 0−20 48 73 195 ≥ 30 9−135 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For connecting an odour extracti

Pagina 35-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 36 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

on unit using Geberit actuator plate Sigma40 • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Can be used without odour extraction unit for dual flush, single flush or stop-and-go flush • Immediate post flush possible with factory setting • Concealed cistern prepared for odour extraction unit with recirculating air • Tool-free

Pagina 36-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 37 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

installation and maintenance work on concealed cistern • Water supply connection at the top, offset to left side • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets • Concealed outlet for power supply unit can be clamped in the drilling hole of the panelling • Conduit pipe for electrical connection, 1.6 m, pre-mounted on cistern Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • 2 protection plugs • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Concealed outlet for drillin

Pagina 37-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

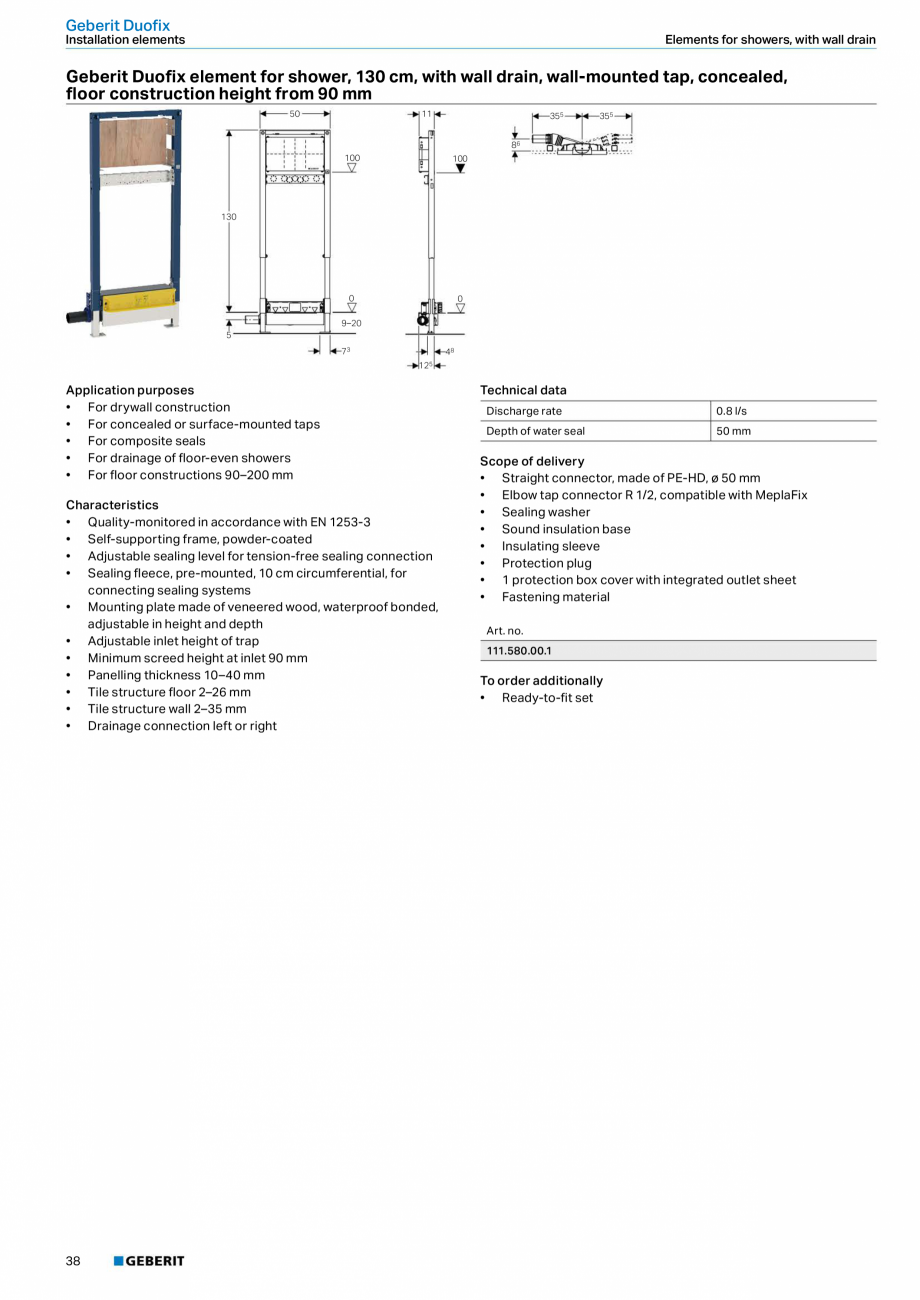

Pagina 38 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

g hole ø 76 mm, for power supply unit • Fastening material Art. no. 111.370.00.5 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 23 Geberit Duofix Installation elements Elements for WCs Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, corner construction 53−76 R½ 128 6 100 100 112 18/23 5 5 +2 ≤ 62 1045 41 −1 23 0 0 0−20 9 48 195 11 ≥ 30 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For free-standing installation with wall fixation on one side • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Variable wall fixture 30°–60°, can be

Pagina 38-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 39 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

pulled out 10 cm on both sides • Integrated panelling support at front, top and sides, extendible • Minimum and maximum dimensions for floor area: W = 56 / 76 cm, D = 28 / 38 cm, leg length = 39.6 / 53.7 cm • Frame suitable for WC ceramic appliances with small contact surface • Leg support zinc-plated, adjustable 0–20 cm • Leg support not on the perimeter for lateral offset of discharge pipe • Straight connector can be mounted without tools • Fastening for straight connector, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 24 Technical data Flow pressure 0.1-10 bar Flush volu

Pagina 39-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

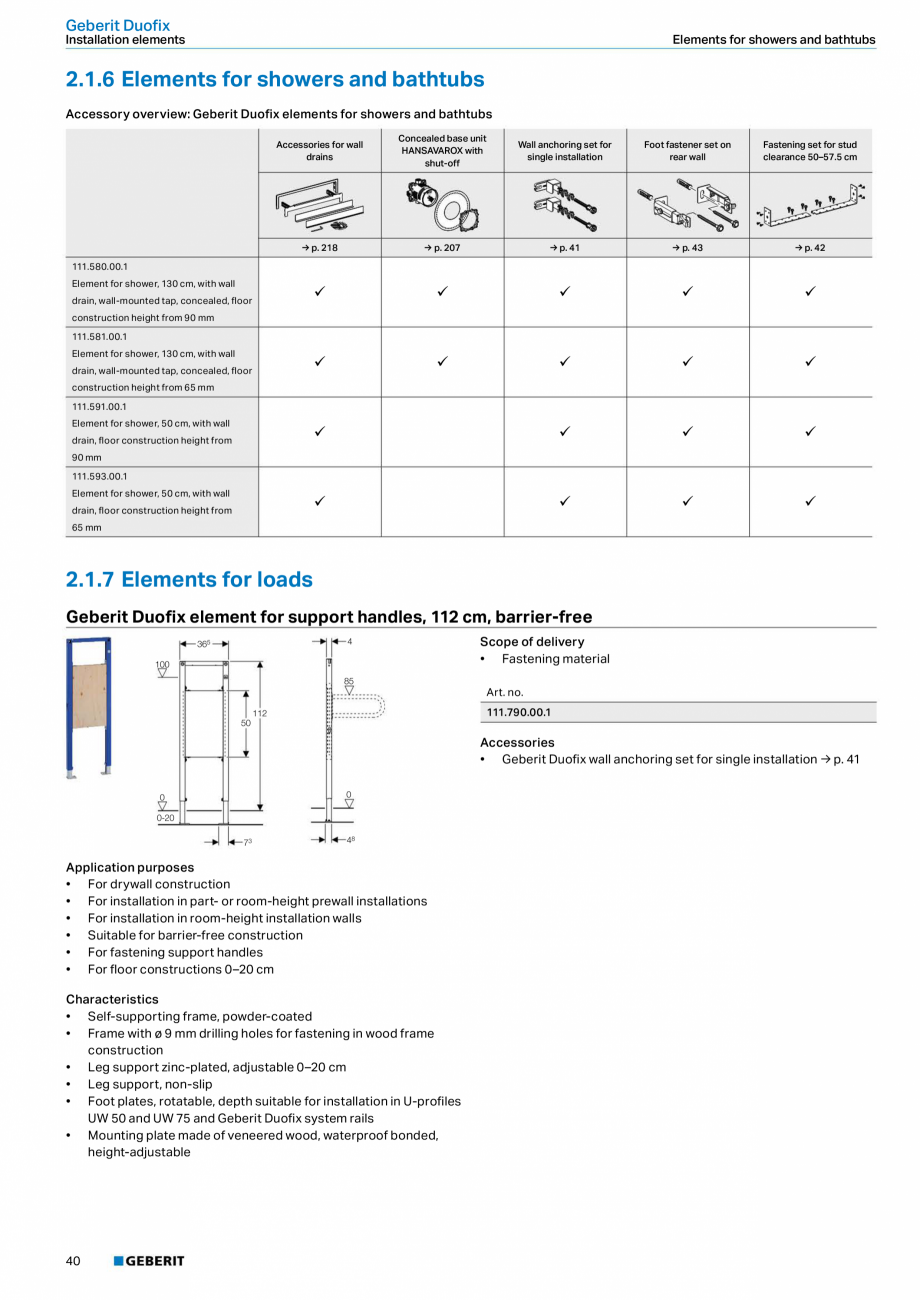

Pagina 40 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

me factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Concealed outlet for drilling hole ø 68 mm, for electrical connection • Fastening material • Connection for single-side wall fixation Art. no. 111.390.00.5 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 8 cm 8 59 R½ 1–5 98 100 135 18/23 5 112 5 ≤ 62 41+2 –1 98 23 0 0 0 0–12 0�

Pagina 40-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 41 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

�12 0–12 48 9 45 ≥ 34 16 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–12 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support, zinc-plated, infinitely variable in height • Leg support, non-slip • Foot plate depth suitable for installation in U-profiles UW 50 and Geberit Duofix system rails • Connection bend can be installed without tools at different depths • Connection bend can be mounted vertically with front flush • Waste connector bend, extended, for connection in floor • Fastening for connection bend, sound-absorbing • Conc

Pagina 41-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

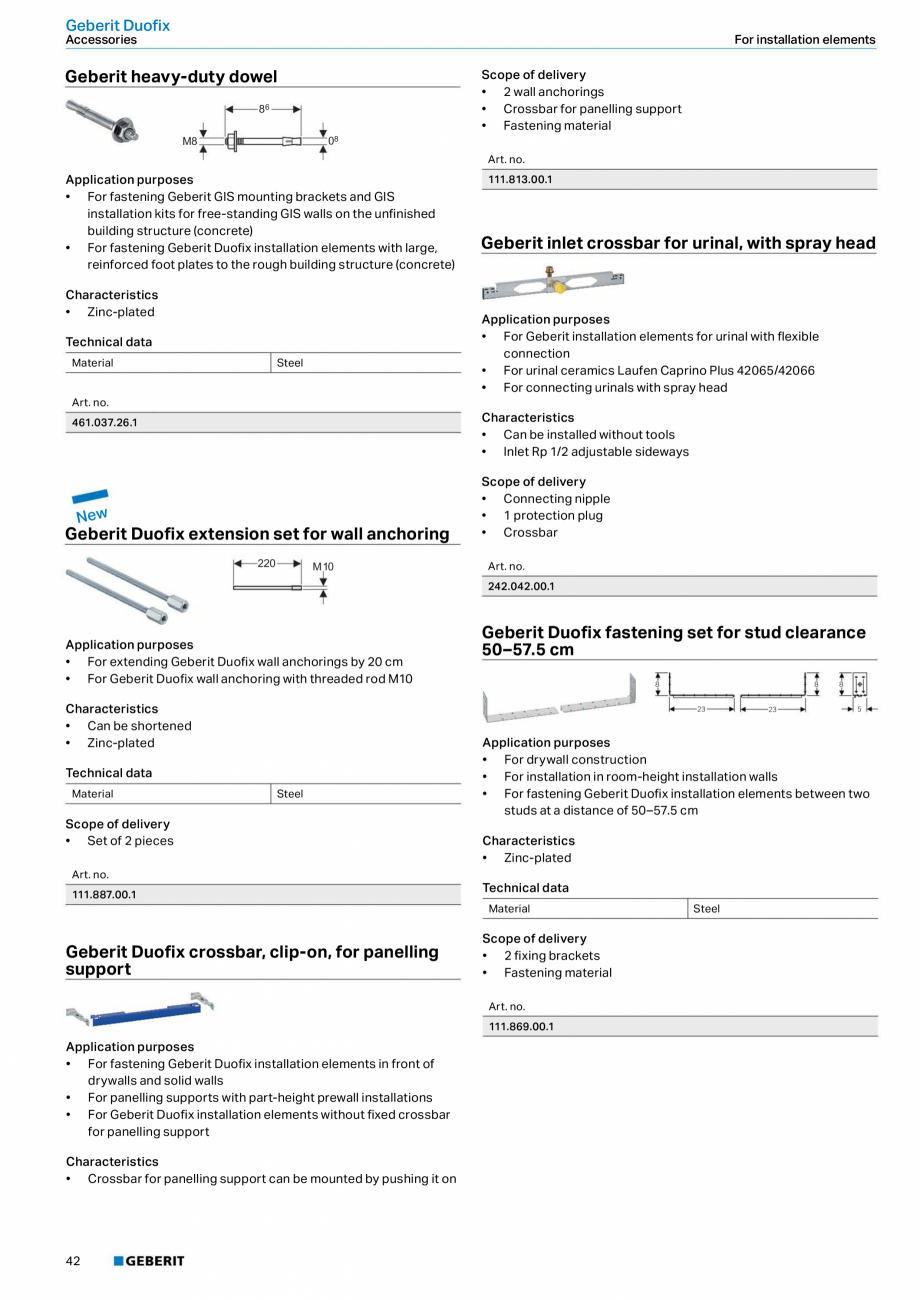

Pagina 42 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection at the top, offset to left side • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6/9l Flush volume small 3l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • 2 protection plugs • 2 wall anchorings • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Fastening material Art. no. 111.726.00.1 Accessories • Accesso

Pagina 42-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

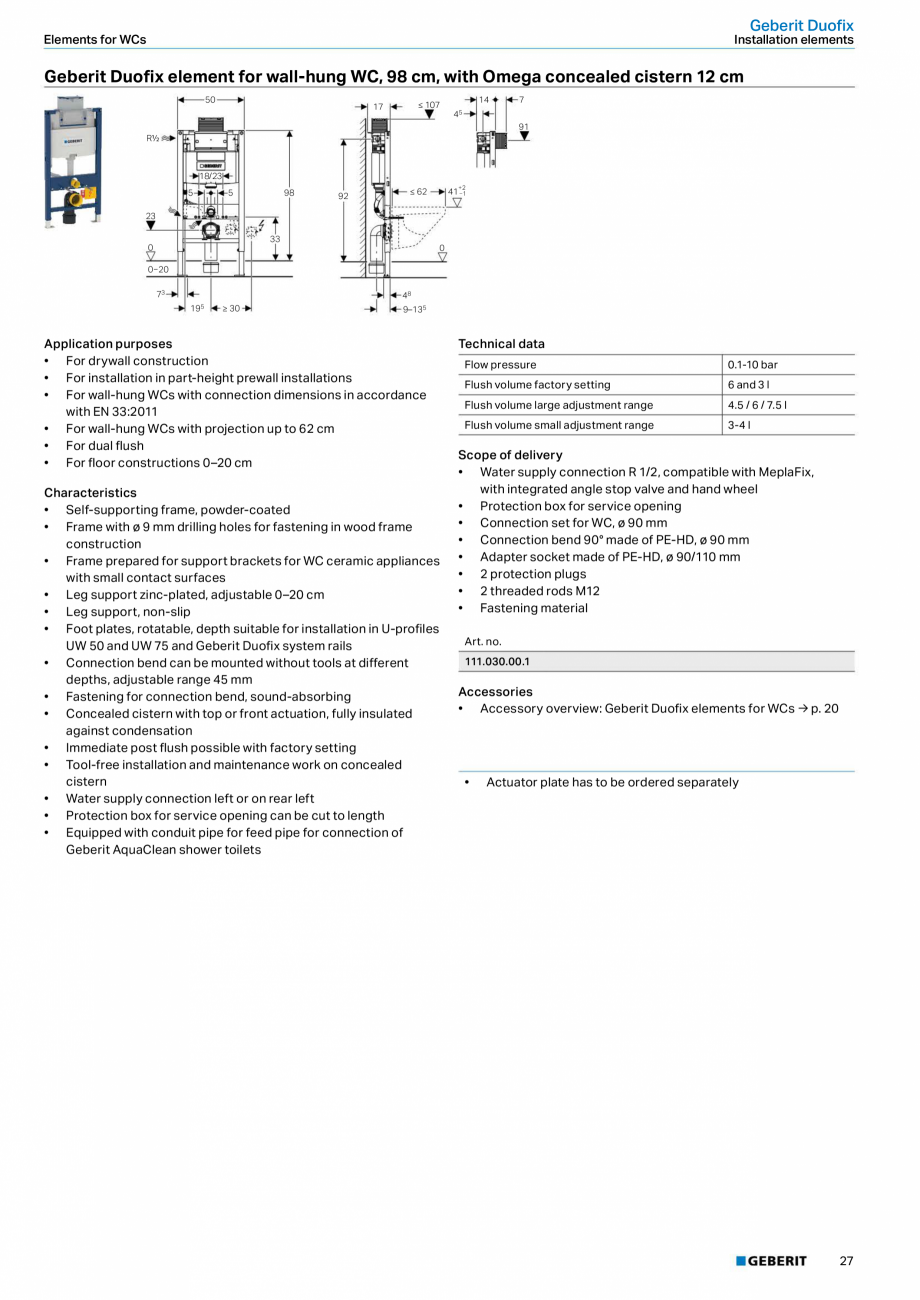

Pagina 43 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ry overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 25 Geberit Duofix Installation elements Elements for WCs Geberit Duofix element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm 50 14 ≤ 91 17 7 45 75 R½ 18/23 5 5 ≤ 62 82 +2 40 −1 76 22 32 0 0 0−20 73 195 ≥ 30 48 9–135 Application purposes • For drywall construction • For installation in part-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable

Pagina 43-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 44 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 26 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service

Pagina 44-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 45 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 111.003.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm 50 ≤ 107 17 14 7 45 91 R½ 18/23 5 98 5 92 +2 41 −1 ≤ 62 23 33 0 0 0−20 73 48 195 ≥ 30 9–135 Application purposes • For drywall construction • For installation in part-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9

Pagina 45-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 46 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flu

Pagina 46-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

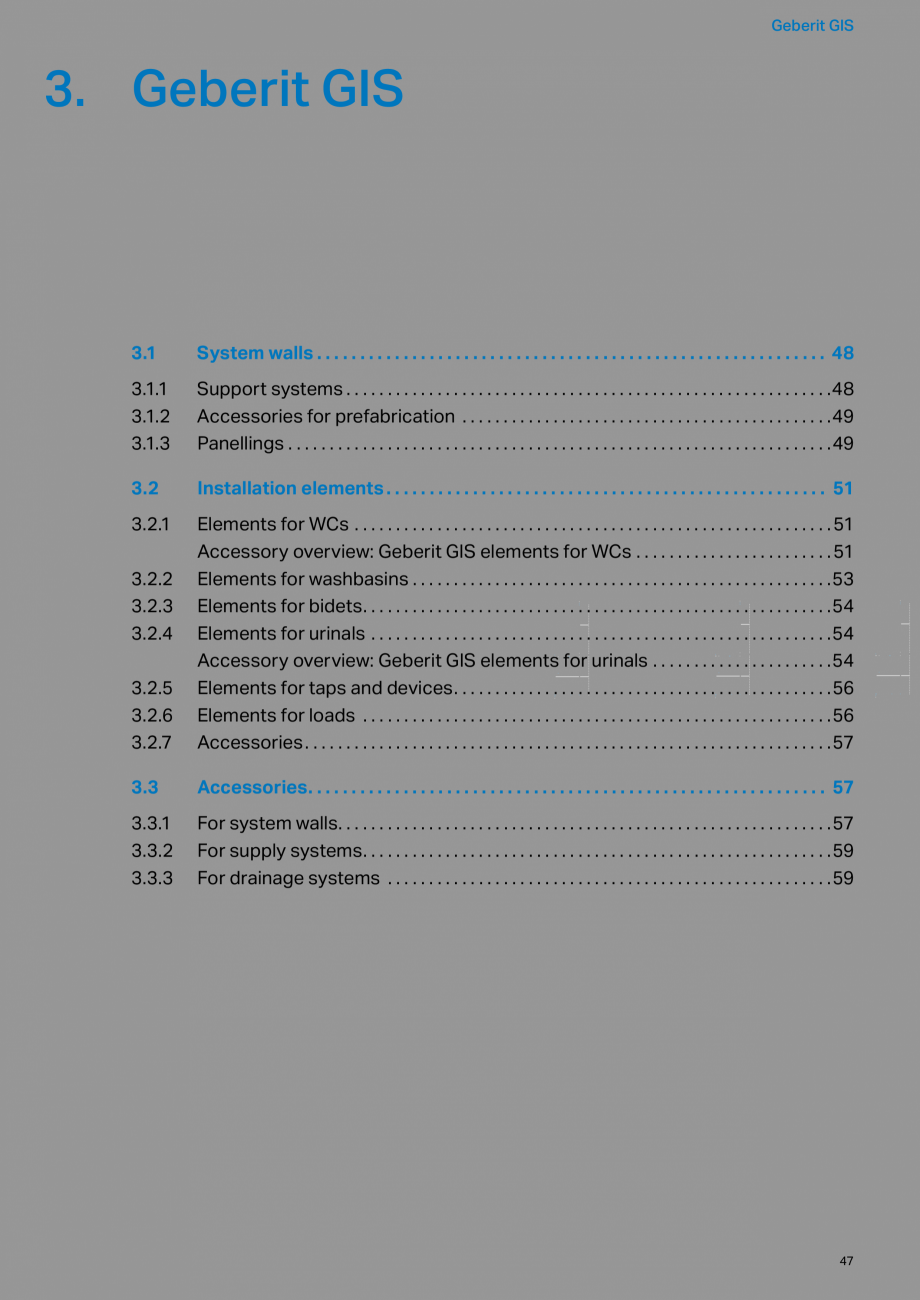

Pagina 47 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

sh volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 111.030.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 27 Geberit Duofix Installation elements Elements for WCs N ew Geberit Duofix element for wall-hung WC, 112 cm, with Omega concealed cistern 12 cm 50 45 12 9 R½ 100 18/23 5 112 5 101 23 ≤ 62 +2 41 −1 33 0 0 0−20 73 195 ≥ 30 48 9–135 Application purposes • For drywall construction • For installation in part- or room-height prewall installations •

Pagina 47-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

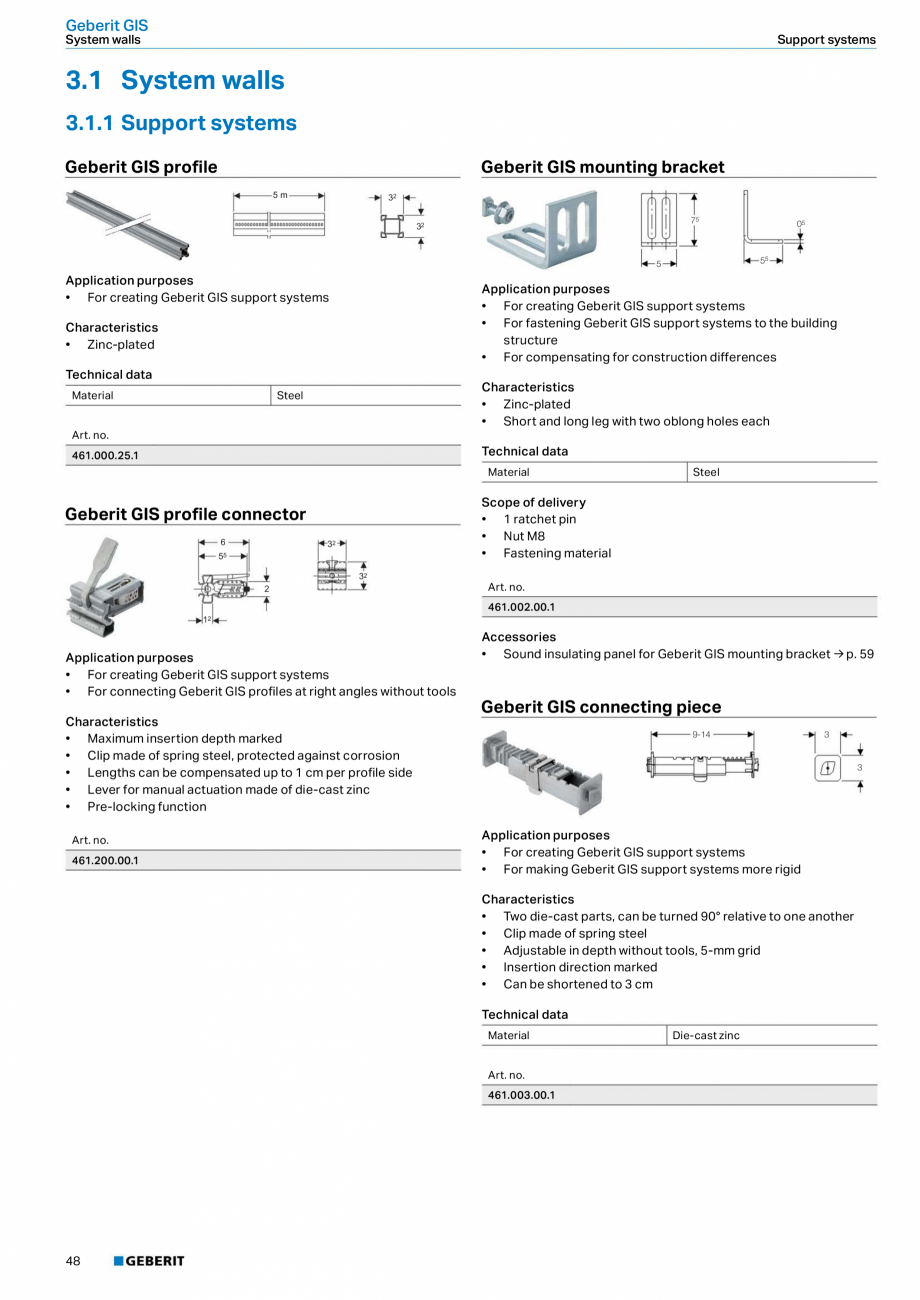

Pagina 48 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on con

Pagina 48-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 49 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

cealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 28 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 111.060.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix e

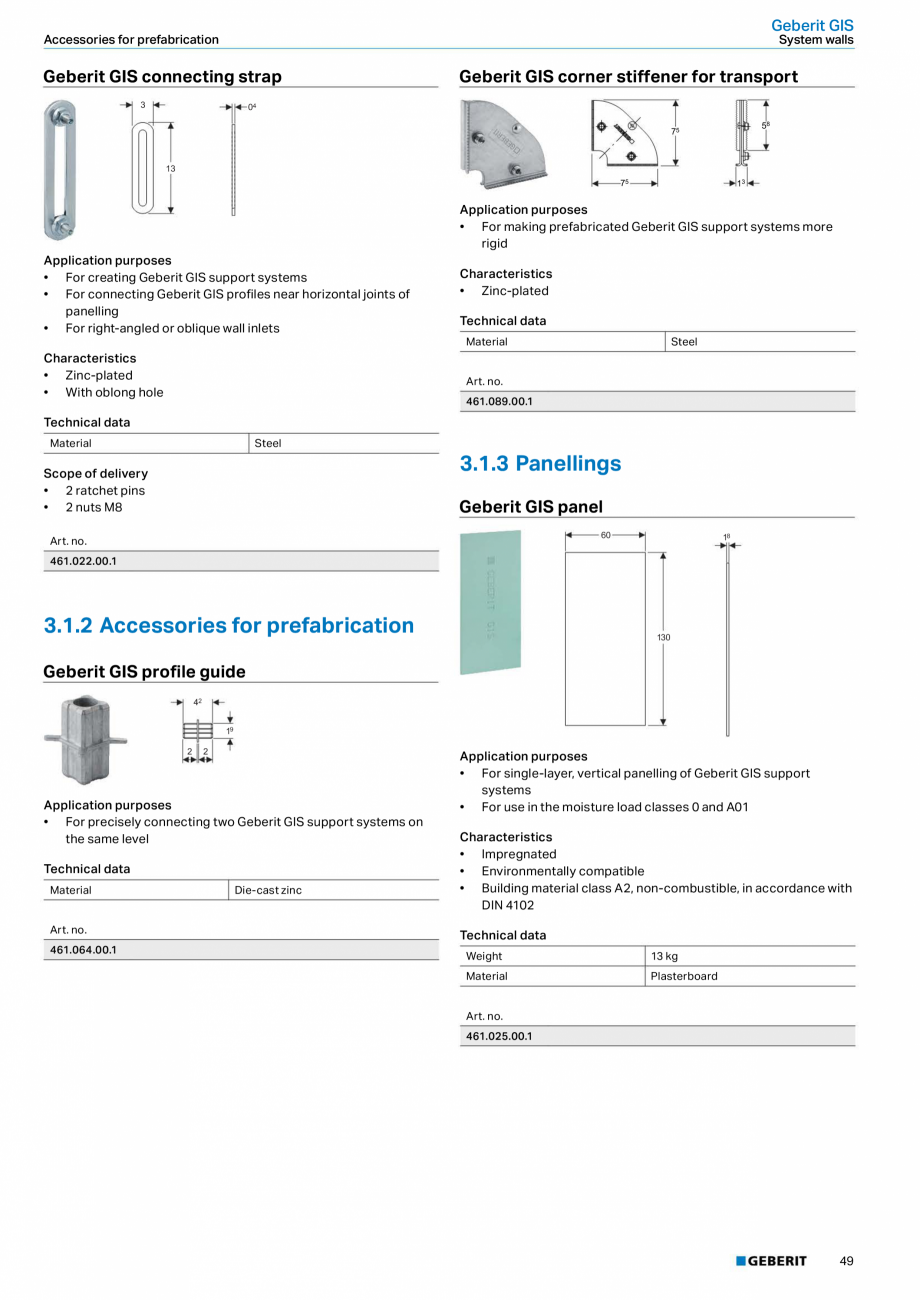

Pagina 49-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

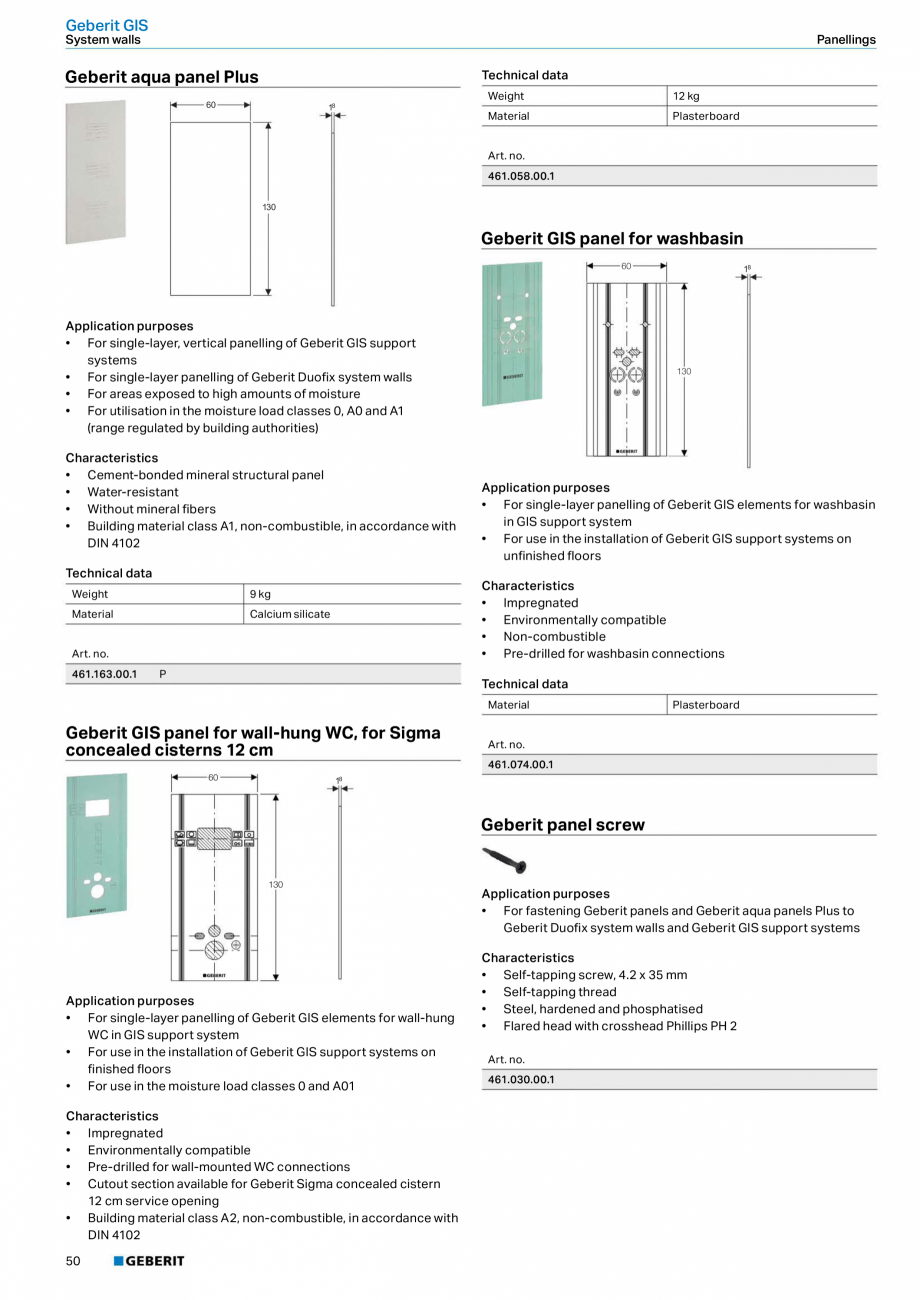

Pagina 50 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

lement for wall-hung WC, 112 cm, with Delta concealed cistern 12 cm, without crossbar for panelling support 50 R1/2 12 1–6 100 100 18/23 112 1045 ≤ 62 +2 41 −1 23 0 0 0–20 0-20 73 48 9/11 (d 90) 10/12 (d 110) Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame with holes to receive Geberit Duofix wall anchoring for elements without fixed crossbar • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 c

Pagina 50-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 51 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

m • Foot plates made of plastic, depth suitable for installation in Uprofiles UW 50 • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Water supply connection on the rear or at the top centre Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6/9l Flush volume small adjustment range 3-4 l Scope of delivery • Angle stop valve R 1/2, with adapter ring • Protection box for service opening, made of polystyrene foam • 2 distance bolts • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 458.160.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 29 Geberit Duofix Installation elements

Pagina 51-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

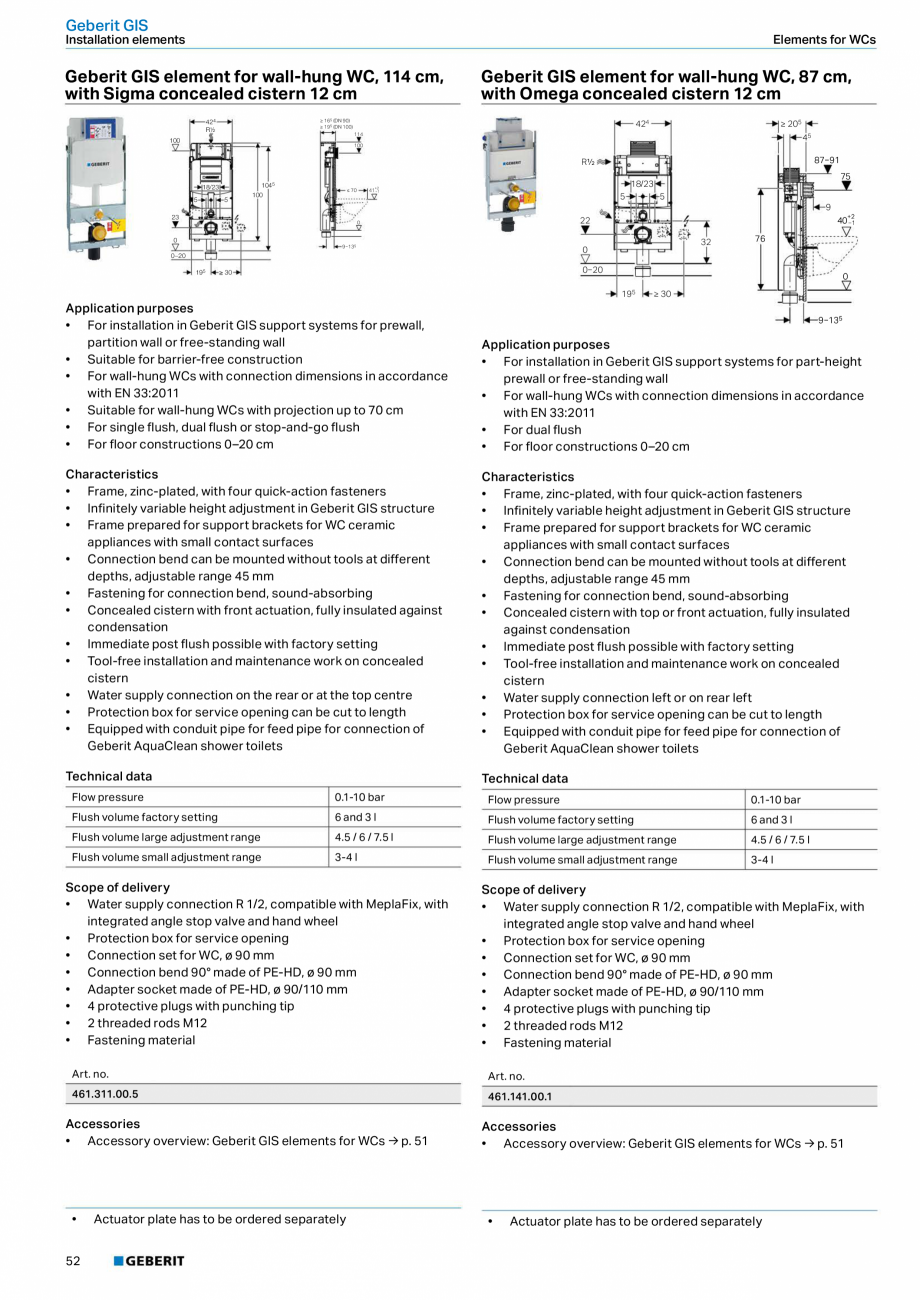

Pagina 52 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

Elements for washbasins 2.1.2 Elements for washbasins Accessory overview: Geberit Duofix elements for washbasins Fastening for washbasins with fastening distance 38–58 cm 111.490.00.1 Element for washbasin, 82–98 cm, deck-mounted tap Foot fastener set on rear wall Fastening set for stud clearance 50–57.5 cm → p. 207 → p. 41 → p. 43 → p. 42 ü Element for washbasin, 112 cm, deck-mounted tap Wall anchoring set for single installation → p. 43 111.434.00.1 Concealed base unit HANSAVAROX with shut-off ü ü ü ü ü ü ü ü ü ü 111.493.00.1 ü Element for washbasin, 112–130 cm, wall-mounted ü tap, concealed Geberit Duofix element for washbasin, 112 cm, deck-mounted tap 50 75 100 5-38 85 112 7 80 76 153 0 52 306 0 0-20 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For installation of washbasins

Pagina 52-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 53 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

• For deck-mounted taps • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for washbasin 5–38 cm • Fastening for connection bend, height-adjustable and sound-absorbing • Crossbar for tap adjustable in height and depth 30 Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M10 • Fastening material Art. no. 111.434.00.1 Accessories • Accessory overview: Geberit Duofix elements for washbasins → p. 30 Geberit Duofix Elements for washbasins Installation elements Geberit Duofix element for washbasin, 82–98 cm, deck-mounted tap 50 Geberit Duofix element for washbasin, 112–130 c

Pagina 53-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

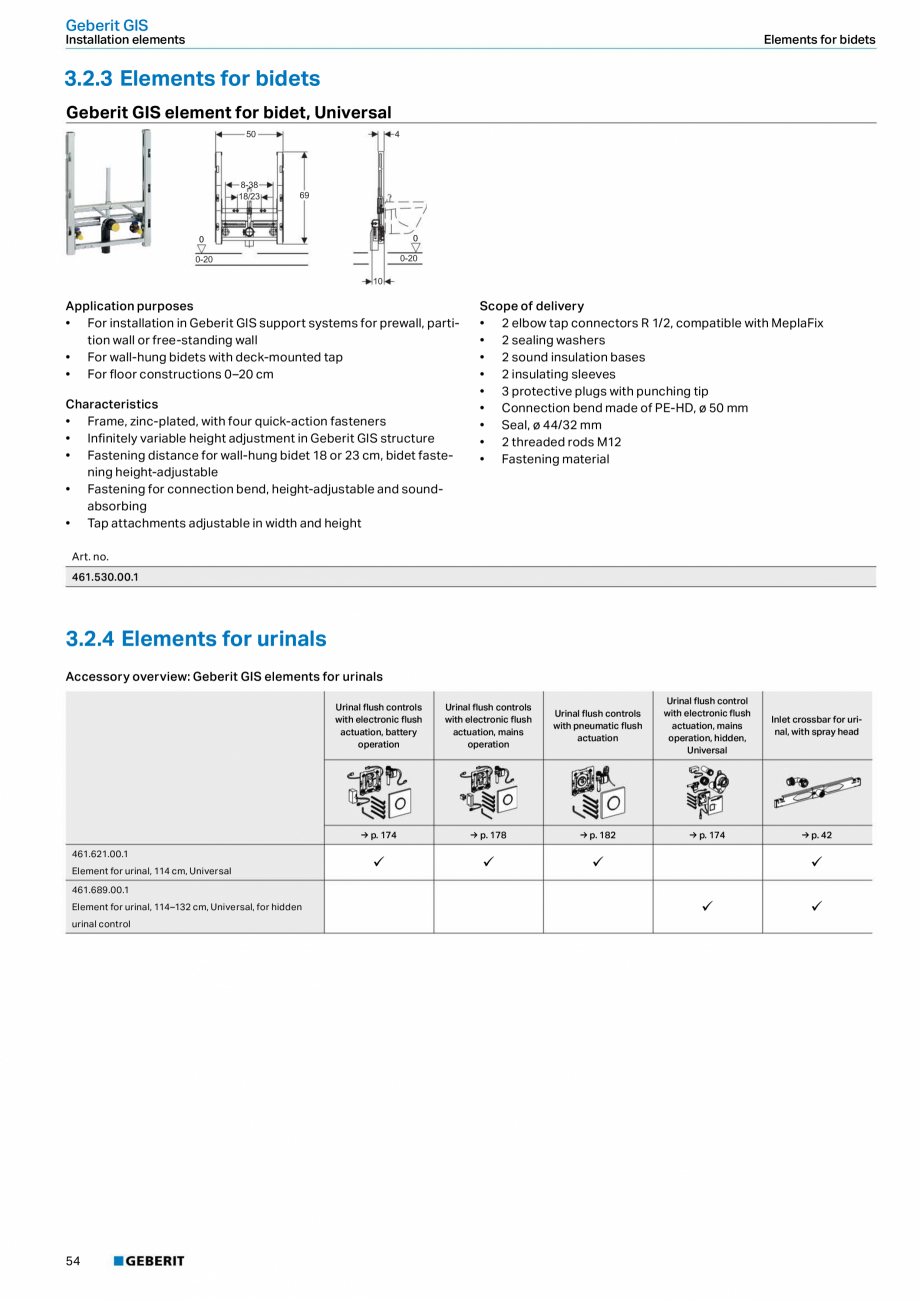

Pagina 54 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

m, wall-mounted tap, concealed 11 50 75 5-38 85 85 5-38 7 76 153 0 98 80 (82) 112-130 80 52 52 0 306 0 0 0-20 0-20 48 73 Application purposes • For drywall construction • For installation in part-height prewall installations • For installation of washbasins • For deck-mounted taps • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for washbasin 5–38 cm • Fastening for connection bend, height-adjustable and sound-absorbing • Crossbar for tap adjustable in height and depth Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M10 • Fastening material Art. no. 111.490.

Pagina 54-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

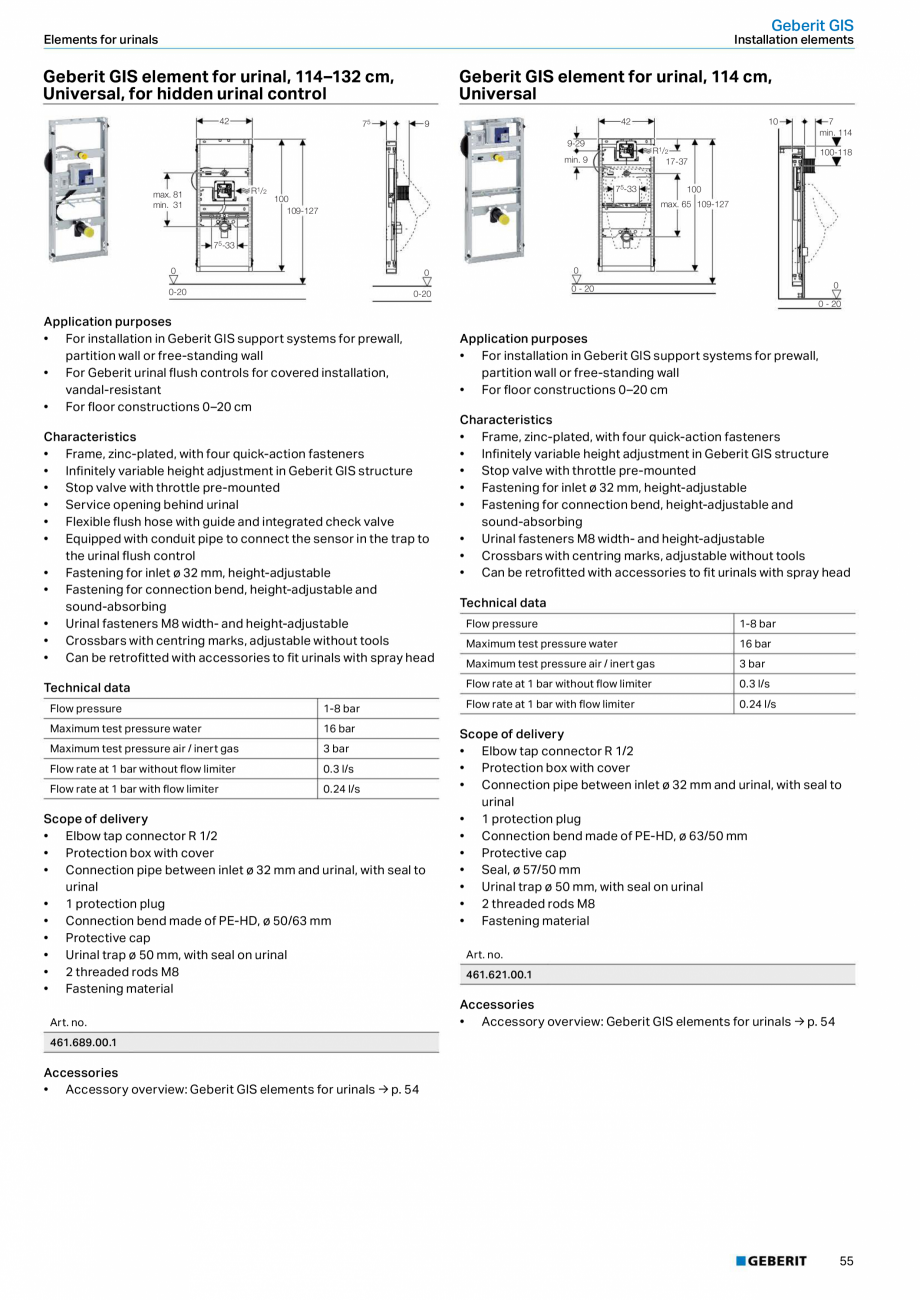

Pagina 55 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

00.1 Accessories • Accessory overview: Geberit Duofix elements for washbasins → p. 30 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For installation of washbasins • For concealed taps • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for washbasin 5–38 cm • Mounting plate made of veneered wood, waterproof bonded, adjustable in height and depth • Fastening for connection bend, height-adjustable and sound-absorbing Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm �

Pagina 55-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

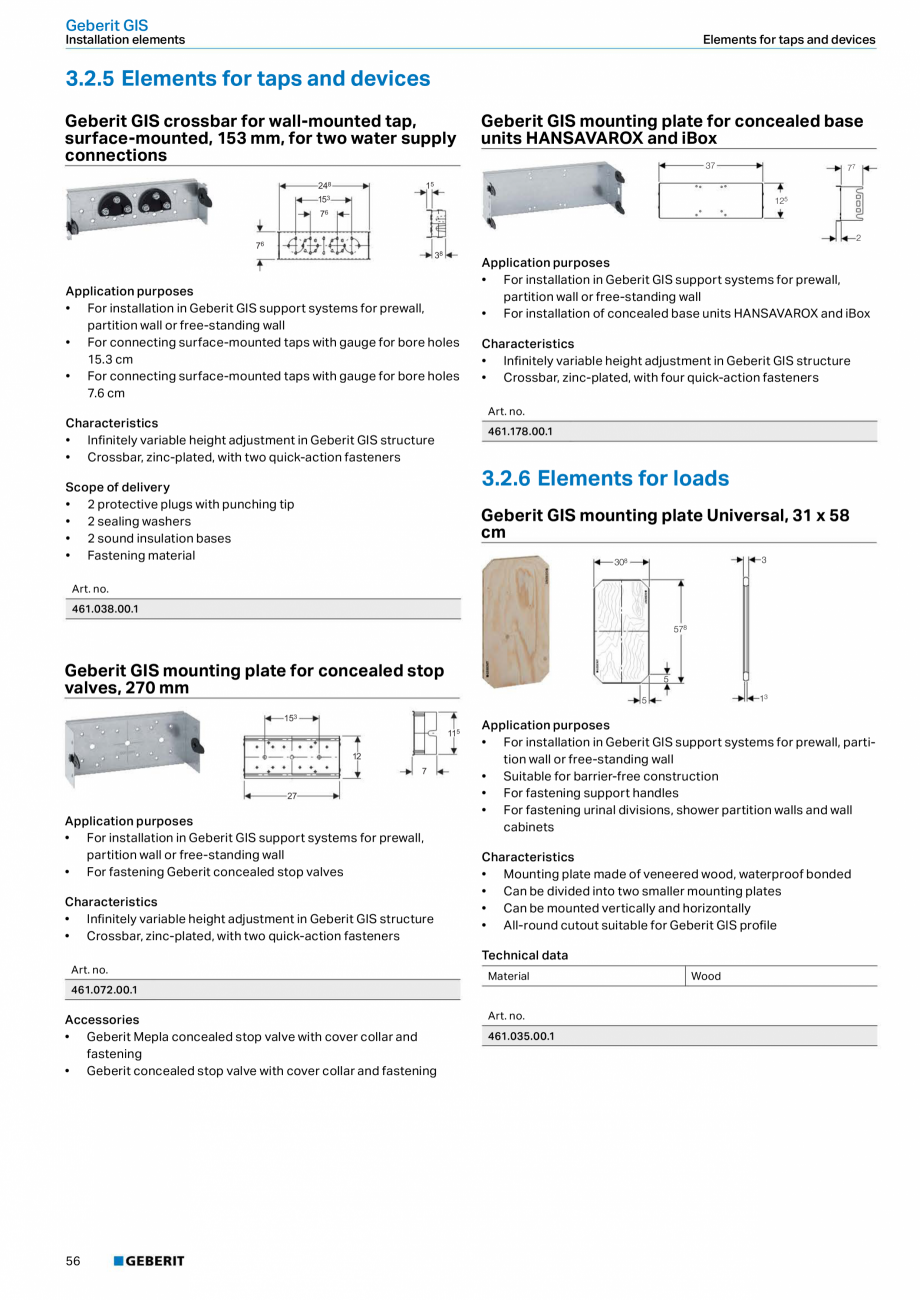

Pagina 56 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

� 2 threaded rods M10 • Fastening material Art. no. 111.493.00.1 Accessories • Accessory overview: Geberit Duofix elements for washbasins → p. 30 31 Geberit Duofix Installation elements Elements for bidets 2.1.3 Elements for bidets Geberit Duofix element for bidet, 112 cm, Universal 50 4 100 112 8-38 18/23 0 0 0-20 0-20 48 73 10 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung bidets with deck-mounted tap • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for wall-hung bidet 18 or 23 cm,

Pagina 56-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 57 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

bidet fastening height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Tap attachments adjustable in width and height Geberit Duofix element for bidet, 98 cm, Universal 8-38 4 98 0 0 0-20 0-20 73 111.539.00.1 Geberit Duofix element for bidet, 82 cm, Universal 4 50 8-38 18/23 82 0 0 0-20 0-20 48 Application purposes • For drywall construction • For installation in part-height prewall installations • For wall-hung bidets with deck-mounted tap • For floor constructions 0–20 cm 111.520.00.1 18/23 Art. no. 10 Art. no. 50 Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M12 • Fastening material 73 Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M12 • Fastening material 48 10 Application purposes • For drywall construction • For installation in part-height prewall installations • For wall-hung bid

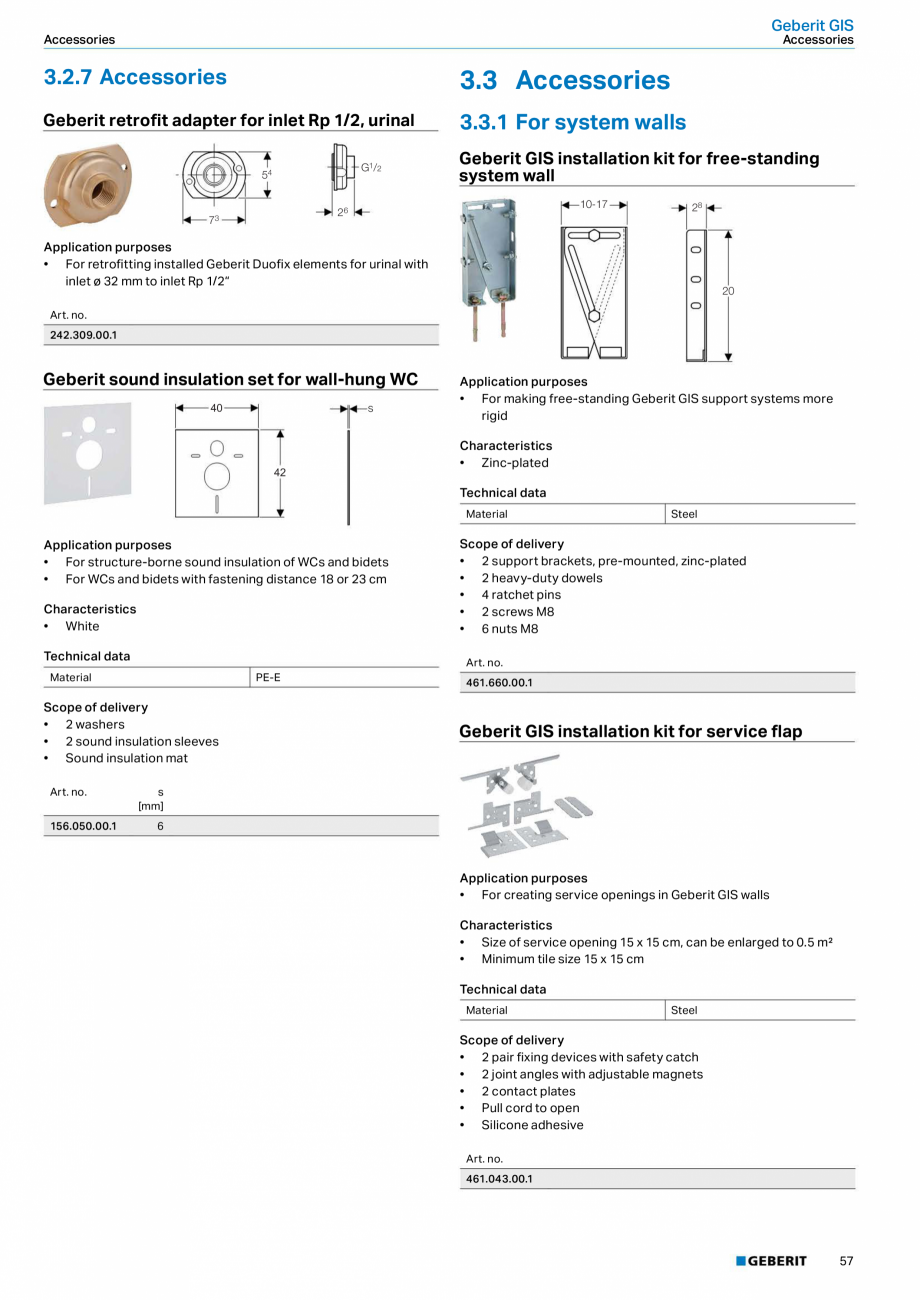

Pagina 57-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 58 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ets with deck-mounted tap • For floor constructions 0–20 cm 32 Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for wall-hung bidet 18 or 23 cm, bidet fastening height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Tap attachments adjustable in width and height Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for wall-hung bidet 18 or

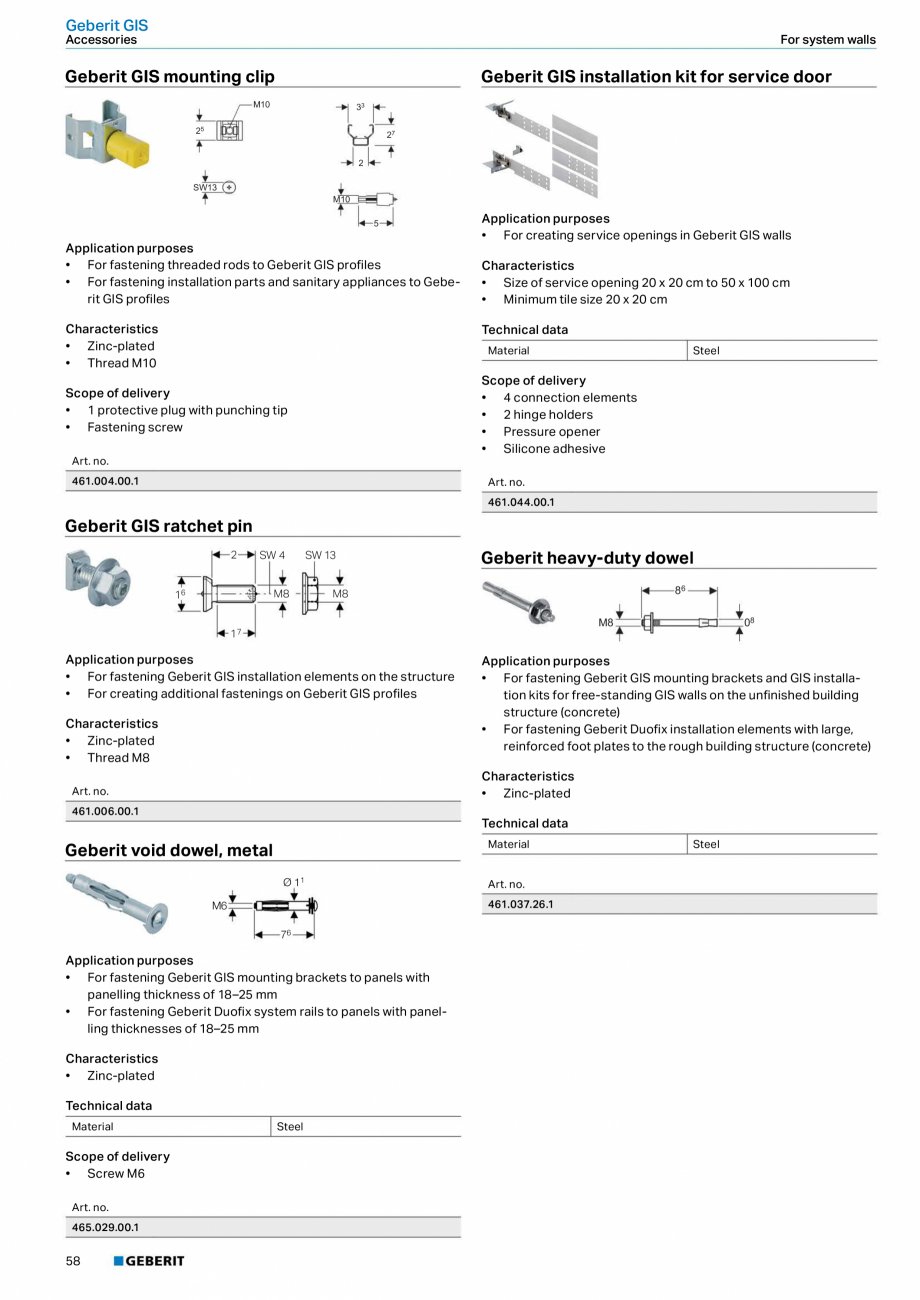

Pagina 58-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 59 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

23 cm, bidet fastening height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Tap attachments adjustable in width and height Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M12 • Fastening material Art. no. 111.524.00.1 Geberit Duofix Elements for urinals Installation elements 2.1.4 Elements for urinals Accessory overview: Geberit Duofix elements for urinals Urinal flush controls with electronic flush actuation, battery operation Urinal flush controls with electronic flush actuation, mains operation Urinal flush controls with pneumatic flush actuation Urinal flush control with electronic flush actuation, mains operation, hidden, Universal Inlet crossbar for urinal, with spray head Wall anchoring set for single installation Wall anchoring set for single installation, for elements without fixed crossbar Foot fastener set on rear wall Fastening set for stud clearance 50–57.5 cm

Pagina 59-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

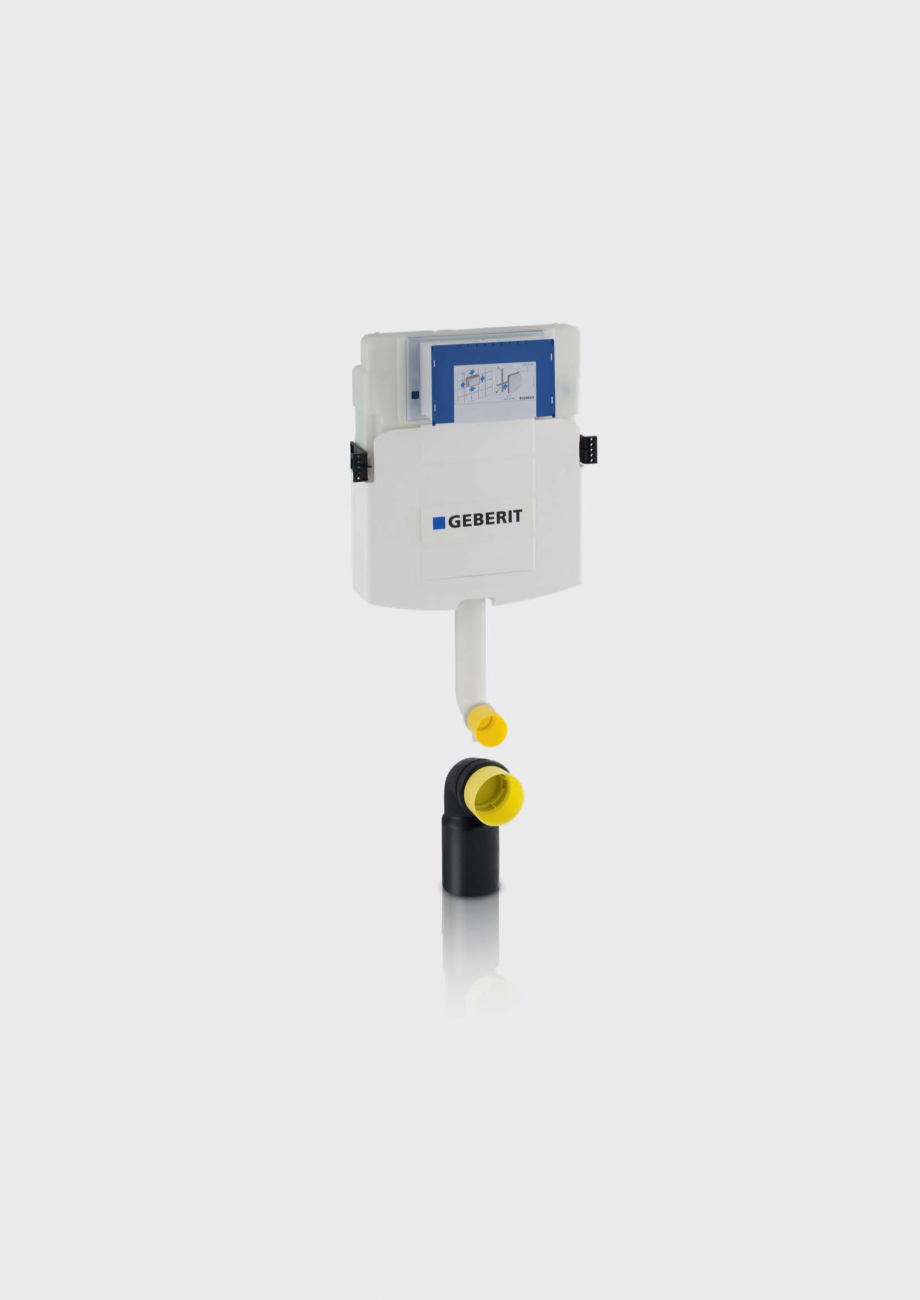

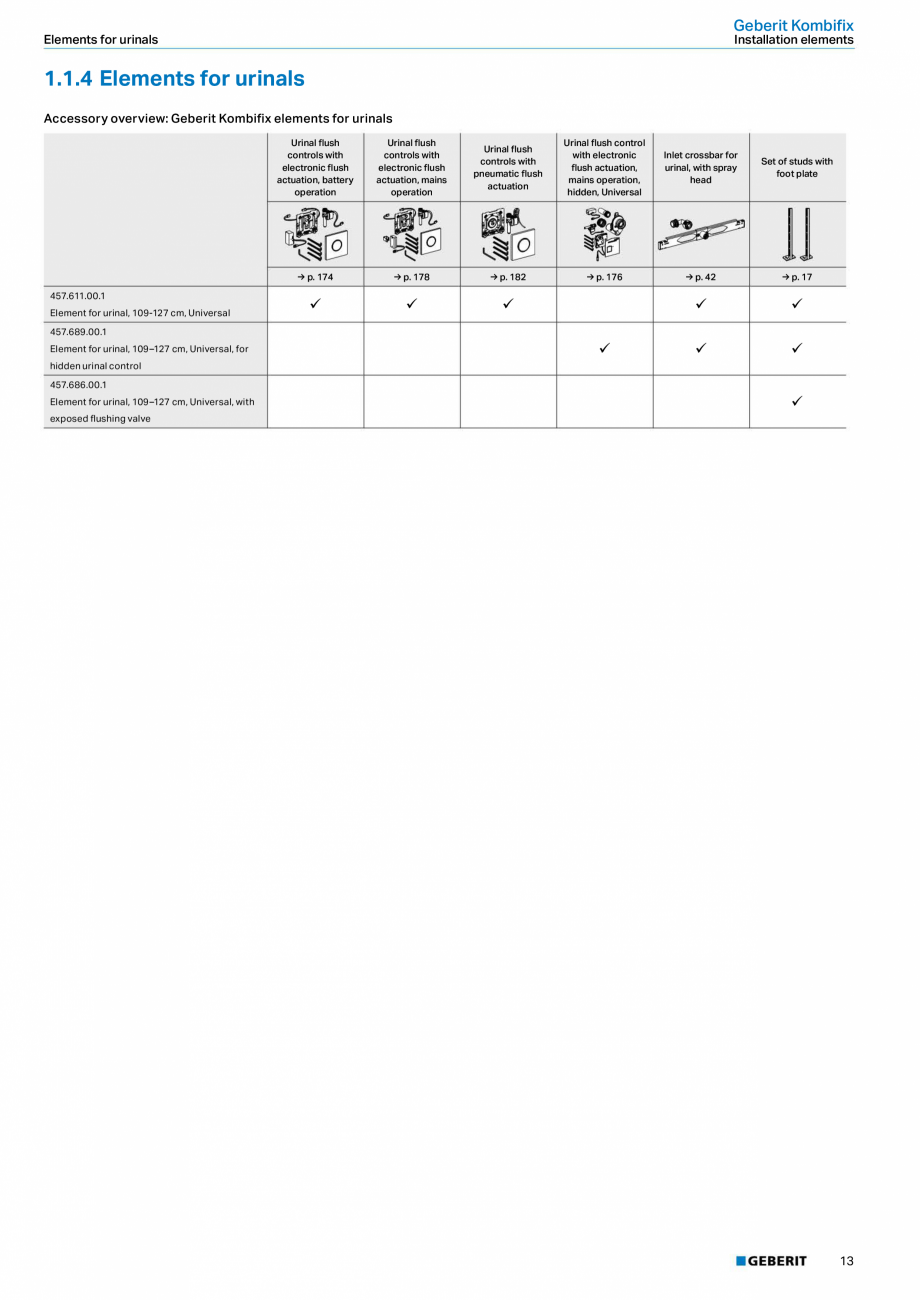

Pagina 60 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

→ p. 174 → p. 178 → p. 182 → p. 174 → p. 42 → p. 41 → p. 41 → p. 43 → p. 42 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü 111.616.00.1 Element for urinal, 112–130 cm, Universal 111.689.00.1 Element for urinal, ü 112–130 cm, Universal, for hidden urinal control 111.618.00.1 Element for urinal, 112–130 cm / (ü)1) (ü)1) ü 122–130 cm, Joly 111.686.00.1 Element for urinal, 112–130 cm, Universal, with exposed flushing valve 111.665.00.5 Element for urinal, 130 cm, Universal, for urinal flush control Basic, (ü)2) (ü)2) (ü)2) ü without crossbar for panelling support 1) 2) Only possible with centred position of the concealed housing Only compatible with Geberit urinal flush controls Basic 33 Geberit Duofix Installation elements Elements for urinals Geberit Duofix element for urinal, 130 cm, Universal, for urinal flush control Basic, without crossbar for panelling support 50 R½ 75 Geberit Duofix element for

Pagina 60-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 61 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

urinal, 112–130 cm, Universal 50 10 100-117 13-30 75 9 100-118 12-32 R1/2 17-37 min. 9 100 26-38 75-33 112-130 max. 65 75-33 130 0 0-20 0-20 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame with holes to receive Geberit Duofix wall anchoring for elements without fixed crossbar • Leg support zinc-plated, adjustable 0–20 cm • Foot plates made of plastic, depth suitable for installation in U-profiles UW 50 • Stop valve with throttle pre-mounted • Protection box for service opening 13.5 x 13.5 cm can be cut to length without tools • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and soundabsorbing • Urin

Pagina 61-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 62 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

al fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools 1-8 bar 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Water supply connection R 1/2 • Protection box with cover • Connection pipe between inlet ø 32 mm and urinal, with seal to urinal • 1 protection plug • Connection bend made of PE-HD, ø 63/50 mm • Protective cap • Seal, ø 57/50 mm • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • Fastening material Art. no. 111.665.00.5 • 34 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame con

Pagina 62-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 63 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

struction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Stop valve with throttle pre-mounted • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be retrofitted with accessories to fit urinals with spray head Technical data Only compatible with art. no. 115.817.xx.5 and 115.818.xx.5 Flow pressure 1-8 bar Maximum test pressure water Technical data Maximum test pressure water 0-20 48 73 Flow pressure 0 0-20 0 0 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Elbow tap connector R 1/2 • Protection box with

Pagina 63-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

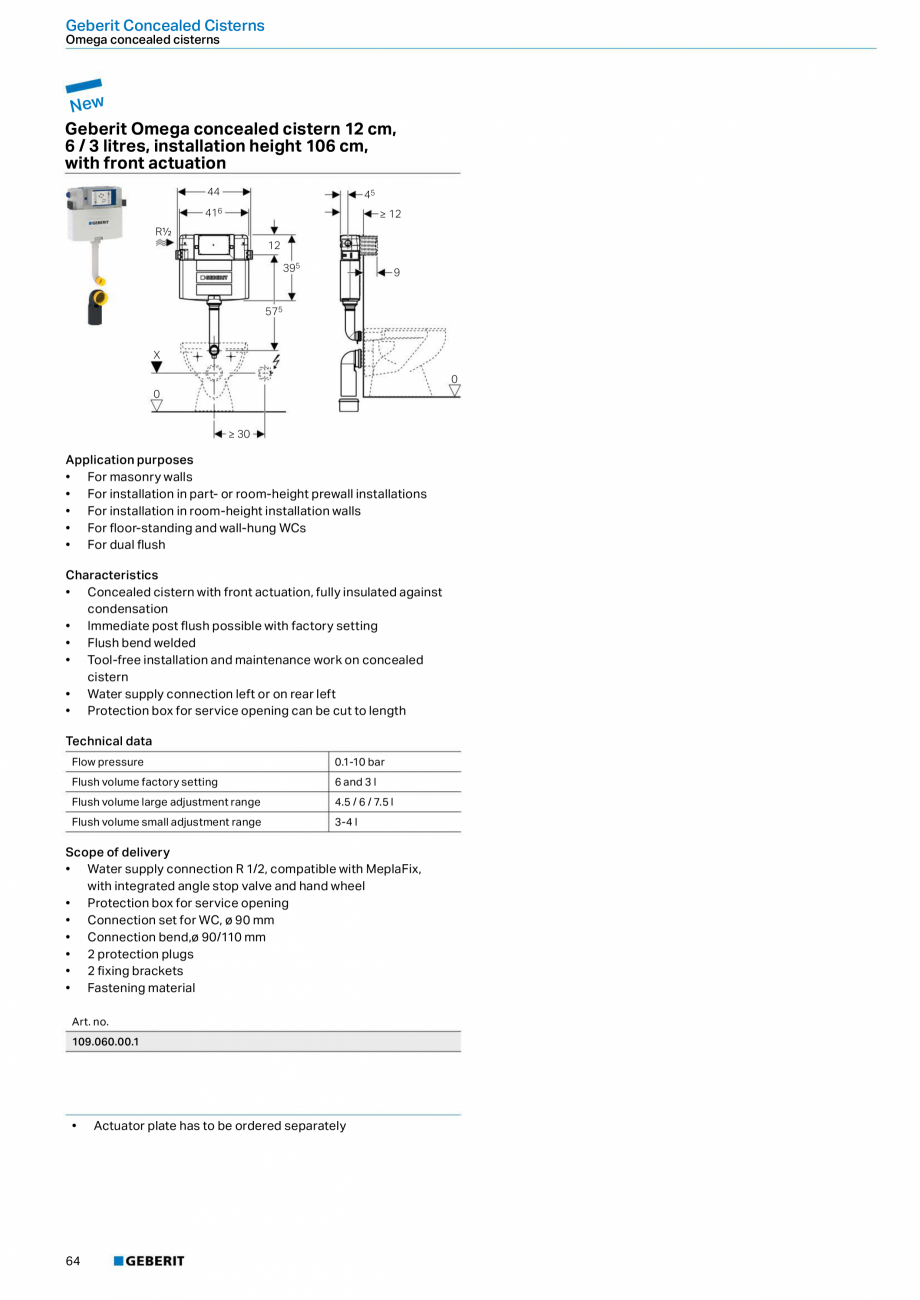

Pagina 64 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

cover • Connection pipe between inlet ø 32 mm and urinal, with seal to urinal • 1 protection plug • Connection bend made of PE-HD, ø 63/50 mm • Protective cap • Seal, ø 57/50 mm • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • Fastening material Art. no. 111.616.00.1 Accessories • Accessory overview: Geberit Duofix elements for urinals → p. 33 Geberit Duofix Elements for urinals Installation elements Geberit Duofix element for urinal, 112–130 cm, Universal, for hidden urinal control 50 75 Geberit Duofix element for urinal, 112–130 cm, Universal, with exposed flushing valve 50 9 75 R1/2 75-33 R1/2 max. 81 min. 31 65 112-130 112-130 75-33 0 0 0 0-20 73 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For Geberit urinal flush controls for covered installation, vandal-resistant • For floor c

Pagina 64-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

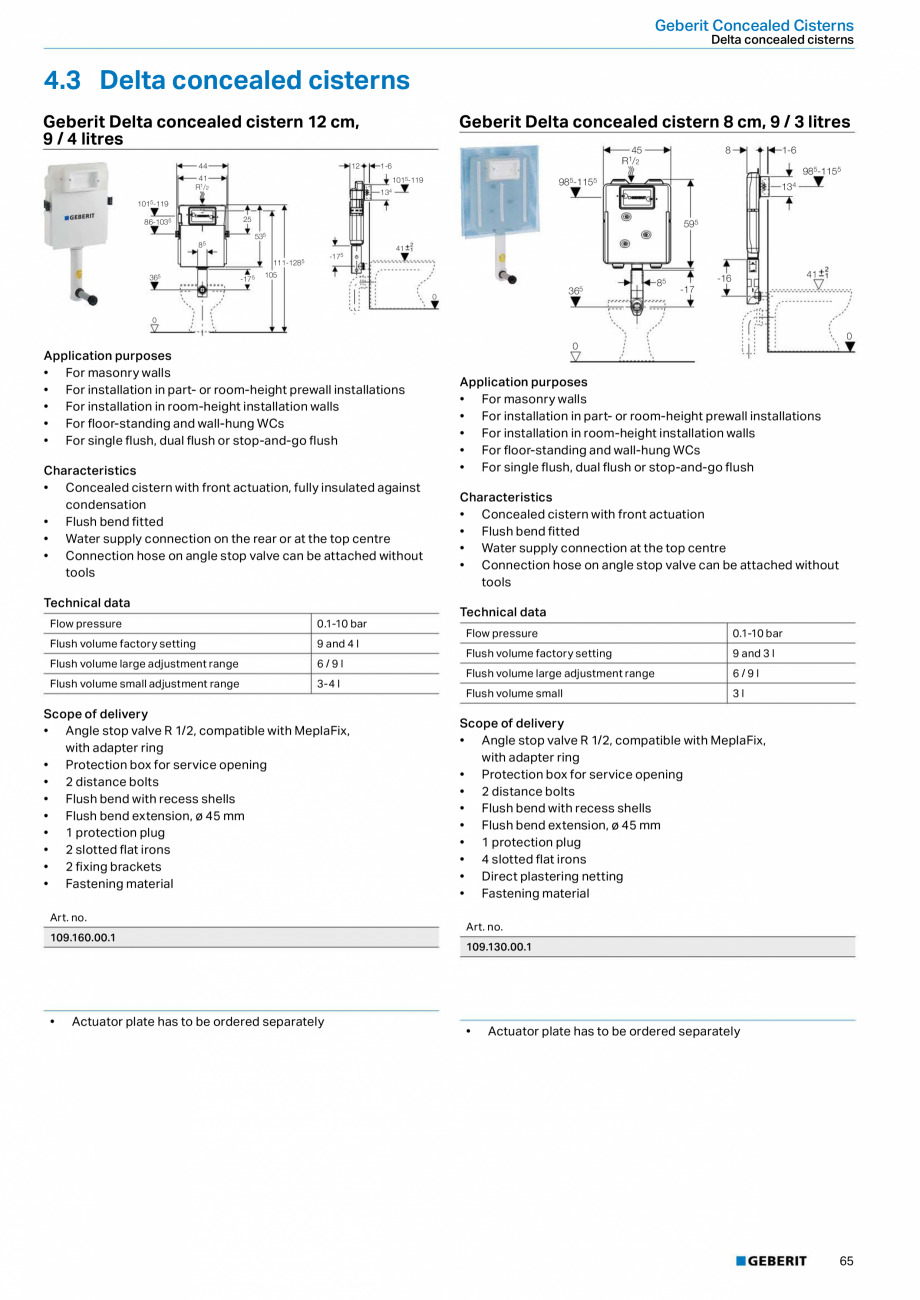

Pagina 65 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

onstructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Stop valve with throttle pre-mounted • Service opening behind urinal • Flexible flush hose with guide and integrated check valve • Equipped with conduit pipe to connect the sensor in the trap to the urinal flush control • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be retrofitted with accessories to fit urinals with spray head Technical data Flow pressure 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air /

Pagina 65-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 66 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Water supply connection R 1/2 • Protection box with cover • Connection pipe between inlet ø 32 mm and urinal, with seal to urinal • 1 protection plug • Connection bend made of PE-HD, ø 63/50 mm • Seal, ø 57/50 mm • Protective cap • 2 threaded rods M8 • Fastening material 0 0-20 0-20 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For exposed flushing valves • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geb

Pagina 66-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 67 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

erit Duofix system rails • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix • 1 protection plug • Sealing washer • Connection bend made of PE-HD, ø 63/50 mm • Protective cap • Seal, ø 57/50 mm • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • Fastening material Art. no. 111.686.00.1 Accessories • Accessory overview: Geberit Duofix elements for urinals → p. 33 Art. no. 111.689.00.1 Accessories • Accessory overview: Geberit Duofix elements for urinals → p. 33 35 Geberit Duofix Installation elements Elements for urinals Geberit Duofix element for urinal, 112–130 cm / 122–130 cm, Joly 285 ≥ 165 142 365 75 9 100 65 112–130 615 0 0 0–20 73 48 Application purposes • For drywall construction • For installation

Pagina 67-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 68 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

in part- or room-height prewall installations • For installation in room-height installation walls • For installation of semi-recessed urinal ceramics Keramag Joly • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection positions set for urinal Keramag Joly • Crossbar with concealed housing to be positioned on centre or laterally • Stop valve with throttle pre-mounted • Concealed housing prepared for connection to on-site connection hose for urinal • Crossbar with predetermined positions for urinal fasteners M8 and trap Technical data Flow pressure 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air / inert gas 3 bar Flow rat

Pagina 68-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 69 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

e at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Water supply connection R 1/2 • Protection box with cover • Connection bend made of PE-HD, ø 63/50 mm • Seal, ø 57/50 mm • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • 2 cut-out templates • Fastening material Art. no. 111.618.00.1 To order additionally • Reinforced braided hose between concealed housing and urinal Accessories • Accessory overview: Geberit Duofix elements for urinals → p. 33 36 Geberit Duofix Elements for showers, with wall drain Installation elements 2.1.5 Elements for showers, with wall drain Geberit Duofix element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, floor construction height from 65 mm 50 11 355 355 86 100 100 0 0 130 65–9 35 73 48 11 Application purposes • For drainage of floor-even showers • For floor constructions of 65–90 mm • For drywall construction •

Pagina 69-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

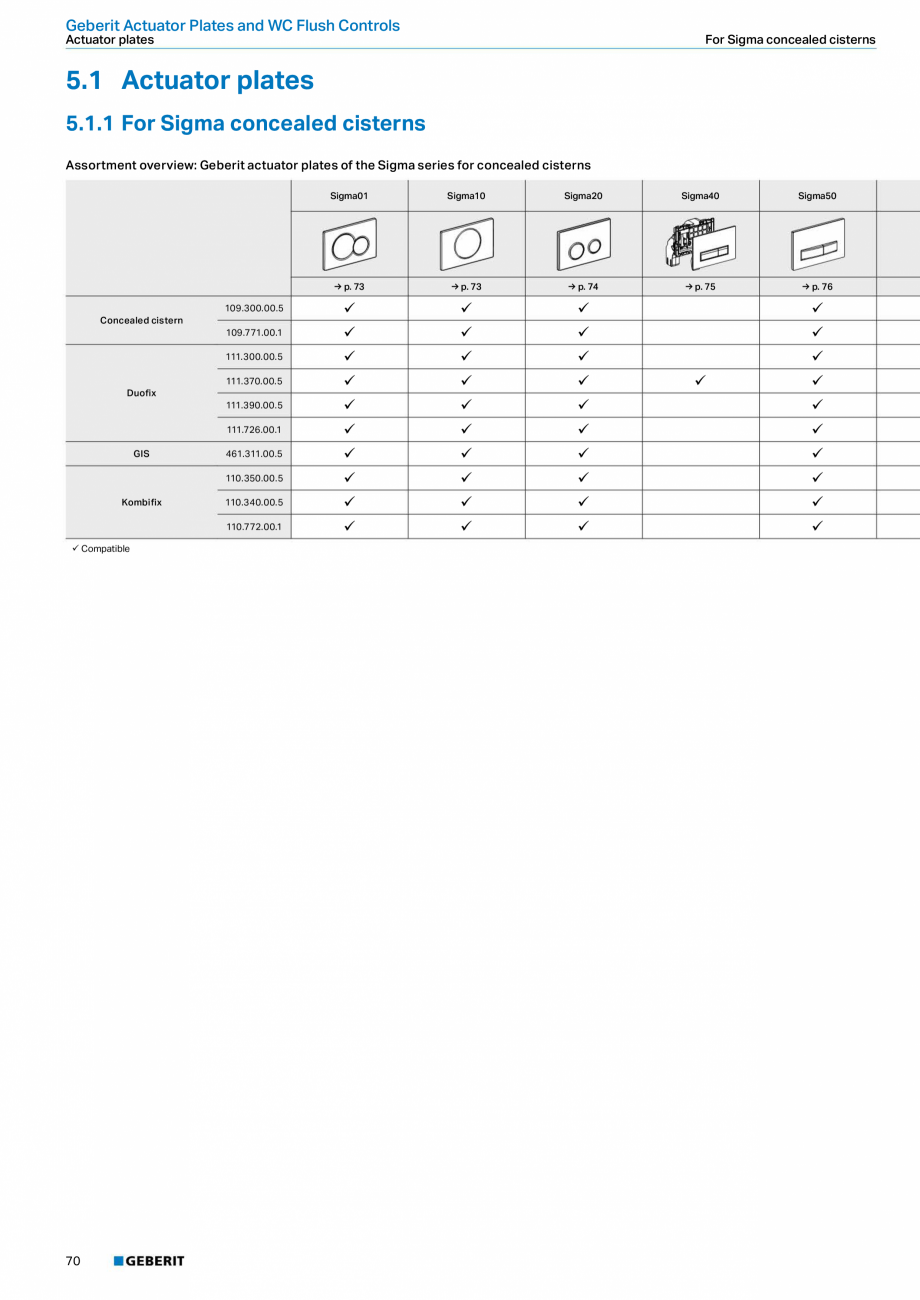

Pagina 70 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

For concealed or surface-mounted taps • For composite seals Characteristics • Deviating from the requirements from EN 1253, the depth of water seal is just 30 mm • Self-supporting frame, powder-coated • Adjustable sealing level for tension-free sealing connection • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems • Mounting plate made of veneered wood, waterproof bonded, adjustable in height and depth • Adjustable inlet height of trap • Minimum screed height at inlet 65 mm • Panelling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Drainage connection left or right Technical data Discharge rate 0.4 l/s Depth of water seal 30 mm Scope of delivery • Straight connector, made of PE-HD, ø 40 mm • Elbow tap connector R 1/2, compatible with MeplaFix • Sealing washer • Sound insulation base • Insulating sleeve • Protection plug • 1 protection box cover with integrated outlet s

Pagina 70-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

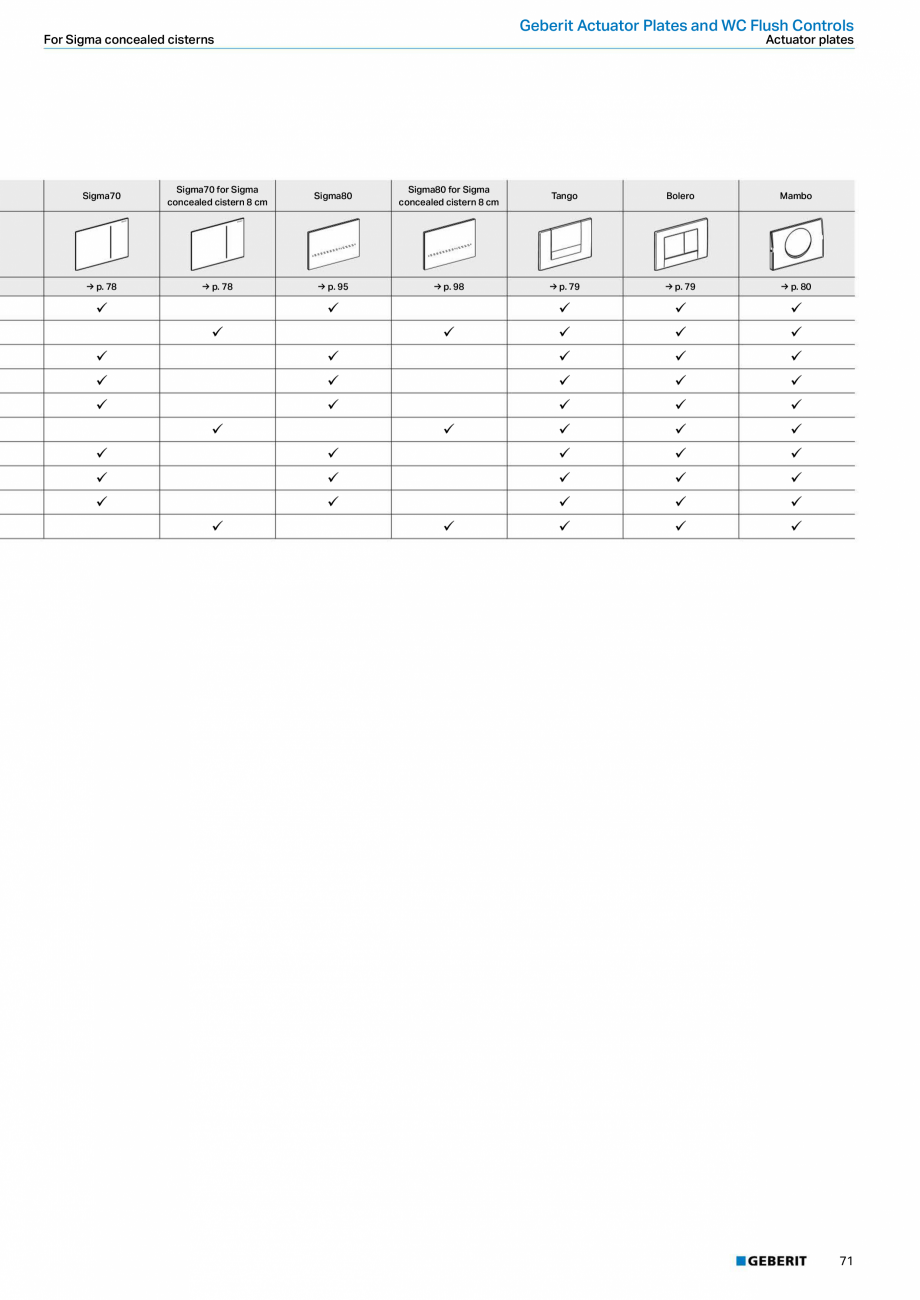

Pagina 71 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

heet • Fastening material Art. no. 111.581.00.1 To order additionally • Ready-to-fit set 37 Geberit Duofix Installation elements Elements for showers, with wall drain Geberit Duofix element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, floor construction height from 90 mm 50 11 355 355 86 100 100 0 0 130 9–20 5 73 48 125 Application purposes • For drywall construction • For concealed or surface-mounted taps • For composite seals • For drainage of floor-even showers • For floor constructions 90–200 mm Characteristics • Quality-monitored in accordance with EN 1253-3 • Self-supporting frame, powder-coated • Adjustable sealing level for tension-free sealing connection • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems • Mounting plate made of veneered wood, waterproof bonded, adjustable in height and depth • Adjustable inlet height of trap • Minimum screed height at inlet 90 mm • Panel

Pagina 71-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

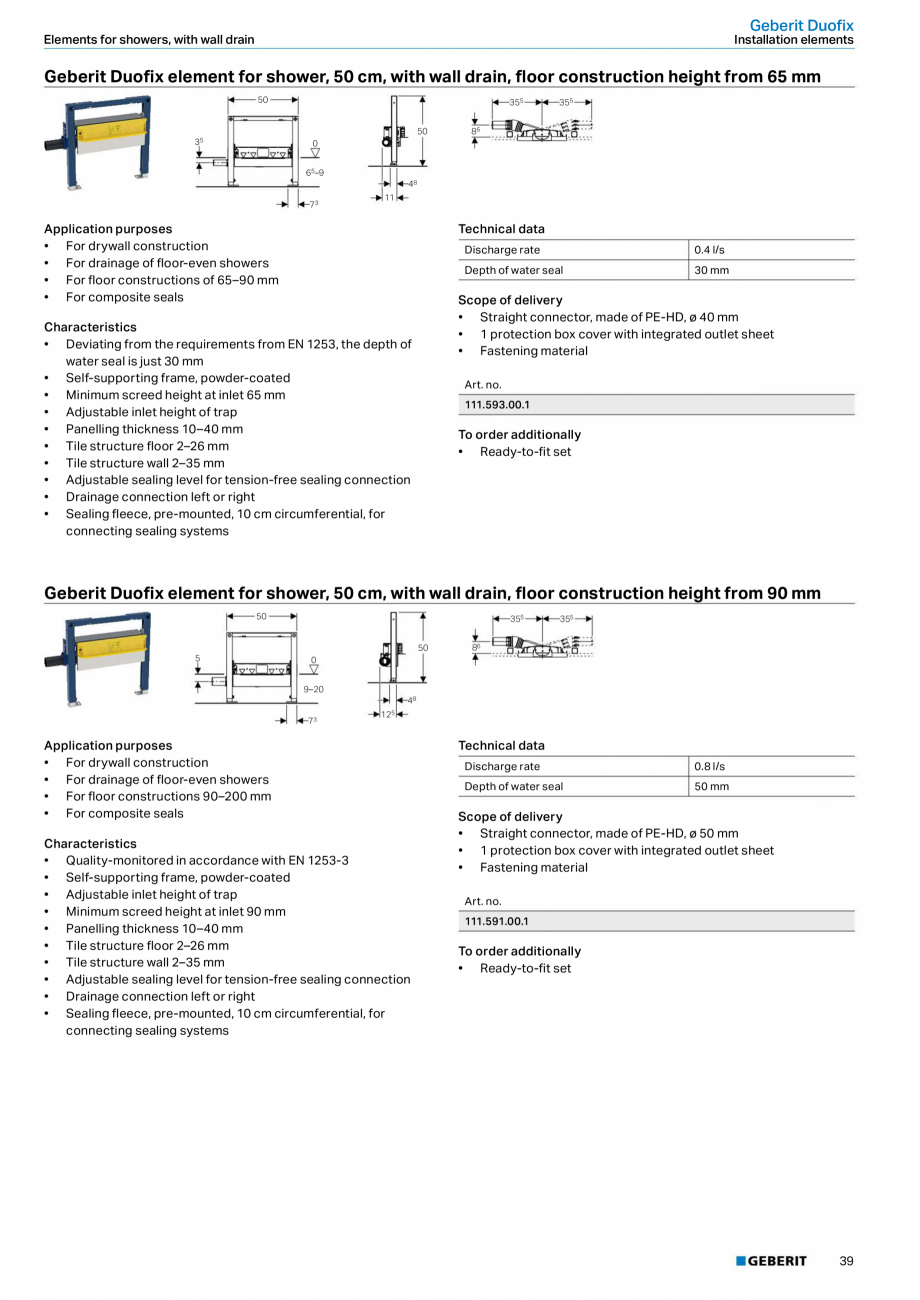

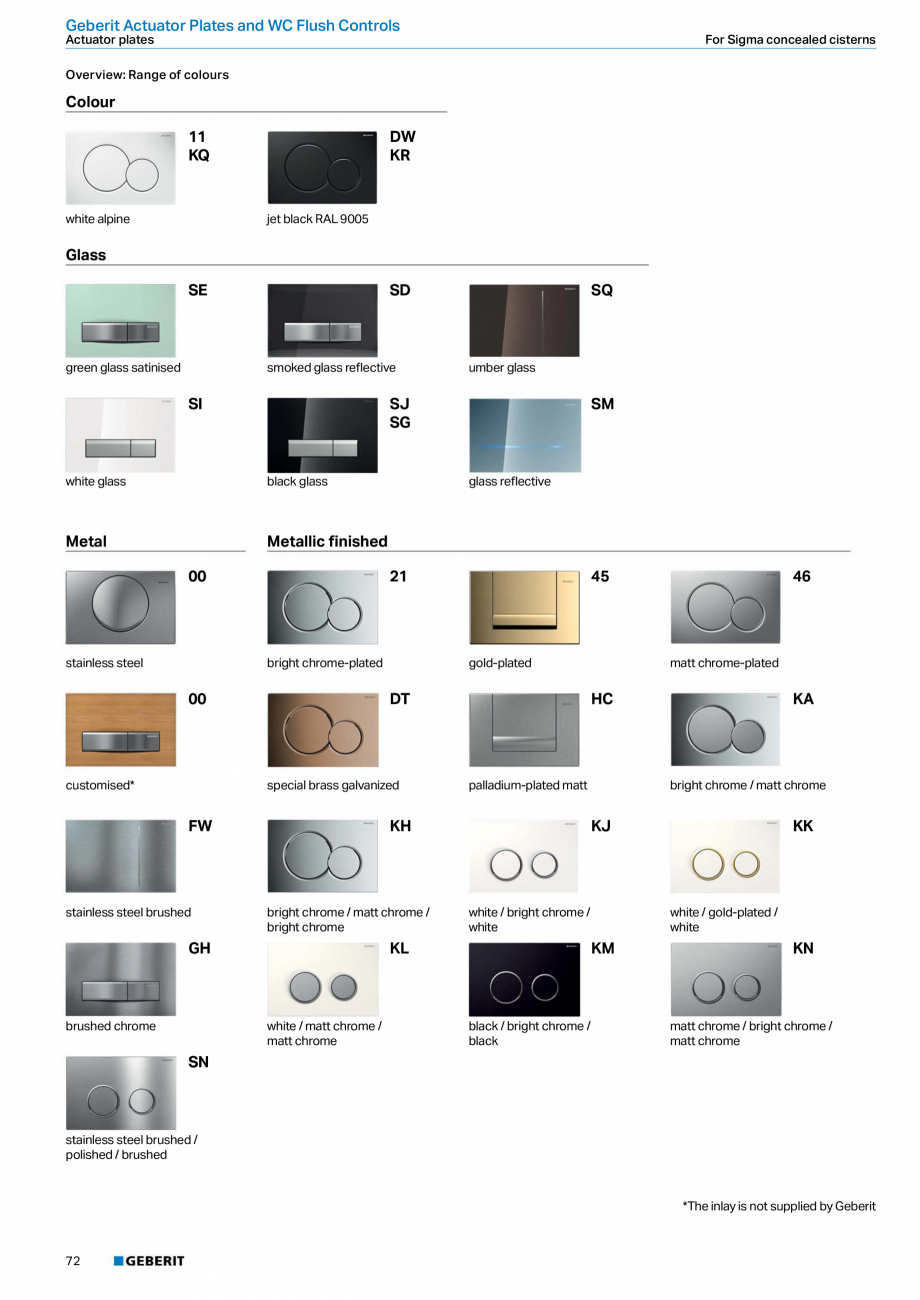

Pagina 72 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Drainage connection left or right 38 Technical data Discharge rate 0.8 l/s Depth of water seal 50 mm Scope of delivery • Straight connector, made of PE-HD, ø 50 mm • Elbow tap connector R 1/2, compatible with MeplaFix • Sealing washer • Sound insulation base • Insulating sleeve • Protection plug • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 111.580.00.1 To order additionally • Ready-to-fit set Geberit Duofix Elements for showers, with wall drain Installation elements Geberit Duofix element for shower, 50 cm, with wall drain, floor construction height from 65 mm 50 355 50 35 355 86 0 65–9 48 73 11 Application purposes • For drywall construction • For drainage of floor-even showers • For floor constructions of 65–90 mm • For composite seals Technical data Discharge rate 0.4 l/s Depth of water seal 30

Pagina 72-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 73 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

mm Scope of delivery • Straight connector, made of PE-HD, ø 40 mm • 1 protection box cover with integrated outlet sheet • Fastening material Characteristics • Deviating from the requirements from EN 1253, the depth of water seal is just 30 mm • Self-supporting frame, powder-coated • Minimum screed height at inlet 65 mm • Adjustable inlet height of trap • Panelling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems Art. no. 111.593.00.1 To order additionally • Ready-to-fit set Geberit Duofix element for shower, 50 cm, with wall drain, floor construction height from 90 mm 50 355 50 5 355 86 0 9–20 48 73 125 Application purposes • For drywall construction • For drainage of floor-even showers • For floor constructions 90–20

Pagina 73-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

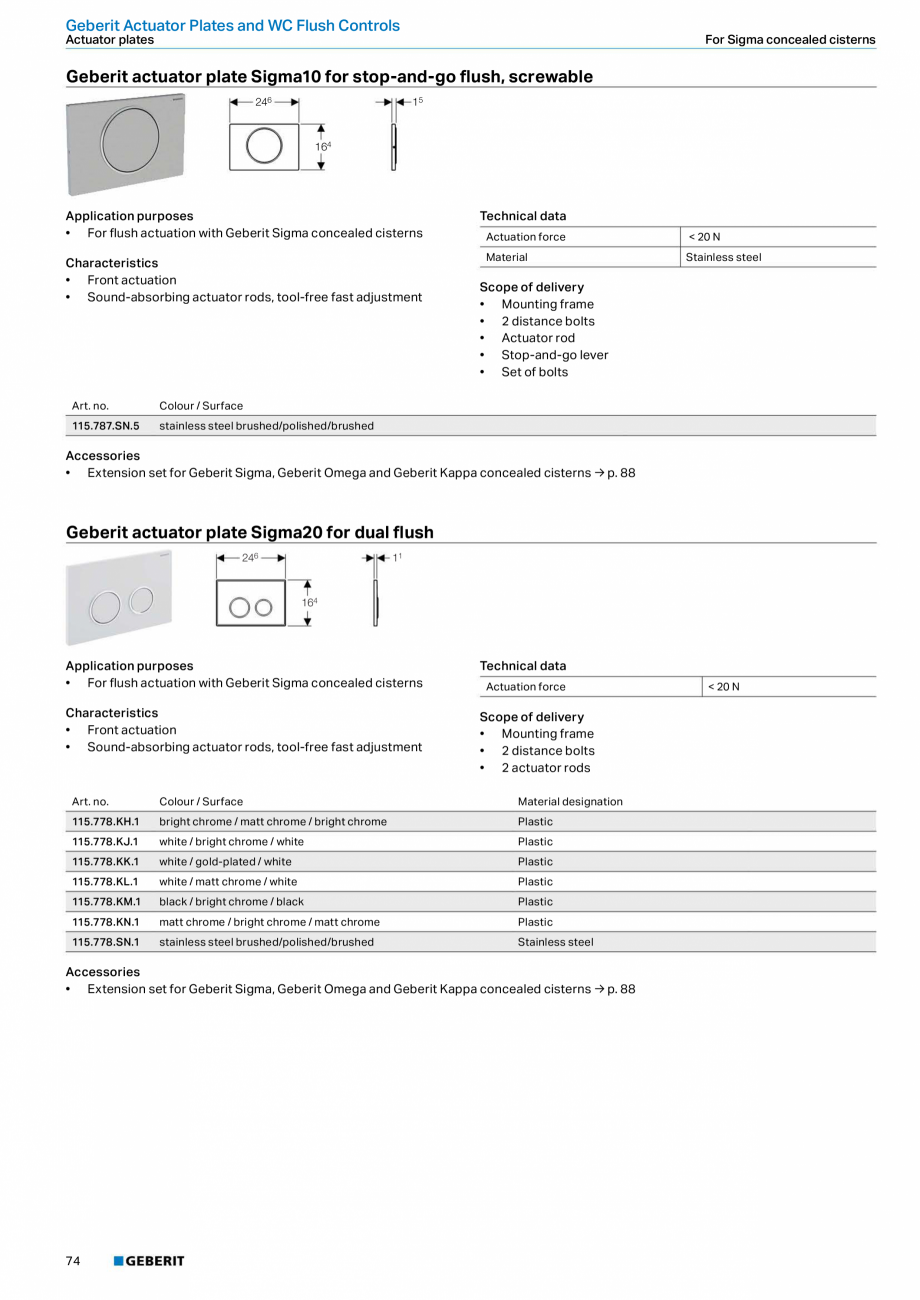

Pagina 74 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

0 mm • For composite seals Characteristics • Quality-monitored in accordance with EN 1253-3 • Self-supporting frame, powder-coated • Adjustable inlet height of trap • Minimum screed height at inlet 90 mm • Panelling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems Technical data Discharge rate 0.8 l/s Depth of water seal 50 mm Scope of delivery • Straight connector, made of PE-HD, ø 50 mm • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 111.591.00.1 To order additionally • Ready-to-fit set 39 Geberit Duofix Installation elements Elements for showers and bathtubs 2.1.6 Elements for showers and bathtubs Accessory overview: Geberit Duofix elements for showers and bathtubs Accessories for wall dr

Pagina 74-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 75 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ains Concealed base unit HANSAVAROX with shut-off Wall anchoring set for single installation Foot fastener set on rear wall Fastening set for stud clearance 50–57.5 cm → p. 218 → p. 207 → p. 41 → p. 43 → p. 42 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü 111.580.00.1 Element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, floor construction height from 90 mm 111.581.00.1 Element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, floor construction height from 65 mm 111.591.00.1 Element for shower, 50 cm, with wall drain, floor construction height from 90 mm 111.593.00.1 Element for shower, 50 cm, with wall drain, floor construction height from 65 mm 2.1.7 Elements for loads Geberit Duofix element for support handles, 112 cm, barrier-free 4 365 100 Scope of delivery • Fastening material 85 Art. no. 50 111.790.00.1 112 Accessories • Geberit Duofix wall anchoring set for single installation → p

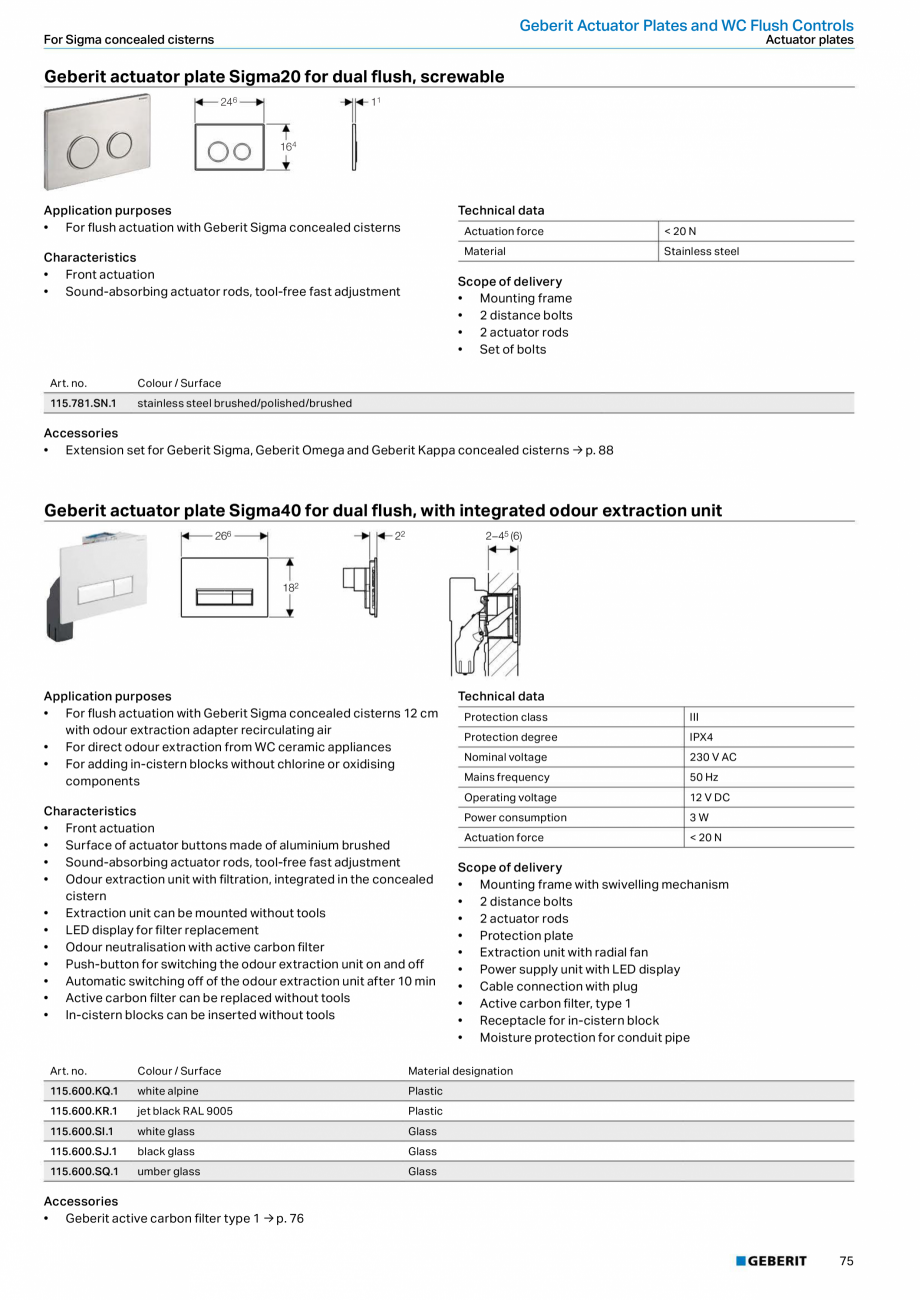

Pagina 75-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

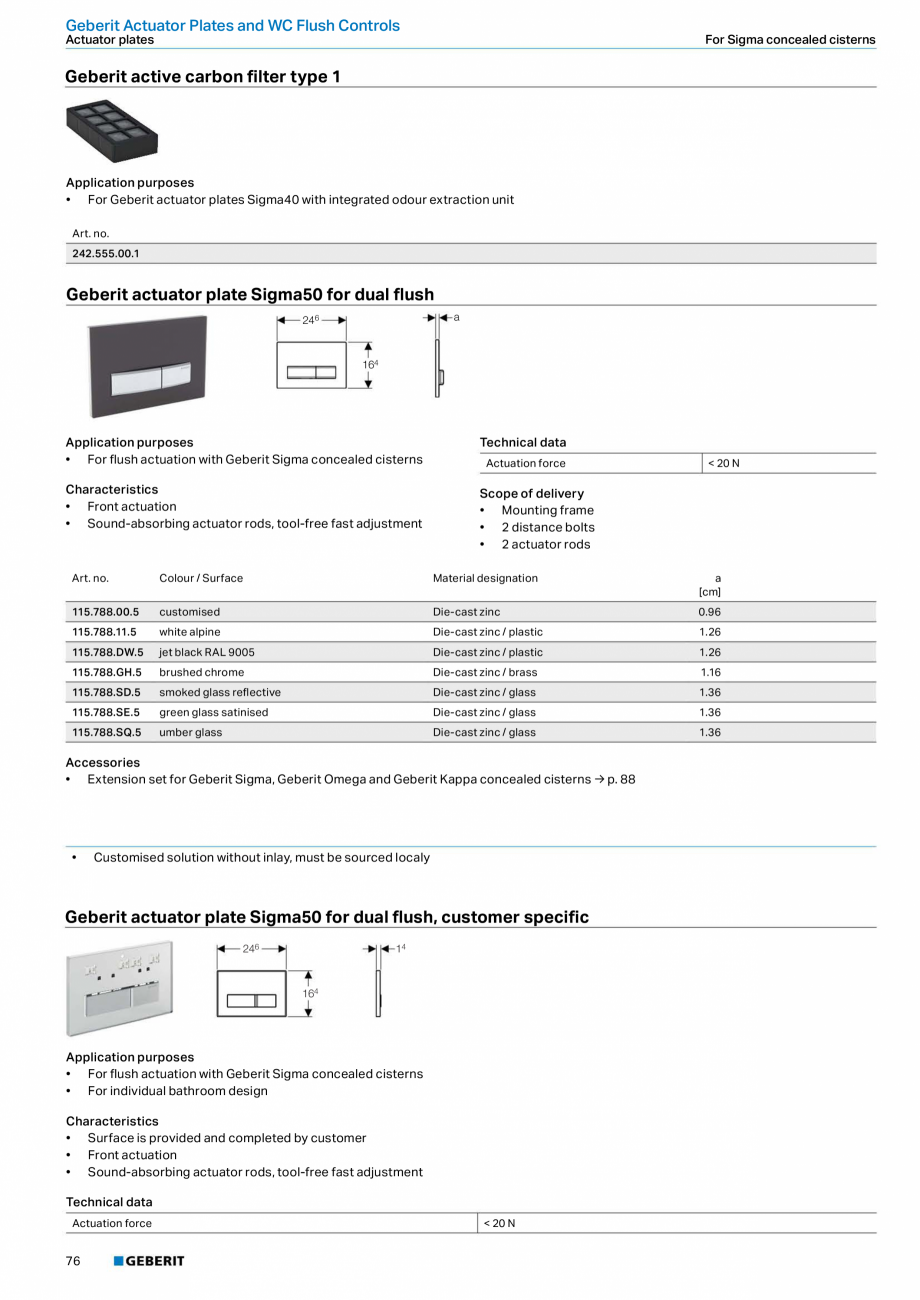

Pagina 76 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

. 41 0 0 0-20 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • Suitable for barrier-free construction • For fastening support handles • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Mounting plate made of veneered wood, waterproof bonded, height-adjustable 40 Geberit Duofix For installation elements Accessories 2.2 Accessories 2.2.1 For installation elements Geberit Duofix wall anchoring set for single installation 135–20 Geberit Duofix wall anchoring set for single installation, corner construction 14-20 85 6 38 2

Pagina 76-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 77 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

Application purposes • For fastening Geberit Duofix installation elements in front of drywalls and solid walls • For fastening panelling in part-height prewall installations Characteristics • Can be adjusted in depth from the front, infinitely variable, with fast adjustment • Wall inlet rotatable by 360° • Threaded rod M10, zinc-plated Technical data Material Die-cast zinc / steel/plastic Application purposes • For fastening Geberit Duofix installation elements in front of drywalls and solid walls • For fastening panelling in part-height prewall installations Characteristics • Can be adjusted in depth from the front, infinitely variable • Integrated panelling support • Threaded rod M10, zinc-plated • Wall inlet rotatable by 360° • Infinitely variable angle adjustment possible for corner installation Technical data Material Scope of delivery • Set of 2 pieces Die-cast zinc / steel/plastic Scope of delivery • Set of 2 pieces Art. no. 111.815.00.1 Art.

Pagina 77-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 78 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

no. Accessories • Geberit Duofix extension set for wall anchoring → p. 42 Geberit Duofix wall anchoring set for single installation 9–11 52 111.835.00.1 Accessories • Geberit Duofix extension set for wall anchoring → p. 42 Geberit Duofix wall anchoring set for single installation, for elements without fixed crossbar 4 12-20 4 28 Application purposes • For fastening Geberit Duofix installation elements in front of drywalls and solid walls • For fastening Geberit Duofix elements for wall-hung WC with concealed cistern 8 cm Characteristics • Can be adjusted in depth from the front, infinitely variable • Wall inlet rotatable by 360° • Threaded rod M10, zinc-plated Technical data Material Scope of delivery • 2 prevailing torque nuts • Fastening material Art. no. Steel / plastic 4 Application purposes • For fastening Geberit Duofix installation elements in front of drywalls and solid walls • For Geberit Duofix installation elements without fixed c

Pagina 78-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 79 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

rossbar for panelling support Characteristics • Adjustable in depth • Zinc-plated • Infinitely variable angle adjustment possible for corner installation Scope of delivery • Set of 2 pieces Art. no. 111.839.00.1 242.048.00.1 41 Geberit Duofix Accessories For installation elements Geberit heavy-duty dowel Scope of delivery • 2 wall anchorings • Crossbar for panelling support • Fastening material 86 08 M8 Art. no. Application purposes • For fastening Geberit GIS mounting brackets and GIS installation kits for free-standing GIS walls on the unfinished building structure (concrete) • For fastening Geberit Duofix installation elements with large, reinforced foot plates to the rough building structure (concrete) Characteristics • Zinc-plated Geberit inlet crossbar for urinal, with spray head Application purposes • For Geberit installation elements for urinal with flexible connection • For urinal ceramics Laufen Caprino Plus 42065/42066 • For connecting

Pagina 79-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

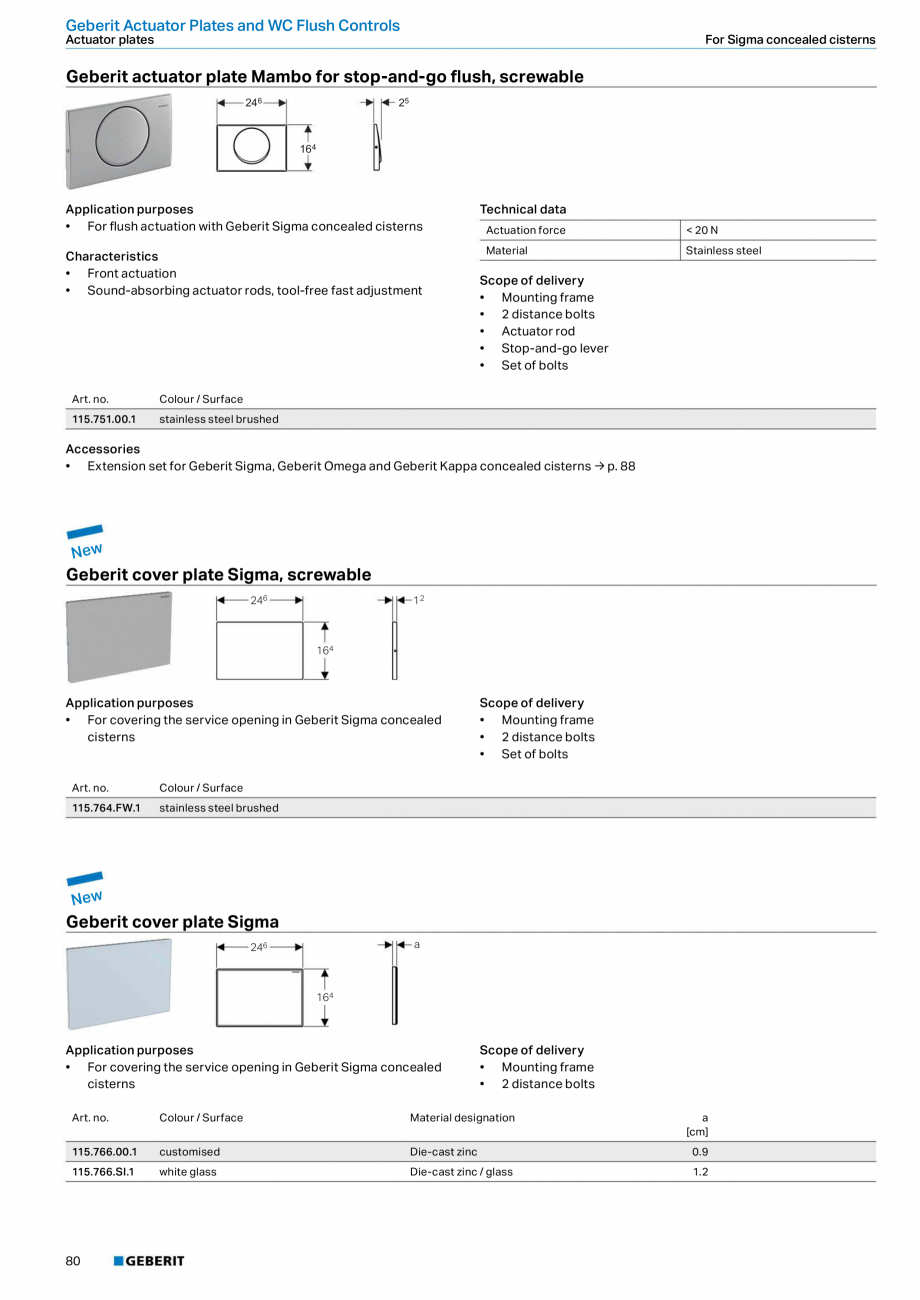

Pagina 80 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

urinals with spray head Technical data Material 111.813.00.1 Steel Art. no. Characteristics • Can be installed without tools • Inlet Rp 1/2 adjustable sideways 461.037.26.1 N ew Geberit Duofix extension set for wall anchoring 220 M 10 Scope of delivery • Connecting nipple • 1 protection plug • Crossbar Art. no. 242.042.00.1 Application purposes • For extending Geberit Duofix wall anchorings by 20 cm • For Geberit Duofix wall anchoring with threaded rod M10 Characteristics • Can be shortened • Zinc-plated 8 Steel Scope of delivery • Set of 2 pieces Art. no. 111.887.00.1 Geberit Duofix crossbar, clip-on, for panelling support Characteristics • Zinc-plated Technical data Scope of delivery • 2 fixing brackets • Fastening material Art. no. 111.869.00.1 Application purposes • For fastening Geberit Duofix installation elements in front of drywalls and solid walls • For panelling supports with part-height prewall installations • For Geberit Duo

Pagina 80-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 81 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

fix installation elements without fixed crossbar for panelling support Characteristics • Crossbar for panelling support can be mounted by pushing it on 23 8 5 Application purposes • For drywall construction • For installation in room-height installation walls • For fastening Geberit Duofix installation elements between two studs at a distance of 50–57.5 cm Material 42 8 23 Technical data Material Geberit Duofix fastening set for stud clearance 50–57.5 cm Steel Geberit Duofix For installation elements Accessories Geberit Duofix fastening for washbasins with fastening distance 38–58 cm Geberit set of support brackets for WC ceramic appliances with small contact surfaces 4 395 35 13 21 21 5 Application purposes • For fastening washbasins with a fastening distance > 38 cm to Geberit Duofix elements for washbasin Characteristics • Zinc-plated • Fastening distance for threaded rods 38–58 cm Technical data Material Steel Scope of delivery • 2 cavity

Pagina 81-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 82 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

profiles • 2 threaded rods M10 • Reinforcing profile • Fastening material Application purposes • For additional support of WC ceramic appliances with contact surface X < 17 cm (contact surface X = dimension of the lower edge of the WC ceramic appliance to the middle of the fastening hole in the WC ceramic appliance) • For Geberit Duofix and Geberit GIS elements for wall-hung WC with intended retainers • It is known that the supports must be fitted on the following WC ceramic appliances: 1) Make: Flaminia (Italy - www.ceramicaflaminia.it), type: Link 5051 and Mini Link 5064 2) Make: Globo (Italy - www.ceramicaglobo.com), type: GLOBOconcept SAS02 and SAS03 Characteristics • Zinc-plated • U-profile Art. no. 111.868.00.1 Technical data Material Geberit Duofix foot fastener set on rear wall 13 - 20 Steel Scope of delivery • Set of 2 pieces Art. no. 111.847.00.1 Application purposes • For alternative foot fastening of the Geberit Duofix elements to the rear wall

Pagina 82-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

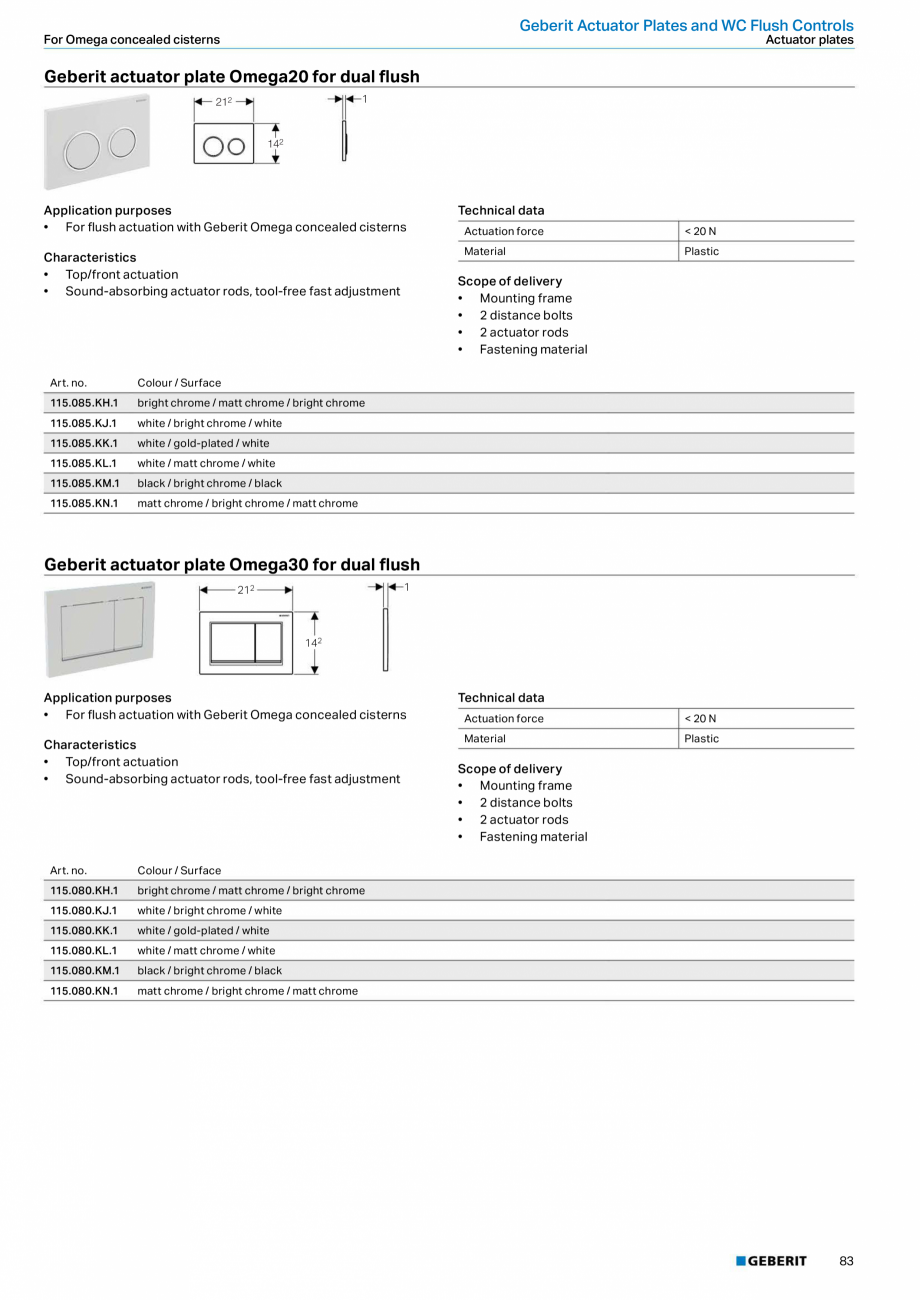

Pagina 83 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

Characteristics • Adjustable in depth • Zinc-plated Technical data Material Steel Scope of delivery • Set of 2 pieces Art. no. 111.867.00.1 43 Geberit Duofix Accessories For installation elements Geberit Duofix mounting plate for concealed stop valves 306 Geberit sound insulation set for wall-hung WC s 40 66 153 8 42 74 42 Application purposes • For fastening Geberit concealed stop valves • For Geberit Duofix installation elements with intended retainers • For installation of water sections in Geberit Duofix installation elements Characteristics • Zinc-plated Material Material Steel 111.807.00.1 Accessories • Geberit Mepla concealed stop valve with cover collar and fastening • Geberit concealed stop valve with cover collar and fastening Geberit retrofit adapter for inlet Rp 1/2, urinal G1/2 54 73 26 Application purposes • For retrofitting installed Geberit Duofix elements for urinal with inlet ø 32 mm to inlet Rp 1/2“ 44 PE-E Scope of d

Pagina 83-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 84 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

elivery • 2 washers • 2 sound insulation sleeves • Sound insulation mat Art. no. 242.309.00.1 Characteristics • White Technical data Technical data Art. no. Application purposes • For structure-borne sound insulation of WCs and bidets • For WCs and bidets with fastening distance 18 or 23 cm Art. no. 156.050.00.1 s [mm] 6 For installation elements Geberit Duofix Accessories 45 Geberit GIS 3. Geberit GIS 3.1 System walls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 3.1.1 3.1.2 3.1.3 Support systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 Accessories for prefabrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 Panellings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 3

Pagina 84-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

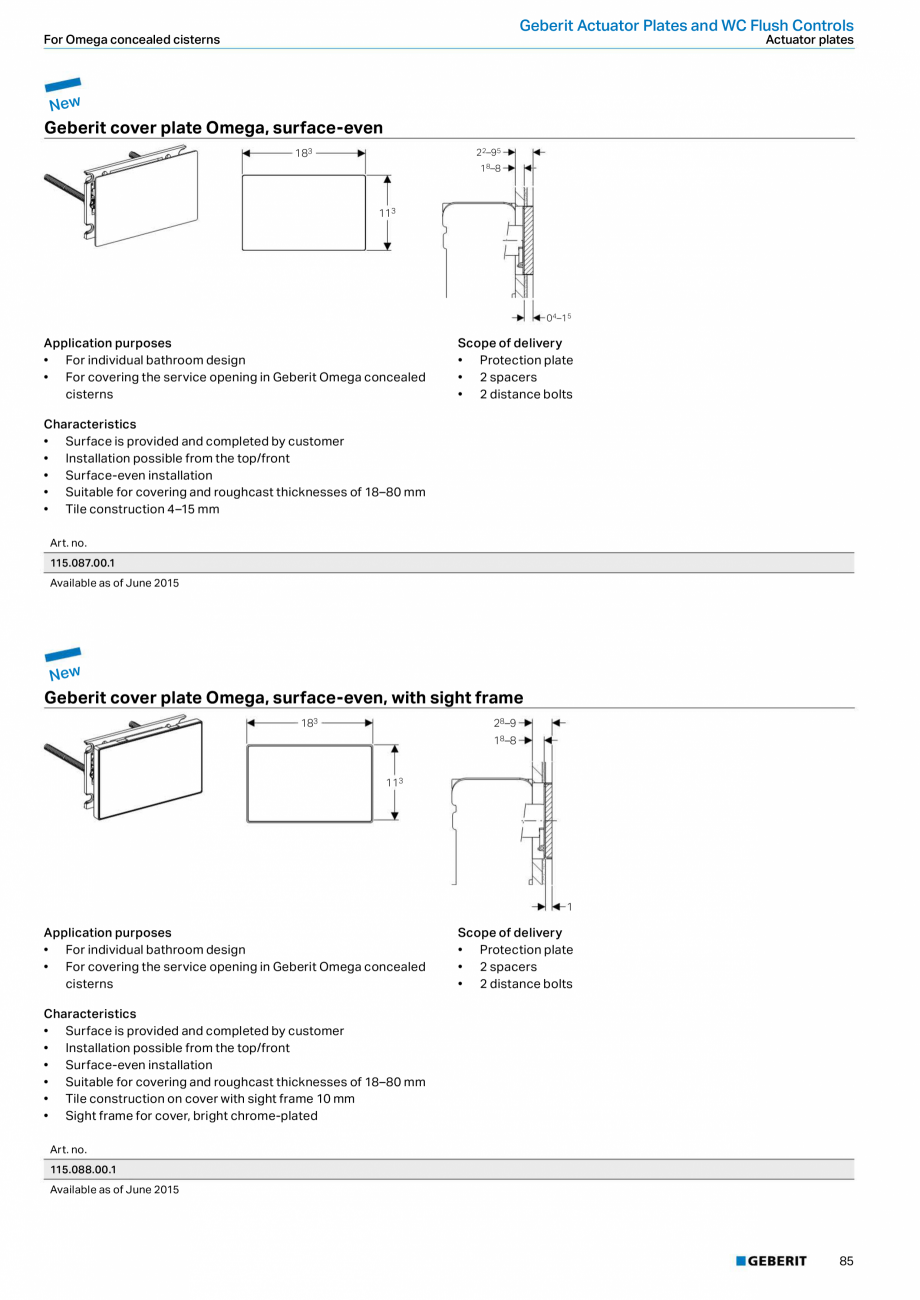

Pagina 85 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

.2 Installation elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 3.2.1 3.2.5 3.2.6 3.2.7 Elements for WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Accessory overview: Geberit GIS elements for WCs . . . . . . . . . . . . . . . . . . . . . . . . 51 Elements for washbasins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Elements for bidets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Elements for urinals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Accessory overview: Geberit GIS elements for urinals . . . . . . . . . . . . . . . . . . . . . .54 Elements for taps and devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pagina 85-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

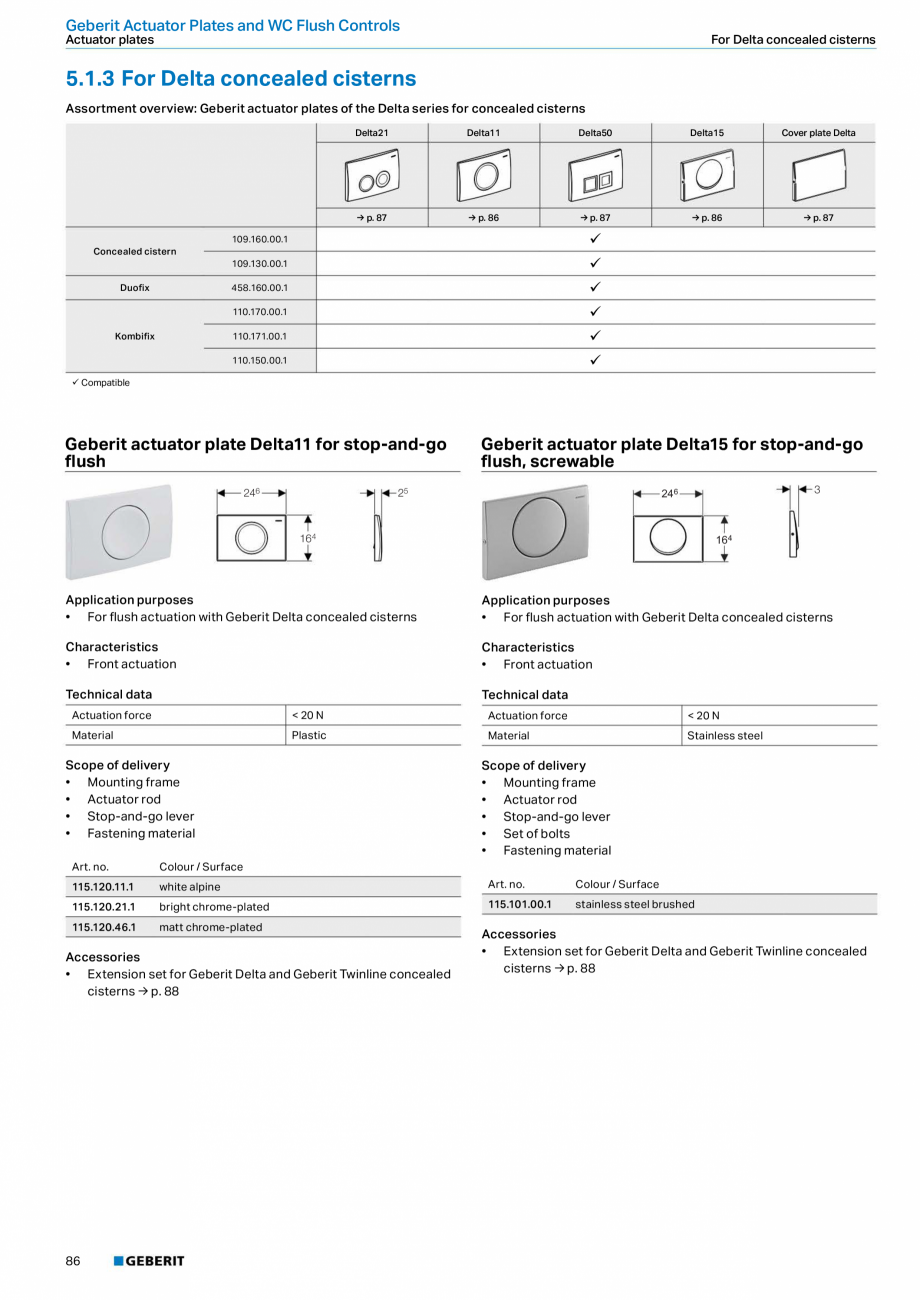

Pagina 86 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

. . . . . .56 Elements for loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 3.3 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 3.3.1 3.3.2 3.3.3 For system walls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 For supply systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 For drainage systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 3.2.2 3.2.3 3.2.4 47 Geberit GIS System walls Support systems 3.1 System walls 3.1.1 Support systems Geberit GIS profile Geberit GIS mounti

Pagina 86-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

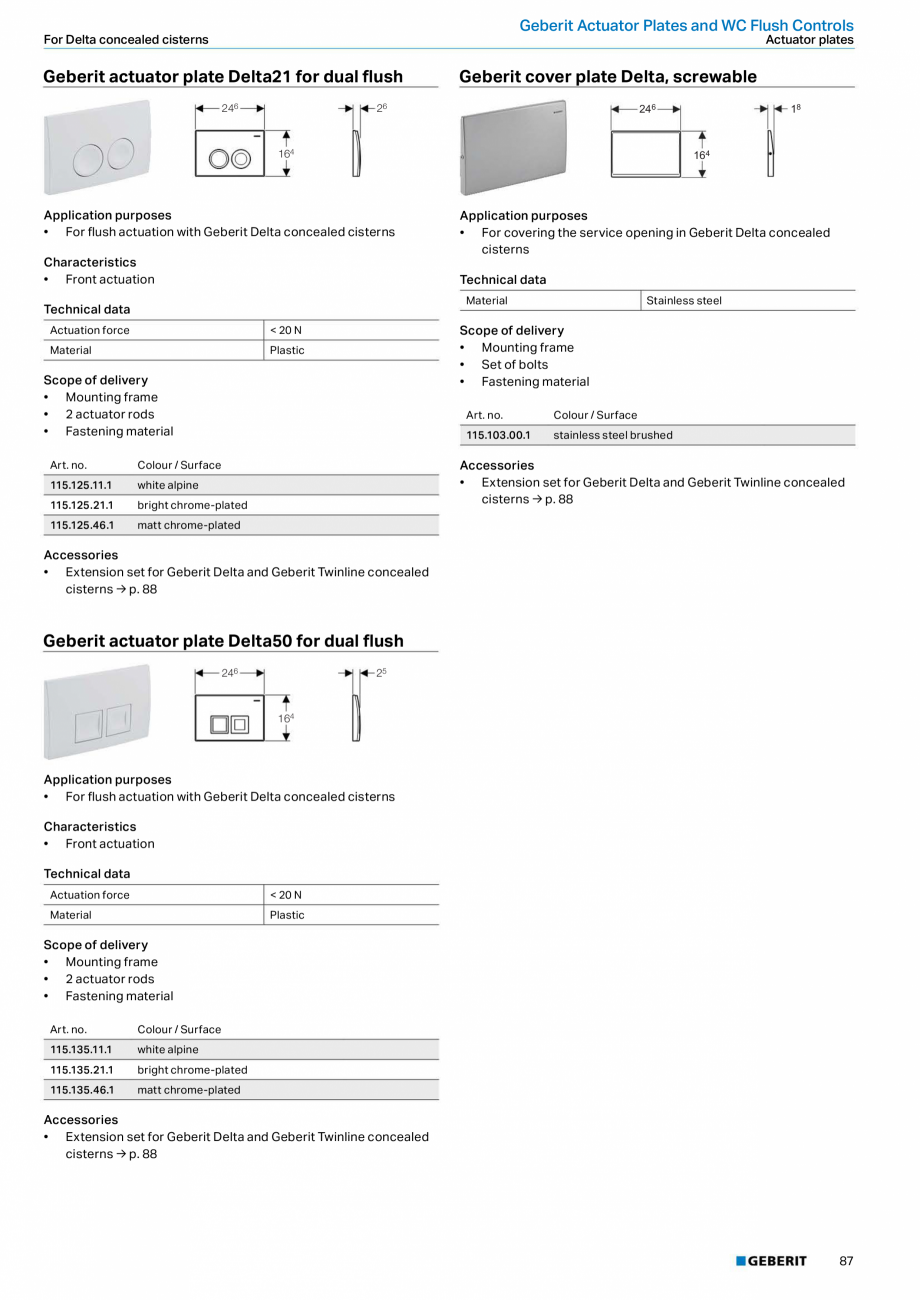

Pagina 87 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ng bracket 5m 32 75 32 55 5 Application purposes • For creating Geberit GIS support systems Application purposes • For creating Geberit GIS support systems • For fastening Geberit GIS support systems to the building structure • For compensating for construction differences Characteristics • Zinc-plated Technical data Material 05 Characteristics • Zinc-plated • Short and long leg with two oblong holes each Steel Art. no. Technical data 461.000.25.1 Material Scope of delivery • 1 ratchet pin • Nut M8 • Fastening material Geberit GIS profile connector 6 Steel 32 55 32 2 Art. no. 461.002.00.1 12 Application purposes • For creating Geberit GIS support systems • For connecting Geberit GIS profiles at right angles without tools Characteristics • Maximum insertion depth marked • Clip made of spring steel, protected against corrosion • Lengths can be compensated up to 1 cm per profile side • Lever for manual actuation made of die-cast zinc �

Pagina 87-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

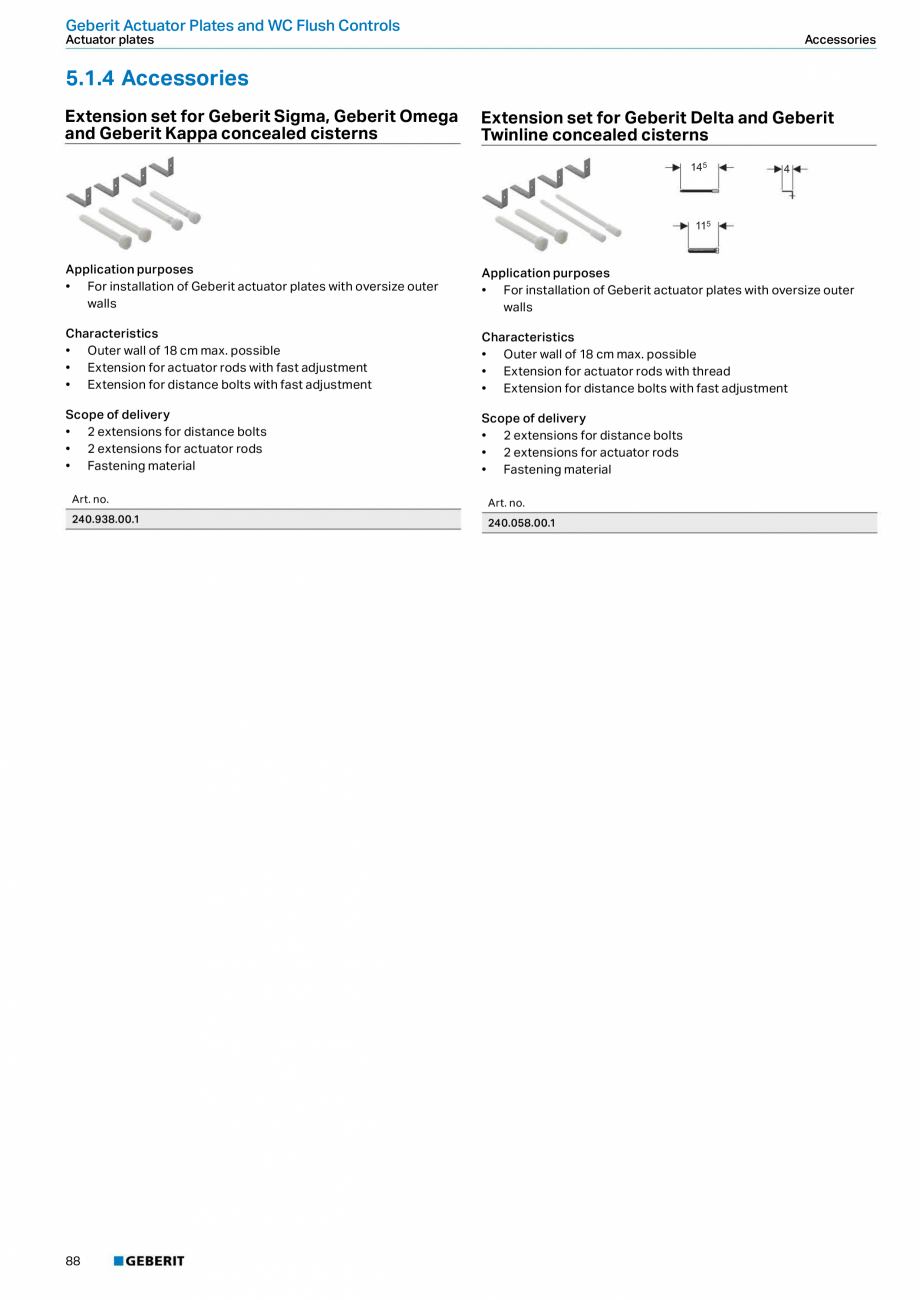

Pagina 88 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

�� Pre-locking function Art. no. 461.200.00.1 Accessories • Sound insulating panel for Geberit GIS mounting bracket → p. 59 Geberit GIS connecting piece 9-14 3 3 Application purposes • For creating Geberit GIS support systems • For making Geberit GIS support systems more rigid Characteristics • Two die-cast parts, can be turned 90° relative to one another • Clip made of spring steel • Adjustable in depth without tools, 5-mm grid • Insertion direction marked • Can be shortened to 3 cm Technical data Material Art. no. 461.003.00.1 48 Die-cast zinc Geberit GIS Accessories for prefabrication System walls Geberit GIS connecting strap 3 Geberit GIS corner stiffener for transport 04 58 75 13 75 13 Application purposes • For making prefabricated Geberit GIS support systems more rigid Application purposes • For creating Geberit GIS support systems • For connecting Geberit GIS profiles near horizontal joints of panelling • For right-angled or oblique

Pagina 88-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 89 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

wall inlets Characteristics • Zinc-plated Technical data Material Characteristics • Zinc-plated • With oblong hole Steel Art. no. 461.089.00.1 Technical data Material Steel 3.1.3 Panellings Scope of delivery • 2 ratchet pins • 2 nuts M8 Geberit GIS panel 60 Art. no. 18 461.022.00.1 3.1.2 Accessories for prefabrication 130 Geberit GIS profile guide 42 19 2 2 Application purposes • For precisely connecting two Geberit GIS support systems on the same level Technical data Material Art. no. 461.064.00.1 Die-cast zinc Application purposes • For single-layer, vertical panelling of Geberit GIS support systems • For use in the moisture load classes 0 and A01 Characteristics • Impregnated • Environmentally compatible • Building material class A2, non-combustible, in accordance with DIN 4102 Technical data Weight 13 kg Material Plasterboard Art. no. 461.025.00.1 49 Geberit GIS System walls Panellings Geberit aqua panel Plus Technical data 60

Pagina 89-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 90 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

18 Weight 12 kg Material Plasterboard Art. no. 461.058.00.1 130 Geberit GIS panel for washbasin 60 Application purposes • For single-layer, vertical panelling of Geberit GIS support systems • For single-layer panelling of Geberit Duofix system walls • For areas exposed to high amounts of moisture • For utilisation in the moisture load classes 0, A0 and A1 (range regulated by building authorities) Characteristics • Cement-bonded mineral structural panel • Water-resistant • Without mineral fibers • Building material class A1, non-combustible, in accordance with DIN 4102 Technical data Weight Calcium silicate Art. no. 461.163.00.1 130 Application purposes • For single-layer panelling of Geberit GIS elements for washbasin in GIS support system • For use in the installation of Geberit GIS support systems on unfinished floors Characteristics • Impregnated • Environmentally compatible • Non-combustible • Pre-drilled for washbasin connections 9 kg Mater

Pagina 90-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

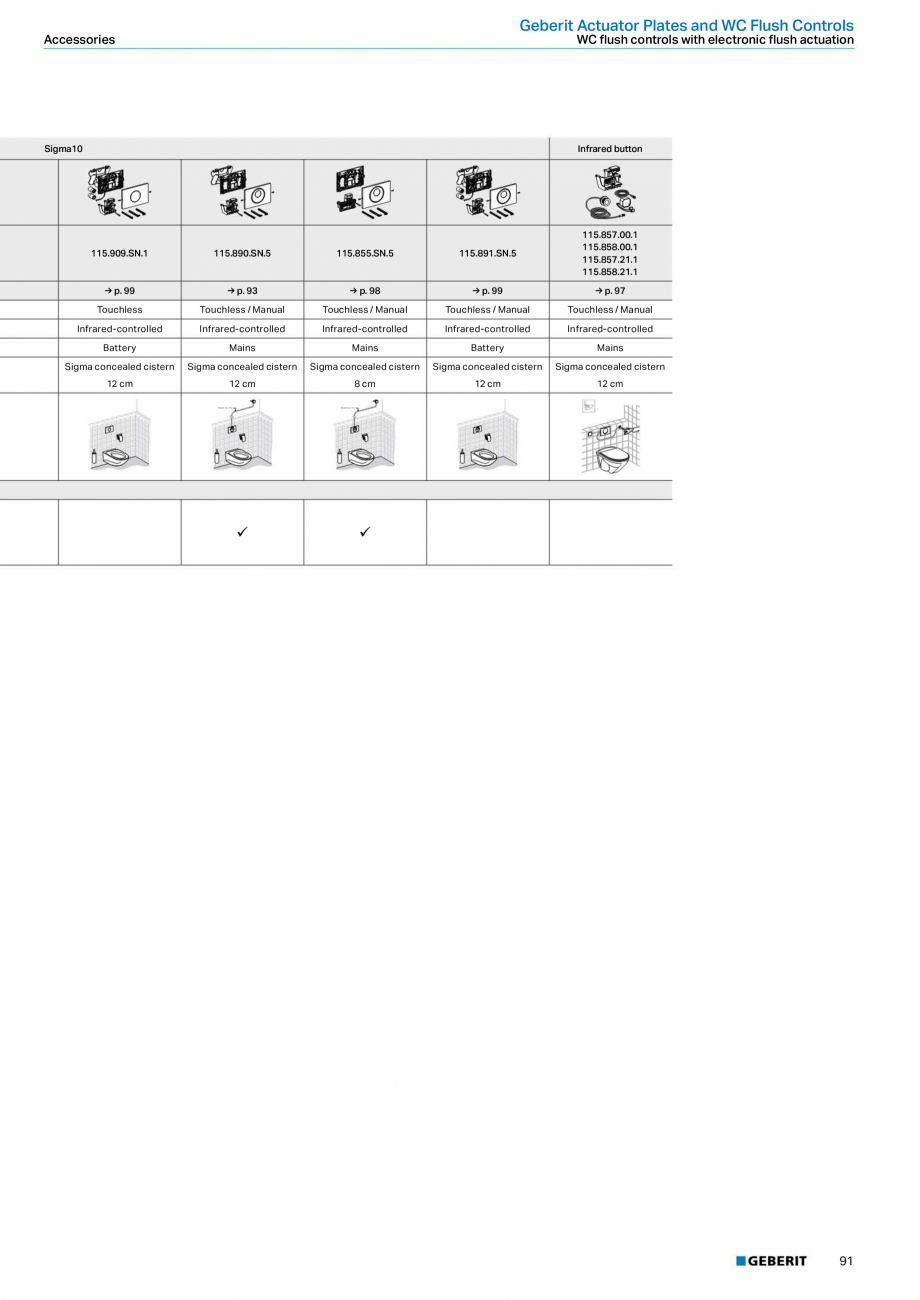

Pagina 91 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

ial 18 P Technical data Material Geberit GIS panel for wall-hung WC, for Sigma concealed cisterns 12 cm 60 Plasterboard Art. no. 461.074.00.1 18 Geberit panel screw 130 Application purposes • For single-layer panelling of Geberit GIS elements for wall-hung WC in GIS support system • For use in the installation of Geberit GIS support systems on finished floors • For use in the moisture load classes 0 and A01 Characteristics • Impregnated • Environmentally compatible • Pre-drilled for wall-mounted WC connections • Cutout section available for Geberit Sigma concealed cistern 12 cm service opening • Building material class A2, non-combustible, in accordance with DIN 4102 50 Application purposes • For fastening Geberit panels and Geberit aqua panels Plus to Geberit Duofix system walls and Geberit GIS support systems Characteristics • Self-tapping screw, 4.2 x 35 mm • Self-tapping thread • Steel, hardened and phosphatised • Flared head with crosshead Phil

Pagina 91-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 92 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

lips PH 2 Art. no. 461.030.00.1 Geberit GIS Elements for WCs Installation elements Geberit filler Geberit panel screw, in magazine Application purposes • For fastening Geberit panels and Geberit aqua panels Plus to Geberit Duofix system walls and Geberit GIS support systems • For quick-fit auto-feed screwdriver Application purposes • For filling Geberit panels and Geberit aqua panels Plus without stripe in areas exposed to moderate or high amounts of moisture Characteristics • Self-tapping screw, 4.2 x 35 mm • Self-tapping thread • Steel, hardened and phosphatised • Flared head with crosshead Phillips PH 2 • Plastic magazine for 50 panel screws Characteristics • Impregnated • Environmentally compatible • Powdery Art. no. 461.031.00.1 Art. no. 464.015.00.1 3.2 Installation elements 3.2.1 Elements for WCs Accessory overview: Geberit GIS elements for WCs Actuator plates of the Sigma series Actuator plates of the Omega series Set of support brackets for

Pagina 92-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 93 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

WC ceramic appliances with small contact surfaces Concealed outlet for drywall and solid wall construction → p. 70 → p. 82 → p. 43 → p. 281 ü ü ü ü ü ü 461.311.00.5 Element for wall-hung WC, 114 cm, with Sigma ü concealed cistern 12 cm 461.141.00.1 Element for wall-hung WC, 87 cm, with Omega ü concealed cistern 12 cm 461.206.00.1 Element for wall-hung WC, 95 cm, close-coupled WC 51 Geberit GIS Installation elements Elements for WCs Geberit GIS element for wall-hung WC, 114 cm, with Sigma concealed cistern 12 cm Geberit GIS element for wall-hung WC, 87 cm, with Omega concealed cistern 12 cm ≥ 165 (DN 90) ≥ 195 (DN 100) 424 R½ ≥ 205 424 114 100 45 100 87−91 R½ 18/23 5 5 1045 100 75 18/23 +2 41 −1 ≤ 70 5 5 9 23 +2 22 0 40 −1 0 9−135 195 32 0 0−20 76 0−20 ≥ 30 0 195 ≥ 30 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall

Pagina 93-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 94 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

• Suitable for barrier-free construction • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • Suitable for wall-hung WCs with projection up to 70 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Application purposes • For installation in Geberit GIS support systems for part-height prewall or free-standing wall • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For dual flush • For floor constructions 0–20 cm Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immedia

Pagina 94-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 95 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

te post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service

Pagina 95-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

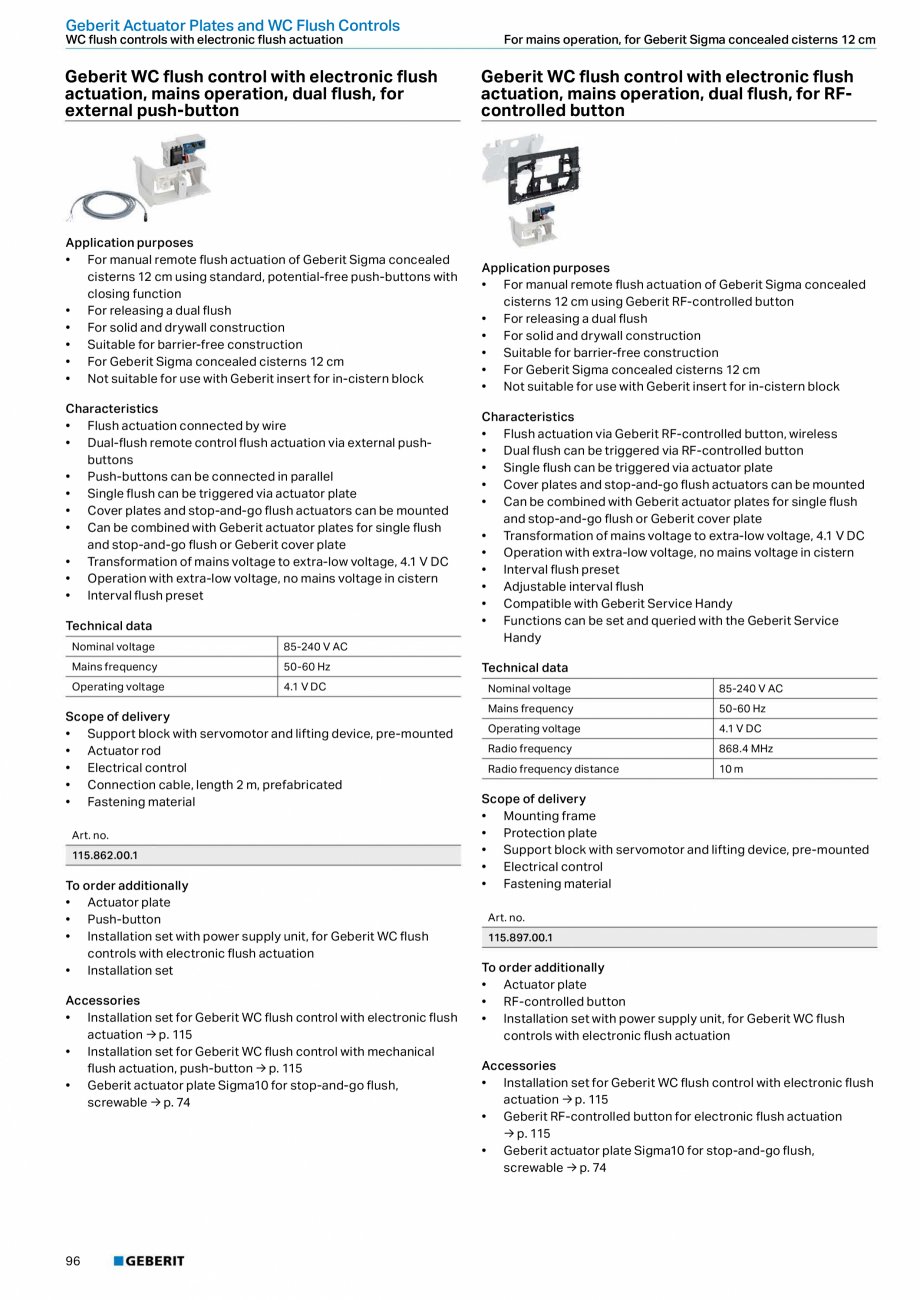

Pagina 96 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Technical data 9−135 Flow pressure 0.1-10 bar Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 4 protective plugs with punching tip • 2 threaded rods M12 • Fastening material Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve a

Pagina 96-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

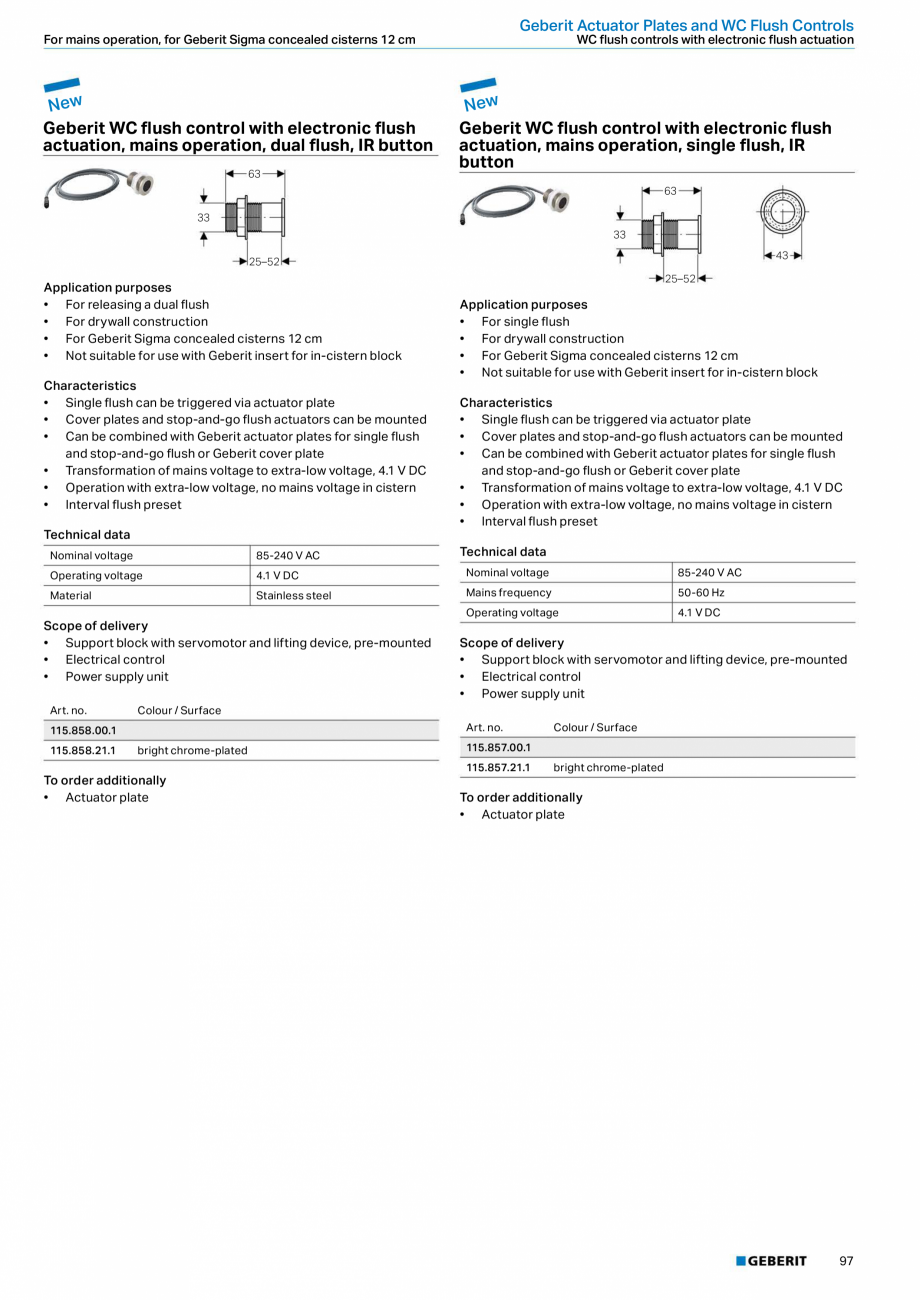

Pagina 97 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

nd hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 4 protective plugs with punching tip • 2 threaded rods M12 • Fastening material Art. no. Art. no. 461.311.00.5 461.141.00.1 Accessories • Accessory overview: Geberit GIS elements for WCs → p. 51 • 52 Actuator plate has to be ordered separately Accessories • Accessory overview: Geberit GIS elements for WCs → p. 51 • Actuator plate has to be ordered separately Geberit GIS Elements for washbasins Installation elements 3.2.2 Elements for washbasins Geberit GIS element for wall-hung WC, 95 cm, close-coupled WC 424 Geberit GIS washbasin set for deck-mounted tap min.165 (DN 90) min.185 (DN 100) 755-86 min.95 248 18/23 37 15 76 802 76 23 7 0 41 153 0-20 0 0-20 9-135 Application purposes • For installation in Geberit GIS support systems for prewall, partition w

Pagina 97-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 98 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

all or free-standing wall • Suitable for barrier-free construction • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • Suitable for wall-hung WCs with projection up to 70 cm • For mounting of close-coupled WCs • For floor constructions 0–20 cm Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Crossbar for tap, height-adjustable Scope of delivery • Elbow tap connector R 1/2, compatible with MeplaFix • Sealing washer • 3 protective plugs with punching tip • 2 threaded rods M12 • Fastening material Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing

Pagina 98-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 99 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala,...

wall • For installation of washbasins • For deck-mounted taps Characteristics • Crossbar, zinc-plated, with two quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Standard washbasin fastening distance 28 cm, adjustable with the Geberit GIS structure • Fastening for connection bend, sound-absorbing Scope of delivery • 2 elbow tap connectors R 1/2 • 2 sound insulation bases • 2 insulating sleeves • 5 protective plugs with punching tip • 2 sealing washers • Connection bend made of PE-HD, ø 50 mm, extended • Seal, ø 44/32 mm • 2 mounting clips M10 • 2 threaded rods M10 • Fastening material Art. no. 461.430.00.1 Art. no. 461.206.00.1 Accessories • Accessory overview: Geberit GIS elements for WCs → p. 51 53 Geberit GIS Installation elements Elements for bidets 3.2.3 Elements for bidets Geberit GIS element for bidet, Universal 4 50 8-38 18/23 350 330 310 290 270 250 230 210 190 170 150 130 110 90 360 340

Pagina 99-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

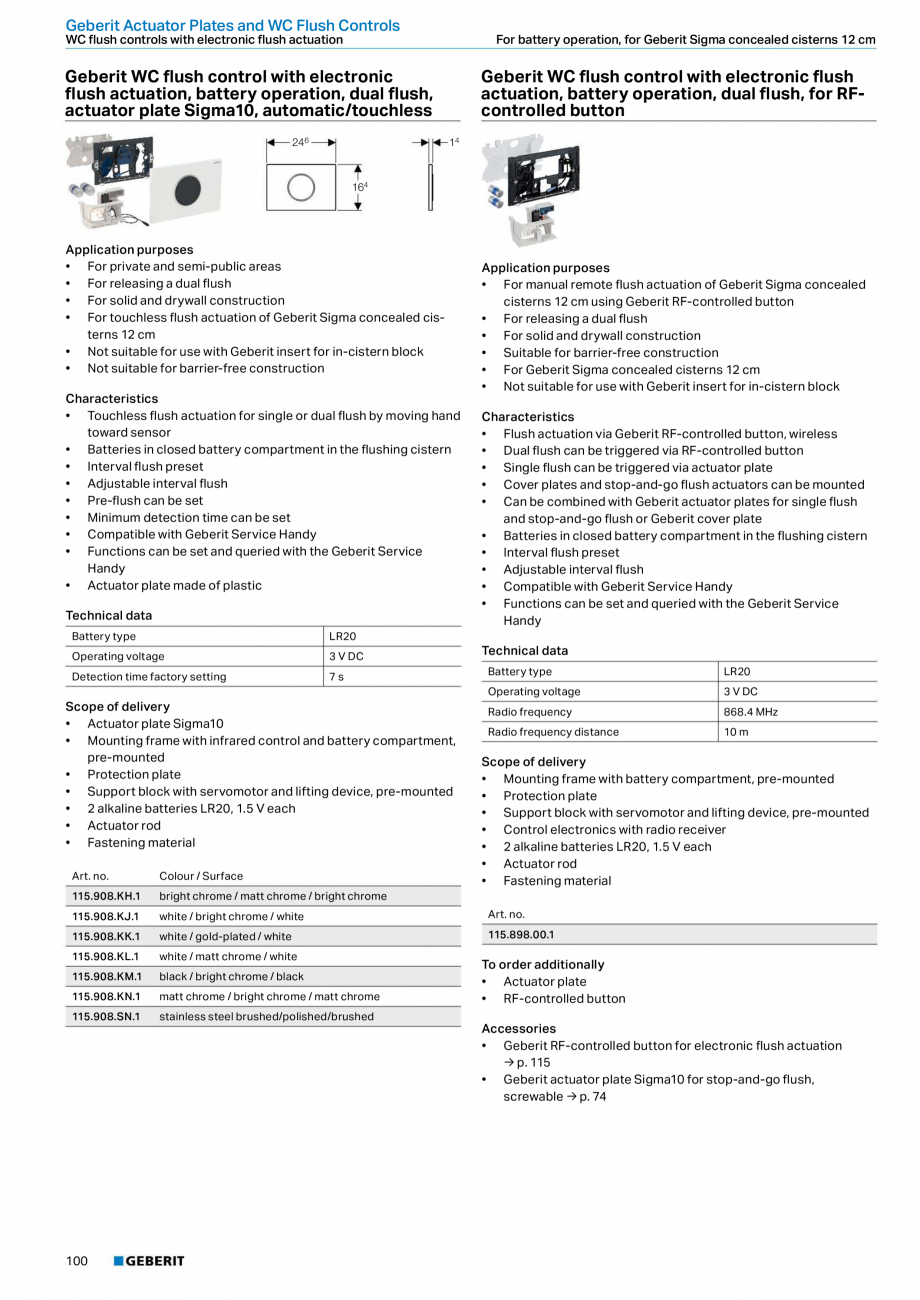

Pagina 100 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

320 300 280 260 240 220 200 180 160 140 120 100 80 964.162.00.0 69 110 130 150 170 190 210 230 250 270 290 310 330 350 8090100 120 140 160 180 200 220 240 260 280 300 320 340 360 964.161.00.0 0 0 0-20 0-20 10 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For wall-hung bidets with deck-mounted tap • For floor constructions 0–20 cm Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Fastening distance for wall-hung bidet 18 or 23 cm, bidet fastening height-adjustable • Fastening for connection bend, height-adjustable and soundabsorbing • Tap attachments adjustable in width and height Scope of delivery • 2 elbow tap connectors R 1/2, compatible with MeplaFix • 2 sealing washers • 2 sound insulation bases • 2 insulating sleeves • 3 protective plugs with punching tip • Connection bend made of

Pagina 100-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 101 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M12 • Fastening material Art. no. 461.530.00.1 3.2.4 Elements for urinals Accessory overview: Geberit GIS elements for urinals Urinal flush controls with electronic flush actuation, battery operation Element for urinal, 114 cm, Universal Urinal flush controls with pneumatic flush actuation Urinal flush control with electronic flush actuation, mains operation, hidden, Universal Inlet crossbar for urinal, with spray head → p. 174 461.621.00.1 Urinal flush controls with electronic flush actuation, mains operation → p. 178 → p. 182 → p. 174 → p. 42 ü ü ü ü 461.689.00.1 Element for urinal, 114–132 cm, Universal, for hidden urinal control 54 ü ü Geberit GIS Elements for urinals Installation elements Geberit GIS element for urinal, 114–132 cm, Universal, for hidden urinal control 42 Geberit GIS element for urinal, 114 cm, Universal 75 42 9 9-29 R1/2 75-33 100 109-127 7 min. 114 R

Pagina 101-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

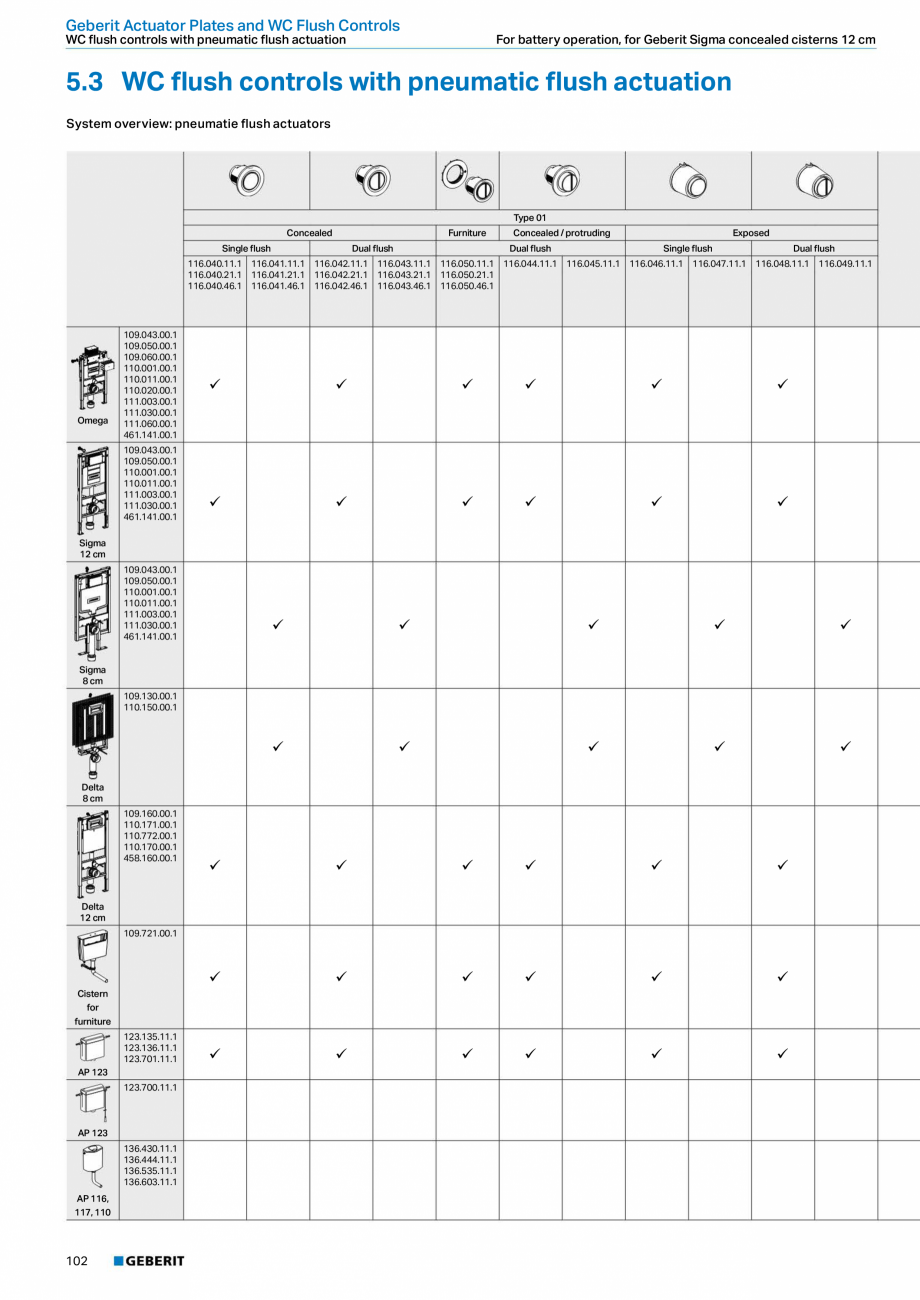

Pagina 102 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

1/2 17-37 min. 9 max. 81 min. 31 10 100-118 100 max. 65 109-127 75-33 0 0 0 0-20 0-20 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For Geberit urinal flush controls for covered installation, vandal-resistant • For floor constructions 0–20 cm Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Stop valve with throttle pre-mounted • Service opening behind urinal • Flexible flush hose with guide and integrated check valve • Equipped with conduit pipe to connect the sensor in the trap to the urinal flush control • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be retrofitted with accessories to fit urinal

Pagina 102-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 103 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

s with spray head 0 0 - 20 0 - 20 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For floor constructions 0–20 cm Characteristics • Frame, zinc-plated, with four quick-action fasteners • Infinitely variable height adjustment in Geberit GIS structure • Stop valve with throttle pre-mounted • Fastening for inlet ø 32 mm, height-adjustable • Fastening for connection bend, height-adjustable and sound-absorbing • Urinal fasteners M8 width- and height-adjustable • Crossbars with centring marks, adjustable without tools • Can be retrofitted with accessories to fit urinals with spray head Technical data Flow pressure 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Elbow tap connector R 1/2 • Protection box with cover • Connecti

Pagina 103-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 104 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

on pipe between inlet ø 32 mm and urinal, with seal to urinal • 1 protection plug • Connection bend made of PE-HD, ø 50/63 mm • Protective cap • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • Fastening material Art. no. 1-8 bar Maximum test pressure water 16 bar Maximum test pressure air / inert gas 3 bar Flow rate at 1 bar without flow limiter Technical data Flow pressure 0.3 l/s Flow rate at 1 bar with flow limiter 0.24 l/s Scope of delivery • Elbow tap connector R 1/2 • Protection box with cover • Connection pipe between inlet ø 32 mm and urinal, with seal to urinal • 1 protection plug • Connection bend made of PE-HD, ø 63/50 mm • Protective cap • Seal, ø 57/50 mm • Urinal trap ø 50 mm, with seal on urinal • 2 threaded rods M8 • Fastening material Art. no. 461.621.00.1 Accessories • Accessory overview: Geberit GIS elements for urinals → p. 54 461.689.00.1 Accessories • Accessory overview: Geberit GIS elemen

Pagina 104-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

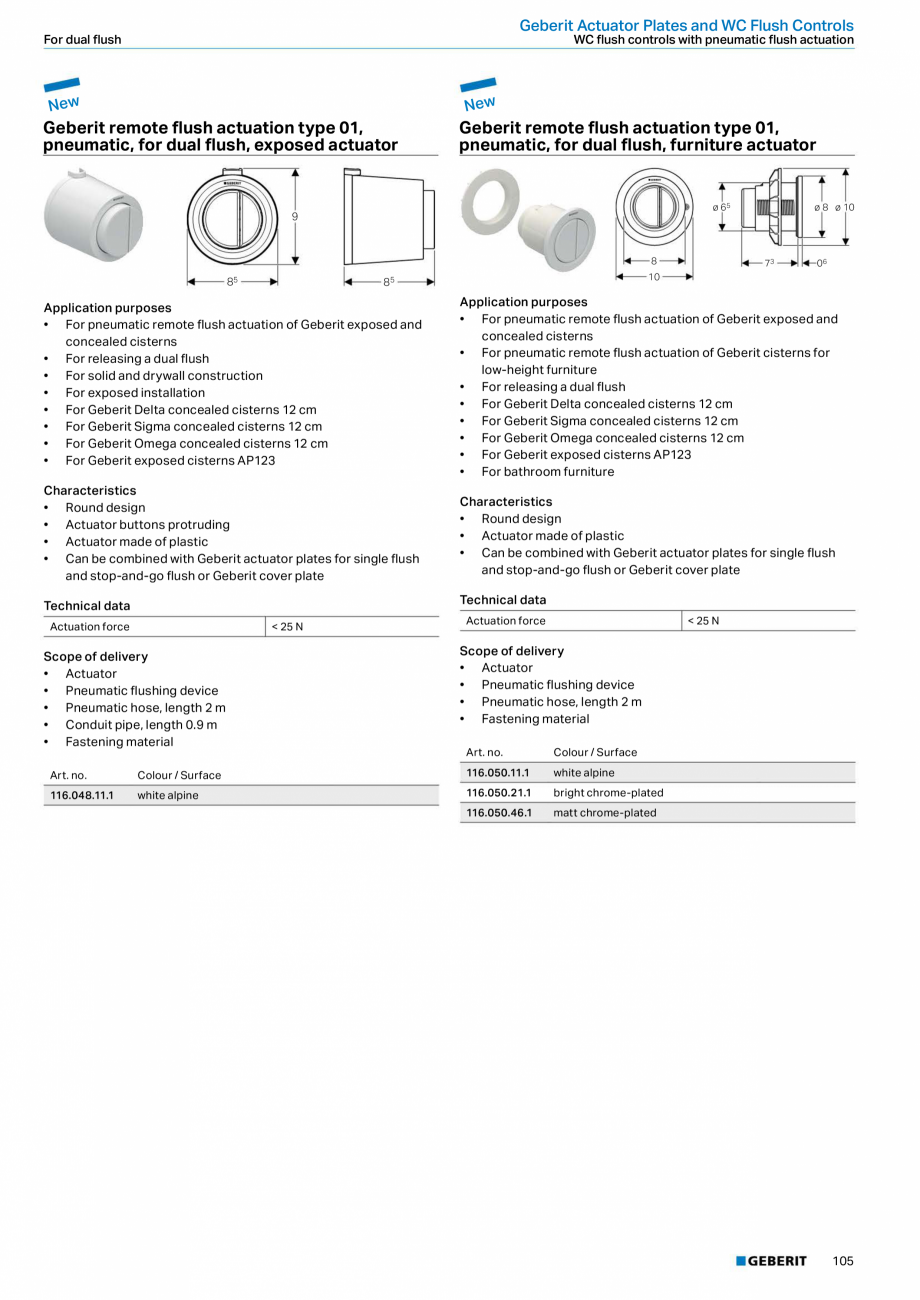

Pagina 105 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

ts for urinals → p. 54 55 Geberit GIS Installation elements Elements for taps and devices 3.2.5 Elements for taps and devices Geberit GIS crossbar for wall-mounted tap, surface-mounted, 153 mm, for two water supply connections 248 Geberit GIS mounting plate for concealed base units HANSAVAROX and iBox 37 77 15 153 125 76 2 76 38 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For connecting surface-mounted taps with gauge for bore holes 15.3 cm • For connecting surface-mounted taps with gauge for bore holes 7.6 cm Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For installation of concealed base units HANSAVAROX and iBox Characteristics • Infinitely variable height adjustment in Geberit GIS structure • Crossbar, zinc-plated, with four quick-action fasteners Art. no. Characteristics • Infinitely variable

Pagina 105-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 106 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

height adjustment in Geberit GIS structure • Crossbar, zinc-plated, with two quick-action fasteners 461.178.00.1 3.2.6 Elements for loads Scope of delivery • 2 protective plugs with punching tip • 2 sealing washers • 2 sound insulation bases • Fastening material Geberit GIS mounting plate Universal, 31 x 58 cm 3 308 Art. no. 461.038.00.1 578 Geberit GIS mounting plate for concealed stop valves, 270 mm 5 153 115 12 7 27 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • For fastening Geberit concealed stop valves Characteristics • Infinitely variable height adjustment in Geberit GIS structure • Crossbar, zinc-plated, with two quick-action fasteners 13 5 Application purposes • For installation in Geberit GIS support systems for prewall, partition wall or free-standing wall • Suitable for barrier-free construction • For fastening support handles • For fastening urinal divisions,

Pagina 106-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 107 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

shower partition walls and wall cabinets Characteristics • Mounting plate made of veneered wood, waterproof bonded • Can be divided into two smaller mounting plates • Can be mounted vertically and horizontally • All-round cutout suitable for Geberit GIS profile Technical data Art. no. Material 461.072.00.1 Accessories • Geberit Mepla concealed stop valve with cover collar and fastening • Geberit concealed stop valve with cover collar and fastening 56 Art. no. 461.035.00.1 Wood Geberit GIS Accessories Accessories 3.2.7 Accessories 3.3 Accessories Geberit retrofit adapter for inlet Rp 1/2, urinal 3.3.1 For system walls G1/2 54 Geberit GIS installation kit for free-standing system wall 10-17 26 73 28 Application purposes • For retrofitting installed Geberit Duofix elements for urinal with inlet ø 32 mm to inlet Rp 1/2“ 20 Art. no. 242.309.00.1 Geberit sound insulation set for wall-hung WC s 40 42 Application purposes • For making free-standin

Pagina 107-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

Pagina 108 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

g Geberit GIS support systems more rigid Characteristics • Zinc-plated Technical data Material Application purposes • For structure-borne sound insulation of WCs and bidets • For WCs and bidets with fastening distance 18 or 23 cm Characteristics • White Technical data PE-E Scope of delivery • 2 washers • 2 sound insulation sleeves • Sound insulation mat 156.050.00.1 Scope of delivery • 2 support brackets, pre-mounted, zinc-plated • 2 heavy-duty dowels • 4 ratchet pins • 2 screws M8 • 6 nuts M8 Art. no. Material Art. no. Steel 461.660.00.1 Geberit GIS installation kit for service flap s [mm] 6 Application purposes • For creating service openings in Geberit GIS walls Characteristics • Size of service opening 15 x 15 cm, can be enlarged to 0.5 m² • Minimum tile size 15 x 15 cm Technical data Material Steel Scope of delivery • 2 pair fixing devices with safety catch • 2 joint angles with adjustable magnets • 2 contact plates • Pull cord t

Pagina 108-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

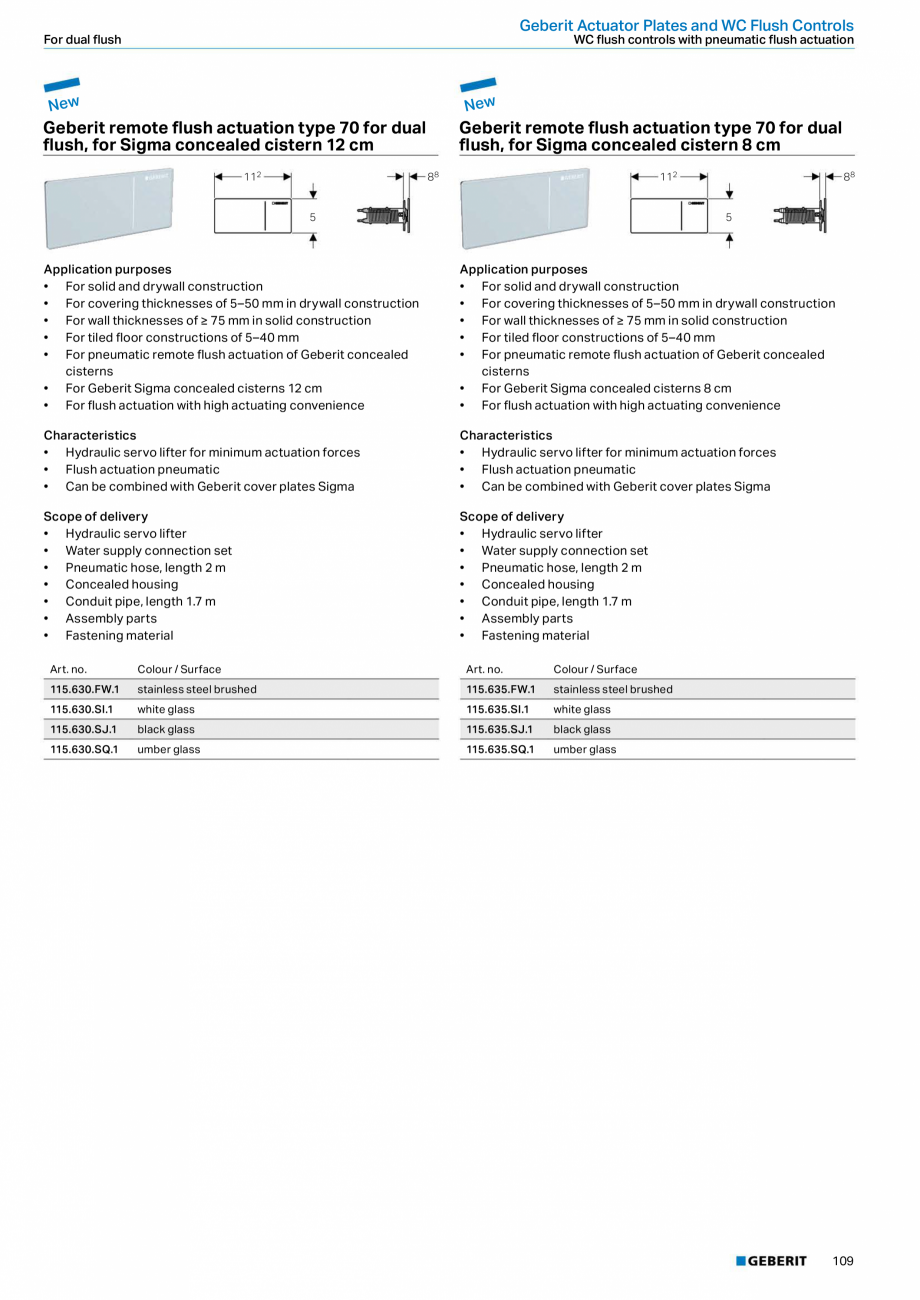

Pagina 109 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

o open • Silicone adhesive Art. no. 461.043.00.1 57 Geberit GIS Accessories For system walls Geberit GIS mounting clip Geberit GIS installation kit for service door M10 33 25 27 2 SW13 M10 5 Application purposes • For fastening threaded rods to Geberit GIS profiles • For fastening installation parts and sanitary appliances to Geberit GIS profiles Characteristics • Zinc-plated • Thread M10 Application purposes • For creating service openings in Geberit GIS walls Characteristics • Size of service opening 20 x 20 cm to 50 x 100 cm • Minimum tile size 20 x 20 cm Technical data Material Steel Scope of delivery • 4 connection elements • 2 hinge holders • Pressure opener • Silicone adhesive Scope of delivery • 1 protective plug with punching tip • Fastening screw Art. no. 461.004.00.1 Art. no. 461.044.00.1 Geberit GIS ratchet pin 2 SW 4 M8 16 SW 13 Geberit heavy-duty dowel 86 M8 Application purposes • For fastening Geberit GIS installation

Pagina 109-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

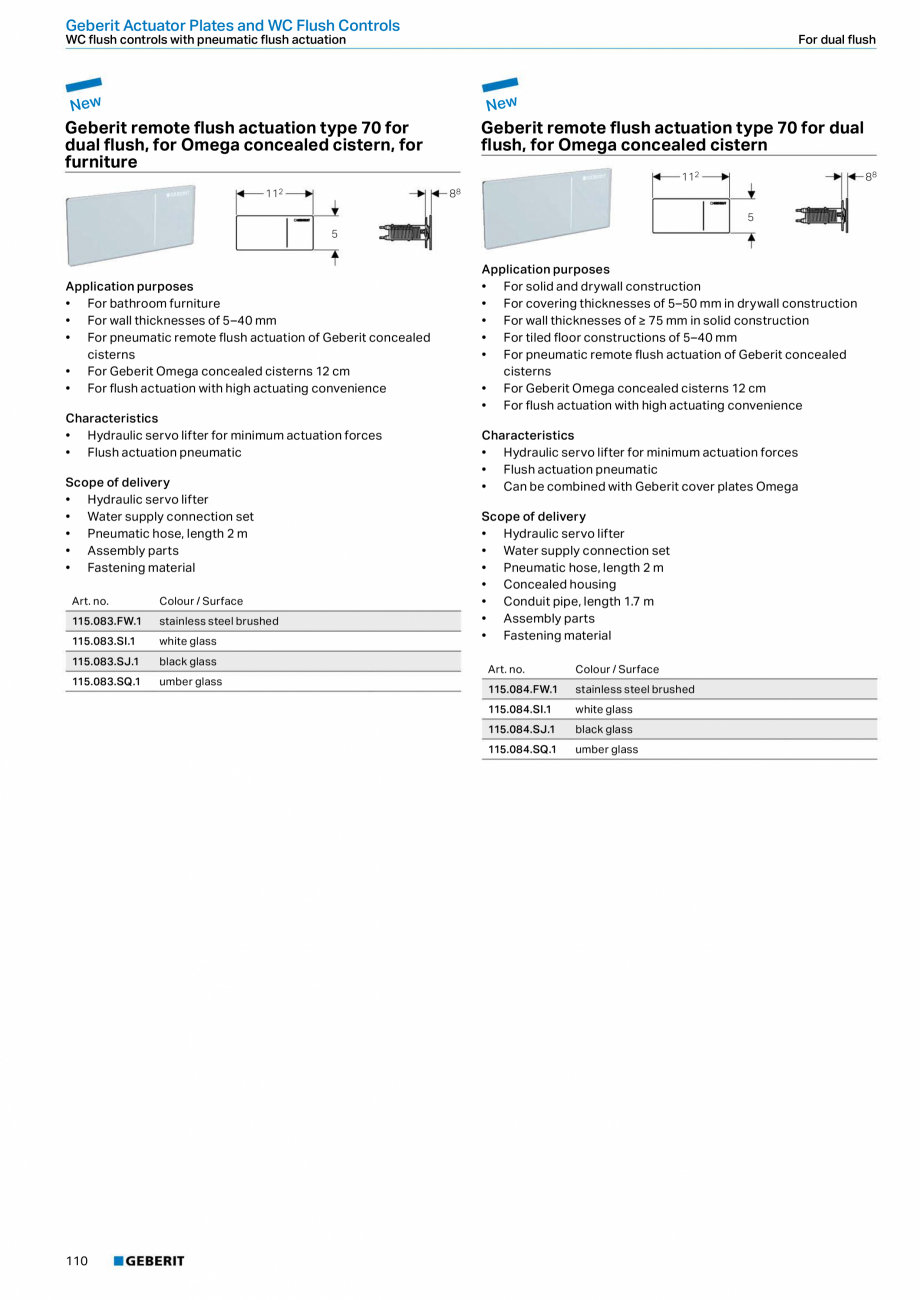

Pagina 110 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

elements on the structure • For creating additional fastenings on Geberit GIS profiles Characteristics • Zinc-plated • Thread M8 461.006.00.1 Technical data Material Geberit void dowel, metal Ø 11 76 Application purposes • For fastening Geberit GIS mounting brackets to panels with panelling thickness of 18–25 mm • For fastening Geberit Duofix system rails to panels with panelling thicknesses of 18–25 mm Characteristics • Zinc-plated Technical data Art. no. 465.029.00.1 58 Art. no. 461.037.26.1 M6 Scope of delivery • Screw M6 Application purposes • For fastening Geberit GIS mounting brackets and GIS installation kits for free-standing GIS walls on the unfinished building structure (concrete) • For fastening Geberit Duofix installation elements with large, reinforced foot plates to the rough building structure (concrete) Characteristics • Zinc-plated Art. no. Material 08 M8 17 Steel Steel Geberit GIS For supply systems Accessories 3.3.2 Fo

Pagina 110-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

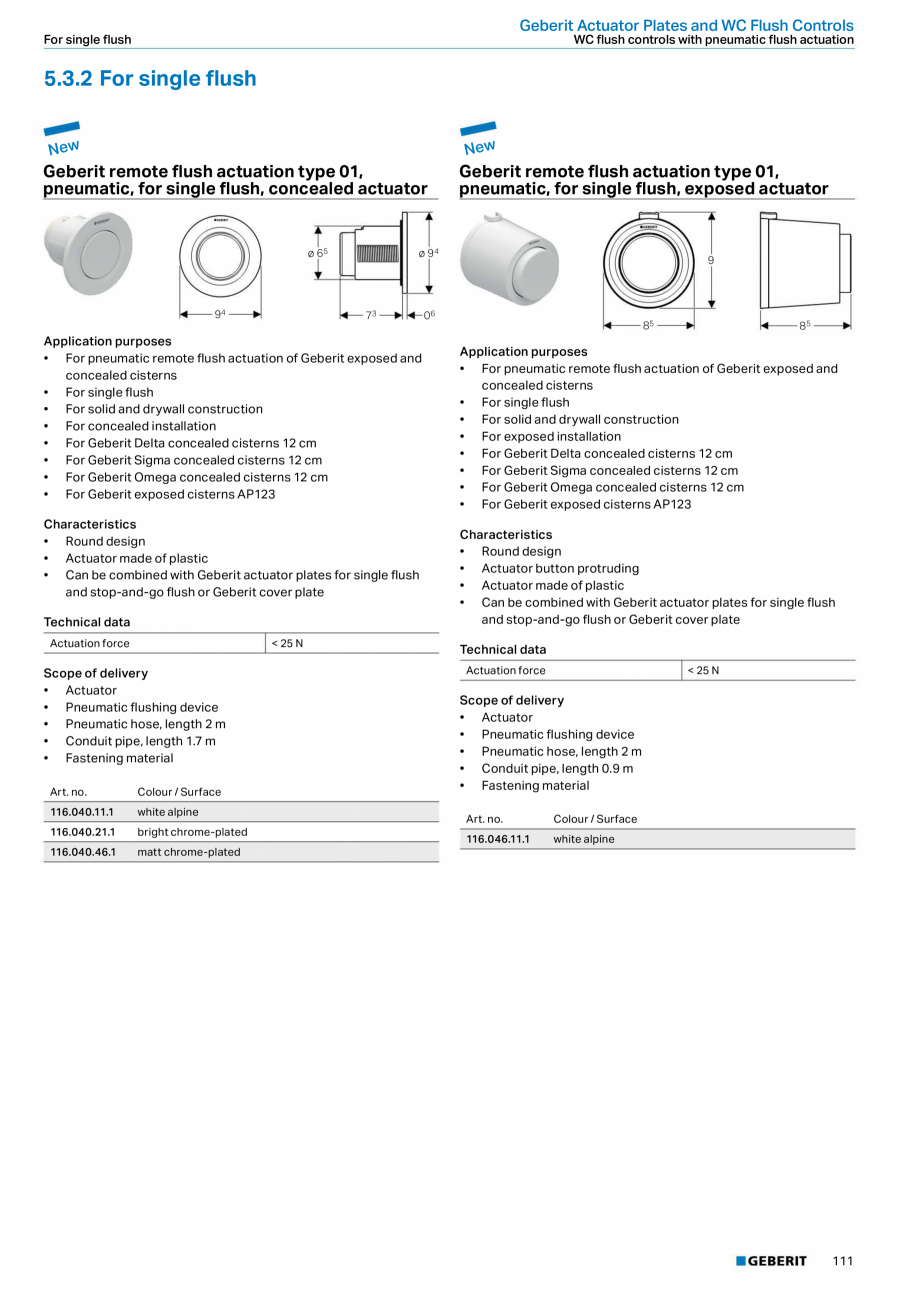

Pagina 111 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

r supply systems Geberit GIS wall fixation 10 135-26 Geberit GIS pipe clip for supply pipes 5 205 Application purposes • For bracing and fastening Geberit GIS support systems to the building structure 5 Application purposes • For fastening supply pipes to Geberit GIS support systems • For Geberit Mepla system pipes, ML, ø 16–32 mm Characteristics • Pre-mounted parts made of die-cast zinc • With two quick-action fasteners • Infinitely variable hand adjustment Characteristics • Adjustable, ø 16–40 mm Technical data Material Die-cast zinc Art. no. Scope of delivery • Fastening material 461.070.00.1 Art. no. 3.3.3 For drainage systems 461.015.00.1 Geberit GIS pipe bracket for discharge pipe Geberit GIS sound insulation tape 30 m 03 5 1 5 Application purposes • For structure-borne sound decoupling between panels and building structure • For avoiding uncontrollable formation of cracks d Application purposes • For fastening discharge pipes

Pagina 111-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

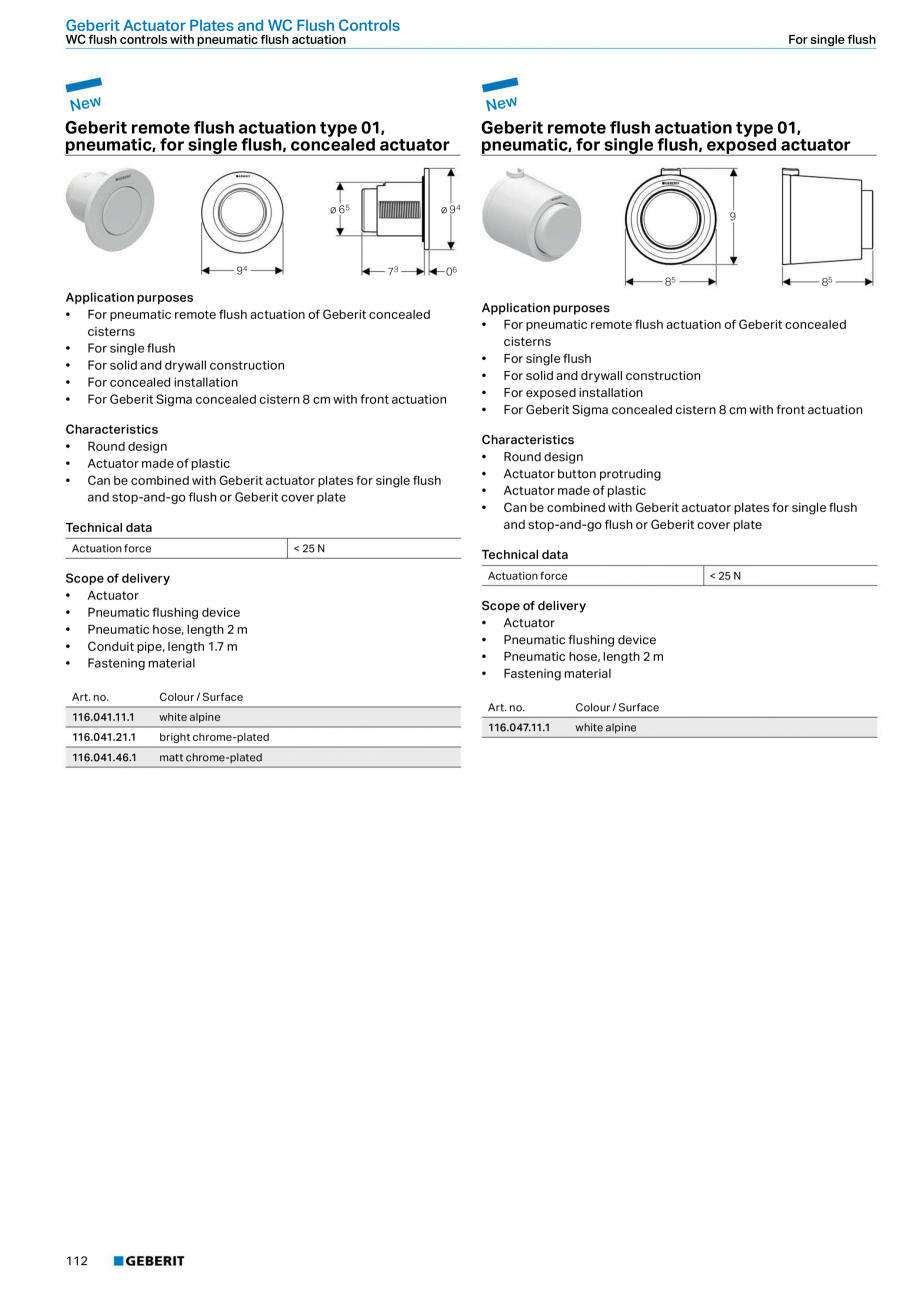

Pagina 112 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

made of plastic to the Geberit GIS support system Characteristics • Single-sided self-adhesive • Permanently elastic • Vinyl foam tape • Closed-cell Art. no. 50 / 56 50 - 56 364.052.00.1 60 63 365.050.00.1 461.036.00.1 d, ø [mm] 363.050.00.1 Art. no. DN 70 75 366.050.00.1 Sound insulating panel for Geberit GIS mounting bracket 90 90 367.050.00.1 100 110 7 05 5 Application purposes • For structure-borne sound decoupling between Geberit GIS support systems and the building structure Characteristics • Self-adhesive Technical data Material Cork Art. no. 461.014.00.1 59 Geberit Concealed Cisterns 4. Geberit Concealed Cisterns 4.1 Sigma concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 4.2 Omega concealed cisterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 4.3 Delta concealed cisterns . . . . . . . . . . . . . . . . . . . . . .

Pagina 112-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

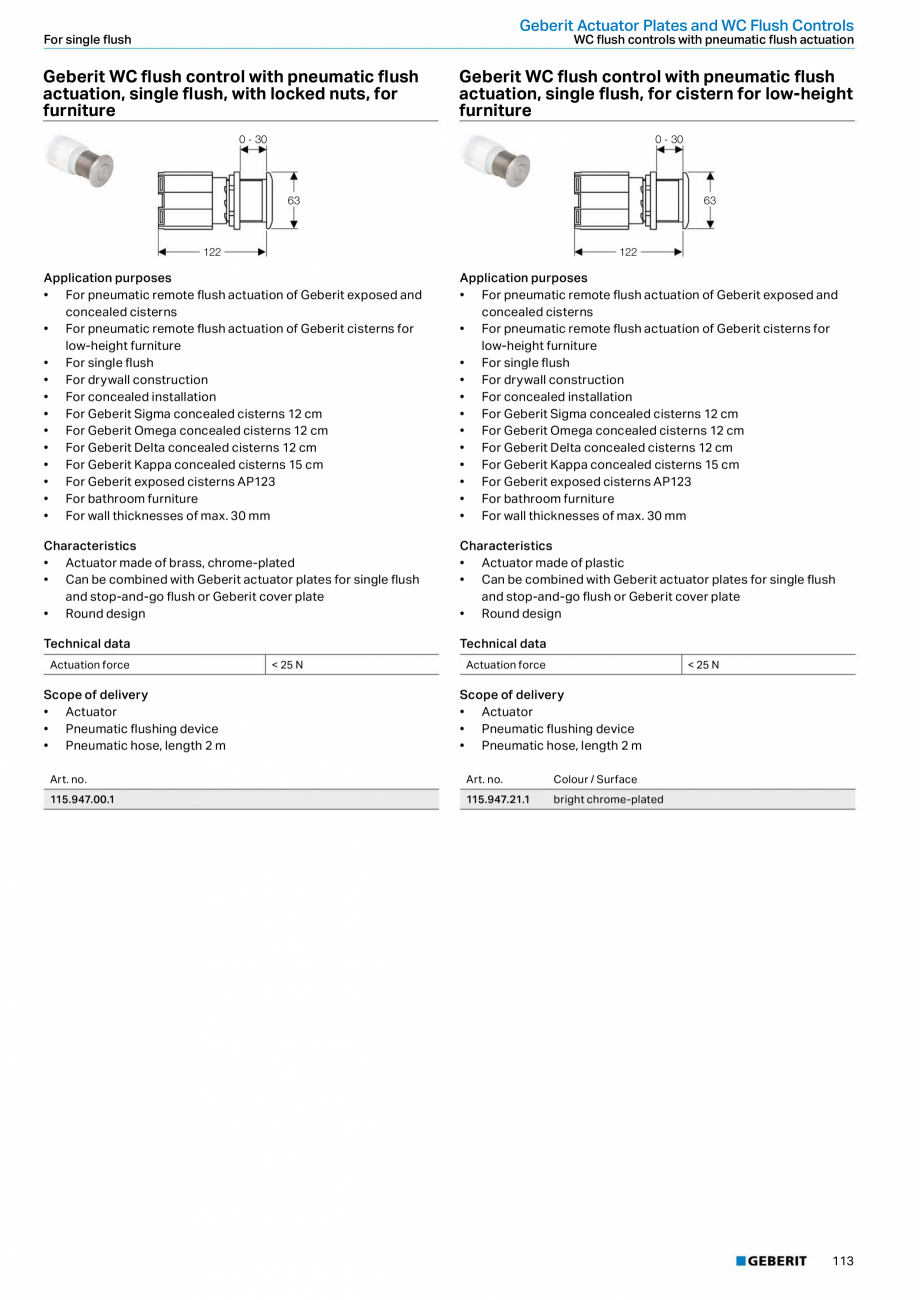

Pagina 113 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

. . . . . . . . . . . . . . . . . . . . . . . . . 65 4.4 Flush pipes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 4.5 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 61 Geberit Concealed Cisterns Sigma concealed cisterns 4.1 Sigma concealed cisterns Geberit Sigma concealed cistern 8 cm, 6 / 3 litres Geberit Sigma concealed cistern 12 cm, 6 / 3 litres 12 44 41 2-9 R1/2 8 505 1–5 8 100 R1/2 100 87 87 110 110 235 845 51 595 41 108 23 67–82 1045 365 135 8 0 max.–15 X 0 0 0 30 Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For floor-standing and wall-hung WCs • For single flush, dual flush or stop-and-go flush Characteristics • Concealed cistern with front actu

Pagina 113-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

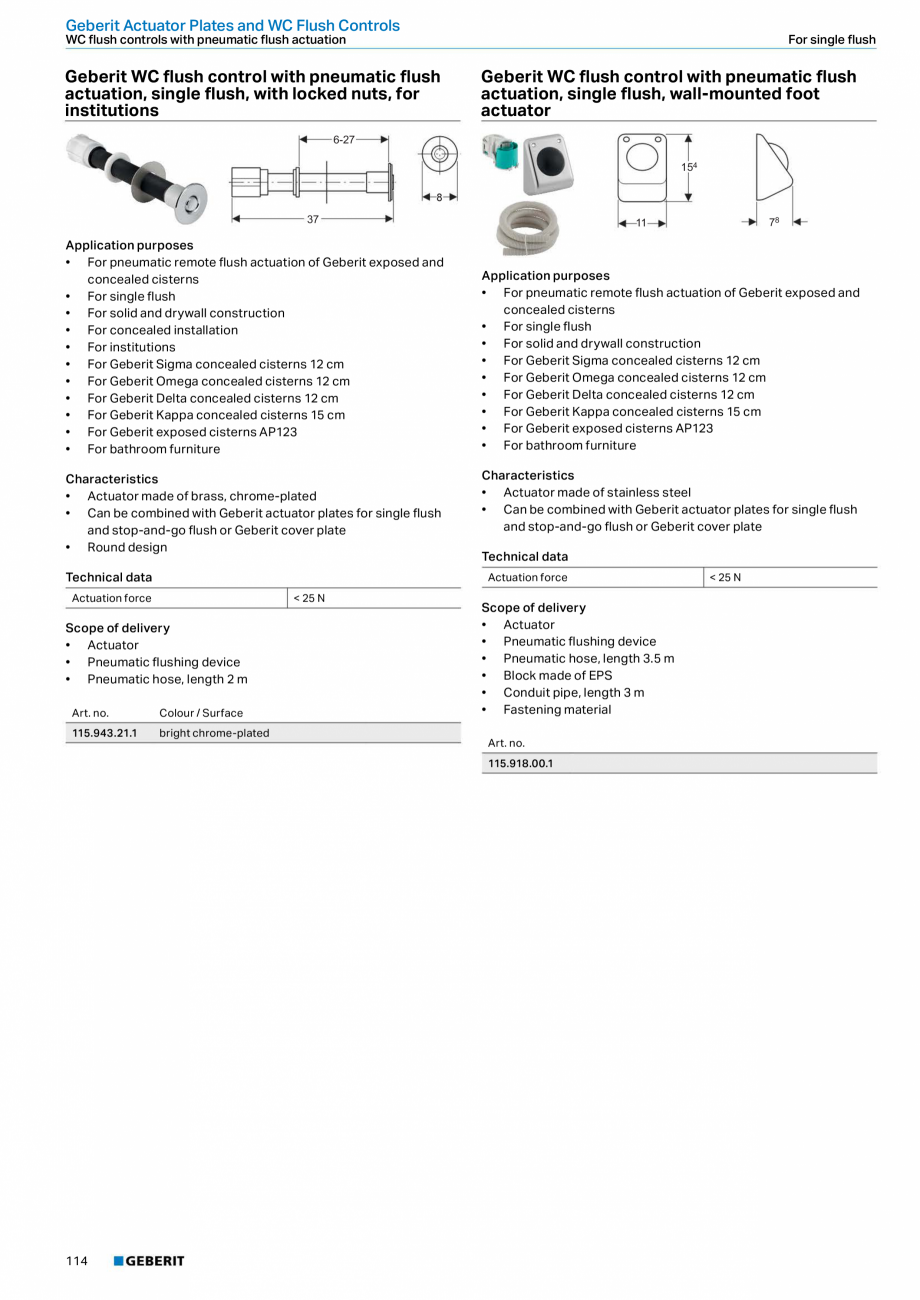

Pagina 114 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

ation, fully insulated against condensation • Immediate post flush possible with factory setting • Flush bend fitted • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length Technical data Application purposes • For masonry walls • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For floor-standing WCs • For single flush, dual flush or stop-and-go flush Characteristics • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Flush bend fitted • Flush bend adjustable 2 cm upwards and 1 cm downwards • Tool-free installation and maintenance work on concealed cistern • Water supply connection at the top, offset to left side • Protection box for service opening can be cut to length Flow

Pagina 114-Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Catalog...

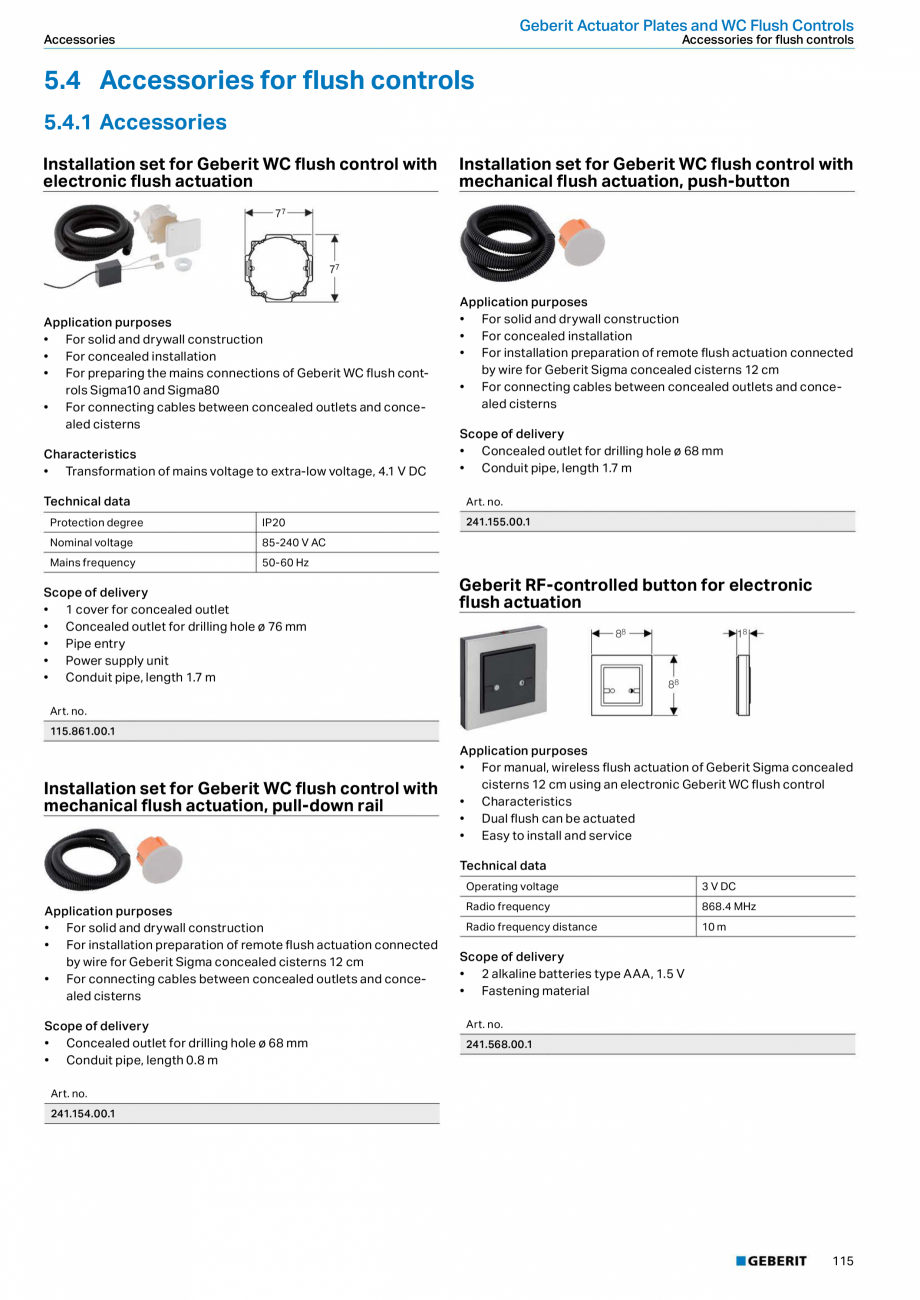

Pagina 115 - Sisteme sanitare Geberit 2015-2016 GEBERIT Scurgere in perete, Scurgere in pardoseala, ...

pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flow pressure 0.1-10 bar Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume factory setting 6 and 3 l Flush volume small adjustment range 3-4 l Flush volume large adjustment range 6/9l Flush volume small 3l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Flush bend with recess shells • 1 protection plug • 2 slotted flat irons • 2 fixing brackets • Fastening material Art. no. 109.300.00.5 Technical data Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Flush bend with recess shells • Flush bend extension, ø 45 mm • 1 protection plug • 2 slotted flat irons • Direct plastering netting • Fastening material Art. no. 109.771.00.1 • Actuator p
