Sistem Bose videobar BOSE Bose videobar VB-S

Limba: Engleza

6 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza PRELIMINARY TECHNICAL...

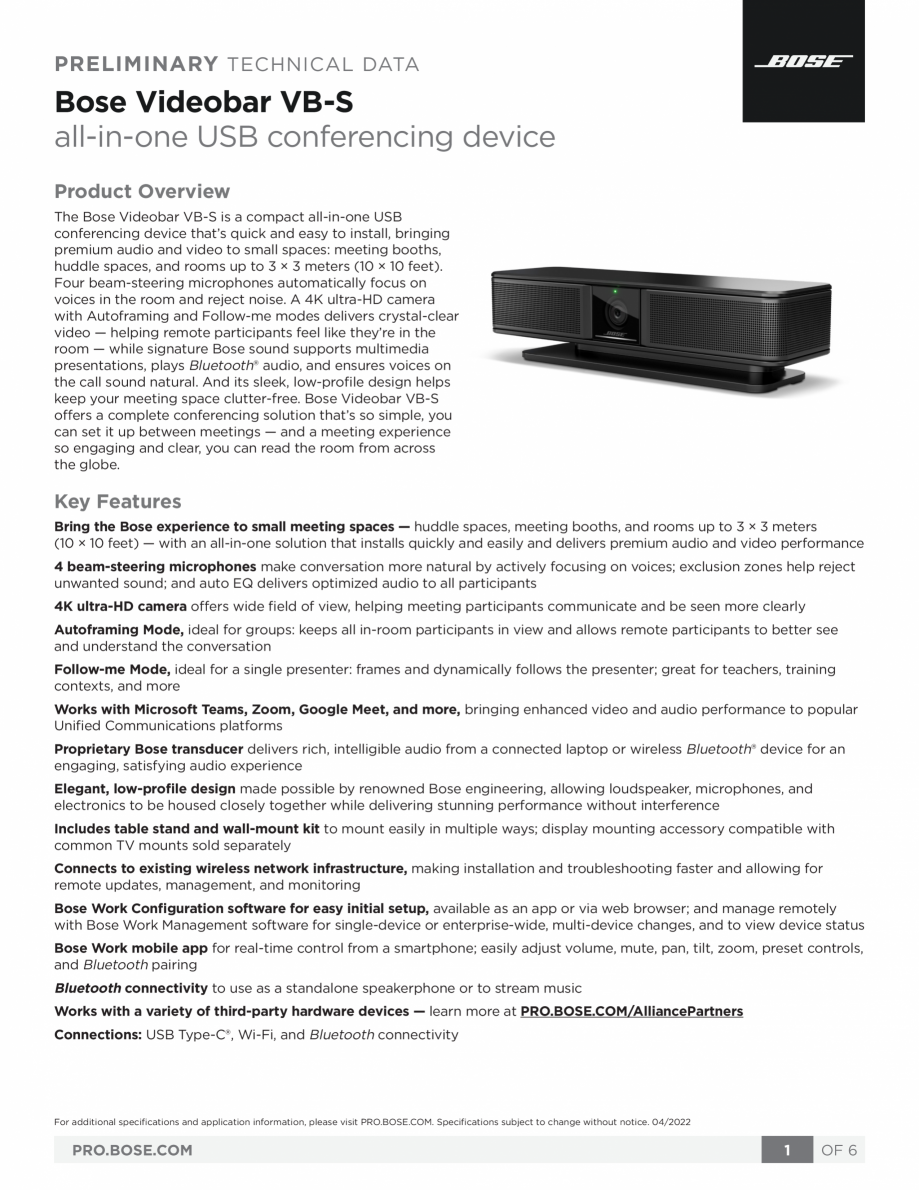

PRELIMINARY TECHNICAL DATA Bose Videobar VB‑S all-in-one USB conferencing device Product Overview The Bose Videobar VB‑S is a compact all-in-one USB conferencing device that’s quick and easy to install, bringing premium audio and video to small spaces: meeting booths, huddle spaces, and rooms up to 3 × 3 meters (10 × 10 feet). Four beam-steering microphones automatically focus on voices in the room and reject noise. A 4K ultra-HD camera with Autoframing and Follow-me modes delivers crystal-clear video — helping remote participants feel like they’re in the room — while signature Bose sound supports multimedia presentations, plays Bluetooth® audio, and ensures voices on the call sound natural. And its sleek, low-profile design helps keep your meeting space clutter-free. Bose Videobar VB‑S offers a complete conferencing solution that’s so simple, you can set it up between meetings — and a meeting experience so engaging and clear, you can read the room from across the

Pagina 1-Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza PRELIMINARY TECHNICAL DATA

Bose...

Pagina 2 - Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza globe.

Key Features...

globe. Key Features Bring the Bose experience to small meeting spaces — huddle spaces, meeting booths, and rooms up to 3 × 3 meters (10 × 10 feet) — with an all-in-one solution that installs quickly and easily and delivers premium audio and video performance 4 beam-steering microphones make conversation more natural by actively focusing on voices; exclusion zones help reject unwanted sound; and auto EQ delivers optimized audio to all participants 4K ultra-HD camera offers wide field of view, helping meeting participants communicate and be seen more clearly Autoframing Mode, ideal for groups: keeps all in-room participants in view and allows remote participants to better see and understand the conversation Follow-me Mode, ideal for a single presenter: frames and dynamically follows the presenter; great for teachers, training contexts, and more Works with Microsoft Teams, Zoom, Google Meet, and more, bringing enhanced video and audio performance to popular Unified Communications

Pagina 2-Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza globe.

Key Features
Bring the...

Pagina 3 - Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza platforms
Proprietary...

platforms Proprietary Bose transducer delivers rich, intelligible audio from a connected laptop or wireless Bluetooth® device for an engaging, satisfying audio experience Elegant, low-profile design made possible by renowned Bose engineering, allowing loudspeaker, microphones, and electronics to be housed closely together while delivering stunning performance without interference Includes table stand and wall-mount kit to mount easily in multiple ways; display mounting accessory compatible with common TV mounts sold separately Connects to existing wireless network infrastructure, making installation and troubleshooting faster and allowing for remote updates, management, and monitoring Bose Work Configuration software for easy initial setup, available as an app or via web browser; and manage remotely with Bose Work Management software for single-device or enterprise-wide, multi-device changes, and to view device status Bose Work mobile app for real-time control from a smartphone; easil

Pagina 3-Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza platforms
Proprietary Bose...

Pagina 4 - Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza y adjust volume, mute, ...

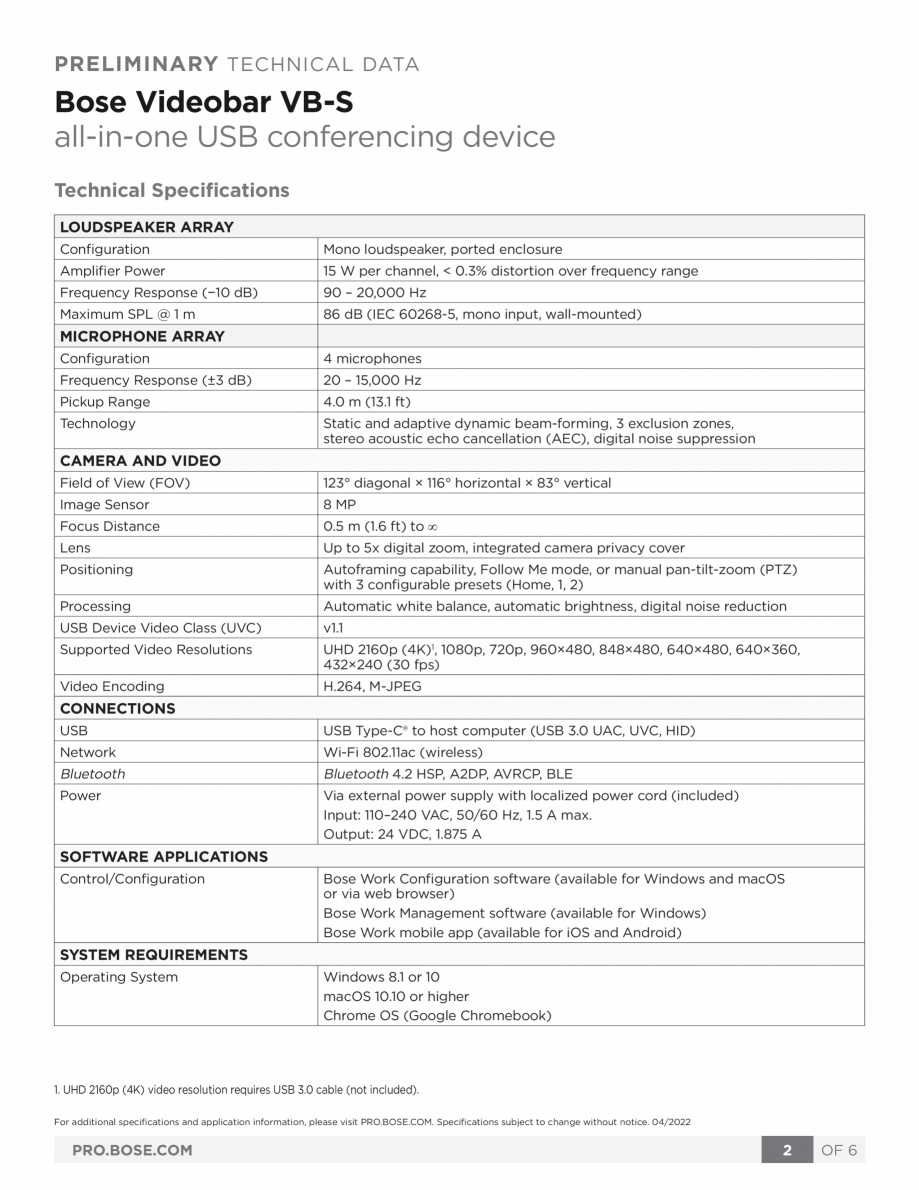

y adjust volume, mute, pan, tilt, zoom, preset controls, and Bluetooth pairing Bluetooth connectivity to use as a standalone speakerphone or to stream music Works with a variety of third-party hardware devices — learn more at PRO.BOSE.COM/AlliancePartners Connections: USB Type‑C®, Wi‑Fi, and Bluetooth connectivity For additional specifications and application information, please visit PRO.BOSE.COM. Specifications subject to change without notice. 04/2022 PRO.BOSE.COM 1 OF 6 PRELIMINARY TECHNICAL DATA Bose Videobar VB‑S all-in-one USB conferencing device Technical Specifications LOUDSPEAKER ARRAY Configuration Mono loudspeaker, ported enclosure Amplifier Power 15 W per channel, < 0.3% distortion over frequency range Frequency Response (−10 dB) 90 – 20,000 Hz Maximum SPL @ 1 m 86 dB (IEC 60268-5, mono input, wall-mounted) MICROPHONE ARRAY Configuration 4 microphones Frequency Response (±3 dB) 20 – 15,000 Hz Pickup Range 4.0 m (13.1 ft) Technology St

Pagina 4-Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza y adjust volume, mute, pan, tilt, ...

Pagina 5 - Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza atic and adaptive...

atic and adaptive dynamic beam-forming, 3 exclusion zones, stereo acoustic echo cancellation (AEC), digital noise suppression CAMERA AND VIDEO Field of View (FOV) 123° diagonal × 116° horizontal × 83° vertical Image Sensor 8 MP Focus Distance 0.5 m (1.6 ft) to ∞ Lens Up to 5x digital zoom, integrated camera privacy cover Positioning Autoframing capability, Follow Me mode, or manual pan-tilt-zoom (PTZ) with 3 configurable presets (Home, 1, 2) Processing Automatic white balance, automatic brightness, digital noise reduction USB Device Video Class (UVC) v1.1 Supported Video Resolutions UHD 2160p (4K)1, 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240 (30 fps) Video Encoding H.264, M-JPEG CONNECTIONS USB USB Type‑C® to host computer (USB 3.0 UAC, UVC, HID) Network Wi‑Fi 802.11ac (wireless) Bluetooth Bluetooth 4.2 HSP, A2DP, AVRCP, BLE Power Via external power supply with localized power cord (included) Input: 110–240 VAC, 50/60 Hz, 1.5 A

Pagina 5-Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza atic and adaptive dynamic...

Pagina 6 - Sistem Bose videobar BOSE Bose videobar VB-S Fisa tehnica Engleza max.
Output: 24 VDC, 1...

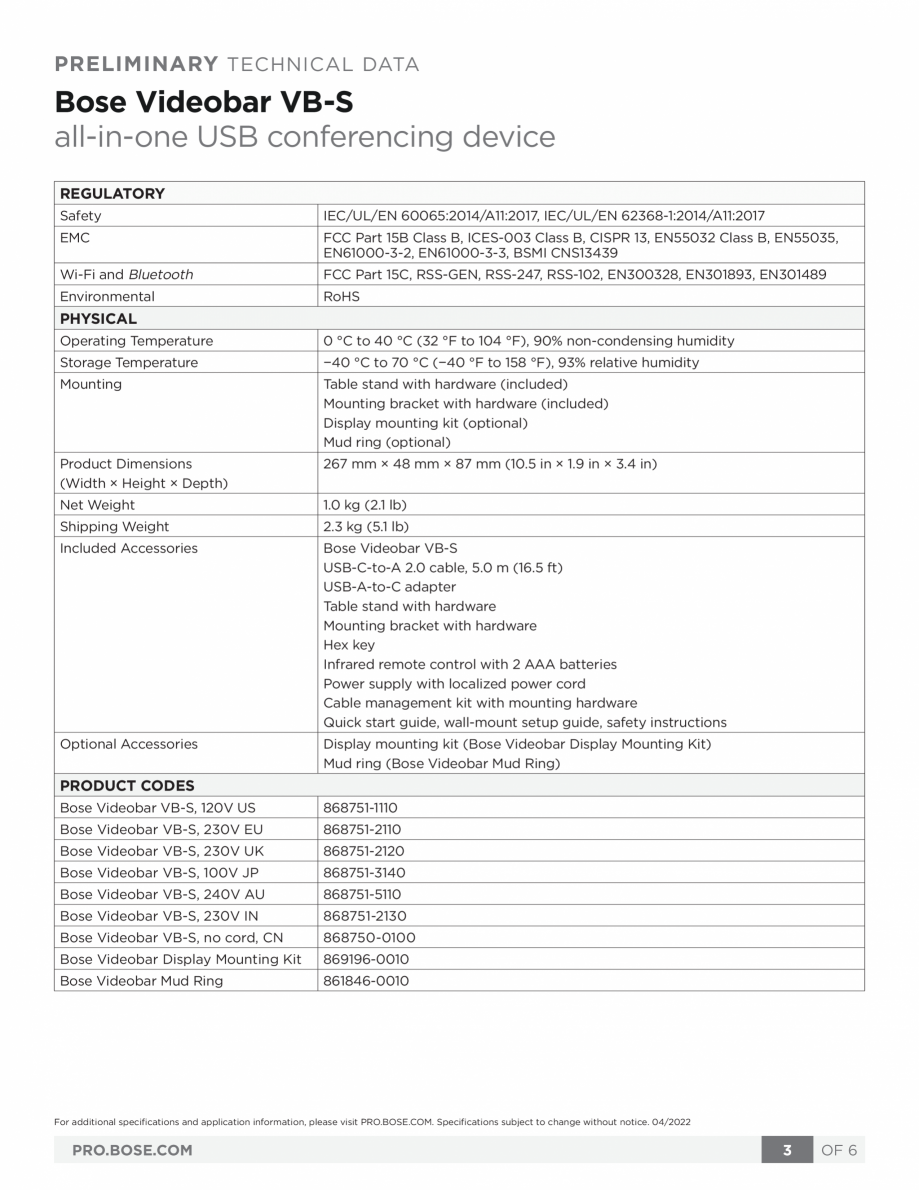

max. Output: 24 VDC, 1.875 A SOFTWARE APPLICATIONS Control/Configuration Bose Work Configuration software (available for Windows and macOS or via web browser) Bose Work Management software (available for Windows) Bose Work mobile app (available for iOS and Android) SYSTEM REQUIREMENTS Operating System Windows 8.1 or 10 macOS 10.10 or higher Chrome OS (Google Chromebook) 1. UHD 2160p (4K) video resolution requires USB 3.0 cable (not included). For additional specifications and application information, please visit PRO.BOSE.COM. Specifications subject to change without notice. 04/2022 PRO.BOSE.COM 2 OF 6 PRELIMINARY TECHNICAL DATA Bose Videobar VB‑S all-in-one USB conferencing device REGULATORY Safety IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368-1:2014/A11:2017 EMC FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B, EN55035, EN61000-3-2, EN61000-3-3, BSMI CNS13439 Wi‑Fi and Bluetooth FCC Part 15C, RSS-GEN, RSS-247, RSS-102, EN300328, EN301893, EN3014
