Panouri modulare wpc tip riflaje GEPLAST

Limba: Engleza

7 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza TWIX

ULTRASHIELD
The...

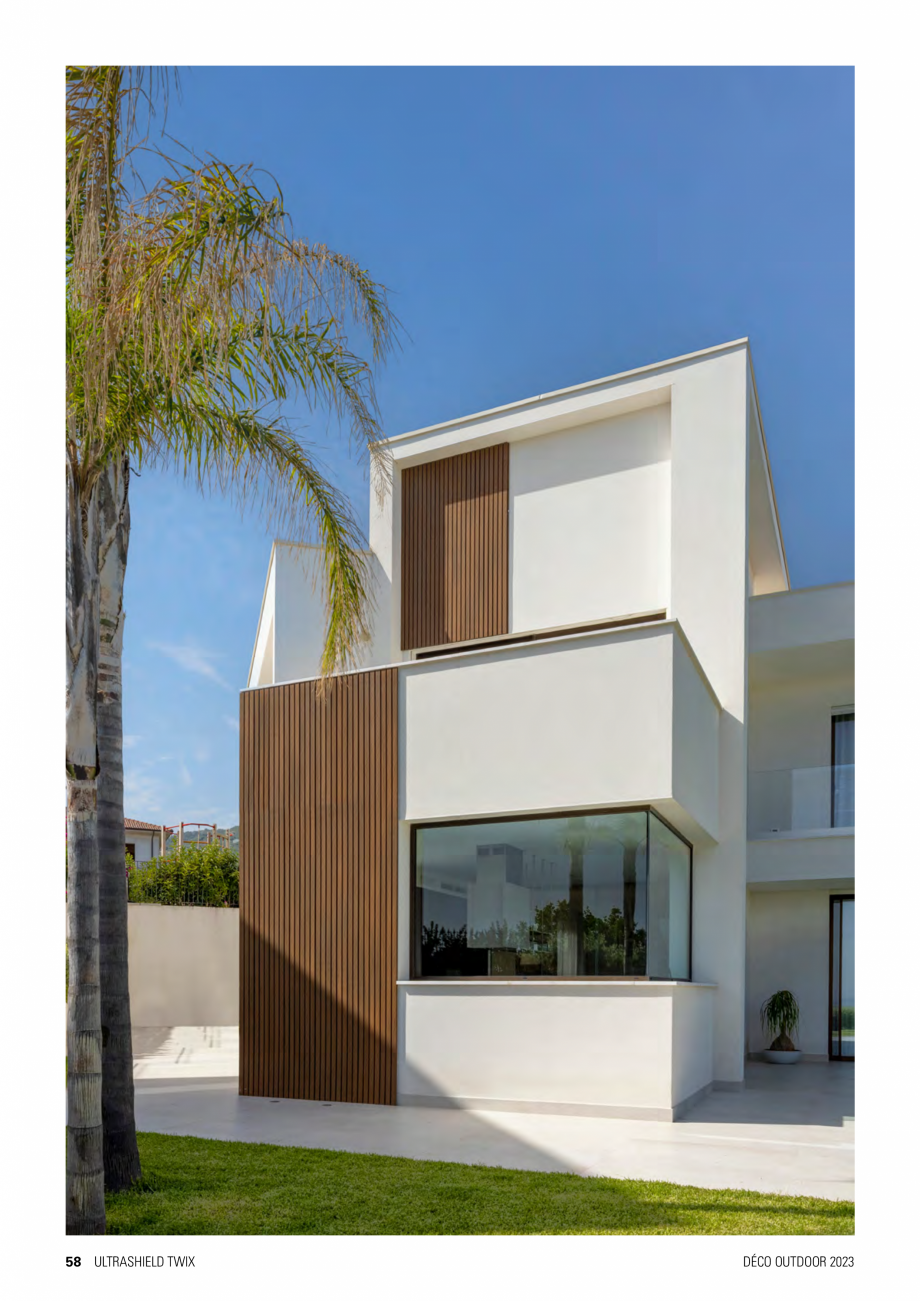

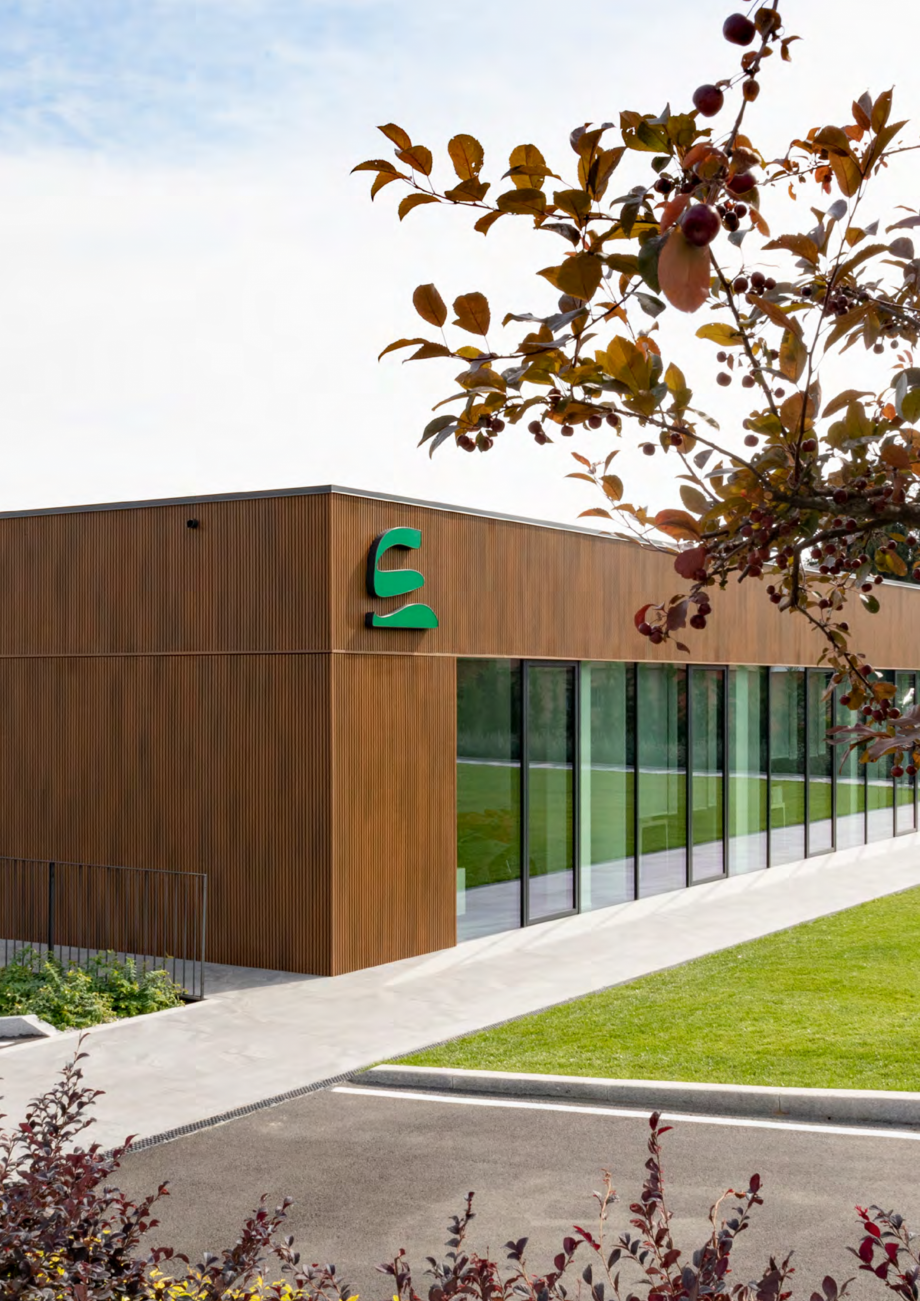

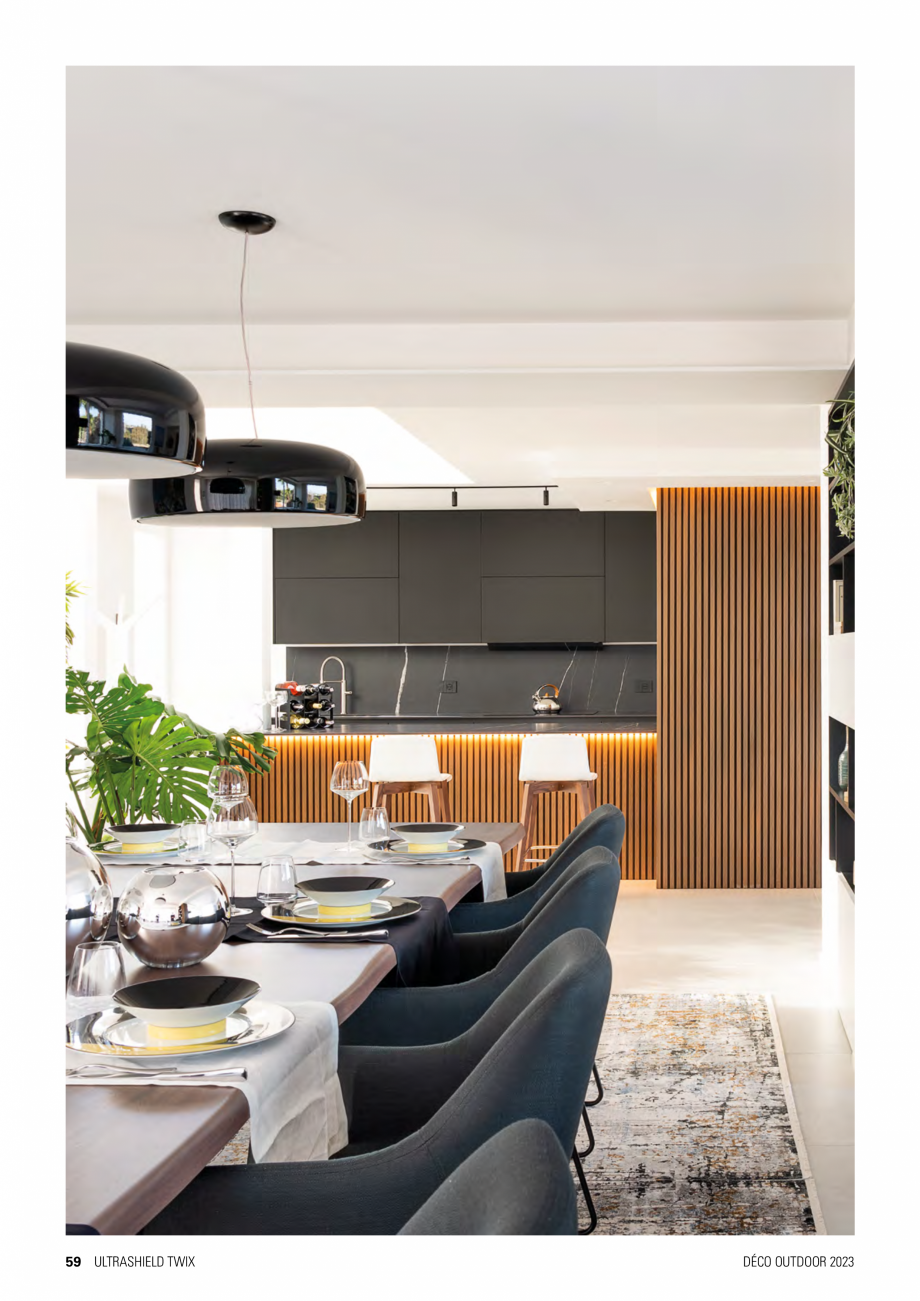

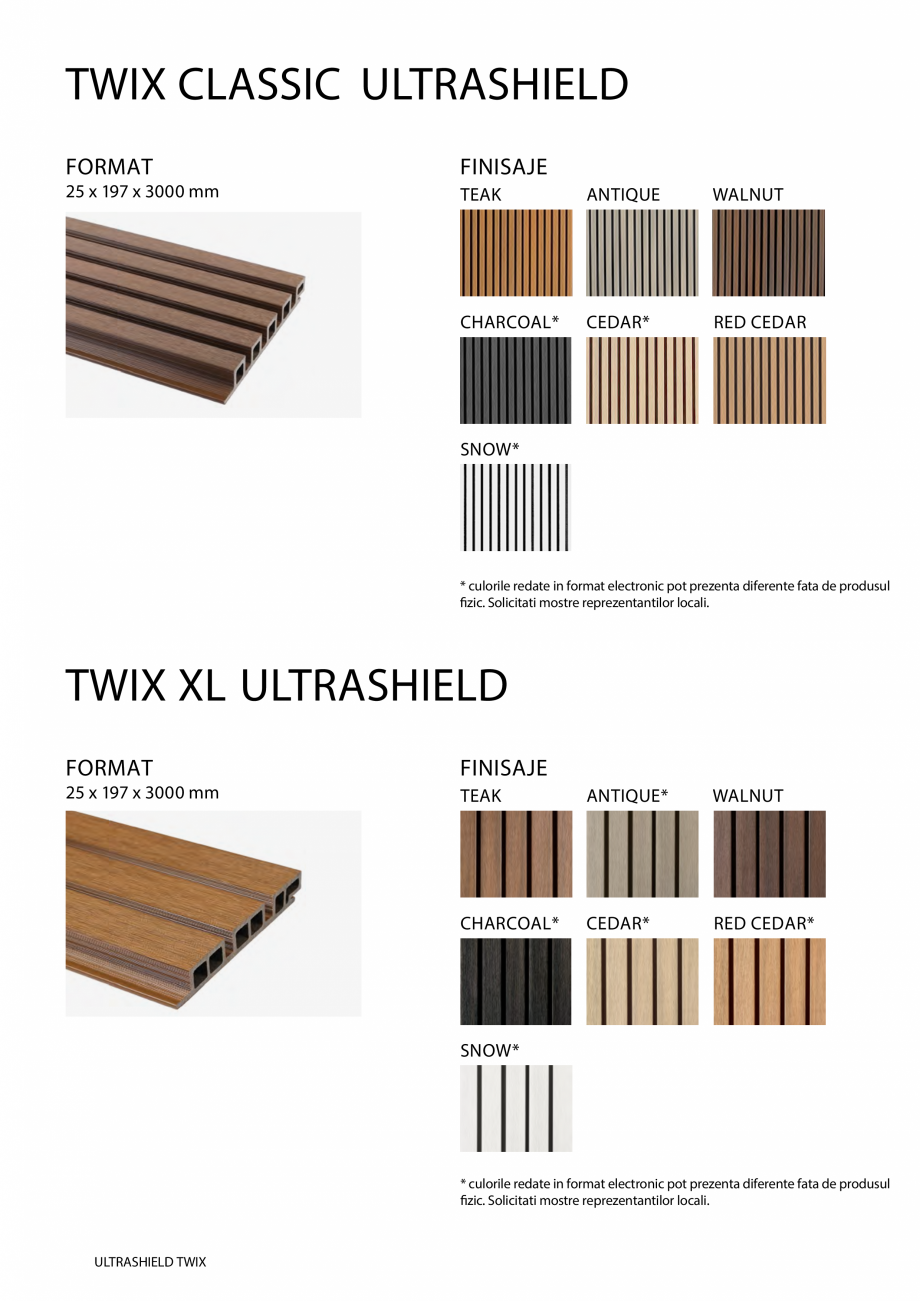

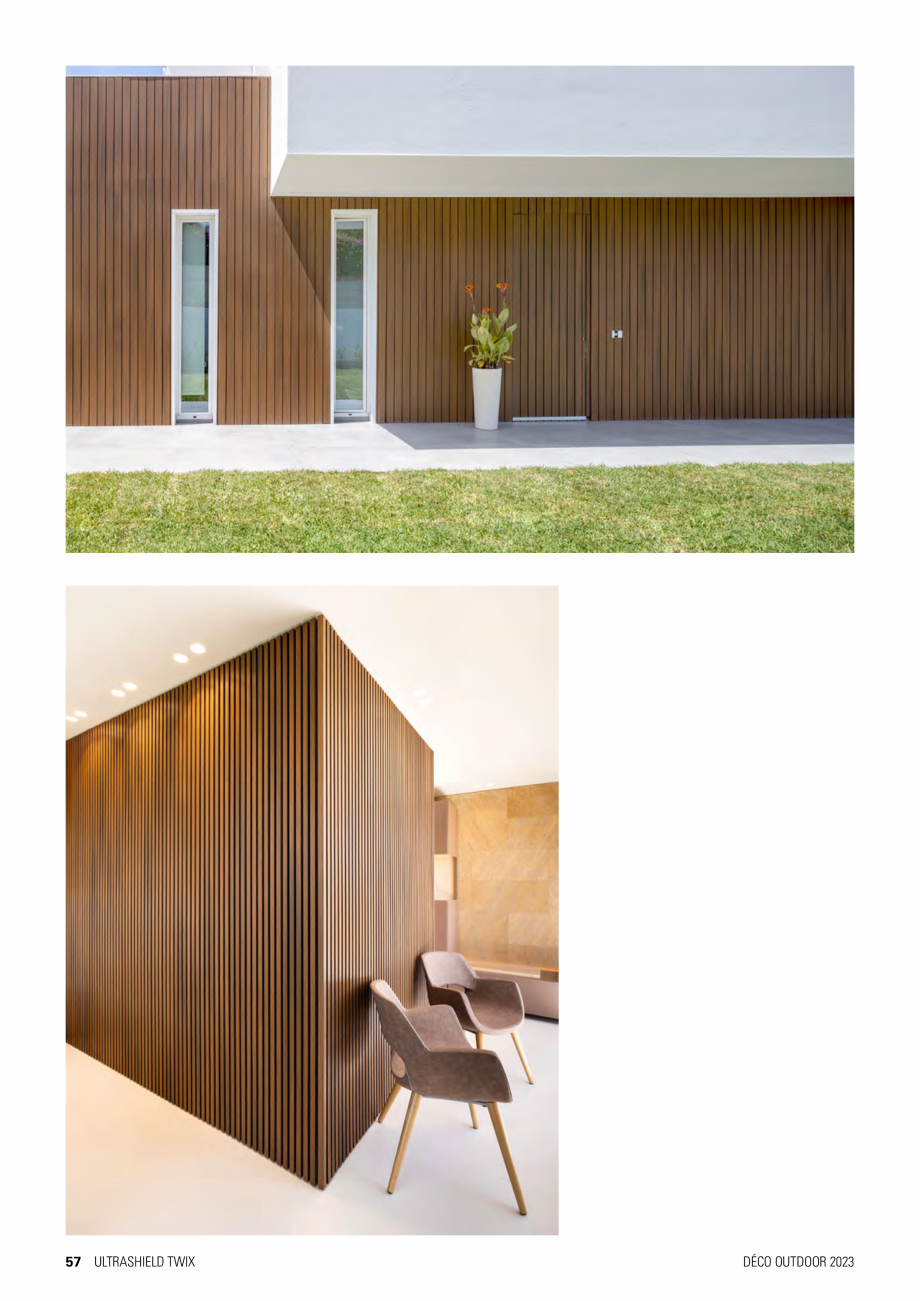

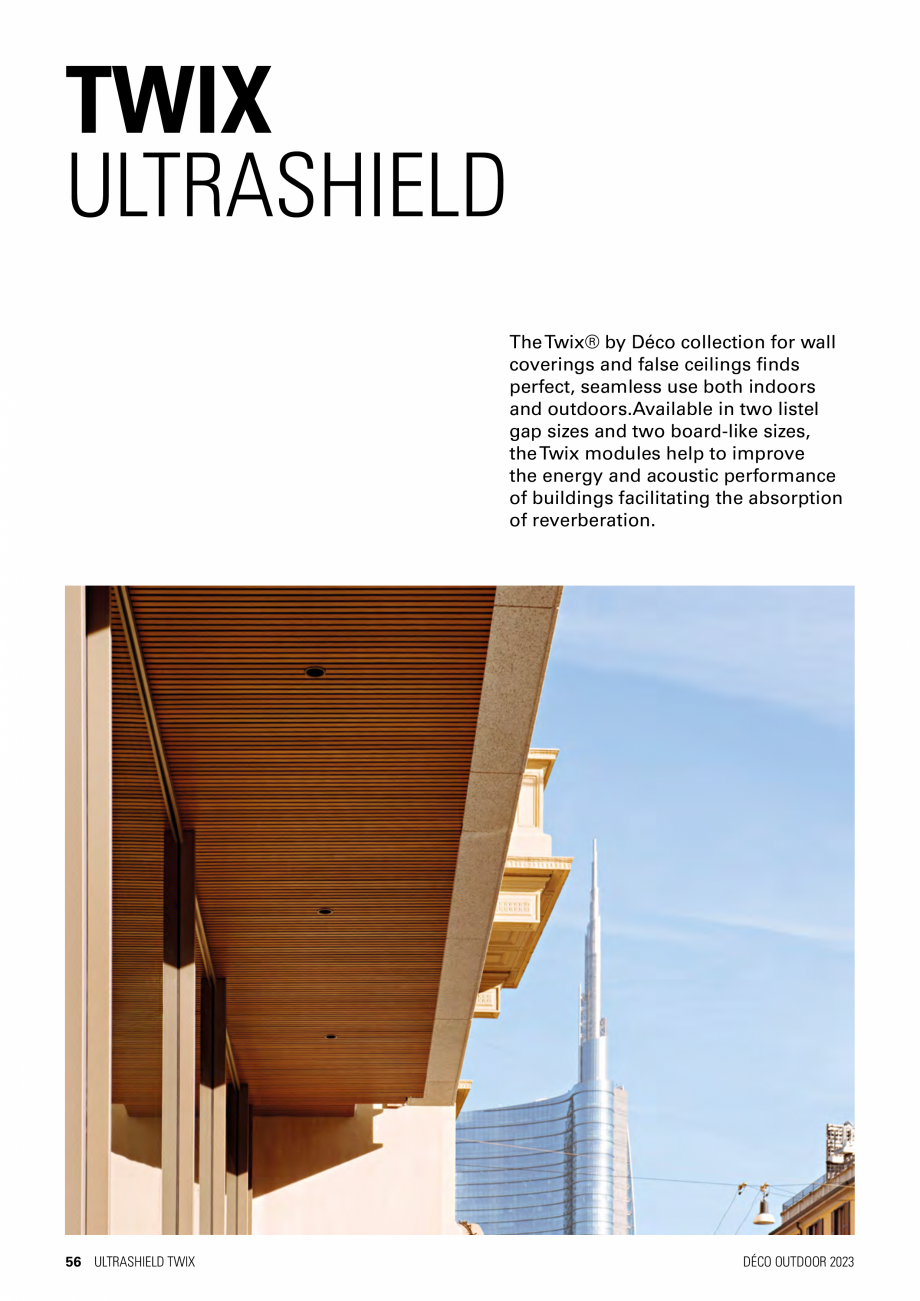

TWIX ULTRASHIELD The Twix® by Déco collection for wall coverings and false ceilings finds perfect, seamless use both indoors and outdoors.Available in two listel gap sizes and two board-like sizes, the Twix modules help to improve the energy and acoustic performance of buildings facilitating the absorption of reverberation. 56 ULTRASHIELD TWIX DÉCO OUTDOOR 2023 57 ULTRASHIELD TWIX DÉCO OUTDOOR 2023 58 ULTRASHIELD TWIX DÉCO OUTDOOR 2023 59 ULTRASHIELD TWIX DÉCO OUTDOOR 2023 TWIX CLASSIC ULTRASHIELD FORMAT 25 x 197 x 3000 mm FINISAJE TEAK ANTIQUE WALNUT CHARCOAL* CEDAR* RED CEDAR SNOW* * culorile redate in format electronic pot prezenta diferente fata de produsul fizic. Solicitati mostre reprezentantilor locali. TWIX XL ULTRASHIELD FORMAT 25 x 197 x 3000 mm FINISAJE TEAK ANTIQUE* WALNUT CHARCOAL* CEDAR* RED CEDAR* SNOW* * culorile redate in format electronic pot prezenta diferente fata de produsul fizic. Solicitati mostre reprezentantilor locali. U

Pagina 1-Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza TWIX

ULTRASHIELD
The Twix® by...

Pagina 2 - Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza LTRASHIELD TWIX

TWIX ...

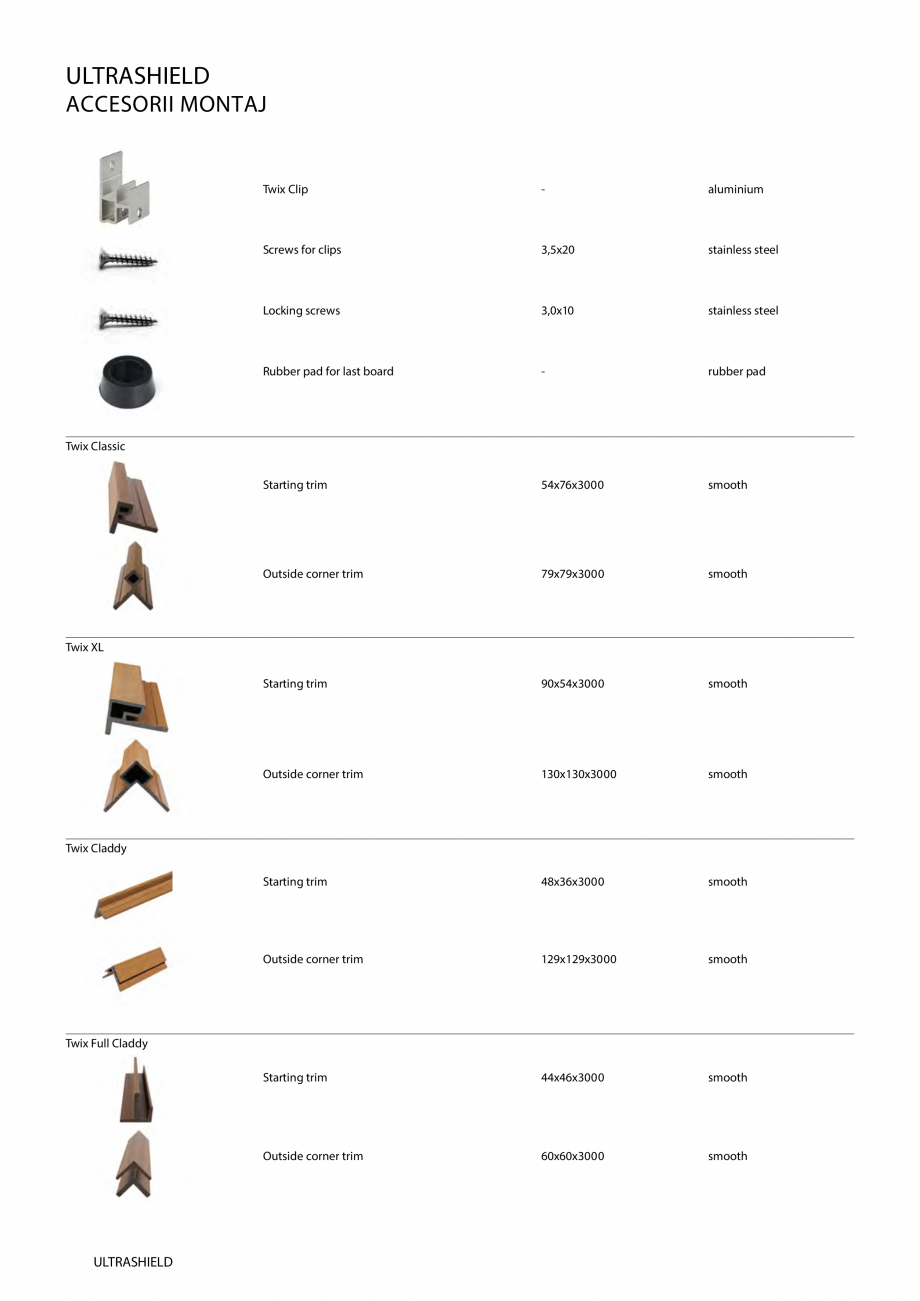

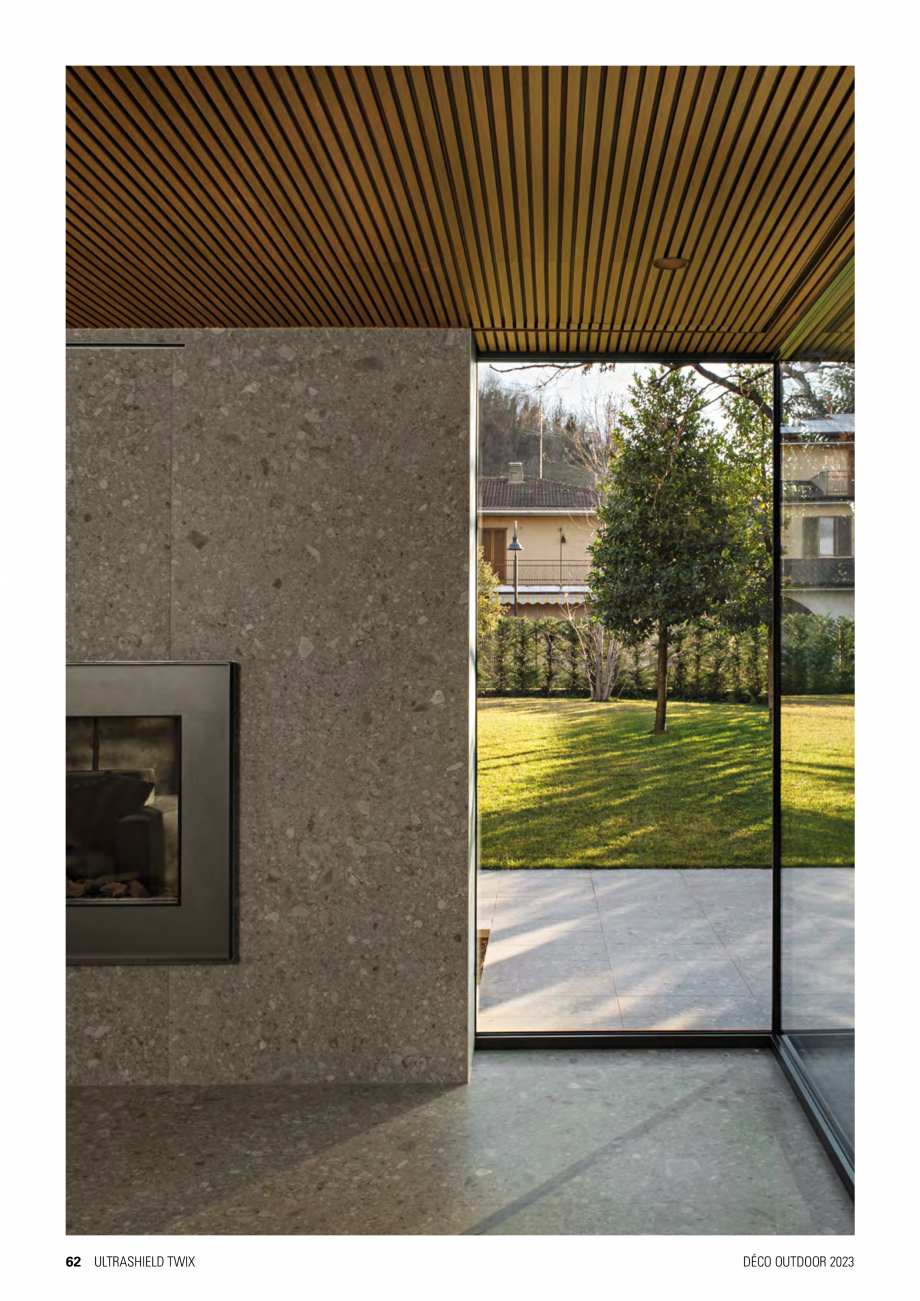

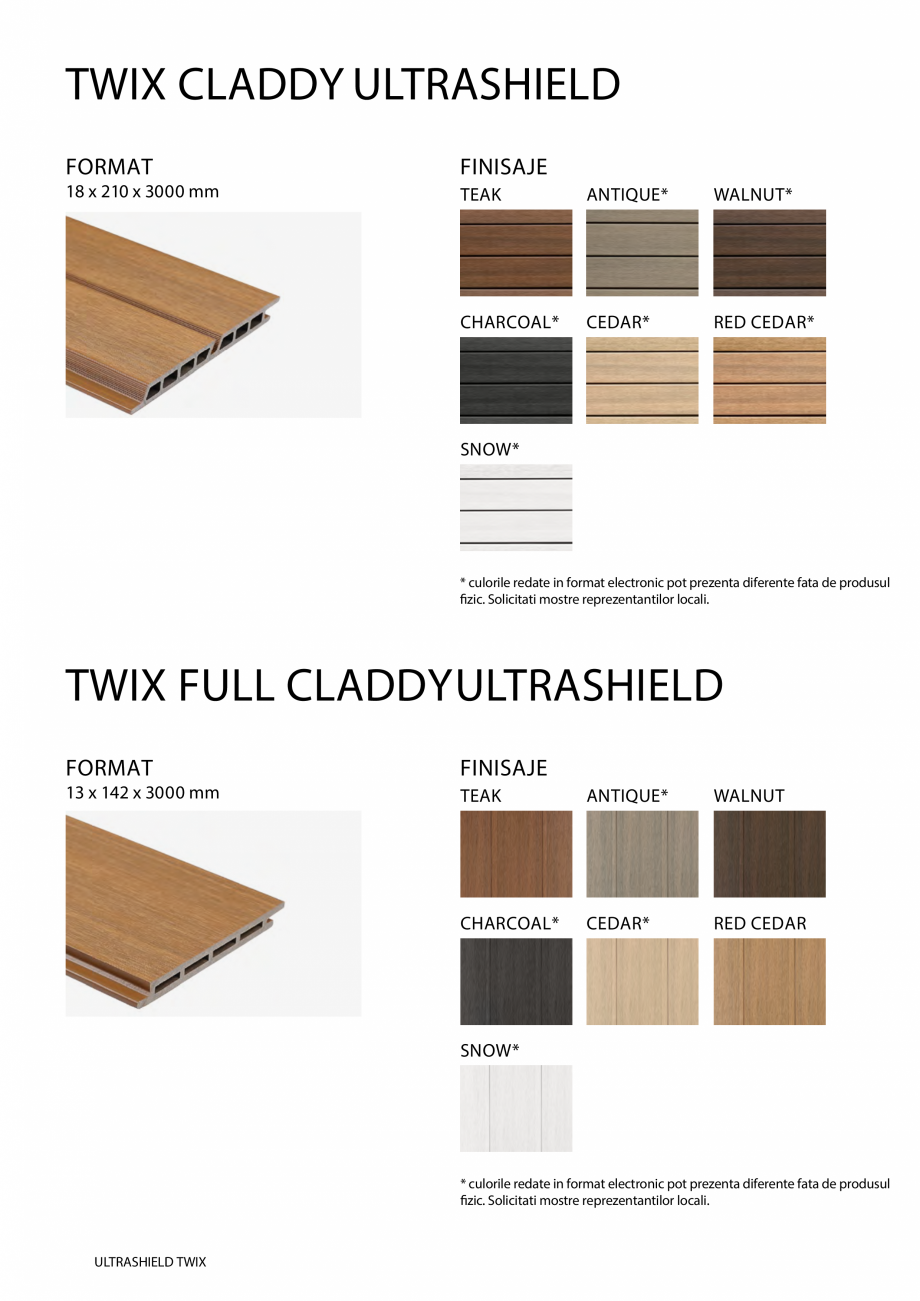

LTRASHIELD TWIX TWIX CLADDY ULTRASHIELD FORMAT 18 x 210 x 3000 mm FINISAJE TEAK ANTIQUE* WALNUT* CHARCOAL* CEDAR* RED CEDAR* SNOW* * culorile redate in format electronic pot prezenta diferente fata de produsul fizic. Solicitati mostre reprezentantilor locali. TWIX FULL CLADDY ULTRASHIELD FORMAT 13 x 142 x 3000 mm FINISAJE TEAK ANTIQUE* WALNUT CHARCOAL* CEDAR* RED CEDAR SNOW* * culorile redate in format electronic pot prezenta diferente fata de produsul fizic. Solicitati mostre reprezentantilor locali. ULTRASHIELD TWIX 62 ULTRASHIELD TWIX DÉCO OUTDOOR 2023 ULTRASHIELD ACCESORII MONTAJ Twix Clip - aluminium Screws for clips 3,5x20 stainless steel Locking screws 3,0x10 stainless steel Rubber pad for last board - rubber pad Starting trim 54x76x3000 smooth Outside corner trim 79x79x3000 smooth Starting trim 90x54x3000 smooth Outside corner trim 130x130x3000 smooth Starting trim 48x36x3000 smooth Outside corner trim 129x129x3000 smo

Pagina 2-Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza LTRASHIELD TWIX

TWIX CLADDY...

Pagina 3 - Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza oth

Starting trim
...

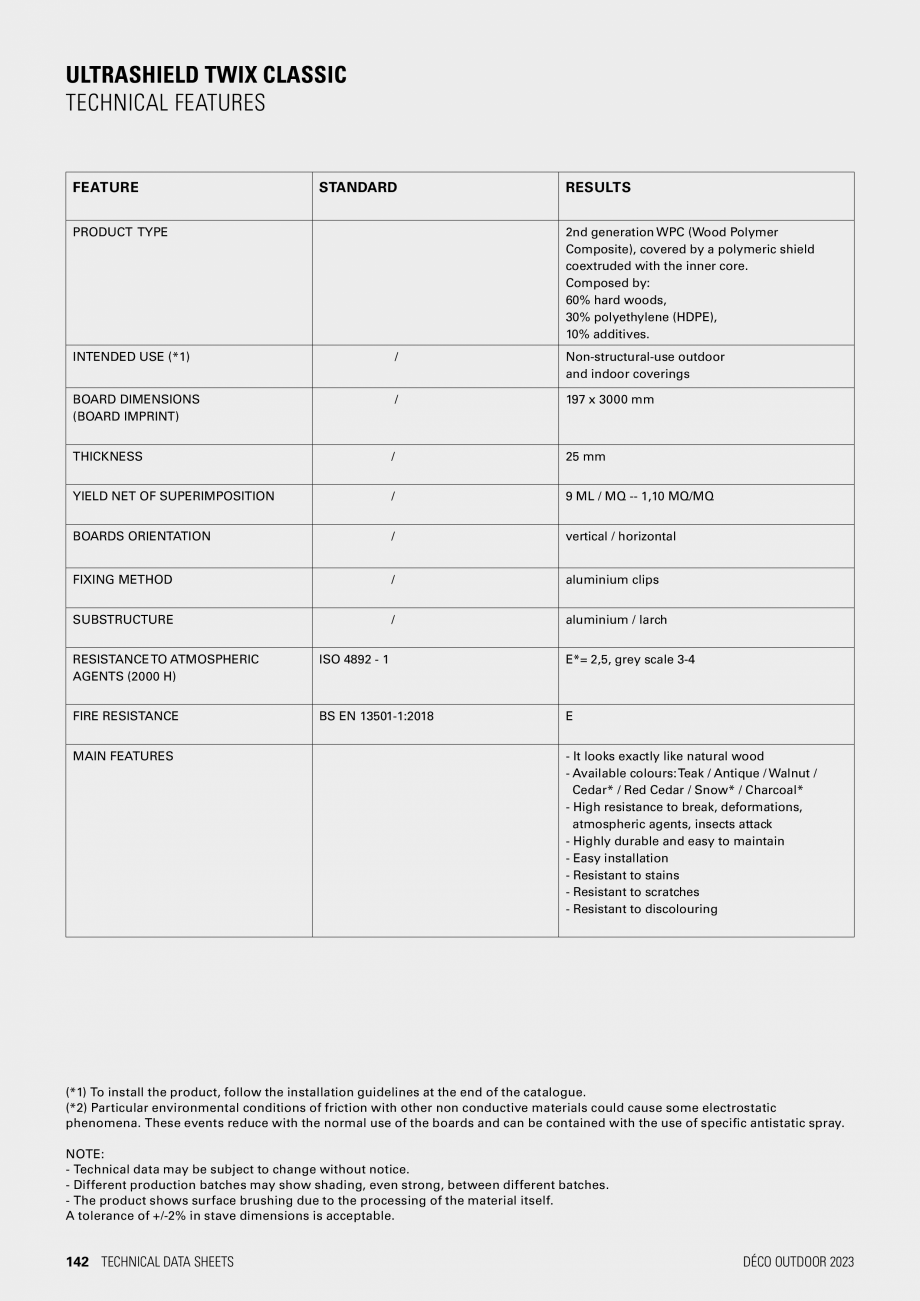

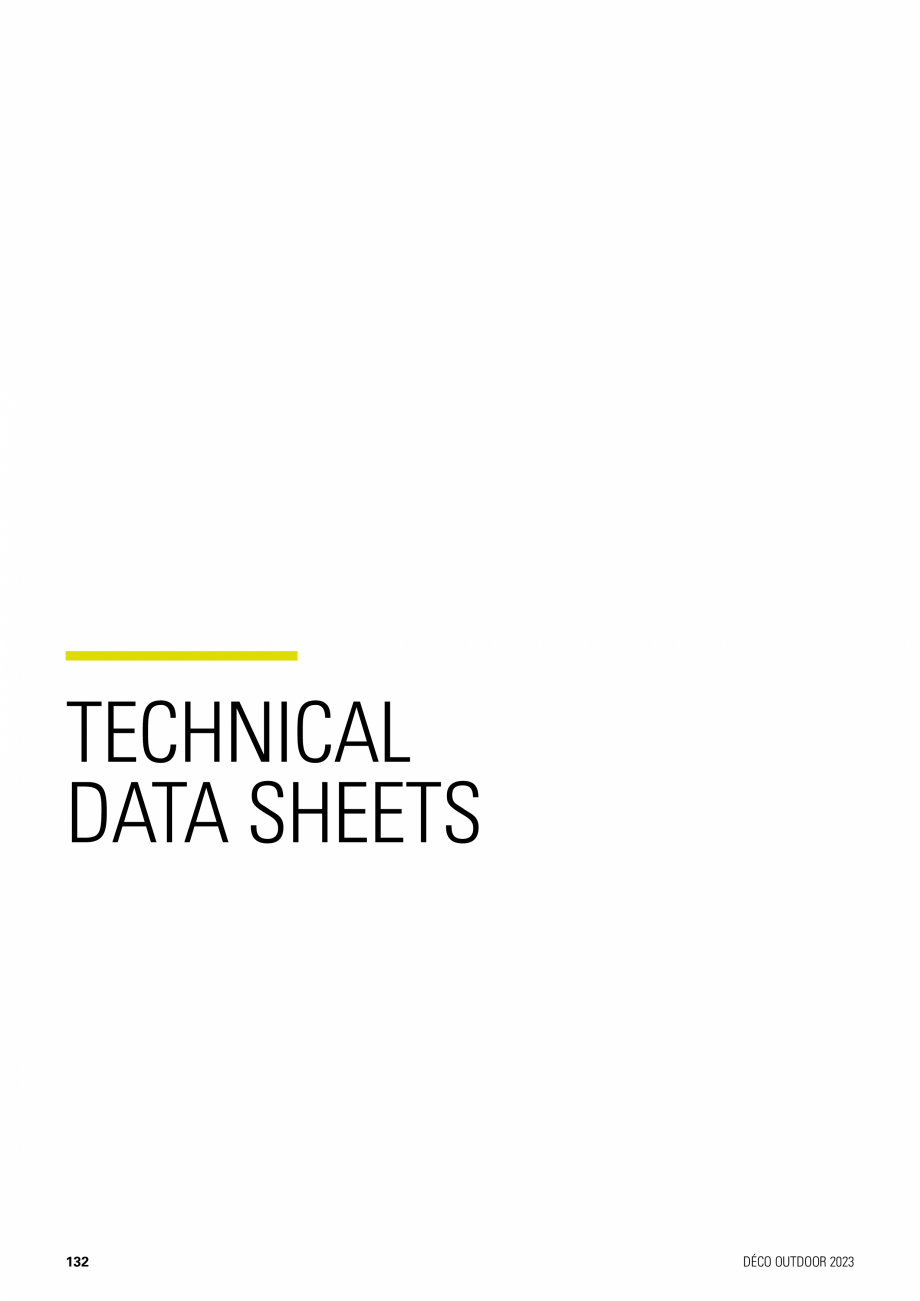

oth Starting trim 44x46x3000 smooth Outside corner trim 60x60x3000 smooth Twix Classic Twix XL Twix Claddy Twix Full Claddy ULTRASHIELD TECHNICAL DATA SHEETS 132 DÉCO OUTDOOR 2023 ULTRASHIELD TWIX CLASSIC TECHNICAL FEATURES FEATURE STANDARD PRODUCT TYPE RESULTS 2nd generation WPC (Wood Polymer Composite), covered by a polymeric shield coextruded with the inner core. Composed by: 60% hard woods, 30% polyethylene (HDPE), 10% additives. INTENDED USE (*1) / Non-structural-use outdoor and indoor coverings BOARD DIMENSIONS (BOARD IMPRINT) / 197 x 3000 mm THICKNESS / 25 mm YIELD NET OF SUPERIMPOSITION / 9 ML / MQ -- 1,10 MQ/MQ BOARDS ORIENTATION / vertical / horizontal FIXING METHOD / aluminium clips SUBSTRUCTURE / aluminium / larch RESISTANCE TO ATMOSPHERIC AGENTS (2000 H) ISO 4892 - 1 E*= 2,5, grey scale 3-4 FIRE RESISTANCE BS EN 13501-1:2018 E MAIN FEATURES - It looks exactly like natural wood - Available colours: Teak / Antique / Walnut /

Pagina 3-Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza oth

Starting trim

44x46x3000
...

Pagina 4 - Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza
Cedar* / Red Cedar /...

Cedar* / Red Cedar / Snow* / Charcoal* - High resistance to break, deformations, atmospheric agents, insects attack - Highly durable and easy to maintain - Easy installation - Resistant to stains - Resistant to scratches - Resistant to discolouring (*1) To install the product, follow the installation guidelines at the end of the catalogue. (*2) Particular environmental conditions of friction with other non conductive materials could cause some electrostatic phenomena. These events reduce with the normal use of the boards and can be contained with the use of specific antistatic spray. NOTE: - Technical data may be subject to change without notice. - Different production batches may show shading, even strong, between different batches. - The product shows surface brushing due to the processing of the material itself. A tolerance of +/-2% in stave dimensions is acceptable. 142 TECHNICAL DATA SHEETS DÉCO OUTDOOR 2023 ULTRASHIELD TWIX XL TECHNICAL FEATURES FEATURE STANDARD PRODUCT

Pagina 4-Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza
Cedar* / Red Cedar / Snow* /...

Pagina 5 - Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza TYPE

RESULTS
2nd...

TYPE RESULTS 2nd generation WPC (Wood Polymer Composite), covered by a polymeric shield coextruded with the inner core. Composed by: 60% hard woods, 30% polyethylene (HDPE), 10% additives. INTENDED USE (*1) / Non-structural-use outdoor and indoor coverings BOARD DIMENSIONS (BOARD IMPRINT) / 197 x 3000 mm THICKNESS / 25 mm YIELD NET OF SUPERIMPOSITION / 9 ML / MQ -- 1,10 MQ/MQ BOARDS ORIENTATION / vertical / horizontal FIXING METHOD / aluminium clips SUBSTRUCTURE / aluminium / larch RESISTANCE TO ATMOSPHERIC AGENTS (2000 H) ISO 4892 - 1 E*= 2,5, grey scale 3-4 FIRE RESISTANCE BS EN 13501-1:2018 E MAIN FEATURES - It looks exactly like natural wood - Available colours: Teak / Antique* / Walnut / Cedar* / Red Cedar* / Snow* / Charcoal* - High resistance to break, deformations, atmospheric agents, insects attack - Highly durable and easy to maintain - Easy installation - Resistant to stains - Resistant to scratches - Resistant to discolouring (*1) To install

Pagina 5-Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza TYPE

RESULTS
2nd generation WPC ...

Pagina 6 - Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza the product, follow the...

the product, follow the installation guidelines at the end of the catalogue. (*2) Particular environmental conditions of friction with other non conductive materials could cause some electrostatic phenomena. These events reduce with the normal use of the boards and can be contained with the use of specific antistatic spray. NOTE: - Technical data may be subject to change without notice. - Different production batches may show shading, even strong, between different batches. - The product shows surface brushing due to the processing of the material itself. A tolerance of +/-2% in stave dimensions is acceptable. 143 TECHNICAL DATA SHEETS DÉCO OUTDOOR 2023 ULTRASHIELD TWIX CLADDY TECHNICAL FEATURES FEATURE STANDARD PRODUCT TYPE RESULTS 2nd generation WPC (Wood Polymer Composite), covered by a polymeric shield coextruded with the inner core. Composed by: 60% hard woods, 30% polyethylene (HDPE), 10% additives. INTENDED USE (*1) / Non-structural-use outdoor and indoor coverings

Pagina 7 - Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza BOARD DIMENSIONS
(BOARD...

BOARD DIMENSIONS (BOARD IMPRINT) / 210 x 3000 mm THICKNESS / 18 mm YIELD NET OF SUPERIMPOSITION / 1,05 MQ/MQ BOARDS ORIENTATION / vertical / horizontal FIXING METHOD / aluminium clips SUBSTRUCTURE / aluminium / larch RESISTANCE TO ATMOSPHERIC AGENTS (2000 H) ISO 4892 - 1 E*= 2,5, grey scale 3-4 FIRE RESISTANCE BS EN 13501-1:2018 E MAIN FEATURES - It looks exactly like natural wood - Available colours: Teak / Antique* / Walnut* / Cedar* / Red Cedar* / Snow* / Charcoal* - High resistance to break, deformations, atmospheric agents, insects attack - Highly durable and easy to maintain - Easy installation - Resistant to stains - Resistant to scratches - Resistant to discolouring (*1) To install the product, follow the installation guidelines at the end of the catalogue. (*2) Particular environmental conditions of friction with other non conductive materials could cause some electrostatic phenomena. These events reduce with the normal use of the boards and can be co

Pagina 7-Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza BOARD DIMENSIONS
(BOARD IMPRINT)

...

Pagina 8 - Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza ntained with the use of...

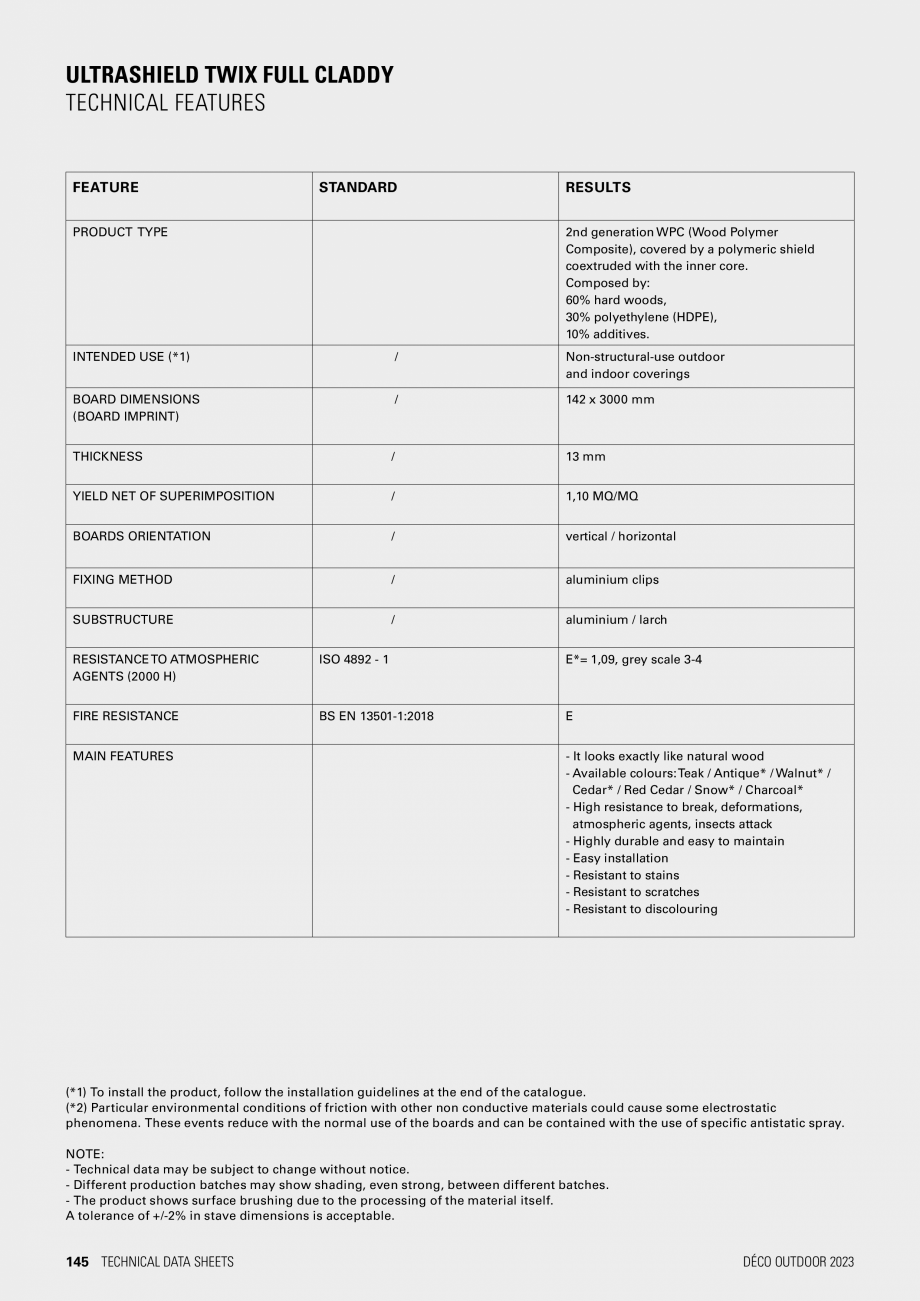

ntained with the use of specific antistatic spray. NOTE: - Technical data may be subject to change without notice. - Different production batches may show shading, even strong, between different batches. - The product shows surface brushing due to the processing of the material itself. A tolerance of +/-2% in stave dimensions is acceptable. 144 TECHNICAL DATA SHEETS DÉCO OUTDOOR 2023 ULTRASHIELD TWIX FULL CLADDY TECHNICAL FEATURES FEATURE STANDARD PRODUCT TYPE RESULTS 2nd generation WPC (Wood Polymer Composite), covered by a polymeric shield coextruded with the inner core. Composed by: 60% hard woods, 30% polyethylene (HDPE), 10% additives. INTENDED USE (*1) / Non-structural-use outdoor and indoor coverings BOARD DIMENSIONS (BOARD IMPRINT) / 142 x 3000 mm THICKNESS / 13 mm YIELD NET OF SUPERIMPOSITION / 1,10 MQ/MQ BOARDS ORIENTATION / vertical / horizontal FIXING METHOD / aluminium clips SUBSTRUCTURE / aluminium / larch RESISTANCE TO ATMOSPHERIC AGENTS (2

Pagina 8-Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza ntained with the use of specific...

Pagina 9 - Panouri modulare wpc tip riflaje GEPLAST Catalog, brosura Engleza 000 H)

ISO 4892 - 1
...

000 H) ISO 4892 - 1 E*= 1,09, grey scale 3-4 FIRE RESISTANCE BS EN 13501-1:2018 E MAIN FEATURES - It looks exactly like natural wood - Available colours: Teak / Antique* / Walnut* / Cedar* / Red Cedar / Snow* / Charcoal* - High resistance to break, deformations, atmospheric agents, insects attack - Highly durable and easy to maintain - Easy installation - Resistant to stains - Resistant to scratches - Resistant to discolouring (*1) To install the product, follow the installation guidelines at the end of the catalogue. (*2) Particular environmental conditions of friction with other non conductive materials could cause some electrostatic phenomena. These events reduce with the normal use of the boards and can be contained with the use of specific antistatic spray. NOTE: - Technical data may be subject to change without notice. - Different production batches may show shading, even strong, between different batches. - The product shows surface brushing due to the processing of the
