Ascensor pentru autoturisme ELMAS pentru transport verticala

Limba: Engleza
427 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

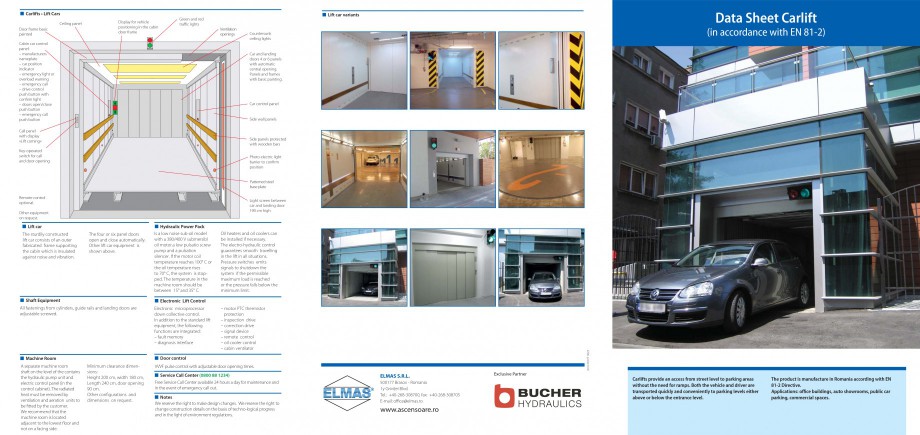

Pagina 1-Ascensor pentru autoturisme ELMAS pentru transport verticala Fisa tehnica Engleza Lift car variants
...

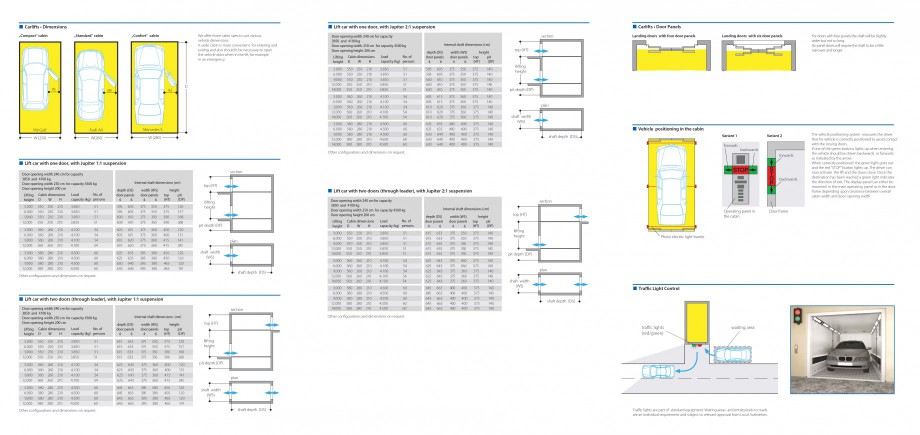

Pagina 2-Ascensor pentru autoturisme ELMAS pentru transport verticala Fisa tehnica Engleza ter fabricated...
ter fabricated frame supporting the cabin which is insulated against noise and vibration. The four or six panel doors open and close automatically. Other lift car equipment is shown above. Hydraulic Power Pack Is a low noise sub-oil model with a 380/400 V submersibl oil motor.a low pulsatio screw pump and a pulsation silencer. If the motor coil temperature reaches 100° C or the oil temperature rises to 70° C, the system is stopped. The temperature in the machine room should be between 15° and 35° C. Oil heaters and oil coolers can be installed if necessary. The electro-hydraulic control guarantees smooth travelling in the lift in all situations. Pressure switches emits signals to shutdown the system if the permissible maximum load is reached or the pressure falls below the minimum limit. Shaft Equipment All fastenings from cylinders, guide rails and landing doors are adjustable screwed. Electronic microprocessor down collective control. In addition to the standard lift equipmen ... ascunde
