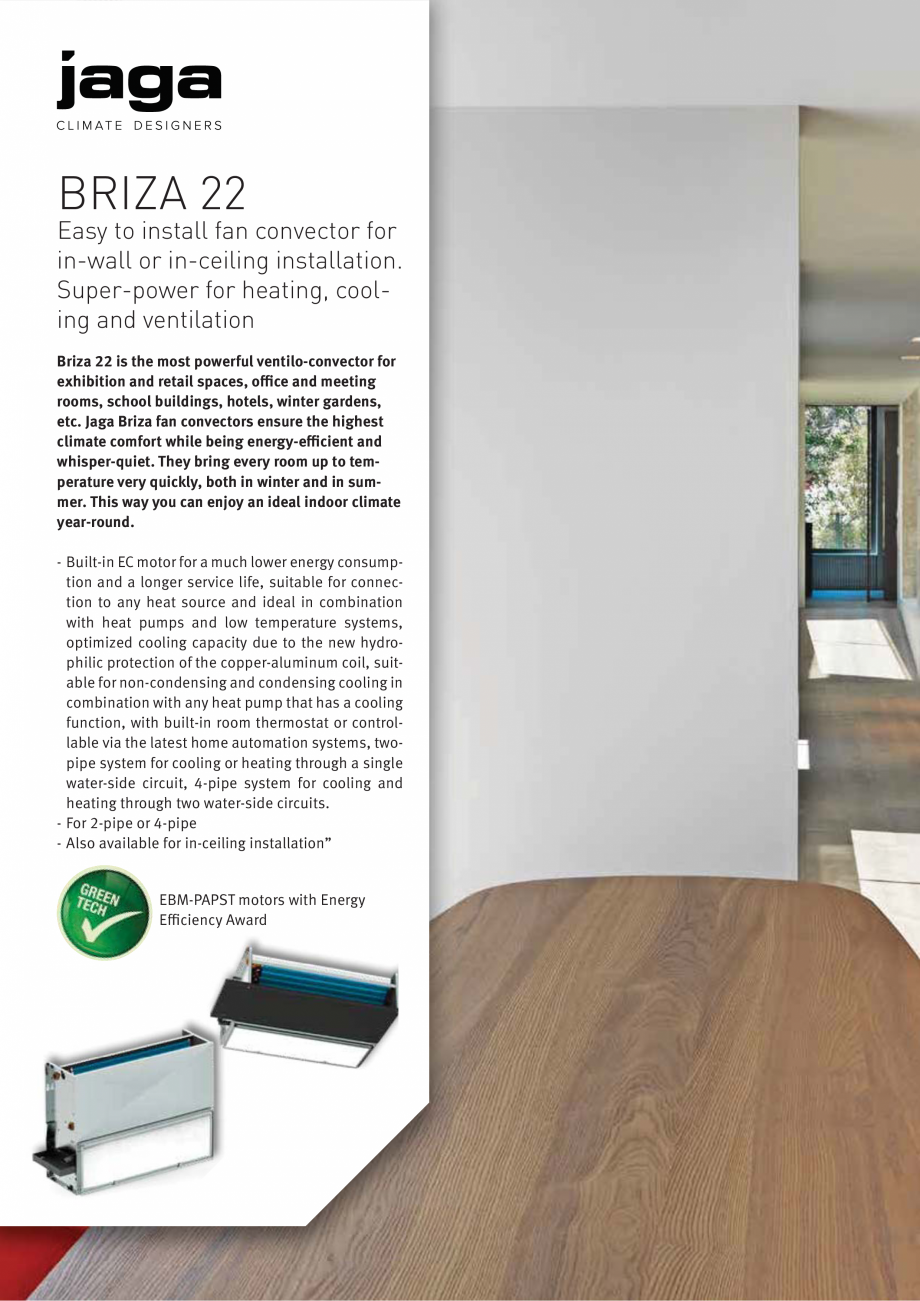

BRIZA 22 Easy to install fan convector for in-wall or in-ceiling installation. Super-power for heating, cooling and ventilation Briza 22 is the most powerful ventilo-convector for exhibition and retail spaces, oﬃce and meeting rooms, school buildings, hotels, winter gardens, etc. Jaga Briza fan convectors ensure the highest climate comfort while being energy-eﬃcient and whisper-quiet. They bring every room up to temperature very quickly, both in winter and in summer. This way you can enjoy an ideal indoor climate year-round. - Built-in EC motor for a much lower energy consumption and a longer service life, suitable for connection to any heat source and ideal in combination with heat pumps and low temperature systems, optimized cooling capacity due to the new hydrophilic protection of the copper-aluminum coil, suitable for non-condensing and condensing cooling in combination with any heat pump that has a cooling function, with built-in room thermostat or controllable via the latest

Pagina 1-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica Engleza BRIZA 22
...

Pagina 2 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica...

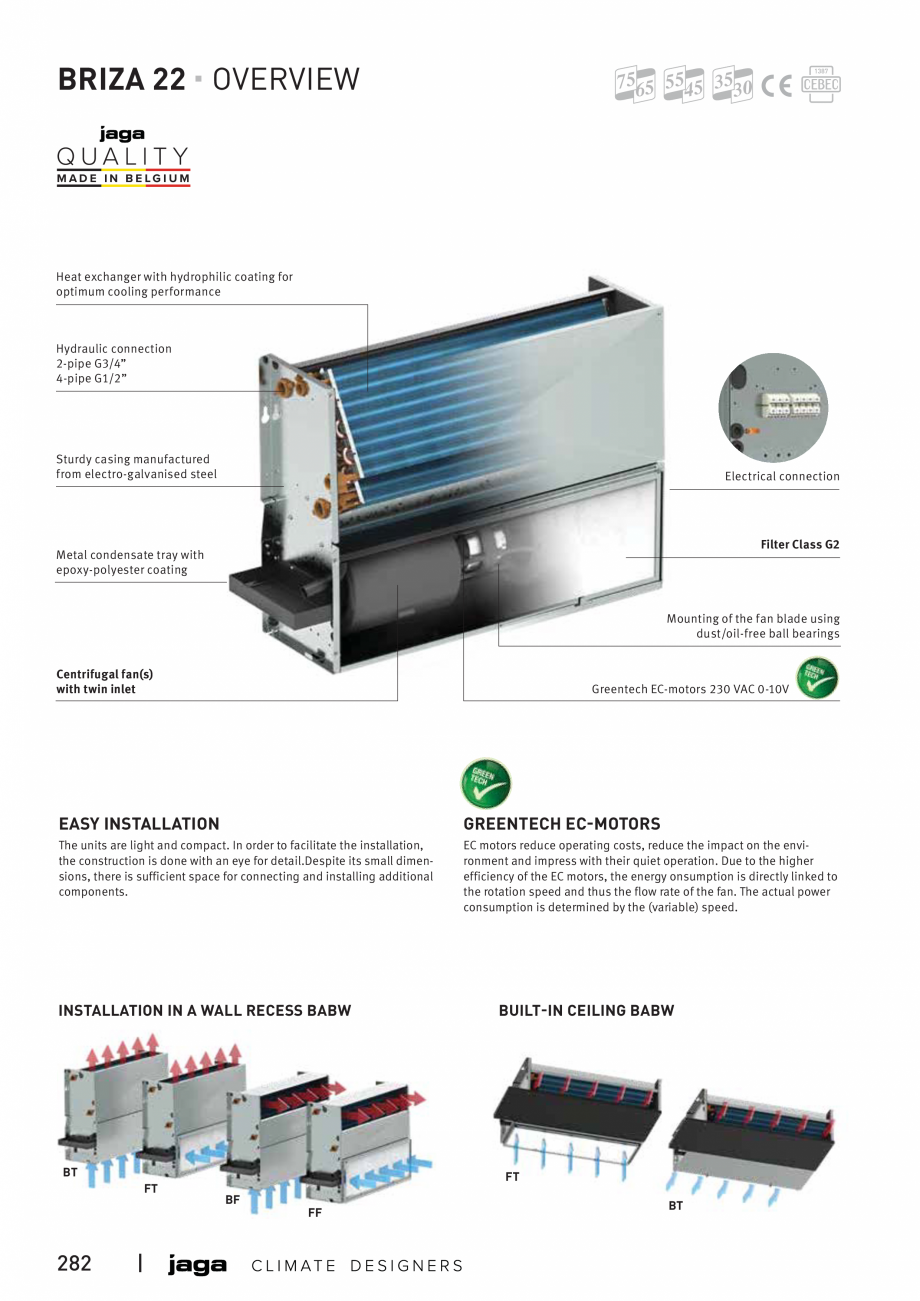

home automation systems, twopipe system for cooling or heating through a single water-side circuit, 4-pipe system for cooling and heating through two water-side circuits. - For 2-pipe or 4-pipe - Also available for in-ceiling installation” EBM-PAPST motors with Energy Eﬃciency Award | 281 BRIZA 22 BRIZA 22 OVERVIEW 7565 5545 3530 QUALITY MADE IN BELGIUM Heat exchanger with hydrophilic coating for optimum cooling performance Hydraulic connection 2-pipe G3/4” 4-pipe G1/2” Sturdy casing manufactured from electro-galvanised steel Electrical connection Filter Class G2 Metal condensate tray with epoxy-polyester coating Mounting of the fan blade using dust/oil-free ball bearings Centrifugal fan(s) with twin inlet Greentech EC-motors 230 VAC 0-10V EASY INSTALLATION GREENTECH EC-MOTORS The units are light and compact. In order to facilitate the installation, the construction is done with an eye for detail.Despite its small dimensions, there is sufficient space fo

Pagina 2-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica Engleza home...

Pagina 3 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica...

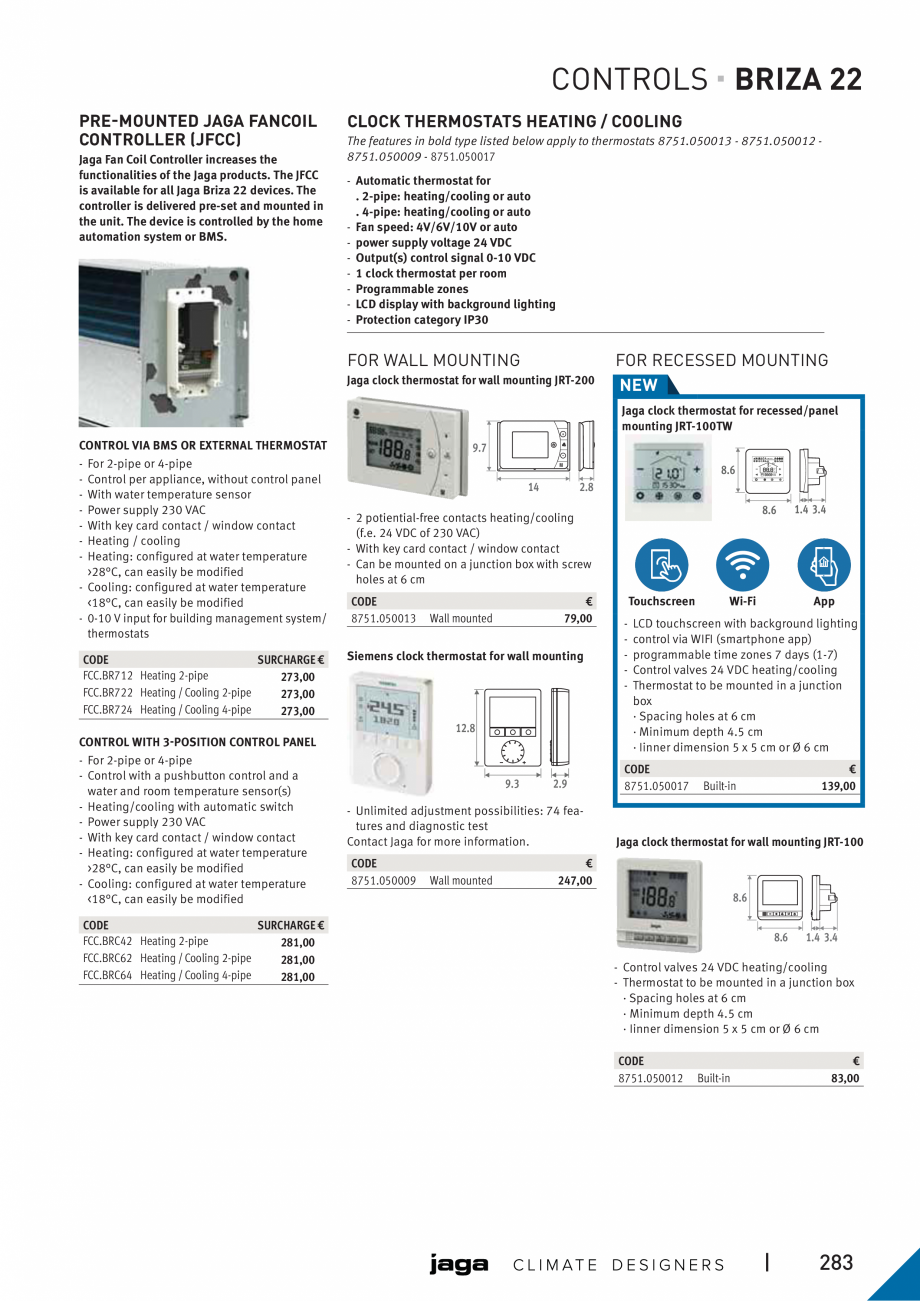

r connecting and installing additional components. EC motors reduce operating costs, reduce the impact on the environment and impress with their quiet operation. Due to the higher efficiency of the EC motors, the energy onsumption is directly linked to the rotation speed and thus the flow rate of the fan. The actual power consumption is determined by the (variable) speed. INSTALLATION IN A WALL RECESS BABW BT FT 282 | BUILT-IN CEILING BABW FT BF FF BT CONTROLS BRIZA 22 PRE-MOUNTED JAGA FANCOIL CONTROLLER (JFCC) Jaga Fan Coil Controller increases the functionalities of the Jaga products. The JFCC is available for all Jaga Briza 22 devices. The controller is delivered pre-set and mounted in the unit. The device is controlled by the home automation system or BMS. CLOCK THERMOSTATS HEATING / COOLING The features in bold type listed below apply to thermostats 8751.050013 - 8751.050012 8751.050009 - 8751.050017 - Automatic thermostat for . 2-pipe: heating/cooling or auto . 4-p

Pagina 3-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica Engleza r...

Pagina 4 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica...

ipe: heating/cooling or auto - Fan speed: 4V/6V/10V or auto - power supply voltage 24 VDC - Output(s) control signal 0-10 VDC - 1 clock thermostat per room - Programmable zones - LCD display with background lighting - Protection category IP30 FOR WALL MOUNTING Jaga clock thermostat for wall mounting JRT-200 FOR RECESSED MOUNTING NEW Jaga clock thermostat for recessed/panel mounting JRT-100TW CONTROL VIA BMS OR EXTERNAL THERMOSTAT - For 2-pipe or 4-pipe - Control per appliance, without control panel - With water temperature sensor - Power supply 230 VAC - With key card contact / window contact - Heating / cooling - Heating: configured at water temperature >28°C, can easily be modified - Cooling: configured at water temperature <18°C, can easily be modified - 0-10 V input for building management system/ thermostats CODE SURCHARGE € FCC.BR712 Heating 2-pipe 273,00 FCC.BR722 Heating / Cooling 2-pipe 273,00 FCC.BR724 Heating / Cooling 4-pipe 273,00 9.7 PRG M 8.6 AUX °C % °F AM

Pagina 4-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica Engleza ipe:...

Pagina 5 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica...

H PM M 14 2.8 CODE 8751.050013 € 79,00 Wall mounted Siemens clock thermostat for wall mounting 9.3 2.9 - Unlimited adjustment possibilities: 74 features and diagnostic test Contact Jaga for more information. CODE 8751.050009 Wall mounted 1.4 3.4 8.6 - 2 potiential-free contacts heating/cooling (f.e. 24 VDC of 230 VAC) - With key card contact / window contact - Can be mounted on a junction box with screw holes at 6 cm 12.8 CONTROL WITH 3-POSITION CONTROL PANEL - For 2-pipe or 4-pipe - Control with a pushbutton control and a water and room temperature sensor(s) - Heating/cooling with automatic switch - Power supply 230 VAC - With key card contact / window contact - Heating: configured at water temperature >28°C, can easily be modified - Cooling: configured at water temperature <18°C, can easily be modified 12 34 56 Touchscreen - Wi-Fi App LCD touchscreen with background lighting control via WIFI (smartphone app) programmable time zones 7 days (1-7) Control valves

Pagina 5-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica Engleza

H PM
M
...

Pagina 6 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica...

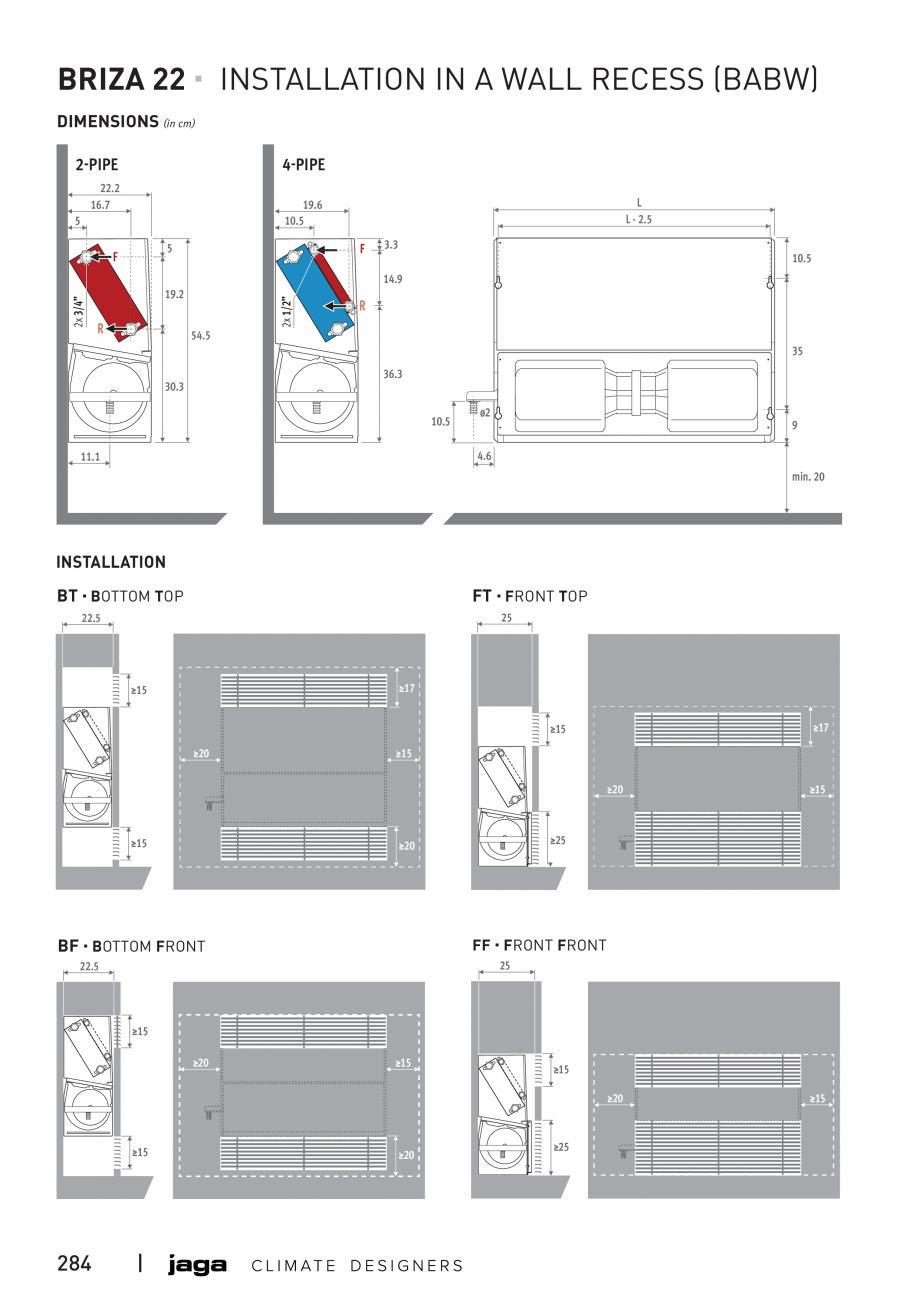

24 VDC heating/cooling Thermostat to be mounted in a junction box · Spacing holes at 6 cm · Minimum depth 4.5 cm · Iinner dimension 5 x 5 cm or Ø 6 cm CODE 8751.050017 € 139,00 Built-in Jaga clock thermostat for wall mounting JRT-100 € 247,00 8.6 M CODE SURCHARGE € FCC.BRC42 Heating 2-pipe 281,00 FCC.BRC62 Heating / Cooling 2-pipe 281,00 FCC.BRC64 Heating / Cooling 4-pipe 281,00 8.6 1.4 3.4 - Control valves 24 VDC heating/cooling - Thermostat to be mounted in a junction box · Spacing holes at 6 cm · Minimum depth 4.5 cm · Iinner dimension 5 x 5 cm or Ø 6 cm CODE 8751.050012 € 83,00 Built-in | 283 BRIZA 22 INSTALLATION IN A WALL RECESS (BABW) DIMENSIONS (in cm) 2-PIPE 4-PIPE 22.2 16.7 L L - 2.5 19.6 10.5 5 5 F F 3.3 10.5 19.2 R 2x 1/2” 2x 3/4” 14.9 R 54.5 35 36.3 30.3 10.5 ø2 9 4.6 11.1 min. 20 INSTALLATION BT BOTTOM TOP FT FRONT TOP 25 22.5 ≥17 ≥15 ≥17 ≥15 ≥20 ≥15 ≥15 ≥15 ≥20 ≥15 ≥25

Pagina 6-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica Engleza 24 VDC...

Pagina 7 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica...

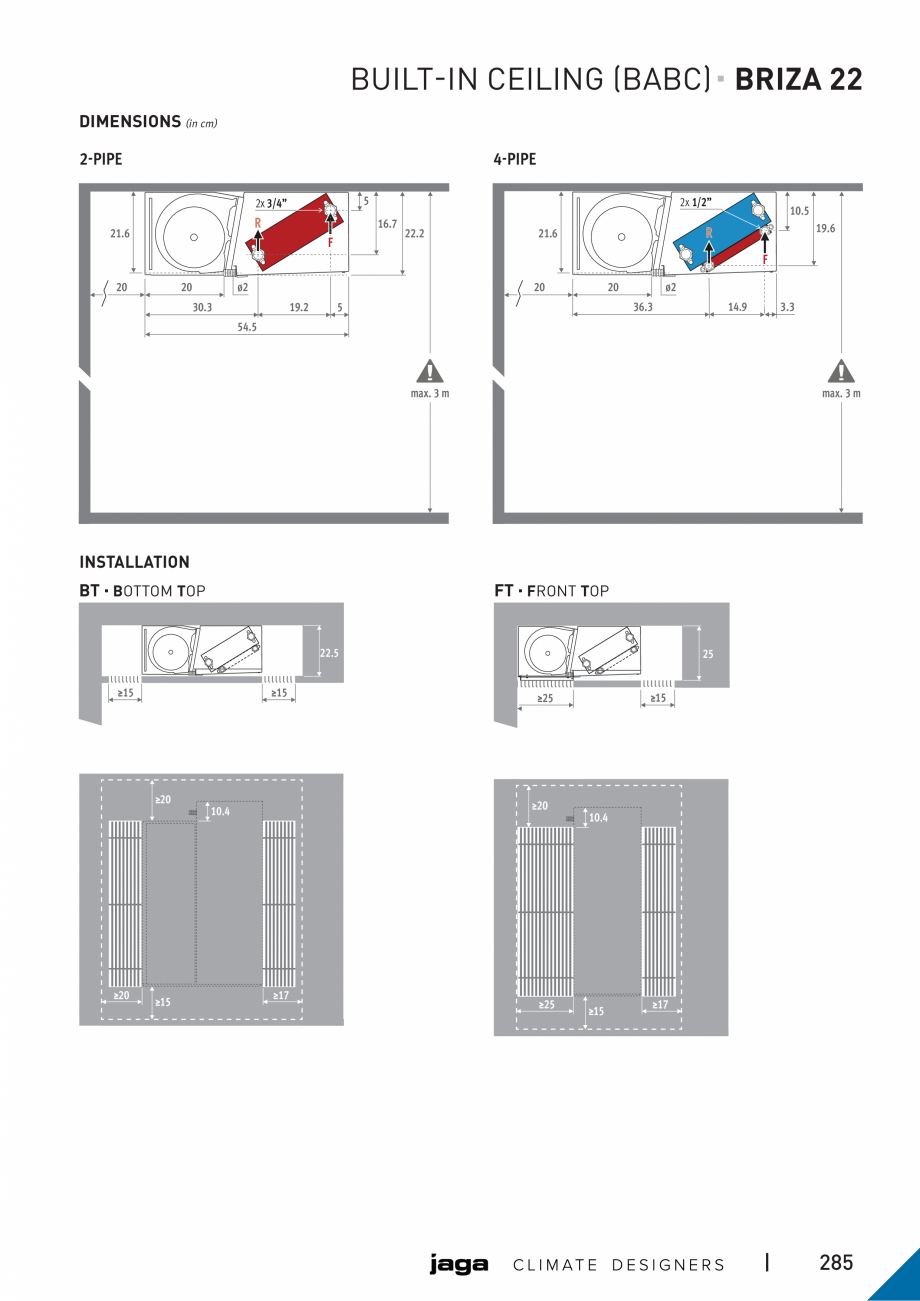

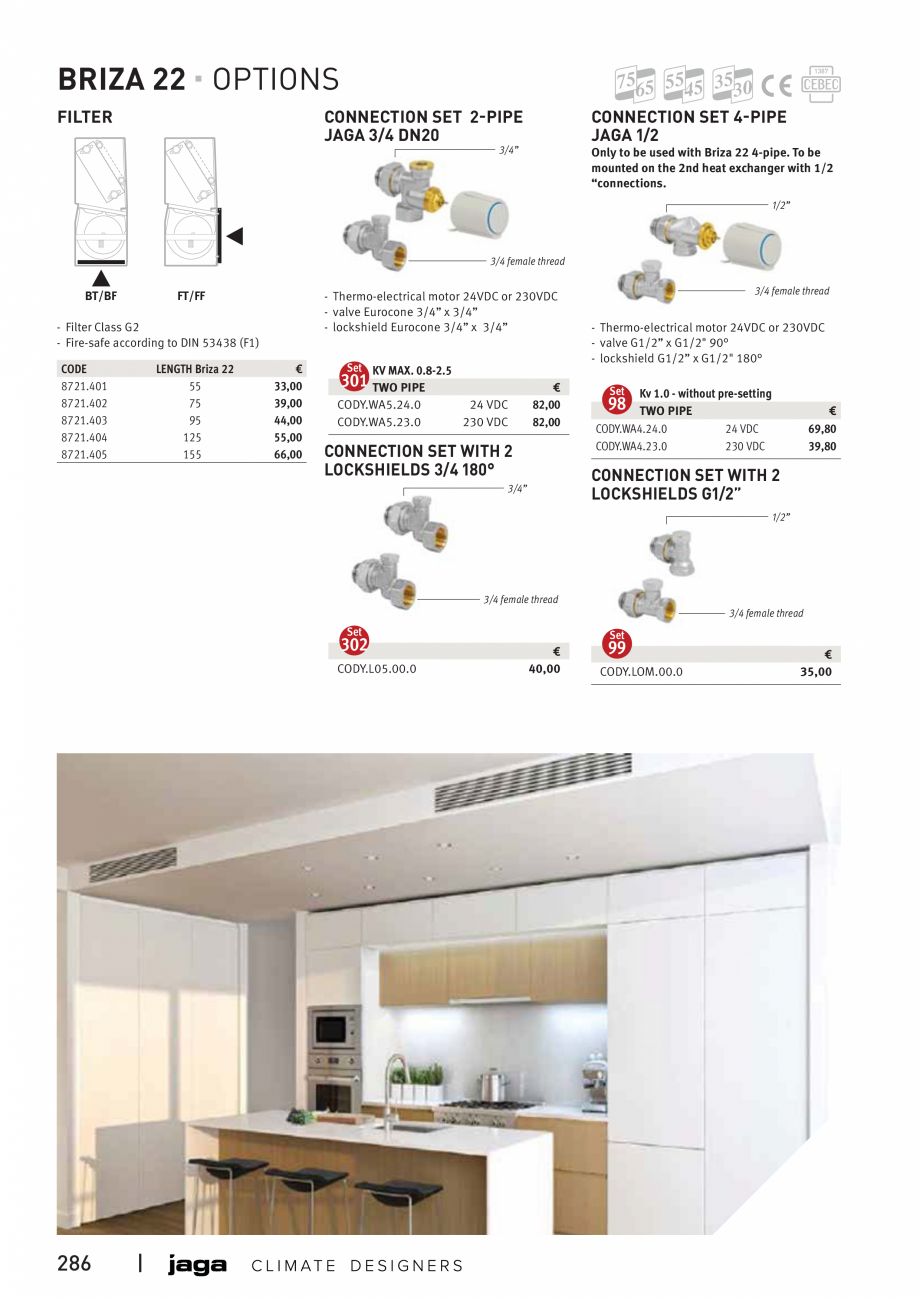

≥20 BF BOTTOM FRONT ≥20 FF FRONT FRONT 25 22.5 ≥15 ≥20 ≥15 284 | ≥15 ≥20 ≥15 ≥25 BUILT-IN CEILING (BABC) BRIZA 22 DIMENSIONS (in cm) 2-PIPE 4-PIPE 5 2x 3/4” R 21.6 2x 1/2” 16.7 F 22.2 10.5 19.6 R 21.6 F 20 ø2 20 20 30.3 19.2 20 ø2 36.3 5 14.9 3.3 54.5 max. 3 m max. 3 m INSTALLATION BT BOTTOM TOP FT FRONT TOP 22.5 ≥15 ≥15 ≥20 ≥20 ≥15 25 ≥20 10.4 ≥17 ≥15 ≥25 ≥25 10.4 ≥15 ≥17 | 285 BRIZA 22 OPTIONS FILTER 7565 5545 3530 CONNECTION SET 2-PIPE JAGA 3/4 DN20 CONNECTION SET 4-PIPE JAGA 1/2 3/4” Only to be used with Briza 22 4-pipe. To be mounted on the 2nd heat exchanger with 1/2 “connections. 1/2” 3/4 female thread BT/BF FT/FF - Thermo-electrical motor 24VDC or 230VDC - valve Eurocone 3/4” x 3/4” - lockshield Eurocone 3/4” x 3/4” - Filter Class G2 - Fire-safe according to DIN 53438 (F1) CODE 8721.401 8721.402 8721.403 8721.404 8721.405 LENGTH B

Pagina 7-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica Engleza ≥20

BF...

Pagina 8 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica...

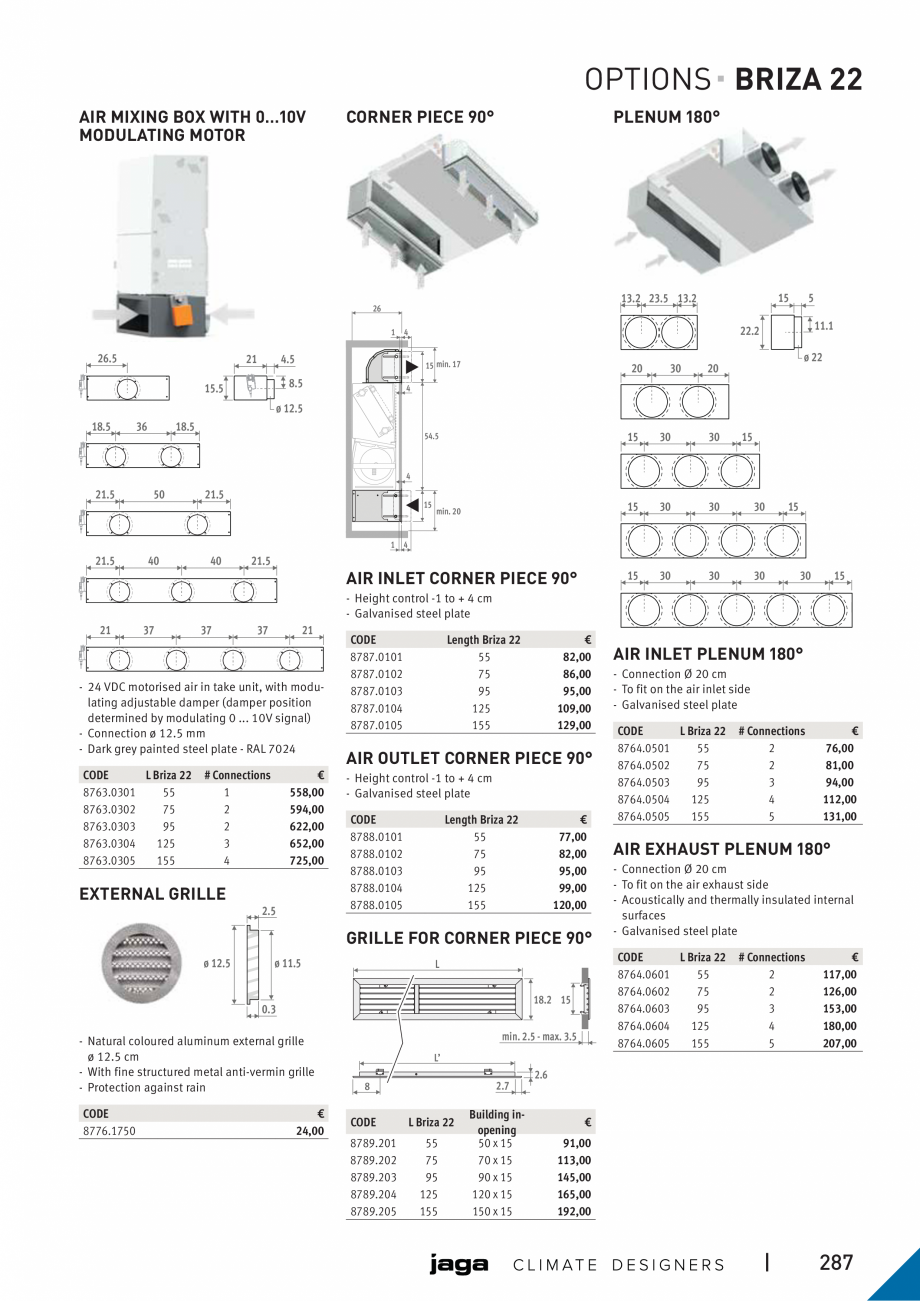

riza 22 55 75 95 125 155 € 33,00 39,00 44,00 55,00 66,00 Set KV MAX. 0.8-2.5 301 TWO PIPE CODY.WA5.24.0 CODY.WA5.23.0 24 VDC 230 VDC € 82,00 82,00 CONNECTION SET WITH 2 LOCKSHIELDS 3/4 180° 3/4 female thread - Thermo-electrical motor 24VDC or 230VDC - valve G1/2” x G1/2" 90° - lockshield G1/2” x G1/2" 180° Set Kv 1.0 - without pre-setting TWO PIPE CODY.WA4.24.0 24 VDC CODY.WA4.23.0 230 VDC 98 € 69,80 39,80 CONNECTION SET WITH 2 LOCKSHIELDS G1/2” 3/4” 1/2” 3/4 female thread 3/4 female thread Set 302 CODY.L05.00.0 286 | Set € 40,00 99 CODY.LOM.00.0 € 35,00 OPTIONS BRIZA 22 AIR MIXING BOX WITH 0…10V MODULATING MOTOR CORNER PIECE 90° PLENUM 180° 15 13.2 23.5 13.2 26 21 4.5 15 min. 17 8.5 15.5 11.1 22.2 1 4 26.5 5 20 30 ø 22 20 4 ø 12.5 18.5 36 18.5 54.5 15 30 30 15 15 15 30 30 30 15 30 30 30 T03 4 21.5 50 21.5 min. 20 15 1 4 21.5 40 40 21.5 AIR INLET CORNER PIECE 90° 30 15 - Heigh

Pagina 8-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica Engleza riza 22...

Pagina 9 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 22 Fisa tehnica...

t control -1 to + 4 cm - Galvanised steel plate 21 37 37 37 21 - 24 VDC motorised air in take unit, with modulating adjustable damper (damper position determined by modulating 0 ... 10V signal) - Connection ø 12.5 mm - Dark grey painted steel plate - RAL 7024 CODE L Briza 22 8763.0301 55 8763.0302 75 8763.0303 95 8763.0304 125 8763.0305 155 # Connections 1 2 2 3 4 € 558,00 594,00 622,00 652,00 725,00 EXTERNAL GRILLE 2.5 CODE 8787.0101 8787.0102 8787.0103 8787.0104 8787.0105 Length Briza 22 55 75 95 125 155 € 82,00 86,00 95,00 109,00 129,00 AIR OUTLET CORNER PIECE 90° - Height control -1 to + 4 cm - Galvanised steel plate CODE 8788.0101 8788.0102 8788.0103 8788.0104 8788.0105 Length Briza 22 55 75 95 125 155 € 77,00 82,00 95,00 99,00 120,00 GRILLE FOR CORNER PIECE 90° ø 12.5 ø 11.5 18.2 15 - Natural coloured aluminum external grille ø 12.5 cm - With fine structured metal anti-vermin grille - Protection against rain CODE 8776.1750 € 24,00 CODE L Briza 2
