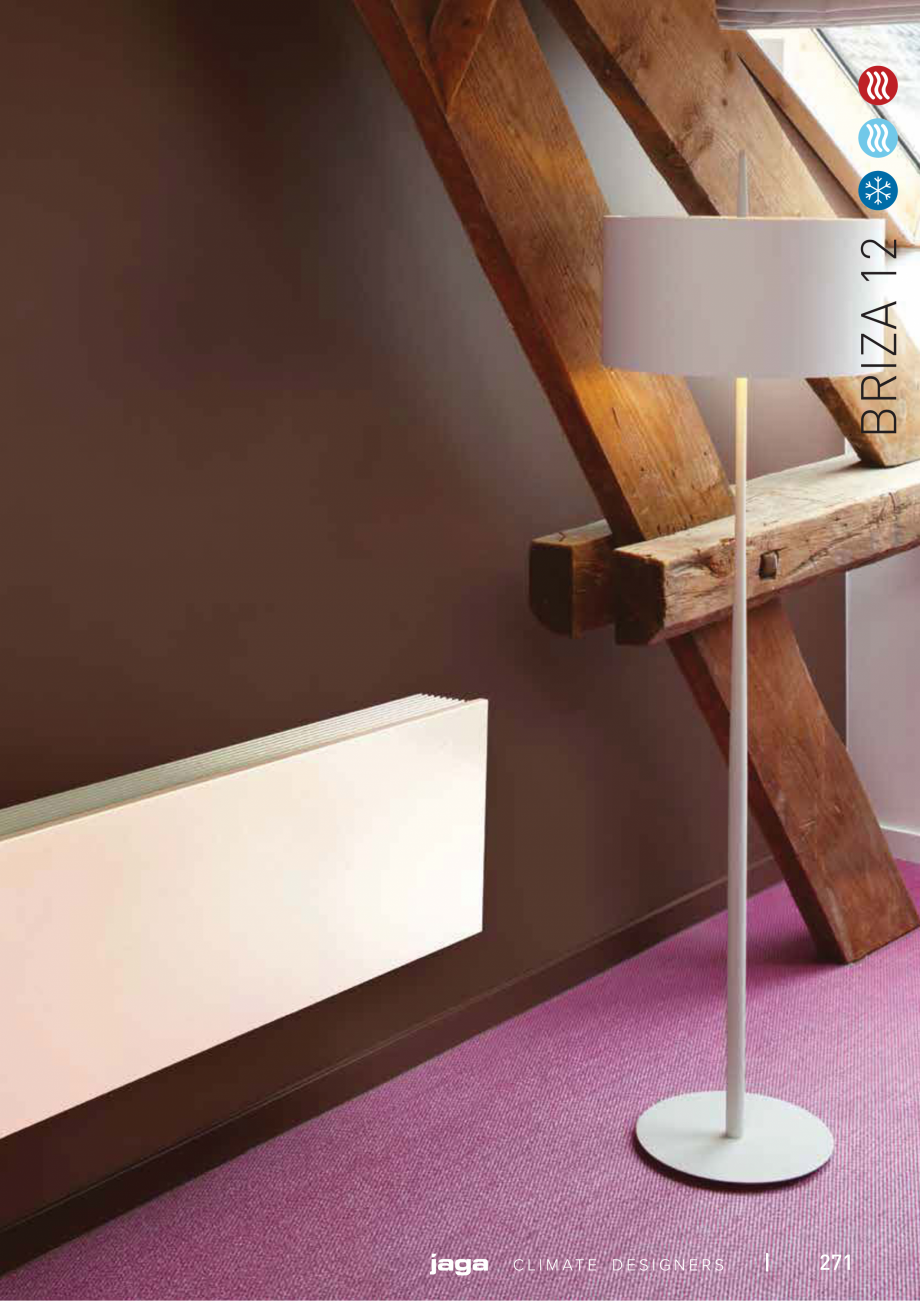

BRIZA 12 Compact and quiet fan convector in a slim design or for built-in installation Briza 12 is the best solution if you want to combine power with a sleek design. Jaga Briza fan convectors ensure the highest climate comfort while being energy-eﬃcient and whisper-quiet. They bring every room up to temperature very quickly, both in winter and in summer. This way you can enjoy an ideal indoor climate year-round. - Also for residential projects - Built-in EC motor for a much lower energy consumption and a longer service life - Suitable for connection to any heat source - Ideal in combination with heat pumps and low temperature systems - Optimized cooling capacity due to the new hydrophilic protection of the copper-aluminum coil. - With built-in room thermostat or controllable via the latest home automation systems - For 2-pipe or 4-pipe - Also available in a ceiling model or for in-wall or in-ceiling installation Suitable for non-condensing and condensing cooling QUALITY MADE IN B

Pagina 1-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica Engleza BRIZA 12
...

Pagina 2 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica...

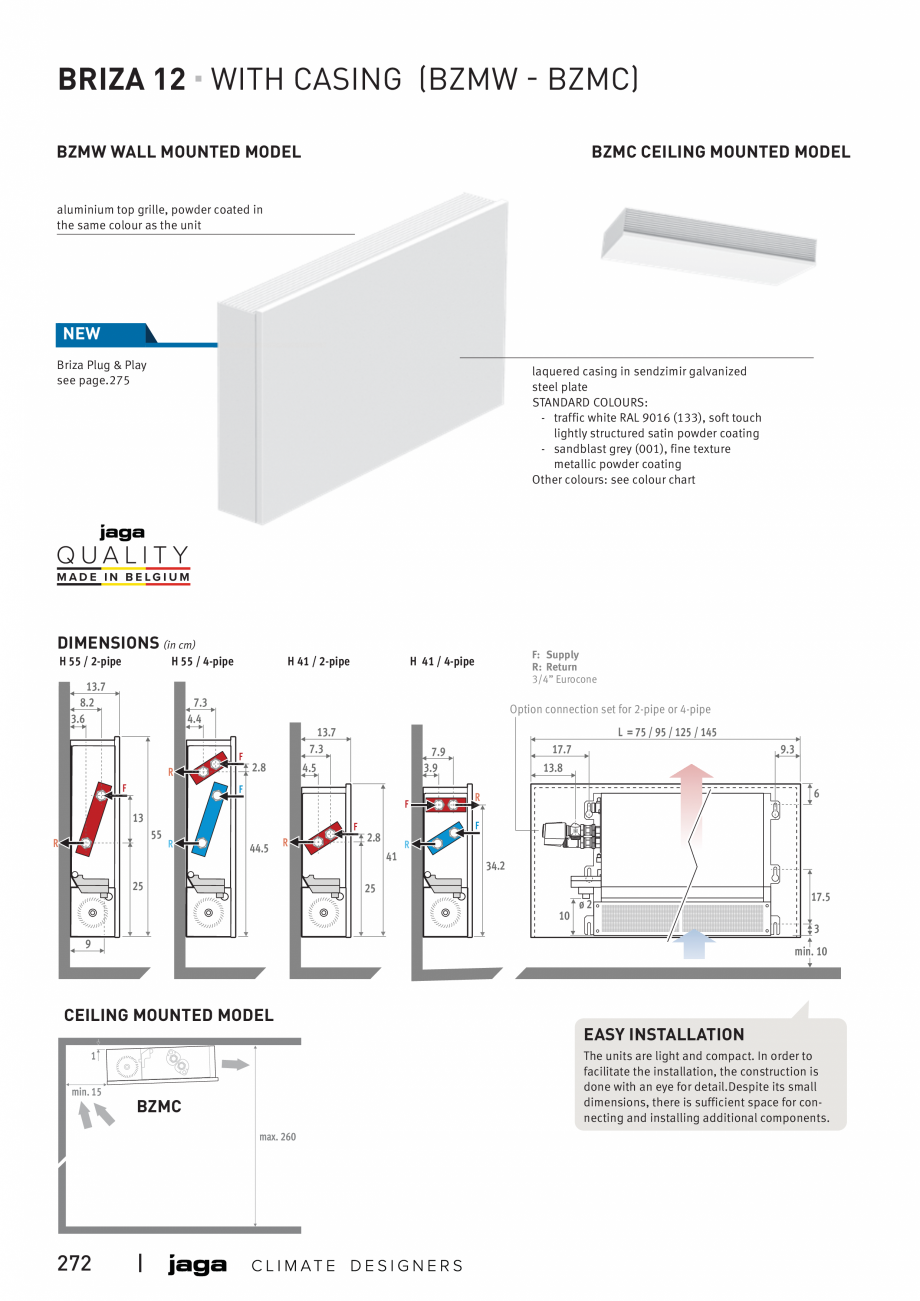

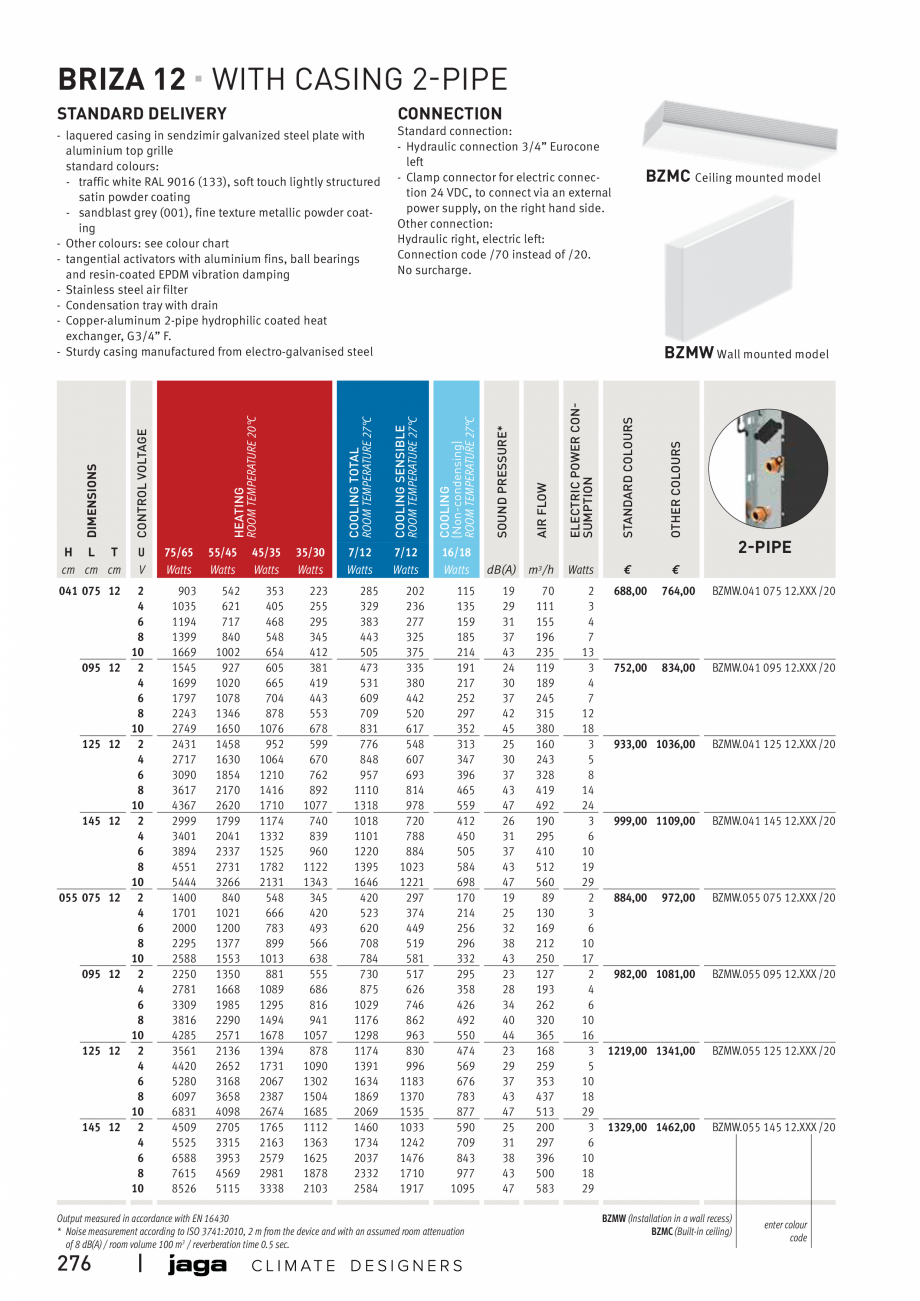

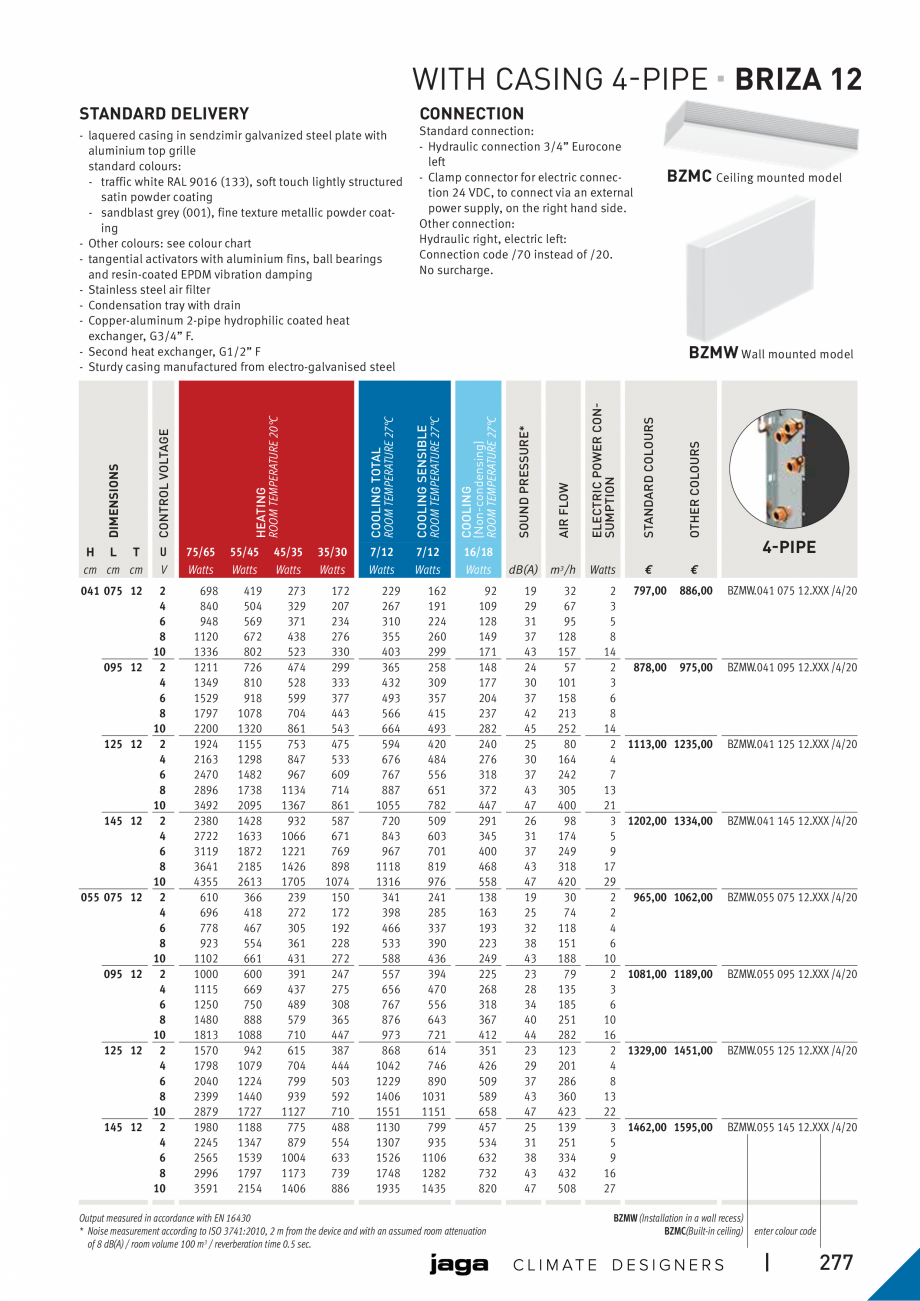

ELGIUM | 271 BRIZA 12 BRIZA 12 WITH CASING (BZMW - BZMC) BZMW WALL MOUNTED MODEL BZMC CEILING MOUNTED MODEL aluminium top grille, powder coated in the same colour as the unit NEW Briza Plug & Play see page.275 laquered casing in sendzimir galvanized steel plate STANDARD COLOURS: - traffic white RAL 9016 (133), soft touch lightly structured satin powder coating - sandblast grey (001), fine texture metallic powder coating Other colours: see colour chart QUALITY MADE IN BELGIUM DIMENSIONS (in cm) H 55 / 2-pipe H 55 / 4-pipe 13.7 8.2 3.6 H 41 / 2-pipe 7.3 4.4 Option connection set for 2-pipe or 4-pipe F R F 13.7 7.3 2.8 L = 75 / 95 / 125 / 145 4.5 F 13 55 F R 44.5 R 25 17.7 13.8 7.9 3.9 F R F: Supply R: Return 3/4” Eurocone H 41 / 4-pipe 9.3 6 R F 2.8 41 R 34.2 25 10 ø2 3 9 min. 10 CEILING MOUNTED MODEL 1 min. 15 BZMC | EASY INSTALLATION The units are light and compact. In order to facilitate the installation, the construction is done w

Pagina 2-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica Engleza ELGIUM
...

Pagina 3 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica...

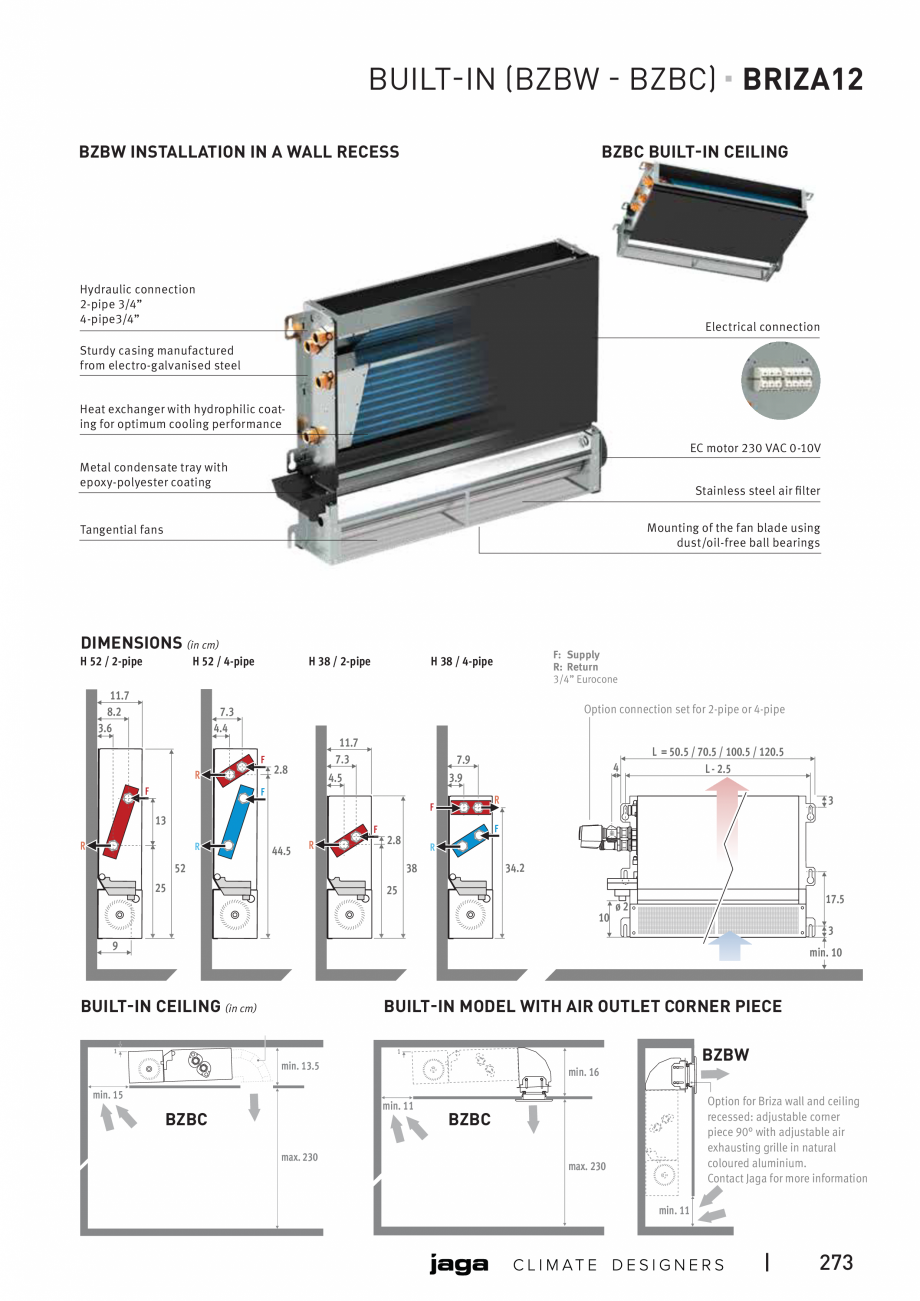

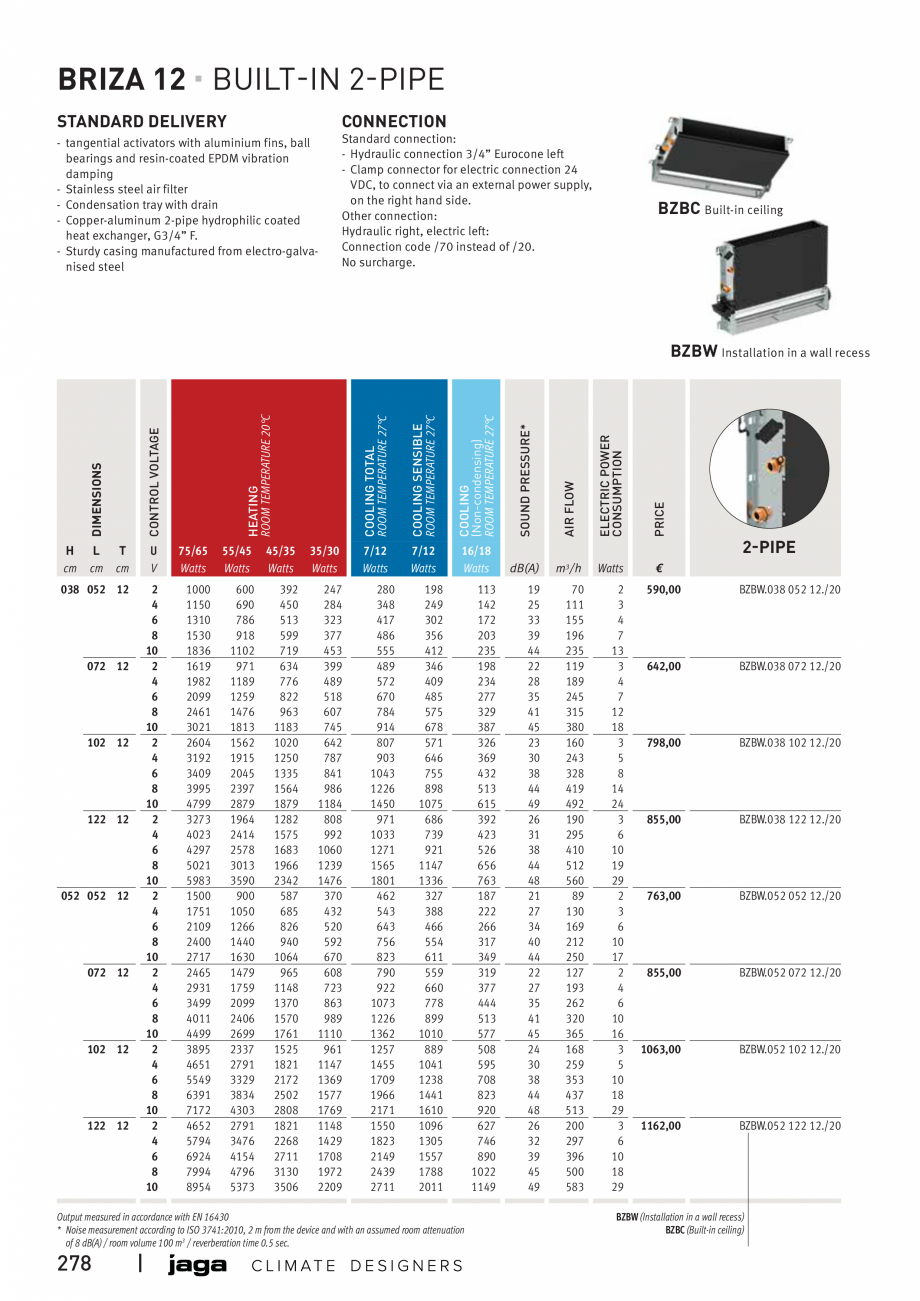

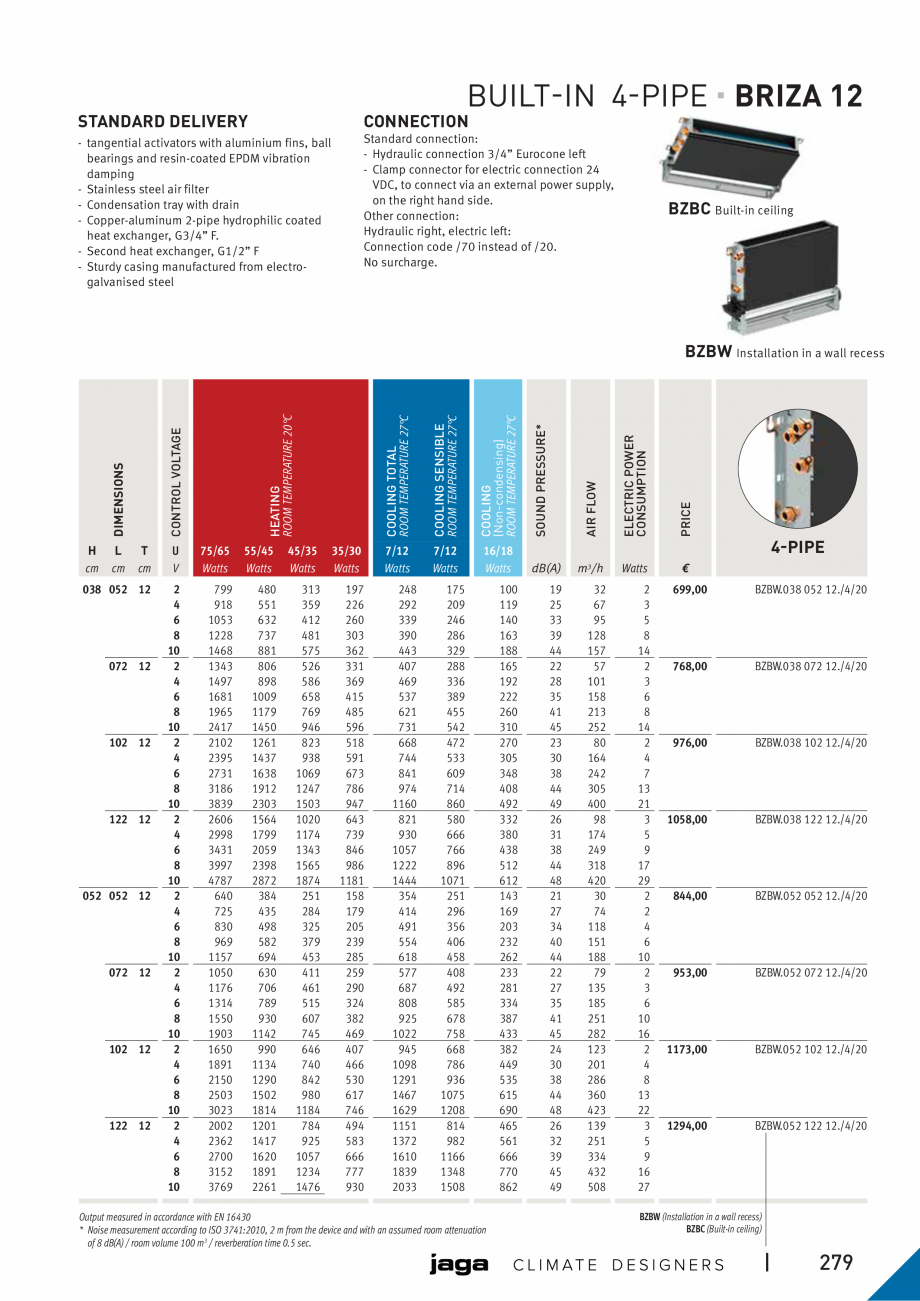

ith an eye for detail.Despite its small dimensions, there is sufficient space for connecting and installing additional components. max. 260 272 17.5 BUILT-IN (BZBW - BZBC) BRIZA12 BZBW INSTALLATION IN A WALL RECESS BZBC BUILT-IN CEILING Hydraulic connection 2-pipe 3/4” 4-pipe3/4” Electrical connection Sturdy casing manufactured from electro-galvanised steel Heat exchanger with hydrophilic coating for optimum cooling performance EC motor 230 VAC 0-10V Metal condensate tray with epoxy-polyester coating Stainless steel air ﬁlter Mounting of the fan blade using dust/oil-free ball bearings Tangential fans DIMENSIONS (in cm) H 52 / 2-pipe H 52 / 4-pipe 11.7 8.2 3.6 7.3 4.4 H 38 / 2-pipe Option connection set for 2-pipe or 4-pipe F R F 11.7 7.3 2.8 7.9 3.9 4.5 F F R 44.5 R 3 R 38 25 L = 50.5 / 70.5 / 100.5 / 120.5 L - 2.5 F 2.8 52 4 R F 13 R F: Supply R: Return 3/4” Eurocone H 38 / 4-pipe 34.2 25 10 17.5 ø2 3 9 min. 10 BUILT-IN CEI

Pagina 3-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica Engleza ith an...

Pagina 4 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica...

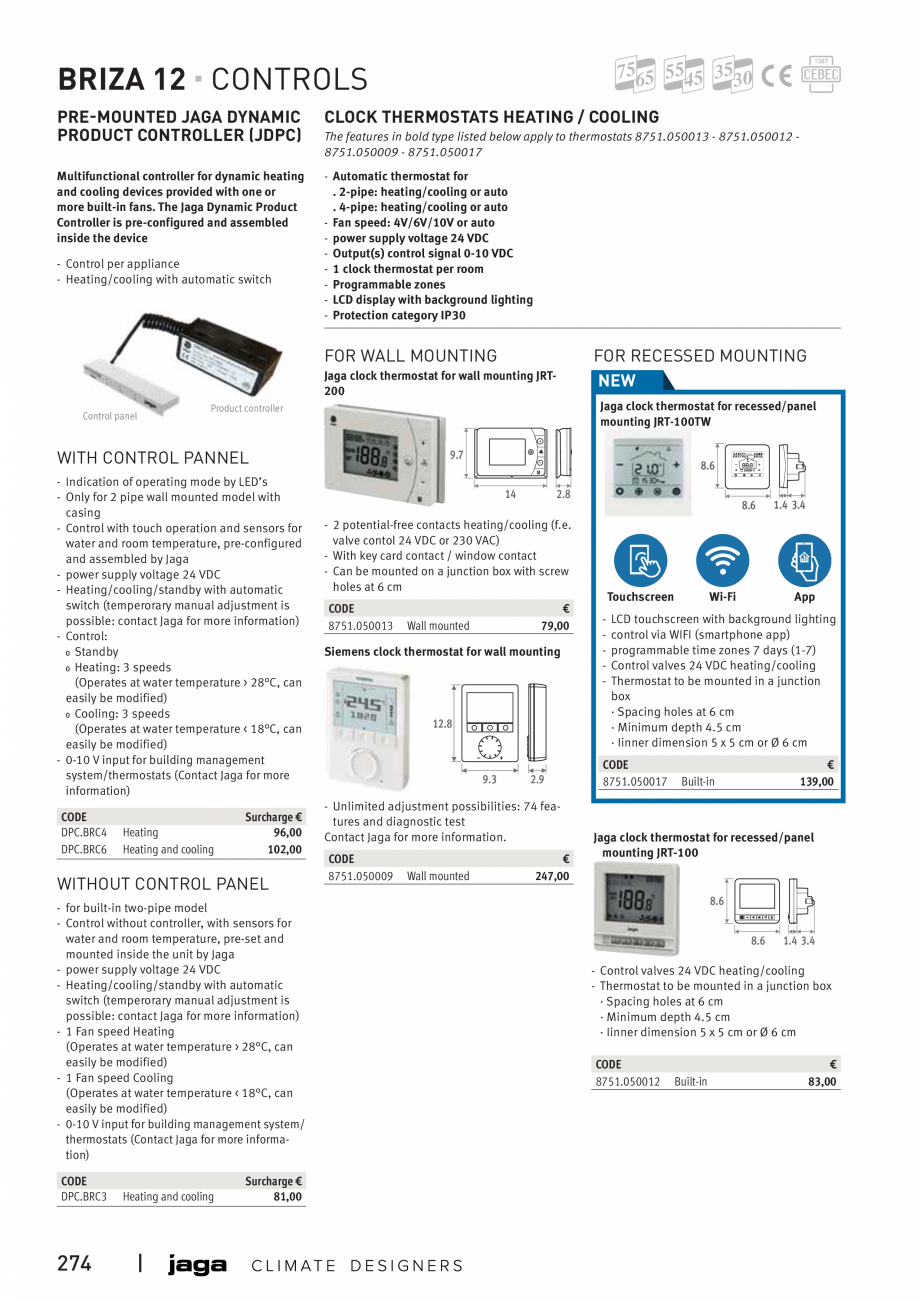

LING (in cm) BUILT-IN MODEL WITH AIR OUTLET CORNER PIECE 1 BZBW 1 min. 13.5 min. 15 min. 16 min. 11 BZBC max. 230 Option for Briza wall and ceiling recessed: adjustable corner piece 90° with adjustable air exhausting grille in natural coloured aluminium. Contact Jaga for more information BZBC max. 230 min. 11 | 273 BRIZA 12 CONTROLS PRE-MOUNTED JAGA DYNAMIC PRODUCT CONTROLLER (JDPC) Multifunctional controller for dynamic heating and cooling devices provided with one or more built-in fans. The Jaga Dynamic Product Controller is pre-configured and assembled inside the device - Control per appliance - Heating/cooling with automatic switch 7565 5545 3530 CLOCK THERMOSTATS HEATING / COOLING The features in bold type listed below apply to thermostats 8751.050013 - 8751.050012 8751.050009 - 8751.050017 - Automatic thermostat for . 2-pipe: heating/cooling or auto . 4-pipe: heating/cooling or auto - Fan speed: 4V/6V/10V or auto - power supply voltage 24 VDC - Output(s) contro

Pagina 4-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica Engleza LING (in ...

Pagina 5 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica...

l signal 0-10 VDC - 1 clock thermostat per room - Programmable zones - LCD display with background lighting - Protection category IP30 FOR WALL MOUNTING FOR RECESSED MOUNTING NEW Jaga clock thermostat for wall mounting JRT200 Control panel Jaga clock thermostat for recessed/panel mounting JRT-100TW Product controller 9.7 WITH CONTROL PANNEL PRG 8.6 M - Indication of operating mode by LED’s - Only for 2 pipe wall mounted model with casing - Control with touch operation and sensors for water and room temperature, pre-configured and assembled by Jaga - power supply voltage 24 VDC - Heating/cooling/standby with automatic switch (temperorary manual adjustment is possible: contact Jaga for more information) - Control: 0 Standby 0 Heating: 3 speeds (Operates at water temperature > 28°C, can easily be modified) 0 Cooling: 3 speeds (Operates at water temperature < 18°C, can easily be modified) - 0-10 V input for building management system/thermostats (Contact Jaga for more inform

Pagina 5-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica Engleza l signal ...

Pagina 6 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica...

ation) CODE DPC.BRC4 DPC.BRC6 Heating Heating and cooling Surcharge € 96,00 102,00 WITHOUT CONTROL PANEL - for built-in two-pipe model - Control without controller, with sensors for water and room temperature, pre-set and mounted inside the unit by Jaga - power supply voltage 24 VDC - Heating/cooling/standby with automatic switch (temperorary manual adjustment is possible: contact Jaga for more information) - 1 Fan speed Heating (Operates at water temperature > 28°C, can easily be modified) - 1 Fan speed Cooling (Operates at water temperature < 18°C, can easily be modified) - 0-10 V input for building management system/ thermostats (Contact Jaga for more information) CODE DPC.BRC3 274 Heating and cooling | Surcharge € 81,00 2.8 € 79,00 Siemens clock thermostat for wall mounting 12.8 9.3 2.9 - Unlimited adjustment possibilities: 74 features and diagnostic test Contact Jaga for more information. CODE 8751.050009 Wall mounted °C % °F AM H PM € 247,00 1.4 3.4

Pagina 6-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica Engleza ation)...

Pagina 7 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica...

8.6 - 2 potential-free contacts heating/cooling (f.e. valve contol 24 VDC or 230 VAC) - With key card contact / window contact - Can be mounted on a junction box with screw holes at 6 cm Wall mounted AUX M 14 CODE 8751.050013 12 34 56 Touchscreen - Wi-Fi App LCD touchscreen with background lighting control via WIFI (smartphone app) programmable time zones 7 days (1-7) Control valves 24 VDC heating/cooling Thermostat to be mounted in a junction box · Spacing holes at 6 cm · Minimum depth 4.5 cm · Iinner dimension 5 x 5 cm or Ø 6 cm CODE 8751.050017 € 139,00 Built-in Jaga clock thermostat for recessed/panel mounting JRT-100 8.6 M 8.6 1.4 3.4 - Control valves 24 VDC heating/cooling - Thermostat to be mounted in a junction box · Spacing holes at 6 cm · Minimum depth 4.5 cm · Iinner dimension 5 x 5 cm or Ø 6 cm CODE 8751.050012 Built-in € 83,00 OPTIONS BRIZA12 CONNECTION SET 24 VDC 3/4” Eurocone POWER SUPPLY DIN-RAIL MONTAGE BUILT-IN THERMOSTAT, VA

Pagina 7-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica Engleza

8.6

- ...

Pagina 8 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica...

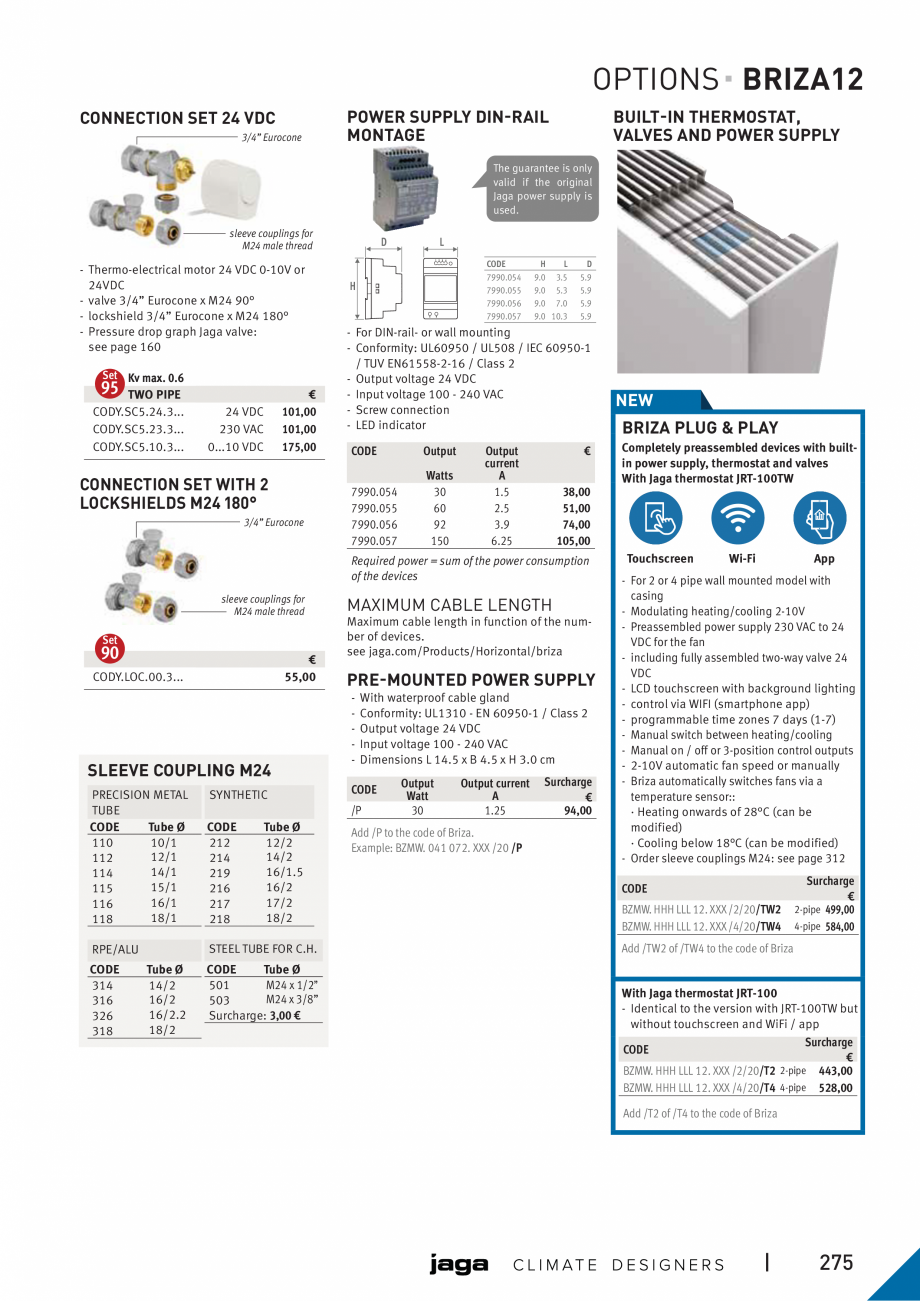

LVES AND POWER SUPPLY The guarantee is only valid if the original Jaga power supply is used. sleeve couplings for M24 male thread - Thermo-electrical motor 24 VDC 0-10V or 24VDC - valve 3/4” Eurocone x M24 90° - lockshield 3/4” Eurocone x M24 180° - Pressure drop graph Jaga valve: see page 160 Set Kv max. 0.6 TWO PIPE CODY.SC5.24.3... CODY.SC5.23.3... CODY.SC5.10.3... 95 24 VDC 230 VAC 0...10 VDC € 101,00 101,00 175,00 CONNECTION SET WITH 2 LOCKSHIELDS M24 180° 3/4” Eurocone D L CODE 7990.054 7990.055 7990.056 7990.057 H H L 9.0 3.5 9.0 5.3 9.0 7.0 9.0 10.3 D 5.9 5.9 5.9 5.9 - For DIN-rail- or wall mounting - Conformity: UL60950 / UL508 / IEC 60950-1 / TUV EN61558-2-16 / Class 2 - Output voltage 24 VDC - Input voltage 100 - 240 VAC - Screw connection - LED indicator CODE Output 7990.054 7990.055 7990.056 7990.057 Watts 30 60 92 150 Output current A 1.5 2.5 3.9 6.25 € 38,00 51,00 74,00 105,00 Required power = sum of the power consumption of the devices sle

Pagina 8-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica Engleza LVES AND ...

Pagina 9 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica...

eve couplings for M24 male thread Set 90 € 55,00 CODY.LOC.00.3... SLEEVE COUPLING M24 PRECISION METAL TUBE CODE Tube Ø 110 10/1 12/1 112 14/1 114 15/1 115 16/1 116 18/1 118 Tube Ø 14/2 16/2 16/2.2 18/2 PRE-MOUNTED POWER SUPPLY - With waterproof cable gland Conformity: UL1310 - EN 60950-1 / Class 2 Output voltage 24 VDC Input voltage 100 - 240 VAC Dimensions L 14.5 x B 4.5 x H 3.0 cm CODE /P CODE 212 214 219 216 217 218 Tube Ø 12/2 14/2 16/1.5 16/2 17/2 18/2 STEEL TUBE FOR C.H. RPE/ALU CODE 314 316 326 318 SYNTHETIC MAXIMUM CABLE LENGTH Maximum cable length in function of the number of devices. see jaga.com/Products/Horizontal/briza CODE Tube Ø 501 M24 x 1/2” M24 x 3/8” 503 Surcharge: 3,00 € Output Watt 30 Output current A 1.25 Add /P to the code of Briza. Example: BZMW. 041 072. XXX /20 /P Surcharge € 94,00 NEW BRIZA PLUG & PLAY Completely preassembled devices with builtin power supply, thermostat and valves With Jaga thermostat JRT-100TW Touchscreen

Pagina 9-Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica Engleza eve...

Pagina 10 - Ventiloconvector de perete-tavan - Preturi si accesorii JAGA BRIZA 12 Fisa tehnica...

Wi-Fi App - For 2 or 4 pipe wall mounted model with casing - Modulating heating/cooling 2-10V - Preassembled power supply 230 VAC to 24 VDC for the fan - including fully assembled two-way valve 24 VDC - LCD touchscreen with background lighting - control via WIFI (smartphone app) - programmable time zones 7 days (1-7) - Manual switch between heating/cooling - Manual on / off or 3-position control outputs - 2-10V automatic fan speed or manually - Briza automatically switches fans via a temperature sensor:: · Heating onwards of 28°C (can be modified) · Cooling below 18°C (can be modified) - Order sleeve couplings M24: see page 312 CODE BZMW. HHH LLL 12. XXX /2/20/TW2 BZMW. HHH LLL 12. XXX /4/20/TW4 Surcharge € 2-pipe 499,00 4-pipe 584,00 Add /TW2 of /TW4 to the code of Briza With Jaga thermostat JRT-100 - Identical to the version with JRT-100TW but without touchscreen and WiFi / app Surcharge CODE € BZMW. HHH LLL 12. XXX /2/20/T2 2-pipe 443,00 BZMW. HHH LLL 12. XXX /4/20/T4
