MINI CANAL HYBRID Same size, 3 times the heating output! Condensing boilers, heat pumps and solar energy systems need far bigger heating elements because they operate at very low water temperatures that sometimes don’t get above 35°C. For Mini Canal Hybrid it’s not a problem, because it delivers 3 to 4 times more heat than a traditional natural trench heating output solution. · High output at low water temperatures. · For newbuild and renovation of commercial and public buildings. · Connection for ventilation (option). · Less space needed. · A range of grilles for every interior. · Low-H2O technology with super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission. · A 30 year guarantee on the heat exchanger. Mini Canal Hybrid is also suitable for noncondensing cooling in combination with any heat pump that has a cooling function. This mild form of cooling is very energy-eﬃcient. WDEOH L X V $OVR OLJKW IRU LQJ FRRO MINI C

Pagina 1-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza...

Pagina 2 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

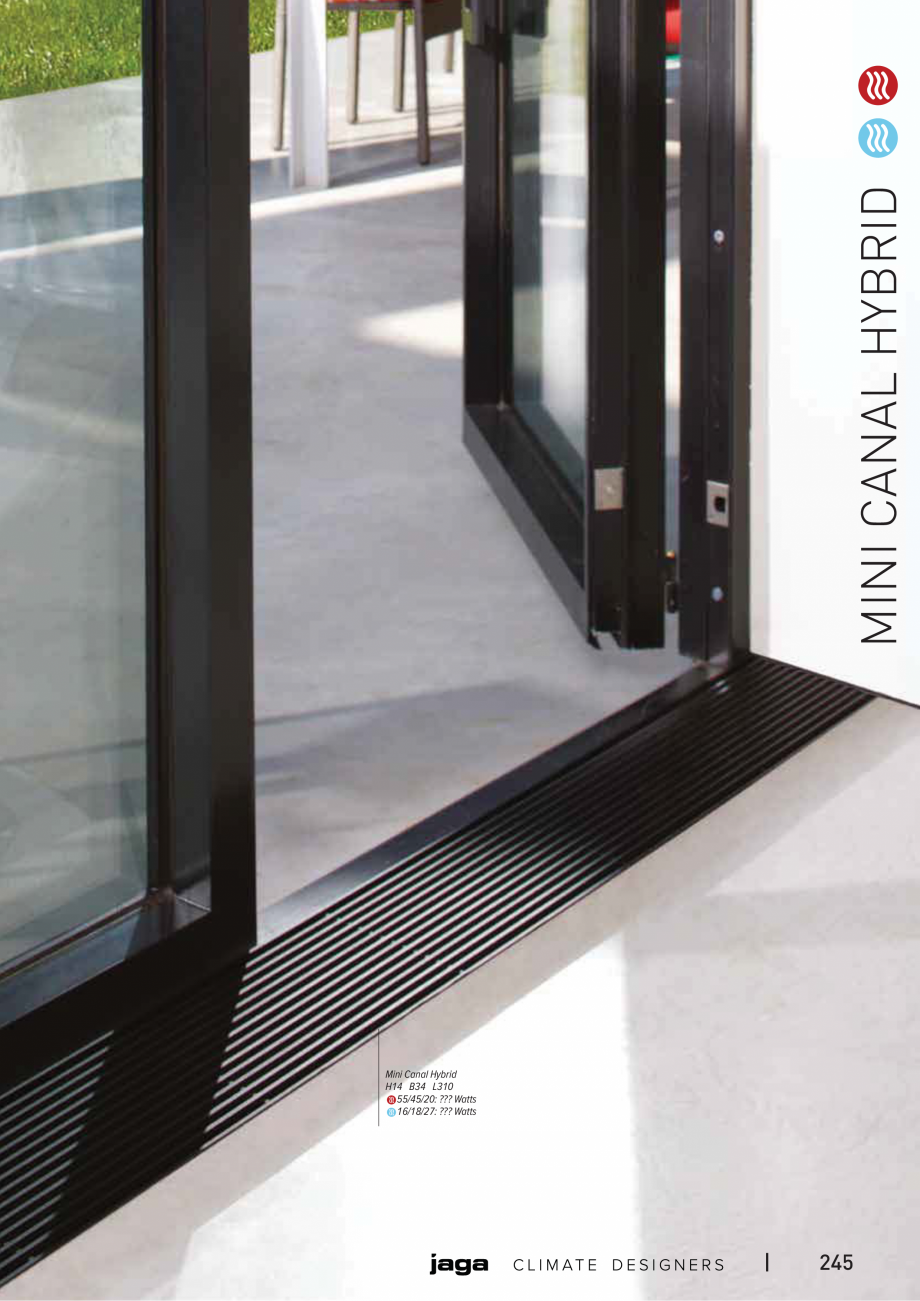

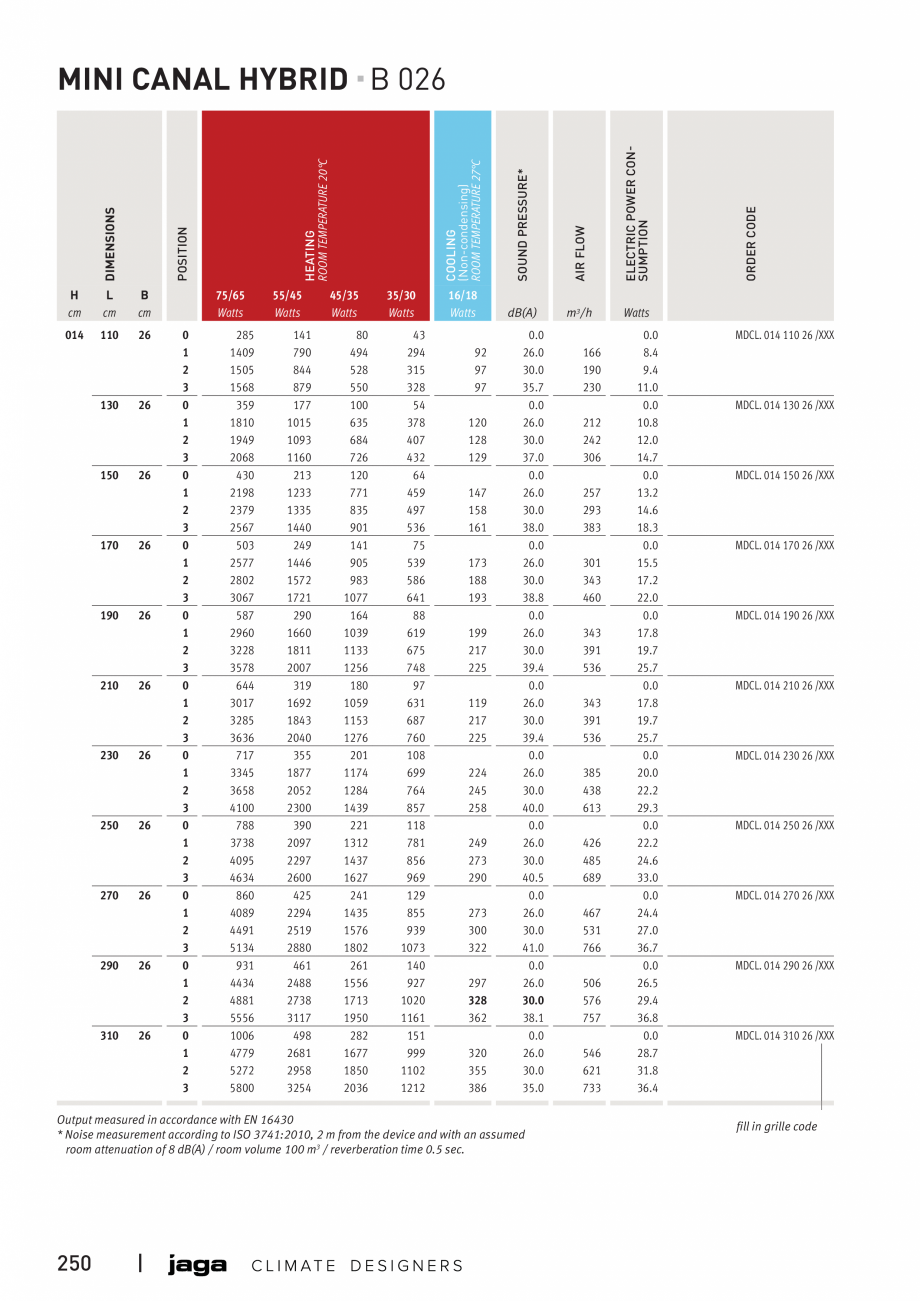

ANAL HYBRID Mini Canal Hybrid H14 B34 L310 55/45/20: ??? Watts 16/18/27: ??? Watts | 245 HEATING OR HEATING + LIGHT COOLING®: THE IDEAL HEAT PUMP HEATER HIGH OUTPUT WITH ALL WATER TEMPERATURES, HOT AND COLD MOST RESPONSIVE OUTPUT SYSTEM CRUCIAL FOR HEATING AND COOLING DOWN New, environmentally-friendly installations require much better thermal units. This ensures a comfortable temperature at a low water temperature and a refreshing coolness with non-condensing cooling. Heating Is the oven or dishwasher on? If the sun shines inside? Your home is system, DB stands for Dynamic Boost, to considerably increase the power of the heater. The H of Hybrid stands for the dual effect: heating and cooling. • With Strada Hybrid you are choosing a complete climate solution for your home that is optimally controlled in order to guarantee the highest comfort level and minimal energy consumptionperfectly controlled heating at the lowest water temperature thanks to the hybrid system’s reacti

Pagina 2-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza...

Pagina 3 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

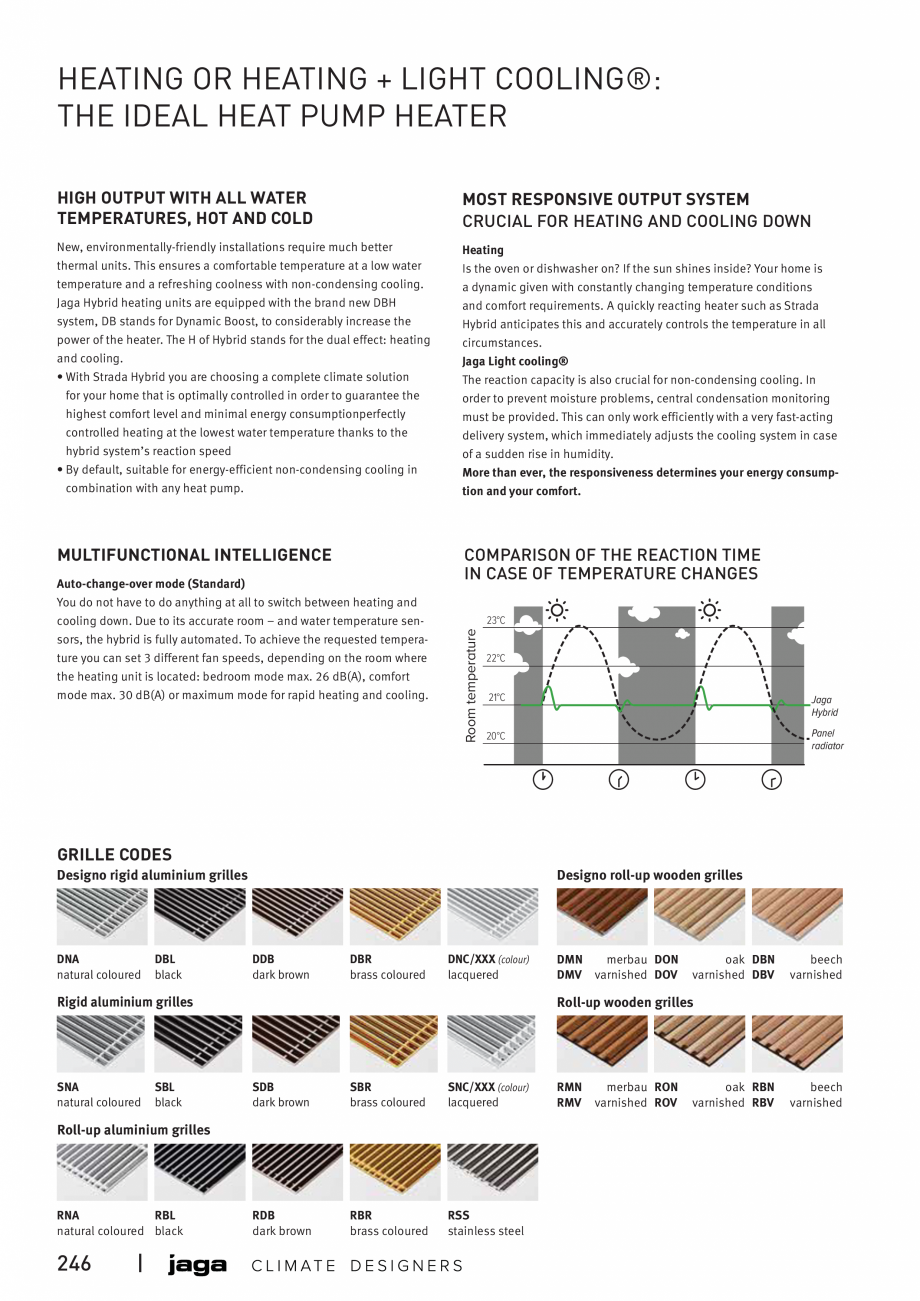

on speed • By default, suitable for energy-efficient non-condensing cooling in combination with any heat pump. MULTIFUNCTIONAL INTELLIGENCE Auto-change-over mode (Standard) You do not have to do anything at all to switch between heating and cooling down. Due to its accurate room – and water temperature sensors, the hybrid is fully automated. To achieve the requested temperature you can set 3 different fan speeds, depending on the room where the heating unit is located: bedroom mode max. 26 dB(A), comfort mode max. 30 dB(A) or maximum mode for rapid heating and cooling. a dynamic given with constantly changing temperature conditions and comfort requirements. A quickly reacting heater such as Strada Hybrid anticipates this and accurately controls the temperature in all circumstances. Jaga Light cooling® The reaction capacity is also crucial for non-condensing cooling. In order to prevent moisture problems, central condensation monitoring must be provided. This can only work effici

Pagina 3-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza...

Pagina 4 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

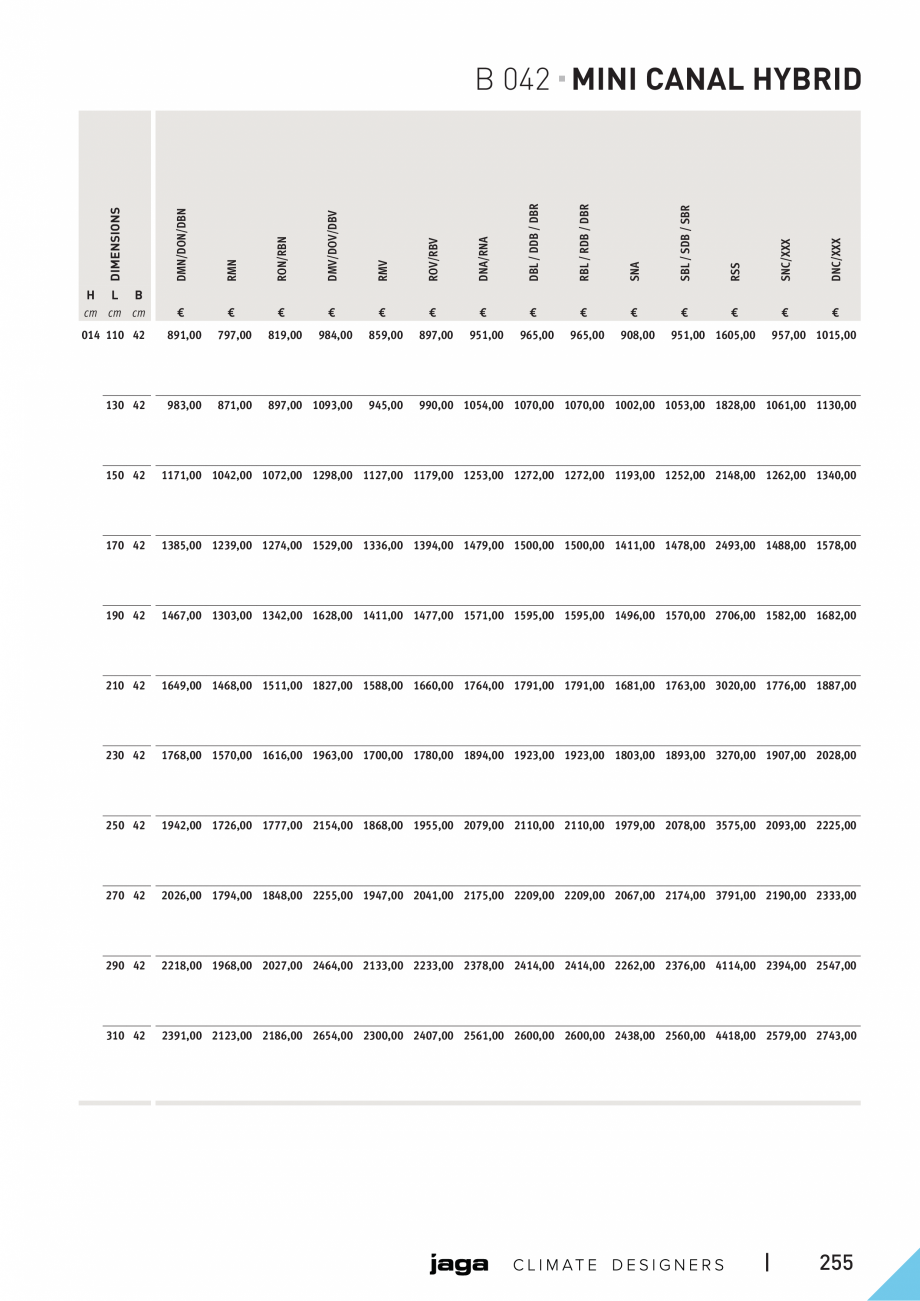

ently with a very fast-acting delivery system, which immediately adjusts the cooling system in case of a sudden rise in humidity. More than ever, the responsiveness determines your energy consumption and your comfort. COMPARISON OF THE REACTION TIME IN CASE OF TEMPERATURE CHANGES 23°C Room temperature Jaga Hybrid heating units are equipped with the brand new DBH 22°C C 21°C Jaga Hybrid 20°C Panel radiator GRILLE CODES Designo rigid aluminium grilles DNA natural coloured DBL black Designo roll-up wooden grilles DDB dark brown DBR brass coloured DNC/XXX (colour) lacquered Rigid aluminium grilles SNA natural coloured SBL black 246 | oak DBN varnished DBV beech varnished Roll-up wooden grilles SDB dark brown SBR brass coloured SNC/XXX (colour) lacquered RDB dark brown RBR brass coloured RSS stainless steel Roll-up aluminium grilles RNA RBL natural coloured black DMN merbau DON DMV varnished DOV RMN RMV merbau RON varnished ROV oak RBN varnished RBV be

Pagina 4-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza...

Pagina 5 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

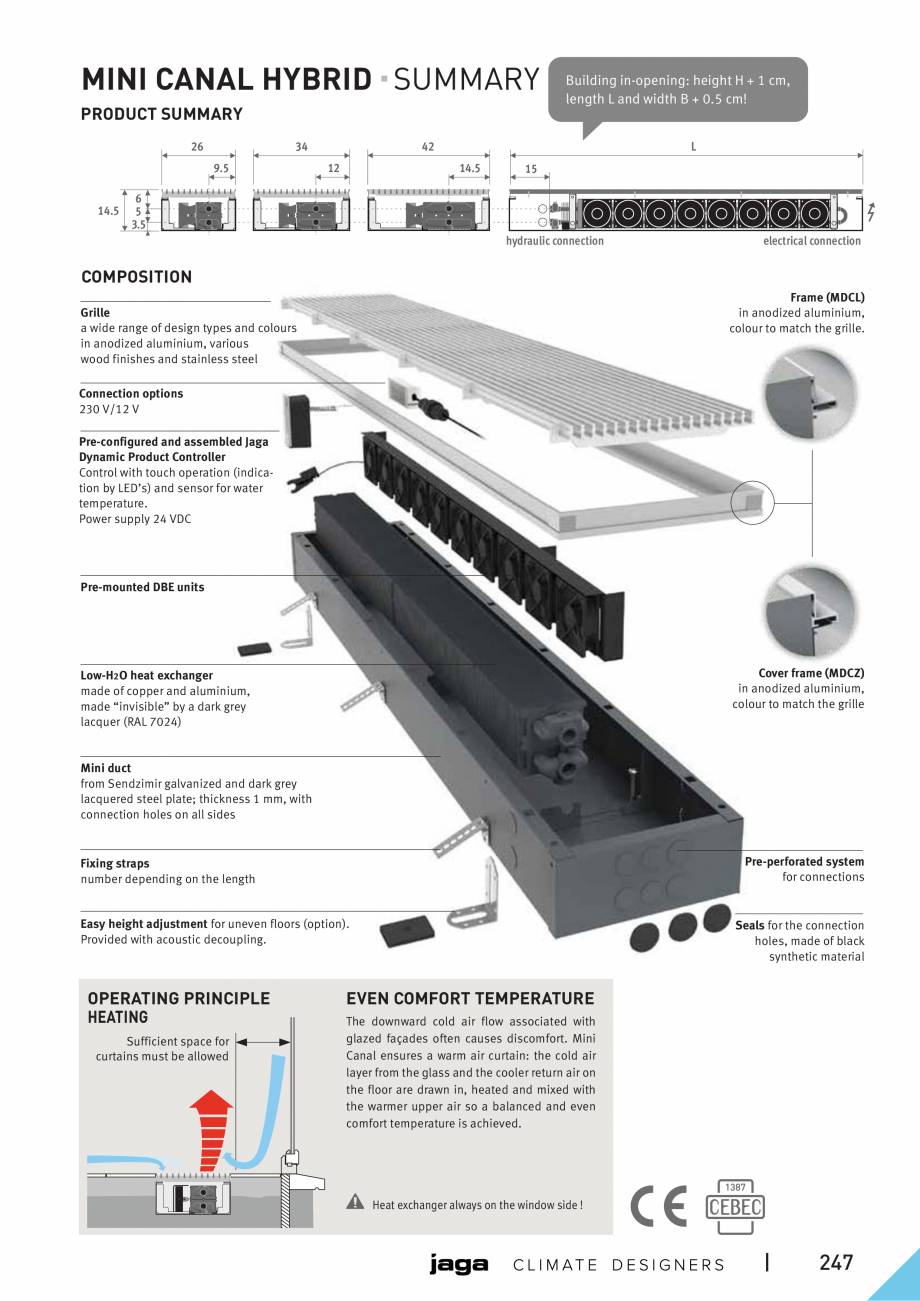

ech varnished MINI CANAL HYBRID SUMMARY PRODUCT SUMMARY 26 34 9.5 14.5 Building in-opening: height H + 1 cm, length L and width B + 0.5 cm! 42 12 L 14.5 15 6 5 3.5 hydraulic connection electrical connection COMPOSITION Frame (MDCL) in anodized aluminium, colour to match the grille. Grille a wide range of design types and colours in anodized aluminium, various wood finishes and stainless steel Connection options 230 V/12 V Pre-configured and assembled Jaga Dynamic Product Controller Control with touch operation (indication by LED’s) and sensor for water temperature. Power supply 24 VDC Pre-mounted DBE units Covver frame (MDCZ) Cover in anodized aluminium, colour to match the grille Low-H2O heat exchanger made of copper and aluminium, made “invisible” by a dark grey lacquer (RAL 7024) Mini duct from Sendzimir galvanized and dark grey lacquered steel plate; thickness 1 mm, with connection holes on all sides Pre-perforated system for connections Fixing straps nu

Pagina 5-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza...

Pagina 6 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

mber depending on the length Easy height adjustment for uneven floors (option). Provided with acoustic decoupling. OPERATING PRINCIPLE HEATING Sufficient space for curtains must be allowed Seals for the connection holes, made of black synthetic material EVEN COMFORT TEMPERATURE The downward cold air flow associated with glazed façades often causes discomfort. Mini Canal ensures a warm air curtain: the cold air layer from the glass and the cooler return air on the floor are drawn in, heated and mixed with the warmer upper air so a balanced and even comfort temperature is achieved. Heat exchanger always on the window side ! | 247 MINI CANAL HYBRID COMPOSITION ORDERING CODE WITH FRAME (L-PROFILE) code height length MDCL . 014 110 width grille 26 /XXX fill in grille code ELECTRIC CONNECTION Mini Canal is also available with a cover frame. The cover frame facilitates a perfect finish with renovations or wooden floors. WITH COVER FRAME (Z-PROFILE) code height length

Pagina 6-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza...

Pagina 7 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

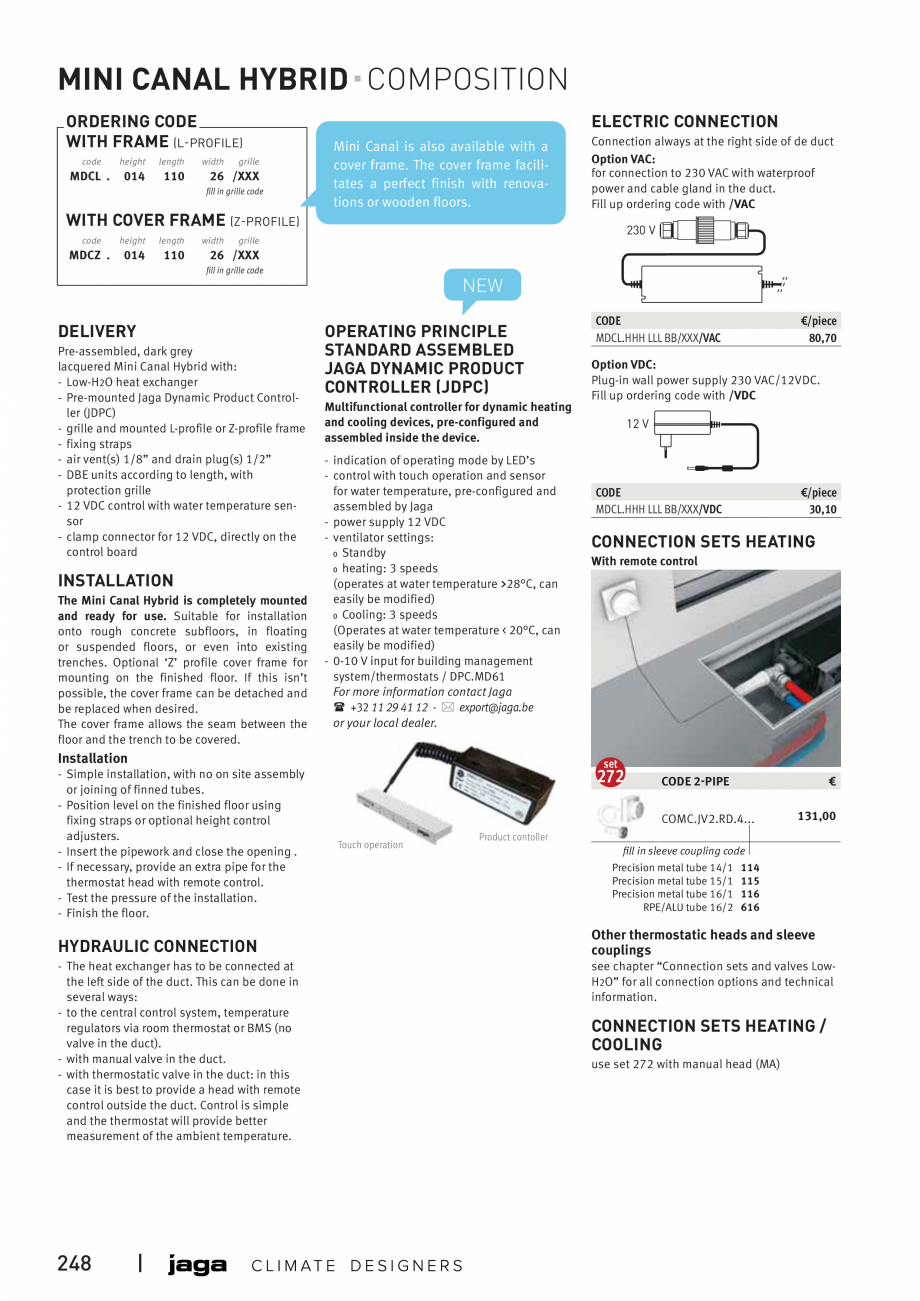

MDCZ . 014 110 width 230 V grille 26 /XXX fill in grille code DELIVERY Pre-assembled, dark grey lacquered Mini Canal Hybrid with: - Low-H2O heat exchanger - Pre-mounted Jaga Dynamic Product Controller (JDPC) - grille and mounted L-profile or Z-profile frame - fixing straps - air vent(s) 1/8” and drain plug(s) 1/2” - DBE units according to length, with protection grille - 12 VDC control with water temperature sensor - clamp connector for 12 VDC, directly on the control board INSTALLATION The Mini Canal Hybrid is completely mounted and ready for use. Suitable for installation onto rough concrete subfloors, in floating or suspended floors, or even into existing trenches. Optional ‘Z’ profile cover frame for mounting on the finished floor. If this isn’t possible, the cover frame can be detached and be replaced when desired. The cover frame allows the seam between the floor and the trench to be covered. NEW OPERATING PRINCIPLE STANDARD ASSEMBLED JAGA DYNAMIC PRODUCT CONT

Pagina 7-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza
...

Pagina 8 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

ROLLER (JDPC) HYDRAULIC CONNECTION - The heat exchanger has to be connected at the left side of the duct. This can be done in several ways: - to the central control system, temperature regulators via room thermostat or BMS (no valve in the duct). - with manual valve in the duct. - with thermostatic valve in the duct: in this case it is best to provide a head with remote control outside the duct. Control is simple and the thermostat will provide better measurement of the ambient temperature. | CODE MDCL.HHH LLL BB/XXX/VAC - indication of operating mode by LED’s - control with touch operation and sensor for water temperature, pre-configured and assembled by Jaga - power supply 12 VDC - ventilator settings: 0 Standby 0 heating: 3 speeds (operates at water temperature >28°C, can easily be modified) 0 Cooling: 3 speeds (Operates at water temperature < 20°C, can easily be modified) - 0-10 V input for building management system/thermostats / DPC.MD61 For more information contact Jaga

Pagina 8-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza...

Pagina 9 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

+32 11 29 41 12 - export@jaga.be or your local dealer. €/piece 80,70 Option VDC: Plug-in wall power supply 230 VAC/12VDC. Fill up ordering code with /VDC Multifunctional controller for dynamic heating and cooling devices, pre-configured and assembled inside the device. Installation - Simple installation, with no on site assembly or joining of finned tubes. - Position level on the finished floor using fixing straps or optional height control adjusters. - Insert the pipework and close the opening . - If necessary, provide an extra pipe for the thermostat head with remote control. - Test the pressure of the installation. - Finish the floor. 248 Connection always at the right side of de duct Option VAC: for connection to 230 VAC with waterproof power and cable gland in the duct. Fill up ordering code with /VAC 12 V CODE MDCL.HHH LLL BB/XXX/VDC €/piece 30,10 CONNECTION SETS HEATING With remote control set 272 CODE 2-PIPE € COMC.JV2.RD.4... Touch operation 131,00 P

Pagina 9-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza ...

Pagina 10 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

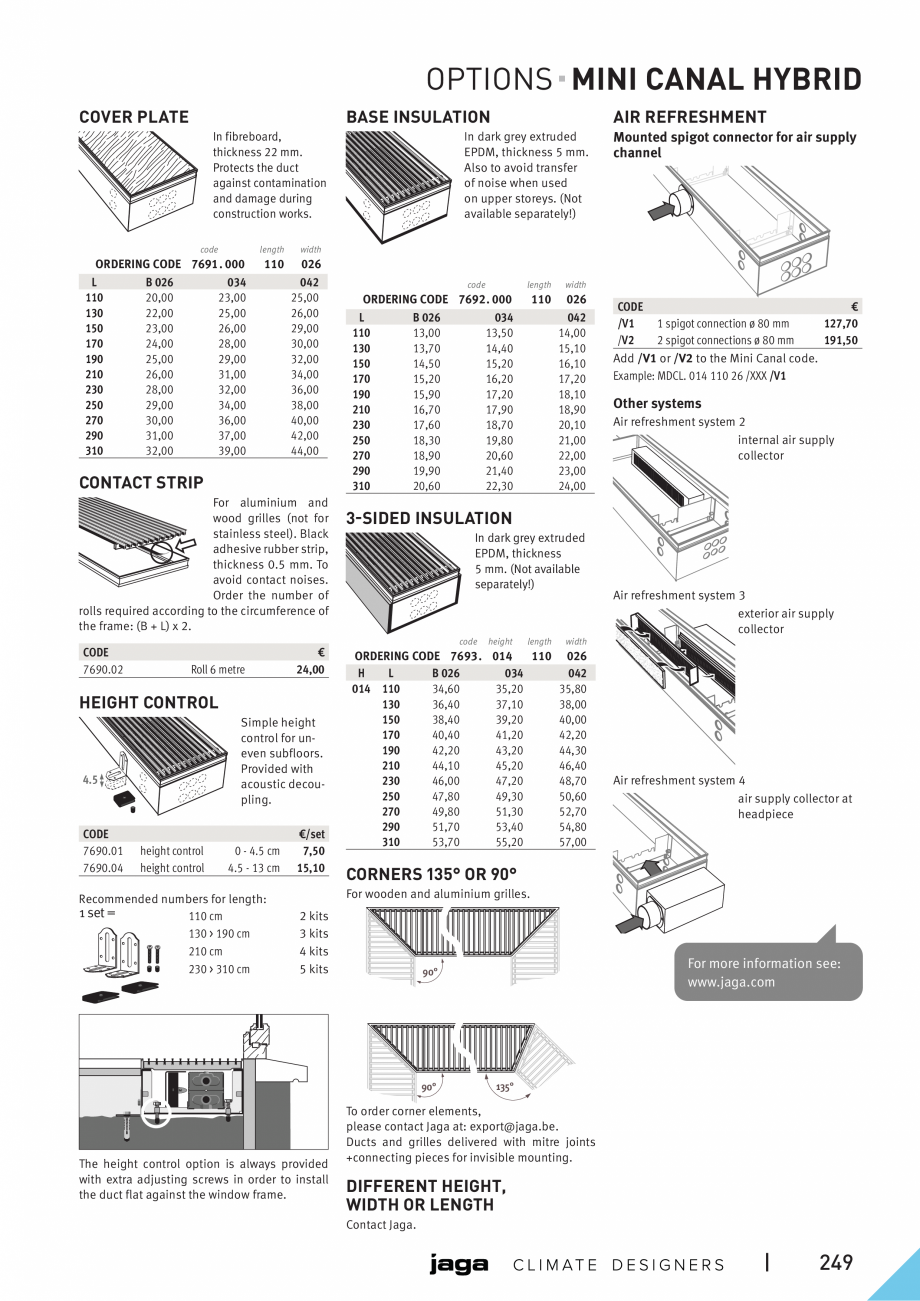

roduct contoller ﬁll in sleeve coupling code Precision metal tube 14/1 Precision metal tube 15/1 Precision metal tube 16/1 RPE/ALU tube 16/2 114 115 116 616 Other thermostatic heads and sleeve couplings see chapter “Connection sets and valves LowH2O” for all connection options and technical information. CONNECTION SETS HEATING / COOLING use set 272 with manual head (MA) OPTIONS MINI CANAL HYBRID COVER PLATE BASE INSULATION In fibreboard, thickness 22 mm. Protects the duct against contamination and damage during construction works. code ORDERING CODE 7691. 000 L B 026 034 110 20,00 23,00 130 22,00 25,00 150 23,00 26,00 170 24,00 28,00 190 25,00 29,00 210 26,00 31,00 230 28,00 32,00 250 29,00 34,00 270 30,00 36,00 290 31,00 37,00 310 32,00 39,00 length width 110 026 042 25,00 26,00 29,00 30,00 32,00 34,00 36,00 38,00 40,00 42,00 44,00 CONTACT STRIP For aluminium and wood grilles (not for stainless steel). Black adhesive rubber strip, thickness 0.5 mm. To avoid cont

Pagina 10-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza...

Pagina 11 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

act noises. Order the number of rolls required according to the circumference of the frame: (B + L) x 2. code Roll 6 metre € 24,00 HEIGHT CONTROL Simple height control for uneven subfloors. Provided with acoustic decoupling. 4.5 CODE 7690.01 7690.04 height control height control 0 - 4.5 cm 4.5 - 13 cm Recommended numbers for length: 1 set = 110 cm 130 > 190 cm 210 cm 230 > 310 cm €/set 7,50 15,10 length width 110 026 042 14,00 15,10 16,10 17,20 18,10 18,90 20,10 21,00 22,00 23,00 24,00 ORDERING CODE 7692. 000 L B 026 034 110 13,00 13,50 130 13,70 14,40 150 14,50 15,20 170 15,20 16,20 190 15,90 17,20 210 16,70 17,90 230 17,60 18,70 250 18,30 19,80 270 18,90 20,60 290 19,90 21,40 310 20,60 22,30 Mounted spigot connector for air supply channel CODE € /V1 1 spigot connection ø 80 mm 127,70 /V2 2 spigot connections ø 80 mm 191,50 Add /V1 or /V2 to the Mini Canal code. Example: MDCL. 014 110 26 /XXX /V1 Other systems Air refreshment system 2 internal air supply coll

Pagina 11-Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa tehnica Engleza...

Pagina 12 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA CLIMA CANAL Hybrid Fisa...

ector 3-SIDED INSULATION In dark grey extruded EPDM, thickness 5 mm. (Not available separately!) Air refreshment system 3 exterior air supply collector code CODE 7690.02 AIR REFRESHMENT In dark grey extruded EPDM, thickness 5 mm. Also to avoid transfer of noise when used on upper storeys. (Not available separately!) height length width ORDERING CODE 7693. 014 110 026 H L B 026 034 042 34,60 35,20 35,80 014 110 130 36,40 37,10 38,00 150 38,40 39,20 40,00 170 40,40 41,20 42,20 190 42,20 43,20 44,30 210 44,10 45,20 46,40 230 46,00 47,20 48,70 250 47,80 49,30 50,60 270 49,80 51,30 52,70 290 51,70 53,40 54,80 310 53,70 55,20 57,00 Air refreshment system 4 air supply collector at headpiece CORNERS 135° OR 90° For wooden and aluminium grilles. 2 kits 3 kits 4 kits 5 kits 90° The height control option is always provided with extra adjusting screws in order to install the duct flat against the window frame. For more information see: www.jaga.com 90° 135° To order corner e
