FREEDOM Freedom of choice in energy source, installation and application Eﬀective at the lowest water temperatures Freedom is super-eﬃcient in combination with any energy source. The lower the water temperature, the clearer the beneﬁts of its power and ﬂexibility! It is the perfect solution for use with heat pumps and new heating systems operating at very low water temperatures. Compact elegant design Freestanding Freedom radiators present Jaga’s innovative and environmentally friendly Hybrid technology in its most compact and beautiful design yet. From its compact design, it packs a powerful punch and performs much more eﬀectively than a bulky traditional radiator or fan convector and can be sympathetically integrated into any interior design concept. Heating and cooling Despite its compact design, Freedom can meet your heating and cooling requirements! It’s suitable for non-condensing and condensing cooling using chilled water. Freedom comes ﬁtted with a condensate tr

Pagina 1-Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza FREEDOM...

Pagina 2 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza...

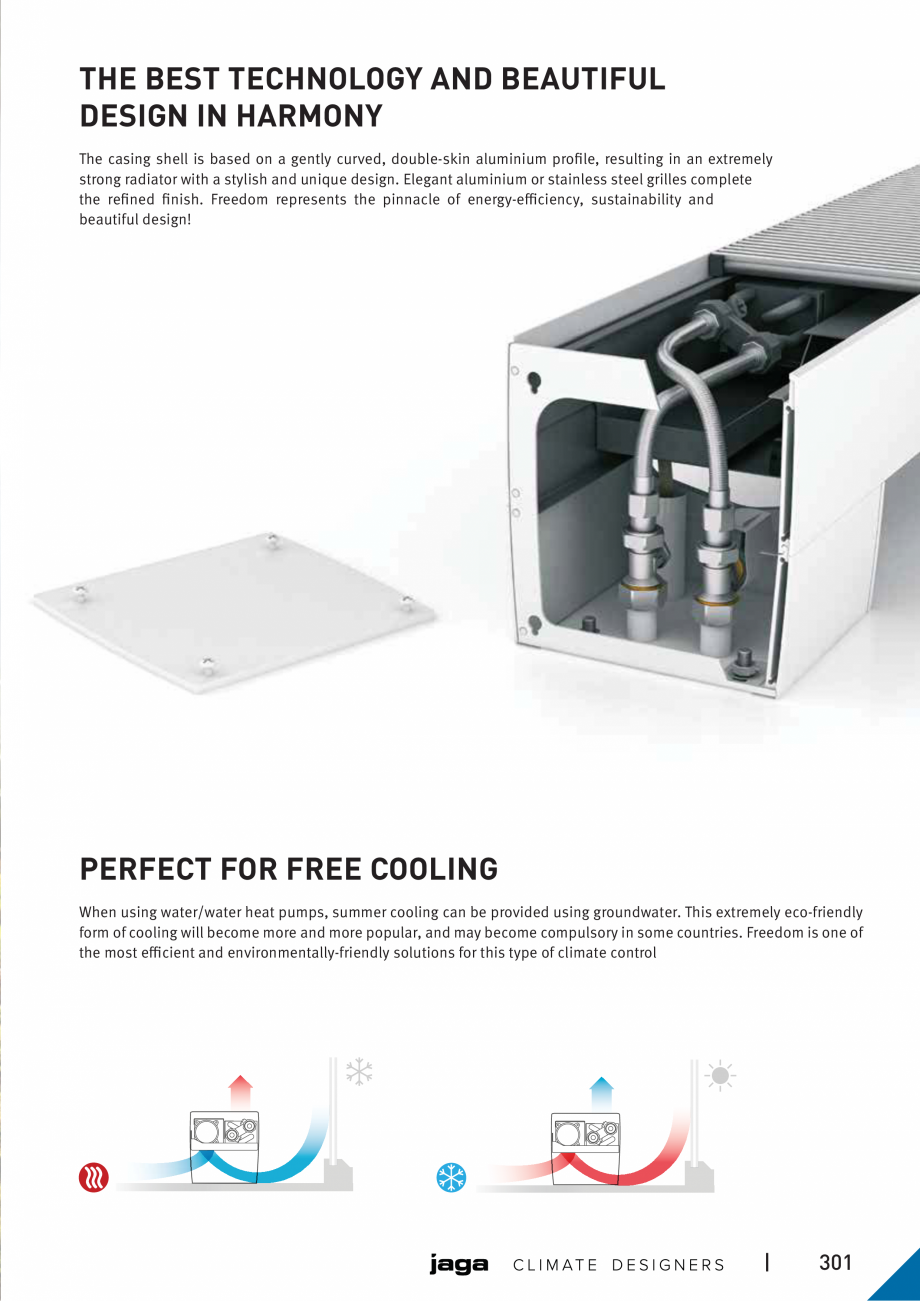

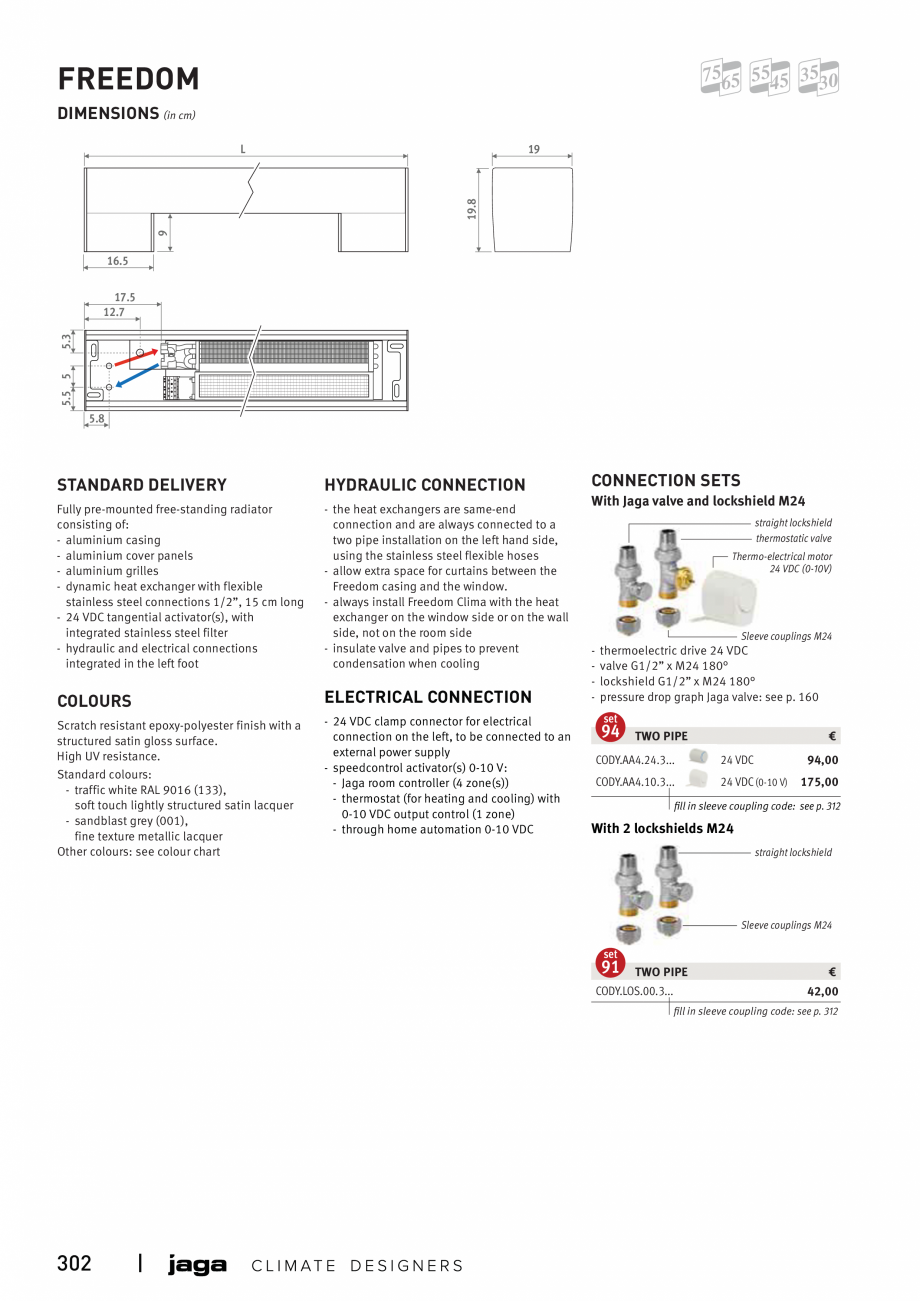

ay as standard. | 299 FREEDOM THE BEST TECHNOLOGY AND BEAUTIFUL DESIGN IN HARMONY The casing shell is based on a gently curved, double-skin aluminium proﬁle, resulting in an extremely strong radiator with a stylish and unique design. Elegant aluminium or stainless steel grilles complete the reﬁned ﬁnish. Freedom represents the pinnacle of energy-eﬃciency, sustainability and beautiful design! PERFECT FOR FREE COOLING When using water/water heat pumps, summer cooling can be provided using groundwater. This extremely eco-friendly form of cooling will become more and more popular, and may become compulsory in some countries. Freedom is one of the most eﬃcient and environmentally-friendly solutions for this type of climate control | 301 FREEDOM 7565 5545 3530 DIMENSIONS (in cm) 19 9 19.8 L 16.5 5.5 5 5.3 17.5 12.7 5.8 STANDARD DELIVERY HYDRAULIC CONNECTION Fully pre-mounted free-standing radiator consisting of: - aluminium casing - aluminium cover panels -

Pagina 2-Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza ay as...

Pagina 3 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza ...

aluminium grilles - dynamic heat exchanger with flexible stainless steel connections 1/2”, 15 cm long - 24 VDC tangential activator(s), with integrated stainless steel filter - hydraulic and electrical connections integrated in the left foot - the heat exchangers are same-end connection and are always connected to a two pipe installation on the left hand side, using the stainless steel flexible hoses - allow extra space for curtains between the Freedom casing and the window. - always install Freedom Clima with the heat exchanger on the window side or on the wall side, not on the room side - insulate valve and pipes to prevent condensation when cooling COLOURS ELECTRICAL CONNECTION Scratch resistant epoxy-polyester finish with a structured satin gloss surface. High UV resistance. Standard colours: - traffic white RAL 9016 (133), soft touch lightly structured satin lacquer - sandblast grey (001), fine texture metallic lacquer Other colours: see colour chart - 24 VDC clamp connec

Pagina 3-Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza aluminium...

Pagina 4 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza...

tor for electrical connection on the left, to be connected to an external power supply - speedcontrol activator(s) 0-10 V: - Jaga room controller (4 zone(s)) - thermostat (for heating and cooling) with 0-10 VDC output control (1 zone) - through home automation 0-10 VDC CONNECTION SETS With Jaga valve and lockshield M24 straight lockshield thermostatic valve Thermo-electrical motor 24 VDC (0-10V) Sleeve couplings M24 - thermoelectric drive 24 VDC valve G1/2” x M24 180° lockshield G1/2” x M24 180° pressure drop graph Jaga valve: see p. 160 set 94 TWO PIPE € CODY.AA4.24.3... 24 VDC CODY.AA4.10.3... 24 VDC (0-10 V) 94,00 175,00 ﬁll in sleeve coupling code: see p. 312 With 2 lockshields M24 straight lockshield Sleeve couplings M24 set 91 TWO PIPE CODY.LOS.00.3... € 42,00 ﬁll in sleeve coupling code: see p. 312 302 | 020 074 19 2 4 6 8 10 110 19 2 4 6 8 10 145 19 2 4 6 8 10 181 19 2 4 6 8 10 313 562 792 1010 1218 625 1122 1580 2016 2433 940 1687 2375

Pagina 4-Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza tor for...

Pagina 5 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza...

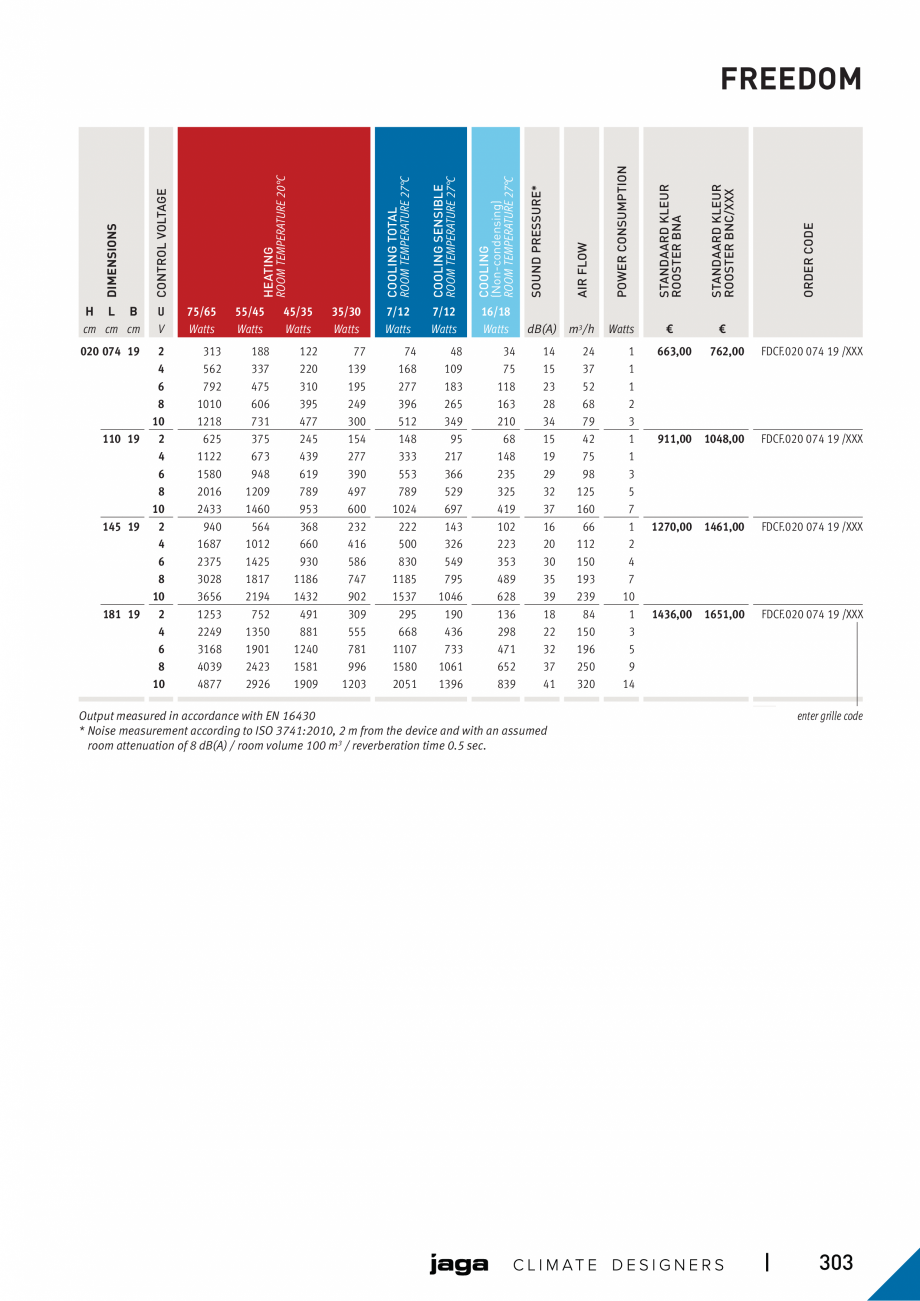

3028 3656 1253 2249 3168 4039 4877 188 337 475 606 731 375 673 948 1209 1460 564 1012 1425 1817 2194 752 1350 1901 2423 2926 122 220 310 395 477 245 439 619 789 953 368 660 930 1186 1432 491 881 1240 1581 1909 77 139 195 249 300 154 277 390 497 600 232 416 586 747 902 309 555 781 996 1203 74 168 277 396 512 148 333 553 789 1024 222 500 830 1185 1537 295 668 1107 1580 2051 48 109 183 265 349 95 217 366 529 697 143 326 549 795 1046 190 436 733 1061 1396 34 75 118 163 210 68 148 235 325 419 102 223 353 489 628 136 298 471 652 839 dB(A) m3/h 14 15 23 28 34 15 19 29 32 37 16 20 30 35 39 18 22 32 37 41 24 37 52 68 79 42 75 98 125 160 66 112 150 193 239 84 150 196 250 320 Watts € € 1 1 1 2 3 1 1 3 5 7 1 2 4 7 10 1 3 5 9 14 663,00 ORDER CODE 16/18 Watts AIR FLOW 7/12 Watts SOUND PRESSURE* 7/12 Watts STANDAARD KLEUR ROOSTER BNC/XXX 35/30 Watts STANDAARD KLEUR ROOSTER BNA 45/35 Watts POWER CONSUMPTION 55/45 Watts COOLING (Non-condensing) ROOM TEMPERATURE 27°C 75/6

Pagina 5-Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza 3028
3656...

Pagina 6 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza 5...

5 Watts COOLING SENSIBLE ROOM TEMPERATURE 27°C U V COOLING TOTAL ROOM TEMPERATURE 27°C CONTROL VOLTAGE H L B cm cm cm HEATING ROOM TEMPERATURE 20°C DIMENSIONS FREEDOM 762,00 FDCF.020 074 19 /XXX 911,00 1048,00 FDCF.020 074 19 /XXX 1270,00 1461,00 FDCF.020 074 19 /XXX 1436,00 1651,00 FDCF.020 074 19 /XXX Output measured in accordance with EN 16430 * Noise measurement according to ISO 3741:2010, 2 m from the device and with an assumed room attenuation of 8 dB(A) / room volume 100 m3 / reverberation time 0.5 sec. enter grille code | 303 FREEDOM CODE STRUCTURE - OVERVIEW COLOUR COMBINATIONS EXAMPLES with standard colours with other colours Freedom Clima FDCF. 020 181 19. 133. code height length width /BNA colour grille code Standard colours: traffic white RAL 9016 (133) sandblast grey (001) Freedom Clima: Grille aluminium natural: BNA Grille aluminium lacquered: BNC/2XX enter colour code Other colours: see colour chart Create your own Design your own

Pagina 6-Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza 5
Watts
...

Pagina 7 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza ...

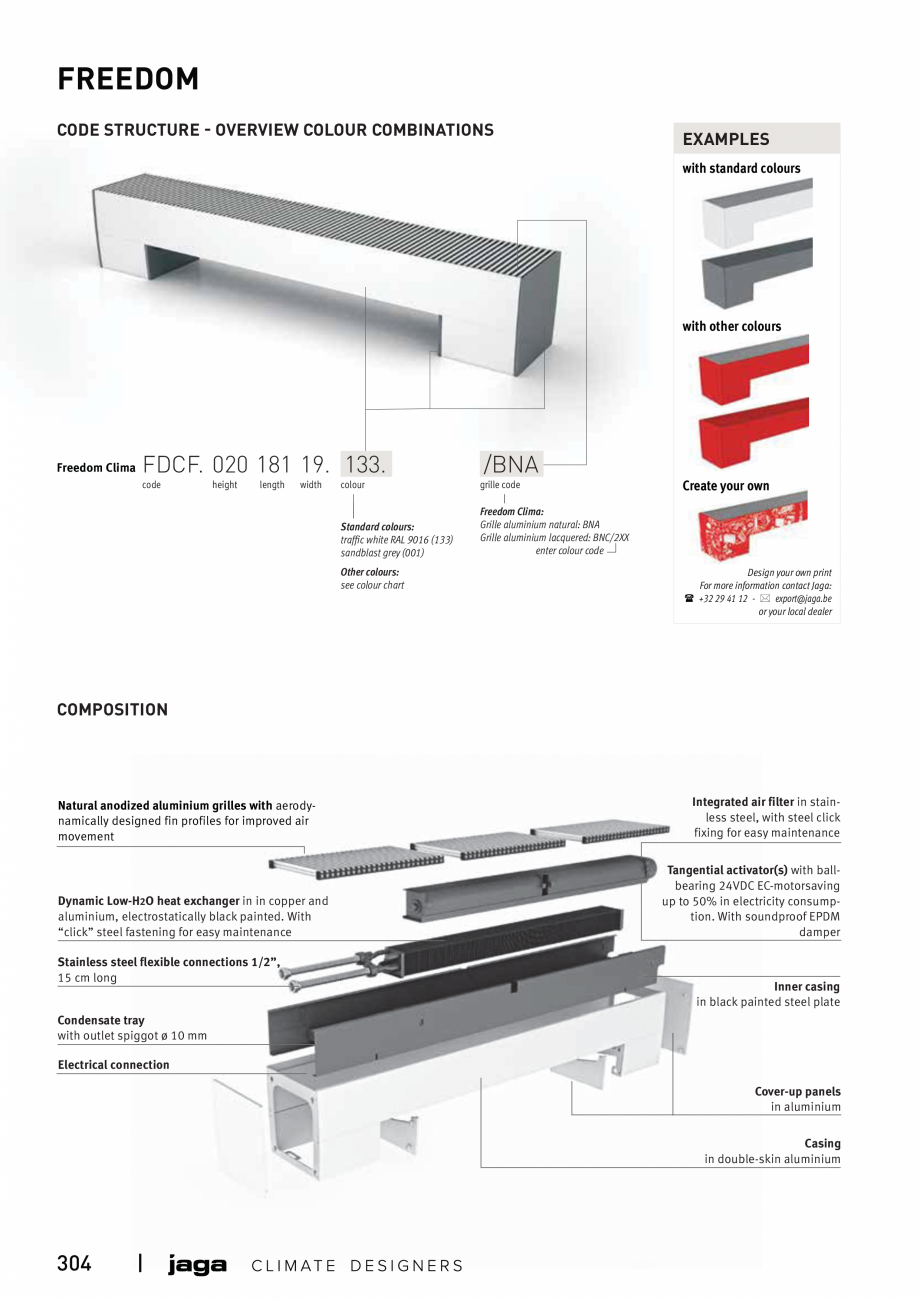

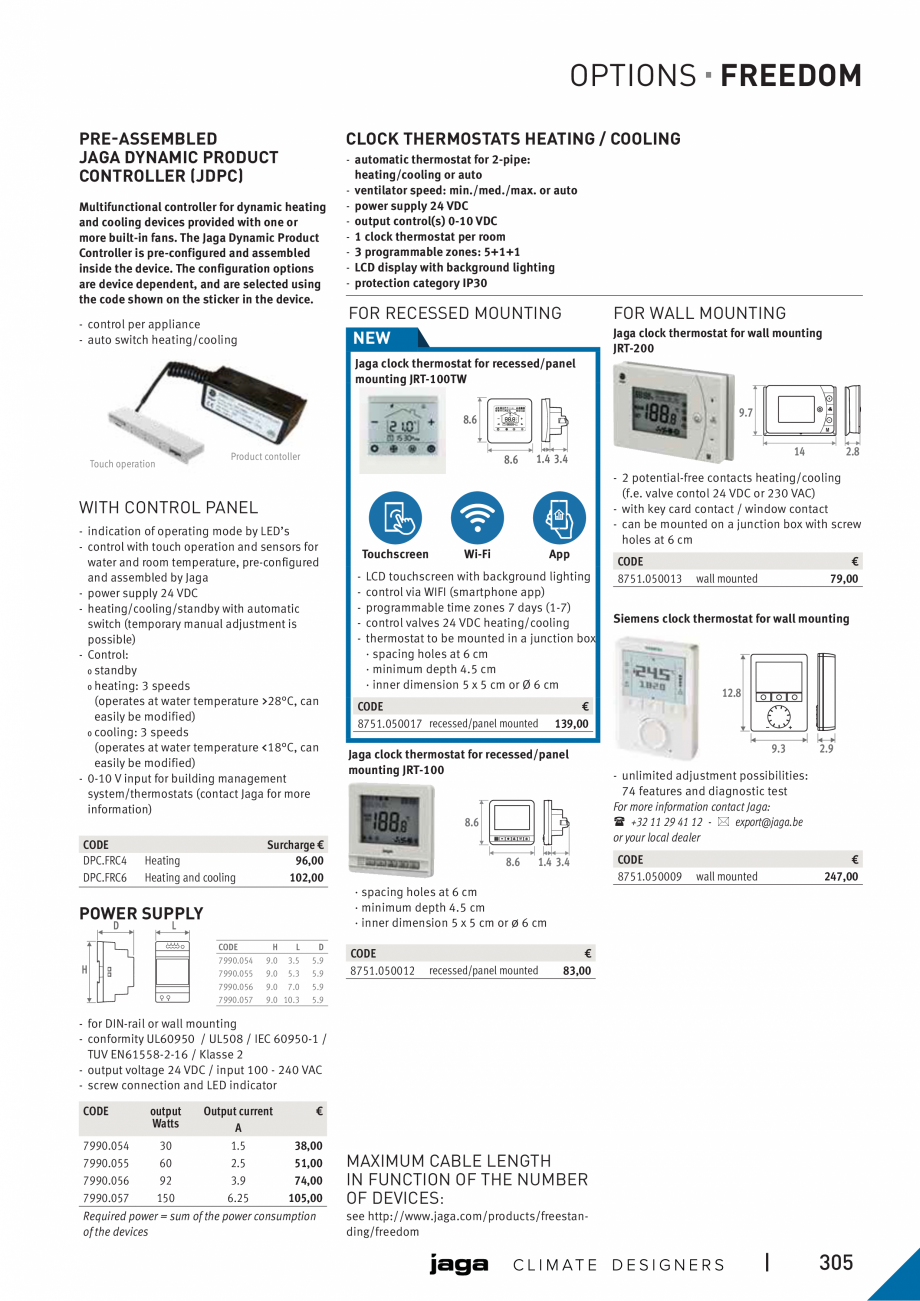

print For more information contact Jaga: +32 29 41 12 - export@jaga.be or your local dealer COMPOSITION Natural anodized aluminium grilles with aerodynamically designed fin profiles for improved air movement Dynamic Low-H2O heat exchanger in in copper and aluminium, electrostatically black painted. With “click” steel fastening for easy maintenance Stainless steel flexible connections 1/2”, 15 cm long Integrated air filter in stainless steel, with steel click fixing for easy maintenance Tangential activator(s) with ballbearing 24VDC EC-motorsaving up to 50% in electricity consumption. With soundproof EPDM damper Inner casing in black painted steel plate Condensate tray with outlet spiggot ø 10 mm Electrical connection Cover-up panels in aluminium Casing in double-skin aluminium 304 | OPTIONS FREEDOM PRE-ASSEMBLED JAGA DYNAMIC PRODUCT CONTROLLER (JDPC) CLOCK THERMOSTATS HEATING / COOLING Multifunctional controller for dynamic heating and cooling devices provide

Pagina 7-Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza print
For...

Pagina 8 - Ventiloconvector de pardoseala - Preturi si accesorii JAGA FREEDOM Fisa tehnica Engleza d...

d with one or more built-in fans. The Jaga Dynamic Product Controller is pre-configured and assembled inside the device. The configuration options are device dependent, and are selected using the code shown on the sticker in the device. - automatic thermostat for 2-pipe: heating/cooling or auto - ventilator speed: min./med./max. or auto - power supply 24 VDC - output control(s) 0-10 VDC - 1 clock thermostat per room - 3 programmable zones: 5+1+1 - LCD display with background lighting - protection category IP30 FOR RECESSED MOUNTING NEW - control per appliance - auto switch heating/cooling FOR WALL MOUNTING Jaga clock thermostat for wall mounting JRT-200 Jaga clock thermostat for recessed/panel mounting JRT-100TW PRG 8.6 9.7 12 34 56 AUX °C % °F AM H PM M M CODE DPC.FRC4 DPC.FRC6 Heating Heating and cooling Wi-Fi App LCD touchscreen with background lighting control via WIFI (smartphone app) programmable time zones 7 days (1-7) control valves 24 VDC heating/cooling th
