CLIMA CANAL Complete climate control Very high power level for heating and cooling A very high power level for heating and cooling. Despite its compact dimensions, the Clima Canal is very powerful. It’s compatible with any heat source, and perfect for low temperature heat pumps. Suitable for both light cooling (non-condensing) and deep cooling. All Clima Canal units with a height of 10/13/19 come equipped with a condensation drain and have been developed to quietly generate high power levels within a compact space. Ventilate comfortably Jaga Clima Canal can optionally be provided with a ventilation connection. The Clima Canal can thus provide comfortable and pre-heated ventilation while being completely integrated into the floor. With energy-efficient EC- motors By making use of the latest EC-motors, the Clima Canal units use 50 % less electrical energy. Moreover, these EC-motors can be controlled through the latest home automation systems via their 0-10 VDC speed control. Suitabl

Pagina 1-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 2 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

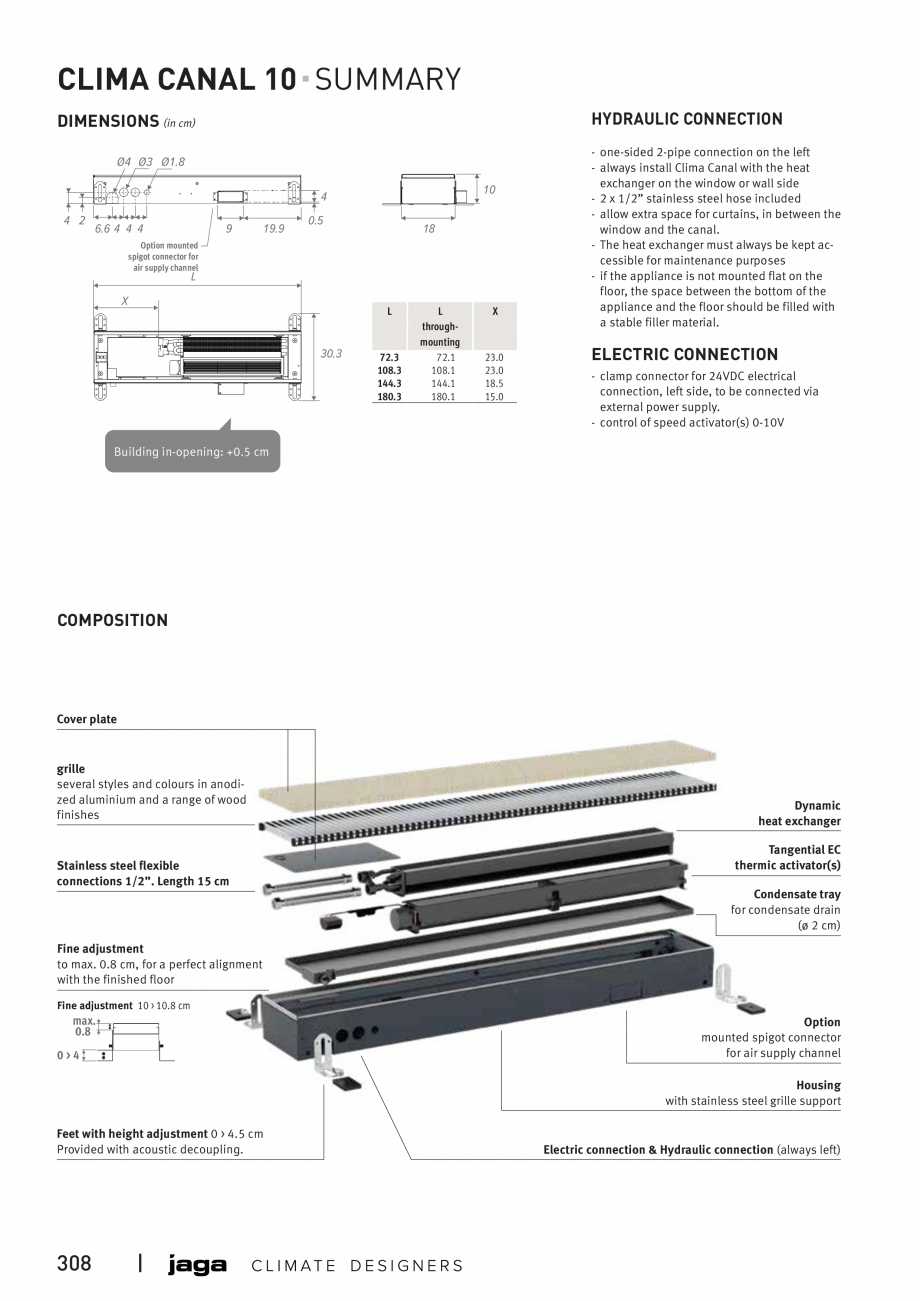

e for non-condensing and condensing cooling with chilled water | 307 CLIMA CANAL 10-13 - 19 CLIMA CANAL 10 SUMMARY HYDRAULIC CONNECTION DIMENSIONS (in cm) Ø4 Ø3 Ø1.8 10 4 4 2 6.6 4 4 4 9 19.9 0.5 18 Option mounted spigot connector for air supply channel L X L 30.3 72.3 108.3 144.3 180.3 L throughmounting 72.1 108.1 144.1 180.1 X 23.0 23.0 18.5 15.0 - one-sided 2-pipe connection on the left - always install Clima Canal with the heat exchanger on the window or wall side - 2 x 1/2” stainless steel hose included - allow extra space for curtains, in between the window and the canal. - The heat exchanger must always be kept accessible for maintenance purposes - if the appliance is not mounted flat on the floor, the space between the bottom of the appliance and the floor should be filled with a stable filler material. ELECTRIC CONNECTION - clamp connector for 24VDC electrical connection, left side, to be connected via external power supply. - control of speed a

Pagina 2-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 3 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

ctivator(s) 0-10V Building in-opening: +0.5 cm COMPOSITION Cover plate grille several styles and colours in anodized aluminium and a range of wood finishes Stainless steel flexible connections 1/2”. Length 15 cm Dynamic heat exchanger Tangential EC thermic activator(s) Condensate tray for condensate drain (ø 2 cm) Fine adjustment to max. 0.8 cm, for a perfect alignment with the finished floor Fine adjustment 10 > 10.8 cm max. 0.8 Option mounted spigot connector for air supply channel 0>4 Housing with stainless steel grille support Feet with height adjustment 0 > 4.5 cm Provided with acoustic decoupling. 308 | Electric connection & Hydraulic connection (always left) SUMMARY CLIMA CANAL 13 HYDRAULIC CONNECTION DIMENSIONS (in cm) 3.7 Ø2.6 7.3 1.7 5.7 9.5 13 4 0.8 Option mounted spigot connector for air supply channel 25.1 32 L X L 44.3 72.3 108.3 144.3 180.3 L throughmounting 72.1 108.1 144.1 180.1 X 23.0 23.0 18.5 15.0 - 2-pipe: the two-pipe heat exch

Pagina 3-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 4 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

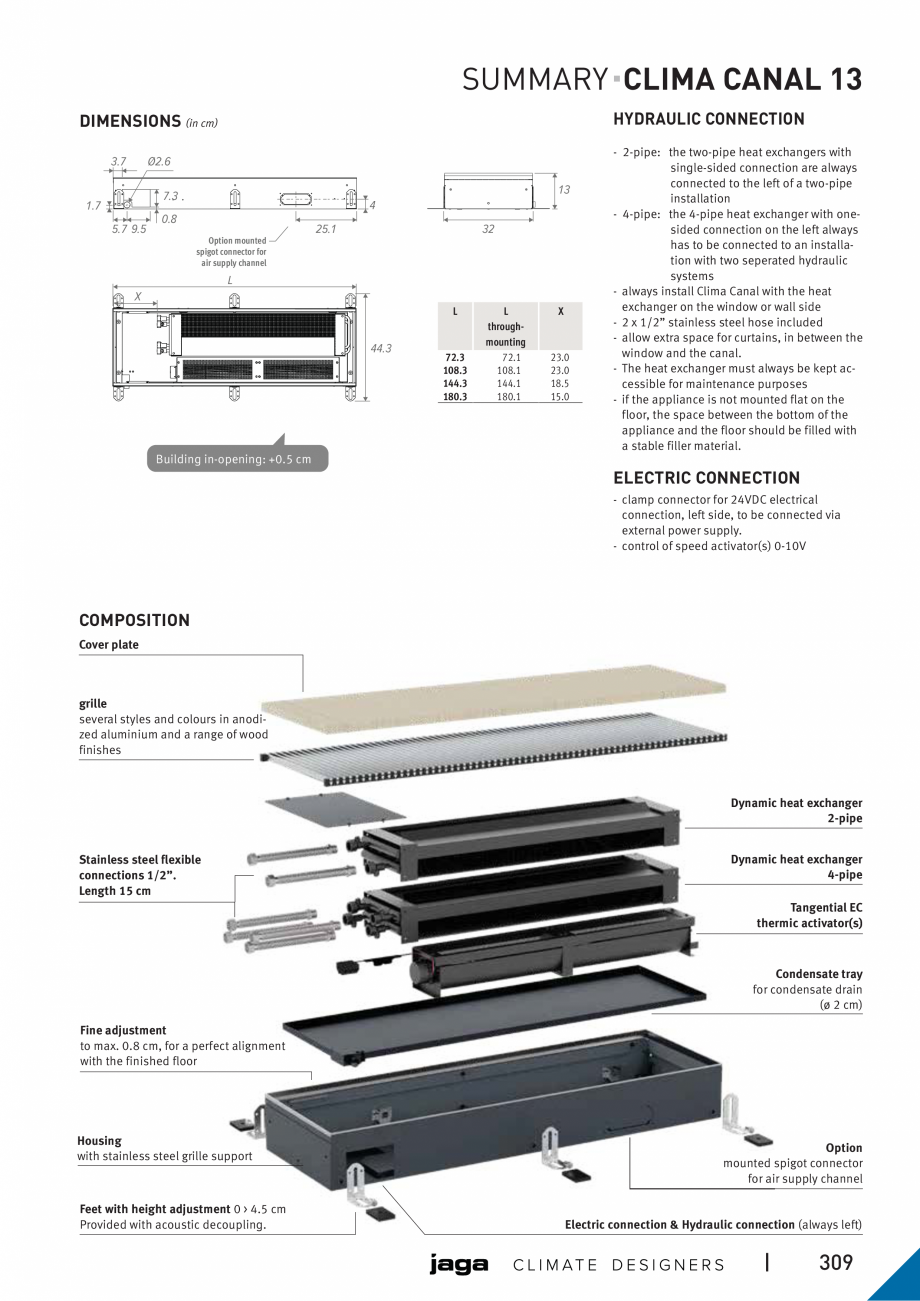

angers with single-sided connection are always connected to the left of a two-pipe installation - 4-pipe: the 4-pipe heat exchanger with onesided connection on the left always has to be connected to an installation with two seperated hydraulic systems - always install Clima Canal with the heat exchanger on the window or wall side - 2 x 1/2” stainless steel hose included - allow extra space for curtains, in between the window and the canal. - The heat exchanger must always be kept accessible for maintenance purposes - if the appliance is not mounted flat on the floor, the space between the bottom of the appliance and the floor should be filled with a stable filler material. Building in-opening: +0.5 cm ELECTRIC CONNECTION - clamp connector for 24VDC electrical connection, left side, to be connected via external power supply. - control of speed activator(s) 0-10V COMPOSITION Cover plate grille several styles and colours in anodized aluminium and a range of wood finishes Dynamic he

Pagina 4-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 5 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

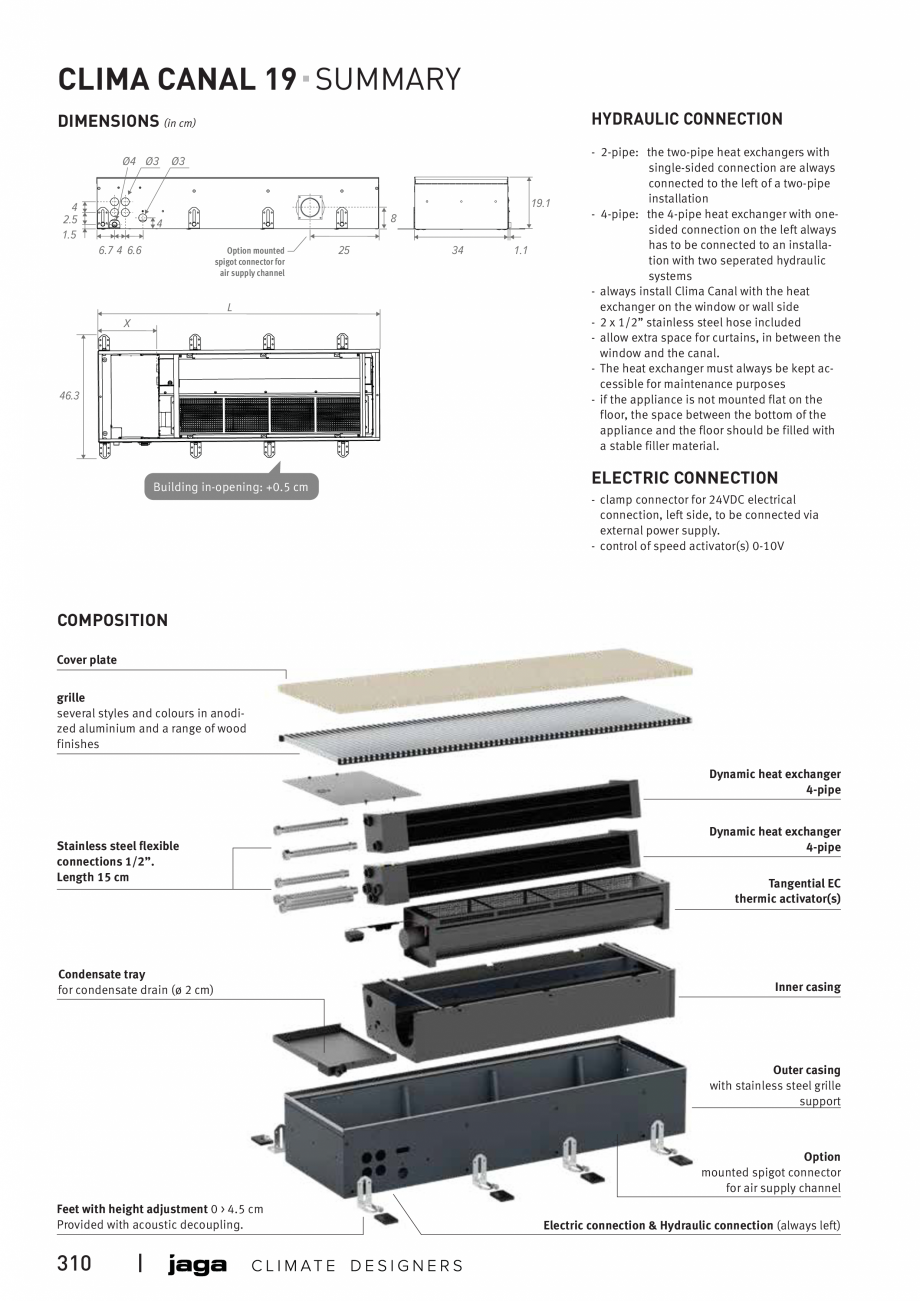

at exchanger 2-pipe Stainless steel flexible connections 1/2”. Length 15 cm Dynamic heat exchanger 4-pipe Tangential EC thermic activator(s) Condensate tray for condensate drain (ø 2 cm) Fine adjustment to max. 0.8 cm, for a perfect alignment with the finished floor Housing with stainless steel grille support Feet with height adjustment 0 > 4.5 cm Provided with acoustic decoupling. Option mounted sspigot connector air supply channel for ai Electric connection & Hydraulic connect connection (always left) | 309 CLIMA CANAL 19 SUMMARY HYDRAULIC CONNECTION DIMENSIONS (in cm) Ø4 Ø3 Ø3 19.1 4 2.5 1.5 8 4 6.7 4 6.6 Option mounted spigot connector for air supply channel L X 46.3 Building in-opening: +0.5 cm 25 34 1.1 - 2-pipe: the two-pipe heat exchangers with single-sided connection are always connected to the left of a two-pipe installation - 4-pipe: the 4-pipe heat exchanger with onesided connection on the left always has to be connected to an installation wi

Pagina 5-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 6 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

th two seperated hydraulic systems - always install Clima Canal with the heat exchanger on the window or wall side - 2 x 1/2” stainless steel hose included - allow extra space for curtains, in between the window and the canal. - The heat exchanger must always be kept accessible for maintenance purposes - if the appliance is not mounted flat on the floor, the space between the bottom of the appliance and the floor should be filled with a stable filler material. ELECTRIC CONNECTION - clamp connector for 24VDC electrical connection, left side, to be connected via external power supply. - control of speed activator(s) 0-10V COMPOSITION Cover plate grille several styles and colours in anodized aluminium and a range of wood finishes Dynamic heat exchanger 4-pipe Stainless steel flexible connections 1/2”. Length 15 cm Condensate tray for condensate drain (ø 2 cm) Dynamic heat exchanger 4-pipe Tangential EC thermic activator(s) Inner casing Outer casing with stainless steel grille

Pagina 6-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 7 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

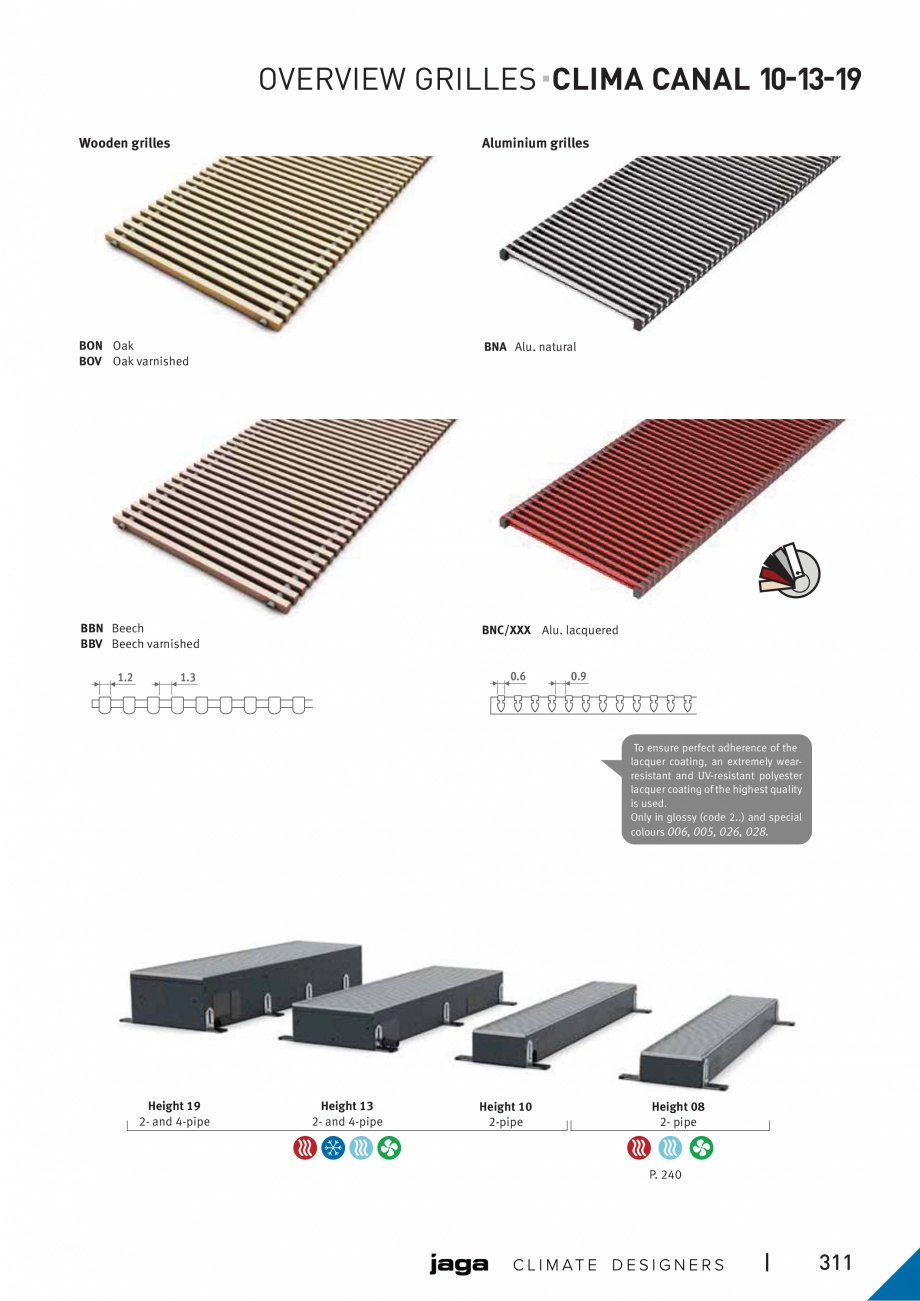

support Option mounted spigot connector for air supply channel Feet with height adjustment 0 > 4.5 cm Provided with acoustic decoupling. 310 | Electric connection & Hydraulic connection (always left) OVERVIEW GRILLES CLIMA CANAL 10-13-19 Wooden grilles Aluminium grilles BON Oak BOV Oak varnished BNA Alu. natural BBN Beech BBV Beech varnished BNC/XXX Alu. lacquered 1.2 0.6 1.3 0.9 To ensure perfect adherence of the lacquer coating, an extremely wearresistant and UV-resistant polyester lacquer coating of the highest quality is used. Only in glossy (code 2..) and special colours 006, 005, 026, 028. Height 19 2- and 4-pipe Height 13 2- and 4-pipe Height 10 2-pipe Height 08 2- pipe P. 240 | 311 CLIMA CANAL OPTIONS CLOCK THERMOSTATS HEATING / COOLING POWER SUPPLY DIN-RAIL MONTAGE FOR WALL MOUNTING Jaga clock thermostat for wall mounting The general characteristics in bold below are valid for the thermostats 8751.050013 8751.050012 - 8751.050009 - 8751.050017

Pagina 7-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 8 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

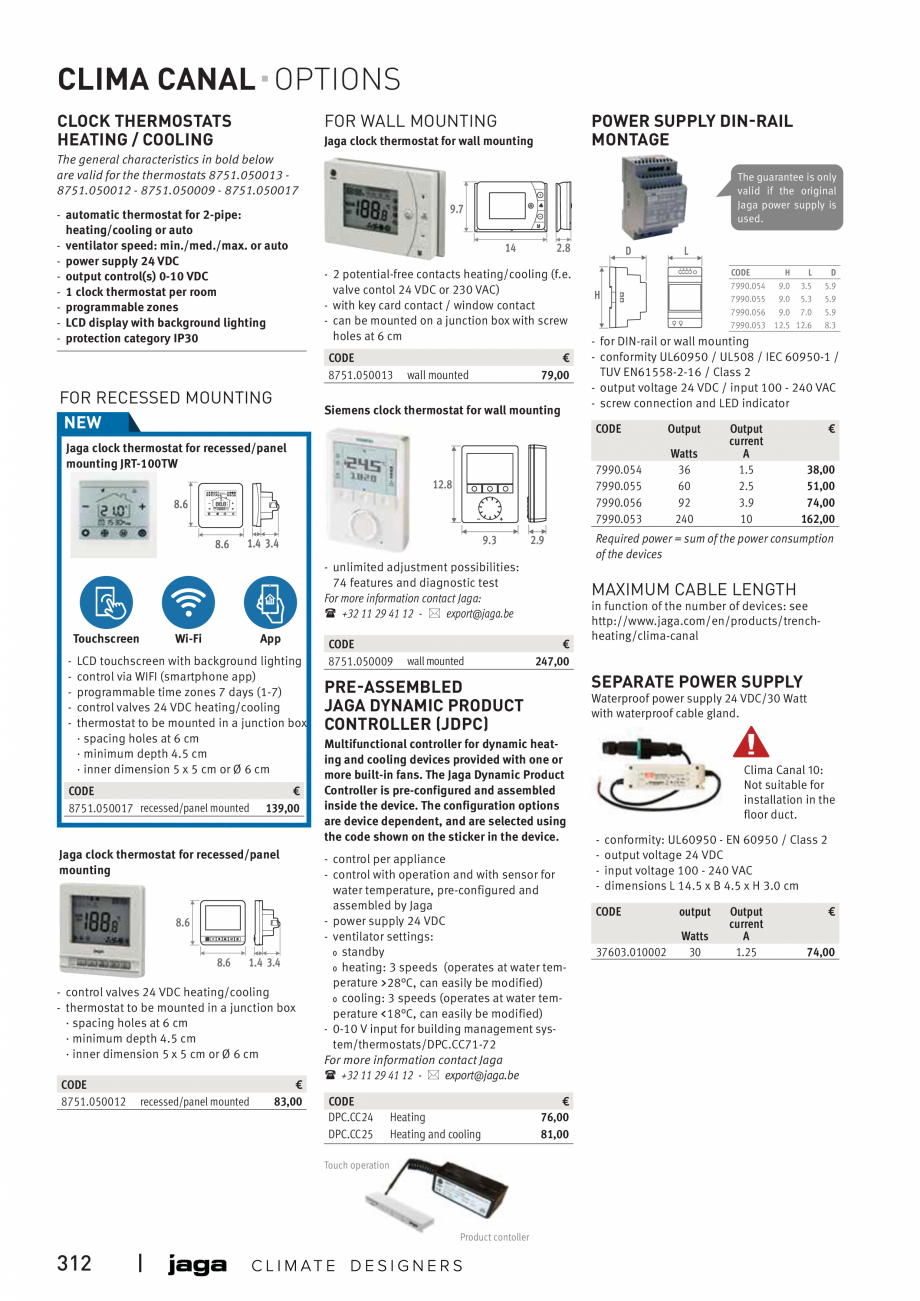

- automatic thermostat for 2-pipe: heating/cooling or auto - ventilator speed: min./med./max. or auto - power supply 24 VDC - output control(s) 0-10 VDC - 1 clock thermostat per room - programmable zones - LCD display with background lighting - protection category IP30 9.7 M 14 2.8 - 2 potential-free contacts heating/cooling (f.e. valve contol 24 VDC or 230 VAC) - with key card contact / window contact - can be mounted on a junction box with screw holes at 6 cm CODE 8751.050013 FOR RECESSED MOUNTING NEW The guarantee is only valid if the original Jaga power supply is used. € 79,00 wall mounted Siemens clock thermostat for wall mounting Jaga clock thermostat for recessed/panel mounting JRT-100TW 12.8 PRG 8.6 12 34 56 AUX °C % °F AM H PM M 9.3 1.4 3.4 8.6 2.9 - unlimited adjustment possibilities: 74 features and diagnostic test For more information contact Jaga: +32 11 29 41 12 - export@jaga.be Touchscreen - Wi-Fi App LCD touchscreen with background lightin

Pagina 8-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 9 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

g control via WIFI (smartphone app) programmable time zones 7 days (1-7) control valves 24 VDC heating/cooling thermostat to be mounted in a junction box · spacing holes at 6 cm · minimum depth 4.5 cm · inner dimension 5 x 5 cm or Ø 6 cm CODE 8751.050017 recessed/panel mounted € 139,00 Jaga clock thermostat for recessed/panel mounting 8.6 M 8.6 1.4 3.4 - control valves 24 VDC heating/cooling - thermostat to be mounted in a junction box · spacing holes at 6 cm · minimum depth 4.5 cm · inner dimension 5 x 5 cm or Ø 6 cm CODE 8751.050012 recessed/panel mounted € 83,00 CODE 8751.050009 wall mounted Product contoller | CODE H L 7990.054 9.0 3.5 7990.055 9.0 5.3 7990.056 9.0 7.0 7990.053 12.5 12.6 H D 5.9 5.9 5.9 8.3 - for DIN-rail or wall mounting - conformity UL60950 / UL508 / IEC 60950-1 / TUV EN61558-2-16 / Class 2 - output voltage 24 VDC / input 100 - 240 VAC - screw connection and LED indicator CODE Output 7990.054 7990.055 7990.056 7990.053 Watts 36 60

Pagina 9-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 10 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

92 240 Output current A 1.5 2.5 3.9 10 € 38,00 51,00 74,00 162,00 Required power = sum of the power consumption of the devices in function of the number of devices: see http://www.jaga.com/en/products/trenchheating/clima-canal SEPARATE POWER SUPPLY Waterproof power supply 24 VDC/30 Watt with waterproof cable gland. - control per appliance - control with operation and with sensor for water temperature, pre-configured and assembled by Jaga - power supply 24 VDC - ventilator settings: 0 standby 0 heating: 3 speeds (operates at water temperature >28°C, can easily be modified) 0 cooling: 3 speeds (operates at water temperature <18°C, can easily be modified) - 0-10 V input for building management system/thermostats/DPC.CC71-72 For more information contact Jaga +32 11 29 41 12 - export@jaga.be Touch operation 312 € 247,00 Multifunctional controller for dynamic heating and cooling devices provided with one or more built-in fans. The Jaga Dynamic Product Controller is pre-co

Pagina 10-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 11 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

nfigured and assembled inside the device. The configuration options are device dependent, and are selected using the code shown on the sticker in the device. Heating Heating and cooling L MAXIMUM CABLE LENGTH PRE-ASSEMBLED JAGA DYNAMIC PRODUCT CONTROLLER (JDPC) CODE DPC.CC24 DPC.CC25 D € 76,00 81,00 Clima Canal 10: Not suitable for installation in the ﬂoor duct. - conformity: UL60950 - EN 60950 / Class 2 output voltage 24 VDC input voltage 100 - 240 VAC dimensions L 14.5 x B 4.5 x H 3.0 cm CODE output 37603.010002 Watts 30 Output current A 1.25 € 74,00 CLIMA CANAL OPTIONS CONNECTION SET WITH JAGA TWO-WAY VALVE 24 VDC JAGA TWO-WAY VALVE AND THERMOELECTRIC DRIVE 230V Thermoelectric drive 24 VDC Thermostatic valve Straight lockshield 1/2” - only for mounting on the distributor, not in the Clima Canal - with varistor to protect against power surge - with position indicator (open/closed) Sleeve couplings for 1/2” female thread - 24 VDC thermoelectric dr

Pagina 11-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 12 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

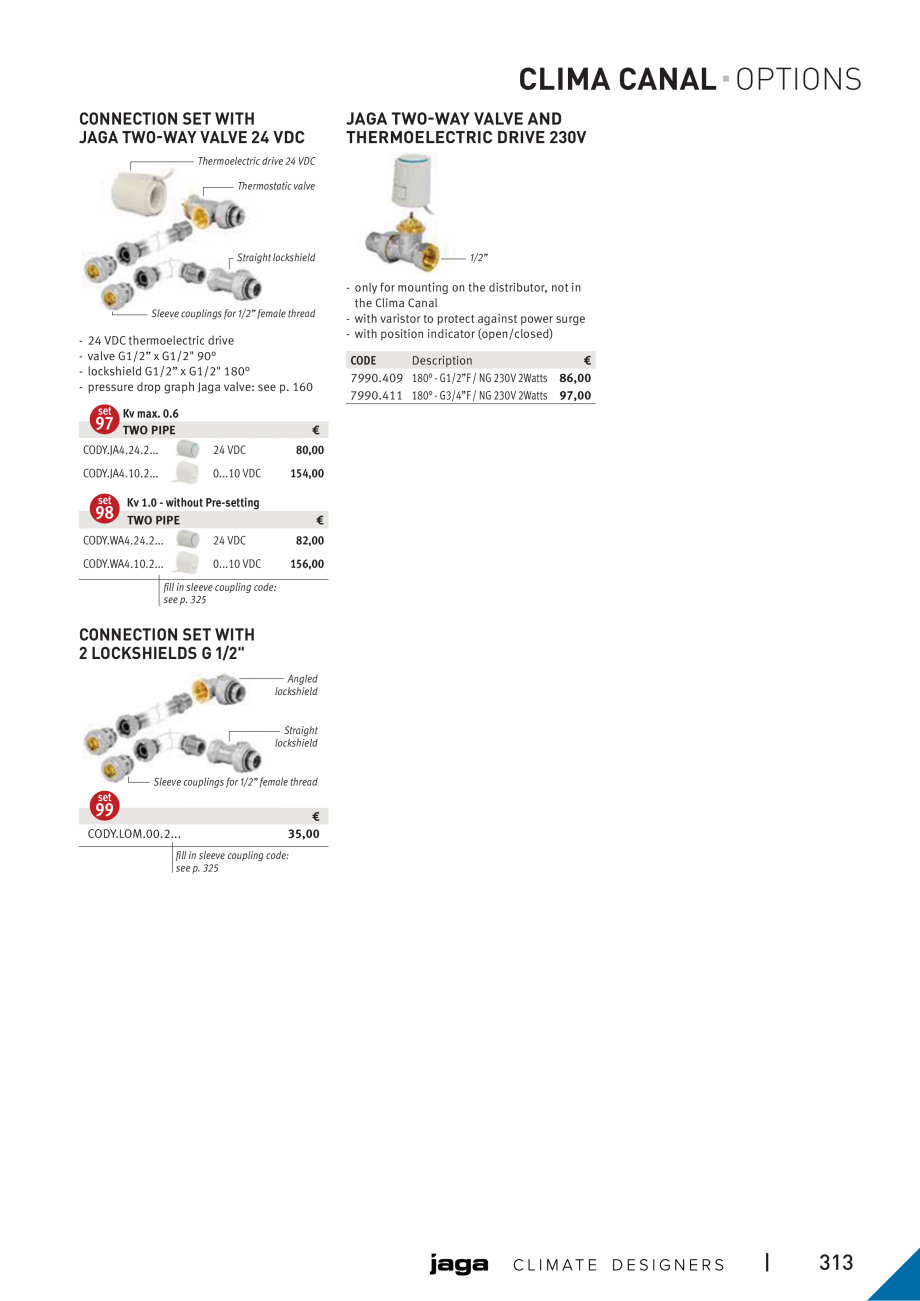

ive valve G1/2” x G1/2" 90° lockshield G1/2” x G1/2" 180° pressure drop graph Jaga valve: see p. 160 set Kv max. 0.6 TWO PIPE 97 CODE Description € 7990.409 180° - G1/2”F / NG 230V 2Watts 86,00 7990.411 180° - G3/4”F / NG 230V 2Watts 97,00 € CODY.JA4.24.2... 24 VDC CODY.JA4.10.2... 0...10 VDC 154,00 Kv 1.0 - without Pre-setting TWO PIPE € set 98 CODY.WA4.24.2... 24 VDC CODY.WA4.10.2... 0...10 VDC 80,00 82,00 156,00 fill in sleeve coupling code: see p. 325 CONNECTION SET WITH 2 LOCKSHIELDS G 1/2" Angled lockshield Straight lockshield Sleeve couplings for 1/2” female thread set 99 CODY.LOM.00.2... € 35,00 fill in sleeve coupling code: see p. 325 | 313 CLIMA CANAL 10-13-19 OPTIONS EMPTY HOUSING MOUNTED SPIGOT CONNECTOR FOR AIR SUPPLY CHANNEL To fill open spaces for a continuous installation. CLIMA CANAL 10 - 13 FEET WITH HEIGHT ADJUSTMENT FOR RAISED FLOORS Height 4 x length 9 cm CODE /VEN H L Add /VEN to the code of Clima Canal

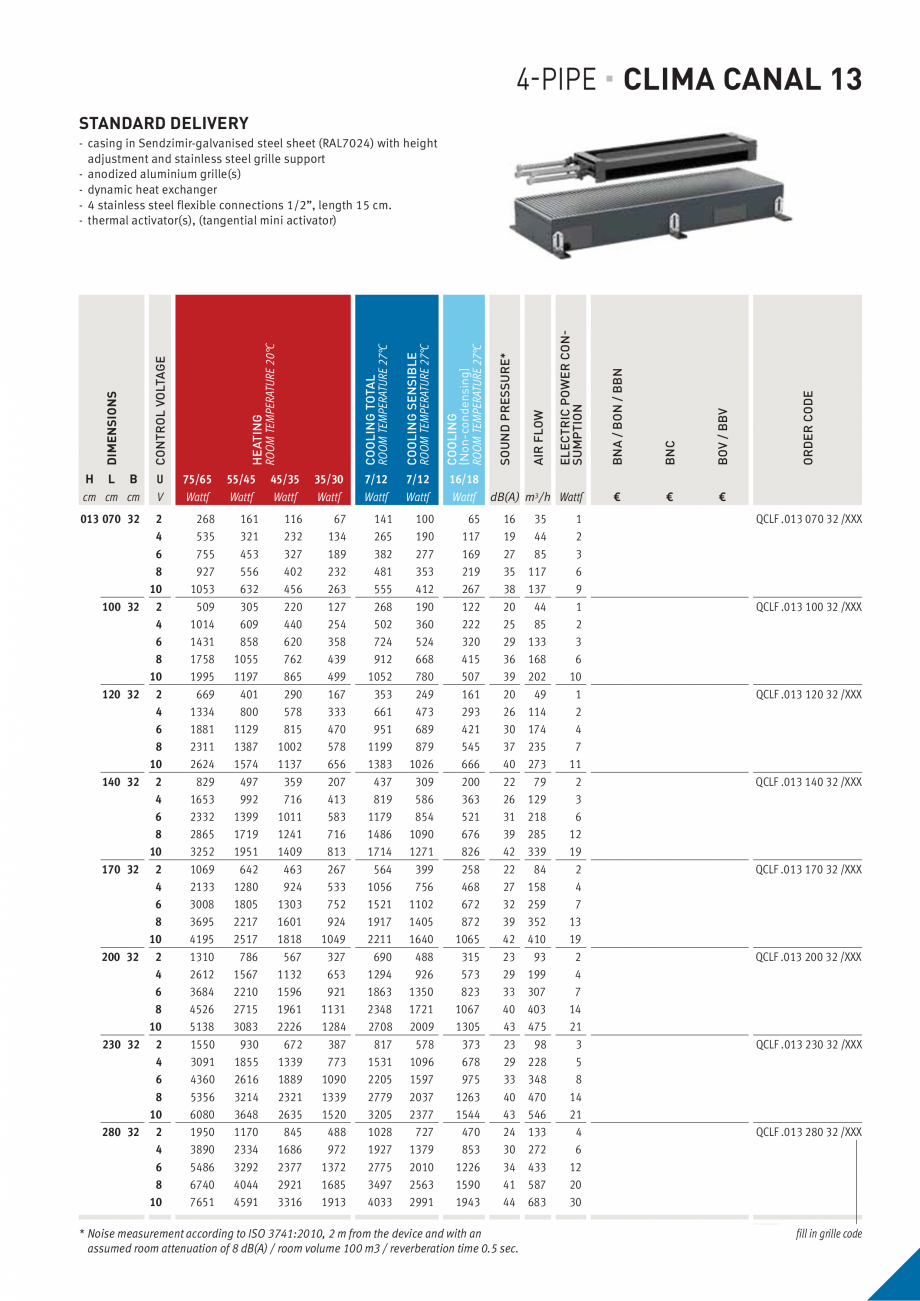

Pagina 12-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 13 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

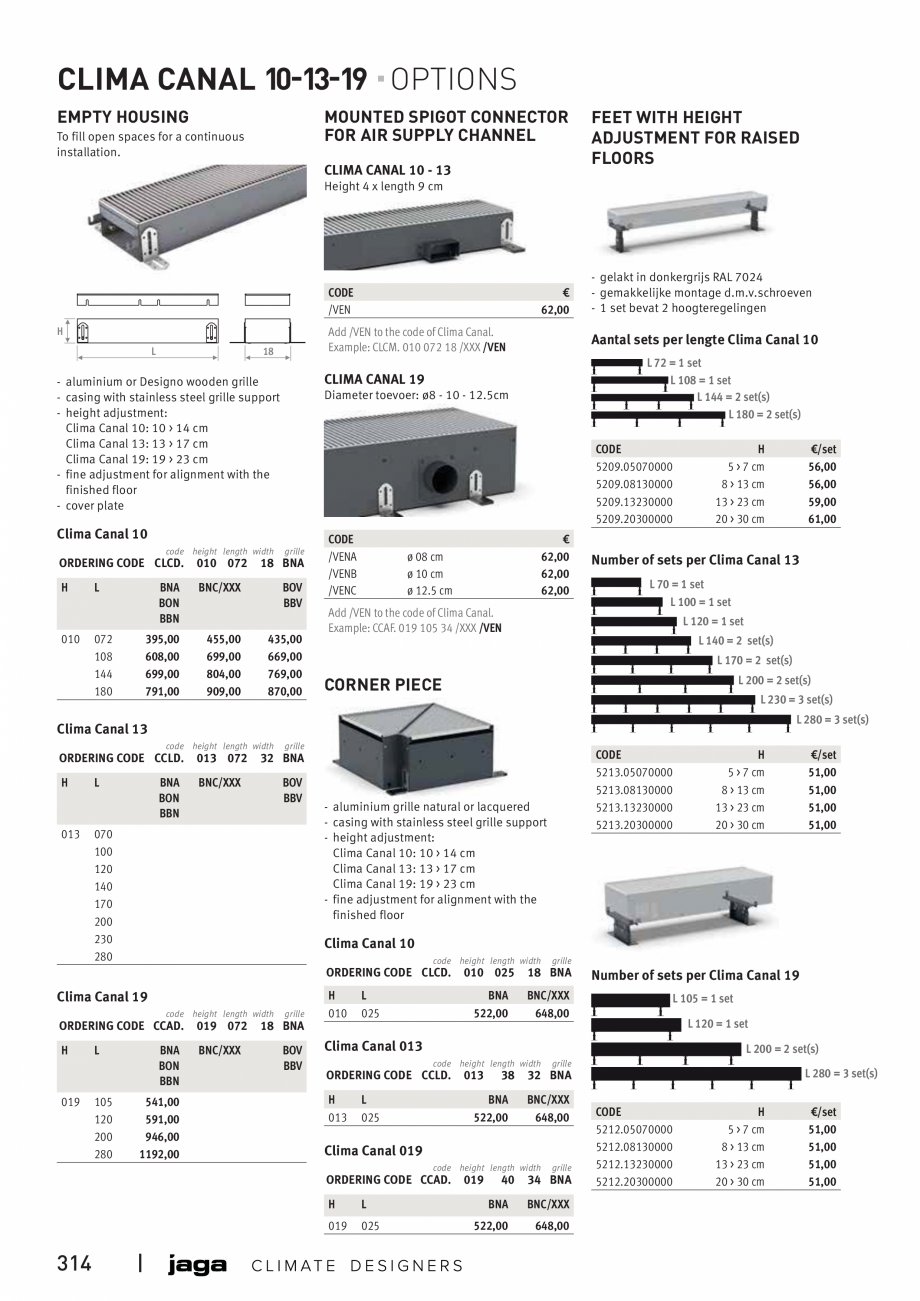

. Example: CLCM. 010 072 18 /XXX /VEN 18 010 072 H BNA BON BBN BNC/XXX 395,00 608,00 699,00 791,00 455,00 699,00 804,00 909,00 010 L 072 108 144 180 L 72 = 1 set L 108 = 1 set L 144 = 2 set(s) L 180 = 2 set(s) Diameter toevoer: ø8 - 10 - 12.5cm CODE 5209.05070000 5209.08130000 5209.13230000 5209.20300000 Clima Canal 10 ORDERING CODE CLCD. - gelakt in donkergrijs RAL 7024 - gemakkelijke montage d.m.v.schroeven - 1 set bevat 2 hoogteregelingen Aantal sets per lengte Clima Canal 10 CLIMA CANAL 19 - aluminium or Designo wooden grille - casing with stainless steel grille support - height adjustment: Clima Canal 10: 10 > 14 cm Clima Canal 13: 13 > 17 cm Clima Canal 19: 19 > 23 cm - fine adjustment for alignment with the finished floor - cover plate code height length width € 62,00 grille 18 BNA BOV BBV 435,00 669,00 769,00 870,00 CODE /VENA /VENB /VENC € 62,00 62,00 62,00 ø 08 cm ø 10 cm ø 12.5 cm Add /VEN to the code of Clima Canal. Example: CCAF. 019 105 3

Pagina 13-Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa tehnica Engleza...

Pagina 14 - Ventiloconvector de pardoseala 10/13/19 - Preturi si accesorii JAGA CLIMA CANAL Fisa...

4 /XXX /VEN H 5 > 7 cm 8 > 13 cm 13 > 23 cm 20 > 30 cm Number of sets per Clima Canal 13 L 70 = 1 set L 100 = 1 set L 120 = 1 set L 140 = 2 set(s) L 170 = 2 set(s) CORNER PIECE L 200 = 2 set(s) L 230 = 3 set(s) L 280 = 3 set(s) Clima Canal 13 code height length width ORDERING CODE CCLD. 013 072 H BNC/XXX 013 L BNA BON BBN grille BOV BBV 070 100 120 140 170 200 230 280 - aluminium grille natural or lacquered - casing with stainless steel grille support - height adjustment: Clima Canal 10: 10 > 14 cm Clima Canal 13: 13 > 17 cm Clima Canal 19: 19 > 23 cm - fine adjustment for alignment with the finished floor code height length width code height length width ORDERING CODE CCAD. 019 072 H BNC/XXX L BNA BON BBN 541,00 591,00 946,00 1192,00 grille 18 BNA BOV BBV H 010 L 025 €/set 51,00 51,00 51,00 51,00 18 BNA BNA 522,00 BNC/XXX 648,00 Number of sets per Clima Canal 19 L 105 = 1 set L 120 = 1 set L 200 = 2 set(s) code height length width ORDERING CODE CCL
