DYNACO S-549
Cat.2...

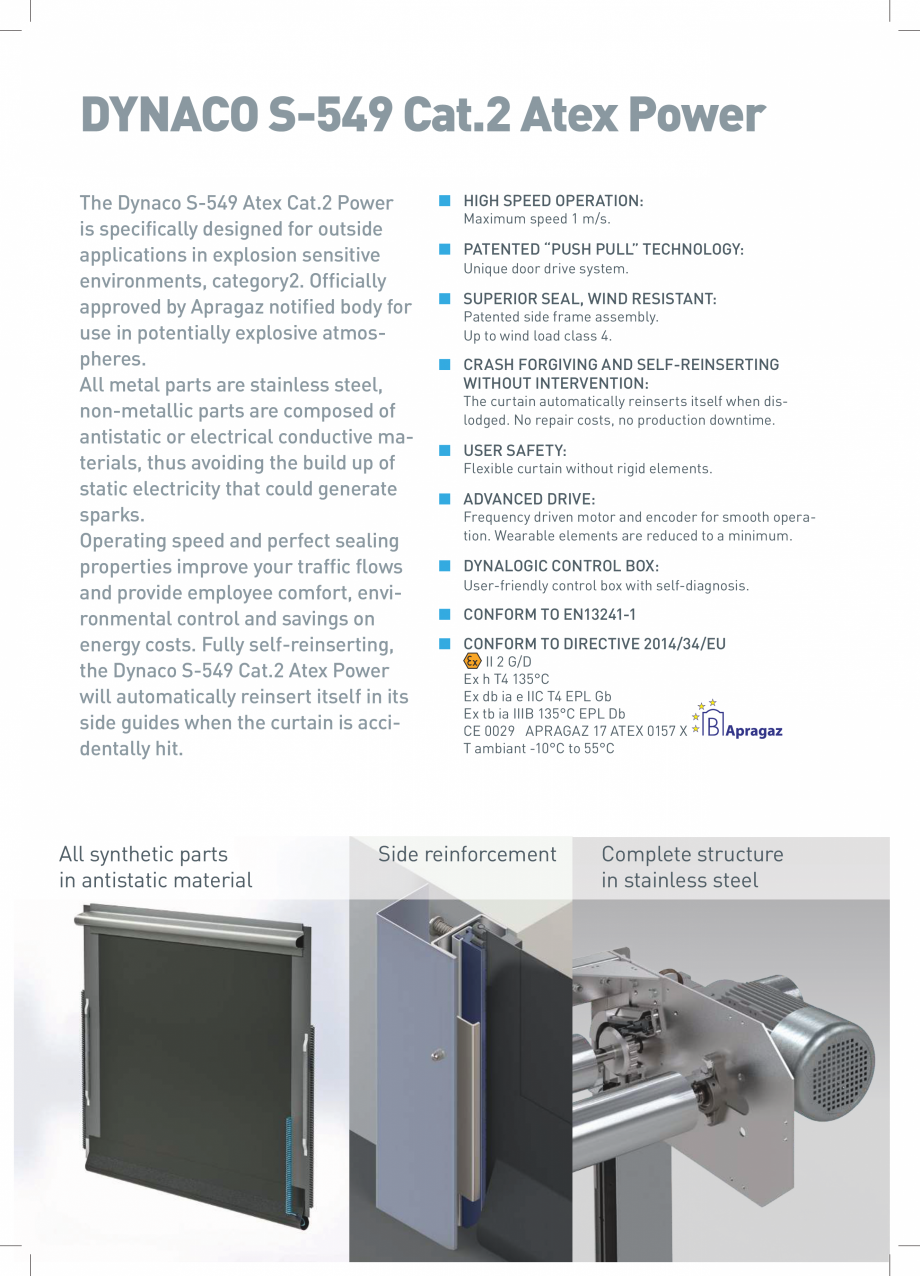

2 DYNACO S-549 Cat.2 Atex Power www.dynacodoor.com Push-Pull gear driven technology outsidedoor door inside DYNACO S-549 Cat.2 Atex Power The Dynaco S-549 Atex Cat.2 Power is specifically designed for outside applications in explosion sensitive environments, category2. Officially approved by Apragaz notified body for use in potentially explosive atmospheres. All metal parts are stainless steel, non-metallic parts are composed of antistatic or electrical conductive materials, thus avoiding the build up of static electricity that could generate sparks. Operating speed and perfect sealing properties improve your traffic flows and provide employee comfort, environmental control and savings on energy costs. Fully self-reinserting, the Dynaco S-549 Cat.2 Atex Power will automatically reinsert itself in its side guides when the curtain is accidentally hit. All synthetic parts in antistatic material ■ HIGH SPEED OPERATION: Maximum speed 1 m/s. ■ PATENTED “PUSH PULL” TECHNOLOGY:

Pagina 1-Usa rapida S-549 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza 2
DYNACO S-549
Cat.2 Atex
Power
www...

Pagina 2 - Usa rapida S-549 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza Unique door drive system...

Unique door drive system. ■ SUPERIOR SEAL, WIND RESISTANT: Patented side frame assembly. Up to wind load class 4. ■ CRASH FORGIVING AND SELF-REINSERTING WITHOUT INTERVENTION: The curtain automatically reinserts itself when dislodged. No repair costs, no production downtime. ■ USER SAFETY: Flexible curtain without rigid elements. ■ ADVANCED DRIVE: Frequency driven motor and encoder for smooth operation. Wearable elements are reduced to a minimum. ■ DYNALOGIC CONTROL BOX: User-friendly control box with self-diagnosis. ■ CONFORM TO EN13241-1 ■ CONFORM TO DIRECTIVE 2014/34/EU II 2 G/D Ex h T4 135°C Ex db ia e IIC T4 EPL Gb Ex tb ia IIIB 135°C EPL Db CE 0029 APRAGAZ 17 ATEX 0157 X T ambiant -10°C to 55°C Side reinforcement Complete structure in stainless steel Push-Pull 2 gear driven technology outside door EN13241-1 STANDARDS CHARACTERISTICS Standard Ref. Test acc. Results Water permeability EN 12425 EN 12489 Class 2 Wind load EN 12424 EN 12444

Pagina 3 - Usa rapida S-549 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza Class 3*

Wind...

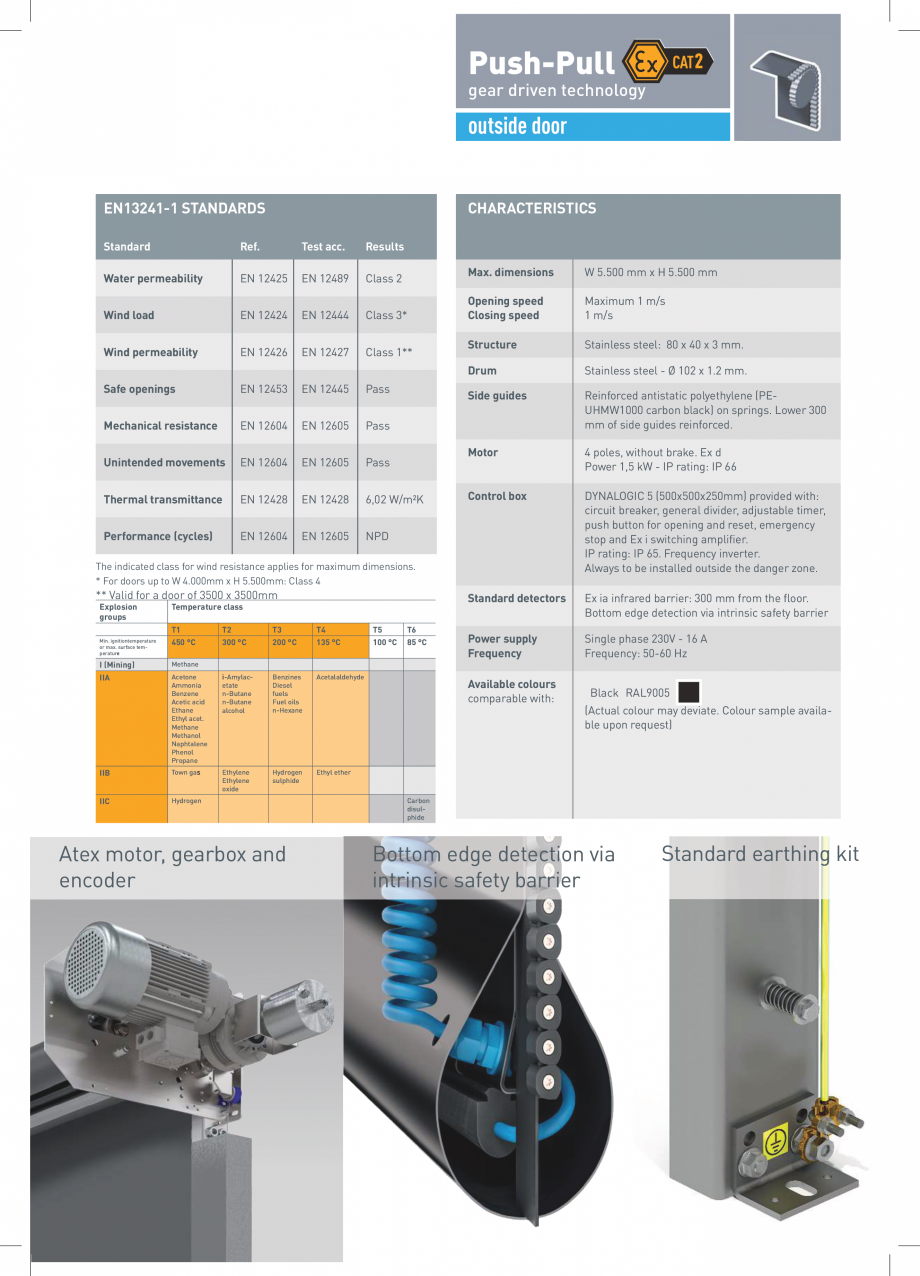

Class 3* Wind permeability EN 12426 EN 12427 Class 1** Safe openings EN 12453 EN 12445 Pass Mechanical resistance EN 12604 EN 12605 Pass Unintended movements EN 12604 EN 12605 Pass Thermal transmittance EN 12428 EN 12428 6,02 W/m²K Performance (cycles) EN 12604 EN 12605 NPD Max. dimensions W 5.500 mm x H 5.500 mm Opening speed Closing speed Maximum 1 m/s 1 m/s Structure Stainless steel: 80 x 40 x 3 mm. Drum Stainless steel - Ø 102 x 1.2 mm. Side guides Reinforced antistatic polyethylene (PEUHMW1000 carbon black) on springs. Lower 300 mm of side guides reinforced. Motor 4 poles, without brake. Ex d Power 1,5 kW - IP rating: IP 66 Control box DYNALOGIC 5 (500x500x250mm) provided with: circuit breaker, general divider, adjustable timer, push button for opening and reset, emergency stop and Ex i switching amplifier. IP rating: IP 65. Frequency inverter. Always to be installed outside the danger zone. Standard detectors Ex ia infrared barrier: 300 m

Pagina 3-Usa rapida S-549 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza Class 3*

Wind permeability

EN...

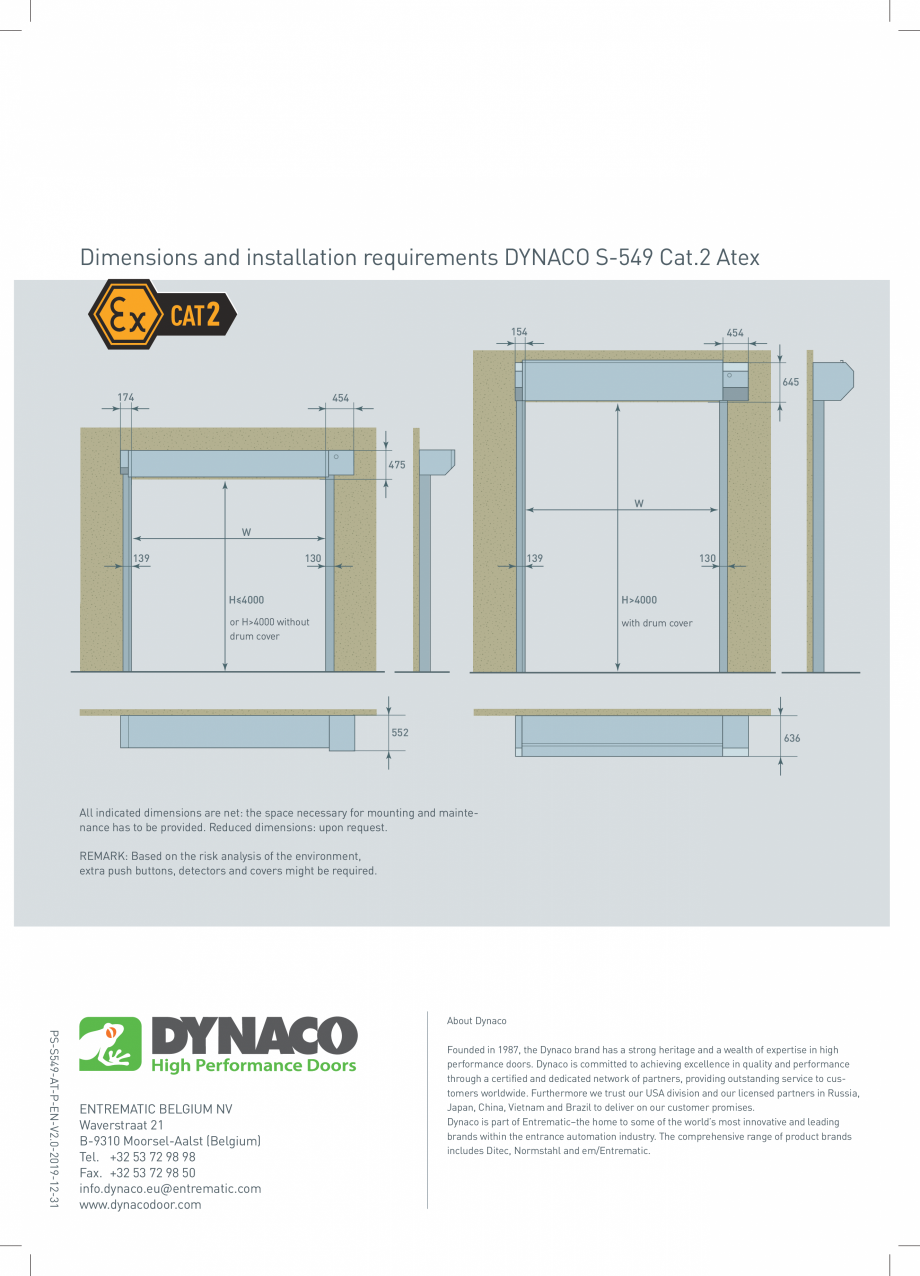

Pagina 4 - Usa rapida S-549 - Cat2 DYNACO S-5 ATEX Catalog, brosura Engleza m from the floor.
