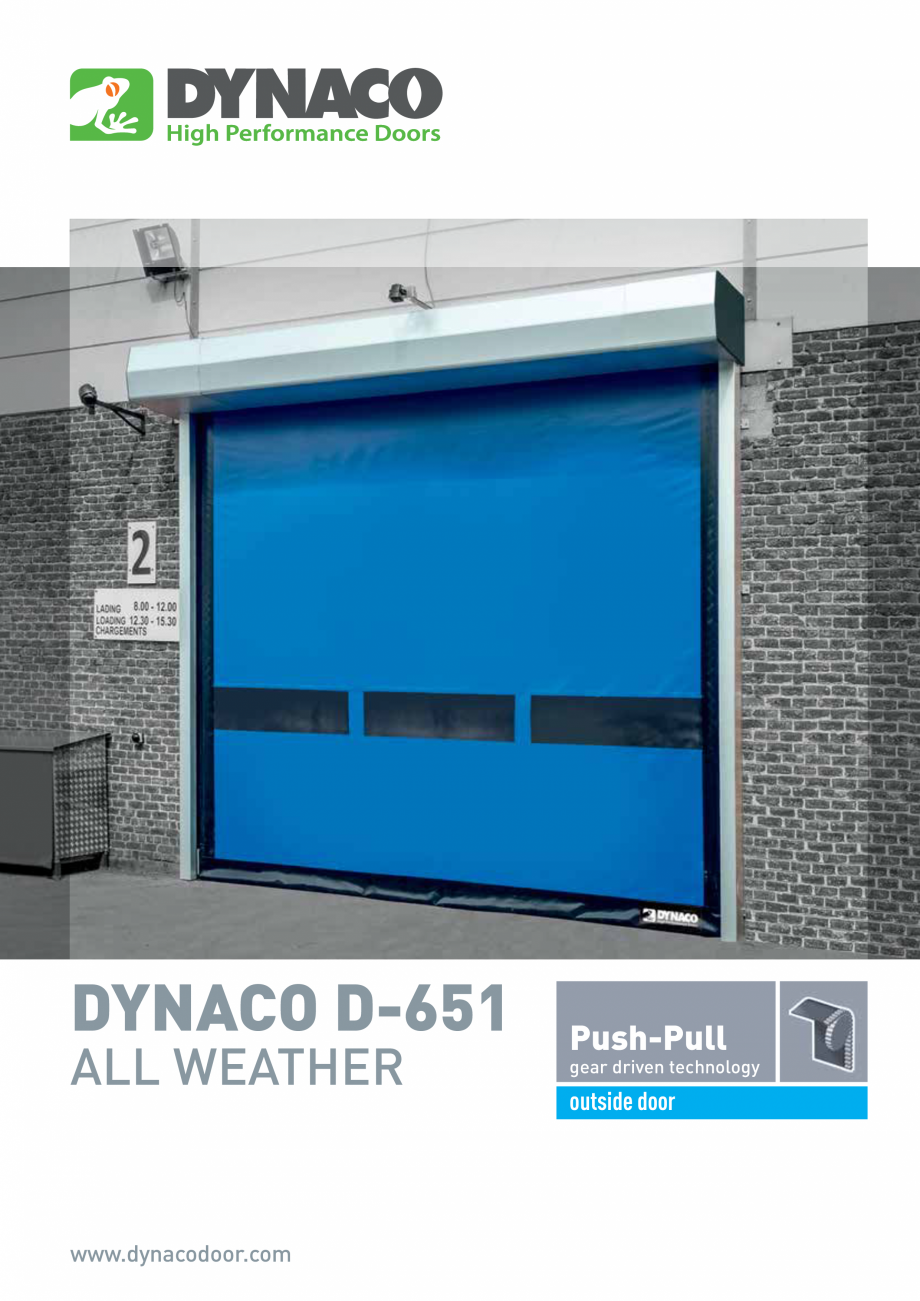

DYNACO D-651 ALL WEATHER www.dynacodoor.com Push-Pull gear driven technology outsidedoor door inside DYNACO D-651 ALL WEATHER The Dynaco D-651 All Weather is specifically designed for medium sized outside applications with intensive use and subjected to extreme wind loads. It protects your facilities against wind, rain, snow, dirt and extreme temperatures. Operating speed and perfect sealing improve your traffic flows and provide employee comfort, environmental control and savings on energy costs. Fully self-reinserting, the Dynaco D-651 All Weather will automatically reinsert itself in its side guides when the curtain is accidentally hit. Special features for easy installation and maintenance reduce the cost of ownership, while the small build-in dimensions allow maximum use of the available space. The special design of the driving system and reintroduction block reduce operating noise, increasing comfort of use. Easy maintenance ■ ULTRA HIGH SPEED OPERATION: Up to 3,6 m/s d

Pagina 1-Usa rapida pentru exterior - D651 DYNACO D-6 Catalog, brosura Engleza DYNACO D-651
ALL WEATHER

www....

Pagina 2 - Usa rapida pentru exterior - D651 DYNACO D-6 Catalog, brosura Engleza epending on the...

epending on the size Closing speed 1,2 m/s ■ PATENTED “PUSH PULL” TECHNOLOGY: Unique door drive system. ■ SUPERIOR SEAL, WIND RESISTANT: Patented side frame assembly. No blade nor brush systems. Up to wind load class 5. ■ CRASH FORGIVING AND SELF-REINSERTING WITHOUT INTERVENTION: The curtain automatically reinserts ifself when dislodged. No repair costs, no production down time. ■ USER SAFETY: Flexible curtain without rigid elements. ■ COMFORT OF USE: DYNACO wireless detector at the bottom. ■ ADVANCED DRIVE: Frequency driven motor and encoder for smooth operation. Wearable elements are reduced to a minimum. ■ DYNALOGIC CONTROL BOX: User-friendly control box with self-diagnosis. ■ CONFORM TO EN13241-1 “PUSH-PULLPT” Drive Technology Open Close Push-Pull gear driven technology outside door EN13241-1 STANDARDS CHARACTERISTICS Standard Ref. Test acc. Results Water permeability EN 12425 EN 12489 Class 3 Wind load EN 12424 EN 12444 Max.

Pagina 2-Usa rapida pentru exterior - D651 DYNACO D-6 Catalog, brosura Engleza epending on the size
Closing...

Pagina 3 - Usa rapida pentru exterior - D651 DYNACO D-6 Catalog, brosura Engleza dimensions

W 5...

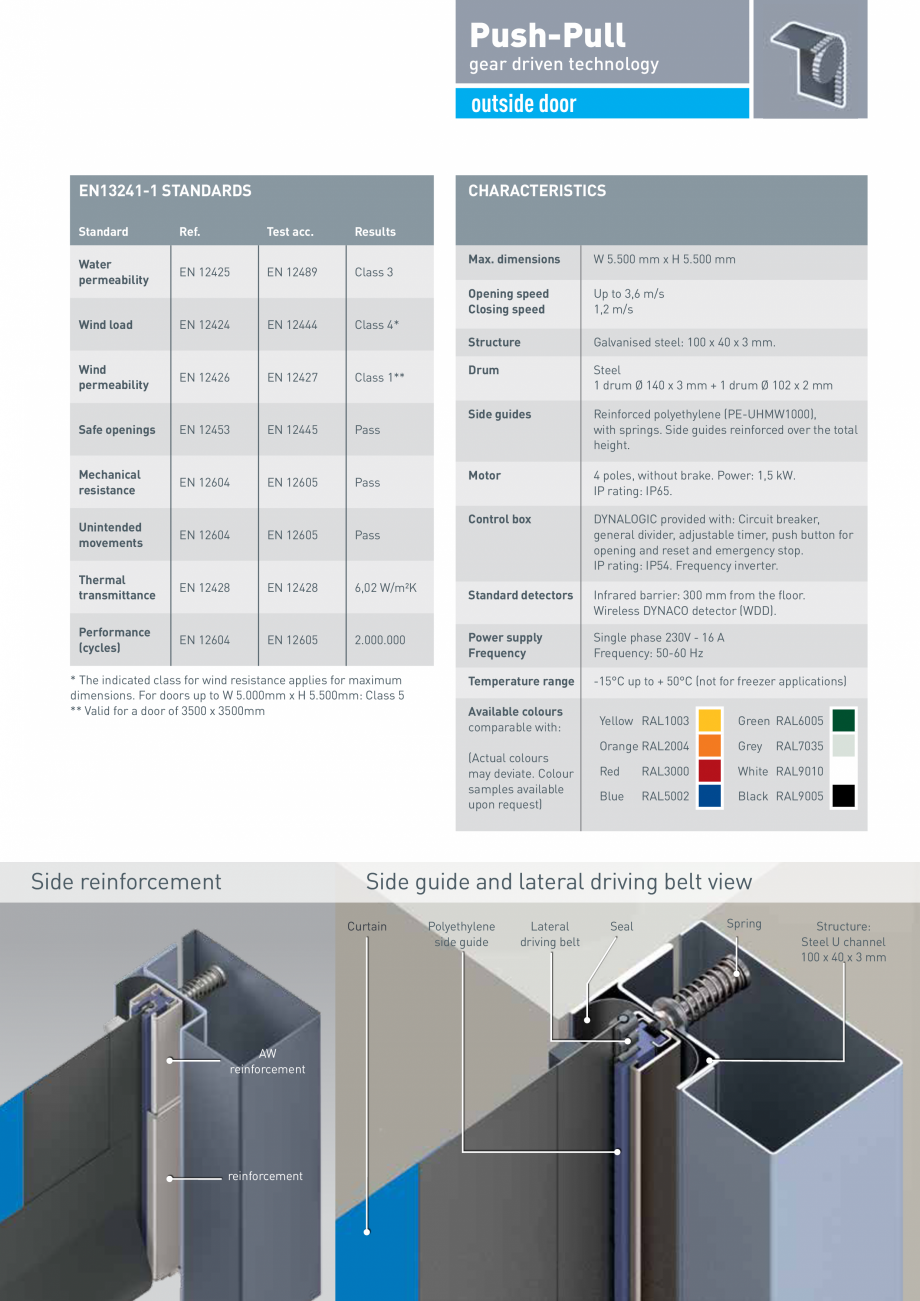

dimensions W 5.500 mm x H 5.500 mm Opening speed Closing speed Up to 3,6 m/s 1,2 m/s Structure Galvanised steel: 100 x 40 x 3 mm. Drum Steel 1 drum Ø 140 x 3 mm + 1 drum Ø 102 x 2 mm Side guides Reinforced polyethylene (PE-UHMW1000), with springs. Side guides reinforced over the total height. Motor 4 poles, without brake. Power: 1,5 kW. IP rating: IP65. Control box DYNALOGIC provided with: Circuit breaker, general divider, adjustable timer, push button for opening and reset and emergency stop. IP rating: IP54. Frequency inverter. Standard detectors Infrared barrier: 300 mm from the floor. Wireless DYNACO detector (WDD). Power supply Frequency Single phase 230V - 16 A Frequency: 50-60 Hz Temperature range -15°C up to + 50°C (not for freezer applications) Class 4* Wind permeability EN 12426 EN 12427 Class 1** Safe openings EN 12453 EN 12445 Pass Mechanical resistance EN 12604 EN 12605 Pass Unintended movements EN 12604 EN 12605 Pass Thermal trans

Pagina 3-Usa rapida pentru exterior - D651 DYNACO D-6 Catalog, brosura Engleza dimensions

W 5.500 mm x H 5....

Pagina 4 - Usa rapida pentru exterior - D651 DYNACO D-6 Catalog, brosura Engleza mittance

EN 12428
...

mittance EN 12428 EN 12428 6,02 W/m²K Performance (cycles) EN 12604 EN 12605 2.000.000 * The indicated class for wind resistance applies for maximum dimensions. For doors up to W 5.000mm x H 5.500mm: Class 5 ** Valid for a door of 3500 x 3500mm Available colours comparable with: (Actual colours may deviate. Colour samples available upon request) Side reinforcement Yellow RAL1003 Green RAL6005 Orange RAL2004 Grey Red RAL3000 White RAL9010 Blue RAL5002 Black RAL9005 RAL7035 Side guide and lateral driving belt view Curtain AW reinforcement reinforcement Polyethylene side guide Lateral driving belt Seal Spring Structure: Steel U channel 100 x 40 x 3 mm Dimensions and installation requirements Dynaco D-651 All Weather H > 4000 mm H ≤ 4000 mm 140 295 541 140 295 431 130 130 130 130 W W H H 732 732 All indicated dimensions are net: the space necessary for mounting and maintenance has to be provided. REMARK: Based on the risk analysis of the e
