Tip documentatie: Fisa tehnica

Pagina 1 - Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa...

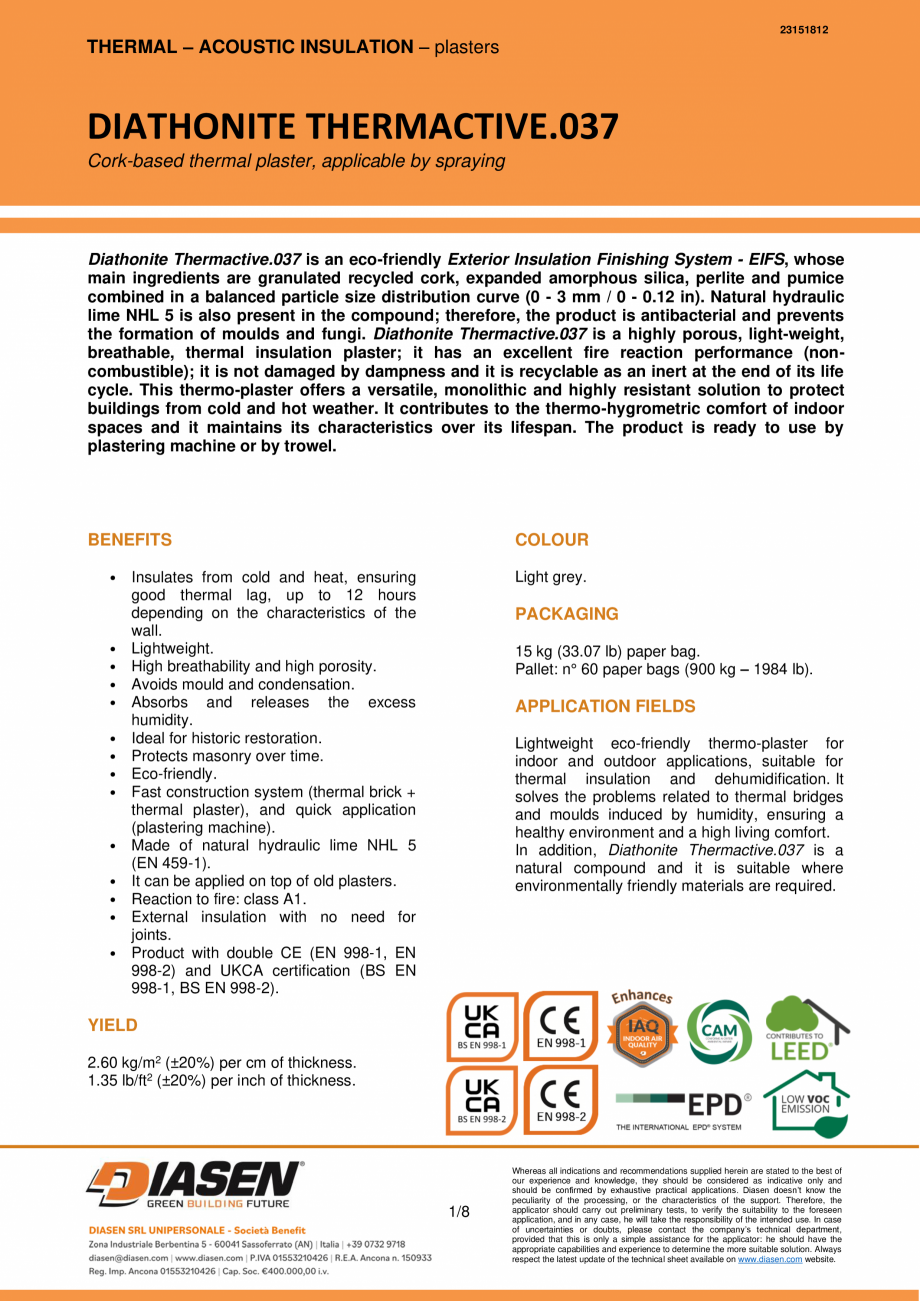

23151812 THERMAL – ACOUSTIC INSULATION – plasters DIATHONITE THERMACTIVE.037 Cork-based thermal plaster, applicable by spraying Diathonite Thermactive.037 is an eco-friendly Exterior Insulation Finishing System - EIFS, whose main ingredients are granulated recycled cork, expanded amorphous silica, perlite and pumice combined in a balanced particle size distribution curve (0 - 3 mm / 0 - 0.12 in). Natural hydraulic lime NHL 5 is also present in the compound; therefore, the product is antibacterial and prevents the formation of moulds and fungi. Diathonite Thermactive.037 is a highly porous, light-weight, breathable, thermal insulation plaster; it has an excellent fire reaction performance (noncombustible); it is not damaged by dampness and it is recyclable as an inert at the end of its life cycle. This thermo-plaster offers a versatile, monolithic and highly resistant solution to protect buildings from cold and hot weather. It contributes to the thermo-hygrometric comfort of indo

Pagina 1-Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa tehnica Engleza...

Pagina 2 - Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa...

or spaces and it maintains its characteristics over its lifespan. The product is ready to use by plastering machine or by trowel. BENEFITS COLOUR • Insulates from cold and heat, ensuring good thermal lag, up to 12 hours depending on the characteristics of the wall. • Lightweight. • High breathability and high porosity. • Avoids mould and condensation. • Absorbs and releases the excess humidity. • Ideal for historic restoration. • Protects masonry over time. • Eco-friendly. • Fast construction system (thermal brick + thermal plaster), and quick application (plastering machine). • Made of natural hydraulic lime NHL 5 (EN 459-1). • It can be applied on top of old plasters. • Reaction to fire: class A1. • External insulation with no need for joints. • Product with double CE (EN 998-1, EN 998-2) and UKCA certification (BS EN 998-1, BS EN 998-2). Light grey. PACKAGING 15 kg (33.07 lb) paper bag. Pallet: n° 60 paper bags (900 kg – 1984 lb). APPLICATION FIE

Pagina 2-Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa tehnica Engleza...

Pagina 3 - Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa...

LDS Lightweight eco-friendly thermo-plaster for indoor and outdoor applications, suitable for thermal insulation and dehumidification. It solves the problems related to thermal bridges and moulds induced by humidity, ensuring a healthy environment and a high living comfort. In addition, Diathonite Thermactive.037 is a natural compound and it is suitable where environmentally friendly materials are required. YIELD 2.60 kg/m2 (±20%) per cm of thickness. 1.35 lb/ft2 (±20%) per inch of thickness. 1/8 Whereas all indications and recommendations supplied herein are stated to the best of our experience and knowledge, they should be considered as indicative only and should be confirmed by exhaustive practical applications. Diasen doesn’t know the peculiarity of the processing, or the characteristics of the support. Therefore, the applicator should carry out preliminary tests, to verify the suitability to the foreseen application, and in any case, he will take the responsibility of the i

Pagina 3-Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa tehnica Engleza...

Pagina 4 - Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa...

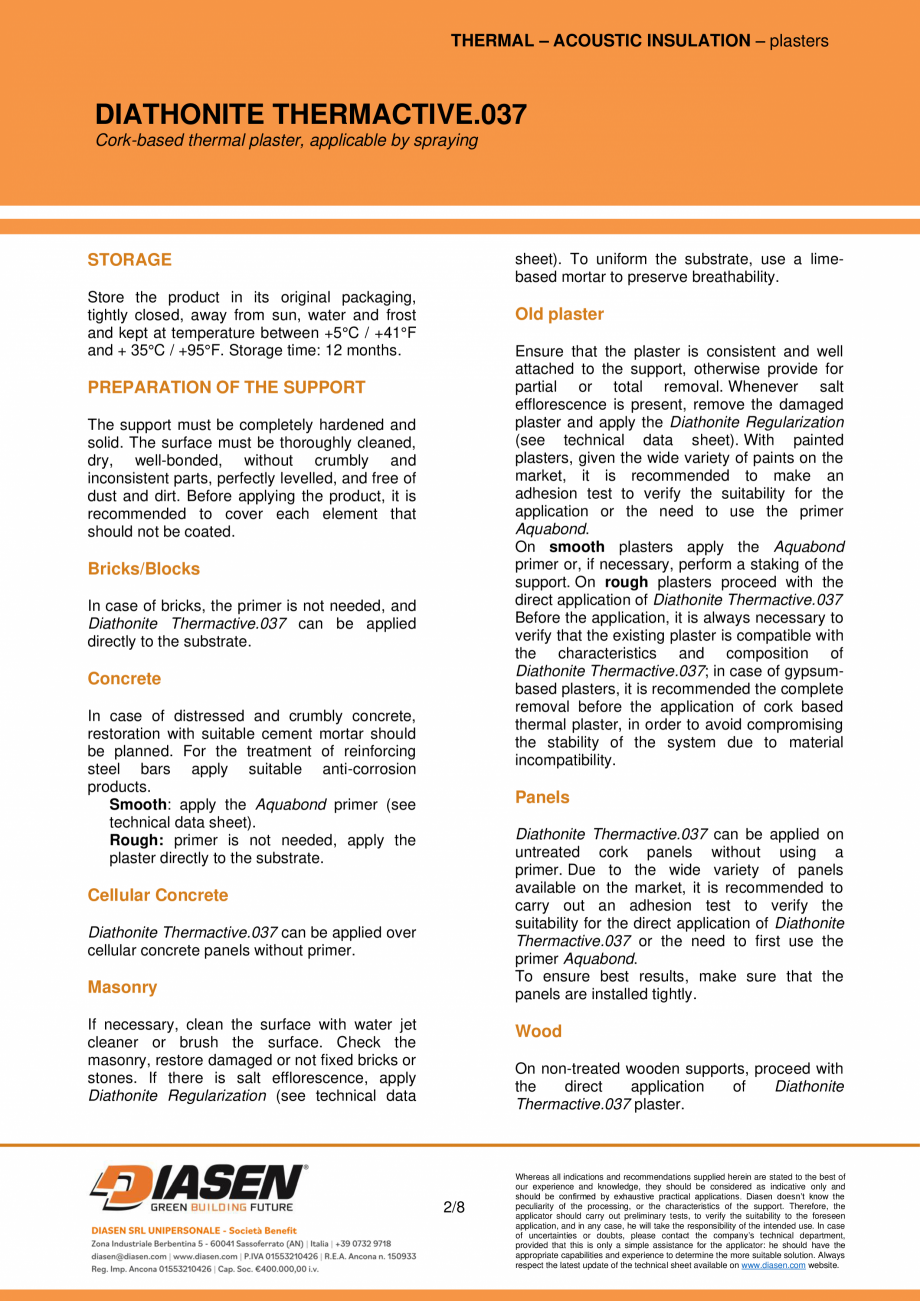

ntended use. In case of uncertainties or doubts, please contact the company’s technical department, provided that this is only a simple assistance for the applicator: he should have the appropriate capabilities and experience to determine the more suitable solution. Always respect the latest update of the technical sheet available on www.diasen.com website. THERMAL – ACOUSTIC INSULATION – plasters DIATHONITE THERMACTIVE.037 Cork-based thermal plaster, applicable by spraying sheet). To uniform the substrate, use a limebased mortar to preserve breathability. STORAGE Store the product in its original packaging, tightly closed, away from sun, water and frost and kept at temperature between +5°C / +41°F and + 35°C / +95°F. Storage time: 12 months. Old plaster Ensure that the plaster is consistent and well attached to the support, otherwise provide for partial or total removal. Whenever salt efflorescence is present, remove the damaged plaster and apply the Diathonite Regular

Pagina 4-Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa tehnica Engleza...

Pagina 5 - Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa...

ization (see technical data sheet). With painted plasters, given the wide variety of paints on the market, it is recommended to make an adhesion test to verify the suitability for the application or the need to use the primer Aquabond. On smooth plasters apply the Aquabond primer or, if necessary, perform a staking of the support. On rough plasters proceed with the direct application of Diathonite Thermactive.037 Before the application, it is always necessary to verify that the existing plaster is compatible with the characteristics and composition of Diathonite Thermactive.037; in case of gypsumbased plasters, it is recommended the complete removal before the application of cork based thermal plaster, in order to avoid compromising the stability of the system due to material incompatibility. PREPARATION OF THE SUPPORT The support must be completely hardened and solid. The surface must be thoroughly cleaned, dry, well-bonded, without crumbly and inconsistent parts, perfectly levelled,

Pagina 5-Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa tehnica Engleza...

Pagina 6 - Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa...

and free of dust and dirt. Before applying the product, it is recommended to cover each element that should not be coated. Bricks/Blocks In case of bricks, the primer is not needed, and Diathonite Thermactive.037 can be applied directly to the substrate. Concrete In case of distressed and crumbly concrete, restoration with suitable cement mortar should be planned. For the treatment of reinforcing steel bars apply suitable anti-corrosion products. Smooth: apply the Aquabond primer (see technical data sheet). Rough: primer is not needed, apply the plaster directly to the substrate. Panels Diathonite Thermactive.037 can be applied on untreated cork panels without using a primer. Due to the wide variety of panels available on the market, it is recommended to carry out an adhesion test to verify the suitability for the direct application of Diathonite Thermactive.037 or the need to first use the primer Aquabond. To ensure best results, make sure that the panels are installed tightly. C

Pagina 6-Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa tehnica Engleza...

Pagina 7 - Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa...

ellular Concrete Diathonite Thermactive.037 can be applied over cellular concrete panels without primer. Masonry If necessary, clean the surface with water jet cleaner or brush the surface. Check the masonry, restore damaged or not fixed bricks or stones. If there is salt efflorescence, apply Diathonite Regularization (see technical data Wood On non-treated wooden supports, proceed with the direct application of Diathonite Thermactive.037 plaster. 2/8 Whereas all indications and recommendations supplied herein are stated to the best of our experience and knowledge, they should be considered as indicative only and should be confirmed by exhaustive practical applications. Diasen doesn’t know the peculiarity of the processing, or the characteristics of the support. Therefore, the applicator should carry out preliminary tests, to verify the suitability to the foreseen application, and in any case, he will take the responsibility of the intended use. In case of uncertainties or doubts

Pagina 7-Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa tehnica Engleza...

Pagina 8 - Tencuiala termoizolanta naturala cu pluta NZEBSHOP Diathonite Thermactive .037 Fisa...

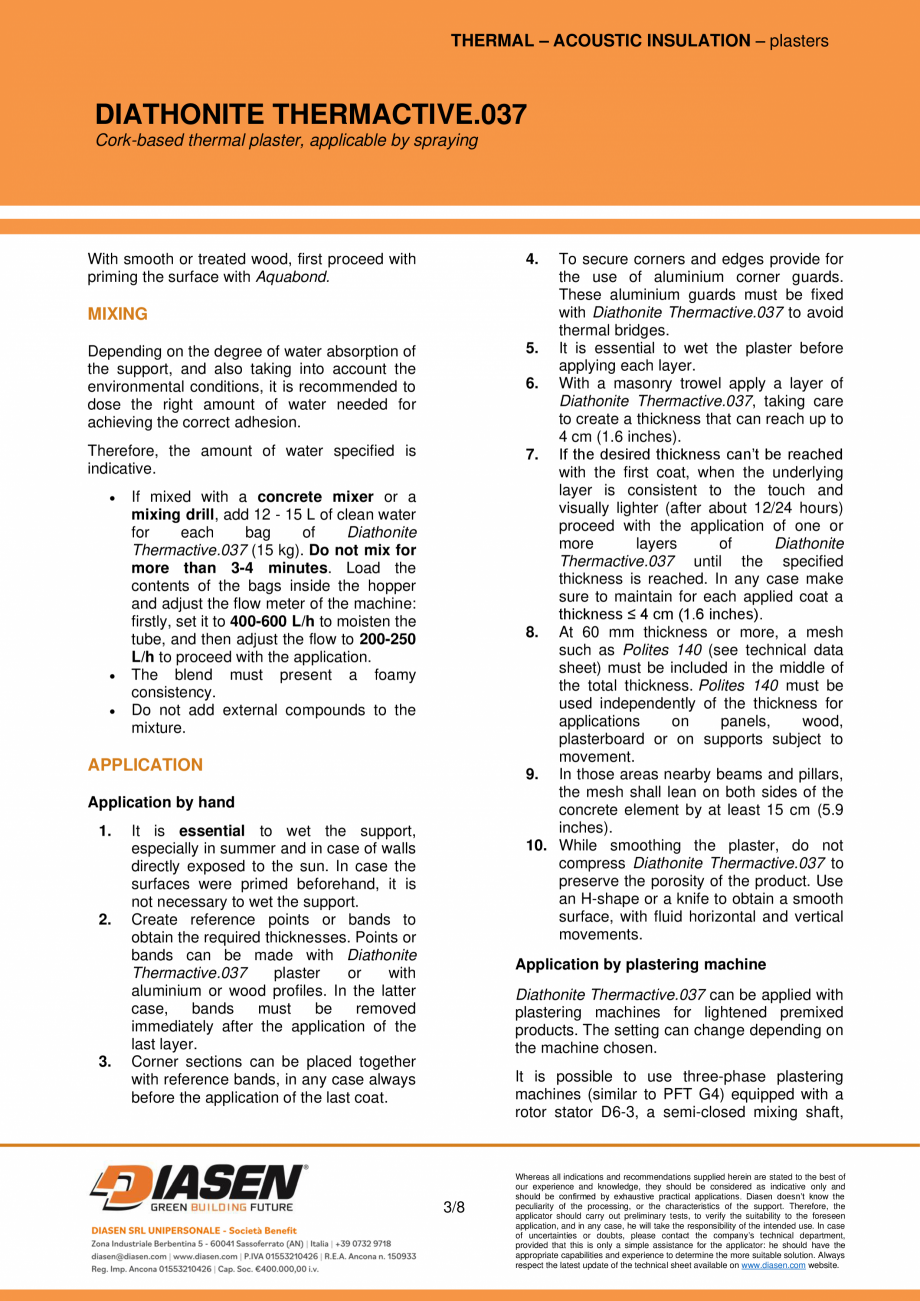

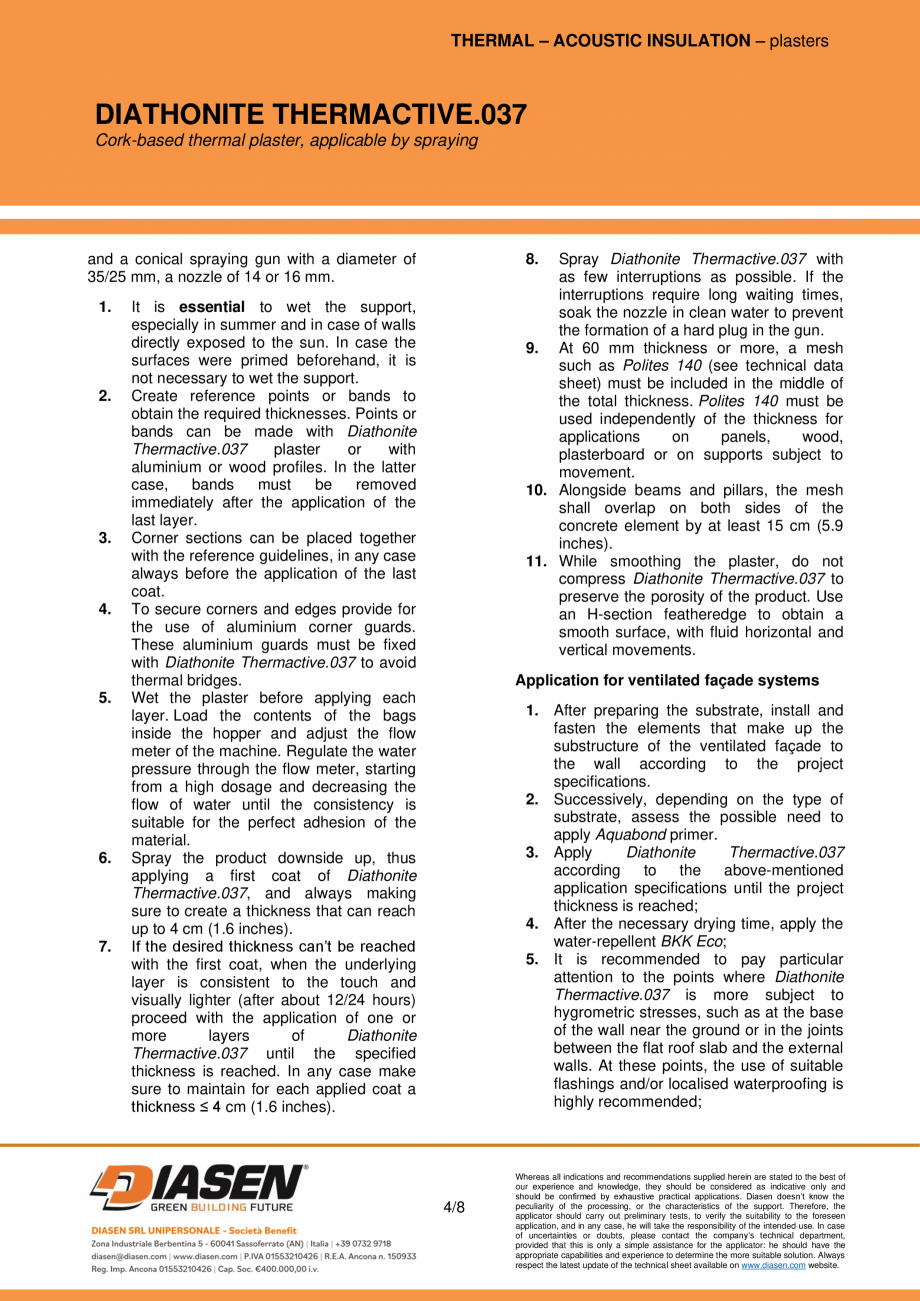

, please contact the company’s technical department, provided that this is only a simple assistance for the applicator: he should have the appropriate capabilities and experience to determine the more suitable solution. Always respect the latest update of the technical sheet available on www.diasen.com website. THERMAL – ACOUSTIC INSULATION – plasters DIATHONITE THERMACTIVE.037 Cork-based thermal plaster, applicable by spraying With smooth or treated wood, first proceed with priming the surface with Aquabond. 4. To secure corners and edges provide for the use of aluminium corner guards. These aluminium guards must be fixed with Diathonite Thermactive.037 to avoid thermal bridges. 5. It is essential to wet the plaster before applying each layer. 6. With a masonry trowel apply a layer of Diathonite Thermactive.037, taking care to create a thickness that can reach up to 4 cm (1.6 inches). 7. If the desired thickness can’t be reached with the first coat, when the underlying l
