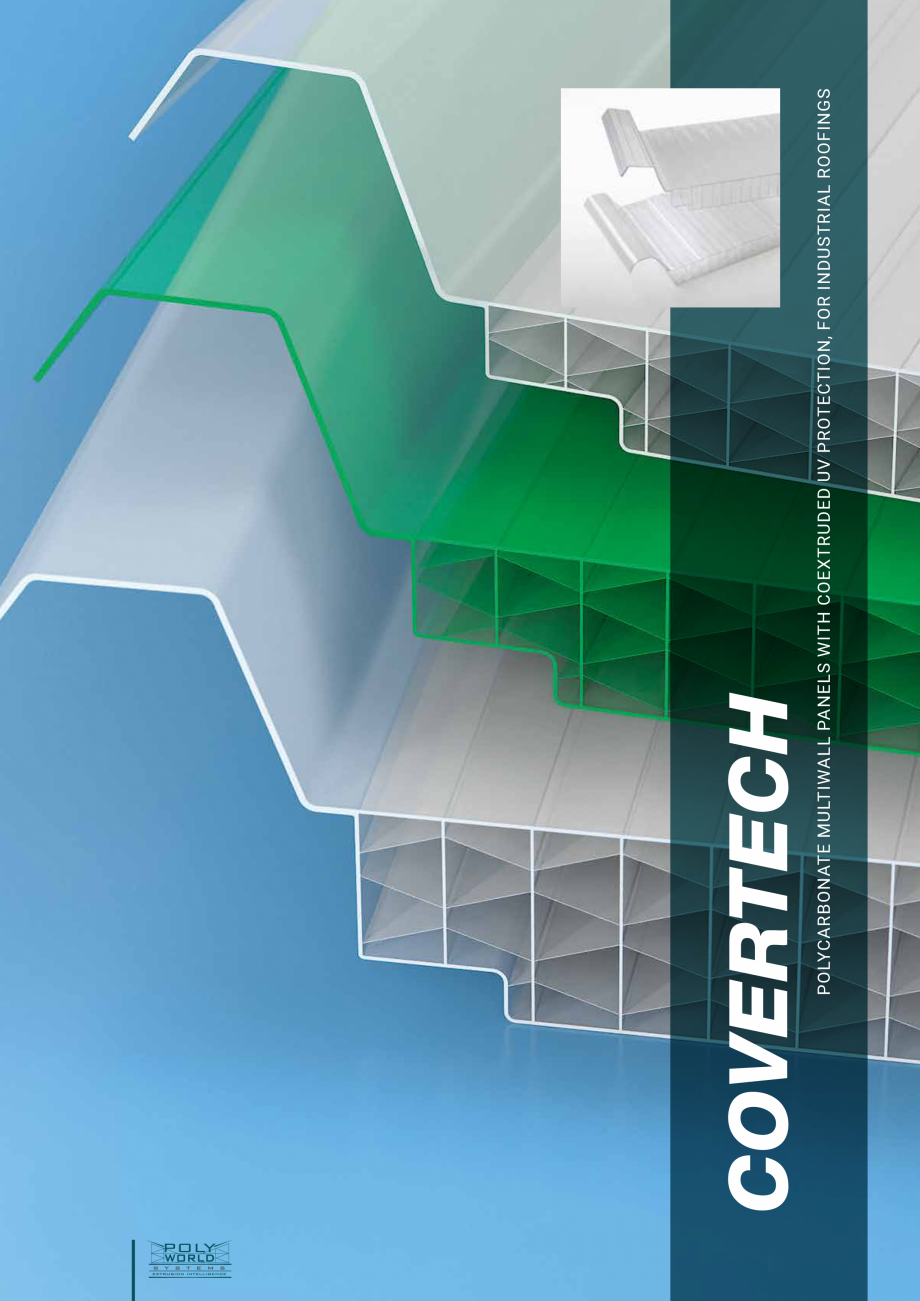

Pagina 1 - Sisteme modulare policarbonat structurat luminatoare GEPLAST COVERTECH Fisa tehnica...

POLYCARBONATE MULTIWALL PANELS WITH COEXTRUDED UV PROTECTION, FOR INDUSTRIAL ROOFINGS COVERTECH 1000 CoverTech 25 GP Cover Tech 25 930 GP Cover Tech 25 GP Cover Tech 25 1000 27 65 40 40 40 25 930 25 27 65 65 930 25 27 10 UV protected side 15 25 10 10 25 25 25 1000 10 10 15 10 25 27 40 27 15 40 40 1000 27 25 GP Cover Tech 30 GP Cover Tech 30 70 70 70 40 40 40 10 930 CoverTech 40 25 930 930 GP Cover Tech 40 1000 25 GP CoverTech RX30 250 UV protected side 34,5 25 10 10 25 27 10 25 80 27 80 80 27 59,5 UV protected side 40 1000 15 35 10 10 1000 1000 GP Cover Tech 40 GP Cover Tech 40 27 40 40 40 25 25 10 10 40 40 27 930 GP Cover Tech 30 15 27 25 930 15 10 40 27 25 930 40 40 27 15 25 CoverTech 30 27 UV protected side 35 30 25 1000 25 10 10 30 30 15 10 27 40 80 8080 27 15 40 40 1000 27 64,5 35 CoverTech RX25 35 250 34,5 1000 25 60 GP CoverTech RX30 64,5 34,5 35 35 30 U

Pagina 1-Sisteme modulare policarbonat structurat luminatoare GEPLAST COVERTECH Fisa tehnica Engleza...

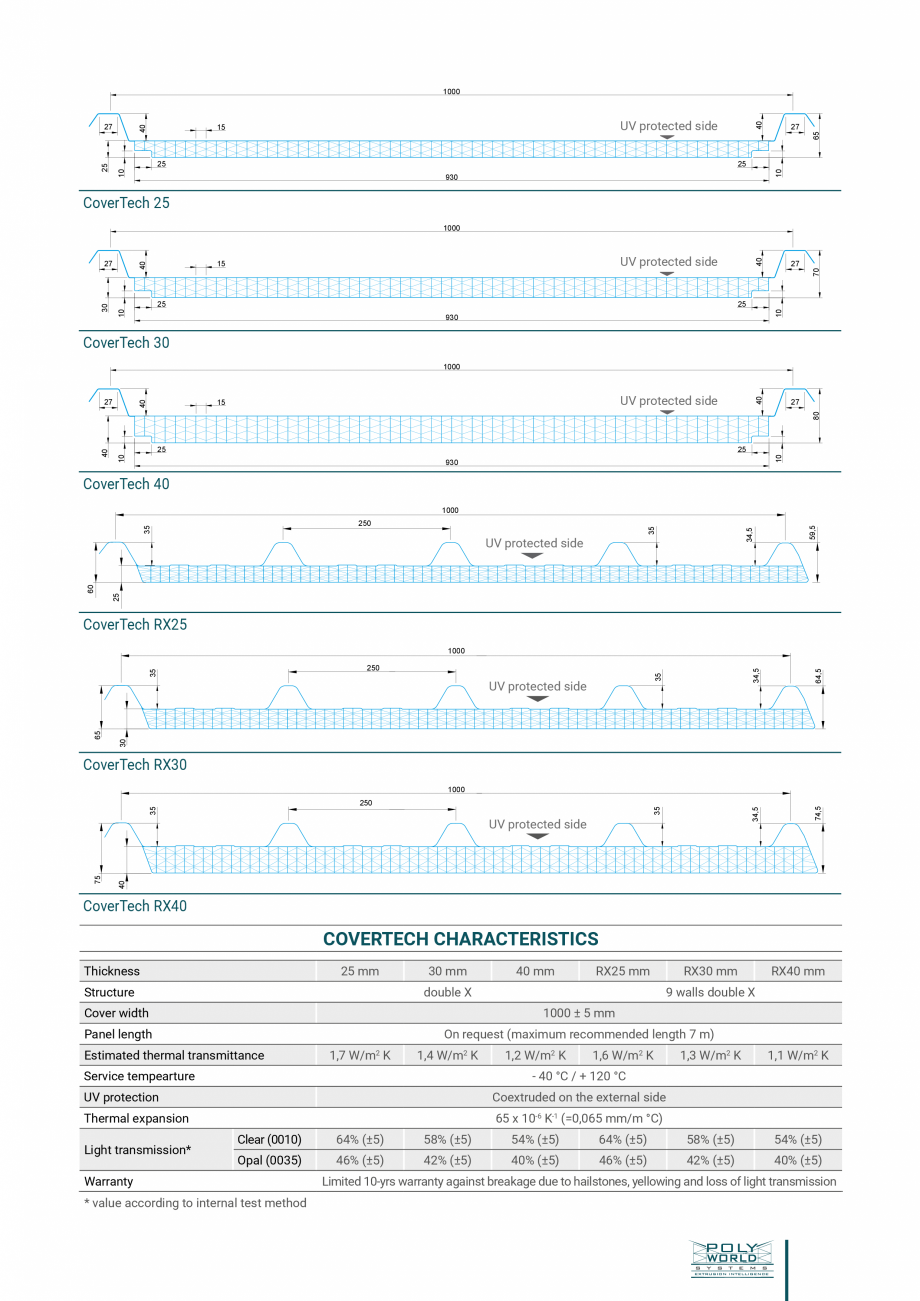

Pagina 2 - Sisteme modulare policarbonat structurat luminatoare GEPLAST COVERTECH Fisa tehnica...

V protected side 30 65 80 80 65 1000 250 CoverTech RX30 34,5 35 35 UV protected side 74,5 1000 250 CoverTech RX40 GP CoverTech RX40 COVERTECH CHARACTERISTICS 40 75 34,5 35 40 75 35 250 74,5 1000 Thickness 25 mm Structure 30 mm 40 mm GP CoverTech RX40 RX25 mm double X Cover width RX30 mm 9 walls double X 1000 ± 5 mm Panel length On request (maximum recommended length 7 m) Estimated thermal transmittance 1,7 W/m K 2 1,4 W/m2 K Service tempearture 1,2 W/m2 K 1,6 W/m2 K 1,3 W/m2 K 1,1 W/m2 K - 40 °C / + 120 °C UV protection Coextruded on the external side Thermal expansion 65 x 10-6 K-1 (=0,065 mm/m °C) Light transmission* RX40 mm Clear (0010) 64% (±5) 58% (±5) 54% (±5) 64% (±5) 58% (±5) 54% (±5) Opal (0035) 46% (±5) 42% (±5) 40% (±5) 46% (±5) 42% (±5) 40% (±5) Warranty * value according to internal test method Limited 10-yrs warranty against breakage due to hailstones, yellowing and loss of light transmiss

Pagina 2-Sisteme modulare policarbonat structurat luminatoare GEPLAST COVERTECH Fisa tehnica Engleza V...

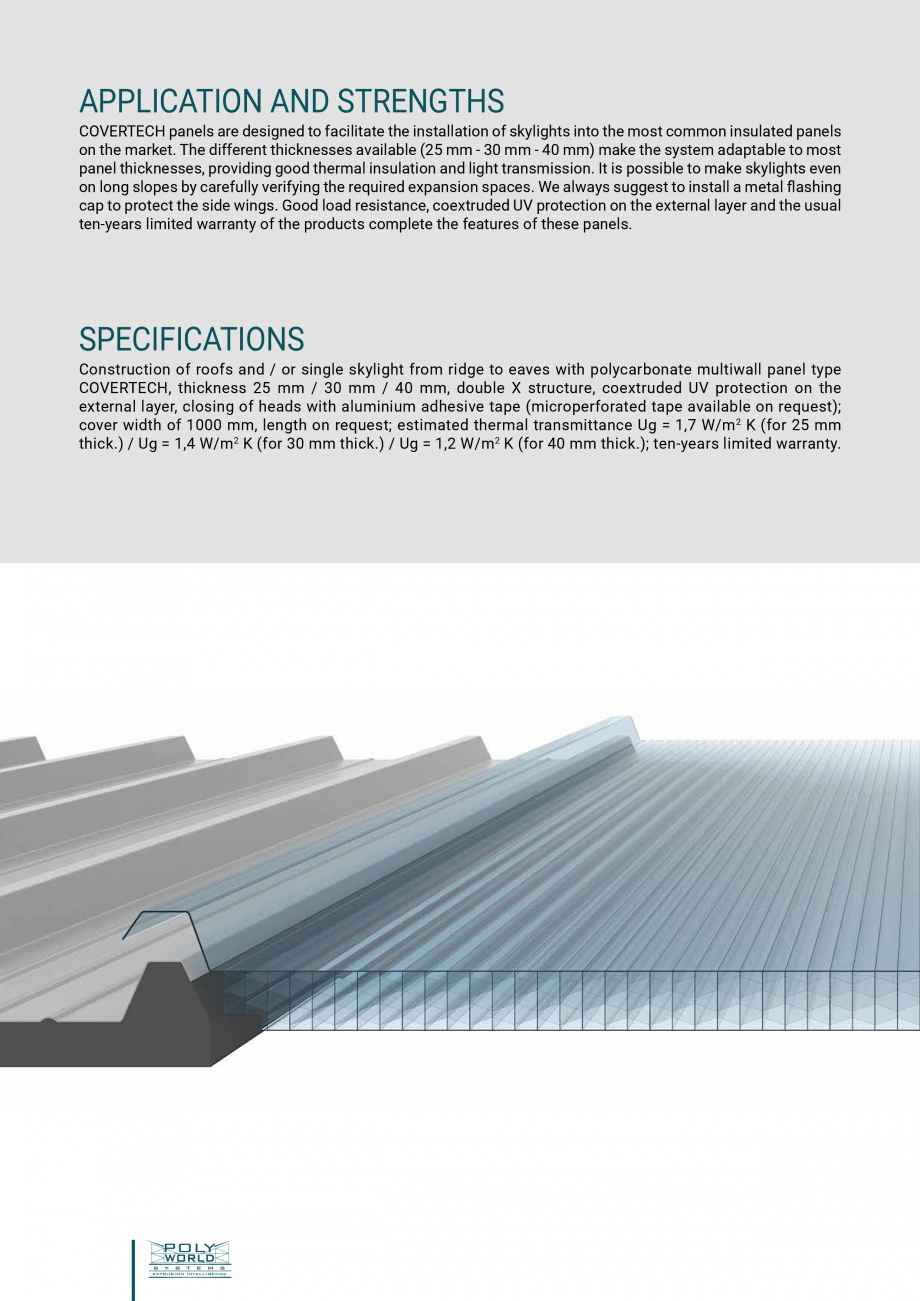

Pagina 3 - Sisteme modulare policarbonat structurat luminatoare GEPLAST COVERTECH Fisa tehnica...

ion APPLICATION AND STRENGTHS COVERTECH panels are designed to facilitate the installation of skylights into the most common insulated panels on the market. The different thicknesses available (25 mm - 30 mm - 40 mm) make the system adaptable to most panel thicknesses, providing good thermal insulation and light transmission. It is possible to make skylights even on long slopes by carefully verifying the required expansion spaces. We always suggest to install a metal flashing cap to protect the side wings. Good load resistance, coextruded UV protection on the external layer and the usual ten-years limited warranty of the products complete the features of these panels. SPECIFICATIONS Construction of roofs and / or single skylight from ridge to eaves with polycarbonate multiwall panel type COVERTECH, thickness 25 mm / 30 mm / 40 mm, double X structure, coextruded UV protection on the external layer, closing of heads with aluminium adhesive tape (microperforated tape available on req

Pagina 3-Sisteme modulare policarbonat structurat luminatoare GEPLAST COVERTECH Fisa tehnica Engleza ion
...

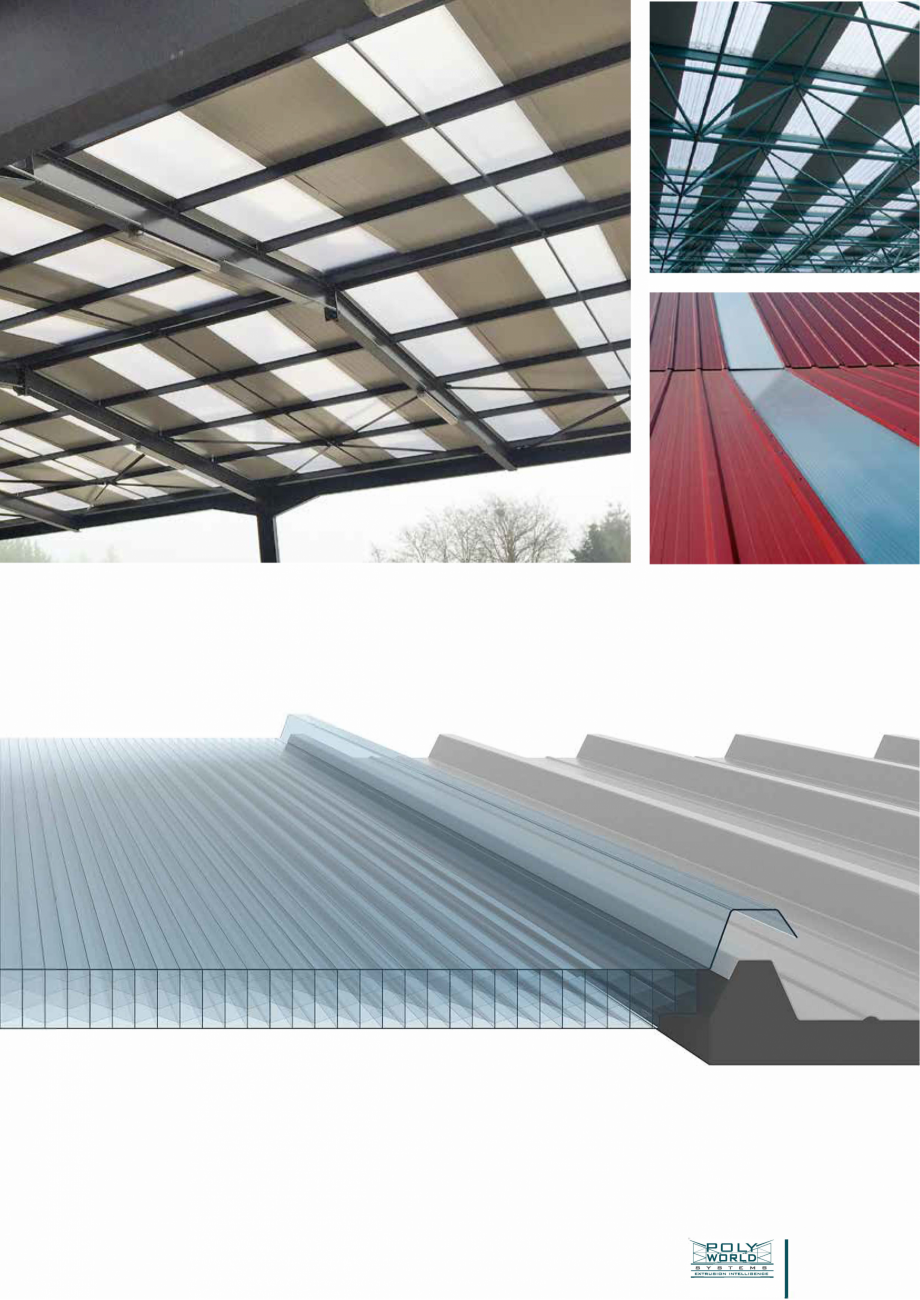

Pagina 4 - Sisteme modulare policarbonat structurat luminatoare GEPLAST COVERTECH Fisa tehnica...

uest); cover width of 1000 mm, length on request; estimated thermal transmittance Ug = 1,7 W/m2 K (for 25 mm thick.) / Ug = 1,4 W/m2 K (for 30 mm thick.) / Ug = 1,2 W/m2 K (for 40 mm thick.); ten-years limited warranty. □ □' It ..J ' == ' /4... □:' ►
