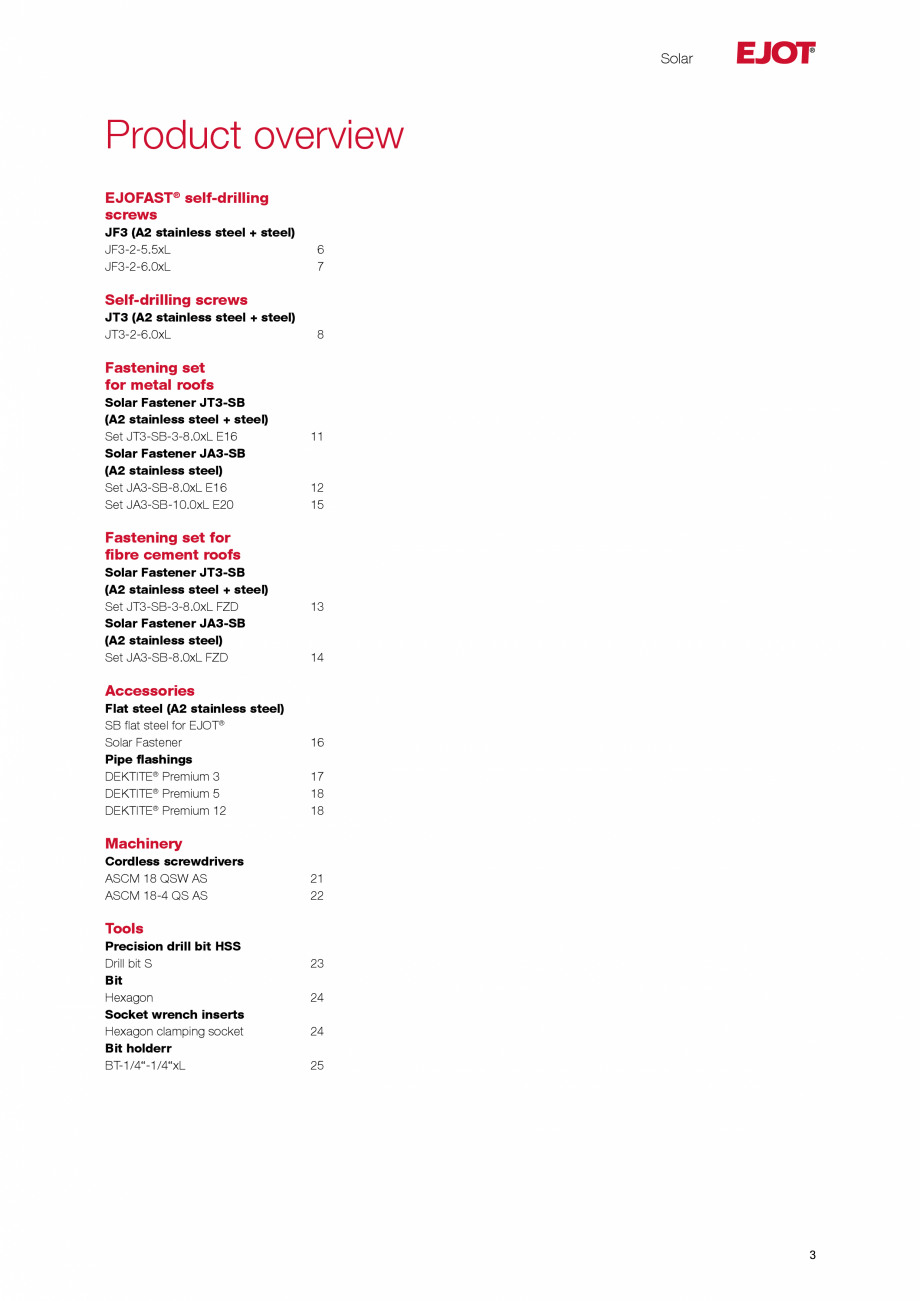

Applications | Products | Special Solar Fastening technology for solar and photovoltaic installations on trapezoidal profiles and sandwich panel roofs as well as for use on fibre cement roofs Bringing it together. Solar At home in many trades Overview of our catalogues Besides our comprehensive General Catalogue Building Fasteners, we offer you further catalogues on our business fields in addition to the individual catalogue Solar. Unlike the printed general catalogue, the individual catalogues are available exclusively in digital form. Applications | Products | Special Applications | Products | Special Applications | Products | Special Applications | Products | Special Whether for professional applications on building facades or for anchoring solutions of technical facilities inside the building – EJOT offers the right fastening solution for every application. Timber Construction Industrial Lightweight Construction Flat Roofing Rainscreen Facades High-quality fastening

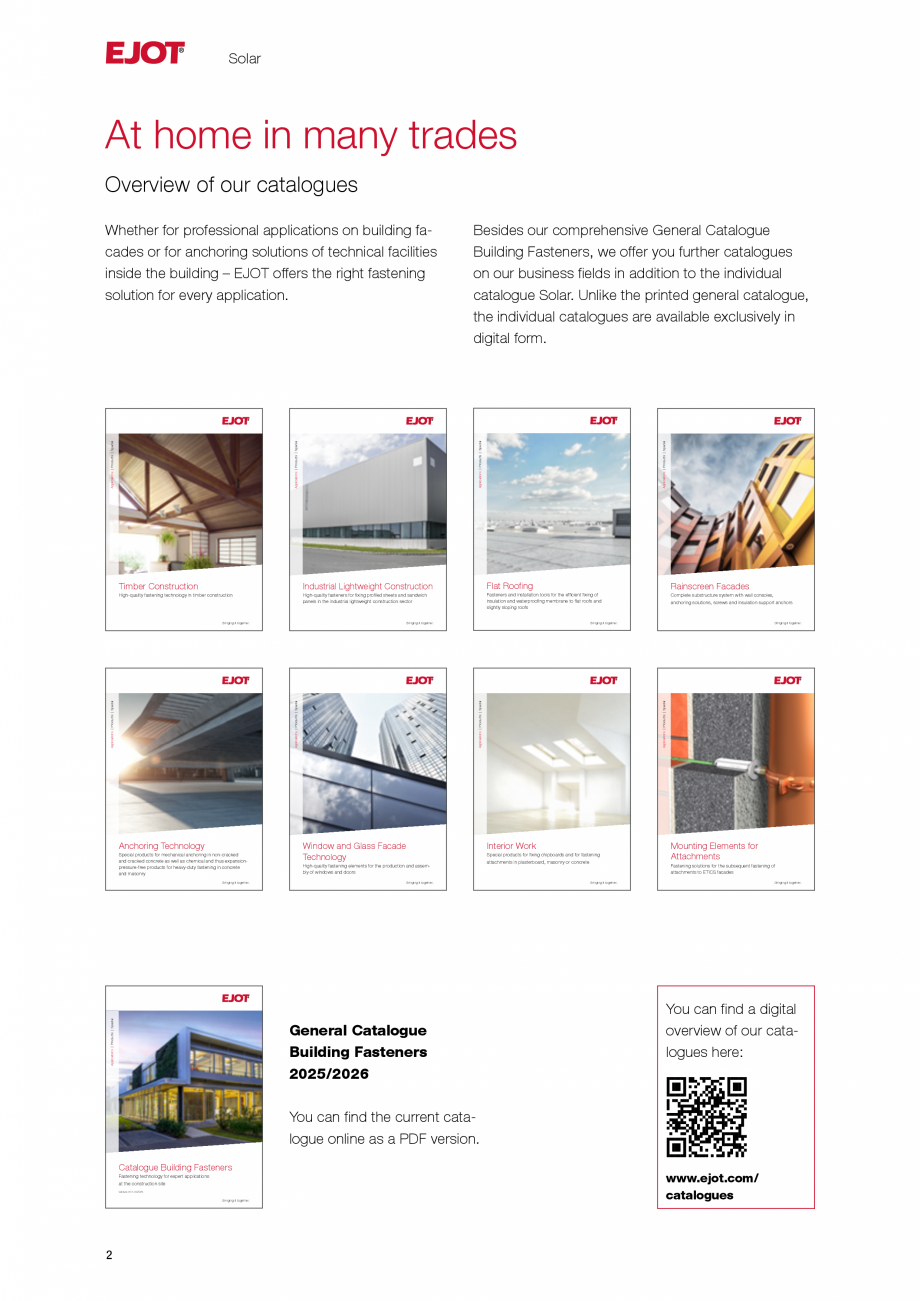

technology in timber construction High-quality fasteners for fixing profiled sheets and sandwich panels in the industrial lightweight construction sector Fasteners and installation tools for the efficient fixing of insulation and waterproofing membrane to flat roofs and slightly sloping roofs Complete substructure system with wall consoles, Special products for mechanical anchoring in non-cracked and cracked concrete as well as chemical and thus expansionpressure-free products for heavy-duty fastening in concrete and masonry Applications | Products | Special Bringing it together. Window and Glass Facade Technology Interior Work Special products for fixing chipboards and for fastening High-quality fastening elements for the production and assembly of windows and doors Bringing it together. General Catalogue Building Fasteners 2025/2026 Bringing it together. Applications | Products | Special Applications | Products | Special Applications | Products | Special Anchoring Tec

hnology anchoring solutions, screws and insulation support anchors Bringing it together. Bringing it together. Applications | Products | Special Bringing it together. attachments in plasterboard, masonry or concrete Mounting Elements for Attachments Fastening solutions for the subsequent fastening of attachments to ETICS facades Bringing it together. Bringing it together. You can find a digital overview of our catalogues here: You can find the current catalogue online as a PDF version. Catalogue Building Fasteners Fastening technology for expert applications at the construction site Valid as of 01.04.2025 Bringing it together. 12 www.ejot.com/ catalogues Solar Product overview EJOFAST® self-drilling screws JF3 (A2 stainless steel + steel) JF3-2-5.5xL JF3-2-6.0xL 6 7 Self-drilling screws JT3 (A2 stainless steel + steel) JT3-2-6.0xL 8 Fastening set for metal roofs Solar Fastener JT3-SB (A2 stainless steel + steel) Set JT3-SB-3-8.0xL E16 Solar Fastener JA3-SB (A2 stai

nless steel) Set JA3-SB-8.0xL E16 Set JA3-SB-10.0xL E20 11 12 15 Fastening set for fibre cement roofs Solar Fastener JT3-SB (A2 stainless steel + steel) Set JT3-SB-3-8.0xL FZD Solar Fastener JA3-SB (A2 stainless steel) Set JA3-SB-8.0xL FZD 13 14 Accessories Flat steel (A2 stainless steel) SB flat steel for EJOT® Solar Fastener Pipe flashings DEKTITE® Premium 3 DEKTITE® Premium 5 DEKTITE® Premium 12 16 17 18 18 Machinery Cordless screwdrivers ASCM 18 QSW AS ASCM 18-4 QS AS 21 22 Tools Precision drill bit HSS Drill bit S Bit Hexagon Socket wrench inserts Hexagon clamping socket Bit holderr BT-1/4“-1/4“xL 23 24 24 25 3 Application advice Technical abbreviations Abbreviation Description Unit DC Drilling capacity mm Fastening of solar and photovoltaic installations Description EJOT stocks a comprehensive portfolio of fastening solutions for solar plants on a wide variety of roof types and substrates. The portfolio includes a selection of self drilling screws wit

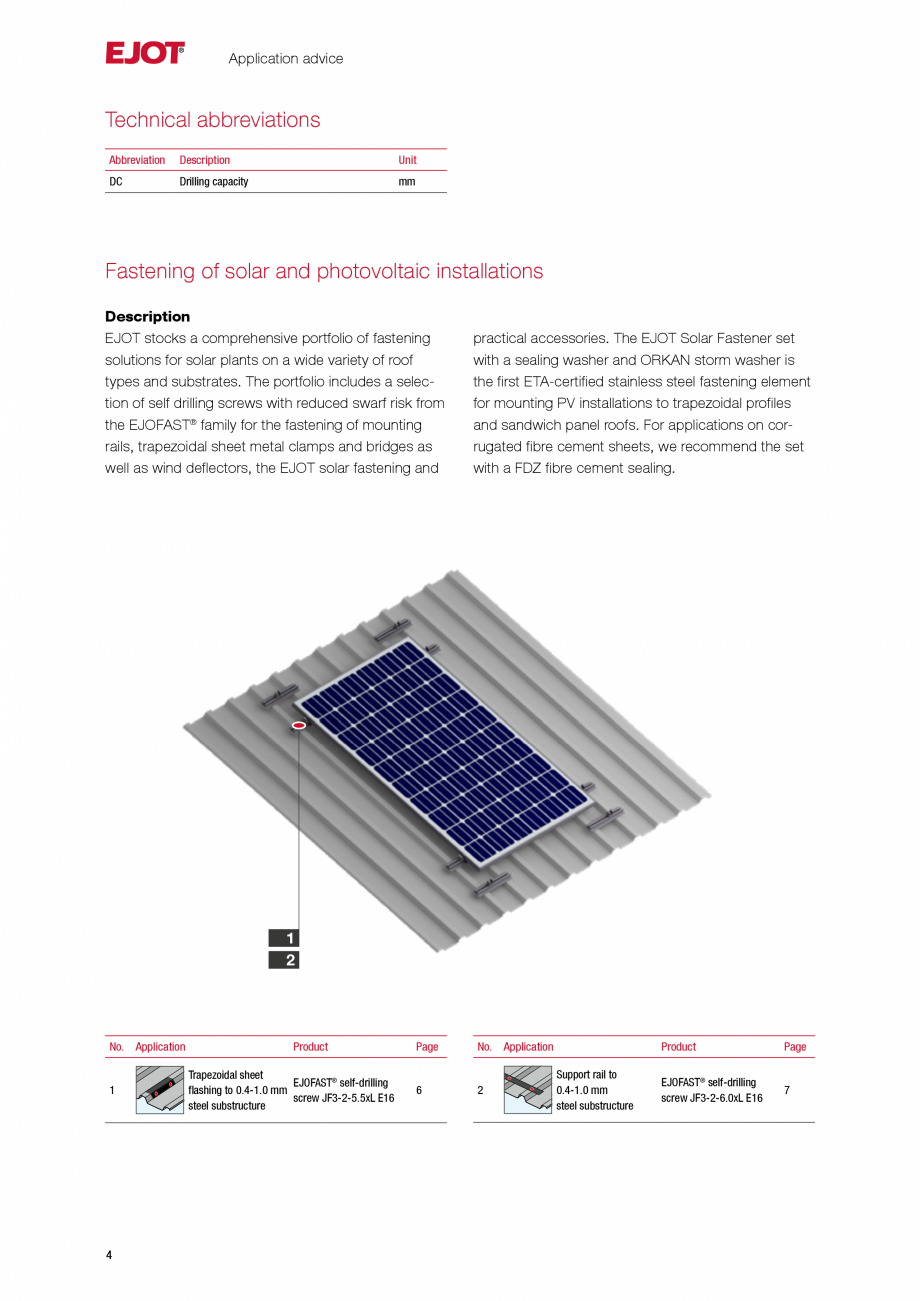

h reduced swarf risk from the EJOFAST® family for the fastening of mounting rails, trapezoidal sheet metal clamps and bridges as well as wind deflectors, the EJOT solar fastening and practical accessories. The EJOT Solar Fastener set with a sealing washer and ORKAN storm washer is the first ETA-certified stainless steel fastening element for mounting PV installations to trapezoidal profiles and sandwich panel roofs. For applications on corrugated fibre cement sheets, we recommend the set with a FDZ fibre cement sealing. 1 2 No. 1 4 Application Product Trapezoidal sheet EJOFAST® self-drilling flashing to 0.4-1.0 mm screw JF3-2-5.5xL E16 steel substructure Page No. 6 2 Application Support rail to 0.4-1.0 mm steel substructure Product Page EJOFAST® self-drilling screw JF3-2-6.0xL E16 7 Application advice 7 8 6 5 3 4 No. Application Product Page No. Application Product Page 3 Solar Fastener for trapezoidal profile to steel substructure Solar Fastener JT3

-SB-3-8.0xL storm washer 11 6 Solar Fastener Solar Fastener for JA3-SB-8.0xL trapezoidal profile to timber substructure storm washer 12 4 Solar Fastener for sandwich profile to steel substructure Solar Fastener JT3-SB-3-8.0xL storm washer 11 7 Solar Fastener Solar Fastener for JA3-SB-8.0xL sandwich profile to timber substructure storm washer 12 5 Solar Fastening System Solar Fastener for corrugated fibre JT3-SB-3-8.0xL cement profile sheet to FZD steel substructure 8 Solar Fastening System Solar Fastener for corrugated fibre JA3-SB-8.0xL cement profile sheet to FZD timber substructure 14 13 5 EJOFAST® self-drilling-screws JF3 (A2 stainless steel + steel) EJOFAST® self-drilling screw JF3-2-5.5 Application range Applications astening components and brackets to thin-walled metal proF files for photovoltaic installations: > Fastening trapezoidal sheet flashings, clips for fixing standing seam systems or pre-punched retainers to thin-walled steel substructures (e

.g. profiled sheets) > Fixing wind deflector sheets to profiled elements Technical specifications Properties Cross references page Cordless screwdriver ASCM QSW Socket wrench insert SW8 21 24 > > > > > > A2 stainless steel with hardened steel point tainless steel sealing washer S Pre-assembled sealing washer Non-skid application Reduced swarf fastening High load-bearing capacity SW8 5.5 0.88 1.0 + 0.88 1.0 max. 1800 E16 Certifications ETA-21/0421 ETA-22/0126 Z-14.4-426 Installation process Product online Application example Fixing wind deflector sheets to elevated flat roof systems Length [mm] Clamping thickness PU [mm] [pieces] JF3-2-5.5x25 E16 25 0–7 500 3597211391 4061245015040 JF3-2-5.5x25 E16 VE100 25 0–7 100 6597211391 4061245014609 JF3-2-5.5x35 E16 35 0 – 17 500 3597511391 4061245015026 Order description Price/100 Article number [EUR] EAN Sealing washer E16, Ø 16 mm 6 EJOFAST® self-drilling-screws JF3 (A2 stainless steel

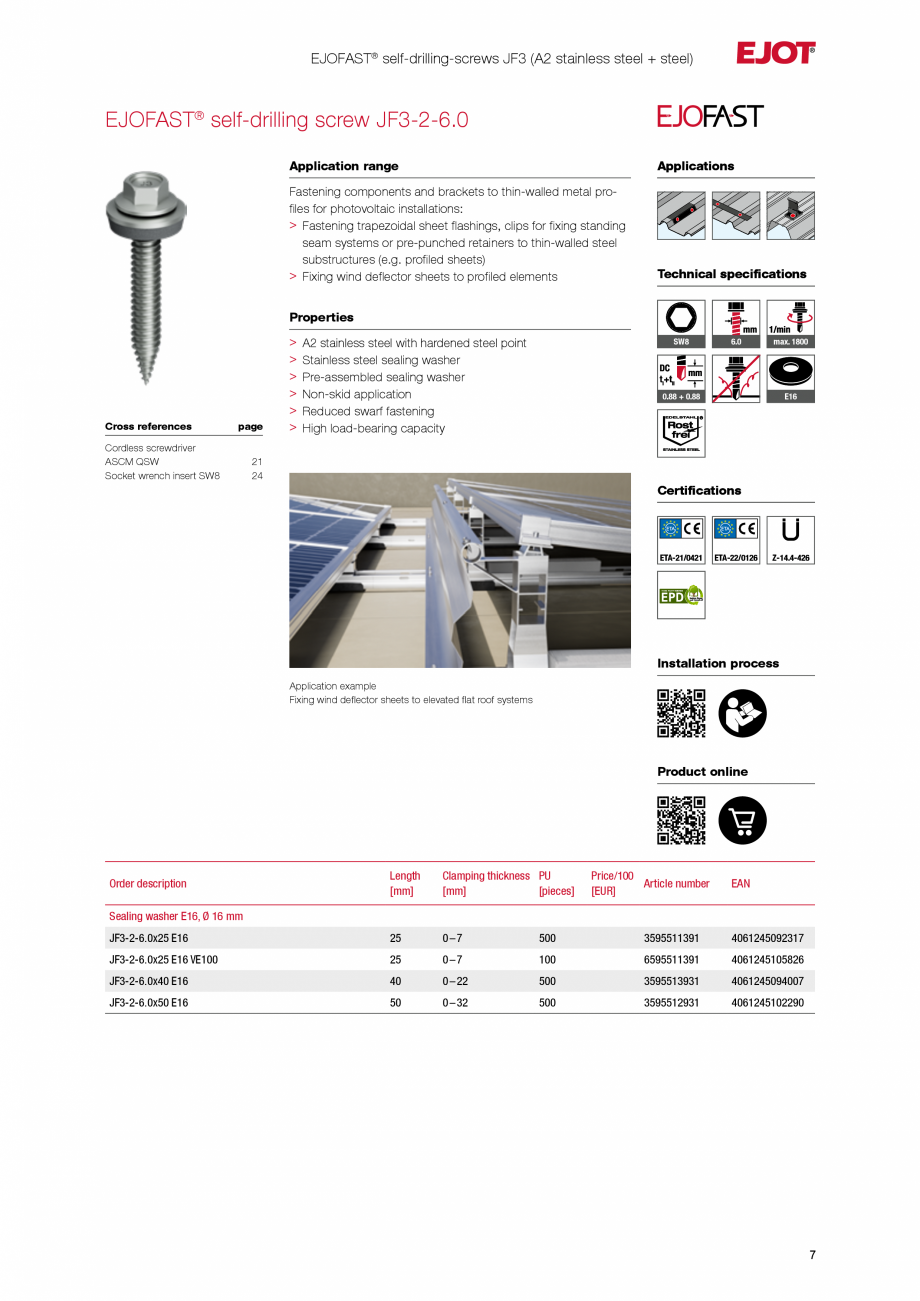

+ steel) EJOFAST® self-drilling screw JF3-2-6.0 Application range Applications astening components and brackets to thin-walled metal proF files for photovoltaic installations: > Fastening trapezoidal sheet flashings, clips for fixing standing seam systems or pre-punched retainers to thin-walled steel substructures (e.g. profiled sheets) > Fixing wind deflector sheets to profiled elements Technical specifications Properties Cross references page Cordless screwdriver ASCM QSW Socket wrench insert SW8 > > > > > > A2 stainless steel with hardened steel point tainless steel sealing washer S Pre-assembled sealing washer Non-skid application Reduced swarf fastening High load-bearing capacity SW8 5.5 6.0 max. 1800 0.88 1.0 + 0.88 1.0 E16 21 24 Certifications ETA-21/0421 ETA-22/0126 Z-14.4-426 Installation process Application example Fixing wind deflector sheets to elevated flat roof systems Product online Length [mm] Clamping thickness PU [mm] [pieces] JF3-2-6

.0x25 E16 25 0–7 500 3595511391 4061245092317 JF3-2-6.0x25 E16 VE100 25 0–7 100 6595511391 4061245105826 JF3-2-6.0x40 E16 40 0 – 22 500 3595513931 4061245094007 JF3-2-6.0x50 E16 50 0 – 32 500 3595512931 4061245102290 Order description Price/100 Article number [EUR] EAN Sealing washer E16, Ø 16 mm 7 Self-drilling screws JT3 (A2 stainless steel + steel) Self-drilling screw JT3-2-6.0 Application range Applications > F astening profiled aluminium sheets to thin-walled steel, aluminium or timber substructures > Fixing standing seam systems (clips) Properties > A2 stainless steel with hardened steel drill point > Stainless steel sealing washer > Pre-assembled sealing washer Cross references Technical specifications SW8 6.0 1.0 + 1.0 E16 max. 1500 page Cordless screwdriver ASCM QSW Socket wrench insert SW8 21 24 Certifications Installation process ETA-10/0200 Z-14.4-426 Z-14.4-901 Product online Length [mm] Clamping thickness PU [m

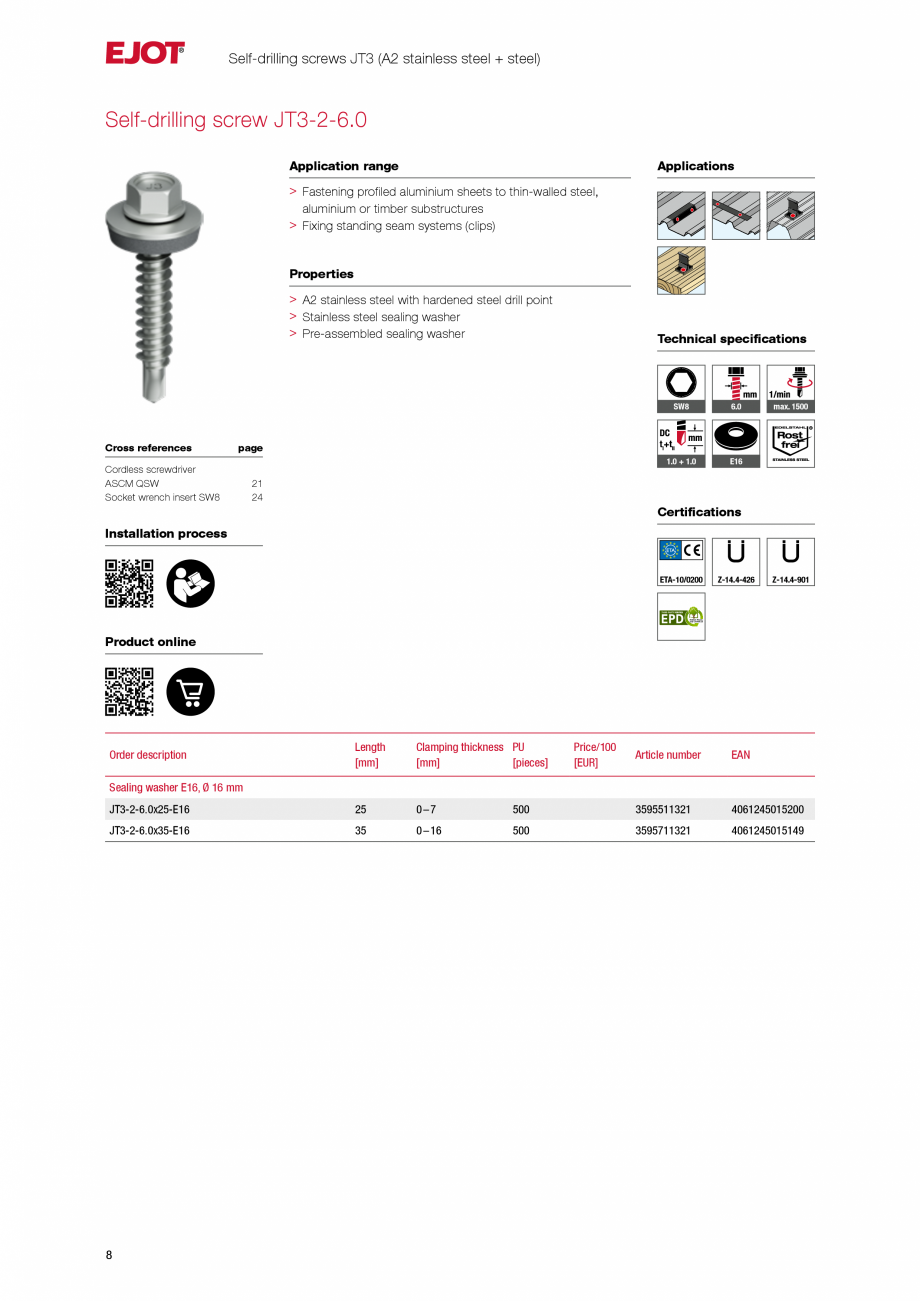

m] [pieces] JT3-2-6.0x25-E16 25 0–7 JT3-2-6.0x35-E16 35 0 – 16 Order description Price/100 [EUR] Article number EAN 500 3595511321 4061245015200 500 3595711321 4061245015149 Sealing washer E16, Ø 16 mm 8 Solar Fastener The EJOT® Solar Fastener Load transfer directly into the substructure The EJOT Solar Fastener set with sealing washer and ORKAN storm washer is the first ETA-certified stainless steel fastening element for fixing photovoltaic installations to trapezoidal profiles and sandwich panel roofs. For applications on corrugated fibre cement sheets, we recommend the set with an FDZ fibre cement seal. The main benefit is that all tensile and compressive forces are transferred directly into the substructure. The bottom part of the fastener with drill point is fixed directly into the substructure in a single operation without any pre-drilling. The top part has a welded-on set screw to hold the mounting rails for the solar installation. The range is suppleme

nted by an assortment of sealing elements and adapters. Advantages > Quick retrofitting on existing installations > Extremely safe fastening with direct load transfer into the substructure > No additional holes in the roofing membrane > Consistent installation depth > Use of proven sealing systems > ETA-22/0762-certified (only Solar Fastener set with sealing washer + ORKAN storm washer) > Durable seal due to solid attachment point > Minimum installation and tool requirements > Project-related initial sizing possible Set screw M10xL with drive SW5 M10 lock nut DIN EN ISO 10511 Plain washer M10 DIN EN ISO 7089 Hex nut M10 DIN EN ISO 4032 Fibre cement seal FZD with A2 stainless steel spreader washer SB flat steel accessories Bonded washer E16 Self-tapping screw JA3-8.0xL ORKAN storm washer Self-drilling screw JT3-SB-3-8.0xL Hardened steel drill point with Drilling performance of 1.5 – 3 mm 9 Solar Fastener Product selection depending on roof structure JA thread for timber

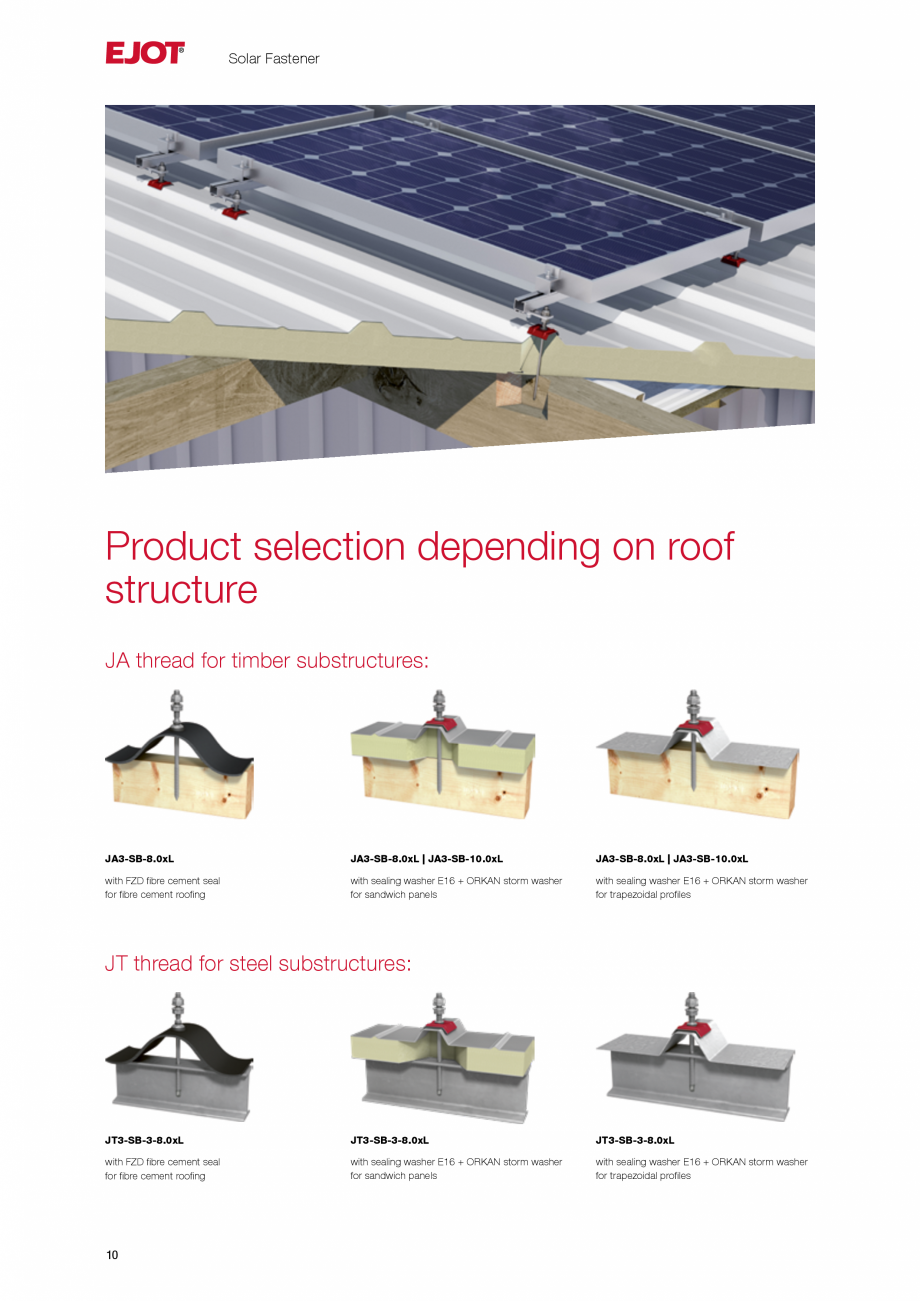

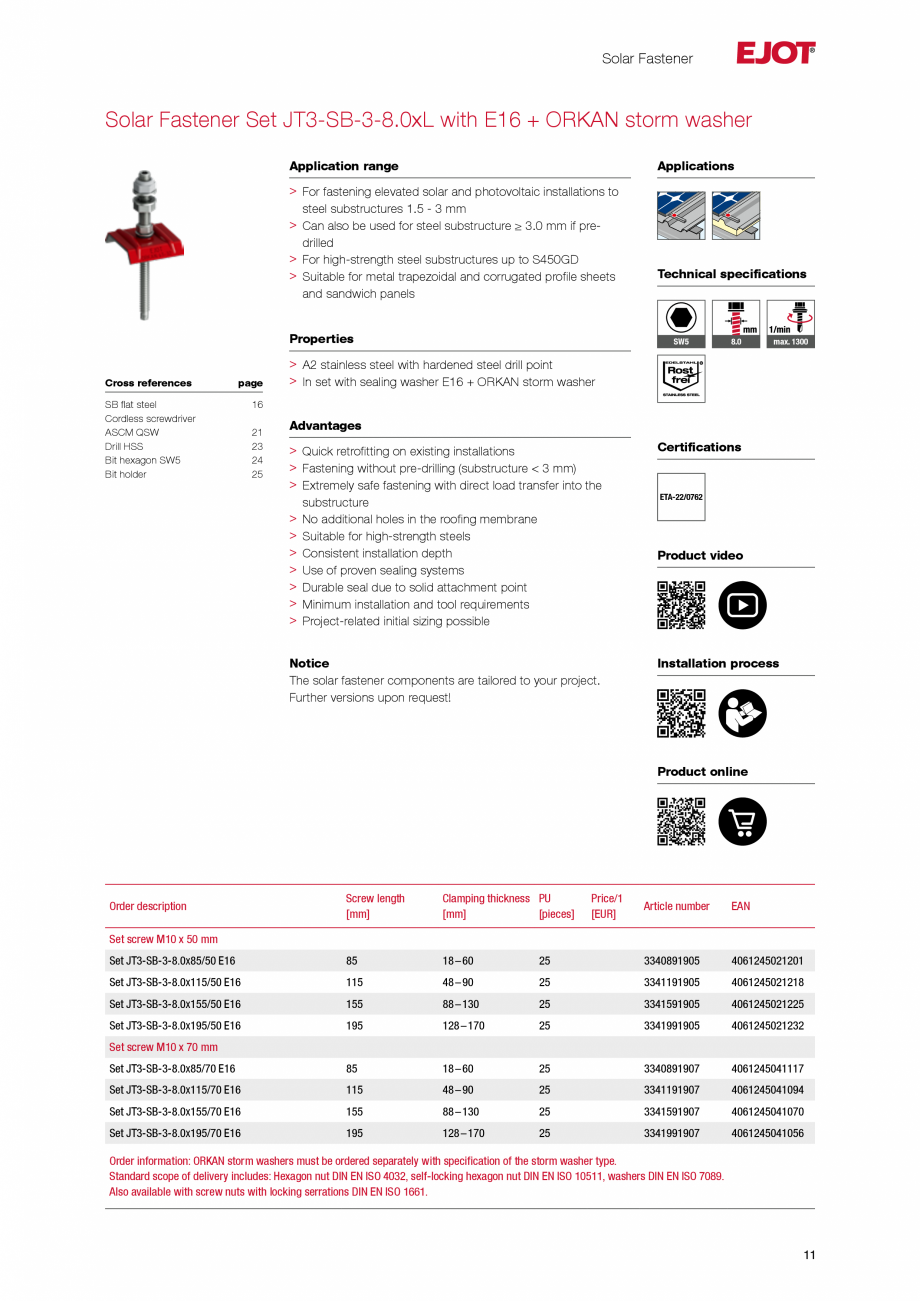

substructures: JA3-SB-8.0xL JA3-SB-8.0xL | JA3-SB-10.0xL JA3-SB-8.0xL | JA3-SB-10.0xL with FZD fibre cement seal for fibre cement roofing with sealing washer E16 + ORKAN storm washer for sandwich panels with sealing washer E16 + ORKAN storm washer for trapezoidal profiles JT thread for steel substructures: JT3-SB-3-8.0xL JT3-SB-3-8.0xL JT3-SB-3-8.0xL with FZD fibre cement seal for fibre cement roofing with sealing washer E16 + ORKAN storm washer for sandwich panels with sealing washer E16 + ORKAN storm washer for trapezoidal profiles 10 Solar Fastener Solar Fastener Set JT3-SB-3-8.0xL with E16 + ORKAN storm washer Application range Applications > F or fastening elevated solar and photovoltaic installations to steel substructures 1.5 - 3 mm > Can also be used for steel substructure ≥ 3.0 mm if predrilled > For high-strength steel substructures up to S450GD > Suitable for metal trapezoidal and corrugated profile sheets and sandwich panels Properties Cross refer

ences page SB flat steel Cordless screwdriver ASCM QSW Drill HSS Bit hexagon SW5 Bit holder Technical specifications SW5 8.0 max. 1300 > A2 stainless steel with hardened steel drill point > In set with sealing washer E16 + ORKAN storm washer 16 21 23 24 25 Advantages > Q uick retrofitting on existing installations > Fastening without pre-drilling (substructure < 3 mm) > Extremely safe fastening with direct load transfer into the substructure > No additional holes in the roofing membrane > Suitable for high-strength steels > Consistent installation depth > Use of proven sealing systems > Durable seal due to solid attachment point > Minimum installation and tool requirements > Project-related initial sizing possible Certifications Notice The solar fastener components are tailored to your project. Further versions upon request! Installation process ETA-22/0762 Product video Product online Order description Screw length [mm] Clamping thickness PU [mm] [pieces] Price/1

[EUR] Article number EAN Set screw M10 x 50 mm Set JT3-SB-3-8.0x85/50 E16 85 18 – 60 25 3340891905 4061245021201 Set JT3-SB-3-8.0x115/50 E16 115 48 – 90 25 3341191905 4061245021218 Set JT3-SB-3-8.0x155/50 E16 155 88 – 130 25 3341591905 4061245021225 Set JT3-SB-3-8.0x195/50 E16 195 128 – 170 25 3341991905 4061245021232 Set screw M10 x 70 mm Set JT3-SB-3-8.0x85/70 E16 85 18 – 60 25 3340891907 4061245041117 Set JT3-SB-3-8.0x115/70 E16 115 48 – 90 25 3341191907 4061245041094 Set JT3-SB-3-8.0x155/70 E16 155 88 – 130 25 3341591907 4061245041070 Set JT3-SB-3-8.0x195/70 E16 195 128 – 170 25 3341991907 4061245041056 Order information: ORKAN storm washers must be ordered separately with specification of the storm washer type. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089. Also available with screw nuts with locking serrations DIN EN ISO 1661.

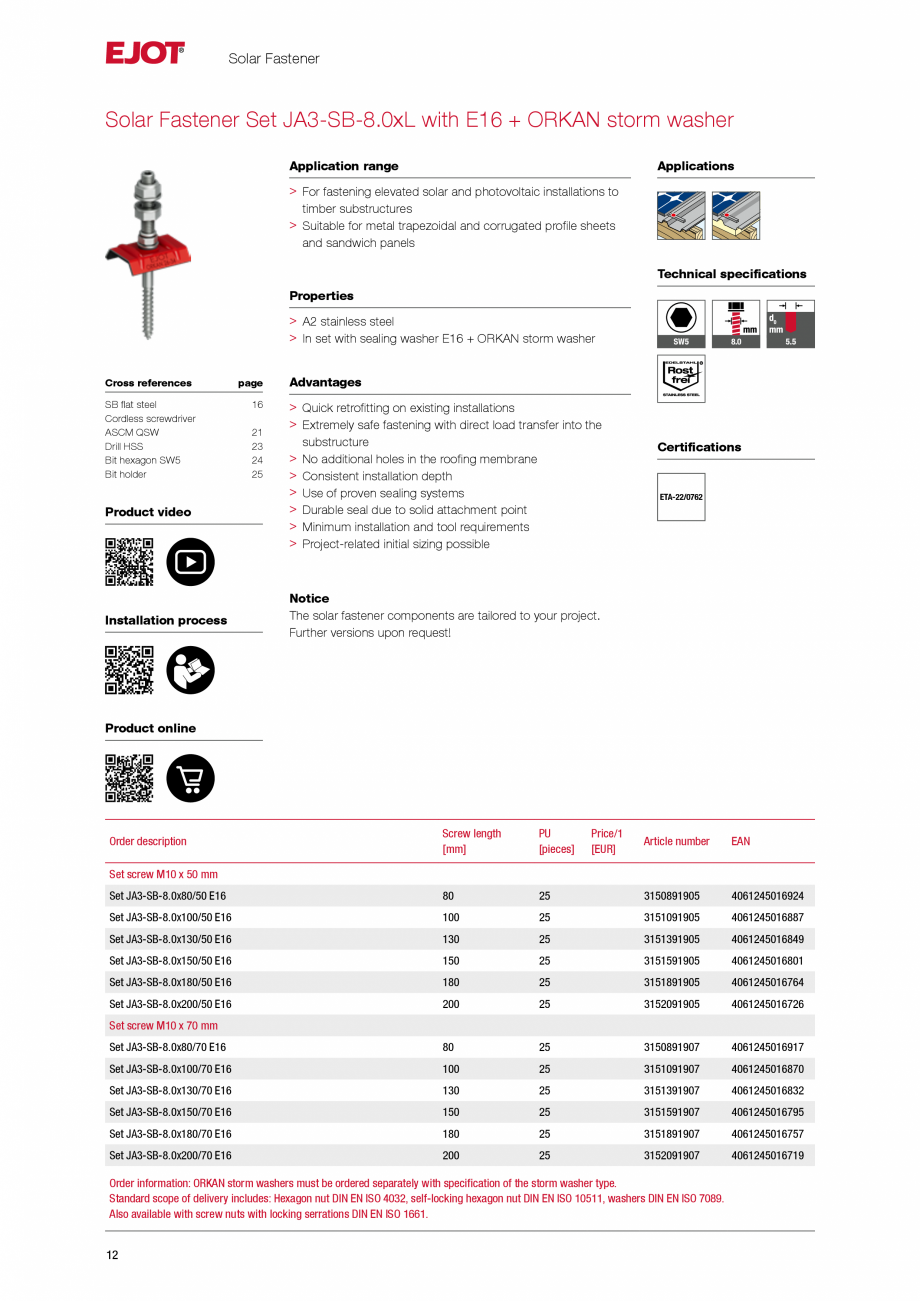

11 Solar Fastener Solar Fastener Set JA3-SB-8.0xL with E16 + ORKAN storm washer Application range Applications > F or fastening elevated solar and photovoltaic installations to timber substructures > Suitable for metal trapezoidal and corrugated profile sheets and sandwich panels Technical specifications Properties > A2 stainless steel > In set with sealing washer E16 + ORKAN storm washer Cross references SB flat steel Cordless screwdriver ASCM QSW Drill HSS Bit hexagon SW5 Bit holder Product video Installation process page 16 21 23 24 25 SW5 8.0 5.5 Advantages > Quick retrofitting on existing installations > Extremely safe fastening with direct load transfer into the substructure > No additional holes in the roofing membrane > Consistent installation depth > Use of proven sealing systems > Durable seal due to solid attachment point > Minimum installation and tool requirements > Project-related initial sizing possible Certifications ETA-22/0762 Notice The solar faste

ner components are tailored to your project. Further versions upon request! Product online Screw length [mm] PU [pieces] Set JA3-SB-8.0x80/50 E16 80 Set JA3-SB-8.0x100/50 E16 Set JA3-SB-8.0x130/50 E16 Order description Price/1 [EUR] Article number EAN 25 3150891905 4061245016924 100 25 3151091905 4061245016887 130 25 3151391905 4061245016849 Set JA3-SB-8.0x150/50 E16 150 25 3151591905 4061245016801 Set JA3-SB-8.0x180/50 E16 180 25 3151891905 4061245016764 Set JA3-SB-8.0x200/50 E16 200 25 3152091905 4061245016726 Set JA3-SB-8.0x80/70 E16 80 25 3150891907 4061245016917 Set JA3-SB-8.0x100/70 E16 100 25 3151091907 4061245016870 Set JA3-SB-8.0x130/70 E16 130 25 3151391907 4061245016832 Set JA3-SB-8.0x150/70 E16 150 25 3151591907 4061245016795 Set JA3-SB-8.0x180/70 E16 180 25 3151891907 4061245016757 Set JA3-SB-8.0x200/70 E16 200 25 3152091907 4061245016719 Set screw M10 x 50 mm Set screw M10 x 70 mm Order information: ORKA

N storm washers must be ordered separately with specification of the storm washer type. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089. Also available with screw nuts with locking serrations DIN EN ISO 1661. 12 Solar Fastener Solar Fastener Set JT3-SB-3-8.0 xL with FZD fibre cement seal Application range Applications > F or fastening elevated solar and photovoltaic installations to steel substructures 1.5-3 mm > Can also be used for steel substructure ≥ 3.0 mm if predrilled > For high-strength steel substructures up to S450GD > Suitable for corrugated fibre cement profile sheets Technical specifications Properties > A2 stainless steel with hardened steel drill point > In set with FZD fibre cement seal Cross references page SB flat steel Cordless screwdriver ASCM QSW Drill HSS Bit hexagon SW5 Bit holder 16 21 23 24 25 SW5 max. 1300 Advantages > Q uick retrofitting on existing in

stallations > Fastening without pre-drilling (substructure < 3 mm) > Extremely safe fastening with direct load transfer into the substructure > No additional holes in the roofing membrane > Suitable for high-strength steels > Consistent installation depth > Use of proven sealing systems > Durable seal due to solid attachment point > Minimum installation and tool requirements > Project-related initial sizing possible Notice The solar fastener components are tailored to your project. Further versions upon request! Order description 8.0 Screw length [mm] Clamping thickness PU [mm] [pieces] Price/1 [EUR] Product video Installation process Product online Article number EAN Set screw M10 x 50 mm Set JT3-SB-3-8.0x85/50 FZD 85 17 – 58 25 3340898905 4061245021249 Set JT3-SB-3-8.0x115/50 FZD 115 47 – 88 25 3341198905 4061245021256 Set JT3-SB-3-8.0x155/50 FZD 155 87 – 128 25 3341598905 4061245021263 Set JT3-SB-3-8.0x195/50 FZD 195 127 – 168 25 3341998905

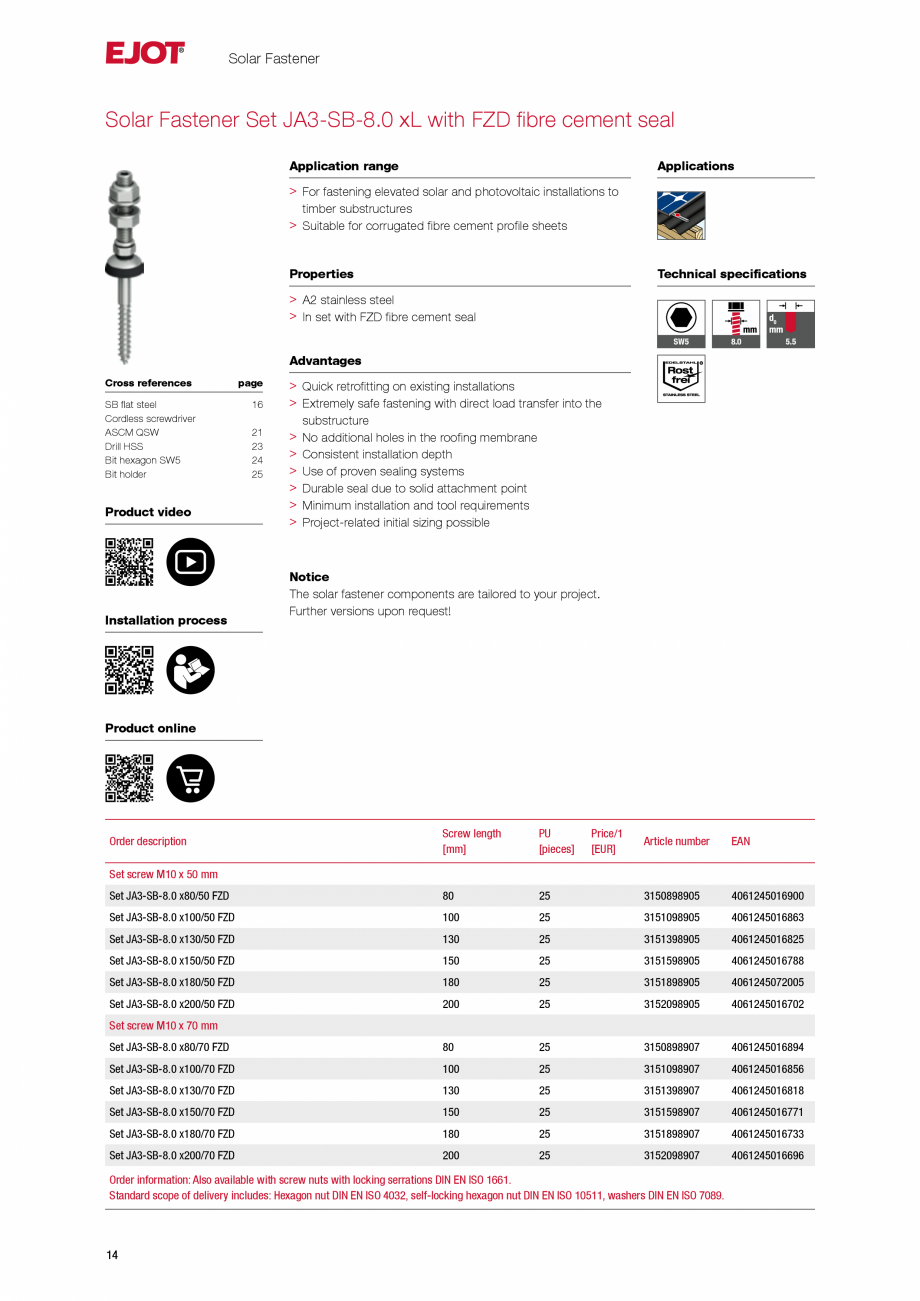

4061245021270 85 17 – 58 25 3340898907 4061245041100 Set screw M10 x 70 mm Set JT3-SB-3-8.0x85/70 FZD Set JT3-SB-3-8.0x115/70 FZD 115 47 – 88 25 3341198907 4061245041087 Set JT3-SB-3-8.0x155/70 FZD 155 87 – 128 25 3341598907 4061245041063 Set JT3-SB-3-8.0x195/70 FZD 195 127 – 168 25 3341998907 4061245041049 Order information: Also available with screw nuts with locking serrations DIN EN ISO 1661. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089. 13 Solar Fastener Solar Fastener Set JA3-SB-8.0 xL with FZD fibre cement seal Application range Applications > F or fastening elevated solar and photovoltaic installations to timber substructures > Suitable for corrugated fibre cement profile sheets Properties Technical specifications > A2 stainless steel > In set with FZD fibre cement seal SW5 8.0 5.5 Advantages Cross references SB flat steel Cordless screwdriver AS

CM QSW Drill HSS Bit hexagon SW5 Bit holder Product video Installation process page 16 21 23 24 25 > Q uick retrofitting on existing installations > Extremely safe fastening with direct load transfer into the substructure > No additional holes in the roofing membrane > Consistent installation depth > Use of proven sealing systems > Durable seal due to solid attachment point > Minimum installation and tool requirements > Project-related initial sizing possible Notice The solar fastener components are tailored to your project. Further versions upon request! Product online Screw length [mm] PU [pieces] Set JA3-SB-8.0 x80/50 FZD 80 Set JA3-SB-8.0 x100/50 FZD Set JA3-SB-8.0 x130/50 FZD Order description Price/1 [EUR] Article number EAN 25 3150898905 4061245016900 100 25 3151098905 4061245016863 130 25 3151398905 4061245016825 Set JA3-SB-8.0 x150/50 FZD 150 25 3151598905 4061245016788 Set JA3-SB-8.0 x180/50 FZD 180 25 3151898905 4061245072005 Set JA3-SB

-8.0 x200/50 FZD 200 25 3152098905 4061245016702 Set JA3-SB-8.0 x80/70 FZD 80 25 3150898907 4061245016894 Set JA3-SB-8.0 x100/70 FZD 100 25 3151098907 4061245016856 Set JA3-SB-8.0 x130/70 FZD 130 25 3151398907 4061245016818 Set JA3-SB-8.0 x150/70 FZD 150 25 3151598907 4061245016771 Set JA3-SB-8.0 x180/70 FZD 180 25 3151898907 4061245016733 Set JA3-SB-8.0 x200/70 FZD 200 25 3152098907 4061245016696 Set screw M10 x 50 mm Set screw M10 x 70 mm Order information: Also available with screw nuts with locking serrations DIN EN ISO 1661. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089. 14 Solar Fastener Solar Fastener Set JA3-SB-10.0xL with E20 + ORKAN storm washer Application range Applications > F or fastening elevated solar and photovoltaic installations to timber substructures > Suitable for metal trapezoidal and corrugated profile sheets and sandwich panels Te

chnical specifications Properties > A2 stainless steel > In set with sealing washer E20 + ORKAN storm washer SW5 10.0 7.0 Advantages Cross references SB flat steel Cordless screwdriver ASCM QSW Drill HSS Bit hexagon SW5 Bit holder page 16 21 23 24 25 > Quick retrofitting on existing installations > Extremely safe fastening with direct load transfer into the substructure > No additional holes in the roofing membrane > Consistent installation depth > Use of proven sealing systems > Durable seal due to solid attachment point > Minimum installation and tool requirements > Project-related initial sizing possible Notice The solar fastener components are tailored to your project. Further versions upon request! Certifications ETA-22/0762 Installation process Product online Screw length [mm] PU [pieces] Set JA3-SB-10.0x200/50 E20 200 Set JA3-SB-10.0x220/50 E20 220 Set JA3-SB-10.0x240/50 E20 Set JA3-SB-10.0x260/50 E20 Order description Price/1 [EUR] Article number EAN 25

3162092905 4061245087047 25 3162292905 4061245087054 240 25 3162492905 4061245087061 260 25 3162692905 4061245105758 Set JA3-SB-10.0x280/50 E20 280 25 3162892905 4061245087078 Set JA3-SB-10.0x300/50 E20 300 25 3163092905 4061245087085 Set JA3-SB-10.0x200/70 E20 200 25 3162092907 4061245105765 Set JA3-SB-10.0x220/70 E20 220 25 3162292907 4061245057132 Set JA3-SB-10.0x240/70 E20 240 25 3162492907 4061245105772 Set JA3-SB-10.0x260/70 E20 260 25 3162692907 4061245105789 Set JA3-SB-10.0x280/70 E20 280 25 3162851907 4061245105796 Set JA3-SB-10.0x300/70 E20 300 25 3163092907 4061245106007 Set screw M10 x 50 mm Set screw M10 x 70 mm Order information: ORKAN storm washers must be ordered separately with specification of the storm washer type. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089. Also available with screw nuts with locking serrations DIN EN ISO 1

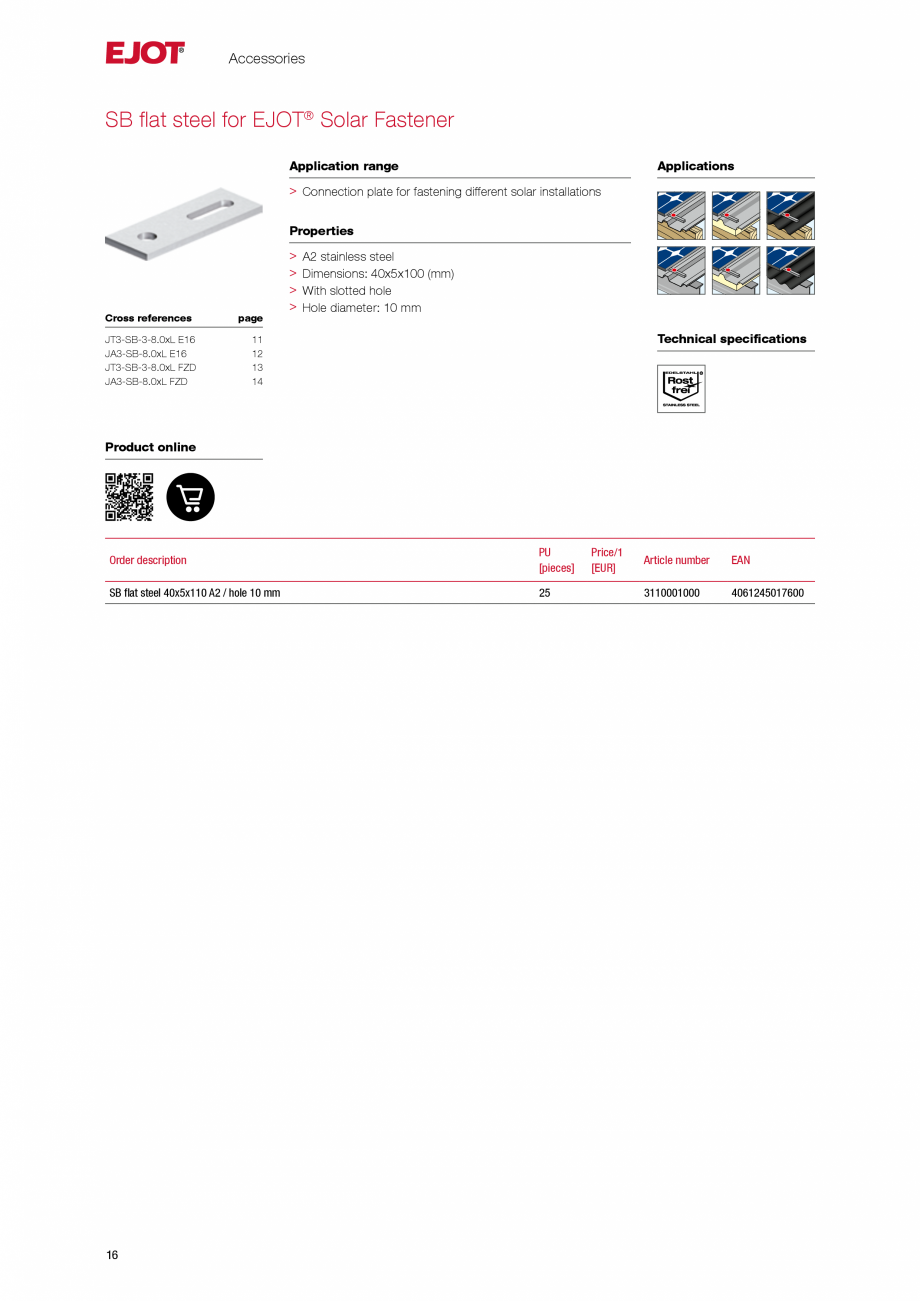

661. 15 Accessories SB flat steel for EJOT® Solar Fastener Application range Applications > Connection plate for fastening different solar installations Properties Cross references JT3-SB-3-8.0xL E16 JA3-SB-8.0xL E16 JT3-SB-3-8.0xL FZD JA3-SB-8.0xL FZD page > > > > A2 stainless steel Dimensions: 40x5x100 (mm) With slotted hole Hole diameter: 10 mm Technical specifications 11 12 13 14 Product online Order description PU [pieces] SB flat steel 40x5x110 A2 / hole 10 mm 25 16 Price/1 [EUR] Article number EAN 3110001000 4061245017600 Accessories DEKTITE® Premium 3 Application range Included in delivery > Ideal for solar installations and PV > For up to 2 cables Ø 4-8 mm and 1 pipe Ø ≤ 35 mm 1 pipe flashing 1 cartridge of EJOPLAST joint sealant 1 self-drilling screw set - optionally folding blind rivet set Properties > Version EDPM (black) > Temperature resistance EPDM (black or grey) permanent 50 °C to +115 °C, short-term up to +150 °C > Temperature r

esistance silikone (red) permanent 50 °C to +200 °C, short-term up to +250 °C > 20-year warranty on material Notice Use folding blind rivets for fibre cement boards. Profile height max. 45 mm. For pipe Order description diameter [mm] Base [mm] Roof pitch [°] Content Cartridge [ml] Content Screw [pieces] PU [pieces] DFE 100 BS 100 x 100 0 – 60 80 8 1 0 – 35 Price/1 [EUR] Product online Article number EAN 8250004704 4061245013633 Order information: All versions also available in grey (EPDM) and red (silicone) Further versions available DEKTITE® Square set 17 Accessories DEKTITE® Premium 5 Application range Included in delivery > Ideal for solar installations and PV > For up to 4 cables Ø 4-8 mm and 1 pipe Ø ≤ 5-55 mm 1 pipe flashing 1 cartridge of EJOPLAST joint sealant 1 self-drilling screw set optionally folding blind rivet set Properties > V ersion EDPM (black) > Temperature resistance EPDM (black or grey) permanent 50 °C to +115 °C, sh

ort-term up to +150 °C > Temperature resistance silikone (red) permanent 50 °C to +200 °C, short-term up to +250 °C > 20-year warranty on material Notice Use folding blind rivets for fibre cement boards. Profile height max. 45 mm. Product online For pipe Order description diameter [mm] Base [mm] Roof pitch [°] Content Cartridge [ml] Content Screw [pieces] PU [pieces] DFE 101 BS 139 x 139 0 – 60 80 8 1 5 – 55 Price/1 [EUR] Article number EAN 8250104704 4061245013626 Order information: All versions also available in grey (EPDM) and red (silicone) DEKTITE® Premium 12 Application range Included in delivery > Ideal for PV > For up to 12 cables Ø 4-8 mm 1 pipe flashing 1 cartridge of EJOPLAST joint sealant 1 self-drilling screw set optionally folding blind rivet set Properties > Version EDPM (black) > Temperature resistance EPDM (black or grey) permanent 50 °C to +115 °C, short-term up to +150 °C > 20-year warranty on material Product online Notice

Use folding blind rivets for fibre cement boards. Profile height max. 45 mm. Order description Base [mm] Roof pitch [°] Content Cartridge [ml] Content Screw [pieces] PU [pieces] DFE 101 BM 139 x 139 0 – 60 80 8 1 Order information: All versions also available in grey (EPDM). 18 Price/1 [EUR] Article number EAN 8250000704 4061245013640 Solar 19 Machinery, Spare Parts, Tools Machinery Spare Parts Tools 20 Machinery, Spare Parts, Tools Cordless screwdriver ASCM 18 QSW AS Application range 3-year FEIN PLUS Warranty including battery and charger (if registered online) > T orque-optimized cordless screwgun with four gears for fixing metal with screw diameters of up to 6.0 mm Properties Scope of delivery 1 ASCM 18 QSW AS (without battery pack or battery charger) 1 plastic tool case 1 scaffolding anchor 1 socket for hexagon screws SW 8 1 removable full metal drill chuck > 4-gear full metal gear unit > Mechanical torque adjustment > Tool-free change of

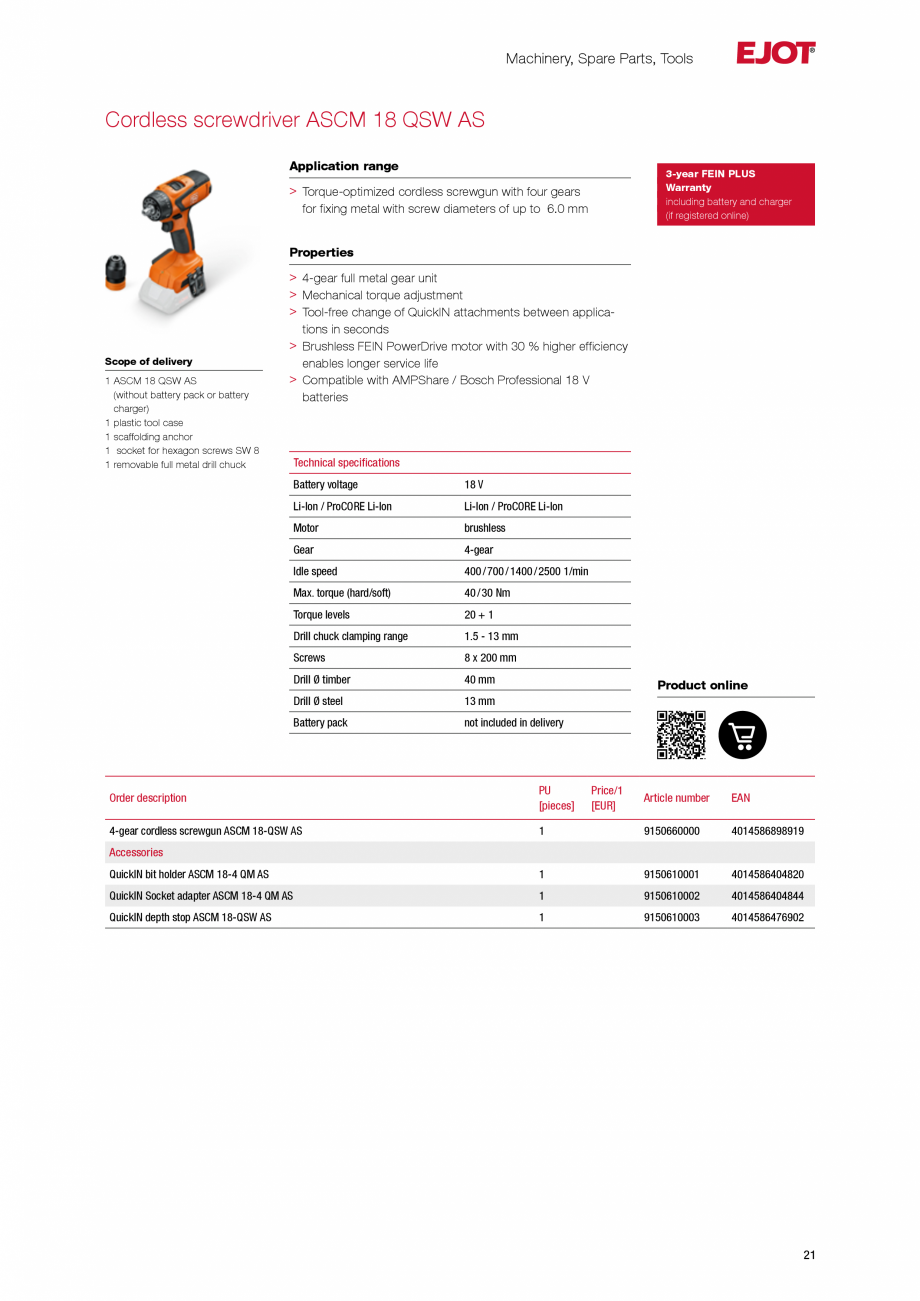

QuickIN attachments between applications in seconds > Brushless FEIN PowerDrive motor with 30 % higher efficiency enables longer service life > Compatible with AMPShare / Bosch Professional 18 V batteries Technical specifications Battery voltage 18 V Li-Ion / ProCORE Li-Ion Li-Ion / ProCORE Li-Ion Motor brushless Gear 4-gear Idle speed 400 / 700 / 1400 / 2500 1/min Max. torque (hard/soft) 40 / 30 Nm Torque levels 20 + 1 Drill chuck clamping range 1.5 - 13 mm Screws 8 x 200 mm Drill Ø timber 40 mm Drill Ø steel 13 mm Battery pack not included in delivery Product online Order description PU [pieces] 4-gear cordless screwgun ASCM 18-QSW AS Price/1 [EUR] Article number EAN 1 9150660000 4014586898919 QuickIN bit holder ASCM 18-4 QM AS 1 9150610001 4014586404820 QuickIN Socket adapter ASCM 18-4 QM AS 1 9150610002 4014586404844 QuickIN depth stop ASCM 18-QSW AS 1 9150610003 4014586476902 Accessories 21 Machinery, Spare Parts, Tools Cordles
