Sistem mecanic de parcare WÖHR PARKLIFT 461/462

Limba: Engleza

1 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza Data Sheet...

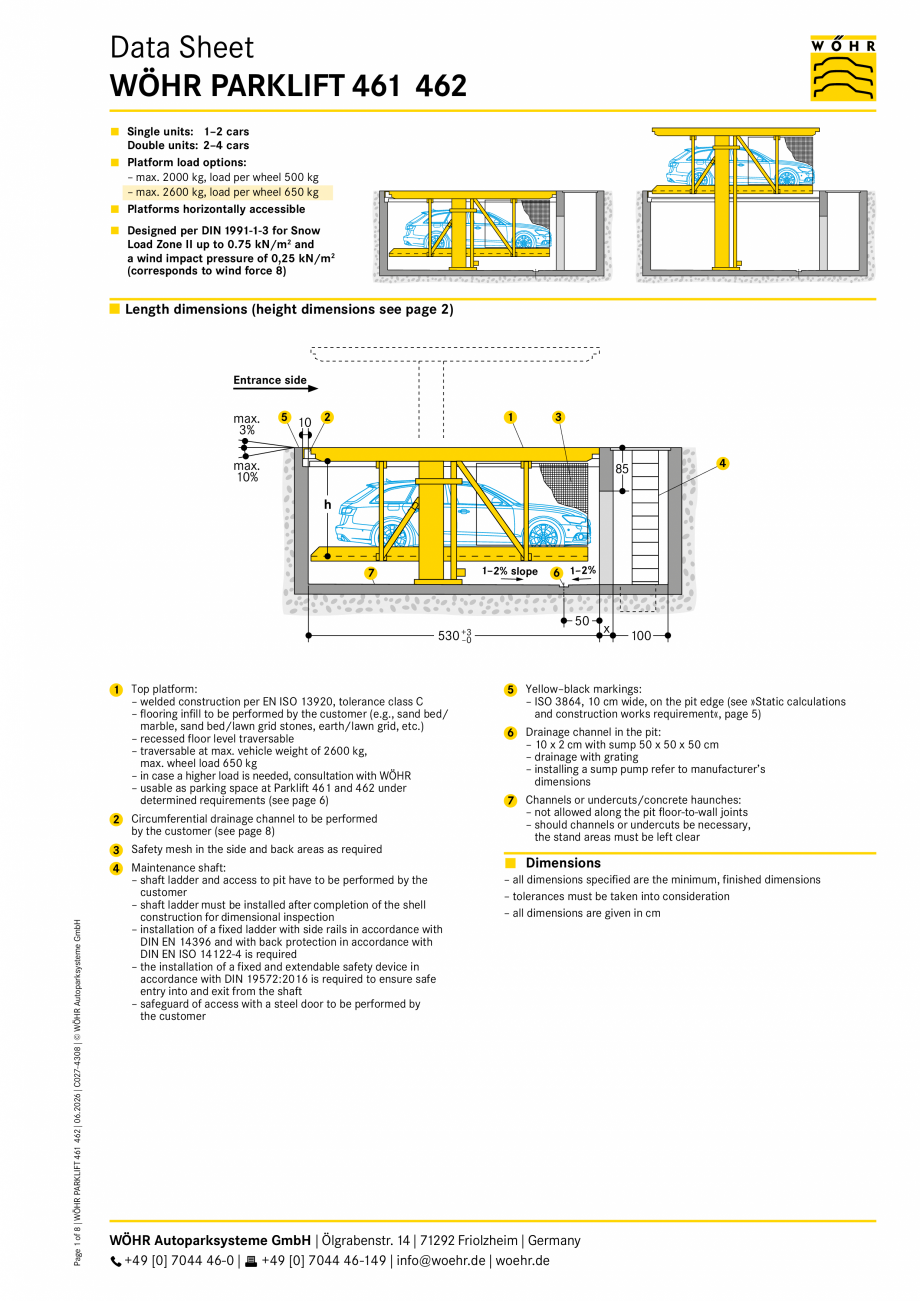

Data Sheet WÖHR PARKLIFT 461 462 Single units: 1–2 cars Double units: 2–4 cars Platform load options: – max. 2000 kg, load per wheel 500 kg – max. 2600 kg, load per wheel 650 kg Platforms horizontally accessible Designed per DIN 1991-1-3 for Snow Load Zone II up to 0.75 kN/m2 and a wind impact pressure of 0,25 kN/m2 (corresponds to wind force 8) Length dimensions (height dimensions see page 2) Entrance side max. 3% 5 10 2 1 3 max. 10% 4 85 h 1–2% slope 7 50 530 +3 –0 Page 1 of 8 | WÖHR PARKLIFT 461 462 | 06.2026 | C027-4308 | © WÖHR Autoparksysteme GmbH 1 Top platform: – welded construction per EN ISO 13920, tolerance class C – flooring infill to be performed by the customer (e.g., sand bed/ marble, sand bed/lawn grid stones, earth/lawn grid, etc.) – recessed floor level traversable – traversable at max. vehicle weight of 2600 kg, max. wheel load 650 kg – in case a higher load is needed, consultation with WÖHR – usable as parking space at P

Pagina 1-Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza Data Sheet
WÖHR PARKLIFT ...

Pagina 2 - Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza arklift 461 and...

arklift 461 and 462 under determined requirements (see page 6) 2 Circumferential drainage channel to be performed by the customer (see page 8) 3 Safety mesh in the side and back areas as required 4 Maintenance shaft: – shaft ladder and access to pit have to be performed by the customer – shaft ladder must be installed after completion of the shell construction for dimensional inspection – installation of a fixed ladder with side rails in accordance with DIN EN 14396 and with back protection in accordance with DIN EN ISO 14122-4 is required – the installation of a fixed and extendable safety device in accordance with DIN 19572:2016 is required to ensure safe entry into and exit from the shaft – safeguard of access with a steel door to be performed by the customer 6 1–2% x 100 5 Yellow–black markings: – ISO 3864, 10 cm wide, on the pit edge (see »Static calculations and construction works requirement«, page 5) 6 Drainage channel in the pit: – 10 x 2 cm wi

Pagina 2-Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza arklift 461 and 462 under
...

Pagina 3 - Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza th sump 50 x 50...

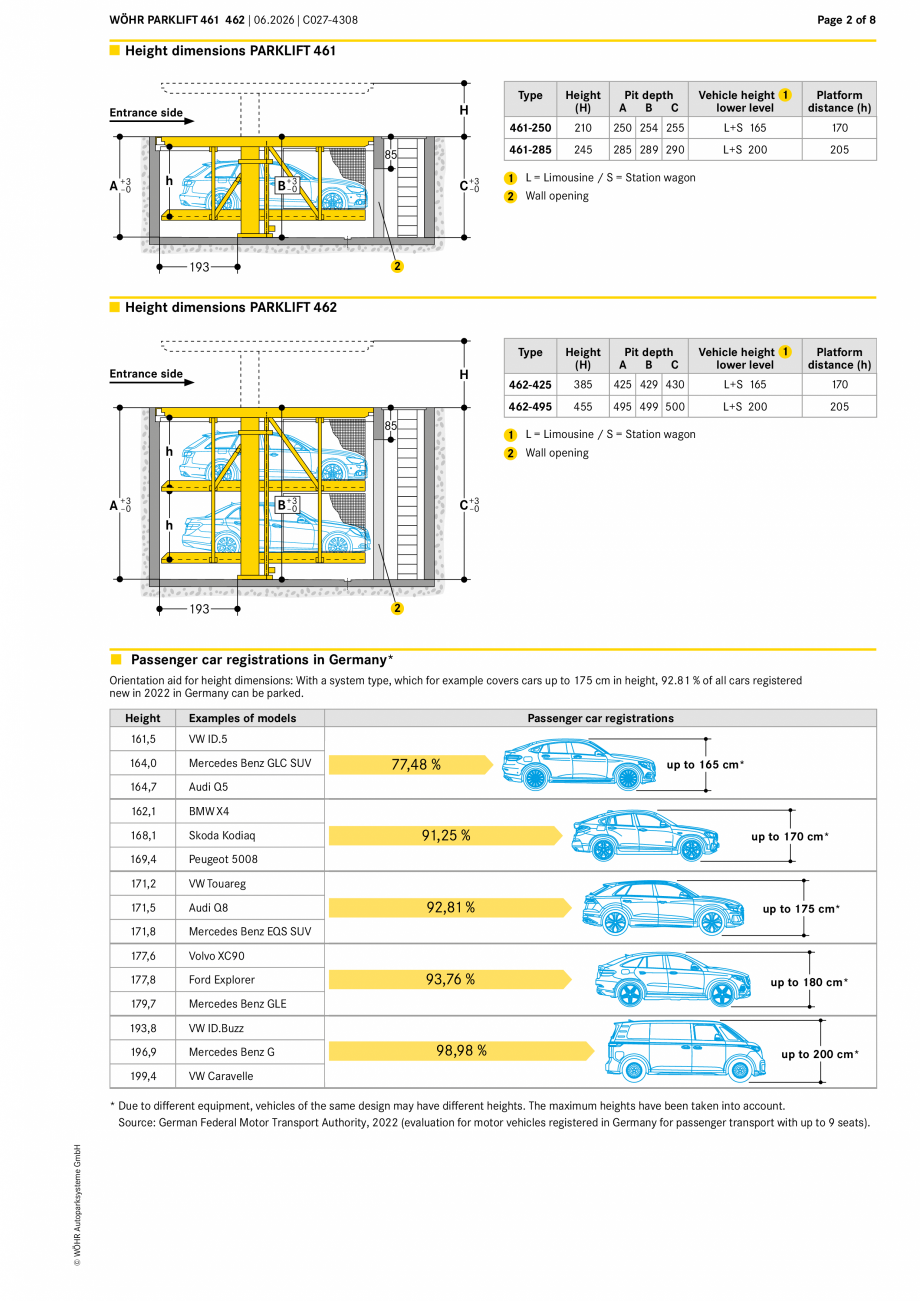

th sump 50 x 50 x 50 cm – drainage with grating – installing a sump pump refer to manufacturer’s dimensions 7 Channels or undercuts/concrete haunches: – not allowed along the pit floor-to-wall joints – should channels or undercuts be necessary, the stand areas must be left clear Dimensions – all dimensions specified are the minimum, finished dimensions – tolerances must be taken into consideration – all dimensions are given in cm WÖHR Autoparksysteme GmbH | Ölgrabenstr. 14 | 71292 Friolzheim | Germany +49 [0] 7044 46-0 | +49 [0] 7044 46-149 | info@woehr.de | woehr.de WÖHR PARKLIFT 461 462 | 06.2026 | C027-4308 Page 2 of 8 Height dimensions PARKLIFT 461 85 A +3 –0 Type h B +3 –0 C +3 –0 Vehicle height 1 lower level Height (H) Pit depth A B C 461-250 210 250 254 255 L+S 165 170 461-285 245 285 289 290 L+S 200 205 H Entrance side 1 L = Limousine / S = Station wagon 2 Wall opening Platform distance (h) 2 193 Height dimensions PA

Pagina 3-Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza th sump 50 x 50 x 50 cm...

Pagina 4 - Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza RKLIFT 462

H

...

RKLIFT 462 H Entrance side 85 h B +3 –0 A +3 –0 Type Height (H) Pit depth A B C Vehicle height 1 lower level Platform distance (h) 462-425 385 425 429 430 L+S 165 170 462-495 455 495 499 500 L+S 200 205 1 L = Limousine / S = Station wagon 2 Wall opening C +3 –0 h 2 193 63,62 % Passenger car registrations in Germany* Orientation aid for height dimensions: With a system type, which for example covers cars up to 175 cm in height, 92.81 % of all cars registered new in 2022 in Germany can be parked. Height Examples of models 33,27 % Passenger car registrations 63,62 %91,25 % 161,5 VW ID.5 164,0 Mercedes Benz GLC SUV 164,7 Audi Q5 162,1 BMW X4 168,1 Skoda Kodiaq 169,4 Peugeot 5008 171,2 VW Touareg 171,5 Audi Q8 92,81 % 171,8 Mercedes Benz EQS SUV 177,6 Volvo XC90 177,8 Ford Explorer 93,76 % 97,29 % 92,81 % 93,76 % 77,48 % 63,62 % 91,25 % 91,25 % 93,76 % 91,25 % 91,25 % 179,7 Mercedes Benz GLE 93,76 % 193,8 VW ID.Buzz 196,

Pagina 4-Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza RKLIFT 462

H

Entrance...

Pagina 5 - Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza 9

Mercedes...

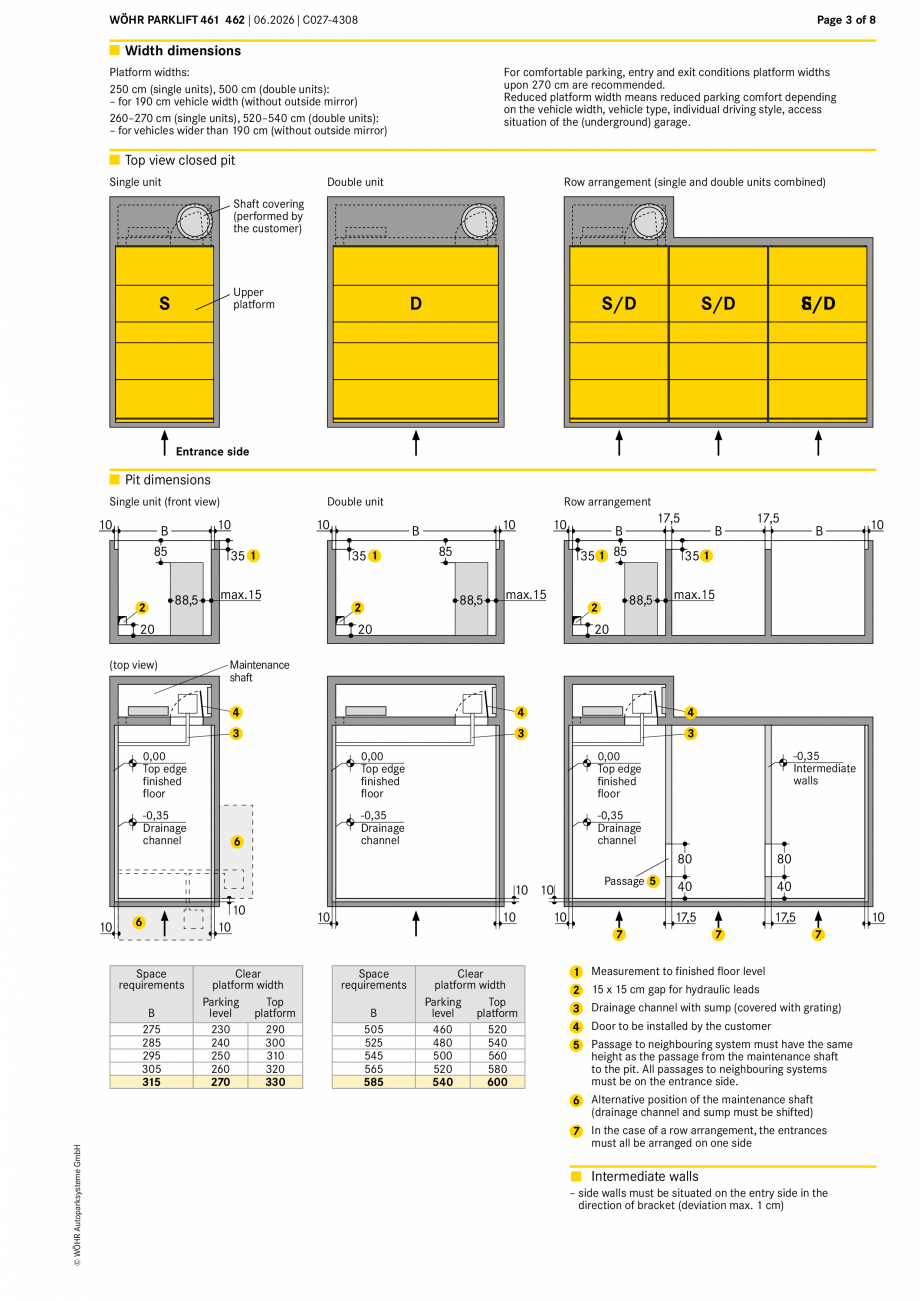

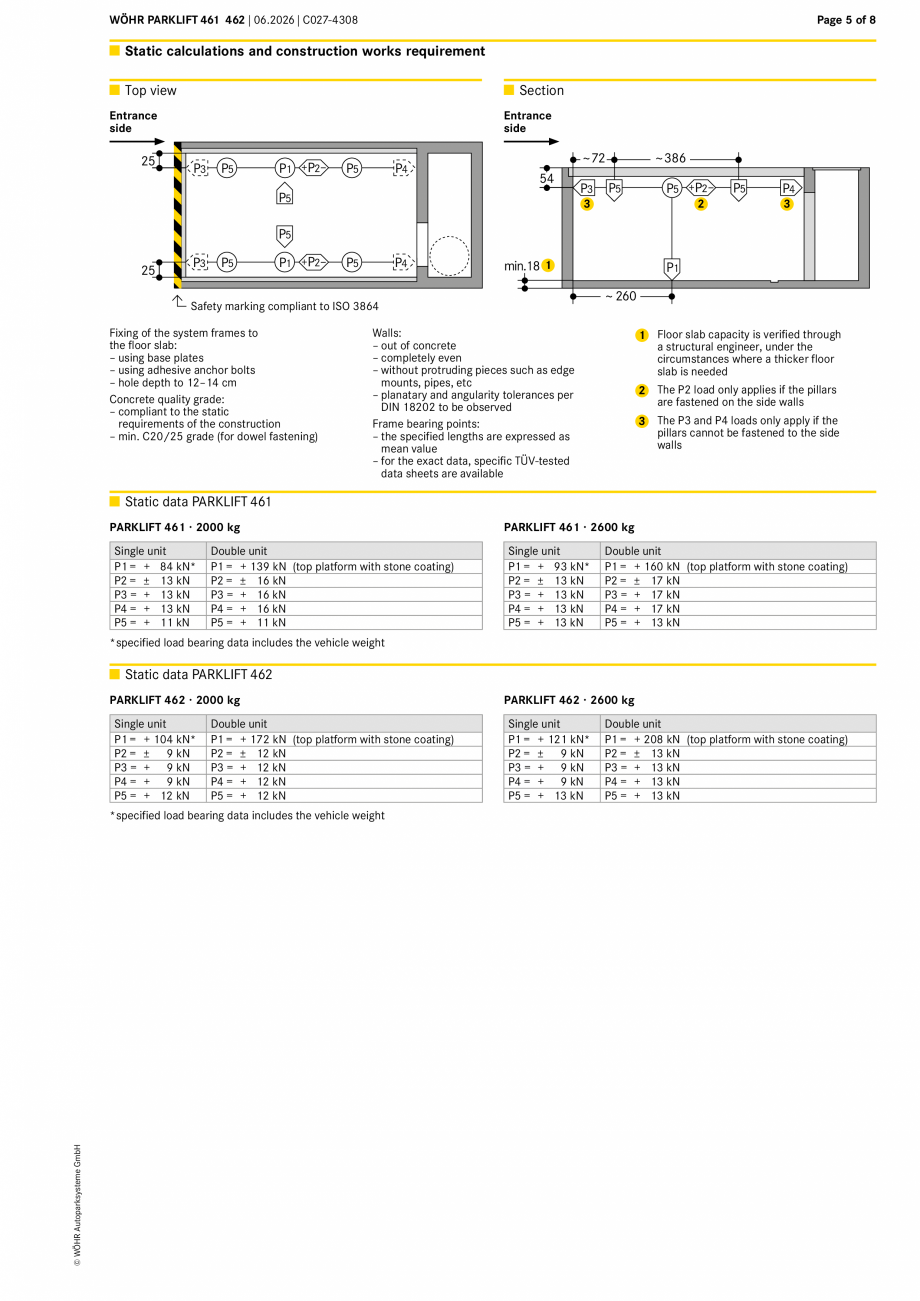

9 Mercedes Benz G 97,29 % 98,98%% 93,76 199,4 VW Caravelle up to 165 cm* up to 170 cm* up to 175 cm* up to 180 cm* up to 200 cm* 97,29 % © WÖHR Autoparksysteme GmbH * Due to different equipment, vehicles of the same design may have different heights. The maximum heights have been taken into account. 99,27 % Source: German Federal Motor Transport Authority, 2022 (evaluation for motor vehicles registered in Germany for passenger transport with up to 9 seats). 98,98 % 98,98 % 98,98 % WÖHR PARKLIFT 461 462 | 06.2026 | C027-4308 Page 3 of 8 Width dimensions Platform widths: 250 cm (single units), 500 cm (double units): – for 190 cm vehicle width (without outside mirror) 260–270 cm (single units), 520–540 cm (double units): – for vehicles wider than 190 cm (without outside mirror) For comfortable parking, entry and exit conditions platform widths upon 270 cm are recommended. Reduced platform width means reduced parking comfort depending on the vehicle width, veh

Pagina 5-Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza 9

Mercedes Benz G

97,29 ...

Pagina 6 - Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza icle type,...

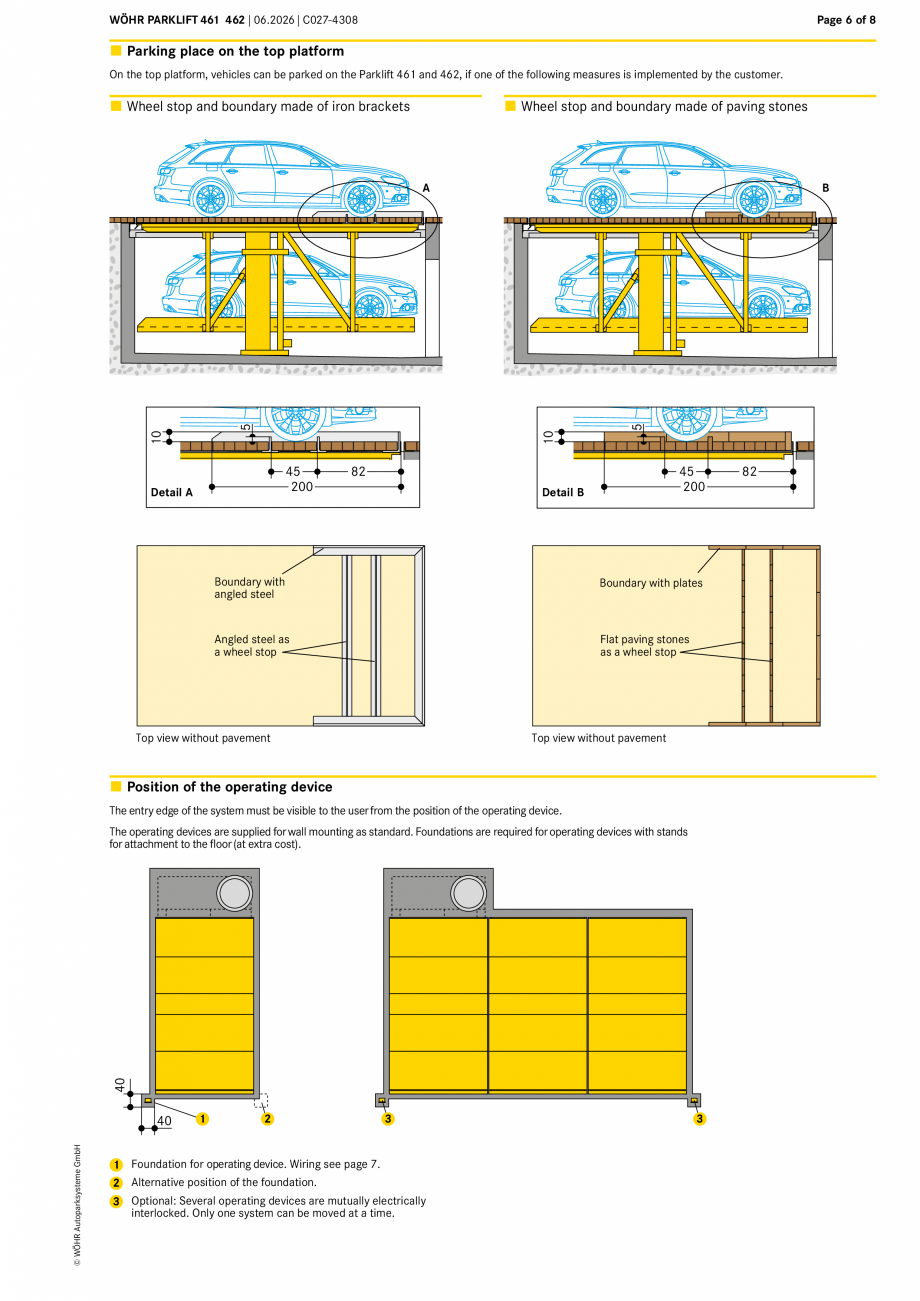

icle type, individual driving style, access situation of the (underground) garage. Top view closed pit Single unit Double unit Row arrangement (single and double units combined) Shaft covering (performed by the customer) Upper platform S 10 10 B Entrance side 85 35 D 10 Single unit (front view) 10 B 10 2085 B 85 2 20 88,5 10 1035 1 10 35 max.15 88,5 max.15 20 (top view) 35 2 20 B 85 85 10 B 20 35 1 85 B 10 88,5 max.15 88,5 max.15 2 20 88,5 max.15 -0,35 Drainage channel -0,35 Drainage channel B 275 285 295 305 315 Clear platform width 10 Parking Top 10 level platform 230 10 290 240 300 10 250 310 260 320 270 330 10 Passage 5 10 10 10 B 505 525 545 565 585 17,5 B 10 B 10 10 10 Clear platform width Parking Top1010 1010 level platform 460 52010 10 480 540 500 560 520 580 540 600 -0,35 Intermediate walls 80 80 40 40 17,5 7 Space requirements 17,5 3 -0,35 Drainage channel Space requirements © WÖHR Autoparksysteme GmbH 35 ma

Pagina 6-Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza icle type, individual...

Pagina 7 - Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza x.15

3

10

B
...

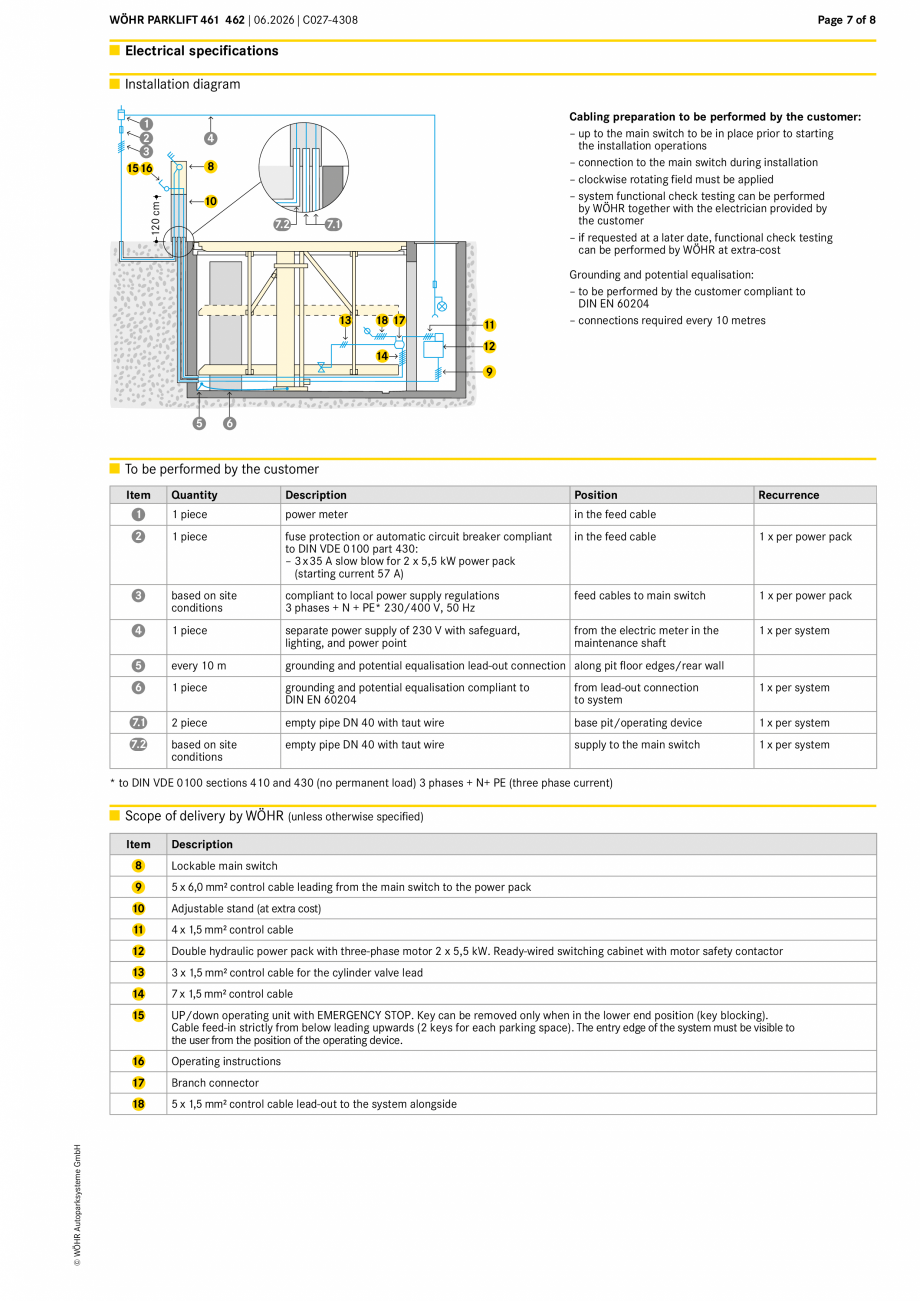

x.15 3 10 B 88,5 0,00 Top edge finished floor 10 10 4 10 10 10 85 35 17,5 35 1 0,00 Top edge finished floor 6 B 20 3 10 88,5 17,5max.15 B 0,00 Top edge finished floor 10 17,5 35 4 6 B S/D E/D Row arrangement 4 10 85 max.15 10 10 20 Maintenance shaft S/D 17,5 B 35 88,5 B 20 35 1 10 85 Double unit max.15 10 88,5 10 B 35 Pit dimensions S/D 1 2 80 10 17,5 7 80 7 40 Measurement to finished floor level 40 80 80 15 x 15 cm gap for hydraulic leads 17,5 17,5 10 17,5 10 3 Drainage channel40 with sump (covered40 with grating) 4 Door to be installed by the customer 5 Passage to neighbouring system must have the same height as the passage from the maintenance shaft to the pit. All passages to neighbouring systems must be on the entrance side. 6 Alternative position of the maintenance shaft (drainage channel and sump must be shifted) 7 In the case of a row arrangement, the entrances must all be arranged on one side 17,5 Interme

Pagina 7-Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza x.15

3

10

B

88,5

0,00...

Pagina 8 - Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza diate walls
–...

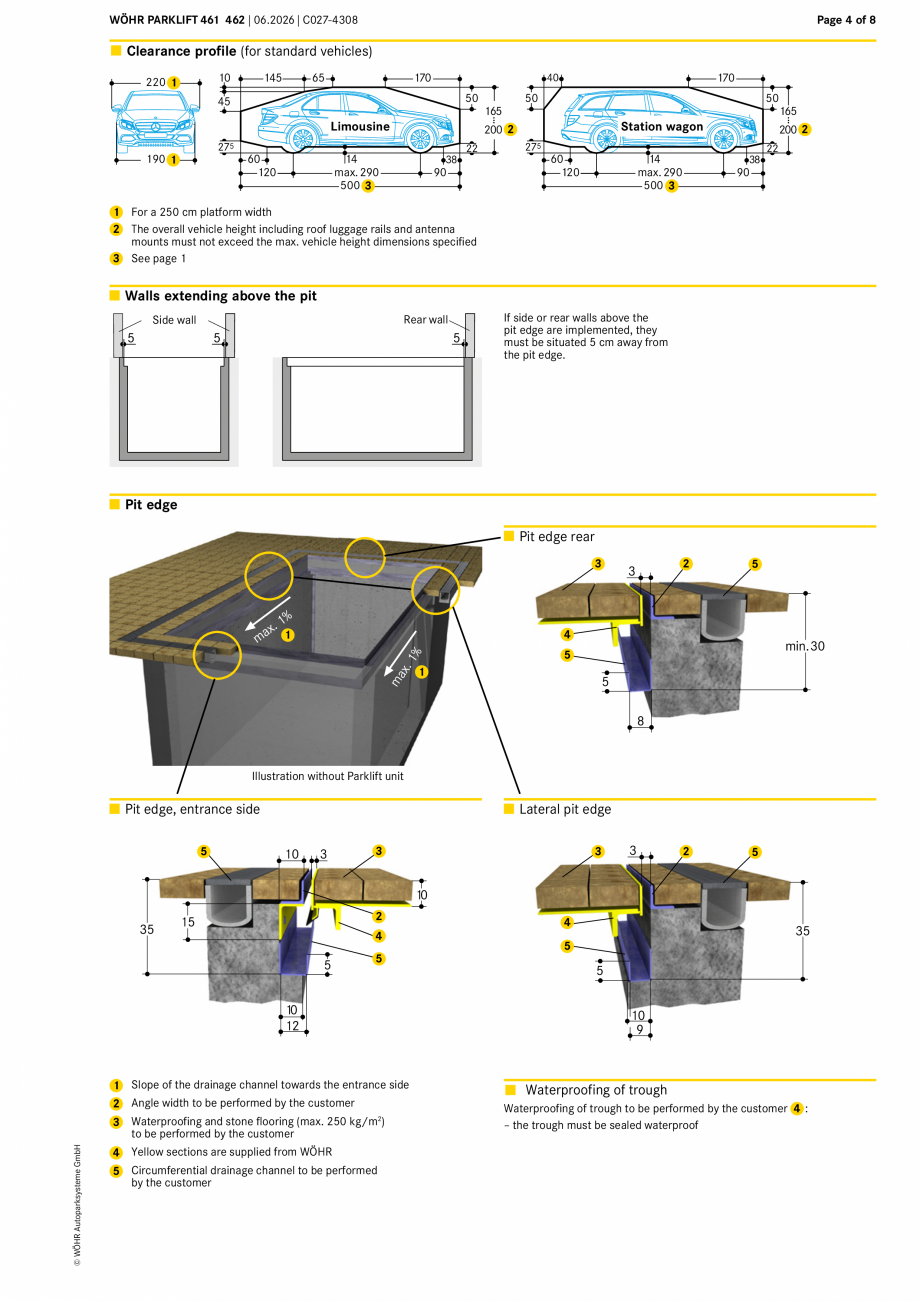

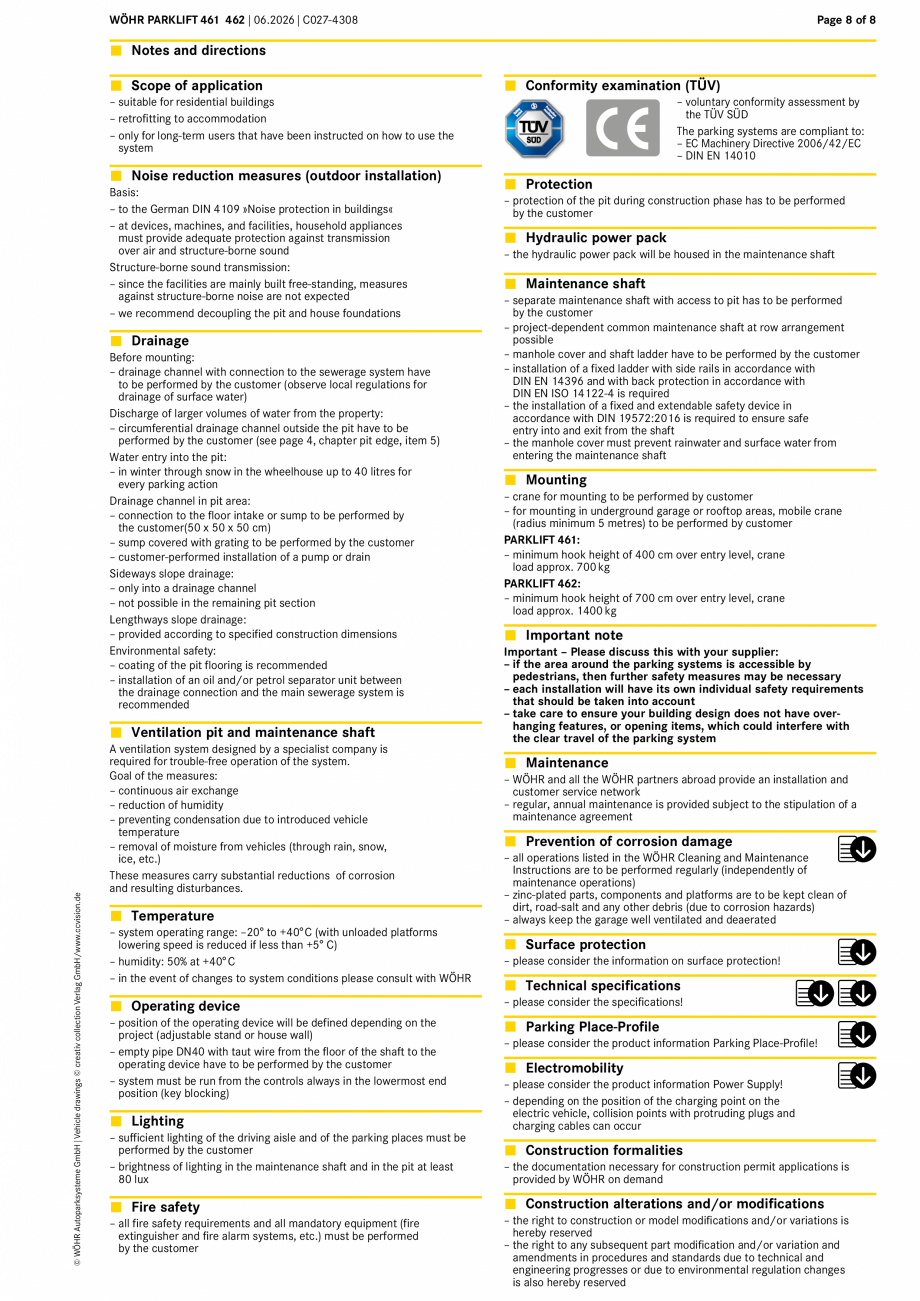

diate walls – side walls must be situated on the entry side in the direction of bracket (deviation max. 1 cm) WÖHR PARKLIFT 461 462 | 06.2026 | C027-4308 Page 4 of 8 Clearance profile (for standard vehicles) 145 65 170 Limousine 190 1 3 1 2 3 165 50 165 Station wagon 200 2 14 max. 290 500 3 60 120 50 ... 45 275 170 40 50 38 22 ... 10 220 1 275 90 200 2 14 max. 290 500 3 60 120 38 22 90 For a 250 cm platform width The overall vehicle height including roof luggage rails and antenna mounts must not exceed the max. vehicle height dimensions specified See page 1 min.30 Walls extending above the pit 5 Rear wall Side wall 5 5 8 Pit edge 5 If side or rear walls above the pit edge are implemented, they must be situated 5 cm away from the pit edge. 3 3 Pit edge rear ma x. 1% 3 2 3 5 min.30 1% x. 1 a m 5 4 5 ma x. 1% ma x. 1% 35 5 min.30 1 10 9 5 8 8 Illustration without Parklift unit Pit edge, entrance side 5 Lateral pit edge 10

Pagina 8-Sistem mecanic de parcare WÖHR PARKLIFT 461/462 Fisa tehnica Engleza diate walls
– side walls...
