Sistem mecanic de parcare WÖHR PARKLIFT 411

Limba: Engleza

1 afisari

Tip documentatie: Fisa tehnica

Pagina 1 - Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza Data Sheet
WÖHR...

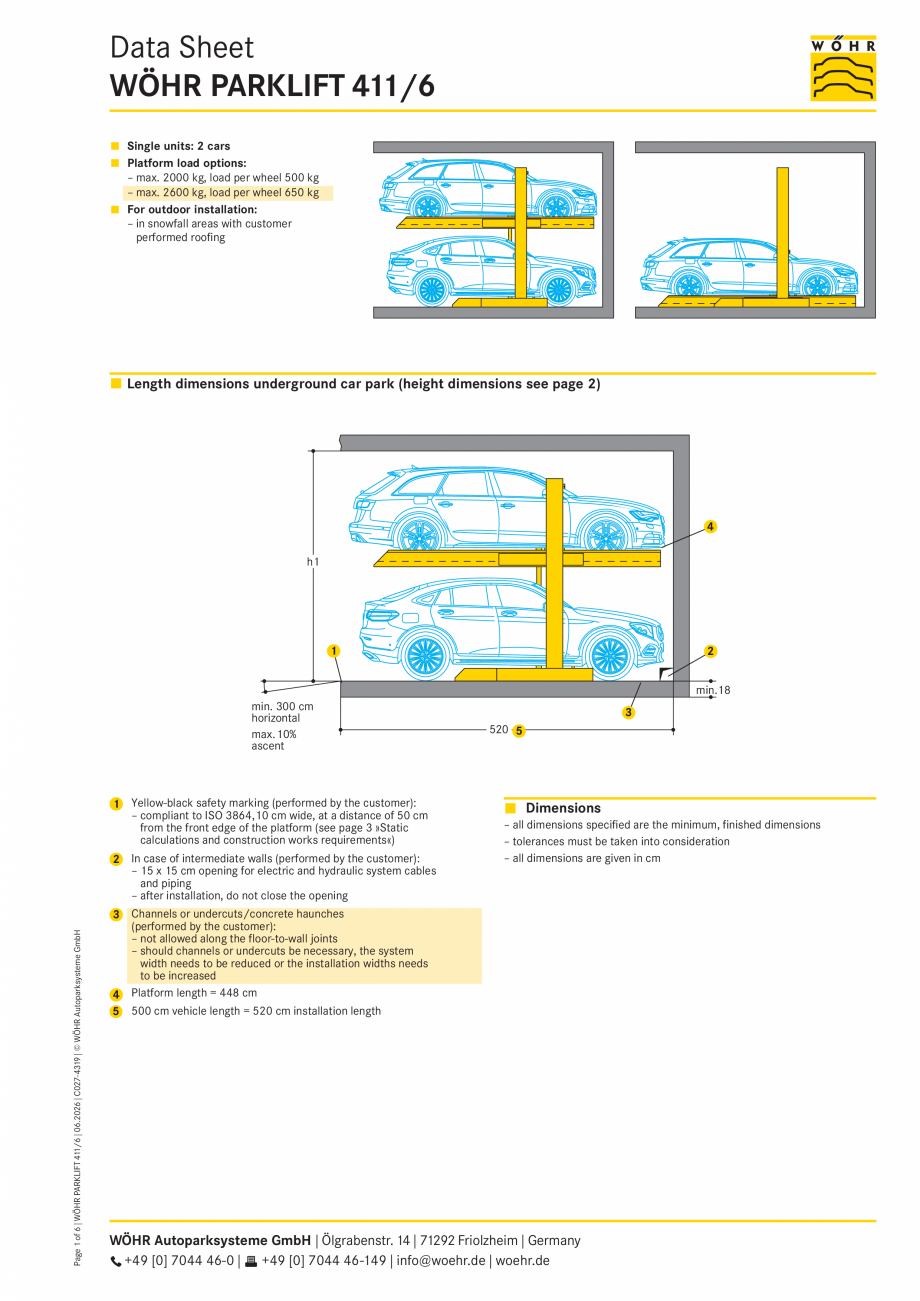

Data Sheet WÖHR PARKLIFT 411/6 Single units: 2 cars Platform load options: – max. 2000 kg, load per wheel 500 kg – max. 2600 kg, load per wheel 650 kg For outdoor installation: – in snowfall areas with customer performed roofing Length dimensions underground car park (height dimensions see page 2) h1 4 h1 1 2 520 min. 300 cm horizontal max. 10% ascent Page 1 of 6 | WÖHR PARKLIFT 411/6 | 06.2026 | C027-4319 | © WÖHR Autoparksysteme GmbH 1 520 5 Yellow-black safety marking (performed by the customer): – compliant to ISO 3864, 10 cm wide, at a distance of 50 cm from the front edge of the platform (see page 3 »Static calculations and construction works requirements«) 2 In case of intermediate walls (performed by the customer): – 15 x 15 cm opening for electric and hydraulic system cables and piping – after installation, do not close the opening 3 Channels or undercuts/concrete haunches (performed by the customer): – not allowed along the floor-to-wall joi

Pagina 1-Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza Data Sheet
WÖHR PARKLIFT...

Pagina 2 - Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza nts
h
– should...

nts h – should channels or undercuts be necessary, the system width needs to be reduced or the installation widths needs to be increased Platform length = 448 cm 4 5 min.18 3 Dimensions – all dimensions specified are the minimum, finished dimensions – tolerances must be taken into consideration – all dimensions are given in cm h H H 500 cm vehicle length = 520 cm installation length H h h WÖHR Autoparksysteme GmbH | Ölgrabenstr. 14 | 71292 Friolzheim | Germany +49 [0] 7044 46-0 | +49 [0] 7044 46-149 | info@woehr.de | woehr.de H WÖHR PARKLIFT 411/6 | 06.2026 | C027-4319 Page 2 of 6 Height dimensions Standard type Type 520 H 1 Height (H) 1 Vehicle height 2 UL LL Platform distance (h) 411/6-155 320 L+S 150 L+S 150 155 411/6-165 330 L+S 150 L+S 160 165 411/6-175 340 L+S 150 L+S 170 175 Type Height (H) 1 411/6-185 350 L+S 150 L+S 180 185 411/6-195 360 L+S 150 L+S 190 195 411/6-205 370 L+S 150 L+S 200 205 h 1 H With an increas

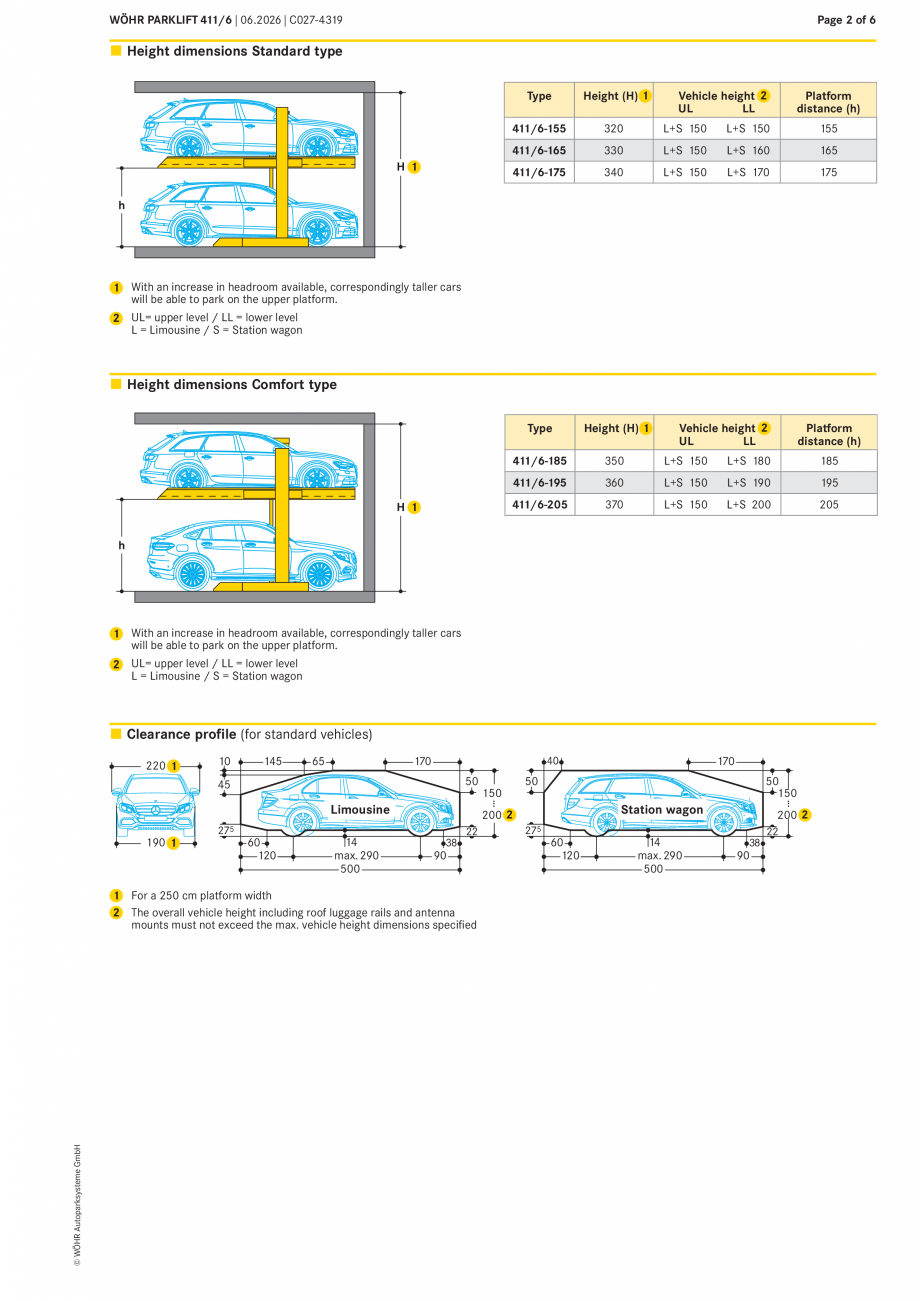

Pagina 2-Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza nts
h
– should channels or...

Pagina 3 - Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza e in headroom...

e in headroom available, correspondingly taller cars will be able to park on the upper platform. 2h UL= upper level / LL = lower level L = Limousine / S = Station wagon Height dimensions Comfort type H h H 1 Vehicle height 2 UL LL Platform distance (h) h 1 With an increase in headroom available, correspondingly taller cars will be able to park on the upper platform. 2 UL= upper level / LL = lower level L = Limousine / S = Station wagon Clearance profile (for standard vehicles) 10 145 65 170 50 Limousine 190 1 © WÖHR Autoparksysteme GmbH 1 2 60 120 14 max. 290 500 150 50 50 150 ... 45 275 170 40 Station wagon 200 2 38 22 90 For a 250 cm platform width The overall vehicle height including roof luggage rails and antenna mounts must not exceed the max. vehicle height dimensions specified ... 220 1 275 60 120 14 max. 290 500 200 2 38 90 22 WÖHR PARKLIFT 411/6 | 06.2026 | C027-4319 Page 3 of 6 Decision support for the vehicle height Choosing t

Pagina 3-Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza e in headroom available,...

Pagina 4 - Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza he right vehicle...

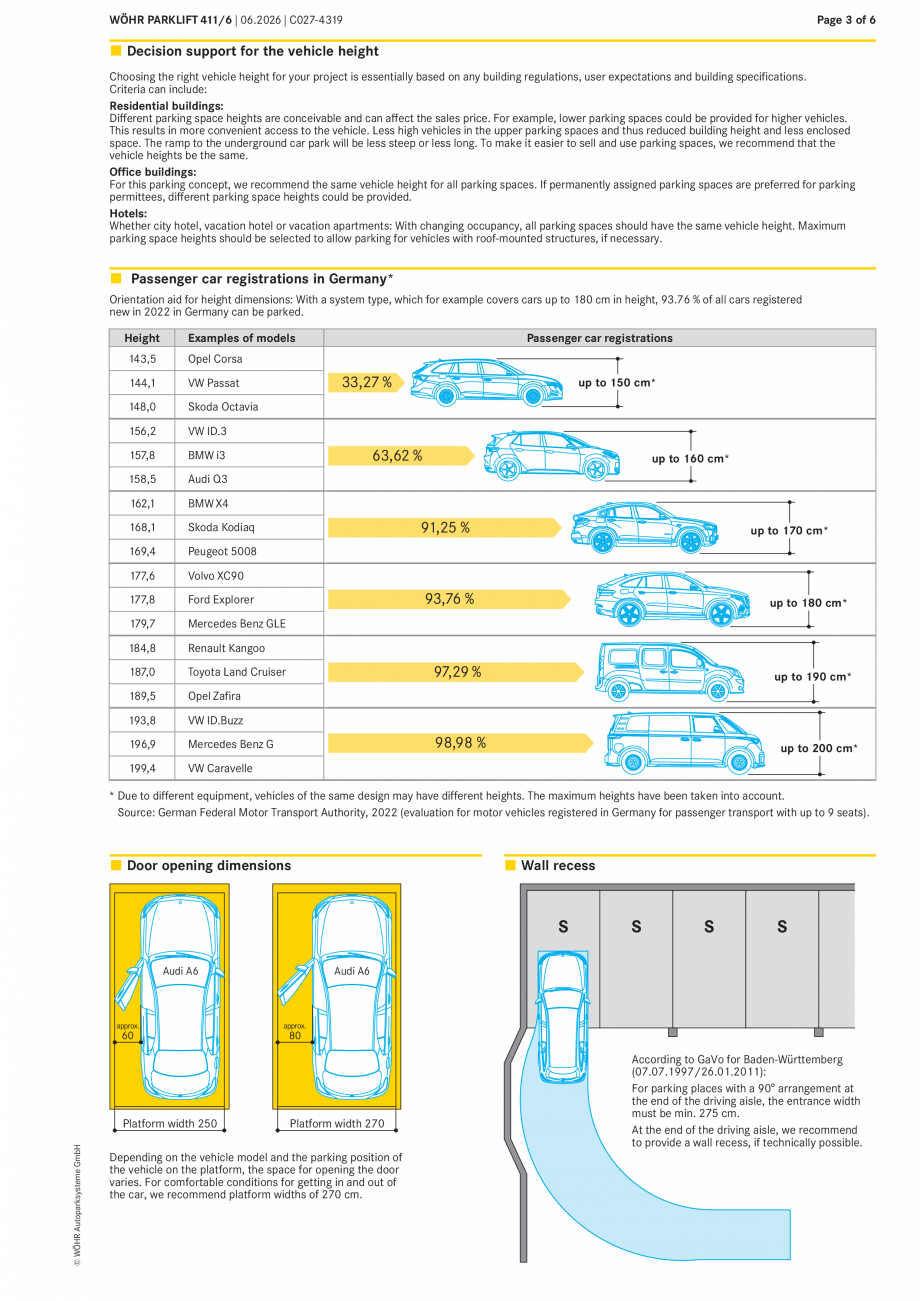

he right vehicle height for your project is essentially based on any building regulations, user expectations and building specifications. Criteria can include: Residential buildings: Different parking space heights are conceivable and can affect the sales price. For example, lower parking spaces could be provided for higher vehicles. This results in more convenient access to the vehicle. Less high vehicles in the upper parking spaces and thus reduced building height and less enclosed space. The ramp to the underground car park will be less steep or less long. To make it easier to sell and use parking spaces, we recommend that the vehicle heights be the same. Office buildings: For this parking concept, we recommend the same vehicle height for all parking spaces. If permanently assigned parking spaces are preferred for parking permittees, different parking space heights could be provided. Hotels: Whether city hotel, vacation hotel or vacation apartments: With changing occupancy, all park

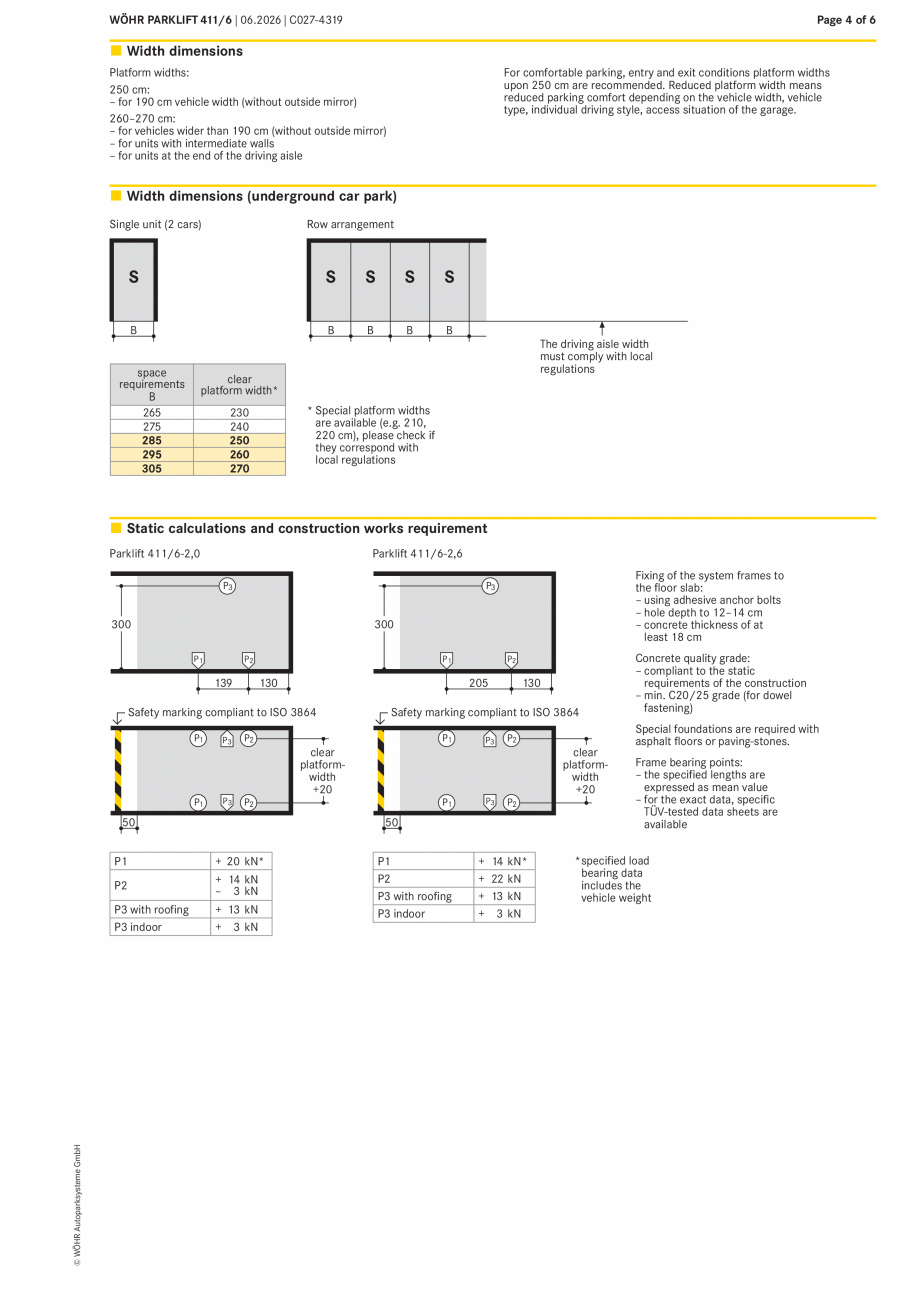

Pagina 4-Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza he right vehicle height for...

Pagina 5 - Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza ing spaces should...

ing spaces should have the same vehicle height. Maximum parking space heights should be selected to allow parking for vehicles with roof-mounted structures, if necessary. Passenger car registrations in Germany* Orientation aid for height dimensions: With a system type, which for example covers cars up to 180 cm in height, 93.76 % of all cars registered new in 2022 in Germany can be parked. Height Examples of models Passenger car registrations 63,62 % 143,5 Opel Corsa 144,1 VW Passat 148,0 Skoda Octavia 63,62 % 156,2 VW ID.3 157,8 BMW i3 158,5 Audi Q3 63,62 %91,25 % 63,62 % 91,25 % 162,1 BMW X4 91,25 % 168,1 Skoda Kodiaq 169,4 Peugeot 5008 177,6 Volvo XC90 91,25 % 93,76 % 91,25 % 93,76 92,81 % 177,8 Ford Explorer 93,76 % 179,7 Mercedes Benz GLE 184,8 Renault Kangoo 93,76 % 97,29 % 93,76 % 187,0 Toyota Land Cruiser 97,29 % 93,76 189,5 Opel Zafira 97,29 % 193,8 VW ID.Buzz 196,9 Mercedes Benz G 97,29 % 98,98%% 97,29 199,4 VW Caravelle 33,27

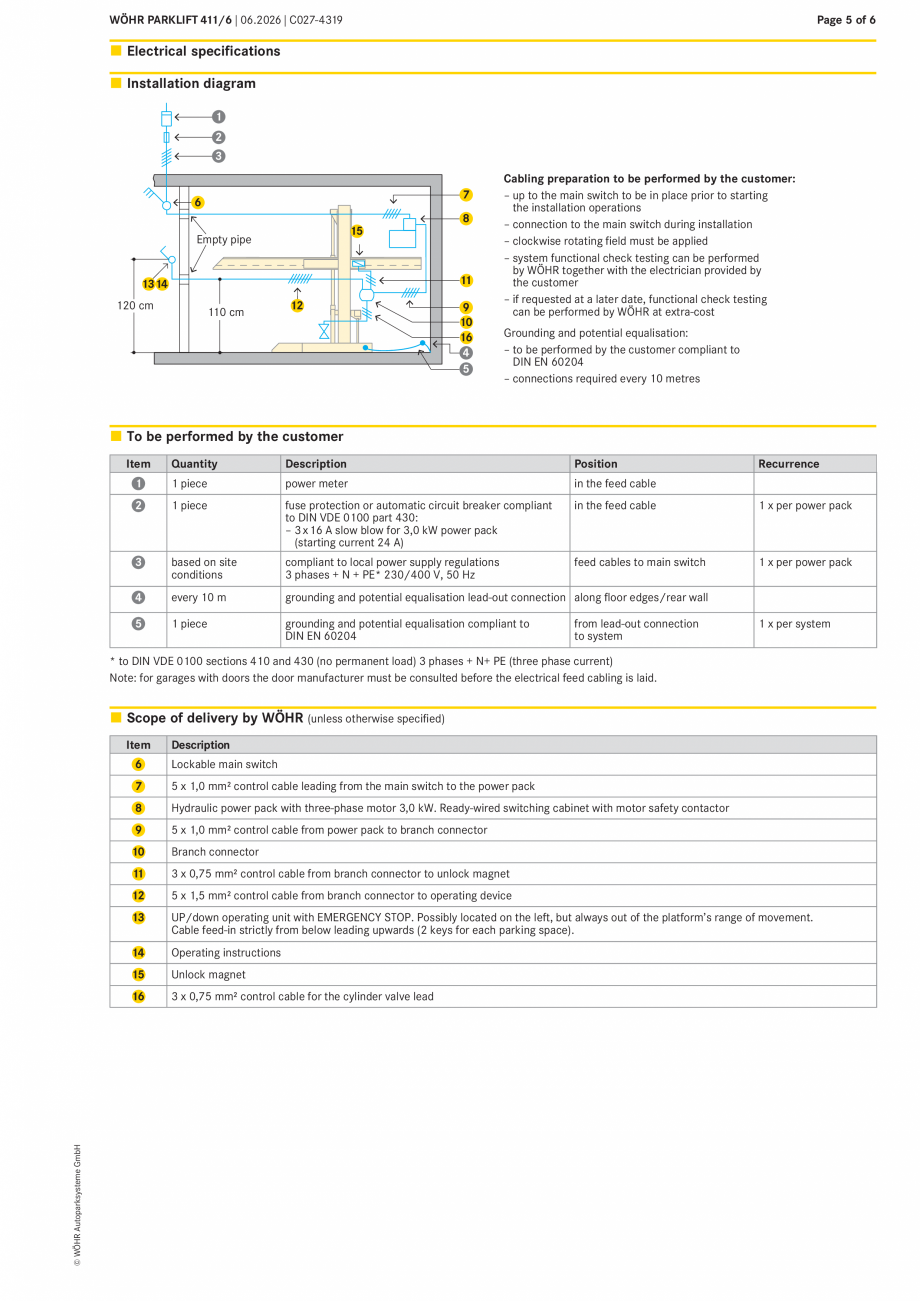

Pagina 5-Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza ing spaces should have the...

Pagina 6 - Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza 63,62
% %

up to...

63,62 % % up to 150 cm* up to 160 cm* up to 170 cm* up to 180 cm* up to 190 cm* up to 200 cm* 98,98 99,27 % * Due to different equipment, vehicles of the same design may have different heights. The maximum heights have been taken into account. 98,98 % Source: German Federal Motor Transport Authority, 2022 (evaluation for motor vehicles registered in Germany for passenger transport with up to 9 seats). 98,98 % 98,98 % Door opening dimensions Wall recess S Audi A6 approx. 60 © WÖHR Autoparksysteme GmbH Platform width 250 S S S Audi A6 approx. 80 Platform width 270 Depending on the vehicle model and the parking position of the vehicle on the platform, the space for opening the door varies. For comfortable conditions for getting in and out of the car, we recommend platform widths of 270 cm. According to GaVo for Baden-Württemberg (07.07.1997/26.01.2011): For parking places with a 90° arrangement at the end of the driving aisle, the entrance width must be min. 2

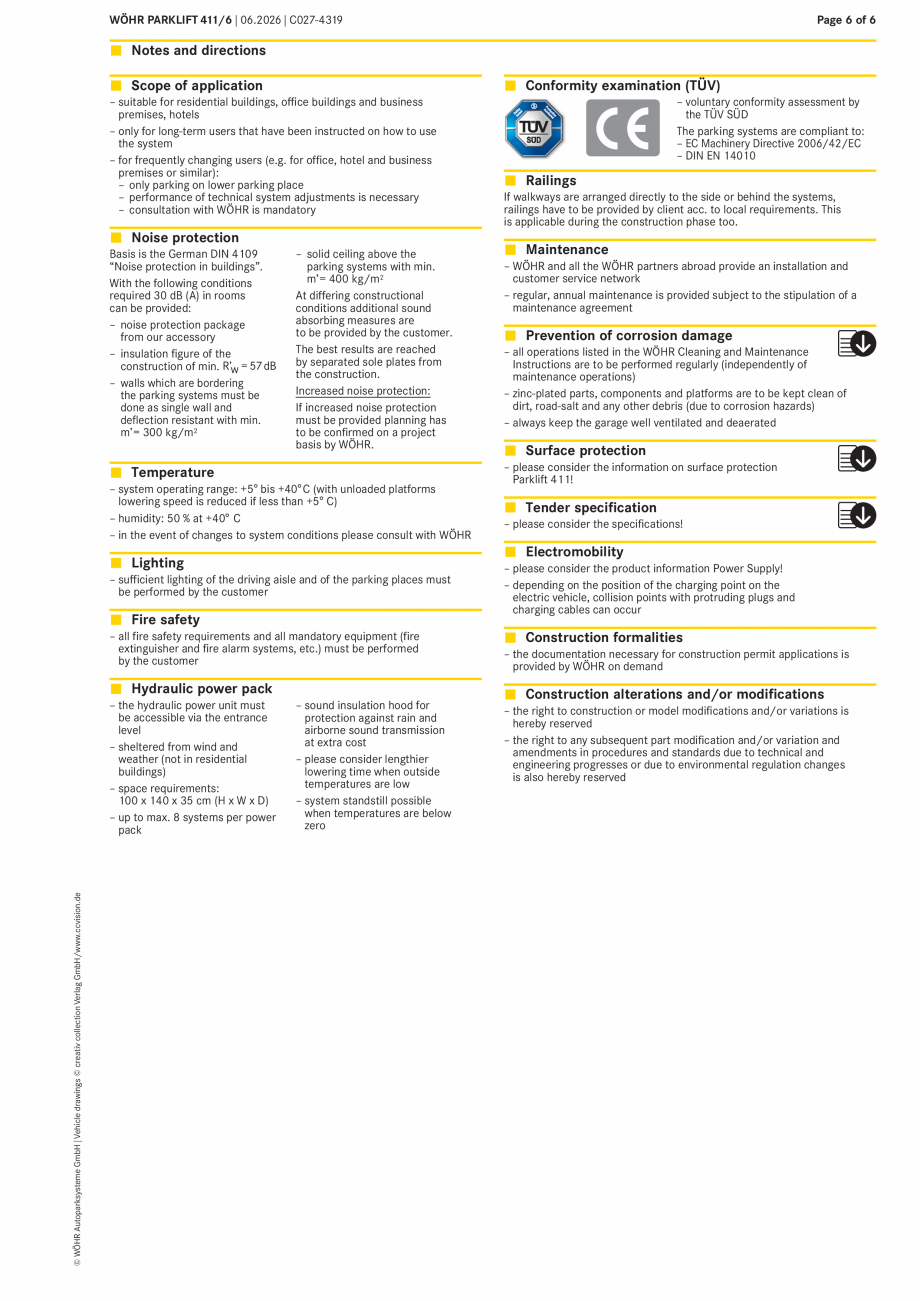

Pagina 6-Sistem mecanic de parcare WÖHR PARKLIFT 411 Fisa tehnica Engleza 63,62
% %

up to 150 cm*

up...
