Pagina 1 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

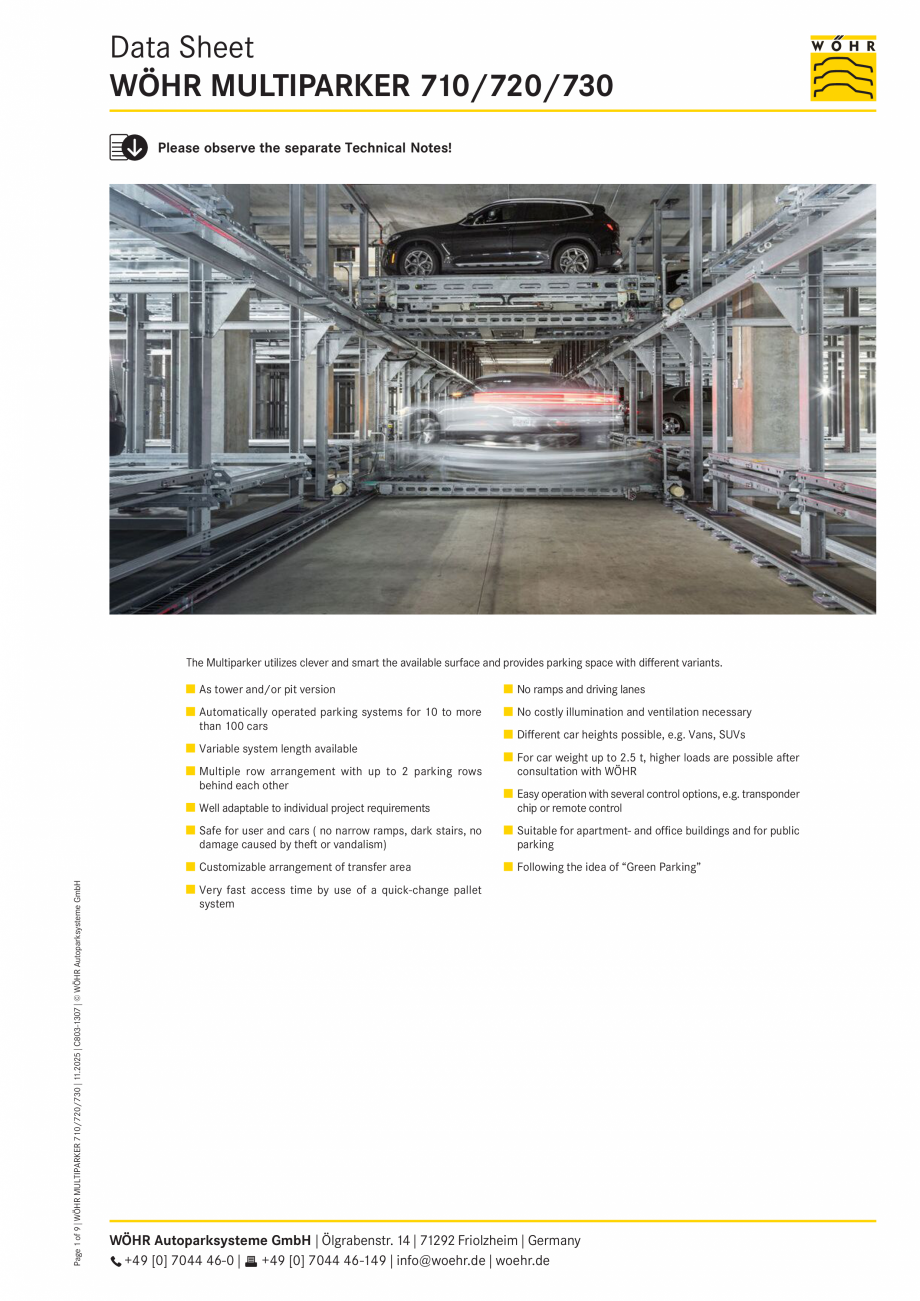

Data Sheet WÖHR MULTIPARKER 710/720/730 Please observe the separate Technical Notes! The Multiparker utilizes clever and smart the available surface and provides parking space with different variants. As tower and/or pit version No ramps and driving lanes Automatically operated parking systems for 10 to more than 100 cars No costly illumination and ventilation necessary Variable system length available Page 1 of 9 | WÖHR MULTIPARKER 710/720/730 | 11.2025 | C803-1307 | © WÖHR Autoparksysteme GmbH Multiple row arrangement with up to 2 parking rows behind each other Different car heights possible, e.g. Vans, SUVs For car weight up to 2.5 t, higher loads are possible after consultation with WÖHR Well adaptable to individual project requirements Easy operation with several control options, e.g. transponder chip or remote control Safe for user and cars ( no narrow ramps, dark stairs, no damage caused by theft or vandalism) Suitable for apartment- and office buildings and for

Pagina 1-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Romana Data...

Pagina 2 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

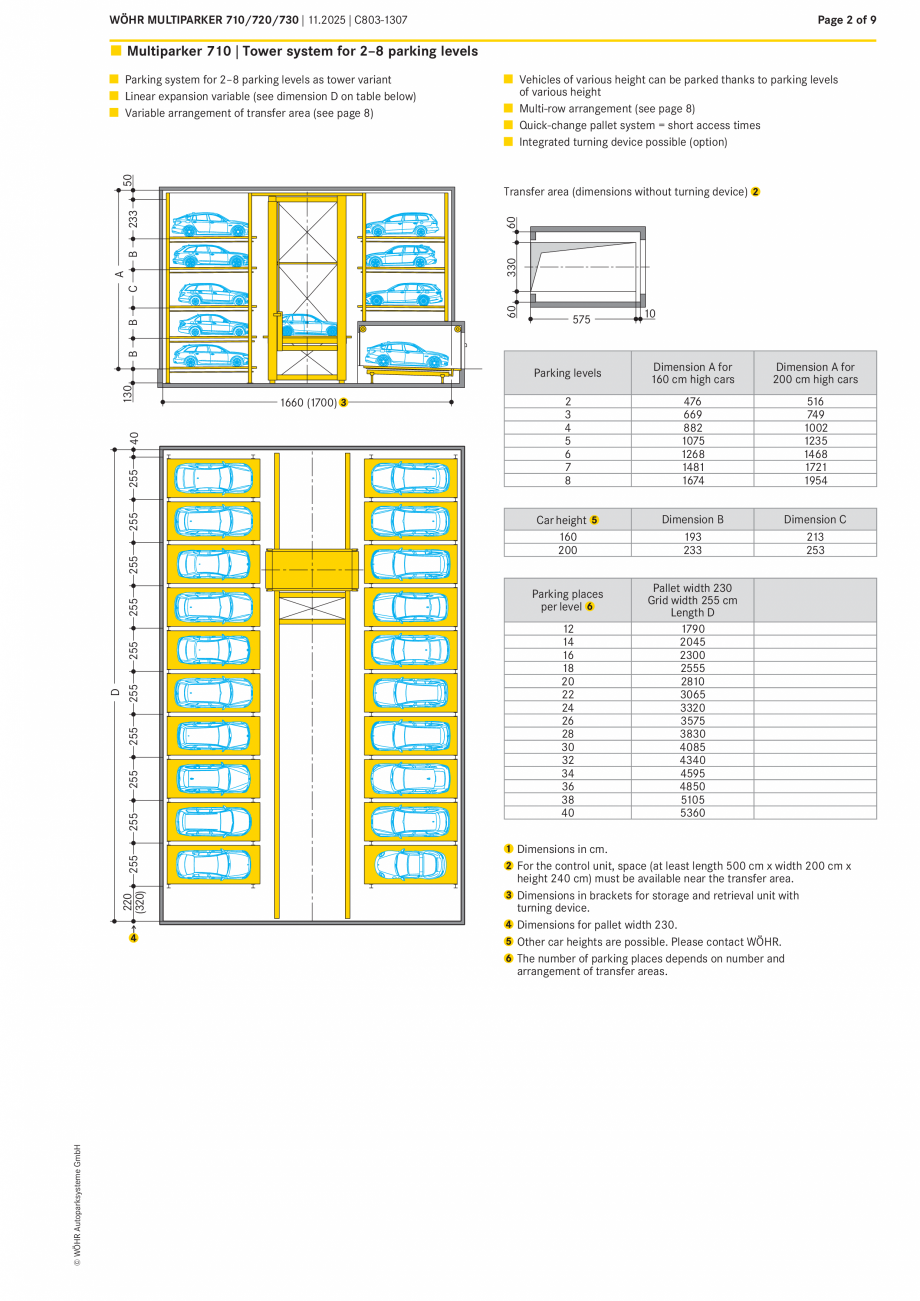

public parking Customizable arrangement of transfer area Following the idea of “Green Parking” Very fast access time by use of a quick-change pallet system WÖHR Autoparksysteme GmbH | Ölgrabenstr. 14 | 71292 Friolzheim | Germany +49 [0] 7044 46-0 | +49 [0] 7044 46-149 | info@woehr.de | woehr.de WÖHR MULTIPARKER 710/720/730 | 11.2025 | C803-1307 Page 2 of 9 Multiparker 710 | Tower system for 2–8 parking levels 50 Parking system for 2–8 parking levels as tower variant Linear expansion variable (see dimension D on table below) Variable arrangement of transfer area (see page 8) Vehicles of various height can be parked thanks to parking levels of various height Multi-row arrangement (see page 8) Quick-change pallet system = short access times Integrated turning device possible (option) 60 C A 330 B 60 233 Transfer area (dimensions without turning device) 10 D © WÖHR Autoparksysteme GmbH 220 (320) 255 255 255 255 255 255 255 255 255 255 40 130

Pagina 2-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Romana public...

Pagina 3 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

B B 575 1660 (1700) Parking levels Dimension A for 160 cm high cars Dimension A for 200 cm high cars 2 3 4 5 6 7 8 476 669 882 1075 1268 1481 1674 516 749 1002 1235 1468 1721 1954 Dimension B Dimension C 193 233 213 253 Car height 160 200 Parking places per level 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 Pallet width 230 Grid width 255 cm Length D 1790 2045 2300 2555 2810 3065 3320 3575 3830 4085 4340 4595 4850 5105 5360 Dimensions in cm. For the control unit, space (at least length 500 cm x width 200 cm x height 240 cm) must be available near the transfer area. Dimensions in brackets for storage and retrieval unit with turning device. Dimensions for pallet width 230. Other car heights are possible. Please contact WÖHR. The number of parking places depends on number and arrangement of transfer areas. WÖHR MULTIPARKER 710/720/730 | 11.2025 | C803-1307 Page 3 of 9 Multiparker 710 | Shaft system for 2–8 parking levels Parking system for 2–8 parking levels as

Pagina 3-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Romana
B

B

...

Pagina 4 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

shaft variant Linear expansion variable (see dimension D on table below) Variable arrangement of transfer area (see page 8) 10 620 325 330 60 233 450+ceiling 620 Parking levels Dimension A for 160 cm high cars Dimension A for 200 cm high cars 2 3 4 5 6 7 8 606 799 1012 1205 1398 1611 1804 646 879 1132 1365 1598 1851 2084 Dimension B Dimension C 193 233 213 253 B 130 40 1660 (1700) 470 830 50 25 25 265 D 300 165 165 265 25 25 265 255 815 255 Car height 160 200 975 265 255 255 220 (320) © WÖHR Autoparksysteme GmbH 10 C B 5 B A 280 50 575 Transfer area (dimensions without turning device) 60 280 Vehicles of various height can be parked thanks to parking levels of various height Multi-row arrangement (see page 8) Quick-change pallet system = short access times Integrated turning device possible (option) Parking places per level 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 Pallet width 230 Grid width 255 cm Length D 1880 2180 2435 2690

Pagina 4-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Romana shaft ...

Pagina 5 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

2990 3245 3500 3800 4055 4310 4610 4865 5120 5420 5675 5930 Dimensions in cm. For the control unit, space (at least length 500 cm x width 200 cm x height 240 cm) must be available near the transfer area. Dimensions in brackets for storage and retrieval unit with turning device. Dimensions for pallet width 230. Other car heights are possible. Please contact WÖHR. The number of parking places depends on number and arrangement of lifts. All specified dimensions of length D are examples only and depend on width and number of partitions walls. WÖHR MULTIPARKER 710/720/730 | 11.2025 | C803-1307 Page 4 of 9 Multiparker 720 | Tower system for 4–20 parking levels 1660 (1700) Vehicles of various height can be parked thanks to parking levels of various height Multi-row arrangement (see page 8) Quick-change pallet system = short access times Integrated turning device possible (option) Transfer area (dimensions without turning device) 60 575 10 Parking levels Dimension A for 160 cm

Pagina 5-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Romana 2990...

Pagina 6 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

high cars Dimension A for 200 cm high cars 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 852 1045 1238 1451 1644 1837 2050 2243 2436 2649 2842 3035 3248 3441 3634 3847 4040 1012 1245 1478 1731 1964 2197 2450 2683 2916 3169 3402 3635 3888 4121 4354 4607 4840 Dimension B Dimension C 193 233 213 253 © WÖHR Autoparksysteme GmbH 50 255 255 255 D 255 255 255 75 200 250 B B C B B A C B B 330 C 60 60 Parking system for 4-20 parking levels as tower variant Linear expansion limited to max. 6 parking bays per row Variable arrangement of transfer area (see page 8) Car height 160 200 Parking places per level 6 8 10 max. 12 Pallet width 230 Grid width 255 cm Length D 890 1145 1400 1655 Dimensions in cm. For the control unit, space (at least length 500 cm x width 200 cm x height 240 cm) must be available near the transfer area. Dimensions in brackets for storage and retrieval unit with turning device. Dimension 200 cm apply to 4 or 8 parking places per level. Dim

Pagina 6-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Romana high...

Pagina 7 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

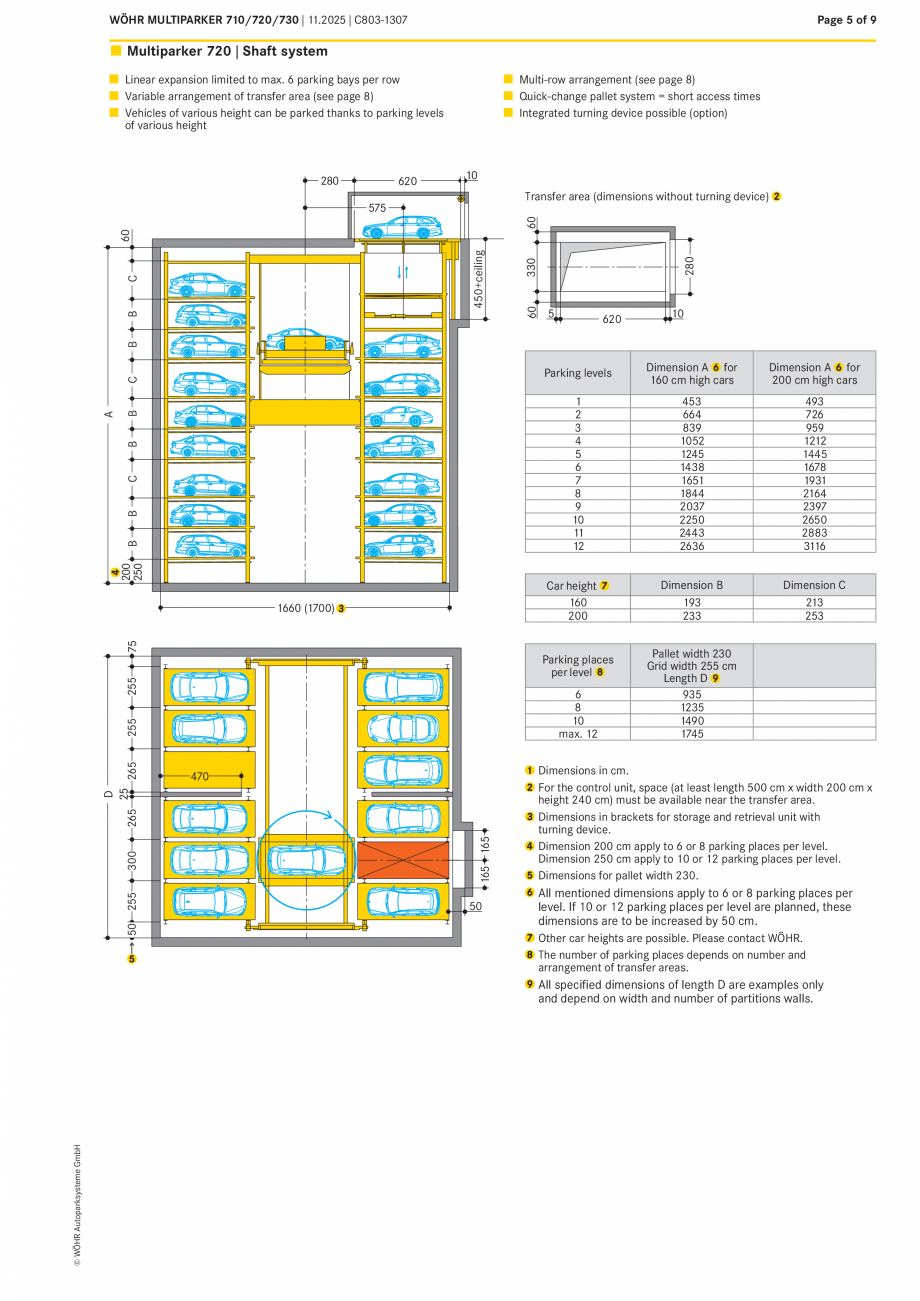

ension 250 cm apply to 10 or 12 parking places per level. Dimensions for pallet width 230. Other car heights are possible. Please contact WÖHR. The number of parking places depends on number and arrangement of transfer areas. WÖHR MULTIPARKER 710/720/730 | 11.2025 | C803-1307 Page 5 of 9 Multiparker 720 | Shaft system Linear expansion limited to max. 6 parking bays per row Variable arrangement of transfer area (see page 8) Vehicles of various height can be parked thanks to parking levels of various height 280 620 Multi-row arrangement (see page 8) Quick-change pallet system = short access times Integrated turning device possible (option) 10 Transfer area (dimensions without turning device) 280 330 60 5 620 10 B 200 250 B B C B A C B B C 450+ceiling 60 60 575 Parking levels Dimension A for 160 cm high cars Dimension A for 200 cm high cars 1 2 3 4 5 6 7 8 9 10 11 12 453 664 839 1052 1245 1438 1651 1844 2037 2250 2443 2636 493 726 959 1212 1445 1678 1931

Pagina 7-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Romana ension ...

Pagina 8 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

2164 2397 2650 2883 3116 Dimension B Dimension C 193 233 213 253 Car height 160 200 75 1660 (1700) 255 Parking places per level 470 50 255 165 165 300 265 D 25 265 255 6 8 10 max. 12 50 Pallet width 230 Grid width 255 cm Length D 935 1235 1490 1745 Dimensions in cm. For the control unit, space (at least length 500 cm x width 200 cm x height 240 cm) must be available near the transfer area. Dimensions in brackets for storage and retrieval unit with turning device. Dimension 200 cm apply to 6 or 8 parking places per level. Dimension 250 cm apply to 10 or 12 parking places per level. Dimensions for pallet width 230. All mentioned dimensions apply to 6 or 8 parking places per level. If 10 or 12 parking places per level are planned, these dimensions are to be increased by 50 cm. Other car heights are possible. Please contact WÖHR. The number of parking places depends on number and arrangement of transfer areas. © WÖHR Autoparksysteme GmbH All specified dimension

Pagina 8-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Romana
2164...

Pagina 9 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

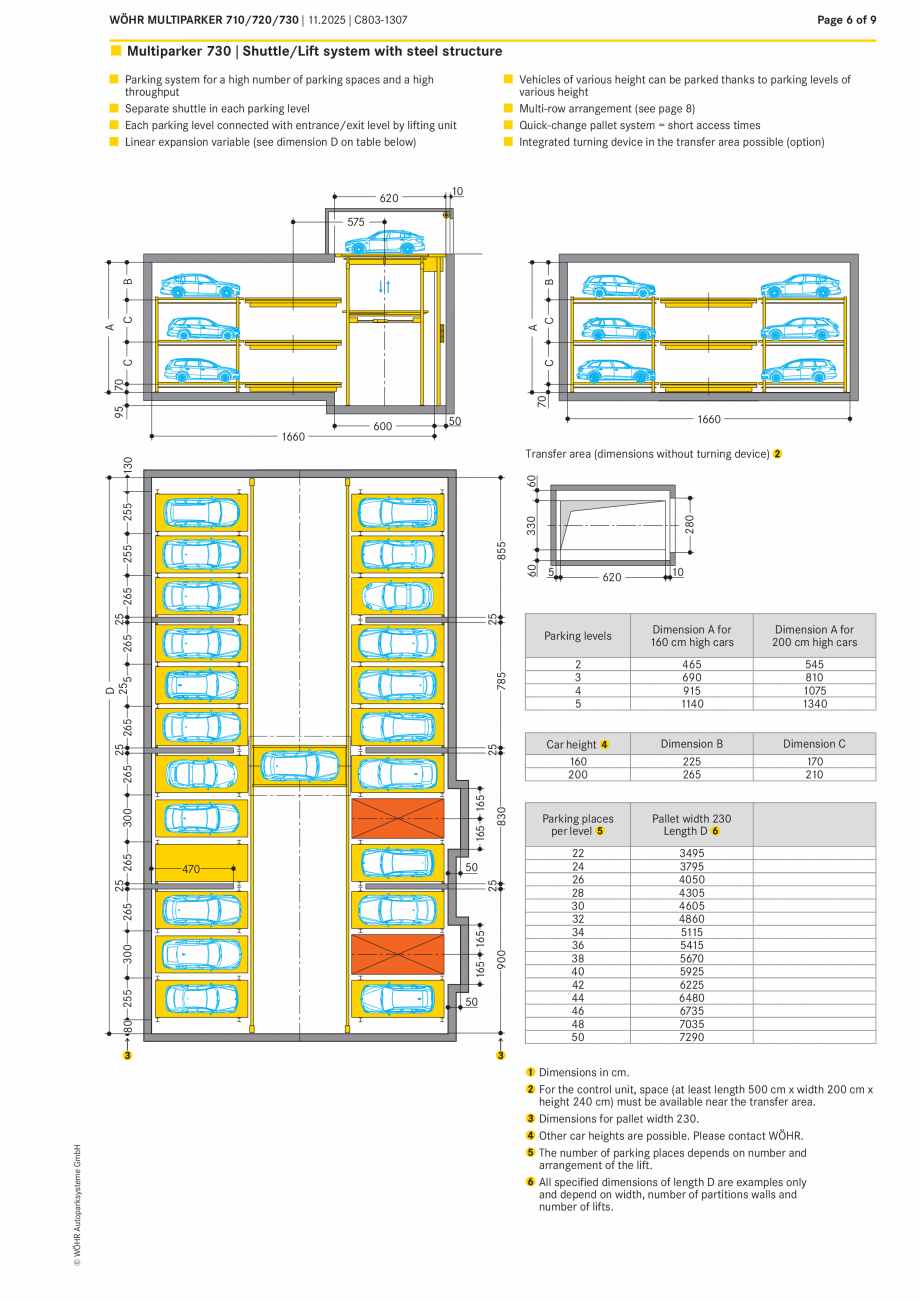

s of length D are examples only and depend on width and number of partitions walls. WÖHR MULTIPARKER 710/720/730 | 11.2025 | C803-1307 Page 6 of 9 Multiparker 730 | Shuttle/Lift system with steel structure Parking system for a high number of parking spaces and a high throughput Separate shuttle in each parking level Each parking level connected with entrance/exit level by lifting unit Linear expansion variable (see dimension D on table below) 620 Vehicles of various height can be parked thanks to parking levels of various height Multi-row arrangement (see page 8) Quick-change pallet system = short access times Integrated turning device in the transfer area possible (option) 10 95 70 70 C C A A C C B B 575 1660 600 1660 50 280 5 620 10 Parking levels Dimension A for 160 cm high cars Dimension A for 200 cm high cars 2 3 4 5 465 690 915 1140 545 810 1075 1340 Dimension B Dimension C 225 265 170 210 165 165 300 265 50 © WÖHR Autoparksysteme GmbH 8

Pagina 9-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Romana s of...
