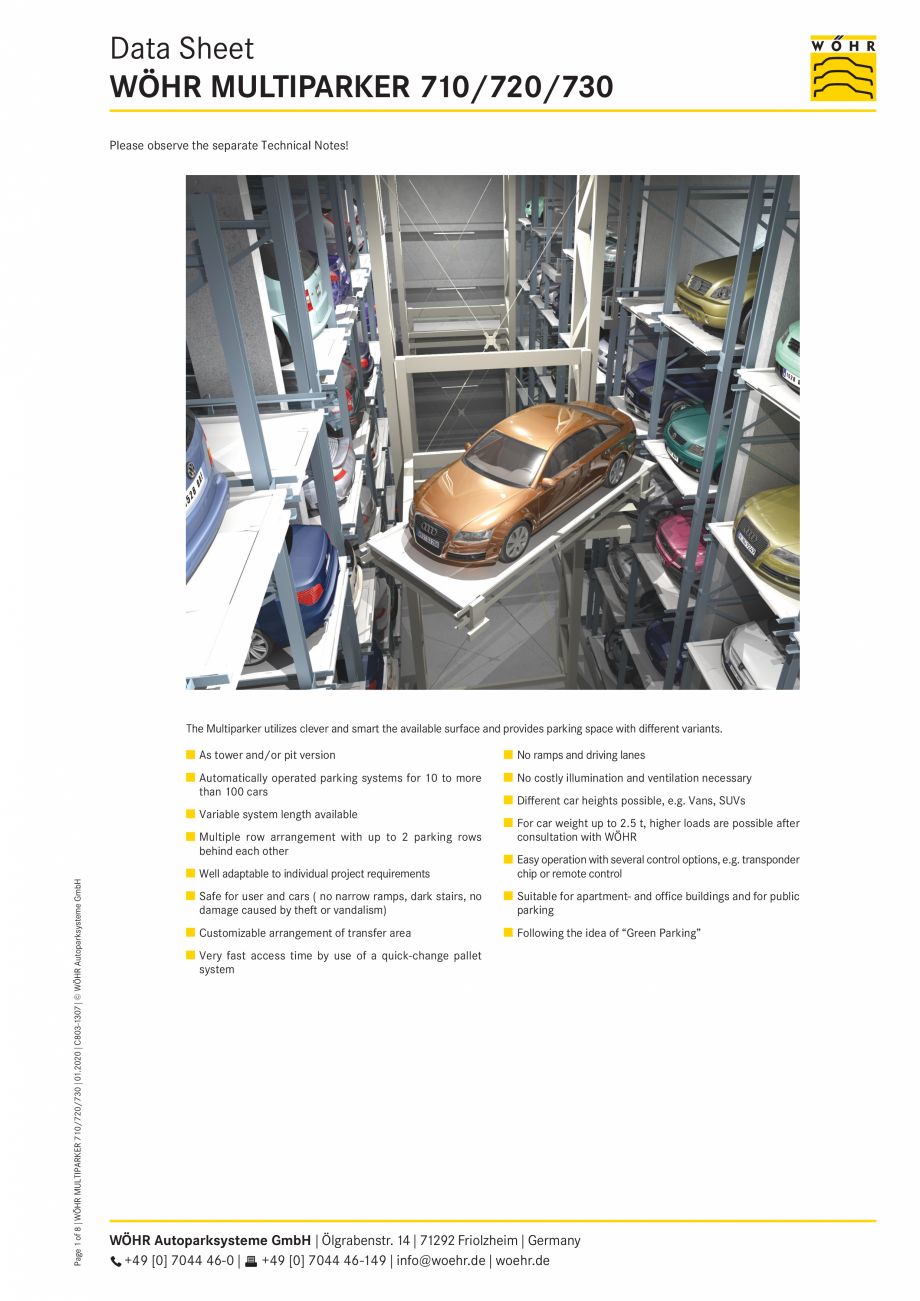

Data Sheet WÖHR MULTIPARKER 710/720/730 Please observe the separate Technical Notes! The Multiparker utilizes clever and smart the available surface and provides parking space with different variants. As tower and/or pit version No ramps and driving lanes Automatically operated parking systems for 10 to more than 100 cars No costly illumination and ventilation necessary Variable system length available Page 1 of 8 | WÖHR MULTIPARKER 710/720/730 | 01.2020 | C803-1307 | © WÖHR Autoparksysteme GmbH Multiple row arrangement with up to 2 parking rows behind each other Different car heights possible, e.g. Vans, SUVs For car weight up to 2.5 t, higher loads are possible after consultation with WÖHR Well adaptable to individual project requirements Easy operation with several control options, e.g. transponder chip or remote control Safe for user and cars ( no narrow ramps, dark stairs, no damage caused by theft or vandalism) Suitable for apartment- and office buildings and for

Pagina 1-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Engleza Data...

Pagina 2 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

public parking Customizable arrangement of transfer area Following the idea of “Green Parking” Very fast access time by use of a quick-change pallet system WÖHR Autoparksysteme GmbH | Ölgrabenstr. 14 | 71292 Friolzheim | Germany +49 [0] 7044 46-0 | +49 [0] 7044 46-149 | info@woehr.de | woehr.de WÖHR MULTIPARKER 710/720/730 | 01.2020 | C803-1307 Page 2 of 8 Multiparker 710 | Tower system for 2–8 parking levels Parking system for 2–8 parking levels as tower variant Vehicles of various height can be parked thanks to parking levels of various height Linear expansion variable (see dimension D on table below) Multi-row arrangement (see page 8) Variable arrangement of transfer area (see page 8) Quick-change pallet system = short access times 50 Integrated turning device possible (option) 575 10 130 B B 60 C A 330 B 60 233 Transfer area (dimensions without turning device) 1660 (1700) 255 255 255 255 255 40 2 3 4 5 6 7 8 255 255 255 255 220 (320

Pagina 2-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Engleza public...

Pagina 3 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

) © WÖHR Autoparksysteme GmbH 476 689 882 1075 1288 1481 1674 516 769 1002 1235 1488 1721 1954 Dimension B Dimension C 193 218 233 213 238 253 Pallet width 230 Grid width 255 cm Length D 1790 2045 2300 2555 2810 3065 3320 3555 3830 4085 4340 4595 4850 5105 5360 * The number of parking places depends on number and arrangement of transfer areas Dimensions for pallet width 230 For the control unit, space (at least length 500 cm x width 200 cm x height 240 cm) must be available near the transfer area. Dimension A for 200 cm high cars 160 185 200 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 ( ) Dimensions in brackets for storage and retrieval unit with turning device Dimension A for 160 cm high cars Car height Parking places per level* 255 D Parking levels Dimensions in cm WÖHR MULTIPARKER 710/720/730 | 01.2020 | C803-1307 Page 3 of 8 Multiparker 710 | Shaft system for 2–8 parking levels Parking system for 2–8 parking levels as shaft variant Vehicles of v

Pagina 3-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Engleza )
©...

Pagina 4 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

arious height can be parked thanks to parking levels of various height Linear expansion variable (see dimension D on table below) Multi-row arrangement (see page 8) Variable arrangement of transfer area (see page 8) Quick-change pallet system = short access times Integrated turning device possible (option) 330 60 450 + ceiling 233 B 5 620 10 B C A 280 325 50 575 Transfer area (dimensions without turning device) 10 620 60 280 130 B Parking levels 2 3 4 5 6 7 8 Dimension A for 200 cm high cars 646 899 1132 1365 1618 1851 2084 Car height Dimension B Dimension C 160 185 200 193 218 233 213 238 253 Parking places per level* 830 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 50 25 470 255 975 255 265 25 265 D 300 165 165 265 25 25 265 815 255 606 819 1012 1205 1418 1611 1804 255 40 1660 (1700) Dimension A for 160 cm high cars 220 (320) * Dimensions for pallet width 230 ( ) Dimensions in brackets for storage and retrieval unit w

Pagina 4-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Engleza arious ...

Pagina 5 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

ith turning device © WÖHR Autoparksysteme GmbH For the control unit, space (at least length 500 cm x width 200 cm x height 240 cm) must be available near the transfer area. Pallet width 230 Grid width 255 cm Length D** 1880 2180 2435 2690 2990 3245 3500 3800 4055 4310 4610 4865 5120 5420 5675 5930 The number of parking places depends on number and arrangement of lifts ** All specified dimensions of length D are examples only and depend on width and number of partitions walls Dimensions in cm WÖHR MULTIPARKER 710/720/730 | 01.2020 | C803-1307 Page 4 of 8 Multiparker 720 | Tower system for 4–20 parking levels Parking system for 4-20 parking levels as tower variant Vehicles of various height can be parked thanks to parking levels of various height Linear expansion limited to max. 6 parking bays per row Multi-row arrangement (see page 8) Variable arrangement of transfer area (see page 8) Quick-change pallet system = short access times Integrated turning device possible (o

Pagina 5-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Engleza ith...

Pagina 6 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

ption) Transfer area (dimensions without turning device) 60 B 330 C 60 60 1660 (1700) 10 B Dimension A for 160 cm high cars Dimension A for 200 cm high cars 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 852 1045 1258 1451 1644 1857 2050 2243 2456 2649 2842 3055 3248 3441 3654 3847 4040 1012 1245 1498 1731 1964 2217 2450 2683 2936 3169 3402 3655 3888 4121 4374 4607 4840 200* 250* B B C Parking levels B A C B 575 * Dimension 200 cm apply to 4 or 8 parking places per level Dimension 250 cm apply to 10 or 12 parking places per level 75 Dimension B Dimension C 160 185 200 193 218 233 213 238 253 255 Car height 255 ( ) Dimensions in brackets for storage and retrieval unit with turning device D 255 Parking places per level** 255 255 6 8 10 max. 12 890 1145 1400 1655 50 255 ** The number of parking places depends on number and arrangement of transfer areas Dimensions in cm Dimensions for pallet width 230 For the control unit, space (at least lengt

Pagina 6-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Engleza ption)
...

Pagina 7 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

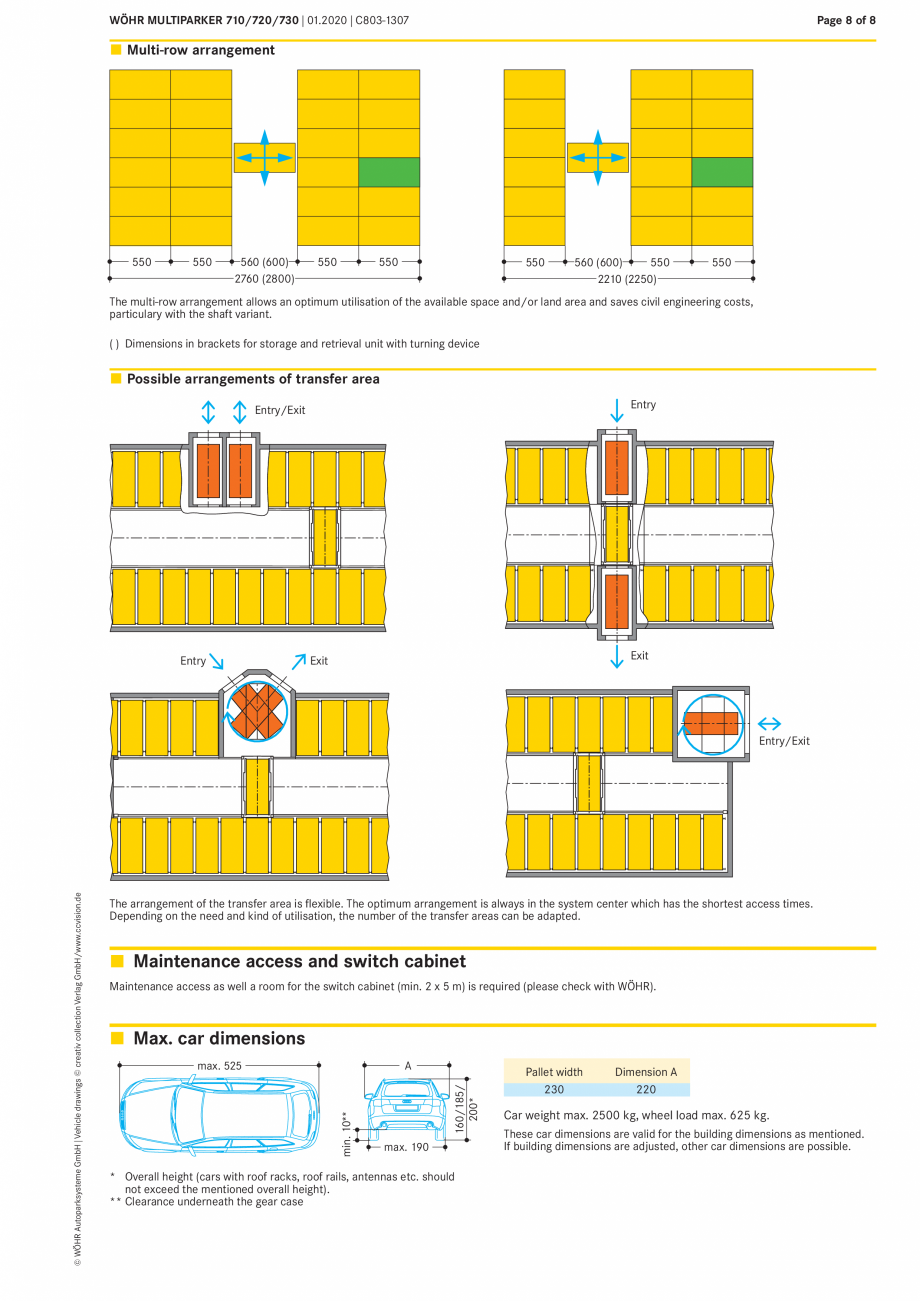

h 500 cm x width 200 cm x height 240 cm) must be available near the transfer area. © WÖHR Autoparksysteme GmbH Pallet width 230 Grid width 255 cm Length D WÖHR MULTIPARKER 710/720/730 | 01.2020 | C803-1307 Page 5 of 8 Multiparker 720 | Shaft system Linear expansion limited to max. 6 parking bays per row Multi-row arrangement (see page 8) Variable arrangement of transfer area (see page 8) Quick-change pallet system = short access times Vehicles of various height can be parked thanks to parking levels of various height Integrated turning device possible (option) 280 620 10 280 330 60 5 620 10 B B C 450 + ceiling 60 60 575 Transfer area (dimensions without turning device) B 1 2 3 4 5 6 7 8 9 10 11 12 200* 250* B B C B A C Parking levels * Dimension 200 cm apply to 6 or 8 parking places per level Dimension 250 cm apply to 10 or 12 parking places per level ( ) Dimensions in brackets for storage and retrieval unit with turning device 75 255 255 265 D

Pagina 7-Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica Engleza h 500...

Pagina 8 - Sistem de parcare automat Multiparker WÖHR MULTIPARKER 710-720-730 Fisa tehnica...

imension B Dimension C 193 218 233 213 238 253 300 165 165 265 Dimensions in cm 255 Pallet width 230 Length D**** 935 1235 1490 1745 *** The number of parking places depends on number and arrangement of transfer areas **** All specified dimensions of length D are examples only and depend on width and number of partitions walls 470 50 50 493 726 979 1212 1445 1698 1931 2164 2417 2650 2883 3136 160 185 200 6 8 10 max. 12 D 25 © WÖHR Autoparksysteme GmbH 453 646 859 1052 1245 1458 1651 1844 2057 2250 2443 2656 Car height Parking places per level*** For the control unit, space (at least length 500 cm x width 200 cm x height 240 cm) must be available near the transfer area. Dimension A** for 200 cm high cars ** All mentioned dimensions apply to 6 or 8 parking places per level. If 10 or 12 parking places per level are planned, these dimensions are to be increased by 50 cm. 1660 (1700) Dimensions for pallet width 230 Dimension A** for 160 cm high cars WÖHR MULTI
