Pagina 1 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza Geberit Duofix

2....

Geberit Duofix 2. Geberit Duofix 2.1 Installation elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.1.1 2.1.7 Elements for WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Accessory overview: Geberit Duofix elements for WCs . . . . . . . . . . . . . . . . . . . . .20 Elements for washbasins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Accessory overview: Geberit Duofix elements for washbasins . . . . . . . . . . . . . .30 Elements for bidets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Elements for urinals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Accessory overview: Geberit Duofix elements for urinals . . . . . . . . . . . . . . . . . . .33 Elem

Pagina 1-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza Geberit Duofix

2. Geberit Duofix
...

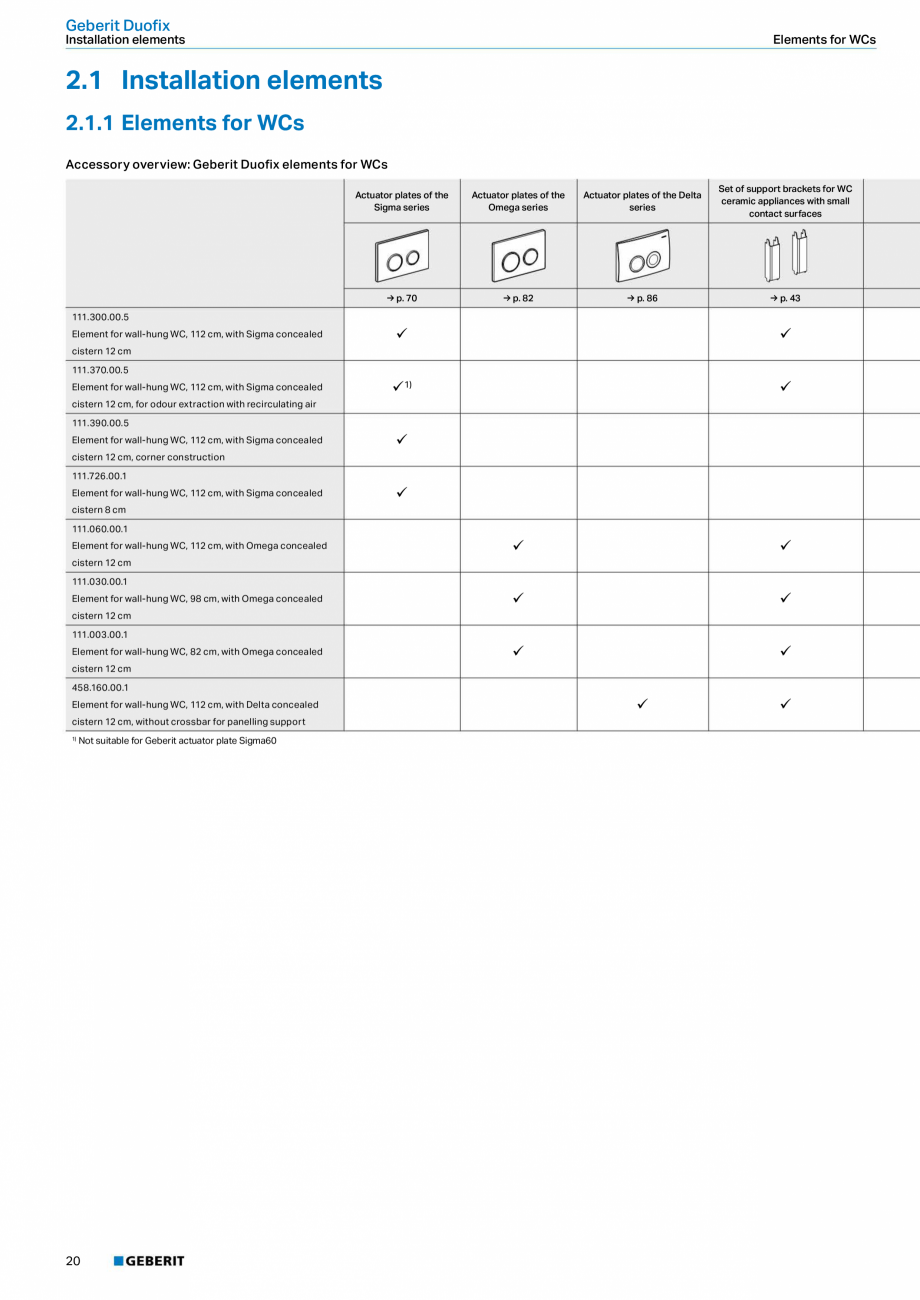

Pagina 2 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza ents for showers, with ...

ents for showers, with wall drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Elements for showers and bathtubs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Accessory overview: Geberit Duofix elements for showers and bathtubs . . .40 Elements for loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 2.2 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 2.2.1 For installation elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 2.1.2 2.1.3 2.1.4 2.1.5 2.1.6 19 Geberit Duofix Installation elements Elements for WCs 2.1 Installation elements 2.1.1 Elements for WCs Accessory overview: Geberit Duofix elements for WCs Actuator plates of the Sigma series Actuator plates of the Omega series Actuator p

Pagina 2-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza ents for showers, with wall drain ...

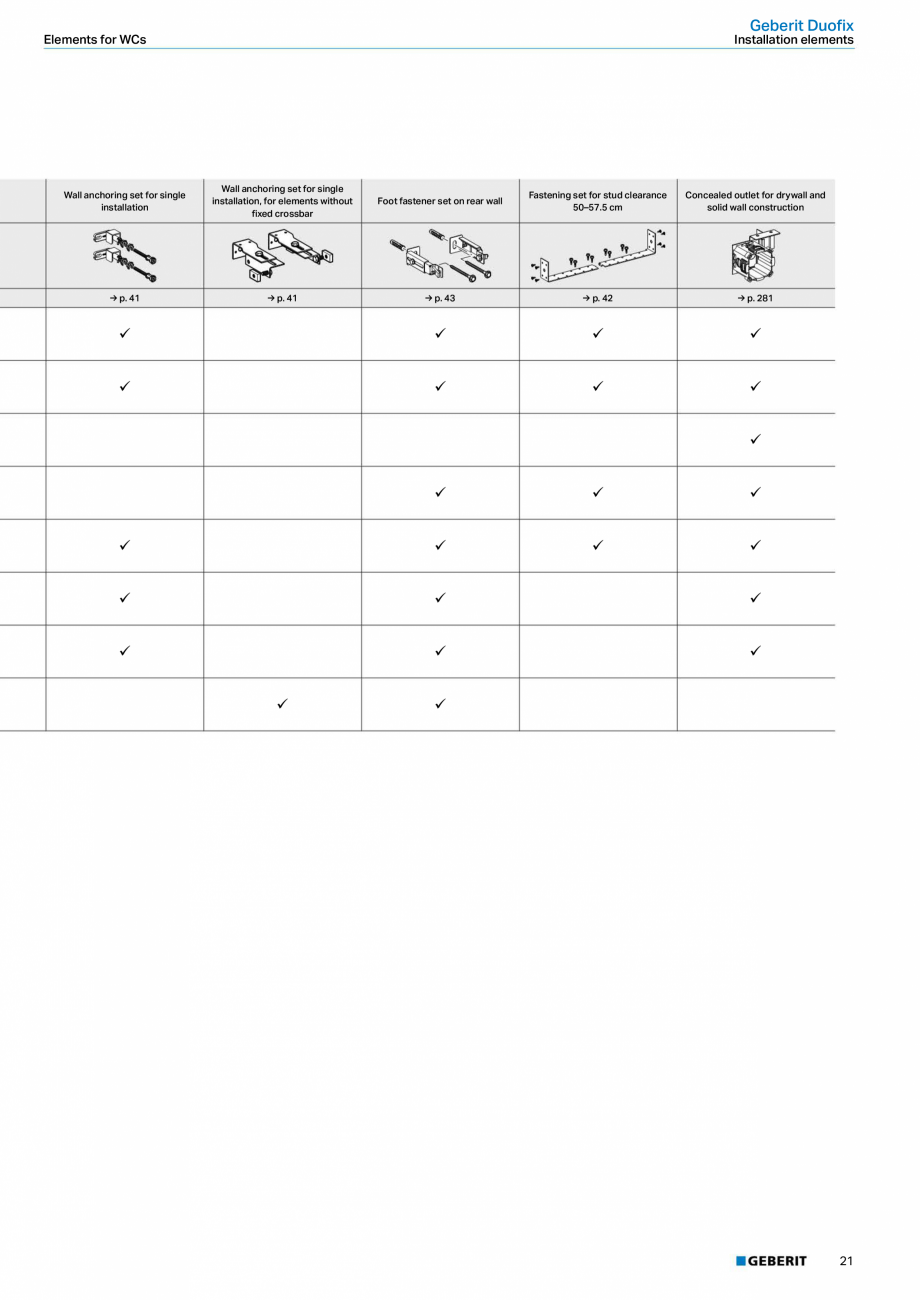

Pagina 3 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza lates of the Delta...

lates of the Delta series Set of support brackets for WC ceramic appliances with small contact surfaces → p. 70 → p. 82 → p. 86 → p. 43 111.300.00.5 Element for wall-hung WC, 112 cm, with Sigma concealed ü ü ü1) ü cistern 12 cm 111.370.00.5 Element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, for odour extraction with recirculating air 111.390.00.5 Element for wall-hung WC, 112 cm, with Sigma concealed ü cistern 12 cm, corner construction 111.726.00.1 Element for wall-hung WC, 112 cm, with Sigma concealed ü cistern 8 cm 111.060.00.1 Element for wall-hung WC, 112 cm, with Omega concealed ü ü ü ü ü ü cistern 12 cm 111.030.00.1 Element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm 111.003.00.1 Element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm 458.160.00.1 Element for wall-hung WC, 112 cm, with Delta concealed cistern 12 cm, without crossbar for panelling support 1) Not suitable for Geberit actuator

Pagina 3-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza lates of the Delta
series

Set of ...

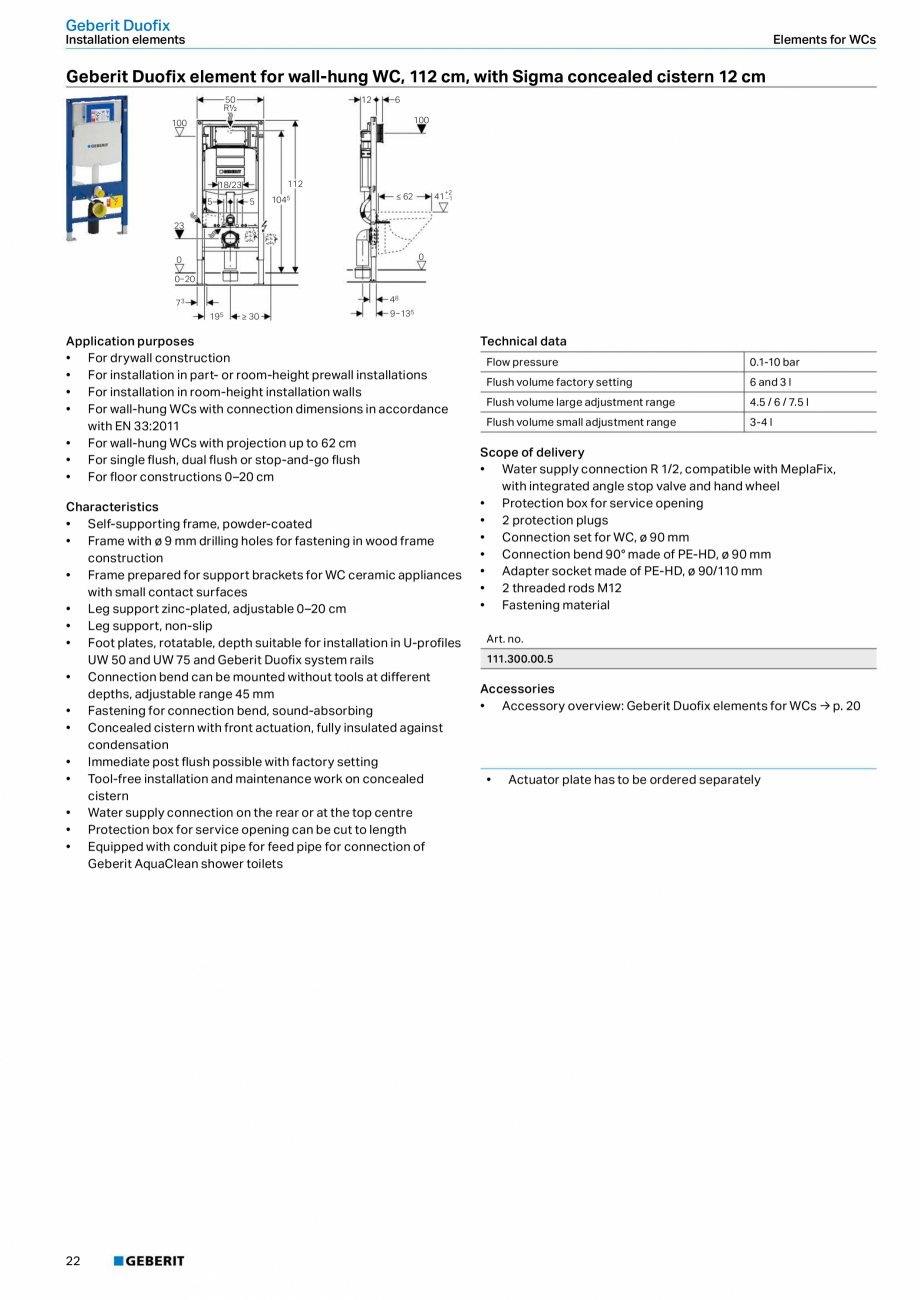

Pagina 4 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza plate Sigma60

20

ü
...

plate Sigma60 20 ü ü Geberit Duofix Elements for WCs Installation elements Wall anchoring set for single installation Wall anchoring set for single installation, for elements without fixed crossbar Foot fastener set on rear wall Fastening set for stud clearance 50–57.5 cm Concealed outlet for drywall and solid wall construction → p. 41 → p. 41 → p. 43 → p. 42 → p. 281 ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü ü 21 Geberit Duofix Installation elements Elements for WCs Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm 12 50 R½ 6 100 100 112 18/23 5 5 1045 +2 41 −1 ≤ 62 23 0 0 0−20 48 73 195 ≥ 30 9−135 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN

Pagina 4-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza plate Sigma60

20

ü

ü
...

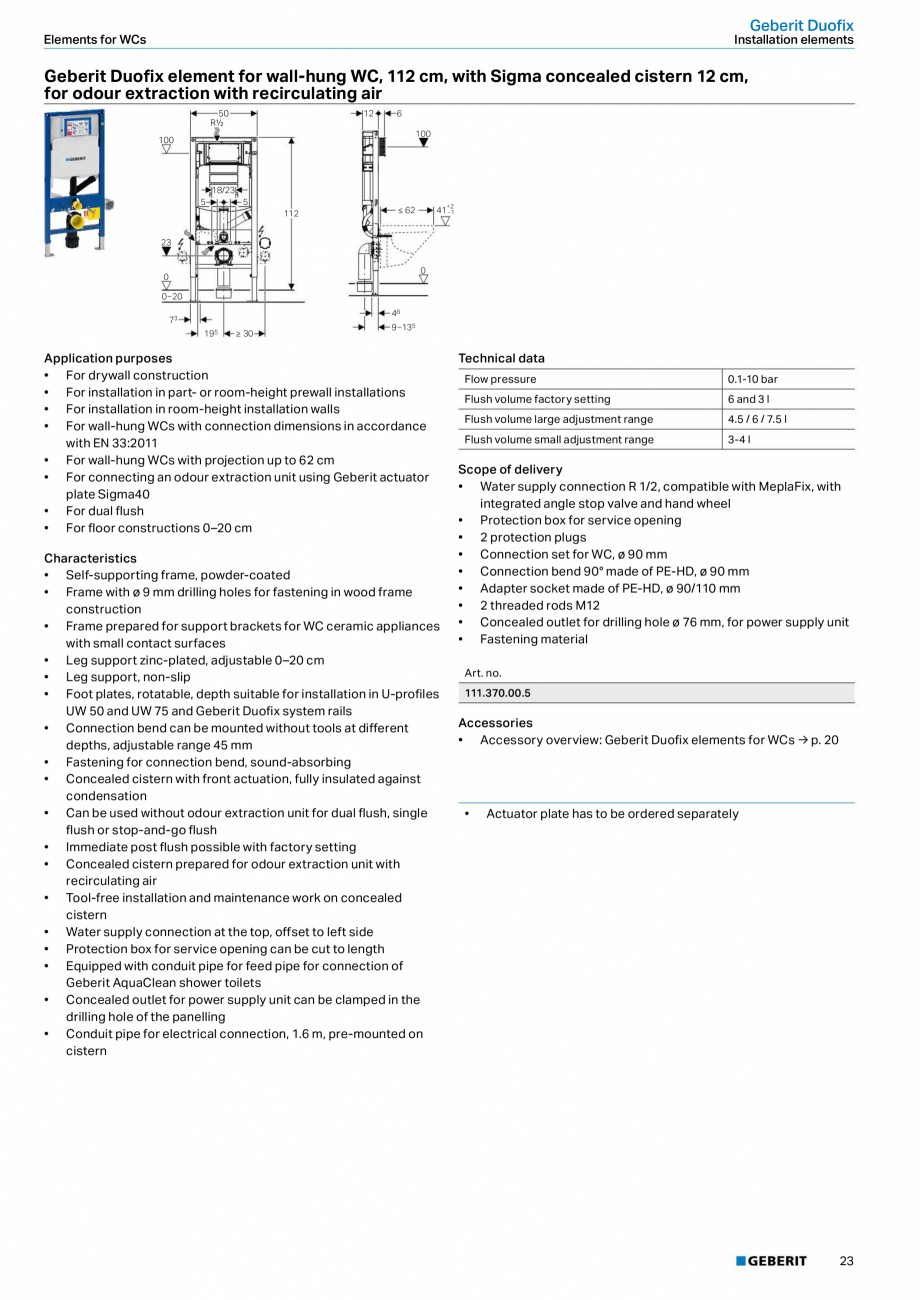

Pagina 5 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza 33:2011
• For...

33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protecti

Pagina 5-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza 33:2011
• For wall-hung WCs with...

Pagina 6 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza on box for service...

on box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 22 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • 2 protection plugs • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Fastening material Art. no. 111.300.00.5 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, for odo

Pagina 6-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza on box for service opening can be ...

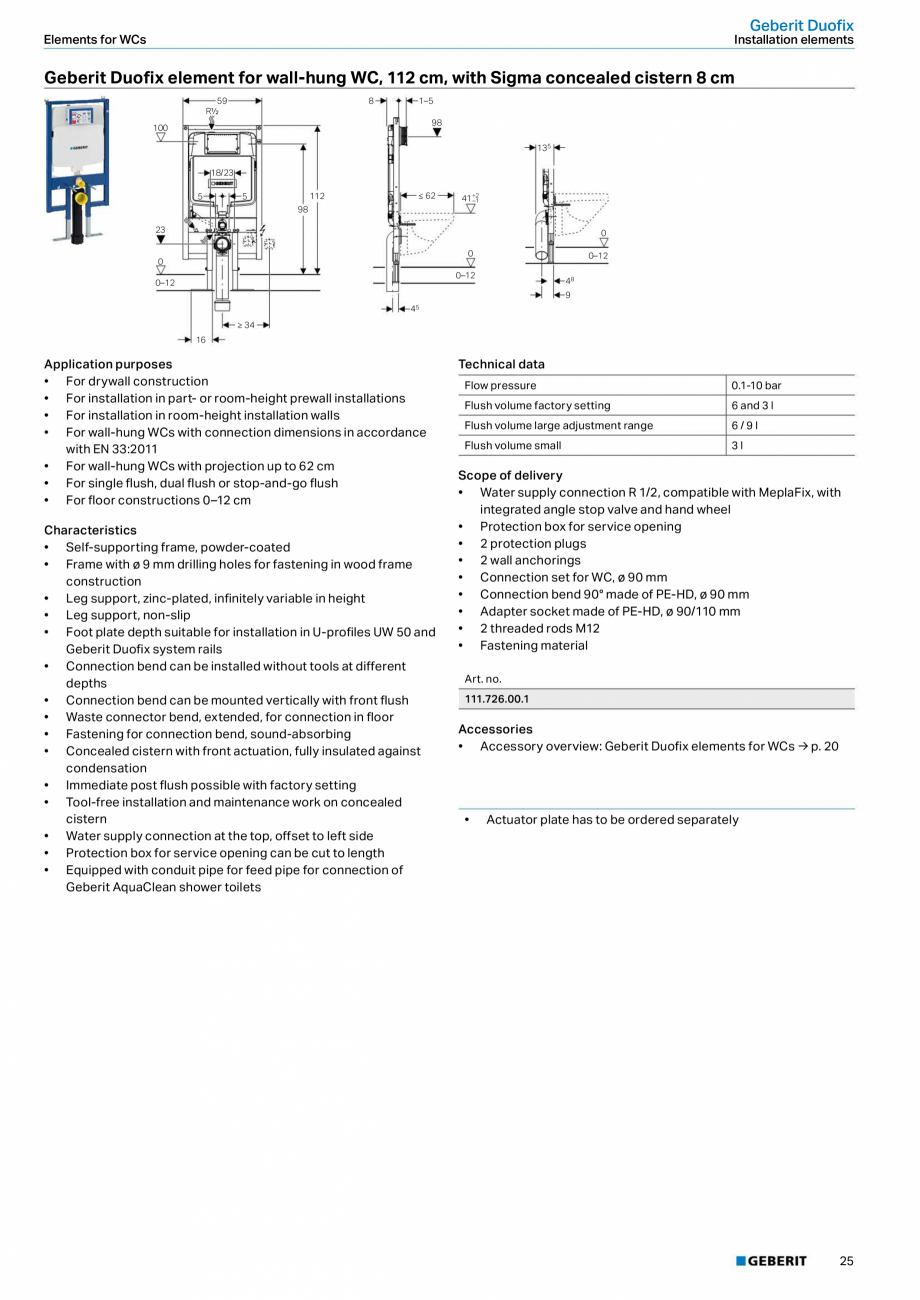

Pagina 7 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza ur extraction with...

ur extraction with recirculating air 12 50 R½ 6 100 100 18/23 5 5 112 +2 41 −1 ≤ 62 23 0 0 0−20 48 73 195 ≥ 30 9−135 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For connecting an odour extraction unit using Geberit actuator plate Sigma40 • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix syst

Pagina 7-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza ur extraction with recirculating...

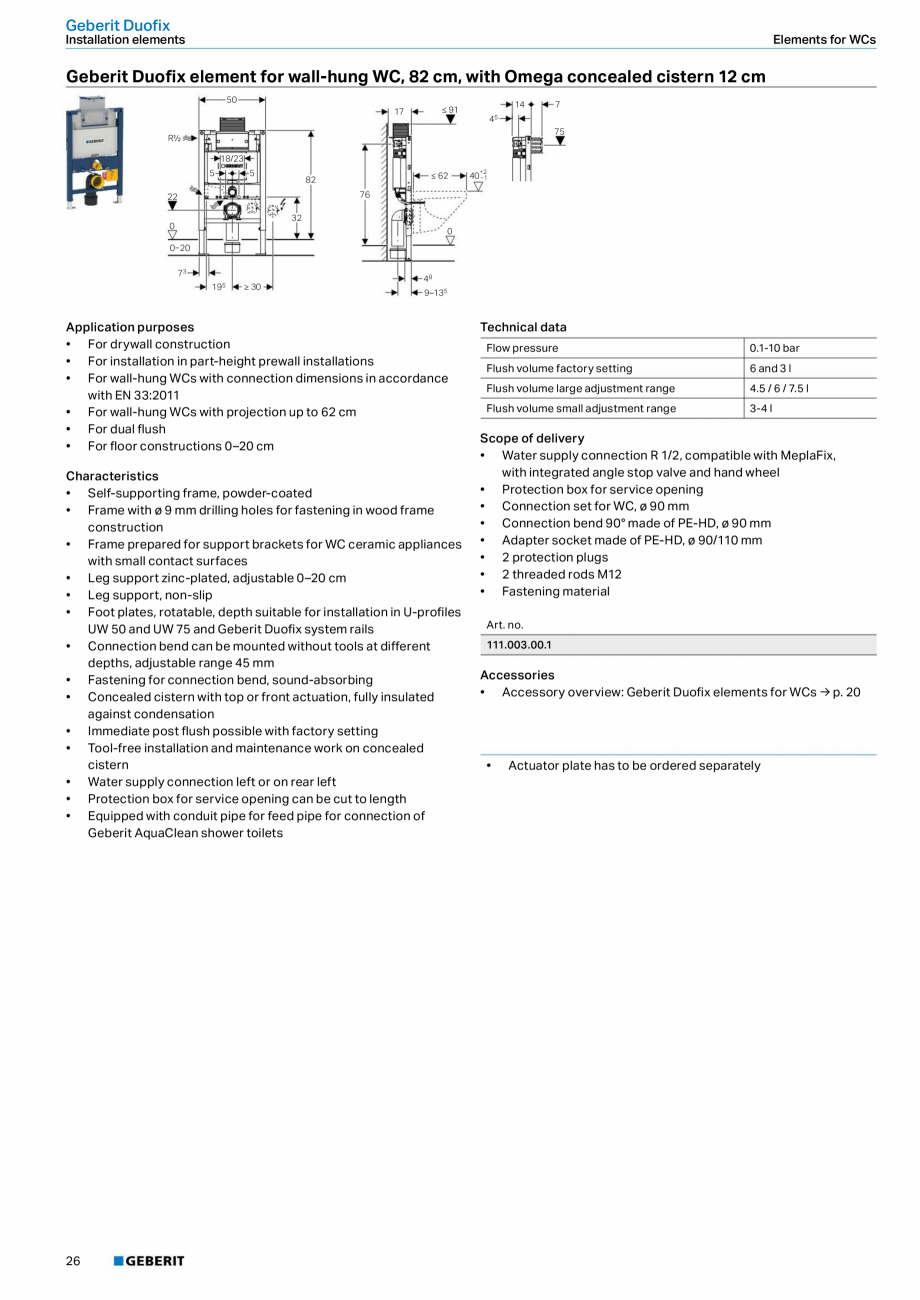

Pagina 8 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza em rails
• Connection...

em rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Can be used without odour extraction unit for dual flush, single flush or stop-and-go flush • Immediate post flush possible with factory setting • Concealed cistern prepared for odour extraction unit with recirculating air • Tool-free installation and maintenance work on concealed cistern • Water supply connection at the top, offset to left side • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets • Concealed outlet for power supply unit can be clamped in the drilling hole of the panelling • Conduit pipe for electrical connection, 1.6 m, pre-mounted on cistern Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3

Pagina 8-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza em rails
• Connection bend can...

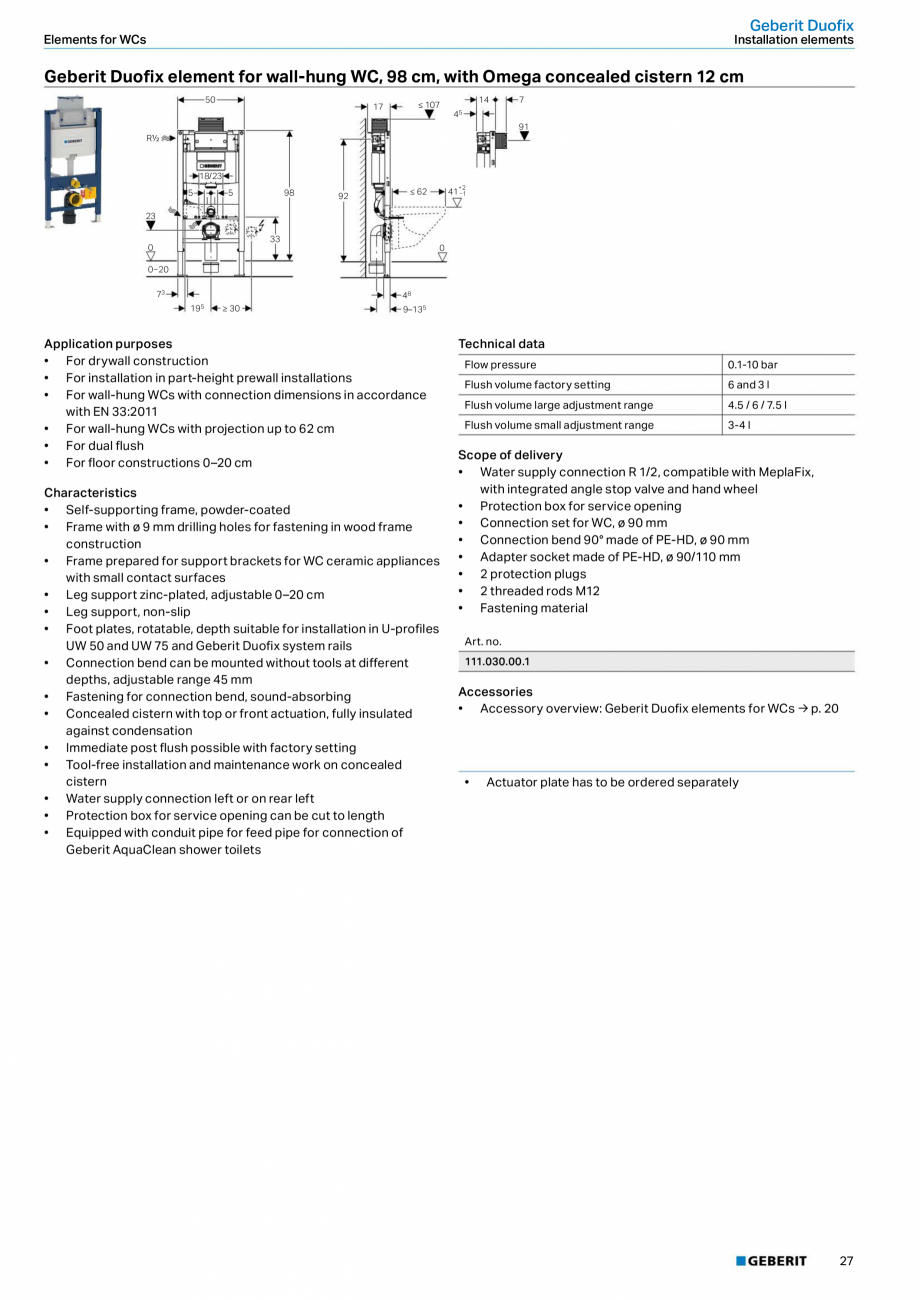

Pagina 9 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza l

Flush volume large ...

l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • 2 protection plugs • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Concealed outlet for drilling hole ø 76 mm, for power supply unit • Fastening material Art. no. 111.370.00.5 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 23 Geberit Duofix Installation elements Elements for WCs Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, corner construction 53−76 R½ 128 6 100 100 112 18/23 5 5 +2 ≤ 62 1045 41 −1 23 0 0 0−20 9 48 195 11 ≥ 30 Application purposes • Fo

Pagina 9-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza l

Flush volume large adjustment ...

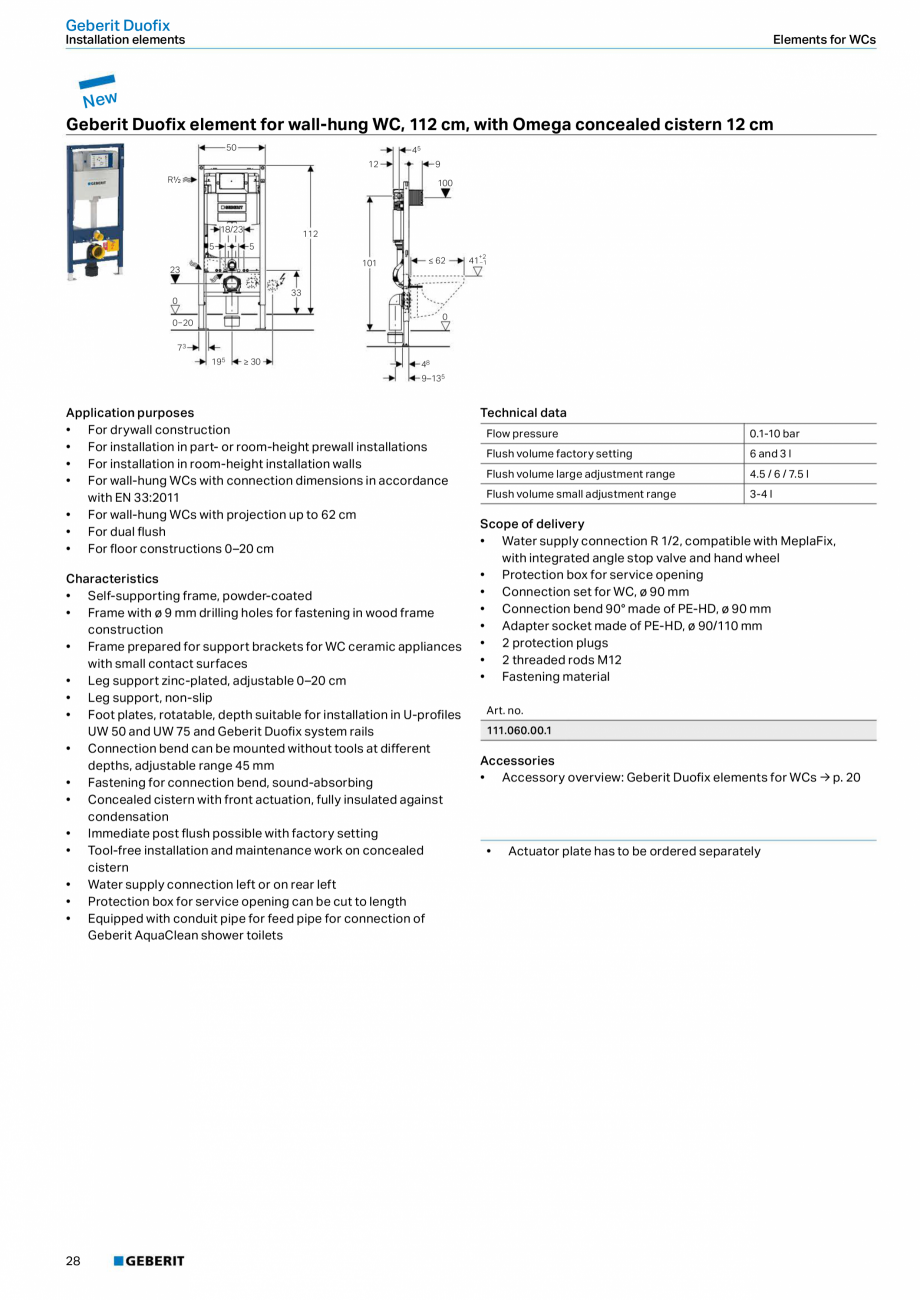

Pagina 10 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza r drywall construction...

r drywall construction • For installation in part- or room-height prewall installations • For free-standing installation with wall fixation on one side • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Variable wall fixture 30°–60°, can be pulled out 10 cm on both sides • Integrated panelling support at front, top and sides, extendible • Minimum and maximum dimensions for floor area: W = 56 / 76 cm, D = 28 / 38 cm, leg length = 39.6 / 53.7 cm • Frame suitable for WC ceramic appliances with small contact surface • Leg support zinc-plated, adjustable 0–20 cm • Leg support not on the perimeter for lateral offset of discharge pipe • Straight connector can be mounted without tools • Fastening for straight connector, sound-absorbing

Pagina 10-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza r drywall construction
• For...

Pagina 11 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza • Concealed cistern ...

• Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection on the rear or at the top centre • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 24 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Concealed outlet for drilling hole ø 68 mm,

Pagina 11-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza • Concealed cistern with front...

Pagina 12 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza for electrical...

for electrical connection • Fastening material • Connection for single-side wall fixation Art. no. 111.390.00.5 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix element for wall-hung WC, 112 cm, with Sigma concealed cistern 8 cm 8 59 R½ 1–5 98 100 135 18/23 5 112 5 ≤ 62 41+2 –1 98 23 0 0 0 0–12 0–12 0–12 48 9 45 ≥ 34 16 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–12 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes

Pagina 12-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza for electrical
connection
•...

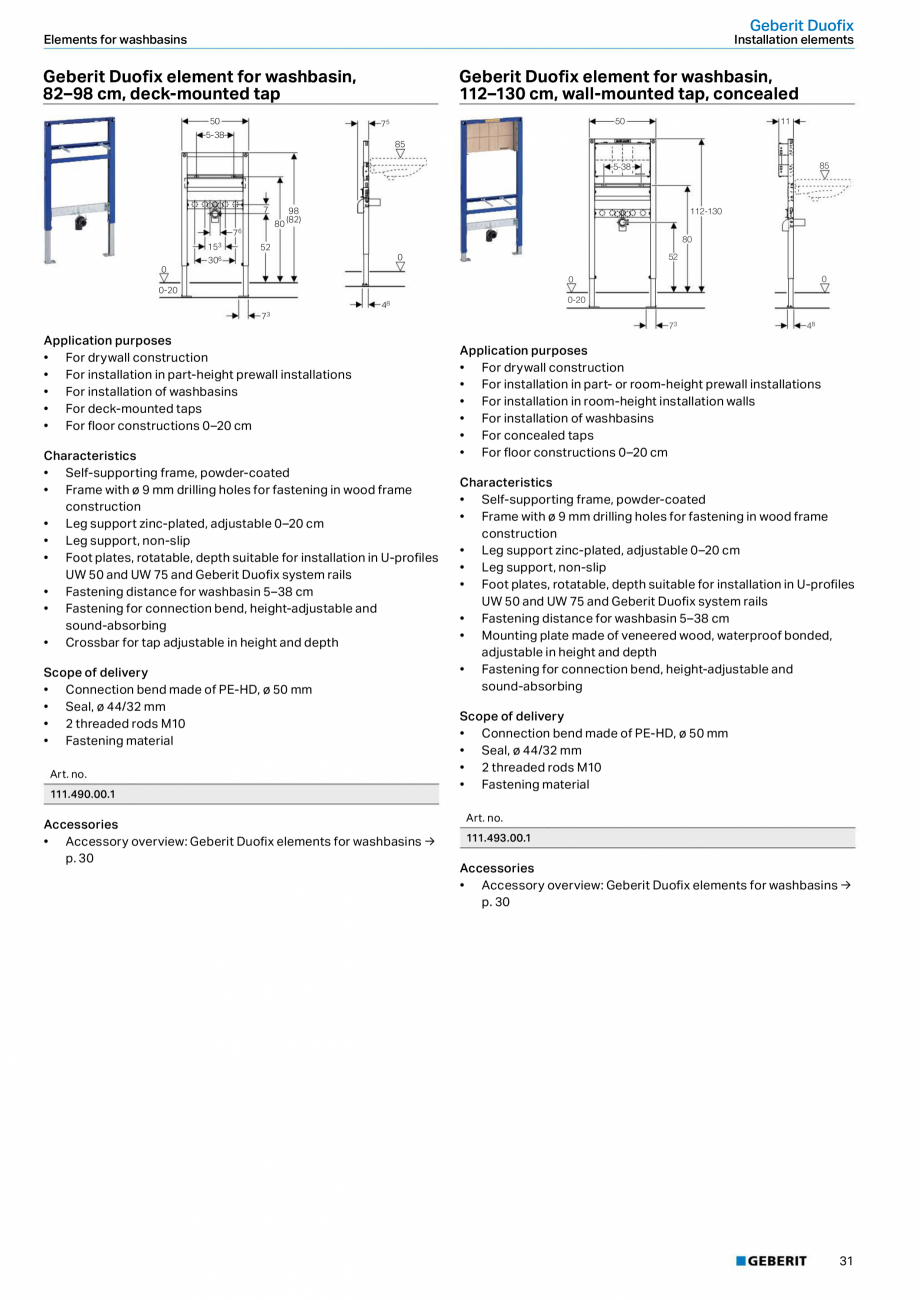

Pagina 13 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza for fastening in wood ...

for fastening in wood frame construction • Leg support, zinc-plated, infinitely variable in height • Leg support, non-slip • Foot plate depth suitable for installation in U-profiles UW 50 and Geberit Duofix system rails • Connection bend can be installed without tools at different depths • Connection bend can be mounted vertically with front flush • Waste connector bend, extended, for connection in floor • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection at the top, offset to left side • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjus

Pagina 13-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza for fastening in wood frame...

Pagina 14 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza tment range

6/9l
...

tment range 6/9l Flush volume small 3l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • 2 protection plugs • 2 wall anchorings • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Fastening material Art. no. 111.726.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 25 Geberit Duofix Installation elements Elements for WCs Geberit Duofix element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm 50 14 ≤ 91 17 7 45 75 R½ 18/23 5 5 ≤ 62 82 +2 40 −1 76 22 32 0 0 0−20 73 195 ≥ 30 48 9–135 Application purposes • For drywall construction • For installation in part-height prewall installations • For wall-hung WCs with connection d

Pagina 14-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza tment range

6/9l

Flush volume...

Pagina 15 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza imensions in...

imensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box f

Pagina 15-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza imensions in accordance
with EN...

Pagina 16 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza or service opening can...

or service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 26 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 111.003.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix element for wall-hung WC, 98 cm, with Omega concealed cistern 12 cm 50 ≤ 107 17

Pagina 16-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza or service opening can be cut to...

Pagina 17 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza 14

7

45
91

R½
...

14 7 45 91 R½ 18/23 5 98 5 92 +2 41 −1 ≤ 62 23 33 0 0 0−20 73 48 195 ≥ 30 9–135 Application purposes • For drywall construction • For installation in part-height prewall installations • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern wit

Pagina 17-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza 14

7

45
91

R½

18/23
5

98

5
...

Pagina 18 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza h top or front...

h top or front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 111.030.00.1 Accessories • Accessory overview:

Pagina 18-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza h top or front actuation, fully...

Pagina 19 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza Geberit Duofix...

Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 27 Geberit Duofix Installation elements Elements for WCs N ew Geberit Duofix element for wall-hung WC, 112 cm, with Omega concealed cistern 12 cm 50 45 12 9 R½ 100 18/23 5 112 5 101 23 ≤ 62 +2 41 −1 33 0 0 0−20 73 195 ≥ 30 48 9–135 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection up to 62 cm • For dual flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm •

Pagina 19-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza Geberit Duofix elements for WCs...

Pagina 20 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza Leg support, non-slip...

Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Connection bend can be mounted without tools at different depths, adjustable range 45 mm • Fastening for connection bend, sound-absorbing • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Tool-free installation and maintenance work on concealed cistern • Water supply connection left or on rear left • Protection box for service opening can be cut to length • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets 28 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 / 7.5 l Flush volume small adjustment range 3-4 l Scope of delivery • Water supply connection R 1/2, compatible with MeplaFix, with integrated angle stop valve and

Pagina 20-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza Leg support, non-slip
• Foot...

Pagina 21 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza hand wheel
•...

hand wheel • Protection box for service opening • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 111.060.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately Geberit Duofix Elements for WCs Installation elements Geberit Duofix element for wall-hung WC, 112 cm, with Delta concealed cistern 12 cm, without crossbar for panelling support 50 R1/2 12 1–6 100 100 18/23 112 1045 ≤ 62 +2 41 −1 23 0 0 0–20 0-20 73 48 9/11 (d 90) 10/12 (d 110) Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For wall-hung WCs with connection dimensions in accordance with EN 33:2011 • For wall-hung WCs with projection u

Pagina 21-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza hand wheel
• Protection box for...

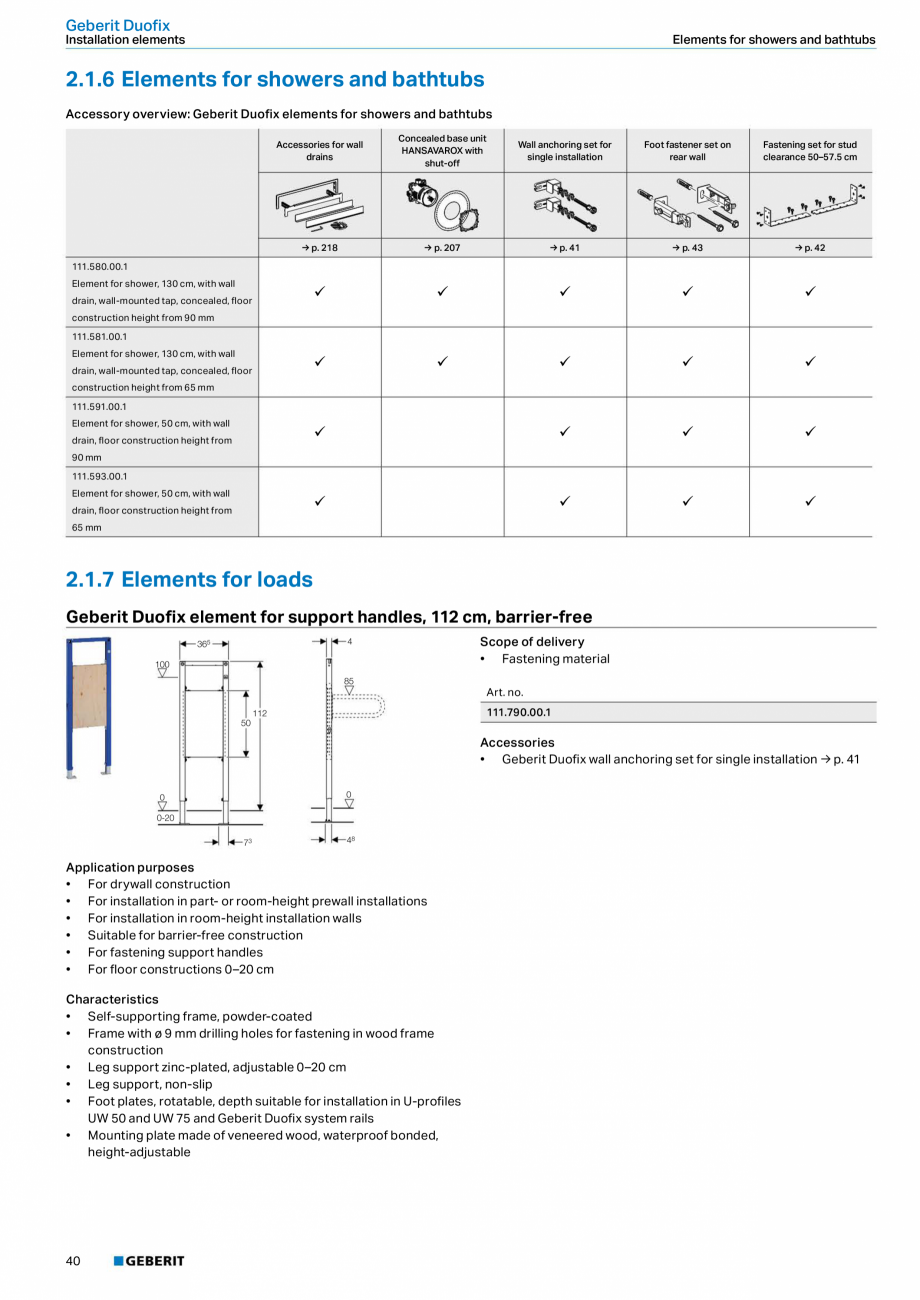

Pagina 22 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza p to 62 cm
• For...

p to 62 cm • For single flush, dual flush or stop-and-go flush • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Frame with holes to receive Geberit Duofix wall anchoring for elements without fixed crossbar • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces • Leg support zinc-plated, adjustable 0–20 cm • Foot plates made of plastic, depth suitable for installation in Uprofiles UW 50 • Concealed cistern with front actuation, fully insulated against condensation • Immediate post flush possible with factory setting • Water supply connection on the rear or at the top centre Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 6/9l Flush volume small adjustment range 3-4 l Scope of delivery • Angle stop valve R 1/2, with adapter ring •

Pagina 22-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza p to 62 cm
• For single flush,...

Pagina 23 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza Protection box for...

Protection box for service opening, made of polystyrene foam • 2 distance bolts • Connection set for WC, ø 90 mm • Connection bend 90° made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 protection plugs • 2 threaded rods M12 • Fastening material Art. no. 458.160.00.1 Accessories • Accessory overview: Geberit Duofix elements for WCs → p. 20 • Actuator plate has to be ordered separately 29 Geberit Duofix Installation elements Elements for washbasins 2.1.2 Elements for washbasins Accessory overview: Geberit Duofix elements for washbasins Fastening for washbasins with fastening distance 38–58 cm 111.490.00.1 Element for washbasin, 82–98 cm, deck-mounted tap Foot fastener set on rear wall Fastening set for stud clearance 50–57.5 cm → p. 207 → p. 41 → p. 43 → p. 42 ü Element for washbasin, 112 cm, deck-mounted tap Wall anchoring set for single installation → p. 43 111.434.00.1 Concealed base unit HANSAVAROX wi

Pagina 23-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza Protection box for service...

Pagina 24 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza th
shut-off

ü

ü
...

th shut-off ü ü ü ü ü ü ü ü ü ü 111.493.00.1 ü Element for washbasin, 112–130 cm, wall-mounted ü tap, concealed Geberit Duofix element for washbasin, 112 cm, deck-mounted tap 50 75 100 5-38 85 112 7 80 76 153 0 52 306 0 0-20 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For installation of washbasins • For deck-mounted taps • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable 0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for washbasin 5–38 cm • Fastening for connection bend, height-adjustable and sound-absorbing •

Pagina 24-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza th
shut-off

ü

ü

ü

ü

ü
...

Pagina 25 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza Crossbar for tap...

Crossbar for tap adjustable in height and depth 30 Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M10 • Fastening material Art. no. 111.434.00.1 Accessories • Accessory overview: Geberit Duofix elements for washbasins → p. 30 Geberit Duofix Elements for washbasins Installation elements Geberit Duofix element for washbasin, 82–98 cm, deck-mounted tap 50 Geberit Duofix element for washbasin, 112–130 cm, wall-mounted tap, concealed 11 50 75 5-38 85 85 5-38 7 76 153 0 98 80 (82) 112-130 80 52 52 0 306 0 0 0-20 0-20 48 73 Application purposes • For drywall construction • For installation in part-height prewall installations • For installation of washbasins • For deck-mounted taps • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support zinc-plated, adjustable

Pagina 25-Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza Crossbar for tap adjustable in...

Pagina 26 - Sistem de instalare incastrat GEBERIT Duofix Fisa tehnica Engleza 0–20 cm
• Leg...

0–20 cm • Leg support, non-slip • Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails • Fastening distance for washbasin 5–38 cm • Fastening for connection bend, height-adjustable and sound-absorbing • Crossbar for tap adjustable in height and depth Scope of delivery • Connection bend made of PE-HD, ø 50 mm • Seal, ø 44/32 mm • 2 threaded rods M10 • Fastening material Art. no. 111.490.00.1 Accessories • Accessory overview: Geberit Duofix elements for washbasins → p. 30 73 48 Application purposes • For drywall construction • For installation in part- or room-height prewall installations • For installation in room-height installation walls • For installation of washbasins • For concealed taps • For floor constructions 0–20 cm Characteristics • Self-supporting frame, powder-coated • Frame with ø 9 mm drilling holes for fastening in wood frame construction • Leg support z
