Sistem de blocare a camionului in dock STERTIL COMBILOK G2

Limba: Romana

21 afisari

Tip documentatie: Catalog, brosura

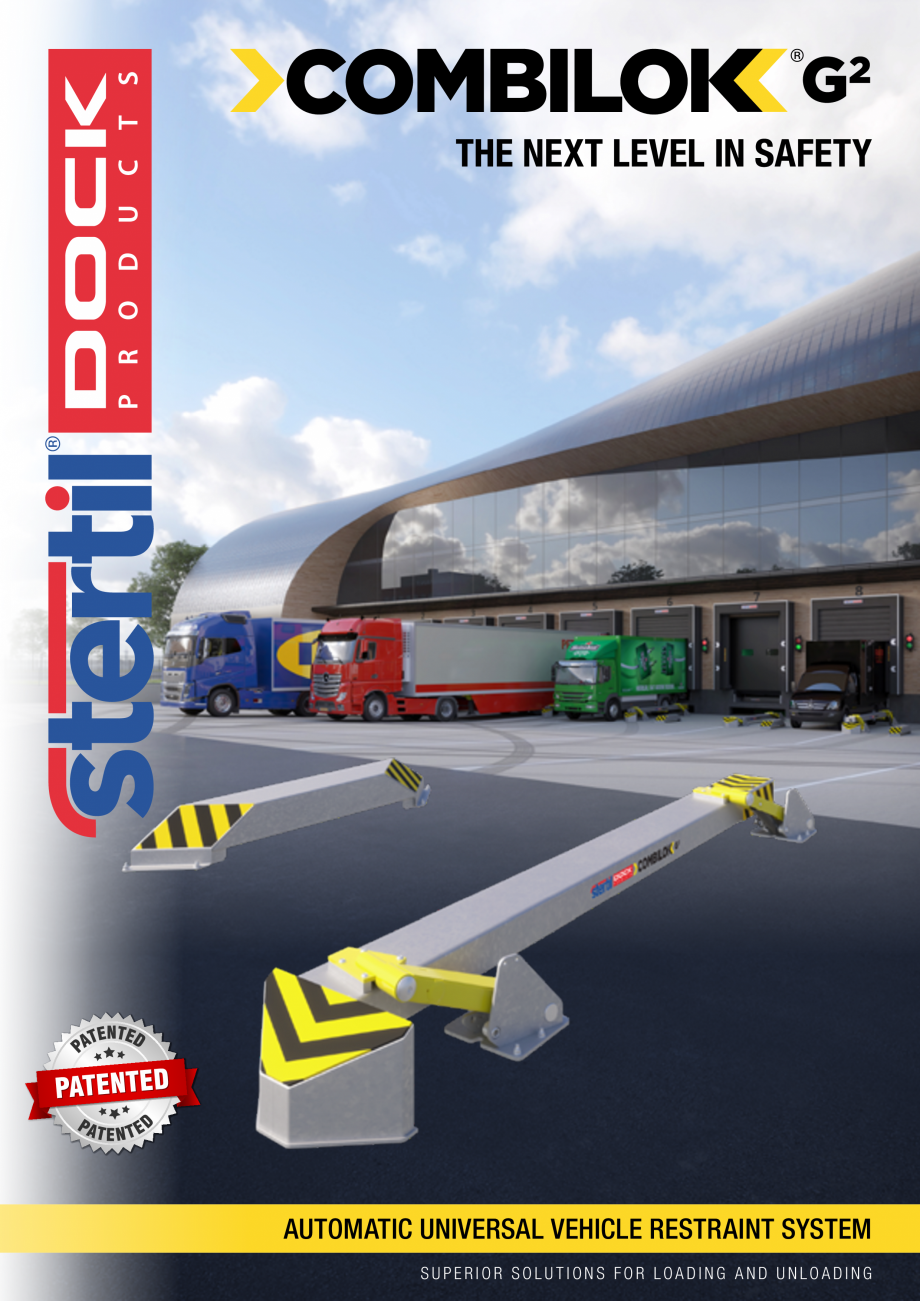

Pagina 1 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana THE...

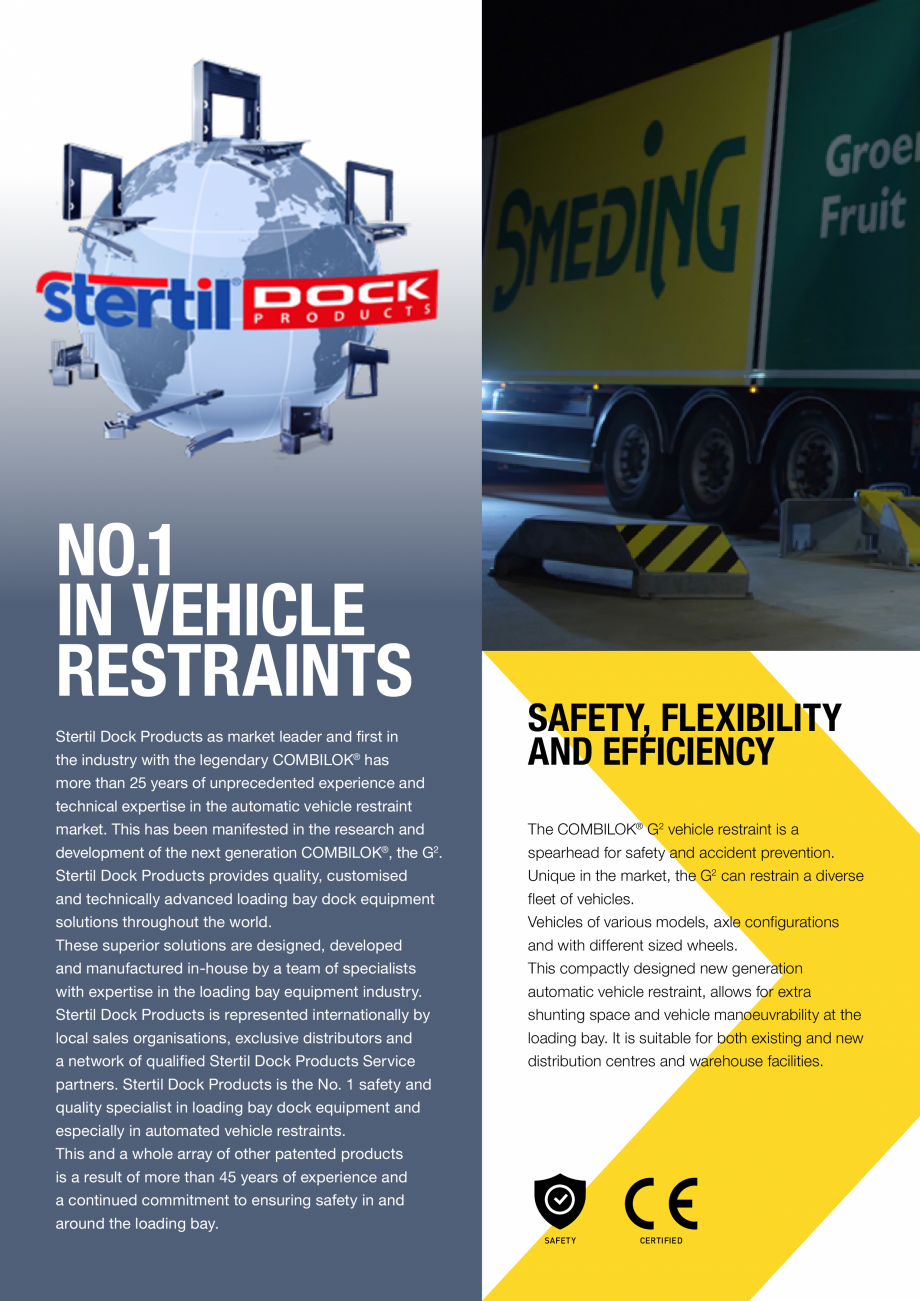

THE NEXT LEVEL IN SAFETY AUTOMATIC UNIVERSAL VEHICLE RESTRAINT SYSTEM SUPERIOR SOLUTIONS FOR LOADING AND UNLOADING NO.1 IN VEHICLE RESTRAINTS Stertil Dock Products as market leader and first in the industry with the legendary COMBILOK® has more than 25 years of unprecedented experience and technical expertise in the automatic vehicle restraint market. This has been manifested in the research and development of the next generation COMBILOK®, the G2. Stertil Dock Products provides quality, customised and technically advanced loading bay dock equipment solutions throughout the world. These superior solutions are designed, developed and manufactured in-house by a team of specialists with expertise in the loading bay equipment industry. Stertil Dock Products is represented internationally by local sales organisations, exclusive distributors and a network of qualified Stertil Dock Products Service partners. Stertil Dock Products is the No. 1 safety and quality specialist in loading bay

Pagina 1-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana THE NEXT LEVEL...

Pagina 2 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana dock ...

dock equipment and especially in automated vehicle restraints. This and a whole array of other patented products is a result of more than 45 years of experience and a continued commitment to ensuring safety in and around the loading bay. SAFETY, FLEXIBILITY AND EFFICIENCY The COMBILOK® G2 vehicle restraint is a spearhead for safety and accident prevention. Unique in the market, the G2 can restrain a diverse fleet of vehicles. Vehicles of various models, axle configurations and with different sized wheels. This compactly designed new generation automatic vehicle restraint, allows for extra shunting space and vehicle manoeuvrability at the loading bay. It is suitable for both existing and new distribution centres and warehouse facilities. SAFETY CERTIFIED THE NEXT GENERATION The COMBILOK® G2 offers maximum safety, has been engineered for optimum durability, has a long lifespan and is accredited by TÜV according to the EC Machinery Directive 2006/42/EC. The Stertil Dock Products

Pagina 2-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana dock equipment...

Pagina 3 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana...

COMBILOK® G2 is standardly supplied with a contra wheel guide. This wheel guide helps the driver position the vehicle more safely and accurately to the loading bay dock. Designed and manufactured in the modern flow process production facility in The Netherlands, the COMBILOK® G2 is truly a new generation of automated vehicle restaints. The G2 is very compact and space-saving, is easy to install and due to the very reliable Stertil® Hydraulic system requires minimum maintenance. The "plug and play" installation of the COMBILOK® G2 means that it is operational in a matter of hours and is suitable for all types of loading bays and with various fleets of vehicles. Maximum safety. Flexible versatility; broad range of vehicles types, wheel sizes and axles. Space-saving design, for more shunting area and vehicle manoeuvrability. Extremely durable galvanised sturdy construction and integrated wheel guide. Reliable Stertil® hydraulic system. Audio & visual safety options. TÜV Rheinland A

Pagina 3-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana COMBILOK® G2 is...

Pagina 4 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana...

pproved According to the EC Machinery Directive 2006/42/EC. MAXIMUM SAFETY Correct positioning of leveller in the vehicle. Accident Prevention with the COMBILOK® G2 The COMBILOK® G2 safely restrains any commercial vehicle preventing both premature departure of the vehicle from the loading bay dock as well as "vehicle creep". Premature departure can be caused by miscommunication between the vehicle driver and the warehouse personnel. "Vehicle creep" is caused by the abrupt breaking of the forklift truck in the parked vehicle. This creates a gap between the leveller and the vehicle floor. This gap is a potential hazard for both personnel and equipment, which may either get trapped or fall between the gap. “Vehicle creep” risk without COMBILOK® G2. Most importantly, and it cannot be emphasised enough, the COMBILOK® G2 prevents the vehicle driver from premature departure from the loading bay, an error easily made due to time pressure or miscommunication between the driver and

Pagina 4-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana pproved...

Pagina 5 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana...

warehouse personnel. Premature departure risk without COMBILOK® G2. The G2 also inherently works as a deterrent to potential theft by restraining the vehicle at the loading bay and hindering access to either the back of the vehicle or the opening of the building. If you want to keep your personnel and goods safe and secure a COMBILOK® G2 is essential. Safely and securely restrained with COMBILOK® G2. PREVENTING ACCIDENTS AND INCREASING PRODUCTIVITY All hydraulic components are protected inside the galvanised housing. Complete protection from external elements, such as damp and dirt. Compact design allowing an obstruction-free loading bay entrance. Integrated galvanised wheel guide. WHITE SOUND ADVANCED LED GUIDANCE SYSTEM 900 LUMENS-30-50,000 HOURS Audio and Visual Safety Options The additional audio and visual safety features of the patented Stertil Dock Products G2 are very distinguishable. The standard black and traffic yellow Stertil chevron striping on both the COMBILOK

Pagina 5-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana warehouse...

Pagina 6 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana ® G2...

® G2 and the contra wheel guide ensure constant visibility and attract attention. A novel advanced guidance system is available with automated indirect energy-efficient LED lighting ensuring absolute visibility and safe guidance for the vehicle driver, especially when the light is poor, for example from dusk to dawn, or in unfavourable weather conditions. The activation of the G2 is unmissable with the optional alternating white and red LED lighting. There is also a “white sound” option for suburban locations especially developed to reduce environmental impact caused by noise. Audio and visual safety options. DURABLE AND RELIABLE Robust The robust galvanised G2 is very sturdy and compactly designed. With very few moving mechanical parts, it is less susceptible to malfunction which reduces the risk of costly repair. The G2 is weatherproof even in extreme conditions and is an incredibly good investment in terms of safety and reliability. TÜV Rheinland Approved and CE Certified T

Pagina 6-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana ® G2 and the...

Pagina 7 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana he G2...

he G2 has been tested thoroughly in the field, is TÜV approved according to the EC Machinery Directive and is CE certified. CERTIFIED FOR ALL SIZES AND TYPES OF COMMERCIAL VEHICLES What immediately catches the eye, and what makes the COMBILOK® G2 game-changing for the industry, is its flexible versatility. The G2 is suitable for all vehicle sizes and models. From small commercial vehicles to large articulated vehicles. For vehicles with or without side skirts; independent from the number of axles and whether the vehicle has rear steering axles. The G2 can uniquely and effortlessly restrain all. 460 mm FLEXIBLE VERSATILITY 240 mm PROGRAMMABLE LOCKING HEIGHT RANGE FROM A MERE 240 MM TO 460 MM The COMBILOK® G2 facilitates a programmable locking height range from a mere 240 mm to an incredible 460 mm, thus ultimate flexibility to match any fleet requirements. Be it small wheel diametres, large wheel diametres, vehicles with or without skirts and even vehicles with multiple axle

Pagina 7-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana he G2 has been...

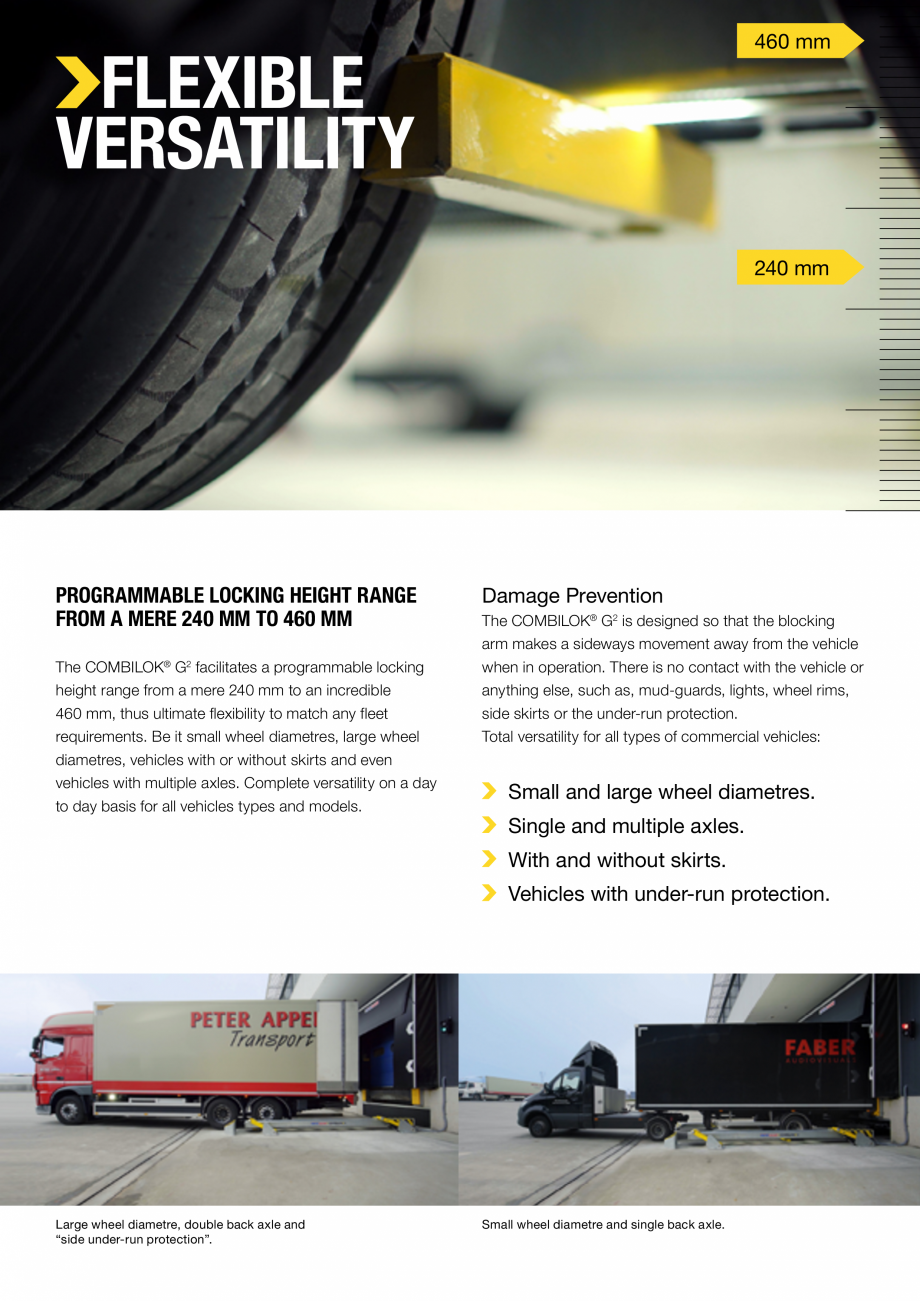

Pagina 8 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana s....

s. Complete versatility on a day to day basis for all vehicles types and models. Damage Prevention The COMBILOK® G2 is designed so that the blocking arm makes a sideways movement away from the vehicle when in operation. There is no contact with the vehicle or anything else, such as, mud-guards, lights, wheel rims, side skirts or the under-run protection. Total versatility for all types of commercial vehicles: Small and large wheel diametres. Single and multiple axles. With and without skirts. Vehicles with under-run protection. Large wheel diametre, double back axle and “side under-run protection”. Small wheel diametre and single back axle. THE MOST SPACE-SAVING AUTOMATED VEHICLE RESTRAINT SYSTEM The COMBILOK® G2 measures 4.8 metres in length and only requires approximately 6.3 metres installation space. It is one of the most space-saving automated vehicle restraint systems on the market. Due to its efficient design, the COMBILOK® G2 allows for an unobstructed and smooth a

Pagina 8-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana s. Complete...

Pagina 9 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana...

pproach to the loading bay. There are no extra hurdles or bumps like with conventional vehicle restraint systems which often have components mounted on the loading bay drive-way. This smooth and uninterupted approach for the vehicle driver makes it safer and easier to reverse onto the loading bay. Vehicle doors can also be opened beforehand, without the risk of goods falling out and getting damaged. Altogether, the G2 allows for safe efficient loading and unloading. Effective Compact Design Due to its smart and compact design, the Stertil COMBILOK® G2 is incredibly space-saving. Unlike other automatic systems on the market, it is so compactly designed that it does not impinge on your shunting space. SPACE IS VALUABLE at the loading bay. This makes the G2 ideal for both new and existing building situations. Space-saving compact design. Prevents open-door docking damage. Restrains a wide range of vehicles. Suitable for new and existing buildings. Minimum maintenance. 4.8 metres in le

Pagina 9-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana pproach to the...

Pagina 10 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana ngth...

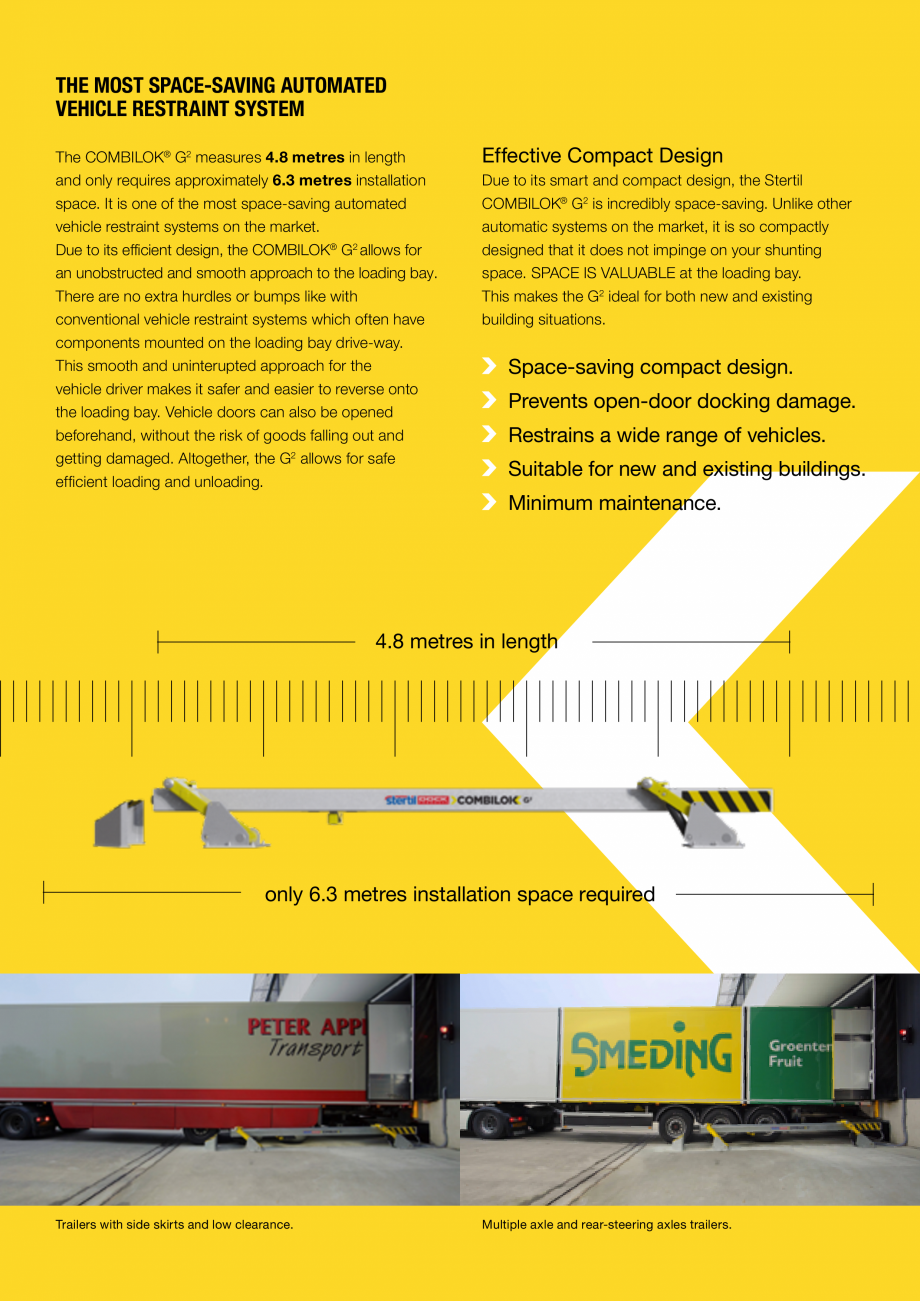

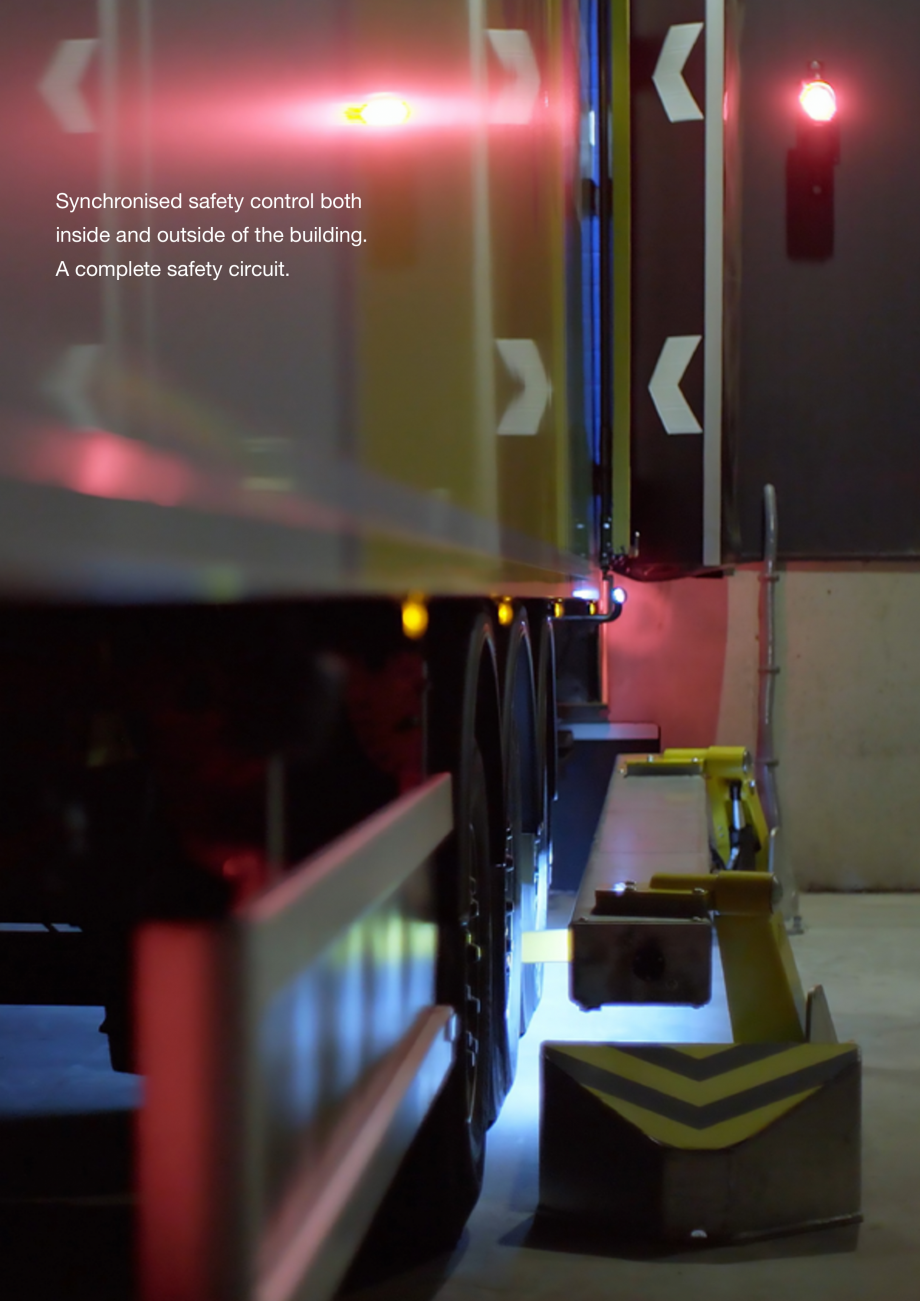

ngth only 6.3 metres installation space required Trailers with side skirts and low clearance. Multiple axle and rear-steering axles trailers. Synchronised safety control both inside and outside of the building. A complete safety circuit. THE G2 DUAL HEIGHT RESTRAINING CONTROL The operation of the COMBILOK® G2 is just as well thought out as the G2 itself. The G2 can be supplied with the Stertil® Key Dual Height Control option, which has been especially designed for safe intuitive use. Controlled with a key switch for trained authorised loading bay personnel. You can choose and adapt the restraining height according to your vehicle requirements. This control option allows the use of two programmable blocking heights for a diverse fleet of vehicles. For the absolute premium in safety control there is also the option to choose the Stertil Dock Products G2 two-way interlocking sequence. Part 1 of the Interlocking Sequence: Once the vehicle is restrained the traffic light turns red

Pagina 10-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana ngth

only 6.3...

Pagina 11 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana on...

on the outside of the building indicating that the vehicle has been secured. At the same time on the inside of the building the COMBILOK® G2 control panel indicator light turns green and signals that the vehicle is safely blocked by the G2. Only then, can the warehouse door be opened and the leveller operated. The COMBILOK® G2 control panel indicator light turns green and signals that the vehicle is safely restrained by the G2. The leveller control panel indicator light also turns green indicating that the leveller is in position and loading or unloading can safely commence. Maximum safety. Flexible versatility; broad range of vehicles types, wheel sizes and axles. Space-saving design, for more shunting area and vehicle manoeuvrability. Extremely durable galvanised sturdy construction and integrated wheel guide. Audio and visual safety options. Reliable Stertil® hydraulic system. TÜV Rheinland Approved According to the EC Machinery Directive 2006/42/EC. Part 2 of the Interlockin

Pagina 11-Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana on the outside...

Pagina 12 - Sistem de blocare a camionului in dock STERTIL COMBILOK G2 Catalog, brosura Romana g...

g Sequence: Put the leveller in the "parked" position. The trailer doors are closed and the COMBILOK® G² releases the vehicle. The indicator light of the control panel on the inside of the building turns red and the traffic light on the outside of the building turns green. The warehouse doors close. GAME-CHANGING AUTOMATIC VEHICLE RESTRAINT - THE G2 Stertil Dock Products continues to commit and deliver safe loading bay equipment solutions to logistics, warehousing & distribution centres. The G2 brings a whole new level of safety to your loading bay. Length of COMBILOK® G2 4.8 metres Installation Space Required 6.3 metres Restraining Height Range from 240 mm - 460 mm Completely Electrical Hydraulically Operated Hydraulics Capacity 140 bar Electrical Capacity 0.75 kW Blocking Pressure 150 kN Length of Blocking Arm 350 mm Travel Range of the Blocking Arm 3,200 mm Control Voltage 24 V Mains Connection 3 x 400 V, 50 Hz, 1 x EARTH Manufactured from Galvanised Steel Integrated Galvanis
