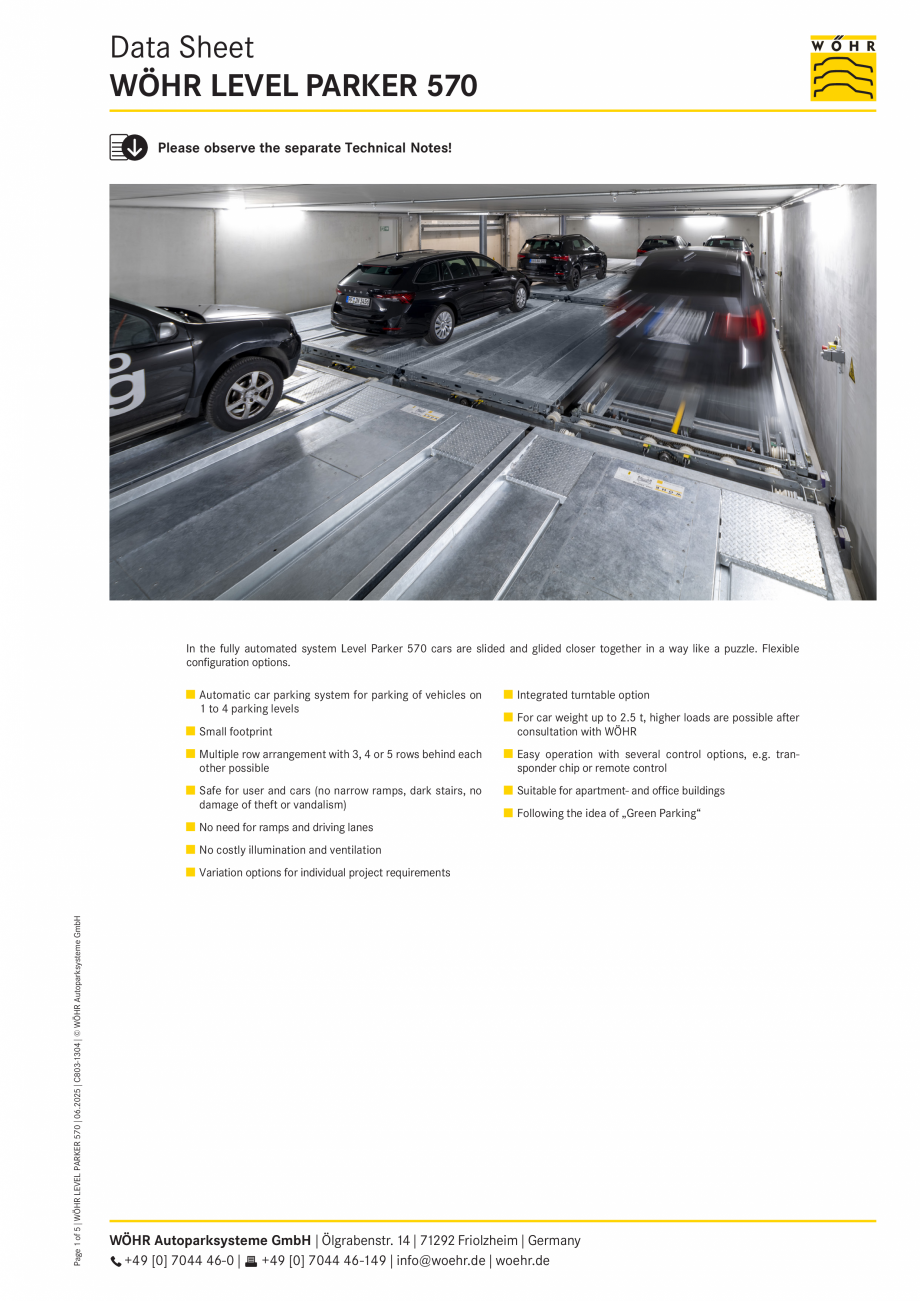

Data Sheet WÖHR LEVEL PARKER 570 Please observe the separate Technical Notes! In the fully automated system Level Parker 570 cars are slided and glided closer together in a way like a puzzle. Flexible configuration options. Automatic car parking system for parking of vehicles on 1 to 4 parking levels Integrated turntable option Small footprint For car weight up to 2.5 t, higher loads are possible after consultation with WÖHR Multiple row arrangement with 3, 4 or 5 rows behind each other possible Easy operation with several control options, e.g. transponder chip or remote control Safe for user and cars (no narrow ramps, dark stairs, no damage of theft or vandalism) Suitable for apartment- and office buildings Following the idea of „Green Parking“ No need for ramps and driving lanes No costly illumination and ventilation Page 1 of 5 | WÖHR LEVEL PARKER 570 | 06.2025 | C803-1304 | © WÖHR Autoparksysteme GmbH Variation options for individual project requirements WÖHR

Pagina 1-Sistem automat de parcare WÖHR LEVEL PARKER 570 Fisa tehnica Engleza Data Sheet
WÖHR LEVEL...

Pagina 2 - Sistem automat de parcare WÖHR LEVEL PARKER 570 Fisa tehnica Engleza Autoparksysteme...

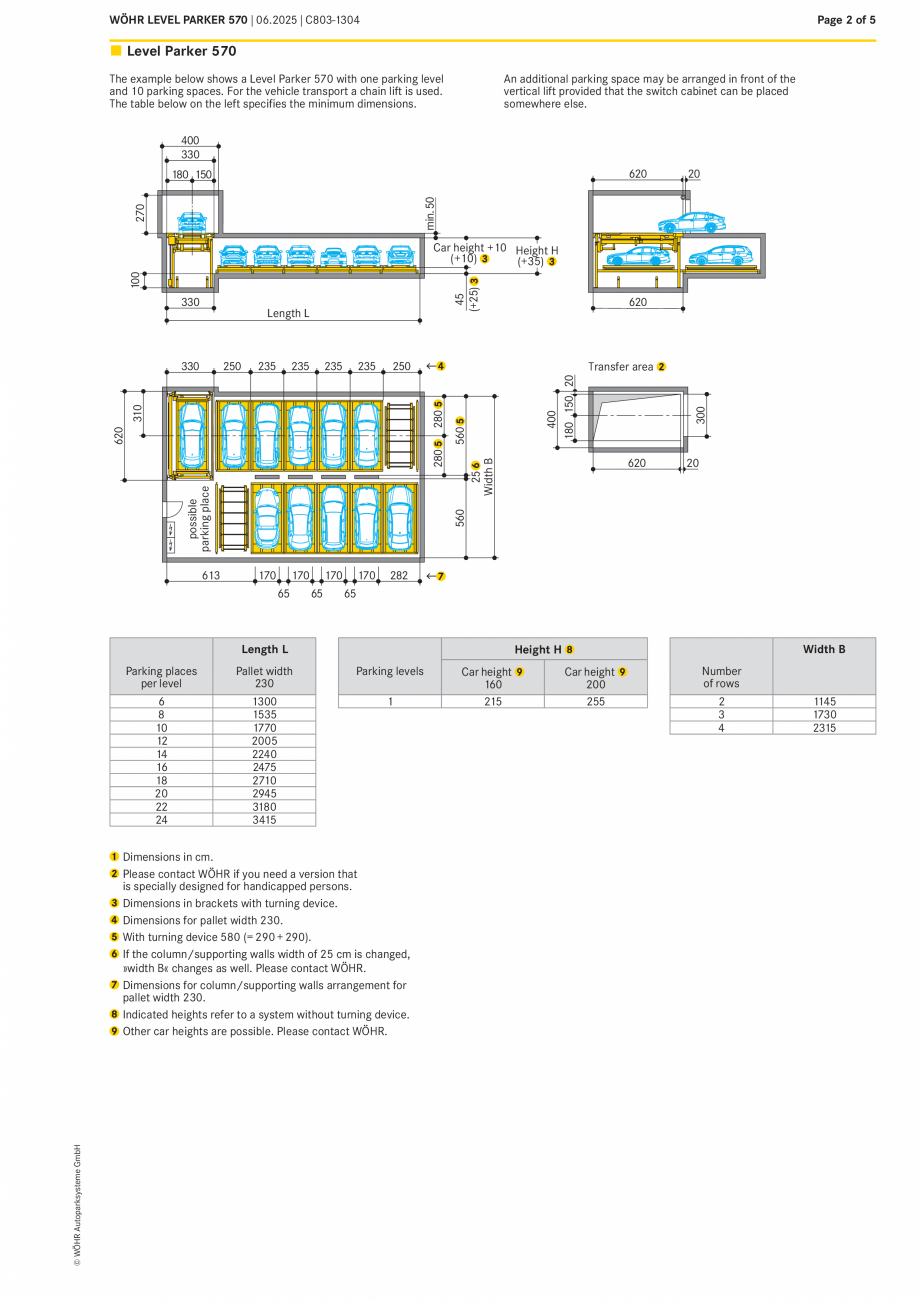

Autoparksysteme GmbH | Ölgrabenstr. 14 | 71292 Friolzheim | Germany +49 [0] 7044 46-0 | +49 [0] 7044 46-149 | info@woehr.de | woehr.de WÖHR LEVEL PARKER 570 | 06.2025 | C803-1304 Page 2 of 5 Level Parker 570 The example below shows a Level Parker 570 with one parking level and 10 parking spaces. For the vehicle transport a chain lift is used. The table below on the left specifies the minimum dimensions. An additional parking space may be arranged in front of the vertical lift provided that the switch cabinet can be placed somewhere else. 400 330 620 20 270 min. 50 180 150 Length L 235 235 250 613 170 170 65 170 65 25 Width B 20 170 282 65 Length L Width B Height H Parking places per level Pallet width 230 Parking levels 6 8 10 12 14 16 18 20 22 24 1300 1535 1770 2005 2240 2475 2710 2945 3180 3415 1 Dimensions in cm. Please contact WÖHR if you need a version that is specially designed for handicapped persons. Dimensions in brackets with turning device

Pagina 2-Sistem automat de parcare WÖHR LEVEL PARKER 570 Fisa tehnica Engleza Autoparksysteme GmbH |...

Pagina 3 - Sistem automat de parcare WÖHR LEVEL PARKER 570 Fisa tehnica Engleza .
Dimensions...

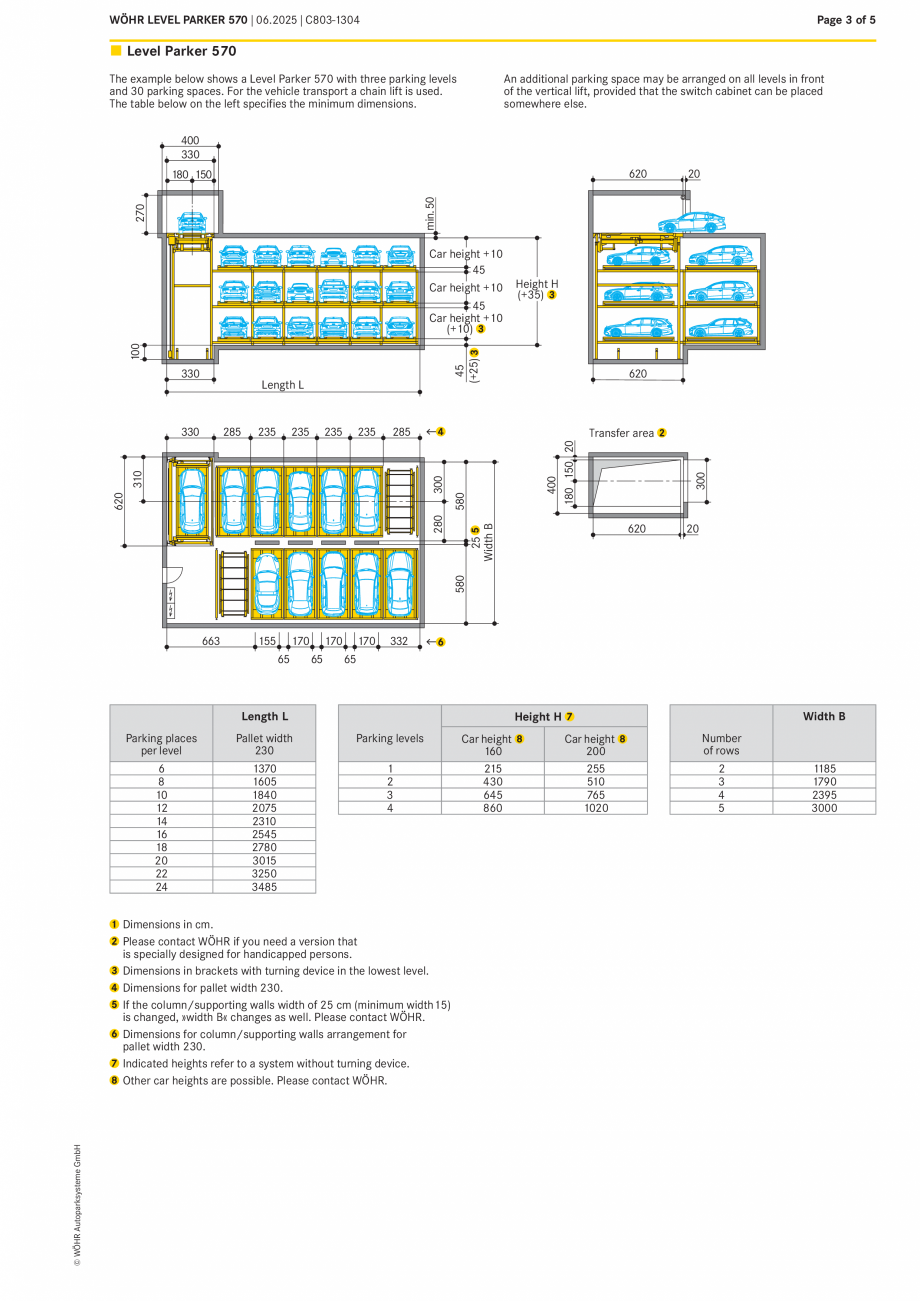

. Dimensions for pallet width 230. With turning device 580 (= 290 + 290). If the column/supporting walls width of 25 cm is changed, »width B« changes as well. Please contact WÖHR. Dimensions for column/supporting walls arrangement for pallet width 230. Indicated heights refer to a system without turning device. Other car heights are possible. Please contact WÖHR. © WÖHR Autoparksysteme GmbH 620 560 possible parking place 280 620 280 Transfer area 300 235 400 235 620 180 150 20 250 310 330 560 330 45 (+25) 100 Car height +10 Height H (+10) (+35) Car height 160 215 Car height 200 255 Number of rows 2 3 4 1145 1730 2315 WÖHR LEVEL PARKER 570 | 06.2025 | C803-1304 Page 3 of 5 Level Parker 570 The example below shows a Level Parker 570 with three parking levels and 30 parking spaces. For the vehicle transport a chain lift is used. The table below on the left specifies the minimum dimensions. An additional parking space may be arranged on all levels in f

Pagina 3-Sistem automat de parcare WÖHR LEVEL PARKER 570 Fisa tehnica Engleza .
Dimensions for pallet...

Pagina 4 - Sistem automat de parcare WÖHR LEVEL PARKER 570 Fisa tehnica Engleza ront
of the...

ront of the vertical lift, provided that the switch cabinet can be placed somewhere else. 400 330 620 20 270 min. 50 180 150 Car height +10 45 Car height +10 Length L 235 235 285 620 20 580 25 Width B 280 620 300 Transfer area 300 235 400 235 620 180 150 20 285 310 330 580 330 45 (+25) 100 45 Car height +10 (+10) Height H (+35) 663 155 170 65 170 65 170 332 65 Length L Parking places per level Pallet width 230 Parking levels 6 8 10 12 14 16 18 20 22 24 1370 1605 1840 2075 2310 2545 2780 3015 3250 3485 1 2 3 4 Dimensions in cm. Please contact WÖHR if you need a version that is specially designed for handicapped persons. Dimensions in brackets with turning device in the lowest level. Dimensions for pallet width 230. If the column/supporting walls width of 25 cm (minimum width 15) is changed, »width B« changes as well. Please contact WÖHR. Dimensions for column/supporting walls arrangement for pallet width 230. Indicated heights refer to

Pagina 4-Sistem automat de parcare WÖHR LEVEL PARKER 570 Fisa tehnica Engleza ront
of the vertical lift,...

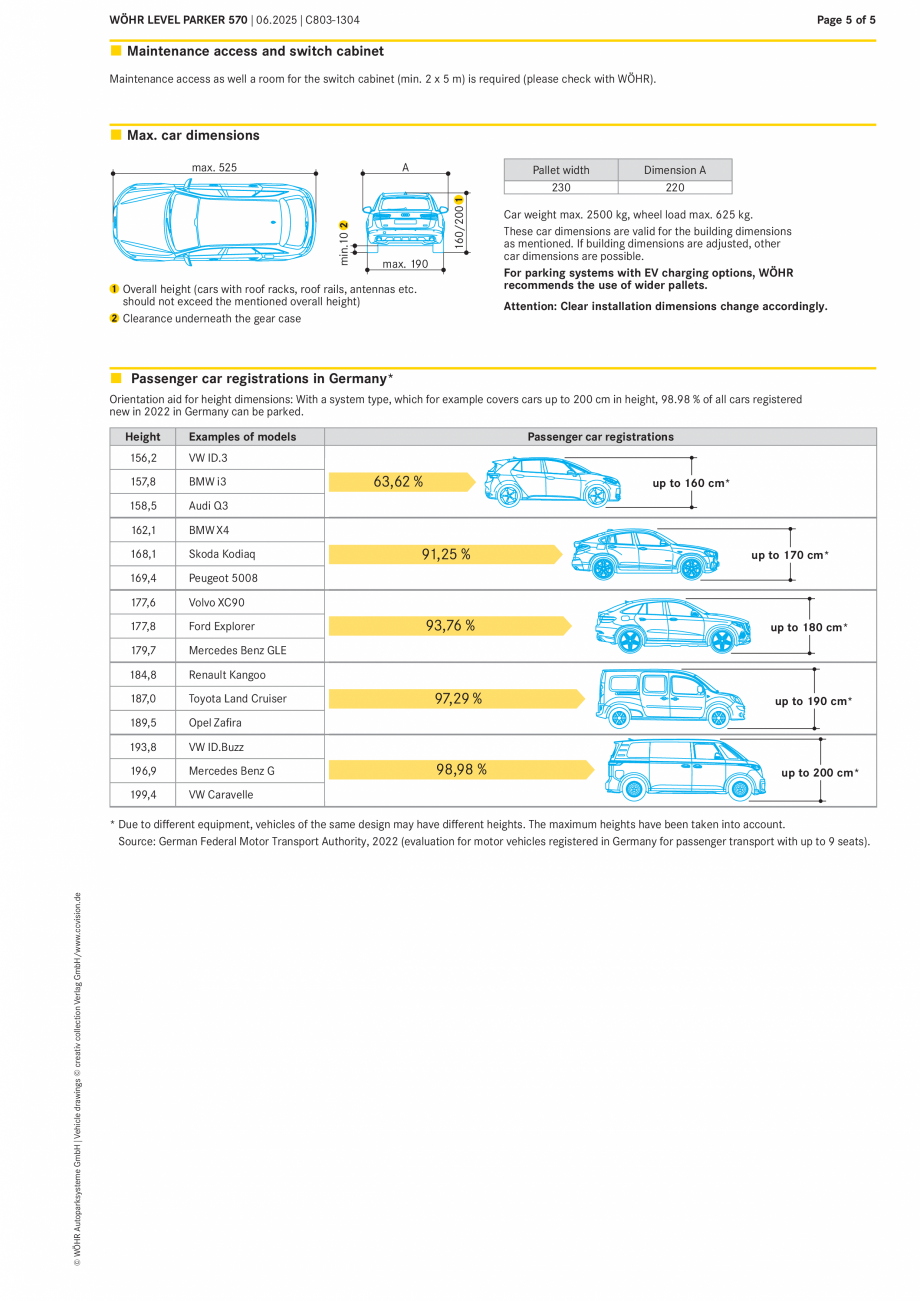

Pagina 5 - Sistem automat de parcare WÖHR LEVEL PARKER 570 Fisa tehnica Engleza a system...

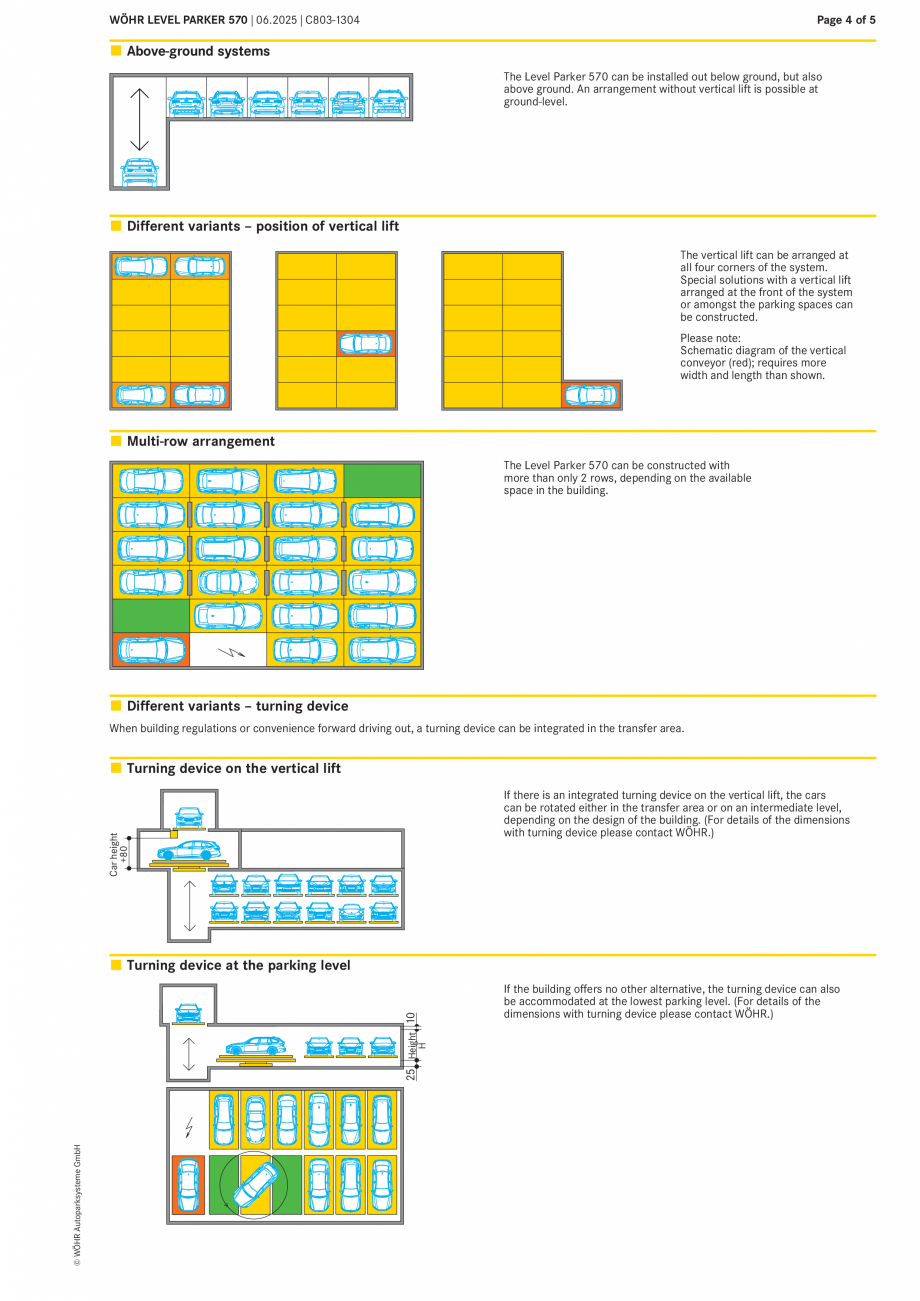

a system without turning device. Other car heights are possible. Please contact WÖHR. © WÖHR Autoparksysteme GmbH Width B Height H Car height 160 215 430 645 860 Car height 200 255 510 765 1020 Number of rows 2 3 4 5 1185 1790 2395 3000 WÖHR LEVEL PARKER 570 | 06.2025 | C803-1304 Page 4 of 5 Above-ground systems The Level Parker 570 can be installed out below ground, but also above ground. An arrangement without vertical lift is possible at ground-level. Different variants – position of vertical lift The vertical lift can be arranged at all four corners of the system. Special solutions with a vertical lift arranged at the front of the system or amongst the parking spaces can be constructed. Please note: Schematic diagram of the vertical conveyor (red); requires more width and length than shown. Multi-row arrangement The Level Parker 570 can be constructed with more than only 2 rows, depending on the available space in the building. Different variants – turning devi
