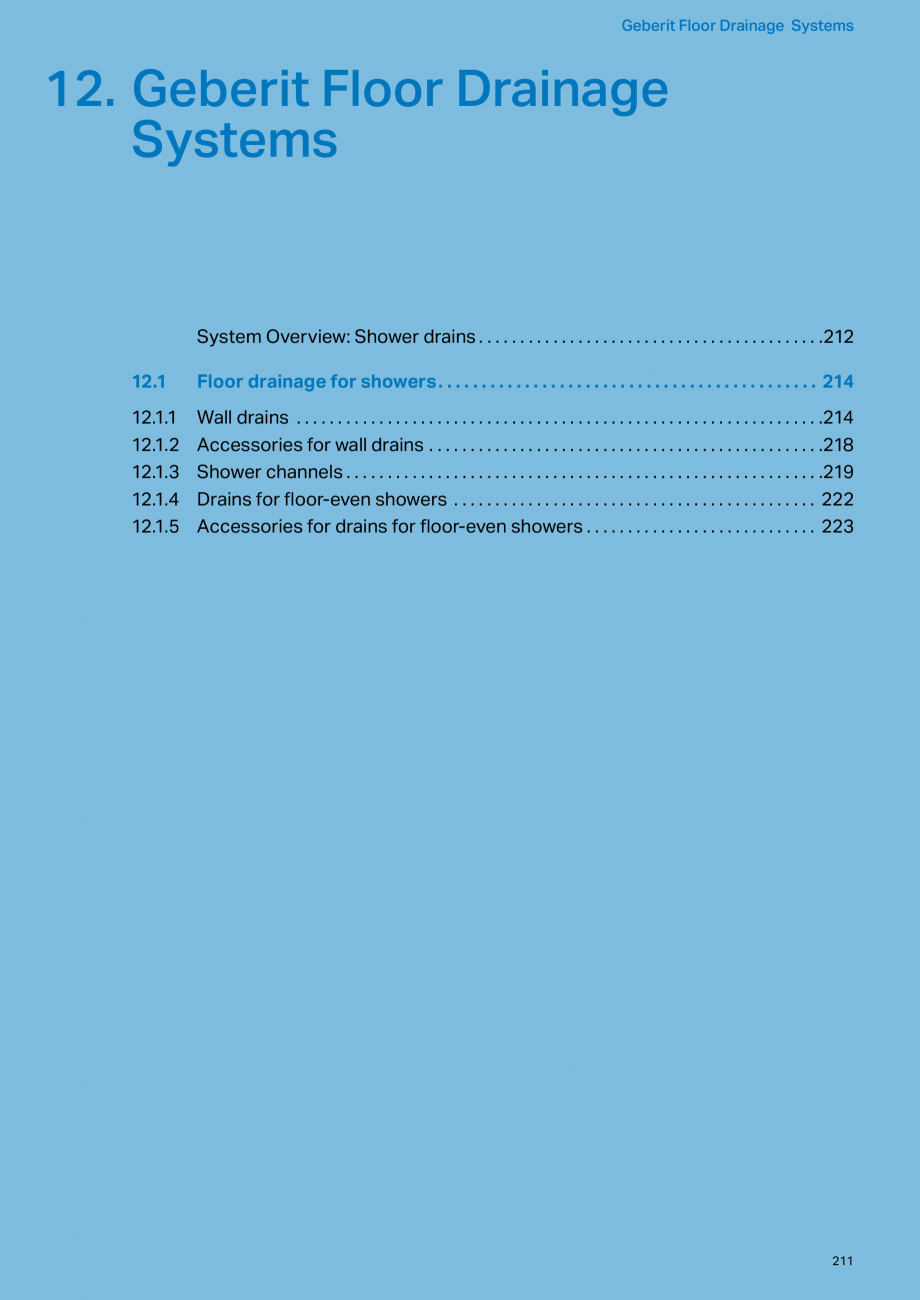

Geberit Floor Drainage Systems 12. Geberit Floor Drainage Systems System Overview: Shower drains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .212 12.1 Floor drainage for showers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214 12.1.1 12.1.2 12.1.3 12.1.4 12.1.5 Wall drains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214 Accessories for wall drains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .218 Shower channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .219 Drains for floor-even showers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222 Accessories for drains for floor-even showers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223 211 Geberit Floo

Pagina 1-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 2 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa...

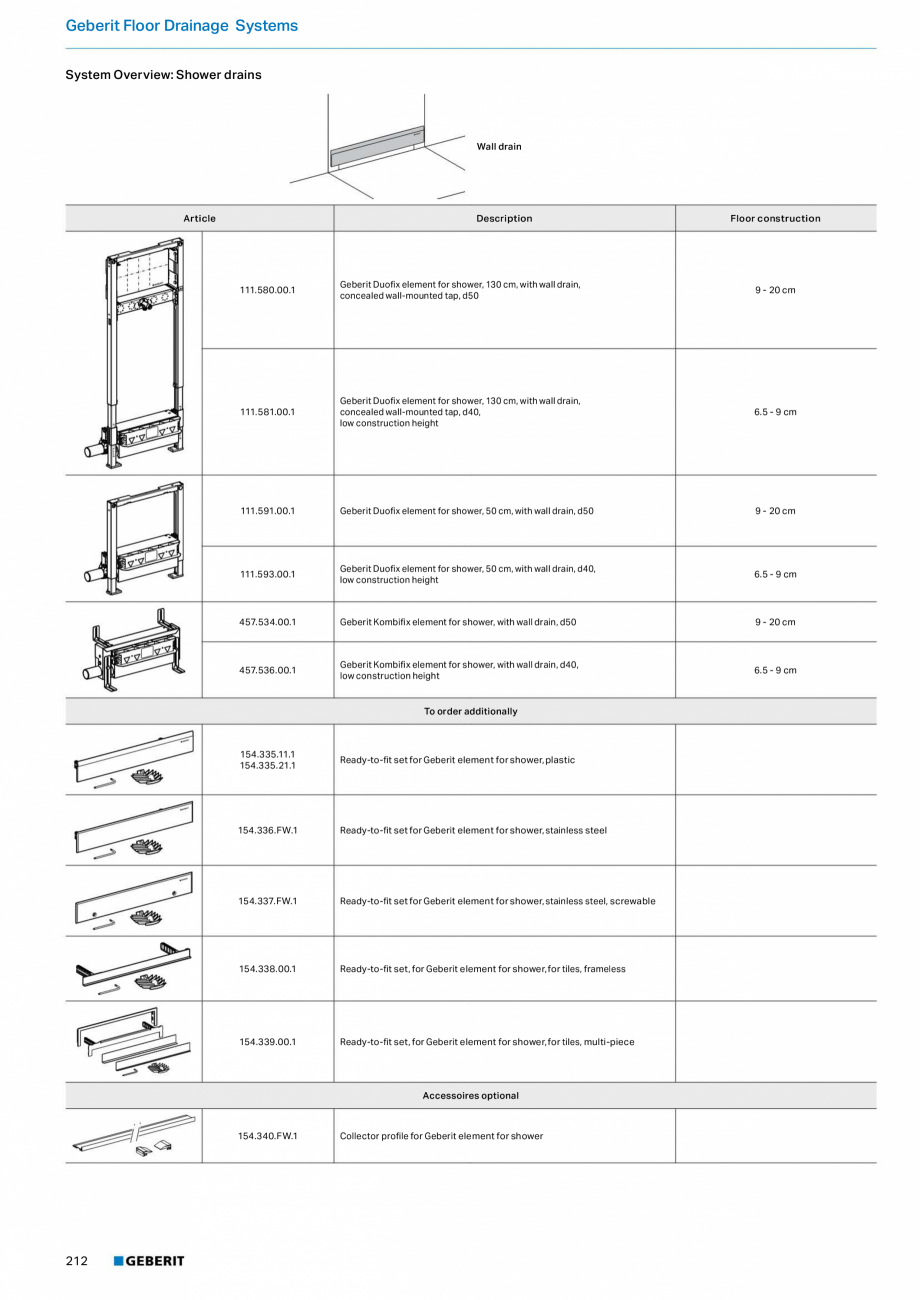

r Drainage Systems System Overview: Shower drains Wall drain Article Description Floor construction 111.580.00.1 Geberit Duofix element for shower, 130 cm, with wall drain, concealed wall-mounted tap, d50 9 - 20 cm 111.581.00.1 Geberit Duofix element for shower, 130 cm, with wall drain, concealed wall-mounted tap, d40, low construction height 6.5 - 9 cm 111.591.00.1 Geberit Duofix element for shower, 50 cm, with wall drain, d50 9 - 20 cm 111.593.00.1 Geberit Duofix element for shower, 50 cm, with wall drain, d40, low construction height 6.5 - 9 cm 457.534.00.1 Geberit Kombifix element for shower, with wall drain, d50 9 - 20 cm 457.536.00.1 Geberit Kombifix element for shower, with wall drain, d40, low construction height 6.5 - 9 cm To order additionally 154.335.11.1 154.335.21.1 Ready-to-fit set for Geberit element for shower, plastic 154.336.FW.1 Ready-to-fit set for Geberit element for shower, stainless steel 154.337.FW.1 Ready-to-fit set for Geberit elem

Pagina 2-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 3 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa...

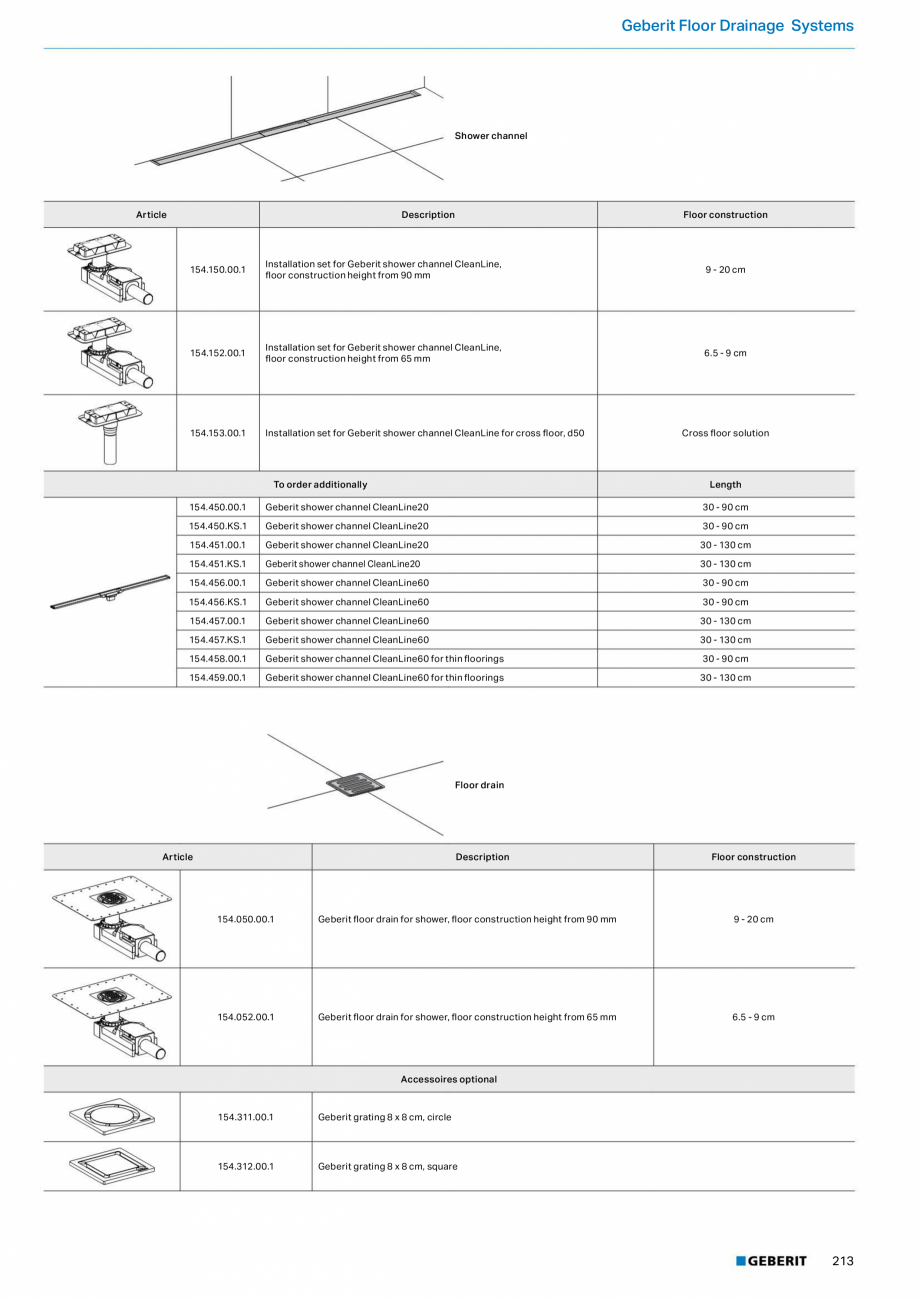

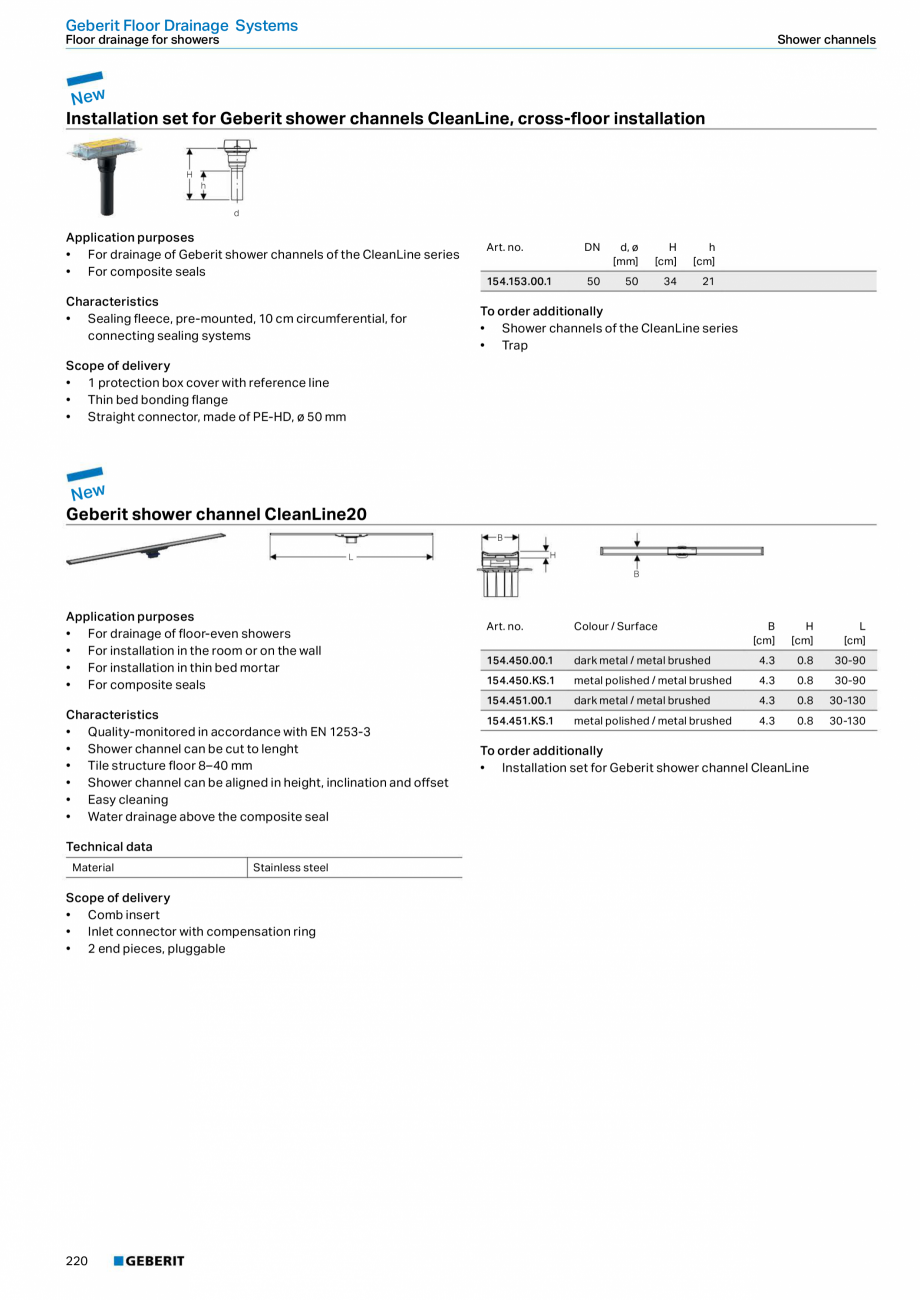

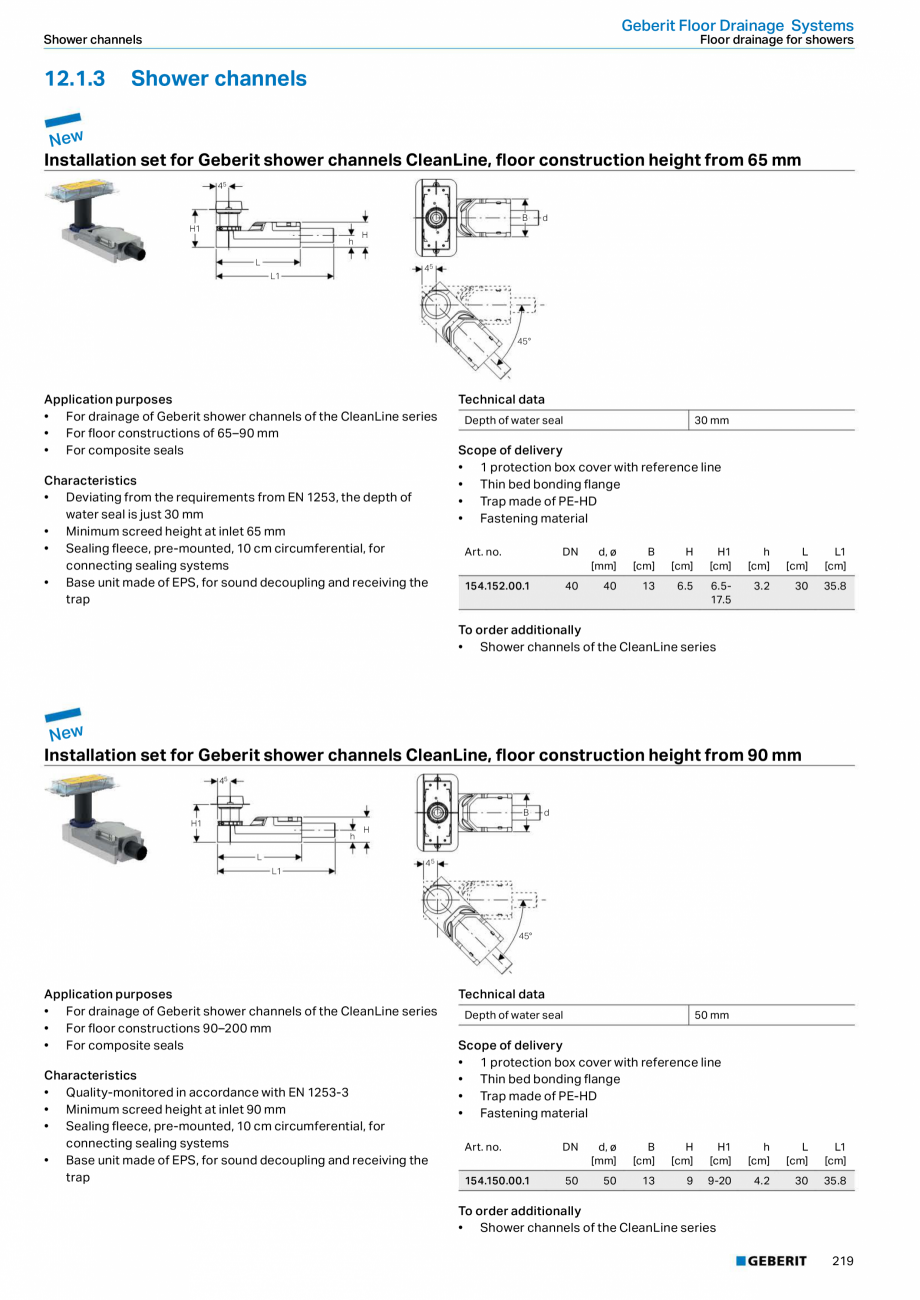

ent for shower, stainless steel, screwable 154.338.00.1 Ready-to-fit set, for Geberit element for shower, for tiles, frameless 154.339.00.1 Ready-to-fit set, for Geberit element for shower, for tiles, multi-piece Accessoires optional 154.340.FW.1 212 Collector profile for Geberit element for shower Geberit Floor Drainage Systems Shower channel Article Description Floor construction 154.150.00.1 Installation set for Geberit shower channel CleanLine, floor construction height from 90 mm 9 - 20 cm 154.152.00.1 Installation set for Geberit shower channel CleanLine, floor construction height from 65 mm 6.5 - 9 cm 154.153.00.1 Installation set for Geberit shower channel CleanLine for cross floor, d50 To order additionally Cross floor solution Length 154.450.00.1 Geberit shower channel CleanLine20 154.450.KS.1 Geberit shower channel CleanLine20 30 - 90 cm 30 - 90 cm 154.451.00.1 Geberit shower channel CleanLine20 30 - 130 cm 154.451.KS.1 Geberit shower chann

Pagina 3-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 4 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa...

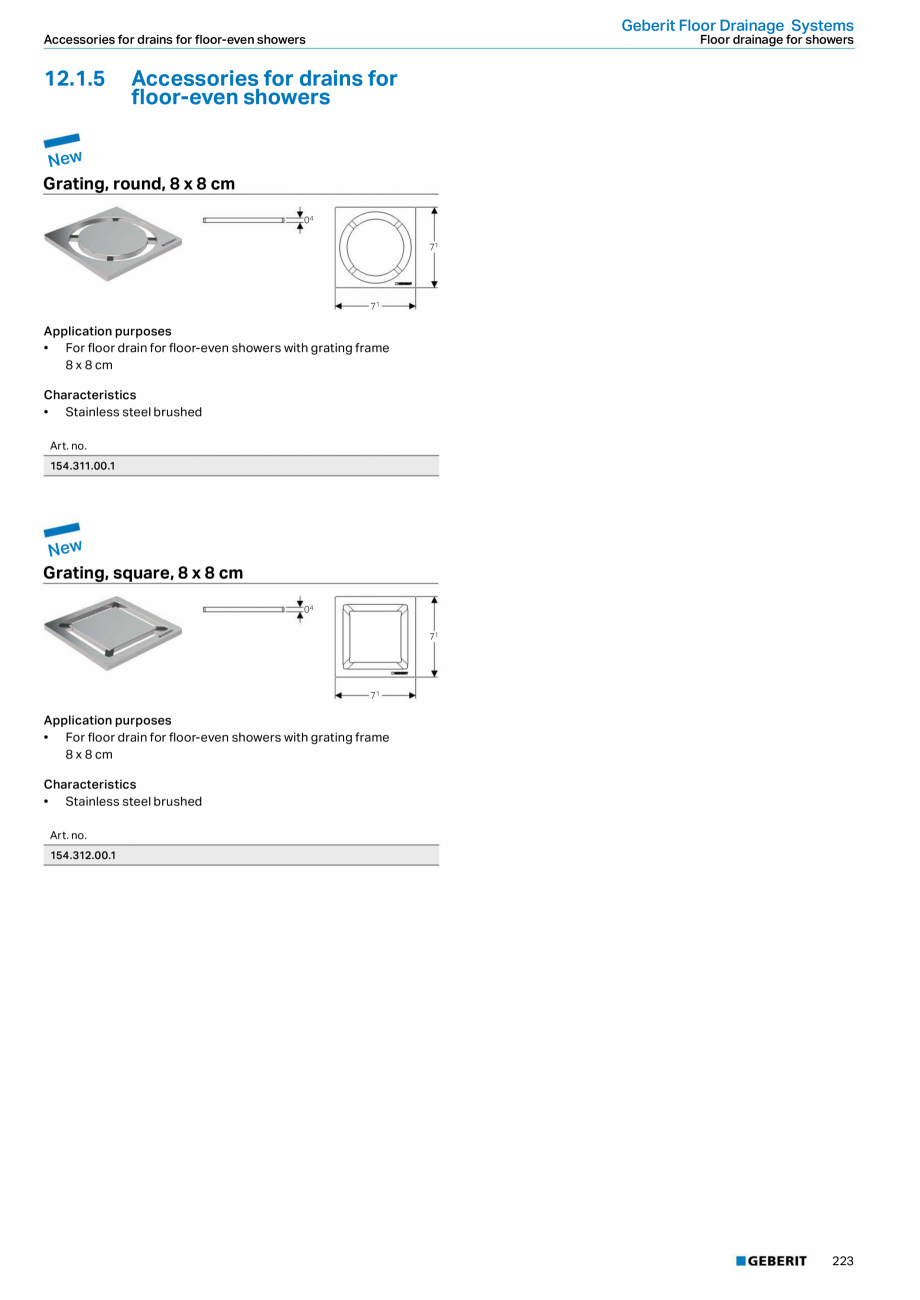

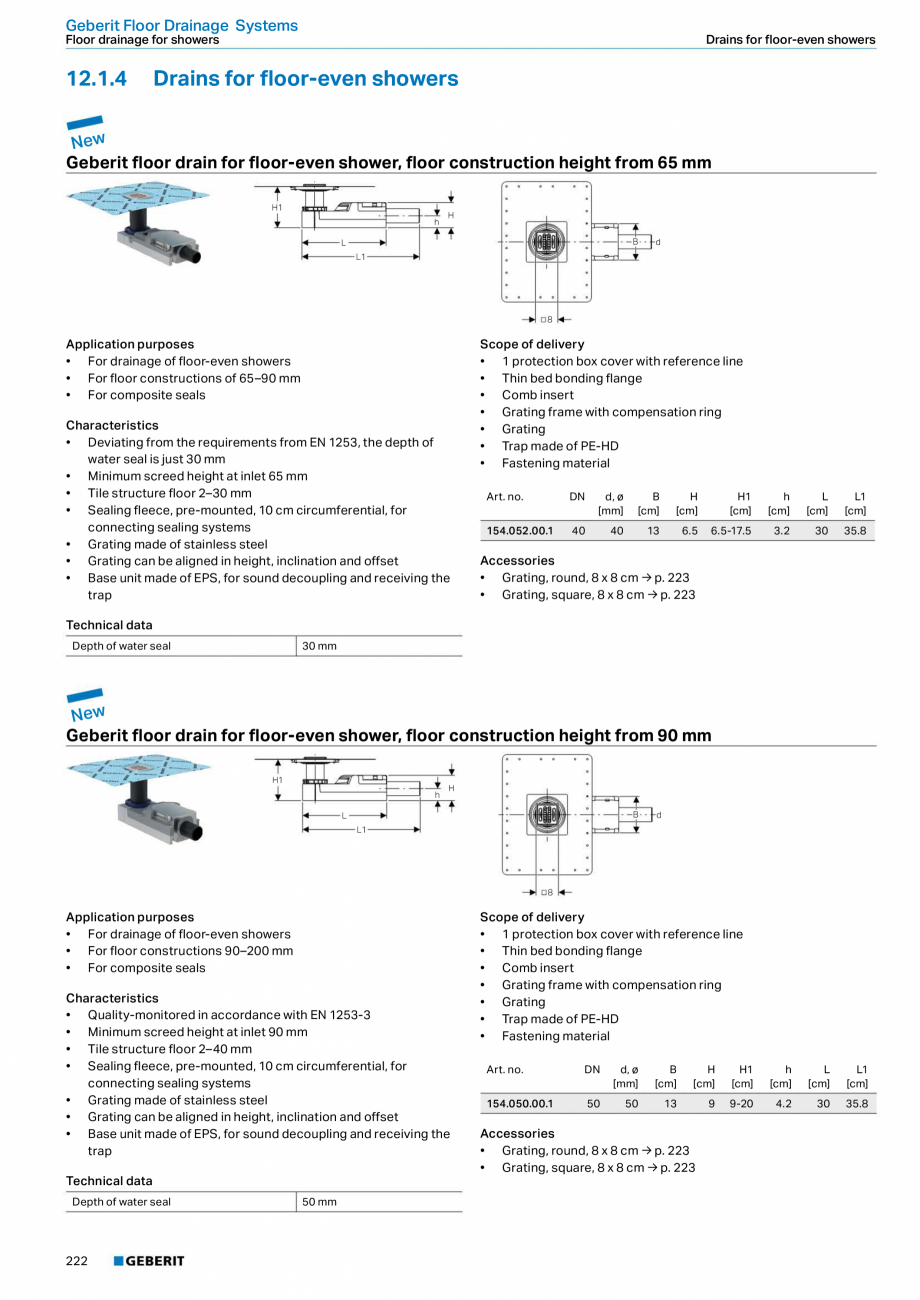

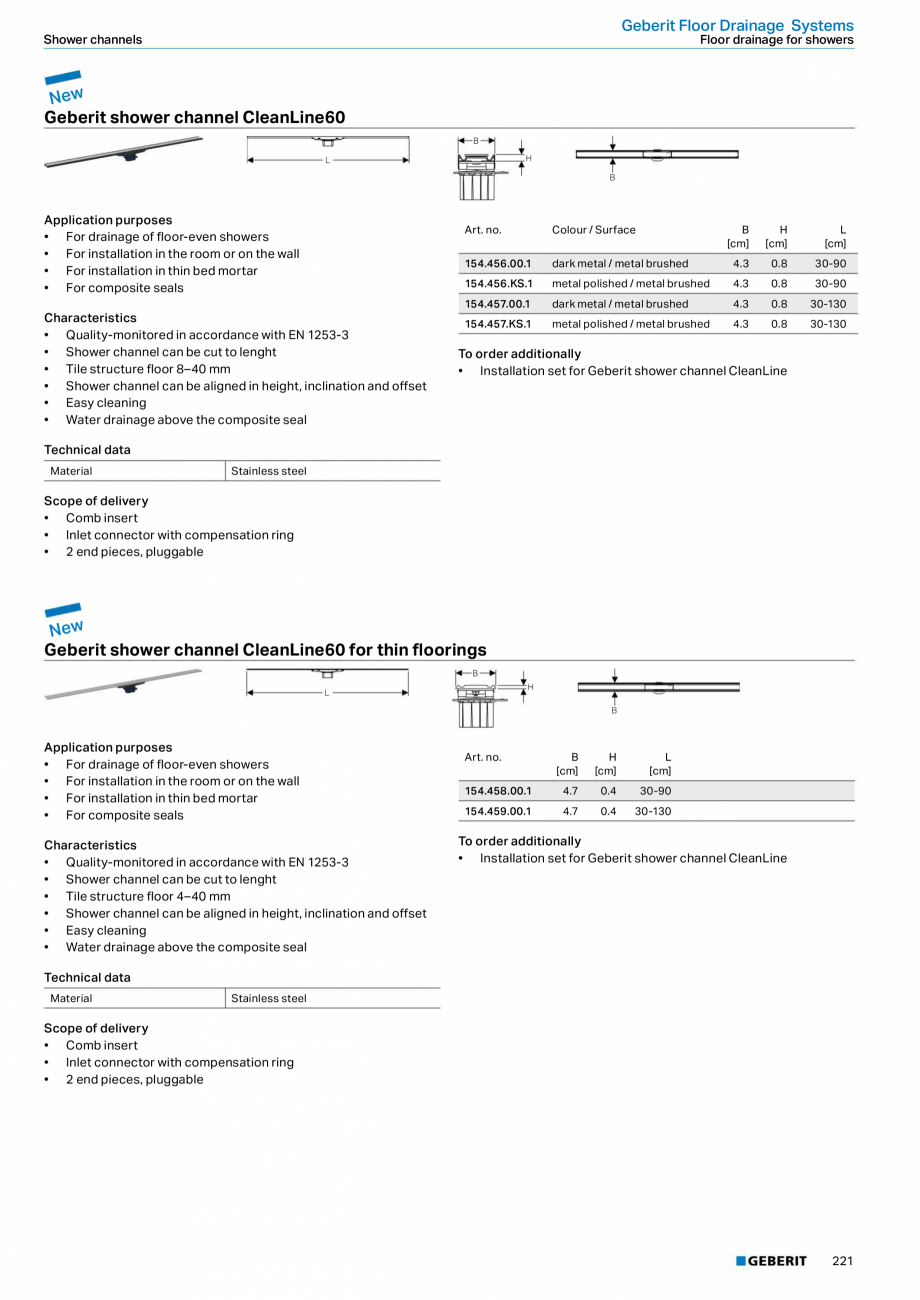

el CleanLine20 30 - 130 cm 154.456.00.1 Geberit shower channel CleanLine60 30 - 90 cm 154.456.KS.1 Geberit shower channel CleanLine60 30 - 90 cm 154.457.00.1 Geberit shower channel CleanLine60 30 - 130 cm 154.457.KS.1 Geberit shower channel CleanLine60 30 - 130 cm 154.458.00.1 Geberit shower channel CleanLine60 for thin floorings 30 - 90 cm 154.459.00.1 Geberit shower channel CleanLine60 for thin floorings 30 - 130 cm Floor drain Article Description Floor construction 154.050.00.1 Geberit floor drain for shower, floor construction height from 90 mm 9 - 20 cm 154.052.00.1 Geberit floor drain for shower, floor construction height from 65 mm 6.5 - 9 cm Accessoires optional 154.311.00.1 Geberit grating 8 x 8 cm, circle 154.312.00.1 Geberit grating 8 x 8 cm, square 213 Geberit Floor Drainage Systems Floor drainage for showers Wall drains 12.1 Floor drainage for showers 12.1.1 Wall drains Geberit Duofix element for shower, 130 cm, with wall drain, w

Pagina 4-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 5 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa...

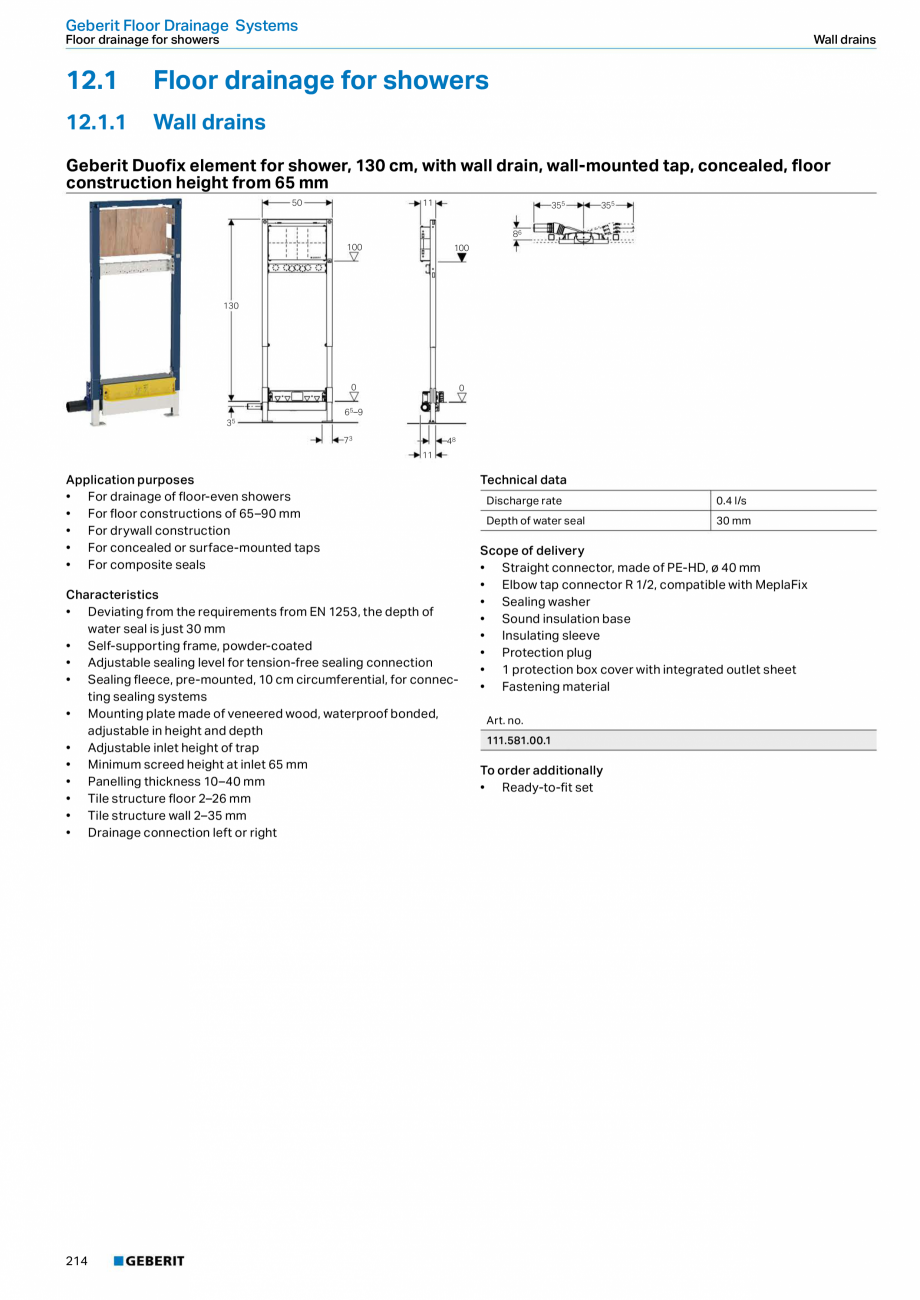

all-mounted tap, concealed, floor construction height from 65 mm 50 11 355 355 86 100 100 0 0 130 65–9 35 73 48 11 Application purposes • For drainage of floor-even showers • For floor constructions of 65–90 mm • For drywall construction • For concealed or surface-mounted taps • For composite seals Characteristics • Deviating from the requirements from EN 1253, the depth of water seal is just 30 mm • Self-supporting frame, powder-coated • Adjustable sealing level for tension-free sealing connection • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems • Mounting plate made of veneered wood, waterproof bonded, adjustable in height and depth • Adjustable inlet height of trap • Minimum screed height at inlet 65 mm • Panelling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Drainage connection left or right 214 Technical data Discharge rate 0.4 l/s Depth of water seal

Pagina 5-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 6 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa...

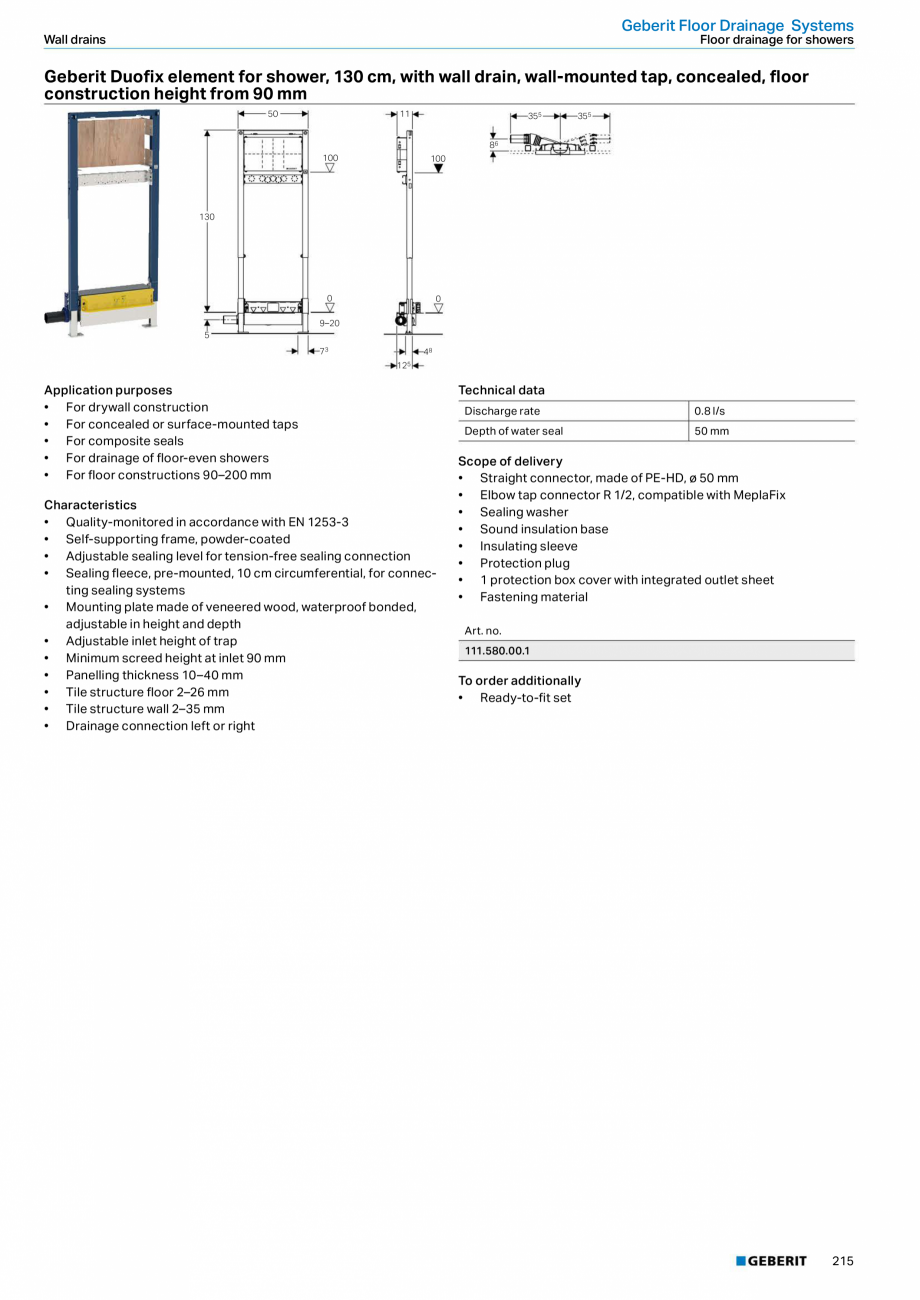

30 mm Scope of delivery • Straight connector, made of PE-HD, ø 40 mm • Elbow tap connector R 1/2, compatible with MeplaFix • Sealing washer • Sound insulation base • Insulating sleeve • Protection plug • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 111.581.00.1 To order additionally • Ready-to-fit set Geberit Floor Drainage Systems Wall drains Floor drainage for showers Geberit Duofix element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, floor construction height from 90 mm 50 11 355 355 86 100 100 0 0 130 9–20 5 73 48 125 Application purposes • For drywall construction • For concealed or surface-mounted taps • For composite seals • For drainage of floor-even showers • For floor constructions 90–200 mm Characteristics • Quality-monitored in accordance with EN 1253-3 • Self-supporting frame, powder-coated • Adjustable sealing level for tension-free sealing connection • Sea

Pagina 6-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 7 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa...

ling fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems • Mounting plate made of veneered wood, waterproof bonded, adjustable in height and depth • Adjustable inlet height of trap • Minimum screed height at inlet 90 mm • Panelling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Drainage connection left or right Technical data Discharge rate 0.8 l/s Depth of water seal 50 mm Scope of delivery • Straight connector, made of PE-HD, ø 50 mm • Elbow tap connector R 1/2, compatible with MeplaFix • Sealing washer • Sound insulation base • Insulating sleeve • Protection plug • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 111.580.00.1 To order additionally • Ready-to-fit set 215 Geberit Floor Drainage Systems Floor drainage for showers Wall drains Geberit Duofix element for shower, 50 cm, with wall drain, floor construction height from 65 mm 50 355 50

Pagina 7-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 8 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa...

35 355 86 0 65–9 48 73 11 Application purposes • For drywall construction • For drainage of floor-even showers • For floor constructions of 65–90 mm • For composite seals Technical data Discharge rate Characteristics • Deviating from the requirements from EN 1253, the depth of water seal is just 30 mm • Self-supporting frame, powder-coated • Minimum screed height at inlet 65 mm • Adjustable inlet height of trap • Panelling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems 0.4 l/s Depth of water seal 30 mm Scope of delivery • Straight connector, made of PE-HD, ø 40 mm • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 111.593.00.1 To order additionally • Ready-to-fit set Geberit Duofi

Pagina 8-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 9 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa...

x element for shower, 50 cm, with wall drain, floor construction height from 90 mm 50 355 50 5 355 86 0 9–20 48 73 125 Application purposes • For drywall construction • For drainage of floor-even showers • For floor constructions 90–200 mm • For composite seals Characteristics • Quality-monitored in accordance with EN 1253-3 • Self-supporting frame, powder-coated • Adjustable inlet height of trap • Minimum screed height at inlet 90 mm • Panelling thickness 10–40 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems 216 Technical data Discharge rate 0.8 l/s Depth of water seal 50 mm Scope of delivery • Straight connector, made of PE-HD, ø 50 mm • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 111.591.00.1

Pagina 9-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 10 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon...

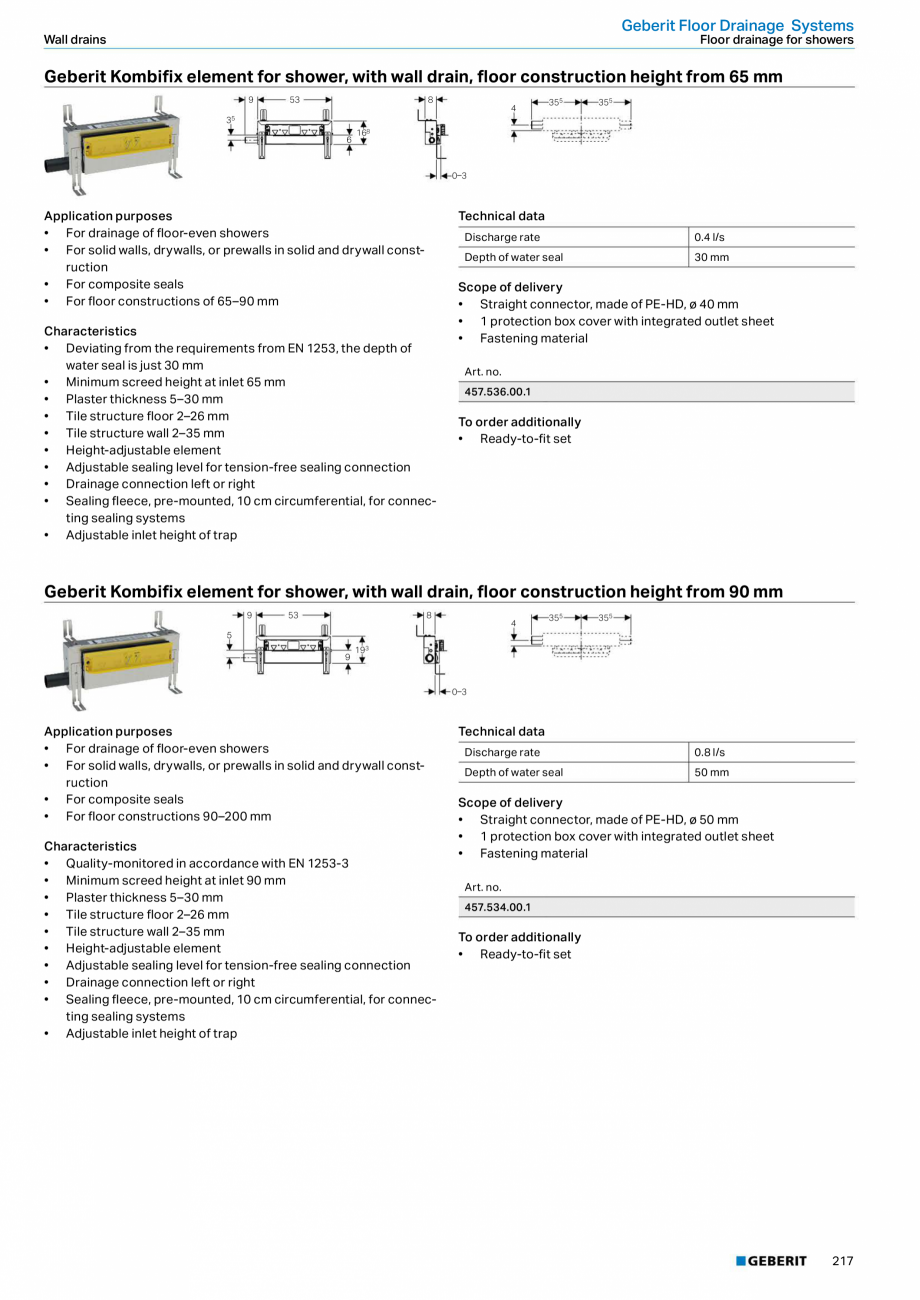

To order additionally • Ready-to-fit set Geberit Floor Drainage Systems Wall drains Floor drainage for showers Geberit Kombifix element for shower, with wall drain, floor construction height from 65 mm 9 53 8 4 355 355 35 6 168 0 3 Application purposes • For drainage of floor-even showers • For solid walls, drywalls, or prewalls in solid and drywall construction • For composite seals • For floor constructions of 65–90 mm Technical data Discharge rate Characteristics • Deviating from the requirements from EN 1253, the depth of water seal is just 30 mm • Minimum screed height at inlet 65 mm • Plaster thickness 5–30 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Height-adjustable element • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems • Adjustable inlet height of trap 0.4 l/s Dep

Pagina 10-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 11 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon...

th of water seal 30 mm Scope of delivery • Straight connector, made of PE-HD, ø 40 mm • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 457.536.00.1 To order additionally • Ready-to-fit set Geberit Kombifix element for shower, with wall drain, floor construction height from 90 mm 9 8 53 4 355 355 5 9 193 0 3 Application purposes • For drainage of floor-even showers • For solid walls, drywalls, or prewalls in solid and drywall construction • For composite seals • For floor constructions 90–200 mm Characteristics • Quality-monitored in accordance with EN 1253-3 • Minimum screed height at inlet 90 mm • Plaster thickness 5–30 mm • Tile structure floor 2–26 mm • Tile structure wall 2–35 mm • Height-adjustable element • Adjustable sealing level for tension-free sealing connection • Drainage connection left or right • Sealing fleece, pre-mounted, 10 cm circumferential, for connecting sealing systems •

Pagina 11-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 12 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon...

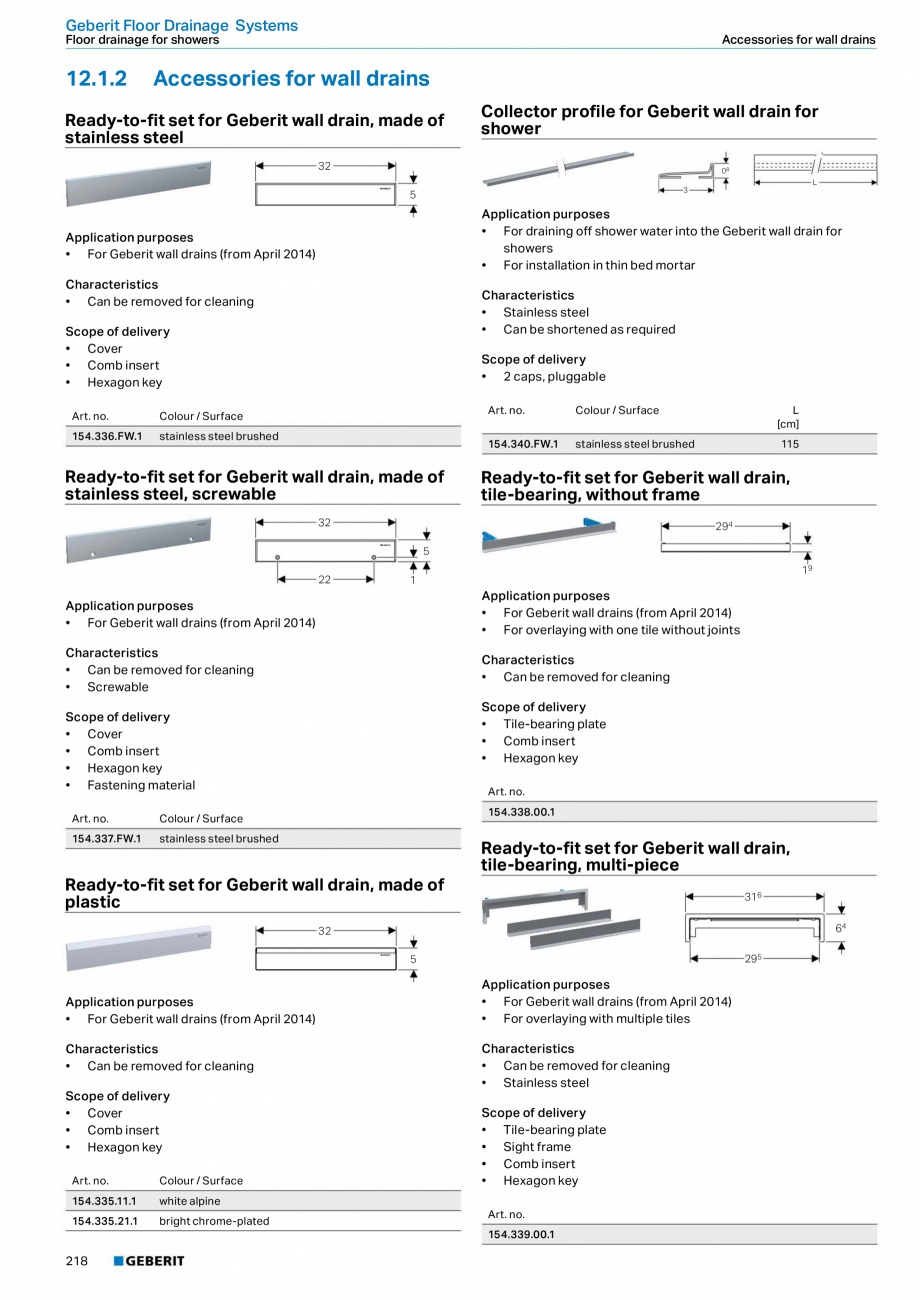

Adjustable inlet height of trap Technical data Discharge rate 0.8 l/s Depth of water seal 50 mm Scope of delivery • Straight connector, made of PE-HD, ø 50 mm • 1 protection box cover with integrated outlet sheet • Fastening material Art. no. 457.534.00.1 To order additionally • Ready-to-fit set 217 Geberit Floor Drainage Systems Floor drainage for showers 12.1.2 Accessories for wall drains Accessories for wall drains Ready-to-fit set for Geberit wall drain, made of stainless steel Collector profile for Geberit wall drain for shower 32 08 Application purposes • For draining off shower water into the Geberit wall drain for showers • For installation in thin bed mortar Application purposes • For Geberit wall drains (from April 2014) Characteristics • Can be removed for cleaning Characteristics • Stainless steel • Can be shortened as required Scope of delivery • Cover • Comb insert • Hexagon key Art. no. Scope of delivery • 2 caps, pluggab

Pagina 12-Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon Fisa tehnica...

Pagina 13 - Rigole si scurgeri de dus GEBERIT Scurgere in perete, Scurgere in pardoseala, Sifon...

le Art. no. stainless steel brushed Ready-to-fit set for Geberit wall drain, made of stainless steel, screwable Colour / Surface 154.340.FW.1 Colour / Surface 154.336.FW.1 L 3 5 L [cm] stainless steel brushed 115 Ready-to-fit set for Geberit wall drain, tile-bearing, without frame 32 294 5 22 19 1 Application purposes • For Geberit wall drains (from April 2014) Application purposes • For Geberit wall drains (from April 2014) • For overlaying with one tile without joints Characteristics • Can be removed for cleaning • Screwable Characteristics • Can be removed for cleaning Scope of delivery • Tile-bearing plate • Comb insert • Hexagon key Scope of delivery • Cover • Comb insert • Hexagon key • Fastening material Art. no. 154.338.00.1 Colour / Surface 154.337.FW.1 Art. no. stainless steel brushed Ready-to-fit set for Geberit wall drain, made of plastic Ready-to-fit set for Geberit wall drain, tile-bearing, multi-piece 316 64 32 295
