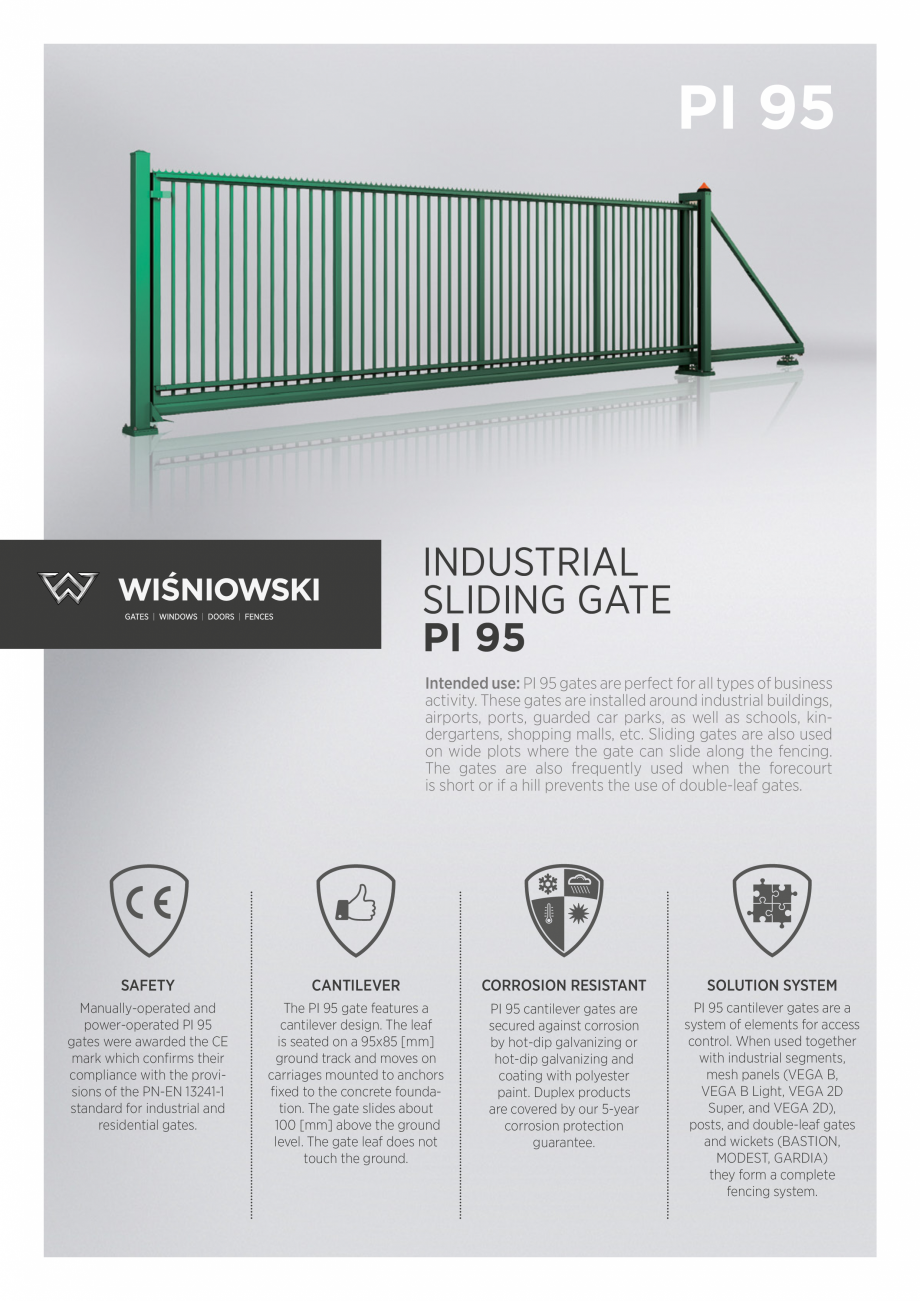

PI 95 INDUSTRIAL SLIDING GATE PI 95 Intended use: PI 95 gates are perfect for all types of business activity. These gates are installed around industrial buildings, airports, ports, guarded car parks, as well as schools, kindergartens, shopping malls, etc. Sliding gates are also used on wide plots where the gate can slide along the fencing. The gates are also frequently used when the forecourt is short or if a hill prevents the use of double-leaf gates. SAFETY CANTILEVER CORROSION RESISTANT SOLUTION SYSTEM Manually-operated and power-operated PI 95 gates were awarded the CE mark which confirms their compliance with the provisions of the PN-EN 13241-1 standard for industrial and residential gates. The PI 95 gate features a cantilever design. The leaf is seated on a 95x85 [mm] ground track and moves on carriages mounted to anchors fixed to the concrete foundation. The gate slides about 100 [mm] above the ground level. The gate leaf does not touch the ground. PI 95 cantilever gate

Pagina 1-Porti culisante DECORIO PI95 Fisa tehnica Engleza PI 95

INDUSTRIAL
SLIDING GATE
PI 95
Intended use:...

Pagina 2 - Porti culisante DECORIO PI95 Fisa tehnica Engleza s are
secured against corrosion
by...

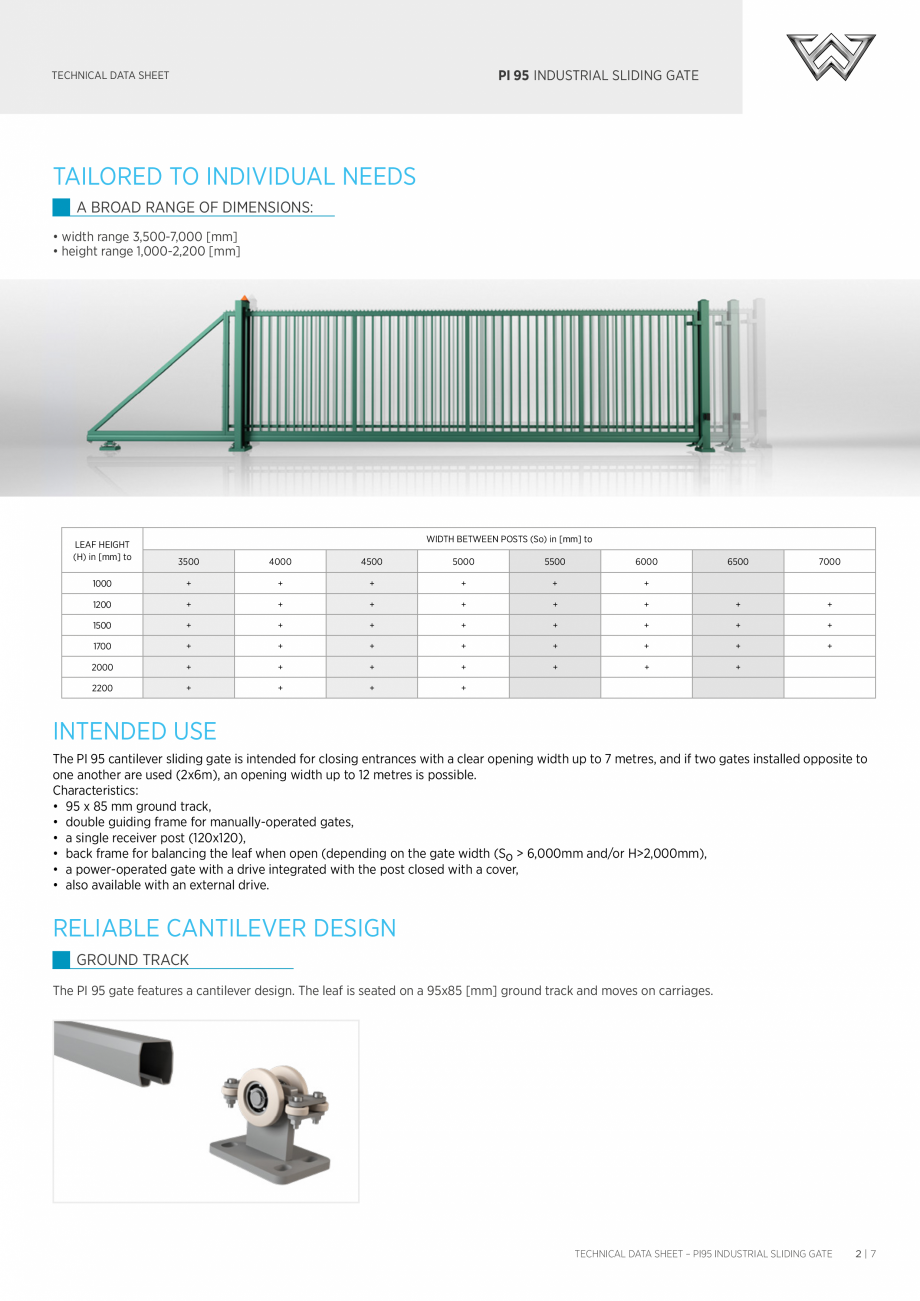

s are secured against corrosion by hot-dip galvanizing or hot-dip galvanizing and coating with polyester paint. Duplex products are covered by our 5-year corrosion protection guarantee. PI 95 cantilever gates are a system of elements for access control. When used together with industrial segments, mesh panels (VEGA B, VEGA B Light, VEGA 2D Super, and VEGA 2D), posts, and double-leaf gates and wickets (BASTION, MODEST, GARDIA) they form a complete fencing system. PI 95 INDUSTRIAL SLIDING GATE TECHNICAL DATA SHEET TAILORED TO INDIVIDUAL NEEDS A BROAD RANGE OF DIMENSIONS: • width range 3,500-7,000 [mm] • height range 1,000-2,200 [mm] LEAF HEIGHT (H) in [mm] to WIDTH BETWEEN POSTS (So) in [mm] to 3500 4000 4500 5000 5500 6000 1000 + + + + + + 6500 7000 1200 + + + + + + + + 1500 + + + + + + + + + 1700 + + + + + + + 2000 + + + + + + + 2200 + + + + INTENDED USE The PI 95 cantilever sliding gate is intended for closing entrances

Pagina 2-Porti culisante DECORIO PI95 Fisa tehnica Engleza s are
secured against corrosion
by hot-dip...

Pagina 3 - Porti culisante DECORIO PI95 Fisa tehnica Engleza with a clear opening width up to 7...

with a clear opening width up to 7 metres, and if two gates installed opposite to one another are used (2x6m), an opening width up to 12 metres is possible. Characteristics: • 95 x 85 mm ground track, • double guiding frame for manually-operated gates, • a single receiver post (120x120), • back frame for balancing the leaf when open (depending on the gate width (So > 6,000mm and/or H>2,000mm), • a power-operated gate with a drive integrated with the post closed with a cover, • also available with an external drive. RELIABLE CANTILEVER DESIGN GROUND TRACK The PI 95 gate features a cantilever design. The leaf is seated on a 95x85 [mm] ground track and moves on carriages. TECHNICAL DATA SHEET – PI95 INDUSTRIAL SLIDING GATE 2|7 PI 95 INDUSTRIAL SLIDING GATE TECHNICAL DATA SHEET EXAMPLE INFILLS AVAILABLE FOR CANTILEVER SLIDING GATES NEW NEW SYSTEM INFILLS Sliding gate with an infill made of 25 x 25 [mm] box sections welded to the structure – view from the premises.

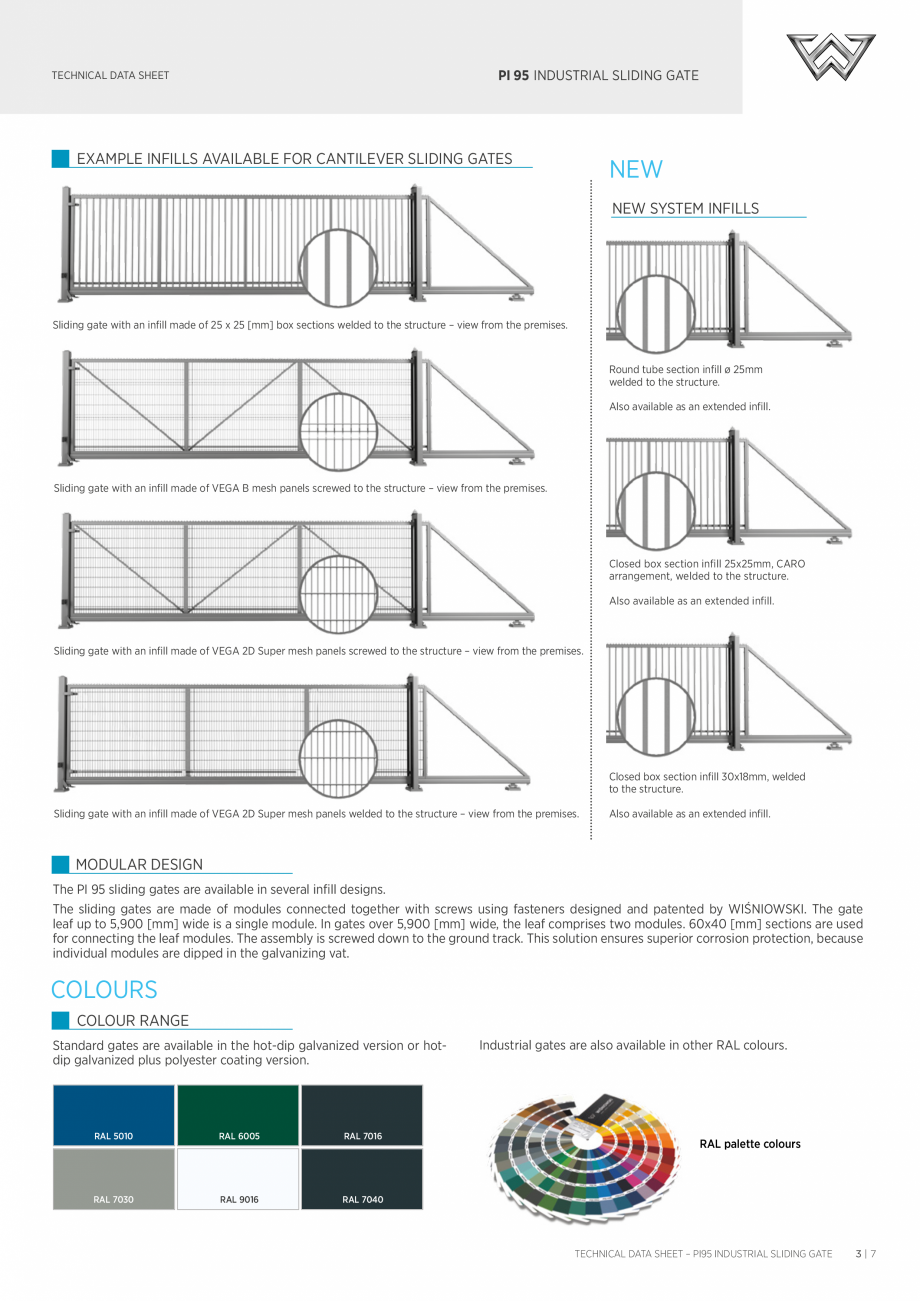

Pagina 3-Porti culisante DECORIO PI95 Fisa tehnica Engleza with a clear opening width up to 7 metres, and if ...

Pagina 4 - Porti culisante DECORIO PI95 Fisa tehnica Engleza
Round tube section infill ø 25mm...

Round tube section infill ø 25mm welded to the structure. Also available as an extended infill. Sliding gate with an infill made of VEGA B mesh panels screwed to the structure – view from the premises. Closed box section infill 25x25mm, CARO arrangement, welded to the structure. Also available as an extended infill. Sliding gate with an infill made of VEGA 2D Super mesh panels screwed to the structure – view from the premises. Closed box section infill 30x18mm, welded to the structure. Sliding gate with an infill made of VEGA 2D Super mesh panels welded to the structure – view from the premises. Also available as an extended infill. MODULAR DESIGN The PI 95 sliding gates are available in several infill designs. The sliding gates are made of modules connected together with screws using fasteners designed and patented by WIŚNIOWSKI. The gate leaf up to 5,900 [mm] wide is a single module. In gates over 5,900 [mm] wide, the leaf comprises two modules. 60x40 [mm] sections are

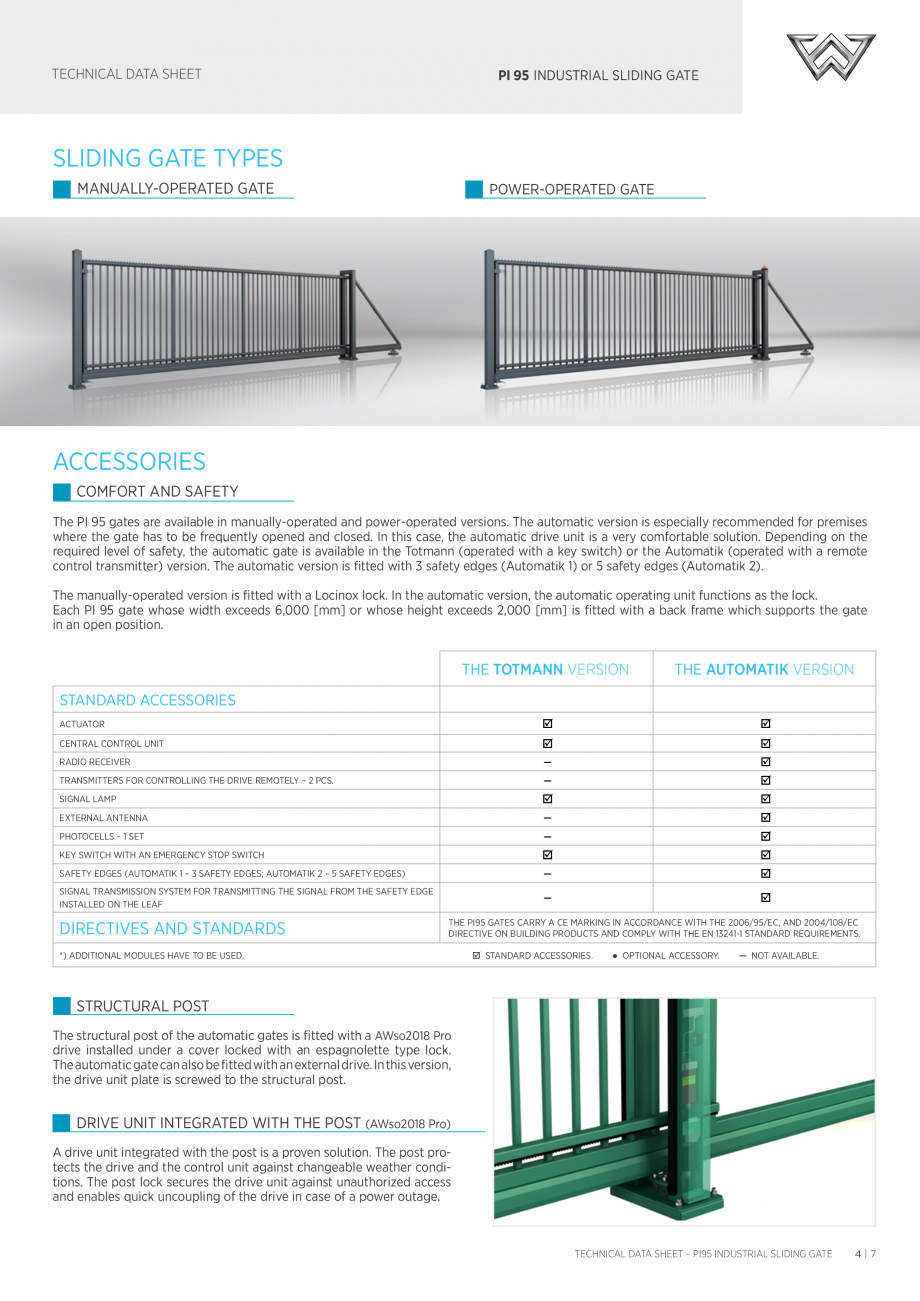

Pagina 4-Porti culisante DECORIO PI95 Fisa tehnica Engleza
Round tube section infill ø 25mm
welded to the...

Pagina 5 - Porti culisante DECORIO PI95 Fisa tehnica Engleza used
for connecting the leaf modules. ...

used for connecting the leaf modules. The assembly is screwed down to the ground track. This solution ensures superior corrosion protection, because individual modules are dipped in the galvanizing vat. COLOURS COLOUR RANGE Standard gates are available in the hot-dip galvanized version or hotdip galvanized plus polyester coating version. RAL 5010 RAL 6005 RAL 7016 RAL 7030 RAL 9016 RAL 7040 Industrial gates are also available in other RAL colours. RAL palette colours TECHNICAL DATA SHEET – PI95 INDUSTRIAL SLIDING GATE 3|7 TECHNICAL DATA SHEET PI 95 INDUSTRIAL SLIDING GATE SLIDING GATE TYPES MANUALLY-OPERATED GATE POWER-OPERATED GATE ACCESSORIES COMFORT AND SAFETY The PI 95 gates are available in manually-operated and power-operated versions. The automatic version is especially recommended for premises where the gate has to be frequently opened and closed. In this case, the automatic drive unit is a very comfortable solution. Depending on the required level of safety

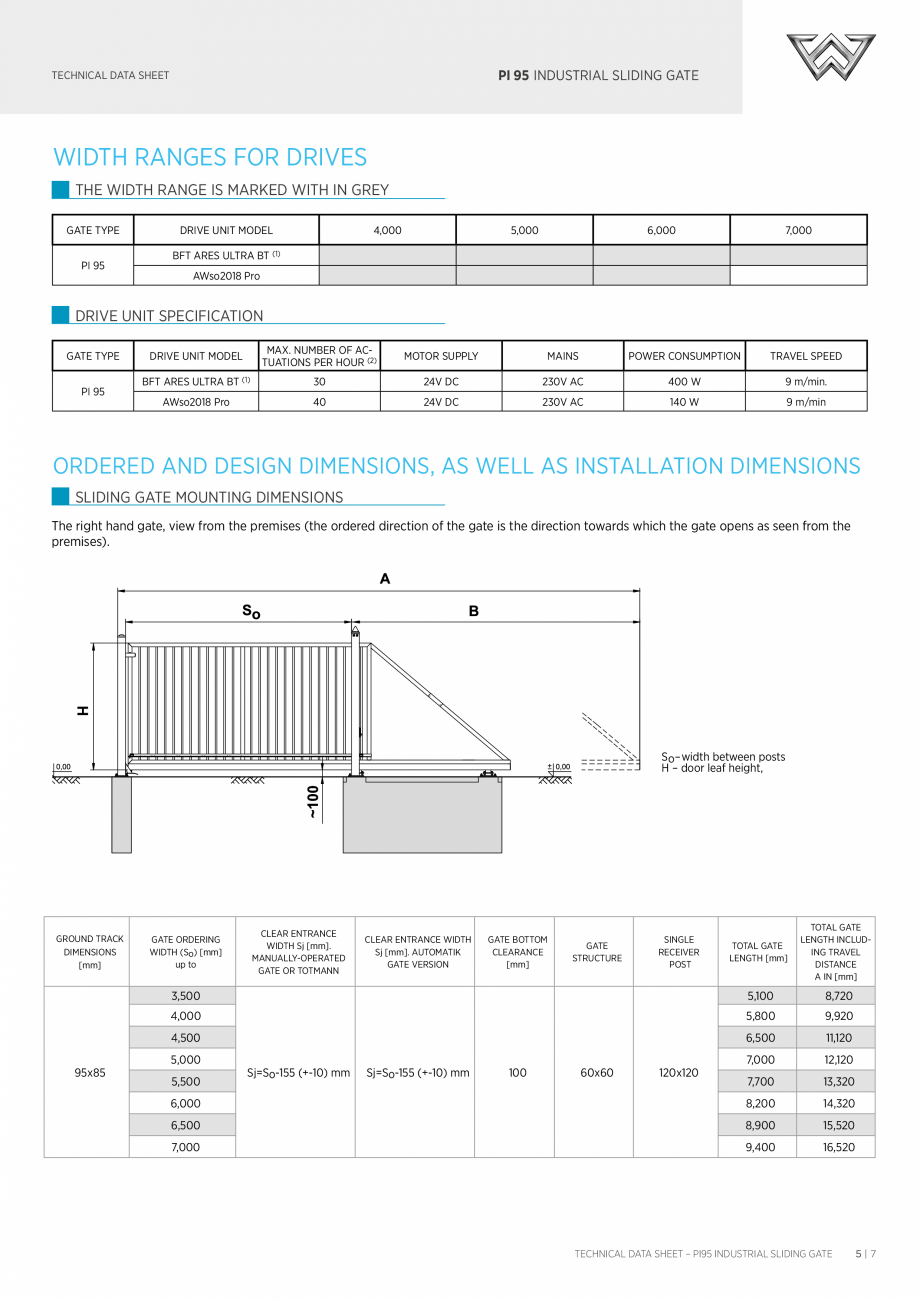

Pagina 5-Porti culisante DECORIO PI95 Fisa tehnica Engleza used
for connecting the leaf modules. The...

Pagina 6 - Porti culisante DECORIO PI95 Fisa tehnica Engleza , the automatic gate is available in...

, the automatic gate is available in the Totmann (operated with a key switch) or the Automatik (operated with a remote control transmitter) version. The automatic version is fitted with 3 safety edges (Automatik 1) or 5 safety edges (Automatik 2). The manually-operated version is fitted with a Locinox lock. In the automatic version, the automatic operating unit functions as the lock. Each PI 95 gate whose width exceeds 6,000 [mm] or whose height exceeds 2,000 [mm] is fitted with a back frame which supports the gate in an open position. THE TOTMANN VERSION THE AUTOMATIK VERSION ACTUATOR   CENTRAL CONTROL UNIT  RADIO RECEIVER —   STANDARD ACCESSORIES TRANSMITTERS FOR CONTROLLING THE DRIVE REMOTELY – 2 PCS. —  SIGNAL LAMP   EXTERNAL ANTENNA —  PHOTOCELLS – 1 SET —  KEY SWITCH WITH AN EMERGENCY STOP SWITCH   SAFETY EDGES (AUTOMATIK 1 – 3 SAFETY EDGES; AUTOMATIK 2 – 5 SAFETY EDGES) —  SIGNAL TRANSMISSION

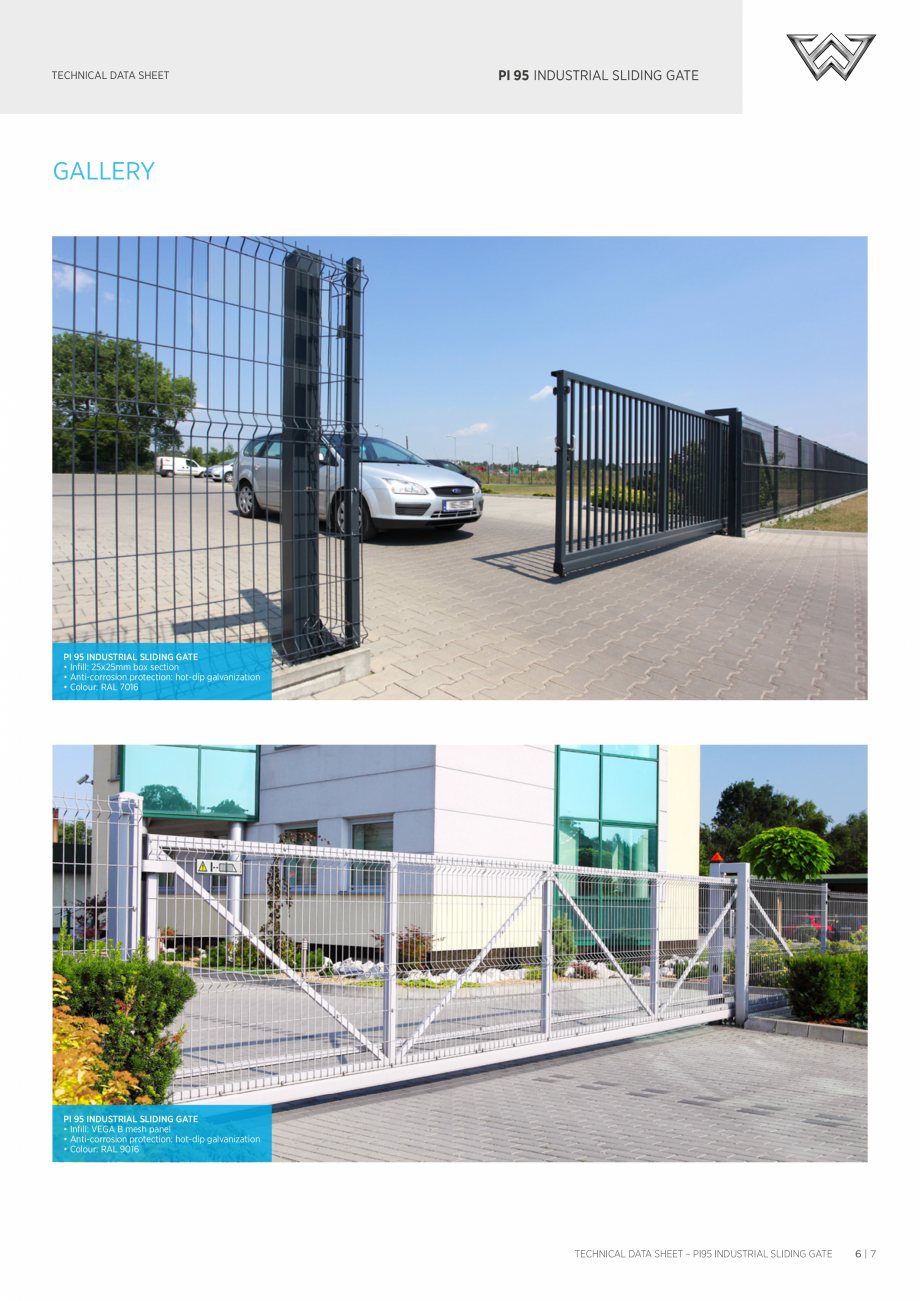

Pagina 6-Porti culisante DECORIO PI95 Fisa tehnica Engleza , the automatic gate is available in the Totmann...

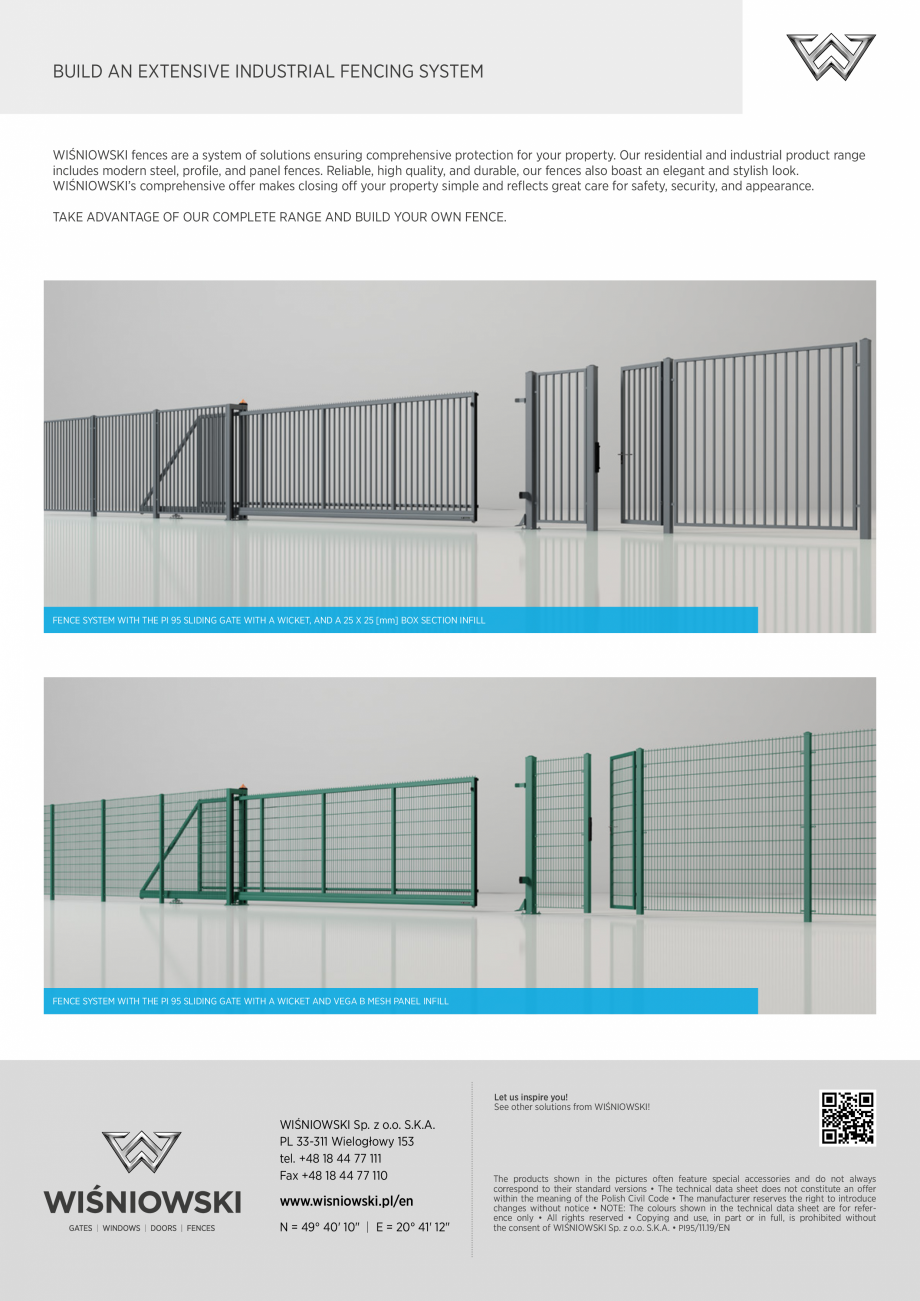

Pagina 7 - Porti culisante DECORIO PI95 Fisa tehnica Engleza SYSTEM FOR TRANSMITTING THE SIGNAL FROM...

SYSTEM FOR TRANSMITTING THE SIGNAL FROM THE SAFETY EDGE INSTALLED ON THE LEAF —  DIRECTIVES AND STANDARDS THE PI95 GATES CARRY A CE MARKING IN ACCORDANCE WITH THE 2006/95/EC, AND 2004/108/EC DIRECTIVE ON BUILDING PRODUCTS AND COMPLY WITH THE EN 13241-1 STANDARD REQUIREMENTS. *) ADDITIONAL MODULES HAVE TO BE USED.  STANDARD ACCESSORIES. ● OPTIONAL ACCESSORY. — NOT AVAILABLE. STRUCTURAL POST The structural post of the automatic gates is fitted with a AWso2018 Pro drive installed under a cover locked with an espagnolette type lock. The automatic gate can also be fitted with an external drive. In this version, the drive unit plate is screwed to the structural post. DRIVE UNIT INTEGRATED WITH THE POST (AWso2018 Pro) A drive unit integrated with the post is a proven solution. The post protects the drive and the control unit against changeable weather conditions. The post lock secures the drive unit against unauthorized access and enables quick uncoupling of the drive in
