Pagina 1 - Porti batante DECORIO Modest Fisa tehnica Engleza MODEST

MODEST
GATE AND WICKET

GATES |...

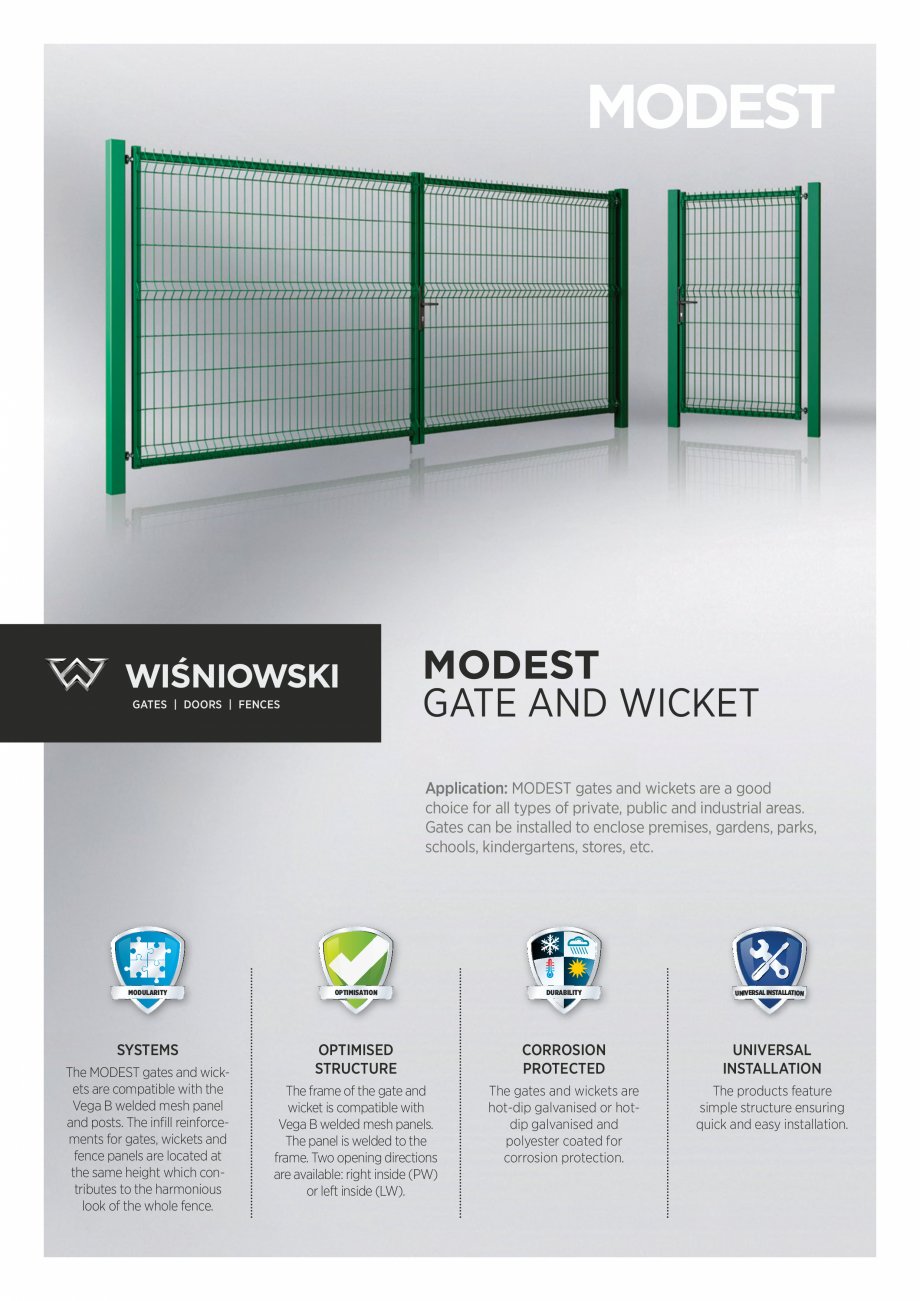

MODEST MODEST GATE AND WICKET GATES | DOORS | FENCES Application: MODEST gates and wickets are a good choice for all types of private, public and industrial areas. Gates can be installed to enclose premises, gardens, parks, schools, kindergartens, stores, etc. MOD ULARITY OPTIMISATION D U RA B I L I T Y SYSTEMS OPTIMISED STRUCTURE CORROSION PROTECTED UNIVERSAL INSTALLATION The frame of the gate and wicket is compatible with Vega B welded mesh panels. The panel is welded to the frame. Two opening directions are available: right inside (PW) or left inside (LW). The gates and wickets are hot-dip galvanised or hotdip galvanised and polyester coated for corrosion protection. The products feature simple structure ensuring quick and easy installation. The MODEST gates and wickets are compatible with the Vega B welded mesh panel and posts. The inﬁll reinforcements for gates, wickets and fence panels are located at the same height which contributes to the harmonious look of the

Pagina 1-Porti batante DECORIO Modest Fisa tehnica Engleza MODEST

MODEST
GATE AND WICKET

GATES | DOORS |...

Pagina 2 - Porti batante DECORIO Modest Fisa tehnica Engleza whole fence.

UNIVERSAL INSTALLATION
...

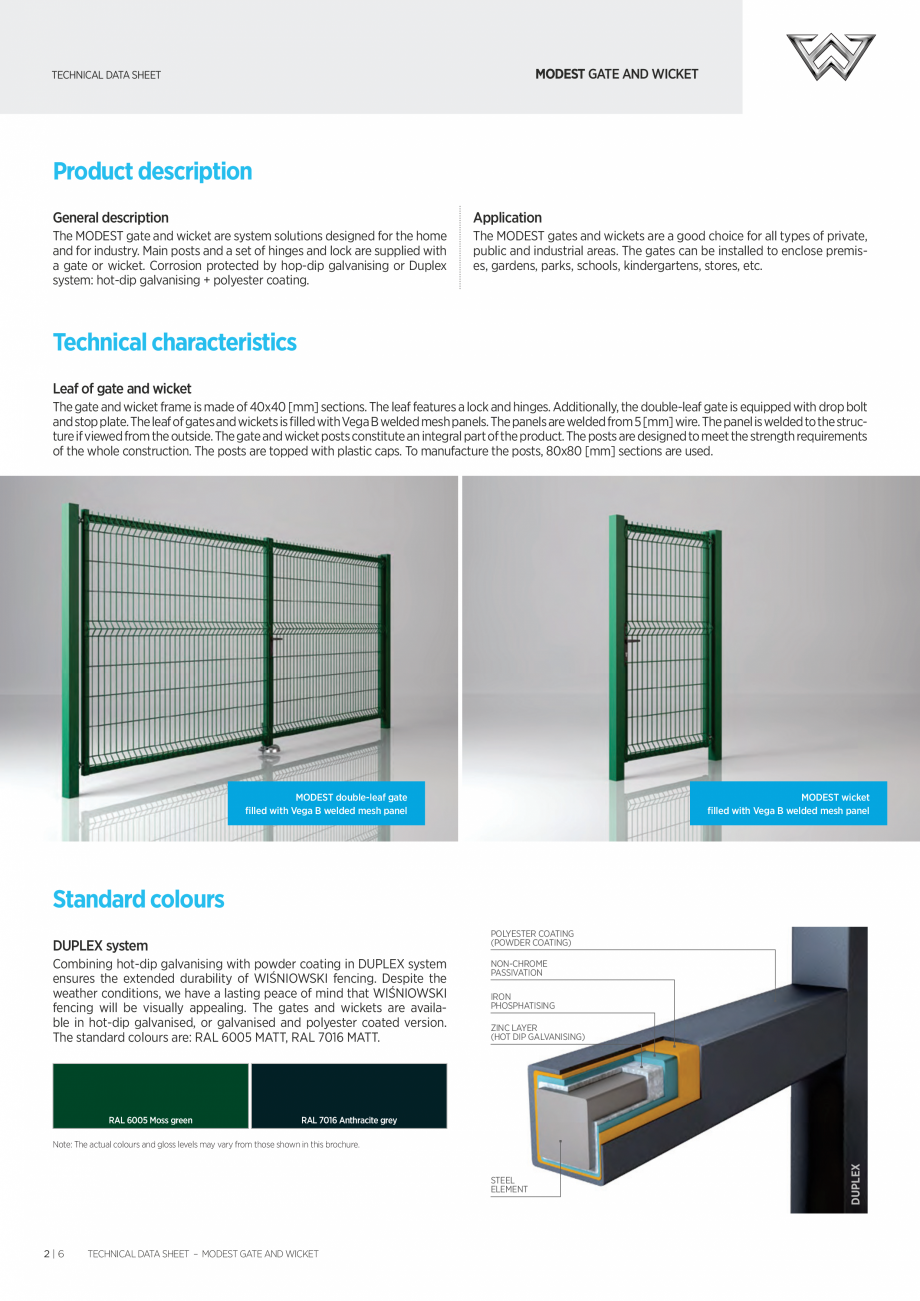

whole fence. UNIVERSAL INSTALLATION MODEST GATE AND WICKET TECHNICAL DATA SHEET Product description General description Application The MODEST gate and wicket are system solutions designed for the home and for industry. Main posts and a set of hinges and lock are supplied with a gate or wicket. Corrosion protected by hop-dip galvanising or Duplex system: hot-dip galvanising + polyester coating. The MODEST gates and wickets are a good choice for all types of private, public and industrial areas. The gates can be installed to enclose premises, gardens, parks, schools, kindergartens, stores, etc. Technical characteristics Leaf of gate and wicket The gate and wicket frame is made of 40x40 [mm] sections. The leaf features a lock and hinges. Additionally, the double-leaf gate is equipped with drop bolt and stop plate. The leaf of gates and wickets is ﬁlled with Vega B welded mesh panels. The panels are welded from 5 [mm] wire. The panel is welded to the structure if viewed from th

Pagina 2-Porti batante DECORIO Modest Fisa tehnica Engleza whole fence.

UNIVERSAL INSTALLATION

MODEST GATE...

Pagina 3 - Porti batante DECORIO Modest Fisa tehnica Engleza e outside. The gate and wicket posts...

e outside. The gate and wicket posts constitute an integral part of the product. The posts are designed to meet the strength requirements of the whole construction. The posts are topped with plastic caps. To manufacture the posts, 80x80 [mm] sections are used. MODEST double-leaf gate ﬁlled with Vega B welded mesh panel MODEST wicket ﬁlled with Vega B welded mesh panel Standard colours POLYESTER COATING (POWDER COATING) DUPLEX system Combining hot-dip galvanising with powder coating in DUPLEX system ensures the extended durability of WIŚNIOWSKI fencing. Despite the weather conditions, we have a lasting peace of mind that WIŚNIOWSKI fencing will be visually appealing. The gates and wickets are available in hot-dip galvanised, or galvanised and polyester coated version. The standard colours are: RAL 6005 MATT, RAL 7016 MATT. RAL 6005 Moss green NON-CHROME PASSIVATION IRON PHOSPHATISING ZINC LAYER (HOT DIP GALVANISING) RAL 7016 Anthracite grey STEEL ELEMENT 2|6 TECHNICAL DA

Pagina 3-Porti batante DECORIO Modest Fisa tehnica Engleza e outside. The gate and wicket posts constitute an...

Pagina 4 - Porti batante DECORIO Modest Fisa tehnica Engleza TA SHEET – MODEST GATE AND WICKET
...

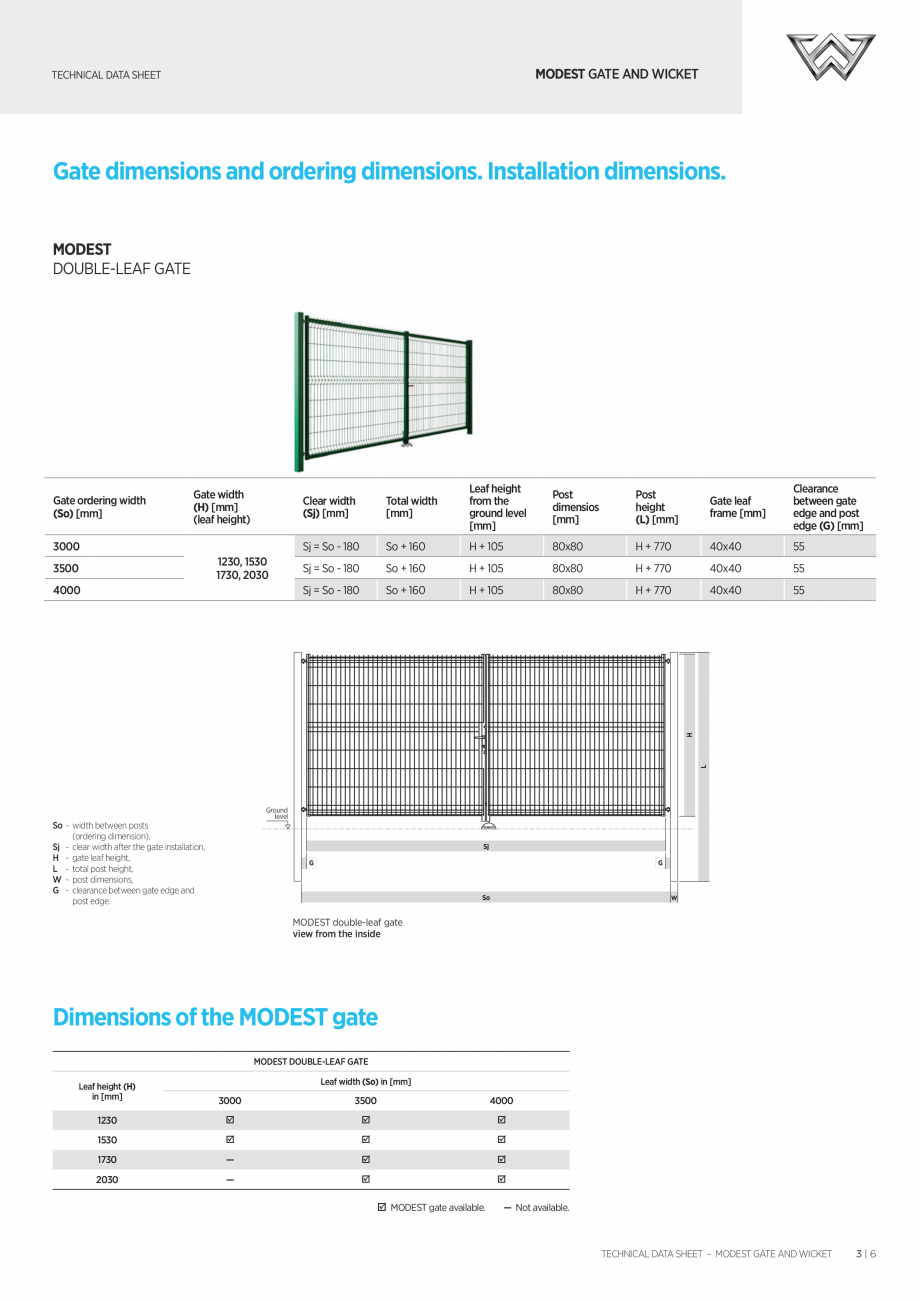

TA SHEET – MODEST GATE AND WICKET DUPLEX Note: The actual colours and gloss levels may vary from those shown in this brochure. MODEST GATE AND WICKET TECHNICAL DATA SHEET Gate dimensions and ordering dimensions. Installation dimensions. MODEST DOUBLE-LEAF GATE Gate ordering width (So) [mm] Gate width (H) [mm] (leaf height) 3000 1230, 1530 1730, 2030 3500 Total width [mm] Leaf height from the ground level [mm] Post dimensios [mm] Post height (L) [mm] Gate leaf frame [mm] Clearance between gate edge and post edge (G) [mm] Sj = So - 180 So + 160 H + 105 80x80 H + 770 40x40 55 Sj = So - 180 So + 160 H + 105 80x80 H + 770 40x40 55 Sj = So - 180 So + 160 H + 105 80x80 H + 770 40x40 55 L H 4000 Clear width (Sj) [mm] Ground level So - width between posts (ordering dimension), Sj - clear width after the gate installation, H - gate leaf height, L - total post height, W - post dimensions, G - clearance between gate edge and post edge. Sj G G So W

Pagina 4-Porti batante DECORIO Modest Fisa tehnica Engleza TA SHEET – MODEST GATE AND WICKET

DUPLEX

Note:...

Pagina 5 - Porti batante DECORIO Modest Fisa tehnica Engleza MODEST double-leaf gate
view from the...

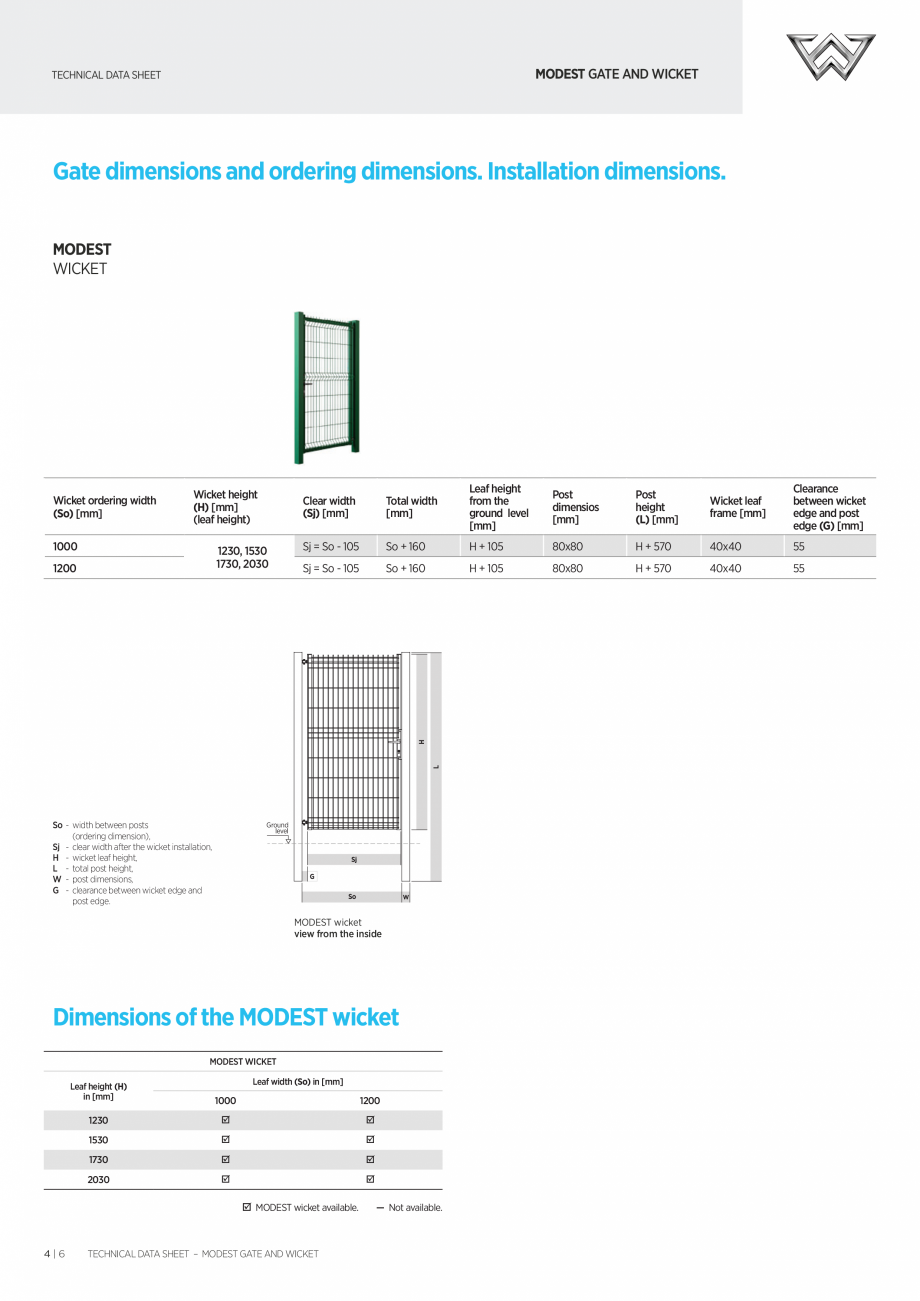

MODEST double-leaf gate view from the inside Dimensions of the MODEST gate MODEST DOUBLE-LEAF GATE Leaf height (H) in [mm] Leaf width (So) in [mm] 3000 3500 1230 ; ; 4000 ; 1530 ; ; ; 1730 — ; ; 2030 — ; ; ; MODEST gate available. — Not available. TECHNICAL DATA SHEET – MODEST GATE AND WICKET 3|6 MODEST GATE AND WICKET TECHNICAL DATA SHEET Gate dimensions and ordering dimensions. Installation dimensions. MODEST WICKET Wicket ordering width (So) [mm] Wicket height (H) [mm] (leaf height) 1000 1230, 1530 1730, 2030 Total width [mm] Leaf height from the ground level [mm] Post dimensios [mm] Post height (L) [mm] Wicket leaf frame [mm] Clearance between wicket edge and post edge (G) [mm] Sj = So - 105 So + 160 H + 105 80x80 H + 570 40x40 55 Sj = So - 105 So + 160 H + 105 80x80 H + 570 40x40 55 L H 1200 Clear width (Sj) [mm] So - width between posts (ordering dimension), Sj - clear width after the wicket installation, H - wicket

Pagina 5-Porti batante DECORIO Modest Fisa tehnica Engleza MODEST double-leaf gate
view from the inside
...

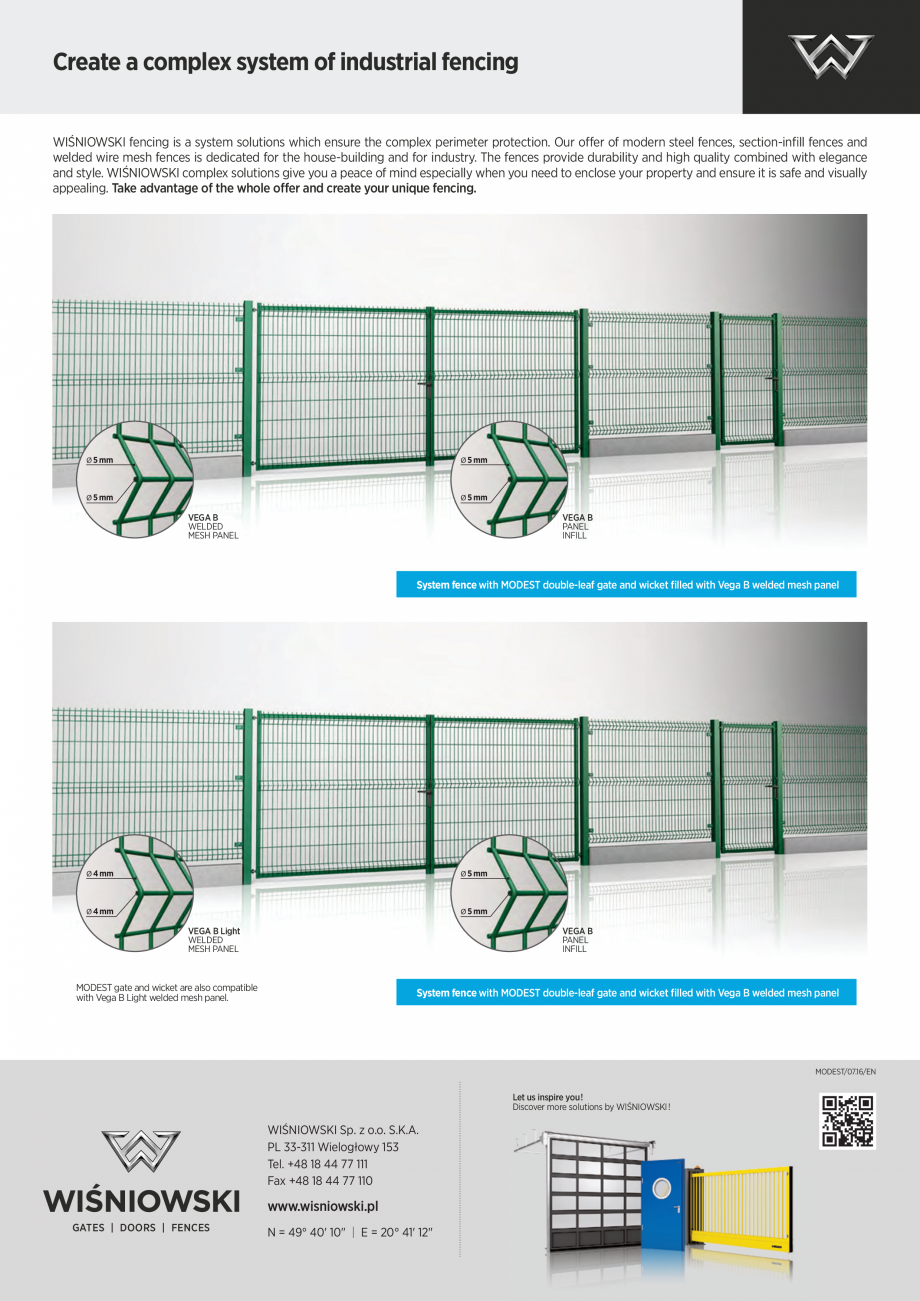

Pagina 6 - Porti batante DECORIO Modest Fisa tehnica Engleza leaf height,
L - total post height,
W ...

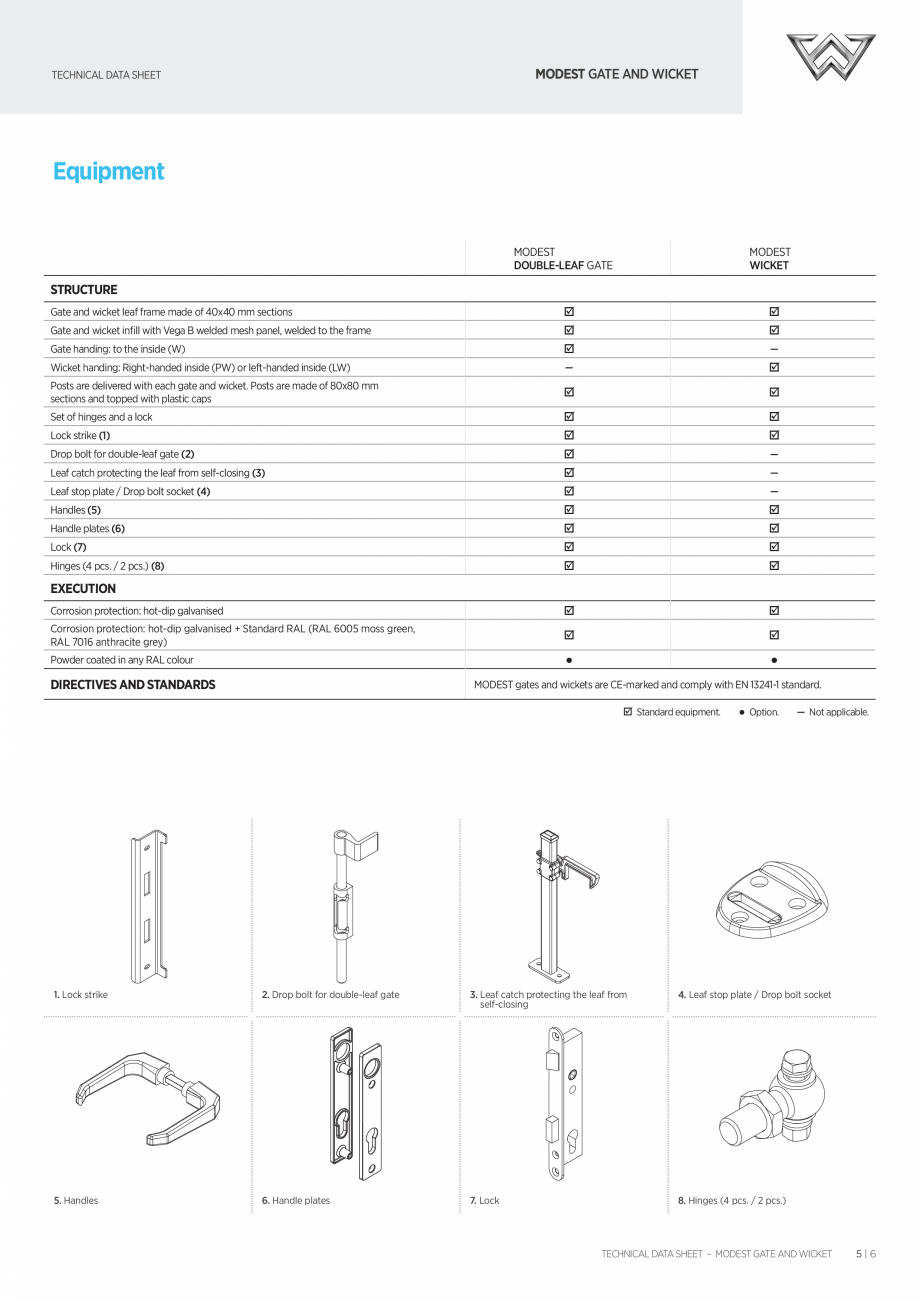

leaf height, L - total post height, W - post dimensions, G - clearance between wicket edge and post edge. Ground level Sj G So W MODEST wicket view from the inside Dimensions of the MODEST wicket MODEST WICKET Leaf height (H) in [mm] Leaf width (So) in [mm] 1000 1200 1230 ; ; 1530 ; ; 1730 ; ; 2030 ; ; ; MODEST wicket available. 4|6 TECHNICAL DATA SHEET – MODEST GATE AND WICKET — Not available. MODEST GATE AND WICKET TECHNICAL DATA SHEET Equipment MODEST DOUBLE-LEAF GATE MODEST WICKET STRUCTURE Gate and wicket leaf frame made of 40x40 mm sections ; ; Gate and wicket inﬁll with Vega B welded mesh panel, welded to the frame ; ; Gate handing: to the inside (W) ; — Wicket handing: Right-handed inside (PW) or left-handed inside (LW) — ; Posts are delivered with each gate and wicket. Posts are made of 80x80 mm sections and topped with plastic caps ; ; Set of hinges and a lock ; ; Lock strike (1) ; ; Drop bolt for double-leaf gate
