Pagina 1 - Porti culisante DECORIO PI130 Fisa tehnica Engleza PI 130

INDUSTRIAL
SLIDING GATE
PI 130...

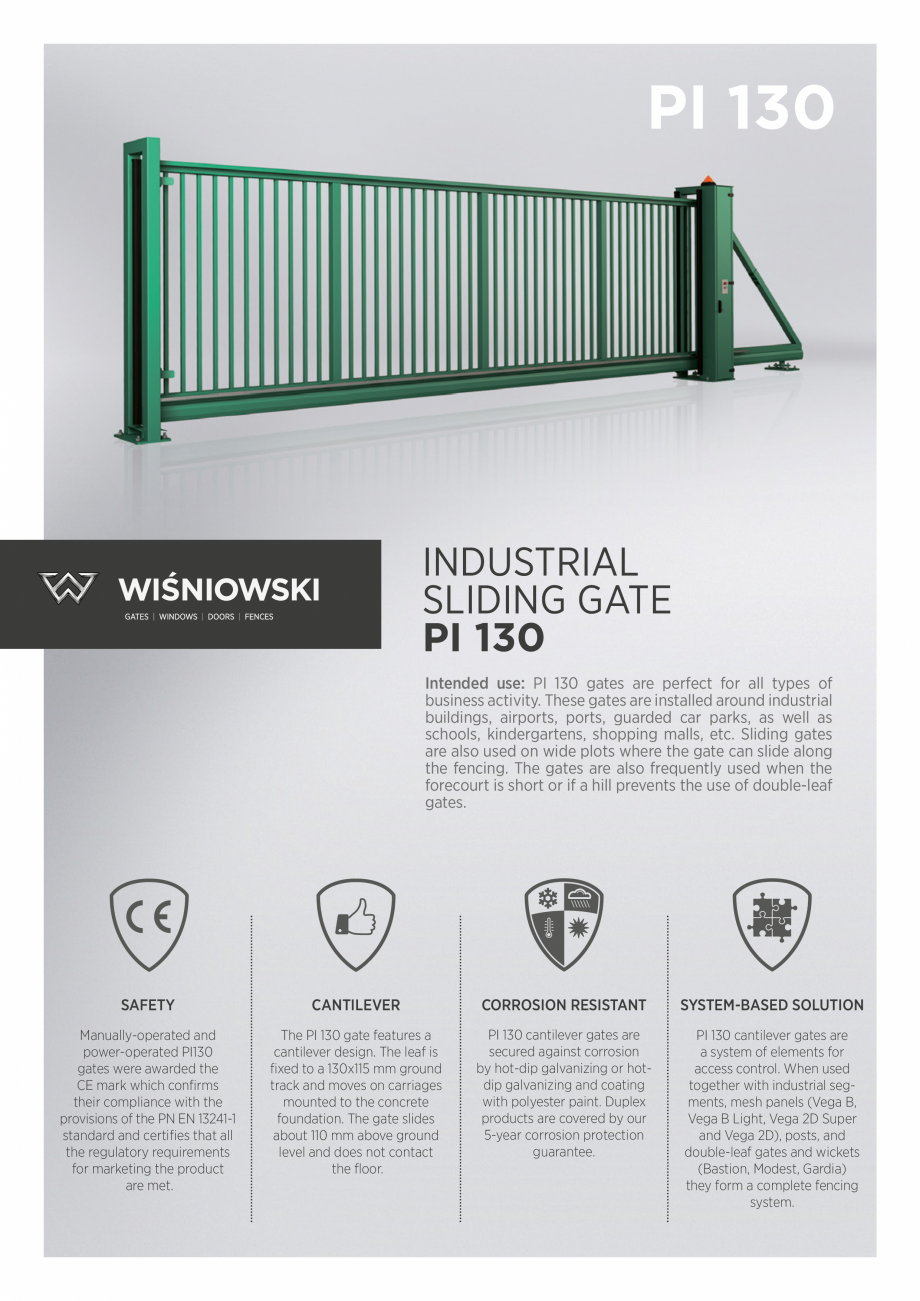

PI 130 INDUSTRIAL SLIDING GATE PI 130 Intended use: PI 130 gates are perfect for all types of business activity. These gates are installed around industrial buildings, airports, ports, guarded car parks, as well as schools, kindergartens, shopping malls, etc. Sliding gates are also used on wide plots where the gate can slide along the fencing. The gates are also frequently used when the forecourt is short or if a hill prevents the use of double-leaf gates. SAFETY CANTILEVER CORROSION RESISTANT SYSTEM-BASED SOLUTION Manually-operated and power-operated PI130 gates were awarded the CE mark which confirms their compliance with the provisions of the PN EN 13241-1 standard and certifies that all the regulatory requirements for marketing the product are met. The PI 130 gate features a cantilever design. The leaf is fixed to a 130x115 mm ground track and moves on carriages mounted to the concrete foundation. The gate slides about 110 mm above ground level and does not contact the floor

Pagina 1-Porti culisante DECORIO PI130 Fisa tehnica Engleza PI 130

INDUSTRIAL
SLIDING GATE
PI 130
Intended...

Pagina 2 - Porti culisante DECORIO PI130 Fisa tehnica Engleza .

PI 130 cantilever gates are
secured...

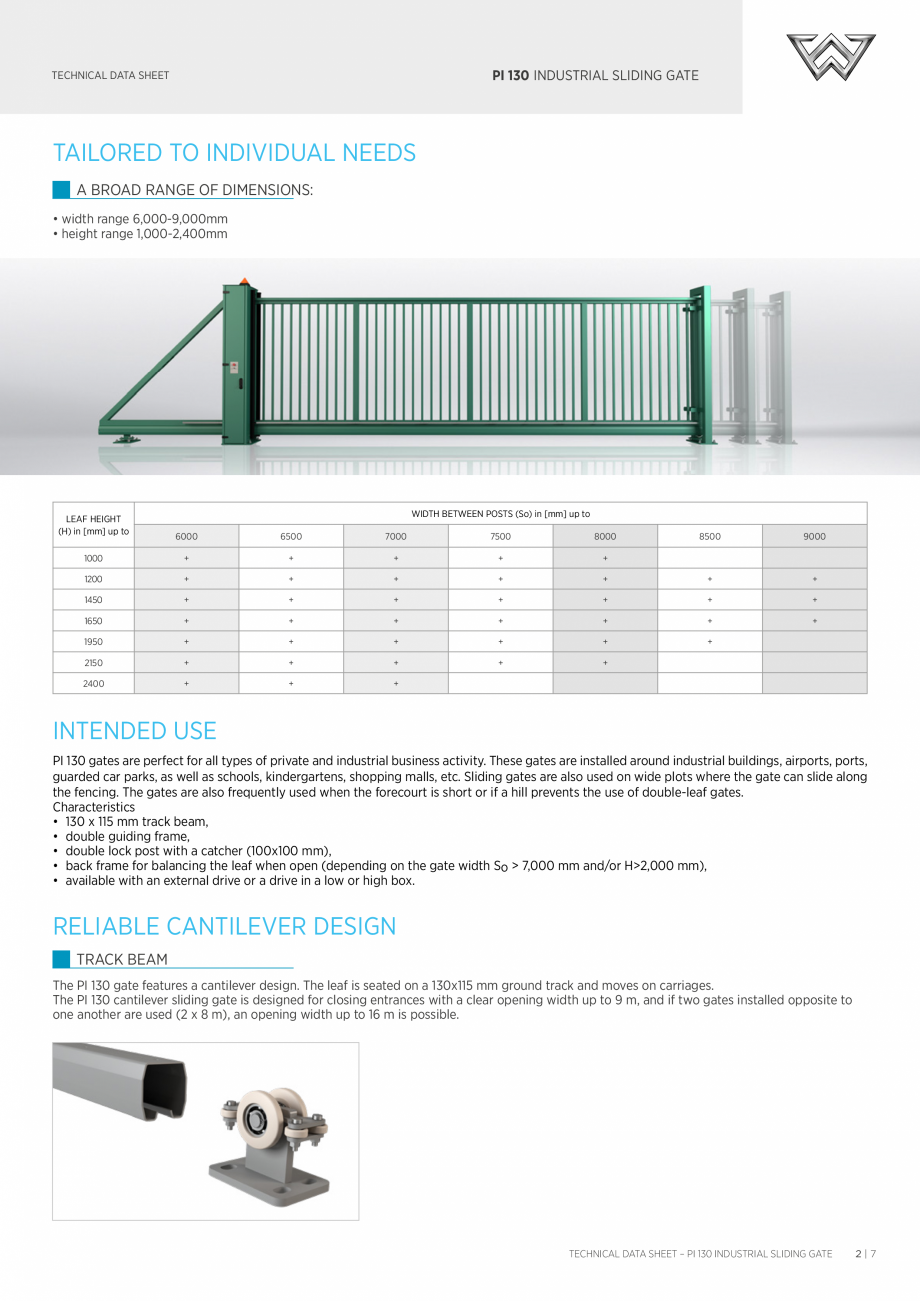

. PI 130 cantilever gates are secured against corrosion by hot-dip galvanizing or hotdip galvanizing and coating with polyester paint. Duplex products are covered by our 5-year corrosion protection guarantee. PI 130 cantilever gates are a system of elements for access control. When used together with industrial segments, mesh panels (Vega B, Vega B Light, Vega 2D Super and Vega 2D), posts, and double-leaf gates and wickets (Bastion, Modest, Gardia) they form a complete fencing system. PI 130 INDUSTRIAL SLIDING GATE TECHNICAL DATA SHEET TAILORED TO INDIVIDUAL NEEDS A BROAD RANGE OF DIMENSIONS: • width range 6,000-9,000mm • height range 1,000-2,400mm LEAF HEIGHT (H) in [mm] up to 1000 WIDTH BETWEEN POSTS (So) in [mm] up to 6000 6500 7000 7500 8000 + + + + + 8500 9000 1200 + + + + + + + 1450 + + + + + + + 1650 + + + + + + + + 1950 + + + + + 2150 + + + + + 2400 + + + INTENDED USE PI 130 gates are perfect for all types of priv

Pagina 2-Porti culisante DECORIO PI130 Fisa tehnica Engleza .

PI 130 cantilever gates are
secured against...

Pagina 3 - Porti culisante DECORIO PI130 Fisa tehnica Engleza ate and industrial business activity. ...

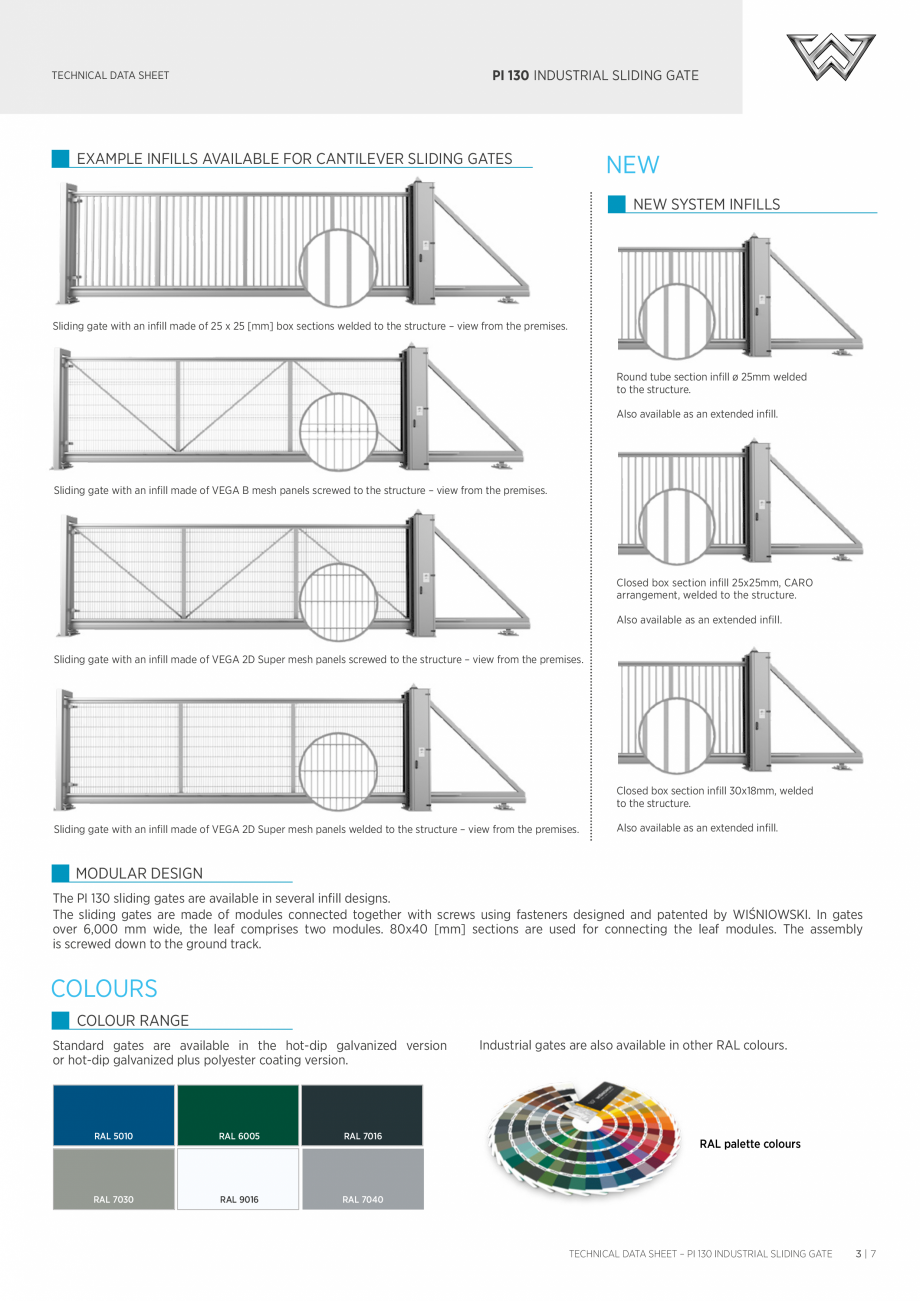

ate and industrial business activity. These gates are installed around industrial buildings, airports, ports, guarded car parks, as well as schools, kindergartens, shopping malls, etc. Sliding gates are also used on wide plots where the gate can slide along the fencing. The gates are also frequently used when the forecourt is short or if a hill prevents the use of double-leaf gates. Characteristics • 130 x 115 mm track beam, • double guiding frame, • double lock post with a catcher (100x100 mm), • back frame for balancing the leaf when open (depending on the gate width So > 7,000 mm and/or H>2,000 mm), • available with an external drive or a drive in a low or high box. RELIABLE CANTILEVER DESIGN TRACK BEAM The PI 130 gate features a cantilever design. The leaf is seated on a 130x115 mm ground track and moves on carriages. The PI 130 cantilever sliding gate is designed for closing entrances with a clear opening width up to 9 m, and if two gates installed opposite to one anoth

Pagina 3-Porti culisante DECORIO PI130 Fisa tehnica Engleza ate and industrial business activity. These gates...

Pagina 4 - Porti culisante DECORIO PI130 Fisa tehnica Engleza er are used (2 x 8 m), an opening...

er are used (2 x 8 m), an opening width up to 16 m is possible. TECHNICAL DATA SHEET – PI 130 INDUSTRIAL SLIDING GATE 2|7 PI 130 INDUSTRIAL SLIDING GATE TECHNICAL DATA SHEET EXAMPLE INFILLS AVAILABLE FOR CANTILEVER SLIDING GATES NEW NEW SYSTEM INFILLS Sliding gate with an infill made of 25 x 25 [mm] box sections welded to the structure – view from the premises. Round tube section infill ø 25mm welded to the structure. Also available as an extended infill. Sliding gate with an infill made of VEGA B mesh panels screwed to the structure – view from the premises. Closed box section infill 25x25mm, CARO arrangement, welded to the structure. Also available as an extended infill. Sliding gate with an infill made of VEGA 2D Super mesh panels screwed to the structure – view from the premises. Closed box section infill 30x18mm, welded to the structure. Sliding gate with an infill made of VEGA 2D Super mesh panels welded to the structure – view from the premises. Also avai

Pagina 4-Porti culisante DECORIO PI130 Fisa tehnica Engleza er are used (2 x 8 m), an opening width up to 16 ...

Pagina 5 - Porti culisante DECORIO PI130 Fisa tehnica Engleza lable as an extended infill.

MODULAR ...

lable as an extended infill. MODULAR DESIGN The PI 130 sliding gates are available in several infill designs. The sliding gates are made of modules connected together with screws using fasteners designed and patented by WIŚNIOWSKI. In gates over 6,000 mm wide, the leaf comprises two modules. 80x40 [mm] sections are used for connecting the leaf modules. The assembly is screwed down to the ground track. COLOURS COLOUR RANGE Standard gates are available in the hot-dip galvanized version or hot-dip galvanized plus polyester coating version. RAL 5010 RAL 6005 RAL 7016 RAL 7030 RAL 9016 RAL 7040 Industrial gates are also available in other RAL colours. RAL palette colours TECHNICAL DATA SHEET – PI 130 INDUSTRIAL SLIDING GATE 3|7 TECHNICAL DATA SHEET PI 130 INDUSTRIAL SLIDING GATE SLIDING GATE TYPES MANUALLY-OPERATED GATE GATE WITH A DRIVE IN A LOW BOX GATE WITH A DRIVE IN A HIGH BOX ACCESSORIES COMFORT AND SAFETY The PI 130 gates are available in manually-operated and p

Pagina 5-Porti culisante DECORIO PI130 Fisa tehnica Engleza lable as an extended infill.

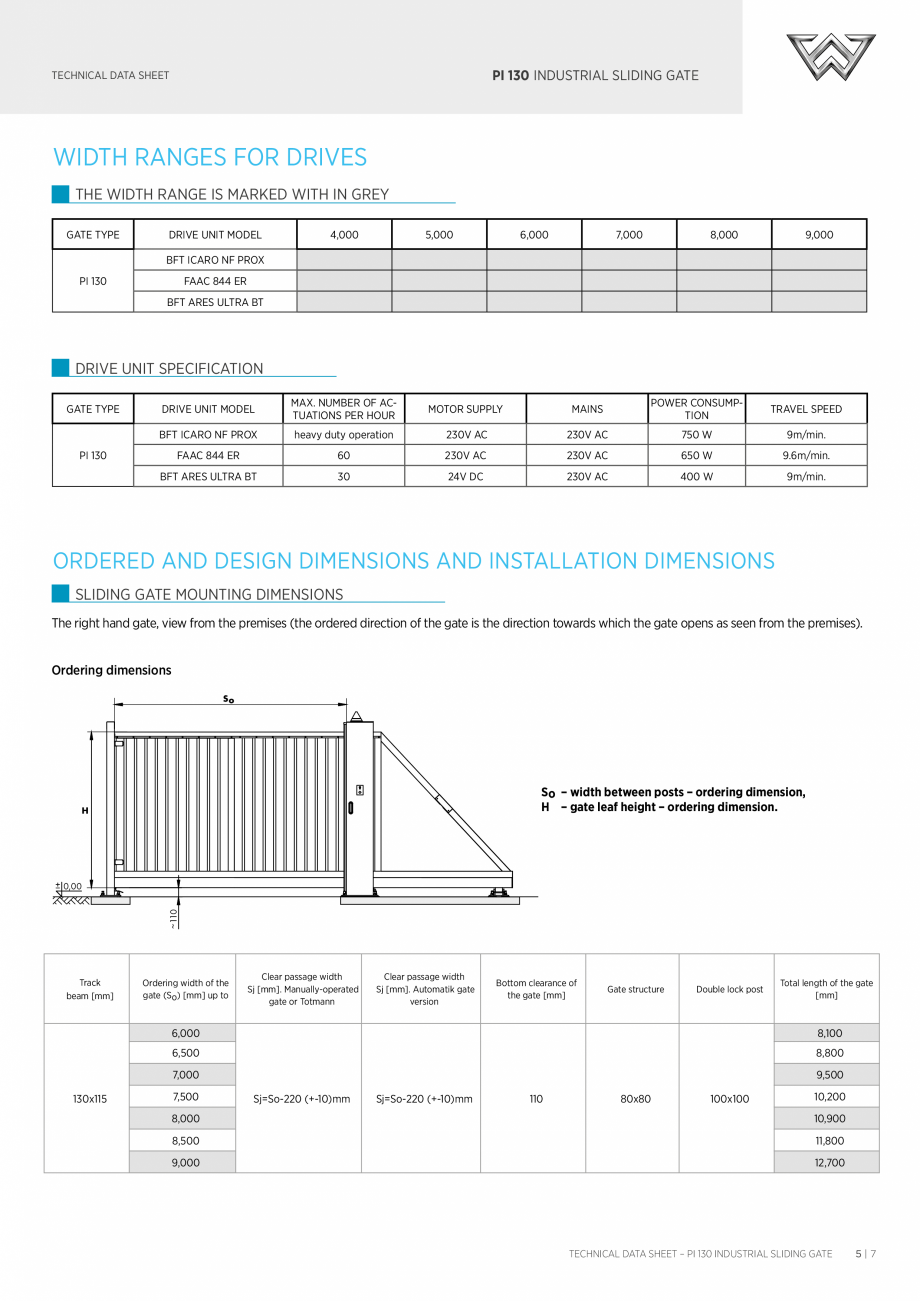

MODULAR DESIGN
The ...

Pagina 6 - Porti culisante DECORIO PI130 Fisa tehnica Engleza ower-operated versions. The automatic ...

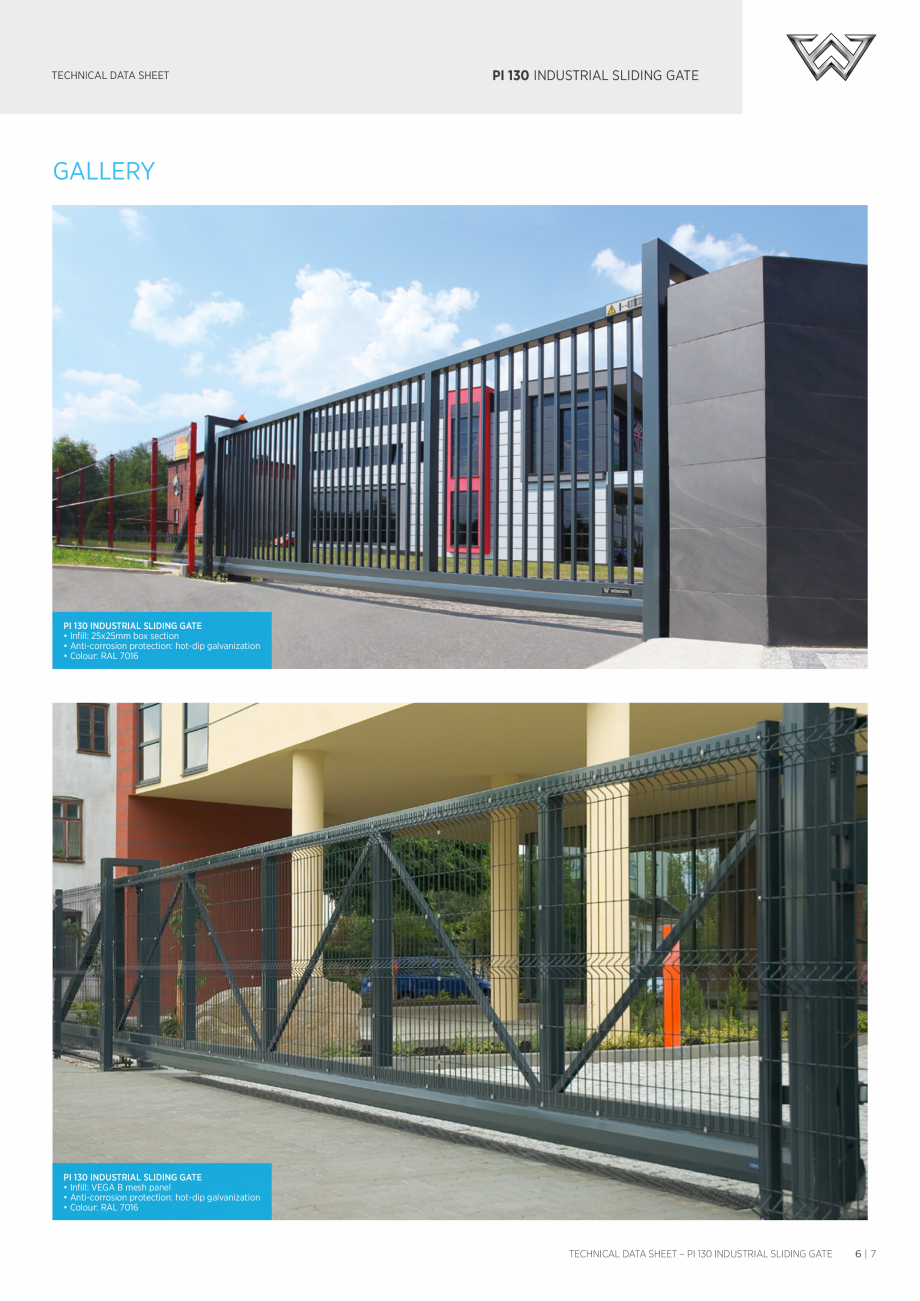

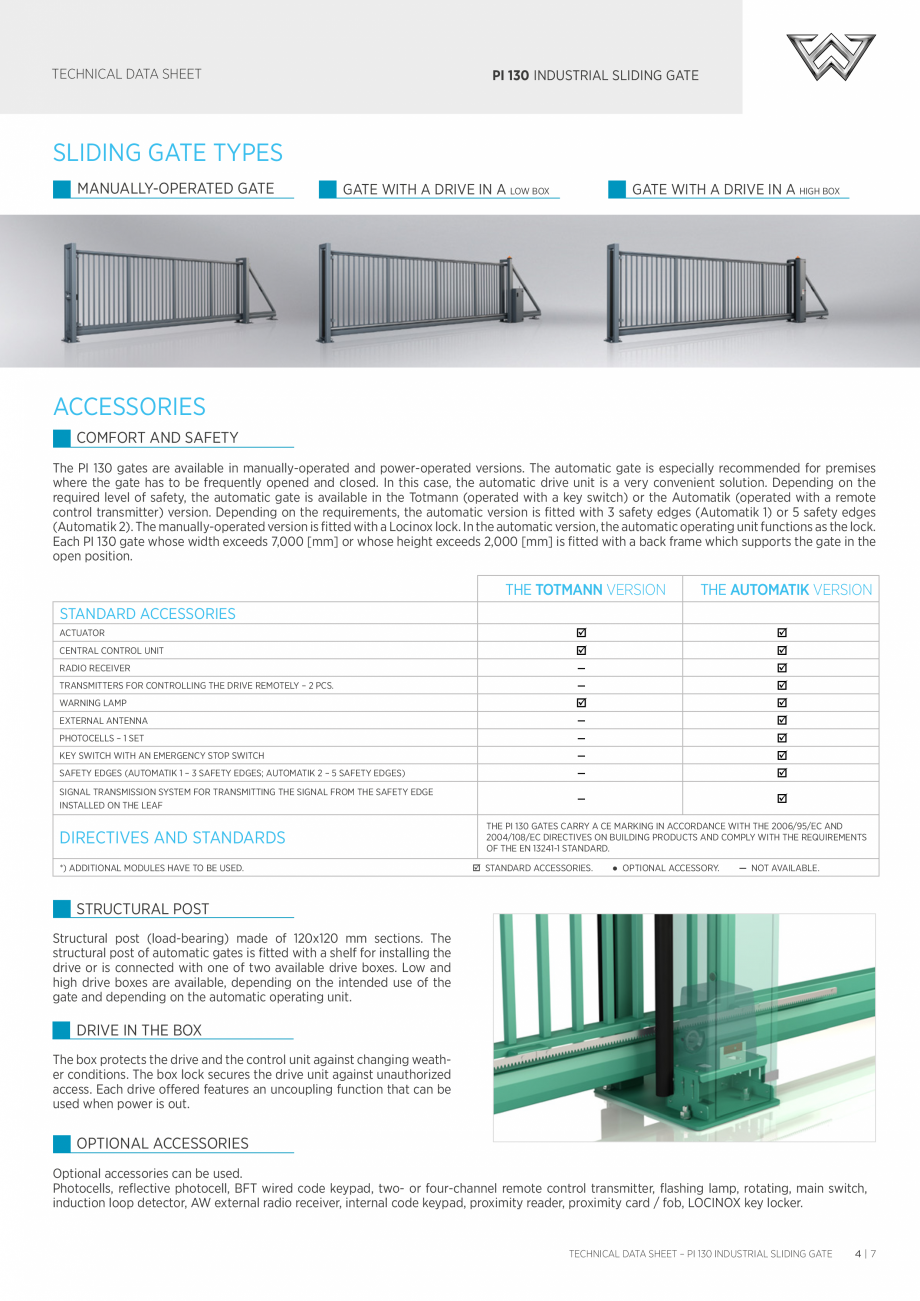

ower-operated versions. The automatic gate is especially recommended for premises where the gate has to be frequently opened and closed. In this case, the automatic drive unit is a very convenient solution. Depending on the required level of safety, the automatic gate is available in the Totmann (operated with a key switch) or the Automatik (operated with a remote control transmitter) version. Depending on the requirements, the automatic version is fitted with 3 safety edges (Automatik 1) or 5 safety edges (Automatik 2). The manually-operated version is fitted with a Locinox lock. In the automatic version, the automatic operating unit functions as the lock. Each PI 130 gate whose width exceeds 7,000 [mm] or whose height exceeds 2,000 [mm] is fitted with a back frame which supports the gate in the open position. THE TOTMANN VERSION THE AUTOMATIK VERSION STANDARD ACCESSORIES CENTRAL CONTROL UNIT   TRANSMITTERS FOR CONTROLLING THE DRIVE REMOTELY – 2 PCS. — WARNING LAMP �

Pagina 6-Porti culisante DECORIO PI130 Fisa tehnica Engleza ower-operated versions. The automatic gate is...

Pagina 7 - Porti culisante DECORIO PI130 Fisa tehnica Engleza ��

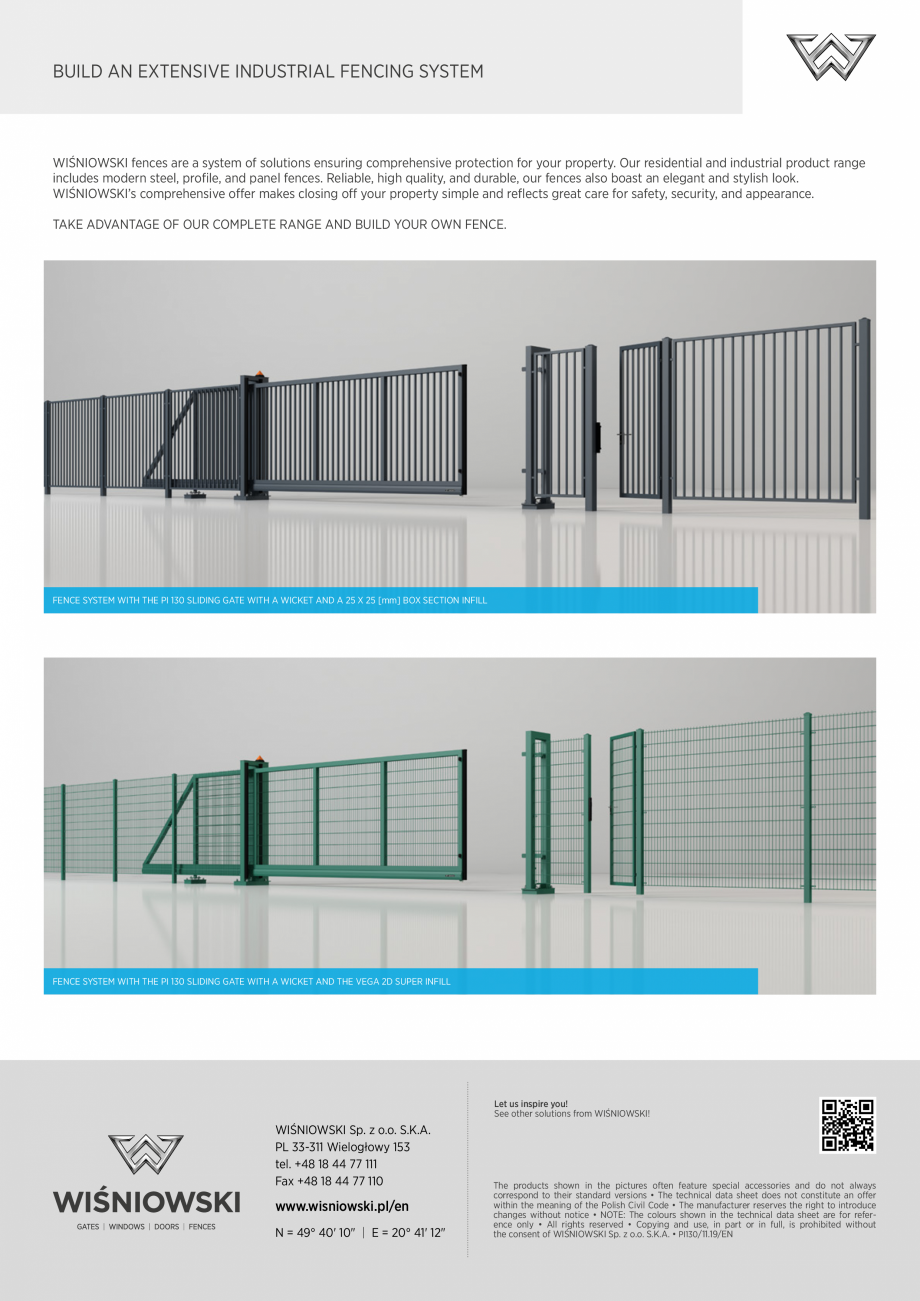

EXTERNAL ANTENNA

—

PHOTOCELLS ...

�� EXTERNAL ANTENNA — PHOTOCELLS – 1 SET — KEY SWITCH WITH AN EMERGENCY STOP SWITCH — SAFETY EDGES (AUTOMATIK 1 – 3 SAFETY EDGES; AUTOMATIK 2 – 5 SAFETY EDGES) —          RADIO RECEIVER — SIGNAL TRANSMISSION SYSTEM FOR TRANSMITTING THE SIGNAL FROM THE SAFETY EDGE INSTALLED ON THE LEAF —  ACTUATOR DIRECTIVES AND STANDARDS *) ADDITIONAL MODULES HAVE TO BE USED. THE PI 130 GATES CARRY A CE MARKING IN ACCORDANCE WITH THE 2006/95/EC AND 2004/108/EC DIRECTIVES ON BUILDING PRODUCTS AND COMPLY WITH THE REQUIREMENTS OF THE EN 13241-1 STANDARD.  STANDARD ACCESSORIES. ● OPTIONAL ACCESSORY. — NOT AVAILABLE. STRUCTURAL POST Structural post (load-bearing) made of 120x120 mm sections. The structural post of automatic gates is fitted with a shelf for installing the drive or is connected with one of two available drive boxes. Low and high drive boxes are available, depending on the intended use of the gate and depending on the a
