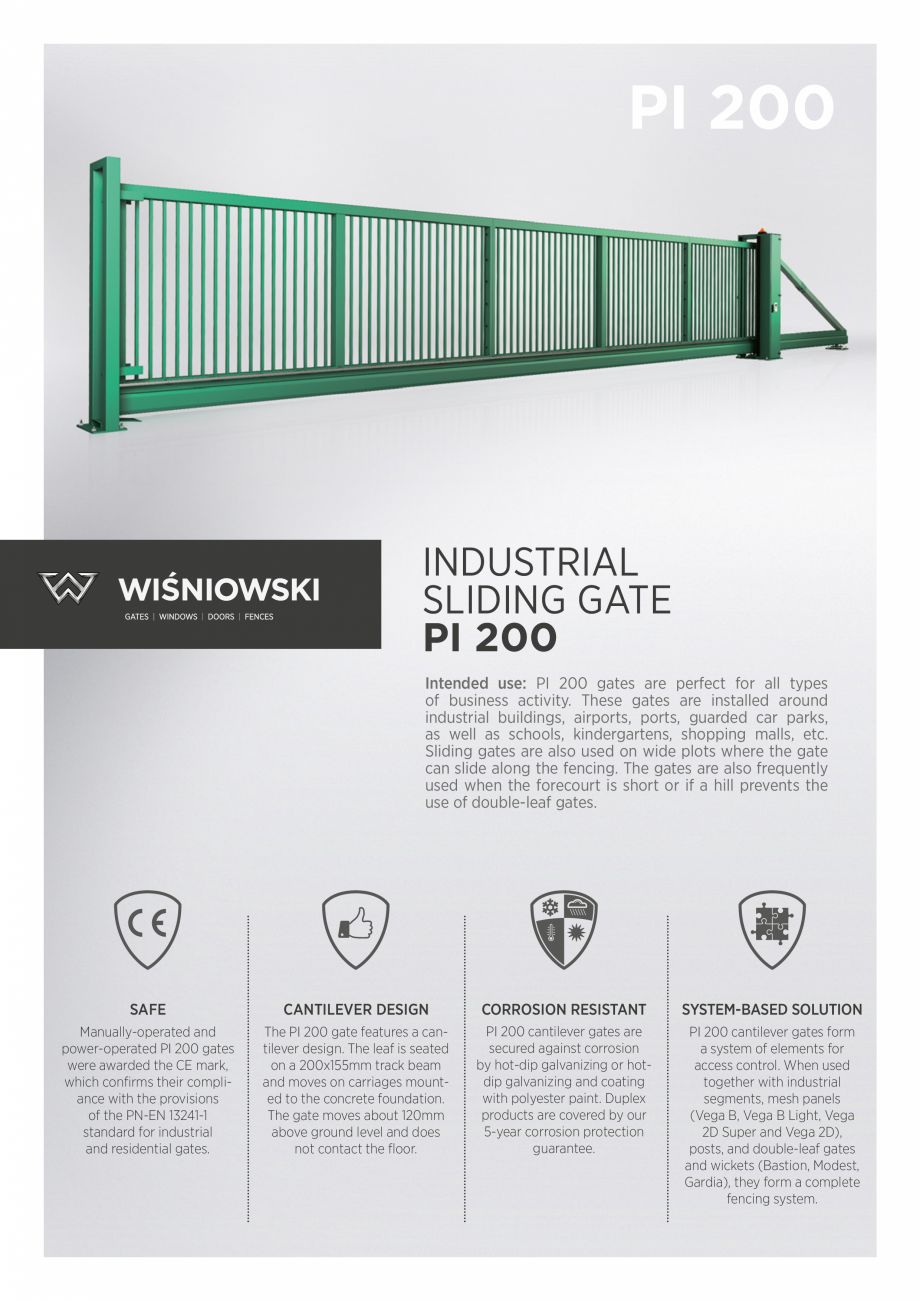

PI 200 INDUSTRIAL SLIDING GATE PI 200 Intended use: PI 200 gates are perfect for all types of business activity. These gates are installed around industrial buildings, airports, ports, guarded car parks, as well as schools, kindergartens, shopping malls, etc. Sliding gates are also used on wide plots where the gate can slide along the fencing. The gates are also frequently used when the forecourt is short or if a hill prevents the use of double-leaf gates. SAFE CANTILEVER DESIGN CORROSION RESISTANT SYSTEM-BASED SOLUTION Manually-operated and power-operated PI 200 gates were awarded the CE mark, which confirms their compliance with the provisions of the PN-EN 13241-1 standard for industrial and residential gates. The PI 200 gate features a cantilever design. The leaf is seated on a 200x155mm track beam and moves on carriages mounted to the concrete foundation. The gate moves about 120mm above ground level and does not contact the floor. PI 200 cantilever gates are secured agains

Pagina 1-Porti culisante DECORIO PI200 Fisa tehnica Engleza PI 200

INDUSTRIAL
SLIDING GATE
PI 200
Intended...

Pagina 2 - Porti culisante DECORIO PI200 Fisa tehnica Engleza t corrosion
by hot-dip galvanizing or ...

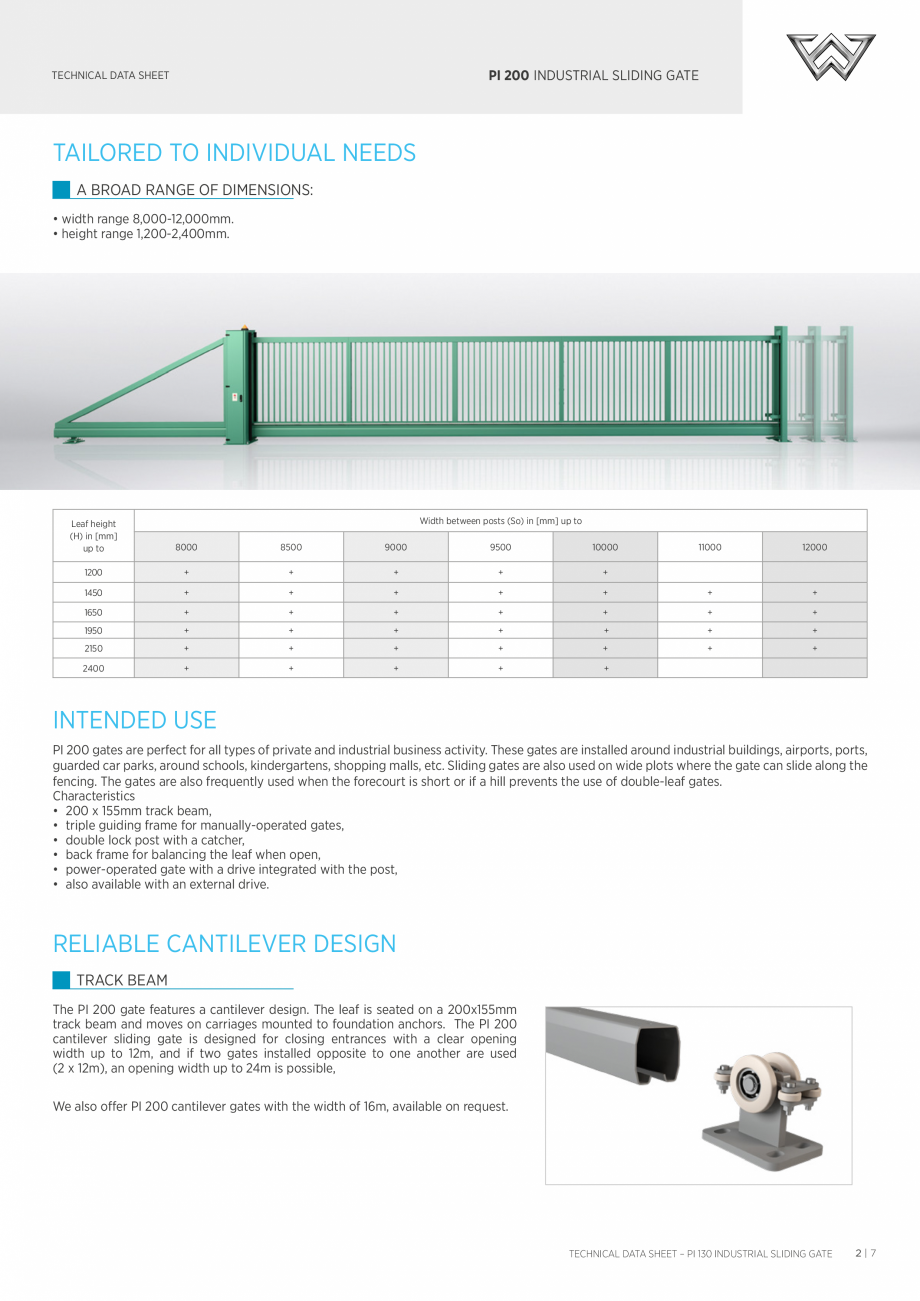

t corrosion by hot-dip galvanizing or hotdip galvanizing and coating with polyester paint. Duplex products are covered by our 5-year corrosion protection guarantee. PI 200 cantilever gates form a system of elements for access control. When used together with industrial segments, mesh panels (Vega B, Vega B Light, Vega 2D Super and Vega 2D), posts, and double-leaf gates and wickets (Bastion, Modest, Gardia), they form a complete fencing system. PI 200 INDUSTRIAL SLIDING GATE TECHNICAL DATA SHEET TAILORED TO INDIVIDUAL NEEDS A BROAD RANGE OF DIMENSIONS: • width range 8,000-12,000mm. • height range 1,200-2,400mm. Leaf height (H) in [mm] up to Width between posts (So) in [mm] up to 8000 8500 9000 9500 10000 11000 12000 1200 + + + + + 1450 + + + + 1650 + + + + + + + + + 1950 + + + + + + + + + + 2150 + + + + + 2400 + + + + + INTENDED USE PI 200 gates are perfect for all types of private and industrial business activity. These gate

Pagina 2-Porti culisante DECORIO PI200 Fisa tehnica Engleza t corrosion
by hot-dip galvanizing or hotdip...

Pagina 3 - Porti culisante DECORIO PI200 Fisa tehnica Engleza s are installed around industrial...

s are installed around industrial buildings, airports, ports, guarded car parks, around schools, kindergartens, shopping malls, etc. Sliding gates are also used on wide plots where the gate can slide along the fencing. The gates are also frequently used when the forecourt is short or if a hill prevents the use of double-leaf gates. Characteristics • 200 x 155mm track beam, • triple guiding frame for manually-operated gates, • double lock post with a catcher, • back frame for balancing the leaf when open, • power-operated gate with a drive integrated with the post, • also available with an external drive. RELIABLE CANTILEVER DESIGN TRACK BEAM The PI 200 gate features a cantilever design. The leaf is seated on a 200x155mm track beam and moves on carriages mounted to foundation anchors. The PI 200 cantilever sliding gate is designed for closing entrances with a clear opening width up to 12m, and if two gates installed opposite to one another are used (2 x 12m), an opening wid

Pagina 3-Porti culisante DECORIO PI200 Fisa tehnica Engleza s are installed around industrial buildings,...

Pagina 4 - Porti culisante DECORIO PI200 Fisa tehnica Engleza th up to 24m is possible,
We also...

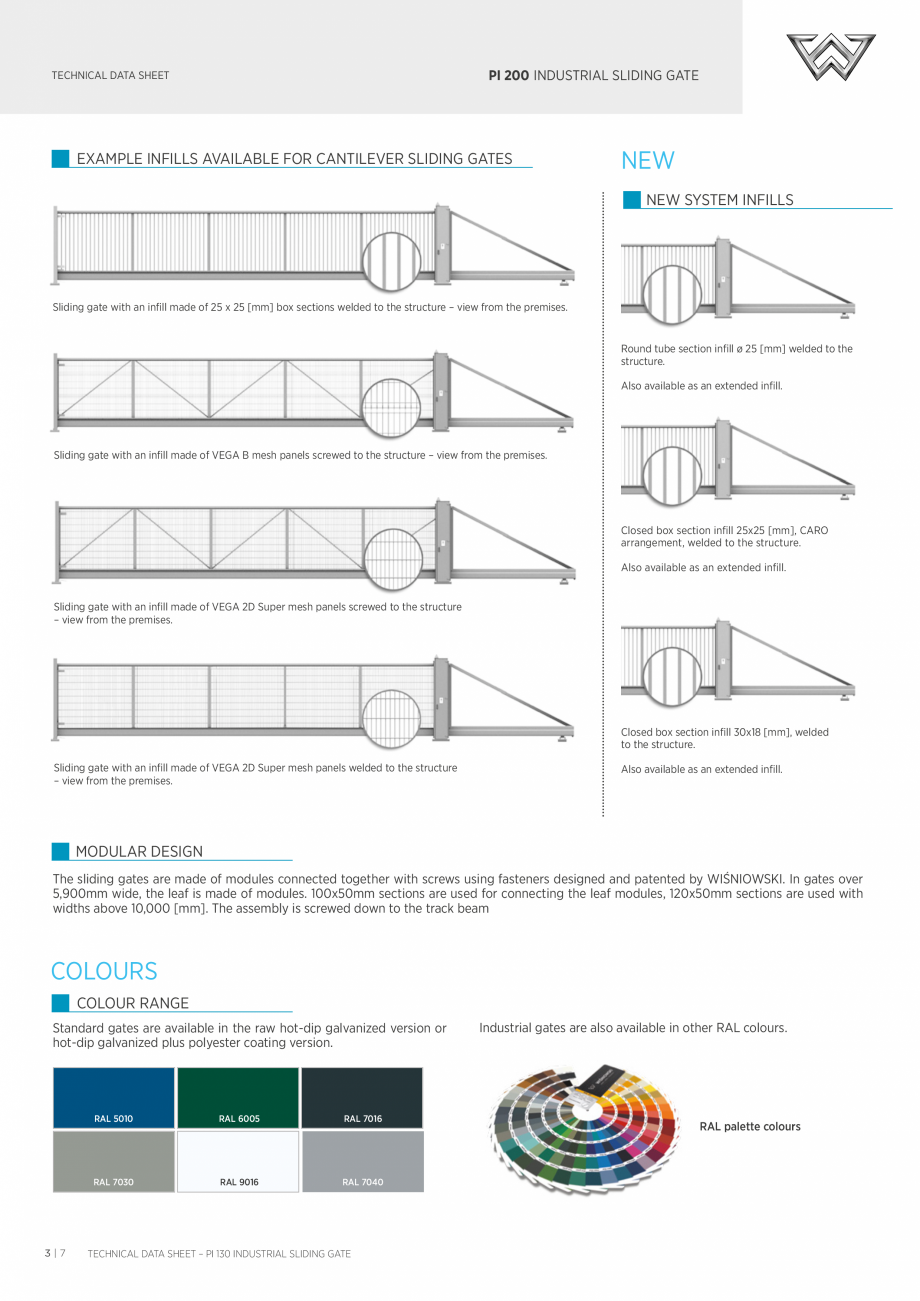

th up to 24m is possible, We also offer PI 200 cantilever gates with the width of 16m, available on request. TECHNICAL DATA SHEET – PI 130 INDUSTRIAL SLIDING GATE 2|7 PI 200 INDUSTRIAL SLIDING GATE TECHNICAL DATA SHEET EXAMPLE INFILLS AVAILABLE FOR CANTILEVER SLIDING GATES NEW NEW SYSTEM INFILLS Sliding gate with an infill made of 25 x 25 [mm] box sections welded to the structure – view from the premises. Round tube section infill ø 25 [mm] welded to the structure. Also available as an extended infill. Sliding gate with an infill made of VEGA B mesh panels screwed to the structure – view from the premises. Closed box section infill 25x25 [mm], CARO arrangement, welded to the structure. Also available as an extended infill. Sliding gate with an infill made of VEGA 2D Super mesh panels screwed to the structure – view from the premises. Closed box section infill 30x18 [mm], welded to the structure. Sliding gate with an infill made of VEGA 2D Super mesh panels welded t

Pagina 4-Porti culisante DECORIO PI200 Fisa tehnica Engleza th up to 24m is possible,
We also offer PI 200...

Pagina 5 - Porti culisante DECORIO PI200 Fisa tehnica Engleza o the structure
– view from the...

o the structure – view from the premises. Also available as an extended infill. MODULAR DESIGN The sliding gates are made of modules connected together with screws using fasteners designed and patented by WIŚNIOWSKI. In gates over 5,900mm wide, the leaf is made of modules. 100x50mm sections are used for connecting the leaf modules, 120x50mm sections are used with widths above 10,000 [mm]. The assembly is screwed down to the track beam COLOURS COLOUR RANGE Standard gates are available in the raw hot-dip galvanized version or hot-dip galvanized plus polyester coating version. 3|7 RAL 5010 RAL 6005 RAL 7016 RAL 7030 RAL 9016 RAL 7040 TECHNICAL DATA SHEET – PI 130 INDUSTRIAL SLIDING GATE Industrial gates are also available in other RAL colours. RAL palette colours PI 200 INDUSTRIAL SLIDING GATE TECHNICAL DATA SHEET SLIDING GATE TYPES MANUALLY-OPERATED GATE GATE WITH A DRIVE IN THE LOW BOX GATE WITH A DRIVE IN THE HIGH BOX ACCESSORIES COMFORT AND SAFETY The PI 200 g

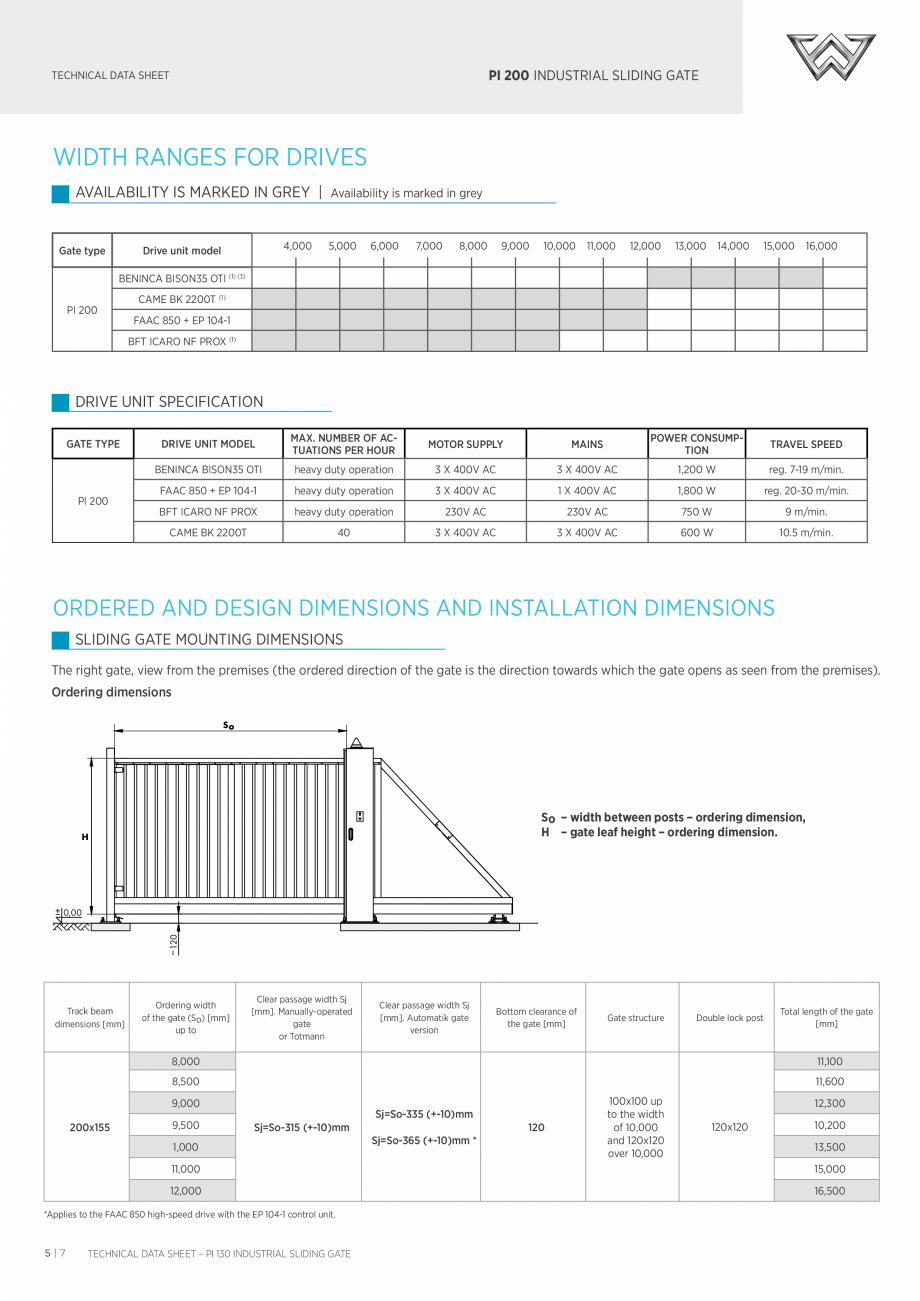

Pagina 5-Porti culisante DECORIO PI200 Fisa tehnica Engleza o the structure
– view from the premises.

Also...

Pagina 6 - Porti culisante DECORIO PI200 Fisa tehnica Engleza ates are available in the...

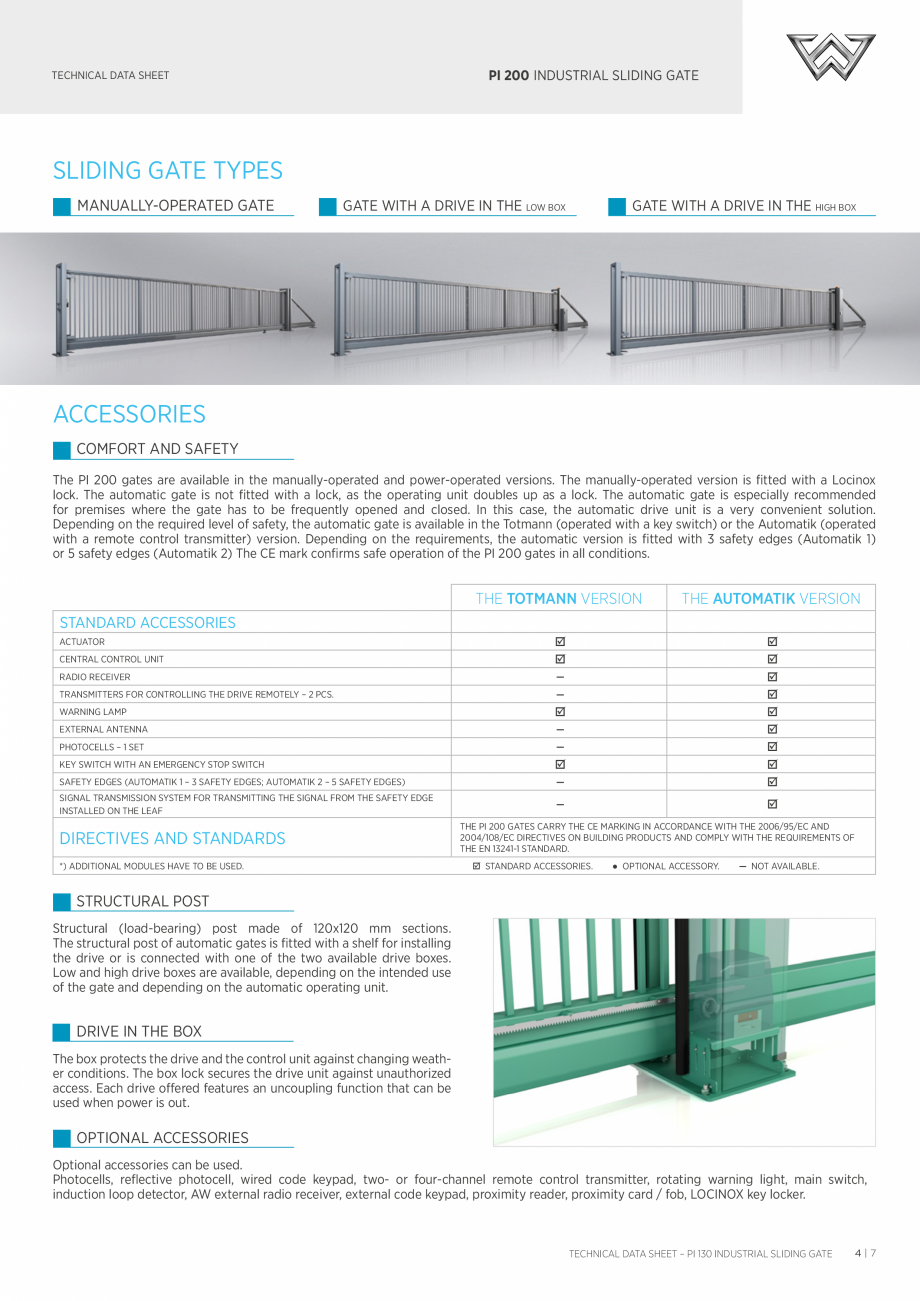

ates are available in the manually-operated and power-operated versions. The manually-operated version is fitted with a Locinox lock. The automatic gate is not fitted with a lock, as the operating unit doubles up as a lock. The automatic gate is especially recommended for premises where the gate has to be frequently opened and closed. In this case, the automatic drive unit is a very convenient solution. Depending on the required level of safety, the automatic gate is available in the Totmann (operated with a key switch) or the Automatik (operated with a remote control transmitter) version. Depending on the requirements, the automatic version is fitted with 3 safety edges (Automatik 1) or 5 safety edges (Automatik 2) The CE mark confirms safe operation of the PI 200 gates in all conditions. THE TOTMANN VERSION THE AUTOMATIK VERSION CENTRAL CONTROL UNIT   RADIO RECEIVER — STANDARD ACCESSORIES PHOTOCELLS – 1 SET — KEY SWITCH WITH AN EMERGENCY STOP SWITCH  SAFETY

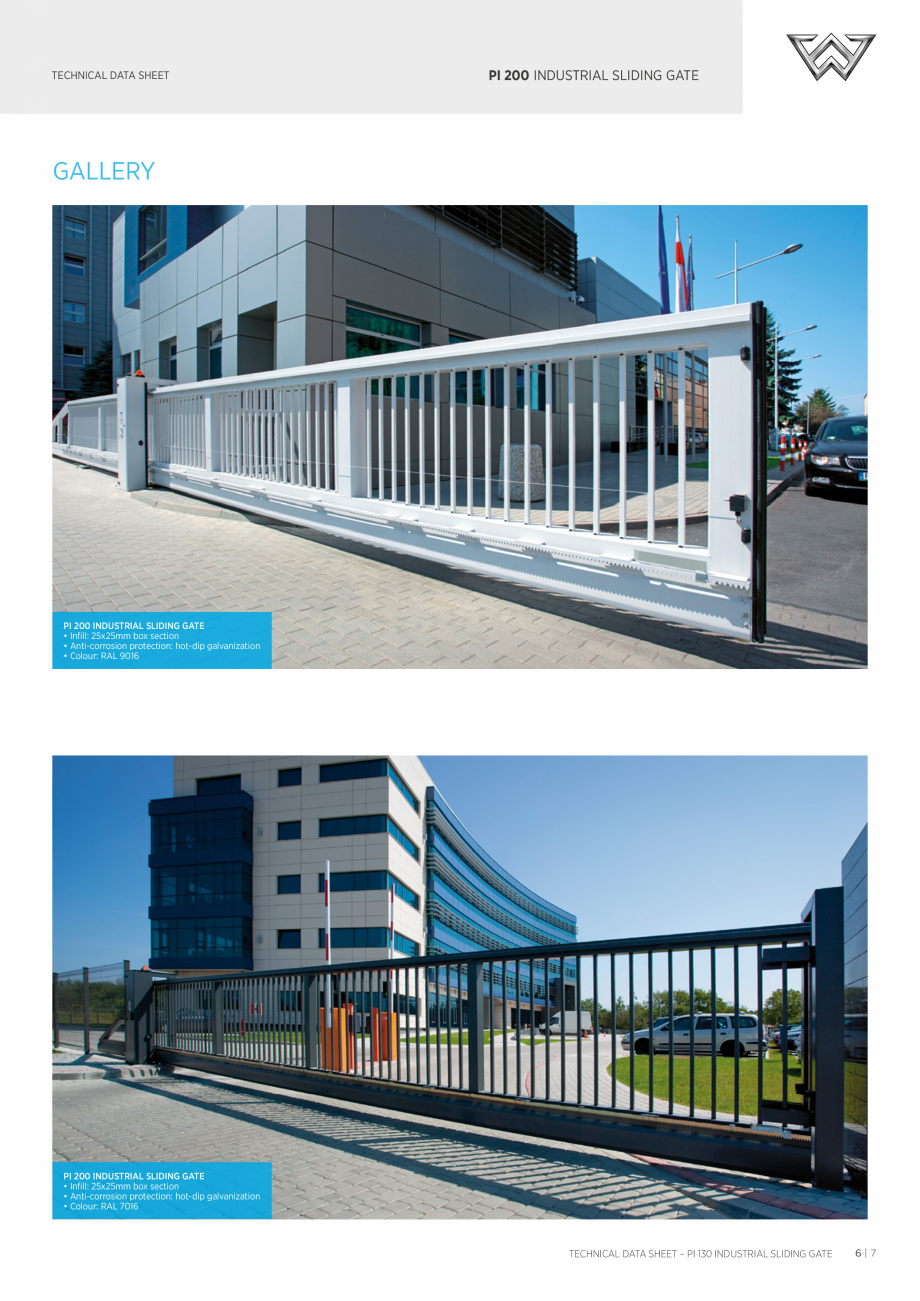

Pagina 6-Porti culisante DECORIO PI200 Fisa tehnica Engleza ates are available in the manually-operated and...

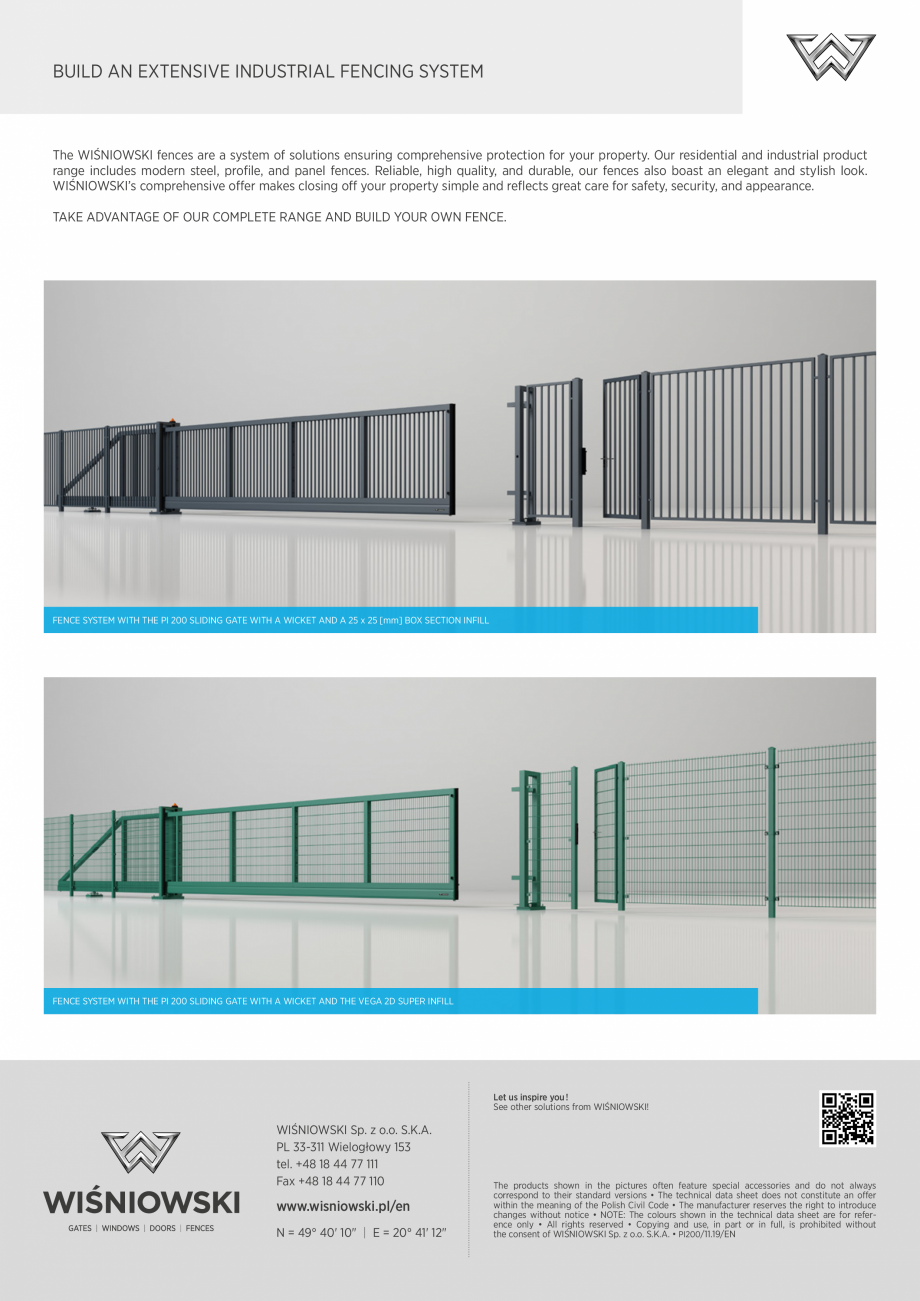

Pagina 7 - Porti culisante DECORIO PI200 Fisa tehnica Engleza EDGES (AUTOMATIK 1 – 3 SAFETY EDGES...

EDGES (AUTOMATIK 1 – 3 SAFETY EDGES; AUTOMATIK 2 – 5 SAFETY EDGES) —          SIGNAL TRANSMISSION SYSTEM FOR TRANSMITTING THE SIGNAL FROM THE SAFETY EDGE INSTALLED ON THE LEAF —  ACTUATOR TRANSMITTERS FOR CONTROLLING THE DRIVE REMOTELY – 2 PCS. — WARNING LAMP  EXTERNAL ANTENNA — DIRECTIVES AND STANDARDS *) ADDITIONAL MODULES HAVE TO BE USED. THE PI 200 GATES CARRY THE CE MARKING IN ACCORDANCE WITH THE 2006/95/EC AND 2004/108/EC DIRECTIVES ON BUILDING PRODUCTS AND COMPLY WITH THE REQUIREMENTS OF THE EN 13241-1 STANDARD.  STANDARD ACCESSORIES. ● OPTIONAL ACCESSORY. — NOT AVAILABLE. STRUCTURAL POST Structural (load-bearing) post made of 120x120 mm sections. The structural post of automatic gates is fitted with a shelf for installing the drive or is connected with one of the two available drive boxes. Low and high drive boxes are available, depending on the intended use of the gate and depending on the automatic operat
