Porti batante DECORIO Bastion
AND WICKET SYSTEMS

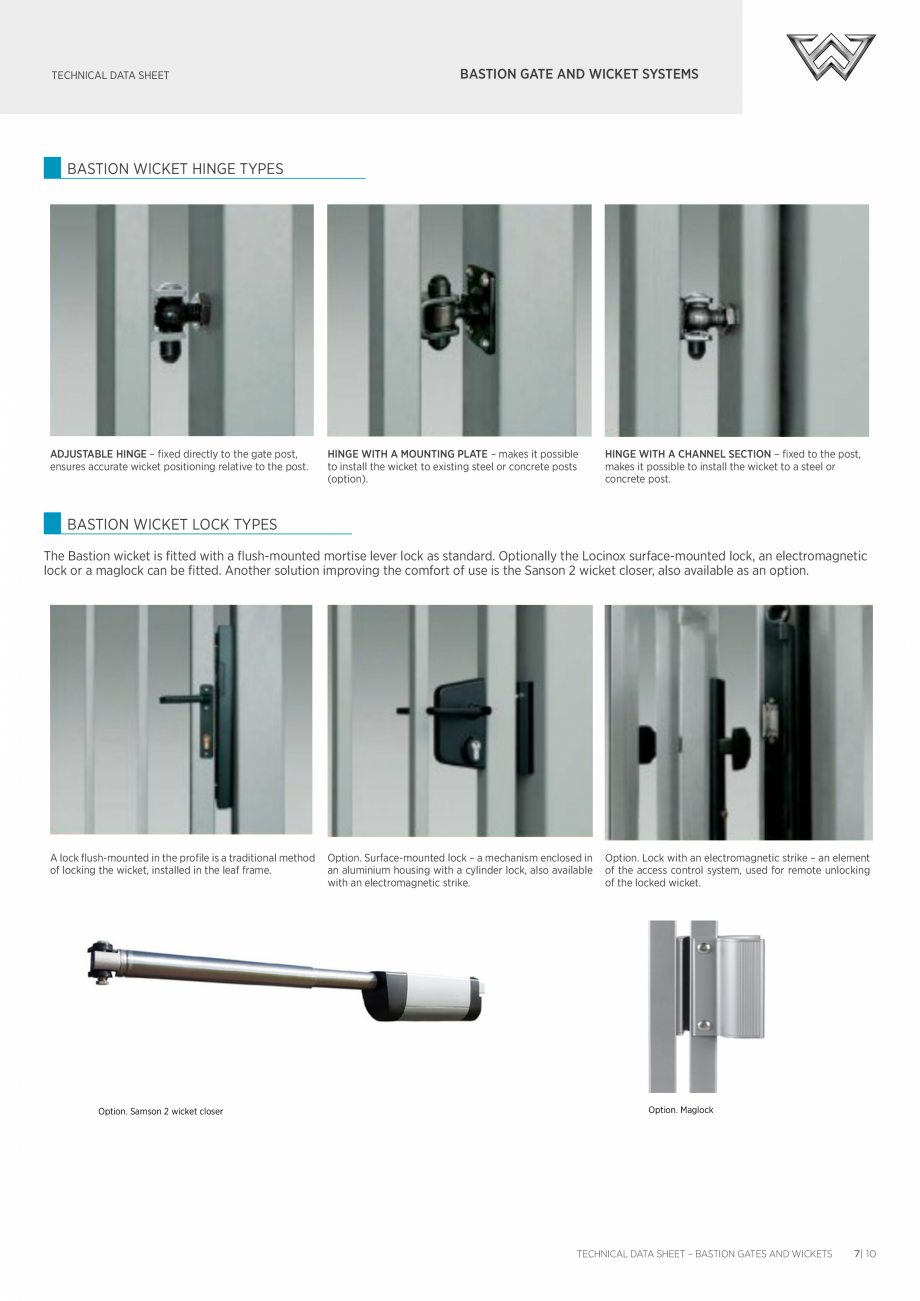

BASTION WICKET HINGE TYPES
ADJUSTABLE HINGE – fixed directly to the gate post,
ensures accurate wicket positioning relative to the post.
HINGE WITH A MOUNTING PLATE – makes it possible
to install the wicket to existing steel or concrete posts
(option).
HINGE WITH A CHANNEL SECTION – fixed to the post,
makes it possible to install the wicket to a steel or
concrete post.
BASTION WICKET LOCK TYPES
The Bastion wicket is fitted with a flush-mounted mortise lever lock as standard. Optionally the Locinox surface-mounted lock, an electromagnetic
lock or a maglock can be fitted. Another solution improving the comfort of use is the Sanson 2 wicket closer, also available as an option.
A lock flush-mounted in the profile is a traditional method
of locking the wicket, installed in the leaf frame.
Option. Samson 2 wicket closer
Option. Surface-mounted lock – a mechanism enclosed in
an aluminium housing with a cylinder lock, also available
with an electromagnetic s
... ascunde
Alte documentatii ale aceleasi game Vezi toate
Fisa tehnica
6 p | EN
Modest
Fisa tehnica
7 p | EN
PI130

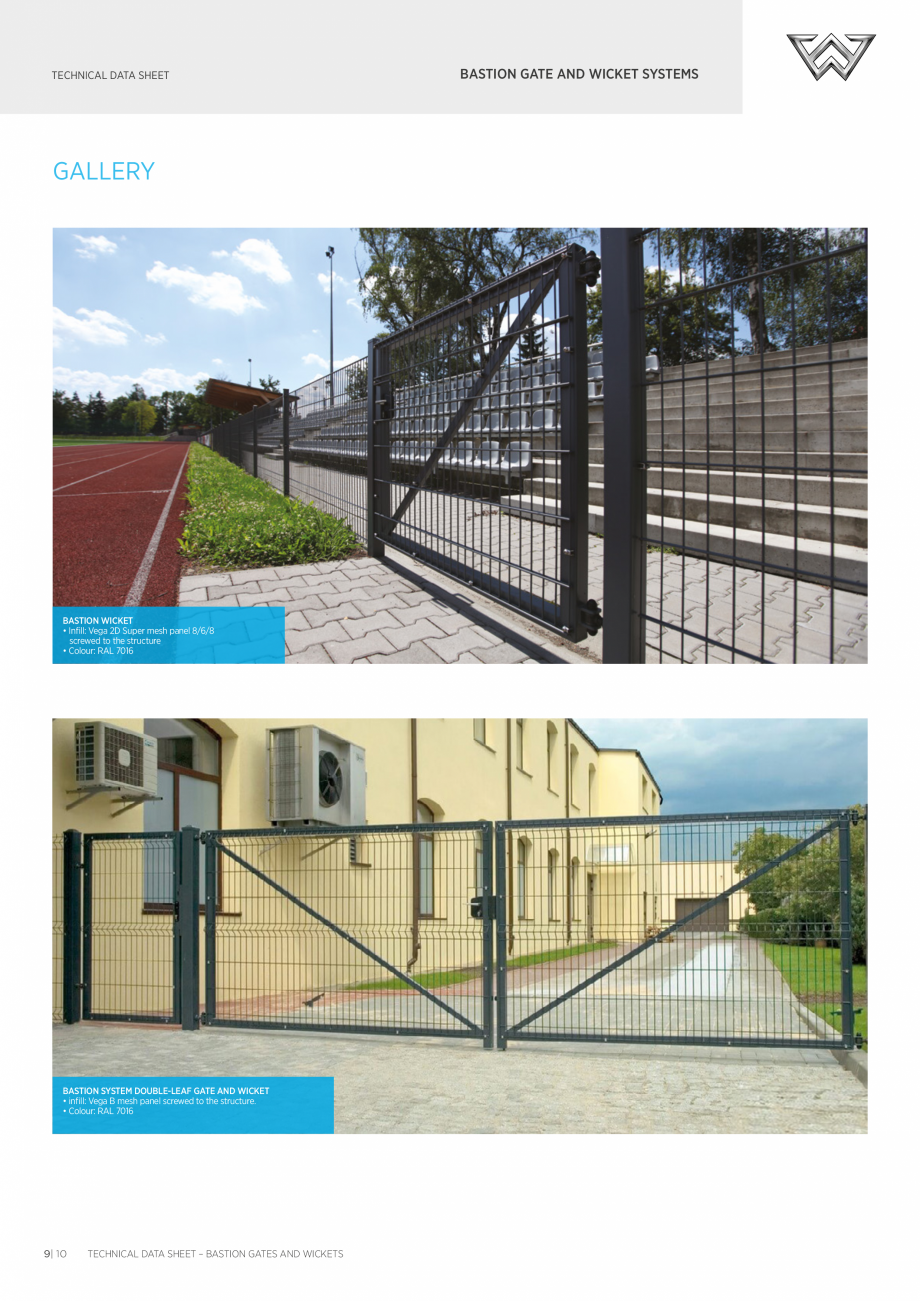

![Pagina 9 - Porti batante DECORIO Bastion Fisa tehnica Engleza mm]
