Porti batante DECORIO Gardia

Limba: Engleza

9 afisari

Tip documentatie: Fisa tehnica

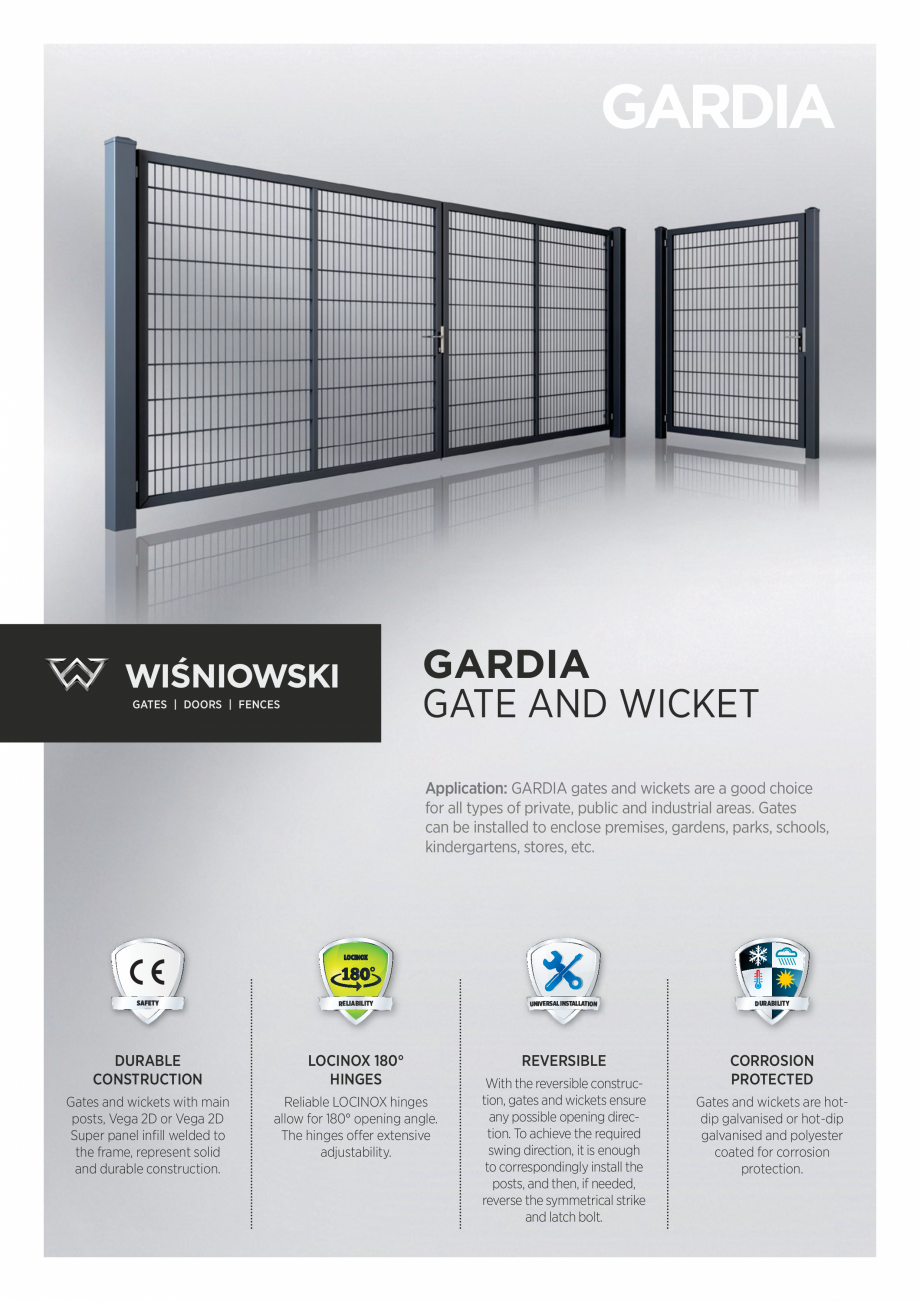

Pagina 1 - Porti batante DECORIO Gardia Fisa tehnica Engleza GARDIA

GARDIA
GATE AND WICKET

GATES |...

GARDIA GARDIA GATE AND WICKET GATES | DOORS | FENCES Application: GARDIA gates and wickets are a good choice for all types of private, public and industrial areas. Gates can be installed to enclose premises, gardens, parks, schools, kindergartens, stores, etc. REL IABIL ITY UNIVERSAL INSTALLATION D U RA B I L I T Y DURABLE CONSTRUCTION LOCINOX 180° HINGES REVERSIBLE CORROSION PROTECTED Gates and wickets with main posts, Vega 2D or Vega 2D Super panel inﬁll welded to the frame, represent solid and durable construction. Reliable LOCINOX hinges allow for 180° opening angle. The hinges offer extensive adjustability. With the reversible construction, gates and wickets ensure any possible opening direction. To achieve the required swing direction, it is enough to correspondingly install the posts, and then, if needed, reverse the symmetrical strike and latch bolt. Gates and wickets are hotdip galvanised or hot-dip galvanised and polyester coated for corrosion protection.

Pagina 1-Porti batante DECORIO Gardia Fisa tehnica Engleza GARDIA

GARDIA
GATE AND WICKET

GATES | DOORS |...

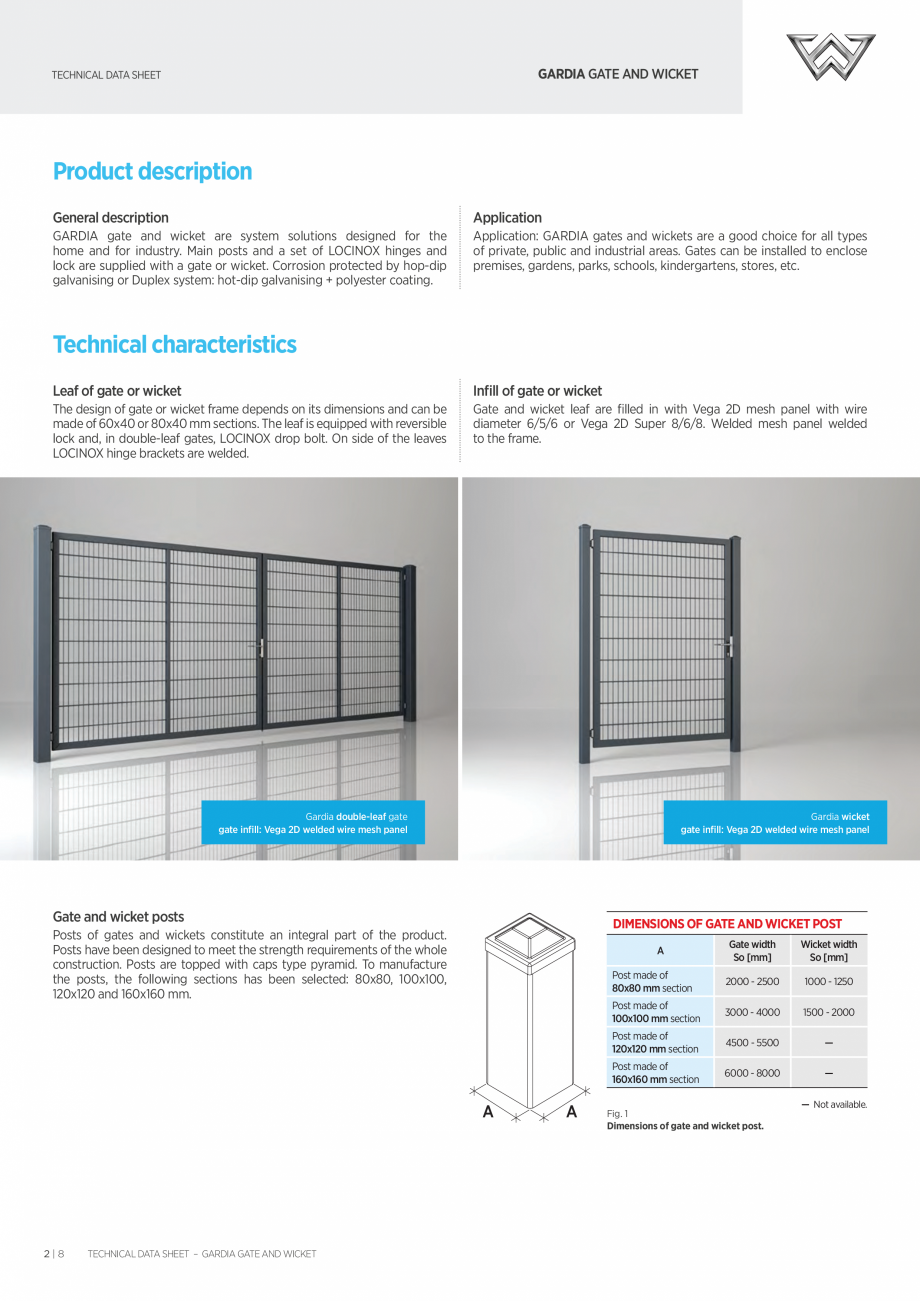

Pagina 2 - Porti batante DECORIO Gardia Fisa tehnica Engleza GARDIA GATE AND WICKET

TECHNICAL DATA ...

GARDIA GATE AND WICKET TECHNICAL DATA SHEET Product description General description Application GARDIA gate and wicket are system solutions designed for the home and for industry. Main posts and a set of LOCINOX hinges and lock are supplied with a gate or wicket. Corrosion protected by hop-dip galvanising or Duplex system: hot-dip galvanising + polyester coating. Application: GARDIA gates and wickets are a good choice for all types of private, public and industrial areas. Gates can be installed to enclose premises, gardens, parks, schools, kindergartens, stores, etc. Technical characteristics Leaf of gate or wicket Inﬁll of gate or wicket The design of gate or wicket frame depends on its dimensions and can be made of 60x40 or 80x40 mm sections. The leaf is equipped with reversible lock and, in double-leaf gates, LOCINOX drop bolt. On side of the leaves LOCINOX hinge brackets are welded. Gate and wicket leaf are ﬁlled in with Vega 2D mesh panel with wire diameter 6/5/6 or V

Pagina 2-Porti batante DECORIO Gardia Fisa tehnica Engleza GARDIA GATE AND WICKET

TECHNICAL DATA SHEET
...

Pagina 3 - Porti batante DECORIO Gardia Fisa tehnica Engleza ega 2D Super 8/6/8. Welded mesh panel...

ega 2D Super 8/6/8. Welded mesh panel welded to the frame. Gardia double-leaf gate gate inﬁll: Vega 2D welded wire mesh panel Gate and wicket posts Posts of gates and wickets constitute an integral part of the product. Posts have been designed to meet the strength requirements of the whole construction. Posts are topped with caps type pyramid. To manufacture the posts, the following sections has been selected: 80x80, 100x100, 120x120 and 160x160 mm. Gardia wicket gate inﬁll: Vega 2D welded wire mesh panel DIMENSIONS OF GATE AND WICKET POST Gate width So [mm] Wicket width So [mm] Post made of 80x80 mm section 2000 - 2500 1000 - 1250 Post made of 100x100 mm section 3000 - 4000 1500 - 2000 Post made of 120x120 mm section 4500 - 5500 — Post made of 160x160 mm section 6000 - 8000 — A — Not available. Fig. 1 Dimensions of gate and wicket post. 2|8 TECHNICAL DATA SHEET – GARDIA GATE AND WICKET GARDIA GATE AND WICKET TECHNICAL DATA SHEET Dimensions of Gardi

Pagina 3-Porti batante DECORIO Gardia Fisa tehnica Engleza ega 2D Super 8/6/8. Welded mesh panel welded
to...

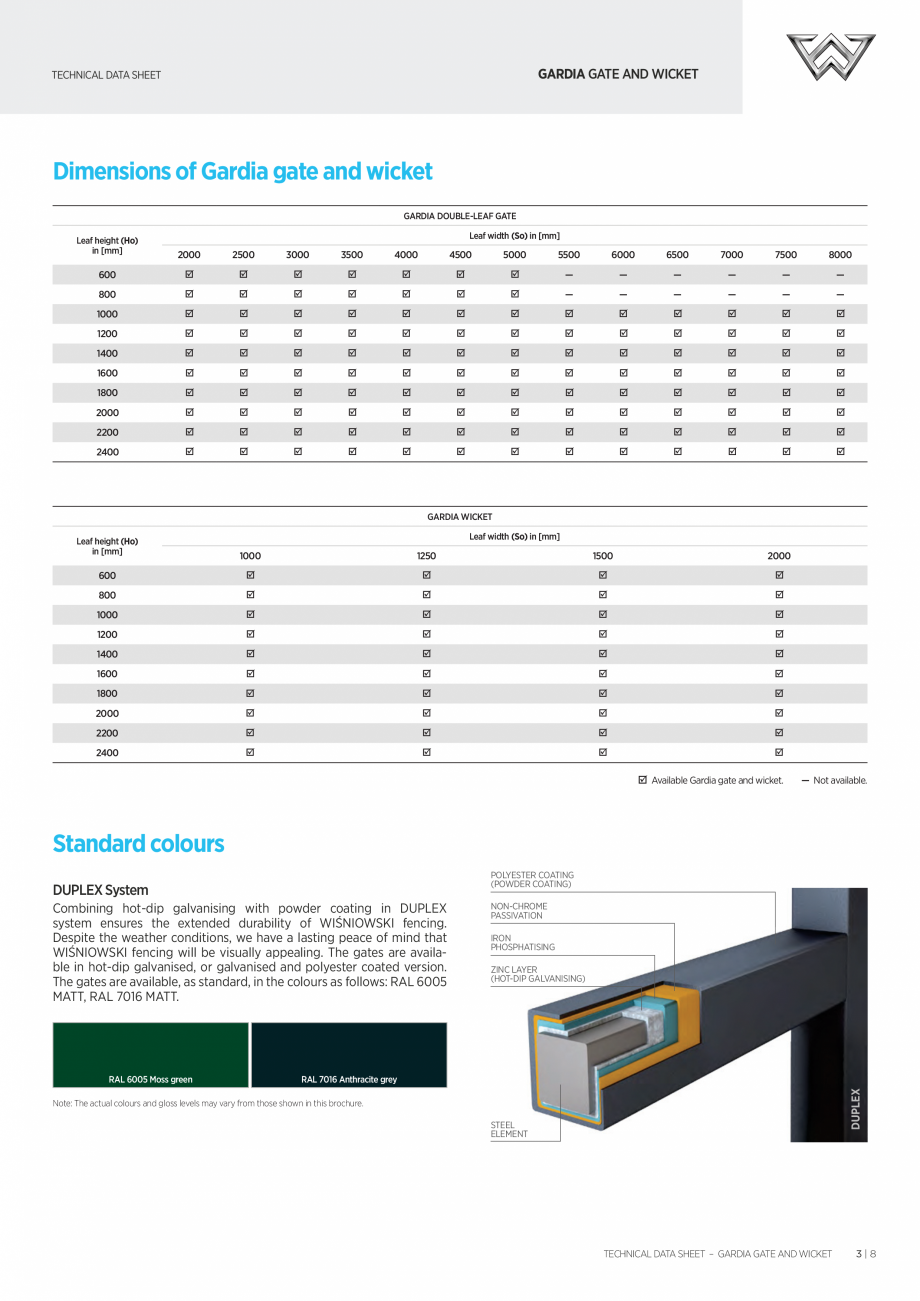

Pagina 4 - Porti batante DECORIO Gardia Fisa tehnica Engleza a gate and wicket
GARDIA DOUBLE-LEAF...

a gate and wicket GARDIA DOUBLE-LEAF GATE Leaf height (Ho) in [mm] Leaf width (So) in [mm] 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 7500 8000 600 ; ; ; ; ; ; ; — — — — — — 800 ; ; ; ; ; ; ; — — — — — — 1000 ; ; ; ; ; ; ; ; ; ; ; ; ; 1200 ; ; ; ; ; ; ; ; ; ; ; ; ; 1400 ; ; ; ; ; ; ; ; ; ; ; ; ; 1600 ; ; ; ; ; ; ; ; ; ; ; ; ; 1800 ; ; ; ; ; ; ; ; ; ; ; ; ; 2000 ; ; ; ; ; ; ; ; ; ; ; ; ; 2200 ; ; ; ; ; ; ; ; ; ; ; ; ; 2400 ; ; ; ; ; ; ; ; ; ; ; ; ; GARDIA WICKET Leaf height (Ho) in [mm] Leaf width (So) in [mm] 1000 1250 1500 600 ; ; ; 2000 ; 800 ; ; ; ; 1000 ; ; ; ; 1200 ; ; ; ; 1400 ; ; ; ; 1600 ; ; ; ; 1800 ; ; ; ; 2000 ; ; ; ; 2200 ; ; ; ; 2400 ; ; ; ; ; Available Gardia gate and wicket. — Not available. Standard colours POLYESTER COATING

Pagina 4-Porti batante DECORIO Gardia Fisa tehnica Engleza a gate and wicket
GARDIA DOUBLE-LEAF GATE
Leaf...

Pagina 5 - Porti batante DECORIO Gardia Fisa tehnica Engleza
(POWDER COATING)

DUPLEX System...

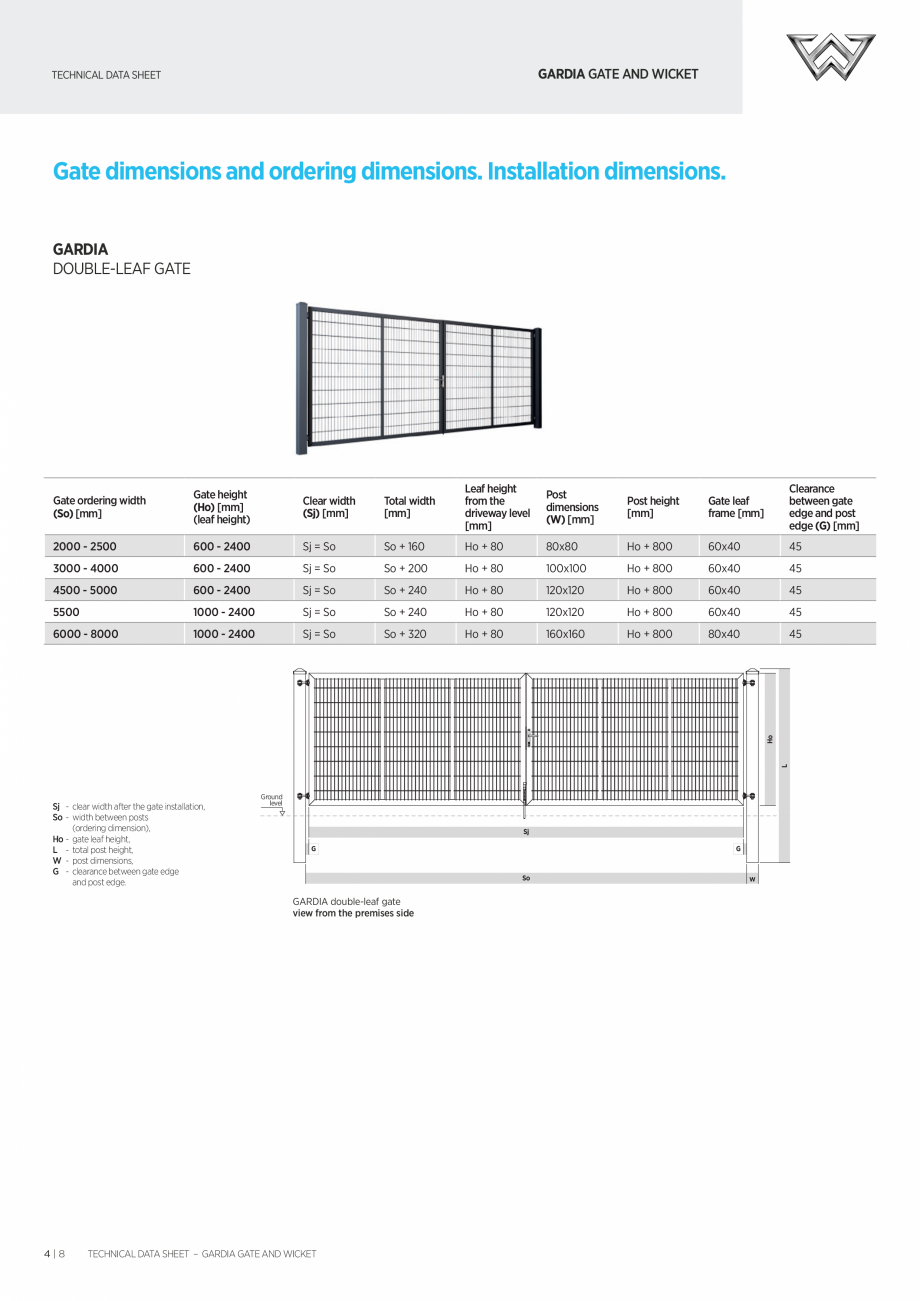

(POWDER COATING) DUPLEX System Combining hot-dip galvanising with powder coating in DUPLEX system ensures the extended durability of WIŚNIOWSKI fencing. Despite the weather conditions, we have a lasting peace of mind that WIŚNIOWSKI fencing will be visually appealing. The gates are available in hot-dip galvanised, or galvanised and polyester coated version. The gates are available, as standard, in the colours as follows: RAL 6005 MATT, RAL 7016 MATT. IRON PHOSPHATISING ZINC LAYER (HOT-DIP GALVANISING) RAL 7016 Anthracite grey DUPLEX RAL 6005 Moss green NON-CHROME PASSIVATION Note: The actual colours and gloss levels may vary from those shown in this brochure. STEEL ELEMENT TECHNICAL DATA SHEET – GARDIA GATE AND WICKET 3|8 GARDIA GATE AND WICKET TECHNICAL DATA SHEET Gate dimensions and ordering dimensions. Installation dimensions. GARDIA DOUBLE-LEAF GATE Gate ordering width (So) [mm] Gate height (Ho) [mm] (leaf height) Clear width (Sj) [mm] Total width [mm] Leaf

Pagina 5-Porti batante DECORIO Gardia Fisa tehnica Engleza
(POWDER COATING)

DUPLEX System
Combining hot-dip...

Pagina 6 - Porti batante DECORIO Gardia Fisa tehnica Engleza height
from the
driveway level
[mm]
...

height from the driveway level [mm] Post dimensions (W) [mm] Post height [mm] Clearance between gate edge and post edge (G) [mm] Gate leaf frame [mm] 2000 - 2500 600 - 2400 Sj = So So + 160 Ho + 80 80x80 Ho + 800 60x40 45 3000 - 4000 600 - 2400 Sj = So So + 200 Ho + 80 100x100 Ho + 800 60x40 45 600 - 2400 Sj = So So + 240 Ho + 80 120x120 Ho + 800 60x40 45 1000 - 2400 Sj = So So + 240 Ho + 80 120x120 Ho + 800 60x40 45 6000 - 8000 1000 - 2400 Sj = So So + 320 Ho + 80 160x160 Ho + 800 80x40 45 L Ho 4500 - 5000 5500 Sj - clear width after the gate installation, So - width between posts (ordering dimension), Ho - gate leaf height, L - total post height, W - post dimensions, G - clearance between gate edge and post edge. Ground level Sj G So GARDIA double-leaf gate view from the premises side 4|8 G TECHNICAL DATA SHEET – GARDIA GATE AND WICKET W GARDIA GATE AND WICKET TECHNICAL DATA SHEET GARDIA WICKET Wicket ordering width (S

Pagina 6-Porti batante DECORIO Gardia Fisa tehnica Engleza height
from the
driveway level
[mm]

Post...

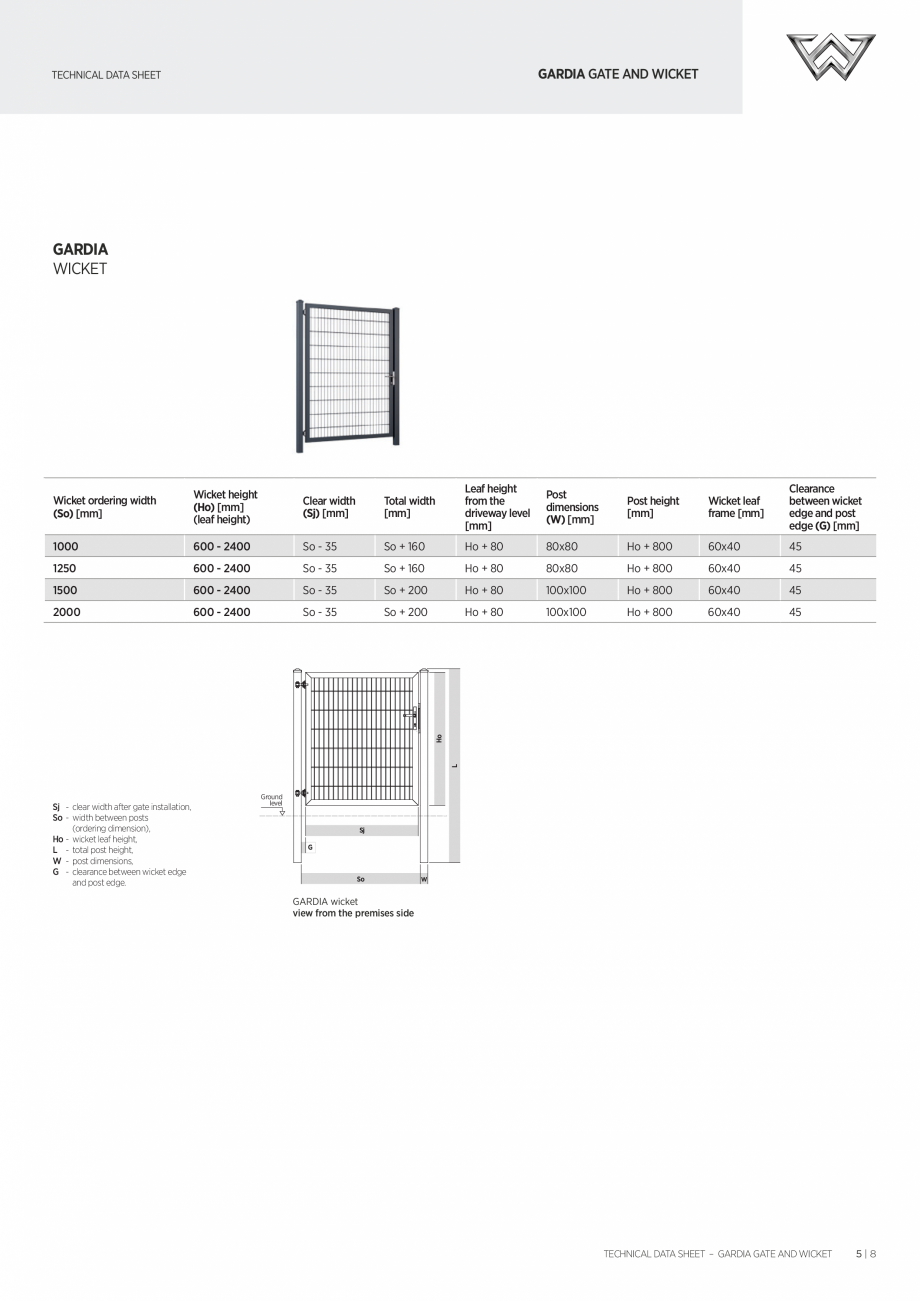

Pagina 7 - Porti batante DECORIO Gardia Fisa tehnica Engleza o) [mm]

Wicket height
(Ho) [mm]
(leaf ...

o) [mm] Wicket height (Ho) [mm] (leaf height) Leaf height from the driveway level [mm] Total width [mm] Clear width (Sj) [mm] Post dimensions (W) [mm] Post height [mm] Wicket leaf frame [mm] Clearance between wicket edge and post edge (G) [mm] 1000 600 - 2400 So - 35 So + 160 Ho + 80 80x80 Ho + 800 60x40 45 1250 600 - 2400 So - 35 So + 160 Ho + 80 80x80 Ho + 800 60x40 45 600 - 2400 So - 35 So + 200 Ho + 80 100x100 Ho + 800 60x40 45 600 - 2400 So - 35 So + 200 Ho + 80 100x100 Ho + 800 60x40 45 L Ho 1500 2000 Sj - clear width after gate installation, So - width between posts (ordering dimension), Ho - wicket leaf height, L - total post height, W - post dimensions, G - clearance between wicket edge and post edge. Ground level Sj G So W GARDIA wicket view from the premises side TECHNICAL DATA SHEET – GARDIA GATE AND WICKET 5|8 GARDIA GATE AND WICKET TECHNICAL DATA SHEET Equipment GARDIA double-leaf gate GARDIA wicket Gate and wi

Pagina 7-Porti batante DECORIO Gardia Fisa tehnica Engleza o) [mm]

Wicket height
(Ho) [mm]
(leaf height)
...

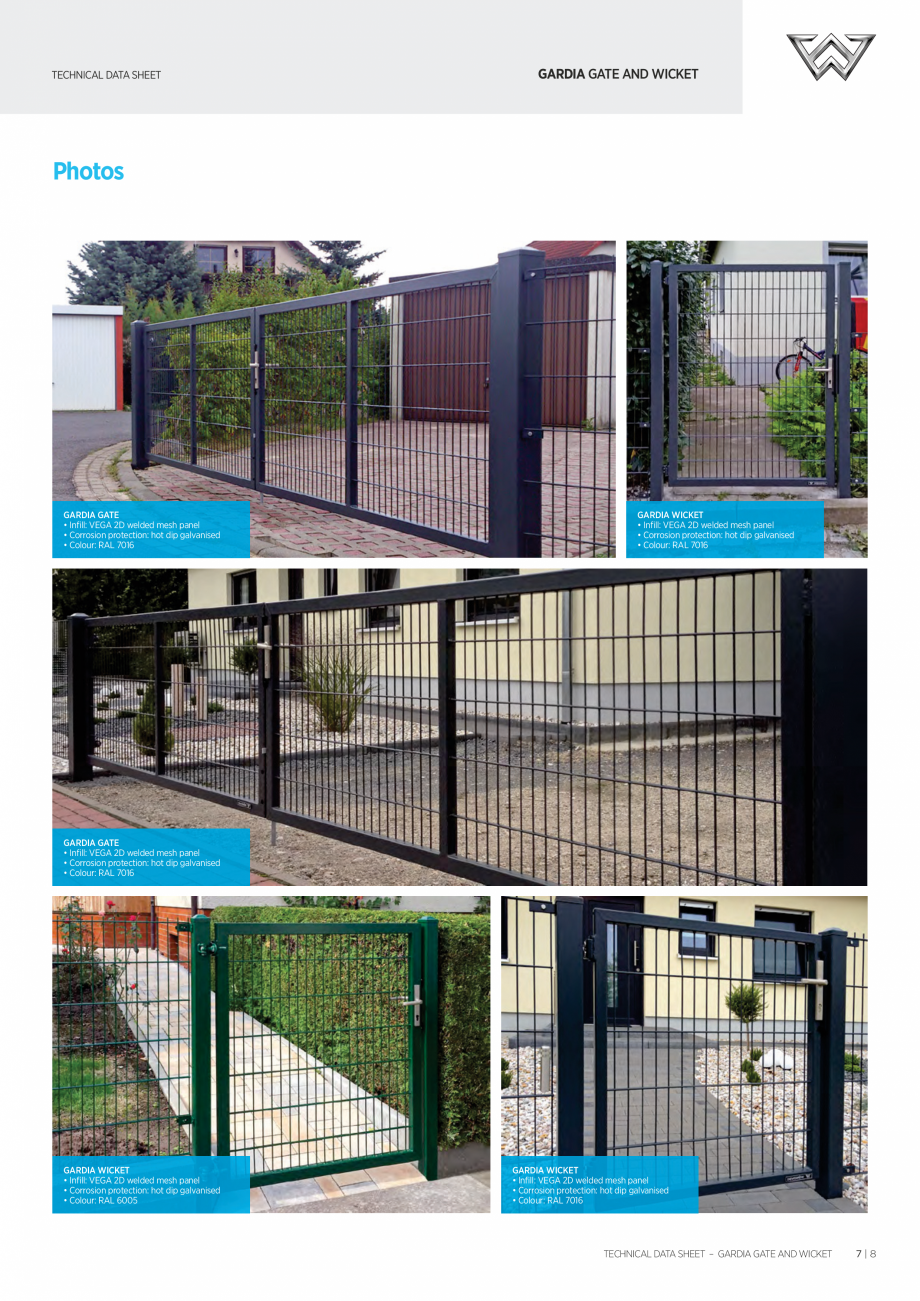

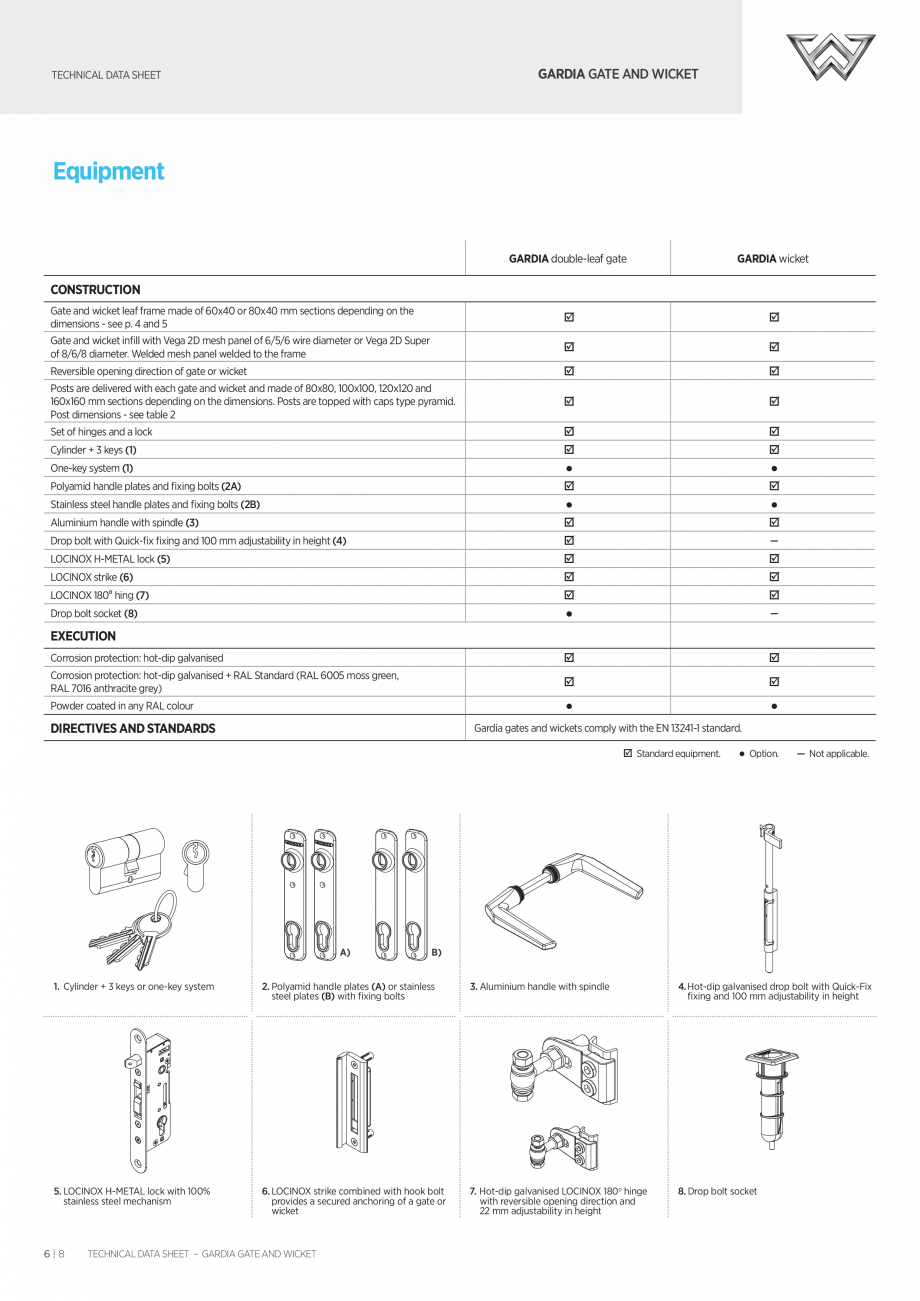

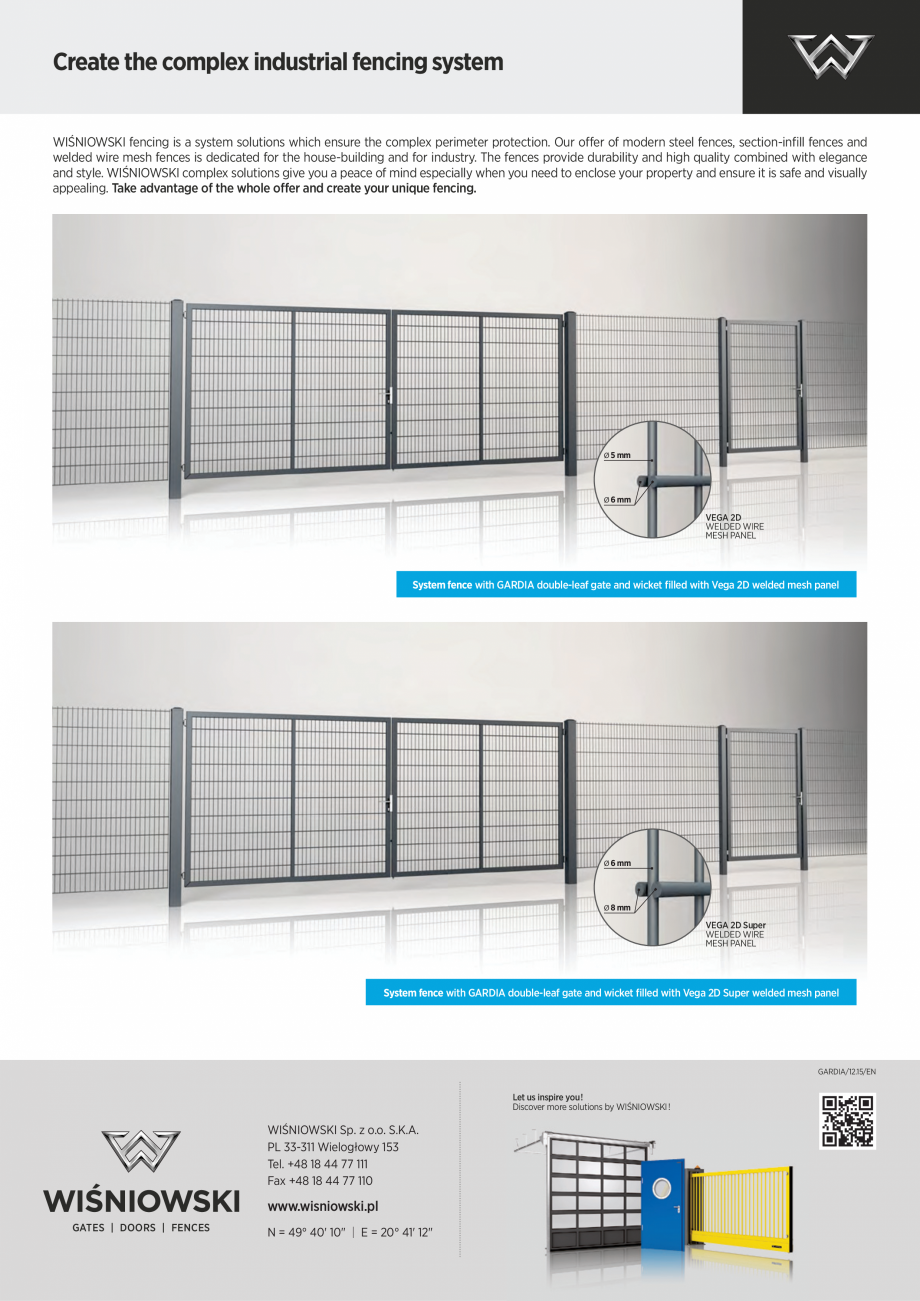

Pagina 8 - Porti batante DECORIO Gardia Fisa tehnica Engleza cket leaf frame made of 60x40 or 80x40 ...

cket leaf frame made of 60x40 or 80x40 mm sections depending on the dimensions - see p. 4 and 5 ; ; Gate and wicket inﬁll with Vega 2D mesh panel of 6/5/6 wire diameter or Vega 2D Super of 8/6/8 diameter. Welded mesh panel welded to the frame ; ; Reversible opening direction of gate or wicket ; ; Posts are delivered with each gate and wicket and made of 80x80, 100x100, 120x120 and 160x160 mm sections depending on the dimensions. Posts are topped with caps type pyramid. Post dimensions - see table 2 ; ; ; ; ł ; ł ; ; ; ; ; ł ; ; ł ; ł ; Corrosion protection: hot-dip galvanised ; ; Corrosion protection: hot-dip galvanised + RAL Standard (RAL 6005 moss green, RAL 7016 anthracite grey) ; ; Powder coated in any RAL colour ł ł CONSTRUCTION Set of hinges and a lock Cylinder + 3 keys (1) One-key system (1) Polyamid handle plates and ﬁxing bolts (2A) Stainless steel handle plates and ﬁxing bolts (2B) Aluminium handle with spindle (3) Drop bolt with Quick-ﬁ
