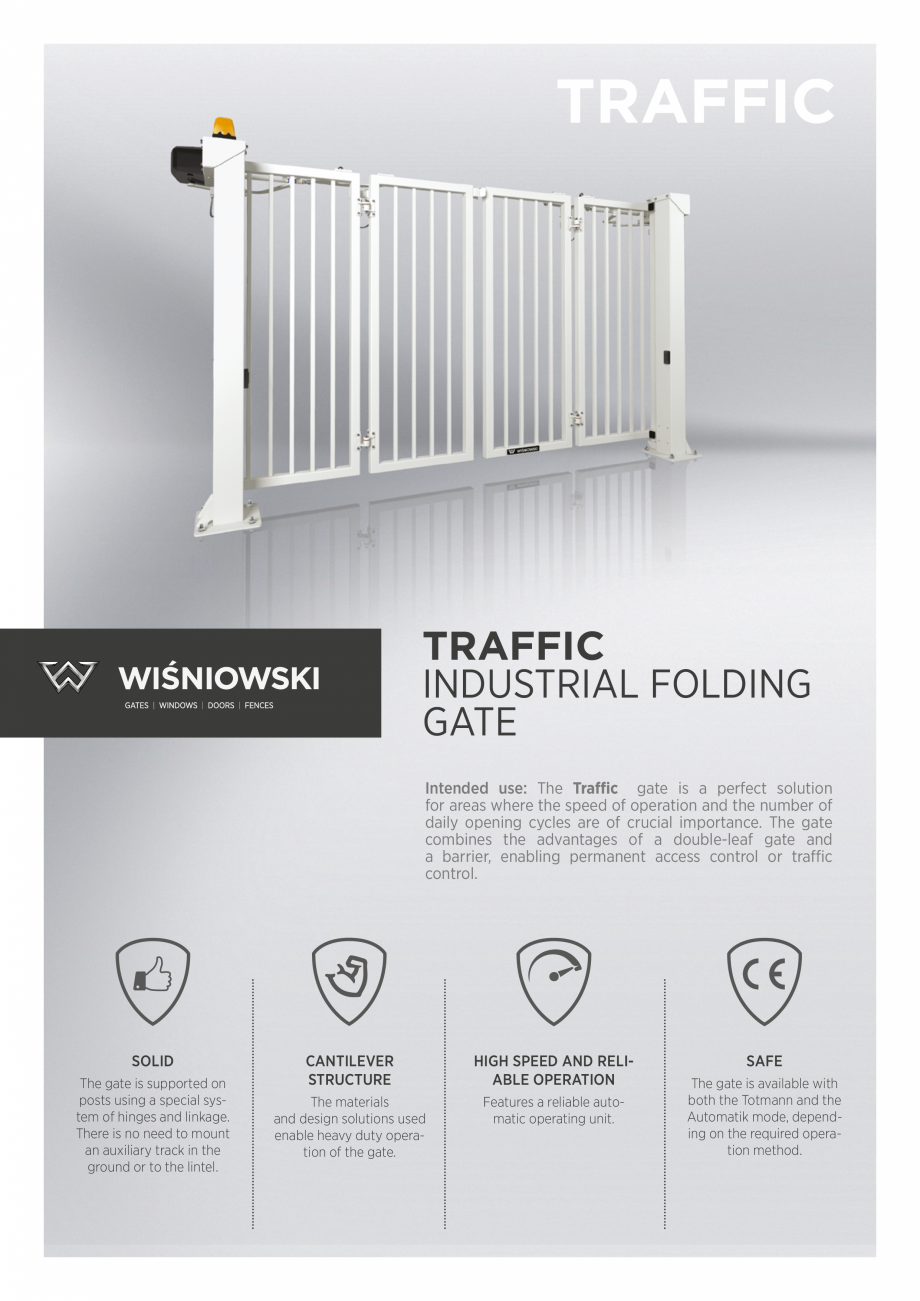

Poarta Bi-Fold DECORIO Traffic
TRAFFIC
TRAFFIC
INDUSTRIAL FOLDING
GATE
Intended use: The Traffic gate is a perfect solution
for areas where the speed of operation and the number of
daily opening cycles are of crucial importance. The gate
combines the advantages of a double-leaf gate and
a barrier, enabling permanent access control or traffic
control.
SOLID
The gate is supported on
posts using a special system of hinges and linkage.
There is no need to mount
an auxiliary track in the
ground or to the lintel.
CANTILEVER
STRUCTURE
HIGH SPEED AND RELIABLE OPERATION
The materials
and design solutions used
enable heavy duty operation of the gate.
Features a reliable automatic operating unit.
SAFE
The gate is available with
both the Totmann and the
Automatik mode, depending on the required operation method.
TRAFFIC INDUSTRIAL FOLDING GATE
TECHNICAL DATA SHEET

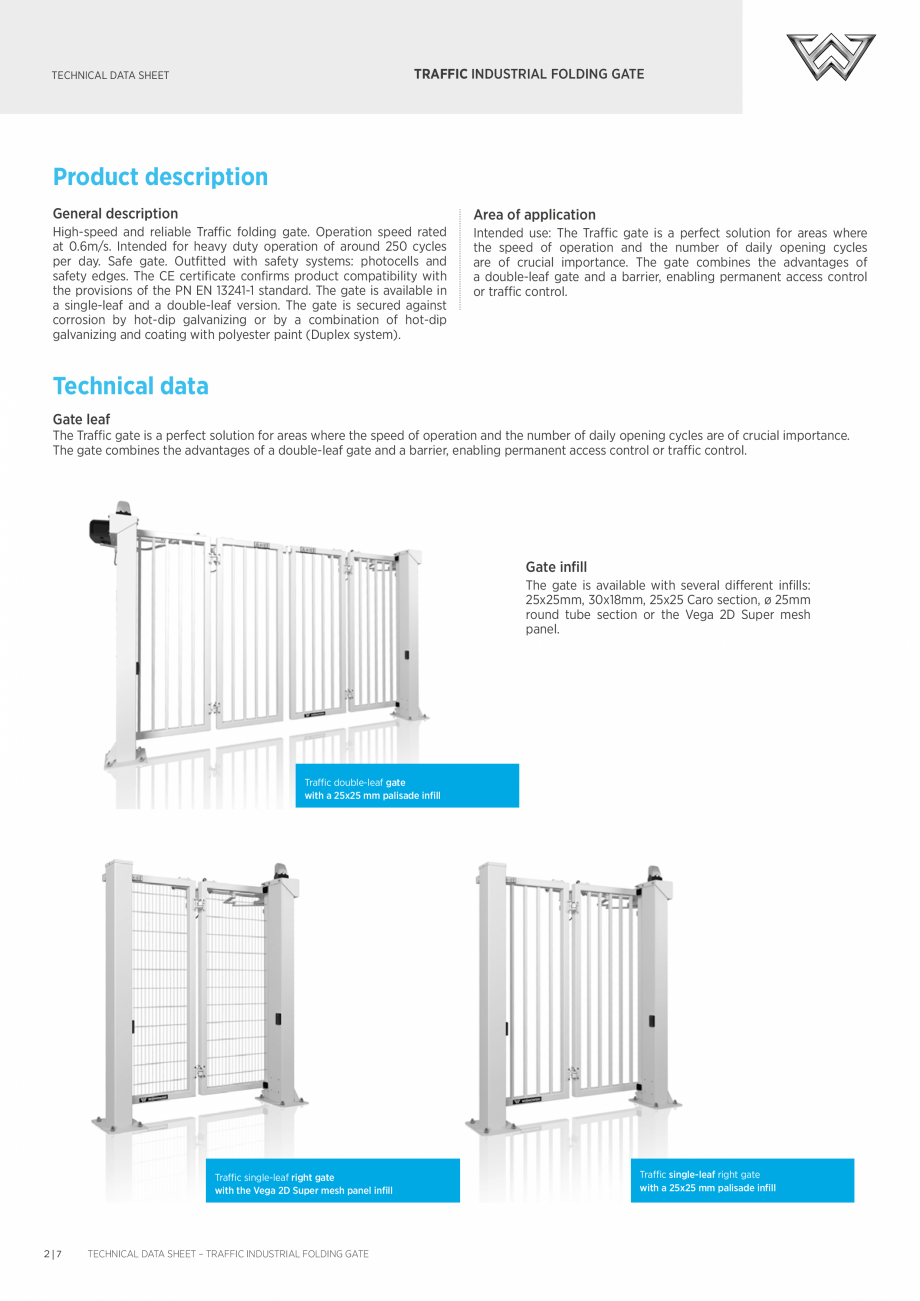

Product description
General description
Area of application
High-speed and reliable Traffic folding gate. Operation speed rated
at 0.6m/s. Intended for h
eavy duty operation of around 250 cycles
per day. Safe gate. Outfitted with safety systems: photocells and
safety edges. The CE certificate confirms product compatibility with
the provisions of the PN EN 13241-1 standard. The gate is available in
a single-leaf and a double-leaf version. The gate is secured against
corrosion by hot-dip galvanizing or by a combination of hot-dip
galvanizing and coating with polyester paint (Duplex system).
Intended use: The Traffic gate is a perfect solution for areas where
the speed of operation and the number of daily opening cycles
are of crucial importance. The gate combines the advantages of
a double-leaf gate and a barrier, enabling permanent access control
or traffic control.
Technical data
Gate leaf
The Traffic gate is a perfect solution for areas where the speed of operation and the number of daily opening cycles are of crucial importance.
The gate combines the advantages of a double-leaf gate and a barrier, enabling permanent access control
or traffic control.
Gate infill
The gate is available with several different infills:
25x25mm, 30x18mm, 25x25 Caro section, ø 25mm
round tube section or the Vega 2D Super mesh
panel.

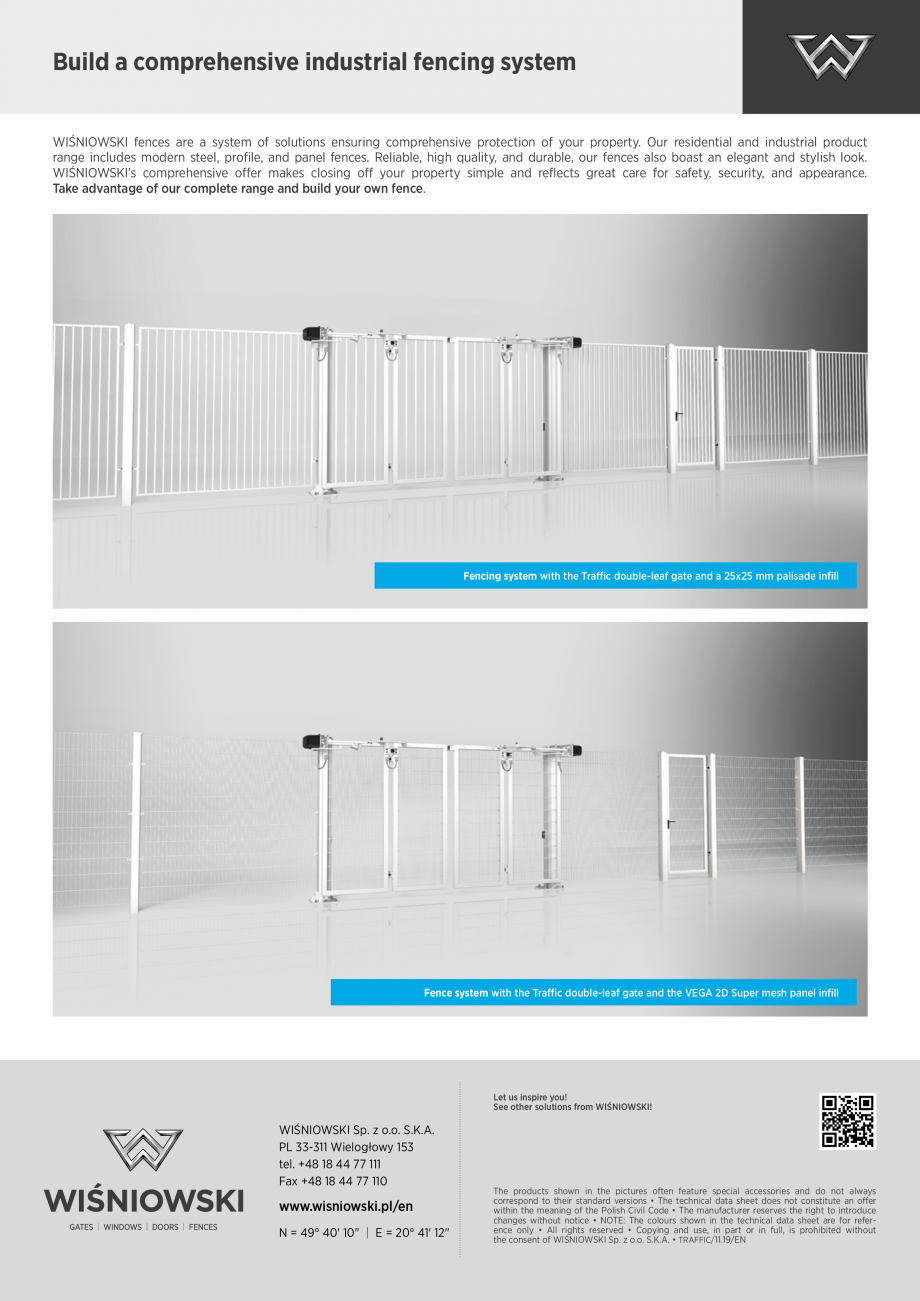

Traffic double-leaf gate
with a 25x25 mm palisade infill
Traffic single-leaf right gate
with the Vega 2D Super mesh panel infill
2|7
TECHNICAL DATA SHEET – TRAFFIC INDUSTRIAL FOLDING GATE
Traffic single-leaf right gate
with a 25x25 mm palisade infill
TRAFFIC INDUSTRIAL FOLDING GATE
TECHNICAL DATA SHEET

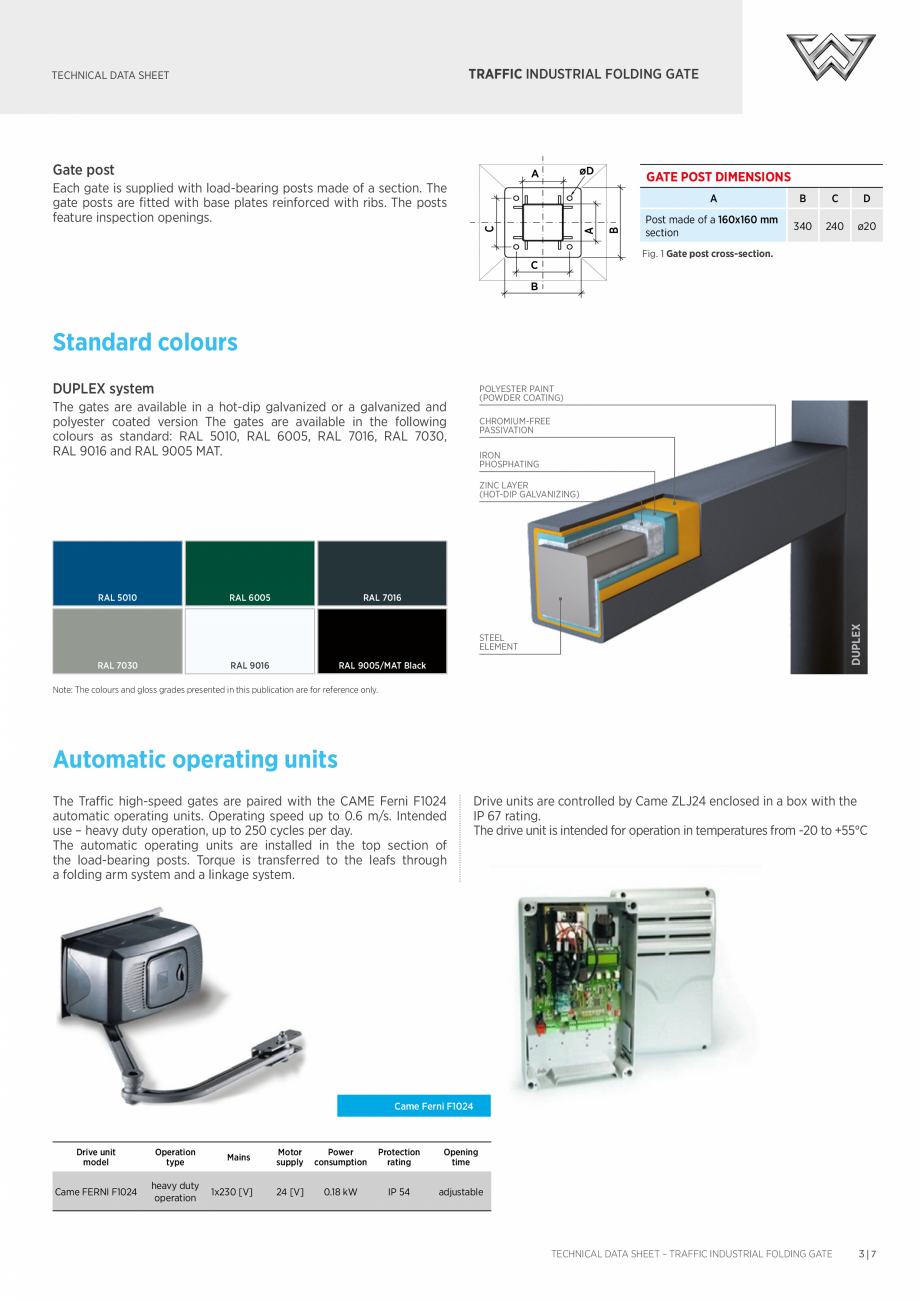

Gate post
GATE POST DIMENSIONS
Each gate is supplied with load-bearing posts made of a section. The
gate posts are fitted with base plates reinforced with ribs. The posts
feature inspection openings.
A
B
C
D
Post made of a 160x160 mm
section
340
240
ø20
Fig. 1 Gate post cross-section.
Standard colours
DUPLEX system
POLYESTER PAINT
(POWDER COATING)
The gates are available in a hot-dip galvanized or a galvanized and
polyester coated version The gates are available in the following
c
olours as standard: RAL 5010, RAL 6005, RAL 7016, RAL 7030,
RAL 9016 and RAL 9005 MAT.
CHROMIUM-FREE
PASSIVATION
IRON
PHOSPHATING
ZINC LAYER
(HOT-DIP GALVANIZING)
RAL 6005
RAL 7016
DUPLEX
RAL 5010
STEEL
ELEMENT
RAL 7030
RAL 9016
RAL 9005/MAT Black
Note: The colours and gloss grades presented in this publication are for reference only.
Automatic operating units
The Traffic high-speed gates are paired with the CAME Ferni F1024
automatic operating units. Operating speed up to 0.6 m/s. Intended
use – heavy duty operation, up to 250 cycles per day.
The automatic operating units are installed in the top section of
the load-bearing posts. Torque is transferred to the leafs through
a folding arm system and a linkage system.
Drive units are controlled by Came ZLJ24 enclosed in a box with the
IP 67 rating.
The drive unit is intended for operation in temperatures from -20 to +55°C
Came Ferni F1024
Drive unit
model
Operation
type
Came FERNI F1024
heavy duty
operation
Mains
Mot
or
supply
Power
consumption
Protection
rating
Opening
time
1x230 [V]
24 [V]
0.18 kW
IP 54
adjustable
TECHNICAL DATA SHEET – TRAFFIC INDUSTRIAL FOLDING GATE
3|7
TRAFFIC INDUSTRIAL FOLDING GATE
TECHNICAL DATA SHEET

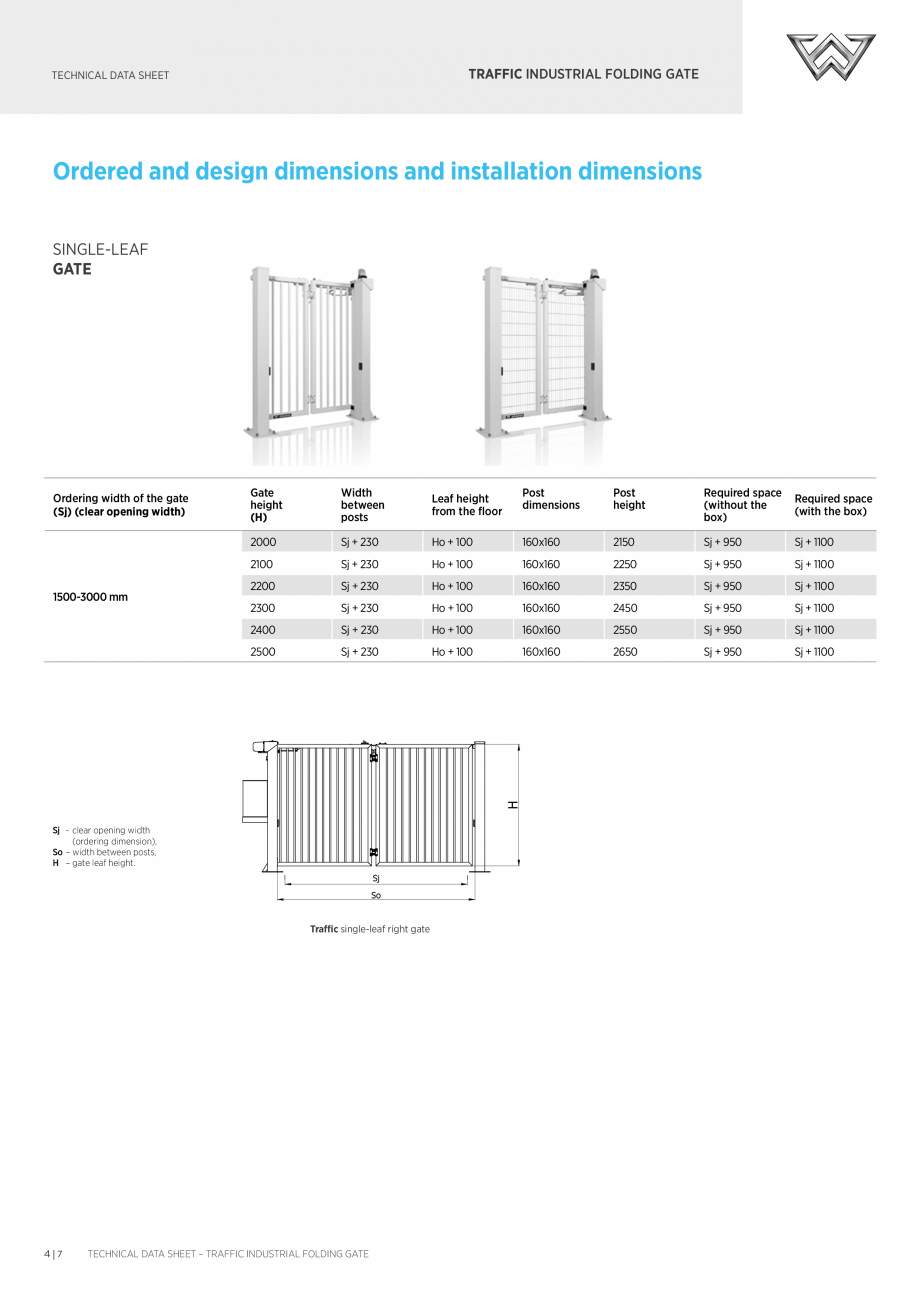

Ordered and design dimensions and installation dimensions
SINGLE-LEAF
GATE
Ordering width of the gate
(Sj) (clear opening width)
Width
between
posts
Leaf height
from the floor
2000
Sj + 230
2100
Sj + 230
2200
2300
Post
dimensions
Post
height
Required space
(without the
box)
Required space
(with the box)
Ho + 100
160x160
2150
Sj + 950
Sj + 1100
Ho + 100
160x160
2250
Sj + 950
Sj + 1100
Sj + 230
Ho + 100
160x160
2350
Sj + 950
Sj + 1100
Sj + 230
Ho + 100
160x160
2450
Sj + 950
Sj + 1100
2400
Sj + 230
Ho + 100
160x160
2550
Sj + 950
Sj + 1100
2500
Sj + 230
Ho + 100
160x160
2650
Sj + 950
Sj + 1100
H
1500-3000 mm
Gate
height
(H)
Sj - clear opening width
(ordering dimension),
So – width between posts,
H – gate lea
f height.
Sj
So
Traffic single-leaf right gate
4|7
TECHNICAL DATA SHEET – TRAFFIC INDUSTRIAL FOLDING GATE
TRAFFIC INDUSTRIAL FOLDING GATE
TECHNICAL DATA SHEET

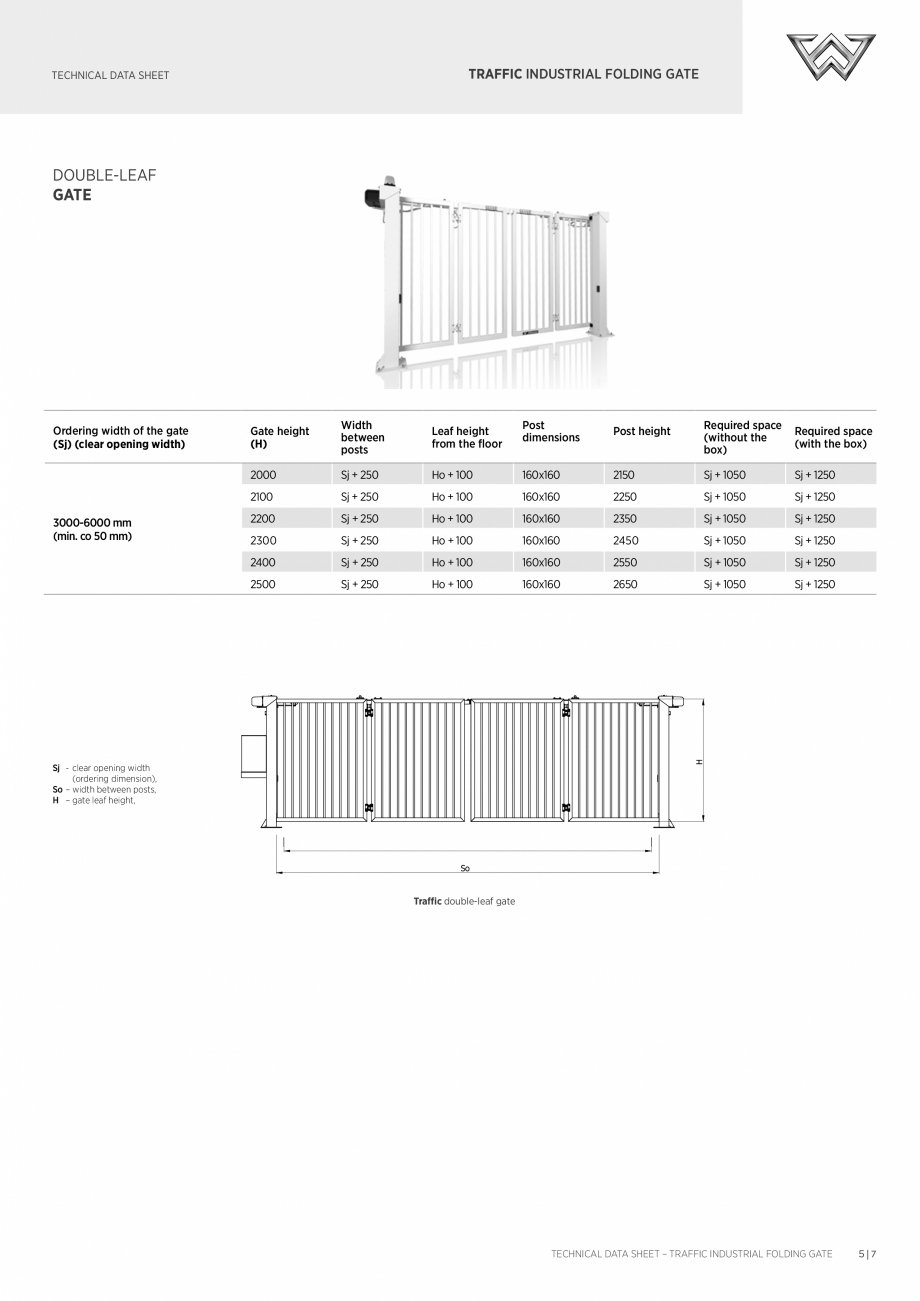

DOUBLE-LEAF
GATE
3000-6000 mm
(min. co 50 mm)
Gate height
(H)
Width
between
posts
Leaf height
from the floor
2000
Sj + 250
2100
Sj + 250
2200
Post
dimensions
Post height
Ho + 100
160x160
Ho + 100
160x160
Sj + 250
Ho + 100
2300
Sj + 250
2400
Sj + 250
2500
Sj + 250
Required space
(without the
box)
Required space
(with the box)
2150
Sj + 1050
Sj + 1250
2250
Sj + 1050
Sj + 1250
160x160
2350
Sj + 1050
Sj + 1250
Ho + 100
160x160
2450
Sj + 1050
Sj + 1250
Ho + 100
160x160
2550
Sj + 1050
Sj + 1250
Ho + 100
160x160
2650
Sj + 1050
Sj + 1250
H
Ordering width of the gate
(Sj) (clear opening width)
Sj - clear opening width
(ordering dimension),
So – width between posts,
H – gate leaf height,
So
Traffic double-leaf gate
TECHNICAL DATA SHEET – TRAFFIC INDUSTRIAL FOLDING GAT
E
5|7
TECHNICAL DATA SHEET
TRAFFIC INDUSTRIAL FOLDING GATE

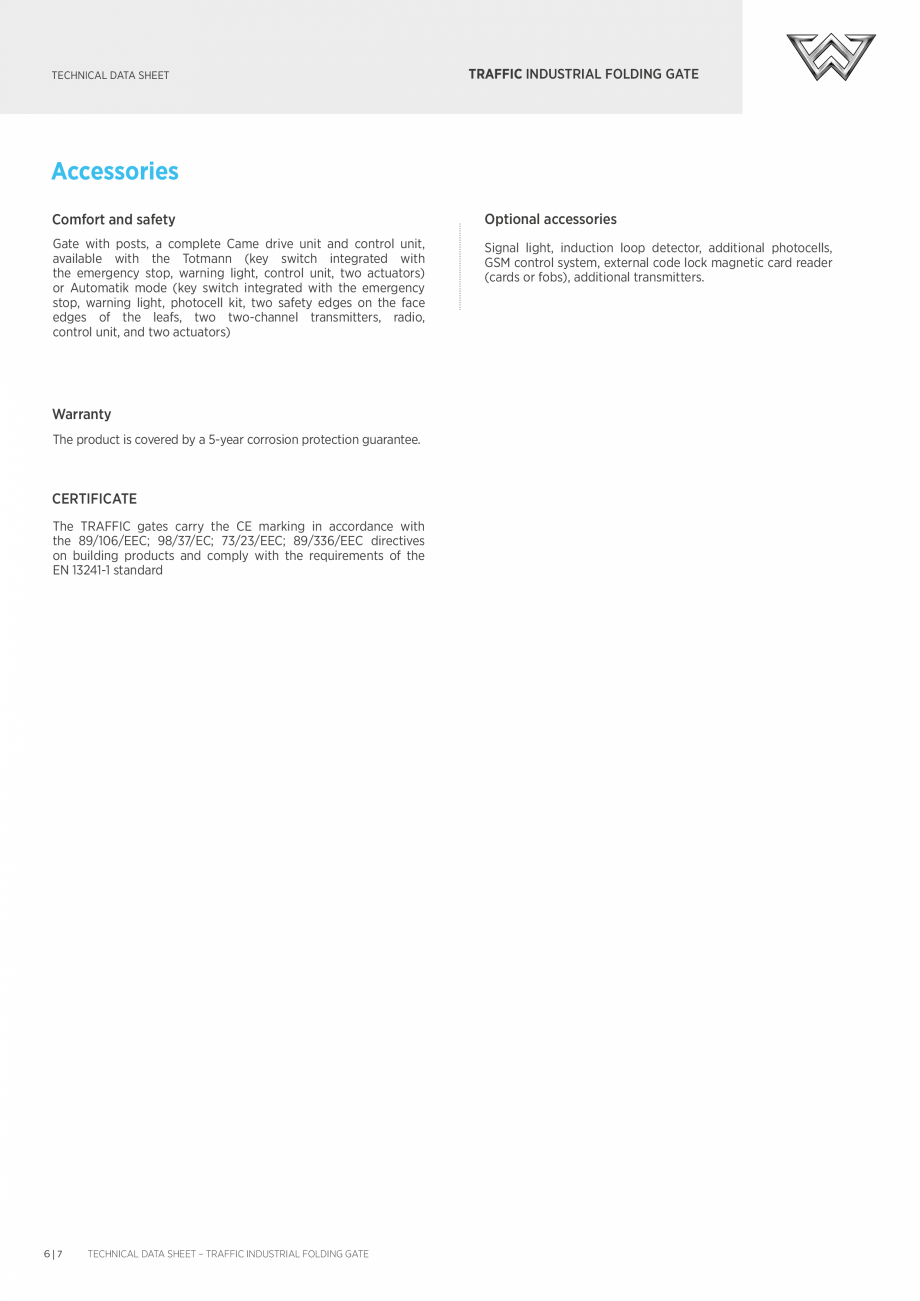

Accessories
Comfort and safety
Optional accessories
Gate with posts, a complete Came drive unit and control unit,
available with the Totmann (key switch integrated with
the emergency stop, warning light, control unit, two actuators)
or Automatik mode (key switch integrated with the emergency
stop, warning light, photocell kit, two safety edges on the face
edges of the leafs, two two-channel transmitters, radio,
control unit, and two actuators)
Signal light, induction loop detector, additional photocells,
GSM control system, external code lock magnetic card reader
(cards or fobs), additional transmitters.
Warranty
The product is covered by a 5-year corrosion protection guarantee.
CERTIFICATE
The TRAFFIC gates carry the CE marking in accordance with
the 89/106/EEC; 98/37/EC; 73/23/EEC; 89/336/EEC directives
on building products and comply with the requirements of the
EN 13241-1 standard
6|7
TECHNICAL DATA SHEET – TR
E
5|7
TECHNICAL DATA SHEET
TRAFFIC INDUSTRIAL FOLDING GATE
Accessories
Comfort and safety
Optional accessories
Gate with posts, a complete Came drive unit and control unit,
available with the Totmann (key switch integrated with
the emergency stop, warning light, control unit, two actuators)
or Automatik mode (key switch integrated with the emergency
stop, warning light, photocell kit, two safety edges on the face
edges of the leafs, two two-channel transmitters, radio,
control unit, and two actuators)
Signal light, induction loop detector, additional photocells,
GSM control system, external code lock magnetic card reader
(cards or fobs), additional transmitters.
Warranty
The product is covered by a 5-year corrosion protection guarantee.
CERTIFICATE
The TRAFFIC gates carry the CE marking in accordance with
the 89/106/EEC; 98/37/EC; 73/23/EEC; 89/336/EEC directives
on building products and comply with the requirements of the
EN 13241-1 standard
6|7
TECHNICAL DATA SHEET – TR
