Modul sanitar pentru WC GEBERIT Monolith

Limba: Engleza

371 afisari

Tip documentatie: Fisa tehnica

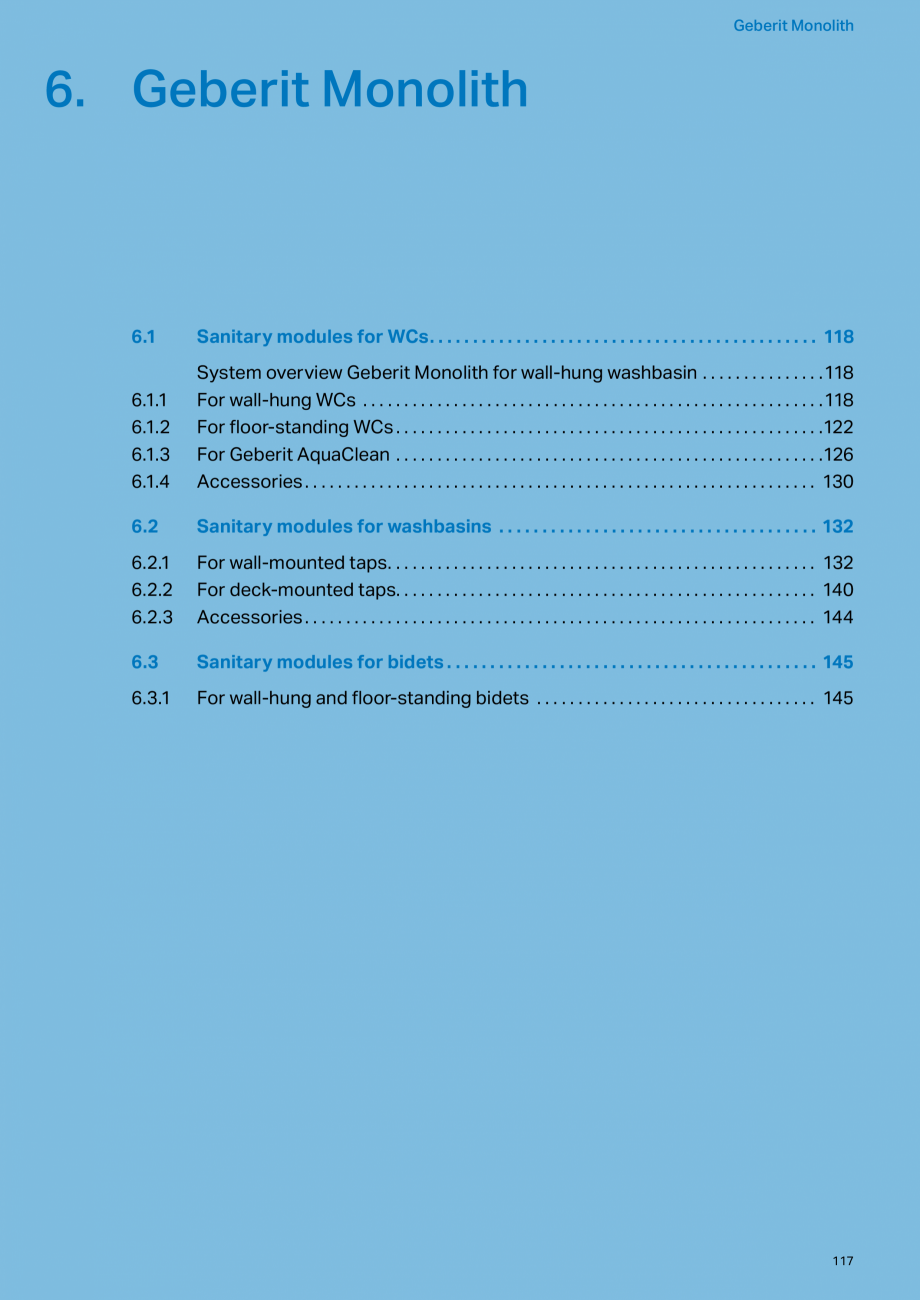

Pagina 1 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza Geberit Monolith

6....

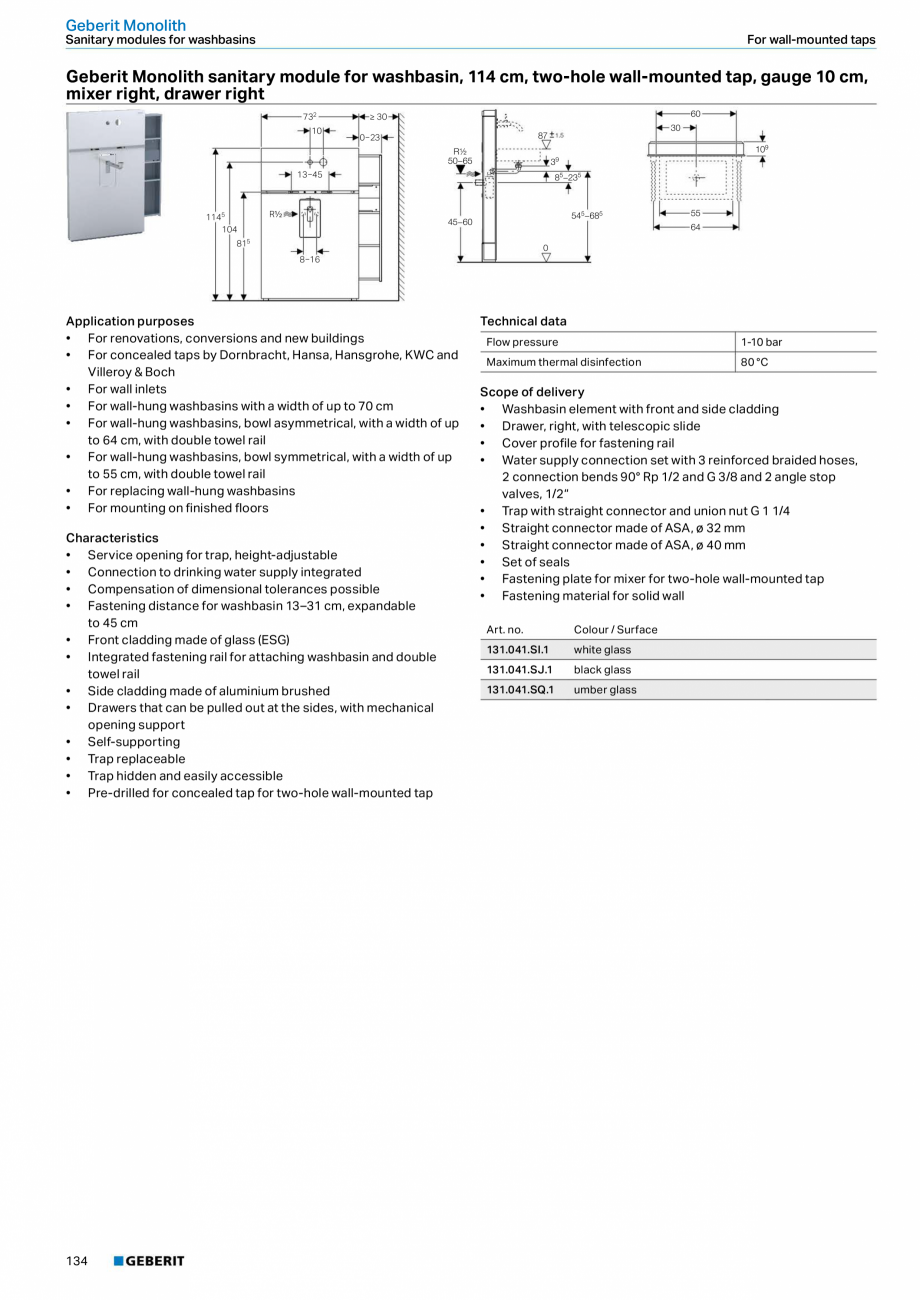

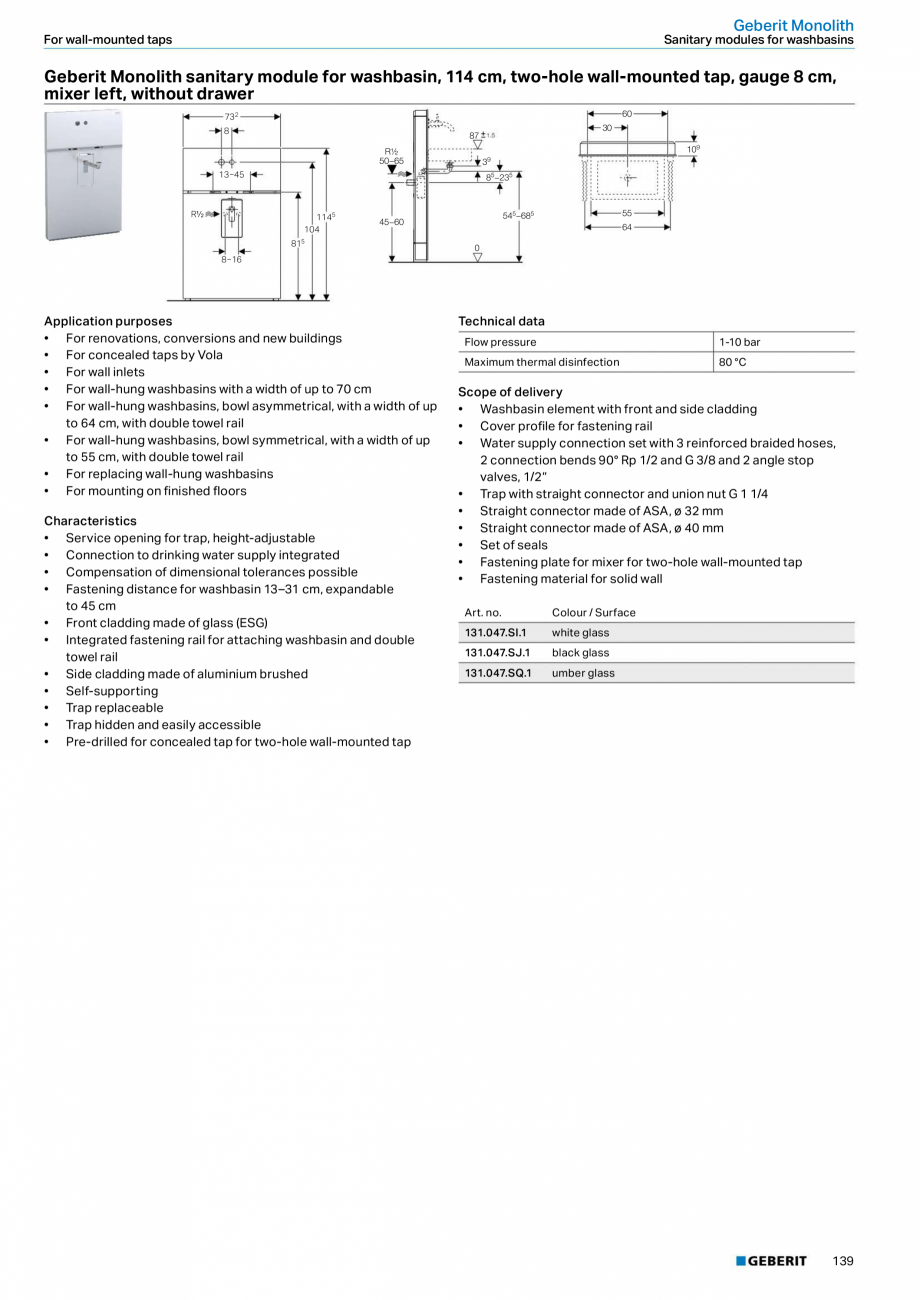

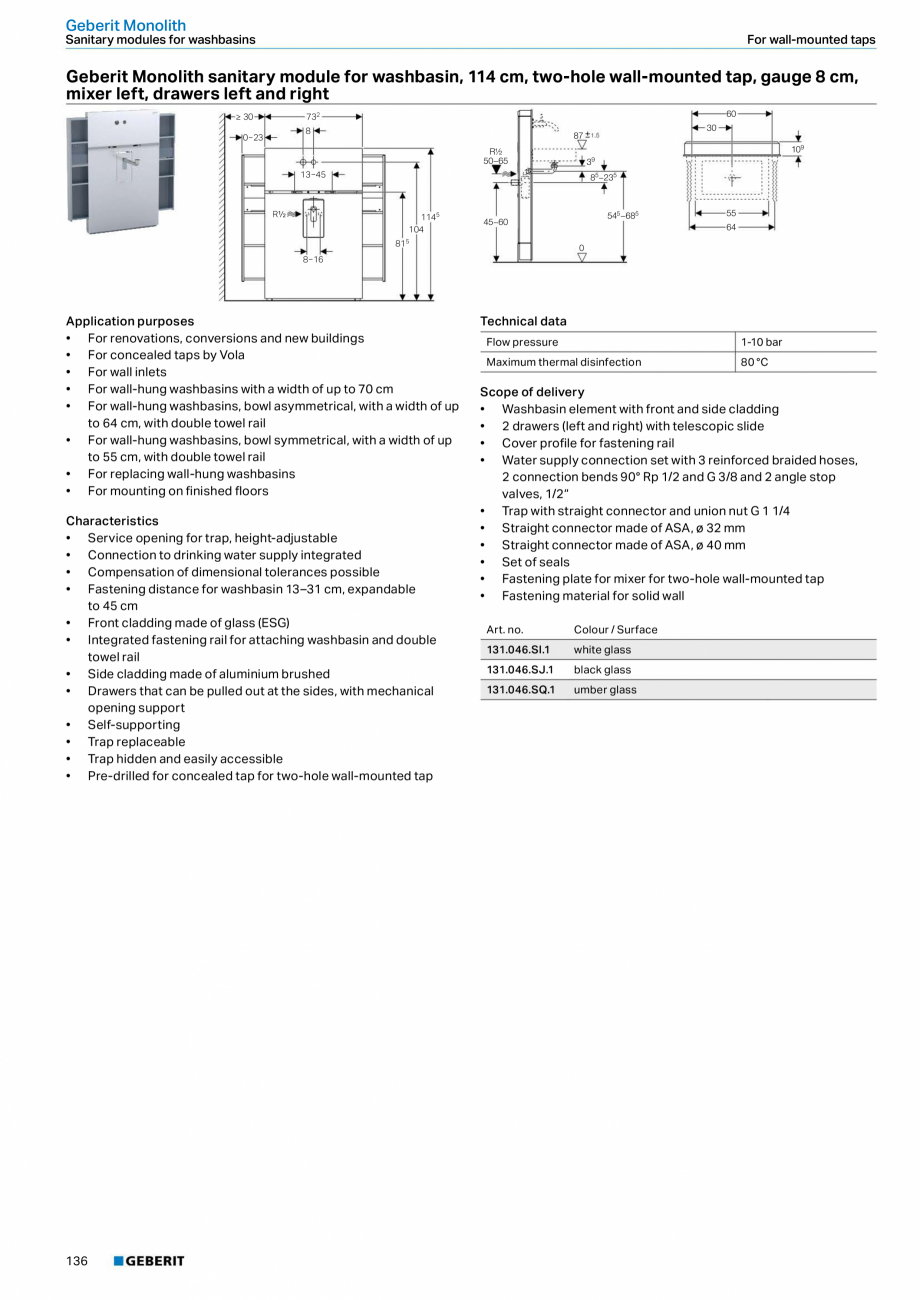

Geberit Monolith 6. Geberit Monolith 6.1 Sanitary modules for WCs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118 6.1.1 6.1.2 6.1.3 6.1.4 System overview Geberit Monolith for wall-hung washbasin . . . . . . . . . . . . . . .118 For wall-hung WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118 For floor-standing WCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122 For Geberit AquaClean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 6.2 Sanitary modules for washbasins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 6.2.1 6.2.2 6.2.3 For wall-mounted taps. . . . . . . . . . . . . . . . .

Pagina 1-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza Geberit Monolith

6. Geberit Monolith
...

Pagina 2 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza . . . . . . . . . . . . . ...

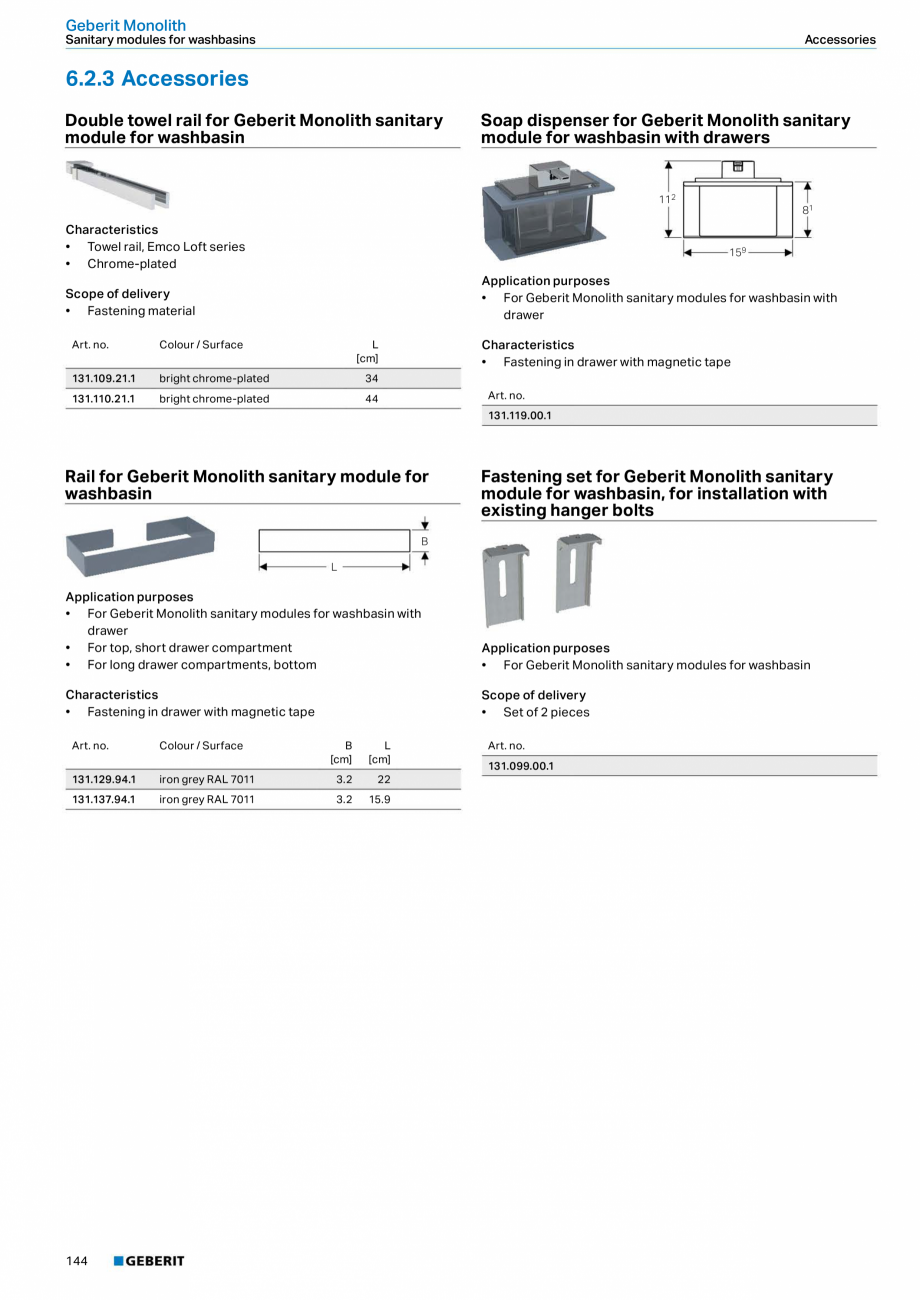

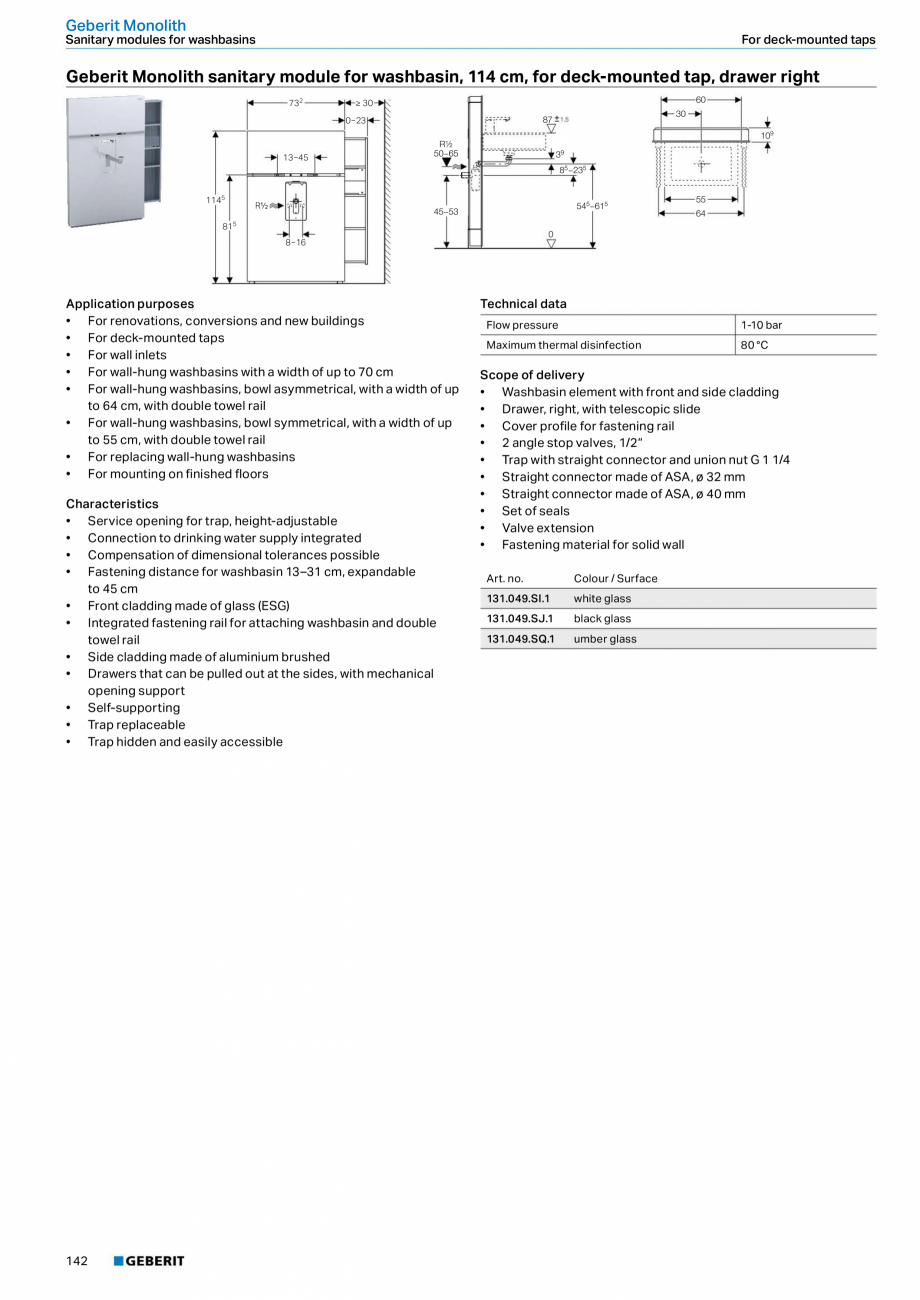

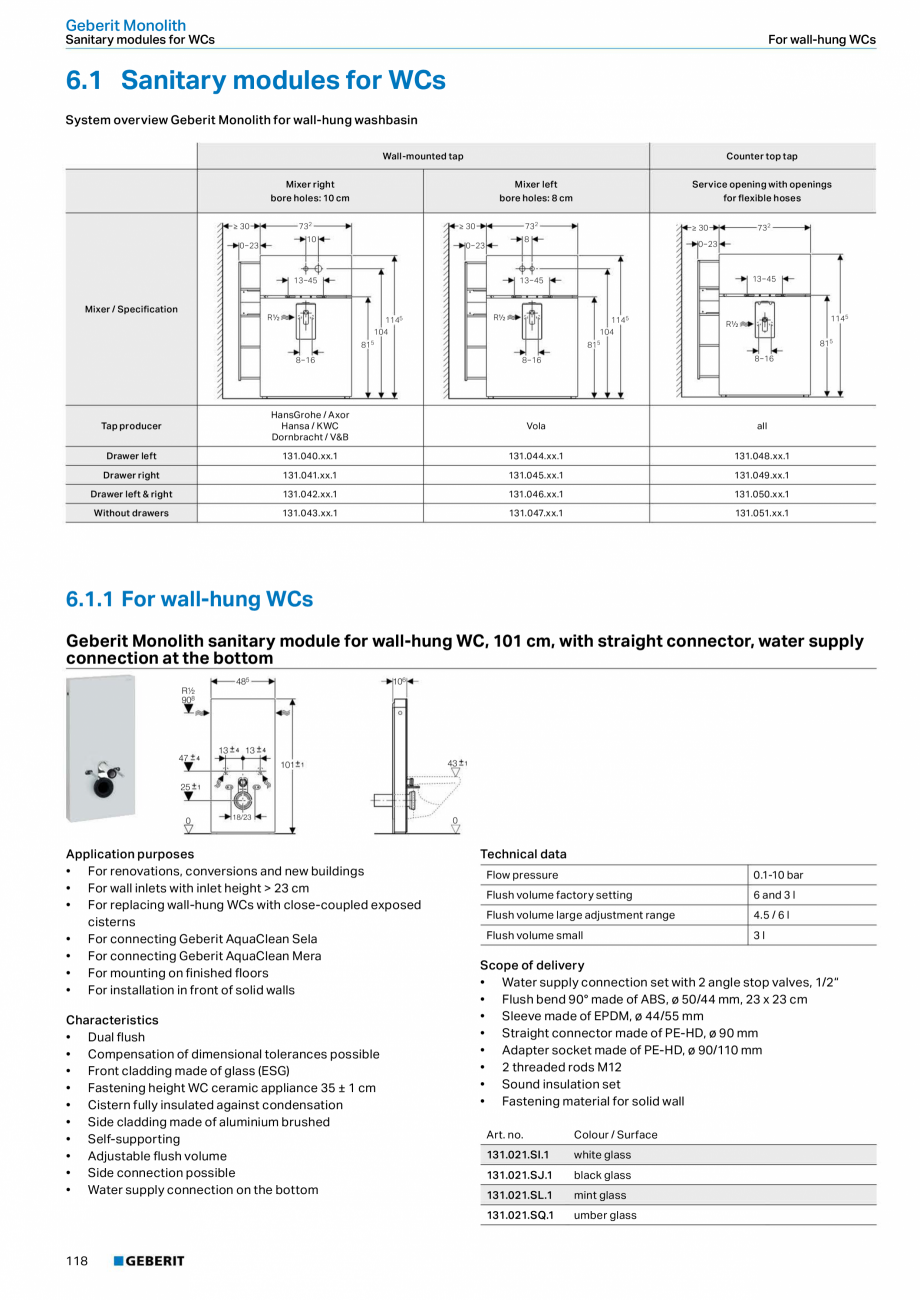

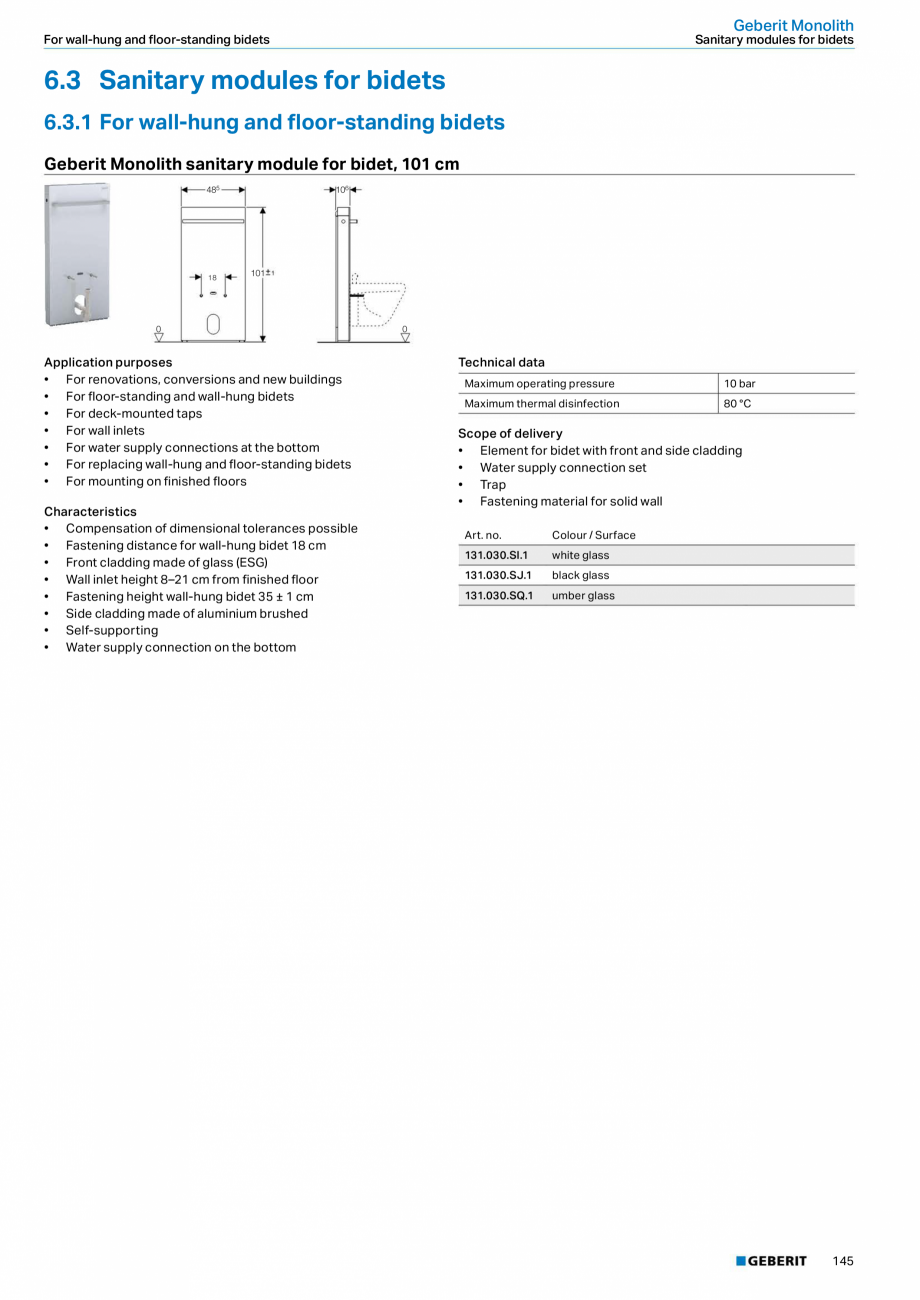

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 For deck-mounted taps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 6.3 Sanitary modules for bidets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 6.3.1 For wall-hung and floor-standing bidets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 117 Geberit Monolith Sanitary modules for WCs For wall-hung WCs 6.1 Sanitary modules for WCs System overview Geberit Monolith for wall-hung washbasin Wall-mounted tap Counter top tap Mixer right bore holes: 10 cm Mixer left bore holes: 8 cm 732 ≥ 30 0−23 732 ≥ 30 10 0−23 R½ 732 ≥ 30 8 13−45 Mixer / Specification Service opening with openings for flexible hoses 0−23 13−45

Pagina 3 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza

13−45

R½

1145
104
...

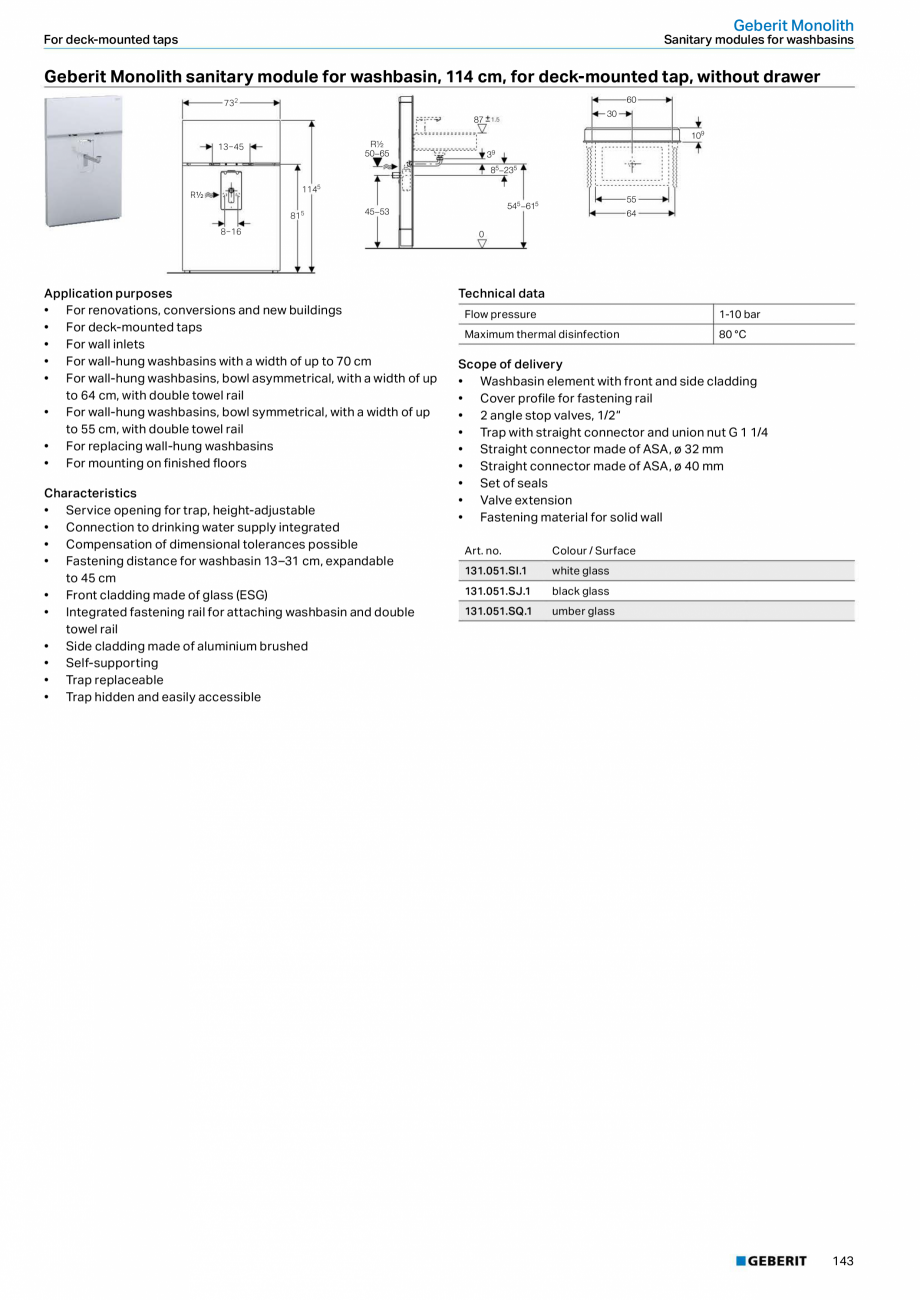

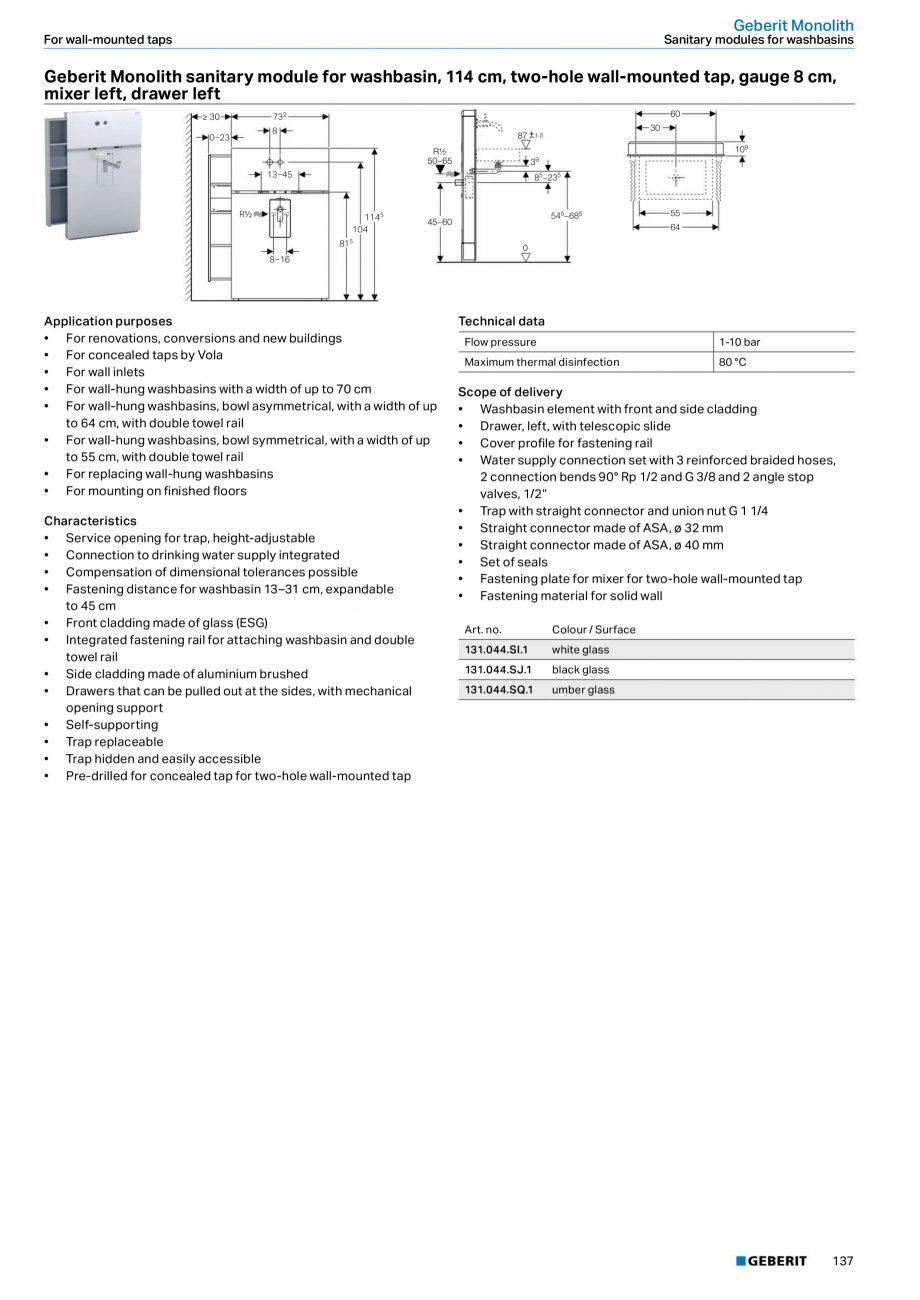

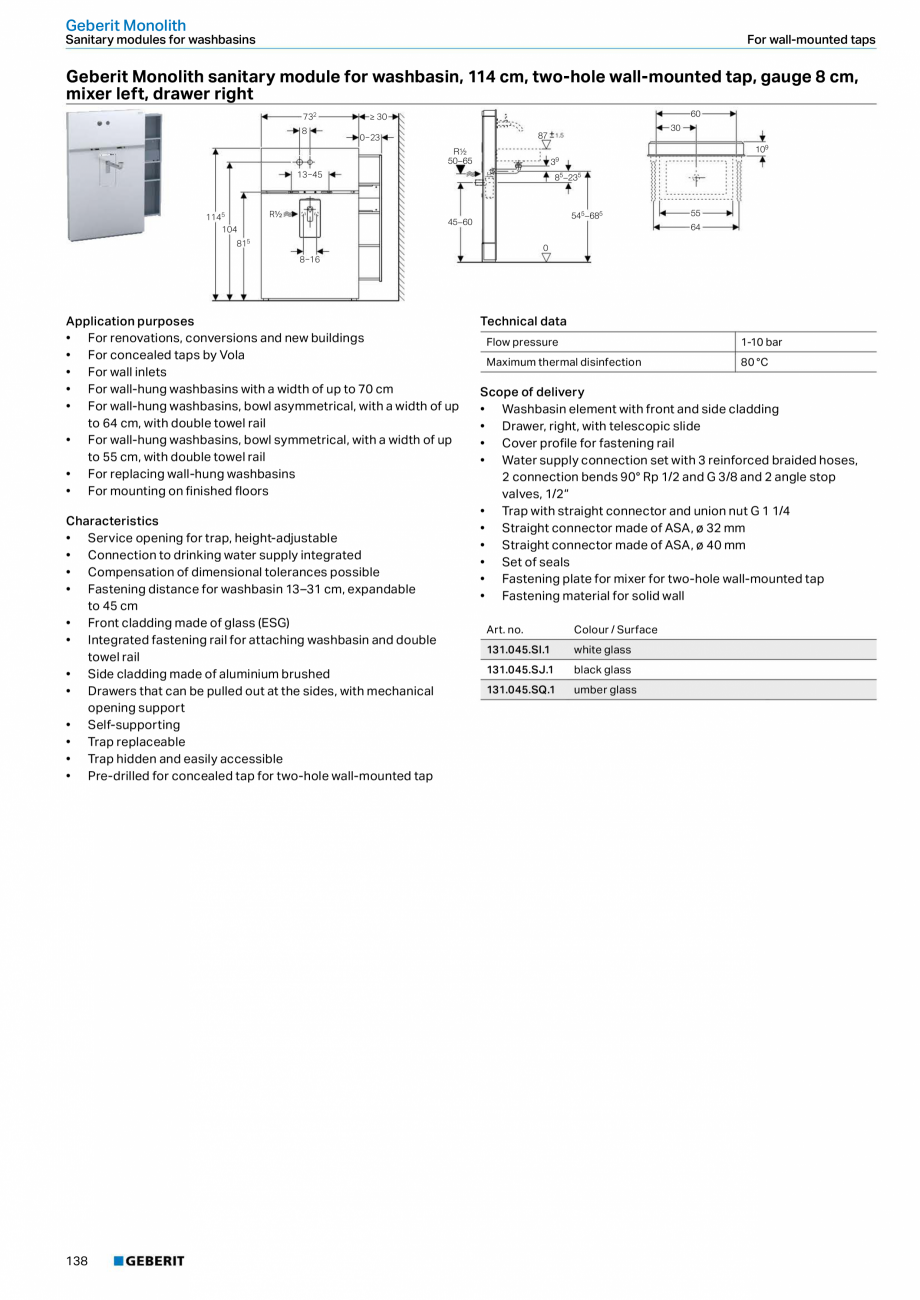

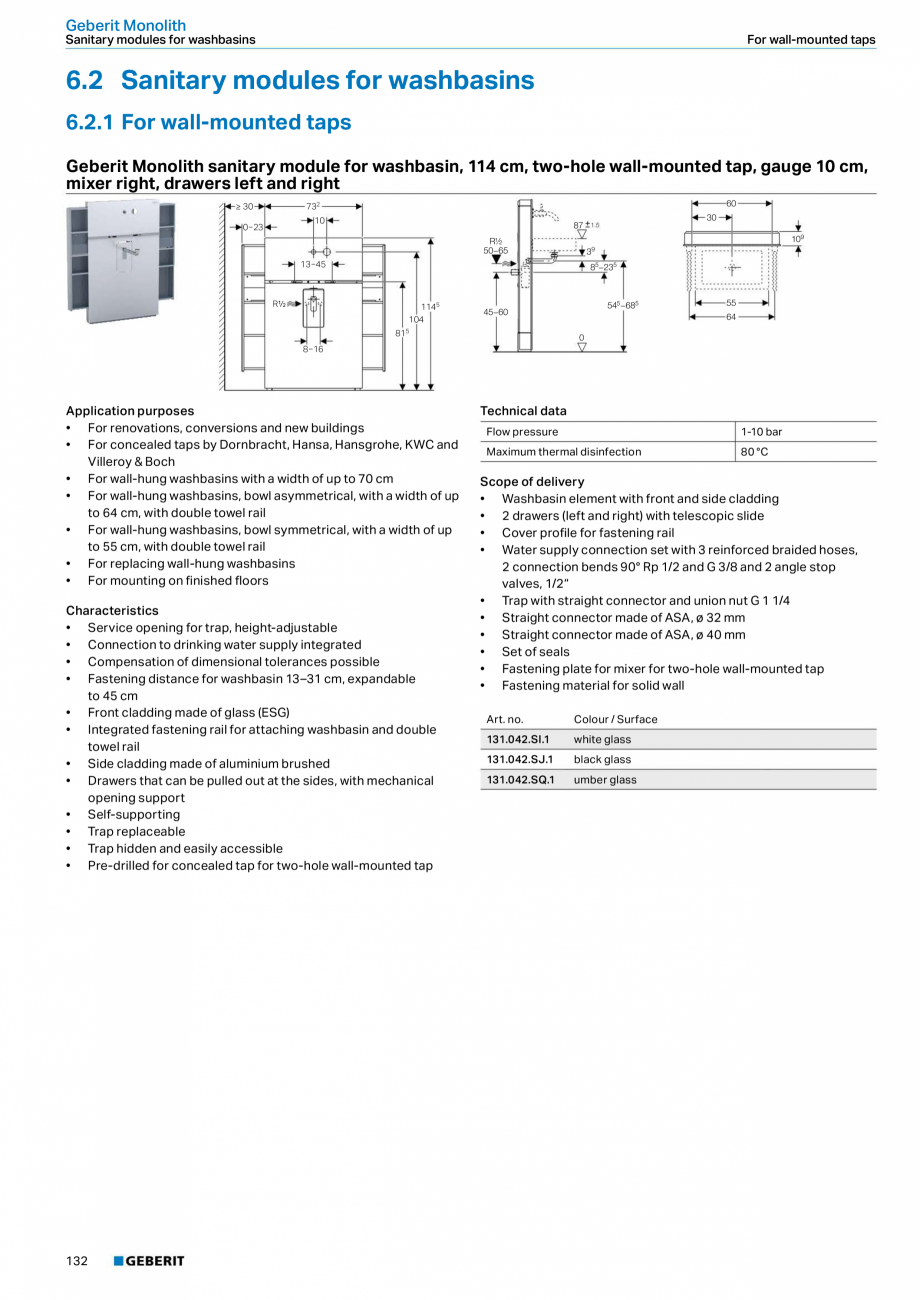

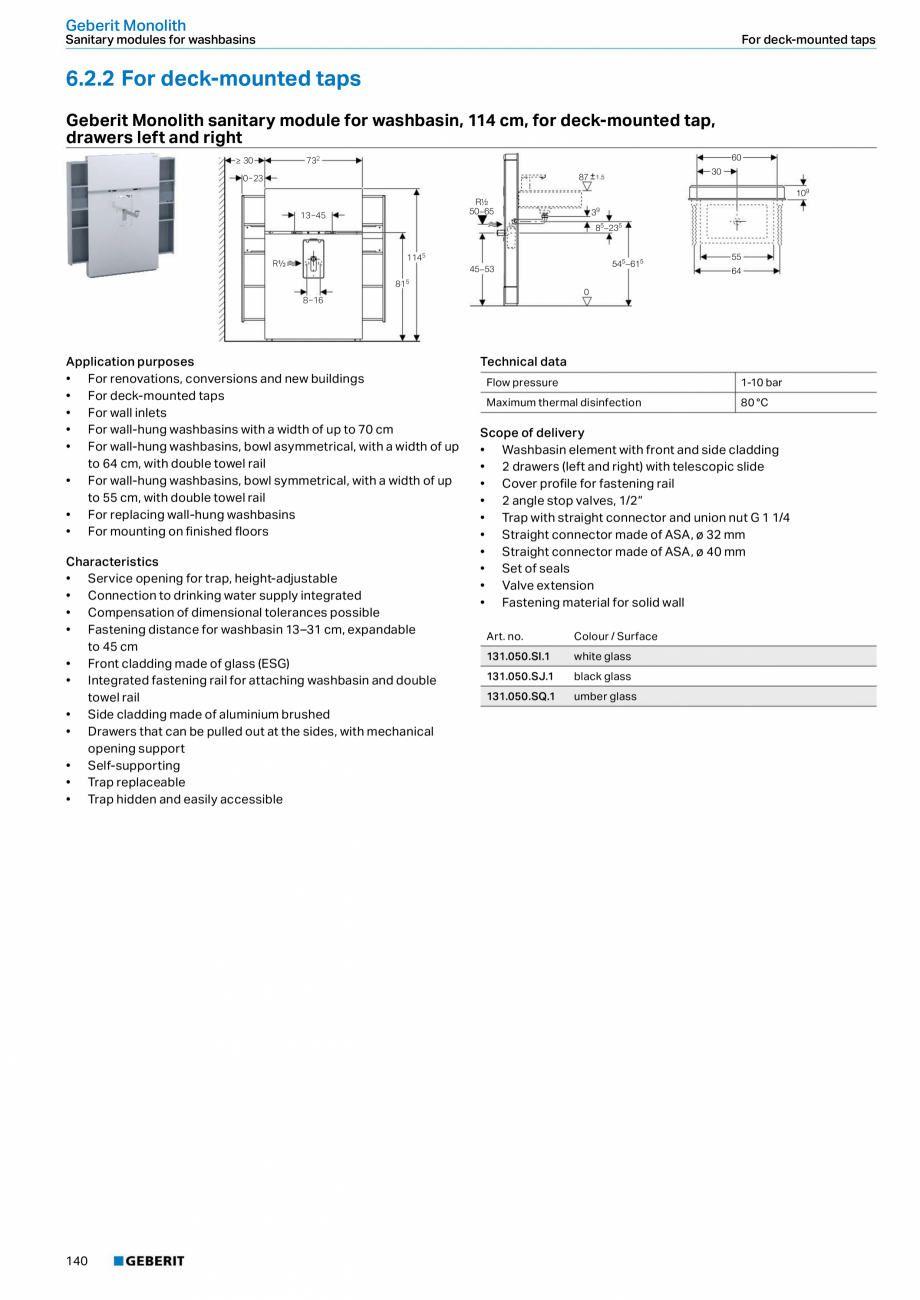

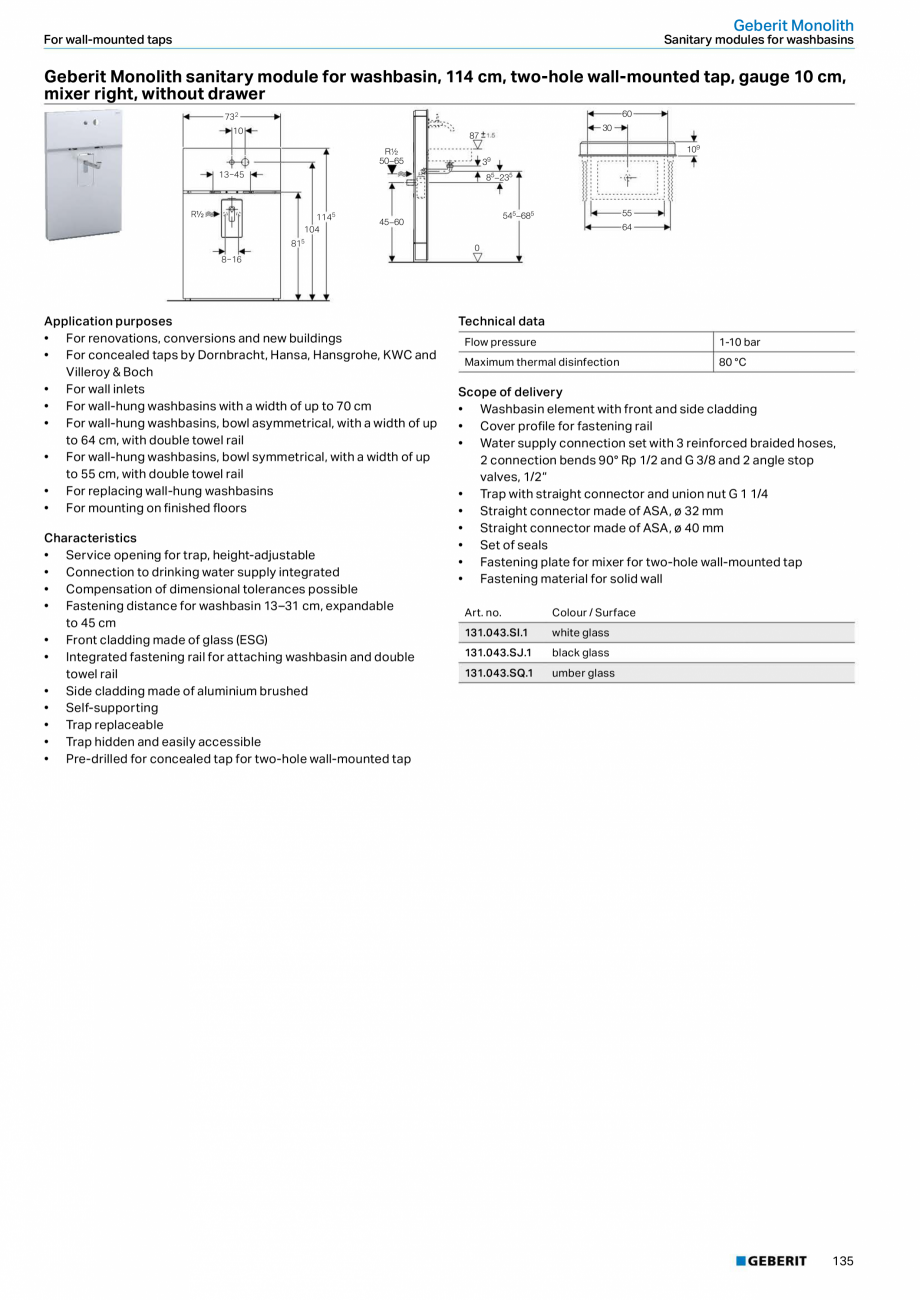

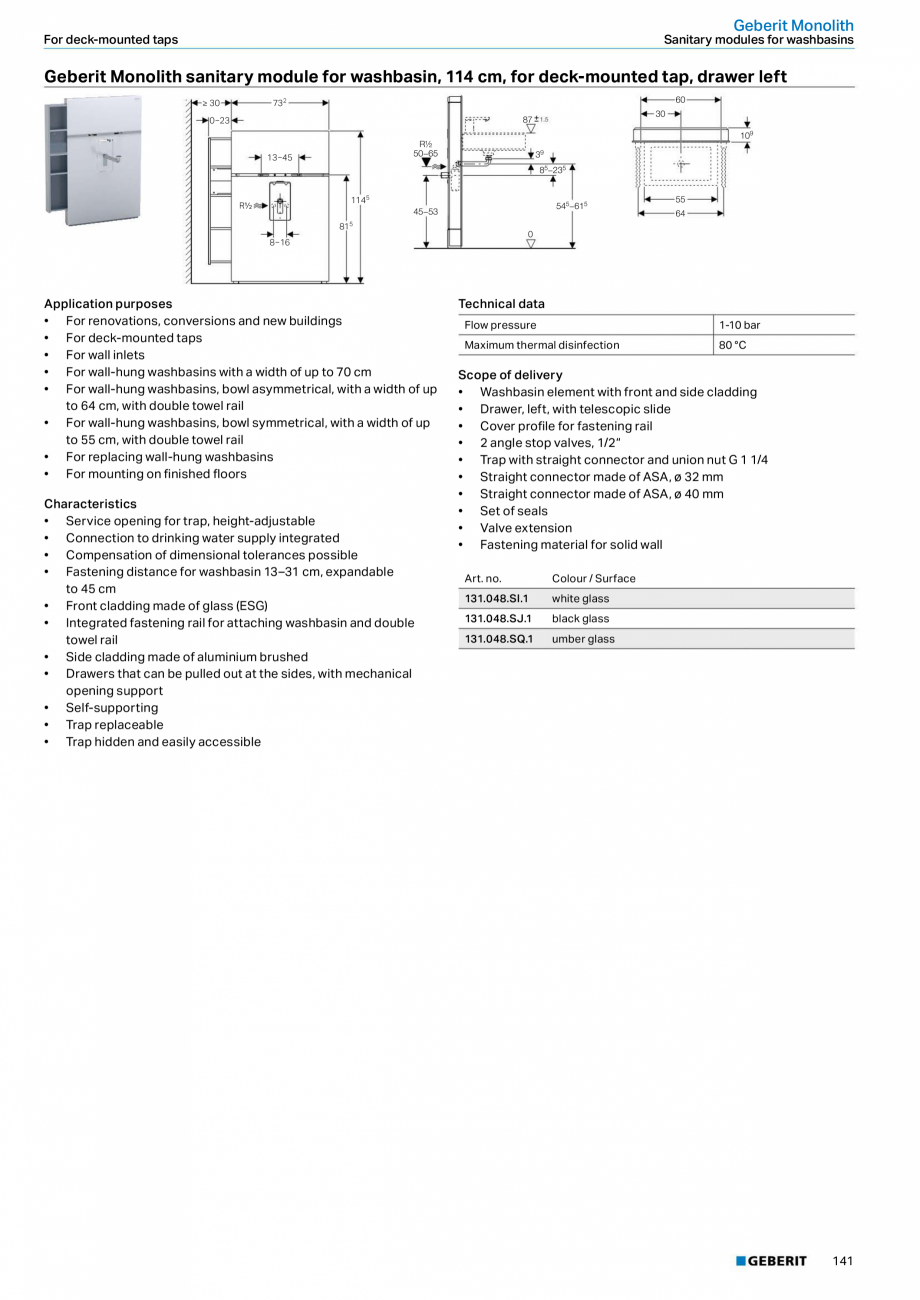

13−45 R½ 1145 104 1145 104 815 1145 R½ 815 815 8−16 8−16 8−16 Tap producer HansGrohe / Axor Hansa / KWC Dornbracht / V&B Vola all 131.048.xx.1 Drawer left 131.040.xx.1 131.044.xx.1 Drawer right 131.041.xx.1 131.045.xx.1 131.049.xx.1 Drawer left & right 131.042.xx.1 131.046.xx.1 131.050.xx.1 Without drawers 131.043.xx.1 131.047.xx.1 131.051.xx.1 6.1.1 For wall-hung WCs Geberit Monolith sanitary module for wall-hung WC, 101 cm, with straight connector, water supply connection at the bottom 47 106 485 R½ 908 4 13 4 13 4 101 43 25 0 18/23 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For connecting Geberit AquaClean Sela • For connecting Geberit AquaClean Mera • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation o

Pagina 3-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza

13−45

R½

1145
104

1145
104
...

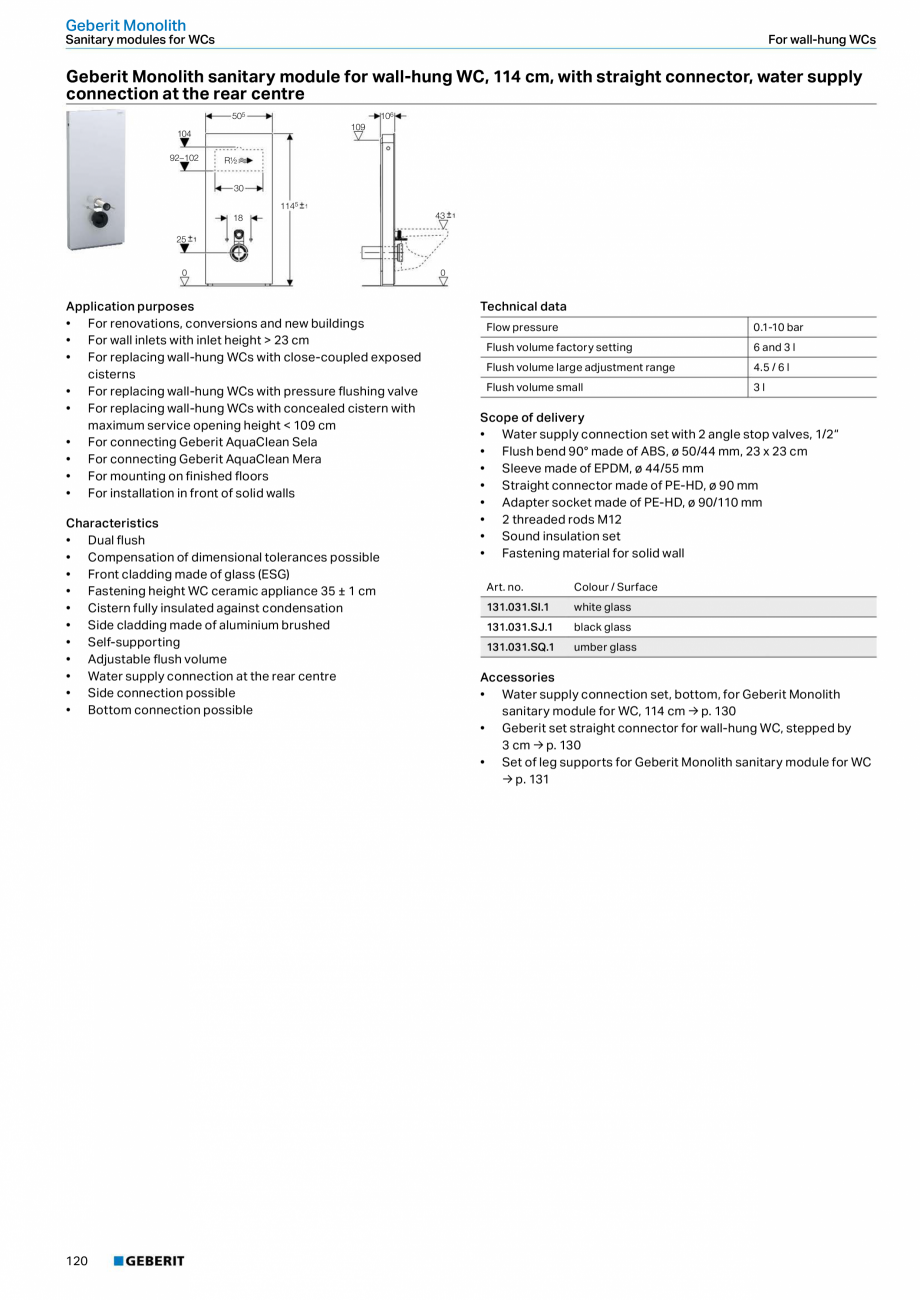

Pagina 4 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza f dimensional tolerances...

f dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection on the bottom 0 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Fastening material for solid wall Colour / Surface 131.021.SI.1 white glass 131.021.SJ.1 black glass 131.021.SL.1 mint glass 131.021.SQ.1 118 Art. no. umber glass Gebe

Pagina 4-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza f dimensional tolerances possible
• ...

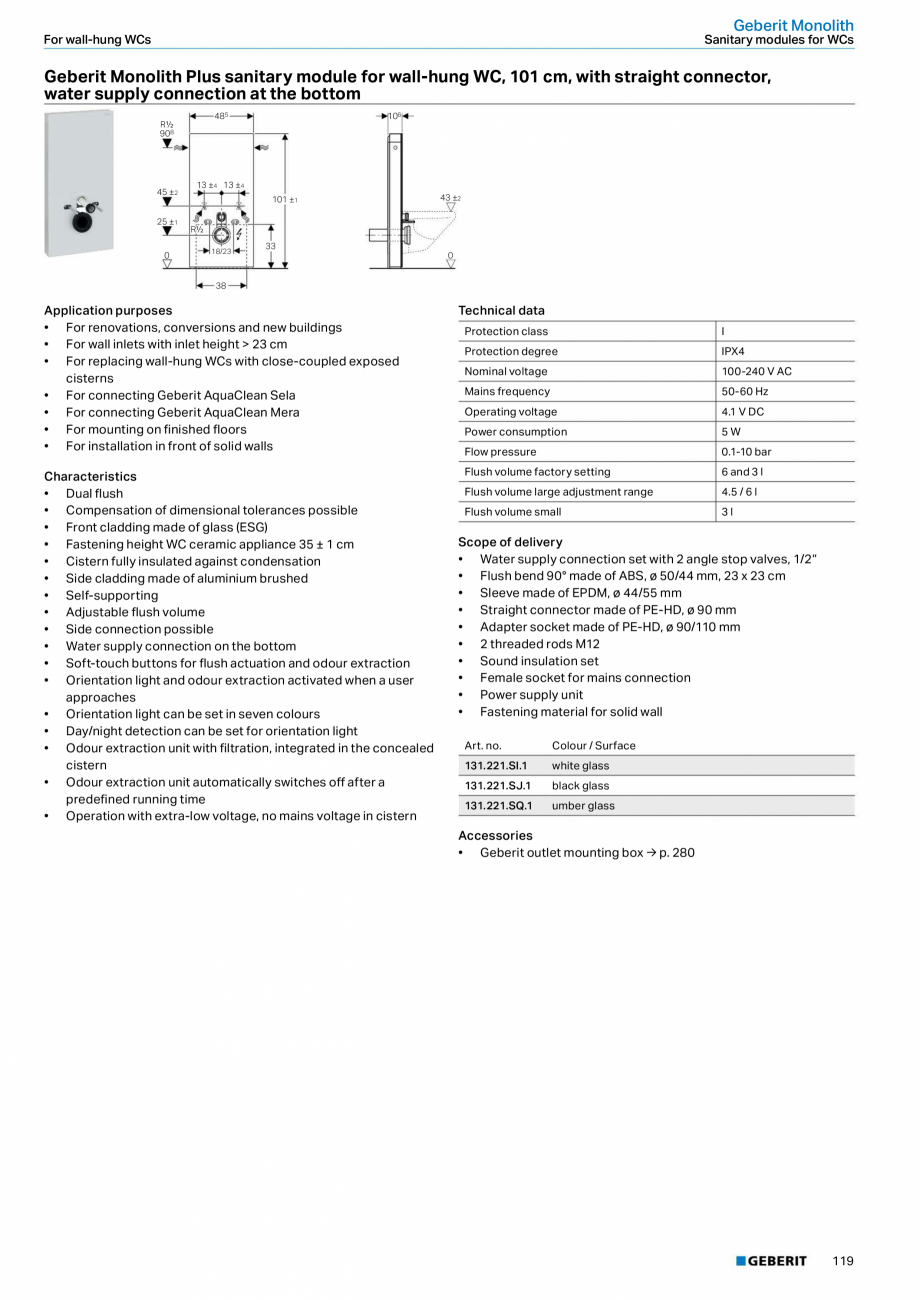

Pagina 5 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza rit Monolith

For wall-hung...

rit Monolith For wall-hung WCs Sanitary modules for WCs Geberit Monolith Plus sanitary module for wall-hung WC, 101 cm, with straight connector, water supply connection at the bottom 45 ±2 25 ±1 0 106 485 R½ 908 13 ±4 13 ±4 101 ±1 43 ±2 R½ 18/23 33 0 38 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For connecting Geberit AquaClean Sela • For connecting Geberit AquaClean Mera • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection

Pagina 5-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza rit Monolith

For wall-hung WCs
...

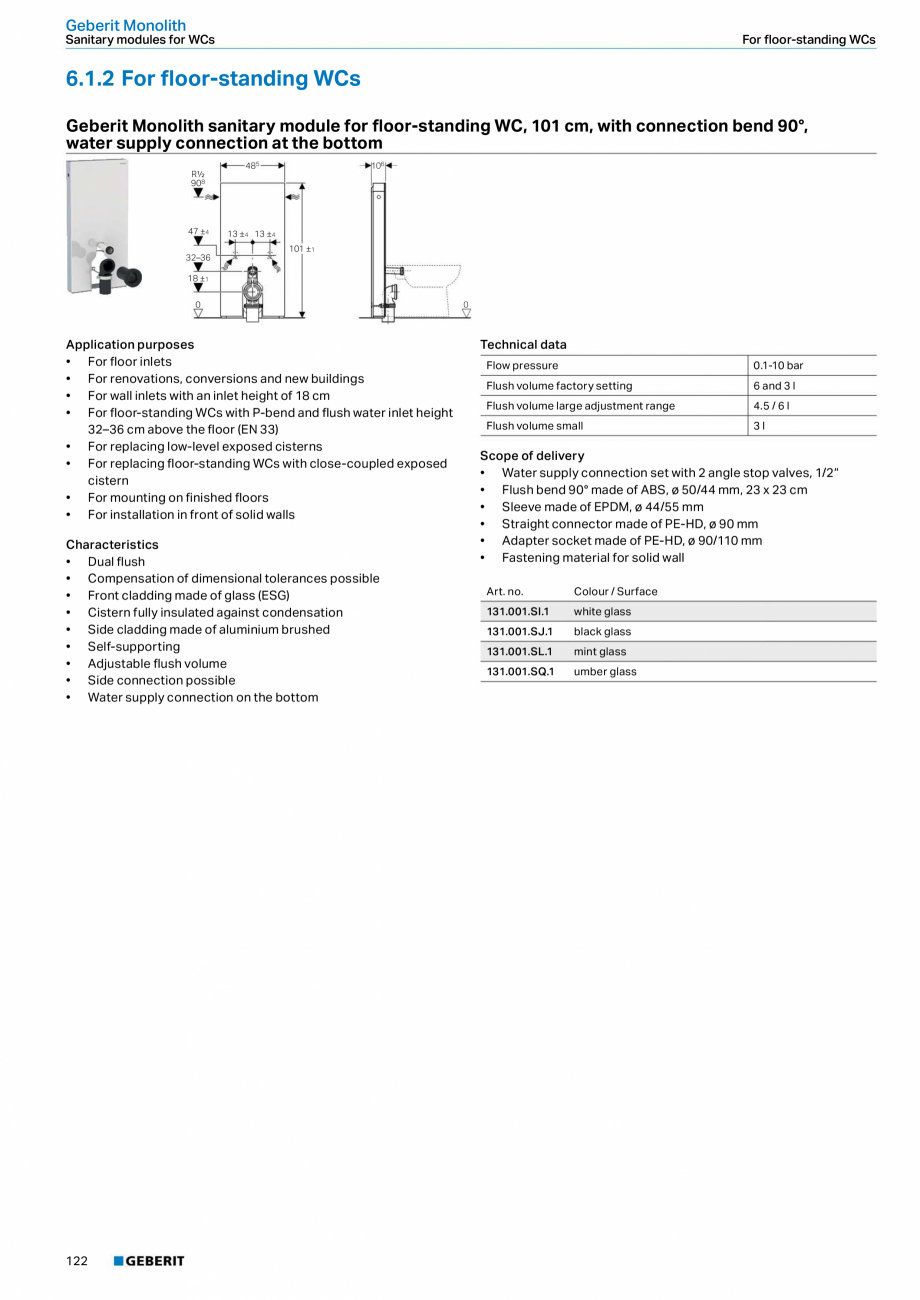

Pagina 6 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza on the bottom
•...

on the bottom • Soft-touch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Technical data Protection class I Protection degree IPX4 Nominal voltage 100-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connec

Pagina 6-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza on the bottom
• Soft-touch buttons ...

Pagina 7 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza tor made of PE-HD, ø 90 mm...

tor made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Female socket for mains connection • Power supply unit • Fastening material for solid wall Art. no. Colour / Surface 131.221.SI.1 white glass 131.221.SJ.1 black glass 131.221.SQ.1 umber glass Accessories • Geberit outlet mounting box → p. 280 119 Geberit Monolith Sanitary modules for WCs For wall-hung WCs Geberit Monolith sanitary module for wall-hung WC, 114 cm, with straight connector, water supply connection at the rear centre 505 106 109 104 92−102 R½ 30 1145 18 43 25 0 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For replacing wall-hung WCs with pressure flushing valve • For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm • For connec

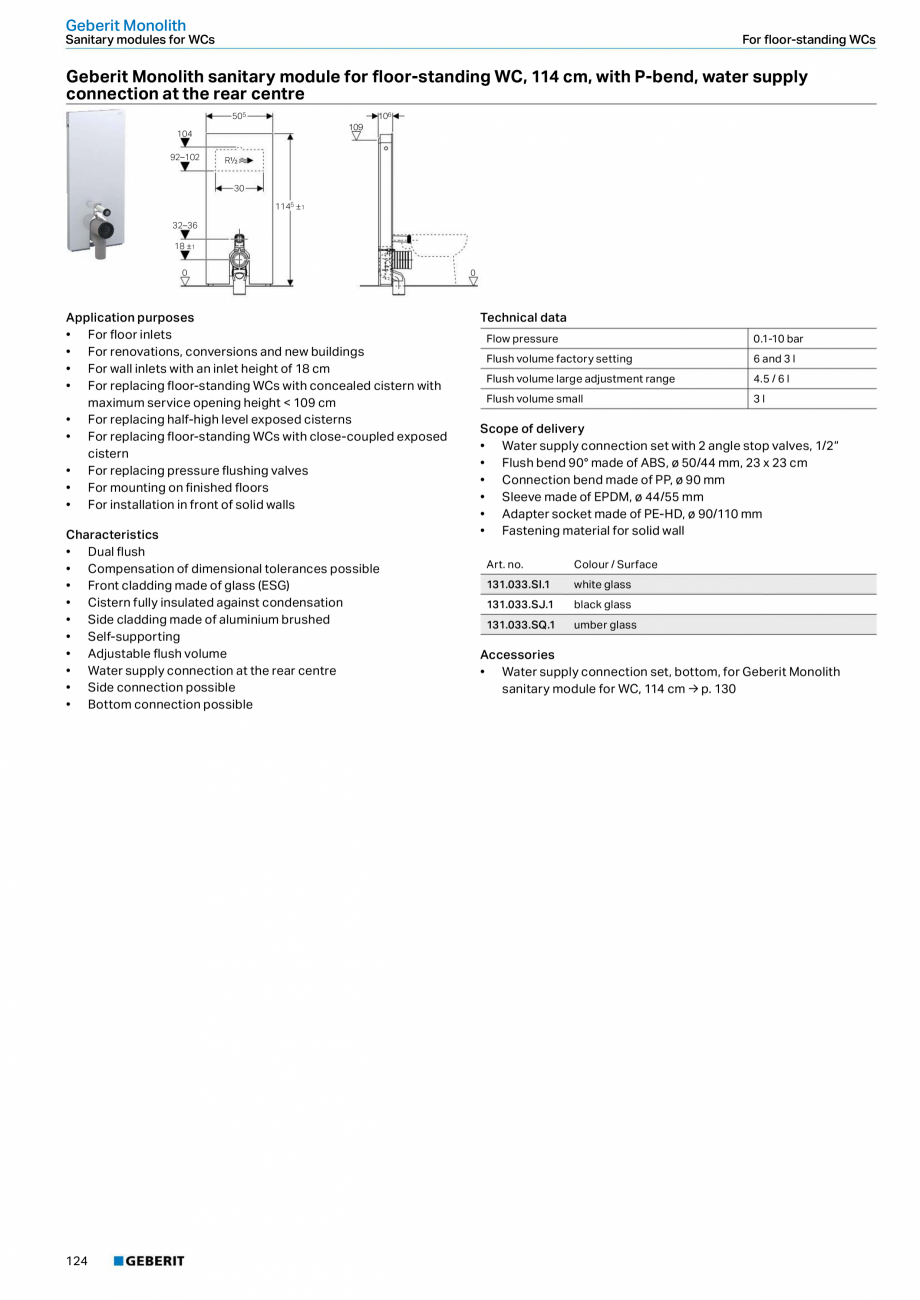

Pagina 8 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza ting Geberit AquaClean Sela...

ting Geberit AquaClean Sela • For connecting Geberit AquaClean Mera • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible 120 0 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 9

Pagina 8-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza ting Geberit AquaClean Sela
• For...

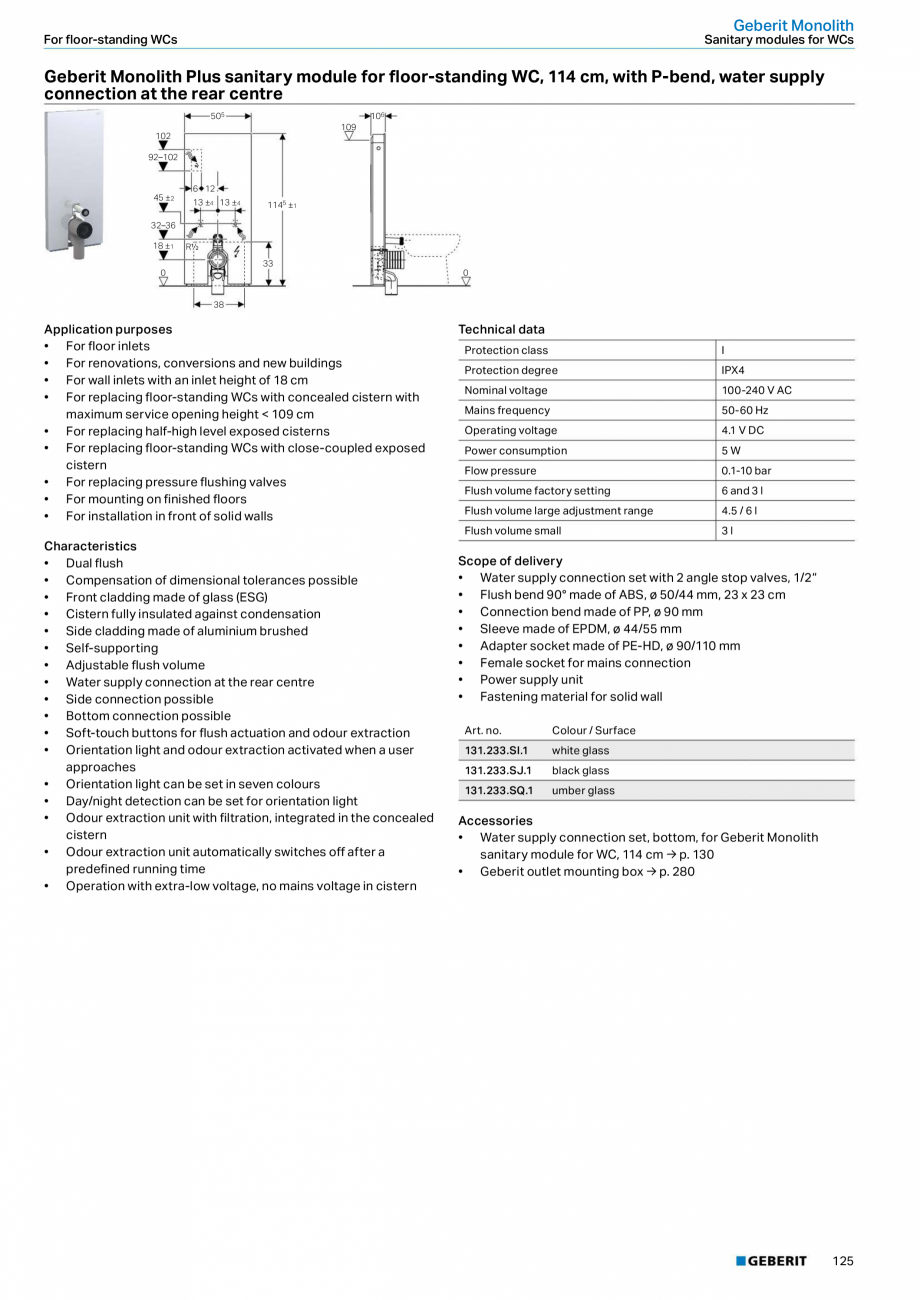

Pagina 9 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza 0/110 mm
• 2 threaded...

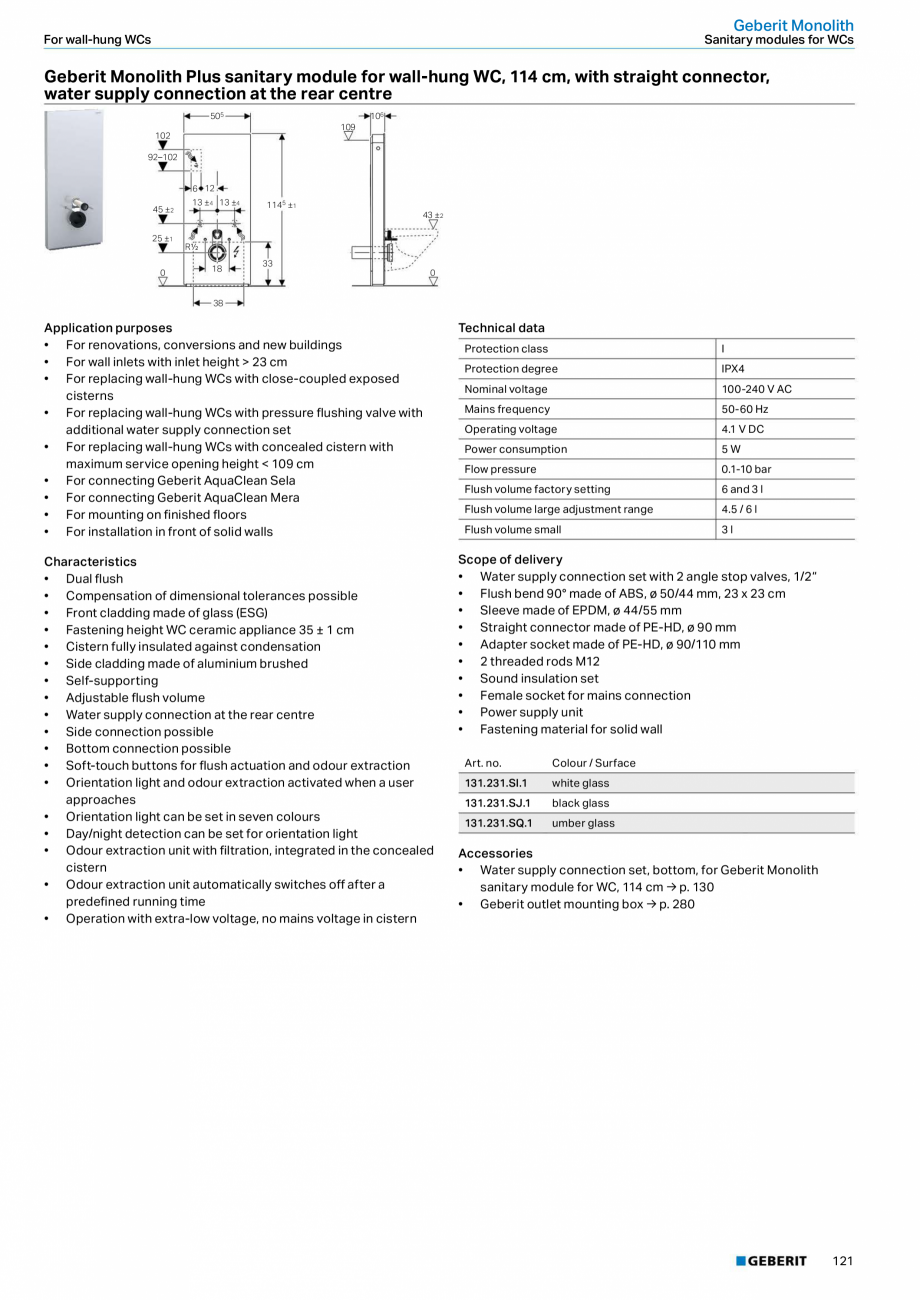

0/110 mm • 2 threaded rods M12 • Sound insulation set • Fastening material for solid wall Art. no. Colour / Surface 131.031.SI.1 white glass 131.031.SJ.1 black glass 131.031.SQ.1 umber glass Accessories • Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 • Geberit set straight connector for wall-hung WC, stepped by 3 cm → p. 130 • Set of leg supports for Geberit Monolith sanitary module for WC → p. 131 Geberit Monolith For wall-hung WCs Sanitary modules for WCs Geberit Monolith Plus sanitary module for wall-hung WC, 114 cm, with straight connector, water supply connection at the rear centre 505 106 109 102 92–102 6 12 45 ±2 25 ±1 0 13 ±4 13 ±4 1145 ±1 43 ±2 R½ 18 33 0 38 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For replacing wall-hung WCs wit

Pagina 9-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza 0/110 mm
• 2 threaded rods M12
•...

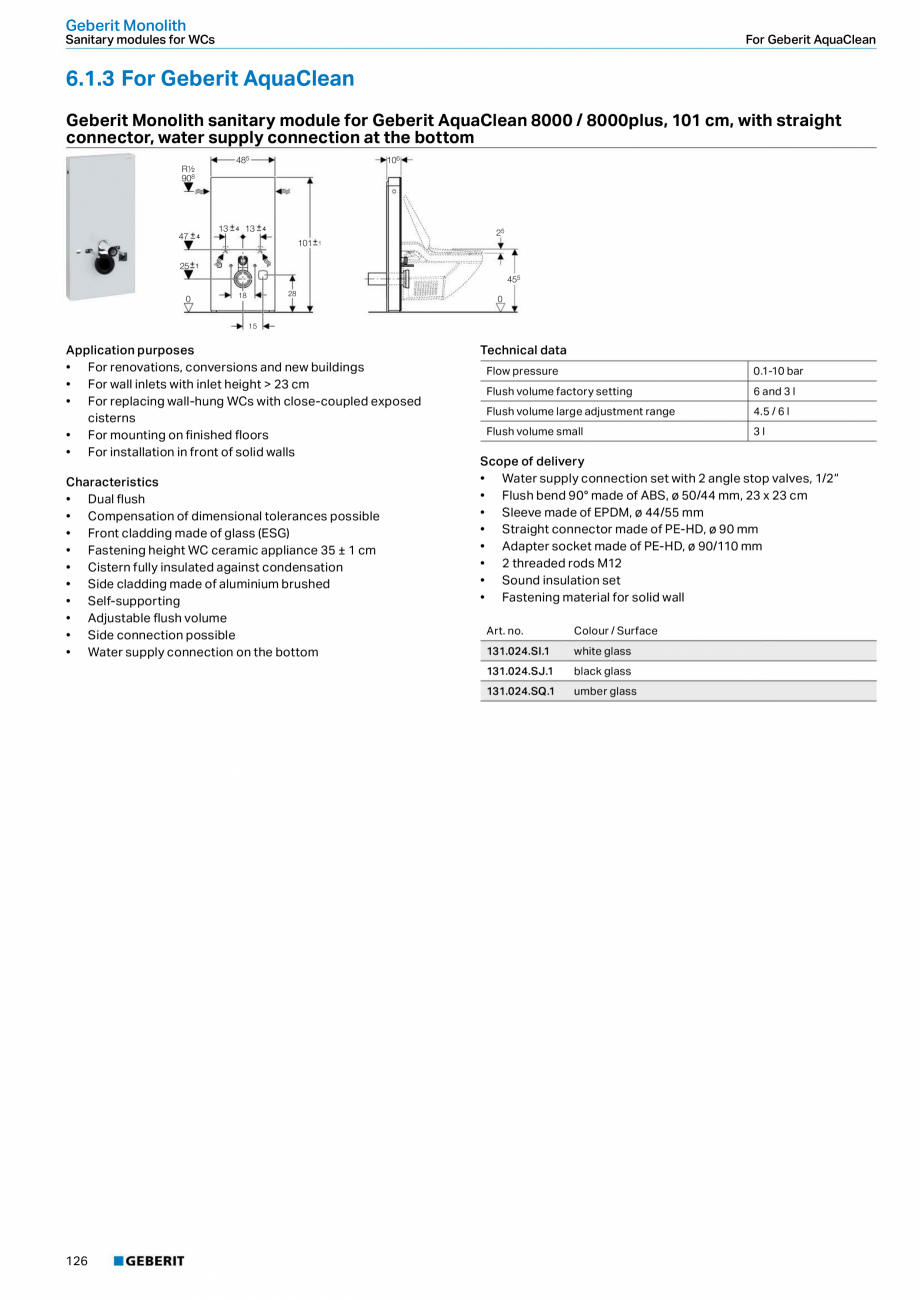

Pagina 10 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza h pressure flushing valve ...

h pressure flushing valve with additional water supply connection set • For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm • For connecting Geberit AquaClean Sela • For connecting Geberit AquaClean Mera • For mounting on finished floors • For installation in front of solid walls Technical data Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible • Soft-touch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set

Pagina 10-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza h pressure flushing valve with...

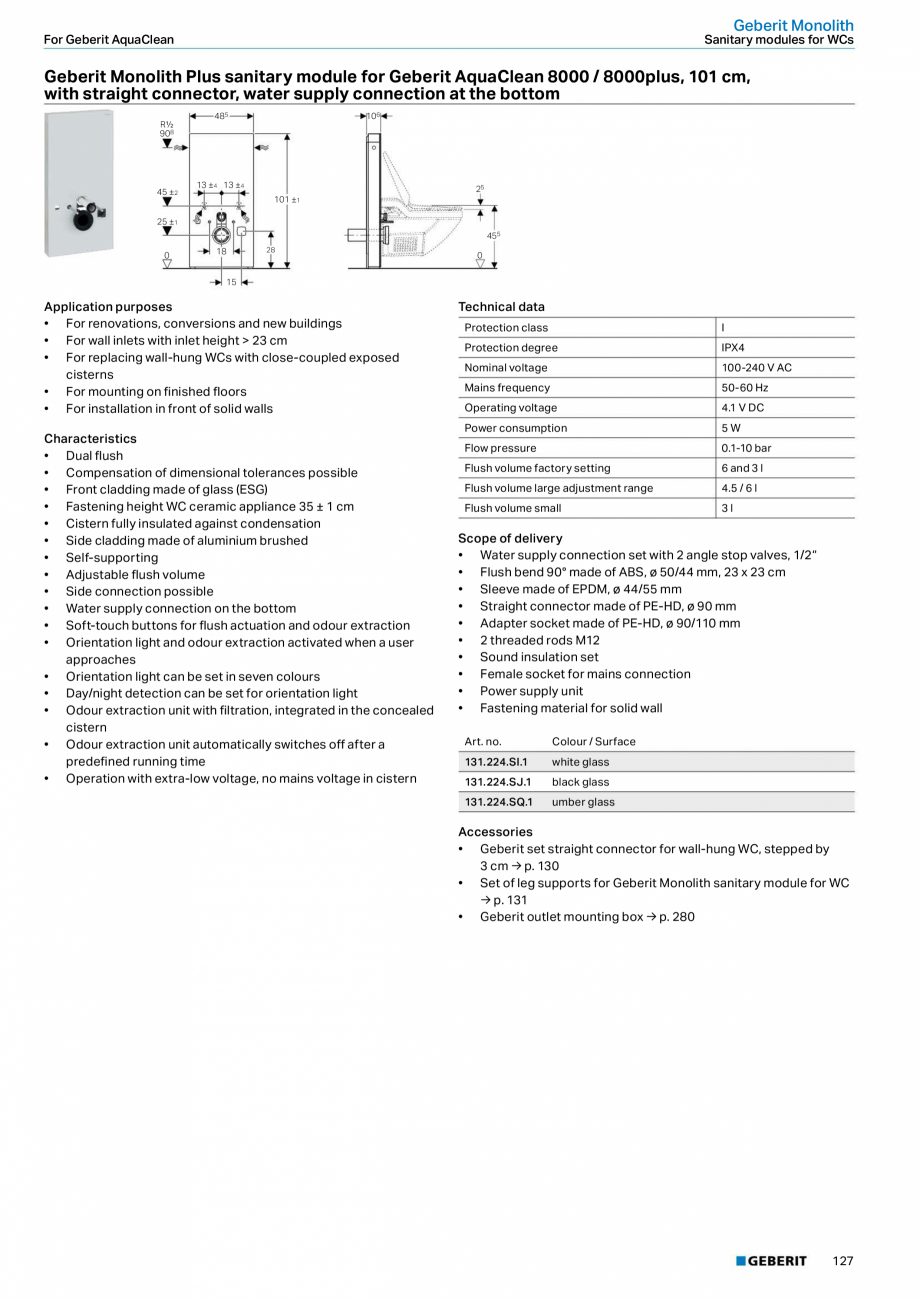

Pagina 11 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza for orientation light
• ...

for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Female socket for mains connection • Power supply unit • Fastening material for solid wall Protection class I Protection degree IPX4 Nominal voltage 100-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Art. no. Colour / Surface 131

Pagina 11-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza for orientation light
• Odour...

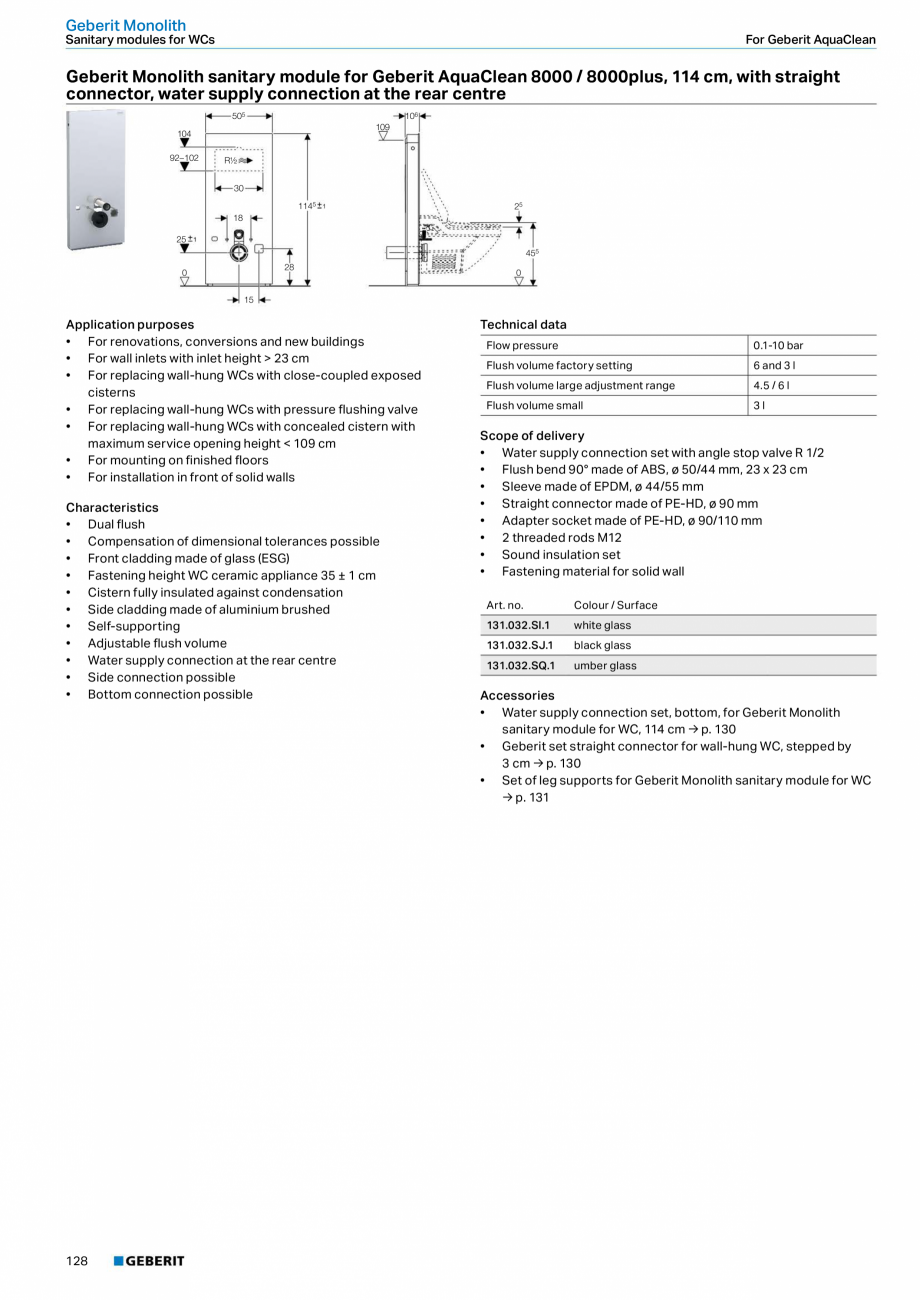

Pagina 12 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza .231.SI.1

white glass
...

.231.SI.1 white glass 131.231.SJ.1 black glass 131.231.SQ.1 umber glass Accessories • Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 • Geberit outlet mounting box → p. 280 121 Geberit Monolith Sanitary modules for WCs For floor-standing WCs 6.1.2 For floor-standing WCs Geberit Monolith sanitary module for floor-standing WC, 101 cm, with connection bend 90°, water supply connection at the bottom R½ 908 47 ±4 32–36 106 485 13 ±4 13 ±4 101 ±1 18 ±1 0 Application purposes • For floor inlets • For renovations, conversions and new buildings • For wall inlets with an inlet height of 18 cm • For floor-standing WCs with P-bend and flush water inlet height 32–36 cm above the floor (EN 33) • For replacing low-level exposed cisterns • For replacing floor-standing WCs with close-coupled exposed cistern • For mounting on finished floors • For installation in front of solid walls Characteristics �

Pagina 12-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza .231.SI.1

white glass

131.231.SJ.1

...

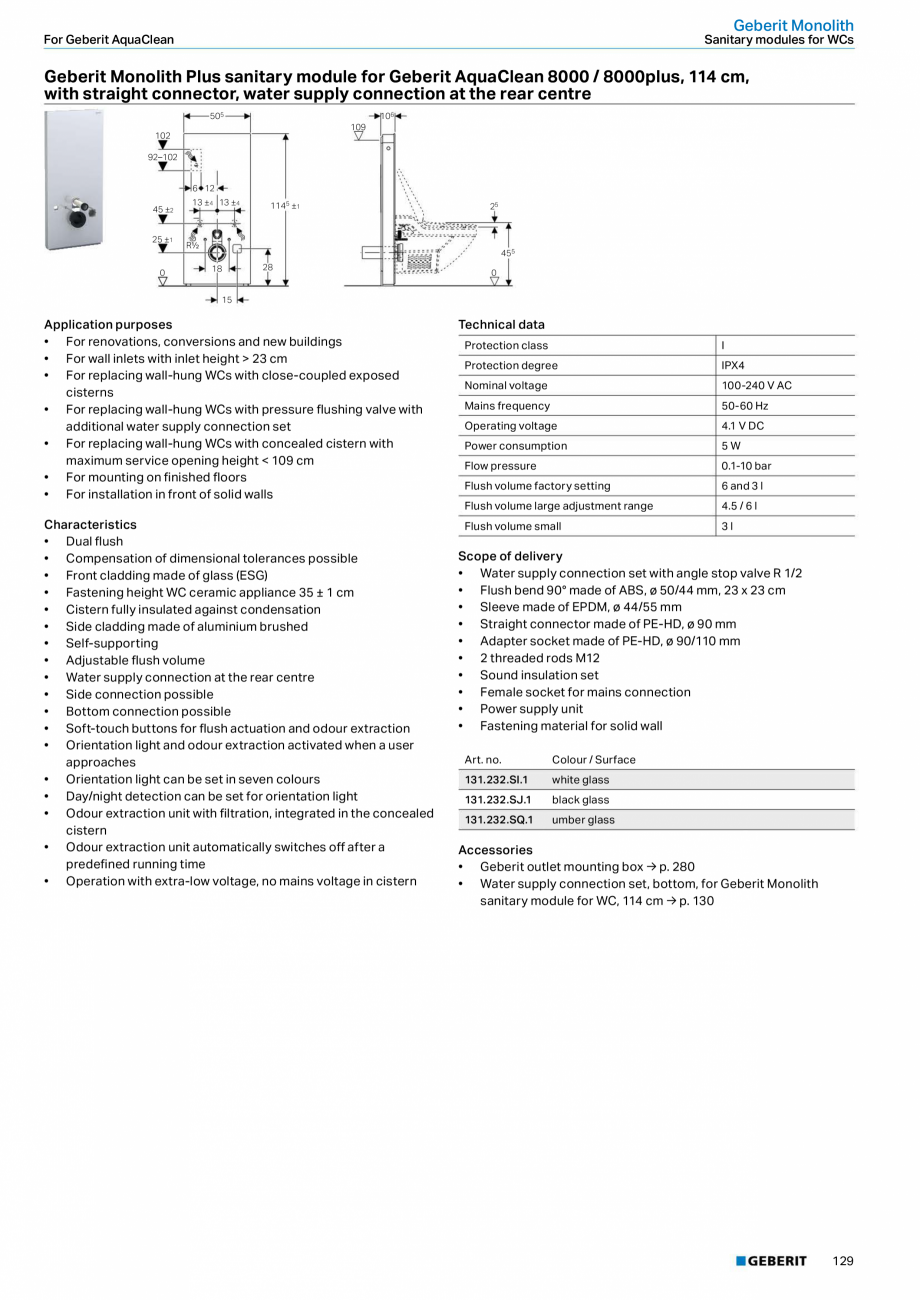

Pagina 13 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza � Dual flush
•...

� Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection on the bottom 122 0 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • Fastening material for solid wall Art. no. Colour / Surface 131.001.SI.1 white glass 131.001.SJ.1 black glass 131.001.SL.1 mint glass 131.001.SQ.1 umber glass Geberit Monolith For floor-standing WCs Sanitary modules for WCs Geberit

Pagina 13-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza � Dual flush
• Compensation of...

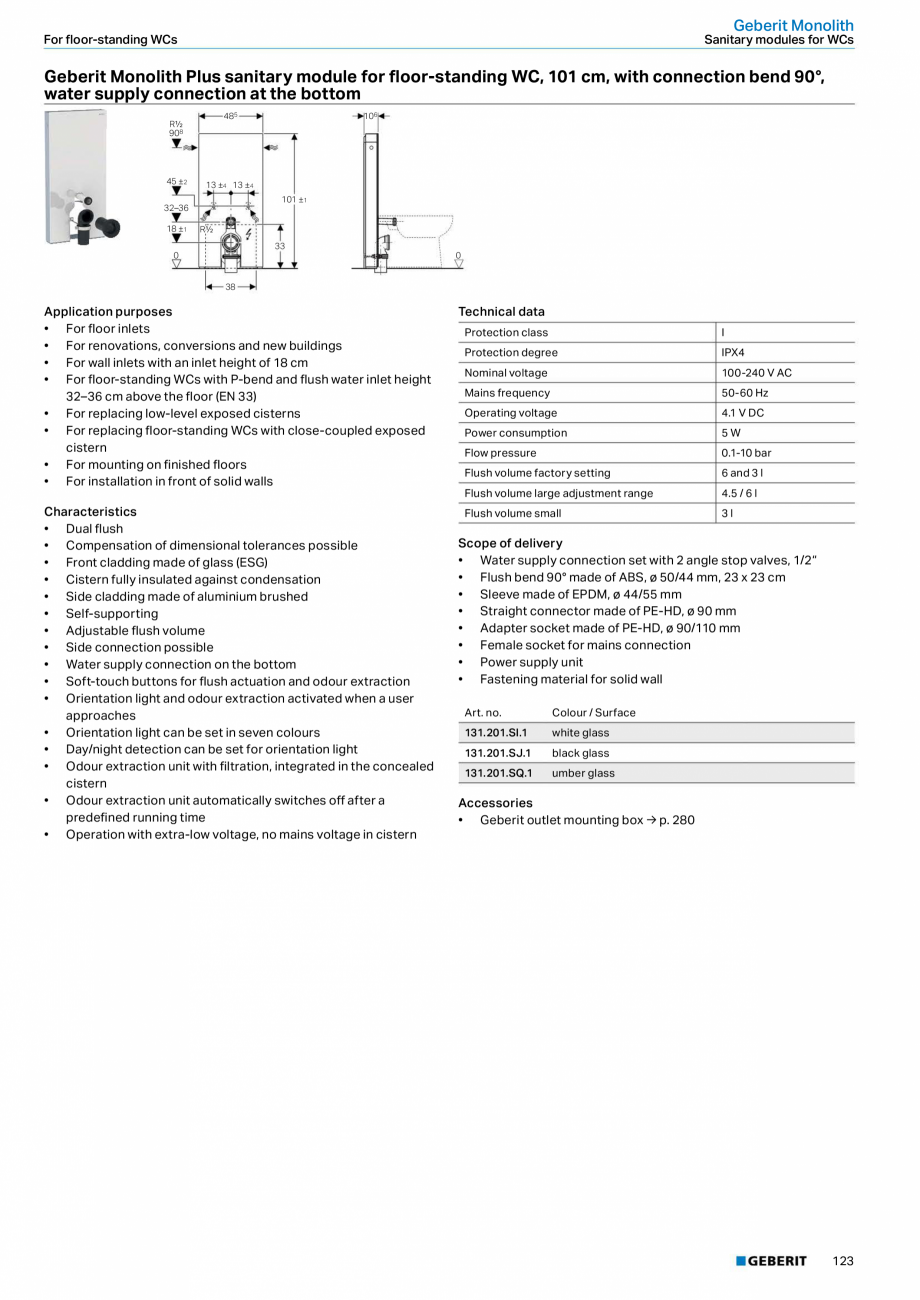

Pagina 14 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza Monolith Plus sanitary...

Monolith Plus sanitary module for floor-standing WC, 101 cm, with connection bend 90°, water supply connection at the bottom 45 ±2 13 ±4 13 ±4 101 ±1 32–36 18 ±1 106 485 R½ 908 R½ 33 0 0 38 Application purposes • For floor inlets • For renovations, conversions and new buildings • For wall inlets with an inlet height of 18 cm • For floor-standing WCs with P-bend and flush water inlet height 32–36 cm above the floor (EN 33) • For replacing low-level exposed cisterns • For replacing floor-standing WCs with close-coupled exposed cistern • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection on the bottom • Soft-t

Pagina 14-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza Monolith Plus sanitary module for...

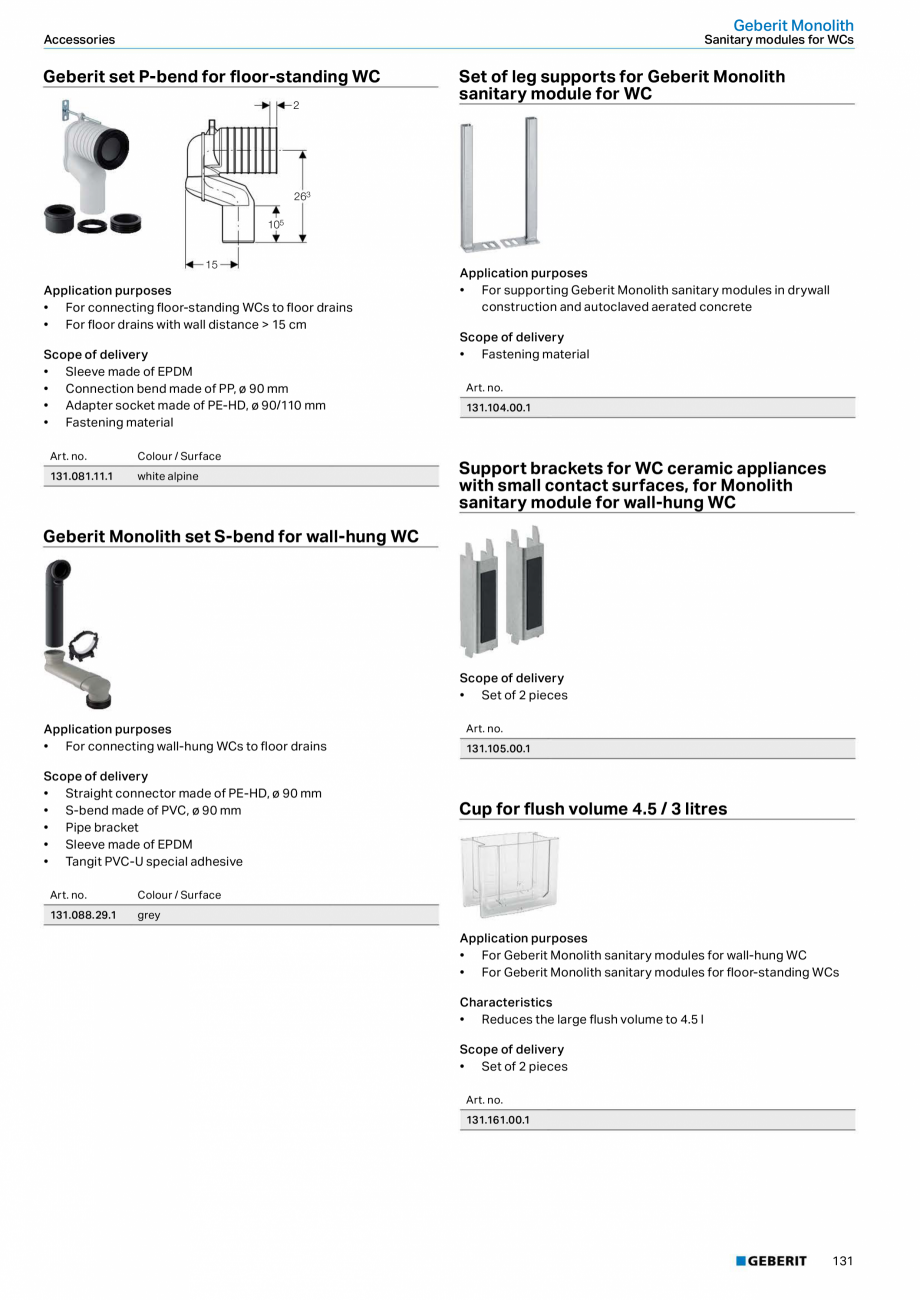

Pagina 15 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza ouch buttons for flush...

ouch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Technical data Protection class I Protection degree IPX4 Nominal voltage 100-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90

Pagina 15-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza ouch buttons for flush actuation and...

Pagina 16 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza mm
• Adapter socket made...

mm • Adapter socket made of PE-HD, ø 90/110 mm • Female socket for mains connection • Power supply unit • Fastening material for solid wall Art. no. Colour / Surface 131.201.SI.1 white glass 131.201.SJ.1 black glass 131.201.SQ.1 umber glass Accessories • Geberit outlet mounting box → p. 280 123 Geberit Monolith Sanitary modules for WCs For floor-standing WCs Geberit Monolith sanitary module for floor-standing WC, 114 cm, with P-bend, water supply connection at the rear centre 106 505 109 104 92–102 R½ 30 1145 ±1 32–36 18 ±1 0 Application purposes • For floor inlets • For renovations, conversions and new buildings • For wall inlets with an inlet height of 18 cm • For replacing floor-standing WCs with concealed cistern with maximum service opening height < 109 cm • For replacing half-high level exposed cisterns • For replacing floor-standing WCs with close-coupled exposed cistern • For replacing pressure flushing valves • For mountin

Pagina 16-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza mm
• Adapter socket made of PE-HD,...

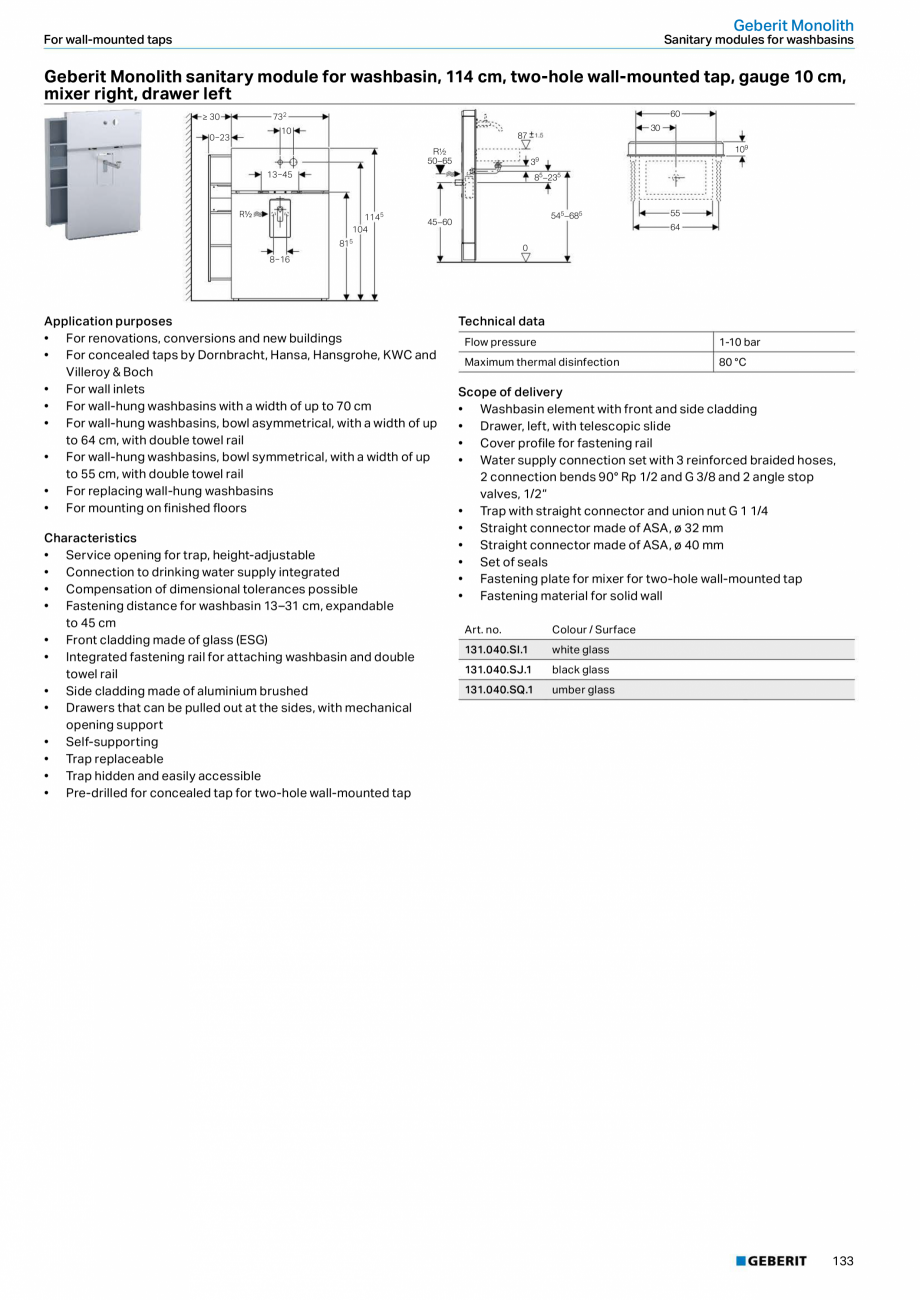

Pagina 17 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza g on finished floors
•...

g on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible 124 0 Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Connection bend made of PP, ø 90 mm • Sleeve made of EPDM, ø 44/55 mm • Adapter socket made of PE-HD, ø 90/110 mm • Fastening material for solid wall Art. no. Colour / Surface 131.033.SI.1 white glass 131.033.SJ.1 black glass 131.033.SQ.1 u

Pagina 17-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza g on finished floors
• For...

Pagina 18 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza mber glass

Accessories...

mber glass Accessories • Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 Geberit Monolith For floor-standing WCs Sanitary modules for WCs Geberit Monolith Plus sanitary module for floor-standing WC, 114 cm, with P-bend, water supply connection at the rear centre 106 505 109 102 92–102 45 ±2 6 12 13 ±4 13 ±4 1145 ±1 32–36 18 ±1 R½ 33 0 0 38 Application purposes • For floor inlets • For renovations, conversions and new buildings • For wall inlets with an inlet height of 18 cm • For replacing floor-standing WCs with concealed cistern with maximum service opening height < 109 cm • For replacing half-high level exposed cisterns • For replacing floor-standing WCs with close-coupled exposed cistern • For replacing pressure flushing valves • For mounting on finished floors • For installation in front of solid walls Technical data I Protection degree IPX4 Nominal voltage 100-240 V AC Mains f

Pagina 18-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza mber glass

Accessories
• Water...

Pagina 19 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza requency

50-60 Hz
...

requency 50-60 Hz Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible • Soft-touch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operati

Pagina 19-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza requency

50-60 Hz

Operating voltage
...

Pagina 20 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza on with extra-low voltage,...

on with extra-low voltage, no mains voltage in cistern Protection class 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Connection bend made of PP, ø 90 mm • Sleeve made of EPDM, ø 44/55 mm • Adapter socket made of PE-HD, ø 90/110 mm • Female socket for mains connection • Power supply unit • Fastening material for solid wall Art. no. Colour / Surface 131.233.SI.1 white glass 131.233.SJ.1 black glass 131.233.SQ.1 umber glass Accessories • Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 • Geberit outlet mounting box → p. 280 125 Geberit Monolith Sanitary modules for WCs For Geberit AquaClean 6.1.3 For Geberit AquaClean Geberit Monolith sanitary module for Geberit AquaClean 8000 / 8000plus, 101 cm, with straight connector, water supply connection at the bottom 47 106 485 R½ 908 4 13 4 13 4 25 1

Pagina 20-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza on with extra-low voltage, no mains...

Pagina 21 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza 01

25
455
0

28

18

0
...

01 25 455 0 28 18 0 15 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection on the bottom Technical data Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EP

Pagina 21-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza 01

25
455
0

28

18

0

15
...

Pagina 22 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza DM, ø 44/55 mm
•...

DM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Fastening material for solid wall Colour / Surface 131.024.SI.1 white glass 131.024.SJ.1 black glass 131.024.SQ.1 126 Art. no. umber glass Geberit Monolith For Geberit AquaClean Sanitary modules for WCs Geberit Monolith Plus sanitary module for Geberit AquaClean 8000 / 8000plus, 101 cm, with straight connector, water supply connection at the bottom R½ 908 45 ±2 106 485 13 ±4 13 ±4 25 101 ±1 25 ±1 455 0 18 28 0 15 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) �

Pagina 22-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza DM, ø 44/55 mm
• Straight connector...

Pagina 23 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza �� Fastening height WC...

�� Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Side connection possible • Water supply connection on the bottom • Soft-touch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Technical data Protection class I Protection degree IPX4 Nominal voltage 100-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large

Pagina 23-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza �� Fastening height WC ceramic...

Pagina 24 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza adjustment range

4.5 / 6 ...

adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with 2 angle stop valves, 1/2“ • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Female socket for mains connection • Power supply unit • Fastening material for solid wall Art. no. Colour / Surface 131.224.SI.1 white glass 131.224.SJ.1 black glass 131.224.SQ.1 umber glass Accessories • Geberit set straight connector for wall-hung WC, stepped by 3 cm → p. 130 • Set of leg supports for Geberit Monolith sanitary module for WC → p. 131 • Geberit outlet mounting box → p. 280 127 Geberit Monolith Sanitary modules for WCs For Geberit AquaClean Geberit Monolith sanitary module for Geberit AquaClean 8000 / 8000plus, 114 cm, with straight connector, water supply connection at

Pagina 24-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza adjustment range

4.5 / 6 l

Flush...

Pagina 25 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza the rear centre
505

106
...

the rear centre 505 106 109 104 92−102 R½ 30 1145 25 18 25 455 28 0 0 15 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For replacing wall-hung WCs with pressure flushing valve • For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • Side connection possible • Bottom connection possible 128 Technical data Flow pressure 0.1-10 bar Flush volume fa

Pagina 25-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza the rear centre
505

106
109

104...

Pagina 26 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza ctory setting

6 and 3 l

...

ctory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with angle stop valve R 1/2 • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EPDM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Fastening material for solid wall Art. no. Colour / Surface 131.032.SI.1 white glass 131.032.SJ.1 black glass 131.032.SQ.1 umber glass Accessories • Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 • Geberit set straight connector for wall-hung WC, stepped by 3 cm → p. 130 • Set of leg supports for Geberit Monolith sanitary module for WC → p. 131 Geberit Monolith For Geberit AquaClean Sanitary modules for WCs Geberit Monolith Plus sanitary module for Geberit AquaClean 8000 / 8000plus, 114 cm, with straig

Pagina 26-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza ctory setting

6 and 3 l

Flush volume...

Pagina 27 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza ht connector, water supply...

ht connector, water supply connection at the rear centre 505 106 109 102 92–102 6 12 45 ±2 25 ±1 0 13 ±4 13 ±4 1145 ±1 25 R½ 455 18 28 0 15 Application purposes • For renovations, conversions and new buildings • For wall inlets with inlet height > 23 cm • For replacing wall-hung WCs with close-coupled exposed cisterns • For replacing wall-hung WCs with pressure flushing valve with additional water supply connection set • For replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cm • For mounting on finished floors • For installation in front of solid walls Characteristics • Dual flush • Compensation of dimensional tolerances possible • Front cladding made of glass (ESG) • Fastening height WC ceramic appliance 35 ± 1 cm • Cistern fully insulated against condensation • Side cladding made of aluminium brushed • Self-supporting • Adjustable flush volume • Water supply connection at the rear centre • S

Pagina 27-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza ht connector, water supply connection ...

Pagina 28 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza ide connection possible...

ide connection possible • Bottom connection possible • Soft-touch buttons for flush actuation and odour extraction • Orientation light and odour extraction activated when a user approaches • Orientation light can be set in seven colours • Day/night detection can be set for orientation light • Odour extraction unit with filtration, integrated in the concealed cistern • Odour extraction unit automatically switches off after a predefined running time • Operation with extra-low voltage, no mains voltage in cistern Technical data Protection class I Protection degree IPX4 Nominal voltage 100-240 V AC Mains frequency 50-60 Hz Operating voltage 4.1 V DC Power consumption 5W Flow pressure 0.1-10 bar Flush volume factory setting 6 and 3 l Flush volume large adjustment range 4.5 / 6 l Flush volume small 3l Scope of delivery • Water supply connection set with angle stop valve R 1/2 • Flush bend 90° made of ABS, ø 50/44 mm, 23 x 23 cm • Sleeve made of EP

Pagina 28-Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza ide connection possible
• Bottom...

Pagina 29 - Modul sanitar pentru WC GEBERIT Monolith Fisa tehnica Engleza DM, ø 44/55 mm
•...

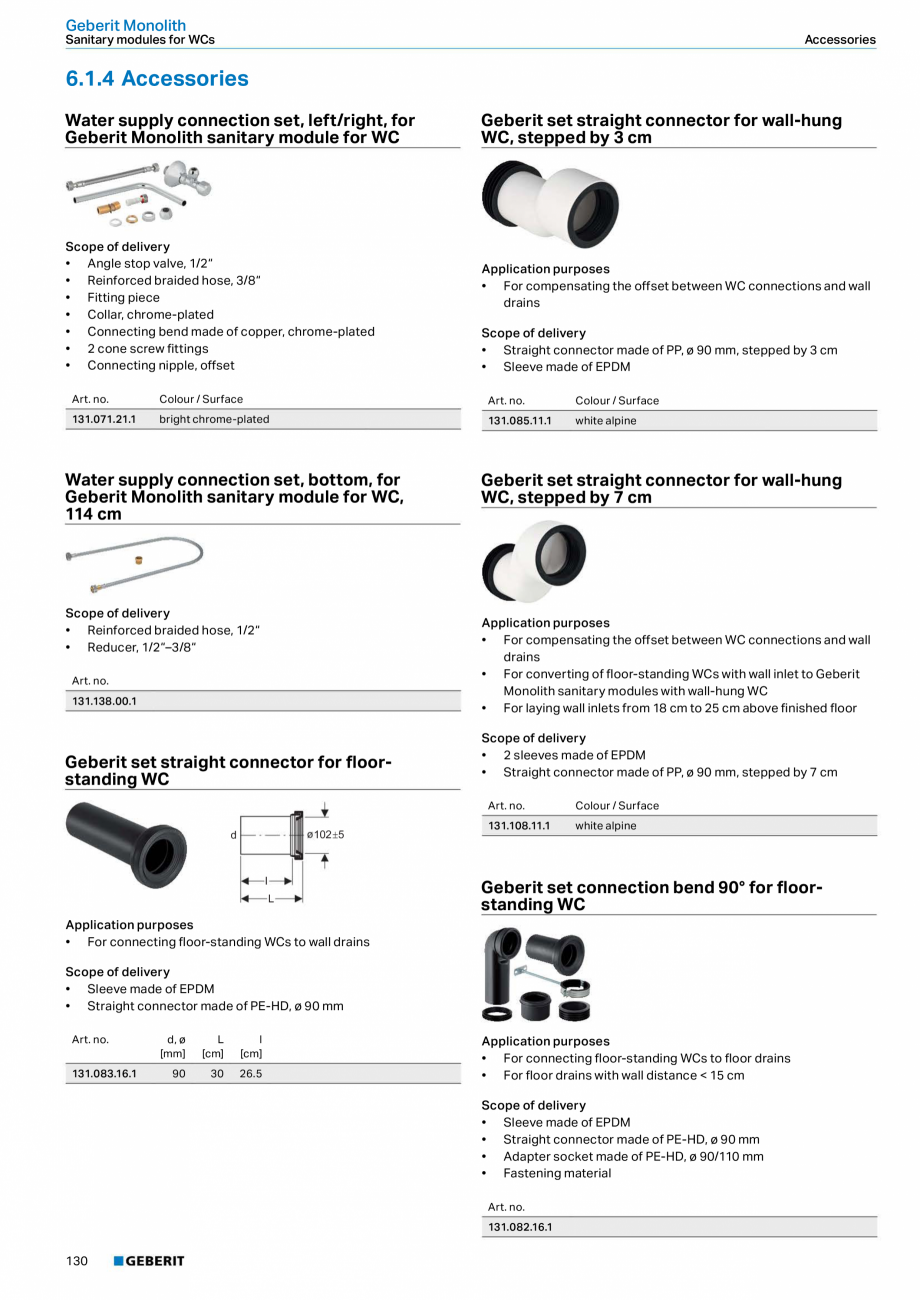

DM, ø 44/55 mm • Straight connector made of PE-HD, ø 90 mm • Adapter socket made of PE-HD, ø 90/110 mm • 2 threaded rods M12 • Sound insulation set • Female socket for mains connection • Power supply unit • Fastening material for solid wall Art. no. Colour / Surface 131.232.SI.1 white glass 131.232.SJ.1 black glass 131.232.SQ.1 umber glass Accessories • Geberit outlet mounting box → p. 280 • Water supply connection set, bottom, for Geberit Monolith sanitary module for WC, 114 cm → p. 130 129 Geberit Monolith Sanitary modules for WCs Accessories 6.1.4 Accessories Water supply connection set, left/right, for Geberit Monolith sanitary module for WC Scope of delivery • Angle stop valve, 1/2“ • Reinforced braided hose, 3/8“ • Fitting piece • Collar, chrome-plated • Connecting bend made of copper, chrome-plated • 2 cone screw fittings • Connecting nipple, offset Geberit set straight connector for wall-hung WC, stepped by 3 cm Applic
