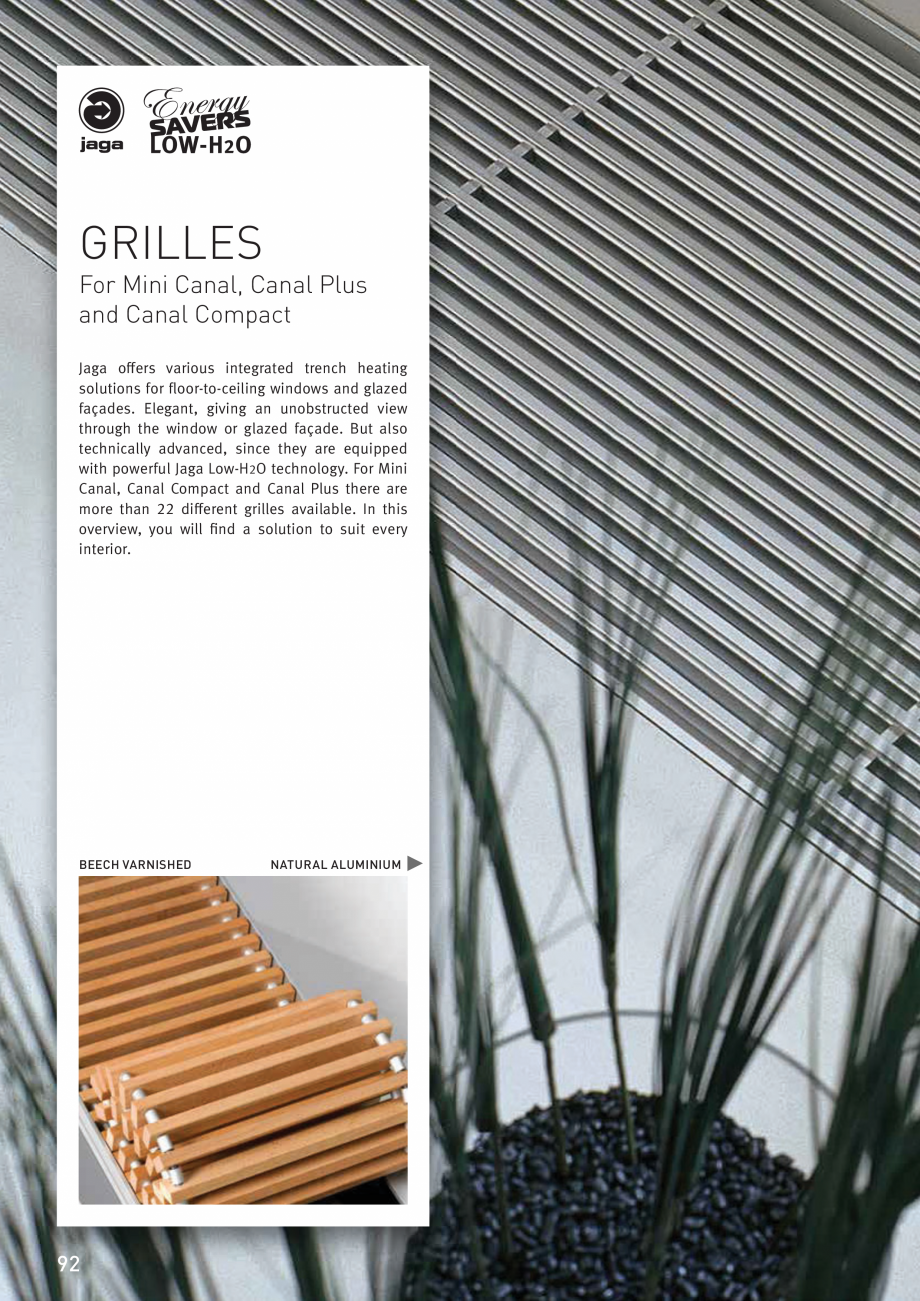

GRILLES For Mini Canal, Canal Plus and Canal Compact Jaga oﬀers various integrated trench heating solutions for ﬂoor-to-ceiling windows and glazed façades. Elegant, giving an unobstructed view through the window or glazed façade. But also technically advanced, since they are equipped with powerful Jaga Low-H2O technology. For Mini Canal, Canal Compact and Canal Plus there are more than 22 diﬀerent grilles available. In this overview, you will ﬁnd a solution to suit every interior. BEECH VARNISHED 92 NATURAL ALUMINIUM 93 GRILLES OVERVIEW GRILLES ROLL-UP DESIGNO WOODEN GRILLES DON Oak natural DOV Oak varnished DMN Merbau natural DMV Merbau varnished DBN Beech natural DBV Beech varnished RON Oak natural ROV Oak varnished RMN Merbau natural RMV Merbau varnished RBN Beech natural RBV Beech varnished 1.3 L L - 1.2 1.2 B B - 1.2 Dimensional tolerance grille width: 0/+0.2 cm Grille width ≤ 40.8 cm 0.2 0.4 1.1 2.5 Roll-up natural or varnishe

Pagina 1-Grilaje pentru convectoare de pardoseala JAGA MINI CANAL, CANAL COMPACT, CANAL PLUS Fisa tehnica...

Pagina 2 - Grilaje pentru convectoare de pardoseala JAGA MINI CANAL, CANAL COMPACT, CANAL PLUS Fisa ...

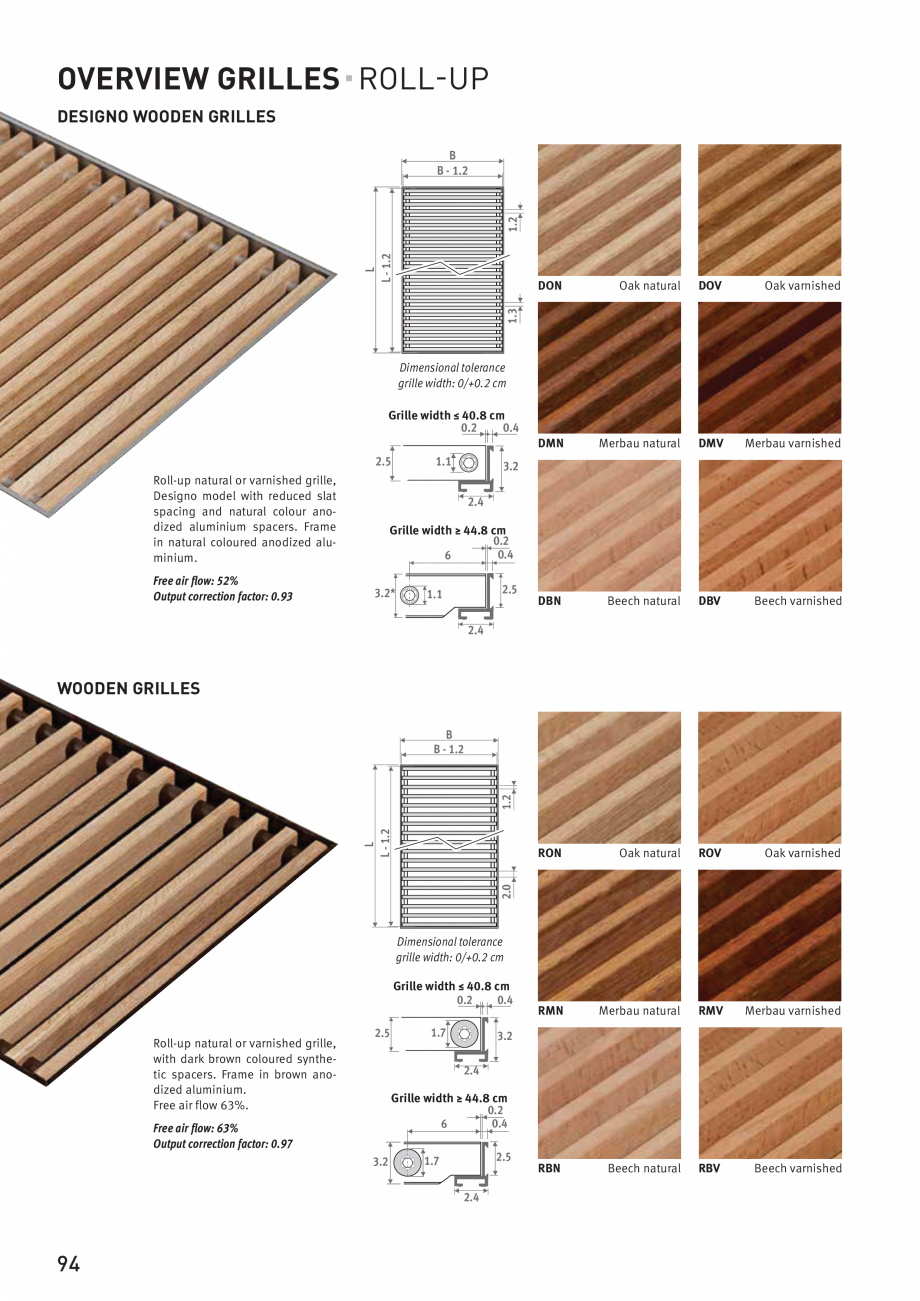

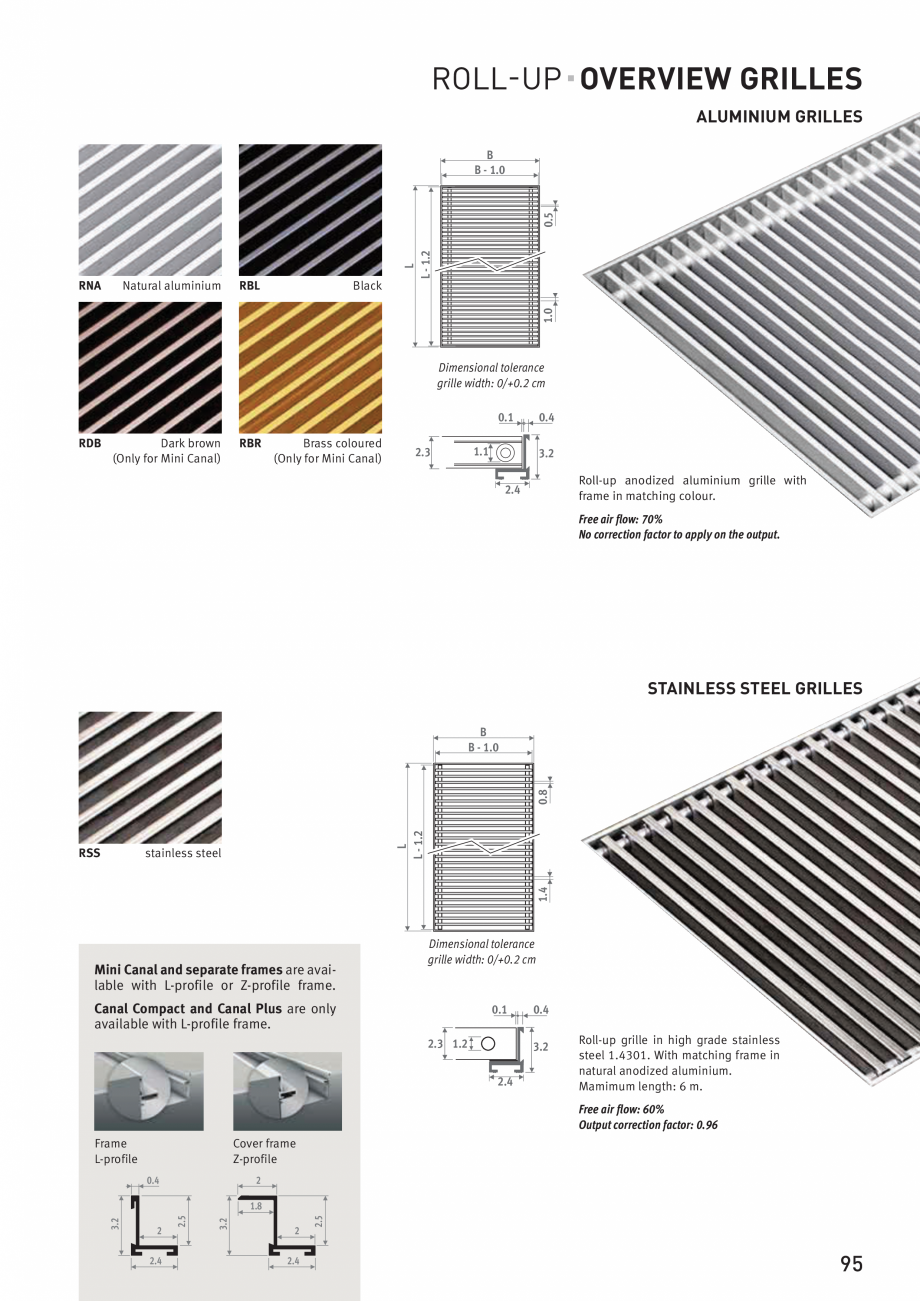

d grille, Designo model with reduced slat spacing and natural colour anodized aluminium spacers. Frame in natural coloured anodized aluminium. Free air flow: 52% Output correction factor: 0.93 3.2 2.4 Grille width ≥ 44.8 cm 0.2 0.4 6 3.2* 2.5 1.1 2.4 WOODEN GRILLES 2.0 L L - 1.2 1.2 B B - 1.2 Dimensional tolerance grille width: 0/+0.2 cm Grille width ≤ 40.8 cm 0.2 0.4 Roll-up natural or varnished grille, with dark brown coloured synthetic spacers. Frame in brown anodized aluminium. Free air flow 63%. 2.5 1.7 3.2 2.4 Grille width ≥ 44.8 cm 0.2 0.4 6 Free air flow: 63% Output correction factor: 0.97 3.2 2.5 1.7 2.4 94 ROLL-UP OVERVIEW GRILLES ALUMINIUM GRILLES L L - 1.2 0.5 B B - 1.0 Natural aluminium RBL Black 1.0 RNA Dimensional tolerance grille width: 0/+0.2 cm 0.1 RDB Dark brown (Only for Mini Canal) RBR Brass coloured (Only for Mini Canal) 2.3 0.4 1.1 3.2 Roll-up anodized aluminium grille with frame in matching colour. 2.4 Free air fl

Pagina 2-Grilaje pentru convectoare de pardoseala JAGA MINI CANAL, CANAL COMPACT, CANAL PLUS Fisa tehnica...

Pagina 3 - Grilaje pentru convectoare de pardoseala JAGA MINI CANAL, CANAL COMPACT, CANAL PLUS Fisa ...

ow: 70% No correction factor to apply on the output. STAINLESS STEEL GRILLES stainless steel 1.4 RSS L L - 1.2 0.8 B B - 1.0 Mini Canal and separate frames are available with L-profile or Z-profile frame. Dimensional tolerance grille width: 0/+0.2 cm 0.1 Canal Compact and Canal Plus are only available with L-profile frame. 2.3 1.2 0.4 3.2 2.4 Roll-up grille in high grade stainless steel 1.4301. With matching frame in natural anodized aluminium. Mamimum length: 6 m. Free air flow: 60% Output correction factor: 0.96 Frame L-profile Cover frame Z-profile 0.4 2 2.4 2 2.4 2.5 3.2 2 2.5 3.2 1.8 95 OVERVIEW GRILLES RIGID DESIGNO ALUMINIUM GRILLES DNA Natural aluminium DBL Black DBR Brass coloured (Only for Mini Canal) DDB Dark brown (Only for Mini Canal) max. 30.5 L L - 1.2 B B - 1.0 Dimensional tolerance grille width: 0/+0.2 cm 2.5 0.4 3.2 0.9 0.1 1.6 0.5 2.4 Rigid anodized aluminium grille, Designo model with reduced slat spacing. Matching c

Pagina 3-Grilaje pentru convectoare de pardoseala JAGA MINI CANAL, CANAL COMPACT, CANAL PLUS Fisa tehnica...

Pagina 4 - Grilaje pentru convectoare de pardoseala JAGA MINI CANAL, CANAL COMPACT, CANAL PLUS Fisa ...

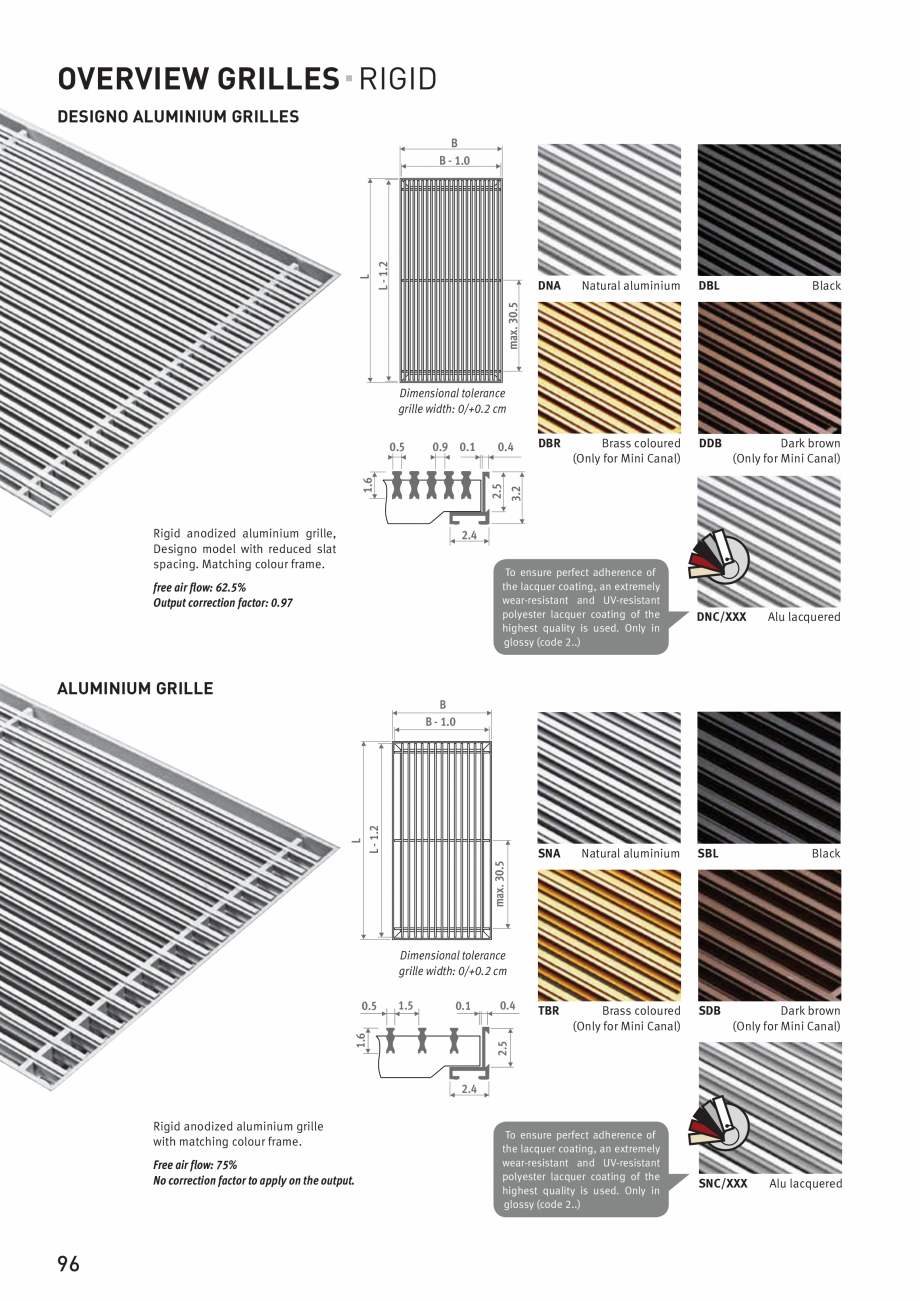

olour frame. To ensure perfect adherence of the lacquer coating, an extremely wear-resistant and UV-resistant polyester lacquer coating of the highest quality is used. Only in glossy (code 2..) free air flow: 62.5% Output correction factor: 0.97 ALUMINIUM GRILLE DNC/XXX Alu lacquered max. 30.5 L L - 1.2 B B - 1.0 SNA Natural aluminium SBL Black TBR Brass coloured (Only for Mini Canal) SDB Dark brown (Only for Mini Canal) Dimensional tolerance grille width: 0/+0.2 cm 1.5 0.1 0.4 2.5 1.6 0.5 2.4 Rigid anodized aluminium grille with matching colour frame. Free air flow: 75% No correction factor to apply on the output. 96 To ensure perfect adherence of the lacquer coating, an extremely wear-resistant and UV-resistant polyester lacquer coating of the highest quality is used. Only in glossy (code 2..) SNC/XXX Alu lacquered SPECIALS OVERVIEW GRILLES ACCORDION B L L - 1.2 ANA 1.4 0.6 B - 1.0 Natural aluminium The Accordion by Jaga gives your floor an arti

Pagina 4-Grilaje pentru convectoare de pardoseala JAGA MINI CANAL, CANAL COMPACT, CANAL PLUS Fisa tehnica...

Pagina 5 - Grilaje pentru convectoare de pardoseala JAGA MINI CANAL, CANAL COMPACT, CANAL PLUS Fisa ...

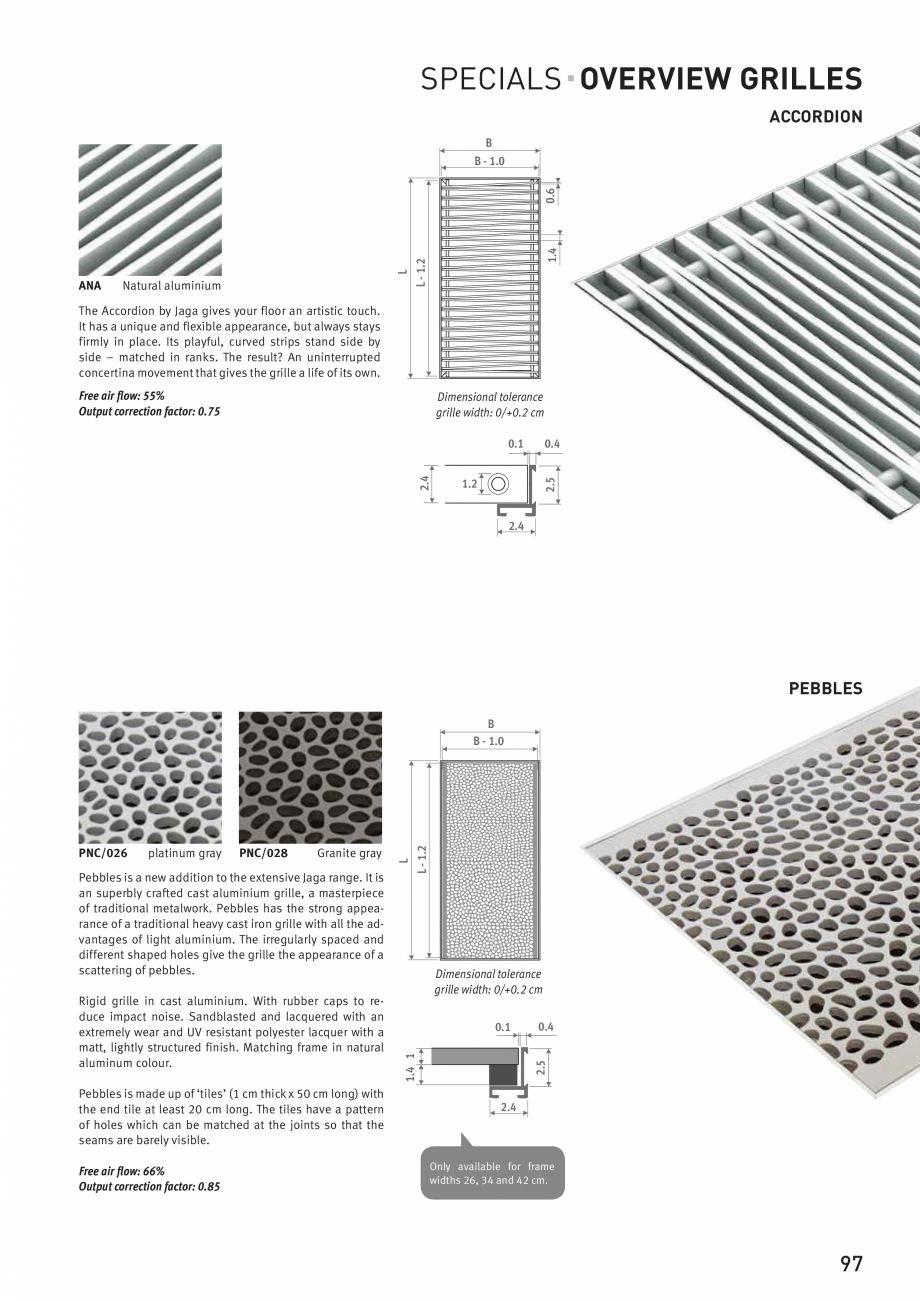

stic touch. It has a unique and flexible appearance, but always stays firmly in place. Its playful, curved strips stand side by side – matched in ranks. The result? An uninterrupted concertina movement that gives the grille a life of its own. Free air flow: 55% Output correction factor: 0.75 Dimensional tolerance grille width: 0/+0.2 cm 1.2 0.4 2.5 2.4 0.1 2.4 PEBBLES PNC/028 Granite gray Pebbles is a new addition to the extensive Jaga range. It is an superbly crafted cast aluminium grille, a masterpiece of traditional metalwork. Pebbles has the strong appearance of a traditional heavy cast iron grille with all the advantages of light aluminium. The irregularly spaced and different shaped holes give the grille the appearance of a scattering of pebbles. Rigid grille in cast aluminium. With rubber caps to reduce impact noise. Sandblasted and lacquered with an extremely wear and UV resistant polyester lacquer with a matt, lightly structured finish. Matching frame in natural al

Pagina 5-Grilaje pentru convectoare de pardoseala JAGA MINI CANAL, CANAL COMPACT, CANAL PLUS Fisa tehnica...

Pagina 6 - Grilaje pentru convectoare de pardoseala JAGA MINI CANAL, CANAL COMPACT, CANAL PLUS Fisa ...

uminum colour. Pebbles is made up of ‘tiles’ (1 cm thick x 50 cm long) with the end tile at least 20 cm long. The tiles have a pattern of holes which can be matched at the joints so that the seams are barely visible. Free air flow: 66% Output correction factor: 0.85 Dimensional tolerance grille width: 0/+0.2 cm 0.1 0.4 2.5 platinum gray 1.4 1 PNC/026 L L - 1.2 B B - 1.0 2.4 Only available for frame widths 26, 34 and 42 cm. 97
