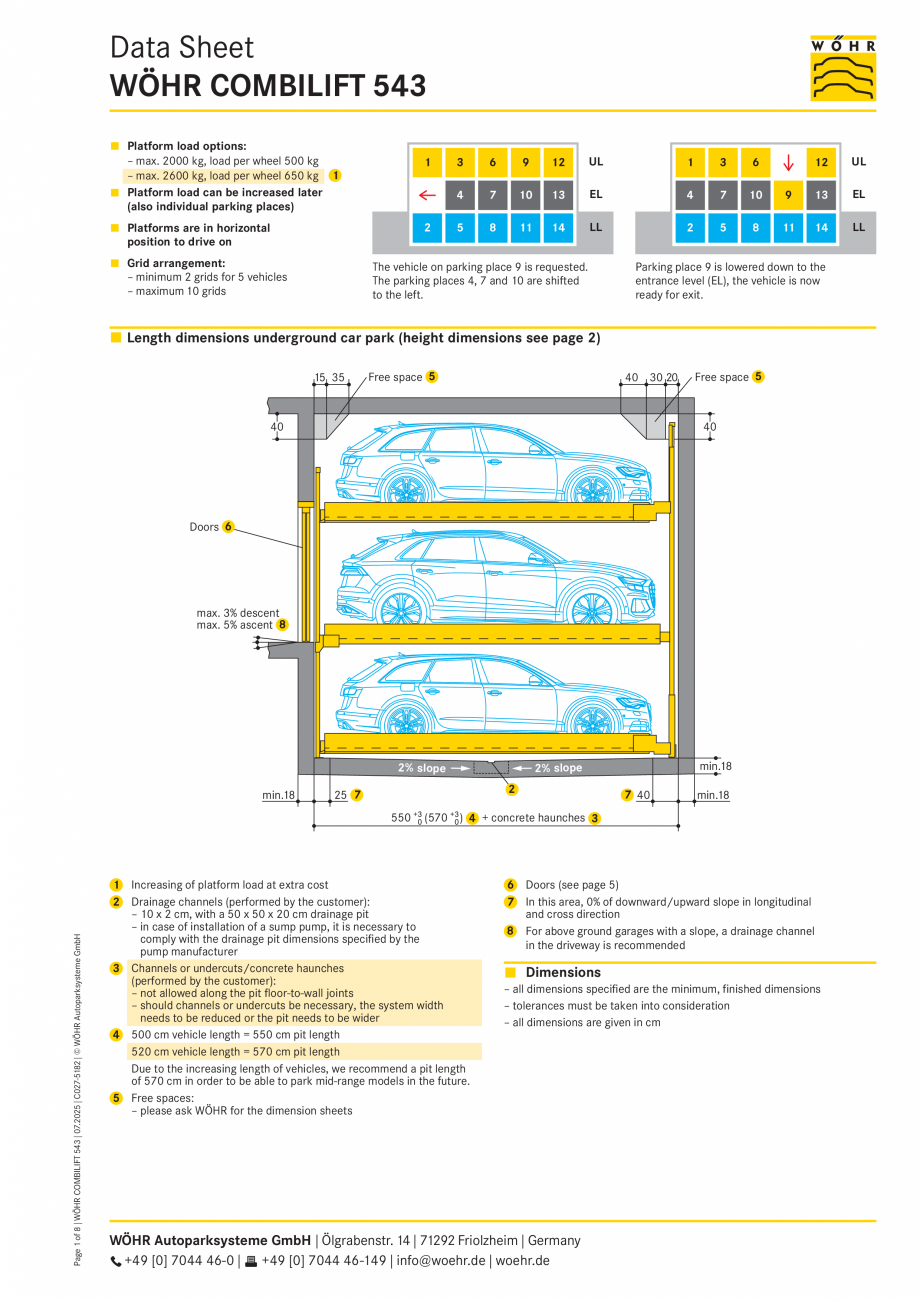

Datasheet Combilift 543 WÖHR
tform widths:
250 cm:
– for 190 cm vehicle width (without outside mirror)
260–300 cm:
– for vehicles wider than 190 cm (without outside mirror)
270–300 cm:
– for units at the end of the driving aisle
Width dimensions (underground car park)
1
3
6
9
12
15
18
UL (upper level) 2
entrance/exit entrance/exit entrance/exit entrance/exit entrance/exit entrance/exit entrance/exit
empty space
4
7
10
13
16
19
EL (entrance level) 1 2
2
5
8
11
14
17
20
LL (lower level) 2
first grid
middle grid
middle grid
middle grid
middle grid
middle grid
end grid
B
B1
B1
B1
B1
B1
B
1
1
1
1
1
1
1
Space
requirements
B
B1
280
270
290
280
300
290
310
300
320
310
330
320
clear
platform width
250
260
270
280
290
300
1
One entry/exit is required on entrance level (EL) for each grid
2
For a comfortable parking process and comfortable conditions
for getting in and out of the car, we recommend platform widths
of at least 270 cm. Smaller platform widths are poss
