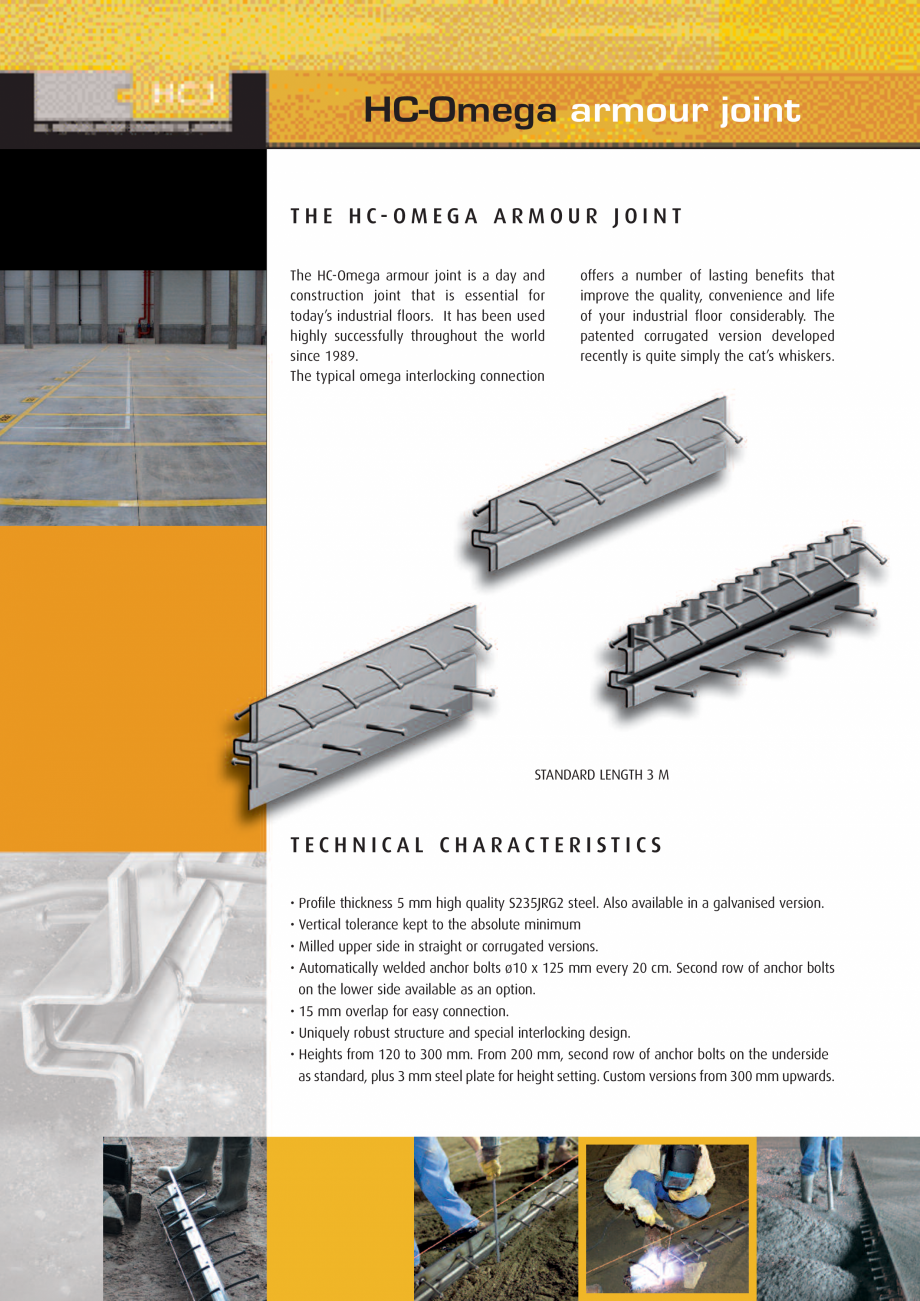

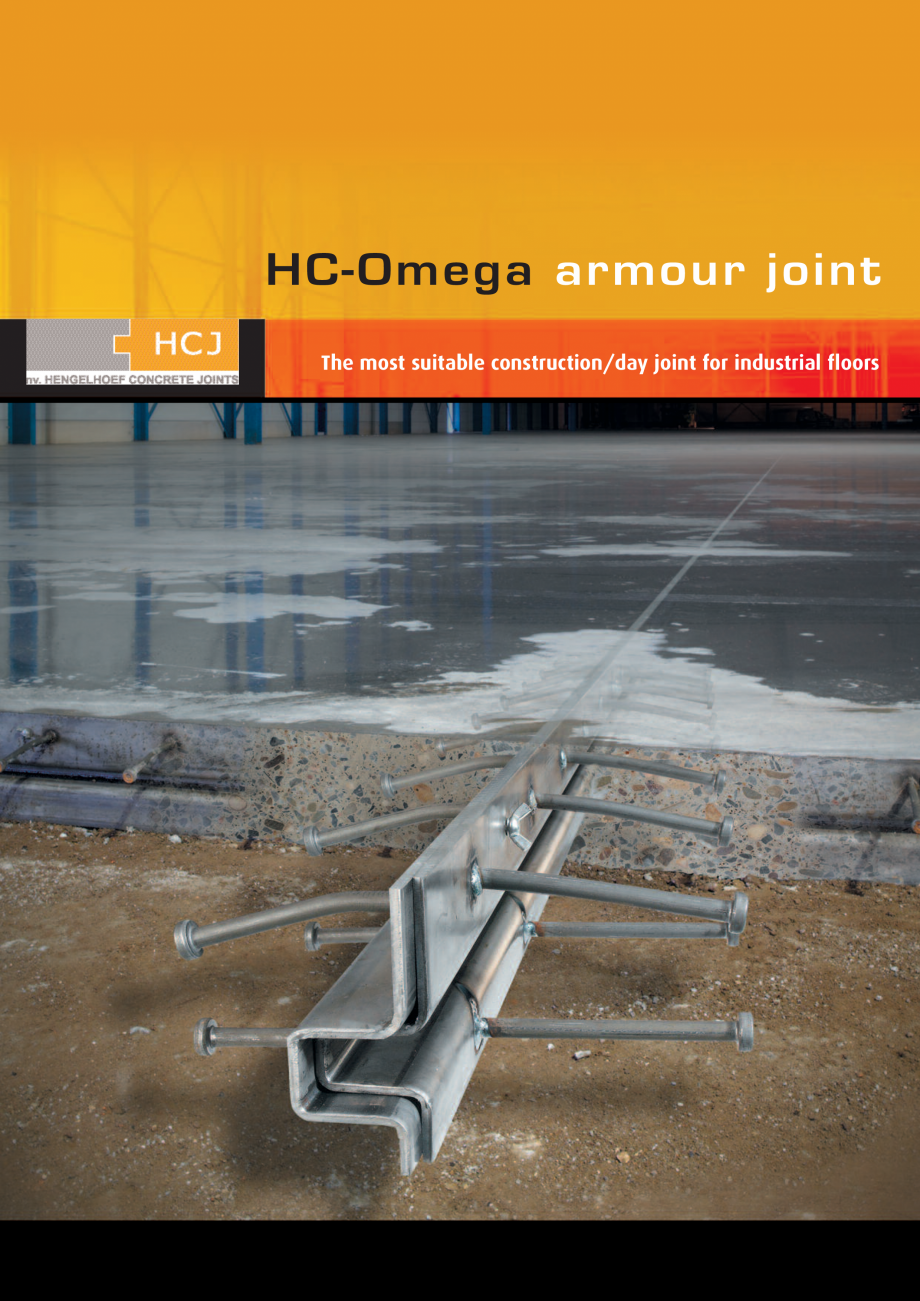

HC-Omega armour joint The most suitable construction/day joint for industrial floors HC-Omega armour joint T H E H C- O M E G A A R M O U R J O I N T The HC-Omega armour joint is a day and construction joint that is essential for today’s industrial floors. It has been used highly successfully throughout the world since 1989. The typical omega interlocking connection offers a number of lasting benefits that improve the quality, convenience and life of your industrial floor considerably. The patented corrugated version developed recently is quite simply the cat’s whiskers. STANDARD LENGTH 3 M TECHNICAL CHARACTERISTICS • Profile thickness 5 mm high quality S235JRG2 steel. Also available in a galvanised version. • Vertical tolerance kept to the absolute minimum • Milled upper side in straight or corrugated versions. • Automatically welded anchor bolts ø10 x 125 mm every 20 cm. Second row of anchor bolts on the lower side available as an option. • 15 mm overlap for easy

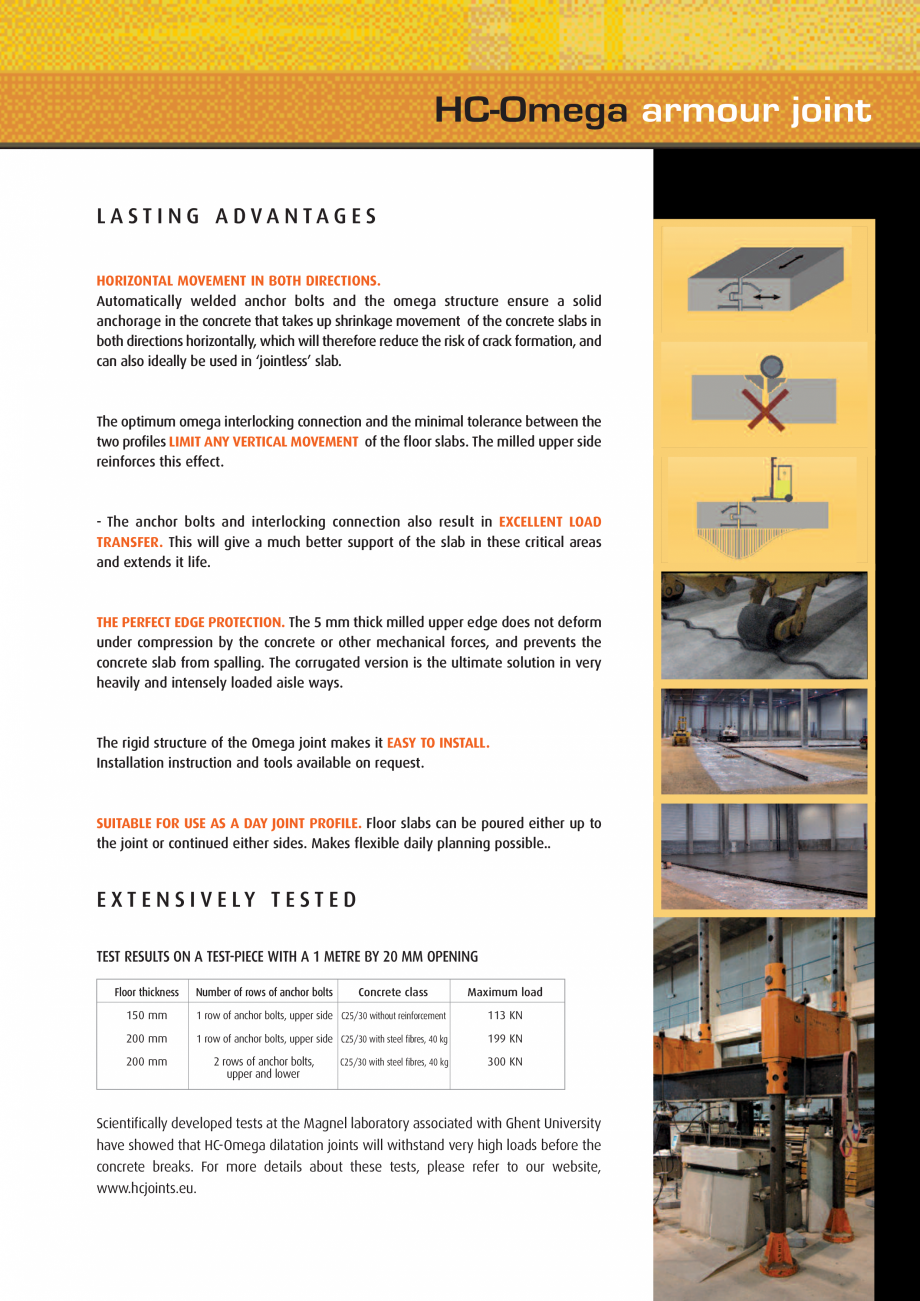

connection. • Uniquely robust structure and special interlocking design. • Heights from 120 to 300 mm. From 200 mm, second row of anchor bolts on the underside as standard, plus 3 mm steel plate for height setting. Custom versions from 300 mm upwards. HC-Omega armour joint LA STING ADVANTAGES HORIZONTAL MOVEMENT IN BOTH DIRECTIONS. Automatically welded anchor bolts and the omega structure ensure a solid anchorage in the concrete that takes up shrinkage movement of the concrete slabs in both directions horizontally, which will therefore reduce the risk of crack formation, and can also ideally be used in ‘jointless’ slab. The optimum omega interlocking connection and the minimal tolerance between the two profiles LIMIT ANY VERTICAL MOVEMENT of the floor slabs. The milled upper side reinforces this effect. - The anchor bolts and interlocking connection also result in EXCELLENT LOAD TRANSFER. This will give a much better support of the slab in these critical areas and extends i

t life. THE PERFECT EDGE PROTECTION. The 5 mm thick milled upper edge does not deform under compression by the concrete or other mechanical forces, and prevents the concrete slab from spalling. The corrugated version is the ultimate solution in very heavily and intensely loaded aisle ways. The rigid structure of the Omega joint makes it EASY TO INSTALL. Installation instruction and tools available on request. SUITABLE FOR USE AS A DAY JOINT PROFILE. Floor slabs can be poured either up to the joint or continued either sides. Makes flexible daily planning possible.. E X T E N S I V E LY T E ST E D TEST RESULTS ON A TEST-PIECE WITH A 1 METRE BY 20 MM OPENING Floor thickness Number of rows of anchor bolts Concrete class Maximum load 150 mm 1 row of anchor bolts, upper side C25/30 without reinforcement 113 KN 200 mm 1 row of anchor bolts, upper side C25/30 with steel fibres, 40 kg 199 KN 200 mm 2 rows of anchor bolts, upper and lower C25/30 with steel fibres, 40 kg 300 KN

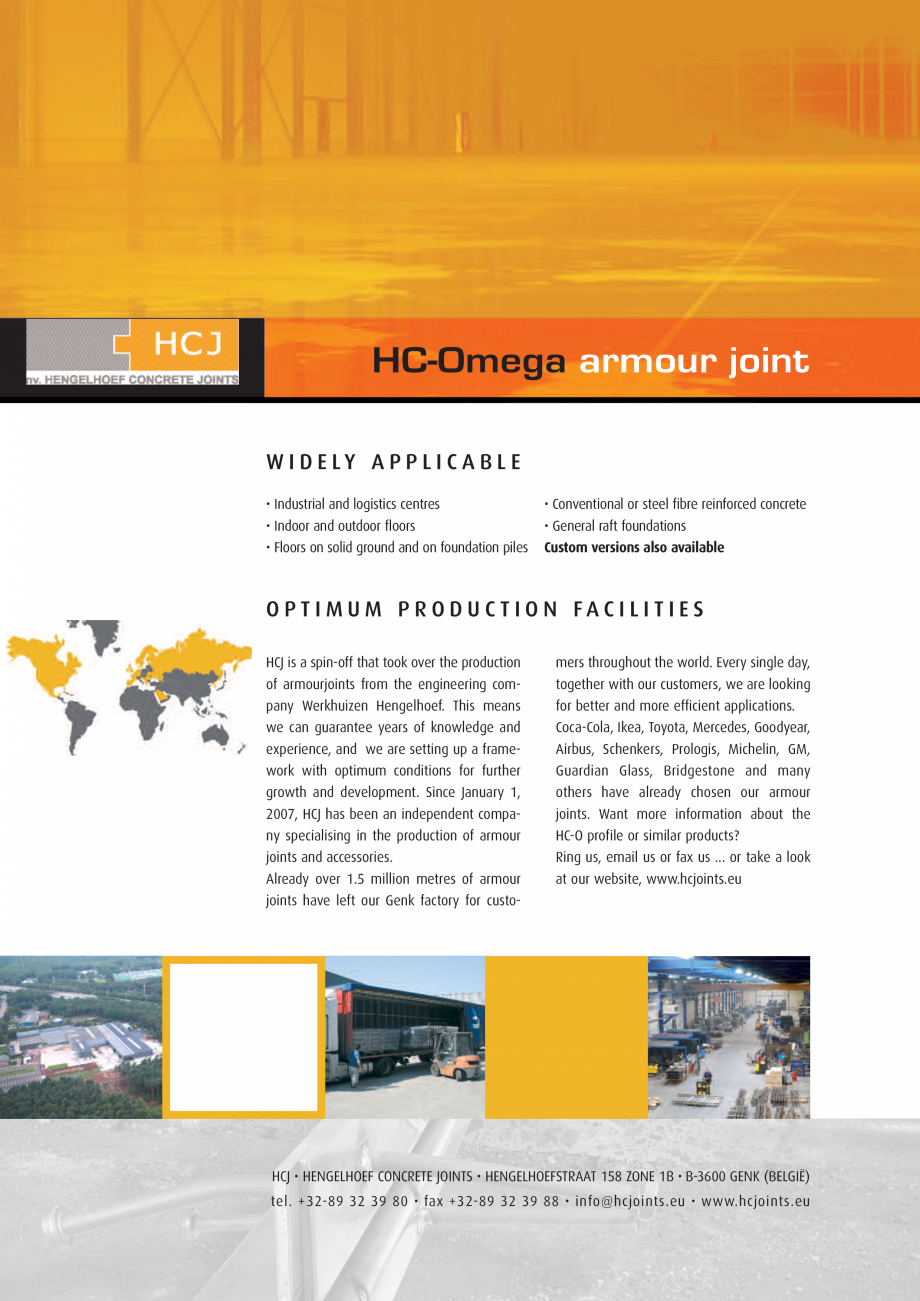

Scientifically developed tests at the Magnel laboratory associated with Ghent University have showed that HC-Omega dilatation joints will withstand very high loads before the concrete breaks. For more details about these tests, please refer to our website, www.hcjoints.eu. HC-Omega armour joint W I D E LY A P P L I C A B L E • Industrial and logistics centres • Conventional or steel fibre reinforced concrete • Indoor and outdoor floors • General raft foundations • Floors on solid ground and on foundation piles Custom versions also available OPTIMUM PROD UC TIO N FACILITIES HCJ is a spin-off that took over the production mers throughout the world. Every single day, of armourjoints from the engineering com- together with our customers, we are looking pany Werkhuizen Hengelhoef. This means for better and more efficient applications. we can guarantee years of knowledge and Coca-Cola, Ikea, Toyota, Mercedes, Goodyear, experience, and we are setting up a frame- Air
