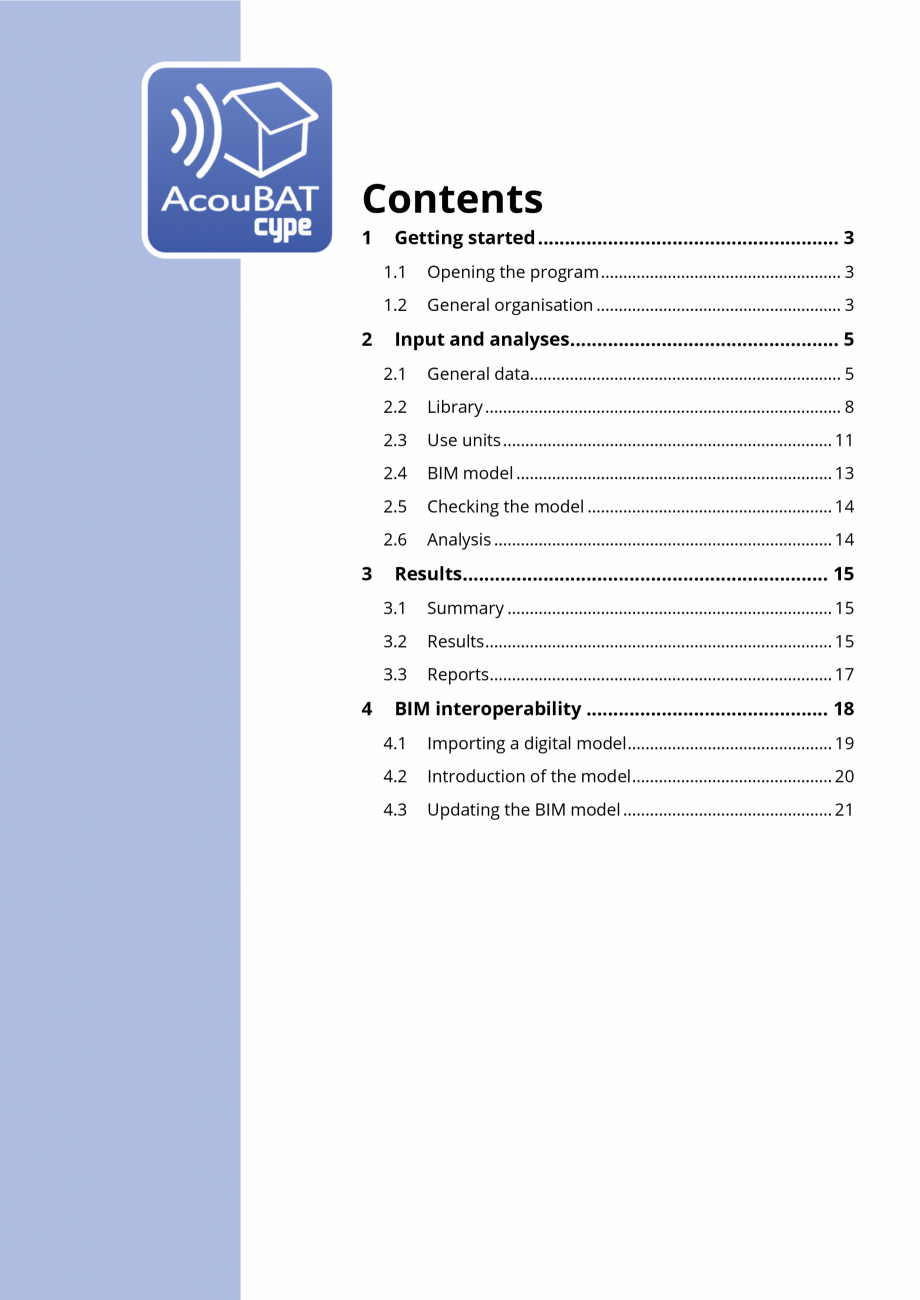

Software for Architecture, Engineering and Construction AcouBAT by CYPE USER MANUAL Analysis and verification of sound insulation and proofing using the ACOUBAT analysis motor, designed by the CSTB (Scientific and Technical Centre for Buildings), and its database. This application is integrated in the Open BIM workflow via the BIMserver.center platform. Contents 1 2 3 4 Getting started ........................................................ 3 1.1 Opening the program ...................................................... 3 1.2 General organisation ....................................................... 3 Input and analyses.................................................. 5 2.1 General data...................................................................... 5 2.2 Library ................................................................................ 8 2.3 Use units .......................................................................... 11 2.4 BIM model .........

Pagina 1-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza Software for...

Pagina 2 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza ..........

.............................................................. 13 2.5 Checking the model ....................................................... 14 2.6 Analysis ............................................................................ 14 Results.................................................................... 15 3.1 Summary ......................................................................... 15 3.2 Results .............................................................................. 15 3.3 Reports............................................................................. 17 BIM interoperability ............................................. 18 4.1 Importing a digital model .............................................. 19 4.2 Introduction of the model ............................................. 20 4.3 Updating the BIM model ............................................... 21 1 Getting started 1.1 Opening the program When opening the AcouBAT by CYPE pr

Pagina 3 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza ogram, ...

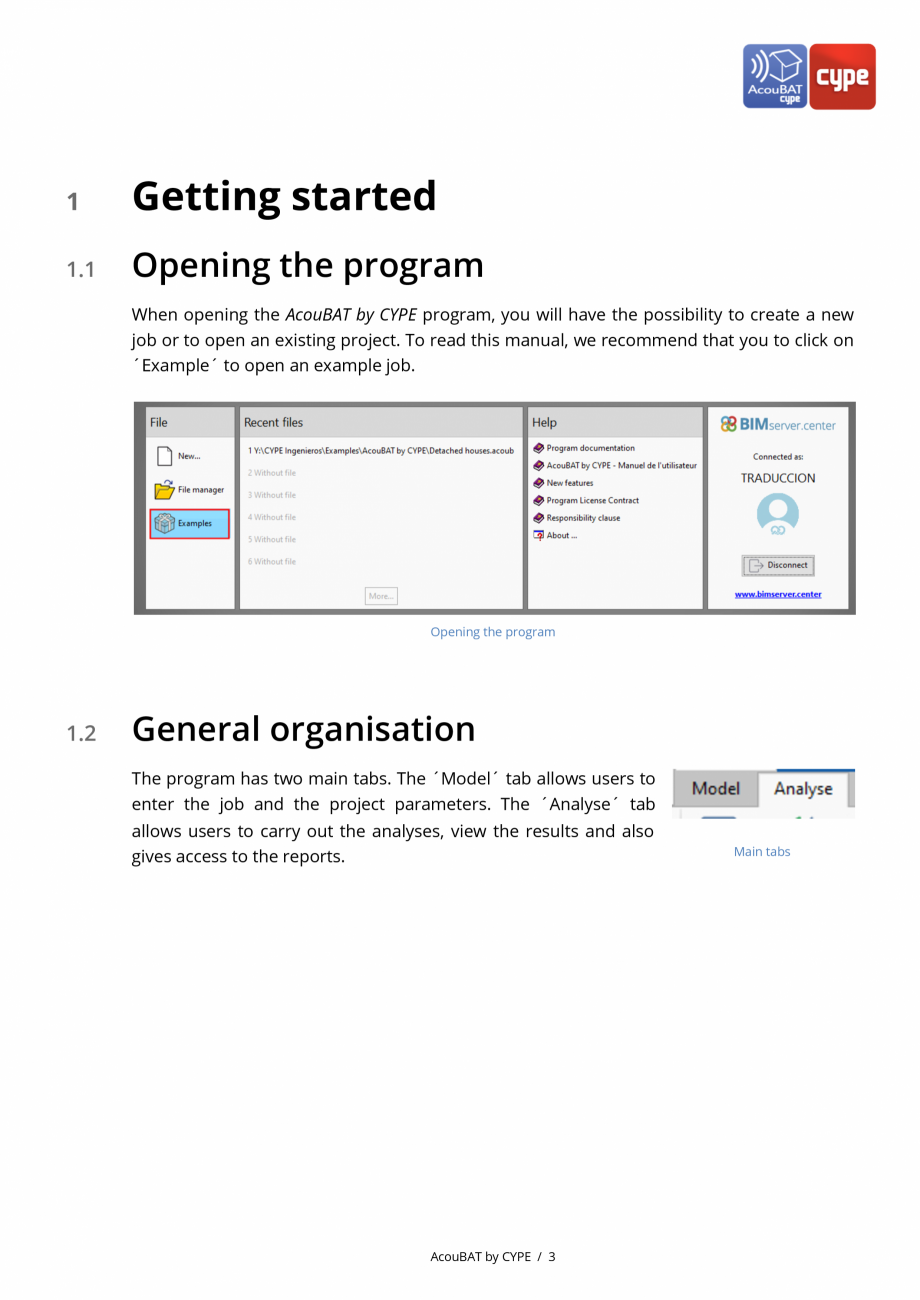

ogram, you will have the possibility to create a new job or to open an existing project. To read this manual, we recommend that you to click on ´Example´ to open an example job. Opening the program 1.2 General organisation The program has two main tabs. The ´Model´ tab allows users to enter the job and the project parameters. The ´Analyse´ tab allows users to carry out the analyses, view the results and also gives access to the reports. AcouBAT by CYPE / 3 Main tabs File. This button allows users to create a new job or to access the file management. This menu also contains save options and access to recently opened files. The management of the electronic license is also available via this button. The top toolbar of the program contains the following icons: Save. Undo. Redo. General toolbar: Configuration. This button allows some of the program’s default settings to be modified, such as the units of measurement, document text styles or the background colour of the progra

Pagina 3-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza ogram, you will...

Pagina 4 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza m.
...

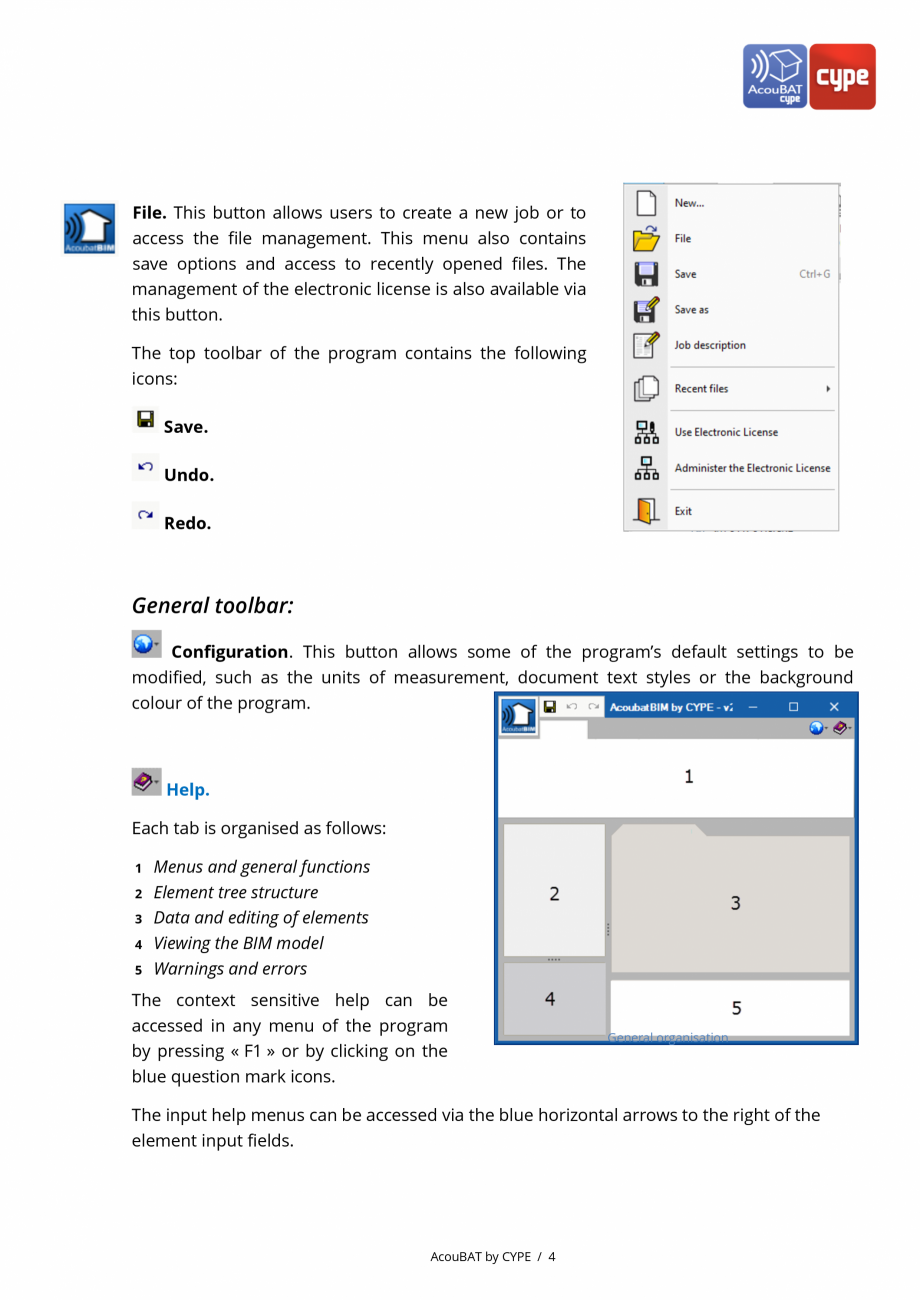

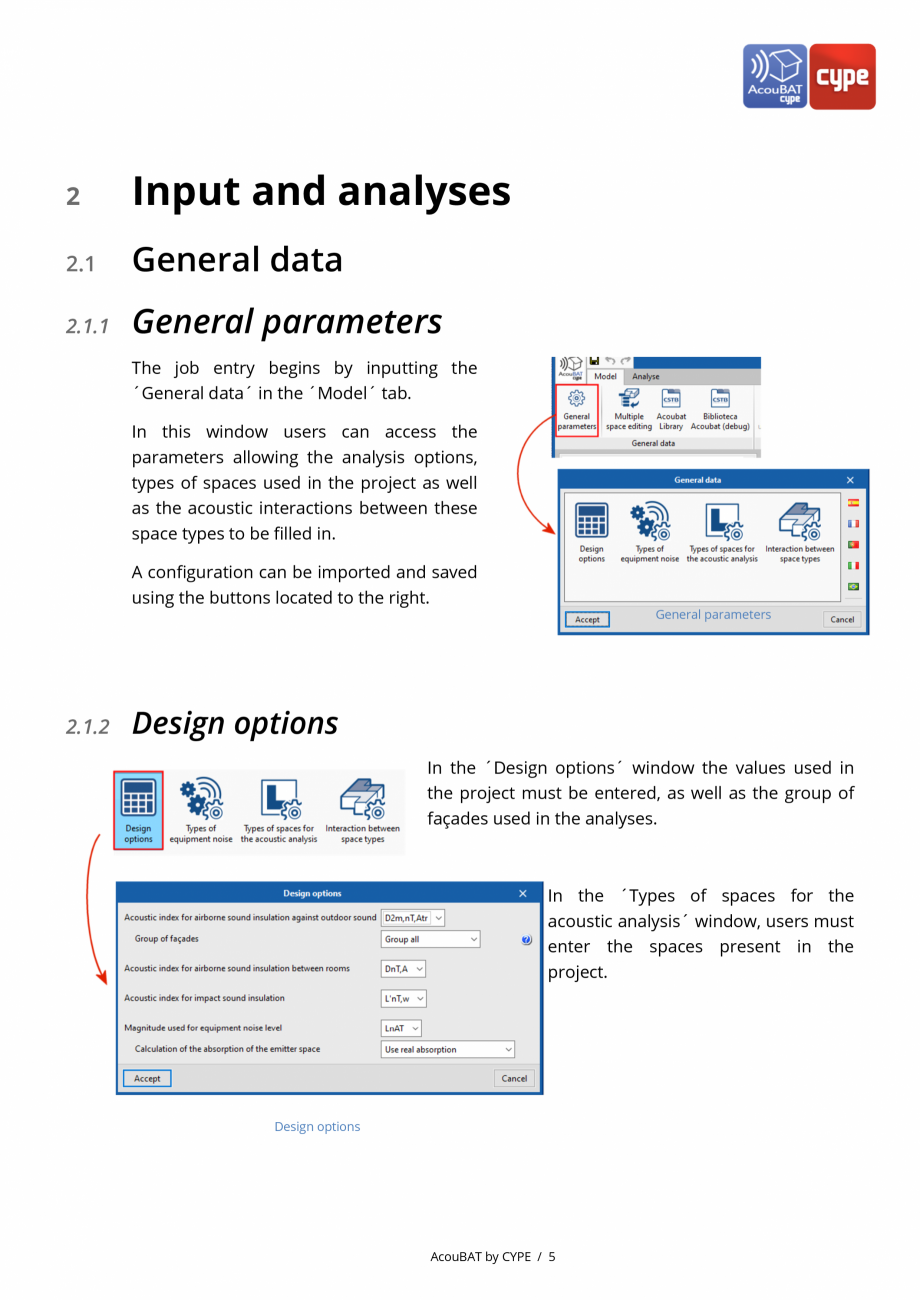

m. Help. Each tab is organised as follows: 1 2 3 4 5 Menus and general functions Element tree structure Data and editing of elements Viewing the BIM model Warnings and errors The context sensitive help can be accessed in any menu of the program by pressing « F1 » or by clicking on the blue question mark icons. General organisation The input help menus can be accessed via the blue horizontal arrows to the right of the element input fields. AcouBAT by CYPE / 4 2 Input and analyses 2.1 General data 2.1.1 General parameters The job entry begins by inputting the ´General data´ in the ´Model´ tab. In this window users can access the parameters allowing the analysis options, types of spaces used in the project as well as the acoustic interactions between these space types to be filled in. A configuration can be imported and saved using the buttons located to the right. 2.1.2 General parameters Design options In the ´Design options´ window the values used in the project

Pagina 4-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza m.

Help.
Each tab...

Pagina 5 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza must...

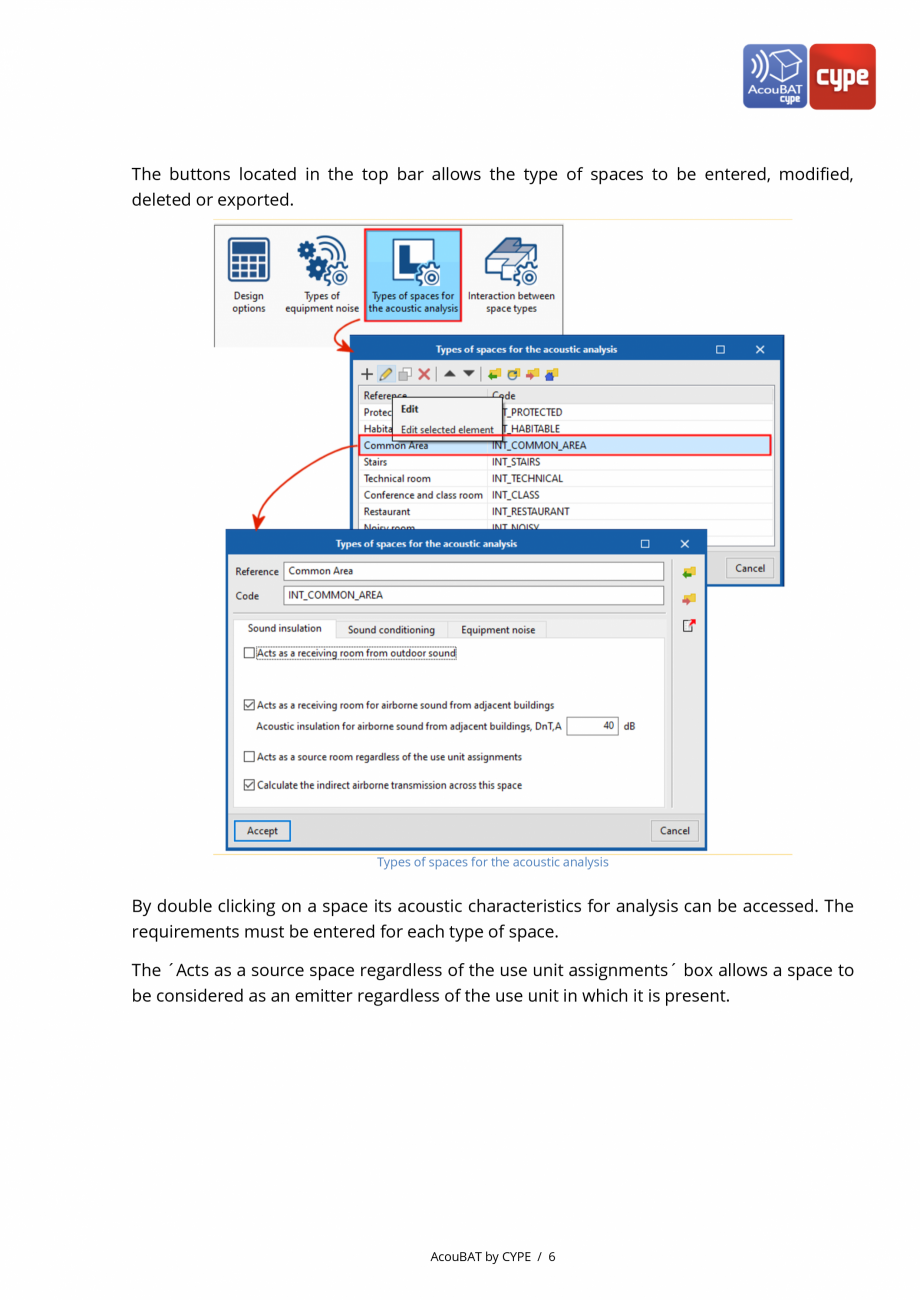

must be entered, as well as the group of façades used in the analyses. In the ´Types of spaces for the acoustic analysis´ window, users must enter the spaces present in the project. Design options AcouBAT by CYPE / 5 The buttons located in the top bar allows the type of spaces to be entered, modified, deleted or exported. Types of spaces for the acoustic analysis By double clicking on a space its acoustic characteristics for analysis can be accessed. The requirements must be entered for each type of space. The ´Acts as a source space regardless of the use unit assignments´ box allows a space to be considered as an emitter regardless of the use unit in which it is present. AcouBAT by CYPE / 6 In the ´Interactions between space types´ window users must enter the insulation values for the insulation against airborne noise and impact sound insulation between the receiver and emitter spaces in the project. Interaction between types of spaces 2.1.3 Acoubat Library In the

Pagina 5-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza must be entered, ...

Pagina 6 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza ...

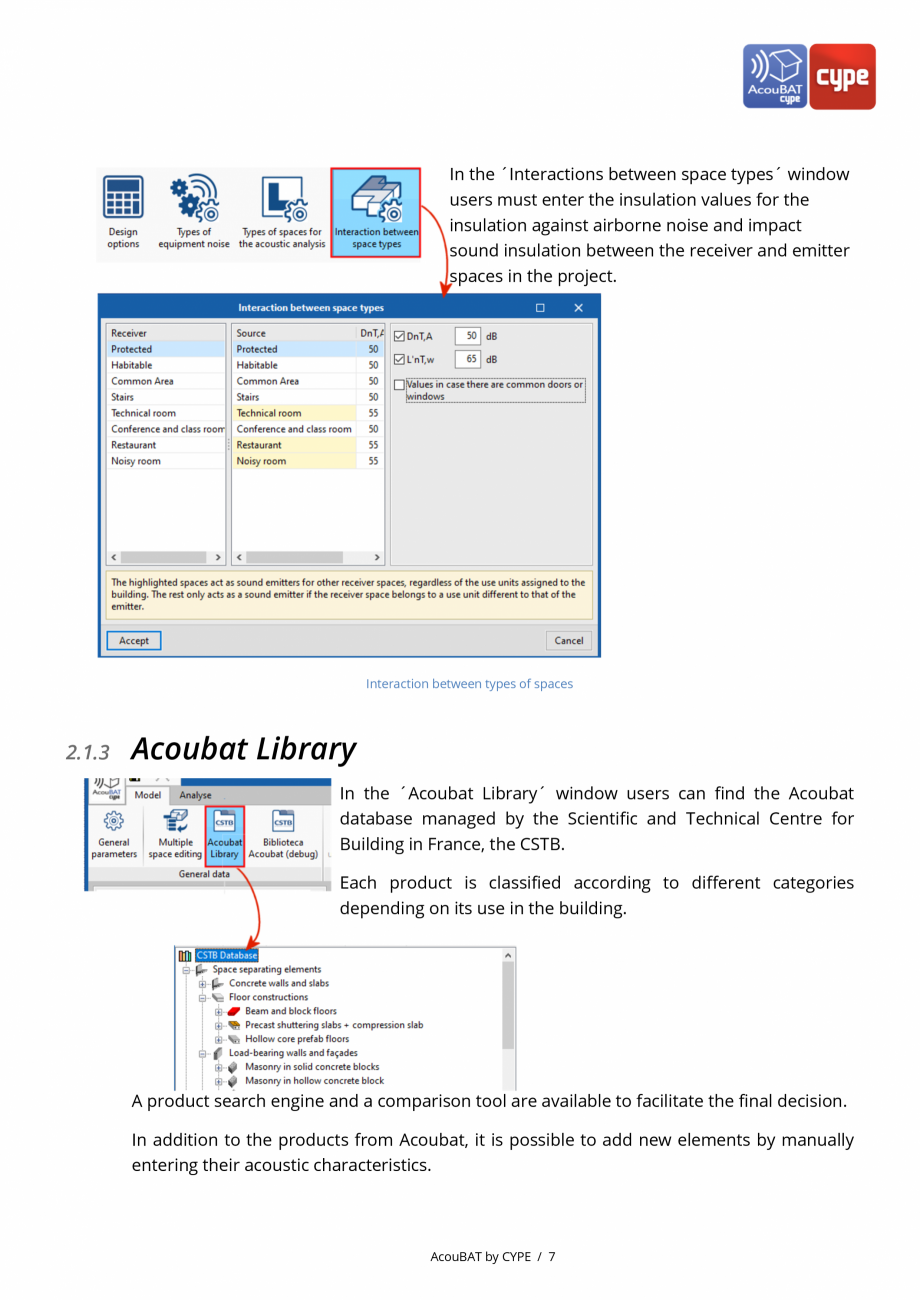

´Acoubat Library´ window users can find the Acoubat database managed by the Scientific and Technical Centre for Building in France, the CSTB. Each product is classified according to different categories depending on its use in the building. A product search engine and a comparison tool are available to facilitate the final decision. In addition to the products from Acoubat, it is possible to add new elements by manually entering their acoustic characteristics. AcouBAT by CYPE / 7 2.2 Library 2.2.1 Organisation The library contains the reference for each element of a project. The features of the spaces, the walls, roofs, floors, openings, air inlets, connections, absorbent layers and furniture of the building must be entered here. All library elements can be exported and then imported into a new analysis. Library 2.2.2 Spaces The spaces appear first in the library tree structure. In this menu, users can choose for each space whether they are ´Defined or Excluded´ in the a

Pagina 6-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza ´Acoubat...

Pagina 7 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza coustic...

coustic analysis, as well as its type as specified in the general data. Spaces Locaux AcouBAT by CYPE / 8 2.2.3 Construction elements The construction elements are made up of at least one base element that must be filled in. Users can also add interior and exterior linings for the walls and partitions and the upper and lower linings for the roofs and floors. For each construction element, users have direct access to its composition as well as to the acoustic characteristics of the elements of which it is composed. The materials are directly selected from the Acoubat database by CSTB. Construction elements In the database included in AcouBAT by CYPE, users have access to the program’s product files with all the necessary acoustic characteristics by type or by manufacturer. Advanced search and comparison tools are available in order to choose the product that best matches user needs. AcouBAT by CYPE / 9 2.2.4 Air inlets By clicking on the ´Air inlets´ menu in the tree stru

Pagina 7-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza coustic analysis, ...

Pagina 8 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza cture, ...

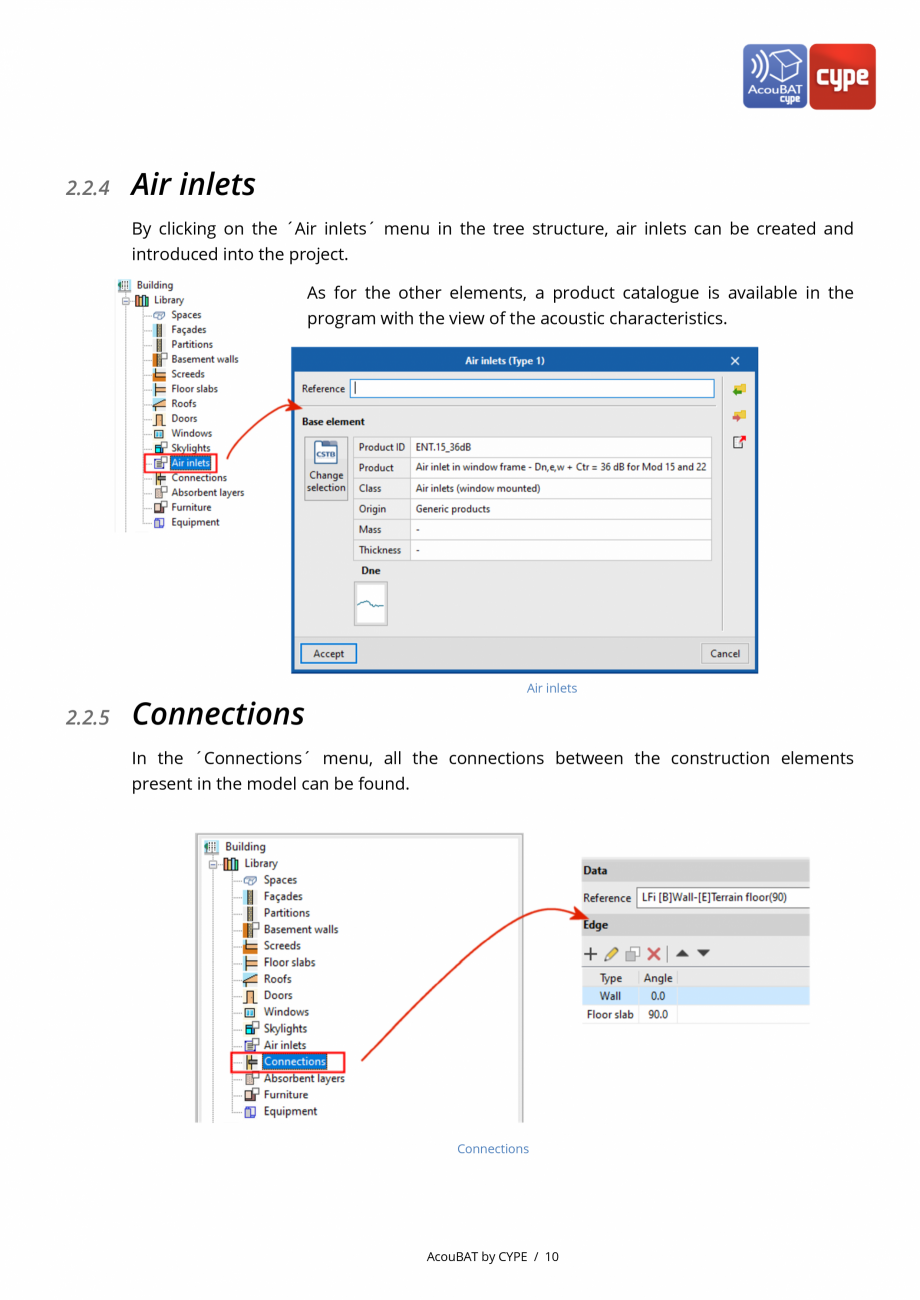

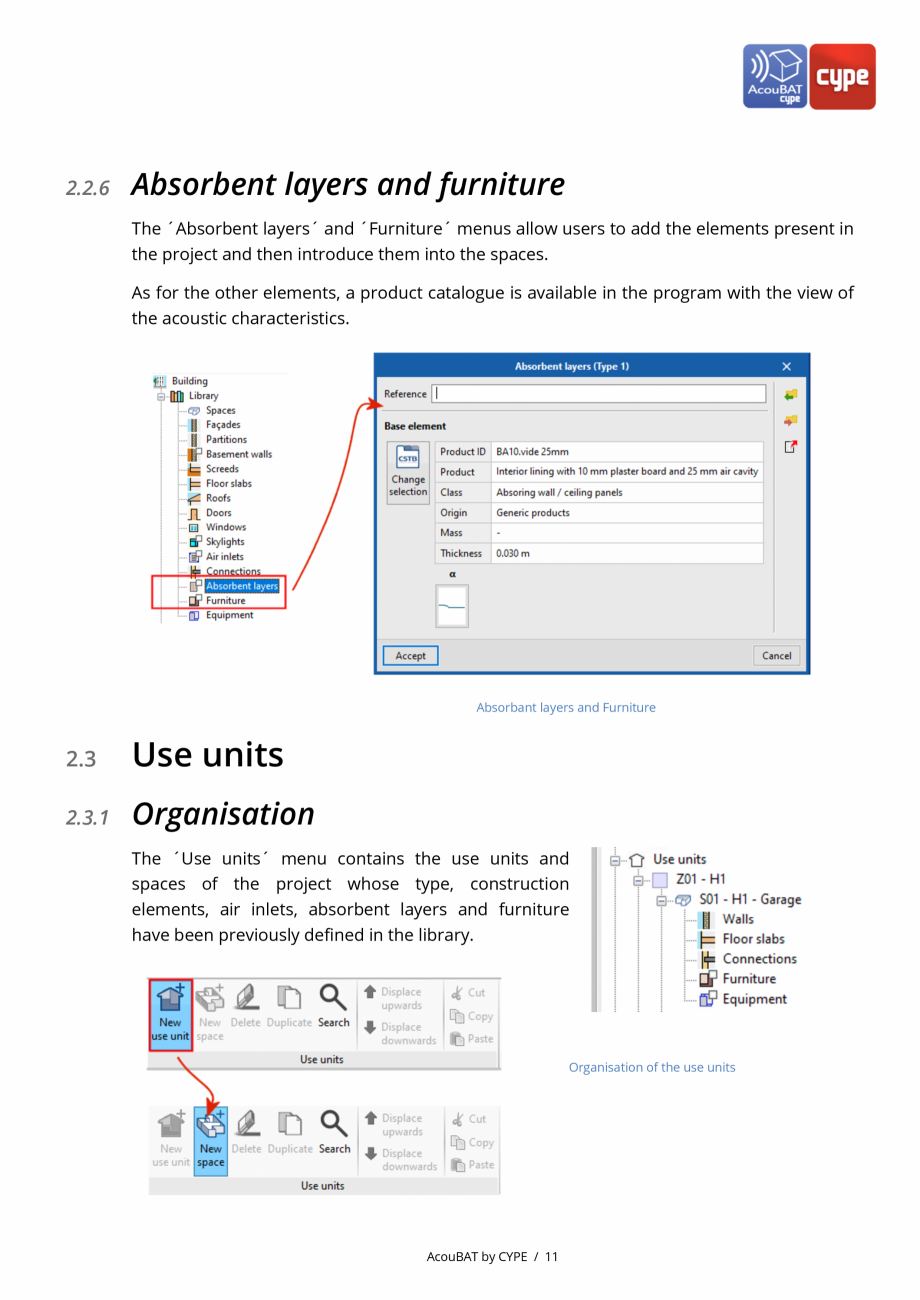

cture, air inlets can be created and introduced into the project. As for the other elements, a product catalogue is available in the program with the view of the acoustic characteristics. 2.2.5 Connections Air inlets In the ´Connections´ menu, all the connections between the construction elements present in the model can be found. Connections AcouBAT by CYPE / 10 2.2.6 Absorbent layers and furniture The ´Absorbent layers´ and ´Furniture´ menus allow users to add the elements present in the project and then introduce them into the spaces. As for the other elements, a product catalogue is available in the program with the view of the acoustic characteristics. Absorbant layers and Furniture 2.3 Use units 2.3.1 Organisation The ´Use units´ menu contains the use units and spaces of the project whose type, construction elements, air inlets, absorbent layers and furniture have been previously defined in the library. Organisation of the use units AcouBAT by CYPE / 11

Pagina 8-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza cture, air inlets ...

Pagina 9 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza In...

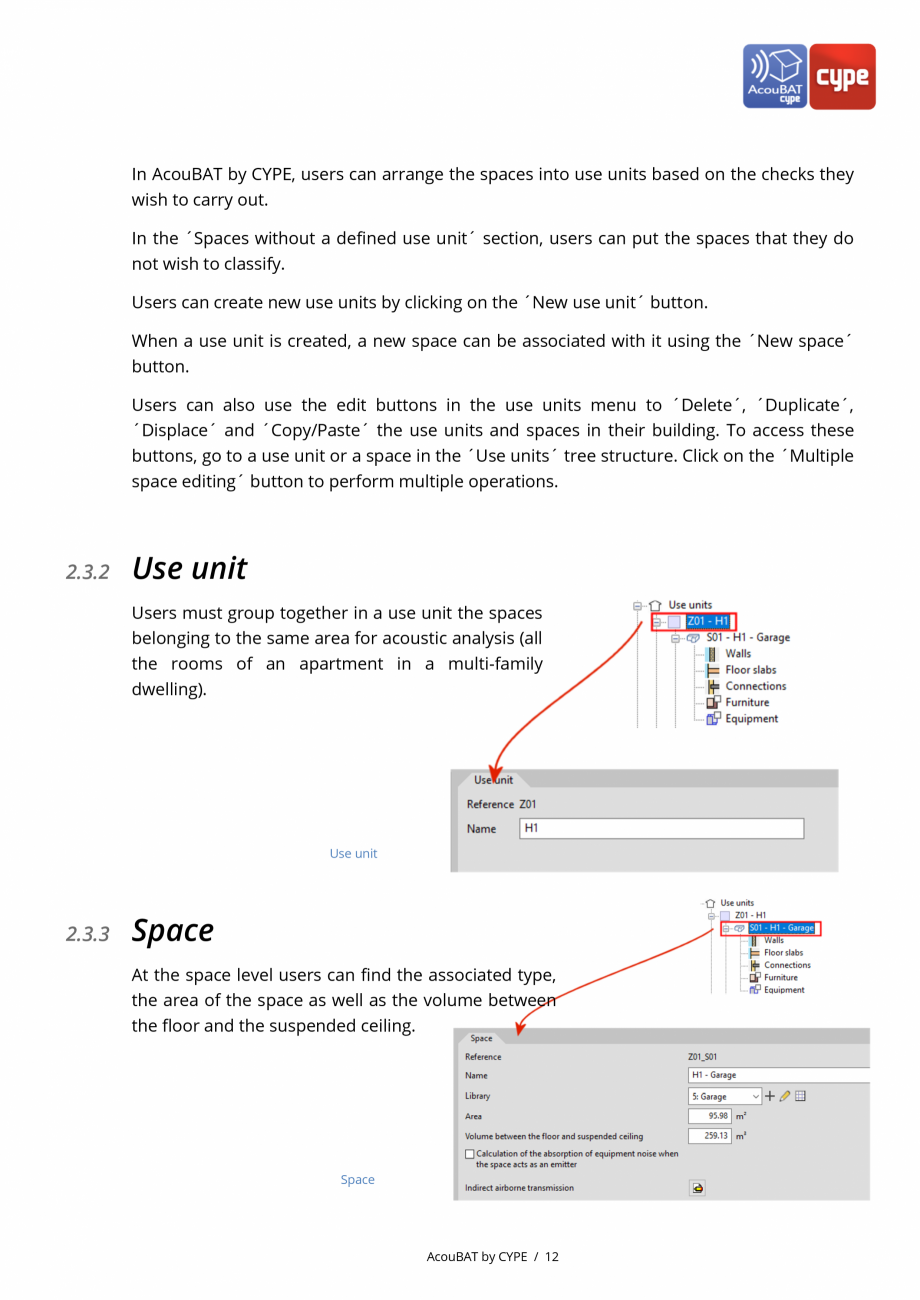

In AcouBAT by CYPE, users can arrange the spaces into use units based on the checks they wish to carry out. In the ´Spaces without a defined use unit´ section, users can put the spaces that they do not wish to classify. Users can create new use units by clicking on the ´New use unit´ button. When a use unit is created, a new space can be associated with it using the ´New space´ button. Users can also use the edit buttons in the use units menu to ´Delete´, ´Duplicate´, ´Displace´ and ´Copy/Paste´ the use units and spaces in their building. To access these buttons, go to a use unit or a space in the ´Use units´ tree structure. Click on the ´Multiple space editing´ button to perform multiple operations. 2.3.2 Use unit Users must group together in a use unit the spaces belonging to the same area for acoustic analysis (all the rooms of an apartment in a multi-family dwelling). Use unit 2.3.3 Space At the space level users can find the associated type, the area of the

Pagina 9-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza In AcouBAT by CYPE...

Pagina 10 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza space ...

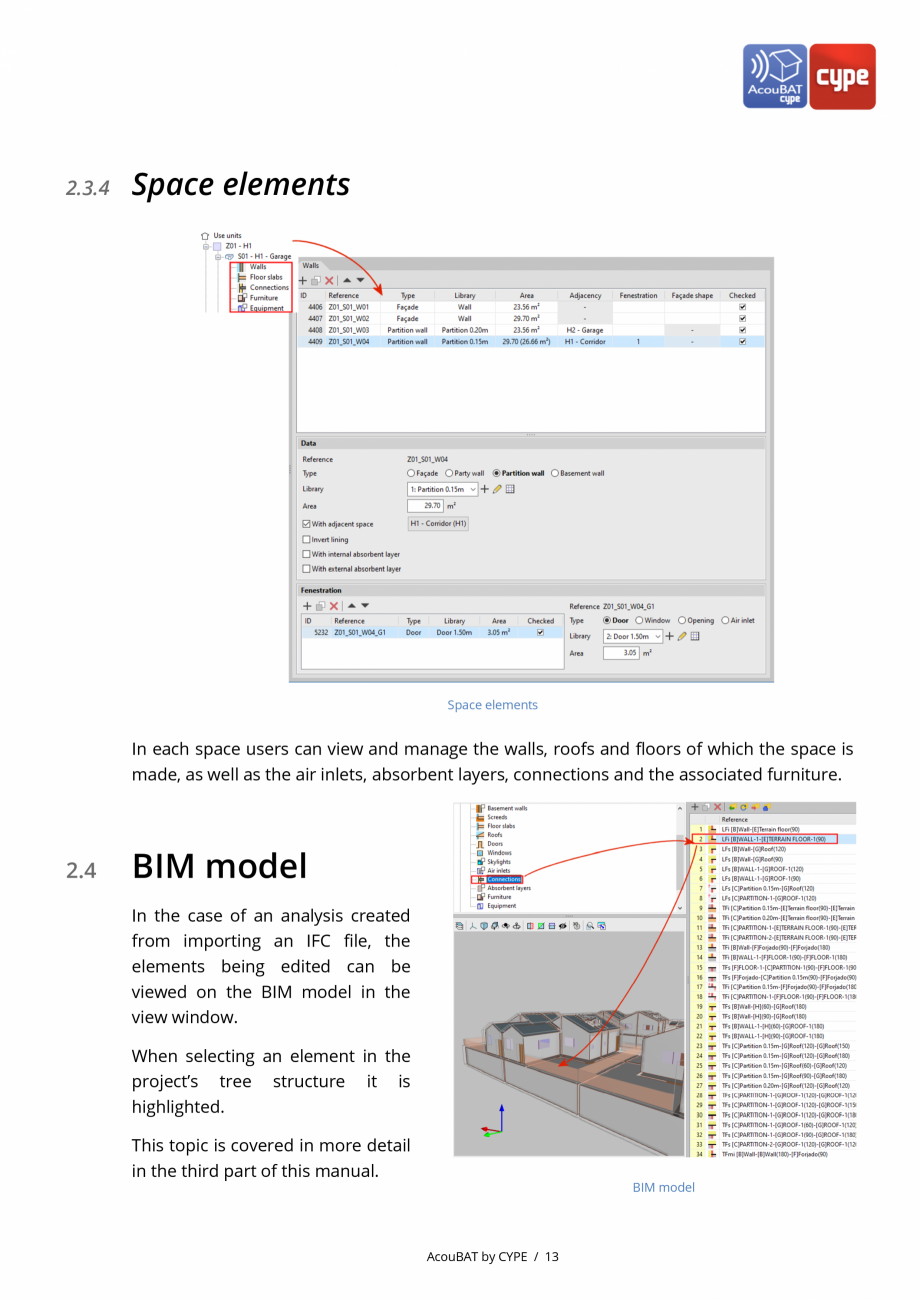

space as well as the volume between the floor and the suspended ceiling. Space AcouBAT by CYPE / 12 2.3.4 Space elements Space elements In each space users can view and manage the walls, roofs and floors of which the space is made, as well as the air inlets, absorbent layers, connections and the associated furniture. 2.4 BIM model In the case of an analysis created from importing an IFC file, the elements being edited can be viewed on the BIM model in the view window. When selecting an element in the project’s tree structure it is highlighted. This topic is covered in more detail in the third part of this manual. BIM model AcouBAT by CYPE / 13 2.5 Checking the model Checking the model Before carrying out the analysis, users can check the consistency of data entry and detect errors with the help of the ´Editing errors´ tool. 2.6 Analysis 2.6.1 General parameters In the ´Analysis´ section of the ´Analyse´ tab the ´General parameters´ button can be found, whi

Pagina 10-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza space as well as...

Pagina 11 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza ch...

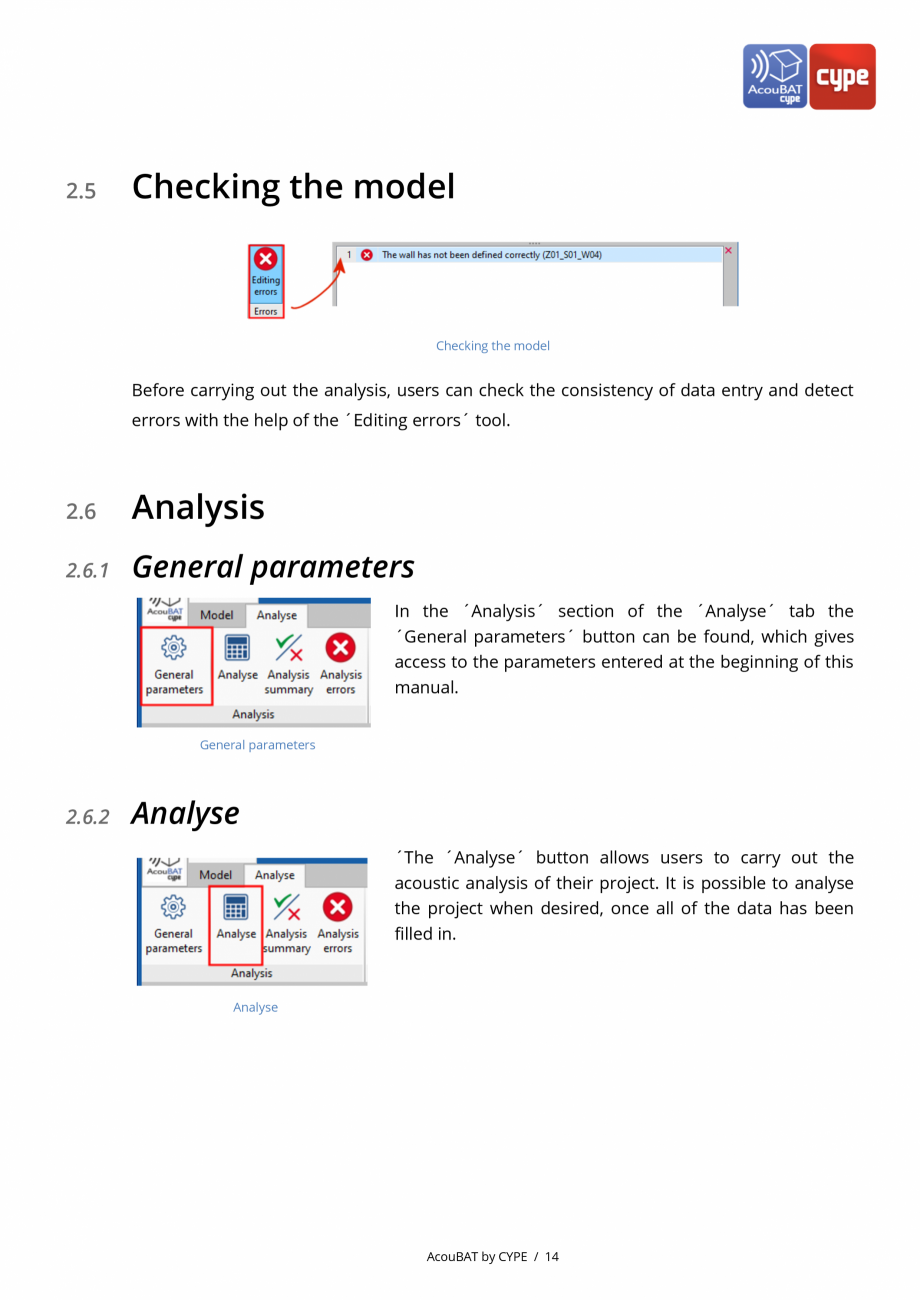

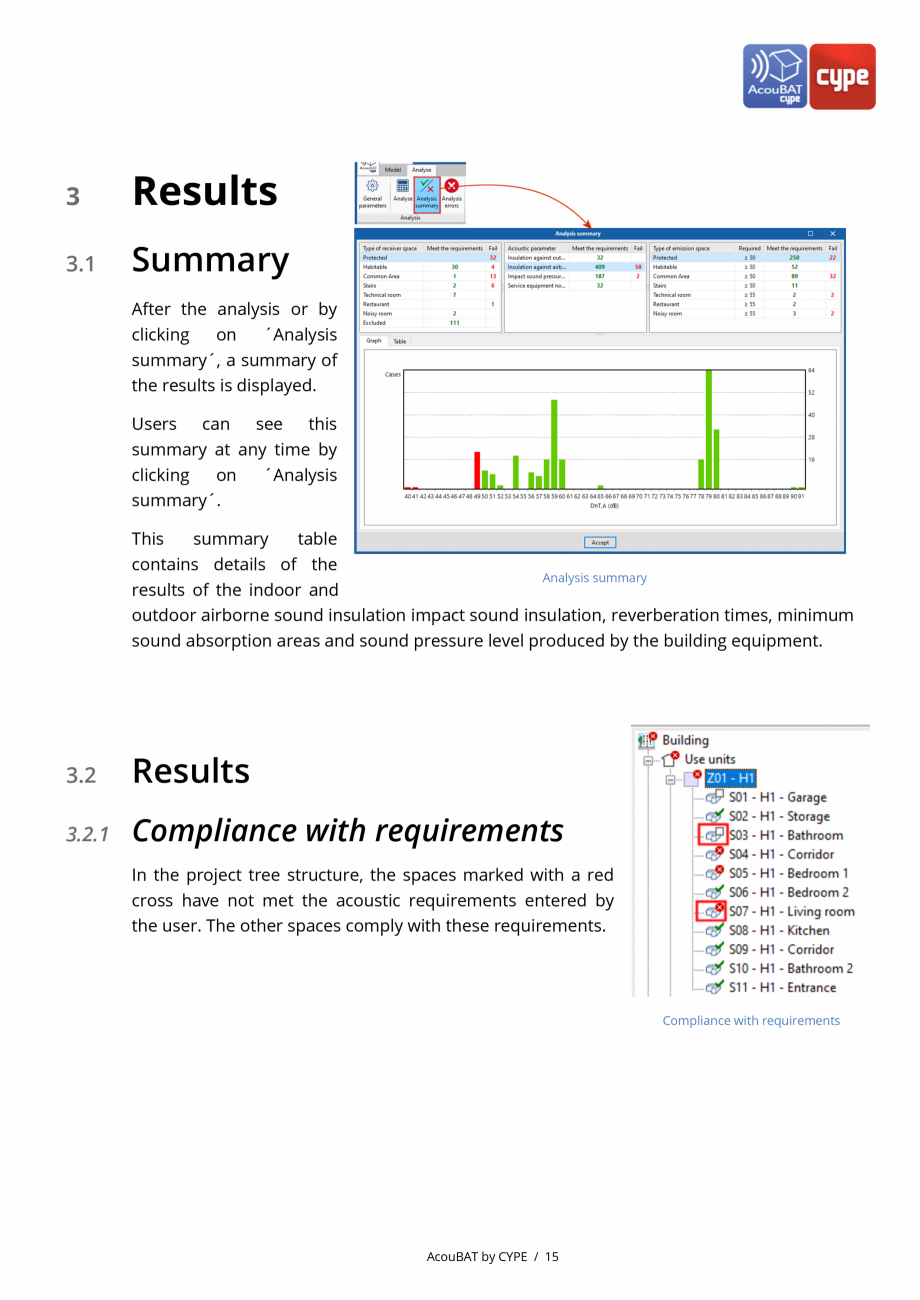

ch gives access to the parameters entered at the beginning of this manual. General parameters 2.6.2 Analyse ´The ´Analyse´ button allows users to carry out the acoustic analysis of their project. It is possible to analyse the project when desired, once all of the data has been filled in. Analyse AcouBAT by CYPE / 14 3 Results 3.1 Summary After the analysis or by clicking on ´Analysis summary´, a summary of the results is displayed. Users can see this summary at any time by clicking on ´Analysis summary´. This summary table contains details of the Analysis summary results of the indoor and outdoor airborne sound insulation impact sound insulation, reverberation times, minimum sound absorption areas and sound pressure level produced by the building equipment. 3.2 Results 3.2.1 Compliance with requirements In the project tree structure, the spaces marked with a red cross have not met the acoustic requirements entered by the user. The other spaces comply with these requ

Pagina 11-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza ch gives
access to...

Pagina 12 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza...

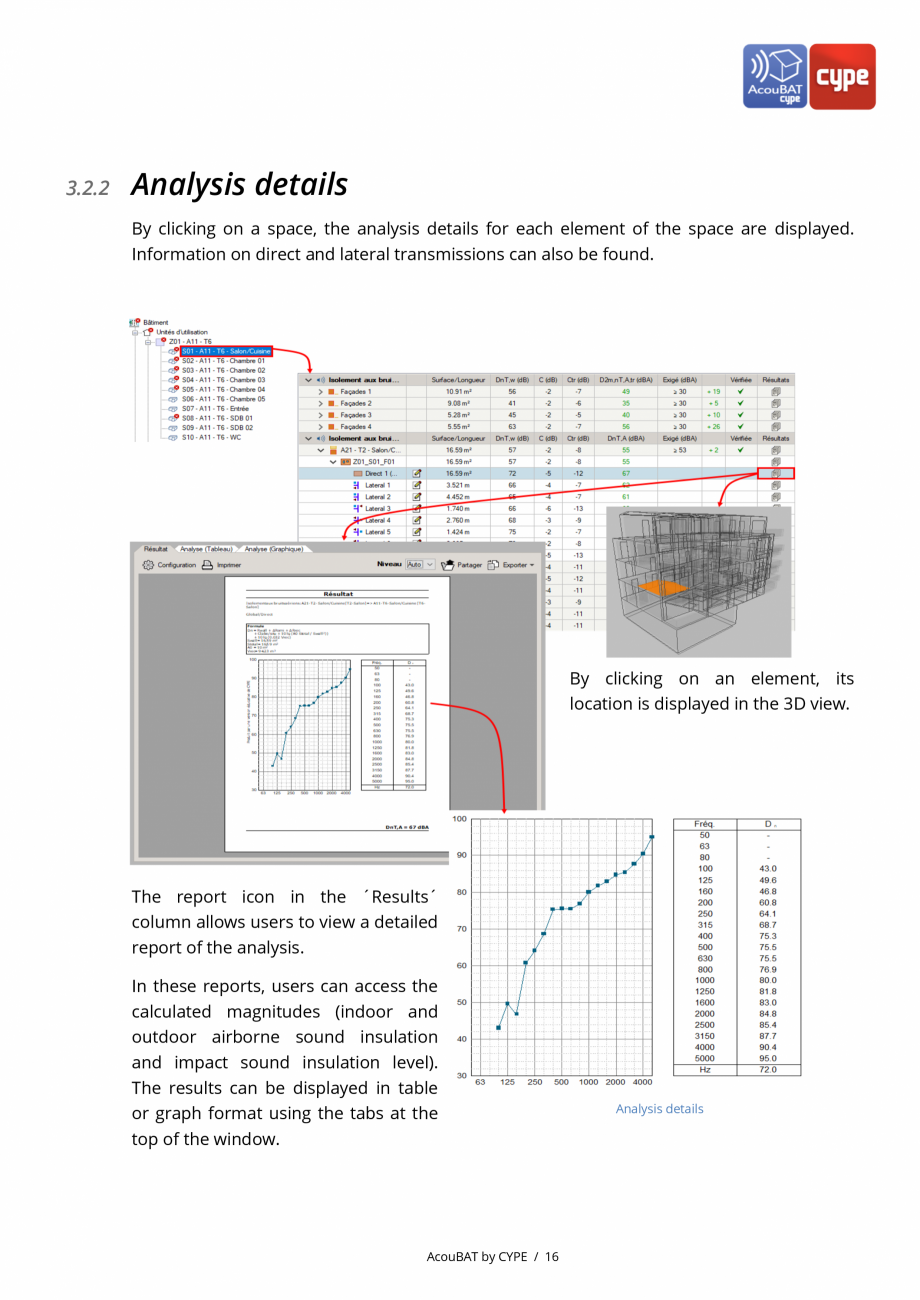

irements. Compliance with requirements AcouBAT by CYPE / 15 3.2.2 Analysis details By clicking on a space, the analysis details for each element of the space are displayed. Information on direct and lateral transmissions can also be found. By clicking on an element, its location is displayed in the 3D view. The report icon in the ´Results´ column allows users to view a detailed report of the analysis. In these reports, users can access the calculated magnitudes (indoor and outdoor airborne sound insulation and impact sound insulation level). The results can be displayed in table or graph format using the tabs at the top of the window. AcouBAT by CYPE / 16 Analysis details 3.3 Reports After having carried out the input, calculation and analysis of the project results, the different reports can be accessed in the ´Reports´ section of the ´Analysis´ tab. Reports 3.3.1 Results report Results report By clicking on ´Results report´, users can generate different report

Pagina 12-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza irements.
...

Pagina 13 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza s of...

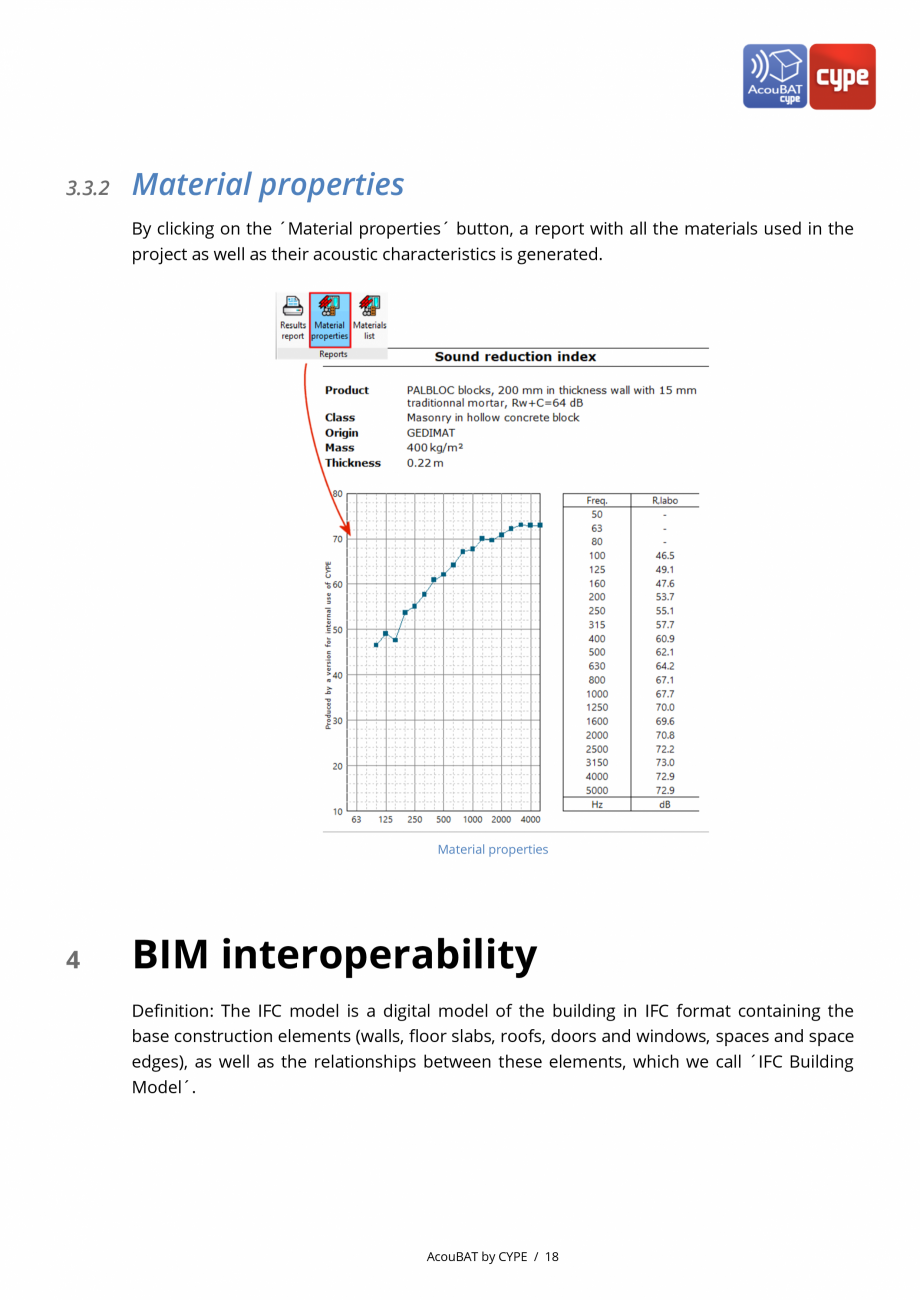

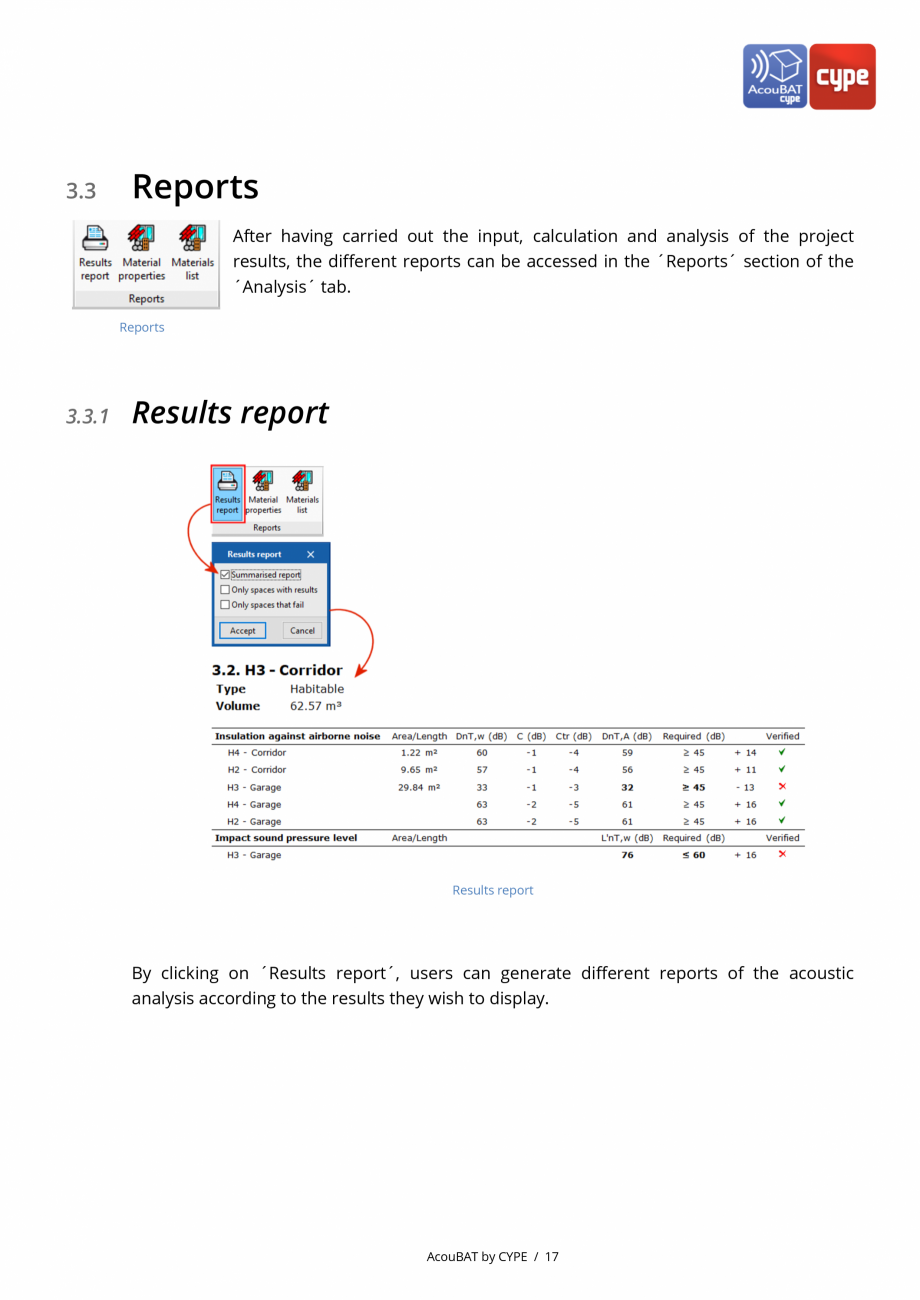

s of the acoustic analysis according to the results they wish to display. AcouBAT by CYPE / 17 3.3.2 Material properties By clicking on the ´Material properties´ button, a report with all the materials used in the project as well as their acoustic characteristics is generated. Material properties 4 BIM interoperability Definition: The IFC model is a digital model of the building in IFC format containing the base construction elements (walls, floor slabs, roofs, doors and windows, spaces and space edges), as well as the relationships between these elements, which we call ´IFC Building Model´. AcouBAT by CYPE / 18 4.1 Importing a digital model 4.1.1 Creating a project When creating a new project, users are asked whether or not they wish to connect it to a BIM project. It is recommended to connect it in order to be able carry out updates when there are modifications to the IFC model. If users do not wish to connect it to a BIM project, they can import an IFC model without

Pagina 13-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza s of the acoustic
...

Pagina 14 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza the...

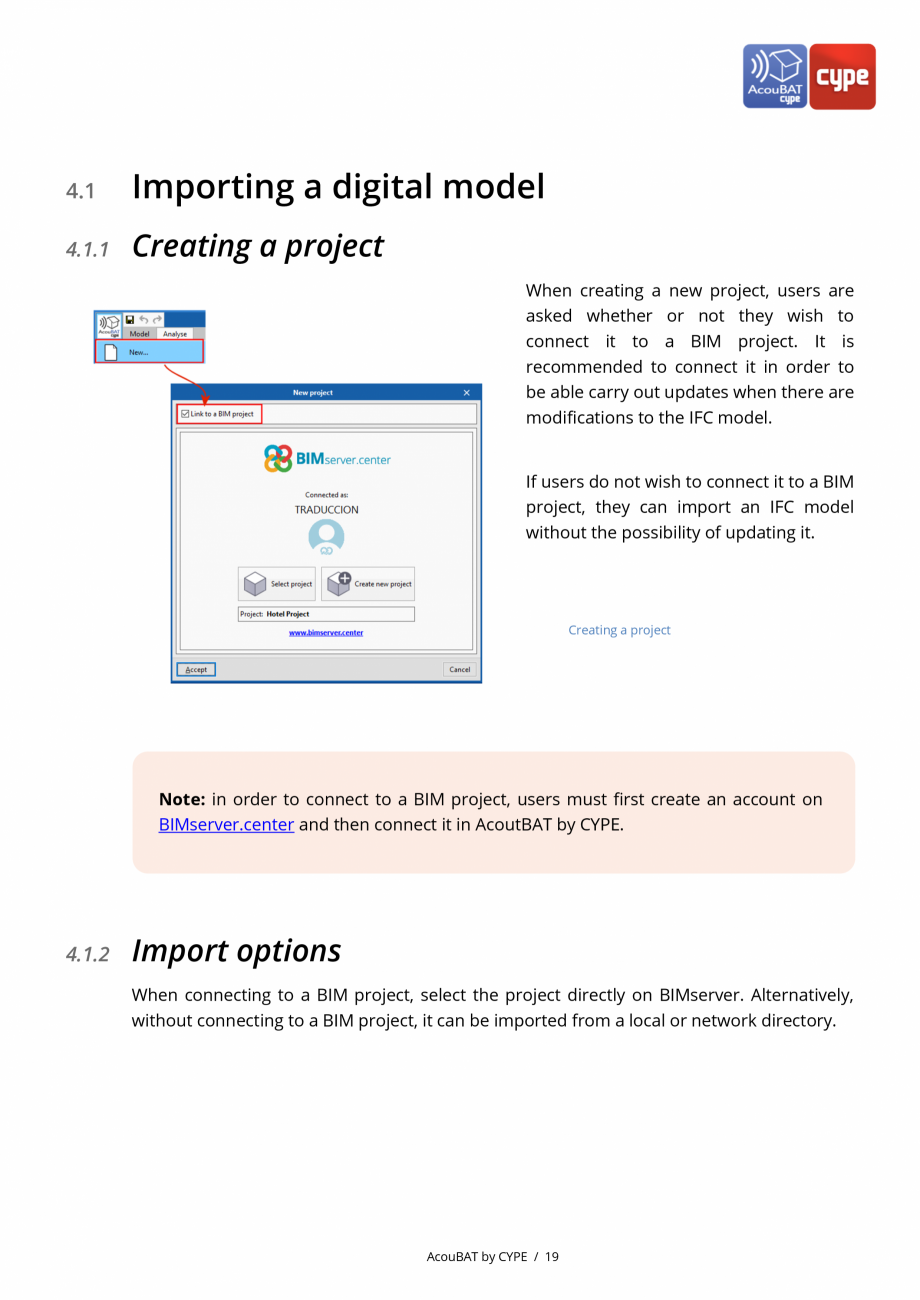

the possibility of updating it. Creating a project Note: in order to connect to a BIM project, users must first create an account on BIMserver.center and then connect it in AcoutBAT by CYPE. 4.1.2 Import options When connecting to a BIM project, select the project directly on BIMserver. Alternatively, without connecting to a BIM project, it can be imported from a local or network directory. AcouBAT by CYPE / 19 Import options Then choose whether to assign types to the elements of the model. This option allows elements to be imported from an existing library. By importing the IFC files exported from IFC Builder, users can import the edges of the buildings for the definition of acoustic transmissions. 4.2 Introduction of the model Once the BIM model has been imported, its construction elements will be classified by type in the library. Users must then define them to remove the error message they display. Folders whose elements still need to be defined are marked with exclamati

Pagina 14-AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza the possibility...

Pagina 15 - AcouBAT by CYPE - Manual de utilizare CYPE Instructiuni montaj, utilizare Engleza on...

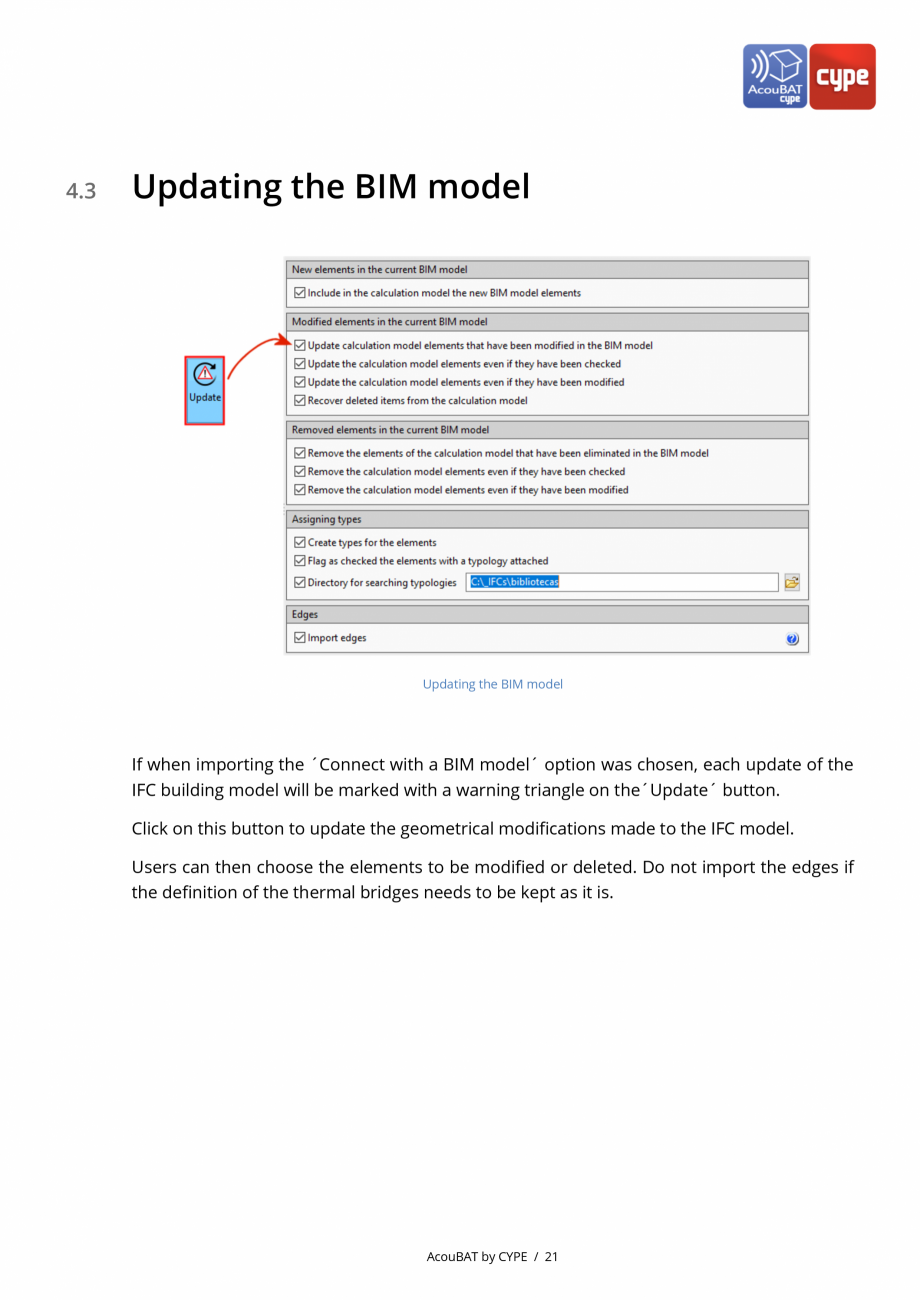

on marks. If they contain no elements they will be marked with small white squares. Introduction of the model Red crosses that appear in the ´Used´ column indicate that an element is not present or no longer present in the BIM model. AcouBAT by CYPE / 20 4.3 Updating the BIM model Updating the BIM model If when importing the ´Connect with a BIM model´ option was chosen, each update of the IFC building model will be marked with a warning triangle on the´Update´ button. Click on this button to update the geometrical modifications made to the IFC model. Users can then choose the elements to be modified or deleted. Do not import the edges if the definition of the thermal bridges needs to be kept as it is. AcouBAT by CYPE / 21
