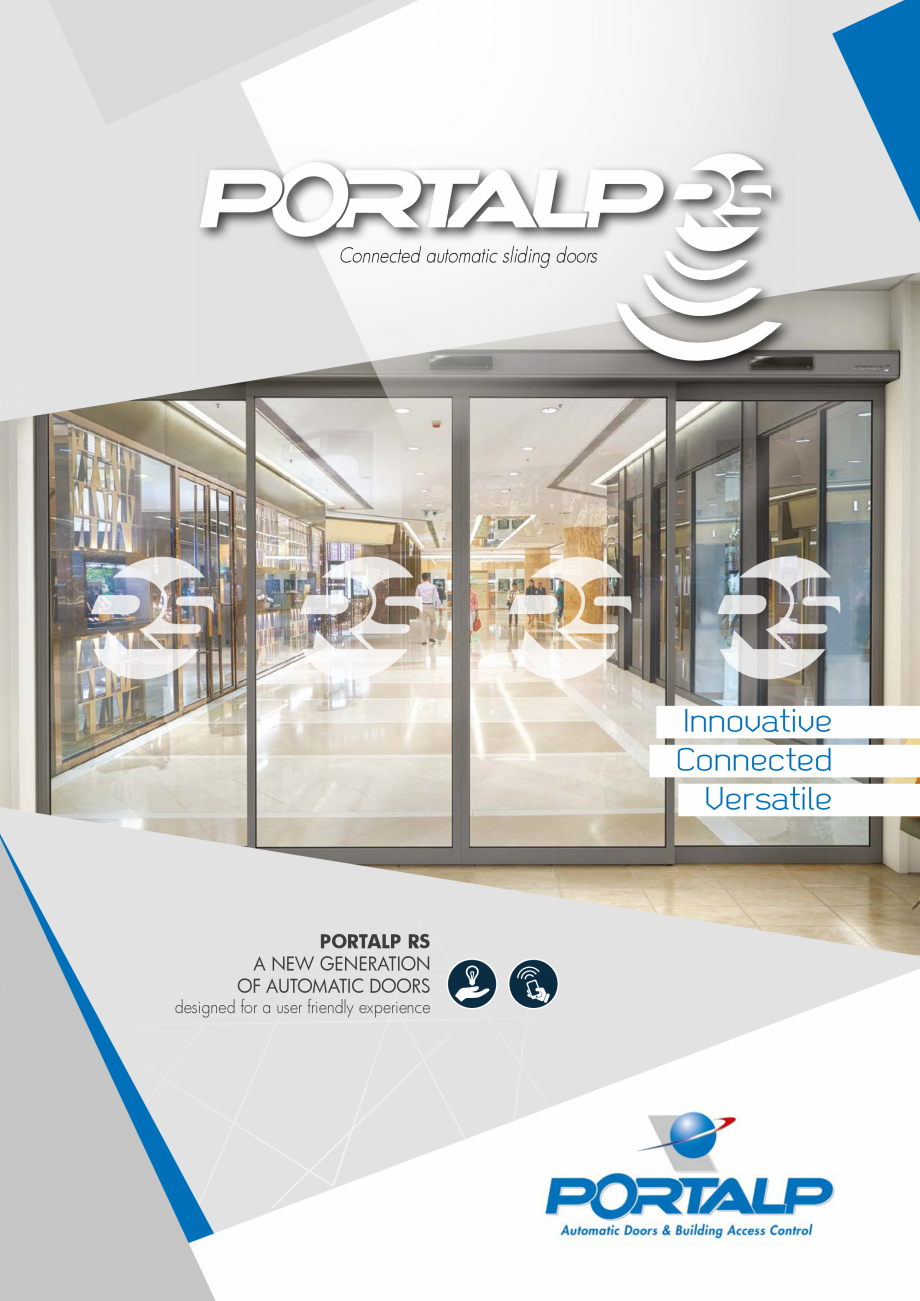

Usi telescopice PORTALP Telescopice PORTALP RS
Connected automatic sliding doors
Innovative
Connected
Versatile
PORTALP RS
A NEW GENERATION
OF AUTOMATIC DOORS
designed for a user friendly experience
Control the door from
your smartphone
Innovation and performance
• Clear display in your language
PASSAG E
The PORTALP RS range comprises both
sliding and telescopic doors and
features a compatible and very versatile
design (in terms of its configuration,
programming, choice of colors, finish
and accessories, etc.) that makes it
suitable for all scenarios.
• Intuitive navigation
WIDTH
• Direct selection mode
Up to 3600mm
• Easy user settings
COMPACT
• Bluetooth, Low Energy
HEADER
H e i g h t 12 0 m m
INTUITIVELY
CONTROLLED FROM
your smartphone
1 APPLICATION
4 CONTROL FUNCTIONS
Creation of virtual keys for
each user
6-mode selector switch
Auto, Entry, Exit, Open, Closed, Manual
Up to 32 users per door
A UNIVERSAL DESIGN TO SUIT ANY PURPOSE
Automatic opening
Automatic radar opening mode
CONTROLS
BRUSHLE
SS MOTOR
•
•
•
•
•
Long lifespan, silent operation, smooth and
secure leaf control
ELECTROMECHANICAL LOCKING
Built into the mechanism to firmly lock the leaves
Smartphone
NFC TAG for automatic connection
Contactless switches
Radio switches (wireless)
Emergency door release
Android or iOS
AUTODOOR PILOT
App secured using digital keys
(Portalp encryption)
EMERGENCY EXIT
Mechanical or electrical energy reserve for
opening in the event of an emergency.
EN16005-compliant - Emergency exit
2 SEPARATED CAN BUSES
• SAFETY BUS (radars and infrared curtains)
• FIELD BUS (peripherals, input/output cards)
Easier wiring, constant communication, quick fault detection
TRACK
LUMINA
All-glass
Rail on silent block for silent movement
1 NETWORK BUS
Ethernet communication between doors
Facilitated management of several doors
Create your door
EMERGENCY BATTERY
PASSAGE PRESENCE SAFETY
Backup in the event of a power loss
Combined-technology sensor: presence detection
by ultrahigh-frequency radars, using an int./ext./ infrared curtain
to monitor the closing area
Portalp offers a variety of leaves to meet all
your requirements.
OPENING PRESENCE SAFETY
• Frame style and finish
Use of infrared curtains to secure the area to the side
of the leaves
• Glazing performance
• Space restrictions (wide or narrow)
• Installation restrictions (facade, ceiling height, etc.)
THE
• Compact universal drive
Frame profiles are mounted
using a dry glazing gasket
that allows the glazing to be
changed quickly.
LUMINA
Slimline profiles
G25 range
CONFIGURATIONS
Bi-part sliding
Double telescopic
• Rapid implementation
• Low power consumption
Various glazing types (single,
double or triple-insulation,
anti-intrusion, etc.) in
thicknesses of up to 26 mm
are available depending on
the range.
• Built-in manual locking
• Door status and information
display (faults, history,
counter, etc.)
• Ease of operation
Priority opening
One-off opening co
by ultrahigh-frequency radars, using an int./ext./ infrared curtain
to monitor the closing area
Portalp offers a variety of leaves to meet all
your requirements.
OPENING PRESENCE SAFETY
• Frame style and finish
Use of infrared curtains to secure the area to the side
of the leaves
• Glazing performance
• Space restrictions (wide or narrow)
• Installation restrictions (facade, ceiling height, etc.)
THE
• Compact universal drive
Frame profiles are mounted
using a dry glazing gasket
that allows the glazing to be
changed quickly.
LUMINA
Slimline profiles
G25 range
CONFIGURATIONS
Bi-part sliding
Double telescopic
• Rapid implementation
• Low power consumption
Various glazing types (single,
double or triple-insulation,
anti-intrusion, etc.) in
thicknesses of up to 26 mm
are available depending on
the range.
• Built-in manual locking
• Door status and information
display (faults, history,
counter, etc.)
• Ease of operation
Priority opening
One-off opening co
