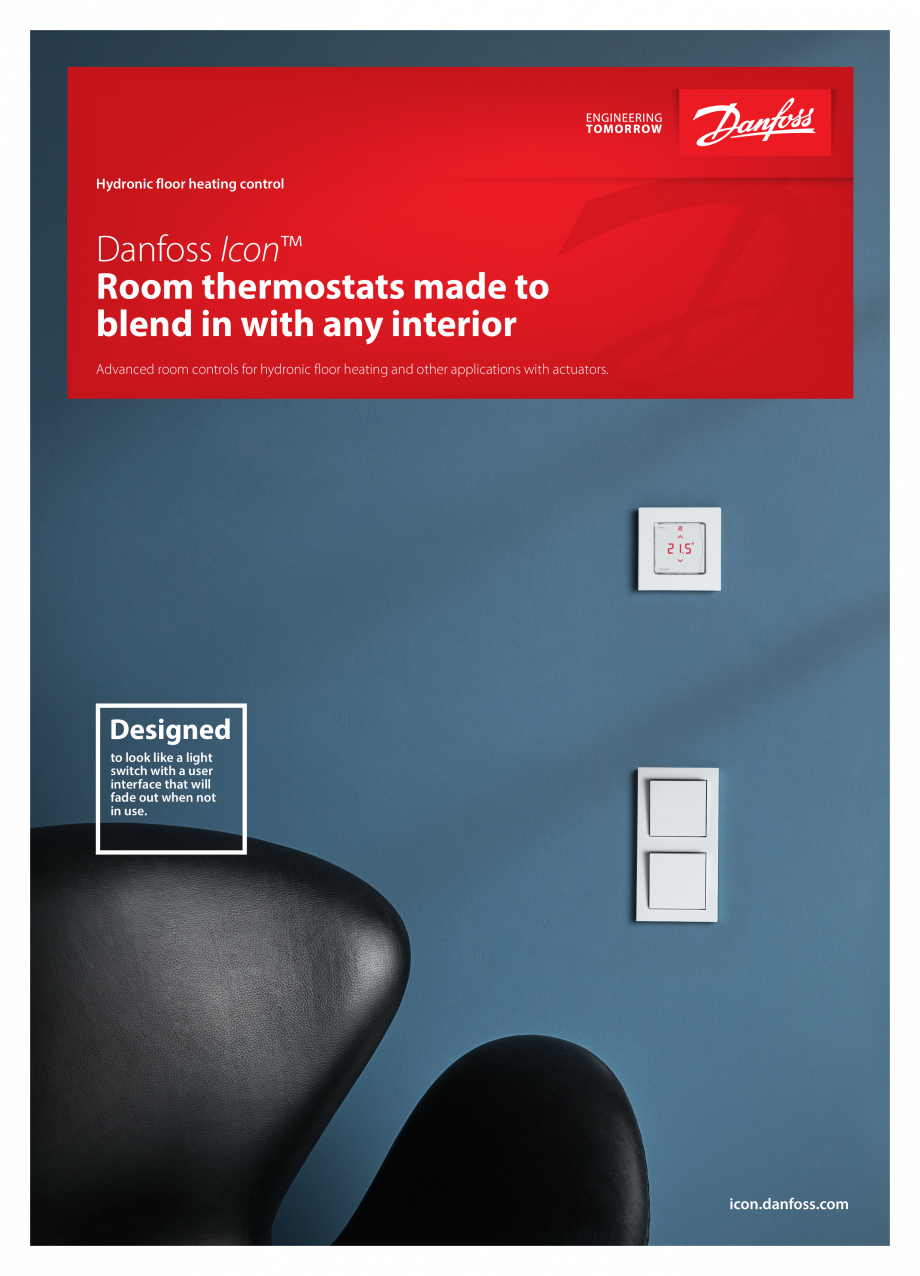

Hydronic floor heating control Danfoss Icon™ Room thermostats made to blend in with any interior Advanced room controls for hydronic floor heating and other applications with actuators. Designed to look like a light switch with a user interface that will fade out when not in use. icon.danfoss.com 24V and wireless systems with advanced features and optional modules Master Controller With automatic balancing, active pump relay, boiler relay, commissioning test, PWM for accurate control, adaptive learning, and other advanced heating control options. Works with 24V and/or wireless room thermostats. Available with 10 and 15 outputs and can be extended with up to three masters in a system. Expansion Module With ten pre-defined applications that can handle global away input, cooling input, dew point sensor, automatic cooling change-over and supply temperature control. App Module To establish Wi-Fi connection to the router which enables remote access via the Danfoss Icon™ App. Radio

Pagina 1-Termostate de camera care se potrivesc oricarui interior DANFOSS Icon Wiring box Catalog, brosura...

Pagina 2 - Termostate de camera care se potrivesc oricarui interior DANFOSS Icon Wiring box Catalog,...

Module To establish wireless connection to wireless room thermostats. Wired bus communication either as star configuration or daisy chain. Wired and wireless room thermostats can be mixed in the same system. Available with infrared floor sensor 24V Room Thermostats (in-wall or on-wall) Wireless Room Thermostats (on-wall only) · Noiseless switching · Noiseless switching · Can be build into compatible switch frames (in-wall only) · Temperature limitation · Temperature limitation · Available with infrared floor sensor · Optional floor sensor (088U1110) 6 Good reasons to us · Automatic balancing feature eliminates the need to calculate and preset the flow on the manifold 22 · With the demand based supply temperature feature it is no longer necessary to install an outdoor sensor for weather compensated supply temperature Division · Name of publication · Litt. no · ©Danfoss · Choose from 8 pre-defined cooling applications and corresponding full system performan

Pagina 2-Termostate de camera care se potrivesc oricarui interior DANFOSS Icon Wiring box Catalog, brosura...

Pagina 3 - Termostate de camera care se potrivesc oricarui interior DANFOSS Icon Wiring box Catalog,...

ce tests 230V room thermostats with optional master controllers Danfoss Icon™ Dial Danfoss Icon™ Display Danfoss Icon™ Programmable · Can be build into many switch frames (in-wall only) · Noiseless switching · Noiseless switching · Up to 5x2W NC or NO actuators · Can be build into many switch frames (in-wall only) · Can be build into many switch frames (in-wall only) · Thermal feedback for accurate control · Up to 5x2W NC or NO actuators · Up to 5x2W NC or NO actuators · Temperature limitation · PWM for accurate control · PWM for accurate control · Temperature limitation · Temperature limitation · Choose between radiator, light floor heating and heavy floor heating PWM setting · Choose between radiator, light floor heating and heavy floor heating PWM setting · Seven pre-defined schedules · Adaptive learning · Input for cooling and central ‘away’ · Optional floor sensor (088U1110) Master Controller Basic version: · Pump relay (potenti

Pagina 3-Termostate de camera care se potrivesc oricarui interior DANFOSS Icon Wiring box Catalog, brosura...

Pagina 4 - Termostate de camera care se potrivesc oricarui interior DANFOSS Icon Wiring box Catalog,...

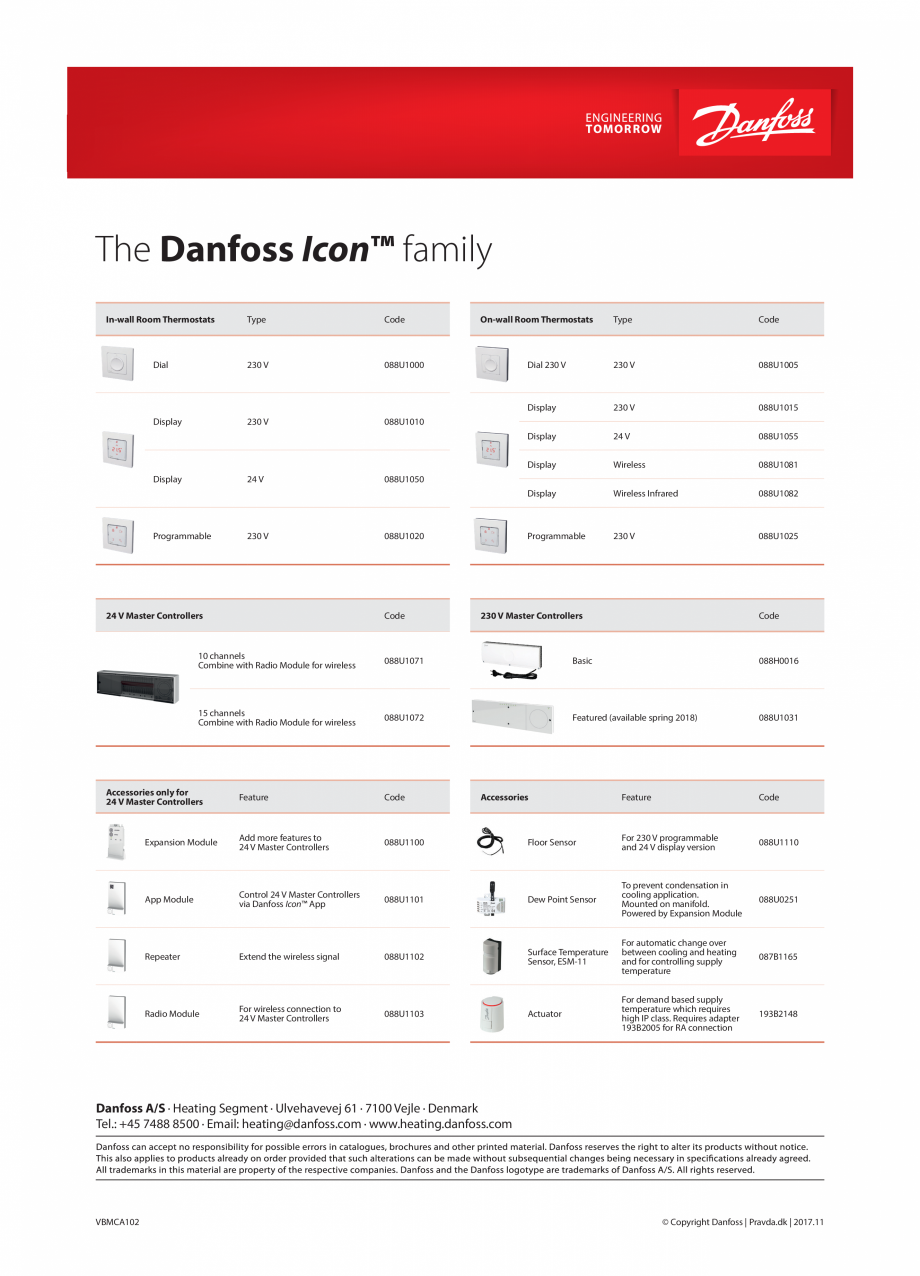

al free) · Boiler relay (potential free) · 8 channels, 8 outputs Featured version: · Active 230V pump output · Boiler relay (potential free) · Global away input (230V) · Cooling input (230V) · 8 channels, 14 outputs Available spring 2018 to use Danfoss Icon™ · For wired, wireless or combined wired/wireless room temperature control · The room thermostats blend in with any interior. Exchange the in-wall model frame with switch frames from many different top brand manufacturers · For basic up to highly advanced solutions by adding optional modules; Expansion Module for additional technical features, Radio Module for wireless communication and App Module for remote system access with Danfoss Icon™ App Division · Name of publication · Litt. no · ©Danfoss 33 The Danfoss Icon™ family In-wall Room Thermostats Type Code Dial 230 V 088U1000 Display 230 V 088U1010 Display 24 V Programmable 230 V 24 V Master Controllers On-wall Room Thermostats Type Code
