Sisteme de adresare publica LDA Audio Tech

Limba: Engleza

2 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza EN 54 -16
Certificate...

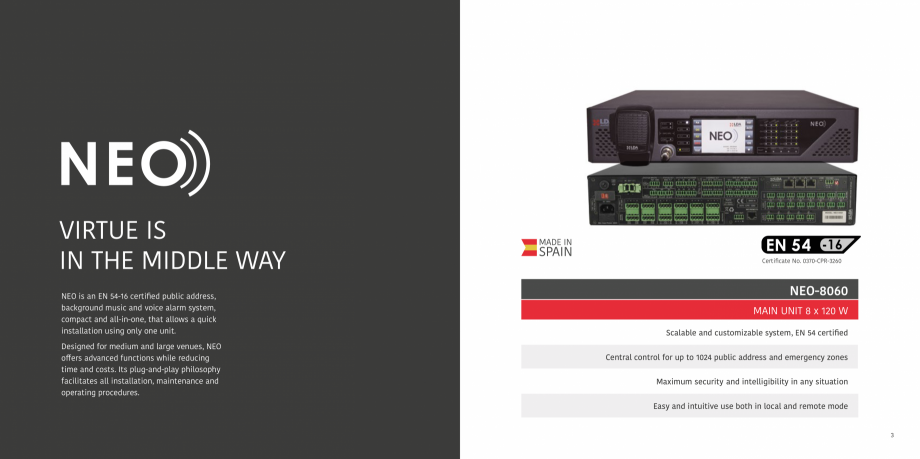

EN 54 -16 Certificate No. 0370-CPR-3260 PUBLIC ADDRESS, BACKGROUND MUSIC AND VOICE ALARM SYSTEM VIRTUE IS IN THE MIDDLE WAY NEO is an EN 54-16 certified public address, background music and voice alarm system, compact and all‑in‑one, that allows a quick installation using only one unit. Designed for medium and large venues, NEO offers advanced functions while reducing time and costs. Its plug‑and‑play philosophy facilitates all installation, maintenance and operating procedures. EN 54 -16 Certificate No. 0370-CPR-3260 NEO-8060 MAIN UNIT 8 x 120 W Scalable and customizable system, EN 54 certified Central control for up to 1024 public address and emergency zones Maximum security and intelligibility in any situation Easy and intuitive use both in local and remote mode 3 NEO-8060 FEATURES 1 Internationally 2 Multizone 3 High 4 Modular certified connectivity 4 amplification and escalable 5 6 COMPLYING WITH INTERNATIONAL STANDARDS 8 AMPLIFICATION ZONES WITH ONE N

Pagina 1-Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza EN 54 -16
Certificate No....

Pagina 2 - Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza EO UNIT

EXPANDABLE...

EO UNIT EXPANDABLE AND SCALABLE TO REACH EVERYWHERE The NEO system guarantees a safe and controlled evacuation since it is designed to comply with the strictest international regulations. The main unit and its extensions adjust to the EN 54‑16 standard (certificates 0370‑CPR‑3260 and 0370‑CPR‑3261) and the EN 60849 standard. They are complemented with EN 54‑24 certified speakers and EN 54‑4 certified power supply equipment. The NEO system includes 8 class D amplifiers for 8 independent audio zones, working from 8 local and 32 remote sources. The user can configure up to 8 120 W channels with line supervision, and use one of them as a back‑up. NEO has a built-in dual player with 4 GB storage to record up to 99 messages and/or 13 hours of audio. NEO works with other equipments using standard Ethernet networks and universal protocols such as Flexnet and RS-485. This high connectivity makes it work fine without special cabling in any installation through the data networ

Pagina 2-Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza EO UNIT

EXPANDABLE AND
SCALABLE...

Pagina 3 - Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza k.

THE MOST ADVANCED...

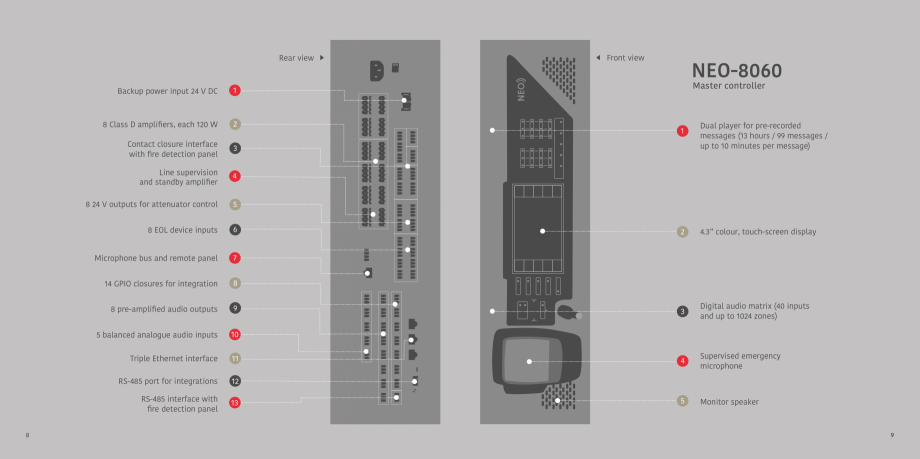

k. THE MOST ADVANCED INTEGRATION The NEO 40x1024 audio matrix can send audio out to any zone simultaneously. This allows to have different audio for every area, with digital quality provided by the DSP system for filters and parametric equalisation of 7 bands. Thanks to its modular configuration, NEO can reach up to 1024 zones in a system with 128 stations. Discover NEO at lda-audiotech.com/en/neo 7 Front view 8 Backup power input 24 V DC 1 8 Class D amplifiers, each 120 W 2 Contact closure interface with fire detection panel 3 Line supervision and standby amplifier 4 8 24 V outputs for attenuator control 5 8 EOL device inputs 6 Microphone bus and remote panel 7 14 GPIO closures for integration 8 8 pre-amplified audio outputs 9 5 balanced analogue audio inputs 10 Triple Ethernet interface 11 RS-485 port for integrations 12 RS-485 interface with fire detection panel 13 NEO-8060 Master controller NEO Rear view 1 Dual player for pre-recorded messages (1

Pagina 4 - Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza 3 hours / 99 messages...

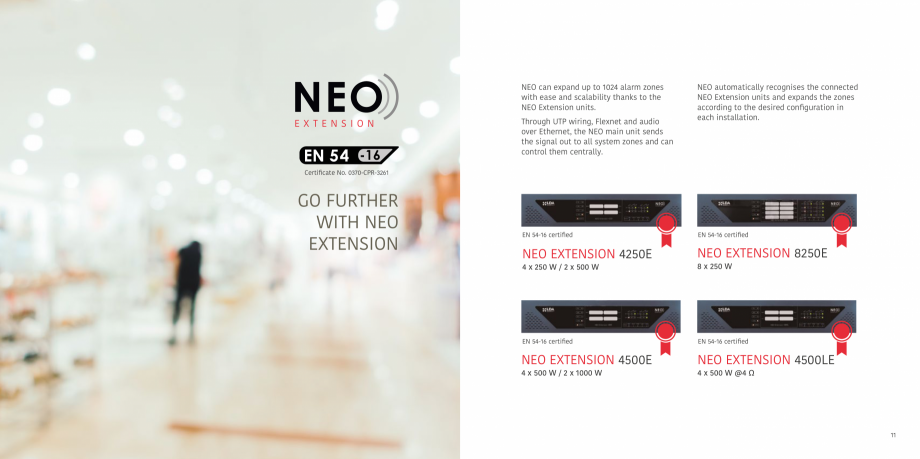

3 hours / 99 messages / up to 10 minutes per message) 2 4.3” colour, touch-screen display 3 Digital audio matrix (40 inputs and up to 1024 zones) 4 Supervised emergency microphone 5 Monitor speaker 9 NEO can expand up to 1024 alarm zones with ease and scalability thanks to the NEO Extension units. EXTENSION EN 54 -16 Through UTP wiring, Flexnet and audio over Ethernet, the NEO main unit sends the signal out to all system zones and can control them centrally. NEO automatically recognises the connected NEO Extension units and expands the zones according to the desired configuration in each installation. Certificate No. 0370-CPR-3261 GO FURTHER WITH NEO EXTENSION EN 54-16 certified EN 54-16 certified NEO EXTENSION 4250E NEO EXTENSION 8250E EN 54-16 certified EN 54-16 certified NEO EXTENSION 4500E NEO EXTENSION 4500LE 4 x 250 W / 2 x 500 W 4 x 500 W / 2 x 1000 W 8 x 250 W 4 x 500 W @4 Ω 11 NEO CONTROL: SAFE REMOTE SUPERVISION NEO CONFIGURATOR: MAKE THE M

Pagina 4-Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza 3 hours / 99 messages /
up to 10...

Pagina 5 - Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza OST OF
NEO SYSTEM
...

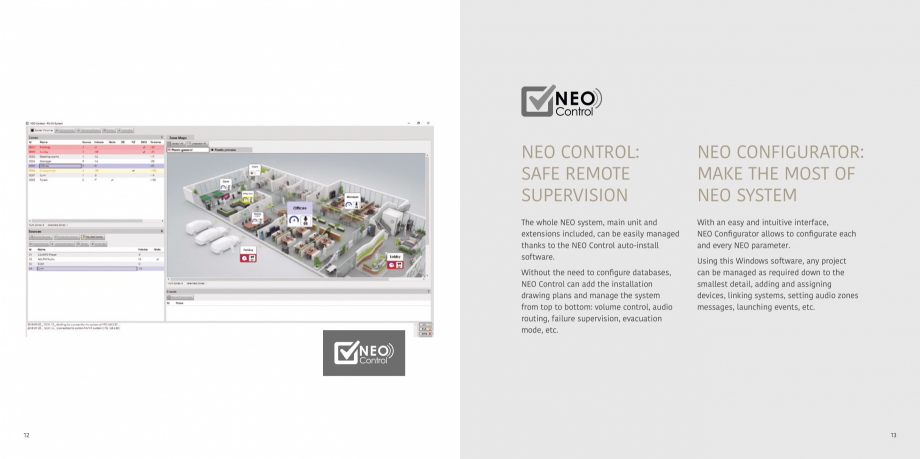

OST OF NEO SYSTEM The whole NEO system, main unit and extensions included, can be easily managed thanks to the NEO Control auto‑install software. With an easy and intuitive interface, NEO Configurator allows to configurate each and every NEO parameter. Without the need to configure databases, NEO Control can add the installation drawing plans and manage the system from top to bottom: volume control, audio routing, failure supervision, evacuation mode, etc. 12 Using this Windows software, any project can be managed as required down to the smallest detail, adding and assigning devices, linking systems, setting audio zones messages, launching events, etc. 13 CENTRALISED AND INTUITIVE CONTROL WITH SIME 14 NEO system can be remotely controlled through a TCP/IP connection and using the LDA SIME Control software. This application allows to monitor at a glance all the public address and voice alarm installation, including real-time failure detection. This software is based on web s

Pagina 5-Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza OST OF
NEO SYSTEM

The whole NEO...

Pagina 6 - Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza ervices and
works on ...

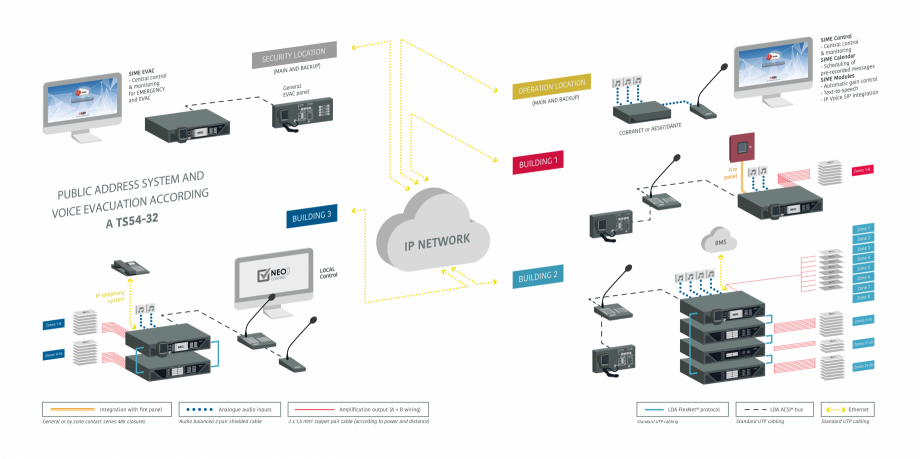

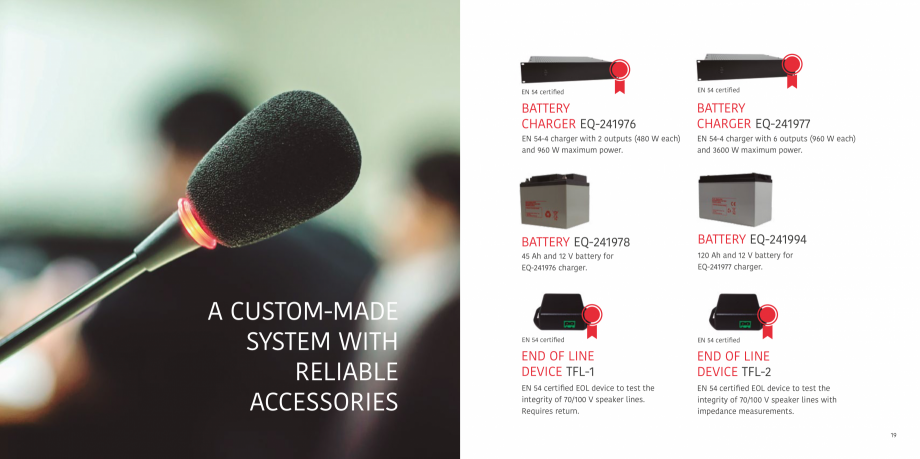

ervices and works on the cloud through a touch‑screen interface. SIME Control can be completely customised and expanded with the event programmer module SIME Calendar, the VOIP SIP module and the TTS module. Integration with fire panel General or by zone contact series 485 closures Analogue audio inputs Audio balanced 2 pair shielded cable Amplification output (A + B wiring) 2 x 1,5 mm 2 copper pair cable (according to power and distance) LDA FlexNet® protocol Standard UTP cabling LDA ACSI® bus Standard UTP cabling Ethernet Standard UTP cabling EN 54 certified EN 54 certified BATTERY CHARGER EQ‑241976 BATTERY CHARGER EQ‑241977 BATTERY EQ-241978 BATTERY EQ-241994 45 Ah and 12 V battery for EQ‑241976 charger. 120 Ah and 12 V battery for EQ‑241977 charger. EN 54 certified EN 54 certified END OF LINE DEVICE TFL‑1 END OF LINE DEVICE TFL‑2 EN 54 certified EOL device to test the integrity of 70/100 V speaker lines. Requires return. EN 54 certified EOL dev

Pagina 6-Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza ervices and
works on the cloud...

Pagina 7 - Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza ice to test the...

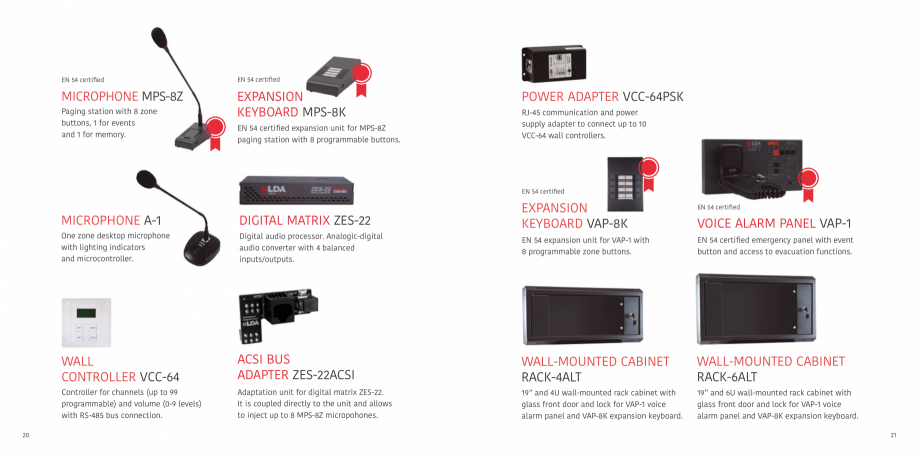

ice to test the integrity of 70/100 V speaker lines with impedance measurements. EN 54‑4 charger with 2 outputs (480 W each) and 960 W maximum power. A CUSTOM‑MADE SYSTEM WITH RELIABLE ACCESSORIES EN 54-4 charger with 6 outputs (960 W each) and 3600 W maximum power. 19 EN 54 certified EN 54 certified MICROPHONE MPS-8Z EXPANSION KEYBOARD MPS-8K Paging station with 8 zone buttons, 1 for events and 1 for memory. EN 54 certified expansion unit for MPS‑8Z paging station with 8 programmable buttons. POWER ADAPTER VCC-64PSK RJ‑45 communication and power supply adapter to connect up to 10 VCC‑64 wall controllers. EN 54 certified MICROPHONE A-1 One zone desktop microphone with lighting indicators and microcontroller. WALL CONTROLLER VCC-64 Controller for channels (up to 99 programmable) and volume (0‑9 levels) with RS-485 bus connection. 20 DIGITAL MATRIX ZES-22 Digital audio processor. Analogic‑digital audio converter with 4 balanced inputs/outputs. ACSI BUS A

Pagina 7-Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza ice to test the
integrity of...

Pagina 8 - Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza DAPTER ZES-22ACSI...

DAPTER ZES-22ACSI Adaptation unit for digital matrix ZES‑22. It is coupled directly to the unit and allows to inject up to 8 MPS‑8Z micropohones. EXPANSION KEYBOARD VAP-8K VOICE ALARM PANEL VAP-1 EN 54 expansion unit for VAP‑1 with 8 programmable zone buttons. EN 54 certified emergency panel with event button and access to evacuation functions. WALL-MOUNTED CABINET RACK-4ALT WALL-MOUNTED CABINET RACK-6ALT 19” and 4U wall-mounted rack cabinet with glass front door and lock for VAP-1 voice alarm panel and VAP-8K expansion keyboard. 19” and 6U wall-mounted rack cabinet with glass front door and lock for VAP-1 voice alarm panel and VAP-8K expansion keyboard. EN 54 certified 21 LEADING TECHNOLOGY MADE IN SPAIN For more than 40 years, LDA Audio Tech has been designing and manufacturing the most advanced sound equipments for public address, background music and voice alarm systems from its headquarters in Málaga (Spain). We work with installers, integrators and distrib

Pagina 8-Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza DAPTER ZES-22ACSI
Adaptation...

Pagina 9 - Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza utors in 50 countries...

utors in 50 countries to provide them with the customised solutions that they need in AV systems for security and fire protection. Our specialised engineering and technical team works constantly to stay up-to-date with the latest technology. That is why we are active participants in the international committees that establish the regulations about voice evacuation, at the same time as we are offering training to all our partners worldwide. LDA Audio Tech guarantees a solid structure and a committed team for any large-scale project anywhere in the world. HEADQUARTERS Severo Ochoa, 31 GERMANY SAUDI ARABIA EGYPT Gräf & Meyer GmbH Al Nour Commercial Center. El Merghany Street. 7th floor, 29590 Malaga Ringstraße 1 7th Floor Office no 44. Heliopolis, Cairo Spain D-66459 Kirkel Jeddah Ahmed Mostafa Tel. +34 952 028 805 Tel. +49 (6841) 93493–0 Tel. +966 53 300 3675 Tel. +20 0111 004 4960 sales@lda-audiotech.com info@gplusm.de sufyan@lda-audiotech.com amostafa@lda-au

Pagina 9-Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza utors in 50 countries to provide...

Pagina 10 - Sisteme de adresare publica LDA Audio Tech Catalog, brosura Engleza diotech.com

SPAIN

...

diotech.com SPAIN San Rafael 4 B, oficina 28 COLOMBIA Carrera 8a #99-55 QATAR The Pearl IVORY COAST vtib- Zone franche Bassam 28108 Alcobendas, Madrid Bogota D.C. Yehya Ali Claude Kossigan Tel. +34 910 534 750 Tel. +57 313 568 8868 Tel. +974 3391 6539 Tel. + 225 07 323 152 lrada@lda-audiotech.com fmocana@lda-audiotech.com qatar@lda-audiotech.com kossigan@lda-audiotechci.com www.lda-audiotech.com info@lda-audiotech.com
