Pagina 1 - Rampe de incarcare, descarcare - L300i NOVOFERM NovoDock L300 Fisa tehnica Engleza °C C
...

°C C GreenPlus IsoPlus DoorPlus °C C °C C ° SafetyPlus WarrantyPlus NovoDock L 300i Hydraulic dock leveller with swing lip Product characteristics • Green Solution Product • up to 70 % lower power consumption • option packs for individual configuration • robust steel construction • i-Vision control • auto button NovoDock L 300i The hydraulic dock levellers with swing lip have established themselves among loading systems as the basic version. The NovoDock L 300i combines a robust steel construction with state-of-the-art control technology, thus making for efficient loading. In all products with GreenPlus packaging, and use of materials meet current environmental standards and make an important contribution to CO2 reduction thanks to their extremely low energy consumption. Structure The NovoDock L 300i consists of the following units: • a self-supporting base frame • a main deck with swing lip • hydraulic system to move the main deck and operate the

Pagina 1-Rampe de incarcare, descarcare - L300i NOVOFERM NovoDock L300 Fisa tehnica Engleza °C C
GreenPlus...

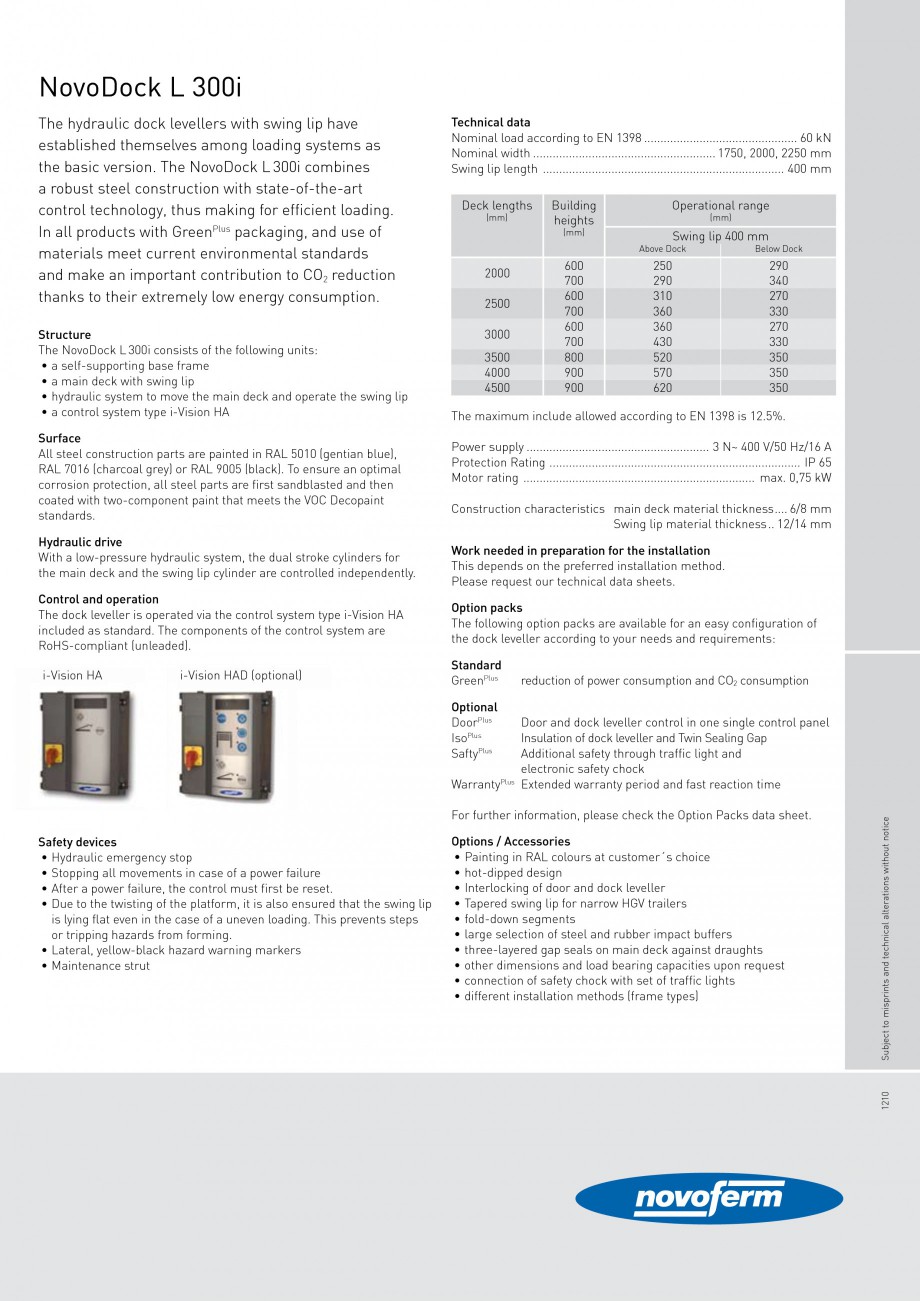

Pagina 2 - Rampe de incarcare, descarcare - L300i NOVOFERM NovoDock L300 Fisa tehnica Engleza swing ...

swing lip • a control system type i-Vision HA Surface All steel construction parts are painted in RAL 5010 (gentian blue), RAL 7016 (charcoal grey) or RAL 9005 (black). To ensure an optimal corrosion protection, all steel parts are first sandblasted and then coated with two-component paint that meets the VOC Decopaint standards. Hydraulic drive With a low-pressure hydraulic system, the dual stroke cylinders for the main deck and the swing lip cylinder are controlled independently. Control and operation The dock leveller is operated via the control system type i-Vision HA included as standard. The components of the control system are RoHS-compliant (unleaded). i-Vision HA i-Vision HAD (optional) Technical data Nominal load according to EN 1398................................................ 60 kN Nominal width......................................................... 1750, 2000, 2250 mm Swing lip length ........................................................................... 400 mm
