ECOPHON Ecophon

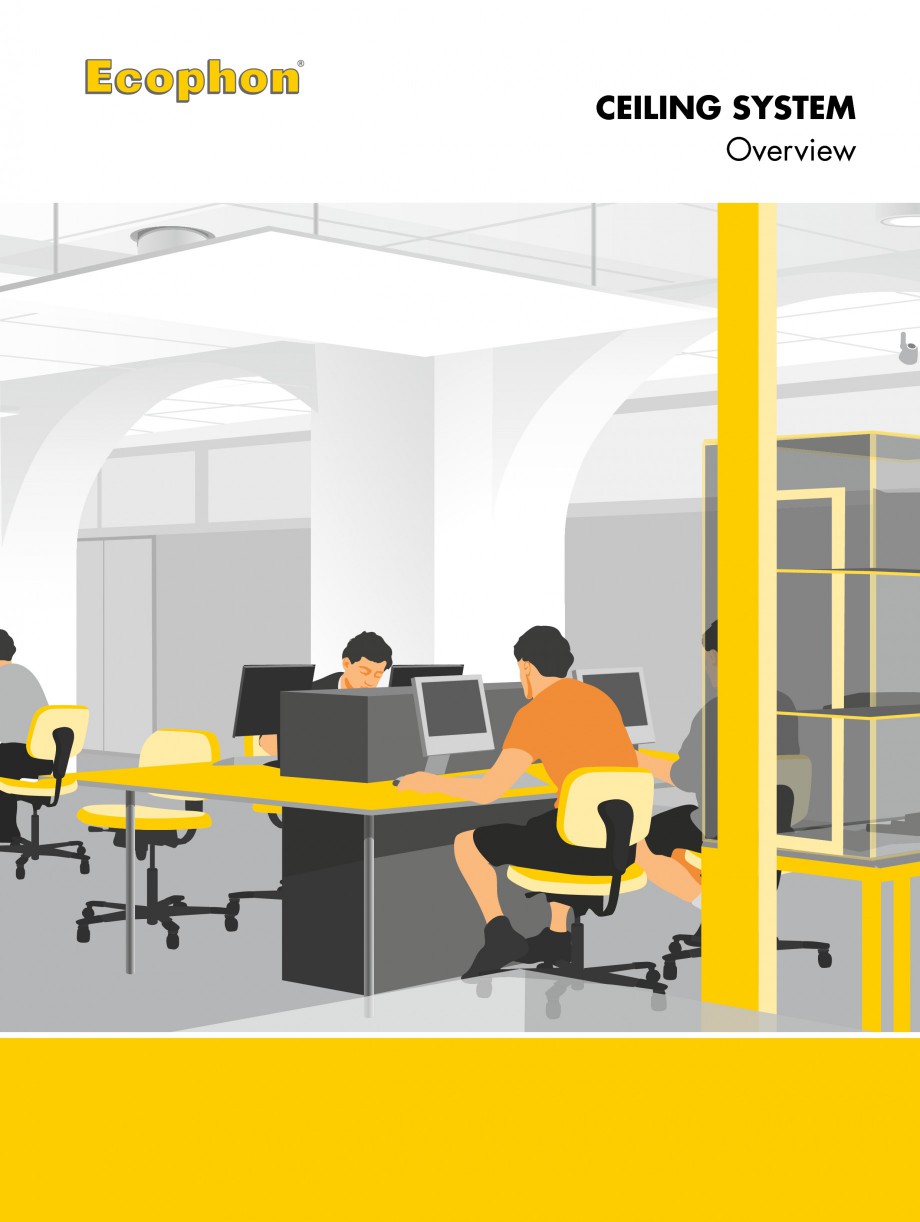

CEILING SYSTEM Overview
Ecophon
“wherever people work and comunicate”
Our mission Our mission is to contribute to a good working environment for the eye, the ear and the mind. We do this by supplying sound absorbing ceiling and wall absorber systems with well devised functions, attractive design and excellent sound absorption. Our business is to create a good sound environment in all workplaces for example offices, educational and health care premises, high tech industry and public areas. A good working environment does much to promote people’s wellbeing and performance. Many factors work together here – the sound environment being one of them.
Ecophon the company Ecophon is part of the Saint-Gobain Group and a leading, global supplier of sound absorbing ceilings and wall absorber systems. An innovative approach combined with long experience. Ecophon systems and products are marketed globally through wholly or partly owned sales companies and through selected partners and di
stributors. This means that you can get personal support from skilled personnel and representatives all over the world. The Ecophon head office is situated in Sweden. Here we also have our main production unit.
2
Global presence worldwide service on www.ecophon.com
Via our website we bring you acoustic support and updated product information 24 hours a day.
DESCRIPTIVE ILLUSTRATIONS Modern and descriptive illustrations help you to understand the benefits of our information, products and systems.
Read more about AkutexTM Surface Technology on the web. On all pages with this symbol, the products are available with AkutexTM surface.
SOUND EXAMPLES By comparing different acoustic environments we give you the possibility to understand how sound affects people.
3D ANIMATIONS Experience our product installations in a quick and inspiring way.
INSPIRATIONAL SLIDESHOW Get some ideas of how our products can be applied combining design with acoustics.
INTERACTIVE COLOUR SELECTOR Create your
own colour combinations of Wall Panels on the web before they are installed.
33
Functional demands
The physical requirements of buildings and the demands put on them span many technical areas and can differ considerably from one environment to another as well as between various applications. To make buildings function as intended, with user-friendly environments, high demands are placed on the building materials and technical solutions used. The functional demands placed on ceilings are often considerable. Properties and performance must conform to building standards, regulations and individual specifications, which take into consideration both present and future activities in the premises.
Acoustics
Room acoustics describes the way sound behaves in a room and how
αp Practical sound absorption coefficient 8.
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000 1. Absorption class A 2. Absorption class B 3. Absorption class C
we as humans perceive different acoustic phenomena. The
field of building acoustics covers sound insulation too. The shape, size, surface finish and furnishings of a room all determine its acoustic properties. Room acoustic design involves controlling these
4. Absorption class D 5. Absorption class E 6. Unclassified
factors, thus influencing sound absorption, reflection, propagation and diffusion in order to support a certain type of function or activity. In many of the commonly occurring types of rooms, a sound-absorbing ceiling is a practical aid for achieving Room Acoustic Comfort™. The ceiling’s sound-absorbing properties are described in sound absorption classes (A-E) in an international standard (EN ISO 116 54). Class A is the highest level of sound absorption. A majority of the Ecophon systems meet the highest class, Class A. The corresponding NRC/SAA value, according to ASTM C 423, is between 0.85 and 1.0. The maximum value that can be achieved is 1.0.
Frequency Hz
7.
The absorption classes are designated A-E, where absorpt
ion class A has the highest sound absorption. A specified overall dept of system (o.d.s) must always be stated for a given absorption class. A high Articulation Class (AC) gives some privacy, a lower AC means lower privacy. Ecophon recomend a minimum AC of 180.
VERTICAL DIMENSIONS
Accessibility
An important function of a suspended ceiling is to conceal installations in the ceiling void. In order to have easy access to the installations, e.g. for service, it is a great advantage if the ceiling tiles are demountable.
Δ = Minimum overall depth of system ʴ = Minimum depth for demountability
The edge design of the tiles and the installation method give different degrees of demountability. Most Ecophon systems, even those with concealed suspensions, are fully demountable.
Cleanability
For a long lasting ceiling with economical maintenance the visible surface should be dirt and dust repellent and easy to keep clean. Ecophon tiles with Akutex T and Akutex FT are a good choice as they h
ave a coating that prevents dust and dirt from adhering and also are designed to withstand cleaning if necessary.
4
Light efficiency
Lighting has a major impact to the overall look and feel of a room. A key factor is how the ceiling reflects and spreads the light. It should not cause glare or irritating reflections. A white Ecophon ceiling with Akutex T surface reflects 84% of the incident light and 99% of the reflection is diffuse. The corresponding figures for Akutex FT are 85% and 99% respectively. The Akutex FT surface has another important property; an optimum retro reflection coefficient. This means that it has the same appearance whether if the light comes from the same or the opposite direction in relation to the observer, when looking at the ceiling surface.
EcophonTM Edge: Mediafin Tour und Taxis, Belgium,Architect: Proscos CVBA, Antwerp, Photografer: Studio Schuurmans Fotografie
Influence of climate
The core material of Ecophon ceiling tiles is water repellent glass wo
ol. The absorption of moisture from the air is negligible, most Ecophon ceiling panels, withstand a relative humidity of 95% at 30 °C without warping, deflecting or delaminating. For any building material constantly exposed to hot and humid conditions there is a risk of mould growth, so adequate cleaning regimes must be considered.
Environmental influence
Almost 80% of the basic material in Ecophon ceiling tiles consists of recovered household glass and recycled glass wool. Most Ecophon products satisfy the Nordic Swan Environmental labelling criteria (The Swan). This standard covers the external and internal environmental impact of a product from raw material to recycling/deposit.
Nordic Swan Environmental labelling criteria: • Recycling • Transportation • Ergonomics • Life-Span
5
Indoor climate
The indoor environment has a major impact on people’s health. Building materials that release particles and chemical emissions should be avoided. Most Ecophon products are ce
rtified by the Indoor Climate Labelling (DIM) and the Building Material Emission Clasification M1 and pass the highest requirements. They are also recommended by the Swedish Asthma and Allergy Association.
Fire Safety
The fire safety demands on suspended ceilings can vary depending on
80oC
both the type of room and building where they are installed. However, two general performance requirements are always crucial: • Ceilings should have a negligible contribution to fire and smoke development
In a burning building the circumstances can quickly become such that there is imminent risk of personal injury. Within the parameters of safe evacuation, consideration must be given to fire gases, visibility, heat radiation and temperature. E.g. in order to evacuate safely, the air temperature in rooms through which people are escaping should not exceed approx. 80°C.
• Ceilings should not collapse during the early stages of the fire when evacuation and rescue operations still can be c
arried out All Ecophon ceiling systems fulfil these demands.
EUROPE
EN 13501-1
US
ASTM E 1264
• The surface linings of walls and ceiling are crucial for the early development of a room fire • Flash over occurs at a temperature of about 600oC • The maximum air temperature for safe evacuation is approx. 80 C
o
Class A2-s1,d0
Products Focus, Gedina, Advantage, Sombra, Master, Master S Solo Combison Duo, Access, Super G, Hygiene, Wall Panel, Focus S-line, Focus Quadro, Focus L-line, Focus Flexiform,
Class
Products Focus, Gedina, Advantage, Sombra, Master, Access, Super G, Hygiene, Wall Panel
Class A
B-s1,d0
6
Static load
Mechanical properties
kg
The weight of the ceiling itself and the weights of items attached to the ceiling e.g. light fittings, loudspeakers, ventilation grills, signs and so on. Dynamic load Mechanical impacts, for example contact from balls in gymnasiums or water pressure when the ceiling is being cleaned with high pressure hoses. Live
load All loads added to the ”naked” ceiling system. Live loads can be static or dynamic. Design load The own weight of the suspended ceiling and the actual live loads the
Mechanical properties embrace load bearing capacity and impact resistance. The tiles and grid of a ceiling system are subjected to different loads. All of these possible loads must be considered during the process of planning and designing a ceiling. The ceiling tiles can only take small loads, such as the load from a small spotlight.
Installation
ceiling is designed for.
The structure of glass wool is such that the ceiling tiles have excellent mechanical properties relative to their weight. This means that the tiles are stable and can withstand handling, but are nonetheless pliable and very easy to work with. An ordinary craft knife is used for cutting perimeter tiles and holes for installations, pipe-works and cables. Installation guides can be down loaded from the Ecophon home page www.ecophon.com.
• Inst
all the ceiling late in the building process to avoid soiling. • Always use clean cotton gloves when handling ceiling panels.
Ecophon Sombra/Focus Ds: AFG Arena, Shoppingcenter, St.Gallen Switzerland Architect: Ramseier & Associates Ltd
7
Application Guide
This guide is intended to help you find a suitable ceiling solution for a specific type of area. The recommendations are based on our long experience of meeting the general demands and requirements upon acoustic ceilings in selected areas. However, occasionally specific conditions could mean that an alternative solution to the ones shown suits your application. We have suggested the best products for each area also indicating good alternative systems where appropiate. In the section for Functional demands you will find detailed descriptions of the demands and standards for ceilings. For information on the performance of each system, please refer to the system description. Should you have any special requirements or require
further information please contact us, www.ecophon.com.
Banque populaire Toulouse,France Architect: Majorelle Photographer: Patrick Salaün
8
FOCUS
FREE HANGING UNITS
MASTER
COMBISON
GEDINA
ADVAN-TAGE
ACCESS
SOMBRA
HYGIENE
SUPER G
WALLPANEL
Office Reception/Entrance Corridor Open plan solution Quiet zone Quiet room Rest area Cellular office Room with movable partitions Meeting room Conference and lecture room Copying and printing room Kitchen Canteen Educational Premises Entrance/Communal area/Cloak room Corridor/Stairs Classroom Open-plan teaching environment Conference room/Group study room •• •• •• ••• •• ••• ••• ••• ••• •• ••• •• ••• •• ••• ••• •• ••• •• •• ••• •• •• •• ••• ••• ••• ••• ••• ••• ••• •• •• ••• ••• ••• ••• ••• •• ••• •• ••• ••• ••
•• ••• ••• ••• ••• ••• •• •• ••• ••• ••• ••• •• ••• ••• ••• •• ••• •• •• ••• ••• ••• •• ••• ••• ••• ••• •• ••• ••• ••• ••• •• ••• ••• •• •• •• •• ••• ••• ••• ••• ••• •• •• •• •• •• •• ••• ••• ••• •• ••• •• ••• ••• ••• ••• ••• ••• ••• •• •• ••• •• ••• ••• ••• •• •• •• ••• •• •• •• ••• ••• ••• ••• •••
Lecture theatre/Assembly hall/ uditoriumstudy room
Workshop Music room/Drama room/Dancing room Library/Multimedia resource centre/ Study room/Staff room Cellular office/Reception Canteen/Cafeteria/Restaurant Kitchen Changing room Gymnasium/Sports hall* Swimming
pool* Play and activity room Health care premises Ward room/Patient room Entrance hall Circulation area/Corridor Consultation Room/Treatment Room Operating theatre Laboratory Hygiene room Waiting room/Library Restaurant/Café Intensive care/Recovery room Kitchen Cellular office Office room with movable partitions Cinema Entrance hall Movie theatre Projector room Corridor Rest room Sports and leisure Tennis hall Sports hall* Swimming pool* Restaurants Dining room Kitchen Commercial Shop Shopping mall Industry Pharmaceutical Food preparation Electronic
• • • = recomendation • • =good alternative Ecophon ceilings together with wall panels are an excellent way to achieve Room Acoustic Comfort™. We recommend a combination of Master Solo S with wall panels, when Concrete Core Activation is an issue.
9
Meets the strictest demands of form and structure
FOCUS
FREE HANGING UNITS
Design units for acoustic purpose
LIGHTING
Intergrated with Ecophon ceiling
When acoustics are vi
tal
MASTER
Sound insulation plus soundabsorbtion
COMBISON
Standard solutions for high demands
GEDINA
For full accessibility
ACCESS
For the basic demands
ADVANTAGE
The black acoustic ceiling
SOMBRA
Good acoustics where hygiene is vital
HYGIENE
Impact resistant ceilings
SUPER G
Alternative or complement to the acoustic ceiling
WALL PANEL
10
Ecophon system descriptions
The Ecophon range comprises of various system families. All of these families have a number of systems which fulfil different demands with regard to performance characteristics, edge designs, sizes and surfaces. Each system family has its own specific features and has been developed to be ideal for particular areas, although they may also be suitable in other situations.
FOCUS FREE HANGING UNITS LIGHTING MASTER COMBISON GEDINA ADVANTAGE ACCESS SOMBRA HYGIENE SUPER G WALL PANEL CONNECT
12
16
18
20
22
24
26
28
30
32
34
36
38
11
Ecophon Focus™
Meets the strictest demands of form and func
tion
Nordstrand Frisenstam Rung, Gothenburg, Sweden Photographer: Bert Leandersson
The Ecophon Focus family provides comprehensive tools to create a wide variety of ceiling designs - and still meet the strict requirements for first-class acoustics. An extensive range of edge designs, forms and levels gives you the freedom to create an environment that attains high standards in sound, light, comfort and ambience.
Eight edge designs for appearance and functionality The systems are available with a variety of edge designs for concealed or visible grid or for direct fixing. Not only will the edge design affect the overall appearance of the ceiling, but they will enable you to meet different requirements for demountability and access to installations in the ceiling void.
12
Section of Focus Ds system
Section of Focus B sytem
Focus Dg with Connect T24 Ultra Matt black
Focus F is installed by screw fixing
ACOUSTICS:
αp Practical sound absorption coefficient
1.0 0.8 0.6 0.4 0.2 0.0
125 250 500 1000 2000 4000
SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654. SOUND PRIVACY: AC according to ASTM E 1111 and E 1110.
FOCUS
Frequency Hz
Frequency, Hz — Ecophon Focus Ds 200 mm o.d.s. --- Ecophon Focus Ds 50 mm o.d.s. o.d.s = overall depth of system
Size in mm Visible grid Easy demountable tiles. For direct fixing with glue. 600x600, 1200x600, 1200x1200, 1600x600,1800x600, 2000x600, 2400x600 600x600
Absorption Class/AC A /190 C /A /180 A /180 A /180 A /180 A /180 C /-
Min depth of system 50/100 mm
Focus A Focus B
23 mm
Focus C
Concealed grid. Non demountable tiles. Concealed grid. Easily demountable tiles. Symmetric edge. Unique edge design. Floating appearance. Easily demountable tiles. Recessed visible grid. Easily demountable tiles. Visible grid of box type with flush apparence. Easily demountable tiles. For direct fixing with screws.
600x600, 1200x600
23/135 mm
Focus Ds
600x600, 1200x600, 1200x1200, 1600
x600,1800x600, 2000x600, 2400x600 600x600, 1200x600, 1200x1200, 1600x600,1800x600, 2000x600, 2400x600 600x600, 1200x600, 1200x1200, 1600x600,1800x600, 2000x600, 2400x600 600x600
65/135 mm
Focus Dg
65/115 mm
Focus E
60/110 mm
Focus Ebx
110 mm
Focus F
600x600, 1200x600
20 mm
13
Ecophon Focus™
Unique additional systems
Basen Rozana, Warsaw, Poland
The Ecophon Focus range provides a number of additional systems that present new design and functional possibilities to enhance or complete the acoustic ceiling. Focus 3-Dimensional ceilings Ecophon Focus™ S-line, Focus™ Quadro, Focus™ L-line and Focus™ Flexiform curved ceiling panels enable you to vary the heights of different parts of the ceiling. They provide an easy way to adapt the ceiling to installations and the structural features that are inherent to the building. Raising and lowering the ceiling in this way can produce an innovative and exciting ceiling design.
Ecophon Focus™ frieze The sound absorbers in th
e ceiling perimeter are extremely important as in that they absorb both the sounds coming directly from the sound source and those reflected from the upper part of the walls. The Focus frieze system is used to create a smooth interface between the wall and the suspended ceiling without any visible wall-trims.
14
Focus S-Line E panel
Focus L-Line E system
Section of Focus Quadro E system
Focus Flexiform panel
ACOUSTICS:
αp Practical sound absorption coefficient
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
1,2 1,0 0,8 0,6 0,4 0,2
Frequency Hz
125
0,0
Frequency, Hz — Ecophon Focus S-line E, Focus L-Line E, Focus Quadro E, Focus Frieze 200 mm o.d.s. o.d.s = overall depth of system SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654.
Frequency, Hz — Ecophon Focus Flexiform 200 mm o.d.s. o.d.s = overall depth of system
250
500
1000
2000
4000
Frequency Hz
To be best combined with Focus A Focus S-line E S-
shaped panels creating a level change, h=210 or 310 mm. L-shaped panels creating a level change. Quartered circle shaped panels creating a level change,convex or concave shape. Flexible panels formed on site. Ds Dg E
Size mm
Absorption Class/ AC B
Min depth of system
Focus L-line E Focus Quadro E
Focus Flexiform
.
. . . .
1200x600 1200x1200 1200x600
-
B
-
1200x300 1200x450 1200x600 1600x600 2000x600 2400x600 2400x600
B
-
B
-
Focus Frieze
Creating a smooth transition between ceiling and wall.
A/ 190
60
15
FOCUS ADDITIONAL
Ecophon Free Hanging Units
Nordstrand Frisenstam Rung,Gothenburg, Sweden Ecophon Office, Basingstoke, UK, Photographer: Bert Leandersson
Photographer: Jeff Faraday, Faraday Fotographic Limited
Ecophon Focus™ Wing Ecophon Focus Wing provides a whole new dimension to the acoustic ceiling. With this additional system, the ceiling becomes more than just a surface – it becomes a design element and a focal point. Focus Wing can be used as a free
-hanging unit over a meeting place or a workstation. It can also be used for level changes or transitions to other construction elements. Ecophon Edge™ 500 Ecophon Edge is a free hanging system with its own special character since the section of the Connect Edge Profile 500 and the Connect Edge Corner has a slight vertical slope. The floating ceiling, installed in rectangular islands, becomes a design element with a soft and balanced appearance thanks to the moulding Connect Edge 500. The outer edges are angled slightly upwards and outwards or downwards and outwards, as required.
Ecophon Master™ Solo S Ecophon Master Solo S is a horizontal element with painted edges and without profiles, giving this single unit a very clean, minimalist appearance. The product is available in 1200x1200x40 mm or 2400x1200x40 mm with the Akutex FT surface in White Frost. Ecophon Master™ Baffle For applications where a wall-to-wall ceiling is not possible or desired. Such applications are, for examp
le when concrete core activation is used or installations that do not allow a full coverage of the ceiling. Ecophon Master Baffle is an easily demountable system with a distinct gap between the baffles created by the Connect guide pin.
16
Focus Wing external corner. Also available as internal corner
Section of Focus Edge 500 system
Master Solo S
Master Baffle
ACOUSTICS: Aeq Equivalent absorption area per unit, m2
3.0 5.0 2.5 2.0 3.0 1.5 2.0 1.0 1.0 0.5 125 250 500 1000 2000 4000
Frequency Hz
FREE HANGING UNITS
4.0
125
250
500
1000
2000
4000 Frequency Hz
Frequency, Hz — Ecophon Master Solo S 1200x1200 / 1000 mm o.d.s — Ecophon Master Solo S 1200x1200 / 400 mm o.d.s. --- Ecophon Master Solo S 1200x1200 / 200 mm o.d.s. o.d.s = overall depth of system SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654.
Frequency, Hz — Ecophon Master Solo S 2400x1200 / 1000 mm o.d.s — Ecophon Master Solo S 2400x1200 / 400 mm o.d.s. --- Ec
ophon Master Solo S 2400x1200 / 200 mm o.d.s. o.d.s = overall depth of system
Comment: The values in the diagram refer to measurement on a single unit. If the units are arranged in a cluster with distances between units less than 0.5 meters, the Aeq per unit will be somewhat reduced.
To be best combined with Focus Ds Focus Wing Wing-shaped elements for free hanging ceilings. Slight vertical sloped moulding for free hanging units. A free hanging unit with a clean appearance and easy to install. Discreet, adjustable wire hangers with no visible profiles. Suspended with Baffle profile. Dg E
Size mm
Absorption Class
Min depth of system
Edge 500 Master Solo S
. . . . .
Individually suspended units Individually suspended units
1200x200
-
135
2400x80
-
135
1200x1200 2400x1200
(A)
140 140
Master Baffle
1194x200 1194x300
D
220 320
17
Ecophon integrated lighting
Ecophon Office, Basingstoke, UK,
Photographer: Jeff Faraday, Faraday Fotographic Limited
Ecophon Illuminated
Level Change Ecophon Illuminated Level Change is effectively an open Ecophon Light Coffer. By combining several lengths and shapes of level change, special size Light Coffers are created. The level change can be used to allow creative use of available height and room space, emphasising and strengthening the identity of large scale rooms or leading the way on directional walkways. Illuminated level change creates an even and harmonious illumination with its indirect lighting while controlling shadows in the room. Ecophon Light Coffer Ecophon Light Coffer can be used for general lighting, for lighting in a special area, or as an aesthetic part of the ceiling. The Light Coffer creates an even and harmonious illumination with its indirect lighting while controlling shadows. If coffers are used for general lighting in large rooms with many workstations, they should be supplemented with luminaires around the coffers.
Ecophon Dot™, Square™ and Line™ Fully integrated luminaires develope
d for Ecophon ceilings with Akutex FT surface. These luminaires are designed to achieve an exciting lighting effect and suitable for a number of room types. They are primarily for mood or general lighting and work well as a specific feature or simply enhancing the character of the room. The lower part of the luminaire is easily demountable. Ecophon Hygiene™ Lavanda T5 A luminaire used together with Ecophon Hygiene Ceilings. Ecophon Hygiene Lavanda T5 is equipped with a high frequency ballast, is flush mounted in the ceiling to avoid pockets of dirt and dust that could accumulate, and can also withstand high pressure washing (IP65).
18
Luminar in extusion
Uplight extusion hanger
Ecophon Dot with Focus Ds system
Section of Hygiene lavanda with Protec C
ELECTRICAL DATA: 230-240V, 50 Hz, power factor cos φ>0,9. APPROVALS: IP20, Class 1.
To be best combined with Focus C Ecophon Illuminated Level Change Ecophon Light Coffer Combinations of level changes and lighting. Available in
8 standard sizes. Ds Dg E
Size mm
Required aprox.nos luminaires/m2 per100 lux -
. . . . . . . .
*) *) *)
1200x600
from 2400x2400 to 4800x6000 600x600
-
Ecophon Dot
Fully integrated luminaire.
. . . . . . . . .
0.074
**) 600x600 0.066
Ecophon Square 43
Fully integrated luminaire.
**) 1200x600 0.074
Ecophon Line
Fully integrated luminaire.
Hygiene Lavanda T5
Recessed luminaire. Withstand frequent high pressure hosing.
To be installed with Hygene ceiling system
600x600 1200x300
PS 0.037 PTP 0.027 PS 0.025 PTP 0.019
*)Not recommended with 135 degree corners **)Also to be combined with Master E
19
LIGHTING
Ecophon Master™
When acoustics are vital
Walkenried Kindergarten, Walkenried, Germany Architect: Probst, Herzberg am Harz Photographer: Åke E:son Lindman
When information is being communicated to an audience it is very important that the speaker can be heard clearly. Developed for classrooms and open-plan offices If you are looking for a ceiling that promote
s speech intelligibility, tests have shown that Master/alpha is in a class of its own. It has excellent sound absorption for frequencies above 250 Hz and also provides high absorption for low frequencies. Therefore, Ecophon Master/alpha is particularly well suited for rooms where maximum absorption throughout the frequency range is desirable, such as classrooms and open-plan offices. It is also ideal in areas where there is low-frequency disturbance from ventilation systems or external sources such as traffic noise.
Ecophon Master™ variations for different situations All Ecophon Master systems are available with three different sound absorption characteristics, which can be used separately or in combination depending on the room type.
alpha - the surface that produces the highest sound absorption - class A - used for wall-to-wall ceilings in open-plan offices, lecture rooms and conference halls with floor areas up to about 100 m², possibly combined with Master gamma. beta - suitabl
e for installation as a full ceiling in music rooms with floor areas up to 100 m². Due to its reduced high-frequency sound absorption - class C - it offers greater tone richness. gamma - has a sound absorption capacity for low frequencies only and is otherwise a sound reflector - sound absorption class E. Master gamma can be used with Master alpha in lecture halls with floor areas of more than 100 m². It can also be used to give fast feedback to the speaker. extra bass - is a complement to Master/Alpha when increased sound absorption is required, especially in the low frequencies. It is very important for people with a hearing impairment.
20
Section of Master A system with Extra bass
Section of Master B system
Section of Master C system
Master Ds, the individual tiles are easyliy demountable
ACOUSTICS:
αp Practical sound absorption coefficient
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
Frequency Hz
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000 Frequency Hz
Fre
quency, Hz — Ecophon Master Ds/alpha 200 mm o.d.s. ···· Ecophon Master Ds/beta 200 mm o.d.s. --- Ecophon Master Ds/gamma 200 mm o.d.s. o.d.s = overall depth of system SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654. SOUND PRIVACY: AC according to ASTM E 1111 and E 1110. Master A/beta and A/gamma are not suitable.
Frequency, Hz — Ecophon Master Ds/alpha 95 mm o.d.s. ···· Ecophon Master Ds/beta 105 mm o.d.s. --- Ecophon Master Ds/gamma 95 mm o.d.s. o.d.s = overall depth of system
Size in mm Visible grid. Easily demountable tiles. For direct fixing with glue. 600x600, 1200x600, 1200x1200 600x600
Absorption Class/AC A /200 A /A /190 A /190 A /190 A /-
Min depth of system 50/100 mm
Master A Master B
43 mm
Master C
Concealed grid. Non demountable tiles. Concealed grid. Easily demountable tiles. Recessed visible grid. Easily demountable tiles. For direct fixing with screws.
600x600
43/155 mm
Master Ds
600x600
95/150 mm
Master E
600x600, 1200x1200
60/110 mm
Master F
600x600, 1200x600
40 mm
21
MASTER
Ecophon Combison™
Sound insulation plus sound absorbtion
JM Stockholm, Sweden Architect: FFNS Arkitekter AB Photographer: Åke E:son Lindman
Many modern buildings are designed in such a way that they are easily adaptable to the needs of different people. Room divisions are flexible, installations are movable and interior fittings, walls and ceilings are easy to modify. Moveable partitions can either butt up against the suspended ceiling or break through it. In both cases sound can pass from room to room through the ceiling void.
Other applications where Ecophon Combison™ is an appropriate solution are: - Sound insulation against noise from installations in the void between the structural soffit and the suspended ceiling. - Airborne sound insulation between floors. - Impact sound insulation (such as footstep sound) between floors.
22
Combison Uno A edge
Section of Combison Uno Ds sys
tem
Combison Duo E system
Section of Combison Duo E system
ACOUSTICS:
αp Practical sound absorption coefficient
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
Frequency Hz
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
Frequency Hz
SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654. SOUND INSULATION: Dn,f,w=40 dB according to ISO 10848-2 and evaluation according to EN ISO 717. SOUND PRIVACY: AC according to ASTM E 1111 and E 1110.
Size in mm 600x600x, 1200x600
Absorption Class/AC C /C /A /190 A /190
Min depth of system 50/100 mm
Combison Uno A Combison Uno Ds
Visible grid. Demountable tiles. Concealed grid. Demountable tiles. Visible grid. Demountable tiles.
600x600
135 mm
Combison Duo A
600x600
80/100 mm
Combison Duo E
Recessed visible grid. Demountable tiles.
600x600
90/110 mm
23
COMBISON
Frequency, Hz — Ecophon Combison Duo A 200 mm o.d.s. o.d.s = overall depth of system
Frequency, Hz — Combison Duo E
200 mm o.d.s. o.d.s = overall depth of system
Ecophon Gedina™
Standard solutions for high demands
Friskis och Svettis, Helsingborg, Sweden Photographer: Georg van der Weyden
Ecophon Gedina™ is a classic safe choice for architects, ceiling contractors and end-users. Continuous product development ensures that Ecophon Gedina can meet the growing demands being made on the ceiling in terms of flexibility, ease of handling and environmental issues. Besides this Ecophon Gedina continues to maintain its reliable sound absorption characteristics.
Fast and robust solution Ecophon Gedina A and Gedina E are installed in Connect T24 or T15 grids. Installation is quick and easy and produces a robust ceiling structure for everyday environments.
24
Section of Gedina A system
Gedina A system
Gedina E Edge
Section of Gedina E system
ACOUSTICS:
αp Practical sound absorption coefficient
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
Frequency Hz
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500
1000 2000 4000
Frequency Hz
Frequency, Hz — Ecophon Gedina A 200 mm o.d.s. --- Ecophon Gedina A 50 mm o.d.s. o.d.s = overall depth of system
Frequency, Hz — Ecophon Gedina E 200 mm o.d.s. --- Ecophon Gedina E 60 mm o.d.s. o.d.s = overall depth of system
GEDINA
SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654. SOUND PRIVACY: AC according to ASTM E 1111 and E 1110.
Size in mm 600x600x, 1200x600, 1200x1200 600x600x, 1200x600, 1200x1200
Absorption Class/AC A /190 A /180
Min depth of system 50/100 mm
Gedina A Gedina E
Visible grid. Easily demountable tiles. Recessed visible grid. Easily demountable tiles.
60/110 mm
25
Ecophon Advantage™
For the basic demands
Simonsen Weel
Ecophon Advantage™ offers good value-for-money and meets essential requirements with regard to acoustics, moisture resistance and mechanical strength. The tiles are easy to handle and are available in a limited number of sizes
Batch painted surface The
batch painted surface of Advantage has, however, certain functional limitations when it comes to life-span, resistance to soiling, cleaning properties etc, compared to Ecophon systems with Akutex T and Akutex FT.
26
Section of Advantage A system
Advantage A system
Section of Advantage E system
Advantage E system
ACOUSTICS:
αp Practical sound absorption coefficient
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
Frequency Hz
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
Frequency Hz
Frequency, Hz —Ecophon Advantage A 200 mm o.d.s. --- Ecophon Advantage A 50 mm o.d.s. o.d.s = overall depth of system SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654.
Frequency, Hz — Ecophon Advantage E 200 mm o.d.s. --- Ecophon Advantage E 60 mm o.d.s. o.d.s = overall depth of system
Size in mm 600x600x, 1200x600
Absorption Class A
Min depth of system 50/100 mm
Advantage A
Visible grid. Easily demountable tiles. Recessed visible
grid. Easily demountable tiles.
Advantage E
600x600x, 1200x600
A
60/110 mm
27
ADVANTAGE
Ecophon Access™
For full accessability
Kungliga Husgerad
Modern establishments are being built to suit the needs of many different people. The ceiling void is often used to accommodate a range of services, such as ventilation and other climate equipment, electrical wiring, cabling for computers, alarms and communication systems. Therefore easy access to these services for maintenance and/or alteration is vital, sometimes even on a daily basis. Ecophon Access™ panels can be lowered fully from both ends and there are no obstructing cross tees. The panels can also be opened fully in long “lanes” for servicing and other work.
Additional system - Ecophon Access frieze for margins The margin of a suspended ceiling is generally used for taking up tolerances, carrying light fittings or as a design feature. In terms of acoustics, sound absorbers in the margins along the walls in a room are
particularly important in preventing undesirable sound reflections.
28
Access A edge
Section of Access A with Frieze
Section of Access C
Access E system
ACOUSTICS:
αp Practical sound absorption coefficient
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
Frequency Hz
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
Frequency Hz
Frequency, Hz — Ecophon Access A 200 mm o.d.s. o.d.s = overall depth of system SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654.
Frequency, Hz — Ecophon Access C 200 mm o.d.s. o.d.s = overall depth of system
Size in mm (800-2000)x600, (800-2000)x1200 (800-2000)x600, (800-2000)x1200 (800-2000)x600, (800-2000)x1200 2400x600
Absorption Class A
Min depth of system 120mm
Access A Access C
Panels with visible frame covering edges and corners. Panels with concealed frame.
A
130 mm
Access E
Panels with recessed visible frame. Creating a smooth transition between Access system and wall.
A
130
mm
Access Frieze
A
230 mm
29
ACCESS
Ecophon Sombra™
The black acoustic ceiling
Kino MAX Skalica, Slovakia Architect: Peter Štrpka - DARK BLUE studio Photographer: Martina Jansová
In some premises, such as cinemas, restaurants and nightclubs, a dark ceiling is either a necessity or desirable. Movie sound provides the total experience Sound is becoming a major factor in modern cinemas. The improvement of sound effects in film and the high quality of theatre sound equipment means that cinema acoustics have a more important part to play than ever before in the total movie experience.
Ecophon Sombra™ systems offer the tiles, grid and accessories that fulfill the demands for black matt ceiling surfaces as well as the requirements for top class acoustics. Sombra systems are installed in many THX certified cinemas around the world.
30
Section of Sombra A system
Sombea A system
Sombra Ds Edge
Section of Sombra Ds Section
ACOUSTICS:
αp Practical sound absorption coeffic
ient
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
Frequency Hz
1.0 0.8 0.6 0.4 0.2 0.0 125 250 500 1000 2000 4000
Frequency Hz
Frequency, Hz — Ecophon Sombra A 200 mm o.d.s. ···· Ecophon Sombra A/gamma 200 mm o.d.s. --- Ecophon Sombra A/gamma + Sombra X-bass 200 mm o.d.s. ··· Ecophon Sombra A 50 mm o.d.s. o.d.s = overall depth of system SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654.
Frequency, Hz — Ecophon Sombra Ds 200 mm o.d.s. ···· Ecophon Sombra Ds/gamma 200 mm o.d.s. --- Ecophon Sombra Ds/gamma + Sombra X-bass 200 mm o.d.s. ··· Ecophon Sombra Ds 50 mm o.d.s. o.d.s = overall depth of system
Size in mm 600x600x, 1200x600
Absorption Class A
Min depth of system 50/150 mm
Sombra A Sombra Ds
Visible grid. Easily demountable tiles. Concealed grid. Easily demountable tiles.
600x600x, 1200x600
E
65/135 mm
31
SOMBRA
Ecophon Hygiene™
Good acoustics where hygiene is vital
Szpital Sw Zofii (St. Sophie
Hospital), Warsaw, Poland Architect: Tomasz Mach Photographer: Szymon Polanski
Smooth, glossy and hard materials are traditionally associated with a high degree of cleanability and hygiene. Soft and porous materials are usually needed for efficient sound absorption. With Ecophon Hygiene™ systems we have successfully combined high cleanability properties with good acoustic performance.
Tested and classified for different requirements Different environments require different levels of hygiene. Washability may sometimes be a vital requirement; whereas in other cases, the number of particles in the air is particularly important. In certain areas the absorbers must be able to withstand chemical disinfection; in other areas the ambient humidity may be constantly high. The Ecophon Hygiene range includes systems that are tested and certified to suit such environments. Examples include: institutional kitchens, food processing industries, abattoirs, laboratories, breweries, chemical engineer
ing, pharmaceutical manufacture, hospitals, operating theatres, high tech production plants and more.
32
Section of Hygiene Advance A 40 mm system
Manual wet cleaning of Meditec A
Section of Hygiene Protec C system with Connect Z-profile
Hygiene Lavanda T5 PS
SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654. For more detailed information, please look at our web site: www.ecophon.com
Size in mm Visible grid. For the healthcare sector. Withstands disinfecting chemicals. Recessed visible grid. For the healthcare sector. Withstands disinfecting chemicals. Visible grid. Withstands disinfecting chemicals and high pressure hosing. Visible grid. Withstands disinfecting chemicals and high pressure hosing. Can be wet cleaned on all surfaces. Concealed grid. Withstands high pressure hosing. Vertical hanging absorber. Withstands disinfecting chemicals and high pressure hosing. Vertical absorber. Withstands disinfecting chemicals and high pres
ing, pharmaceutical manufacture, hospitals, operating theatres, high tech production plants and more.
32
Section of Hygiene Advance A 40 mm system
Manual wet cleaning of Meditec A
Section of Hygiene Protec C system with Connect Z-profile
Hygiene Lavanda T5 PS
SOUND ABSORPTION: Test results according to EN ISO 354. Classification according to EN ISO 11654. For more detailed information, please look at our web site: www.ecophon.com
Size in mm Visible grid. For the healthcare sector. Withstands disinfecting chemicals. Recessed visible grid. For the healthcare sector. Withstands disinfecting chemicals. Visible grid. Withstands disinfecting chemicals and high pressure hosing. Visible grid. Withstands disinfecting chemicals and high pressure hosing. Can be wet cleaned on all surfaces. Concealed grid. Withstands high pressure hosing. Vertical hanging absorber. Withstands disinfecting chemicals and high pressure hosing. Vertical absorber. Withstands disinfecting chemicals and high pres
... ascunde
