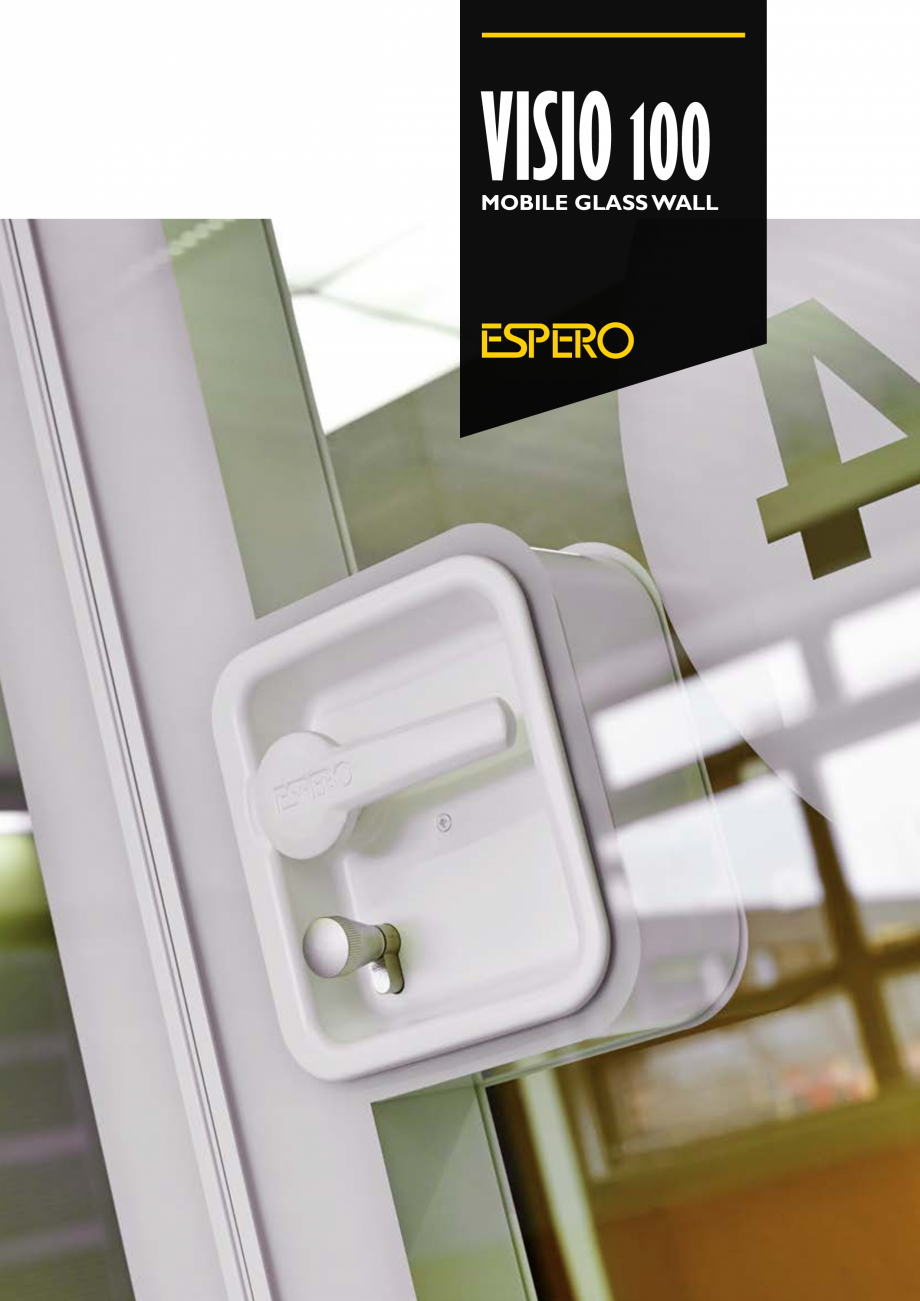

Pagina 1 - Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza VISIO 100

MOBILE...

VISIO 100 MOBILE GLASS WALL VISIO 100 MOBILE GLASS WALL Mobile walls add value to the available space in interiors. With an extensive programme of mobile wall systems, Espero can always provide the right solution for creating flexible layouts, based on the three important pillars on which the company was founded: functionality, aesthetics and durability. Espero is a Dutch supplier and manufacturer, and the market leader in the Benelux, which is partly due to our 75 years of experience. Espero’s mobile wall systems are used all over the world in attractive office interiors (in the public and private sector), schools, restaurants and hotels, exhibition and event halls, hospitals and care centres, churches and mosques; large or small projects, new construction, renovations and alterations. Espero offers architects a imitless choice of applications and finishes for total creative freedom. Our comprehensive specifications service and expert advisers provide additional support in desi

Pagina 1-Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza VISIO 100

MOBILE GLASS WALL
...

Pagina 2 - Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza gn development.
End ...

gn development. End users praise the reliability, the ease of use and the high level of sound insulation of the walls that is available whenever necessary in practice. Visio 100: high sound insulation rating, maximum transparency and yet extremely flexible; Espero’s new glass panel wall, the Visio 100 (Elite), has everything. The wall consists of separate panels that form a flat glass surface when connected together. The panels consist of a selfsupporting aluminium frame with internal steel bracing, in which the glazing is placed. The glazing unit is mounted in rubber seals in an aluminium wall profile. Espero’s patented quick-locking mechanism guarantees simple and smooth operation. The Visio 100 SA (semiautomatic version) provides even greater ease of use. Two versions of the wall are available: Visio 100 and Visio 100 Elite. Depending on the type of glazing used, the sound insulation rating is Rw = 42 dB to 50 dB (lab. tested). Espero is ISO 9001 and 14001 certified

Pagina 2-Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza gn development.
End users...

Pagina 3 - Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza (the
international...

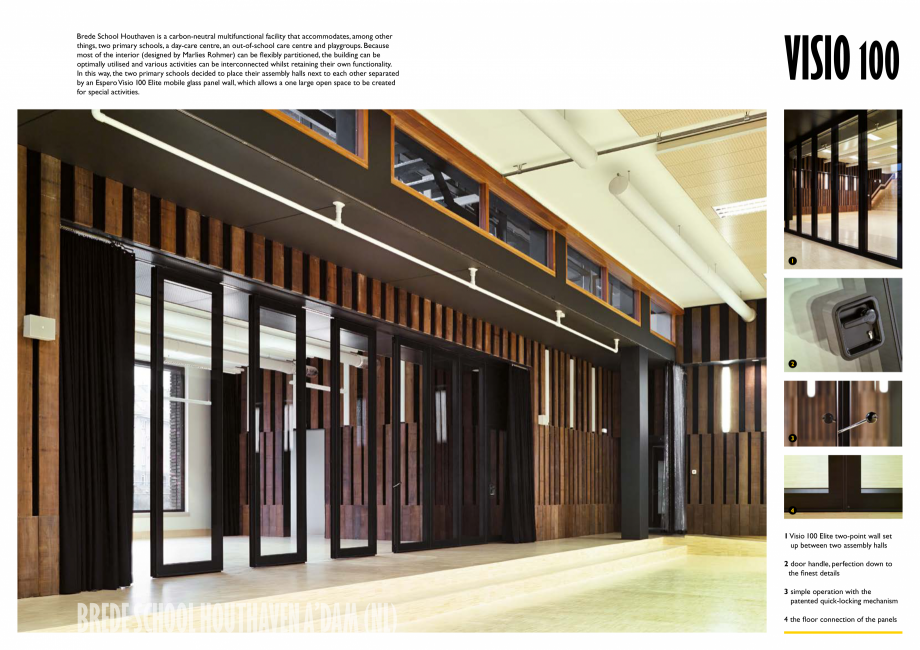

(the international standards for quality and environmental management systems). Striving to achieve maximum quality and causing as little environmental impact as possible are highly valued in all layers of the organisation. Brede School Houthaven is a carbon-neutral multifunctional facility that accommodates, among other things, two primary schools, a day-care centre, an out-of-school care centre and playgroups. Because most of the interior (designed by Marlies Rohmer) can be flexibly partitioned, the building can be optimally utilised and various activities can be interconnected whilst retaining their own functionality. In this way, the two primary schools decided to place their assembly halls next to each other separated by an Espero Visio 100 Elite mobile glass panel wall, which allows a one large open space to be created for special activities. VISIO 100 1 2 3 4 1 Visio 100 Elite two-point wall set up between two assembly halls 2 door handle, perfection down to the finest d

Pagina 3-Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza (the
international standards...

Pagina 4 - Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza etails

BREDE SCHOOL...

etails BREDE SCHOOL HOUTHAVEN A’DAM (NL) 3 simple operation with the patented quick-locking mechanism 4 the floor connection of the panels VISIO 100 Two versions of Espero’s glass mobile panel wall are available: The Visio 100 and Visio 100 Elite. The main difference is the finishing of the glass. The Visio 100 has transparent glazing without a frame and the Visio 100 Elite is fitted with a frame-lacquered glazing. The Visio 100 with completely transparent glass and cassettes made from anodised aluminium has a modern industrial appearance. The basic and end-panels are finished with glass, the other panels in a finish of choice (similar to the Sonico 100). The cassettes, which house the construction and operating mechanism, and the aluminium wall profiles can be optionally supplied in a RAL colour of choice. The Visio 100 Elite is fitted with framelacquered glazing in an RAL colour of choice. The basic, door, end and communication panels are supplied with frame-lacquered glazing

Pagina 4-Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza etails

BREDE SCHOOL HOUTHAVEN ...

Pagina 5 - Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza (transparent);
the ...

(transparent); the other types of panels are supplied with painted glass (non-transparent). This finishing makes the wall look even more elegant. The cassettes and wall profiles can be optionally supplied in any RAL colour if required. 5 5 the look of the profiles, operating key 6 Visio 100: completely transparent glass and natural aluminium cassette 7 Visio 100: completely transparent glass and cassette in colour (option) 6 7 8 9 8 Visio 100 Elite: glass with blue painted frame and natural aluminium cassette 9 Visio 100 Elite: glass with blue painted frame and blue painted cassette NEC NEDERLAND HILVERSUM (NL) VISIO 100 The halls in the Brede School Houthaven in Amsterdam can be partitioned in various ways by using mobile walls. The school’s architecture enables various activities to take place before, during and after the official lessons, and is also intended to facilitate cooperation between different groups of users. For the mobile walls in the corridors, Visio 100 E

Pagina 5-Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza (transparent);
the other types...

Pagina 6 - Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza lite glass walls...

lite glass walls were deliberately chosen in order to provide sufficient daylight. The classrooms are separated by Espero Sonico 110 walls Espero’s patented quick-locking mechanism guarantees ultra-smooth operation for the end users. The operating key only has to be given half a turn to unlock or secure the panels in position. Once unlocked, the separate panels can be quickly and noiselessly moved along the overhead aluminium track and can be easily set up or stowed away. The sound insulation is guaranteed by lockable operation seals located at the top and bottom of the panels. The vertical profiles are fitted with acoustic rubber seals. BREDE SCHOOL HOUTHAVEN A’DAM (NL) The eye-catching town hall in Hardenberg is one of the most sustainable government buildings in the Netherlands. The design, the applied state-of-the-art engineering techniques and use of natural resources contribute positively to the building’s low energy consumption. One aspect people always notice when ente

Pagina 6-Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza lite glass walls were...

Pagina 7 - Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza ring the building is...

ring the building is the open view of the main council chamber. Espero’s mobile glass panel wall enables direct contact between citizens and government. The high sound insulation rating of the wall makes it possible to carry out various activities on both sides of the glass without having to turn down the volume. VISIO 100 10 11 12 13 10 wall between the public area and the council chamber 11 moving the panels 12 panels with a two-point suspension parked in an alcove GEMEENTEHUIS HARDENBERG (NL) 13 council chamber VISIO 100 All glass finishes customarily used in interior design can be applied to the Visio 100 and Visio 100 Elite, for example, etching, sandblasting or colouring. Prints or foil can also be placed on the glass without problems. The glass for a Visio 100 is removable, which means it can also be cleaned on the inside.The possible options include built-in venetian blinds. 14 14 built-in venetian blinds 15 operating button for venetian blinds 15 Key features an

Pagina 7-Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza ring the building is the open...

Pagina 8 - Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza d advantages:
•...

d advantages: • optimal transparency • individual mobile panels with numerous set-up and positioning possibilities • panels can be individually locked in position for maximum stability and safety • simple and noiseless operation • sound insulation rating from 42 dB and 50 dB (laboratory tested) • removable glass (not for Visio 100 Elite) • no width limit • the track can be completely integrated in a ceiling system Options: • semi-automatic operation • built-in venetian blinds VISIO 100 TYPE Use Panel dimensions: Thickness Height Width Frame construction Panel appearance VISIO 100 VISIO 100 Elite Robust version with average sound insulation ratings, suitable for all situations in which transparency is required. Cassettes Glazing Sound insulation rating (lab. tested) Weight Panel interconnect Top and bottom panel connection Operating mechanism Semi-automatische opration Rail Wheels / Trolleys Static behaviour Environme

Pagina 8-Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza d advantages:
• optimal...

Pagina 9 - Pereti mobili, demontabili ESPERO Visio 100 Catalog, brosura Engleza ntal conditions
...

ntal conditions 107 mm maximum 3,500 mm, other dimensions on request 700 – 1,240 mm Self-supporting aluminium frame, consisting of solid aluminium profiles with internal steel bracing. The glazing unit is mounted in rubber seals in the aluminium frame. Internal aluminium cassette which houses the construction and operating mechanism. Visible horizontal and vertical aluminium profile. Visible horizontal and vertical aluminium profile. Available in any preferred RAL colour. Available in any preferred RAL colour. Basic and end panels in glass, other panels in Basic, door, communication and end panels with finish of choice (similar to the Sonico 100). frame-lacquered glass (transparent), other panels in Glass transparent, without frame. glass (non-transparant). Glass with lacquered frame. Standard anodised aluminium. Available in any preferred RAL colour. 6 mm toughened glass (NEN-EN 12150) or 8 mm layered glass (NEN-EN ISO 12543) 42 dB 46 dB 48 dB 50 dB 42 d
