Pagina 1 - Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza UNO DUPLO
&...

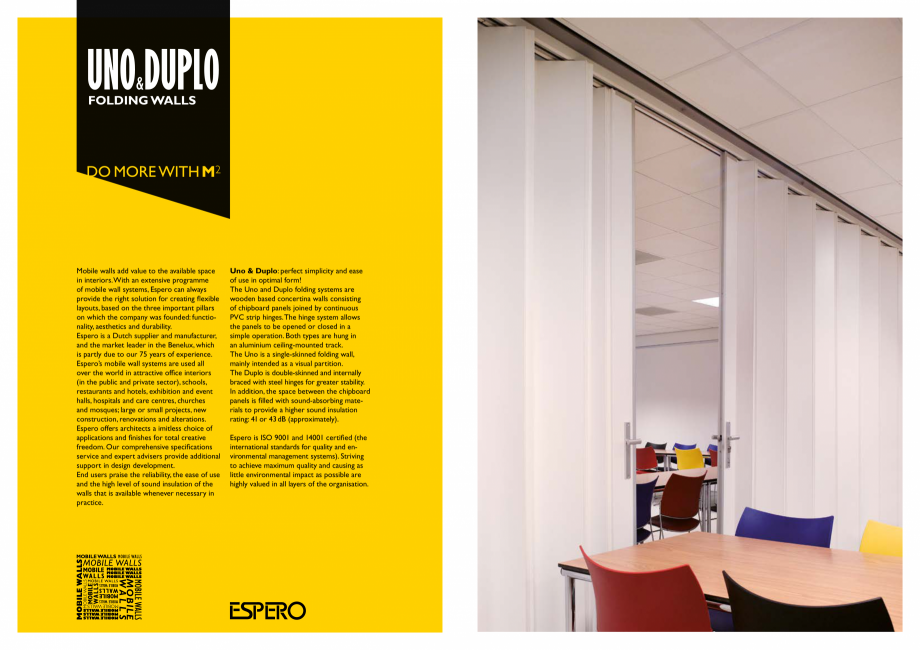

UNO DUPLO & FOLDING WALLS UNO DUPLO & FOLDING WALLS Mobile walls add value to the available space in interiors. With an extensive programme of mobile wall systems, Espero can always provide the right solution for creating flexible layouts, based on the three important pillars on which the company was founded: functionality, aesthetics and durability. Espero is a Dutch supplier and manufacturer, and the market leader in the Benelux, which is partly due to our 75 years of experience. Espero’s mobile wall systems are used all over the world in attractive office interiors (in the public and private sector), schools, restaurants and hotels, exhibition and event halls, hospitals and care centres, churches and mosques; large or small projects, new construction, renovations and alterations. Espero offers architects a imitless choice of applications and finishes for total creative freedom. Our comprehensive specifications service and expert advisers provide additional support in design d

Pagina 1-Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza UNO DUPLO
&

FOLDING...

Pagina 2 - Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza evelopment....

evelopment. End users praise the reliability, the ease of use and the high level of sound insulation of the walls that is available whenever necessary in practice. Uno & Duplo: perfect simplicity and ease of use in optimal form! The Uno and Duplo folding systems are wooden based concertina walls consisting of chipboard panels joined by continuous PVC strip hinges. The hinge system allows the panels to be opened or closed in a simple operation. Both types are hung in an aluminium ceiling-mounted track. The Uno is a single-skinned folding wall, mainly intended as a visual partition. The Duplo is double-skinned and internally braced with steel hinges for greater stability. In addition, the space between the chipboard panels is filled with sound-absorbing materials to provide a higher sound insulation rating: 41 or 43 dB (approximately). Espero is ISO 9001 and 14001 certified (the international standards for quality and environmental management systems). Striving to achieve maximum qual

Pagina 2-Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza evelopment.
End users ...

Pagina 3 - Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza ity and...

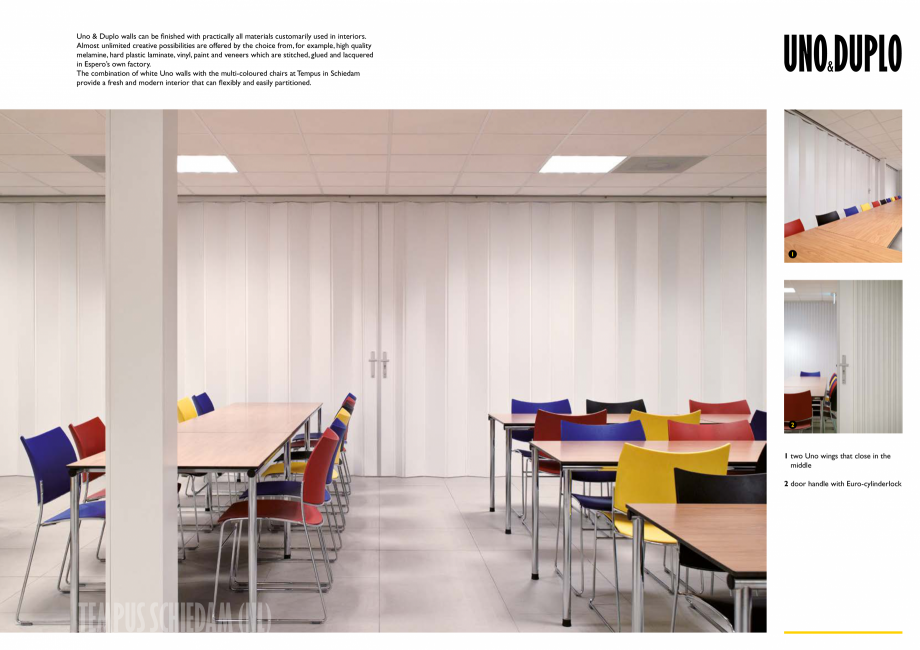

ity and causing as little environmental impact as possible are highly valued in all layers of the organisation. Uno & Duplo walls can be finished with practically all materials customarily used in interiors. Almost unlimited creative possibilities are offered by the choice from, for example, high quality melamine, hard plastic laminate, vinyl, paint and veneers which are stitched, glued and lacquered in Espero’s own factory. The combination of white Uno walls with the multi-coloured chairs at Tempus in Schiedam provide a fresh and modern interior that can flexibly and easily partitioned. UNO DUPLO & 1 2 1 two Uno wings that close in the middle 2 door handle with Euro-cylinderlock TEMPUS SCHIEDAM (NL) UNO DUPLO & The panels in a Uno or Duplo wall are always stacked in line with the main track and it is possible to open and close the wall at one side, in the middle or at both ends. It is also possible to connect several walls on to each other. The combination of sturdy constr

Pagina 3-Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza ity and causing as...

Pagina 4 - Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza uction and ...

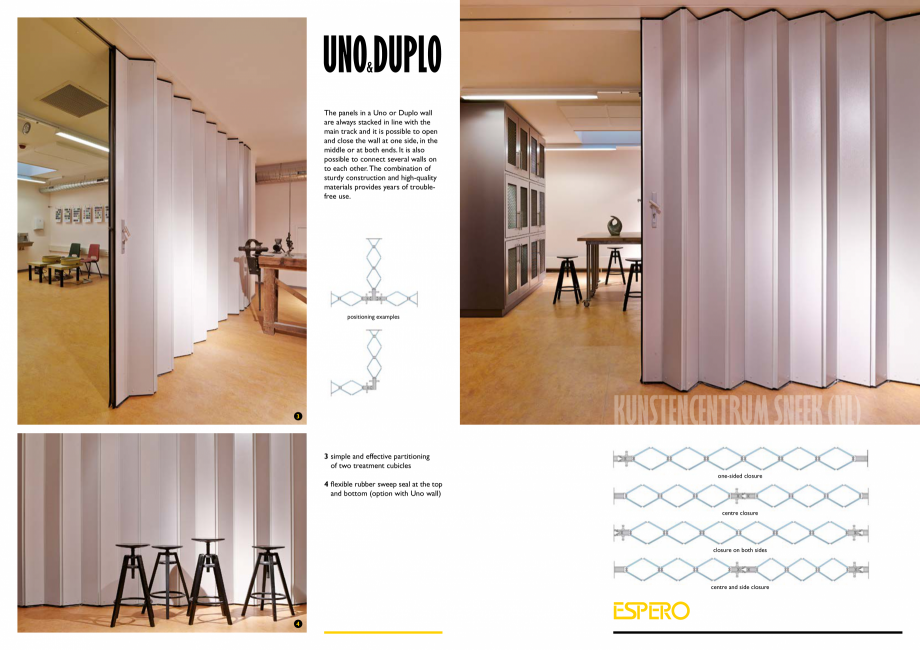

uction and high-quality materials provides years of troublefree use. positioning examples KUNSTENCENTRUM SNEEK (NL) 3 3 simple and effective partitioning of two treatment cubicles 4 flexible rubber sweep seal at the top and bottom (option with Uno wall) one-sided closure centre closure closure on both sides centre and side closure 4 UNO DUPLO & Key features and advantages: • quick and easy to operate • wide choice of finishes Option: • curved ceiling rails • suitable for intensive use • ultra-efficient low-cost wall-system 5 6 5 a Duplo wall functionally integrated in modern architecture 6 a Duplo wall with centre closure, sufficient privacy thanks to the sound insulation rating of ± 43 dB. LAB.VOOR INFECTIEZIEKTEN GRONINGEN (NL) UNO DUPLO & TYPE UNO DUPLO Use In gemiddelde tot grotere ruimten. Dimensions: Panel width 196 mm 192 mm Panel height maximum 3,300 mm maximum 4,000 mm Package width 225 mm 444 mm Wing length max. 6,500 mm max. 6,

Pagina 5 - Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza 500 mm...

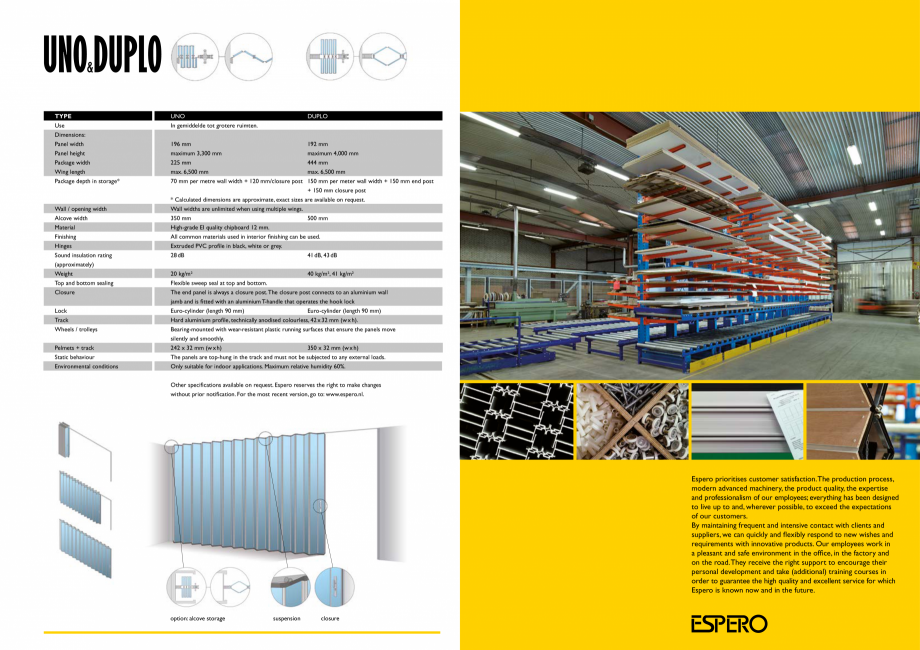

500 mm Package depth in storage* 70 mm per metre wall width + 120 mm/closure post 150 mm per meter wall width + 150 mm end post + 150 mm closure post * Calculated dimensions are approximate, exact sizes are available on request. Wall / opening width Wall widths are unlimited when using multiple wings. Alcove width 350 mm 500 mm Material High-grade EI quality chipboard 12 mm. Finishing All common materials used in interior finishing can be used. Hinges Extruded PVC profile in black, white or grey. Sound insulation rating 28 dB 41 dB, 43 dB (approximately) Weight 20 kg/m² 40 kg/m², 41 kg/m² Top and bottom sealing Flexible sweep seal at top and bottom. Closure The end panel is always a closure post. The closure post connects to an aluminium wall jamb and is fitted with an aluminium T-handle that operates the hook lock Lock Euro-cylinder (length 90 mm) Euro-cylinder (length 90 mm) Track Hard aluminium profile, technically anodised colourless, 42 x 32

Pagina 5-Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza 500 mm
Package depth...

Pagina 6 - Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza mm...

mm (w x h). Wheels / trolleys Bearing-mounted with wear-resistant plastic running surfaces that ensure the panels move silently and smoothly. Pelmets + track 242 x 32 mm (w x h) 350 x 32 mm (w x h) Static behaviour The panels are top-hung in the track and must not be subjected to any external loads. Environmental conditions Only suitable for indoor applications. Maximum relative humidity 60%. Other specifications available on request. Espero reserves the right to make changes without prior notification. For the most recent version, go to: www.espero.nl. Espero prioritises customer satisfaction. The production process, modern advanced machinery, the product quality, the expertise and professionalism of our employees; everything has been designed to live up to and, wherever possible, to exceed the expectations of our customers. By maintaining frequent and intensive contact with clients and suppliers, we can quickly and flexibly respond to new wishes and r

Pagina 6-Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza mm (w x h).
Wheels...

Pagina 7 - Pereti mobili, demontabili ESPERO Uno & Duplo Catalog, brosura Engleza equirements...

equirements with innovative products. Our employees work in a pleasant and safe environment in the office, in the factory and on the road. They receive the right support to encourage their personal development and take (additional) training courses in order to guarantee the high quality and excellent service for which Espero is known now and in the future. option: alcove storage suspension closure MOBILE WALLS Enquire about our FSC certified products. postal adress Espero BV Postbus 576 5140 AN Waalwijk The Netherlands t f e i +31 (0)416 338955 +31 (0)416 332635 info@espero.nl www.espero.nl Ask for the documentation for more information about our other wall systems: Sonico, Visio 100, Visio and Uno&Duplo. Espero is the exclusive agent for Skyfold full automatic vertical wall systems in the Netherlands. photography and graphic design: studio hans morren visiting adress Espero BV Sluisweg 26 - 28 5145 PE Waalwijk The Netherlands
