Pagina 1 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza SONICO

MOBILE PANEL...

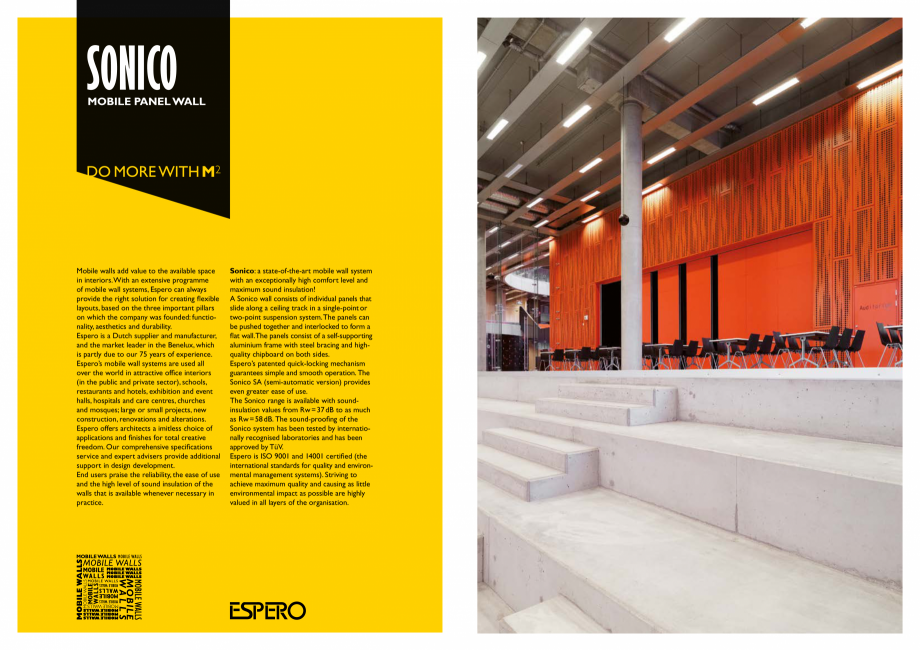

SONICO MOBILE PANEL WALL SONICO MOBILE PANEL WALL Mobile walls add value to the available space in interiors. With an extensive programme of mobile wall systems, Espero can always provide the right solution for creating flexible layouts, based on the three important pillars on which the company was founded: functionality, aesthetics and durability. Espero is a Dutch supplier and manufacturer, and the market leader in the Benelux, which is partly due to our 75 years of experience. Espero’s mobile wall systems are used all over the world in attractive office interiors (in the public and private sector), schools, restaurants and hotels, exhibition and event halls, hospitals and care centres, churches and mosques; large or small projects, new construction, renovations and alterations. Espero offers architects a imitless choice of applications and finishes for total creative freedom. Our comprehensive specifications service and expert advisers provide additional support in design dev

Pagina 1-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza SONICO

MOBILE PANEL WALL
...

Pagina 2 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza elopment.
End users...

elopment. End users praise the reliability, the ease of use and the high level of sound insulation of the walls that is available whenever necessary in practice. Sonico: a state-of-the-art mobile wall system with an exceptionally high comfort level and maximum sound insulation! A Sonico wall consists of individual panels that slide along a ceiling track in a single-point or two-point suspension system. The panels can be pushed together and interlocked to form a flat wall. The panels consist of a self-supporting aluminium frame with steel bracing and highquality chipboard on both sides. Espero’s patented quick-locking mechanism guarantees simple and smooth operation. The Sonico SA (semi-automatic version) provides even greater ease of use. The Sonico range is available with soundinsulation values from Rw = 37 dB to as much as Rw = 58 dB. The sound-proofing of the Sonico system has been tested by internationally recognised laboratories and has been approved by TüV. Espe

Pagina 2-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza elopment.
End users praise the...

Pagina 3 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza ro is ISO 9001 and...

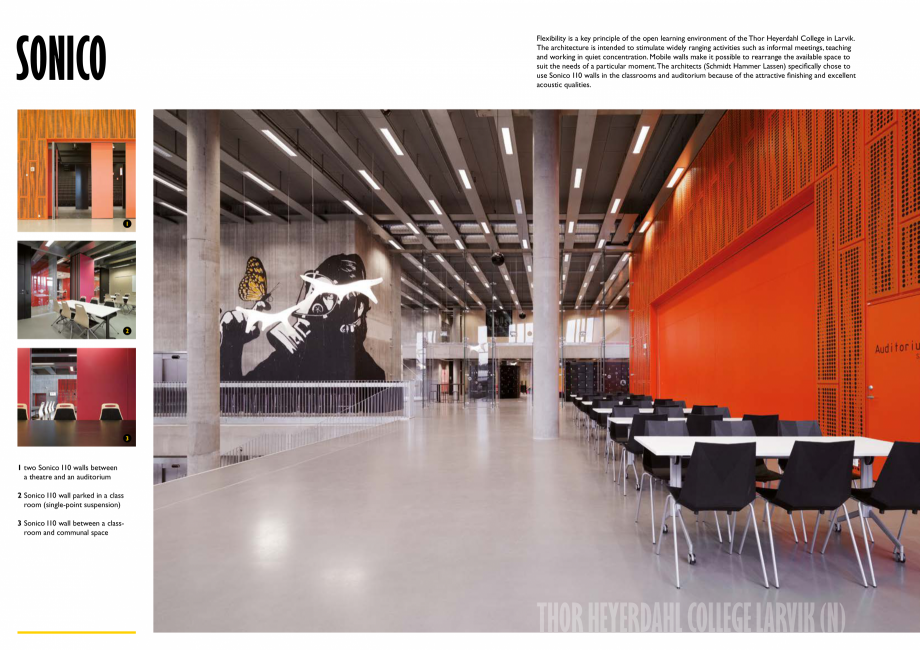

ro is ISO 9001 and 14001 certified (the international standards for quality and environmental management systems). Striving to achieve maximum quality and causing as little environmental impact as possible are highly valued in all layers of the organisation. SONICO Flexibility is a key principle of the open learning environment of the Thor Heyerdahl College in Larvik. The architecture is intended to stimulate widely ranging activities such as informal meetings, teaching and working in quiet concentration. Mobile walls make it possible to rearrange the available space to suit the needs of a particular moment. The architects (Schmidt Hammer Lassen) specifically chose to use Sonico 110 walls in the classrooms and auditorium because of the attractive finishing and excellent acoustic qualities. 1 2 3 1 two Sonico 110 walls between a theatre and an auditorium 2 Sonico 110 wall parked in a class room (single-point suspension) 3 Sonico 110 wall between a classroom and communal space

Pagina 3-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza ro is ISO 9001 and 14001...

Pagina 4 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza THOR HEYERDAHL COLLEGE...

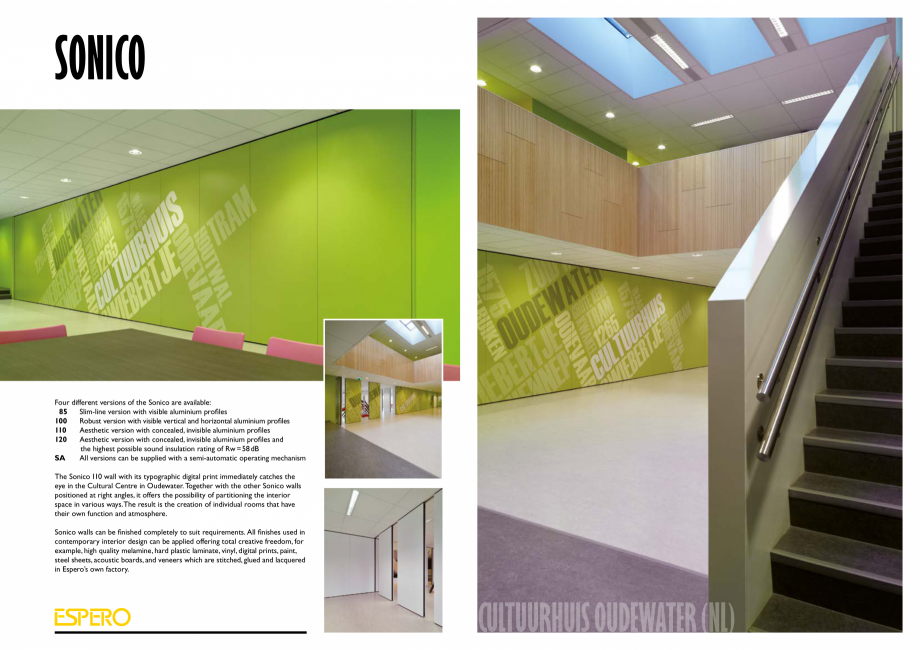

THOR HEYERDAHL COLLEGE LARVIK (N) SONICO Four different versions of the Sonico are available: 85 Slim-line version with visible aluminium profiles 100 Robust version with visible vertical and horizontal aluminium profiles 110 Aesthetic version with concealed, invisible aluminium profiles 120 Aesthetic version with concealed, invisible aluminium profiles and the highest possible sound insulation rating of Rw = 58 dB SA All versions can be supplied with a semi-automatic operating mechanism The Sonico 110 wall with its typographic digital print immediately catches the eye in the Cultural Centre in Oudewater. Together with the other Sonico walls positioned at right angles, it offers the possibility of partitioning the interior space in various ways. The result is the creation of individual rooms that have their own function and atmosphere. Sonico walls can be finished completely to suit requirements. All finishes used in contemporary interior design can be applied offering to

Pagina 4-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza THOR HEYERDAHL COLLEGE LARVIK (N)...

Pagina 5 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza tal creative freedom, ...

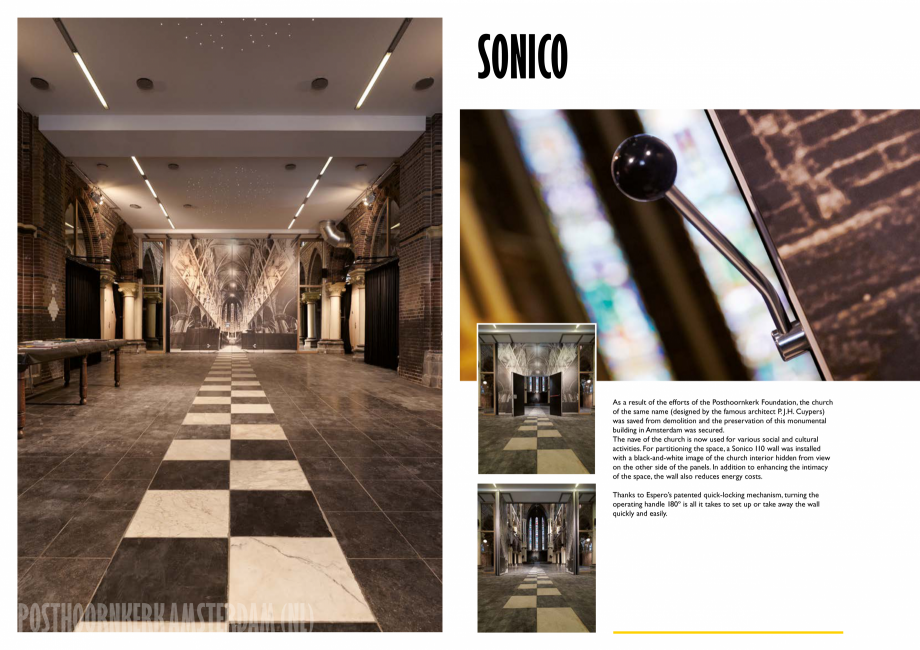

tal creative freedom, for example, high quality melamine, hard plastic laminate, vinyl, digital prints, paint, steel sheets, acoustic boards, and veneers which are stitched, glued and lacquered in Espero’s own factory. CULTUURHUIS OUDEWATER (NL) SONICO As a result of the efforts of the Posthoornkerk Foundation, the church of the same name (designed by the famous architect P. J.H. Cuypers) was saved from demolition and the preservation of this monumental building in Amsterdam was secured. The nave of the church is now used for various social and cultural activities. For partitioning the space, a Sonico 110 wall was installed with a black-and-white image of the church interior hidden from view on the other side of the panels. In addition to enhancing the intimacy of the space, the wall also reduces energy costs. Thanks to Espero’s patented quick-locking mechanism, turning the operating handle 180º is all it takes to set up or take away the wall quickly and easily. POSTHOORNKERK

Pagina 5-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza tal creative freedom, for
example...

Pagina 6 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza AMSTERDAM (NL)
...

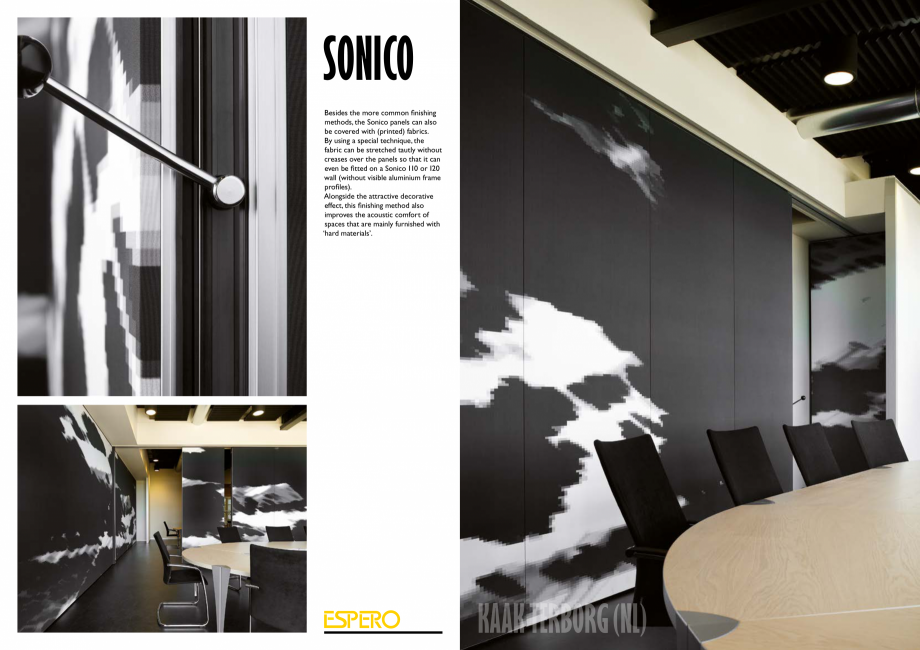

AMSTERDAM (NL) SONICO Besides the more common finishing methods, the Sonico panels can also be covered with (printed) fabrics. By using a special technique, the fabric can be stretched tautly without creases over the panels so that it can even be fitted on a Sonico 110 or 120 wall (without visible aluminium frame profiles). Alongside the attractive decorative effect, this finishing method also improves the acoustic comfort of spaces that are mainly furnished with ‘hard materials’. KAAK TERBORG (NL) The requirements imposed on the construction of the new UCM building that the plans of the architects from Atelier d’Architecture Ad’A had to meet included low energy consumption, sturdy materials, sustainability, thermal and acoustic comfort and large spatial qualities. The interior of the auditorium is certainly eye-catching. It is an attractive space for congresses, lectures and presentations that can be divided into two sections using a semi-automatically operated Sonico 10

Pagina 6-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza AMSTERDAM (NL)

SONICO
Besides ...

Pagina 7 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza 0 mobile wall.
The...

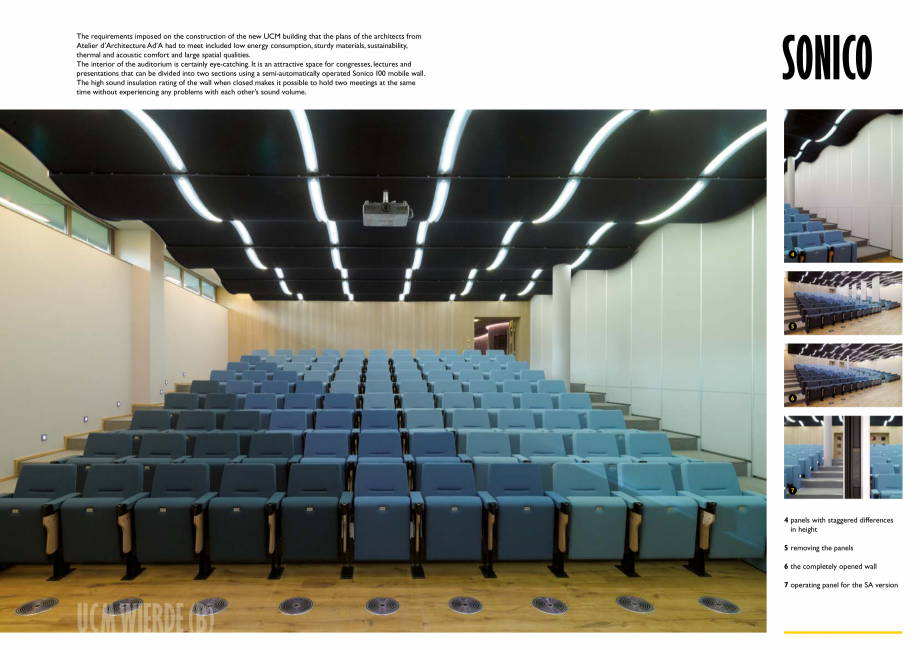

0 mobile wall. The high sound insulation rating of the wall when closed makes it possible to hold two meetings at the same time without experiencing any problems with each other’s sound volume. SONICO 4 5 6 7 4 panels with staggered differences in height 5 removing the panels 6 the completely opened wall 7 operating panel for the SA version UCM WIERDE (B) SONICO The Sonico 100 wall in the Jaarbeurs Exhibition Hall in Utrecht is 47 metres wide and almost 5 metres high. This wall has to be able to withstand rough treatment in all the hustle and bustle that goes with a trade fair and exhibition complex with millions of visitors each year. Purpose-built extra high doors for moving goods around quickly and easily have been integrated in the door. Forklift trucks can drive through without any problems. Because of the patented sequential operation, the smoothly working quick-locking mechanism (that operate the seals at the top and bottom of the panel) and the Sonico ceiling track

Pagina 7-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza 0 mobile wall.
The high sound...

Pagina 8 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza system, this huge wall...

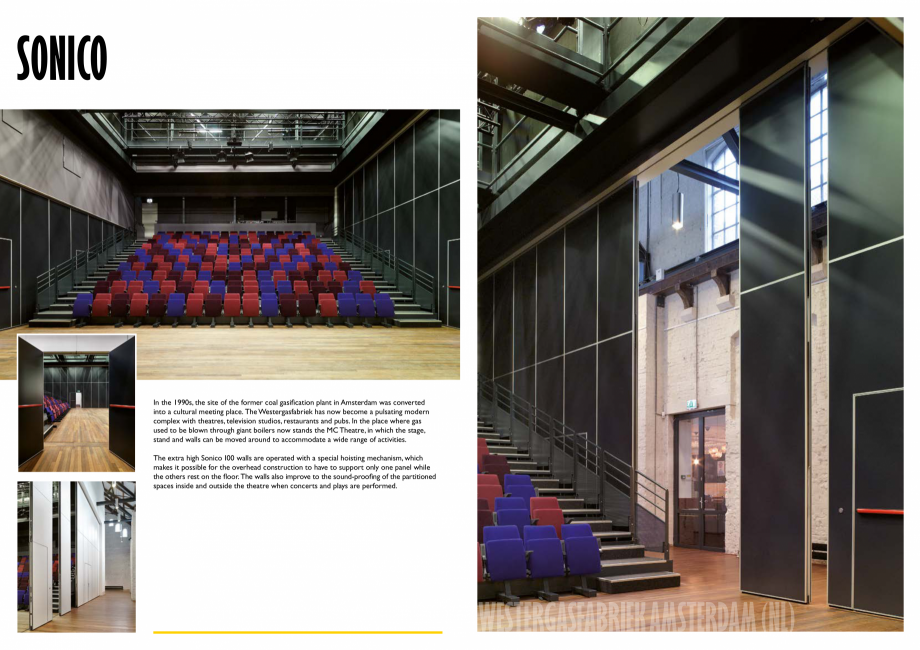

system, this huge wall can also be set up or removed within a very short space of time. JAARBEURS UTRECHT (NL) SONICO In the 1990s, the site of the former coal gasification plant in Amsterdam was converted into a cultural meeting place. The Westergasfabriek has now become a pulsating modern complex with theatres, television studios, restaurants and pubs. In the place where gas used to be blown through giant boilers now stands the MC Theatre, in which the stage, stand and walls can be moved around to accommodate a wide range of activities. The extra high Sonico 100 walls are operated with a special hoisting mechanism, which makes it possible for the overhead construction to have to support only one panel while the others rest on the floor. The walls also improve to the sound-proofing of the partitioned spaces inside and outside the theatre when concerts and plays are performed. WESTERGASFABRIEK AMSTERDAM (NL) SONICO Meeting quietly when the company canteen is open on the other si

Pagina 8-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza system, this huge wall can also...

Pagina 9 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza de
of the wall? Espero...

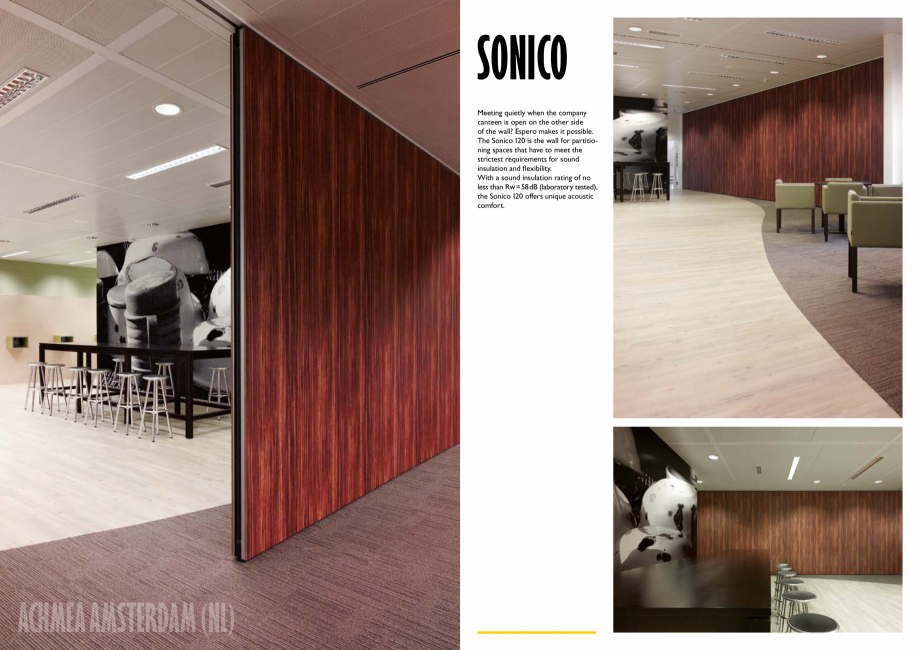

de of the wall? Espero makes it possible. The Sonico 120 is the wall for partitioning spaces that have to meet the strictest requirements for sound insulation and flexibility. With a sound insulation rating of no less than Rw = 58 dB (laboratory tested), the Sonico 120 offers unique acoustic comfort. ACHMEA AMSTERDAM (NL) The architectural heart of this primary school consists of a multifunctional space with permanent and mobile walls with an eye-catching, decorative Vescom Vinyl print. The school gymnasium is enclosed within a Sonico 100 wall, but because of the high sound insulation rating, people can work and meet in the corridors without being disturbed by the PE lessons. If a large open space is required for other school and extra-curricular activities, the mobile wall can simply be removed and compactly stored. SONICO 8 9 10 8 parking area in gymnasium with transport tracks for various wall set-ups 9 left: Flexio walls by the clasrooms, right Sonico 100 CENTRUMSCHO

Pagina 9-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza de
of the wall? Espero makes it...

Pagina 10 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza OL EMMELOORD (NL)

10...

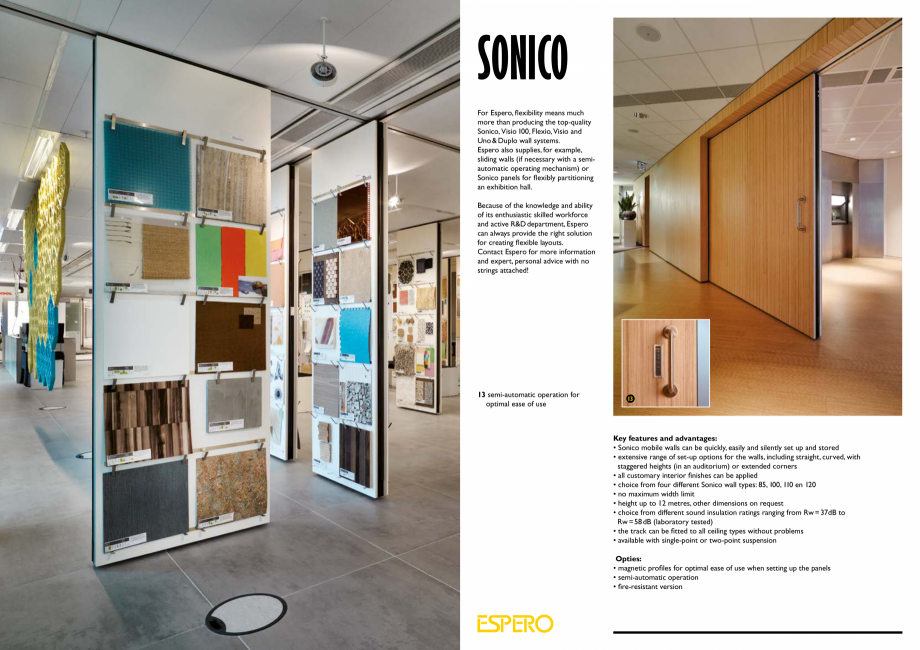

OL EMMELOORD (NL) 10 Vescom vinyl print finishing on Sonico 100 wall SONICO For Espero, flexibility means much more than producing the top-quality Sonico, Visio 100, Flexio, Visio and Uno & Duplo wall systems. Espero also supplies, for example, sliding walls (if necessary with a semiautomatic operating mechanism) or Sonico panels for flexibly partitioning an exhibition hall. Because of the knowledge and ability of its enthusiastic skilled workforce and active R&D department, Espero can always provide the right solution for creating flexible layouts. Contact Espero for more information and expert, personal advice with no strings attached! 13 semi-automatic operation for optimal ease of use 13 Key features and advantages: • Sonico mobile walls can be quickly, easily and silently set up and stored • extensive range of set-up options for the walls, including straight, curved, with staggered heights (in an auditorium) or extended corners • all customary interior finishes c

Pagina 10-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza OL EMMELOORD (NL)

10 Vescom...

Pagina 11 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza an be applied
•...

an be applied • choice from four different Sonico wall types: 85, 100, 110 en 120 • no maximum width limit • height up to 12 metres, other dimensions on request • choice from different sound insulation ratings ranging from Rw = 37dB to Rw = 58 dB (laboratory tested) • the track can be fitted to all ceiling types without problems • available with single-point or two-point suspension Opties: • magnetic profiles for optimal ease of use when setting up the panels • semi-automatic operation • fire-resistant version SONICO one-point suspension SONICO WALL DETAILS & STORAGE POSSIBILITIES two-point suspension free panel sealed panel telescopic panel manual operation semi-automatic operation free panel communication panel / fixed door panel (in end panel) door panel double door panel sealed panel basic panel with a clipped corner one-point parking area (example) basic panel two-point parking area (example) PANELS, CONNECTIONS & GLASS OPENINGS pa

Pagina 11-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza an be applied
• choice from...

Pagina 12 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza tented wheel guide...

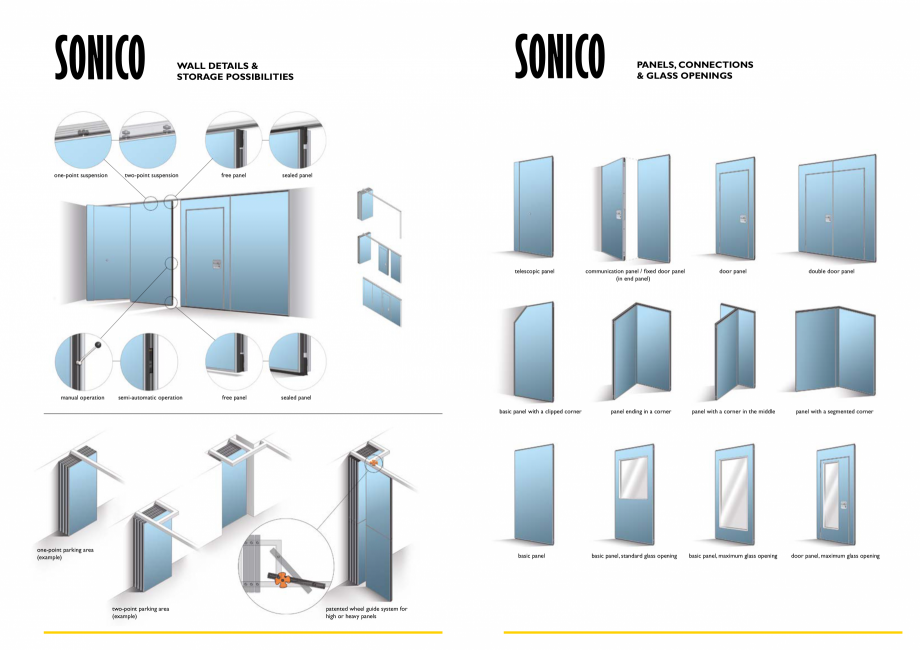

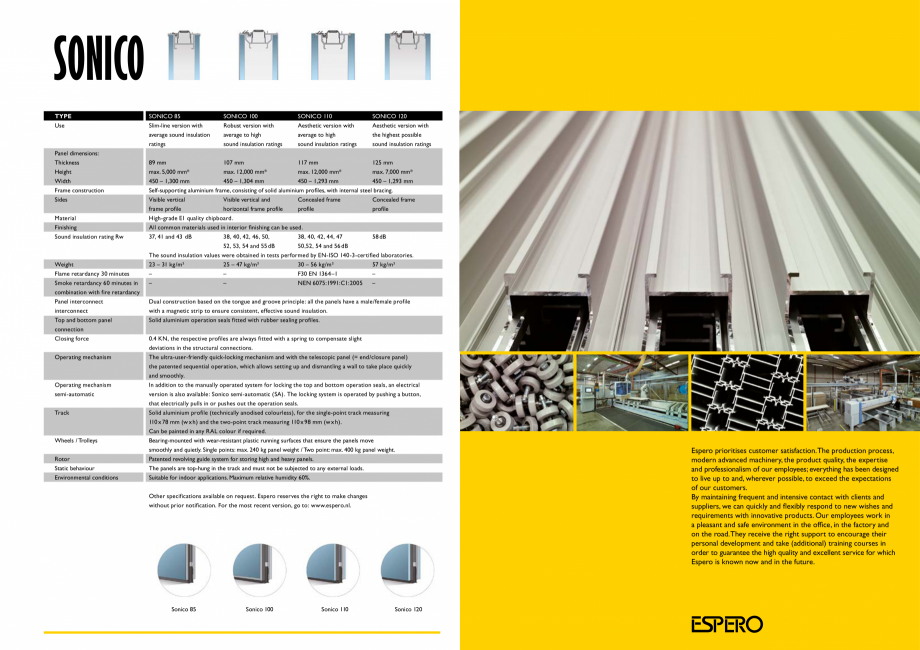

tented wheel guide system for high or heavy panels panel ending in a corner basic panel, standard glass opening panel with a corner in the middle panel with a segmented corner basic panel, maximum glass opening door panel, maximum glass opening SONICO TYPE SONICO 85 SONICO 100 SONICO 110 SONICO 120 Use Slim-line version with Robust version with Aesthetic version with Aesthetic version with average sound insulation average to high average to high the highest possible ratings sound insulation ratings sound insulation ratings sound insulation ratings Panel dimensions: Thickness 89 mm 107 mm 117 mm 125 mm Height max. 5,000 mm* max. 12,000 mm* max. 12,000 mm* max. 7,000 mm* Width 450 – 1,300 mm 450 – 1,304 mm 450 – 1,293 mm 450 – 1,293 mm Frame construction Self-supporting aluminium frame, consisting of solid aluminium profiles, with internal steel bracing. Sides Visible vertical Visible vertical and Concealed frame Concealed frame fr

Pagina 12-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza tented wheel guide system for...

ame profile horizontal frame profile profile profile Material High-grade E1 quality chipboard. Finishing All common materials used in interior finishing can be used. Sound insulation rating Rw 37, 41 and 43 dB 38, 40, 42, 46, 50, 38, 40, 42, 44, 47 58 dB 52, 53, 54 and 55 dB 50,52, 54 and 56 dB The sound insulation values were obtained in tests performed by EN-ISO 140-3-certified laboratories. Weight 23 – 31 kg/m² 25 – 47 kg/m² 30 – 56 kg/m² 57 kg/m² Flame retardancy 30 minutes – – F30 EN 1364–1 – Smoke retardancy 60 minutes in – – NEN 6075:1991:C1:2005 – combination with fire retardancy Panel interconnect Dual construction based on the tongue and groove principle: all the panels have a male/female profile interconnect with a magnetic strip to ensure consistent, effective sound insulation. Top and bottom panel Solid aluminium operation seals fitted with rubber sealing profiles. connection Closing force 0.4 KN, the resp

Pagina 14 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza ective profiles are...

ective profiles are always fitted with a spring to compensate slight deviations in the structural connections. Operating mechanism The ultra-user-friendly quick-locking mechanism and with the telescopic panel (= end/closure panel) the patented sequential operation, which allows setting up and dismantling a wall to take place quickly and smoothly. Operating mechanism In addition to the manually operated system for locking the top and bottom operation seals, an electrical semi-automatic version is also available: Sonico semi-automatic (SA). The locking system is operated by pushing a button, that electrically pulls in or pushes out the operation seals. Track Solid aluminium profile (technically anodised colourless), for the single-point track measuring 110 x 78 mm (w x h) and the two-point track measuring 110 x 98 mm (w x h). Can be painted in any RAL colour if required. Wheels / Trolleys Bearing-mounted with wear-resistant plastic running surfaces that

Pagina 14-Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza ective profiles are always fitted...

Pagina 15 - Pereti mobili, demontabili ESPERO Sonico Catalog, brosura Engleza ensure the panels...

ensure the panels move smoothly and quietly. Single points: max. 240 kg panel weight / Two point: max. 400 kg panel weight. Rotor Patented revolving guide system for storing high and heavy panels. Static behaviour The panels are top-hung in the track and must not be subjected to any external loads. Environmental conditions Suitable for indoor applications. Maximum relative humidity 60%. Other specifications available on request. Espero reserves the right to make changes without prior notification. For the most recent version, go to: www.espero.nl. Sonico 85 Sonico 100 Sonico 110 Sonico 120 Espero prioritises customer satisfaction. The production process, modern advanced machinery, the product quality, the expertise and professionalism of our employees; everything has been designed to live up to and, wherever possible, to exceed the expectations of our customers. By maintaining frequent and intensive contact with clients and suppliers, we can quickly and flexibly resp
