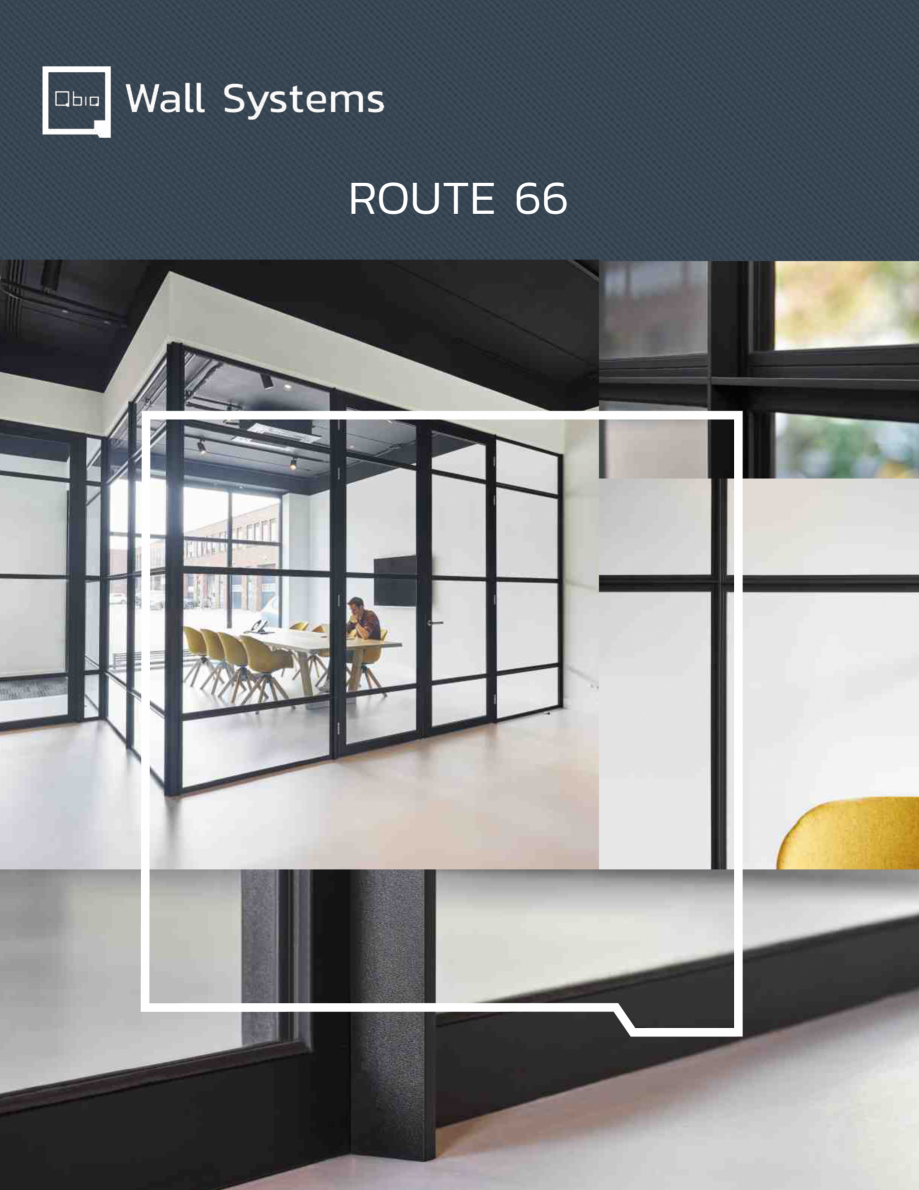

Pagina 1 - Pereti despartitori din sticla QBIQ iQ Route 66 Catalog, brosura Engleza ROUTE 66
...

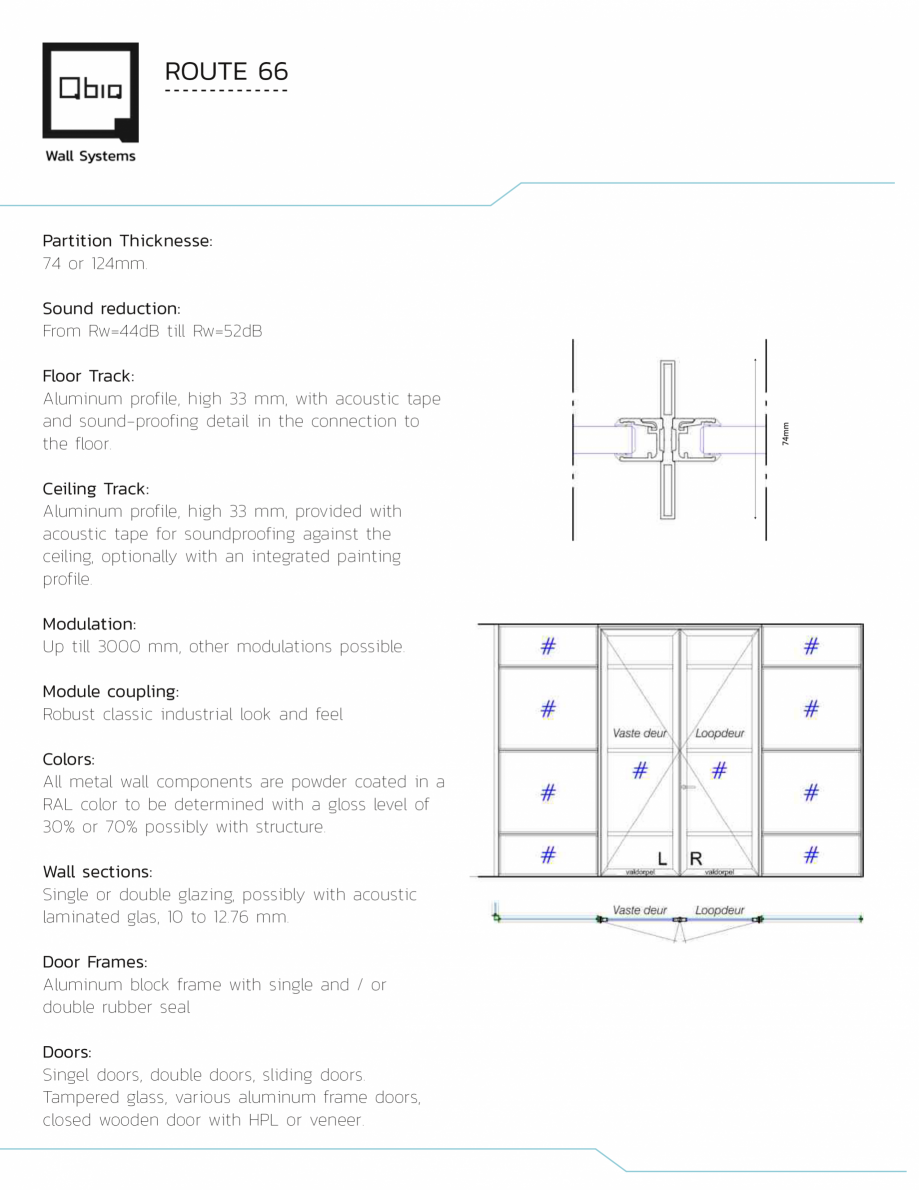

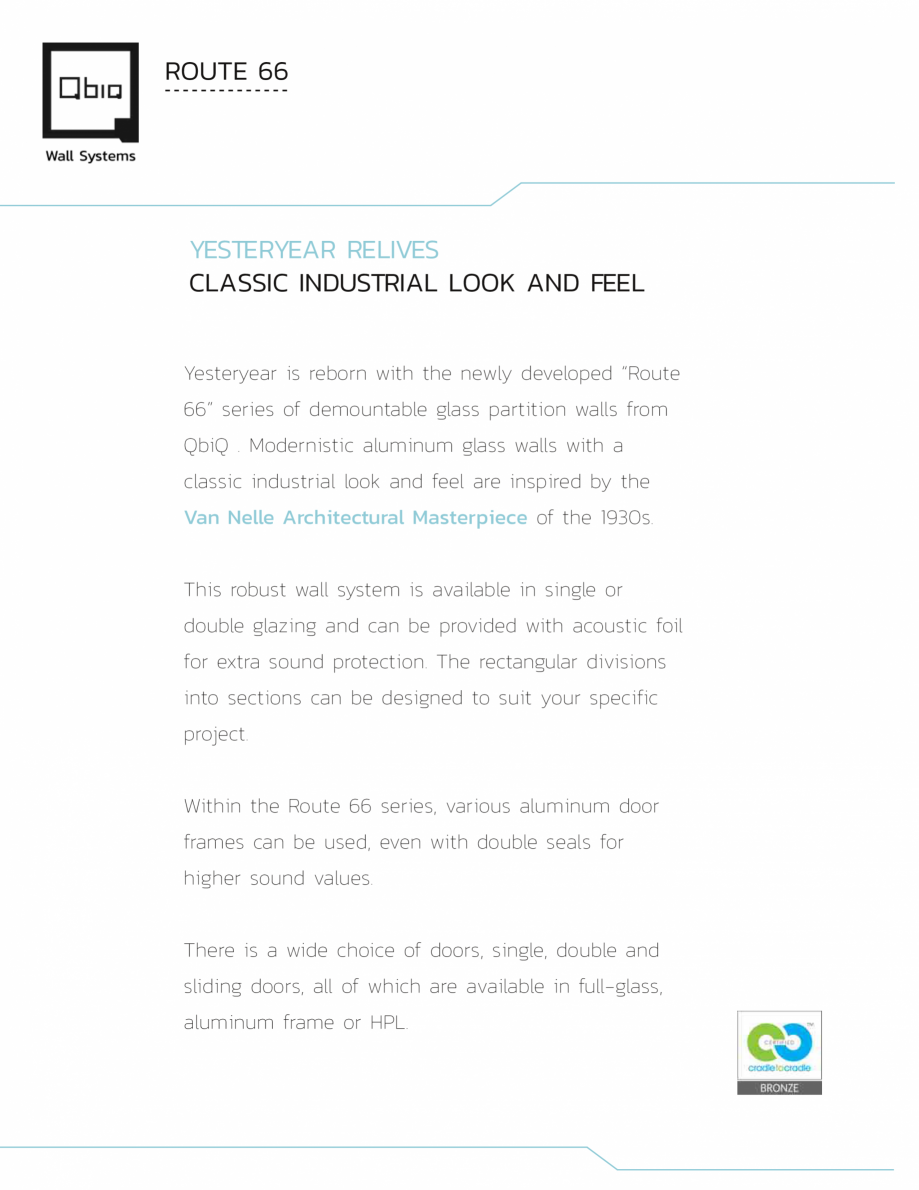

ROUTE 66 ROUTE 66 YESTERYEAR RELIVES CLASSIC INDUSTRIAL LOOK AND FEEL Yesteryear is reborn with the newly developed “Route 66” series of demountable glass partition walls from QbiQ . Modernistic aluminum glass walls with a classic industrial look and feel are inspired by the Van Nelle Architectural Masterpiece of the 1930s. This robust wall system is available in single or double glazing and can be provided with acoustic foil for extra sound protection. The rectangular divisions into sections can be designed to suit your specific project. Within the Route 66 series, various aluminum door frames can be used, even with double seals for higher sound values. There is a wide choice of doors, single, double and sliding doors, all of which are available in full-glass, aluminum frame or HPL. ROUTE 66 Partition Thicknesse: 74 or 124mm. Sound reduction: From Rw=44dB till Rw=52dB Floor Track: Aluminum profile, high 33 mm, with acoustic tape and sound-proofing detail in the connection t

Pagina 1-Pereti despartitori din sticla QBIQ iQ Route 66 Catalog, brosura Engleza ROUTE 66

ROUTE 66
...

Pagina 2 - Pereti despartitori din sticla QBIQ iQ Route 66 Catalog, brosura Engleza o
the floor....

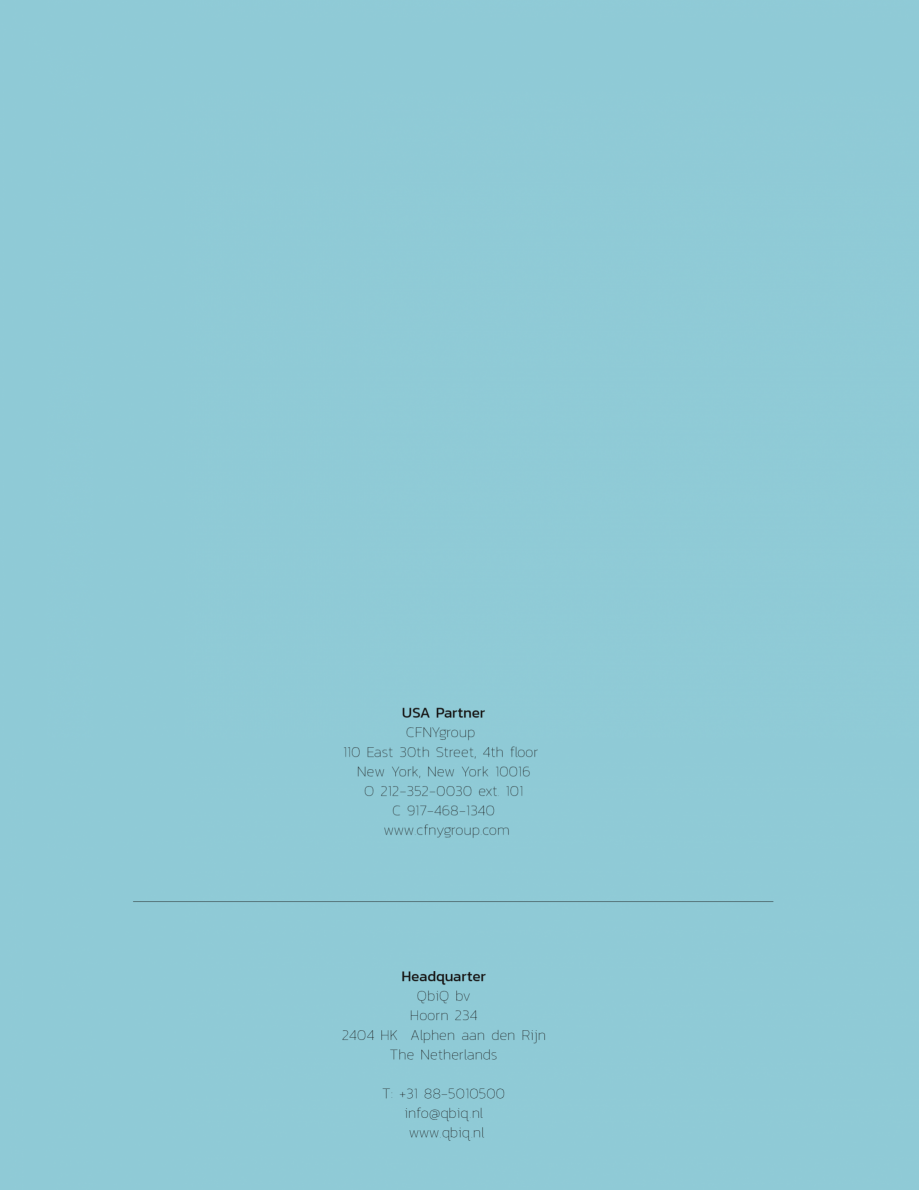

o the floor. Ceiling Track: Aluminum profile, high 33 mm, provided with acoustic tape for soundproofing against the ceiling, optionally with an integrated painting profile. Modulation: Up till 3000 mm, other modulations possible. Module coupling: Robust classic industrial look and feel Colors: All metal wall components are powder coated in a RAL color to be determined with a gloss level of 30% or 70% possibly with structure. Wall sections: Single or double glazing, possibly with acoustic laminated glas, 10 to 12.76 mm. Door Frames: Aluminum block frame with single and / or double rubber seal Doors: Singel doors, double doors, sliding doors. Tampered glass, various aluminum frame doors, closed wooden door with HPL or veneer. ROUTE 66 USA Partner CFNYgroup 110 East 30th Street, 4th floor New York, New York 10016 O 212-352-0030 ext. 101 C 917-468-1340 www.cfnygroup.com Headquarter QbiQ bv Hoorn 234 2404 HK Alphen aan den Rijn The Netherlands T: +31 88-5010500 info@qbiq.nl www.qbiq.
