Panouri rigide cu profile U HERAS UNI

Limba: Engleza
82 afisari
Tip documentatie: Fisa tehnica
Salvează pdf

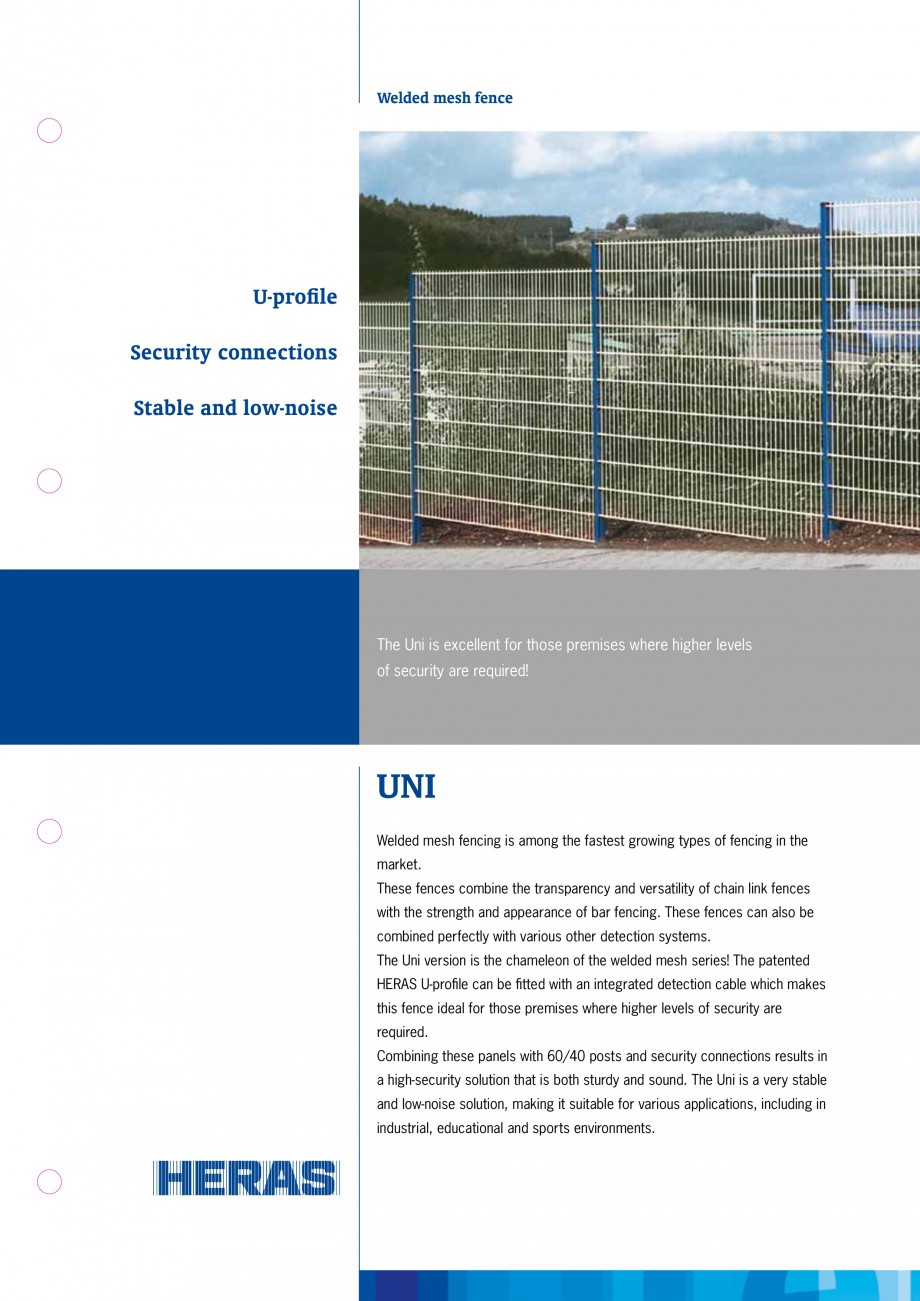

Pagina 1-Panouri rigide cu profile U HERAS UNI Fisa tehnica Engleza Welded mesh fence

U-profile
Security...

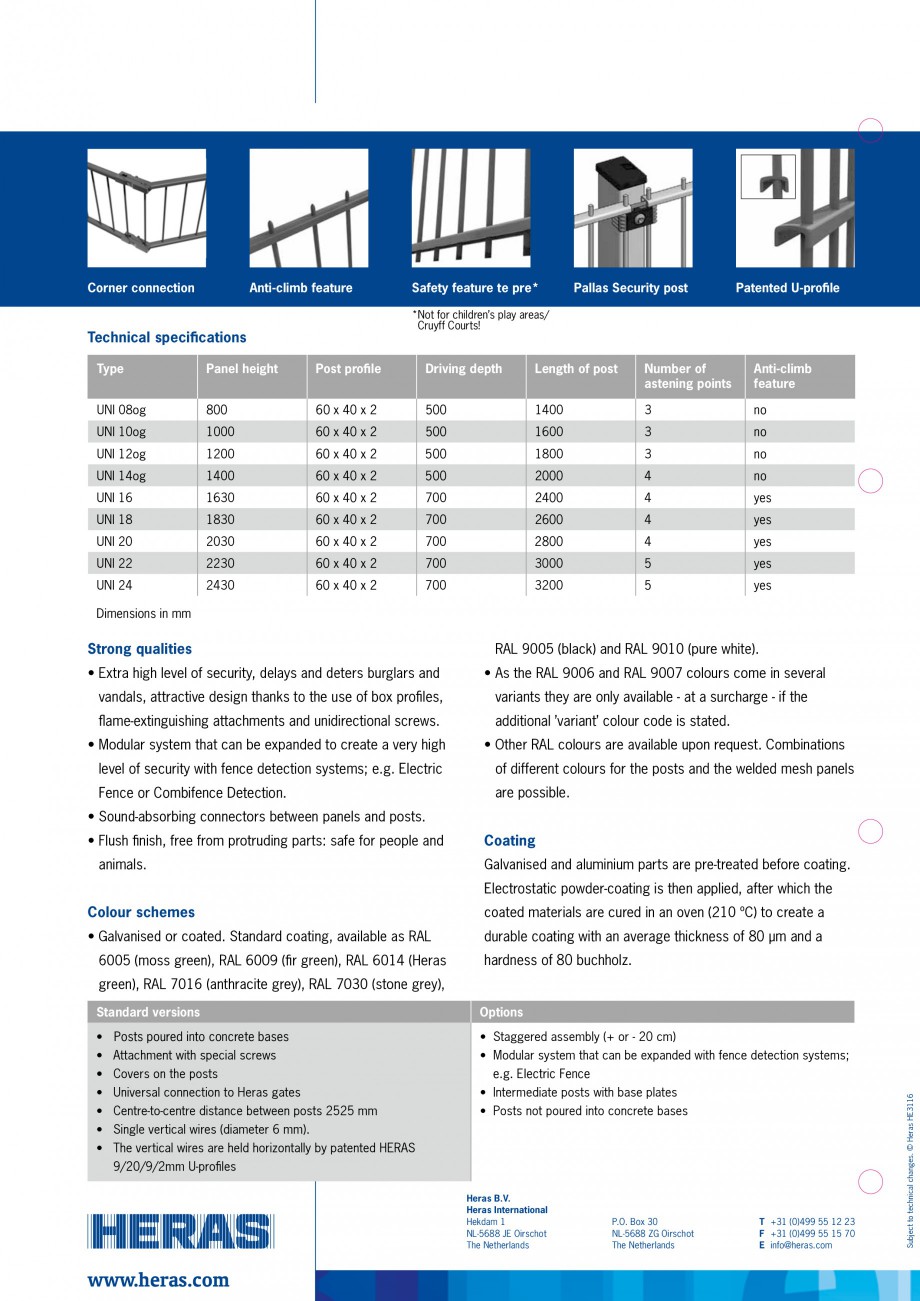

Pagina 2-Panouri rigide cu profile U HERAS UNI Fisa tehnica Engleza b feature

Panel height

Pallas Security ...
b feature Panel height Pallas Security post Patented U-profile * ot for children’s play areas/ N Cruyff Courts! Technical specifications Type Safety feature te pre* Post profile Driving depth Length of post Number of astening points Anti-climb feature UNI 08og 800 60 x 40 x 2 500 1400 3 no UNI 10og 1000 60 x 40 x 2 500 1600 3 no UNI 12og 1200 60 x 40 x 2 500 1800 3 no UNI 14og 1400 60 x 40 x 2 500 2000 4 no UNI 16 1630 60 x 40 x 2 700 2400 4 yes UNI 18 1830 60 x 40 x 2 700 2600 4 yes UNI 20 2030 60 x 40 x 2 700 2800 4 yes UNI 22 2230 60 x 40 x 2 700 3000 5 yes UNI 24 2430 60 x 40 x 2 700 3200 5 yes Dimensions in mm Strong qualities •  xtra high level of security, delays and deters burglars and E RAL 9005 (black) and RAL 9010 (pure white). •  s the RAL 9006 and RAL 9007 colours come in several A vandals, attractive design thanks to the use of box profiles, variants they are only available - at a surc ... ascunde
