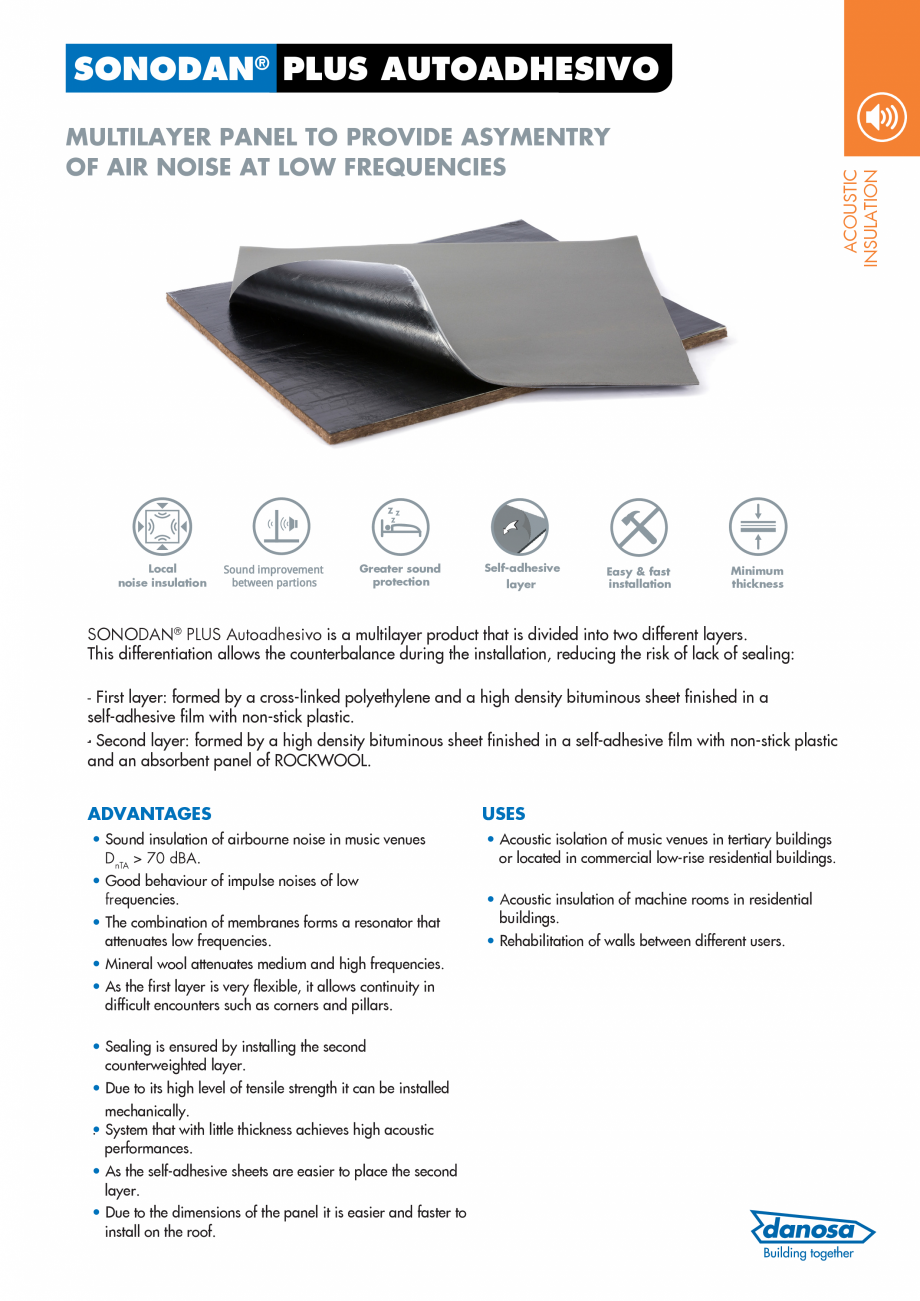

SONODAN® PLUS AUTOADHESIVO Z Z Local noise insulation 6RXQGLPSURYHPHQW EHWZHHQSDUWLRQV ACOUSTIC INSULATION MULTILAYER PANEL TO PROVIDE ASYMENTRY OF AIR NOISE AT LOW FREQUENCIES Z Greater sound protection Self-adhesive layer Easy & fast installation Minimum thickness SONODAN® PLUS Autoadhesivo is a multilayer product that is divided into two different layers. This differentiation allows the counterbalance during the installation, reducing the risk of lack of sealing: - First layer: formed by a cross-linked polyethylene and a high density bituminous sheet finished in a self-adhesive film with non-stick plastic. .- Second layer: formed by a high density bituminous sheet finished in a self-adhesive film with non-stick plastic and an absorbent panel of ROCKWOOL. ADVANTAGES USES • Sound insulation of airbourne noise in music venues DnTA > 70 dBA. • Acoustic isolation of music venues in tertiary buildings or located in commercial low-rise residential buildings. • Goo

Pagina 1-Panou fonoizolant pentru frecventele joase din spatiul aerian DANOSA SONODAN PLUS Catalog, brosura...

Pagina 2 - Panou fonoizolant pentru frecventele joase din spatiul aerian DANOSA SONODAN PLUS Catalog...

d behaviour of impulse noises of low frequencies. • The combination of membranes forms a resonator that attenuates low frequencies. • Mineral wool attenuates medium and high frequencies. • As the first layer is very flexible, it allows continuity in difficult encounters such as corners and pillars. • Sealing is ensured by installing the second counterweighted layer. . to its high level of tensile strength it can be installed • Due mechanically. .• System that with little thickness achieves high acoustic performances. • As the self-adhesive sheets are easier to place the second layer. • Due to the dimensions of the panel it is easier and faster to install on the roof. • Acoustic insulation of machine rooms in residential buildings. • Rehabilitation of walls between different users. SONODAN® PLUS AUTOADHESIVO METHOD OF APPLICATION 1.- Apply the adhesive to the support and on the grey side of the 1st layer of SONODAN® PLUS. 2.- Wait 15 min and stick the 1st laye
