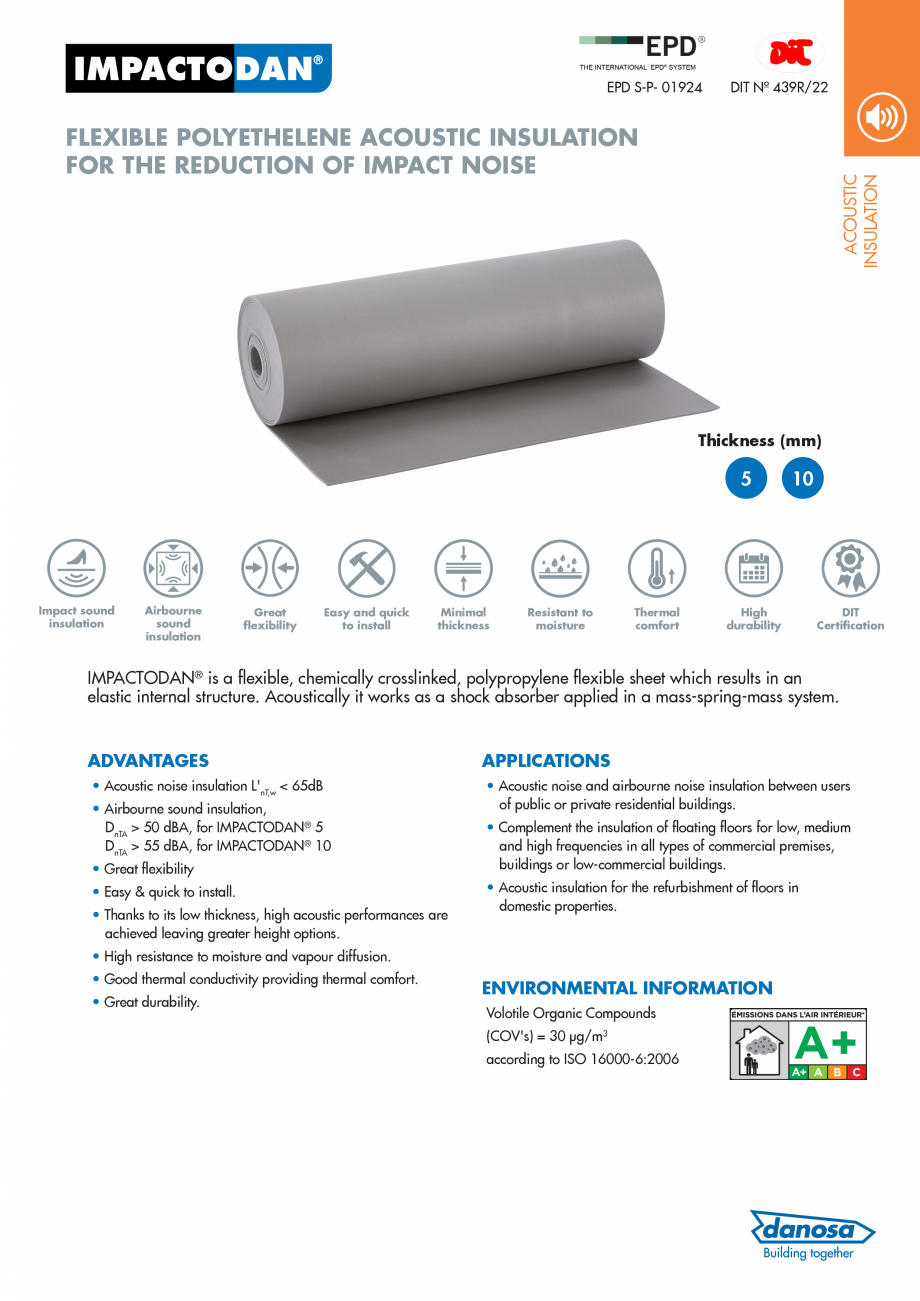

Pagina 1 - Membrana flexibila pentru izolarea acustica a zgomotului de impact DANOSA IMPACTODAN...

IMPACTODAN ® EPD S-P- 01924 DIT Nº 439R/22 ACOUSTIC INSULATION FLEXIBLE POLYETHELENE ACOUSTIC INSULATION FOR THE REDUCTION OF IMPACT NOISE Thickness (mm) 5 Impact sound insulation Airbourne sound insulation Great flexibility Easy and quick to install Minimal thickness Resistant to moisture Thermal comfort 10 High durability DIT Certification IMPACTODAN® is a flexible, chemically crosslinked, polypropylene flexible sheet which results in an elastic internal structure. Acoustically it works as a shock absorber applied in a mass-spring-mass system. ADVANTAGES • Acoustic noise insulation L'nT,w < 65dB • Airbourne sound insulation, DnTA > 50 dBA, for IMPACTODAN® 5 DnTA > 55 dBA, for IMPACTODAN® 10 • Great flexibility • Easy & quick to install. • Thanks to its low thickness, high acoustic performances are achieved leaving greater height options. APPLICATIONS • Acoustic noise and airbourne noise insulation between users of public or private residential buil

Pagina 1-Membrana flexibila pentru izolarea acustica a zgomotului de impact DANOSA IMPACTODAN Catalog,...

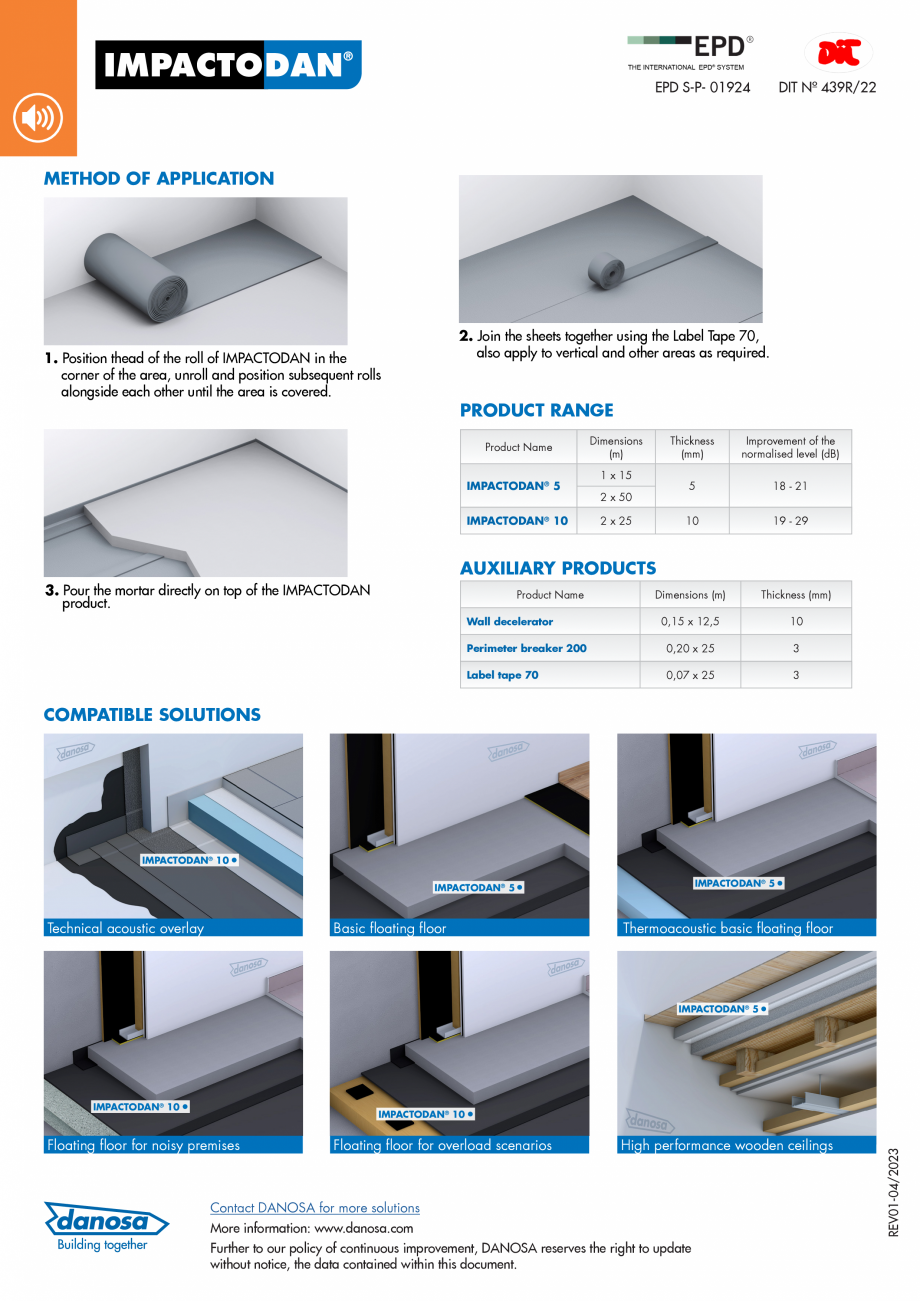

Pagina 2 - Membrana flexibila pentru izolarea acustica a zgomotului de impact DANOSA IMPACTODAN...

dings. • Complement the insulation of floating floors for low, medium and high frequencies in all types of commercial premises, buildings or low-commercial buildings. • Acoustic insulation for the refurbishment of floors in domestic properties. • High resistance to moisture and vapour diffusion. • Good thermal conductivity providing thermal comfort. • Great durability. ENVIRONMENTAL INFORMATION Volotile Organic Compounds (COV's) = 30 μg/m3 according to ISO 16000-6:2006 IMPACTODAN ® EPD S-P- 01924 DIT Nº 439R/22 METHOD OF APPLICATION 2. Join the sheets together using the Label Tape 70, also apply to vertical and other areas as required. 1. Position thead of the roll of IMPACTODAN in the corner of the area, unroll and position subsequent rolls alongside each other until the area is covered. PRODUCT RANGE Product Name IMPACTODAN® 5 IMPACTODAN® 10 Dimensions (m) 1 x 15 2 x 50 2 x 25 Thickness (mm) Improvement of the normalised level (dB) 5 18 - 21 10 19 - 2
