Montageanleitung
Solarbefestiger JA3-SB | JT3-SB | JZ3-SB
Assembly instruction
Solar Fastener JA3-SB | JT3-SB | JZ3-SB
Bringing it together.

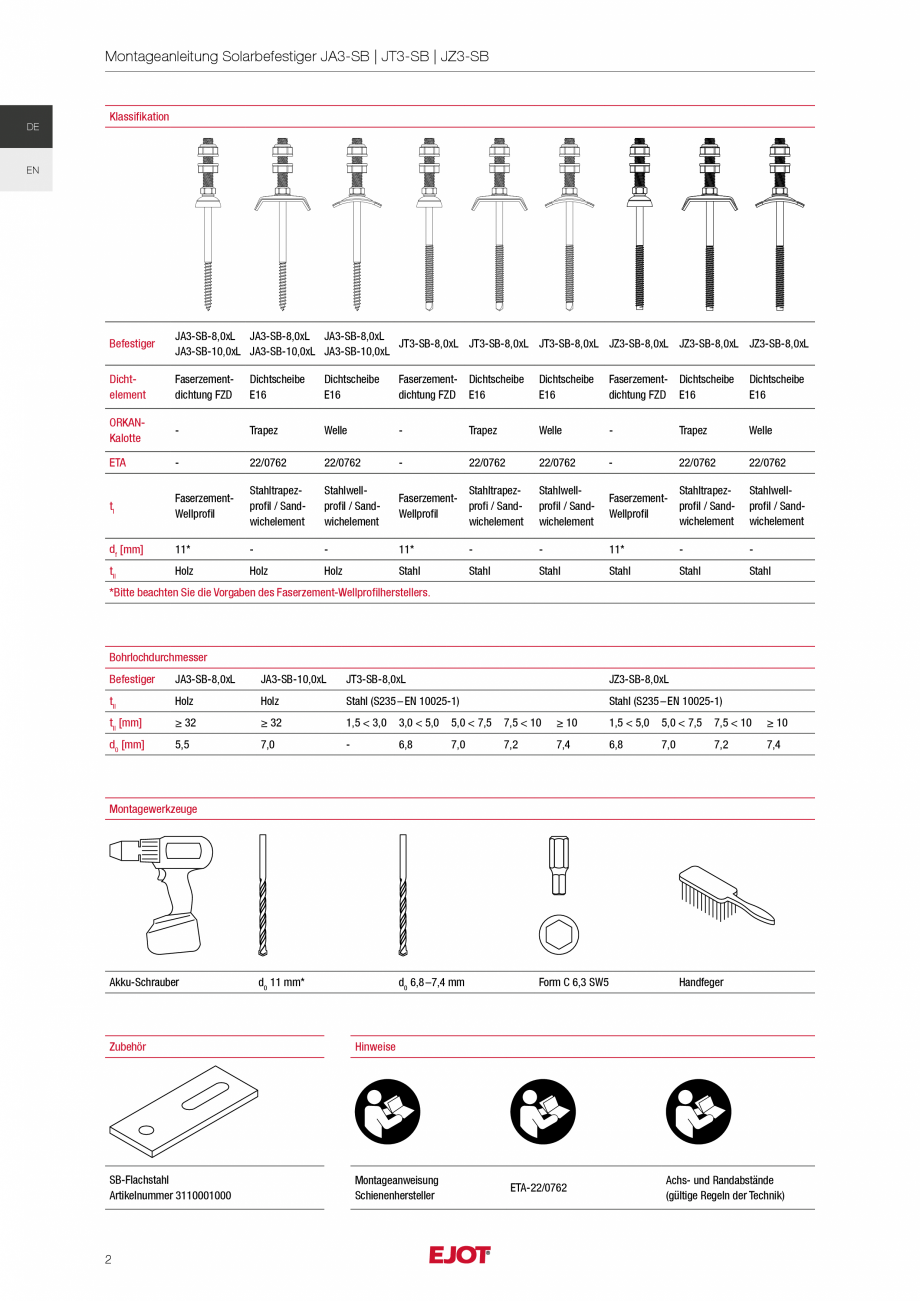

Montageanleitung Solarbefestiger JA3-SB | JT3-SB | JZ3-SB
DE
Klassifikation
EN
Befestiger
JA3-SB-8,0xL JA3-SB-8,0xL JA3-SB-8,0xL
JT3-SB-8,0xL JT3-SB-8,0xL JT3-SB-8,0xL JZ3-SB-8,0xL JZ3-SB-8,0xL JZ3-SB-8,0xL
JA3-SB-10,0xL JA3-SB-10,0xL JA3-SB-10,0xL
Dicht
element
Faserzementdichtung FZD
Dichtscheibe
E16
Dichtscheibe
E16
Faserzement- Dichtscheibe
dichtung FZD E16
Dichtscheibe
E16
Faserzement- Dichtscheibe
dichtung FZD E16
Dichtscheibe
E16
ORKANKalotte
-
Trapez
Welle
-
Trapez
Welle
-
Trapez
Welle
ETA
-
22/0762
22/0762
-
22/0762
22/0762
-
22/0762
22/0762
tI
FaserzementWellprofil
Stahltrapez
profil / Sandwichelement
Stahlwell
profil / Sand
wichelement
Stahltrapez
Faserzementprofi / SandWellprofil
wichelement
Stahlwell
profil / Sand
wichelement
Stahltrapez
Faserzementprofil / SandWellprofil
wichelement
Stahlwell
profil / Sand
wichelement
df [mm]
11*
-
-
11*
-
-
11*
-
-
tII
Holz
Holz
Holz
Stahl
Stahl
Stahl
Stahl
Stahl
Stahl
*Bitte beachten Sie die Vorgaben des Faserzement-Wellprofilherstellers.
Bohrlochdurchmesser
Befestiger
JA3-SB-8,0xL
JA3-SB-10,0xL
JT3-SB-8,0xL
JZ3-SB-8,0xL
tII
Holz
Holz
Stahl (S235 – EN 10025-1)
tII [mm]
≥ 32
≥ 32
1,5 < 3,0
3,0 < 5,0
5,0 < 7,5
7,5 < 10
≥ 10
1,5 < 5,0
5,0 < 7,5
7,5 < 10
≥ 10
d0 [mm]
5,5
7,0
-
6,8
7,0
7,2
7,4
6,8
7,0
7,2
7,4
Stahl (S235 – EN 10025-1)
Montagewerkzeuge
Akku-Schrauber
d0 11 mm*
d0 6,8 –7,4 mm
Zubehör
Hinweise
SB-Flachstahl
Artikelnummer 3110001000
Montageanweisung
Schienenhersteller
2
Form C 6,3 SW5
ETA-22/0762
Handfeger
Achs- und Randabstände
(gültige Regeln der Technik)
Montageanleitung Solarbefestiger JA3-SB | JT3-SB | JZ3-SB
Montageablauf (Beispiel 1)
Montageablauf (Beispiel 2)
Montageabla
uf (Beispiel 3)
1.1
2.1
3.1
DE
EN
1.2
2.2
3.2
90°
90°
90°
1/min
max. 1300
3.3
1.3
2.3
90°
d0
mm
11
3.4
1.4
Schienenanbindung (Beispiel)
90°
3.5
1/min
max. 400
90°
1.5
Ausrichtung SB-Flachstahl
3.6
y
z
x
3

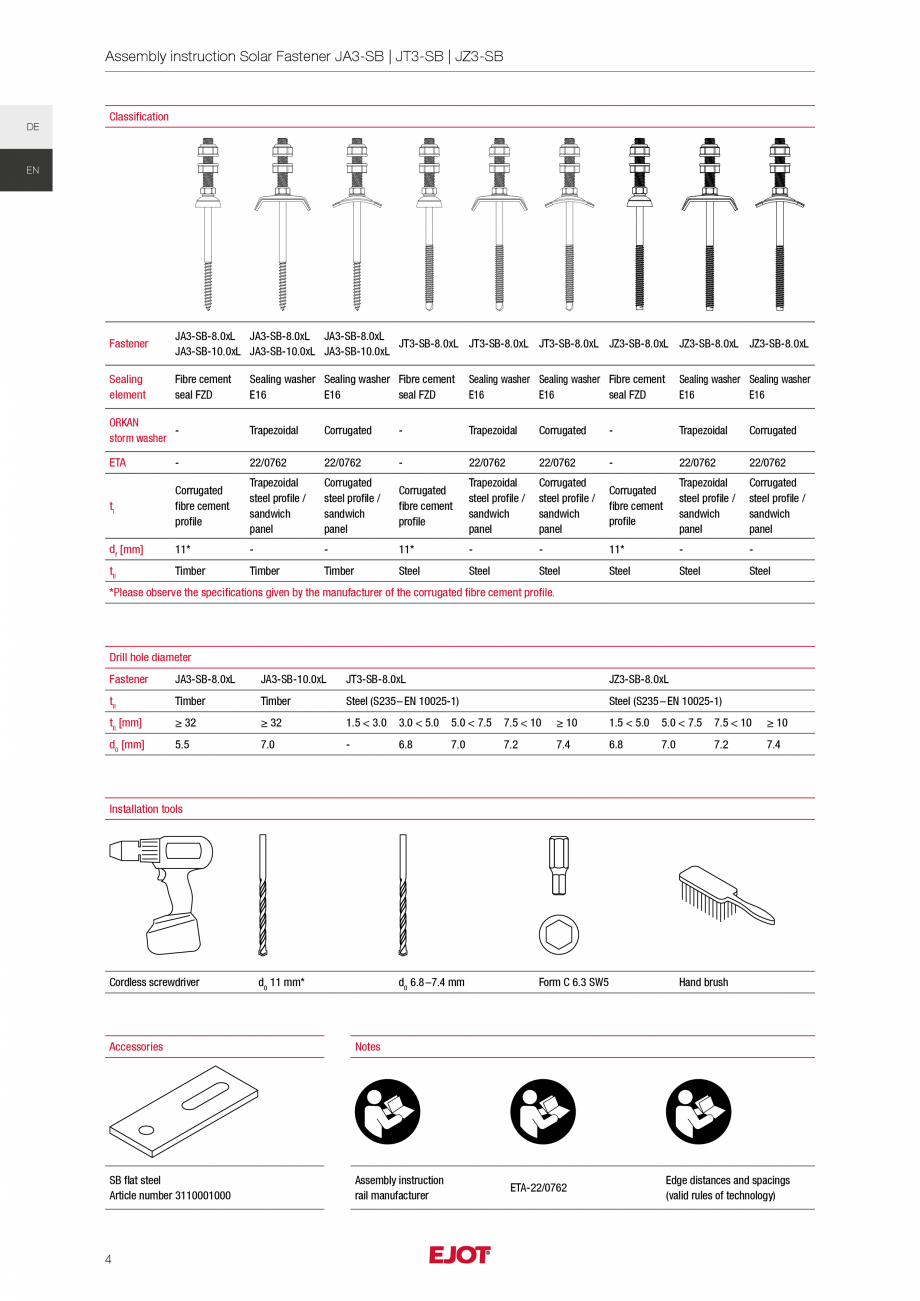

Assembly instruction Solar Fastener JA3-SB | JT3-SB | JZ3-SB
DE
Classification
EN
Fastener
JA3-SB-8.0xL JA3-SB-8.0xL JA3-SB-8.0xL
JT3-SB-8.0xL JT3-SB-8.0xL JT3-SB-8.0xL JZ3-SB-8.0xL JZ3-SB-8.0xL JZ3-SB-8.0xL
JA3-SB-10.0xL JA3-SB-10.0xL JA3-SB-10.0xL
Sealing
element
Fibre cement
seal FZD
Sealing washer Sealing washer Fibre cement
E16
E16
seal FZD
Sealing washer Sealing washer Fibre cement
seal FZD
E16
E16
Sealing washer Sealing washer
E16
E16
ORKAN
storm washer
Trapezoidal
Corrugated
-
Trapezoidal
Corrugated
-
Trapezoidal
Corrugated
ETA
-
22/0762
22/0762
-
22/0762
22/0762
-
22/0762
22/0762
tI
Corrugated
fibre cement
profile
Trapezoidal
steel profile /
sandwich
panel
Corrugated
steel profile /
sandwich
panel
Corrugate
d
fibre cement
profile
Trapezoidal
steel profile /
sandwich
panel
Corrugated
steel profile /
sandwich
panel
Corrugated
fibre cement
profile
Trapezoidal
steel profile /
sandwich
panel
Corrugated
steel profile /
sandwich
panel
df [mm]
11*
-
-
11*
-
-
11*
-
-
tII
Timber
Timber
Timber
Steel
Steel
Steel
Steel
Steel
Steel
*Please observe the specifications given by the manufacturer of the corrugated fibre cement profile.
Drill hole diameter
Fastener
JA3-SB-8.0xL
JA3-SB-10.0xL
JT3-SB-8.0xL
JZ3-SB-8.0xL
tII
Timber
Timber
Steel (S235 – EN 10025-1)
tII [mm]
≥ 32
≥ 32
1.5 < 3.0
3.0 < 5.0
5.0 < 7.5
7.5 < 10
≥ 10
1.5 < 5.0
5.0 < 7.5
7.5 < 10
≥ 10
d0 [mm]
5.5
7.0
-
6.8
7.0
7.2
7.4
6.8
7.0
7.2
7.4
Steel (S235 – EN 10025-1)
Installation tools
Cordless screwdriver
d0 11 mm*
d0 6.8 –7.4 mm
Accessories
Notes
SB flat steel
Article number 3110001000
Assembly instruction
rail manufacturer
4
Form C 6.3 SW5
ETA-22/0762
Hand
brush
Edge distances and spacings
(valid rules of technology)

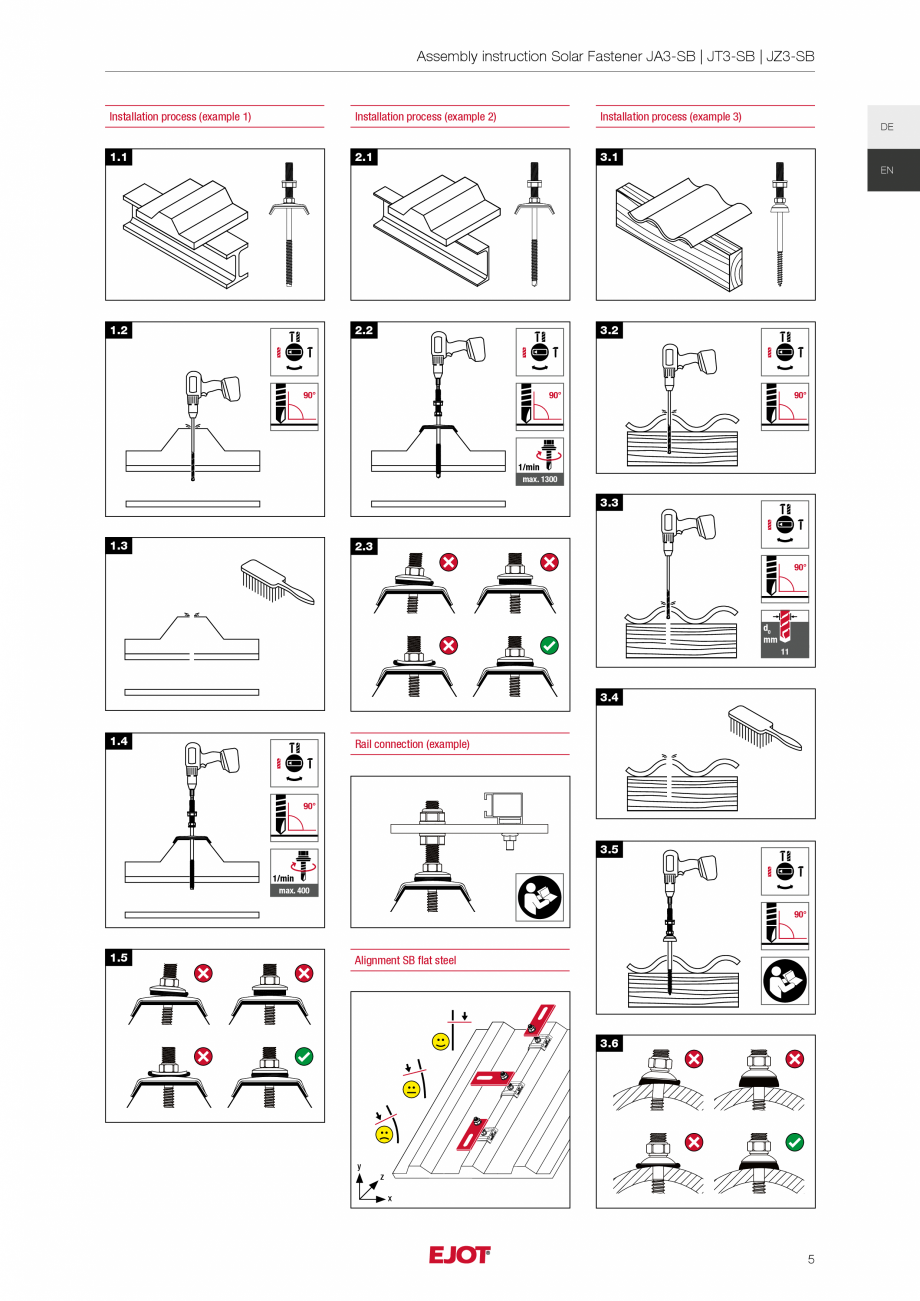

Assembly instruction Solar Fastener JA3-SB | JT3-SB | JZ3-SB
Installation process (example 1)
Installation process (example 2)
Installation process (example 3)
1.1
2.1
3.1
DE
EN
1.2
2.2
3.2
90°
90°
90°
1/min
max. 1300
3.3
1.3
2.3
90°
d0
mm
11
3.4
1.4
Rail connection (example)
90°
3.5
1/min
max. 400
90°
1.5
Alignment SB flat steel
3.6
y
z
x
5

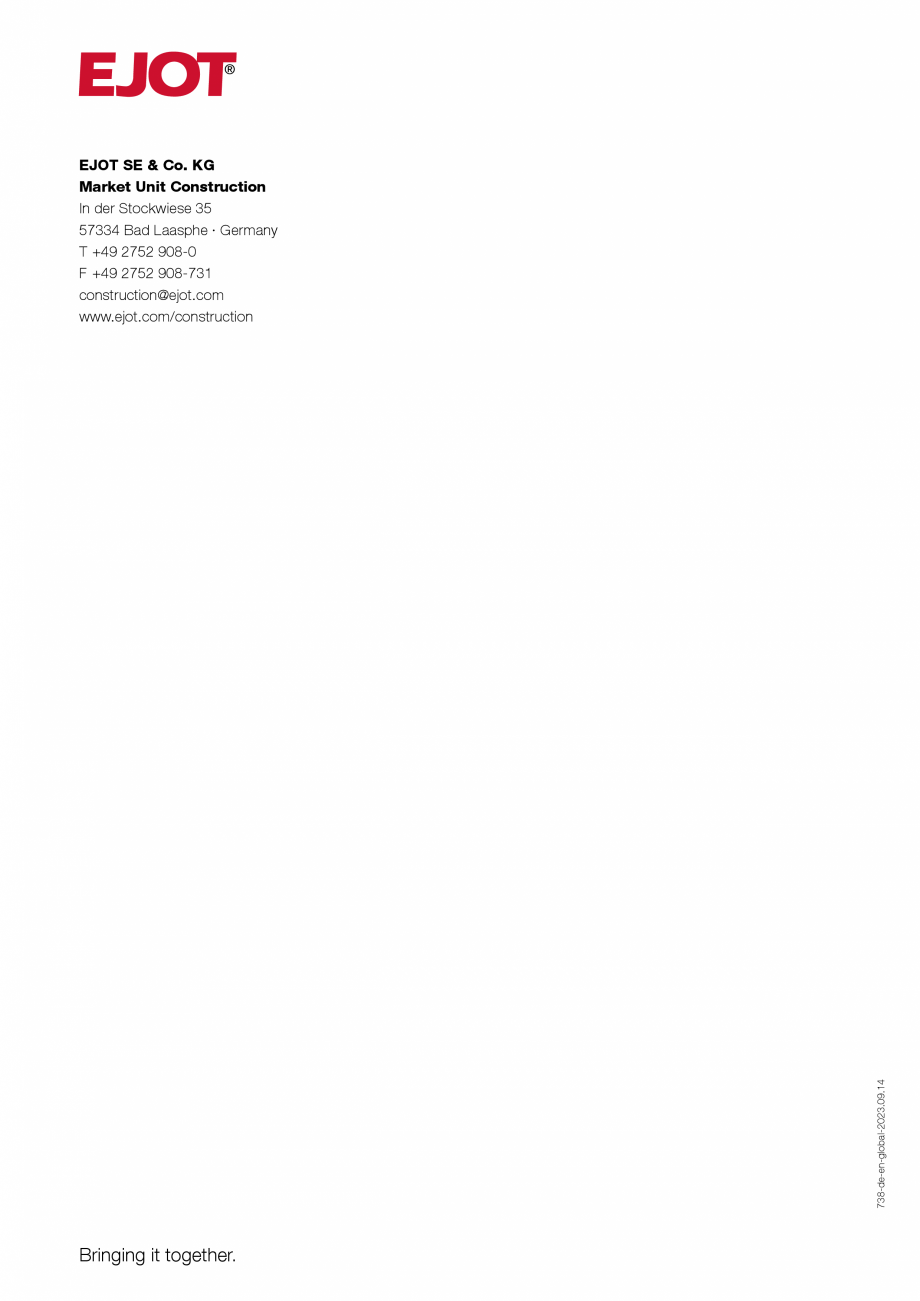

738-de-en-global-2023.09.14
EJOT SE & Co. KG
Market Unit Construction
In der Stockwiese 35
57334 Bad Laasphe ∙ Germany
T +49 2752 9080
F +49 2752 908731
construction@ejot.com
www.ejot.com/construction
Bringing it together.
