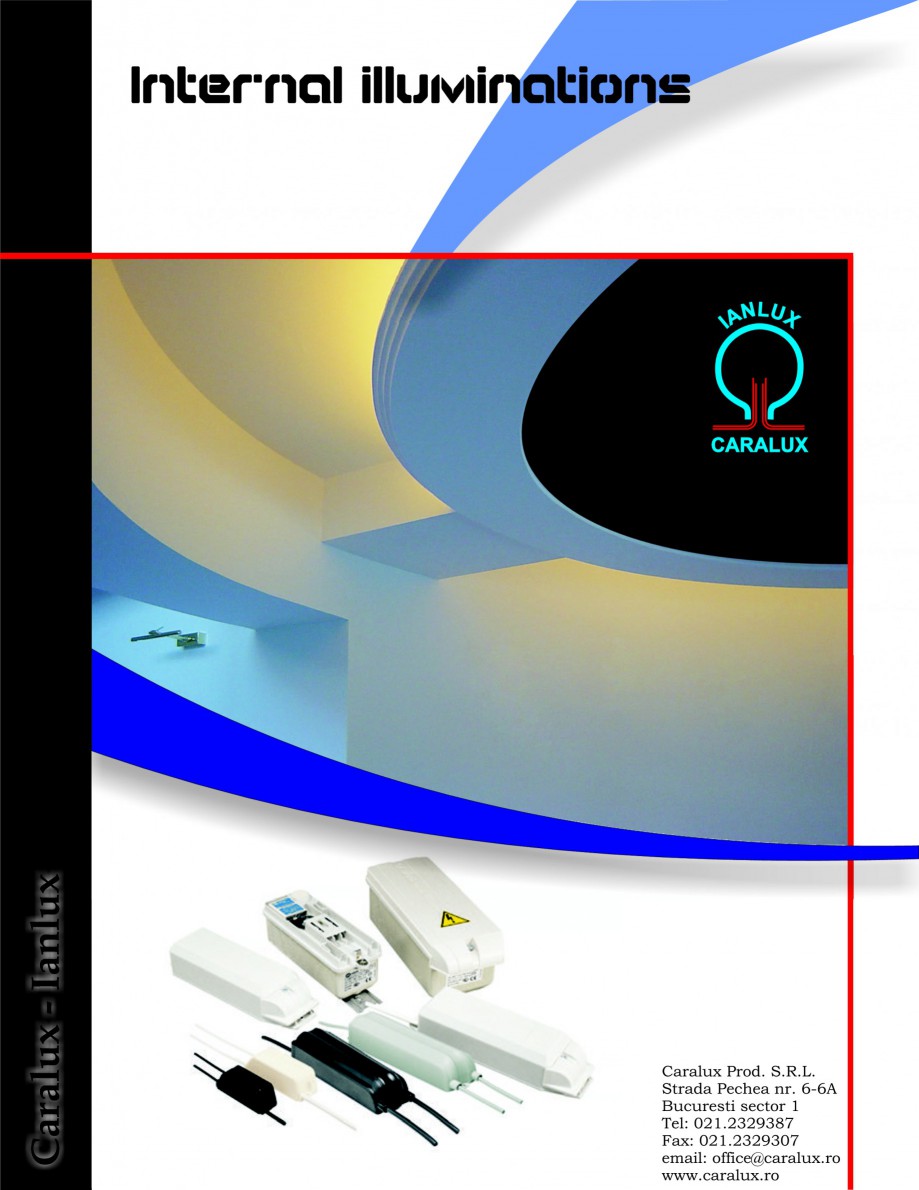

Internal illuminations NLUX IA CARALUX Caralux - Ianlux Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sector 1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro High Voltage Cold Cathode The outdoor illumination , but especially the indoor illumination , has been always a challenge for the architects, who didn't have the new technology of lighting. For example the illumination of the very elaborated gorges and of the overstrained translucent ceiling, because in the past few years a special attention has been conferred in this direction . The company SC CARALUX PROD SRL helps the architects , and not only them,with the cold cathode illumination system. Maybe you are asking yourself why these tubes are more special than the usual neon-lamps and why you should choose this new system . For a very simple reason : first of all these tubes have a length between 200 – 3150 mm, but what's making them unique is their property to be bended, to take the gor
ge's shape. The result of using these tubes is a continuous appearance, without interruption at the tube's extremities , a perfect illumination, without shadows – the dream of every architect. Caralux - Ianlux Their energy consumption is very little, only 20 W / meter . They can be dimmed, resulting the wished intensity. We can produce a large range of colours, till 15 different hues of white ( from the cold white to the incandescent one ) Technical details High Voltage cold cathode (also referred to as Neon) is eminently suitable for all forms of architectural features particularly when a continuous appearance and long life is required. Starting options - instantaneous starting - can be realized by : 1. remote 2.from a bracket an the wall 3. from a DMX desk - possibility of increasing and decreasing the intensity of light between 0% and 100% Tube - long life tubing of 50000 burning hours - watt consumtion for a 50 mA transformer is 25 W/meter and for a 25 mA transformer is 20
W/ meter - the length can vary between 200 – 3150 mm - the thickness : 8 mm, 10 mm, 12 mm, 15 mm, 18mm - possibility of building any shape, maintaining the continuous appearance - possibility of choosing any colour , for white can be realized 10 different hues from incandescent white 2700 k to cold white 8000 k - lamp current 1300 lumen / meter - -it's part of the newest generation of glass called PIREX with the following properties : - 100 % ecologic - high mechanical properties towards lead glass - bigger warranty - equipped with excellence electrodes of the highest quality, with mechanical capture, which eliminates any imperfect connection between the electrode and the high voltage cable , resulting an increased safety Caralux - Ianlux Detalii tehnice Transformers - made in one piece - water resistant - operating current 25 mA, 50 mA, 100 mA - corrected input current 0.5 A – 2 A - output voltage 1500 V – 10000 V a single transformer can supply 1 – 15 m of tube Transformer
220 V/ 16A Dimmer Caralux - Ianlux - it is made from a single device which can be put anywhere - the device can be controlled by remote, manually from a control panel by DMX input - output voltage 5A – 20A Internal illumination We are showing you the overstrained translucent ceiling with the RGB illumination, system that offers the possibility of choosing any hue from the colour spectrum .The system is connected at a controller operated by remote. Hotel Ramada Bucharest translucent ceiling RGB system Hotel Ramada Bucharest translucent ceiling RGB system Hotel Ramada Bucharest translucent ceiling RGB system Hotel Ramada Bucharest translucent ceiling RGB system Hotel Ramada Bucharest translucent ceiling RGB system Hotel Ramada Bucharest translucent ceiling RGB system Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Internal illumination We are showing you the RGB illumination, system th
at offers the possibility of choosing any hue from the colour spectrum . The system is connected at a controller operated by remote Showroom Caralux Bucharest RGB Gorge system Showroom Caralux Bucharest RGB Gorge system Showroom Caralux Bucharest RGB Gorge system Showroom Caralux Bucharest RGB Gorge system Showroom Caralux Bucharest RGB Gorge system Showroom Caralux Bucharest RGB Gorge system Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Internal illumination We are showing you the overstrained translucent ceiling with the RGB illumination, system that offers the possibility of choosing any hue from the colour spectrum .The system is connected at a DMX controller operated by DJ. Private club Embrio - Bucharest Translucent ceiling RGB system Private club Embrio - Bucharest Translucent form with RGB system Private club Embrio - Bucharest Translucent ceiling RGB system Private club Embrio
- Bucharest Translucent form with RGB system Private club Embrio - Bucharest Translucent ceiling RGB system Private club Embrio - Bucharest Translucent form with RGB system Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Internal illumination We are showing you the overstrained translucent ceiling with the RGB illumination, system that offers the possibility of choosing any hue from the colour spectrum .The system is connected at a controller operated by remote or manually from a bracket on the wall. Private residence - Living Private residence - Living Private residence - Living Private residence - Living Private residence - Living Private residence - Living Private residence - Living Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Private residence - Living Internal illumination Cold cathode, with po
ssibility of vary the lighting intensity between 0% and 100%, controlled by remote or a bracket on the wall. Private residence one colour, with dimmable interface Private residence one colour, with dimmable interface Private residence one colour, with dimmable interface Private residence one colour, with dimmable interface Private residence one colour, with dimmable interface Private residence one colour, with dimmable interface Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro We are showing you the overstrained translucent ceiling with the RGB illumination, system that offers the possibility of choosing any hue from the colour spectrum .The system is connected at a controller operated by remote or manually from a bracket on the wall Private residence RGB System Private residence one colour, with dimmable interface Private residence RGB System Private residence RGB System Private residenc
e RGB System Private residence RGB System Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro We are showing you the overstrained translucent ceiling with the RGB illumination, system that offers the possibility of choosing any hue from the colour spectrum .The system is connected at a controller operated by remote or manually from a bracket on the wall Private residence RGB System Private residence RGB System Private residence RGB System Private residence RGB System Private residence RGB System Private residence RGB System Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Internal illumination Romtelecom headquarters Romtelecom headquarters Allianz headquarters Private residence one colour, with dimmable interface Private residence one colour, with dimmable interface Allianz headquarters Caralux Prod.
S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Internal illumination Private residence one colour, with dimmable interface Private club Alexandria Admiral Club Hotel Howard Jonson Bucharest Admiral Club Admiral Club Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Internal illumination Hotel Howard Jonson Bucharest Hotel Howard Jonson Bucharest Private residence one colour, with dimmable interface Private residence one colour, with dimmable interface Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Internal illumination Private residence one colour, with dimmable interface Private residence one colour, with dimmable interface Iluminates stage Iluminates stage Private residence one colour, with dimmable interface Private res
idence one colour, with dimmable interface Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Sistemul tricromie : incorporat in scari construite din material traslucent, comandate cu ajutorul unui controler DMX, ce faciliteaza schimbarea culorilor infuctie de preferinte. Fiecare treapta este controlata si iluminata independent. iluminated stairs National Circus Bucharest iluminated stairs National Circus Bucharest iluminated stairs National Circus Bucharest iluminated stairs National Circus Bucharest Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Internal illumination Private residence one colour, with dimmable interface RGB system controld by DMX Privat Club RGB system controld by DMX Privat Club RGB system controld by DMX Privat Club Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2
329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Internal illumination Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Internal illumination Admiral Club RGB system controld by DMX Embrio Club RGB system controld by DMX Embrio Club one colour controld by DMX Embrio Club Admiral Club RGB system controld by DMX Embrio Club Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro Caralux Prod. S.R.L. Strada Pechea nr. 6-6A Bucuresti sec.1 Tel: 021.2329387 Fax: 021.2329307 email: office@caralux.ro www.caralux.ro
