Documentatie atasata la

Sisteme de fixare pentru fatade ventilate (VHF) EJOT

Fixari fatade ventilate EJOT

Limba: Engleza

3 afisari

Tip documentatie: Catalog, brosura

Pagina 1 - Fixari fatade ventilate EJOT Catalog, brosura Engleza Rear Ventilated Facades
Screws,...

Rear Ventilated Facades Screws, Facade Anchors, Insulation support anchors Rear ventilated facades Imprint Publisher: EJOT Baubefestigungen GmbH 57334 Bad Laasphe Layout and realisation: EJOT Baubefestigungen GmbH 57334 Bad Laasphe Legal Notes EJOT products undergo continuous further development. Technical specifications, ranges and prices are subject to changes. For the latest information about our products, please visit our online shop at www.ejot.de/bau During planning and use of our products, please comply with the accepted rules of technology, construction legislation and the relevant safety regulations. The approvals granted by the building authorities for our products can be downloaded from www.ejot.com. General terms and conditions: Our general terms and conditions can also be found at www. ejot.com (footer: Terms & Conditions) ©2019 by EJOT Baubefestigungen GmbH EJOT®, ejotherm®, Delta PT® und PT® are registered trademarks of EJOT GmbH & Co. KG. CRONIMAKS®, Corremaks�

Pagina 1-Fixari fatade ventilate EJOT Catalog, brosura Engleza Rear Ventilated Facades
Screws, Facade Anchors...

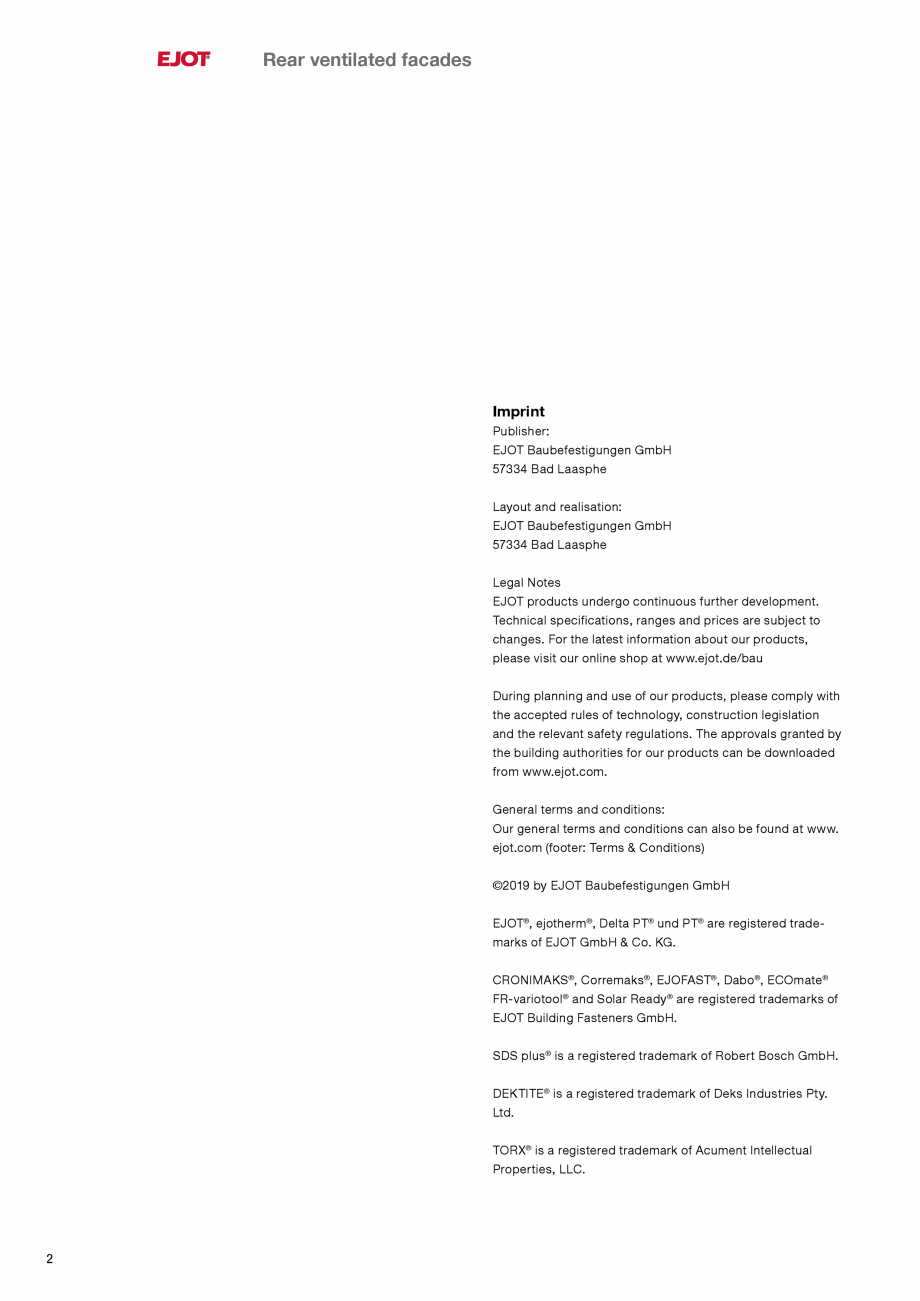

Pagina 2 - Fixari fatade ventilate EJOT Catalog, brosura Engleza �, EJOFAST®, Dabo®, ECOmate ®...

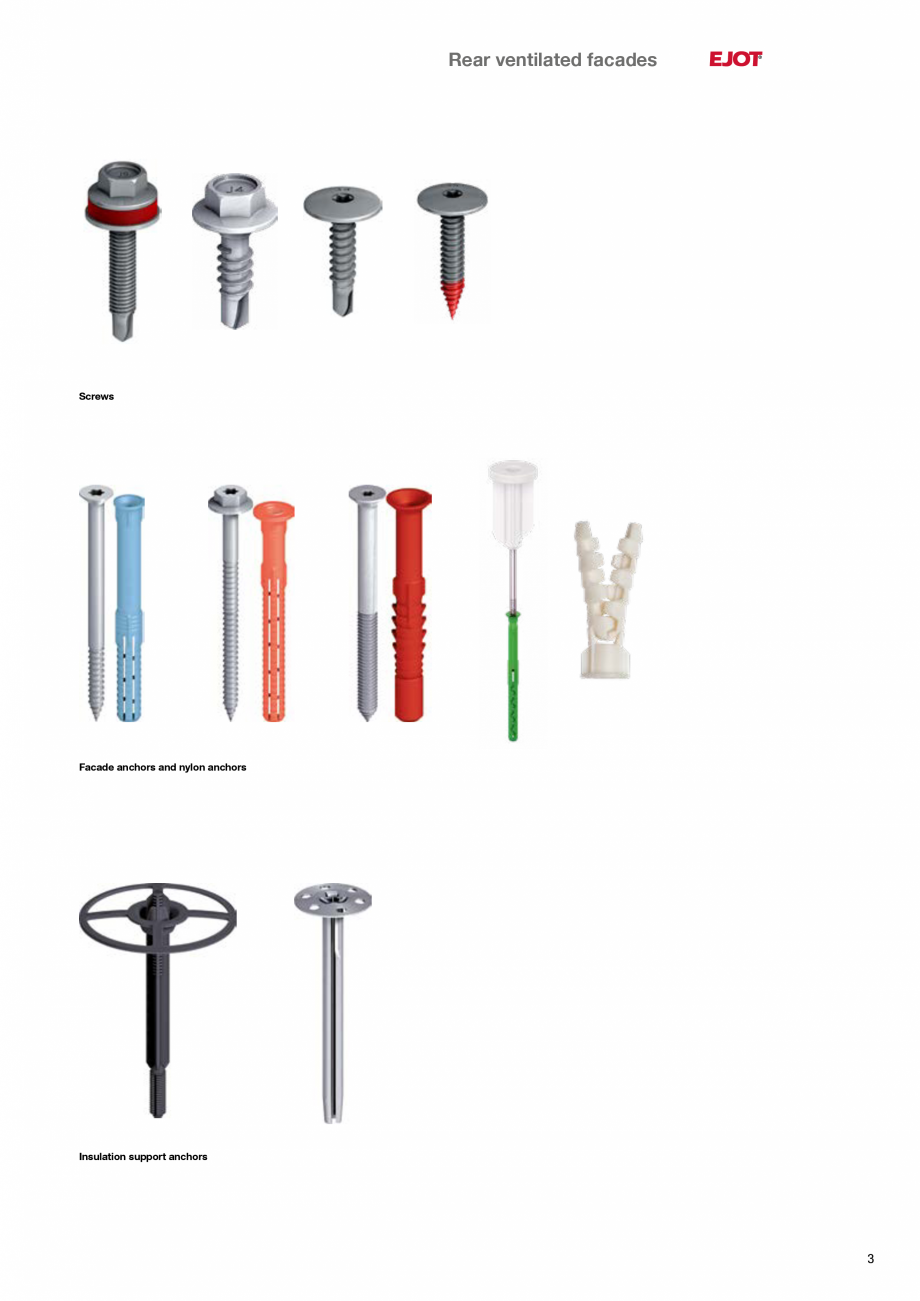

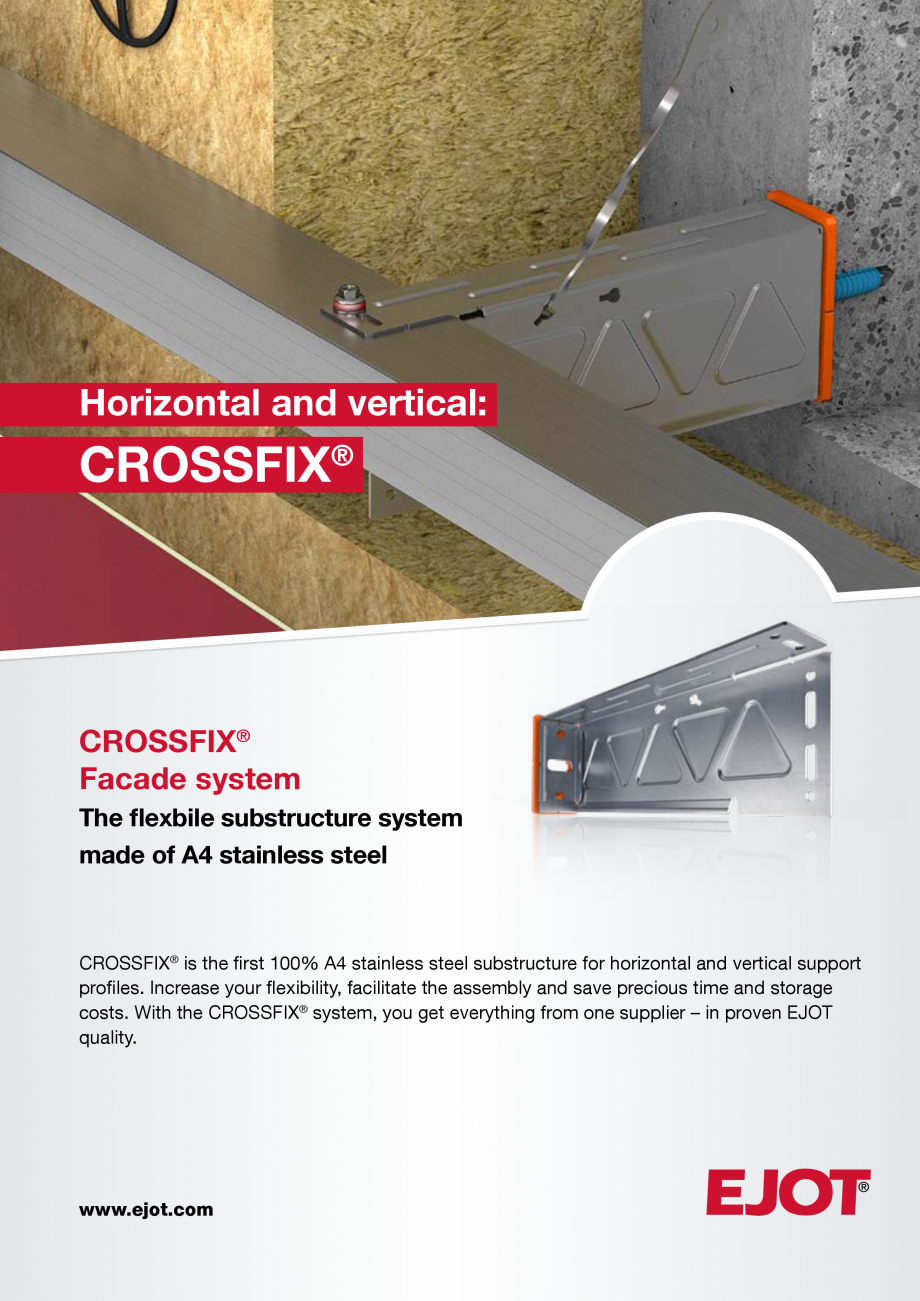

�, EJOFAST®, Dabo®, ECOmate ® FR-variotool® and Solar Ready® are registered trademarks of EJOT Building Fasteners GmbH. SDS plus® is a registered trademark of Robert Bosch GmbH. DEKTITE® is a registered trademark of Deks Industries Pty. Ltd. TORX® is a registered trademark of Acument Intellectual Properties, LLC. 2 Rear ventilated facades Screws Facade anchors and nylon anchors Insulation support anchors 3 The Fastener. Horizontal and vertical: CROSSFIX® CROSSFIX® Facade system The flexbile substructure system made of A4 stainless steel CROSSFIX® is the first 100% A4 stainless steel substructure for horizontal and vertical support profiles. Increase your flexibility, facilitate the assembly and save precious time and storage costs. With the CROSSFIX® system, you get everything from one supplier – in proven EJOT quality. www.ejot.com 4 www.ejot.com Rear ventilated facades Self-drilling screws EJOT® self-drilling screw JT4-3H/5-5.5x19 EJOT® self-drilling

Pagina 3 - Fixari fatade ventilate EJOT Catalog, brosura Engleza screw JT9-3H/5-5.5x19
AF8

SCAN
TO...

screw JT9-3H/5-5.5x19 AF8 SCAN TO SHOP Length [mm] 5 mm P-BWU021980001 Price/100 Order description [EUR] JT4 made of A2 stainless steel 19 500 19 100 JT9 made of A4 stainless steel 19 500 19 100 Article number EAN JT4-3H/5-5.5x19 JT4-3H/5-5.5x19 VE100 7 380 540 300 6 380 540 300 4061245014289 4061245014876 JT9-3H/5-5.5x19 JT9-3H/5-5.5x19 VE100 7 380 540 340 6 380 540 340 4061245014272 4061245014869 Application range ll To form floating and fixed points on substructures of rear-ventilated facades ll Fastening pre-drilled stainless steel or aluminium wall brackets to aluminium support profiles ll For component assemblies from 3.1 – 5.0 mm (component I + component II) Characteristics ll A2 or A4 stainless steel Note Component assemblies checked with Rm (component II) ≥ 190, ≥ 215 and ≥ 245 N/mm2. For bearing values, please refer to the general building authorities test certificate (abP) PBWU02-1980001. www.ejot.com Technical specifications Diameter Drilling cap

Pagina 3-Fixari fatade ventilate EJOT Catalog, brosura Engleza screw JT9-3H/5-5.5x19
AF8

SCAN
TO
SHOP
...

Pagina 4 - Fixari fatade ventilate EJOT Catalog, brosura Engleza acity
Drive
Flange head
Length...

acity Drive Flange head Length non-threaded part 5.5 mm 3.0 mm Hexagon A/F8 Ø 13 mm 5.0 mm Possible component assemblies Component I [mm] 1.5 (stainless steel) 3.0 (aluminium) Component II [mm] Rm support profile/ Wall bracket 1.6 2.0 2.4 1.6 2.0 ≥ 190 N/mm2 ≥ 190 N/mm2 5 Rear ventilated facades Self-drilling screws EJOT® self-drilling screw JT6-2/5-5.0 VARIO EJOT® self-drilling screw JT9-2/5-5.0 VARIO SCAN TO SHOP Length [mm] AF8 P-BWU02178006 Price/100 Order description [EUR] JT6 made of A4 stainless steel with hardened steel drill point 30 500 JT6-2/5-5.0x30 Vario 30 100 JT6-2/5-5.0x30 Vario VE100 JT9 made of A4 stainless steel 25 500 JT9-2/5-5.0x25 Vario 25 100 JT9-2/5-5.0x25 Vario VE100 Watch the video now: https://youtu.be/pXs-bv1N3dA Application range ll To form floating and fixed points on substructures of rear-ventilated facades ll Fastening pre-drilled stainless steel or aluminium wall brackets to aluminium support profiles Characteristics ll One scr

Pagina 4-Fixari fatade ventilate EJOT Catalog, brosura Engleza acity
Drive
Flange head
Length non-threaded...

Pagina 5 - Fixari fatade ventilate EJOT Catalog, brosura Engleza ew for all part combinations
ll...

ew for all part combinations ll Sliding washer E14, Ø 14 mm ll Buffer zone between the screw head and sliding disk prevents excessive clamp load of the joint. ll Pre-assembled captive sliding washer ll Consistently low contact pressure prevents stick-slip phenomenon ll No stripping / destruction of the thread in component II resulting in high tensile loading capacity ll High tensile and transverse load transmission in component II due to fine pitch thread ll General building authorities test certificate (abP) as proof of usability according to DIN 18516-1 (also available as informal English translation) ll Case hardened drill point of the JT6 version for fastening in steel support profiles (not part of the abP) ll Wall brackets made of stainless steel and aluminium are part of the abP ll Buffer zone serves as visual set control ll Same assembly concept for floating and fixed points Article number EAN 3 598 077 991 6 598 077 991 4061245014999 4061245021904 3 500 777 490

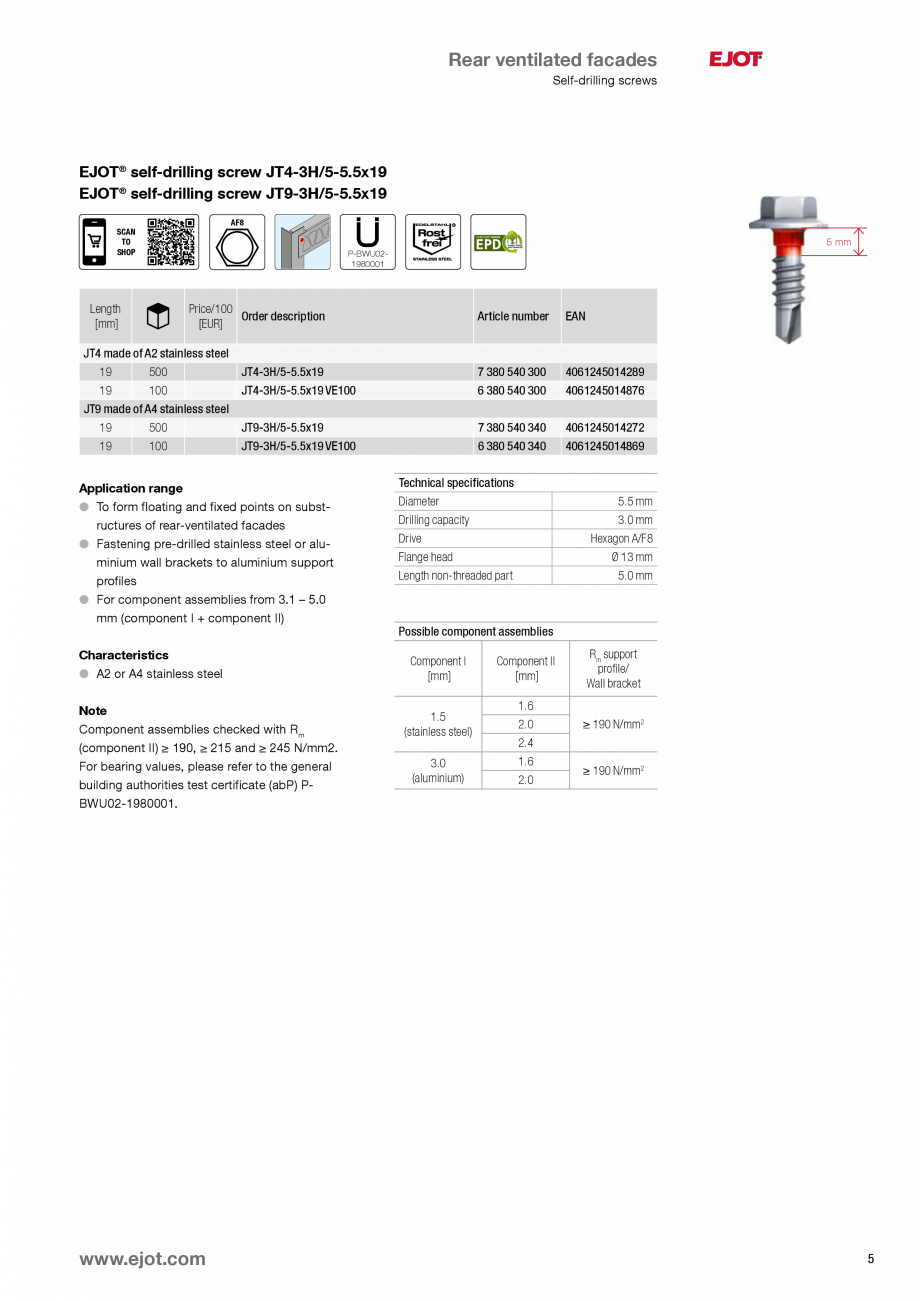

Pagina 5-Fixari fatade ventilate EJOT Catalog, brosura Engleza ew for all part combinations
ll Sliding washer...

Pagina 6 - Fixari fatade ventilate EJOT Catalog, brosura Engleza 6 500 777 490

4061245020686...

6 500 777 490 4061245020686 4061245021508 Technical specifications Diameter Drilling capacity Drive 5.0 mm 3.0 mm Hexagon A/F8 Possible part combinations Component I [mm] 1.5 (stainless steel) 2.0 (stainless steel) 3.0 (stainless steel) 2.0 (aluminium) 3.0 (aluminium) 4.0 (aluminium) 5.0 (aluminium) Component II [mm] Rm support profile/ Wall bracket 2.0 2.5 3.0 2.0 2.5 3.0 2.0 2.5 3.0 2.0 2.5 3.0 2.0 2.5 3.0 2.0 2.5 3.0 2.0 2.5 3.0 ≥ 190 N/mm2 Note Component assemblies checked with Rm (component II) ≥ 190, ≥ 215 and ≥ 245 N/mm2. For bearing values, please refer to the general building authorities test certificate (abP) PBWU02-178006. 6 www.ejot.com Rear ventilated facades Self-drilling screws Drive hexagon A/F 8 isual set control by correct compression of V the buffer zone Large collar prevents rubbing of thread flanks in the slotted hole of the wall bracket. No stripping or destruction of the thread in component II Pre-assembled captive sliding washer with b

Pagina 6-Fixari fatade ventilate EJOT Catalog, brosura Engleza 6 500 777 490

4061245020686
4061245021508
...

Pagina 7 - Fixari fatade ventilate EJOT Catalog, brosura Engleza uffer zone

Fine
pitch thread...

uffer zone Fine pitch thread creates load bearing thread in component II Low pitch allows precise compression of the buffer zone and high self-locking of the screw in component II Extreme drilling speed even at low axial pressure Recommended accessories EJOT® A/F8-Vario Tool Article No. 9 152 900 000 www.ejot.com Cordless metal screwdriver ASCS 6.3 Select Article No. 9 150 200 003 7 Rear ventilated facades Self-drilling screws The LT system for facades Forcing tension under control: The LT fastening system with plastic sleeves specifically matched to the screws ensures optimum fastening of the cladding panels. The LT screws can be combined with suitable centring bushes - adapted to every application. Drive Hexalobular TX25 Head diameter 16 mm to cover slotted holes and large pre-drill diameters Very flat screw head for aesthetic facade design XT version with cutting ring: Protective film of the facade panel is cut in and can be removed completely after assembly Optional

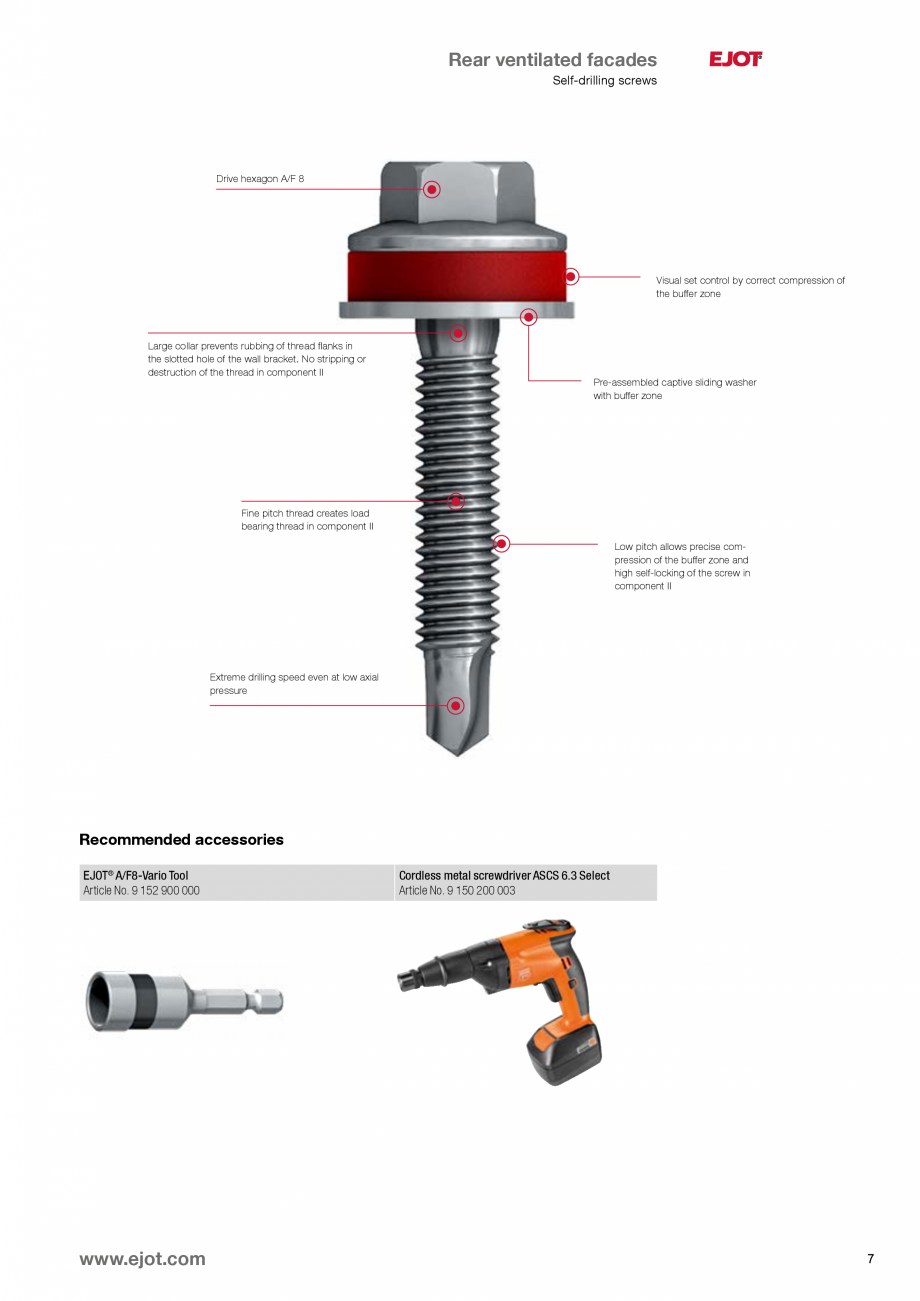

Pagina 7-Fixari fatade ventilate EJOT Catalog, brosura Engleza uffer zone

Fine
pitch thread creates load
...

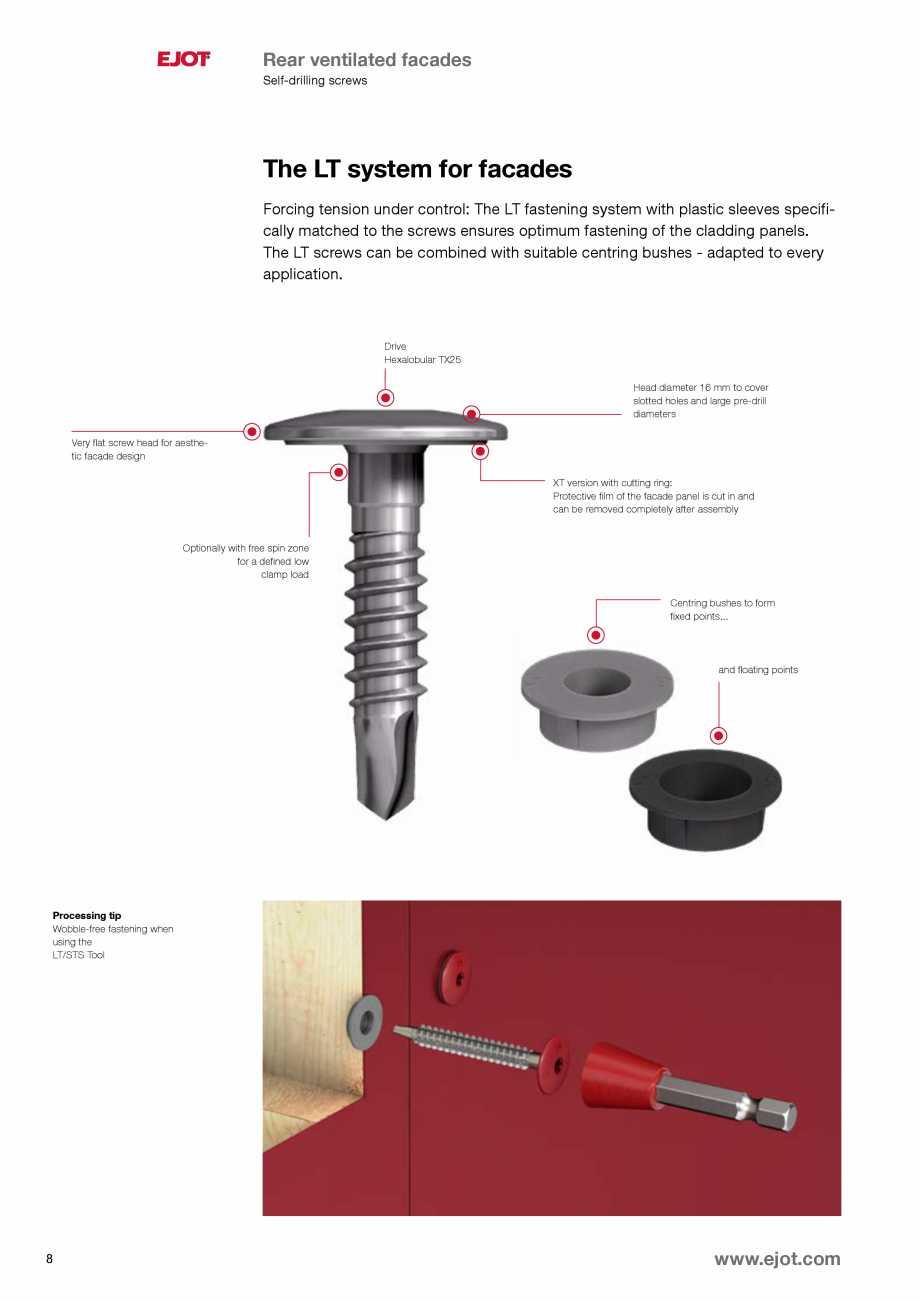

Pagina 8 - Fixari fatade ventilate EJOT Catalog, brosura Engleza ly with free spin zone
for a...

ly with free spin zone for a defined low clamp load Centring bushes to form fixed points... and floating points Processing tip Wobble-free fastening when using the LT/STS Tool 8 www.ejot.com Rear ventilated facades Self-drilling screws Product finder LT system JT4-LT3-5.5x25 KD16 JF3-LT2-5.5x30 KD16 JT4-LT-XT3H/4-5.5x19 KD16 JT4-LT-XT3H/6-5.5x25 KD16 JT3-LT3-5.5x30 KD16 JT4-LT2/6-6x50 KD16 A2 stainless steel A2 stainless steel with hardened steel point1) A2 stainless steel A2 stainless steel A2 stainless steel with hardened steel drill point A2 stainless steel all common cladding panels all common cladding panels Aluminium panels ≥ 2.0 mm Aluminium composite panels 4.0 mm all common cladding panels all common cladding panels - - 4.0 mm 6.0 mm - - For substructures made of Aluminium Steel / aluminium Aluminium Aluminium Steel / aluminium Timber Drilling capacity (tI pre-drilled) tII 1.5 - 3.0 mm 0.4 - 1.5 mm 1.5 - 3.0 mm 3.0 mm 1.5 - 2.5 mm

Pagina 8-Fixari fatade ventilate EJOT Catalog, brosura Engleza ly with free spin zone
for a defined low
clamp...

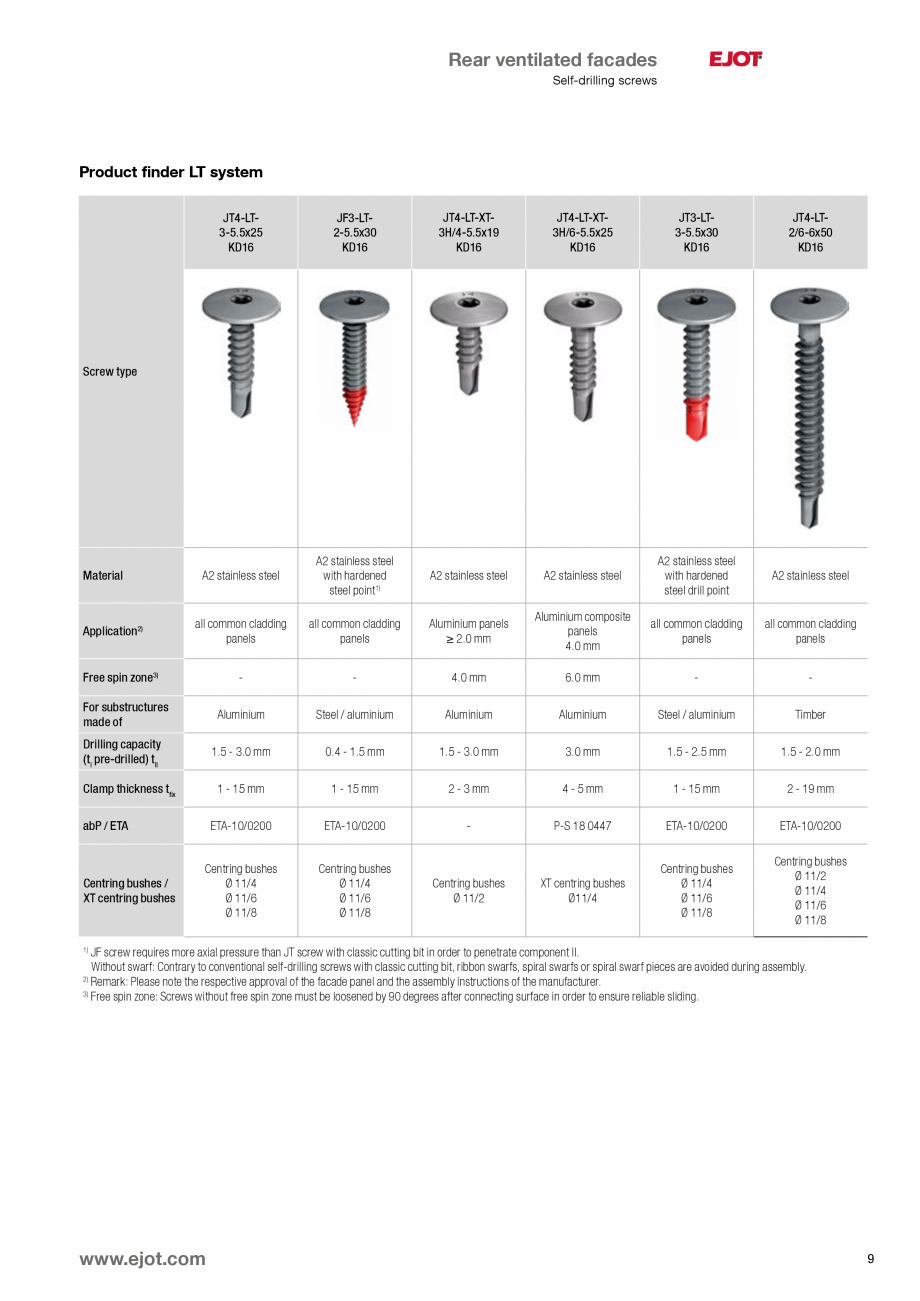

Pagina 9 - Fixari fatade ventilate EJOT Catalog, brosura Engleza 1.5 - 2.0 mm

1 - 15 mm

1 - 15 mm
...

1.5 - 2.0 mm 1 - 15 mm 1 - 15 mm 2 - 3 mm 4 - 5 mm 1 - 15 mm 2 - 19 mm ETA-10/0200 ETA-10/0200 - P-S 18 0447 ETA-10/0200 ETA-10/0200 Centring bushes Ø 11/4 Ø 11/6 Ø 11/8 Centring bushes Ø 11/4 Ø 11/6 Ø 11/8 Centring bushes Ø 11/2 XT centring bushes Ø11/4 Centring bushes Ø 11/4 Ø 11/6 Ø 11/8 Centring bushes Ø 11/2 Ø 11/4 Ø 11/6 Ø 11/8 Screw type Material Application2) Free spin zone3) Clamp thickness tfix abP / ETA Centring bushes / XT centring bushes JF screw requires more axial pressure than JT screw with classic cutting bit in order to penetrate component II. Without swarf: Contrary to conventional self-drilling screws with classic cutting bit, ribbon swarfs, spiral swarfs or spiral swarf pieces are avoided during assembly. 2) Remark: Please note the respective approval of the facade panel and the assembly instructions of the manufacturer. 3) Free spin zone: Screws without free spin zone must be loosened by 90 degrees after connecting surface

Pagina 9-Fixari fatade ventilate EJOT Catalog, brosura Engleza 1.5 - 2.0 mm

1 - 15 mm

1 - 15 mm

2 - 3 mm

...

Pagina 10 - Fixari fatade ventilate EJOT Catalog, brosura Engleza in order to ensure reliable...

in order to ensure reliable sliding. 1) www.ejot.com 9 Rear ventilated facades Self-drilling screws EJOT® self-drilling screw JT4-LT-3-5.5x25 16 mm TX25 SCAN TO SHOP ETA-10/0200 Length [mm] max. panel thickness [mm] 25 12 Price/100 Order description [EUR] 500 Application range ll For fixing facade panels to 1.5-3.0 mm aluminium substructures ll Can be combined with LT fixed and floating point sleeves Characteristics ll A2 stainless steel ll Pan head Benefits ll To cover slotted holes and large pre-drill diameters ll Also available in RAL lacquering ll Flat screw head for aesthetic facade design ll Wobble-free fastening by using the LT tool 10 JT4-LT-3-5.5x25 KD16 Article number EAN 7 384 207 300 4061245014029 Note Please note the respective approval of the facade panel and the assembly instructions of the manufacturer. Processing information for floating points on cladding panels Stop fastening as soon as the screw head connects to the surface and turn the scre

Pagina 10-Fixari fatade ventilate EJOT Catalog, brosura Engleza in order to ensure reliable sliding.
1)

www...

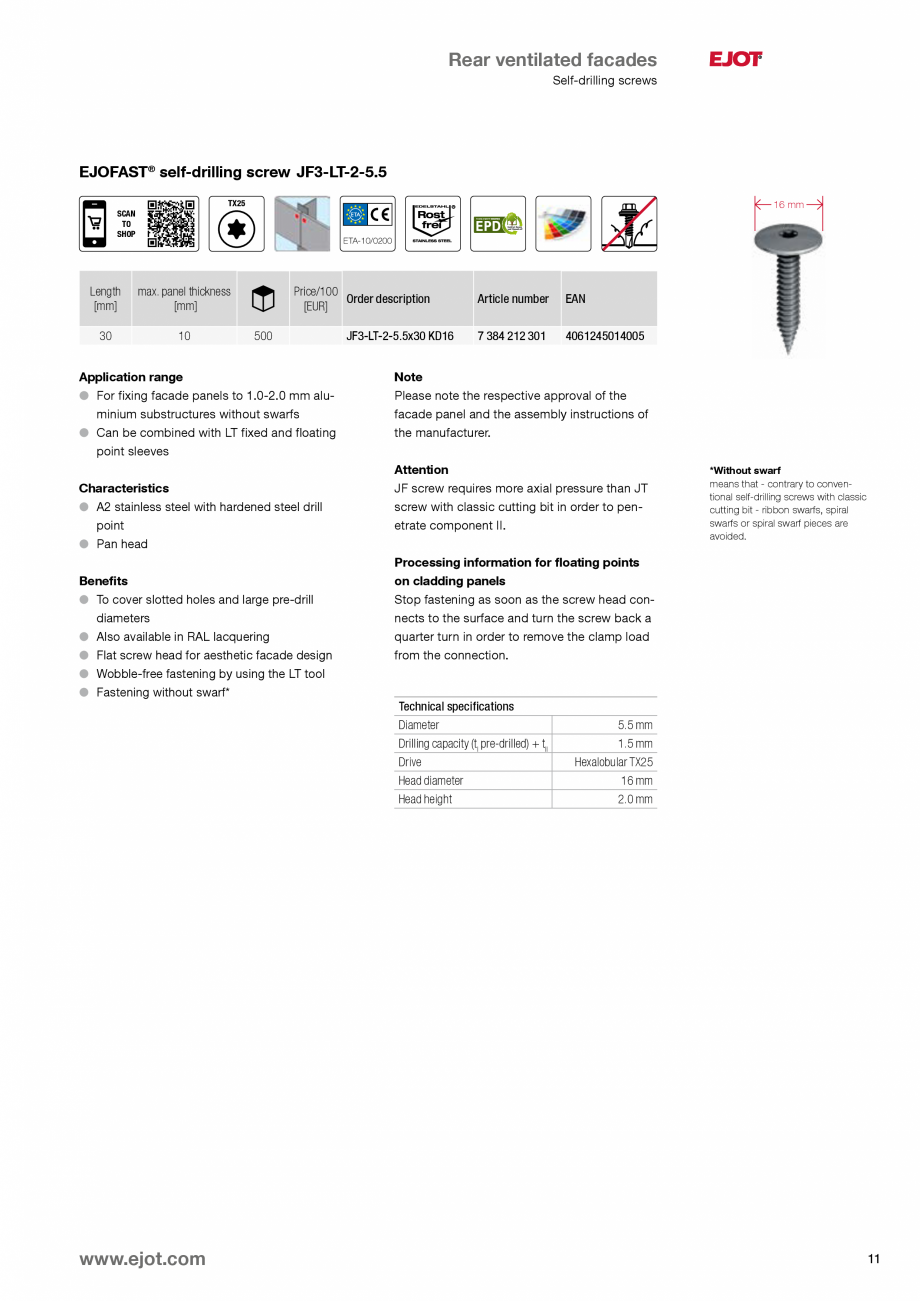

Pagina 11 - Fixari fatade ventilate EJOT Catalog, brosura Engleza w back a
quarter turn in order to ...

w back a quarter turn in order to remove the clamp load from the connection. Technical specifications Diameter Drilling capacity (tI pre-drilled) + tII Drive Head diameter Head height 5.5 mm 1.5-3.0 mm Hexalobular TX25 16 mm 2.0 mm www.ejot.com Rear ventilated facades Self-drilling screws EJOFAST® self-drilling screw JF3-LT-2-5.5 TX25 16 mm SCAN TO SHOP ETA-10/0200 Length [mm] max. panel thickness [mm] 30 10 Price/100 Order description [EUR] 500 Application range ll For fixing facade panels to 1.0-2.0 mm aluminium substructures without swarfs ll Can be combined with LT fixed and floating point sleeves Characteristics ll A2 stainless steel with hardened steel drill point ll Pan head Benefits ll To cover slotted holes and large pre-drill diameters ll Also available in RAL lacquering ll Flat screw head for aesthetic facade design ll Wobble-free fastening by using the LT tool ll Fastening without swarf* www.ejot.com JF3-LT-2-5.5x30 KD16 Article number EAN 7 384 21

Pagina 11-Fixari fatade ventilate EJOT Catalog, brosura Engleza w back a
quarter turn in order to remove the...

Pagina 12 - Fixari fatade ventilate EJOT Catalog, brosura Engleza 2 301

4061245014005

Note
Please ...

2 301 4061245014005 Note Please note the respective approval of the facade panel and the assembly instructions of the manufacturer. Attention JF screw requires more axial pressure than JT screw with classic cutting bit in order to penetrate component II. *Without swarf means that - contrary to conventional self-drilling screws with classic cutting bit - ribbon swarfs, spiral swarfs or spiral swarf pieces are avoided. Processing information for floating points on cladding panels Stop fastening as soon as the screw head connects to the surface and turn the screw back a quarter turn in order to remove the clamp load from the connection. Technical specifications Diameter Drilling capacity (tI pre-drilled) + tII Drive Head diameter Head height 5.5 mm 1.5 mm Hexalobular TX25 16 mm 2.0 mm 11 Rear ventilated facades Self-drilling screws EJOT® self-drilling screw JT4-LT-XT-3H/4-5.5x19 16 mm TX25 SCAN TO SHOP Length [mm] NEW max. panel thickness [mm] Self-drilling screw 19 2-3 Ce

Pagina 12-Fixari fatade ventilate EJOT Catalog, brosura Engleza 2 301

4061245014005

Note
Please note the...

Pagina 13 - Fixari fatade ventilate EJOT Catalog, brosura Engleza ntring bushes
2-3
2-3

Price/100...

ntring bushes 2-3 2-3 Price/100 Order description [EUR] EAN 500 JT4-LT-XT-3H/4-5.5x19 KD16 7 384 219 300 4061245044507 500 500 Centring bush Ø 11/2 F Centring bush Ø 11/2 S 4061245010212 4061245018508 Application range ll For fastening facade panels to aluminium substructures ≤ 2.0 mm, for example Novelis ff2® ll Can be combined with LT fixed and floating point sleeves Characteristics ll A2 stainless steel ll Pan head Benefits ll To cover slotted holes and large pre-drill diameters ll Also available in RAL lacquering ll Flat screw head for aesthetic facade design ll Wobble-free fastening by using the LT tool ll Easy assembly and reliable sliding thanks to optimised free spin zone ll Centring bush collar protects the surface of the facade panel from scratches ll No rivet installation gauge or drilling gauge necessary ll XT cutting ring under the screw head facilitates easy removal of the protective film during the forming of fixed points without centring bush ll T

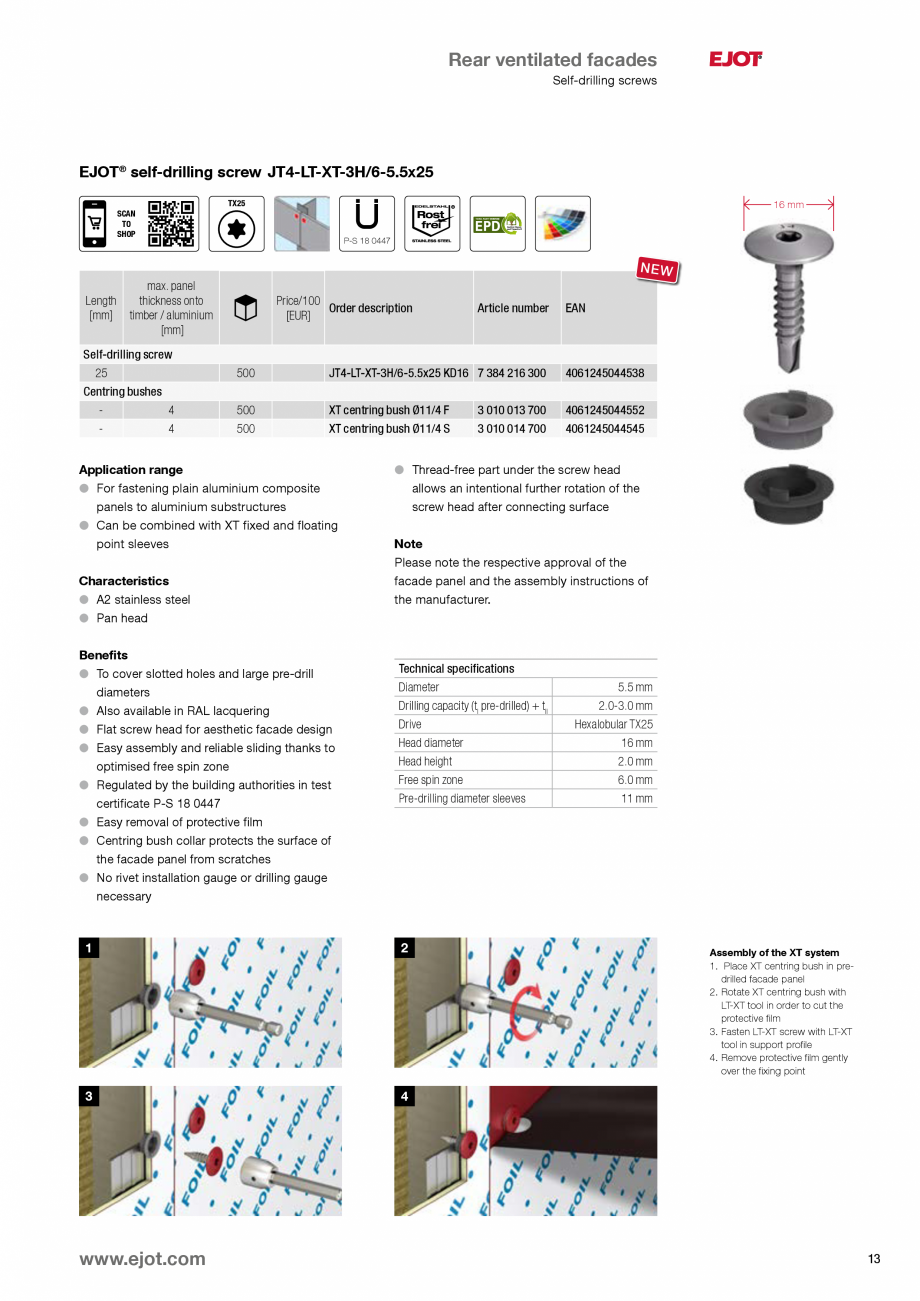

Pagina 13-Fixari fatade ventilate EJOT Catalog, brosura Engleza ntring bushes
2-3
2-3

Price/100
Order...

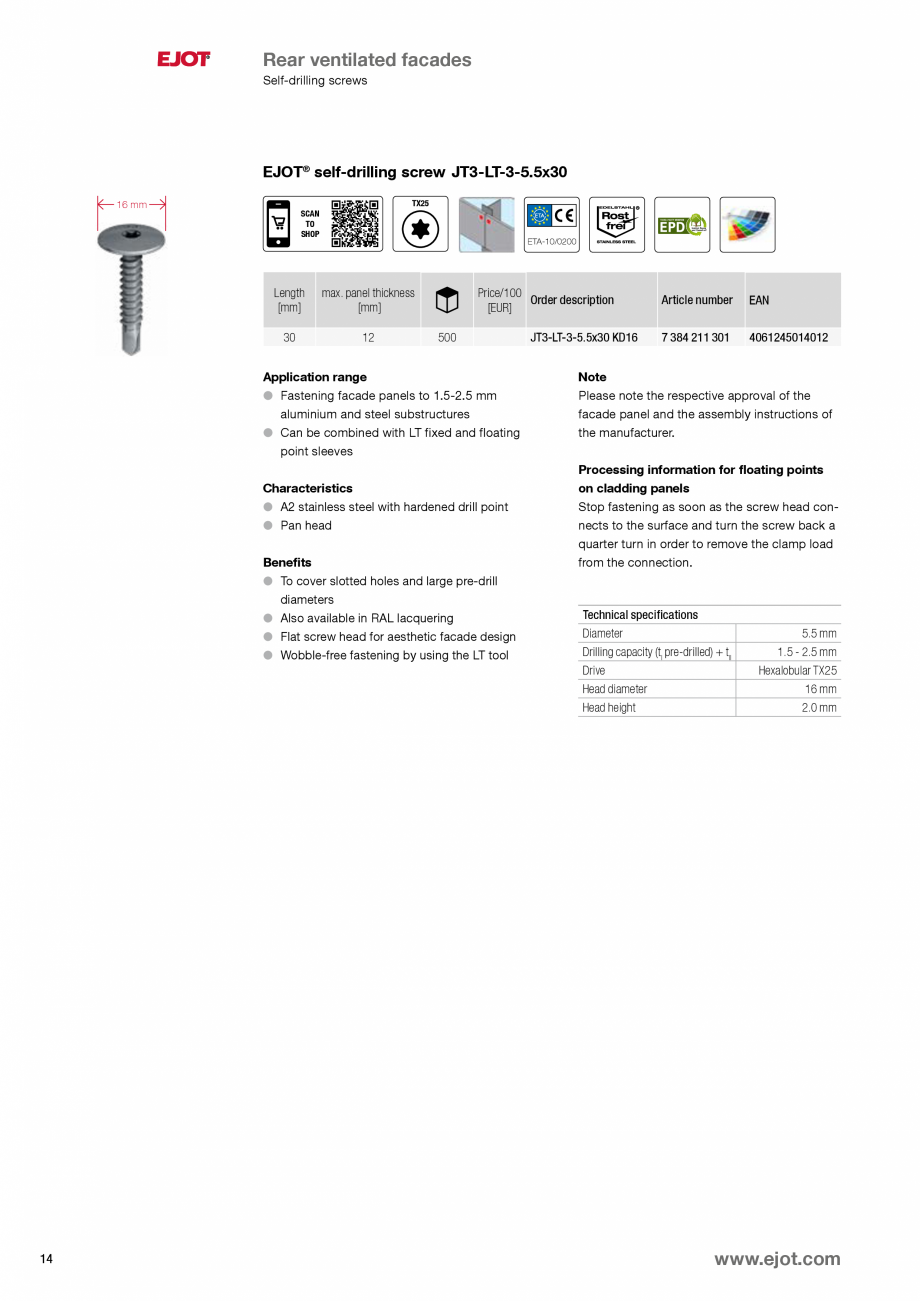

Pagina 14 - Fixari fatade ventilate EJOT Catalog, brosura Engleza hread-free part under the screw...

hread-free part under the screw head allows an intentional further rotation of the screw head after connecting surface 12 Article number 3 010 005 700 3 010 006 700 Note Please note the respective approval of the facade panel and the assembly instructions of the manufacturer. Technical specifications Diameter Drilling capacity (tI pre-drilled) + tII Drive head diameter Head height Free spin zone Pre-drilling diameter sleeves 5.5 mm 1.5-3.0 mm Hexalobular TX25 16 mm 2.0 mm 4 mm 11 mm www.ejot.com Rear ventilated facades Self-drilling screws EJOT® self-drilling screw JT4-LT-XT-3H/6-5.5x25 TX25 16 mm SCAN TO SHOP P-S 18 0447 NEW Length [mm] max. panel thickness onto timber / aluminium [mm] Self-drilling screw 25 Centring bushes 4 4 Price/100 Order description [EUR] EAN 500 JT4-LT-XT-3H/6-5.5x25 KD16 7 384 216 300 4061245044538 500 500 XT centring bush Ø11/4 F XT centring bush Ø11/4 S 4061245044552 4061245044545 Application range ll For fastening plain aluminium

Pagina 14-Fixari fatade ventilate EJOT Catalog, brosura Engleza hread-free part under the screw head
allows an...

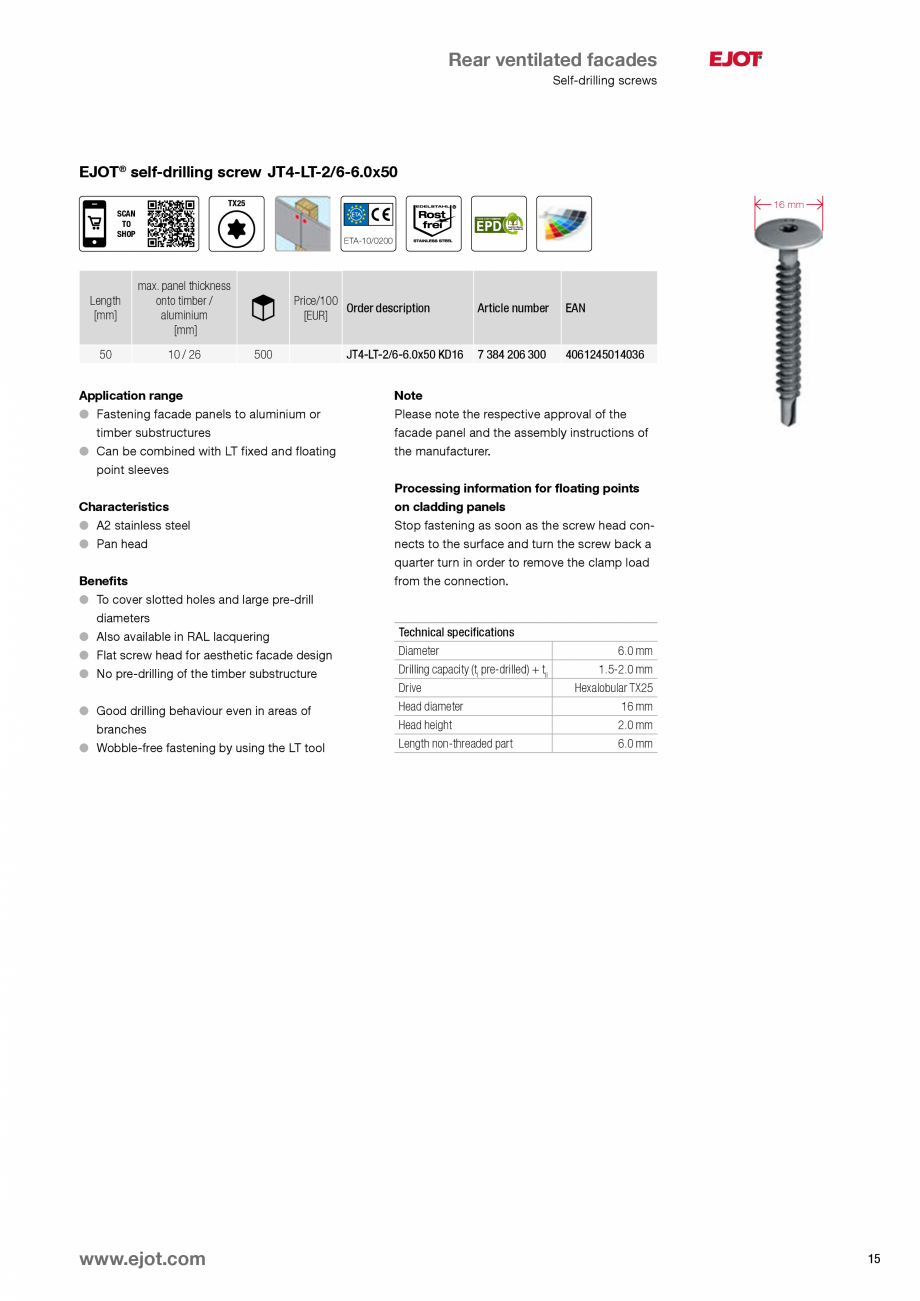

Pagina 15 - Fixari fatade ventilate EJOT Catalog, brosura Engleza composite
panels to aluminium...

composite panels to aluminium substructures ll Can be combined with XT fixed and floating point sleeves Characteristics ll A2 stainless steel ll Pan head Benefits ll To cover slotted holes and large pre-drill diameters ll Also available in RAL lacquering ll Flat screw head for aesthetic facade design ll Easy assembly and reliable sliding thanks to optimised free spin zone ll Regulated by the building authorities in test certificate P-S 18 0447 ll Easy removal of protective film ll Centring bush collar protects the surface of the facade panel from scratches ll No rivet installation gauge or drilling gauge necessary 3 010 013 700 3 010 014 700 ll T hread-free part under the screw head allows an intentional further rotation of the screw head after connecting surface Note Please note the respective approval of the facade panel and the assembly instructions of the manufacturer. Technical specifications Diameter Drilling capacity (tI pre-drilled) + tII Drive Head diameter Head h

Pagina 15-Fixari fatade ventilate EJOT Catalog, brosura Engleza composite
panels to aluminium substructures...

Pagina 16 - Fixari fatade ventilate EJOT Catalog, brosura Engleza eight
Free spin zone
Pre-drilling ...

eight Free spin zone Pre-drilling diameter sleeves 1 2 3 4 www.ejot.com Article number 5.5 mm 2.0-3.0 mm Hexalobular TX25 16 mm 2.0 mm 6.0 mm 11 mm Assembly of the XT system 1. Place XT centring bush in predrilled facade panel 2. Rotate XT centring bush with LT-XT tool in order to cut the protective film 3. Fasten LT-XT screw with LT-XT tool in support profile 4. Remove protective film gently over the fixing point 13 Rear ventilated facades Self-drilling screws EJOT® self-drilling screw JT3-LT-3-5.5x30 TX25 16 mm SCAN TO SHOP ETA-10/0200 Length [mm] max. panel thickness [mm] 30 12 Price/100 Order description [EUR] 500 Application range ll Fastening facade panels to 1.5-2.5 mm aluminium and steel substructures ll Can be combined with LT fixed and floating point sleeves Characteristics ll A2 stainless steel with hardened drill point ll Pan head Benefits ll To cover slotted holes and large pre-drill diameters ll Also available in RAL lacquering ll Flat screw

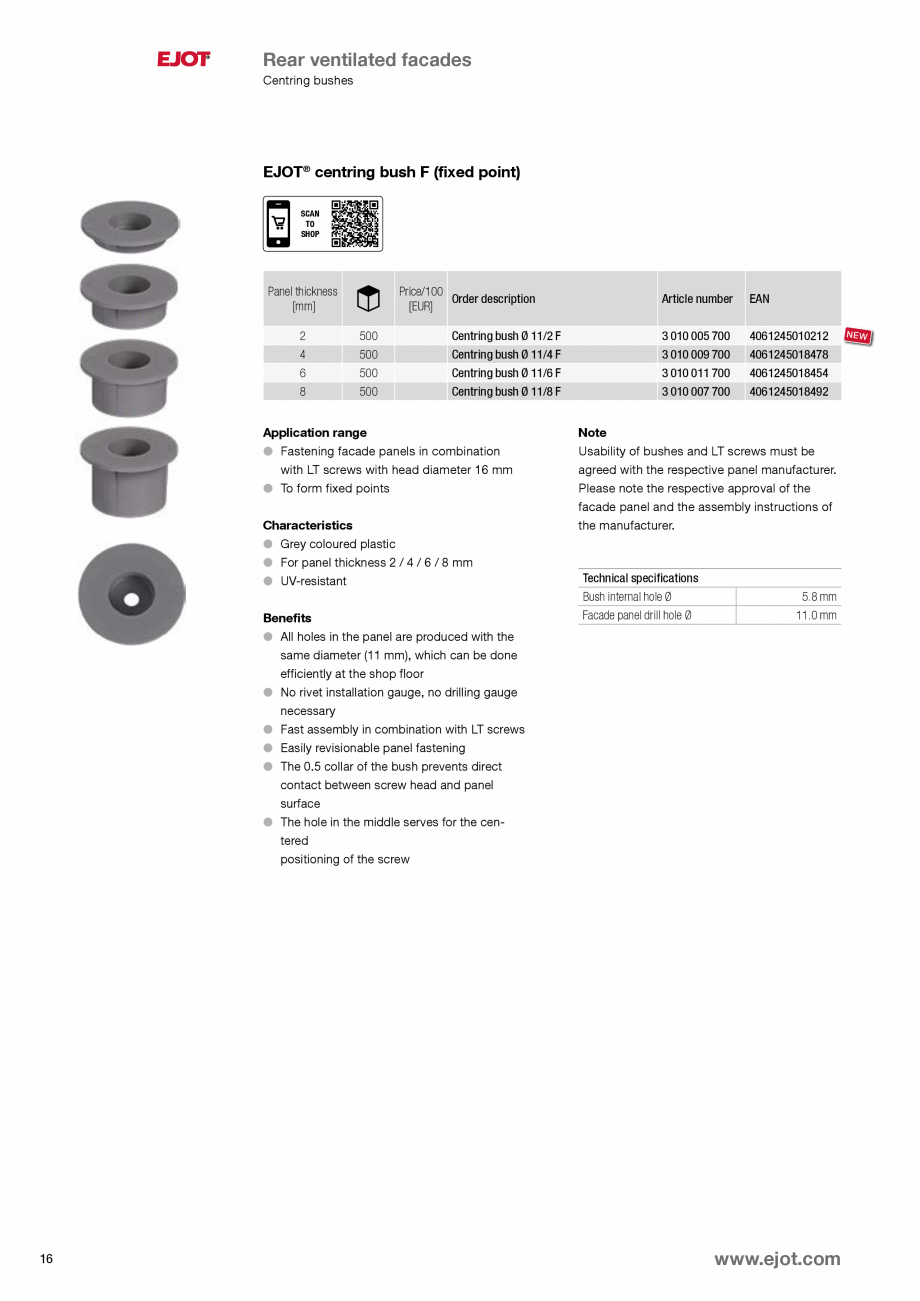

Pagina 16-Fixari fatade ventilate EJOT Catalog, brosura Engleza eight
Free spin zone
Pre-drilling diameter...

Pagina 17 - Fixari fatade ventilate EJOT Catalog, brosura Engleza head for aesthetic facade design...

head for aesthetic facade design ll Wobble-free fastening by using the LT tool 14 JT3-LT-3-5.5x30 KD16 Article number EAN 7 384 211 301 4061245014012 Note Please note the respective approval of the facade panel and the assembly instructions of the manufacturer. Processing information for floating points on cladding panels Stop fastening as soon as the screw head connects to the surface and turn the screw back a quarter turn in order to remove the clamp load from the connection. Technical specifications Diameter Drilling capacity (tI pre-drilled) + tII Drive Head diameter Head height 5.5 mm 1.5 - 2.5 mm Hexalobular TX25 16 mm 2.0 mm www.ejot.com Rear ventilated facades Self-drilling screws EJOT® self-drilling screw JT4-LT-2/6-6.0x50 TX25 16 mm SCAN TO SHOP ETA-10/0200 Length [mm] max. panel thickness onto timber / aluminium [mm] 50 10 / 26 Price/100 Order description [EUR] 500 Application range ll Fastening facade panels to aluminium or timber substructures ll C

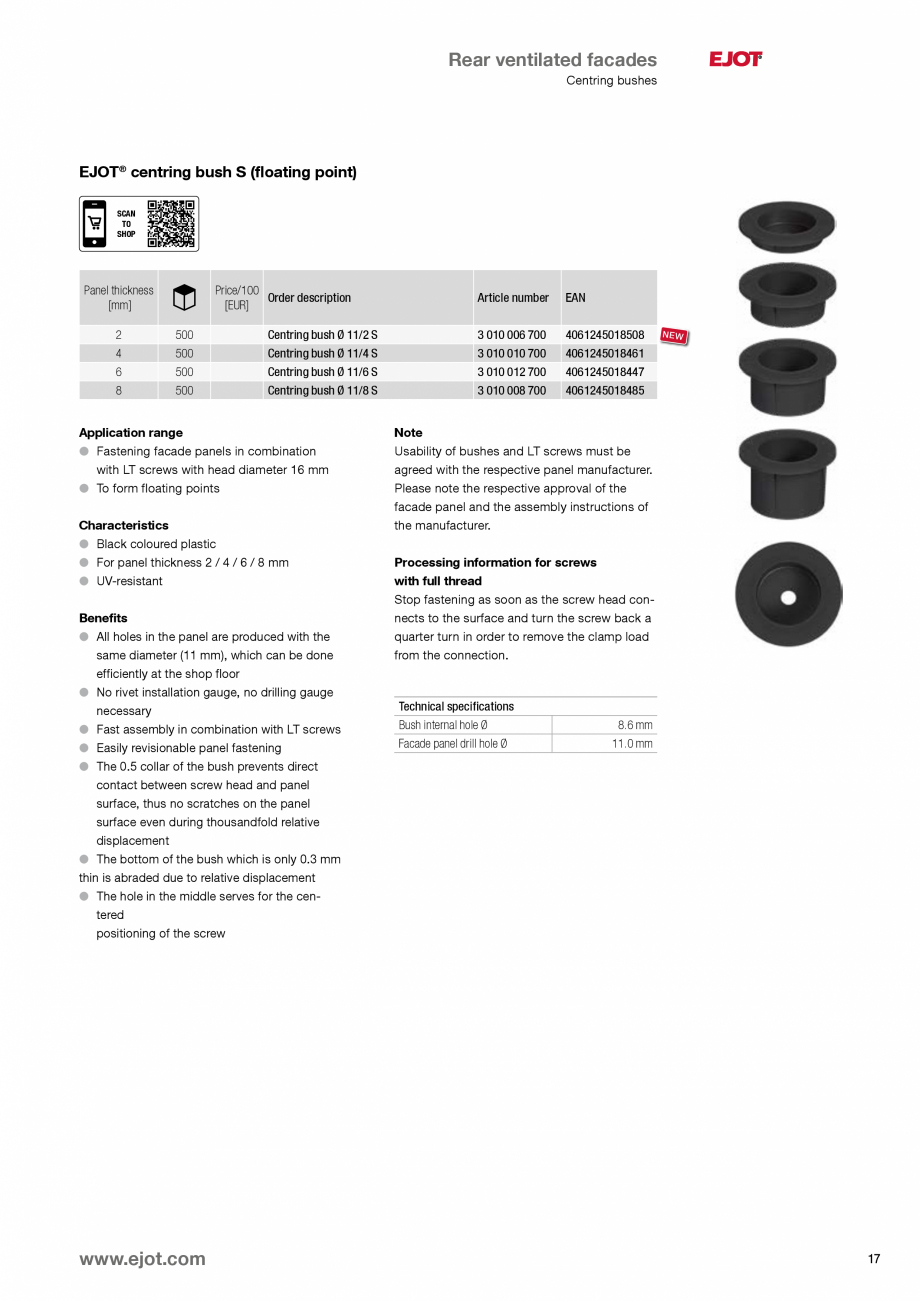

Pagina 17-Fixari fatade ventilate EJOT Catalog, brosura Engleza head for aesthetic facade design
ll...

Pagina 18 - Fixari fatade ventilate EJOT Catalog, brosura Engleza an be combined with LT fixed and...

an be combined with LT fixed and floating point sleeves Characteristics ll A2 stainless steel ll Pan head Benefits ll To cover slotted holes and large pre-drill diameters ll Also available in RAL lacquering ll Flat screw head for aesthetic facade design ll No pre-drilling of the timber substructure ll G ood drilling behaviour even in areas of branches ll Wobble-free fastening by using the LT tool www.ejot.com JT4-LT-2/6-6.0x50 KD16 Article number EAN 7 384 206 300 4061245014036 Note Please note the respective approval of the facade panel and the assembly instructions of the manufacturer. Processing information for floating points on cladding panels Stop fastening as soon as the screw head connects to the surface and turn the screw back a quarter turn in order to remove the clamp load from the connection. Technical specifications Diameter Drilling capacity (tI pre-drilled) + tII Drive Head diameter Head height Length non-threaded part 6.0 mm 1.5-2.0 mm Hexalobular TX25 16 m

Pagina 18-Fixari fatade ventilate EJOT Catalog, brosura Engleza an be combined with LT fixed and floating...

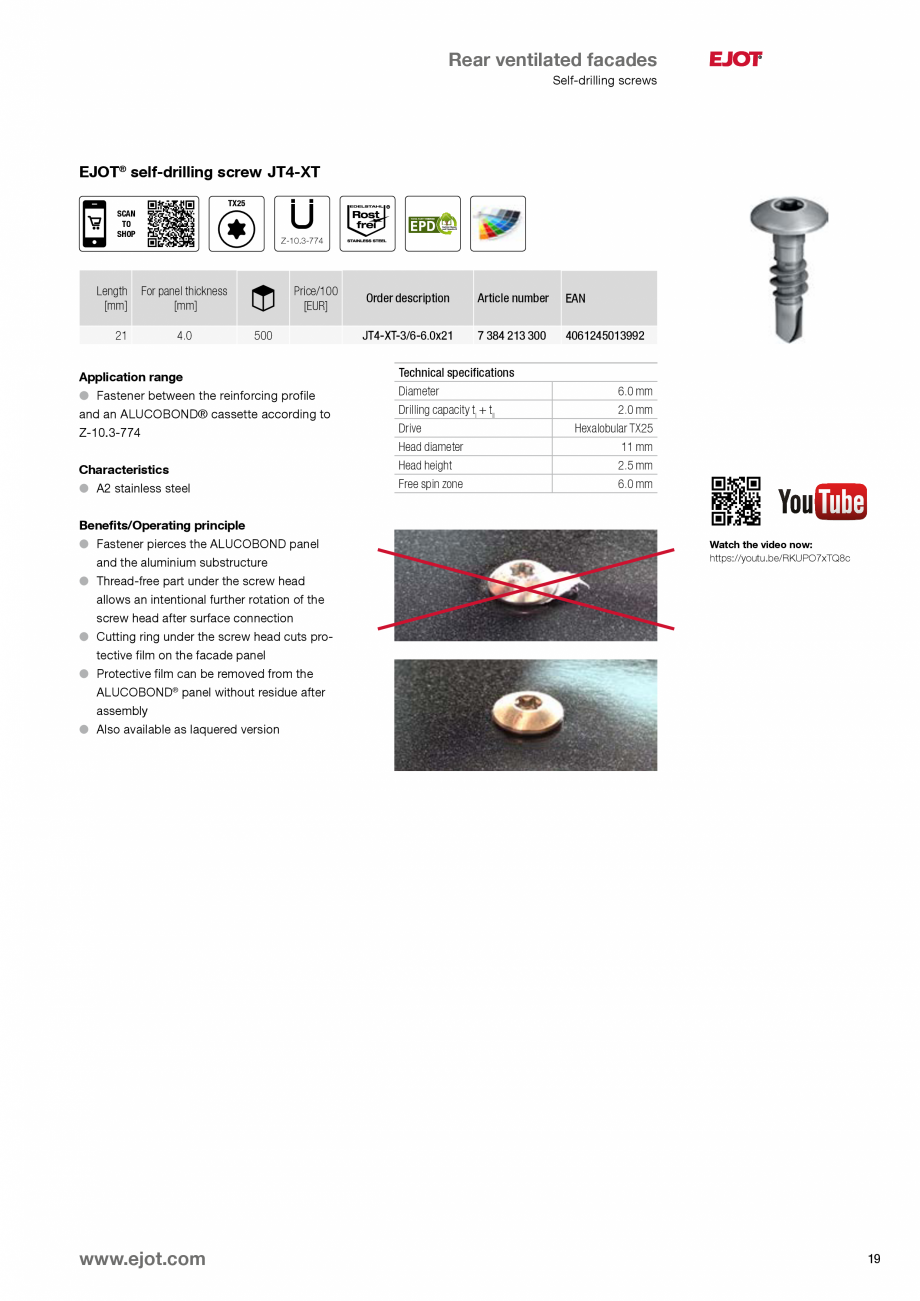

Pagina 19 - Fixari fatade ventilate EJOT Catalog, brosura Engleza m
2.0 mm
6.0 mm

15

Rear...

m 2.0 mm 6.0 mm 15 Rear ventilated facades Centring bushes EJOT® centring bush F (fixed point) SCAN TO SHOP Panel thickness [mm] 2 4 6 8 Price/100 Order description [EUR] 500 500 500 500 Centring bush Ø 11/2 F Centring bush Ø 11/4 F Centring bush Ø 11/6 F Centring bush Ø 11/8 F Application range ll Fastening facade panels in combination with LT screws with head diameter 16 mm ll To form fixed points Characteristics ll Grey coloured plastic ll For panel thickness 2 / 4 / 6 / 8 mm ll UV-resistant Benefits ll All holes in the panel are produced with the same diameter (11 mm), which can be done efficiently at the shop floor ll No rivet installation gauge, no drilling gauge necessary ll Fast assembly in combination with LT screws ll Easily revisionable panel fastening ll The 0.5 collar of the bush prevents direct contact between screw head and panel surface ll The hole in the middle serves for the centered positioning of the screw 16 Article number EAN 3 010 005 700 3

Pagina 19-Fixari fatade ventilate EJOT Catalog, brosura Engleza m
2.0 mm
6.0 mm

15

Rear ventilated facades
...

Pagina 20 - Fixari fatade ventilate EJOT Catalog, brosura Engleza 010 009 700
3 010 011 700
3 010...

010 009 700 3 010 011 700 3 010 007 700 4061245010212 4061245018478 4061245018454 4061245018492 Note Usability of bushes and LT screws must be agreed with the respective panel manufacturer. Please note the respective approval of the facade panel and the assembly instructions of the manufacturer. Technical specifications Bush internal hole Ø Facade panel drill hole Ø 5.8 mm 11.0 mm www.ejot.com NEW Rear ventilated facades Centring bushes EJOT® centring bush S (floating point) SCAN TO SHOP Panel thickness [mm] 2 4 6 8 Price/100 Order description [EUR] 500 500 500 500 Centring bush Ø 11/2 S Centring bush Ø 11/4 S Centring bush Ø 11/6 S Centring bush Ø 11/8 S Application range ll Fastening facade panels in combination with LT screws with head diameter 16 mm ll To form floating points Characteristics ll Black coloured plastic ll For panel thickness 2 / 4 / 6 / 8 mm ll UV-resistant Benefits ll All holes in the panel are produced with the same diameter (11 mm), which c

Pagina 20-Fixari fatade ventilate EJOT Catalog, brosura Engleza 010 009 700
3 010 011 700
3 010 007 700
...

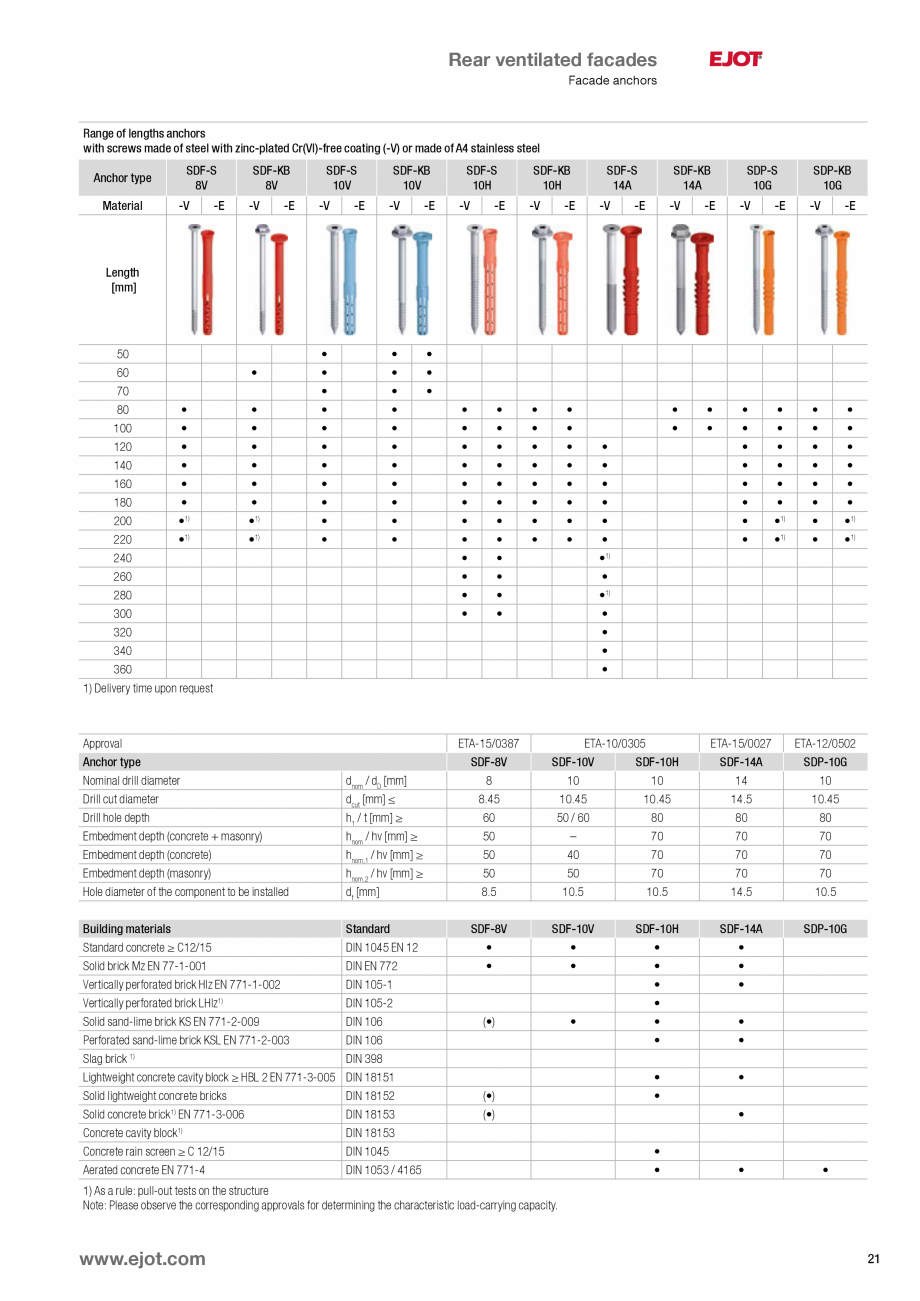

Pagina 21 - Fixari fatade ventilate EJOT Catalog, brosura Engleza an be done
efficiently at the shop...

an be done efficiently at the shop floor ll No rivet installation gauge, no drilling gauge necessary ll Fast assembly in combination with LT screws ll Easily revisionable panel fastening ll The 0.5 collar of the bush prevents direct contact between screw head and panel surface, thus no scratches on the panel surface even during thousandfold relative displacement ll The bottom of the bush which is only 0.3 mm thin is abraded due to relative displacement ll The hole in the middle serves for the centered positioning of the screw www.ejot.com Article number EAN 3 010 006 700 3 010 010 700 3 010 012 700 3 010 008 700 4061245018508 4061245018461 4061245018447 4061245018485 NEW Note Usability of bushes and LT screws must be agreed with the respective panel manufacturer. Please note the respective approval of the facade panel and the assembly instructions of the manufacturer. Processing information for screws with full thread Stop fastening as soon as the screw head connects to the

Pagina 21-Fixari fatade ventilate EJOT Catalog, brosura Engleza an be done
efficiently at the shop floor
ll...

Pagina 22 - Fixari fatade ventilate EJOT Catalog, brosura Engleza surface and turn the screw back a
...

surface and turn the screw back a quarter turn in order to remove the clamp load from the connection. Technical specifications Bush internal hole Ø Facade panel drill hole Ø 8.6 mm 11.0 mm 17 Rear ventilated facades Self-drilling screws EJOT® self-drilling screw JT4-FR-2H/6-4.8 TX25 SCAN TO SHOP Length [mm] Z-10.3-774 [mm] Price/100 Order description [EUR] Self-drilling screw 22 6 1,000 Centring bush 500 *JT9 made of A4 stainless steel upon request Article number EAN JT4-FR-2H/6-4.8x22* 7 384 170 300 4061245014050 Centring bush 3 010 003 700 4061245010205 Application range ll Fastener for ALUCOBOND® external wall cladding according to Z-10.3-774 ll For fastening without forcing tension to 2 mm aluminium substructures Characteristics ll A2 stainless steel ll With centring bush to form floating points Benefits ll Centred drilling and simultaneous fastening of the boards to the substructure ll No pre-drilling of the substructure ll Thread-free part under the s

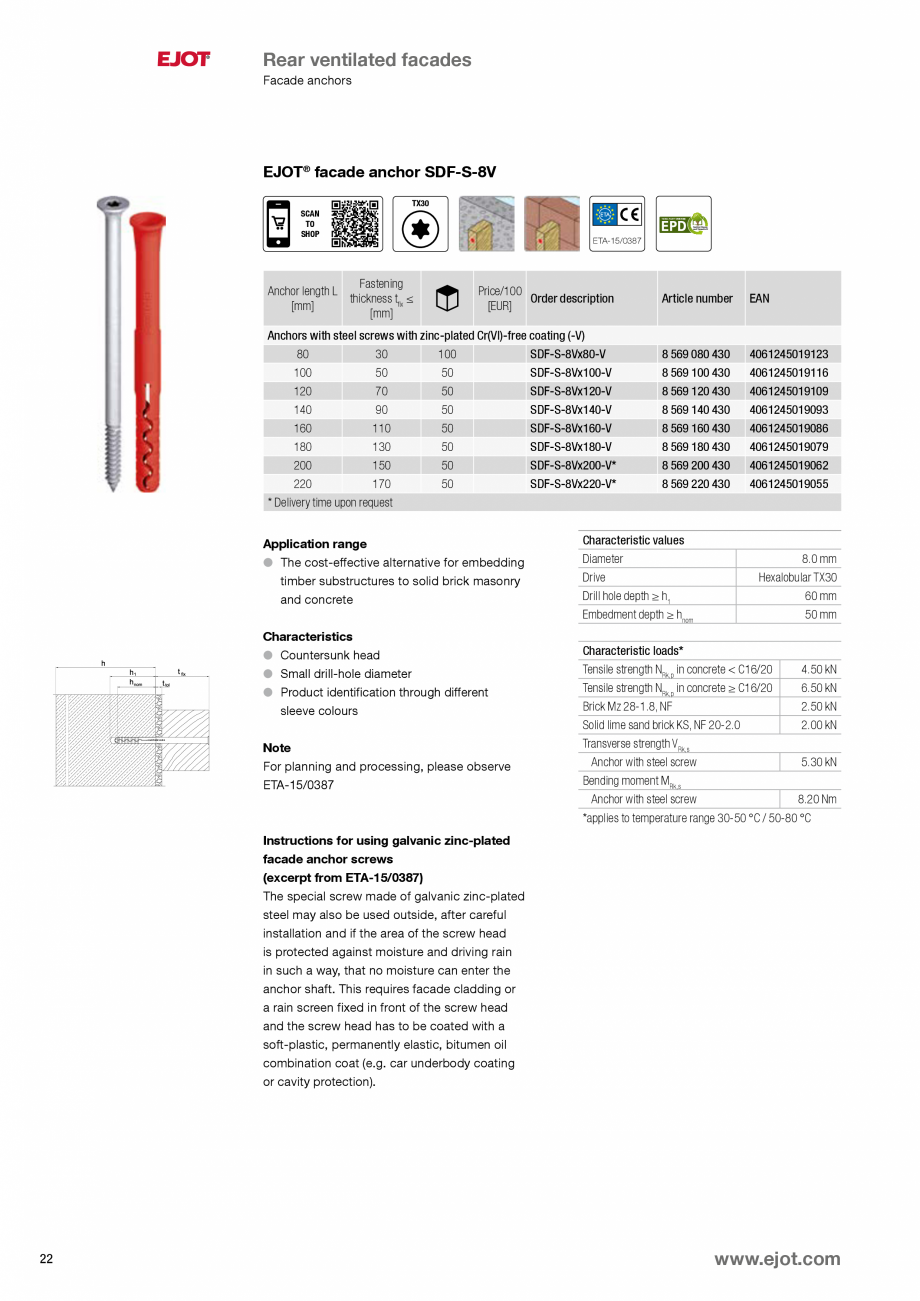

Pagina 22-Fixari fatade ventilate EJOT Catalog, brosura Engleza surface and turn the screw back a
quarter turn...

Pagina 23 - Fixari fatade ventilate EJOT Catalog, brosura Engleza crew head
allows an intentional...

crew head allows an intentional further rotation of the screw head after surface connection 18 Note We recommend the tapered special bit hexalobular TX25W-1/4“/Cx25 for force fit in the fastener head. To form fixed points, we recommend pre-drilling a Ø 4.0 mm hole in the panel. Technical specifications Diameter Drilling capacity tI + tII Drive Head diameter Head height Ø drill hole centring bush 4.8 mm 1.0 + 3.0 mm Hexalobular TX25 12 mm 3.4 mm 8.5 mm www.ejot.com Rear ventilated facades Self-drilling screws EJOT® self-drilling screw JT4-XT TX25 SCAN TO SHOP Length [mm] 21 Z-10.3-774 For panel thickness [mm] 4.0 Price/100 [EUR] 500 Application range ll Fastener between the reinforcing profile and an ALUCOBOND® cassette according to Z-10.3-774 Characteristics ll A2 stainless steel Benefits/Operating principle ll Fastener pierces the ALUCOBOND panel and the aluminium substructure ll Thread-free part under the screw head allows an intentional further rotation of the s

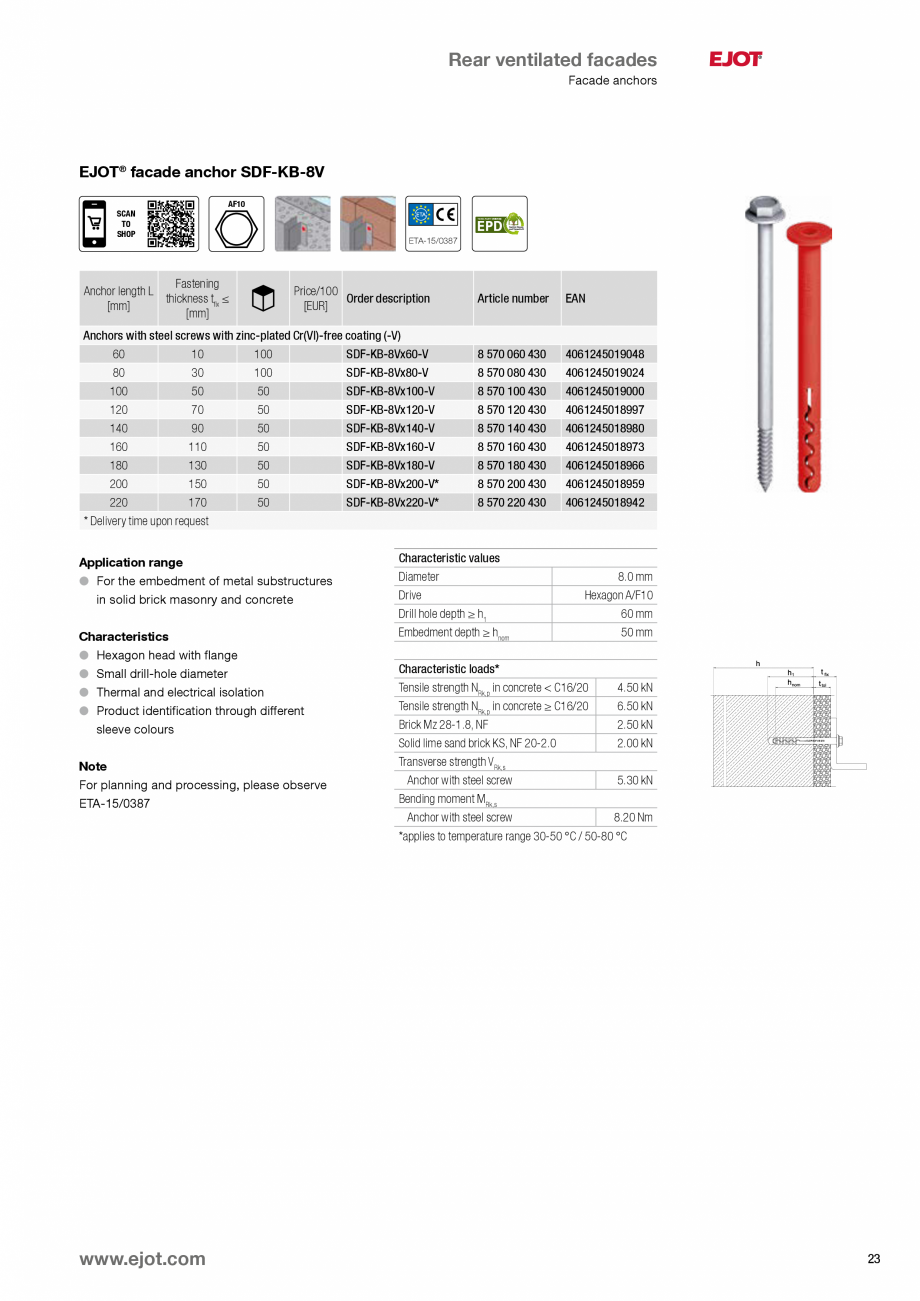

Pagina 23-Fixari fatade ventilate EJOT Catalog, brosura Engleza crew head
allows an intentional further...

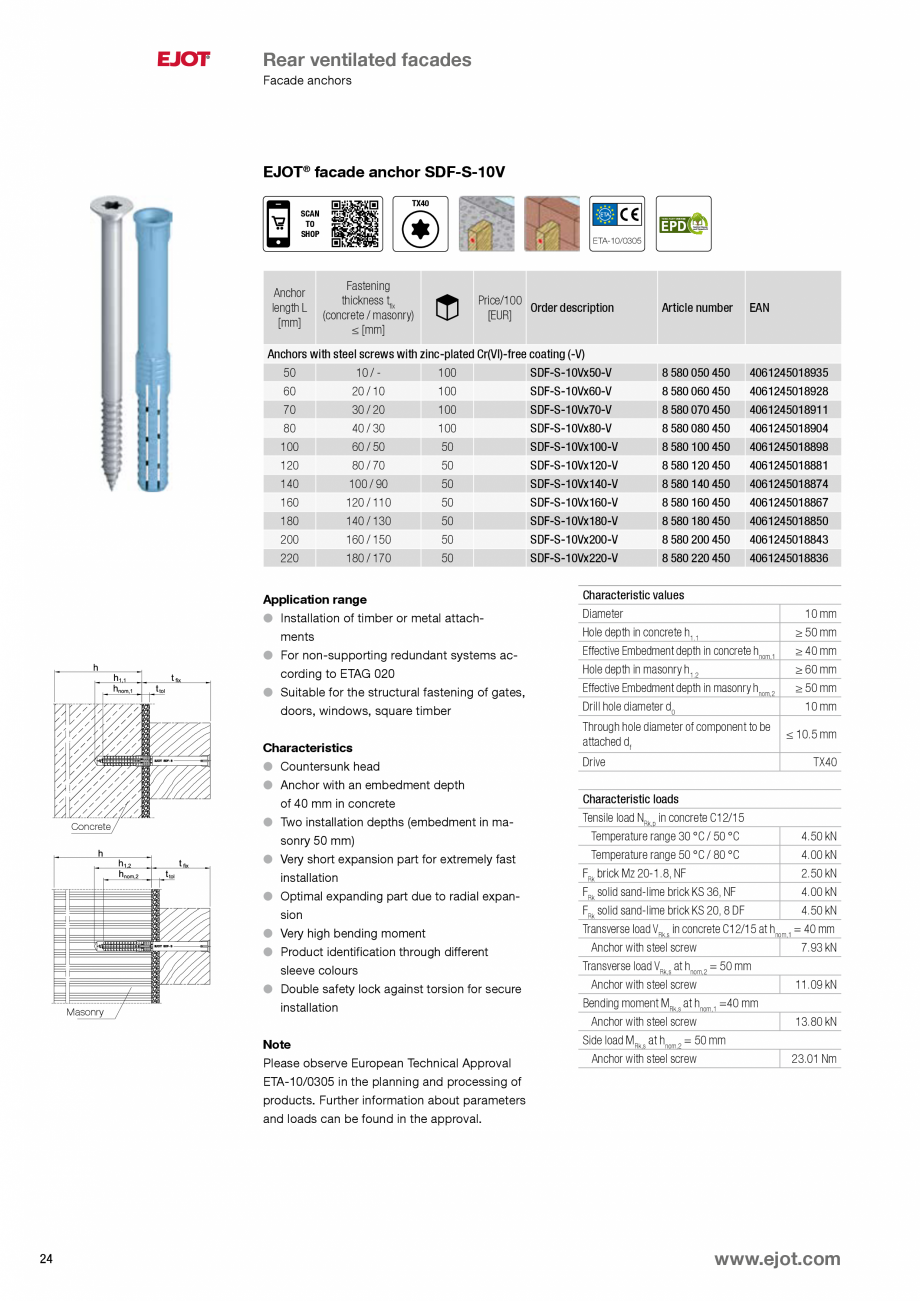

Pagina 24 - Fixari fatade ventilate EJOT Catalog, brosura Engleza crew head after surface connection...

crew head after surface connection ll Cutting ring under the screw head cuts protective film on the facade panel ll Protective film can be removed from the ALUCOBOND® panel without residue after assembly ll Also available as laquered version www.ejot.com Order description Article number EAN JT4-XT-3/6-6.0x21 7 384 213 300 4061245013992 Technical specifications Diameter Drilling capacity tI + tII Drive Head diameter Head height Free spin zone 6.0 mm 2.0 mm Hexalobular TX25 11 mm 2.5 mm 6.0 mm Watch the video now: https://youtu.be/RKUPO7xTQ8c 19 Rear ventilated facades Self-drilling screws EJOT® self-drilling screw JT4-S-2-4.8 TX25 SCAN TO SHOP P-BWU02168012 Length [mm] For timber thickness [mm] 38 48 20 - 30 30 - 40 Price/100 Order description [EUR] JT4-S-2-4.8x38 JT4-S-2-4.8x48 500 500 Article number EAN 7 382 086 300 7 382 072 300 4061245014197 4061245014203 Technical specifications Diameter Drilling capacity tI + tII Drive Installation rotation speed Ap

Pagina 24-Fixari fatade ventilate EJOT Catalog, brosura Engleza crew head after surface connection
ll Cutting...

Pagina 25 - Fixari fatade ventilate EJOT Catalog, brosura Engleza plication range
ll Fastening...

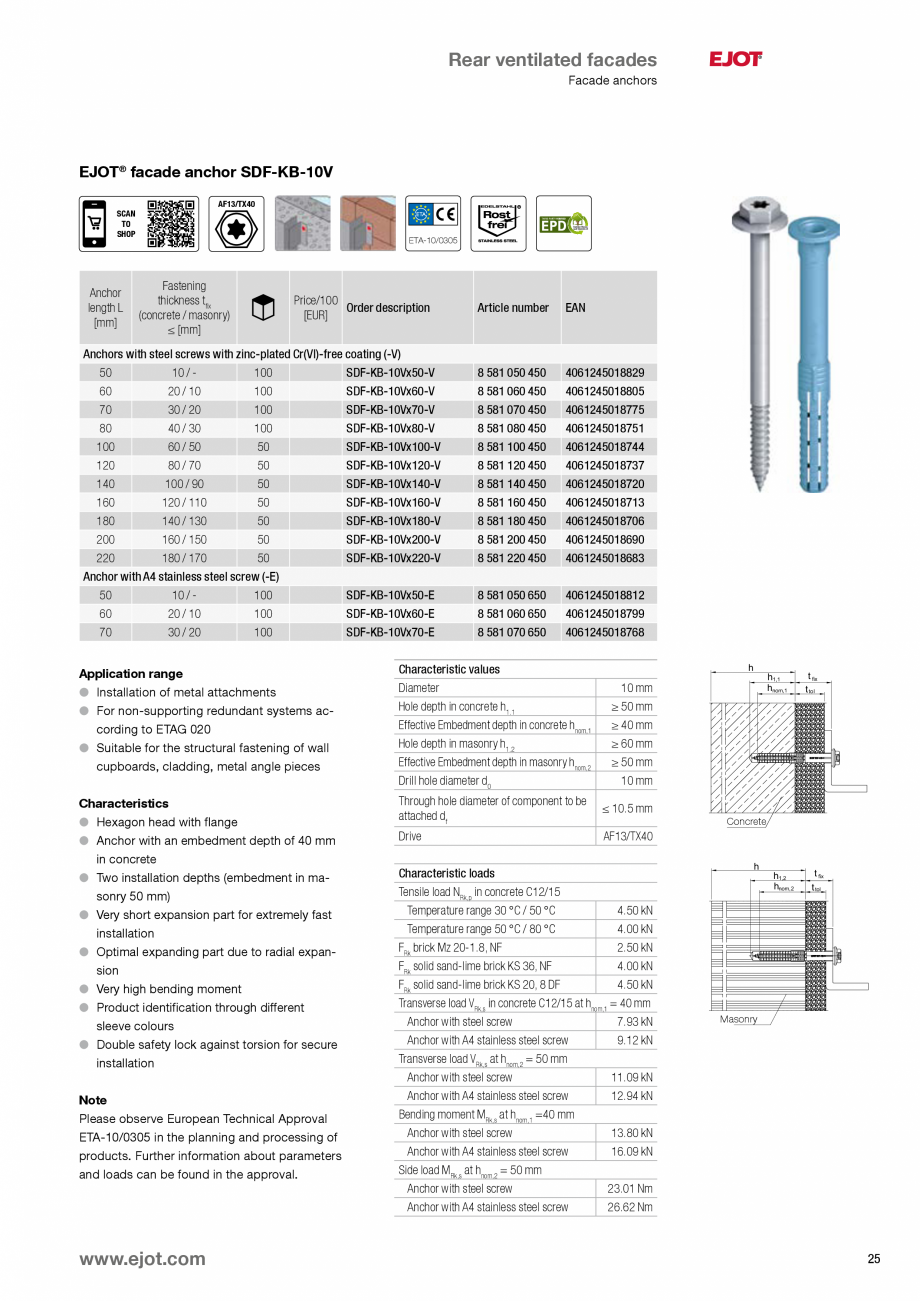

plication range ll Fastening timber laths to aluminium substructure ≤ 2 mm Characteristics ll A2 stainless steel ll Countersunk head with milling ribs 4.8 mm 2.0 mm Hexalobular TX25 max. 1800 rpm EJOT® self-drilling screw JT4-STS-3-4.8 TX25 SCAN TO SHOP Length [mm] For panel thickness [mm] 35 0 - 25 Price/100 Order description [EUR] 500 Application range ll Fastening plaster-base sheeting to aluminium substructures ≤ 3 mm Characteristics ll A2 stainless steel ll Countersunk head with flange JT4-STS-3-4.8x35 Article number EAN 7 384 094 300 4061245014074 Technical specifications Diameter Drilling capacity tI + tII Head diameter Drive 4.8 mm 3.0 mm 12 mm Hexalobular TX25 Benefits ll Very flat head ll Wobble-free fastening with LT-STS Tool 20 www.ejot.com Rear ventilated facades Facade anchors Range of lengths anchors with screws made of steel with zinc-plated Cr(VI)-free coating (-V) or made of A4 stainless steel Anchor type Material SDF-S 8V -V -E SDF-KB

Pagina 25-Fixari fatade ventilate EJOT Catalog, brosura Engleza plication range
ll Fastening timber laths
to ...

Pagina 26 - Fixari fatade ventilate EJOT Catalog, brosura Engleza 8V
-V

-E

SDF-S
10V
-V

-E
...

8V -V -E SDF-S 10V -V -E SDF-KB 10V -V -E • • • • • • • • • • • • • • • • • • • • • • • • • • • •1) •1) • • • • SDF-S 10H SDF-KB 10H -V -E -V -E • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • SDF-S 14A -V SDF-KB 14A -E SDP-S 10G SDP-KB 10G -V -E -V -E -V -E • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •1) •1) • • •1) •1) Length [mm] 50 60 70 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 • • • • • • • •1) •1) • • • • • • •1) • •1) • • • • 1) Delivery time upon request Approval Anchor type Nominal drill diameter Drill cut diameter Drill hole depth Embedment depth (concrete + masonry) Embedment depth (concrete) Embedmen

Pagina 26-Fixari fatade ventilate EJOT Catalog, brosura Engleza 8V
-V

-E

SDF-S
10V
-V

-E

SDF-KB
10V
-V

-E...

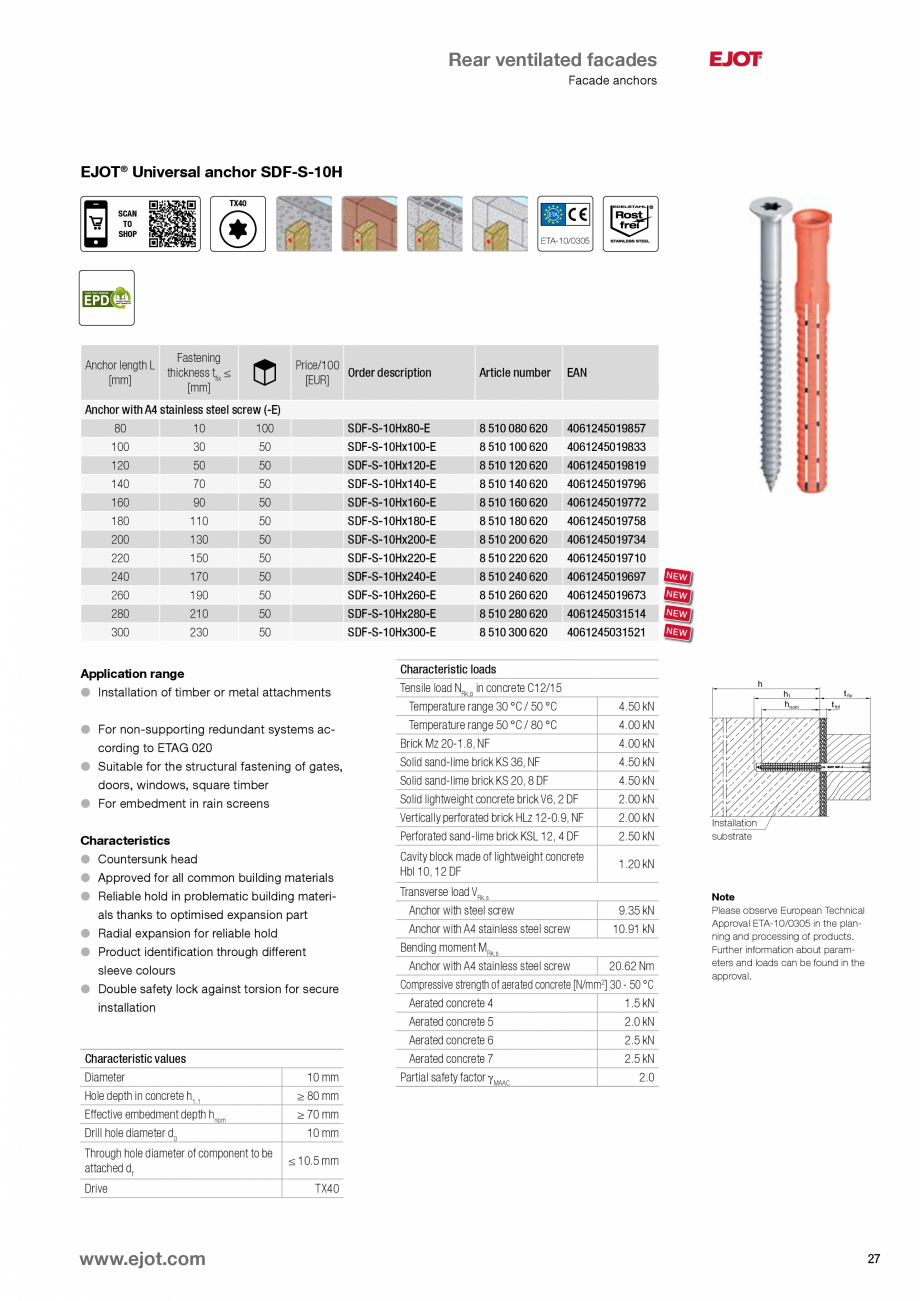

Pagina 27 - Fixari fatade ventilate EJOT Catalog, brosura Engleza t depth (masonry)
Hole diameter of...

t depth (masonry) Hole diameter of the component to be installed dcut [mm] ≤ h1 / t [mm] ≥ hnom / hv [mm] ≥ hnom,1 / hv [mm] ≥ hnom,2 / hv [mm] ≥ df [mm] Building materials Standard concrete ≥ C12/15 Solid brick Mz EN 77-1-001 Vertically perforated brick Hlz EN 771-1-002 Vertically perforated brick LHlz1) Solid sand-lime brick KS EN 771-2-009 Perforated sand-lime brick KSL EN 771-2-003 Slag brick 1) Lightweight concrete cavity block ≥ HBL 2 EN 771-3-005 Solid lightweight concrete bricks Solid concrete brick1) EN 771-3-006 Concrete cavity block1) Concrete rain screen ≥ C 12/15 Aerated concrete EN 771-4 Standard DIN 1045 EN 12 DIN EN 772 DIN 1051 DIN 1052 DIN 106 DIN 106 DIN 398 DIN 18151 DIN 18152 DIN 18153 DIN 18153 DIN 1045 DIN 1053 / 4165 dnom / dD [mm] ETA-15/0387 SDF-8V 8 8.45 60 50 50 50 8.5 ETA-10/0305 SDF-10V SDF-10H 10 10 10.45 10.45 50 / 60 80 – 70 40 70 50 70 10.5 10.5 SDF-8V • • SDF-10V • • (•) • (•) (•) ETA-15/0027 SDF-14A
