Documentatie atasata la

Sisteme de fixare pentru fatade ventilate (VHF) EJOT

Fațade cu paravan împotriva ploii EJOT

Limba: Engleza

3 afisari

Tip documentatie: Catalog, brosura

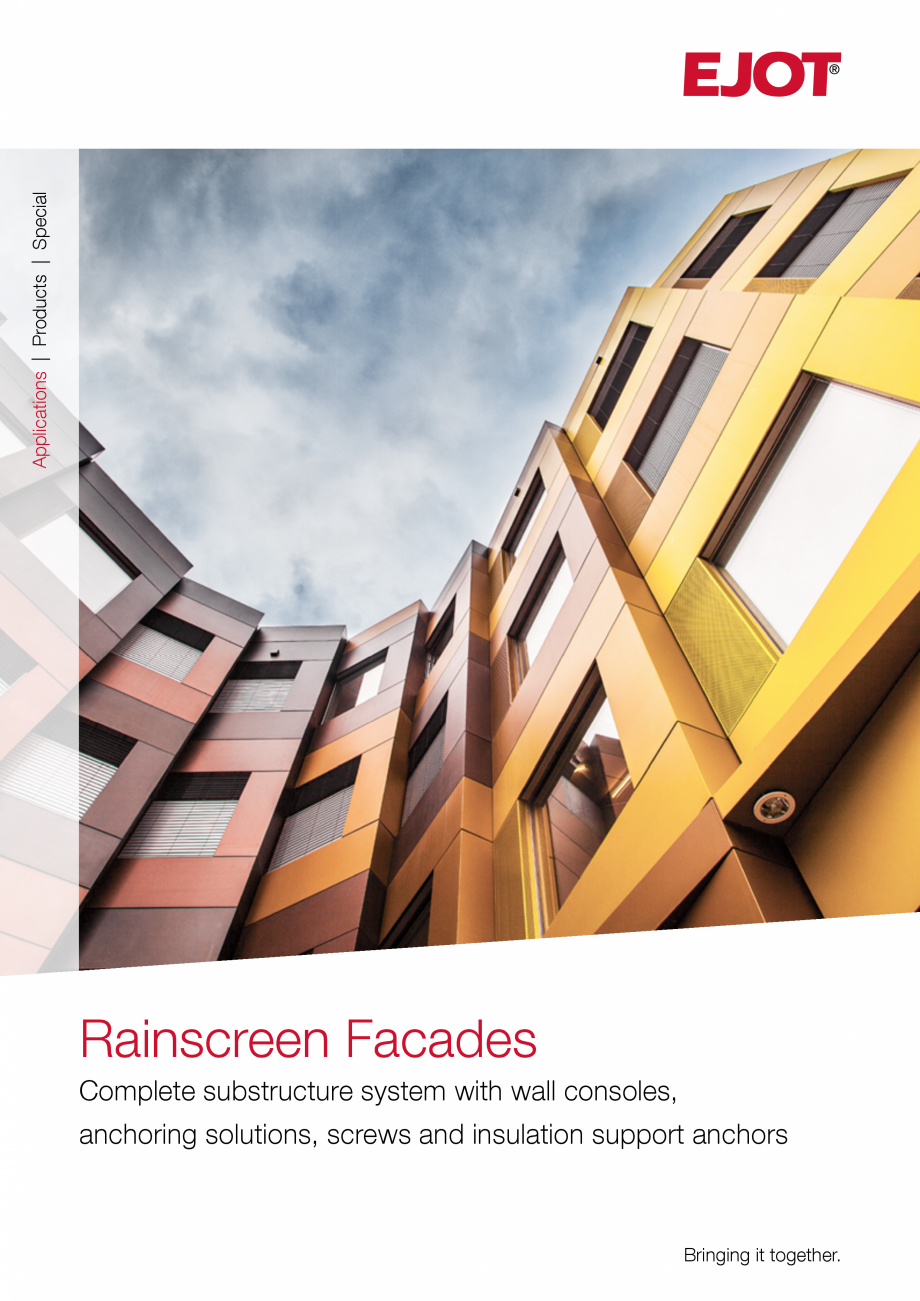

Pagina 1 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza Applications |...

Applications | Products | Special Rainscreen Facades Complete substructure system with wall consoles, anchoring solutions, screws and insulation support anchors Bringing it together. Rainscreen Facades At home in many trades Overview of our catalogues Besides our comprehensive General Catalogue Building Fasteners, we offer you further catalogues on our business fields in addition to the individual catalogue Rainscreen Facades. Unlike the printed general catalogue, the individual catalogues are available exclusively in digital form. Applications | Products | Special Applications | Products | Special Applications | Products | Special Applications | Products | Special Whether for professional applications on building facades or for anchoring solutions of technical facilities inside the building – EJOT offers the right fastening solution for every application. Timber Construction Industrial Lightweight Construction Solar Flat Roofing High-quality fastening technology in ti

Pagina 1-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza Applications | Products |...

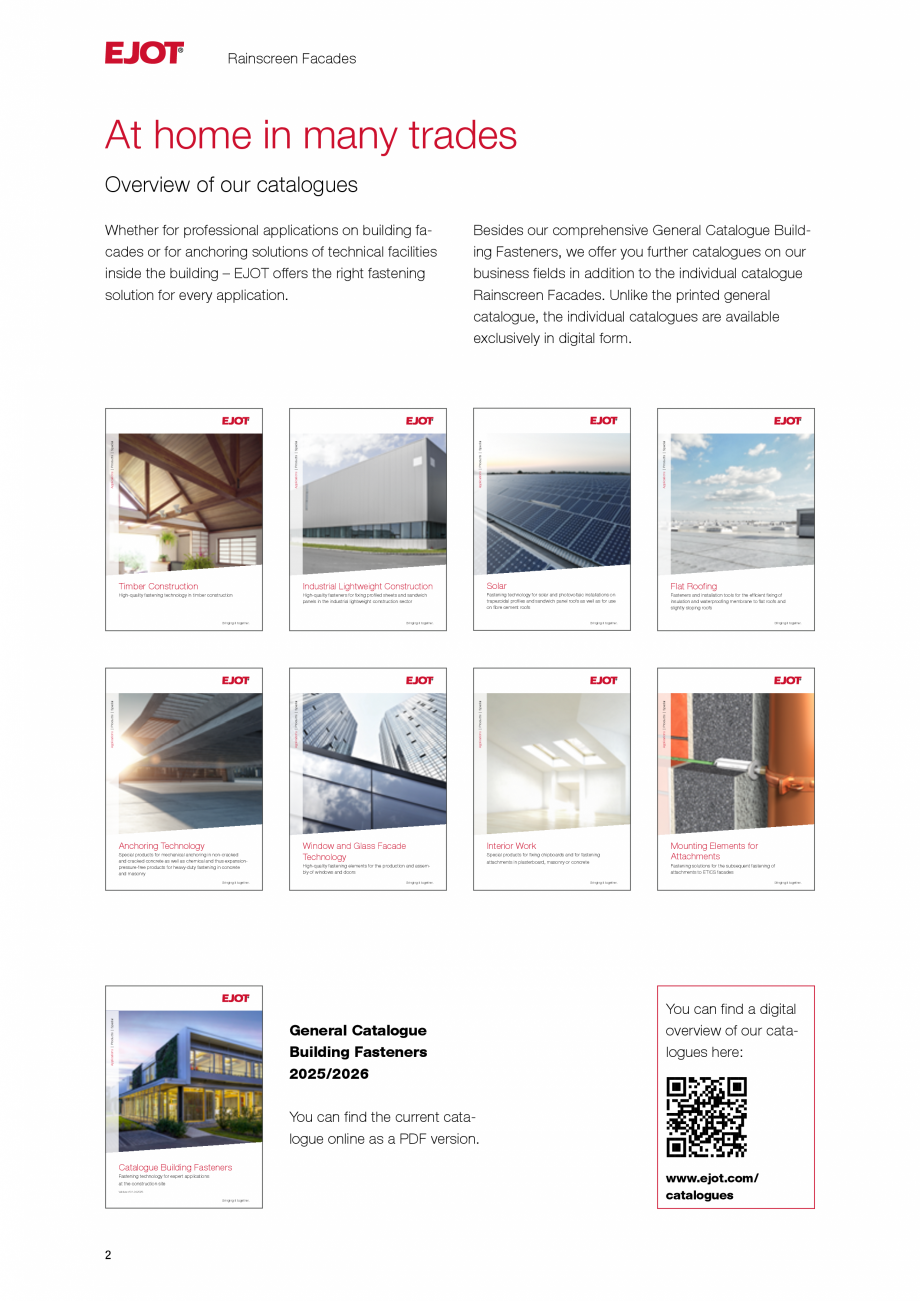

Pagina 2 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza mber construction
...

mber construction High-quality fasteners for fixing profiled sheets and sandwich panels in the industrial lightweight construction sector Fastening technology for solar and photovoltaic installations on trapezoidal profiles and sandwich panel roofs as well as for use on fibre cement roofs Fasteners and installation tools for the efficient fixing of insulation and waterproofing membrane to flat roofs and slightly sloping roofs Special products for mechanical anchoring in non-cracked and cracked concrete as well as chemical and thus expansionpressure-free products for heavy-duty fastening in concrete and masonry Applications | Products | Special Bringing it together. Window and Glass Facade Technology Interior Work Special products for fixing chipboards and for fastening High-quality fastening elements for the production and assembly of windows and doors Bringing it together. General Catalogue Building Fasteners 2025/2026 Bringing it together. Applications | Products | Specia

Pagina 3 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza l

Applications | ...

l Applications | Products | Special Applications | Products | Special Anchoring Technology Bringing it together. Bringing it together. Applications | Products | Special Bringing it together. attachments in plasterboard, masonry or concrete Mounting Elements for Attachments Fastening solutions for the subsequent fastening of attachments to ETICS facades Bringing it together. Bringing it together. You can find a digital overview of our catalogues here: You can find the current catalogue online as a PDF version. Catalogue Building Fasteners Fastening technology for expert applications at the construction site Valid as of 01.04.2025 Bringing it together. 21 www.ejot.com/ catalogues Rainscreen Facades Product overview Fastening elements in the substructure Self-drilling screws JT6 (A4 stainless steel + steel) JT6-2/5-5.0xL VARIO JT9 (A4 stainless steel) JT9-2/5-5.0xL VARIO JT9-3H/5-5.5xL JT9-4-4.8xL JT9-6-5.5xL JT9-S-2-4.8xL Insulation support anchor 6 6 8 9 10 11 EJOFA

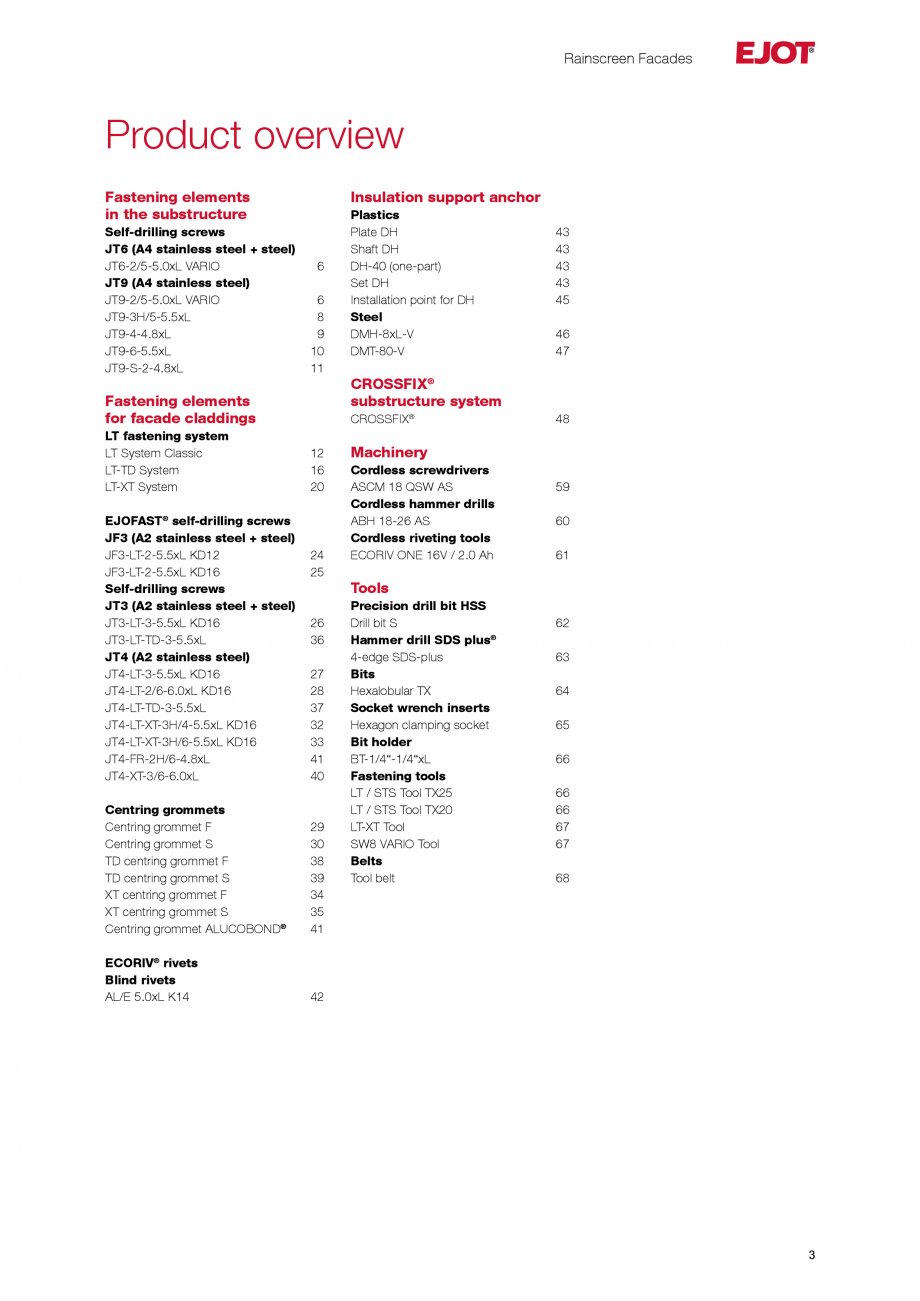

Pagina 3-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza l

Applications | Products | ...

Pagina 4 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ST® self-drilling...

ST® self-drilling screws JF3 (A2 stainless steel + steel) JF3-LT-2-5.5xL KD12 JF3-LT-2-5.5xL KD16 Self-drilling screws JT3 (A2 stainless steel + steel) JT3-LT-3-5.5xL KD16 JT3-LT-TD-3-5.5xL JT4 (A2 stainless steel) JT4-LT-3-5.5xL KD16 JT4-LT-2/6-6.0xL KD16 JT4-LT-TD-3-5.5xL JT4-LT-XT-3H/4-5.5xL KD16 JT4-LT-XT-3H/6-5.5xL KD16 JT4-FR-2H/6-4.8xL JT4-XT-3/6-6.0xL 43 43 43 43 45 46 47 CROSSFIX® substructure system Fastening elements for facade claddings LT fastening system LT System Classic LT-TD System LT-XT System Plastics Plate DH Shaft DH DH-40 (one-part) Set DH Installation point for DH Steel DMH-8xL-V DMT-80-V CROSSFIX® 12 16 20 24 25 48 Machinery Cordless screwdrivers ASCM 18 QSW AS Cordless hammer drills ABH 18-26 AS Cordless riveting tools ECORIV ONE 16V / 2.0 Ah 59 60 61 Tools 26 36 27 28 37 32 33 41 40 Centring grommets Centring grommet F Centring grommet S TD centring grommet F TD centring grommet S XT centring grommet F XT centring grommet S Centring grommet ALUCO

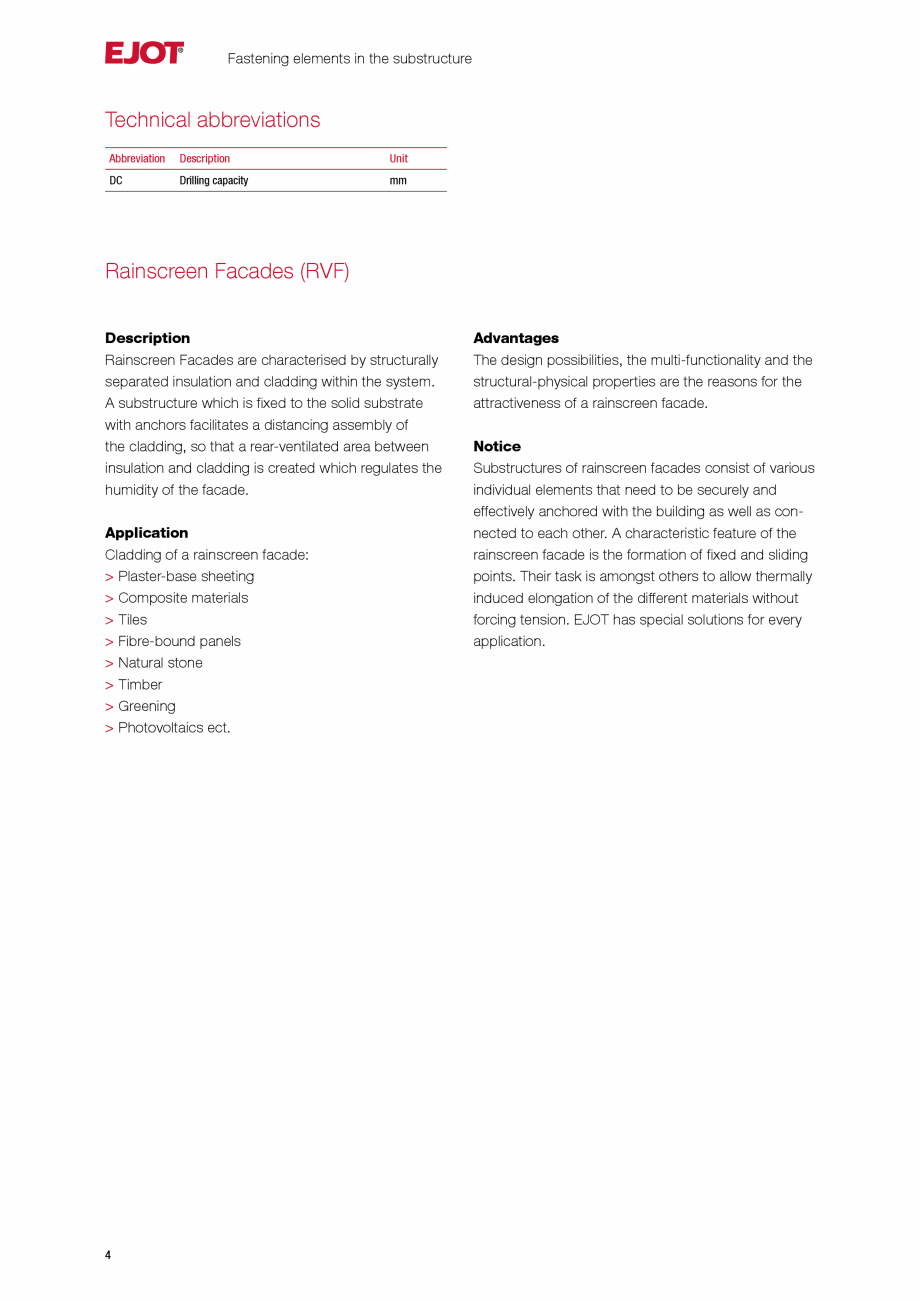

Pagina 4-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ST® self-drilling screws
JF3...

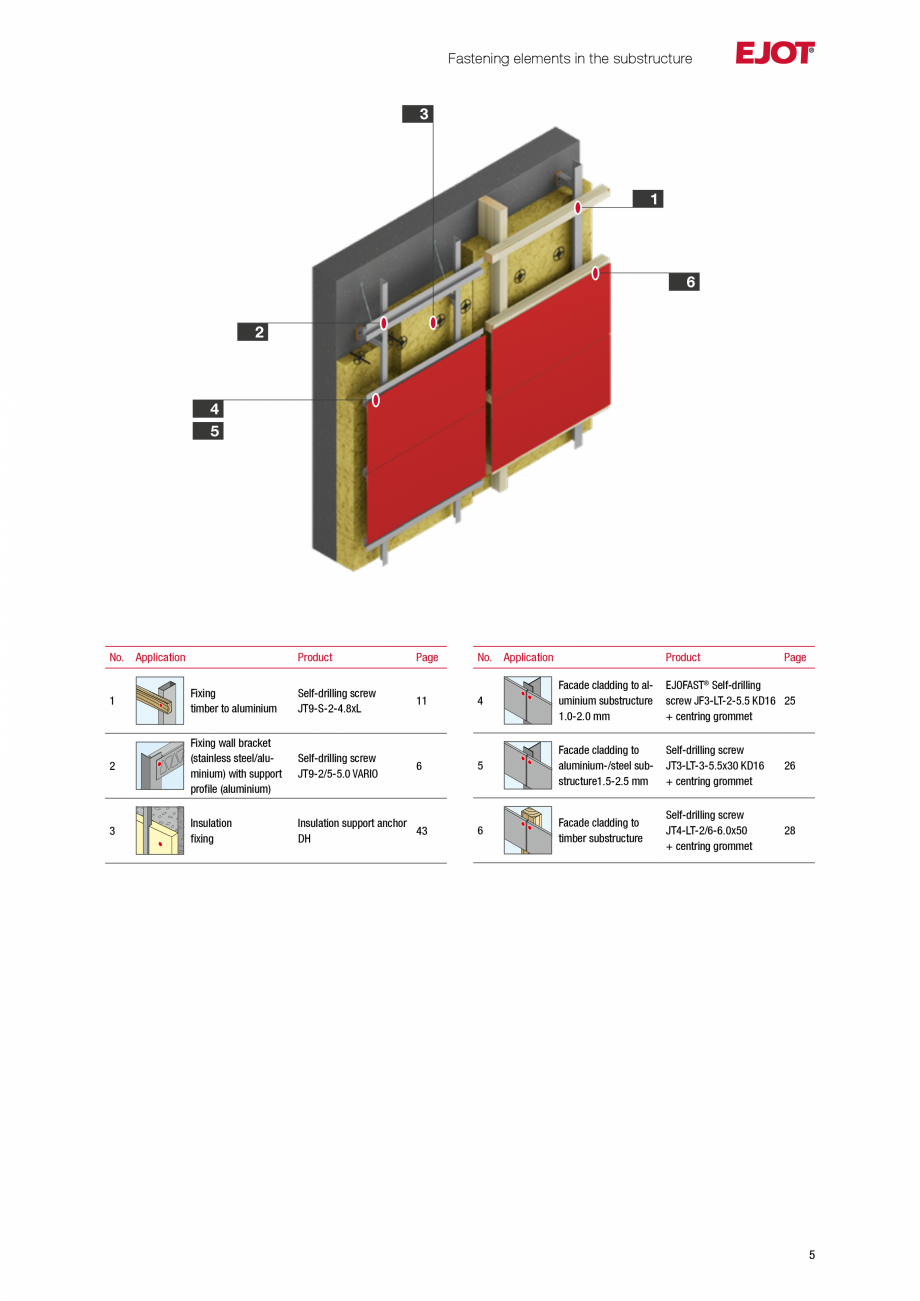

Pagina 5 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza BOND®

29
30
38...

BOND® 29 30 38 39 34 35 41 ECORIV® rivets Blind rivets AL/E 5.0xL K14 42 Precision drill bit HSS Drill bit S Hammer drill SDS plus® 4-edge SDS-plus Bits Hexalobular TX Socket wrench inserts Hexagon clamping socket Bit holder BT-1/4“-1/4“xL Fastening tools LT / STS Tool TX25 LT / STS Tool TX20 LT-XT Tool SW8 VARIO Tool Belts Tool belt 62 63 64 65 66 66 66 67 67 68 3 Fastening elements in the substructure Technical abbreviations Abbreviation Description Unit DC Drilling capacity mm Rainscreen Facades (RVF) Description Rainscreen Facades are characterised by structurally separated insulation and cladding within the system. A substructure which is fixed to the solid substrate with anchors facilitates a distancing assembly of the cladding, so that a rear-ventilated area between insulation and cladding is created which regulates the humidity of the facade. Application Cladding of a rainscreen facade: > Plaster-base sheeting > Composite materials > Tiles > Fibre-bound pa

Pagina 5-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza BOND®

29
30
38
39
34
35
41
...

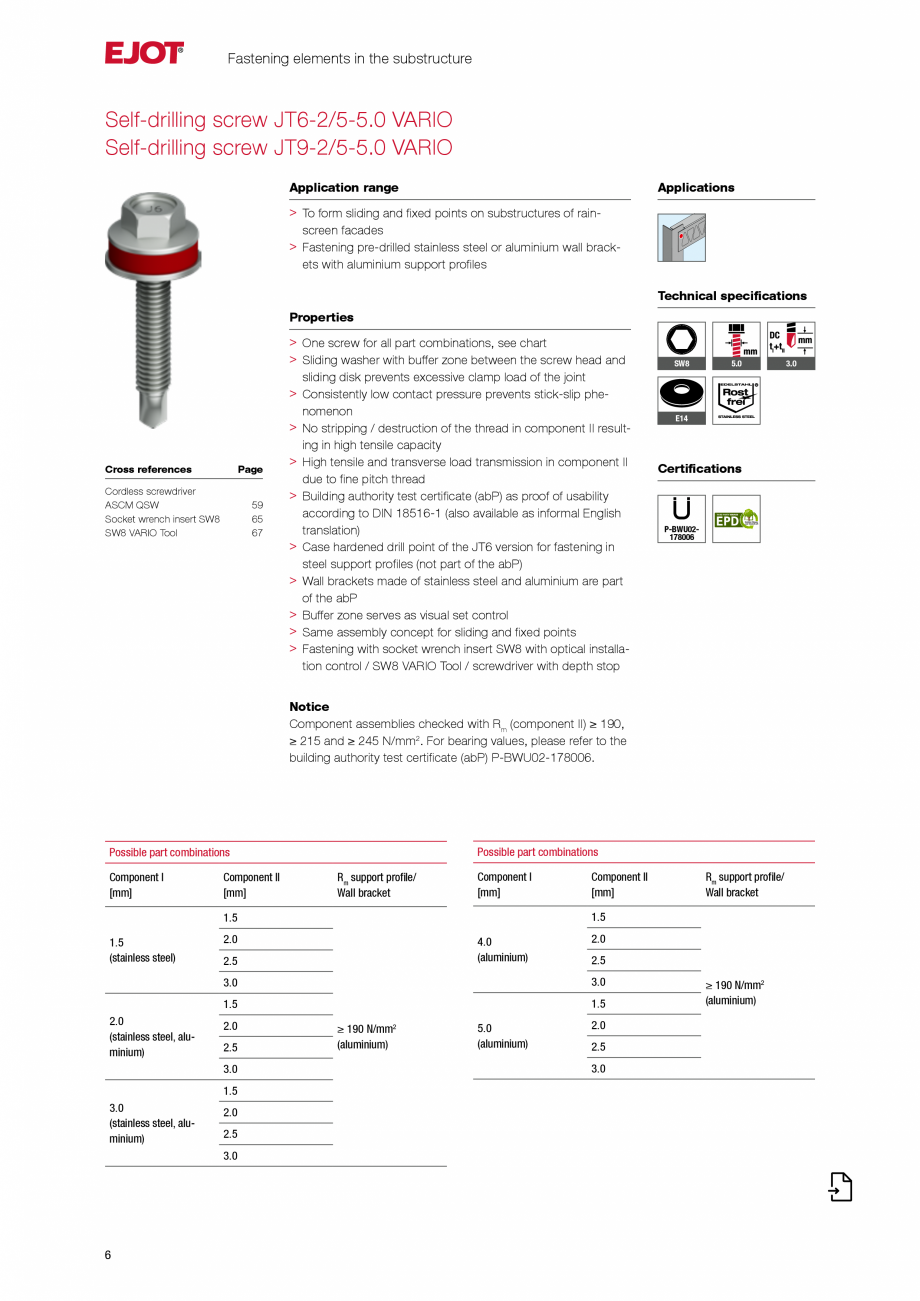

Pagina 6 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza nels
> Natural...

nels > Natural stone > Timber > Greening > Photovoltaics ect. 4 Advantages The design possibilities, the multi-functionality and the structural-physical properties are the reasons for the attractiveness of a rainscreen facade. Notice Substructures of rainscreen facades consist of various individual elements that need to be securely and effectively anchored with the building as well as connected to each other. A characteristic feature of the rainscreen facade is the formation of fixed and sliding points. Their task is amongst others to allow thermally induced elongation of the different materials without forcing tension. EJOT has special solutions for every application. Fastening elements in the substructure 3 1 6 2 4 5 No. Application Product Page No. Application Product Page Facade cladding to aluminium substructure 1.0-2.0 mm EJOFAST® Self-drilling screw JF3-LT-2-5.5 KD16 25 + centring grommet 1 Fixing timber to aluminium Self-drilling screw JT9-S-2-4.8xL 11 4

Pagina 6-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza nels
> Natural stone
> Timber...

Pagina 7 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza

2

Fixing wall...

2 Fixing wall bracket (stainless steel/aluminium) with support profile (aluminium) Self-drilling screw JT9-2/5-5.0 VARIO 6 5 Facade cladding to aluminium-/steel substructure1.5-2.5 mm Self-drilling screw JT3-LT-3-5.5x30 KD16 + centring grommet 26 3 Insulation fixing Insulation support anchor 43 DH 6 Facade cladding to timber substructure Self-drilling screw JT4-LT-2/6-6.0x50 + centring grommet 28 5 Fastening elements in the substructure Self-drilling screw JT6-2/5-5.0 VARIO Self-drilling screw JT9-2/5-5.0 VARIO Application range Applications > T o form sliding and fixed points on substructures of rainscreen facades > Fastening pre-drilled stainless steel or aluminium wall brackets with aluminium support profiles Technical specifications Properties Cross references Page Cordless screwdriver ASCM QSW Socket wrench insert SW8 SW8 VARIO Tool 59 65 67 > One screw for all part combinations, see chart > Sliding washer with buffer zone between the screw head and

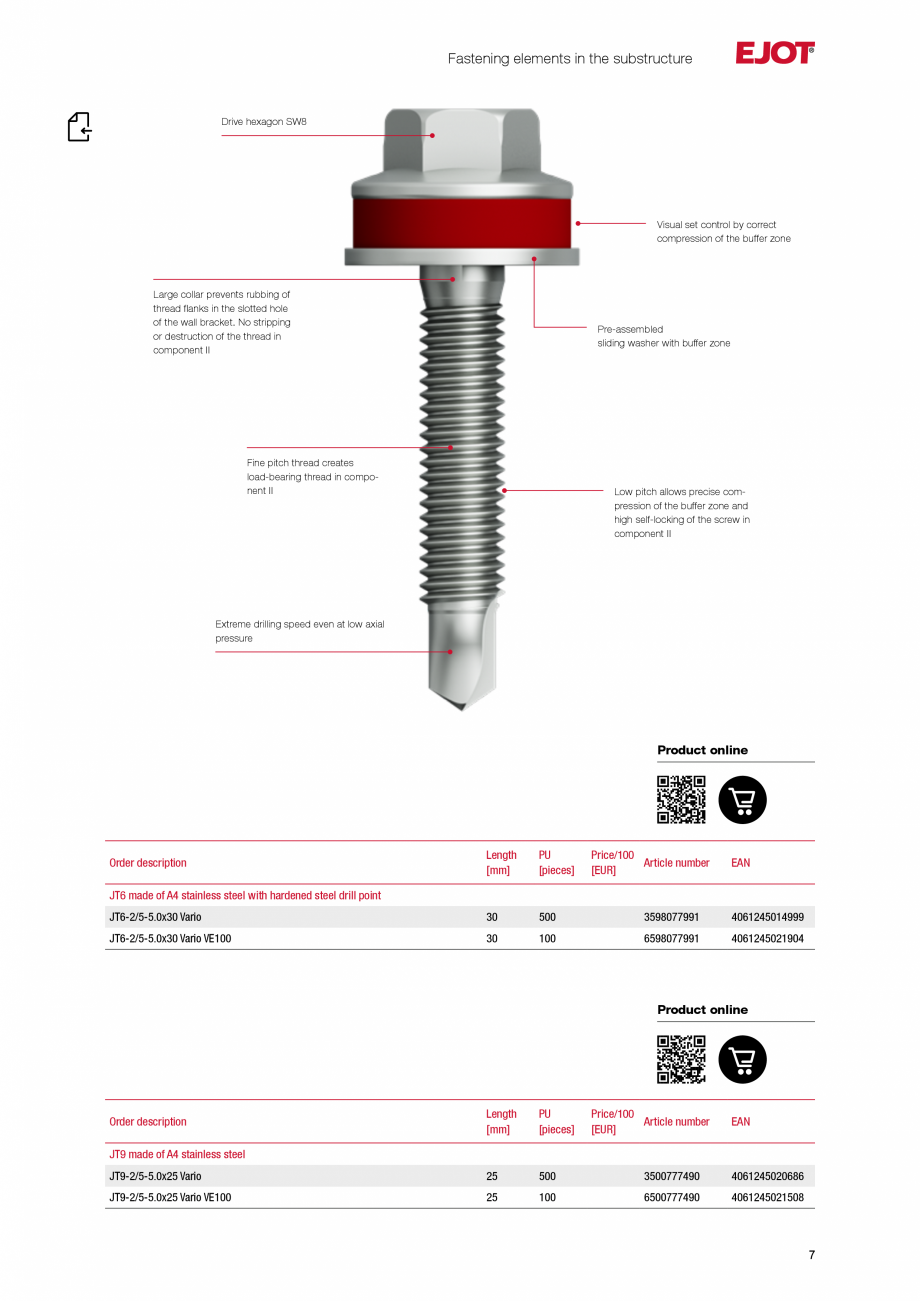

Pagina 7-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza

2

Fixing wall bracket...

Pagina 8 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza sliding disk...

sliding disk prevents excessive clamp load of the joint > Consistently low contact pressure prevents stick-slip phenomenon > No stripping / destruction of the thread in component II resulting in high tensile capacity > High tensile and transverse load transmission in component II due to fine pitch thread > Building authority test certificate (abP) as proof of usability according to DIN 18516-1 (also available as informal English translation) > Case hardened drill point of the JT6 version for fastening in steel support profiles (not part of the abP) > Wall brackets made of stainless steel and aluminium are part of the abP > Buffer zone serves as visual set control > Same assembly concept for sliding and fixed points > Fastening with socket wrench insert SW8 with optical installation control / SW8 VARIO Tool / screwdriver with depth stop SW8 5.0 E14 Certifications P-BWU02178006 Notice Component assemblies checked with Rm (component II) ≥ 190, ≥ 215 and ≥ 245 N/mm2. F

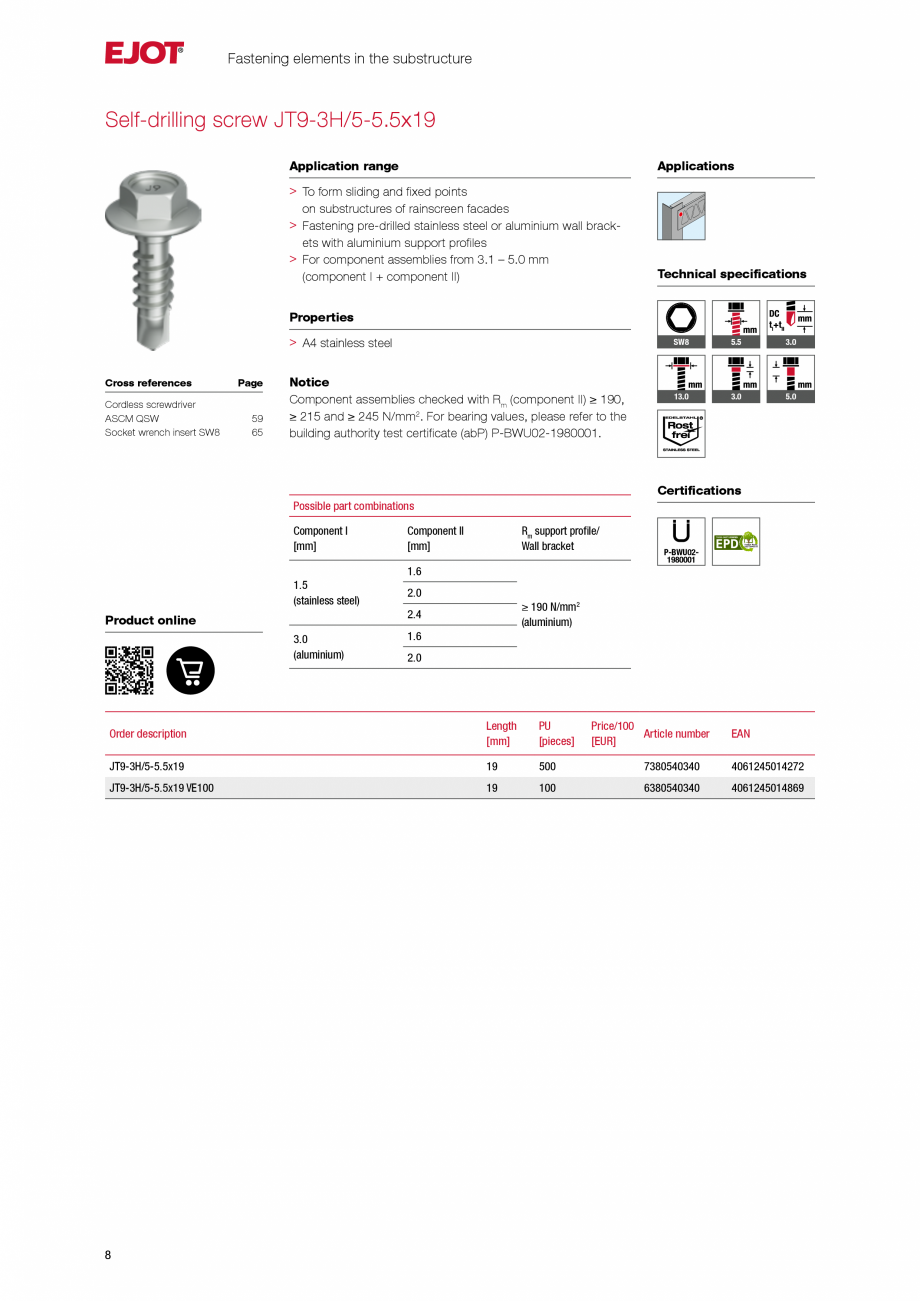

Pagina 8-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza sliding disk prevents...

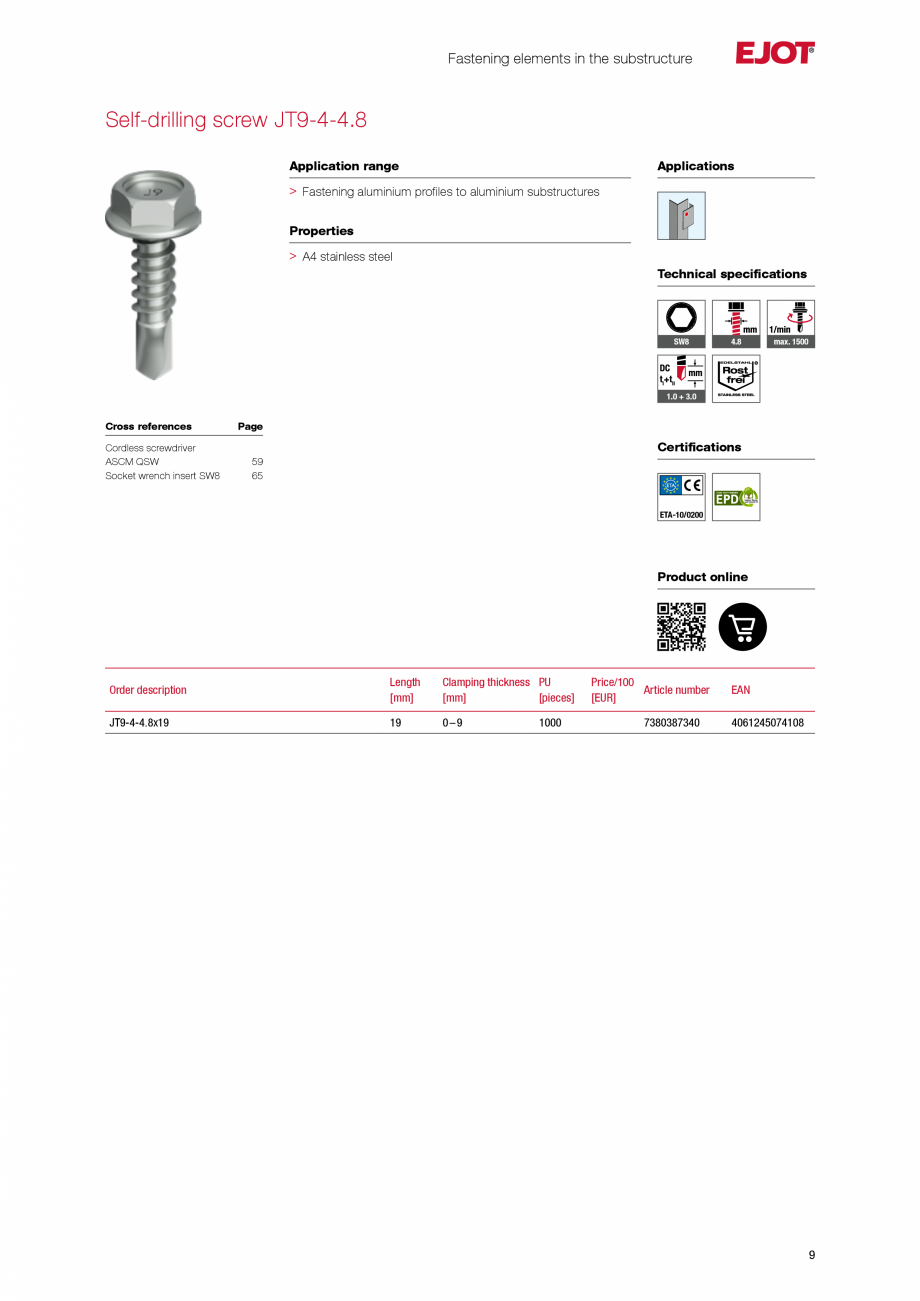

Pagina 9 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza or bearing values,...

or bearing values, please refer to the building authority test certificate (abP) P-BWU02-178006. Possible part combinations Possible part combinations Component I [mm] Component II [mm] Rm support profile/ Wall bracket Component I [mm] 2.0 (stainless steel, aluminium) 2.0 2.5 3.0 1.5 1.5 2.5 1.5 2.0 2.5 3.0 6 2.0 3.0 3.0 3.0 (stainless steel, aluminium) 4.0 (aluminium) 2.5 2.0 Rm support profile/ Wall bracket 1.5 1.5 1.5 (stainless steel) Component II [mm] ≥ 190 N/mm2 (aluminium) 5.0 (aluminium) 2.0 2.5 3.0 ≥ 190 N/mm2 (aluminium) 3.0 Fastening elements in the substructure Drive hexagon SW8 isual set control by correct V compression of the buffer zone Large collar prevents rubbing of thread flanks in the slotted hole of the wall bracket. No stripping or destruction of the thread in component II Pre-assembled sliding washer with buffer zone Fine pitch thread creates load-bearing thread in component II Low pitch allows precise compression of t

Pagina 9-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza or bearing values, please...

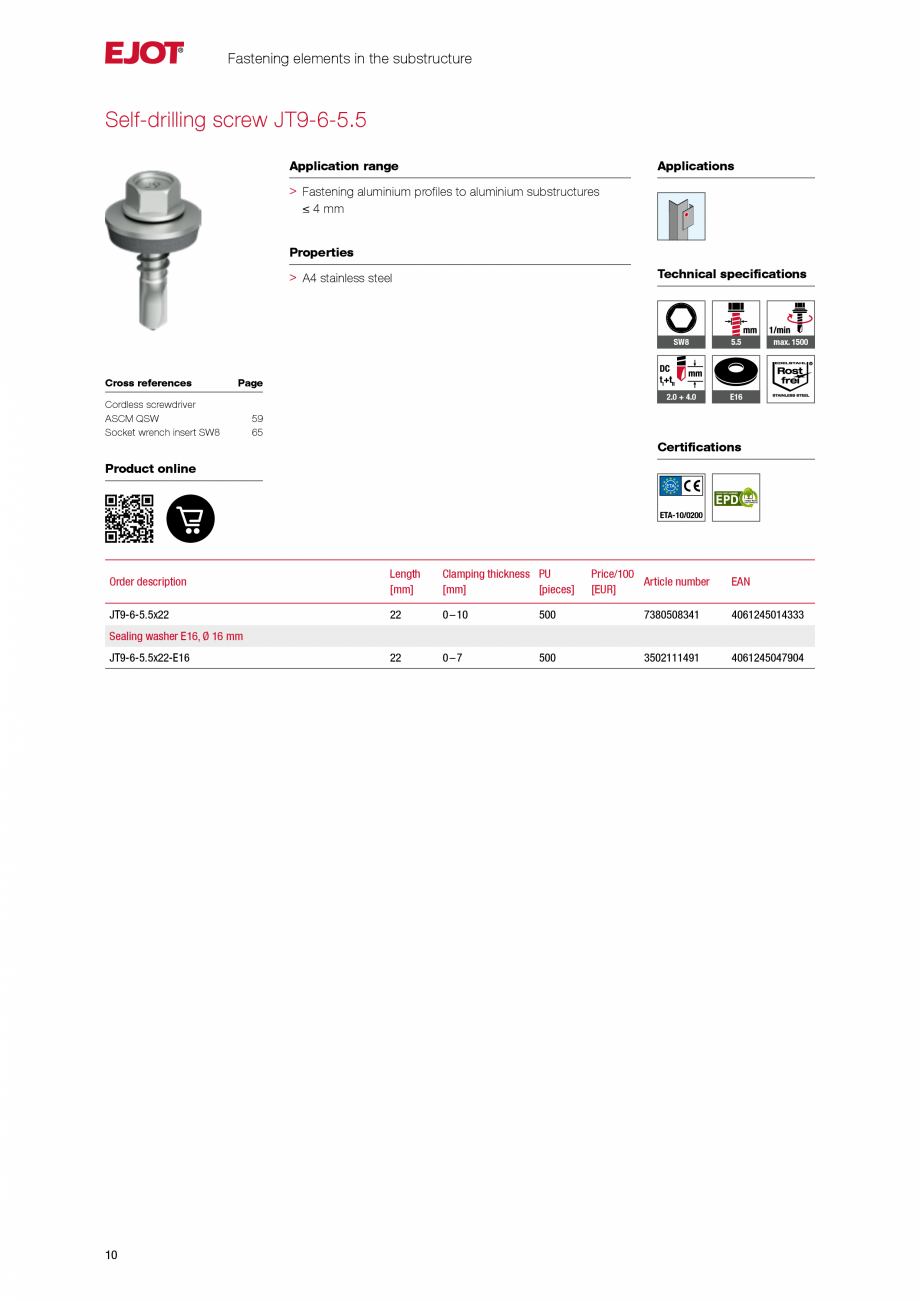

Pagina 10 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza he buffer zone...

he buffer zone and high self-locking of the screw in component II Extreme drilling speed even at low axial pressure Product online Length [mm] PU [pieces] JT6-2/5-5.0x30 Vario 30 500 3598077991 4061245014999 JT6-2/5-5.0x30 Vario VE100 30 100 6598077991 4061245021904 Order description Price/100 Article number [EUR] EAN JT6 made of A4 stainless steel with hardened steel drill point Product online Length [mm] PU [pieces] JT9-2/5-5.0x25 Vario 25 500 3500777490 4061245020686 JT9-2/5-5.0x25 Vario VE100 25 100 6500777490 4061245021508 Order description Price/100 Article number [EUR] EAN JT9 made of A4 stainless steel 7 Fastening elements in the substructure Self-drilling screw JT9-3H/5-5.5x19 Application range Applications > To form sliding and fixed points on substructures of rainscreen facades > Fastening pre-drilled stainless steel or aluminium wall brackets with aluminium support profiles > For component assemblies from 3.1 – 5.0 mm (component I

Pagina 10-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza he buffer zone and
high...

Pagina 11 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza + component II)

...

+ component II) Technical specifications Properties > A4 stainless steel Cross references Cordless screwdriver ASCM QSW Socket wrench insert SW8 Page 59 65 Notice Component assemblies checked with Rm (component II) ≥ 190, ≥ 215 and ≥ 245 N/mm2. For bearing values, please refer to the building authority test certificate (abP) P-BWU02-1980001. SW8 5.5 3.0 13.0 3.0 5.0 Certifications Possible part combinations Component I [mm] Component II [mm] 1.5 (stainless steel) 2.0 Rm support profile/ Wall bracket 1.6 ≥ 190 N/mm2 (aluminium) 2.4 Product online 3.0 (aluminium) P-BWU021980001 1.6 2.0 Order description Length [mm] PU [pieces] JT9-3H/5-5.5x19 19 500 7380540340 4061245014272 JT9-3H/5-5.5x19 VE100 19 100 6380540340 4061245014869 8 Price/100 Article number [EUR] EAN Fastening elements in the substructure Self-drilling screw JT9-4-4.8 Application range Applications > Fastening aluminium profiles to aluminium substructures Properties > A4 stai

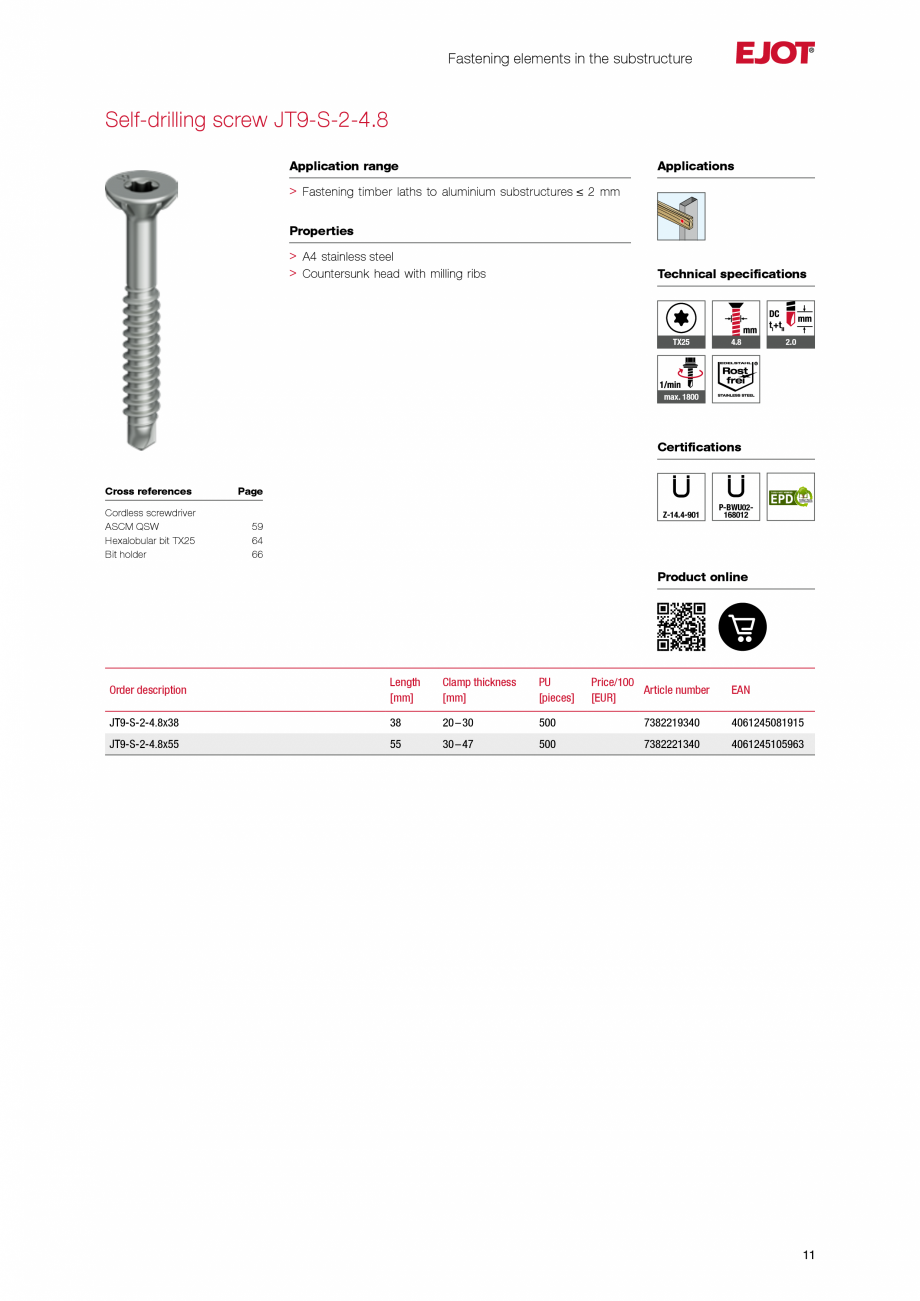

Pagina 11-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza + component II)

Technical...

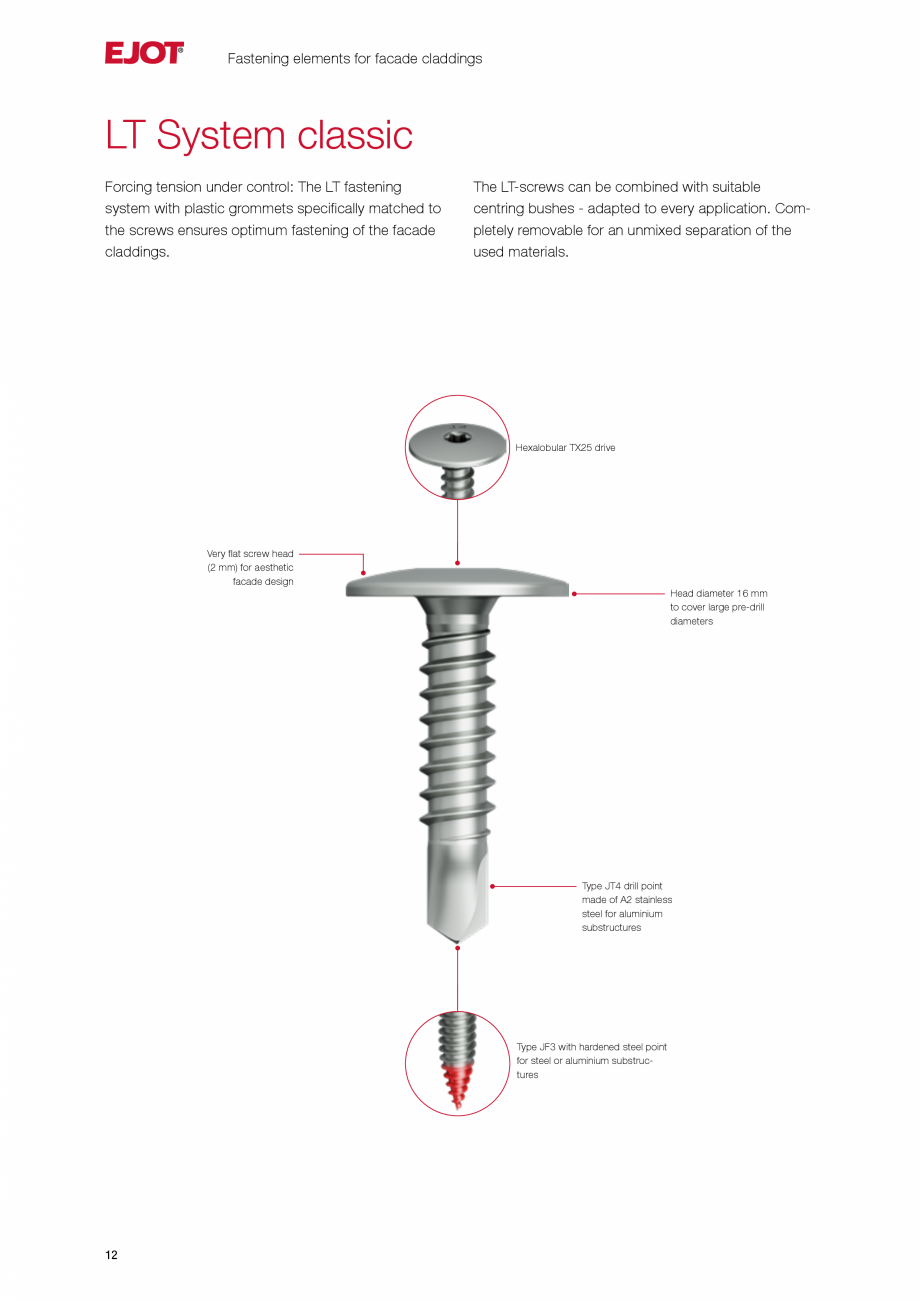

Pagina 12 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza nless steel...

nless steel Technical specifications SW8 4.8 max. 1500 1.0 + 3.0 Cross references Cordless screwdriver ASCM QSW Socket wrench insert SW8 Page Certifications 59 65 ETA-10/0200 Product online Order description Length [mm] Clamping thickness PU [mm] [pieces] JT9-4-4.8x19 19 0–9 1000 Price/100 Article number [EUR] 7380387340 EAN 4061245074108 9 Fastening elements in the substructure Self-drilling screw JT9-6-5.5 Application range Applications > F astening aluminium profiles to aluminium substructures ≤ 4 mm Properties Technical specifications > A4 stainless steel Cross references SW8 5.5 2.0 + 4.0 E16 max. 1500 Page Cordless screwdriver ASCM QSW Socket wrench insert SW8 59 65 Certifications Product online ETA-10/0200 Order description Length [mm] Clamping thickness PU [mm] [pieces] Price/100 Article number [EUR] JT9-6-5.5x22 22 0 – 10 500 7380508341 4061245014333 22 0–7 500 3502111491 4061245047904 EAN Sealing washer E16, Ø 16

Pagina 12-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza nless steel
Technical...

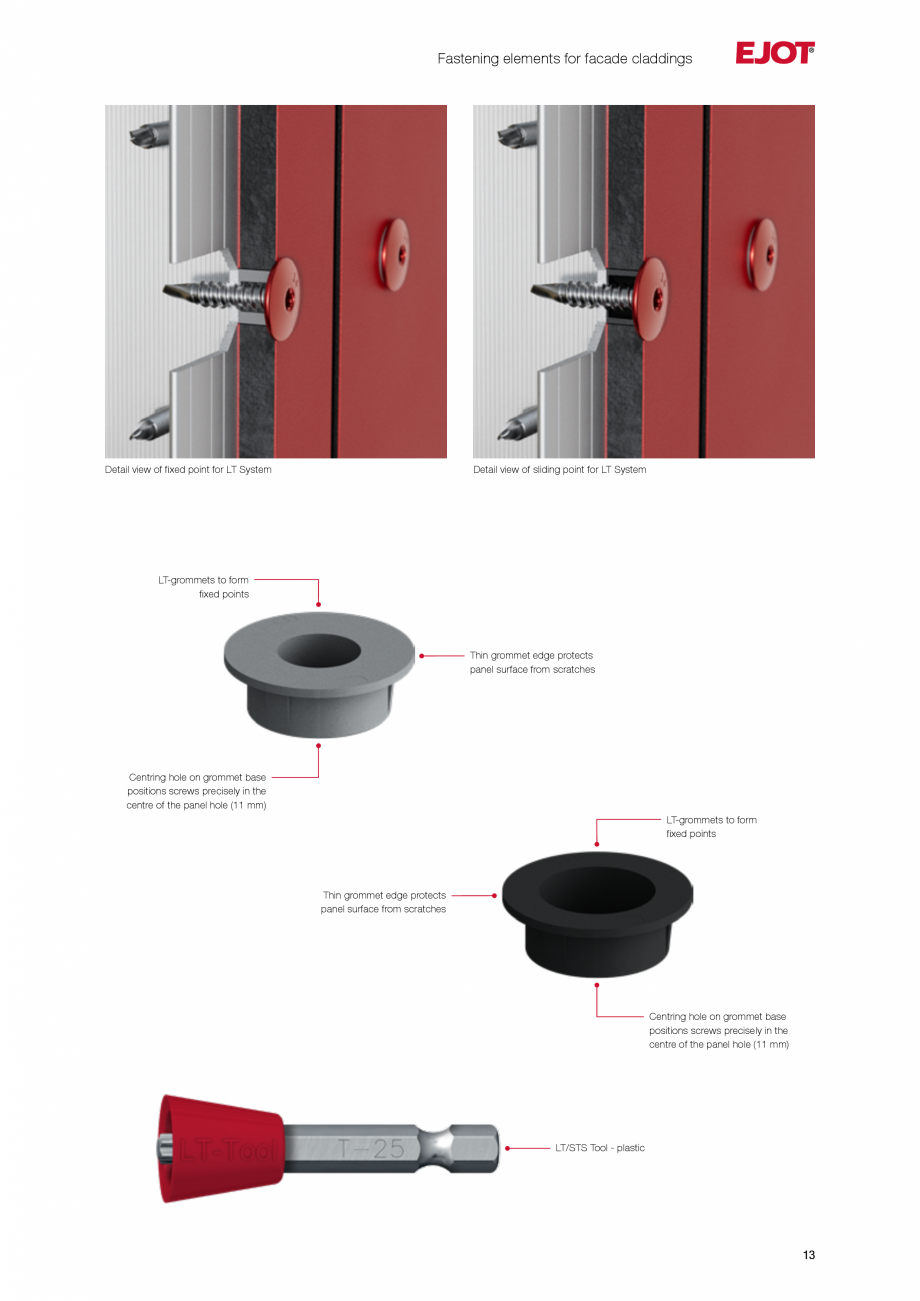

Pagina 13 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza mm
JT9-6-5...

mm JT9-6-5.5x22-E16 10 Fastening elements in the substructure Self-drilling screw JT9-S-2-4.8 Application range Applications > Fastening timber laths to aluminium substructures ≤ 2 mm Properties > A4 stainless steel > Countersunk head with milling ribs Technical specifications TX25 4.8 2.0 max. 1800 Certifications Cross references Cordless screwdriver ASCM QSW Hexalobular bit TX25 Bit holder Page Z-14.4-901 P-BWU02168012 59 64 66 Product online Order description Length [mm] Clamp thickness [mm] PU [pieces] Price/100 Article number [EUR] JT9-S-2-4.8x38 38 20 – 30 500 7382219340 4061245081915 JT9-S-2-4.8x55 55 30 – 47 500 7382221340 4061245105963 EAN 11 Fastening elements for facade claddings LT System classic Forcing tension under control: The LT fastening system with plastic grommets specifically matched to the screws ensures optimum fastening of the facade claddings. The LT-screws can be combined with suitable centring bushes - adapted to

Pagina 13-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza mm
JT9-6-5.5x22-E16

10
...

Pagina 14 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza every...

every application. Completely removable for an unmixed separation of the used materials. Hexalobular TX25 drive Very flat screw head (2 mm) for aesthetic facade design Head diameter 16 mm to cover large pre-drill diameters Type JT4 drill point made of A2 stainless steel for aluminium substructures Type JF3 with hardened steel point for steel or aluminium substructures 12 Fastening elements for facade claddings Detail view of fixed point for LT System Detail view of sliding point for LT System LT-grommets to form fixed points Thin grommet edge protects panel surface from scratches Centring hole on grommet base positions screws precisely in the centre of the panel hole (11 mm) LT-grommets to form fixed points Thin grommet edge protects panel surface from scratches Centring hole on grommet base positions screws precisely in the centre of the panel hole (11 mm) LT/STS Tool - plastic 13 Fastening elements for facade claddings Product finder LT System JT4LT-3-5.5x25 KD

Pagina 14-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza every application....

Pagina 15 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza 16

JT4LT-3-5...

16 JT4LT-3-5.5x25 KD16 JT4LT-3-5.5x25 KD16 A2 stainless steel A2 stainless steel A2 stainless steel In agreement with cladding manufacturer In agreement with cladding manufacturer In agreement with cladding manufacturer Z-14.4-851 PURICELLI Z-14.4-851 PURICELLI Z-14.4-851 PURICELLI No1) No1) No1) Aluminium Aluminium Aluminium Drilling capacity (tI pre-drilled) [mm] 3.0 3.0 3.0 Clamping thickness tfix [mm] 4.0 6.0 8.0 EJOT proof of usability – – – LT grommet for fixed points (F) Centring grommet Ø11/4 F Centring grommet Ø11/6 F Centring grommet Ø11/8 F LT grommet for sliding points (S) Centring grommet Ø11/4 S Centring grommet Ø11/6 S Centring grommet Ø11/8 S Screw type Material Application Approval by cladding manufacturer Strip-proof Substructure 1) Screws without free spin zone must be loosened by a quarter turn after connecting surface in order to ensure reliable sliding. 14 Fastening elements for facade claddings JF3LT-2-5.5

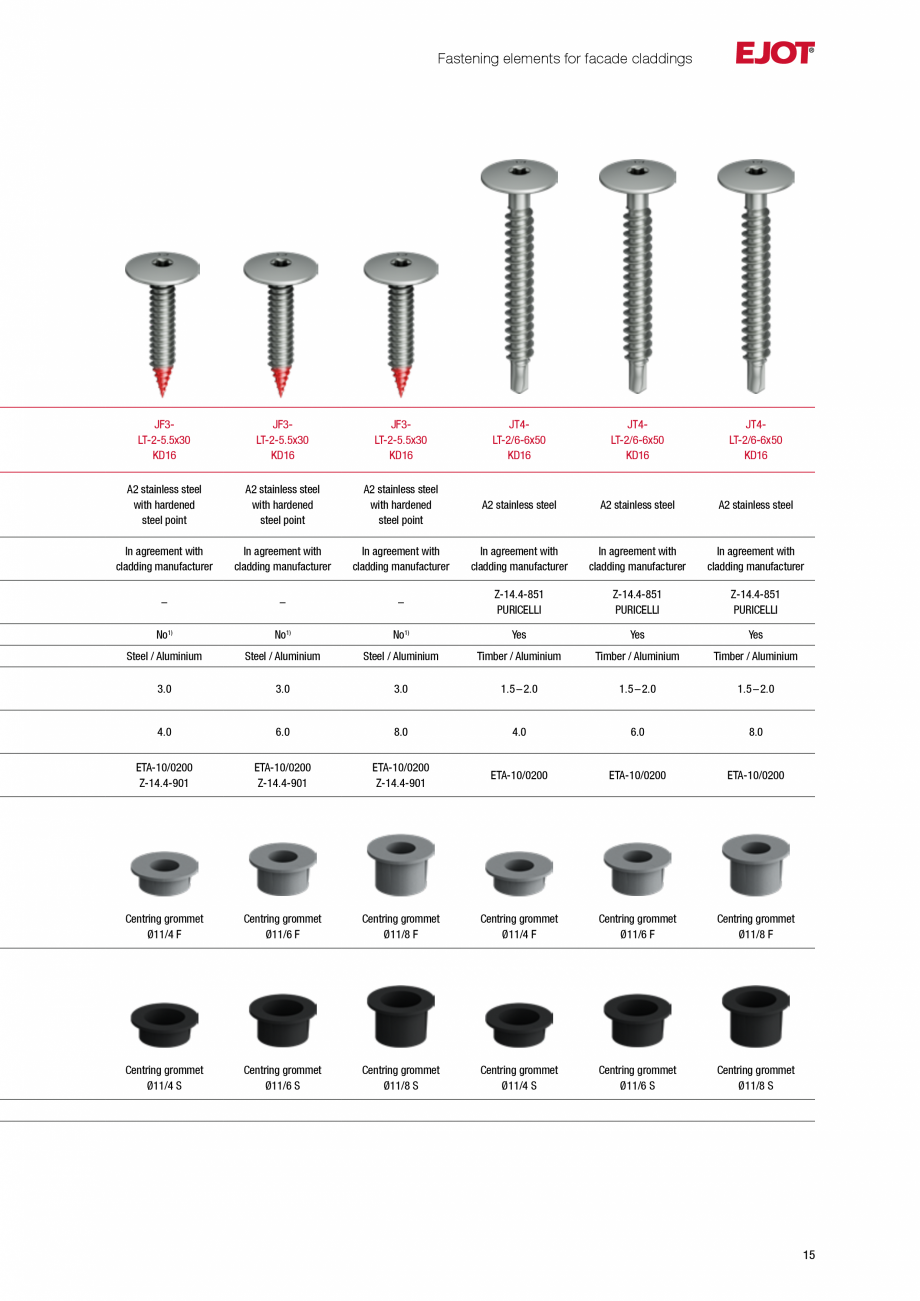

Pagina 15-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza 16

JT4LT-3-5.5x25
KD16
...

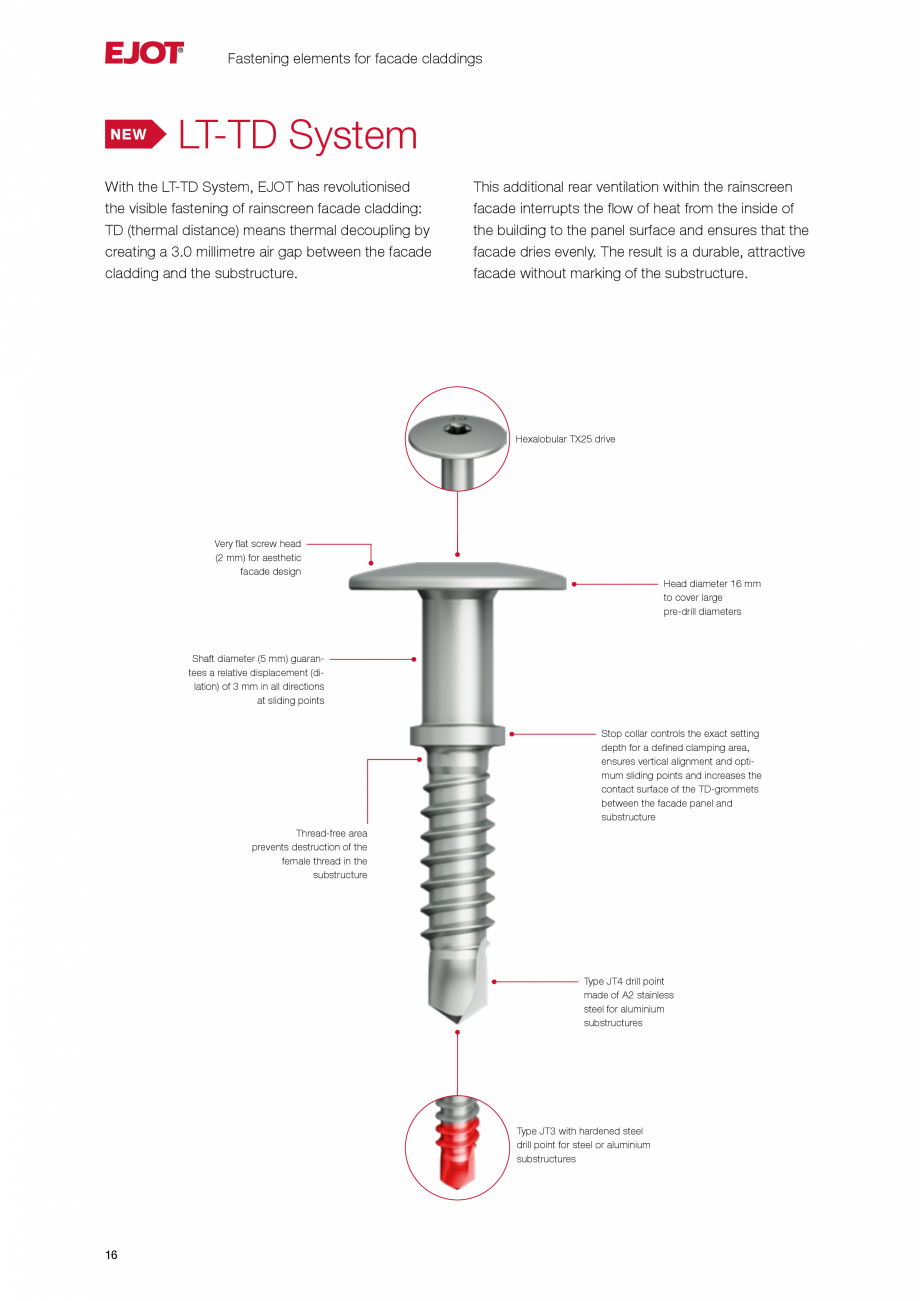

Pagina 16 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza x30
KD16
...

x30 KD16 JF3LT-2-5.5x30 KD16 JF3LT-2-5.5x30 KD16 JT4LT-2/6-6x50 KD16 JT4LT-2/6-6x50 KD16 JT4LT-2/6-6x50 KD16 A2 stainless steel with hardened steel point A2 stainless steel with hardened steel point A2 stainless steel with hardened steel point A2 stainless steel A2 stainless steel A2 stainless steel In agreement with cladding manufacturer In agreement with cladding manufacturer In agreement with cladding manufacturer In agreement with cladding manufacturer In agreement with cladding manufacturer In agreement with cladding manufacturer – – – Z-14.4-851 PURICELLI Z-14.4-851 PURICELLI Z-14.4-851 PURICELLI No1) No1) No1) Yes Yes Yes Steel / Aluminium Steel / Aluminium Steel / Aluminium Timber / Aluminium Timber / Aluminium Timber / Aluminium 3.0 3.0 3.0 1.5 – 2.0 1.5 – 2.0 1.5 – 2.0 4.0 6.0 8.0 4.0 6.0 8.0 ETA-10/0200 Z-14.4-901 ETA-10/0200 Z-14.4-901 ETA-10/0200 Z-14.4-901 ETA-10/0200 ETA-10/0200 ETA-10/0200 Centring gromme

Pagina 16-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza x30
KD16

JF3LT-2-5.5x30
KD16...

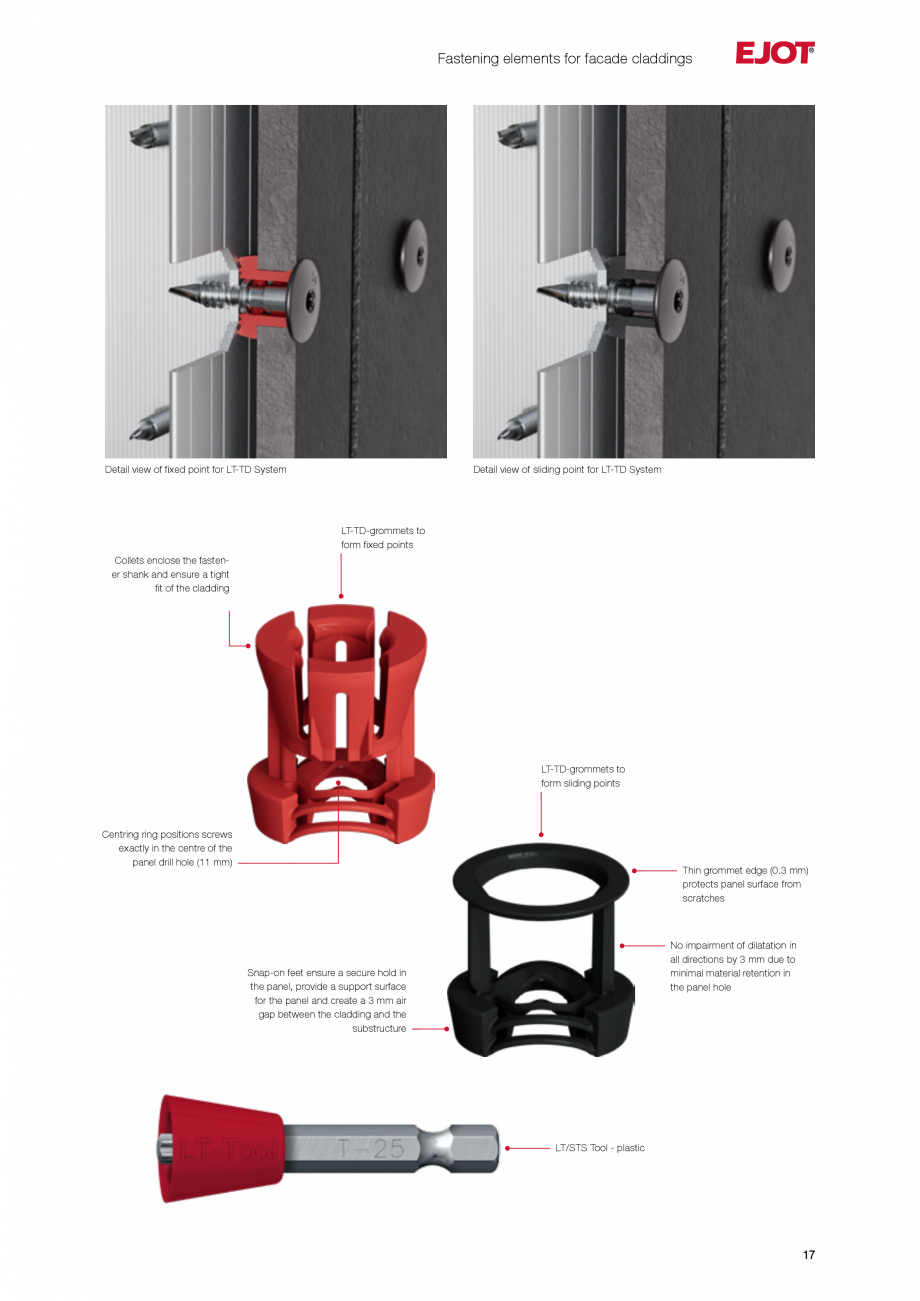

Pagina 17 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza t
Ø11/4 F
...

t Ø11/4 F Centring grommet Ø11/6 F Centring grommet Ø11/8 F Centring grommet Ø11/4 F Centring grommet Ø11/6 F Centring grommet Ø11/8 F Centring grommet Ø11/4 S Centring grommet Ø11/6 S Centring grommet Ø11/8 S Centring grommet Ø11/4 S Centring grommet Ø11/6 S Centring grommet Ø11/8 S 15 Fastening elements for facade claddings NEW LT-TD System With the LT-TD System, EJOT has revolutionised the visible fastening of rainscreen facade cladding: TD (thermal distance) means thermal decoupling by creating a 3.0 millimetre air gap between the facade cladding and the substructure. This additional rear ventilation within the rainscreen facade interrupts the flow of heat from the inside of the building to the panel surface and ensures that the facade dries evenly. The result is a durable, attractive facade without marking of the substructure. Hexalobular TX25 drive Very flat screw head (2 mm) for aesthetic facade design Head diameter 16 mm to cover large pre-drill

Pagina 17-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza t
Ø11/4 F

Centring grommet
...

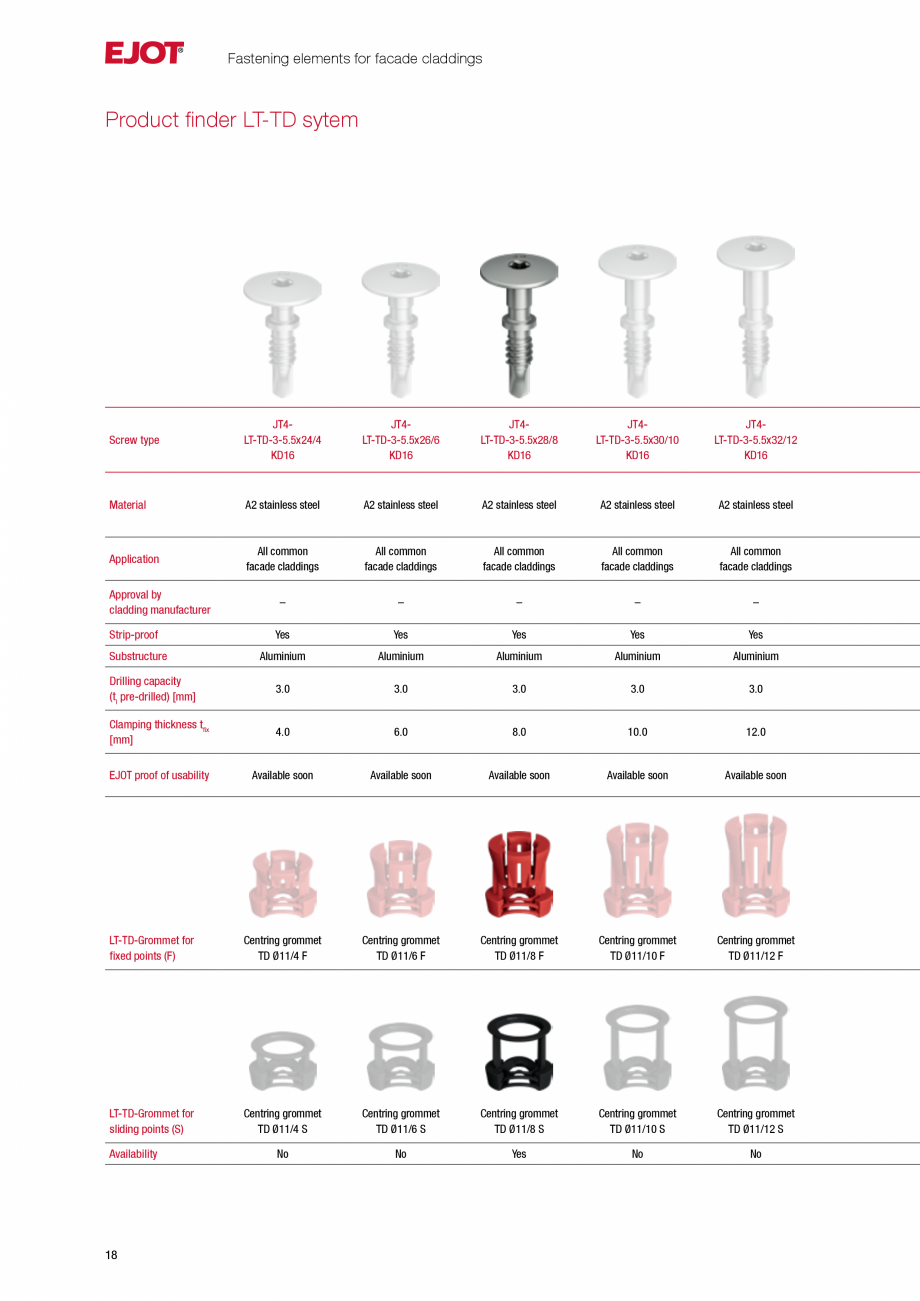

Pagina 18 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza diameters

Shaft...

diameters Shaft diameter (5 mm) guarantees a relative displacement (dilation) of 3 mm in all directions at sliding points Stop collar controls the exact setting depth for a defined clamping area, ensures vertical alignment and optimum sliding points and increases the contact surface of the TD-grommets between the facade panel and substructure Thread-free area prevents destruction of the female thread in the substructure Type JT4 drill point made of A2 stainless steel for aluminium substructures Type JT3 with hardened steel drill point for steel or aluminium substructures 16 Fastening elements for facade claddings Detail view of fixed point for LT-TD System Detail view of sliding point for LT-TD System LT-TD-grommets to form fixed points Collets enclose the fastener shank and ensure a tight fit of the cladding LT-TD-grommets to form sliding points Centring ring positions screws exactly in the centre of the panel drill hole (11 mm) Thin grommet edge (0.3 mm) protects panel s

Pagina 18-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza diameters

Shaft diameter (5...

Pagina 19 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza urface from...

urface from scratches No impairment of dilatation in all directions by 3 mm due to minimal material retention in the panel hole Snap-on feet ensure a secure hold in the panel, provide a support surface for the panel and create a 3 mm air gap between the cladding and the substructure LT/STS Tool - plastic 17 Fastening elements for facade claddings Product finder LT-TD sytem Screw type JT4LT-TD-3-5.5x24/4 KD16 JT4LT-TD-3-5.5x26/6 KD16 JT4LT-TD-3-5.5x28/8 KD16 JT4LT-TD-3-5.5x30/10 KD16 JT4LT-TD-3-5.5x32/12 KD16 Material A2 stainless steel A2 stainless steel A2 stainless steel A2 stainless steel A2 stainless steel Application All common facade claddings All common facade claddings All common facade claddings All common facade claddings All common facade claddings – – – – – Approval by cladding manufacturer Strip-proof Yes Yes Yes Yes Yes Aluminium Aluminium Aluminium Aluminium Aluminium Drilling capacity (tI pre-drilled) [mm] 3.0 3.0 3

Pagina 19-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza urface from
scratches

No...

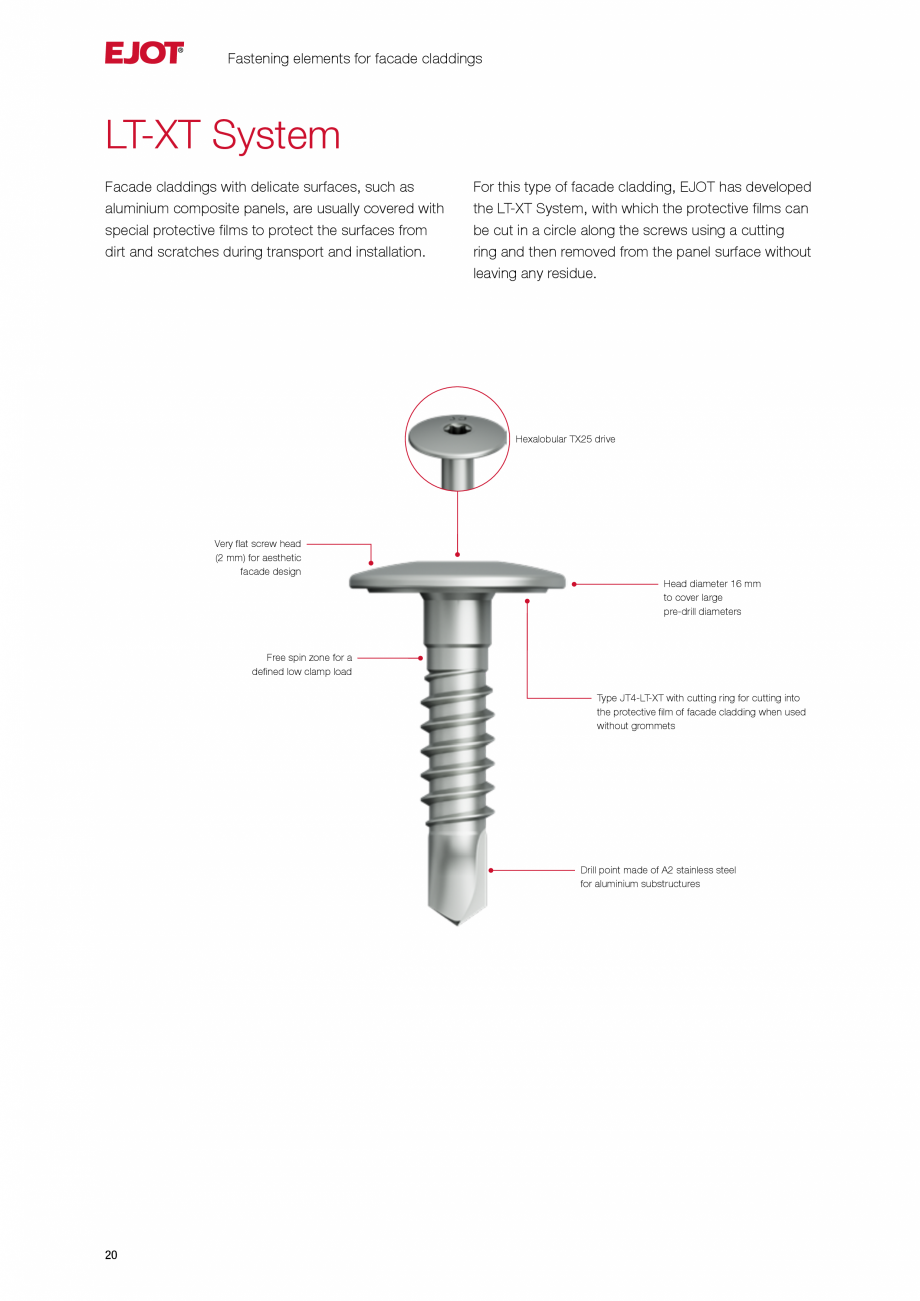

Pagina 20 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza .0

3.0

3.0
...

.0 3.0 3.0 Clamping thickness tfix [mm] 4.0 6.0 8.0 10.0 12.0 EJOT proof of usability Available soon Available soon Available soon Available soon Available soon LT-TD-Grommet for fixed points (F) Centring grommet TD Ø11/4 F Centring grommet TD Ø11/6 F Centring grommet TD Ø11/8 F Centring grommet TD Ø11/10 F Centring grommet TD Ø11/12 F LT-TD-Grommet for sliding points (S) Centring grommet TD Ø11/4 S Centring grommet TD Ø11/6 S Centring grommet TD Ø11/8 S Centring grommet TD Ø11/10 S Centring grommet TD Ø11/12 S No No Yes No No Substructure Availability 18 Fastening elements for facade claddings JT3LT-TD-3-5.5x28/4 KD16 JT3LT-TD-3-5.5x30/6 KD16 JT3LT-TD-3-5.5x32/8 KD16 JT3LT-TD-3-5.5x34/10 KD16 JT3LT-TD-3-5.5x36/12 KD16 JT4LT-2/6-6x50 KD16 A2 stainless steel with hardened Steel drill point A2 stainless steel with hardened Steel drill point A2 stainless steel with hardened Steel drill point A2 stainless steel with hardened Steel dri

Pagina 20-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza .0

3.0

3.0

Clamping...

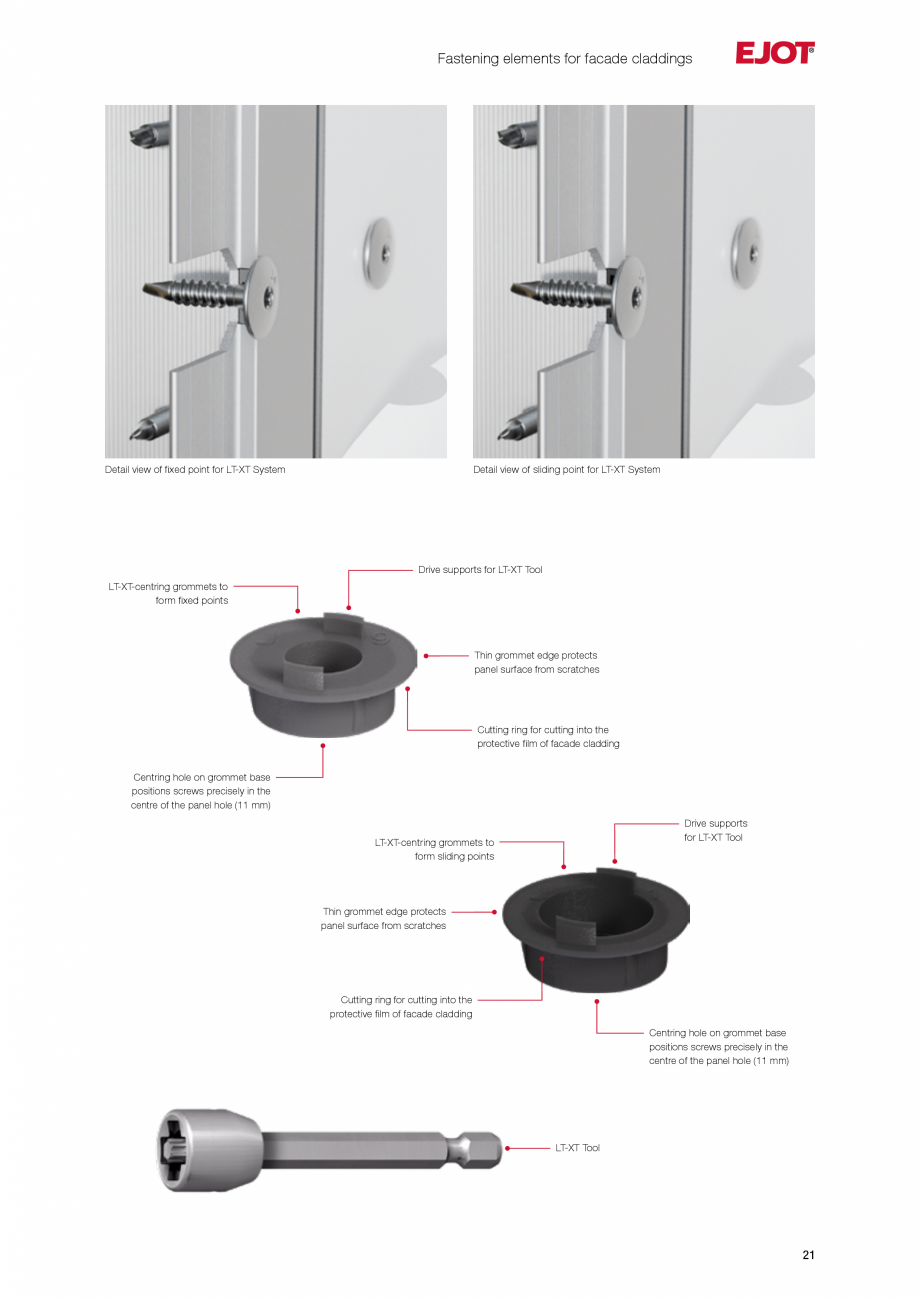

Pagina 21 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ll point

A2...

ll point A2 stainless steel with hardened Steel drill point A2 stainless steel All common facade claddings All common facade claddings All common facade claddings All common facade claddings All common facade claddings All common facade claddings – – – – – Z-14.4-851 PURICELLI Yes Yes Yes Yes Yes Yes Steel / Aluminium Steel / Aluminium Steel / Aluminium Steel / Aluminium Steel / Aluminium Timber / Aluminium 3.0 3.0 3.0 3.0 3.0 1.5 – 2.0 4.0 6.0 8.0 10.0 12.0 8.0 Available soon Available soon Available soon Available soon Available soon ETA-10/0200 Centring grommet TD Ø11/4 F Centring grommet TD Ø11/6 F Centring grommet TD Ø11/8 F Centring grommet TD Ø11/10 F Centring grommet TD Ø11/12 F Centring grommet TD Ø11/8 F Centring grommet TD Ø11/4 S Centring grommet TD Ø11/6 S Centring grommet TD Ø11/8 S Centring grommet TD Ø11/10 S Centring grommet TD Ø11/12 S Centring grommet TD Ø11/8 S No No Yes No No Yes

Pagina 21-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ll point

A2 stainless steel
...

Pagina 22 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza
19

Fastening...

19 Fastening elements for facade claddings LT-XT System Facade claddings with delicate surfaces, such as aluminium composite panels, are usually covered with special protective films to protect the surfaces from dirt and scratches during transport and installation. For this type of facade cladding, EJOT has developed the LT-XT System, with which the protective films can be cut in a circle along the screws using a cutting ring and then removed from the panel surface without leaving any residue. Hexalobular TX25 drive Very flat screw head (2 mm) for aesthetic facade design Head diameter 16 mm to cover large pre-drill diameters Free spin zone for a defined low clamp load Type JT4-LT-XT with cutting ring for cutting into the protective film of facade cladding when used without grommets Drill point made of A2 stainless steel for aluminium substructures 20 Fastening elements for facade claddings Detail view of fixed point for LT-XT System Detail view of sliding point for LT-XT

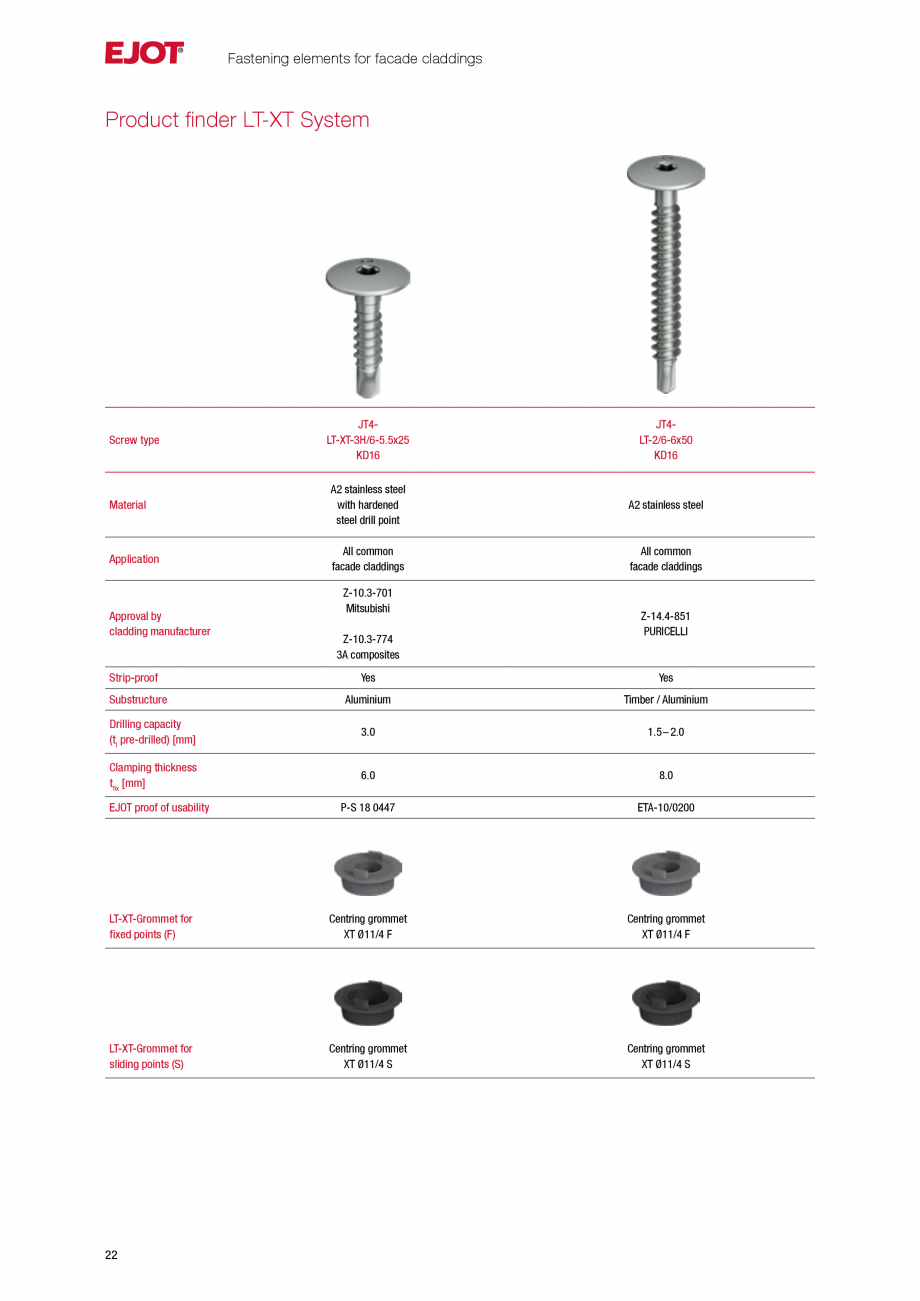

Pagina 22-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza
19

Fastening elements for ...

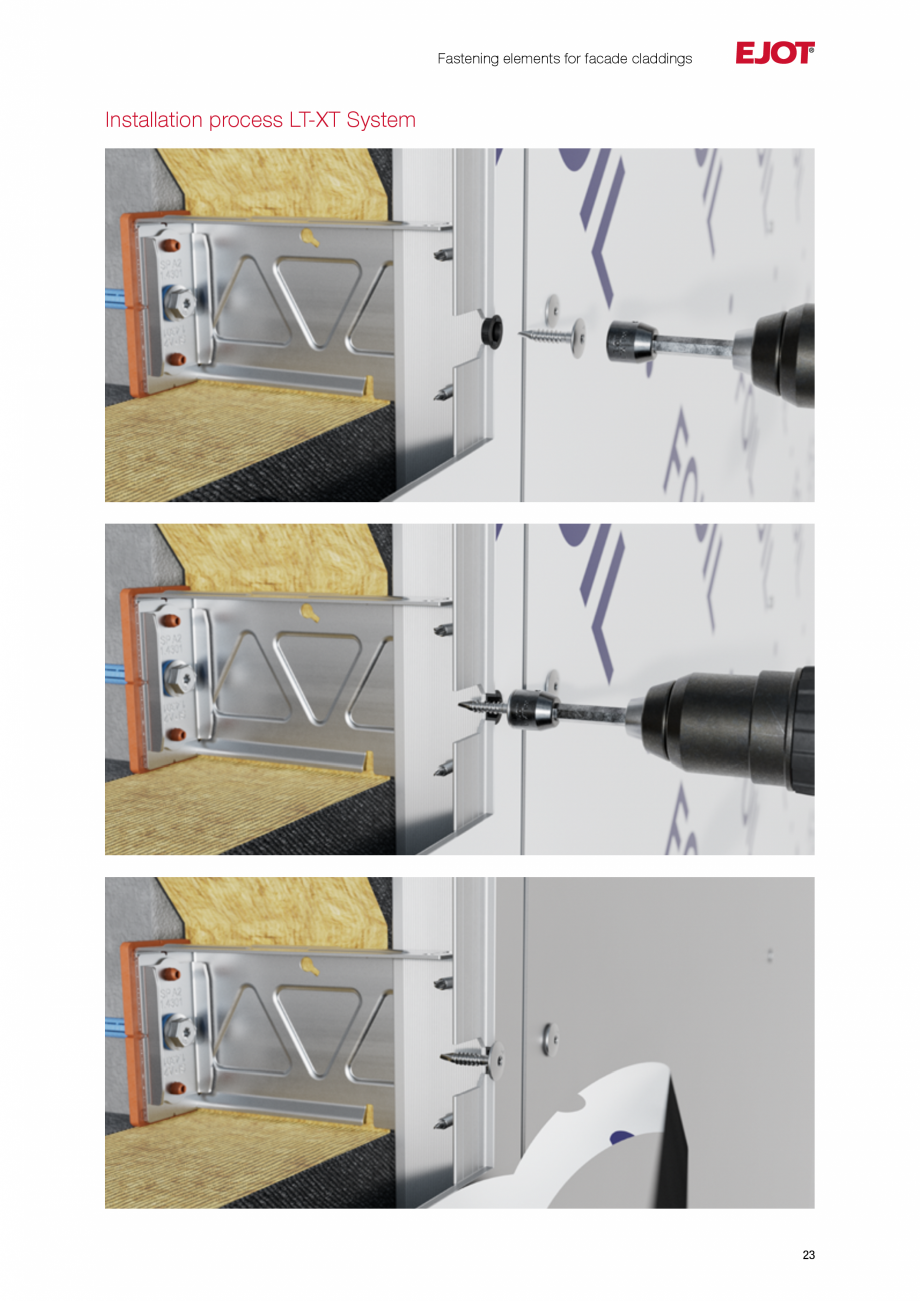

Pagina 23 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza System

Drive...

System Drive supports for LT-XT Tool LT-XT-centring grommets to form fixed points Thin grommet edge protects panel surface from scratches Cutting ring for cutting into the protective film of facade cladding Centring hole on grommet base positions screws precisely in the centre of the panel hole (11 mm) Drive supports for LT-XT Tool LT-XT-centring grommets to form sliding points Thin grommet edge protects panel surface from scratches Cutting ring for cutting into the protective film of facade cladding Centring hole on grommet base positions screws precisely in the centre of the panel hole (11 mm) LT-XT Tool 21 Fastening elements for facade claddings Product finder LT-XT System JT4LT-XT-3H/6-5.5x25 KD16 JT4LT-2/6-6x50 KD16 Material A2 stainless steel with hardened steel drill point A2 stainless steel Application All common facade claddings All common facade claddings Screw type Approval by cladding manufacturer Strip-proof Z-10.3-701 Mitsubishi Z-10.3-774 3A compo

Pagina 23-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza System

Drive supports for...

Pagina 24 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza sites

Z-14.4-851...

sites Z-14.4-851 PURICELLI Yes Yes Aluminium Timber / Aluminium Drilling capacity (tI pre-drilled) [mm] 3.0 1.5 – 2.0 Clamping thickness tfix [mm] 6.0 8.0 P-S 18 0447 ETA-10/0200 LT-XT-Grommet for fixed points (F) Centring grommet XT Ø11/4 F Centring grommet XT Ø11/4 F LT-XT-Grommet for sliding points (S) Centring grommet XT Ø11/4 S Centring grommet XT Ø11/4 S Substructure EJOT proof of usability 22 Fastening elements for facade claddings Installation process LT-XT System 23 Fastening elements for facade claddings EJOFAST® self-drilling screw JF3-LT-2-5.5 KD12 Application range Applications > F astening small metal shingles to 0.4-1.0 mm profiled steel sheet > Also suitable for fastening brackets to trapezoidal profiles Properties Technical specifications > A 2 stainless steel with hardened steel point > Pan head > Reduced swarf fastening Cross references Cordless screwdriver ASCM QSW LT / STS Tool plastic TX25 TX25 5.5 0.4 – 1.0 Pag

Pagina 24-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza sites

Z-14.4-851
PURICELLI

...

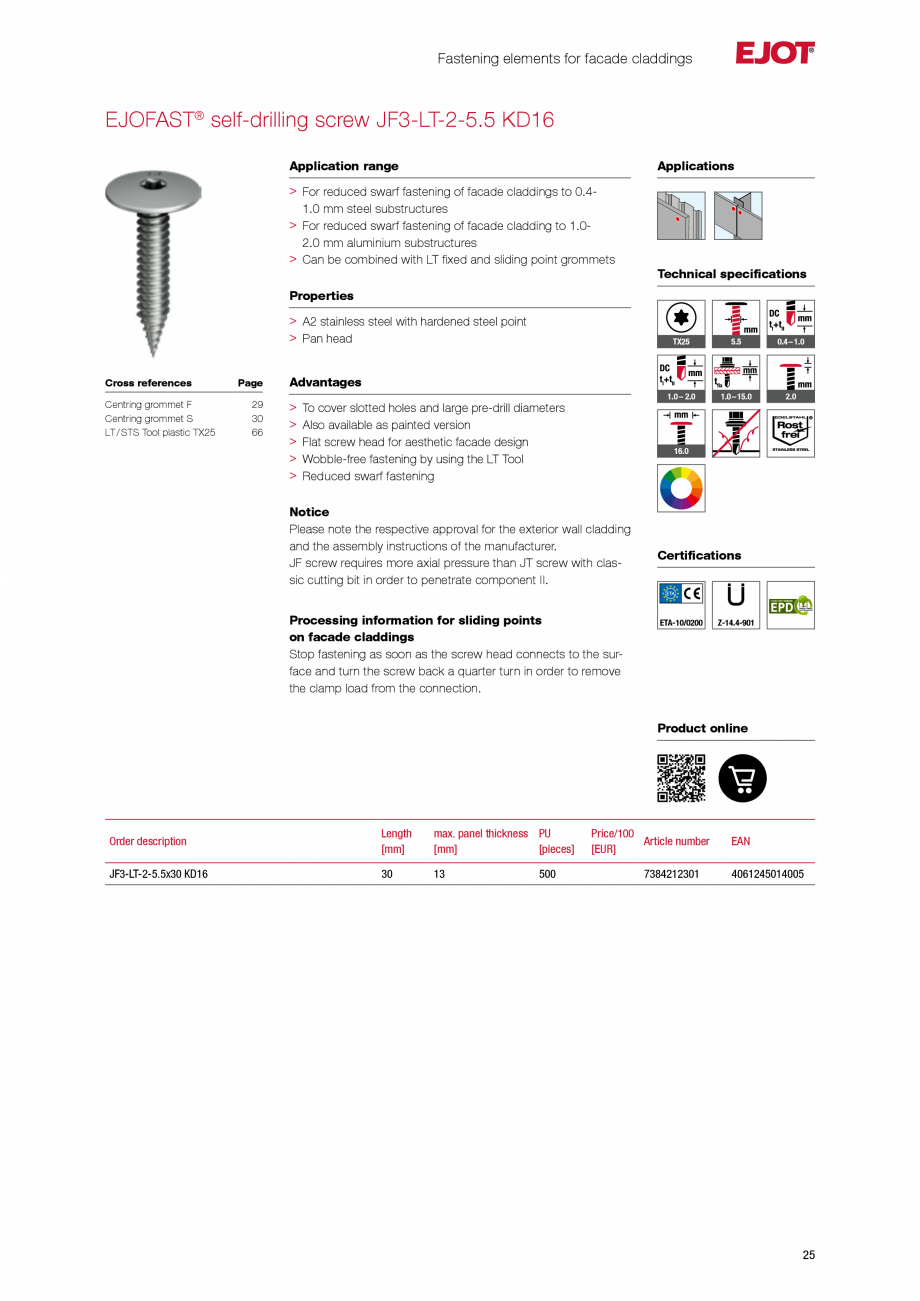

Pagina 25 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza e
59
66

2.0

1...

e 59 66 2.0 1,800 1 – 10 12.0 Certifications Product online ETA-20/0126 Order description Length [mm] Clamping thickness PU [mm] [pieces] JF3-LT-2-5.5x25 KD12 25 1 – 10 24 500 Price/100 Article number [EUR] 7381207301 ETA-22/0870 EAN 4061245061627 Fastening elements for facade claddings EJOFAST® self-drilling screw JF3-LT-2-5.5 KD16 Application range Applications > For reduced swarf fastening of facade claddings to 0.41.0 mm steel substructures > For reduced swarf fastening of facade cladding to 1.02.0 mm aluminium substructures > Can be combined with LT fixed and sliding point grommets Technical specifications Properties > A 2 stainless steel with hardened steel point > Pan head Cross references Centring grommet F Centring grommet S LT / STS Tool plastic TX25 Page 29 30 66 TX25 5.5 0.4 – 1.0 1.0 – 2.0 1.0 – 15.0 2.0 Advantages > > > > > o cover slotted holes and large pre-drill diameters T Also available as painted version Flat screw hea

Pagina 25-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza e
59
66

2.0

1,800

1 – 10...

Pagina 26 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza d for aesthetic...

d for aesthetic facade design Wobble-free fastening by using the LT Tool Reduced swarf fastening 16.0 Notice Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. JF screw requires more axial pressure than JT screw with classic cutting bit in order to penetrate component II. Processing information for sliding points on facade claddings Stop fastening as soon as the screw head connects to the surface and turn the screw back a quarter turn in order to remove the clamp load from the connection. Certifications ETA-10/0200 Z-14.4-901 Product online Order description Length [mm] max. panel thickness PU [mm] [pieces] JF3-LT-2-5.5x30 KD16 30 13 500 Price/100 Article number [EUR] 7384212301 EAN 4061245014005 25 Fastening elements for facade claddings Self-drilling screw JT3-LT-3-5.5x30 KD16 Application range Applications > F or fastening facade claddings to 1.5-3.0 mm aluminium and steel substructures > Can

Pagina 26-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza d for aesthetic facade design...

Pagina 27 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza be combined with...

be combined with LT fixed and sliding point grommets Properties Technical specifications > A2 stainless steel with hardened steel drill point > Pan head TX25 5.5 1.5 – 3.0 1.0 – 15.0 2.0 16.0 Advantages Cross references Centring grommet F Centring grommet S LT / STS Tool plastic TX25 Page 29 30 66 > > > > o cover slotted holes and large pre-drill diameters T Also available as painted version Flat screw head for aesthetic facade design Wobble-free fastening by using the LT Tool Notice Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. Certifications ETA-10/0200 Product online Processing information for sliding points on facade claddings Stop fastening as soon as the screw head connects to the surface and turn the screw back a quarter turn in order to remove the clamp load from the connection. Order description Length [mm] max. panel thickness PU [mm] [pieces] JT3-LT-3-5.5x30 KD16 30 12 26

Pagina 27-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza be combined with LT fixed...

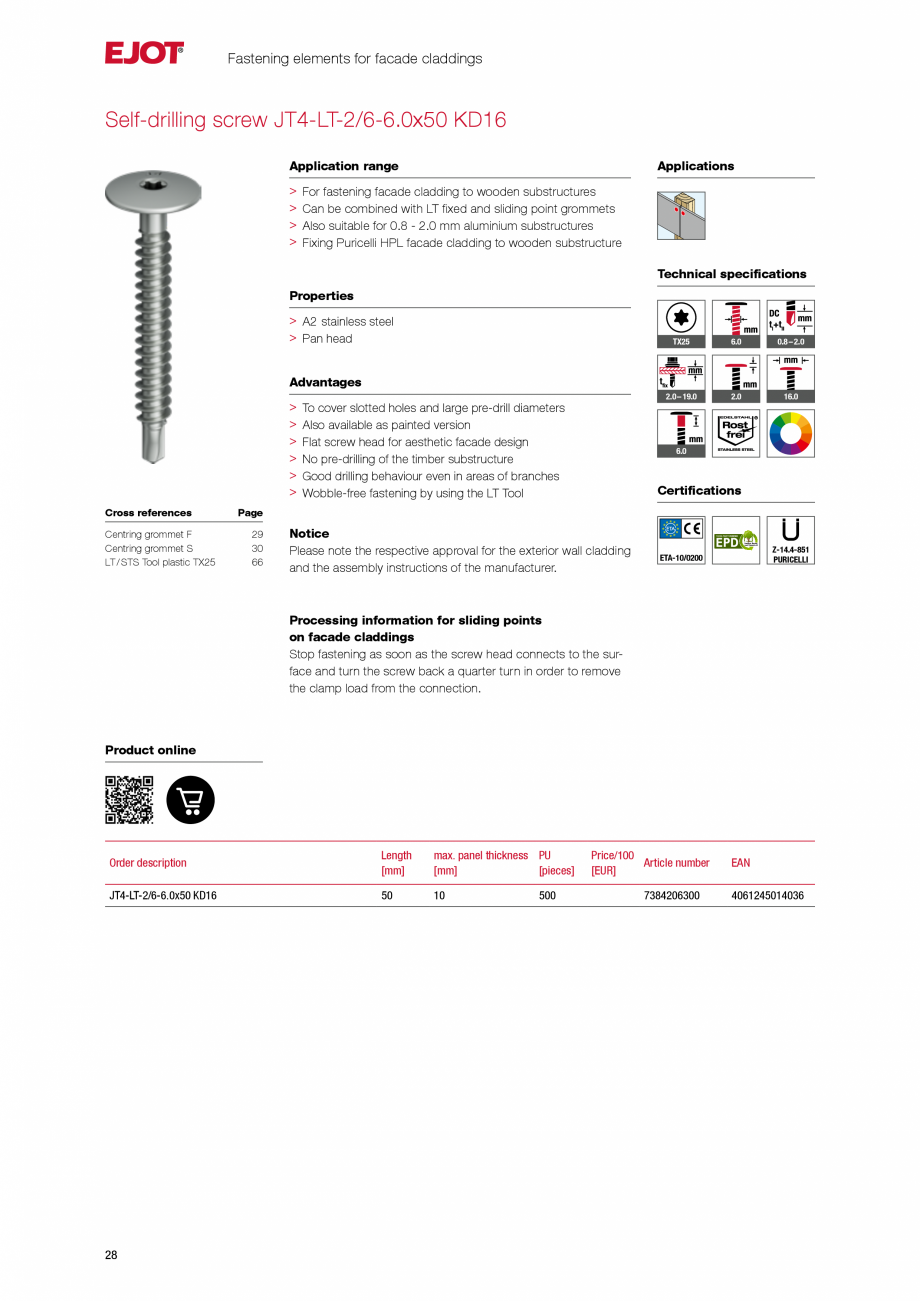

Pagina 28 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza

Z-14.4-901

500...

Z-14.4-901 500 Price/100 Article number [EUR] 7384211301 EAN 4061245014012 Fastening elements for facade claddings Self-drilling screw JT4-LT-3-5.5x25 KD16 Application range Applications > F or fastening facade cladding to 1.5 - 3.0 mm aluminium substructures > Can be combined with LT fixed and sliding point grommets > Fixing Puricelli HPL facade cladding to aluminium substructure Technical specifications Properties > A2 stainless steel > Pan head Cross references Centring grommet F Centring grommet S LT / STS Tool plastic TX25 Page 29 30 66 TX25 5.5 1.5 – 3.0 1.0 – 15.0 2.0 16.0 Advantages > > > > o cover slotted holes* and large pre-drill diameters T Also available as painted version Flat screw head for aesthetic facade design Wobble-free fastening by using the LT Tool Certifications Notice Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. *Not part of the approval Processing informati

Pagina 28-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza

Z-14.4-901

500

Price/100
...

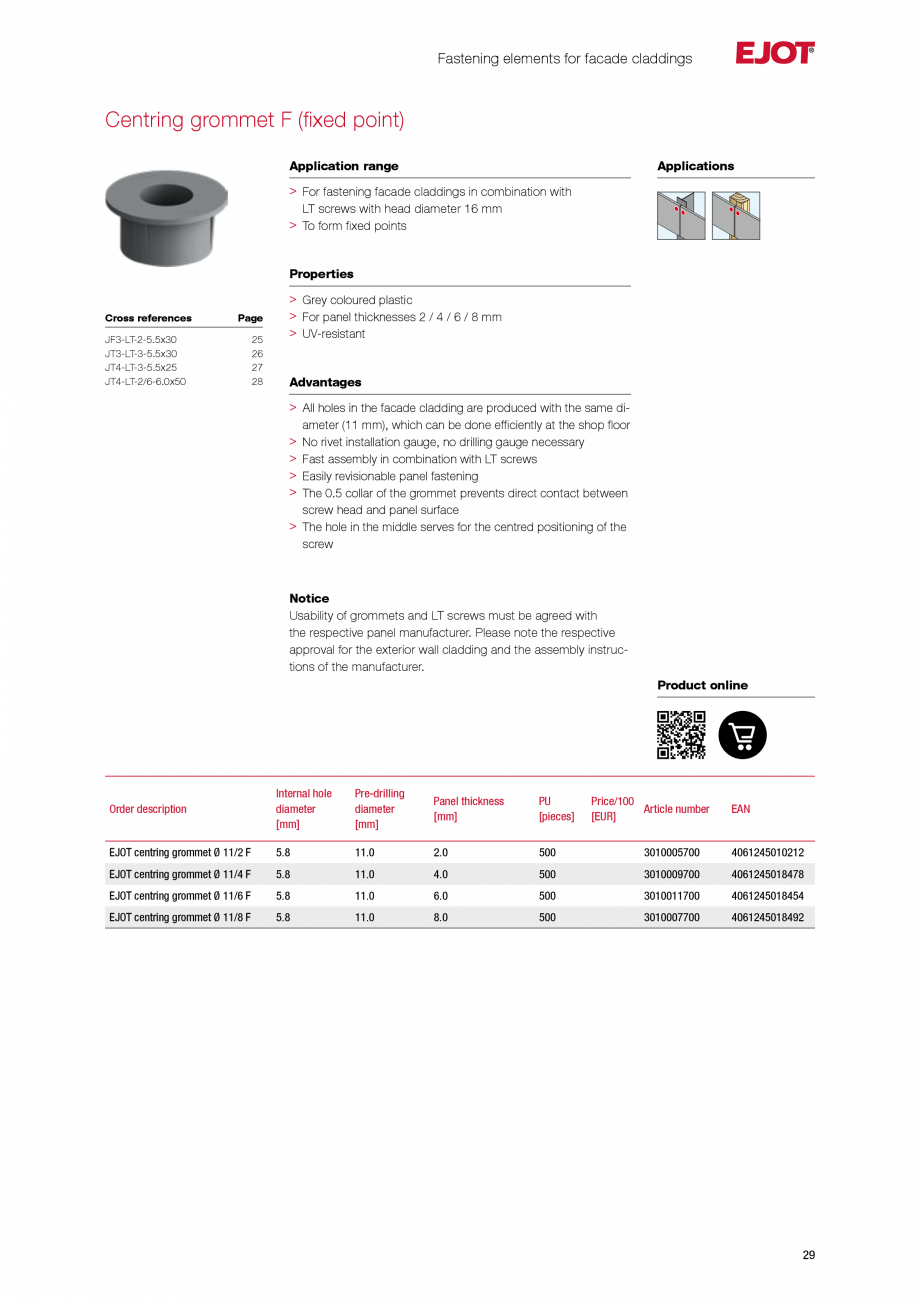

Pagina 29 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza on for sliding...

on for sliding points on facade claddings Stop fastening as soon as the screw head connects to the surface and turn the screw back a quarter turn in order to remove the clamp load from the connection. Order description Length [mm] max. panel thickness PU [mm] [pieces] JT4-LT-3-5.5x25 KD16 25 12 500 Z-14.4-851 PURICELLI ETA-10/0200 Product online Price/100 Article number [EUR] 7384207300 EAN 4061245014029 27 Fastening elements for facade claddings Self-drilling screw JT4-LT-2/6-6.0x50 KD16 Application range > > > > Applications or fastening facade cladding to wooden substructures F Can be combined with LT fixed and sliding point grommets Also suitable for 0.8 - 2.0 mm aluminium substructures Fixing Puricelli HPL facade cladding to wooden substructure Technical specifications Properties > A2 stainless steel > Pan head TX25 6.0 0.8 – 2.0 2.0 – 19.0 2.0 16.0 Advantages > > > > > > Cross references Centring grommet F Centring grommet S LT / STS Tool plastic

Pagina 29-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza on for sliding points
on...

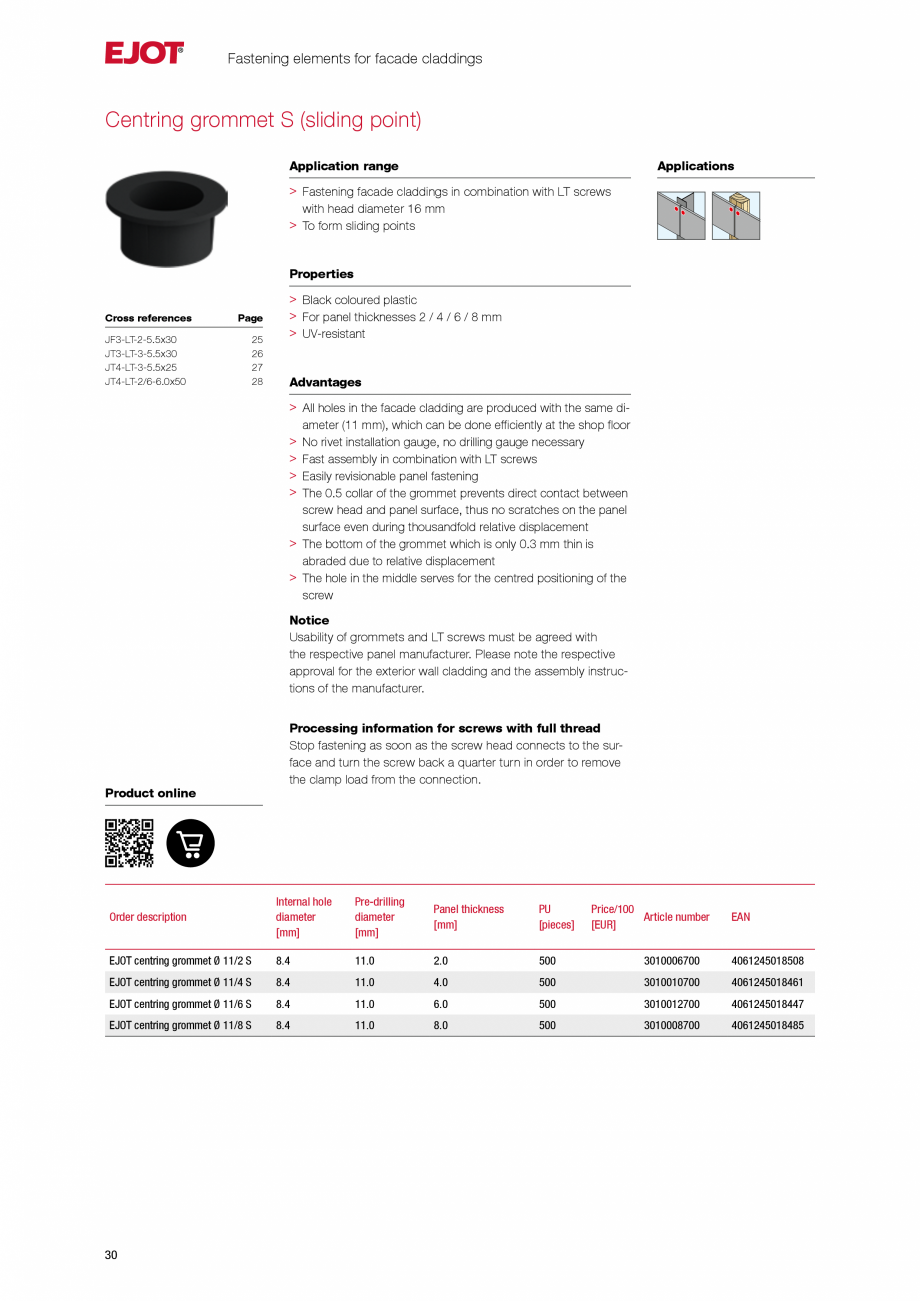

Pagina 30 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza TX25

o cover...

TX25 o cover slotted holes and large pre-drill diameters T Also available as painted version Flat screw head for aesthetic facade design No pre-drilling of the timber substructure Good drilling behaviour even in areas of branches Wobble-free fastening by using the LT Tool 6.0 Certifications Page 29 30 66 Notice Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. Z-14.4-851 PURICELLI ETA-10/0200 Processing information for sliding points on facade claddings Stop fastening as soon as the screw head connects to the surface and turn the screw back a quarter turn in order to remove the clamp load from the connection. Product online Order description Length [mm] max. panel thickness PU [mm] [pieces] JT4-LT-2/6-6.0x50 KD16 50 10 28 500 Price/100 Article number [EUR] 7384206300 EAN 4061245014036 Fastening elements for facade claddings Centring grommet F (fixed point) Application range Applications > F

Pagina 30-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza TX25

o cover slotted holes...

Pagina 31 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza
or fastening...

or fastening facade claddings in combination with LT screws with head diameter 16 mm > To form fixed points Properties Cross references Page JF3-LT-2-5.5x30 JT3-LT-3-5.5x30 JT4-LT-3-5.5x25 JT4-LT-2/6-6.0x50 25 26 27 28 > Grey coloured plastic > For panel thicknesses 2 / 4 / 6 / 8 mm > UV-resistant Advantages > A ll holes in the facade cladding are produced with the same diameter (11 mm), which can be done efficiently at the shop floor > No rivet installation gauge, no drilling gauge necessary > Fast assembly in combination with LT screws > Easily revisionable panel fastening > The 0.5 collar of the grommet prevents direct contact between screw head and panel surface > The hole in the middle serves for the centred positioning of the screw Notice Usability of grommets and LT screws must be agreed with the respective panel manufacturer. Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. Product online Orde

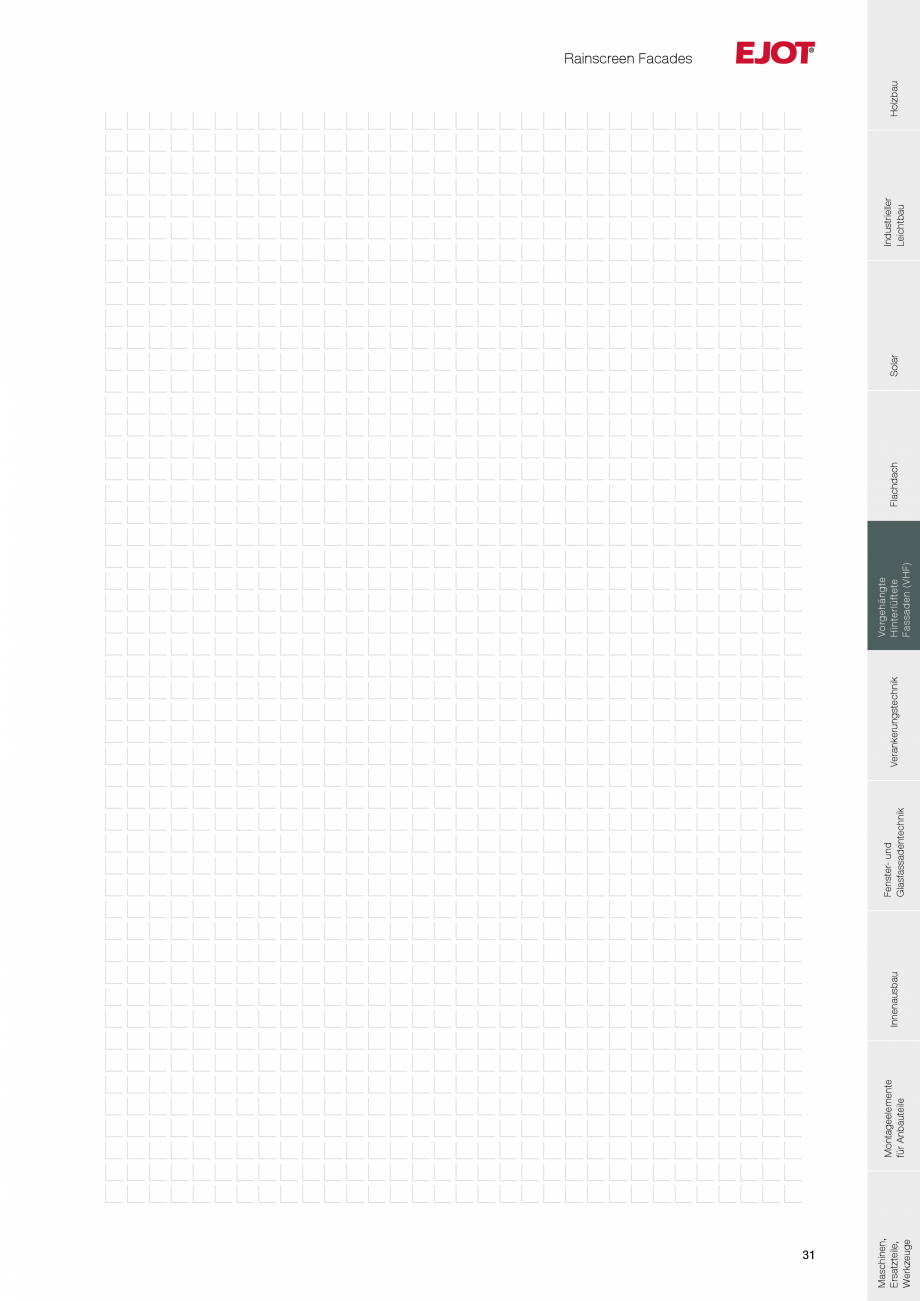

Pagina 31-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza
or fastening facade...

Pagina 32 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza r description
...

r description Internal hole diameter [mm] Pre-drilling diameter [mm] Panel thickness [mm] PU [pieces] EJOT centring grommet Ø 11/2 F 5.8 11.0 2.0 500 Price/100 Article number [EUR] 3010005700 EAN 4061245010212 EJOT centring grommet Ø 11/4 F 5.8 11.0 4.0 500 3010009700 4061245018478 EJOT centring grommet Ø 11/6 F 5.8 11.0 6.0 500 3010011700 4061245018454 EJOT centring grommet Ø 11/8 F 5.8 11.0 8.0 500 3010007700 4061245018492 29 Fastening elements for facade claddings Centring grommet S (sliding point) Application range Applications > F astening facade claddings in combination with LT screws with head diameter 16 mm > To form sliding points Properties Cross references Page JF3-LT-2-5.5x30 JT3-LT-3-5.5x30 JT4-LT-3-5.5x25 JT4-LT-2/6-6.0x50 25 26 27 28 > Black coloured plastic > For panel thicknesses 2 / 4 / 6 / 8 mm > UV-resistant Advantages > All holes in the facade cladding are produced with the same diameter (11 mm), which can be do

Pagina 32-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza r description

Internal hole
...

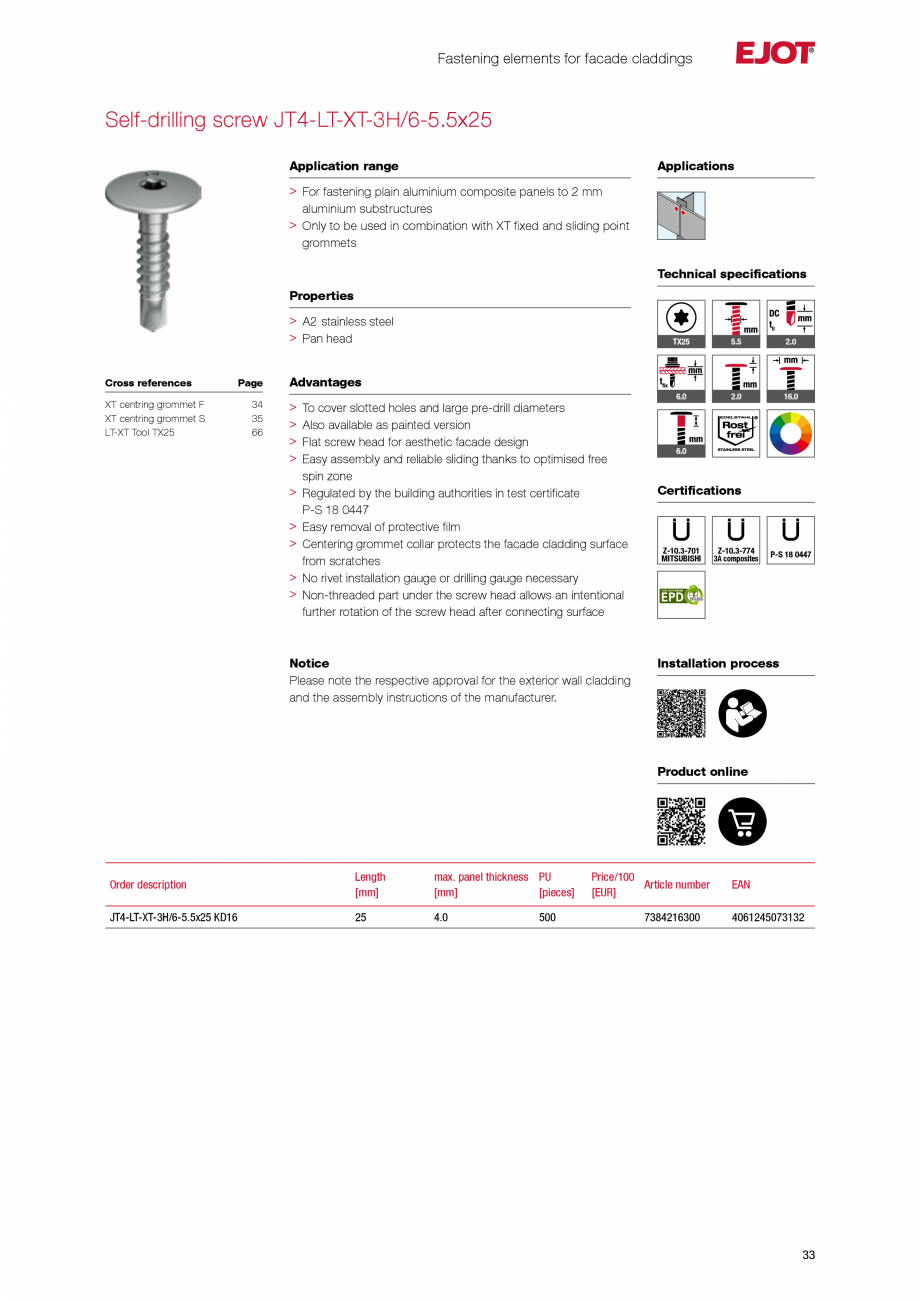

Pagina 33 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ne efficiently at...

ne efficiently at the shop floor > No rivet installation gauge, no drilling gauge necessary > Fast assembly in combination with LT screws > Easily revisionable panel fastening > The 0.5 collar of the grommet prevents direct contact between screw head and panel surface, thus no scratches on the panel surface even during thousandfold relative displacement > The bottom of the grommet which is only 0.3 mm thin is abraded due to relative displacement > The hole in the middle serves for the centred positioning of the screw Notice Usability of grommets and LT screws must be agreed with the respective panel manufacturer. Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. Product online Order description Processing information for screws with full thread Stop fastening as soon as the screw head connects to the surface and turn the screw back a quarter turn in order to remove the clamp load from the connection. Internal

Pagina 33-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ne efficiently at the shop...

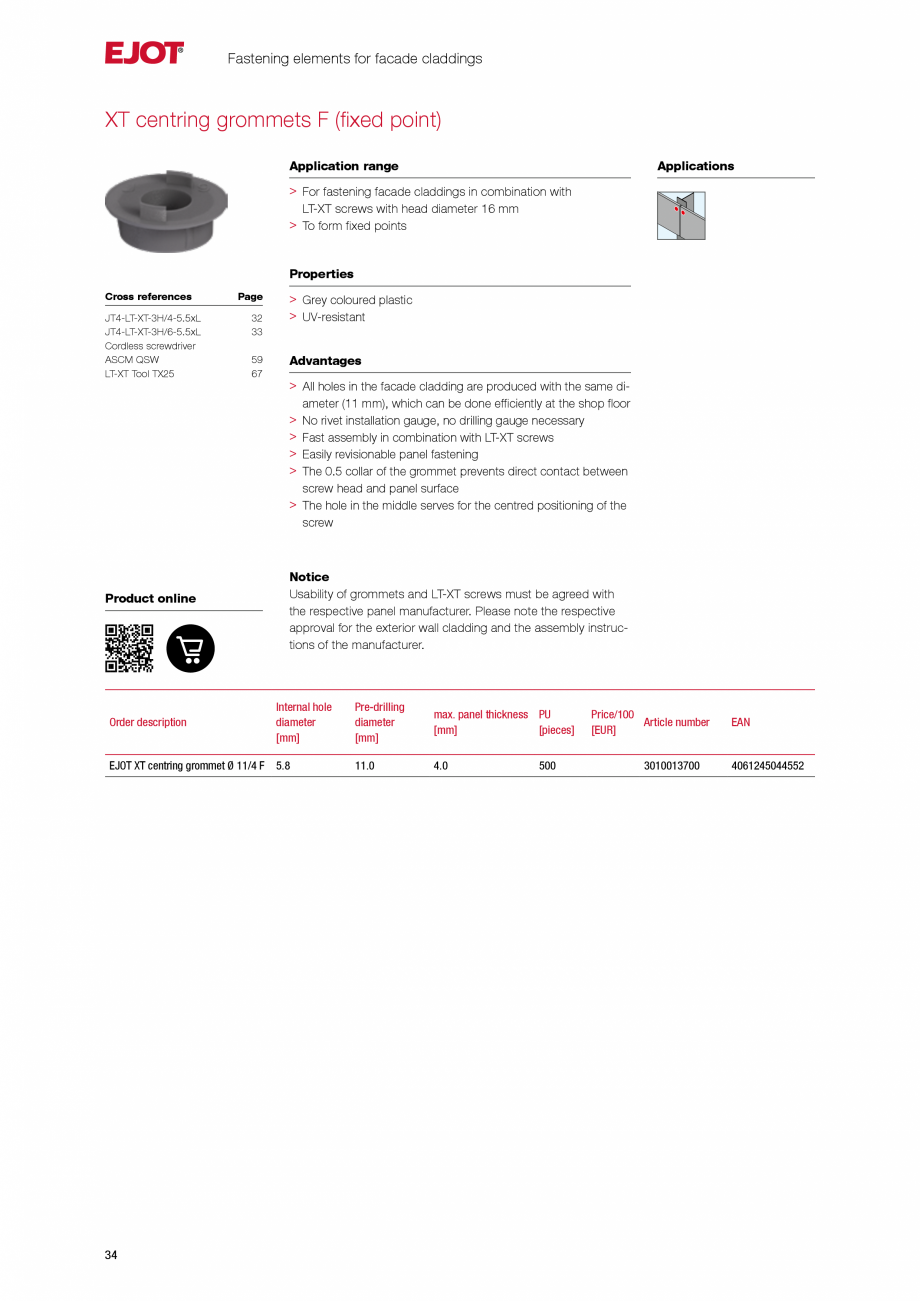

Pagina 34 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza hole
diameter...

hole diameter [mm] Pre-drilling diameter [mm] Panel thickness [mm] PU [pieces] Price/100 Article number [EUR] EAN EJOT centring grommet Ø 11/2 S 8.4 11.0 2.0 500 3010006700 4061245018508 EJOT centring grommet Ø 11/4 S 8.4 11.0 4.0 500 3010010700 4061245018461 EJOT centring grommet Ø 11/6 S 8.4 11.0 6.0 500 3010012700 4061245018447 EJOT centring grommet Ø 11/8 S 8.4 11.0 8.0 500 3010008700 4061245018485 30 31 Maschinen, Ersatzteile, Werkzeuge Montageelemente für Anbauteile Innenausbau Fenster- und Glasfassadentechnik Verankerungstechnik Vorgehängte Vorgehängte Hinterlüftete Hinterlüftete Fassaden (VHF) Fassaden (VHF) Flachdach Solar Industrieller Leichtbau Holzbau Rainscreen Facades Fastening elements for facade claddings Self-drilling screw JT4-LT-XT-3H/4-5.5x19 Application range Applications > F or fastening facade cladding 2.0 mm to aluminium substructures ≤ 2.0 mm > Can be combined with LT fixed and sliding point grom

Pagina 34-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza hole
diameter
[mm]
...

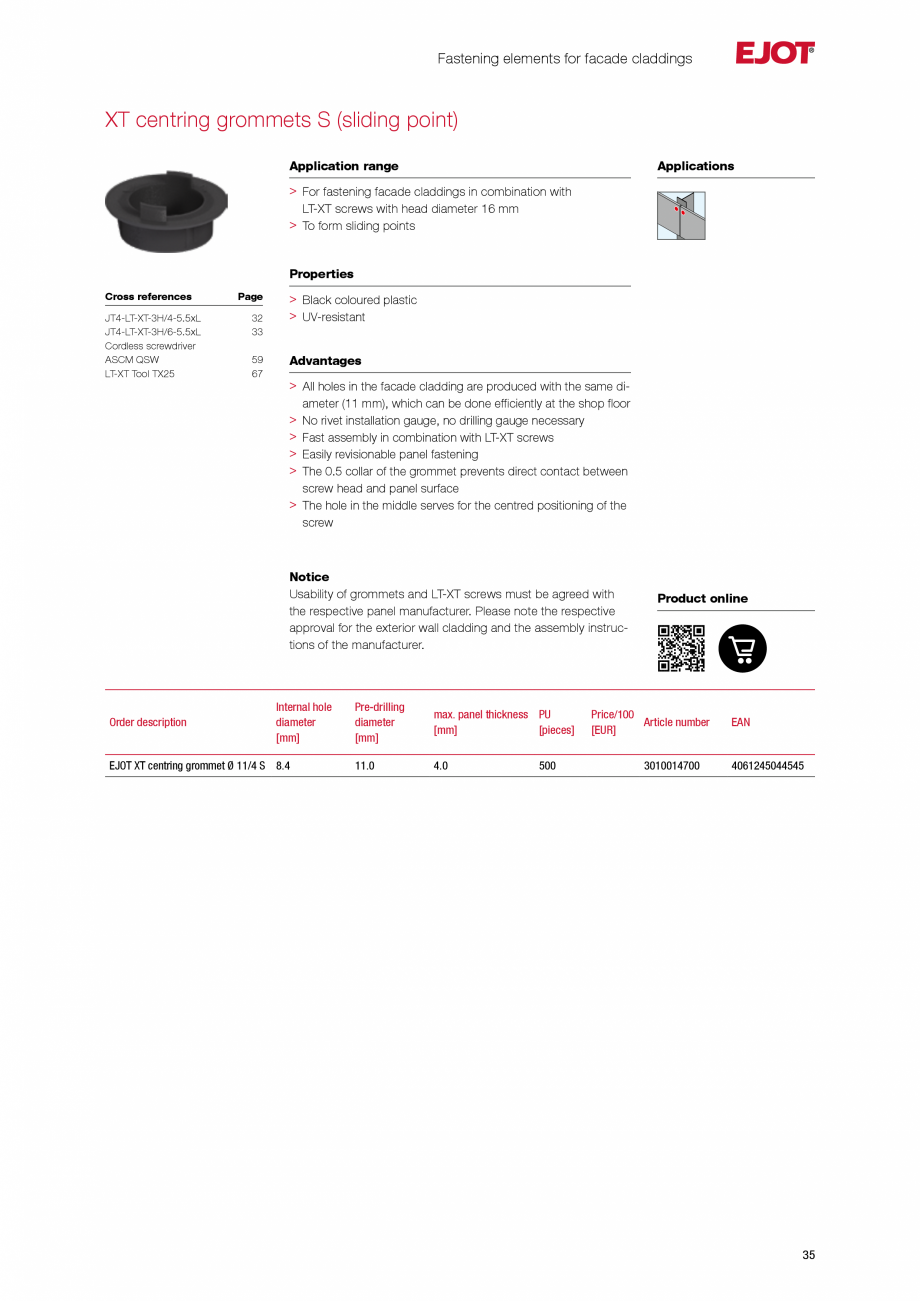

Pagina 35 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza mets

Properties
...

mets Properties Technical specifications > A2 stainless steel > Pan head Cross references Centring grommet F Centring grommet S Cordless screwdriver ASCM QSW LT-XT Tool TX25 Page 29 30 59 66 > > Product online > Also available as painted version Flat screw head for aesthetic facade design Wobble-free fastening by using the LT Tool Easy assembly and reliable sliding thanks to optimised free spin zone Centering grommet collar protects the facade cladding surface from scratches No rivet installation gauge or drilling gauge necessary XT cutting ring under the screw head facilitates easy removal of the protective film during the forming of fixed points without centring grommet. Advantage when using the fixed point grommet: all holes in the panel can be pre-drilled with Ø 11 mm Non-threaded part under the screw head allows an intentional further rotation of the screw head after connecting surface 2.0 4.0 2.0 16.0 4.0 Certifications Notice Please note the respective app

Pagina 35-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza mets

Properties

Technical...

Pagina 36 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza roval for the...

roval for the exterior wall cladding and the assembly instructions of the manufacturer. Order description Length [mm] max. panel thickness PU [mm] [pieces] JT4-LT-XT-3H/4-5.5x19 KD16 19 2.0 32 5.5 Advantages > > > > > Installation process TX25 500 Price/100 Article number [EUR] 7384219300 EAN 4061245044507 Fastening elements for facade claddings Self-drilling screw JT4-LT-XT-3H/6-5.5x25 Application range Applications > F or fastening plain aluminium composite panels to 2 mm aluminium substructures > Only to be used in combination with XT fixed and sliding point grommets Technical specifications Properties > A2 stainless steel > Pan head Cross references XT centring grommet F XT centring grommet S LT-XT Tool TX25 Page 34 35 66 TX25 5.5 2.0 6.0 2.0 16.0 Advantages > > > > > > > > > o cover slotted holes and large pre-drill diameters T Also available as painted version Flat screw head for aesthetic facade design Easy assembly and reliable sliding thanks

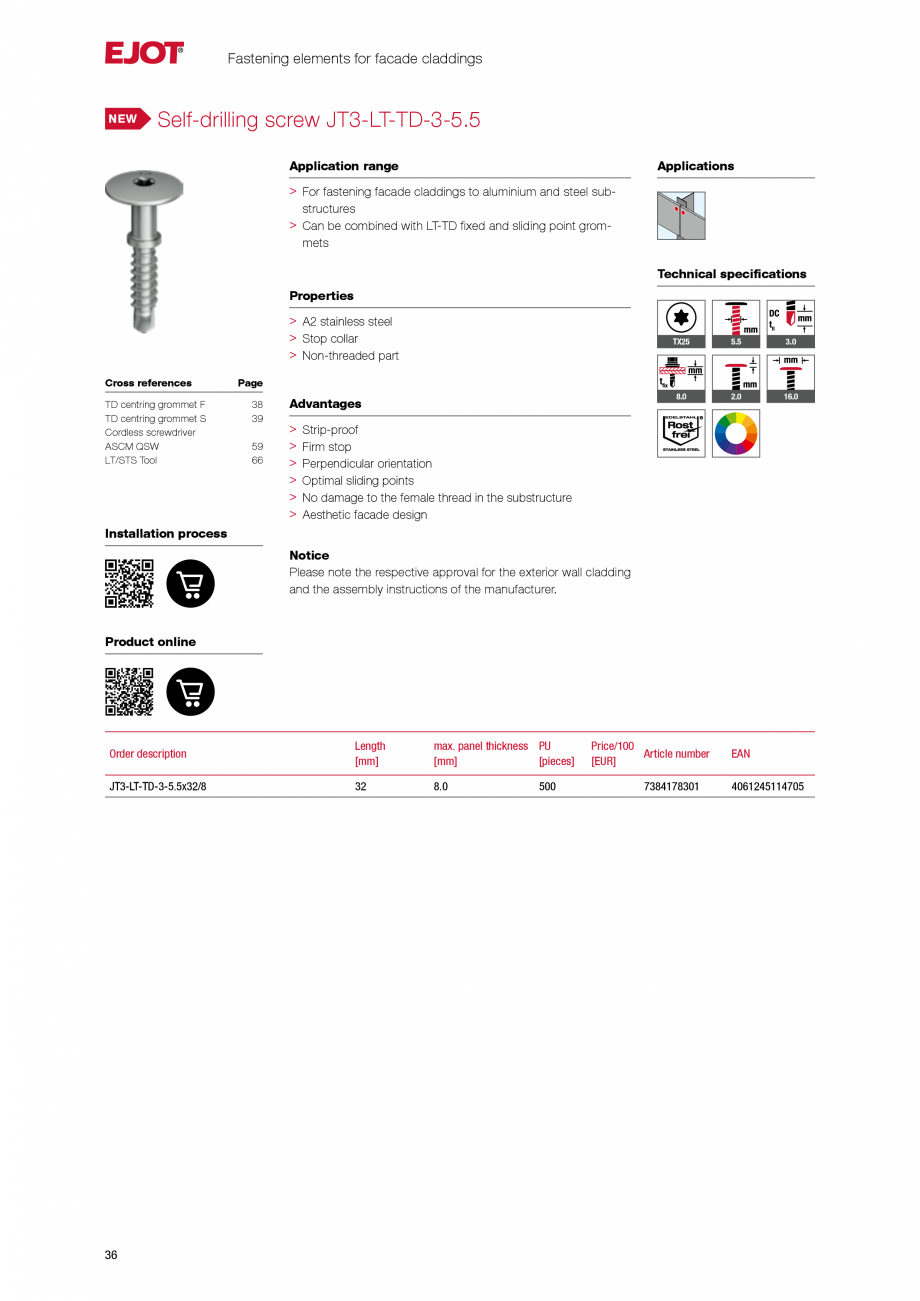

Pagina 36-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza roval for the exterior wall...

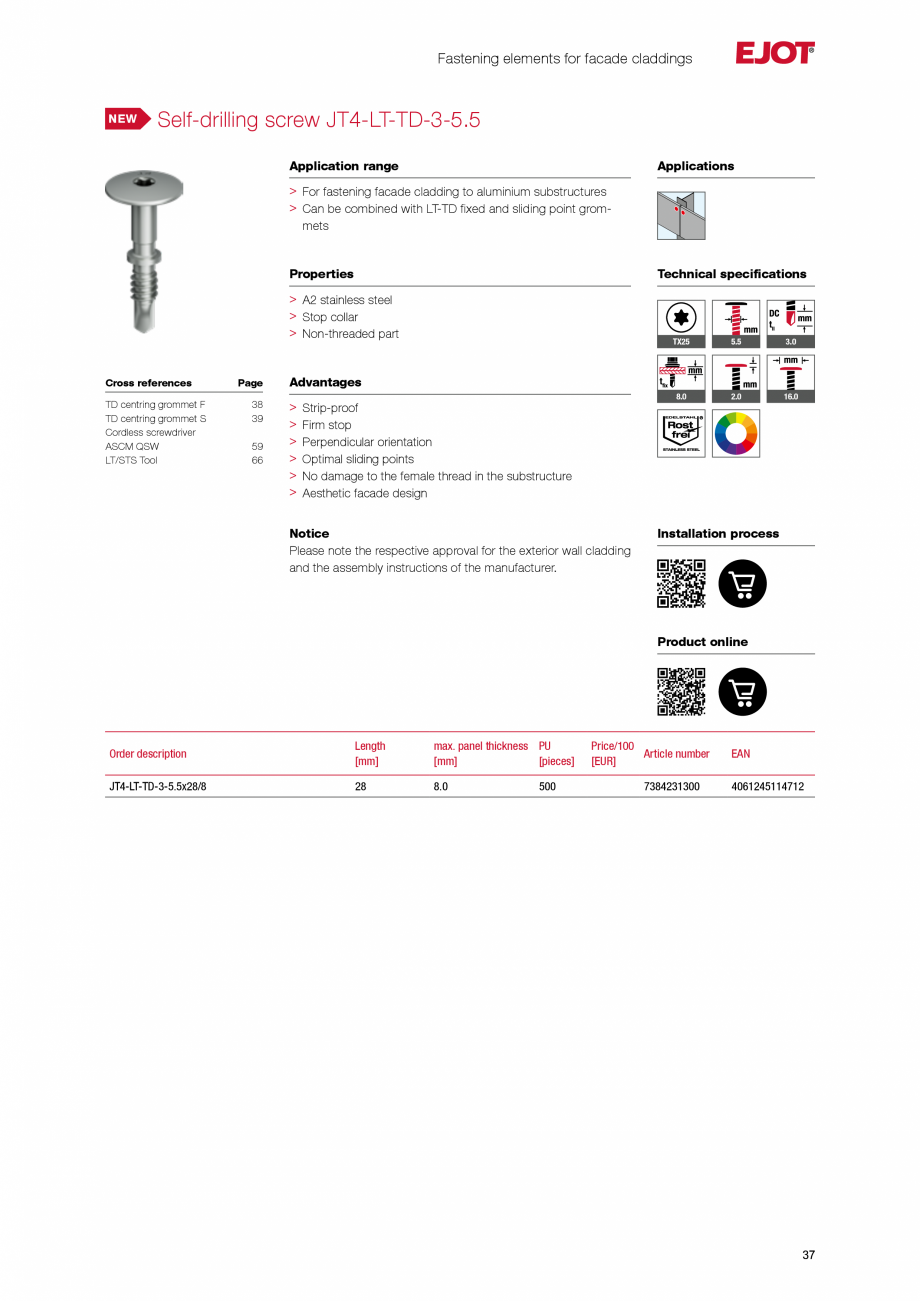

Pagina 37 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza to optimised free...

to optimised free spin zone Regulated by the building authorities in test certificate P-S 18 0447 Easy removal of protective film Centering grommet collar protects the facade cladding surface from scratches No rivet installation gauge or drilling gauge necessary Non-threaded part under the screw head allows an intentional further rotation of the screw head after connecting surface Notice Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. 6.0 Certifications Z-10.3-701 MITSUBISHI Z-10.3-774 3A composites P-S 18 0447 Installation process Product online Order description Length [mm] max. panel thickness PU [mm] [pieces] JT4-LT-XT-3H/6-5.5x25 KD16 25 4.0 500 Price/100 Article number [EUR] 7384216300 EAN 4061245073132 33 Fastening elements for facade claddings XT centring grommets F (fixed point) Application range Applications > F or fastening facade claddings in combination with LT-XT screws with

Pagina 37-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza to optimised free
spin zone...

Pagina 38 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza head diameter 16 ...

head diameter 16 mm > To form fixed points Properties Cross references JT4-LT-XT-3H/4-5.5xL JT4-LT-XT-3H/6-5.5xL Cordless screwdriver ASCM QSW LT-XT Tool TX25 Product online Order description Page 32 33 59 67 > Grey coloured plastic > UV-resistant Advantages > A ll holes in the facade cladding are produced with the same diameter (11 mm), which can be done efficiently at the shop floor > No rivet installation gauge, no drilling gauge necessary > Fast assembly in combination with LT-XT screws > Easily revisionable panel fastening > The 0.5 collar of the grommet prevents direct contact between screw head and panel surface > The hole in the middle serves for the centred positioning of the screw Notice Usability of grommets and LT-XT screws must be agreed with the respective panel manufacturer. Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. Internal hole diameter [mm] EJOT XT centring grommet Ø 11/4 F 5.8

Pagina 38-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza head diameter 16 mm
> To form...

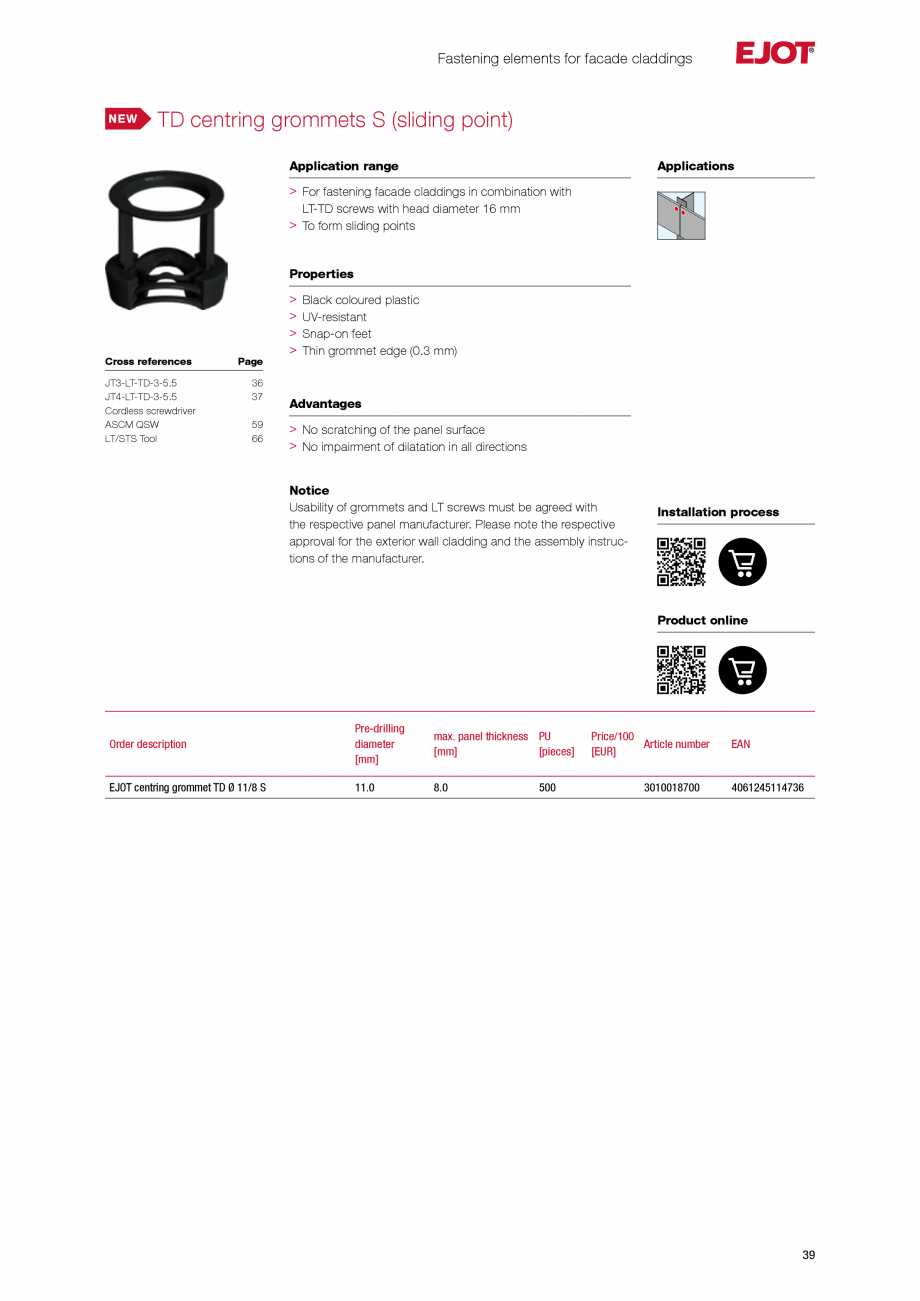

Pagina 39 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza
34

Pre-drilling...

34 Pre-drilling diameter [mm] max. panel thickness PU [mm] [pieces] 11.0 4.0 500 Price/100 Article number [EUR] 3010013700 EAN 4061245044552 Fastening elements for facade claddings XT centring grommets S (sliding point) Application range Applications > F or fastening facade claddings in combination with LT-XT screws with head diameter 16 mm > To form sliding points Properties Cross references JT4-LT-XT-3H/4-5.5xL JT4-LT-XT-3H/6-5.5xL Cordless screwdriver ASCM QSW LT-XT Tool TX25 Page 32 33 59 67 > Black coloured plastic > UV-resistant Advantages > A ll holes in the facade cladding are produced with the same diameter (11 mm), which can be done efficiently at the shop floor > No rivet installation gauge, no drilling gauge necessary > Fast assembly in combination with LT-XT screws > Easily revisionable panel fastening > The 0.5 collar of the grommet prevents direct contact between screw head and panel surface > The hole in the middle serves for the centred positio

Pagina 39-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza
34

Pre-drilling
diameter...

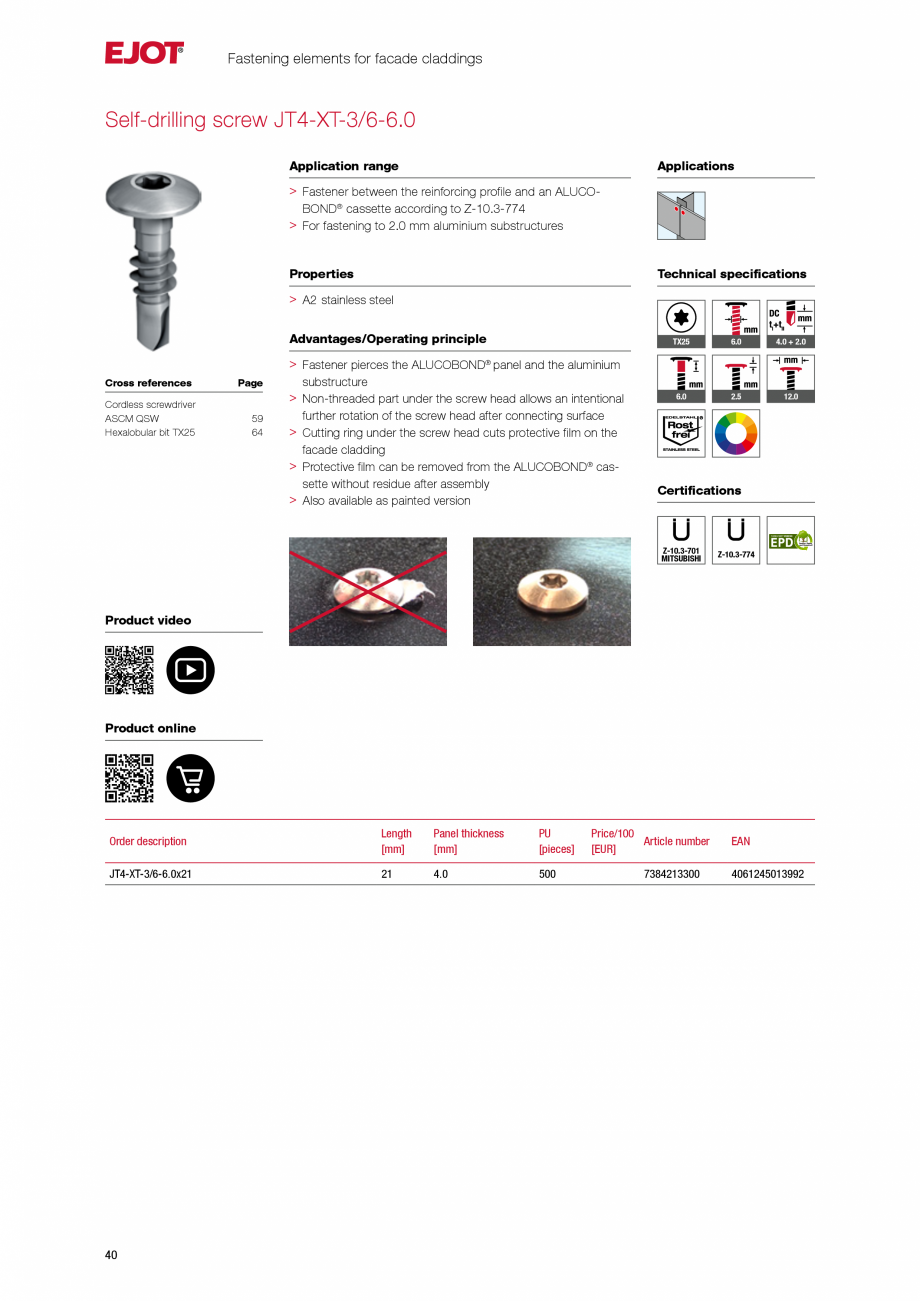

Pagina 40 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ning of the
screw...

ning of the screw Notice Usability of grommets and LT-XT screws must be agreed with the respective panel manufacturer. Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. Order description Internal hole diameter [mm] EJOT XT centring grommet Ø 11/4 S 8.4 Pre-drilling diameter [mm] max. panel thickness PU [mm] [pieces] 11.0 4.0 500 Product online Price/100 Article number [EUR] 3010014700 EAN 4061245044545 35 Fastening elements for facade claddings NEW Self-drilling screw JT3-LT-TD-3-5.5 Application range Applications > F or fastening facade claddings to aluminium and steel substructures > Can be combined with LT-TD fixed and sliding point grommets Technical specifications Properties > A2 stainless steel > Stop collar > Non-threaded part Cross references TD centring grommet F TD centring grommet S Cordless screwdriver ASCM QSW LT/STS Tool TX25 5.5 3.0 8.0 2.0 16.0 Page 38 39 59 66 Advantages

Pagina 40-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ning of the
screw

Notice...

Pagina 41 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza
>
>
>
>
>
>
...

> > > > > > Strip-proof Firm stop Perpendicular orientation Optimal sliding points No damage to the female thread in the substructure Aesthetic facade design Installation process Notice Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. Product online Order description Length [mm] max. panel thickness PU [mm] [pieces] JT3-LT-TD-3-5.5x32/8 32 8.0 36 500 Price/100 Article number [EUR] 7384178301 EAN 4061245114705 Fastening elements for facade claddings NEW Self-drilling screw JT4-LT-TD-3-5.5 Application range Applications > F or fastening facade cladding to aluminium substructures > Can be combined with LT-TD fixed and sliding point grommets Properties Technical specifications > A2 stainless steel > Stop collar > Non-threaded part Cross references TD centring grommet F TD centring grommet S Cordless screwdriver ASCM QSW LT/STS Tool Page 38 39 59 66 TX25 5.5 3.0 8.0 2.0 16.0 Advantages >

Pagina 41-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza
>
>
>
>
>
>

Strip-proof...

Pagina 42 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza >
>
>
>
>
...

> > > > > Strip-proof Firm stop Perpendicular orientation Optimal sliding points No damage to the female thread in the substructure Aesthetic facade design Notice Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. Installation process Product online Order description Length [mm] max. panel thickness PU [mm] [pieces] JT4-LT-TD-3-5.5x28/8 28 8.0 500 Price/100 Article number [EUR] 7384231300 EAN 4061245114712 37 Fastening elements for facade claddings NEW TD centring grommets F (fixed point) Application range Applications > F or fastening facade claddings in combination with LT-TD screws with head diameter 16 mm > To form fixed points Properties > Red coloured plastic > UV-resistant > Centring ring Cross references JT3-LT-TD-3-5.5 JT4-LT-TD-3-5.5 Cordless screwdriver ASCM QSW LT/STS Tool Page 36 37 59 66 Installation process Advantages > Firm fit of the facade cladding > Centred positioning Notice

Pagina 42-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza >
>
>
>
>

Strip-proof
Firm...

Pagina 43 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza
Usability of...

Usability of grommets and LT screws must be agreed with the respective panel manufacturer. Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. Product online Order description Pre-drilling diameter [mm] max. panel thickness PU [mm] [pieces] EJOT centring grommet TD Ø 11/8 F 11.0 8.0 38 500 Price/100 Article number [EUR] 3010017700 EAN 4061245114729 Fastening elements for facade claddings NEW TD centring grommets S (sliding point) Application range Applications > F or fastening facade claddings in combination with LT-TD screws with head diameter 16 mm > To form sliding points Properties Cross references JT3-LT-TD-3-5.5 JT4-LT-TD-3-5.5 Cordless screwdriver ASCM QSW LT/STS Tool Page 36 37 59 66 > > > > Black coloured plastic UV-resistant Snap-on feet Thin grommet edge (0.3 mm) Advantages > No scratching of the panel surface > No impairment of dilatation in all directions Notice Usability of gromm

Pagina 43-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza
Usability of grommets and LT...

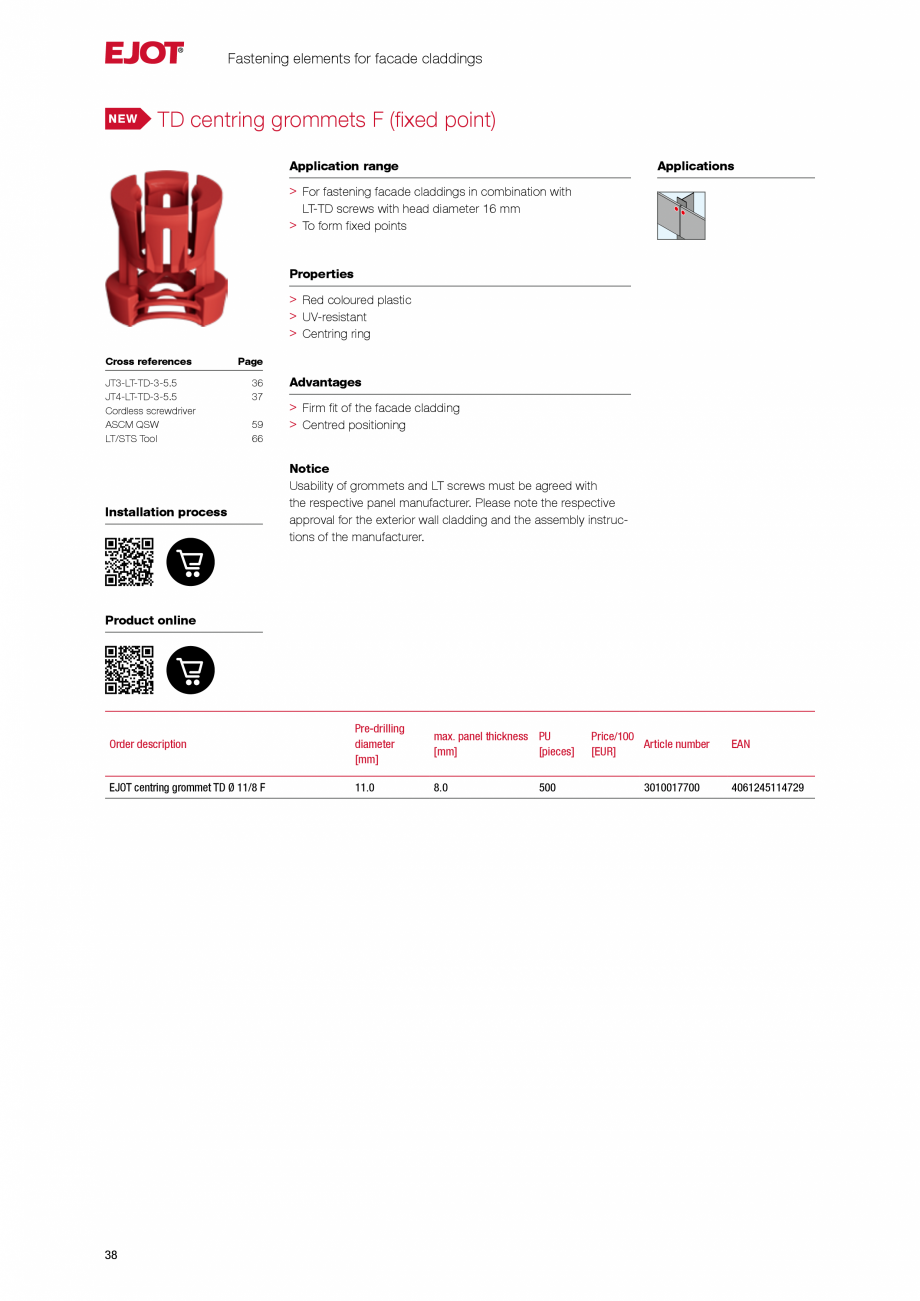

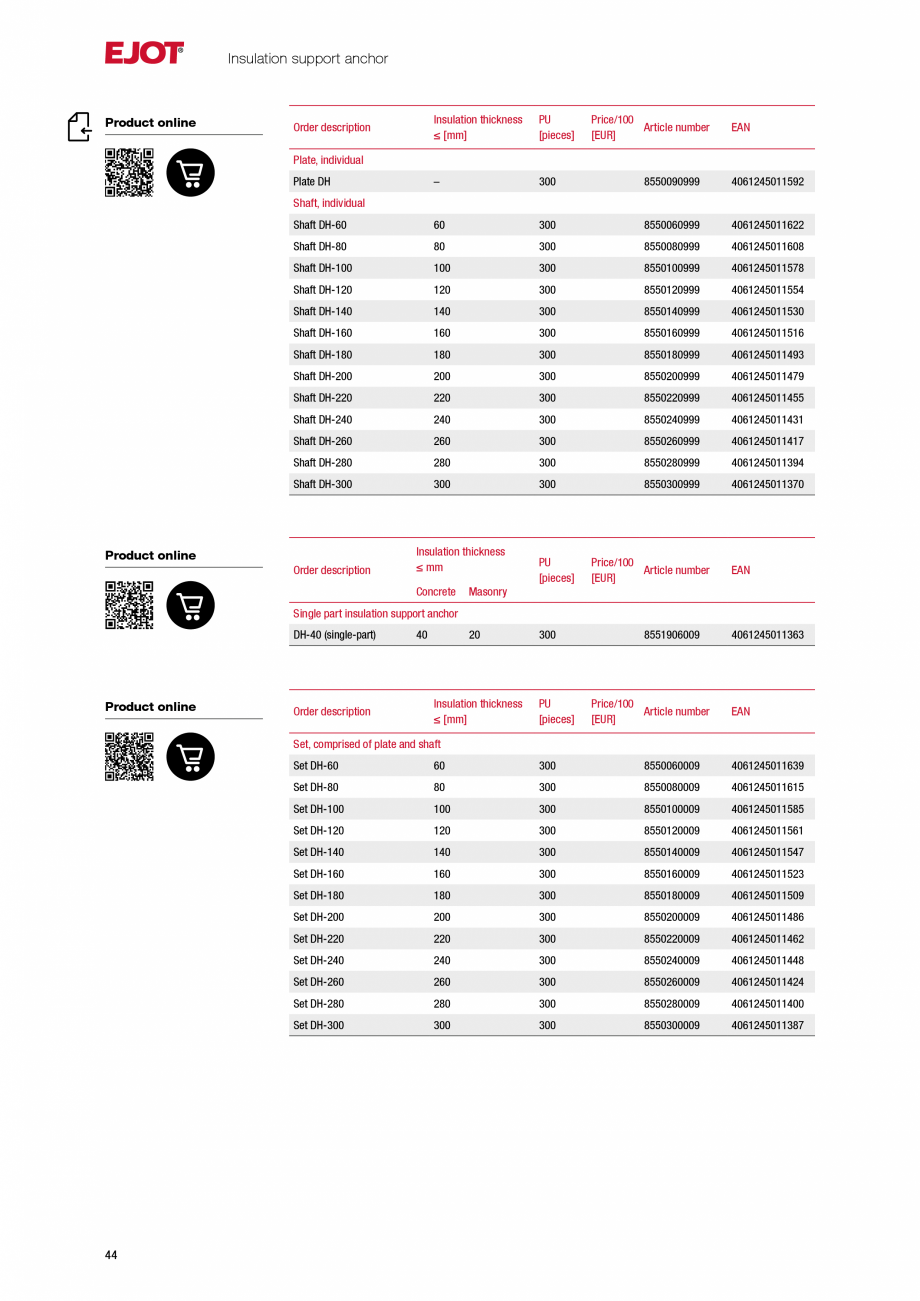

Pagina 44 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ets and LT screws...

ets and LT screws must be agreed with the respective panel manufacturer. Please note the respective approval for the exterior wall cladding and the assembly instructions of the manufacturer. Installation process Product online Order description Pre-drilling diameter [mm] max. panel thickness PU [mm] [pieces] EJOT centring grommet TD Ø 11/8 S 11.0 8.0 500 Price/100 Article number [EUR] 3010018700 EAN 4061245114736 39 Fastening elements for facade claddings Self-drilling screw JT4-XT-3/6-6.0 Application range Applications > F astener between the reinforcing profile and an ALUCOBOND® cassette according to Z-10.3-774 > For fastening to 2.0 mm aluminium substructures Properties Technical specifications > A2 stainless steel Advantages/Operating principle Cross references Cordless screwdriver ASCM QSW Hexalobular bit TX25 Page 59 64 > F astener pierces the ALUCOBOND® panel and the aluminium substructure > Non-threaded part under the screw head allows an intentio

Pagina 44-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ets and LT screws must be...

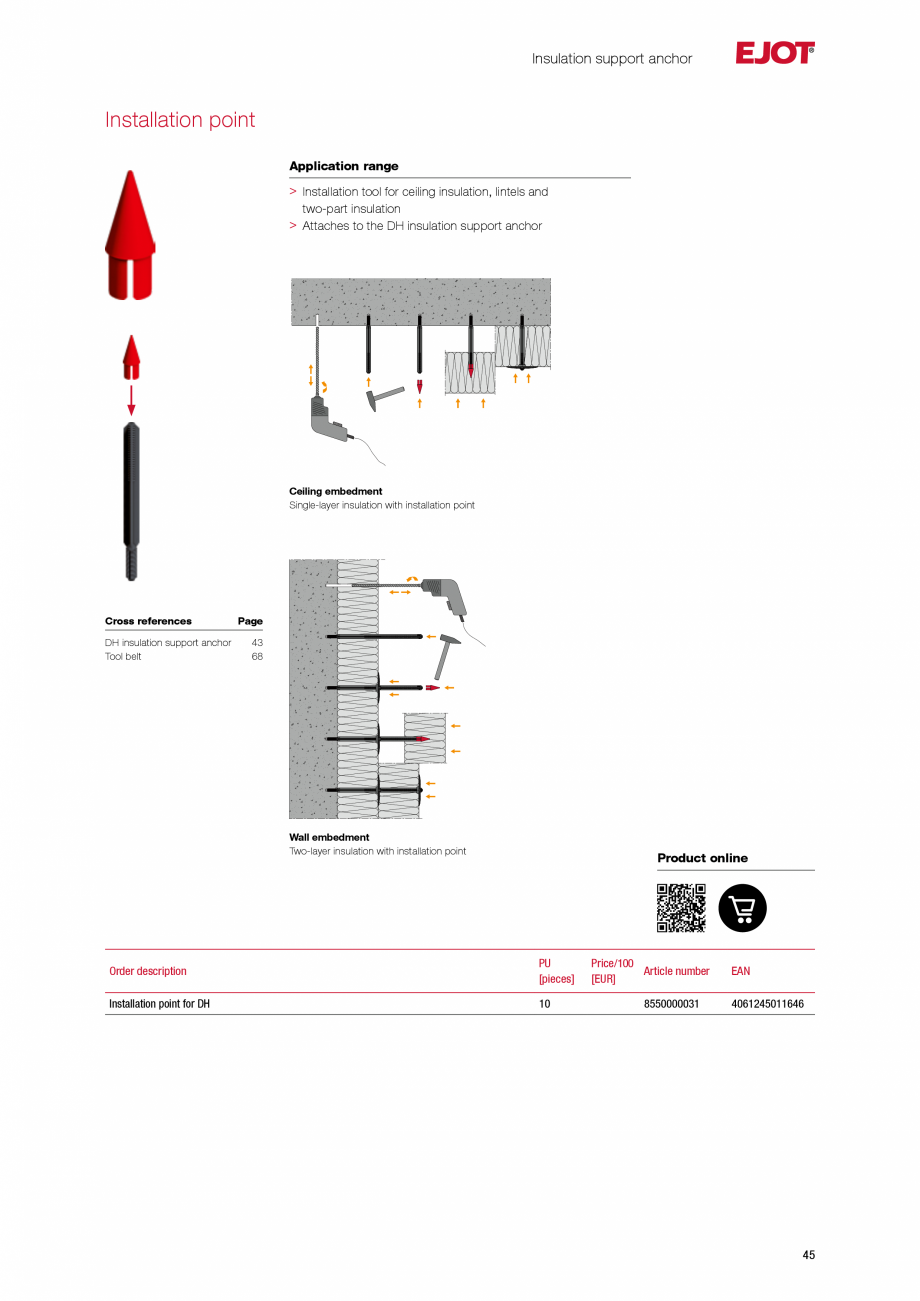

Pagina 45 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza nal
further...

nal further rotation of the screw head after connecting surface > Cutting ring under the screw head cuts protective film on the facade cladding > Protective film can be removed from the ALUCOBOND® cassette without residue after assembly > Also available as painted version TX25 6.0 4.0 + 2.0 6.0 2.5 12.0 Certifications Z-10.3-701 MITSUBISHI Z-10.3-774 Product video Product online Order description Length [mm] Panel thickness [mm] PU [pieces] JT4-XT-3/6-6.0x21 21 4.0 500 40 Price/100 Article number [EUR] 7384213300 EAN 4061245013992 Fastening elements for facade claddings Self-drilling screw JT4-FR-2H/6-4.8 Application range Applications > F astener for ALUCOBOND® external wall cladding according to Z-10.3-774 > For fastening to 2 mm aluminium substructures, without forcing tension Technical specifications Properties > A2 stainless steel > With centring grommet to form sliding points TX25 4.8 4.0 + 2.0 6.0 2.0 12.0 Advantages > C entred drillin

Pagina 45-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza nal
further rotation of the...

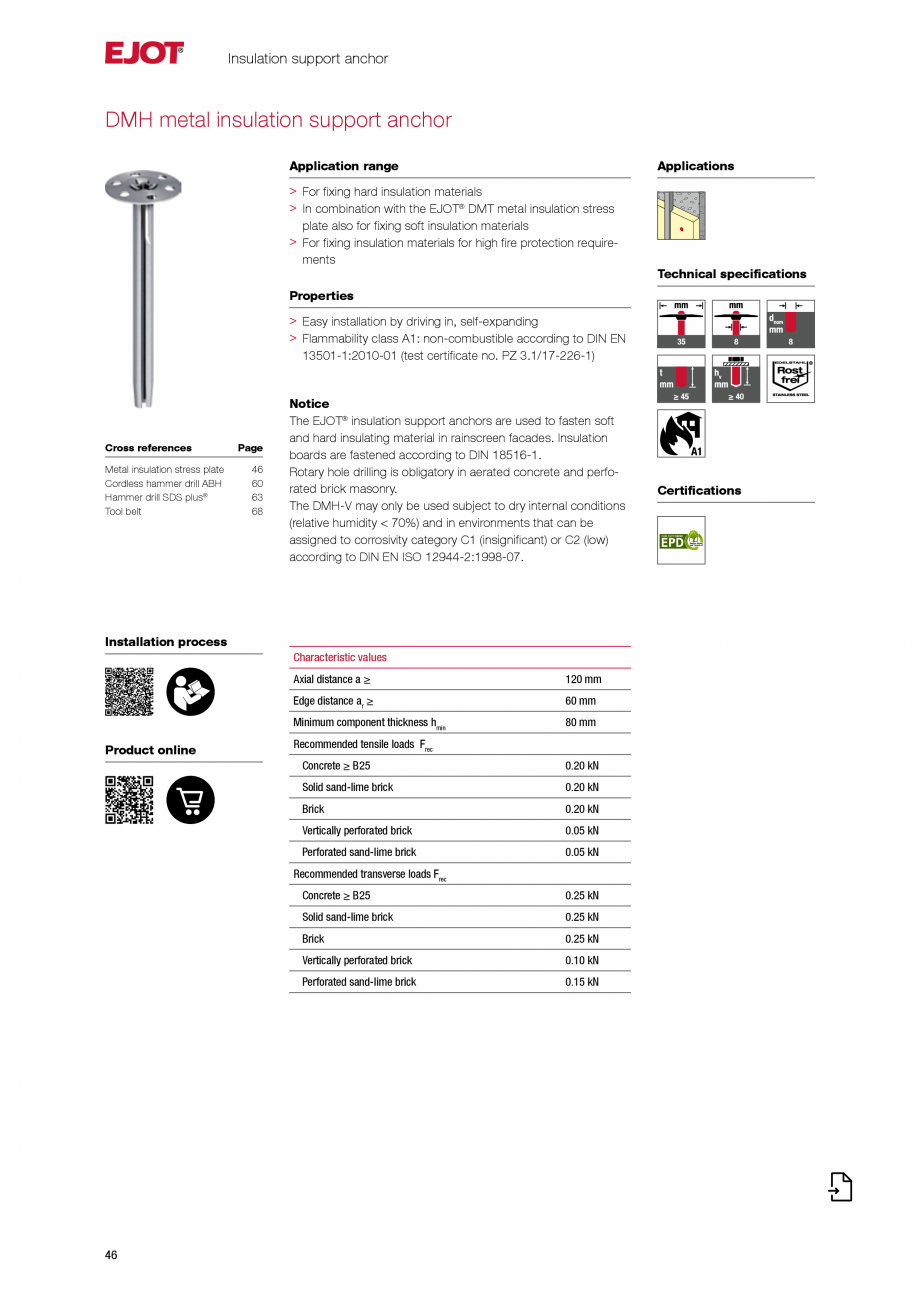

Pagina 46 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza g and...

g and simultaneous fastening of the facade cladding to the substructure > No pre-drilling of the substructure > Non-threaded part under the screw head allows an intentional further rotation of the screw head after connecting surface > Also available as painted version Cross references Cordless screwdriver ASCM QSW Hexalobular bit TX25 Page 59 64 Notice We recommend the tapered special bit hexalobular TX25W-1/4“/Cx25 for force fit in the fastener head. To form fixed points, we recommend pre-drilling a Ø 4.0 mm hole in the panel. The ideal pre-drilling diameter for the centring grommet is 8.5 mm. A smaller diameter may be useful for on-site drilling. We recommend carrying out tests in advance. Certifications Z-10.3-774 Product online Order description Length [mm] Panel thickness PU [mm] [pieces] 22 4.0 Price/100 Article number [EUR] EAN Self-drilling screw JT4-FR-2H/6-4.8x22 1000 7384170300 4061245014050 A4 stainless steel available upon request Self-drilling screw J

Pagina 46-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza g and simultaneous fastening ...

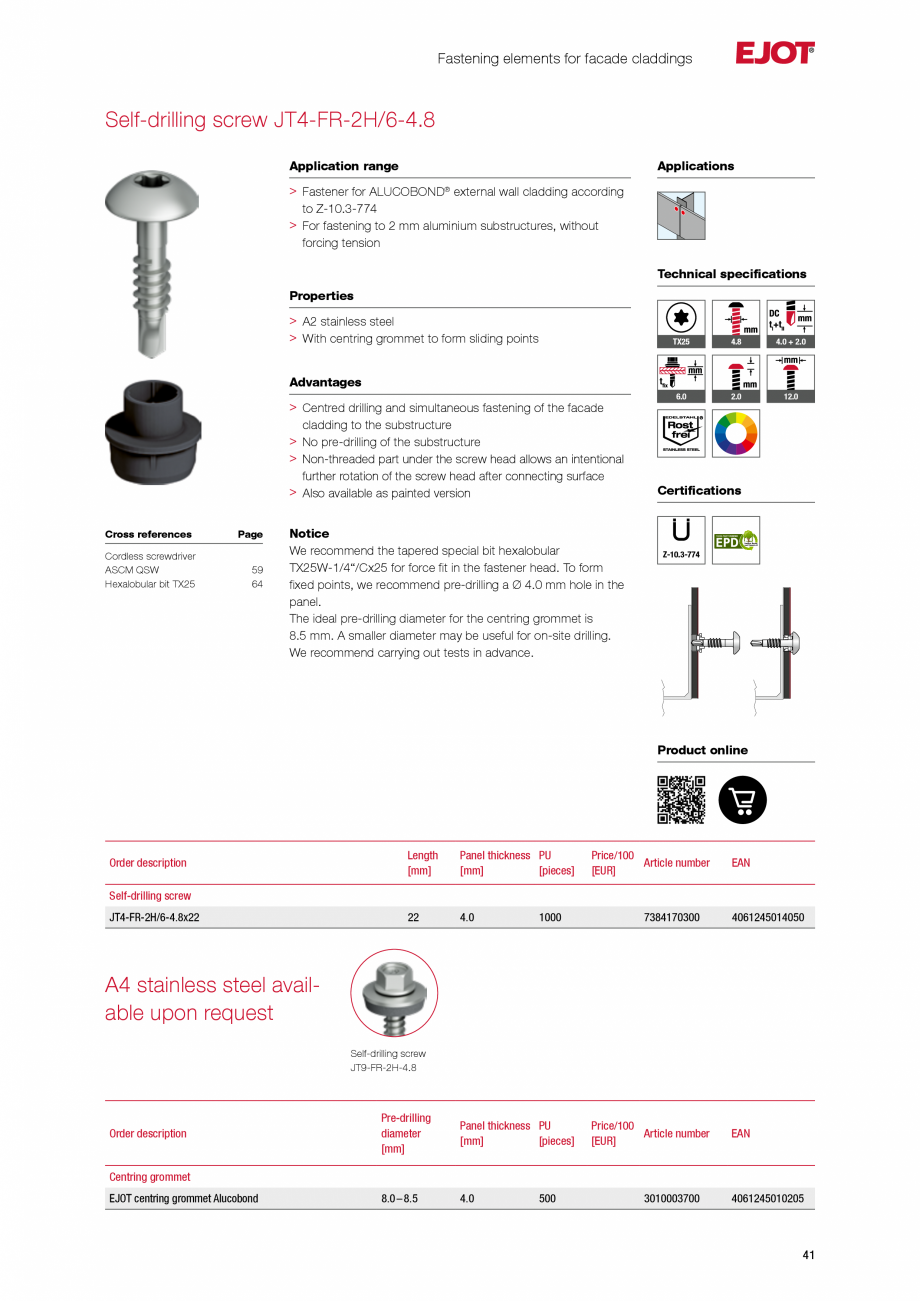

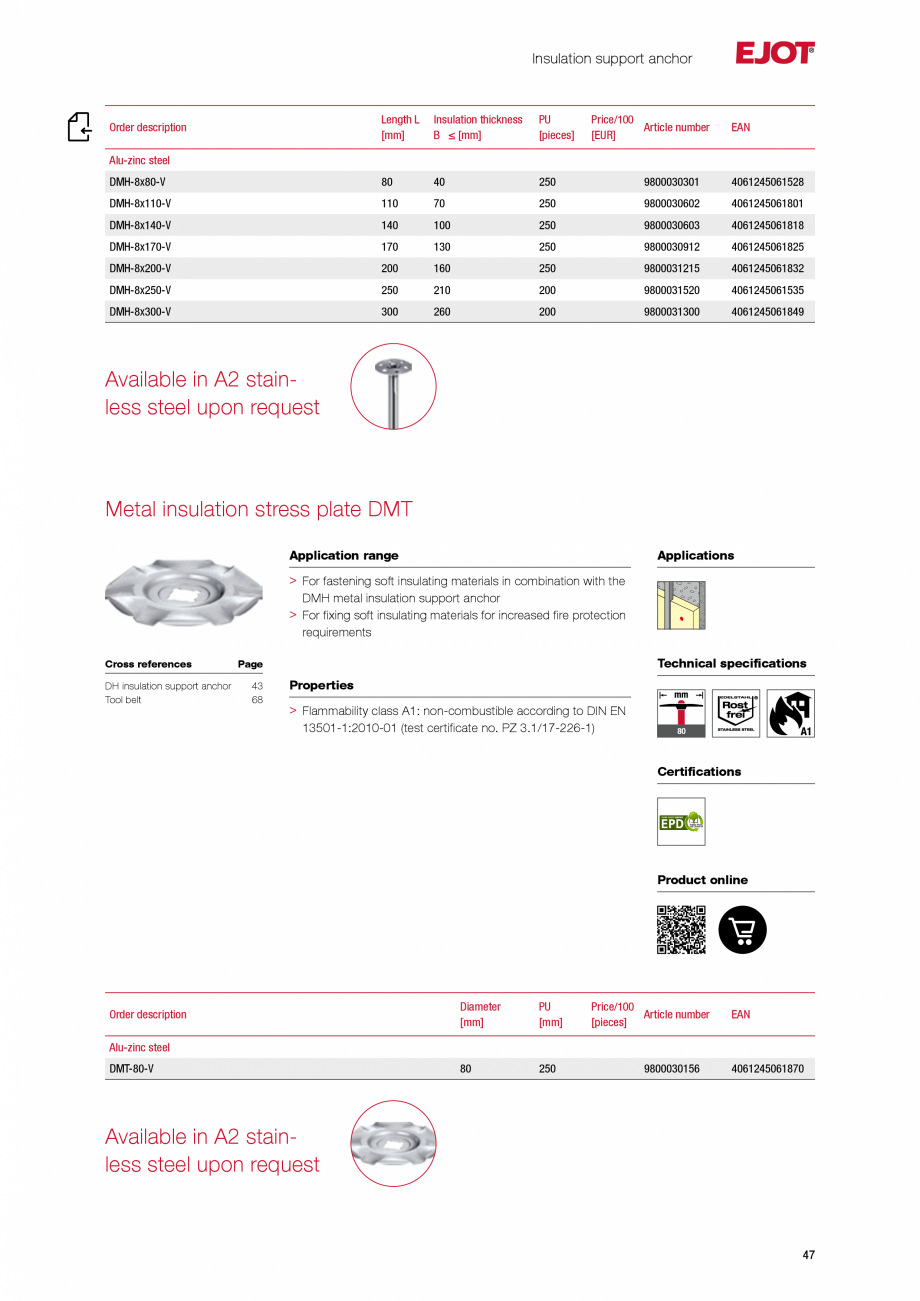

Pagina 47 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza T9-FR-2H-4.8
...

T9-FR-2H-4.8 Order description Pre-drilling diameter [mm] Panel thickness PU [mm] [pieces] 8.0 – 8.5 4.0 Price/100 Article number [EUR] EAN Centring grommet EJOT centring grommet Alucobond 500 3010003700 4061245010205 41 Fastening elements for facade claddings Blind rivet ECORIV® aluminium / stainless steel Application range Applications > F or fastening to steel and aluminium substructures > To form sliding points on aluminium substructures > Fastening of Puricelli HPL facade cladding to aluminium substructures (only blind rivet ECORIV AL/E 5.0x16.0 K16) Technical specifications Properties > > > > Cross references Cordless riveter ECORIV Facade nosepiece Precision drill bit HSS Rivet body made of aluminium (Al) Mandrel made of stainless steel (E) Captive locked Large head, open Page 61 61 62 Notice Building authorities-approved rivets according to Z-14.1-4 available upon request. 5.0 2.7 14.0 5.1 Certifications ETA-22/0641 l+1 Product online k 1.5

Pagina 47-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza T9-FR-2H-4.8

Order...

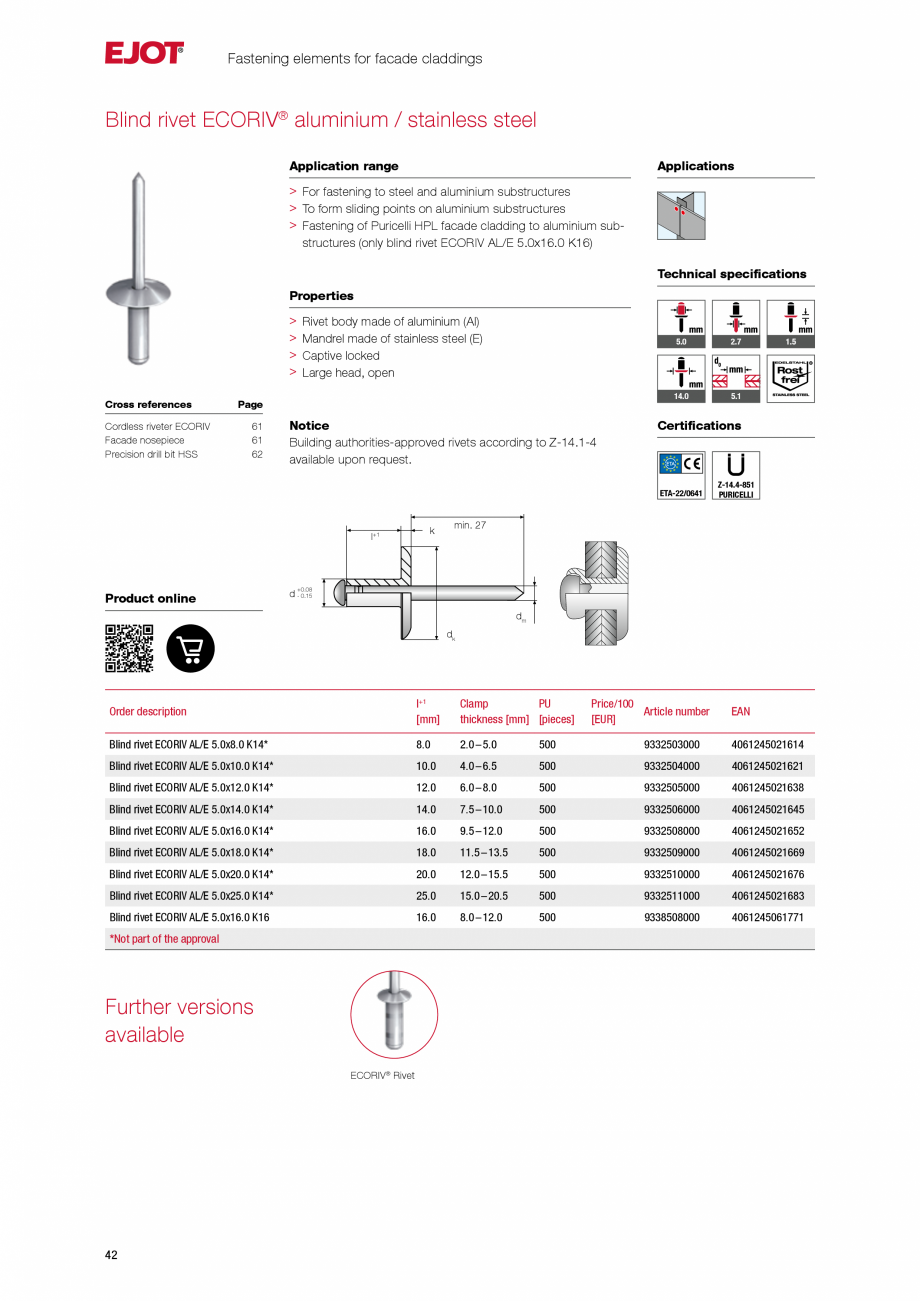

Pagina 48 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza Z-14.4-851...

Z-14.4-851 PURICELLI min. 27 + 0.08 d - 0.15 dm dk Order description l+1 [mm] Clamp PU thickness [mm] [pieces] Blind rivet ECORIV AL/E 5.0x8.0 K14* 8.0 2.0 – 5.0 500 9332503000 4061245021614 Blind rivet ECORIV AL/E 5.0x10.0 K14* 10.0 4.0 – 6.5 500 9332504000 4061245021621 Blind rivet ECORIV AL/E 5.0x12.0 K14* 12.0 6.0 – 8.0 500 9332505000 4061245021638 Blind rivet ECORIV AL/E 5.0x14.0 K14* 14.0 7.5 – 10.0 500 9332506000 4061245021645 Blind rivet ECORIV AL/E 5.0x16.0 K14* 16.0 9.5 – 12.0 500 9332508000 4061245021652 Blind rivet ECORIV AL/E 5.0x18.0 K14* 18.0 11.5 – 13.5 500 9332509000 4061245021669 Blind rivet ECORIV AL/E 5.0x20.0 K14* 20.0 12.0 – 15.5 500 9332510000 4061245021676 Blind rivet ECORIV AL/E 5.0x25.0 K14* 25.0 15.0 – 20.5 500 9332511000 4061245021683 Blind rivet ECORIV AL/E 5.0x16.0 K16 16.0 8.0 – 12.0 500 9338508000 4061245061771 *Not part of the approval Further versions available ECORIV® Riv

Pagina 48-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza Z-14.4-851
PURICELLI

min. 27...

Pagina 49 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza et

42

Price/100...

et 42 Price/100 Article number [EUR] EAN Insulation support anchor DH insulation support anchor Application range Applications > F or fixing insulating material in the rainscreen facade (RVF) on all substrates Properties > > > > Requirement: 5 pcs. per m2 asy installation with no additional expansion element E Plate can be positioned individually on the shaft All-purpose for all building materials Technical specifications 90 8 ≥ 40 ≥ 30 8 Advantages Cross references Cordless hammer drill ABH Hammer drill SDS plus® Tool belt Page 60 63 68 > P revents "quilt effect" (indentations in the insulation) due to retrofitting of the plate > Prevents gaping of the joints between the individual insulating panels at the joining edges > Packing and handling volume is reduced by over 60% compared to single-part insulation support anchors > Installation depth limiter guarantees defined installation independent of the substrate > Process-reliable installation even with

Pagina 49-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza et

42

Price/100
Article...

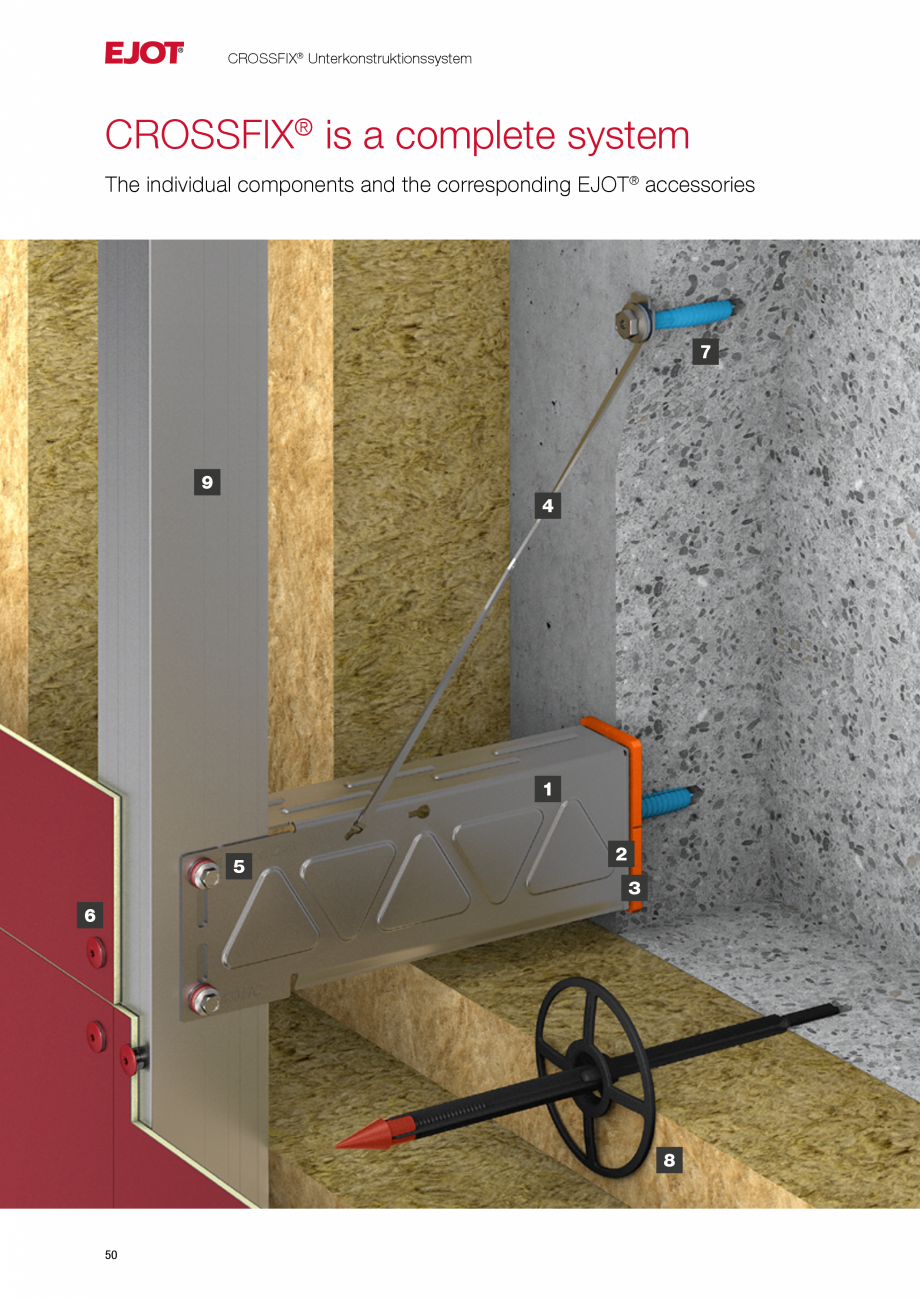

Pagina 50 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza thick insulation...

thick insulation boards Certifications Notice For the installation of two-part insulation, additional stress plates are required. The feasibility depends on the respective insulation properties and needs to be tested on site. Rotary hole drilling is obligatory in aerated concrete and perforated brick masonry. Characteristic values Point-based thermal transmittance χ 0.0001 W/K Carrying capacity (pull over washer) 0.2 kN Wall embedment Single-layer insulation acking and handling volume is reduced by over 60% compared to single-part P insulation support anchors 43 Insulation support anchor Product online Order description Insulation thickness ≤ [mm] PU [pieces] – 300 8550090999 4061245011592 60 300 8550060999 4061245011622 Price/100 Article number [EUR] EAN Plate, individual Plate DH Shaft, individual Shaft DH-60 Shaft DH-80 80 300 8550080999 4061245011608 Shaft DH-100 100 300 8550100999 4061245011578 Shaft DH-120 120 300 8550120999 4061245

Pagina 50-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza thick insulation boards
...

Pagina 51 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza 011554

Shaft...

011554 Shaft DH-140 140 300 8550140999 4061245011530 Shaft DH-160 160 300 8550160999 4061245011516 Shaft DH-180 180 300 8550180999 4061245011493 Shaft DH-200 200 300 8550200999 4061245011479 Shaft DH-220 220 300 8550220999 4061245011455 Shaft DH-240 240 300 8550240999 4061245011431 Shaft DH-260 260 300 8550260999 4061245011417 Shaft DH-280 280 300 8550280999 4061245011394 Shaft DH-300 300 300 8550300999 4061245011370 Product online Order description Insulation thickness ≤ mm Concrete PU [pieces] Price/100 Article number [EUR] EAN Masonry Single part insulation support anchor DH-40 (single-part) Product online Order description 40 20 Insulation thickness ≤ [mm] 300 PU [pieces] 8551906009 Price/100 Article number [EUR] 4061245011363 EAN Set, comprised of plate and shaft 44 Set DH-60 60 300 8550060009 4061245011639 Set DH-80 80 300 8550080009 4061245011615 Set DH-100 100 300 8550100009 4061245011585 Set D

Pagina 51-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza 011554

Shaft DH-140

140
...

Pagina 52 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza H-120

120

300

...

H-120 120 300 8550120009 4061245011561 Set DH-140 140 300 8550140009 4061245011547 Set DH-160 160 300 8550160009 4061245011523 Set DH-180 180 300 8550180009 4061245011509 Set DH-200 200 300 8550200009 4061245011486 Set DH-220 220 300 8550220009 4061245011462 Set DH-240 240 300 8550240009 4061245011448 Set DH-260 260 300 8550260009 4061245011424 Set DH-280 280 300 8550280009 4061245011400 Set DH-300 300 300 8550300009 4061245011387 Insulation support anchor Installation point Application range > Installation tool for ceiling insulation, lintels and two-part insulation > Attaches to the DH insulation support anchor Ceiling embedment Single-layer insulation with installation point Cross references DH insulation support anchor Tool belt Page 43 68 Wall embedment Two-layer insulation with installation point Product online Order description PU [pieces] Installation point for DH 10 Price/100 Article number [EUR] 8550000031 EAN 40

Pagina 52-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza H-120

120

300

8550120009

...

Pagina 53 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza 61245011646

45

...

61245011646 45 Insulation support anchor DMH metal insulation support anchor Application range Applications > F or fixing hard insulation materials > In combination with the EJOT® DMT metal insulation stress plate also for fixing soft insulation materials > For fixing insulation materials for high fire protection requirements Technical specifications Properties > E asy installation by driving in, self-expanding > Flammability class A1: non-combustible according to DIN EN 13501-1:2010-01 (test certificate no. PZ 3.1/17-226-1) Cross references Metal insulation stress plate Cordless hammer drill ABH Hammer drill SDS plus® Tool belt Page 46 60 63 68 Notice The EJOT® insulation support anchors are used to fasten soft and hard insulating material in rainscreen facades. Insulation boards are fastened according to DIN 18516-1. Rotary hole drilling is obligatory in aerated concrete and perforated brick masonry. The DMH-V may only be used subject to dry internal conditions (re

Pagina 53-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza 61245011646

45

Insulation ...

Pagina 54 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza lative humidity <...

lative humidity < 70%) and in environments that can be assigned to corrosivity category C1 (insignificant) or C2 (low) according to DIN EN ISO 12944-2:1998-07. Installation process Characteristic values Product online Axial distance a ≥ 120 mm Edge distance ar ≥ 60 mm Minimum component thickness hmin 80 mm Recommended tensile loads Frec Concrete ≥ B25 0.20 kN Solid sand-lime brick 0.20 kN Brick 0.20 kN Vertically perforated brick 0.05 kN Perforated sand-lime brick 0.05 kN Recommended transverse loads Frec 46 Concrete ≥ B25 0.25 kN Solid sand-lime brick 0.25 kN Brick 0.25 kN Vertically perforated brick 0.10 kN Perforated sand-lime brick 0.15 kN 35 8 ≥ 45 ≥ 40 Certifications 8 Insulation support anchor Length L [mm] Order description Insulation thickness B ≤ [mm] PU [pieces] Price/100 Article number [EUR] EAN Alu-zinc steel DMH-8x80-V 80 40 250 9800030301 4061245061528 DMH-8x110-V 110 70 250 9800030602 4061245061801 D

Pagina 54-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza lative humidity < 70%) and in...

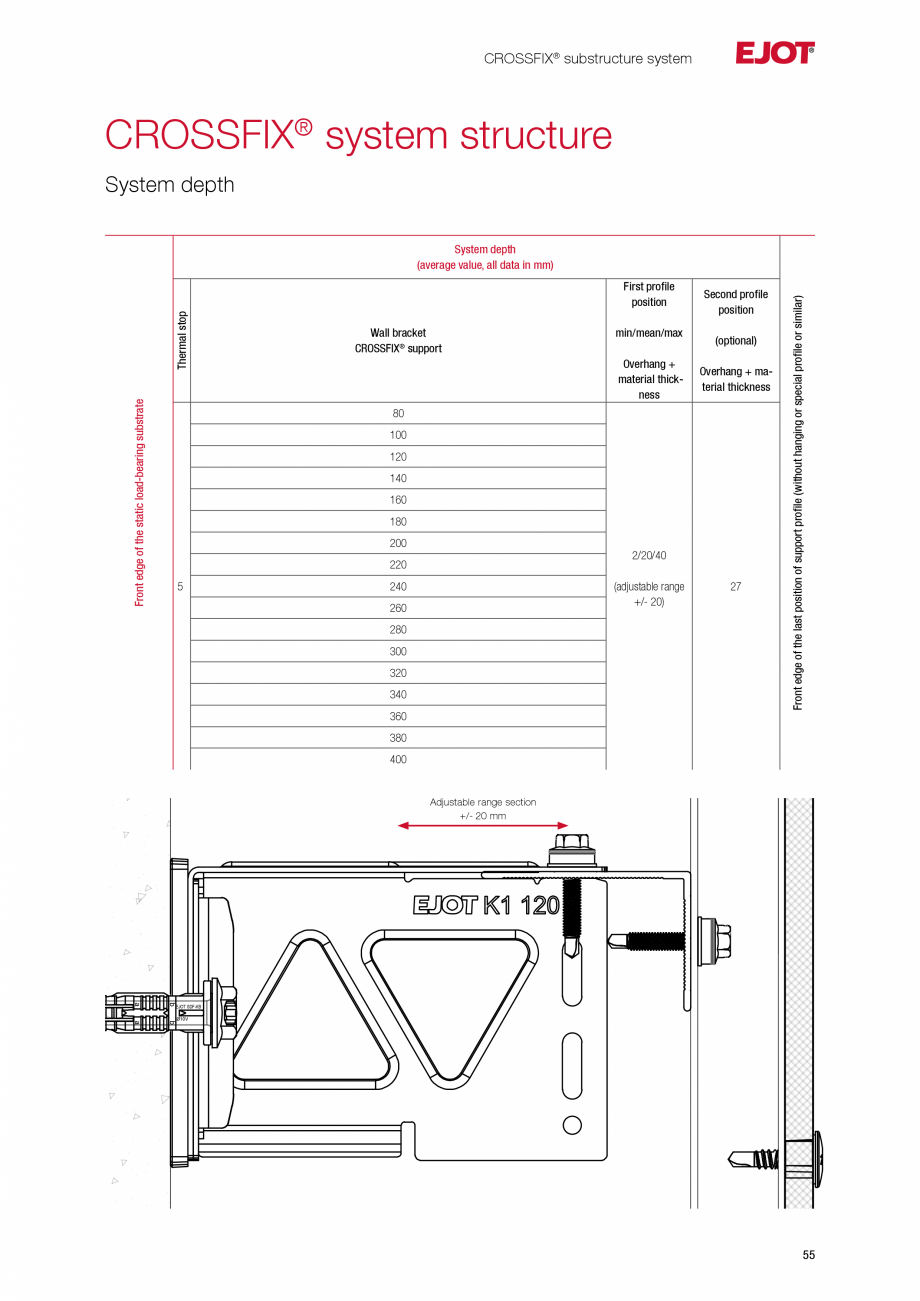

Pagina 55 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza MH-8x140-V

140

...

MH-8x140-V 140 100 250 9800030603 4061245061818 DMH-8x170-V 170 130 250 9800030912 4061245061825 DMH-8x200-V 200 160 250 9800031215 4061245061832 DMH-8x250-V 250 210 200 9800031520 4061245061535 DMH-8x300-V 300 260 200 9800031300 4061245061849 Available in A2 stainless steel upon request Metal insulation stress plate DMT Application range Applications > F or fastening soft insulating materials in combination with the DMH metal insulation support anchor > For fixing soft insulating materials for increased fire protection requirements Cross references DH insulation support anchor Tool belt Technical specifications Page 43 68 Properties > F lammability class A1: non-combustible according to DIN EN 13501-1:2010-01 (test certificate no. PZ 3.1/17-226-1) 80 Certifications Product online Order description Diameter [mm] PU [mm] 80 250 Price/100 Article number [pieces] EAN Alu-zinc steel DMT-80-V 9800030156 4061245061870 Available in A2 sta

Pagina 55-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza MH-8x140-V

140

100

250
...

Pagina 56 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza inless steel upon...

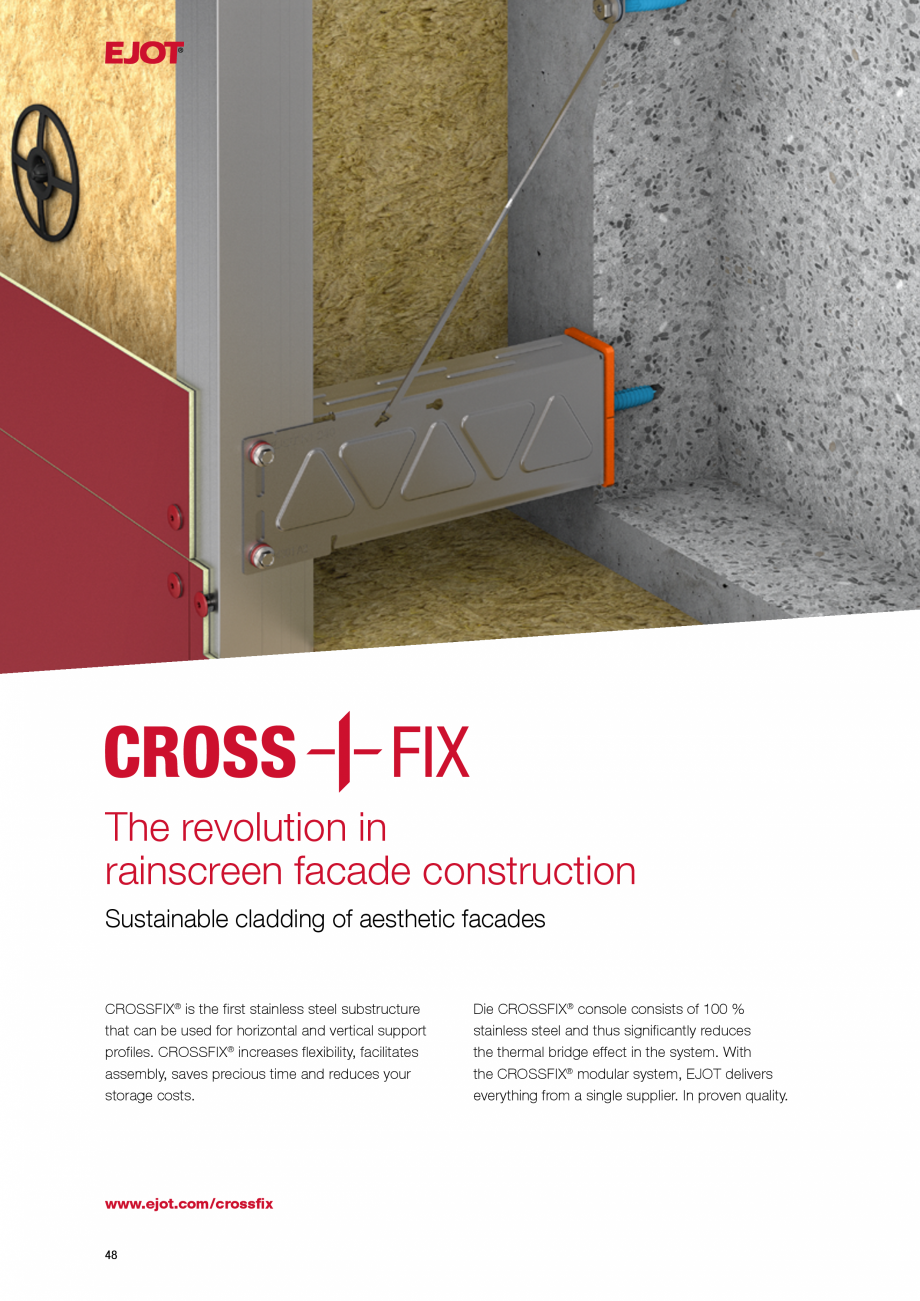

inless steel upon request 47 The revolution in rainscreen facade construction Sustainable cladding of aesthetic facades CROSSFIX® is the first stainless steel substructure that can be used for horizontal and vertical support profiles. CROSSFIX® increases flexibility, facilitates assembly, saves precious time and reduces your storage costs. www.ejot.com/crossfix 48 Die CROSSFIX® console consists of 100 % stainless steel and thus significantly reduces the thermal bridge effect in the system. With the CROSSFIX® modular system, EJOT delivers everything from a single supplier. In proven quality. CROSSFIX® substructure system CROSSFIX® is a complete system Everything from a single supplier EJOT delivers a complete substructure system for all applications including all system components, i.e. the anchoring, connecting and fastening elements. In addition to innovative products, you get technical advice as well as all necessary installation information for your project. Power k

Pagina 56-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza inless steel upon request

47...

Pagina 57 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ey

Thermal stop
...

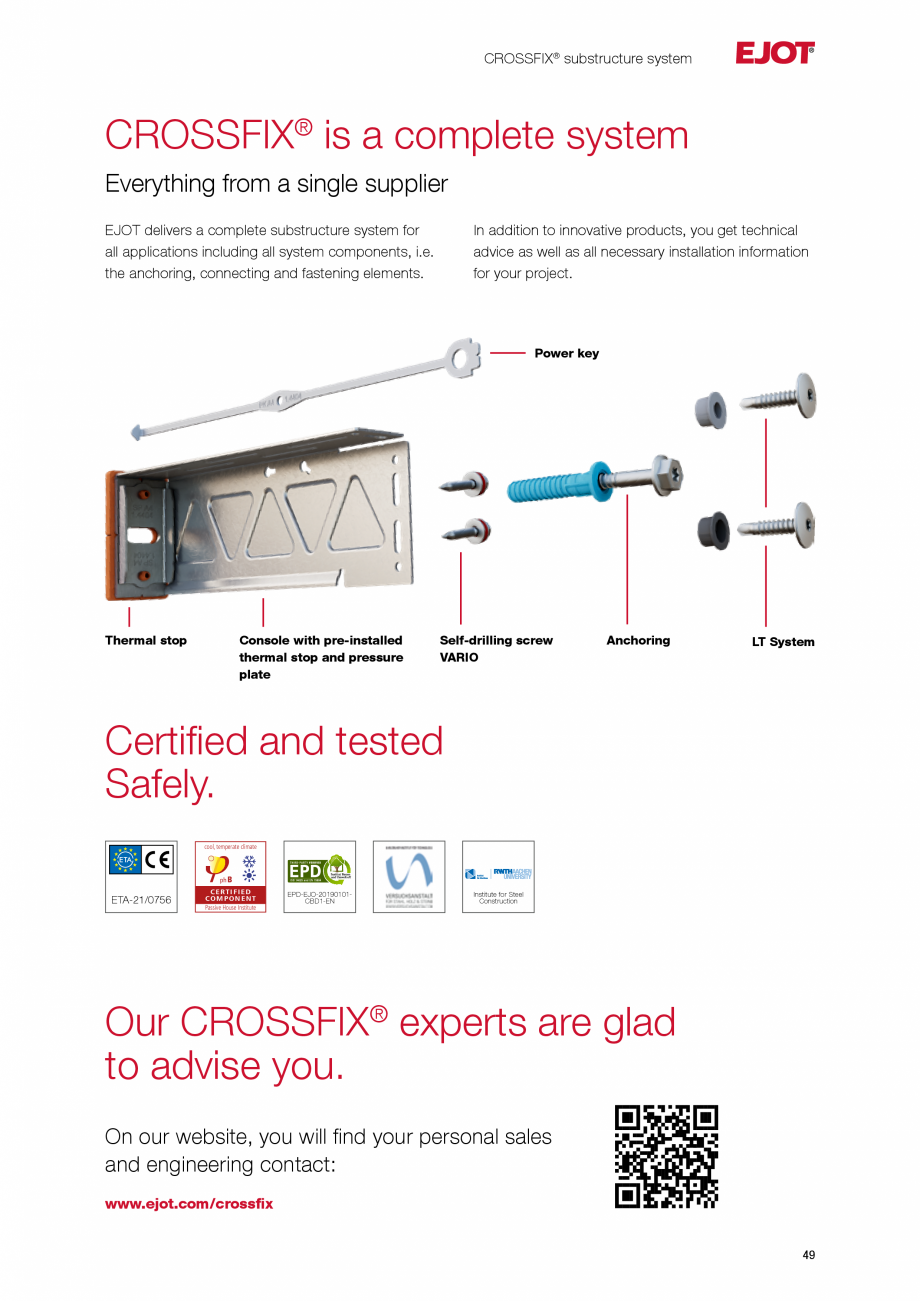

ey Thermal stop Console with pre-installed thermal stop and pressure plate Self-drilling screw VARIO Anchoring LT System Certified and tested Safely. cool, temperate climate ph B ETA-21/0756 C E RT I F I E D COMPONENT Passive House Institute EPD-EJO-20190101CBD1-EN Institute for Steel Construction Our CROSSFIX® experts are glad to advise you. On our website, you will find your personal sales and engineering contact: www.ejot.com/crossfix 49 CROSSFIX® Unterkonstruktionssystem CROSSFIX® is a complete system The individual components and the corresponding EJOT® accessories 7 9 4 1 5 2 3 6 8 50 CROSSFIX® substructure system 1 Console A4 stainless steel. Reach 40-400 mm in 20 mm steps, larger reach possible. Pressure plate and thermal stop, captive pre-assembled 4 P ower key For better load transmission 7 2 Pressure plate For a higher load impact or load bearing capacity 5 Self-drilling screw VARIO Sliding and fixed point screw including slidi

Pagina 57-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ey

Thermal stop

Console...

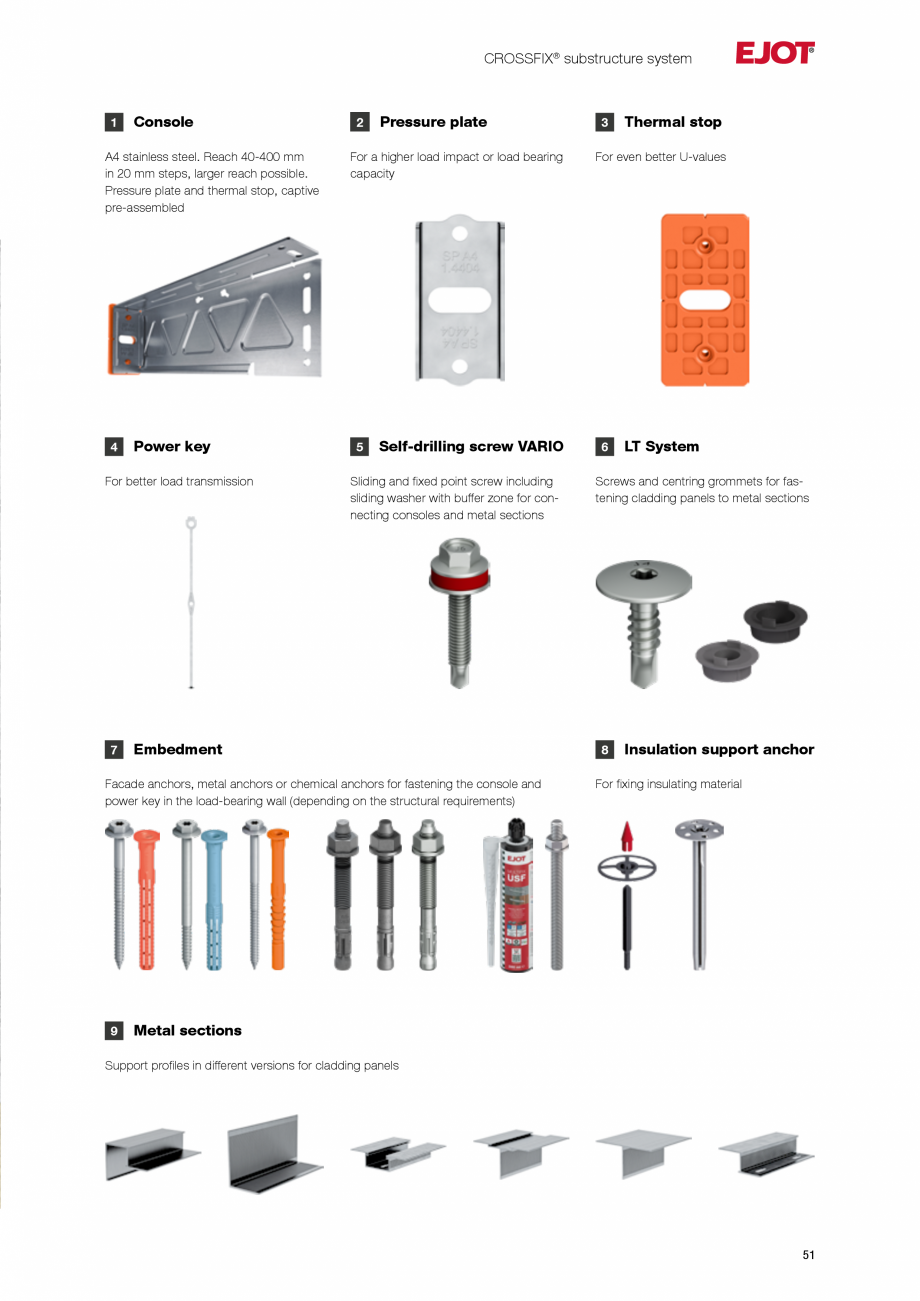

Pagina 58 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ng washer with...

ng washer with buffer zone for connecting consoles and metal sections E mbedment Facade anchors, metal anchors or chemical anchors for fastening the console and power key in the load-bearing wall (depending on the structural requirements) 9 3 T hermal stop For even better U-values 6 L T System Screws and centring grommets for fastening cladding panels to metal sections 8 Insulation support anchor For fixing insulating material Metal sections Support profiles in different versions for cladding panels 51 CROSSFIX® substructure system CROSSFIX® can be used universally A console for different assembly purposes With the CROSSFIX® console, EJOT provides a flexible solution that can be used vertically and horizontally, no matter of whether it is a fixed point or sliding point installation. This eliminates the need to install different consoles for vertical or horizontal use, which was previously the case. Vertical assembly Fixed and sliding point design for vertic

Pagina 58-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ng washer with buffer zone...

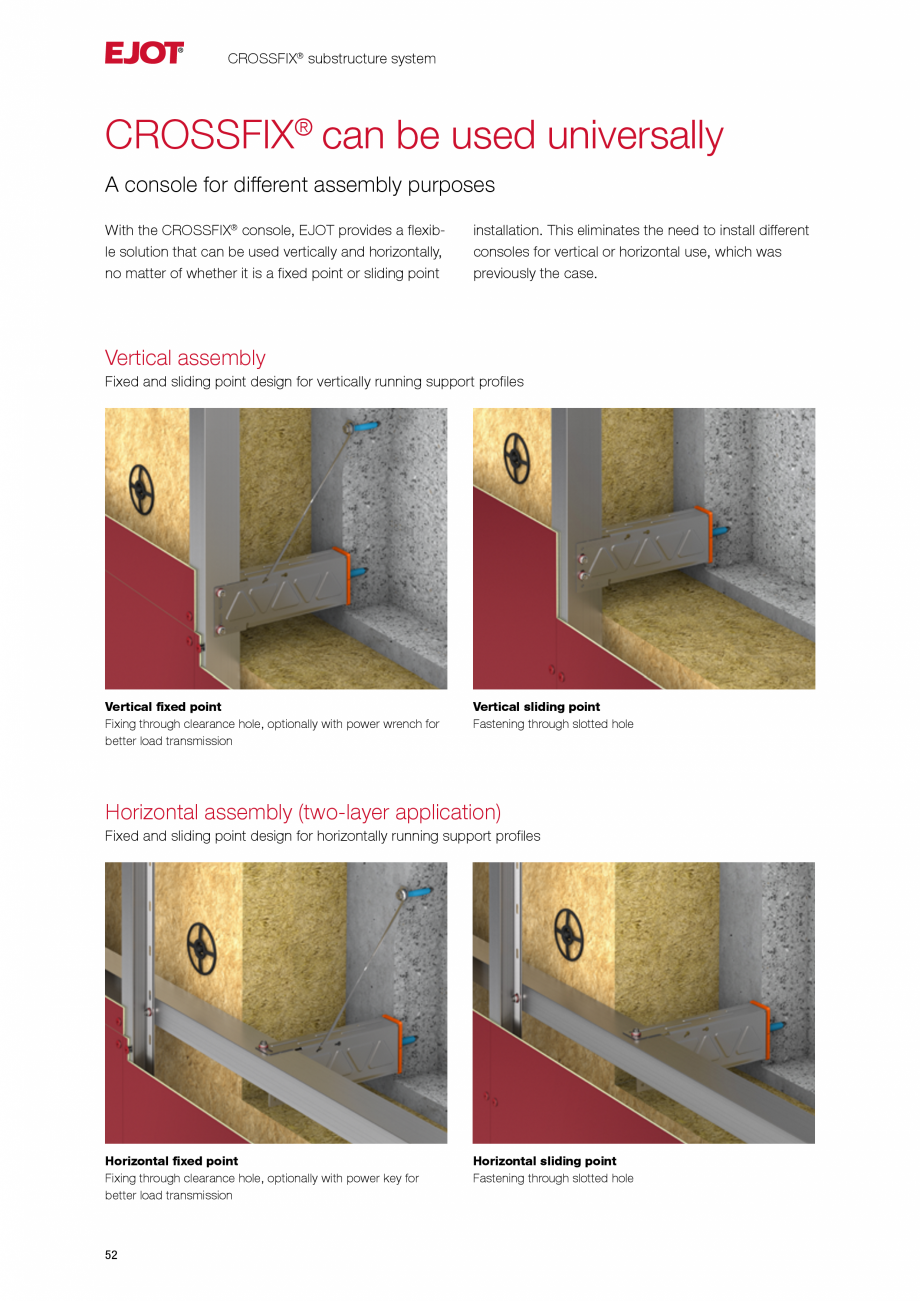

Pagina 59 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ally running...

ally running support profiles Vertical fixed point Fixing through clearance hole, optionally with power wrench for better load transmission Vertical sliding point Fastening through slotted hole Horizontal assembly (two-layer application) Fixed and sliding point design for horizontally running support profiles Horizontal fixed point Fixing through clearance hole, optionally with power key for better load transmission 52 Horizontal sliding point Fastening through slotted hole CROSSFIX® Unterkonstruktionssystem All advantages at a glance > Everything from one source EJOT supplies a complete substructure system for all applications and all necessary information for installation. > All-purpose CROSSFIX® is the console for vertical and horizontal installation and offers maximum flexibility for all applications, "no matter if fixed-point or slidingpoint installation" > CROSSFIX® is flexible and easy to install Thanks to its high flexibility, CROSSFIX® enables quick and easy proce

Pagina 59-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ally running support profiles...

Pagina 60 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ssing and, at the...

ssing and, at the same time, standard-compliant fastening options on all common surfaces (e.g. concrete, solid and perforated brick, wood and steel substructures). > CROSSFIX® has a low carbon footprint When manufacturing stainless steel, there is a more moderate amount of energy required and a considerably lower environmental pollution than when producing aluminum. > CROSSFIX® has low thermal conductivity The CROSSFIX® console is made of A2/A4 stainless steel and thus enables a significant reduction in the thermal bridge surcharge compared to aluminum. Vertical assembly > Cost-efficient "CROSSFIX® enables considerable savings in material costs and storage costs." > Fire protection The CROSSFIX® console is classified as nonflammable. > CROSSFIX® is strong and reliable Stainless steel provides higher structural stability than aluminum, which means CROSSFIX® enables higher dead load capacities. In addition, a finite element analysis guarantees an optimised load distribution. > C

Pagina 60-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ssing and, at the same time,
...

Pagina 61 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ROSSFIX® is...

ROSSFIX® is resilient to seismic activity Seismic tests confirm the dynamic load capacity of the CROSSFIX® console. > CROSSFIX® withstands high temperature The thermal expansion of aluminum is twice as great as that of steel; the melting temperature of stainless steel is more than twice as high as that of aluminum. > CROSSFIX® is an international certified system CROSSFIX® is ETA certified. This reduces the planning effort, creates cost security through clearly regulated calculation specifications and ensures more safety in the case of complaints or accidents. The CROSSFIX® console was also certified by the Passive House Institute. Horizontal assembly 53 CROSSFIX® substructure system CROSSFIX® increases energy efficiency Improved U-values thanks to stainless steel In order to reduce thermal bridges in the rainscreen facade system and thus to achieve higher energy efficiency, materials with the lowest possible thermal conductivity are recommended for facade substructures. W

Pagina 61-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza ROSSFIX® is resilient to...

Pagina 62 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza hile this is only...

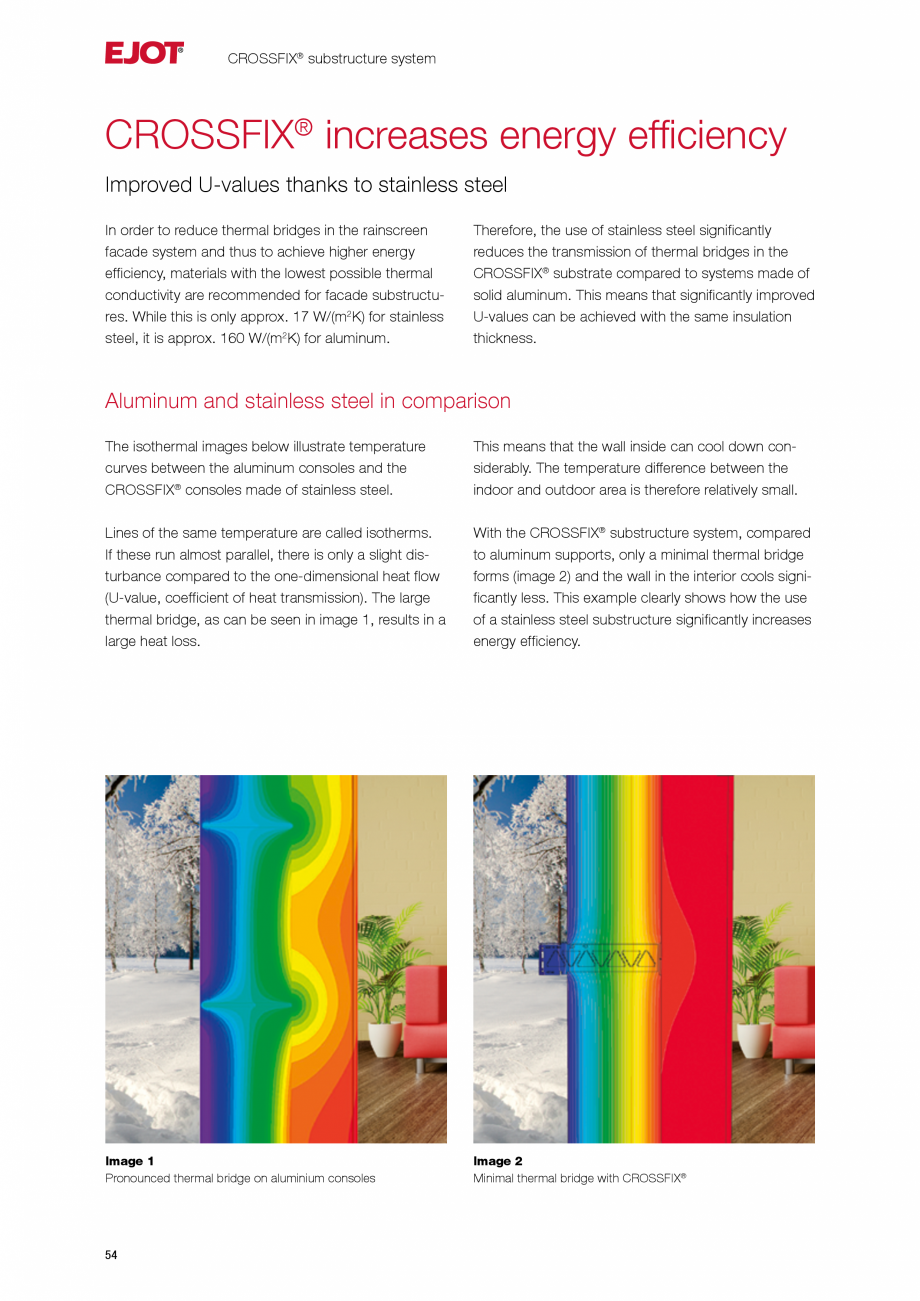

hile this is only approx. 17 W/(m2K) for stainless steel, it is approx. 160 W/(m2K) for aluminum. Therefore, the use of stainless steel significantly reduces the transmission of thermal bridges in the CROSSFIX® substrate compared to systems made of solid aluminum. This means that significantly improved U-values can be achieved with the same insulation thickness. Aluminum and stainless steel in comparison The isothermal images below illustrate temperature curves between the aluminum consoles and the CROSSFIX® consoles made of stainless steel. This means that the wall inside can cool down considerably. The temperature difference between the indoor and outdoor area is therefore relatively small. Lines of the same temperature are called isotherms. If these run almost parallel, there is only a slight disturbance compared to the one-dimensional heat flow (U-value, coefficient of heat transmission). The large thermal bridge, as can be seen in image 1, results in a large heat loss. With

Pagina 62-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza hile this is only approx. 17 ...

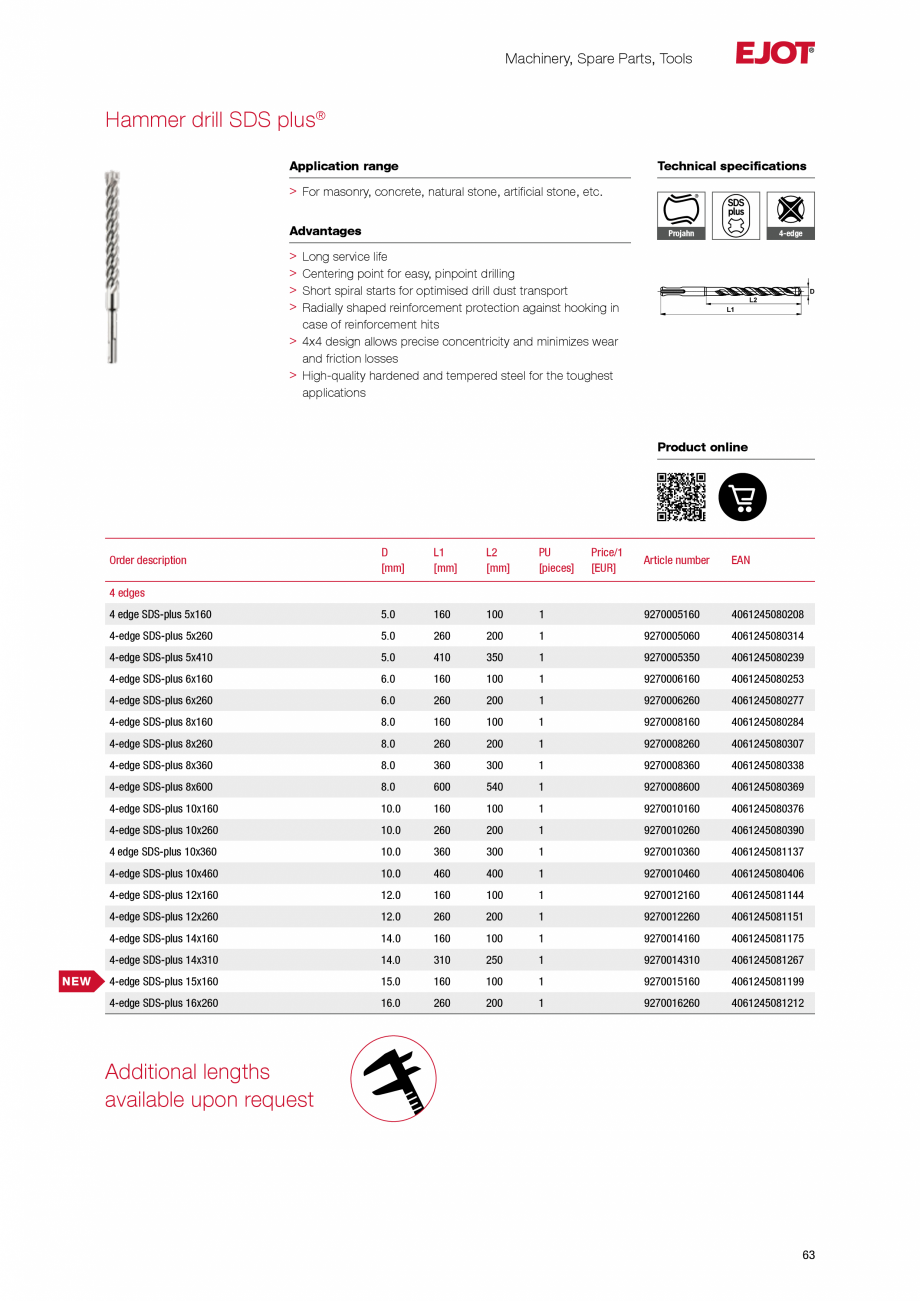

Pagina 63 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza the CROSSFIX®...

the CROSSFIX® substructure system, compared to aluminum supports, only a minimal thermal bridge forms (image 2) and the wall in the interior cools significantly less. This example clearly shows how the use of a stainless steel substructure significantly increases energy efficiency. Image 1 Pronounced thermal bridge on aluminium consoles Image 2 Minimal thermal bridge with CROSSFIX® 54 CROSSFIX® substructure system CROSSFIX® system structure System depth 5 Front edge of the static load-bearing substrate Thermal stop First profile position Wall bracket CROSSFIX® support min/mean/max Overhang + material thickness Second profile position (optional) Overhang + material thickness 80 100 120 140 120 160 180 200 2/20/40 220 5 24 27 (adjustable range +/- 20) 240 260 280 300 320 340 360 27 Front edge of the last position of support profile (without hanging or special profile or similar) System depth (average value, all data in mm) 380 400 Adjustable range section +/-

Pagina 63-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza the CROSSFIX® substructure ...

Pagina 64 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza 20 mm

b

a
...

20 mm b a EJOT SDF-KB b a Ø10V 55 CROSSFIX® substructure system Calculation example Standard system-depth console K1 with two-layer profile structure General information: The relevance of the correctly selected system depth results from the definition of the insulation thickness and the requirements for the rear ventilation crosssection. Furthermore, the choice of the correct system depth has an influence on the assembly of the support profiles. System components Depth [mm] Thermal stop 5 Console K1 120 1st profile position, angle profile, horizontal 20 2nd profile position, omega profile, vertical 27 System depth total 172 5 b a Ø10V b a 56 EJOT SDF-KB 120 20 27 CROSSFIX® substructure system The CROSSFIX® project check list In order to be able to calculate your project as best as possible, please use the CROSSFIX® project check list that is available on our website: www.ejot.com/crossfix Access the project check list via QR code Simply sca

Pagina 64-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza 20 mm

b

a

EJOT SDF-KB

b
...

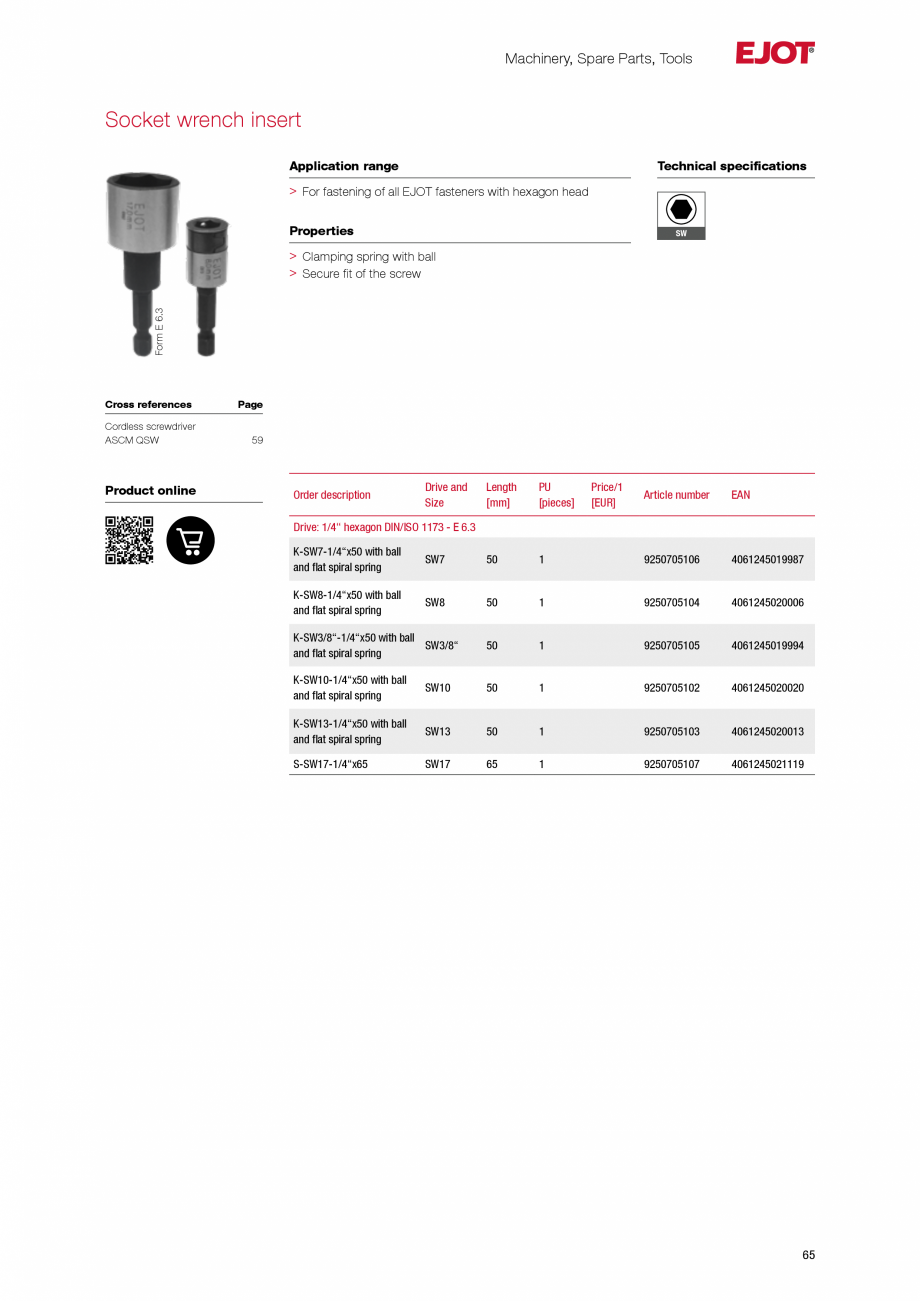

Pagina 65 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza n the QR code,...

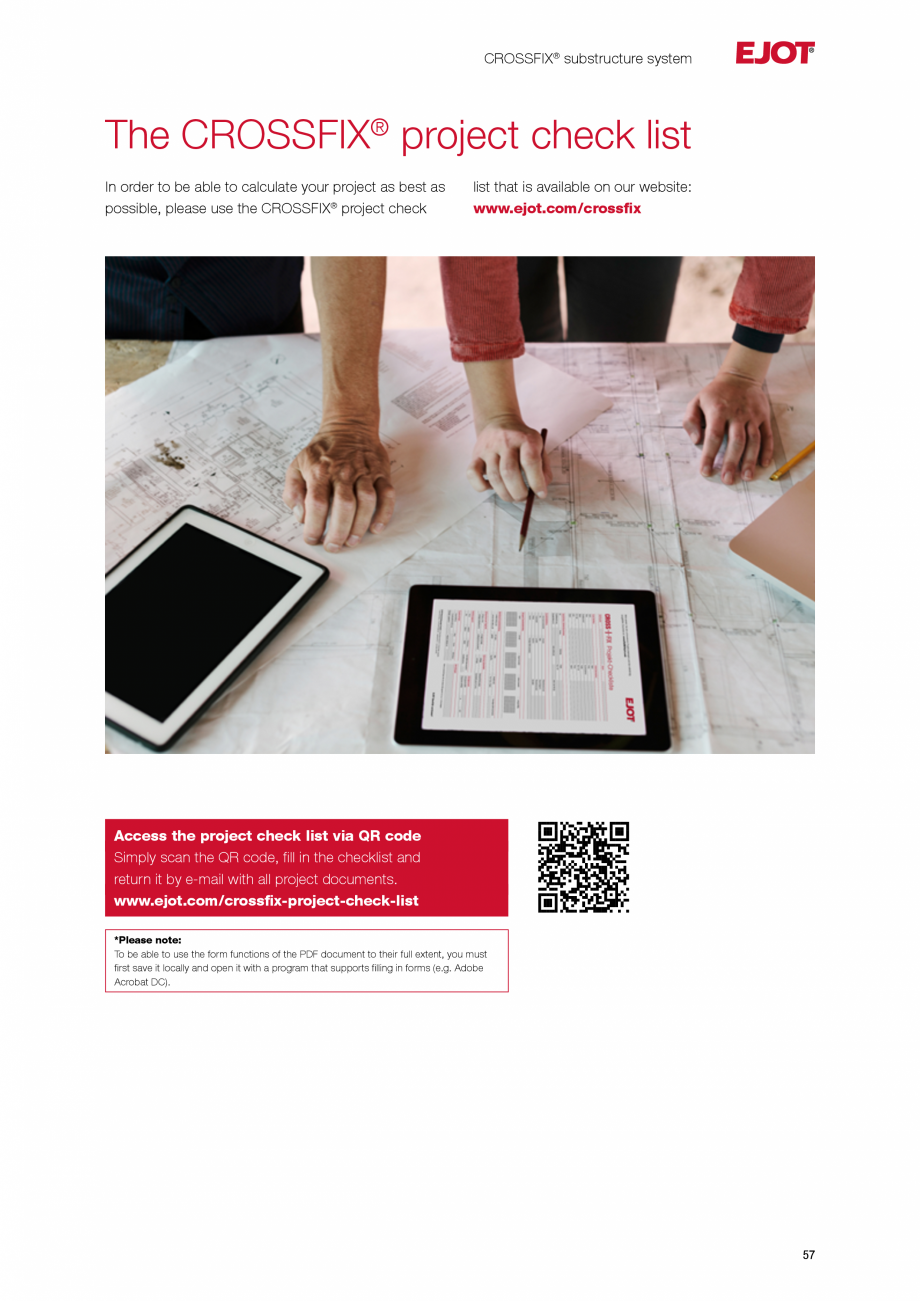

n the QR code, fill in the checklist and return it by e-mail with all project documents. www.ejot.com/crossfix-project-check-list *Please note: To be able to use the form functions of the PDF document to their full extent, you must first save it locally and open it with a program that supports filling in forms (e.g. Adobe Acrobat DC). 57 Machinery, Spare Parts, Tools Machinery Spare Parts Tools 58 Machinery, Spare Parts, Tools Cordless screwdriver ASCM 18 QSW AS Application range 3-year FEIN PLUS Warranty including battery and charger (if registered online) > T orque-optimized cordless screwgun with four gears for fixing metal with screw diameters of up to 6.0 mm Properties Scope of delivery 1 ASCM 18 QSW AS (without battery pack or battery charger) 1 plastic tool case 1 scaffolding anchor 1 socket for hexagon screws SW 8 1 removable full metal drill chuck > 4-gear full metal gear unit > Mechanical torque adjustment > Tool-free change of QuickIN attachments between a

Pagina 65-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza n the QR code, fill in the...

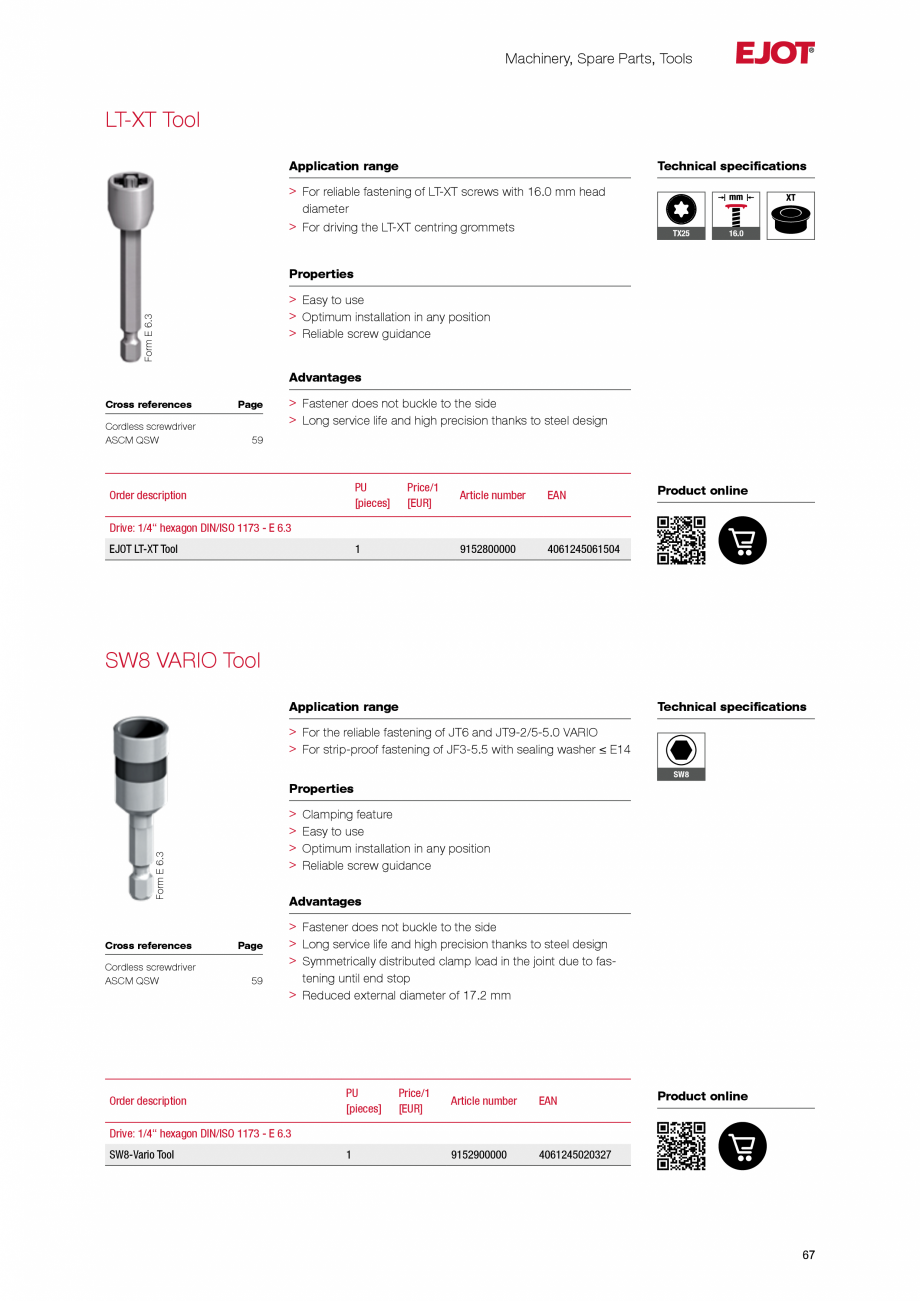

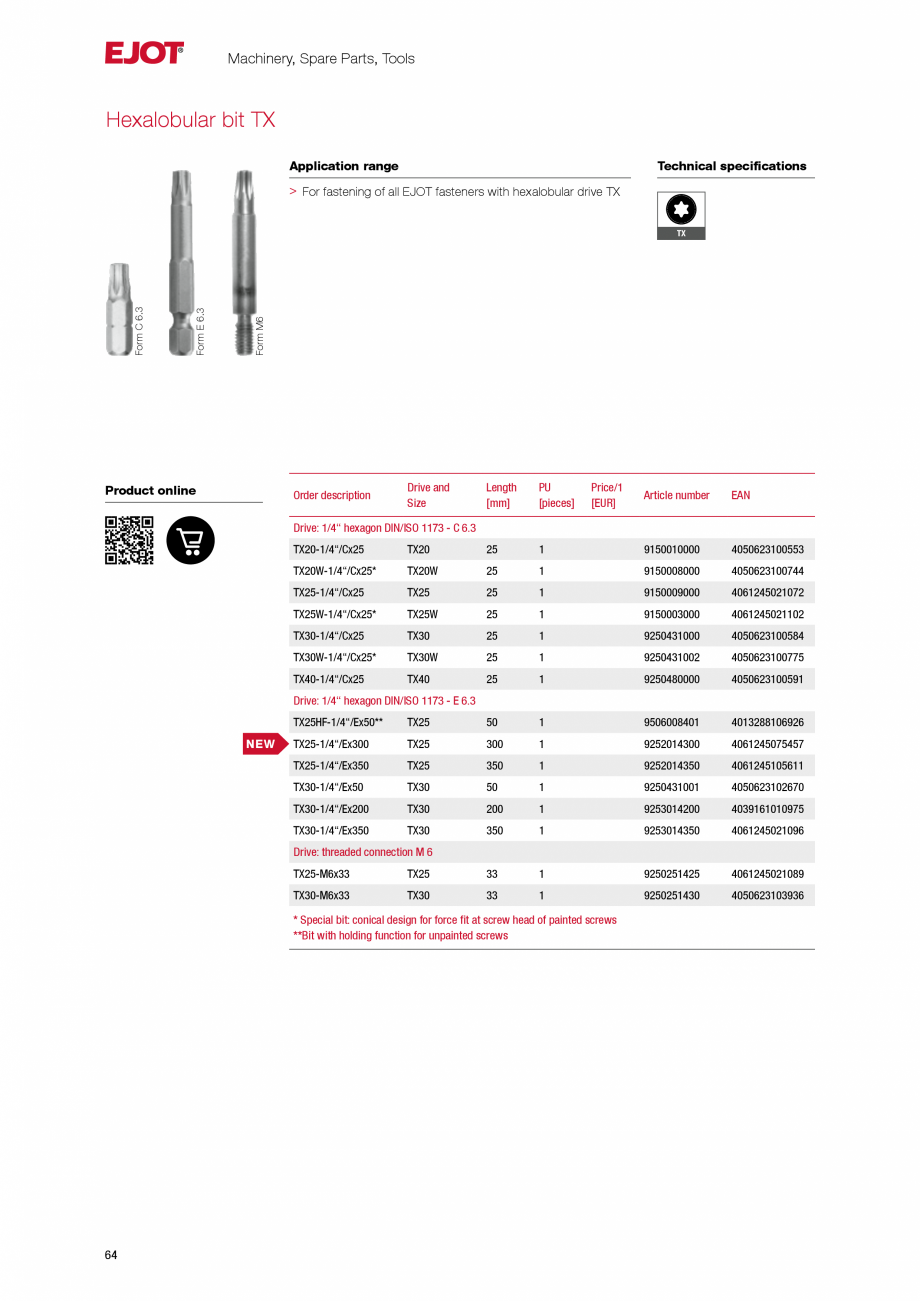

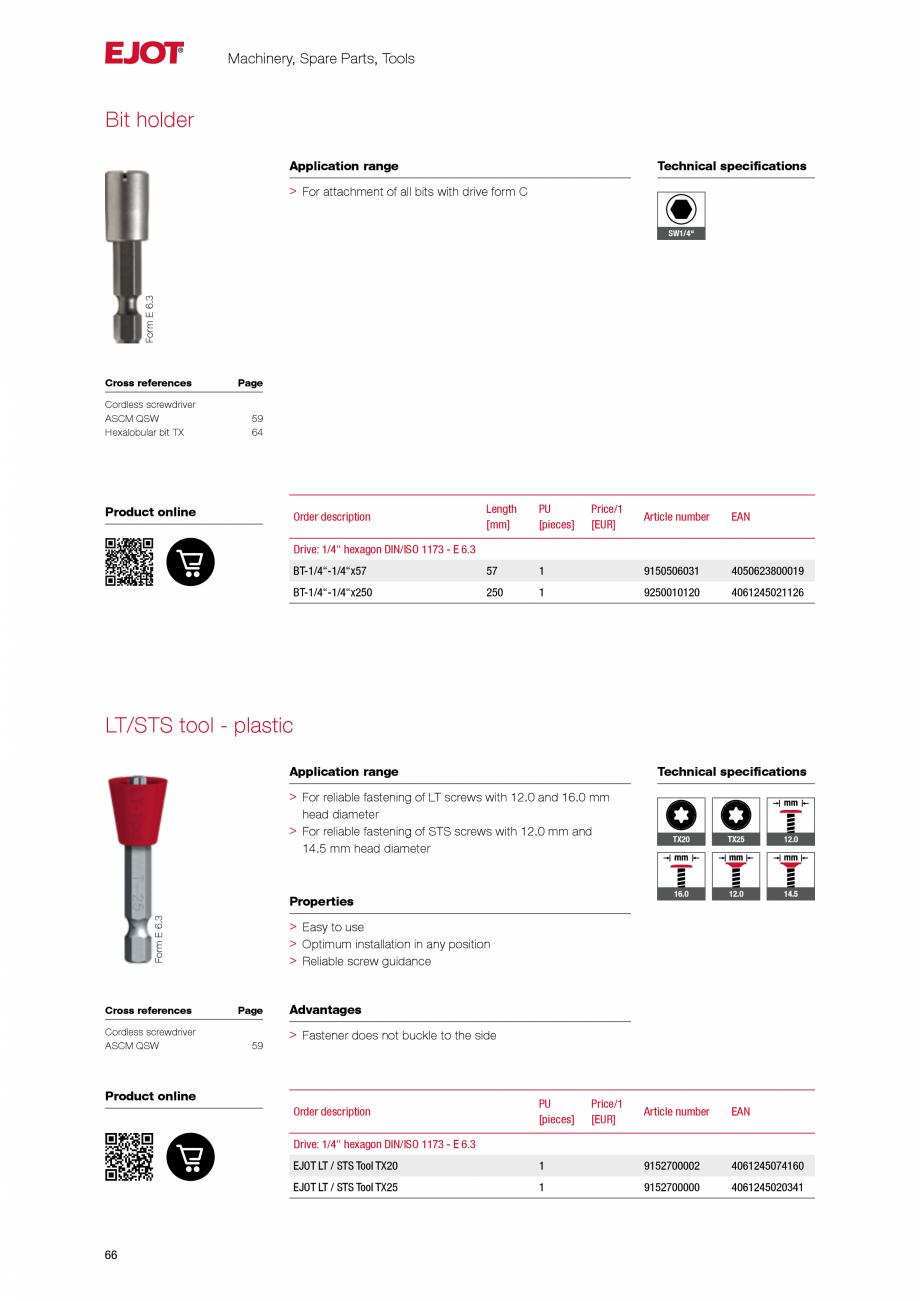

Pagina 66 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza pplications in...

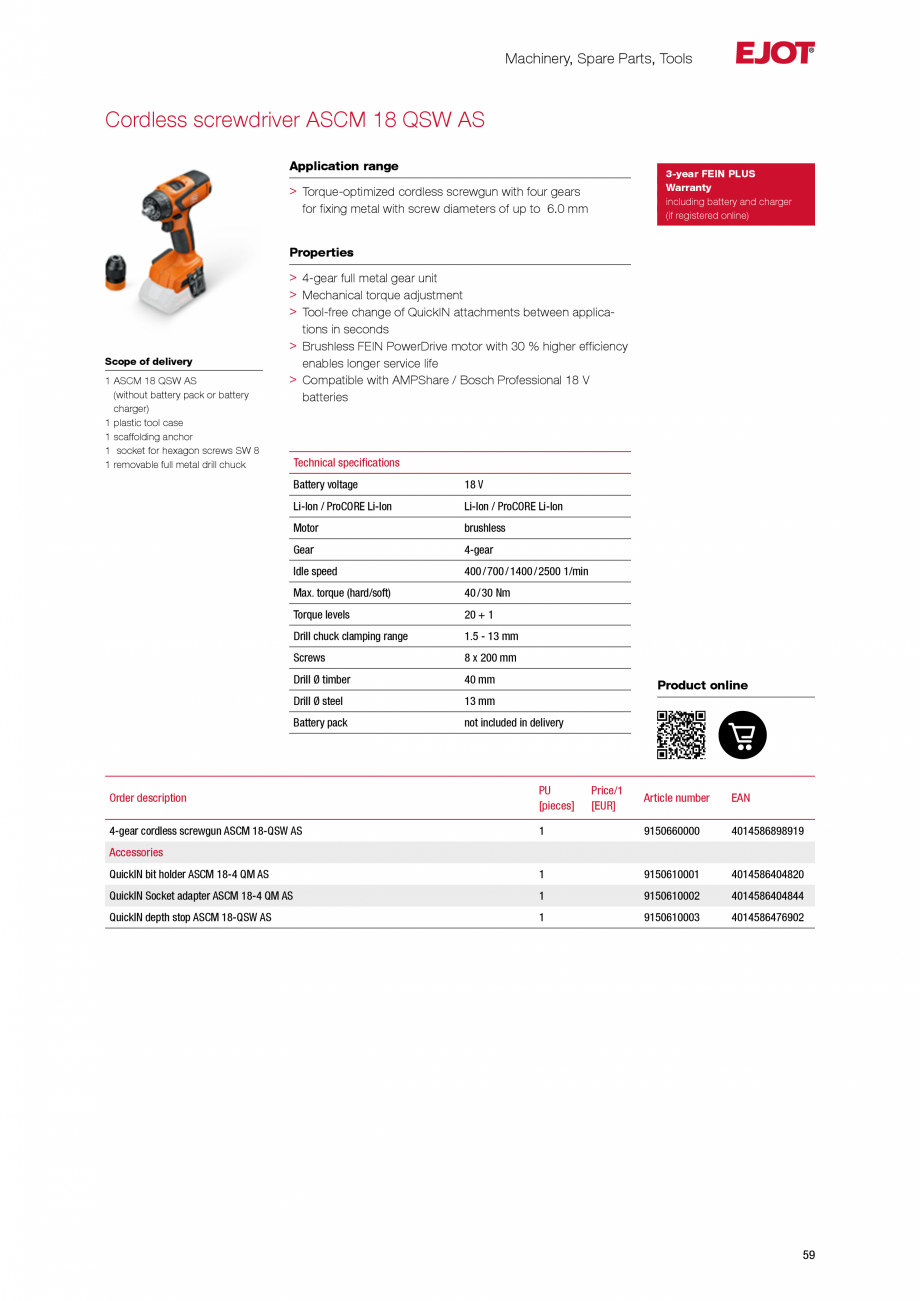

pplications in seconds > Brushless FEIN PowerDrive motor with 30 % higher efficiency enables longer service life > Compatible with AMPShare / Bosch Professional 18 V batteries Technical specifications Battery voltage 18 V Li-Ion / ProCORE Li-Ion Li-Ion / ProCORE Li-Ion Motor brushless Gear 4-gear Idle speed 400 / 700 / 1400 / 2500 1/min Max. torque (hard/soft) 40 / 30 Nm Torque levels 20 + 1 Drill chuck clamping range 1.5 - 13 mm Screws 8 x 200 mm Drill Ø timber 40 mm Drill Ø steel 13 mm Battery pack not included in delivery Product online Order description PU [pieces] 4-gear cordless screwgun ASCM 18-QSW AS Price/1 [EUR] Article number EAN 1 9150660000 4014586898919 QuickIN bit holder ASCM 18-4 QM AS 1 9150610001 4014586404820 QuickIN Socket adapter ASCM 18-4 QM AS 1 9150610002 4014586404844 QuickIN depth stop ASCM 18-QSW AS 1 9150610003 4014586476902 Accessories 59 Machinery, Spare Parts, Tools Cordless hammer drill ABH 18-26AS App

Pagina 66-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza pplications in seconds
>...

Pagina 67 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza lication range
...

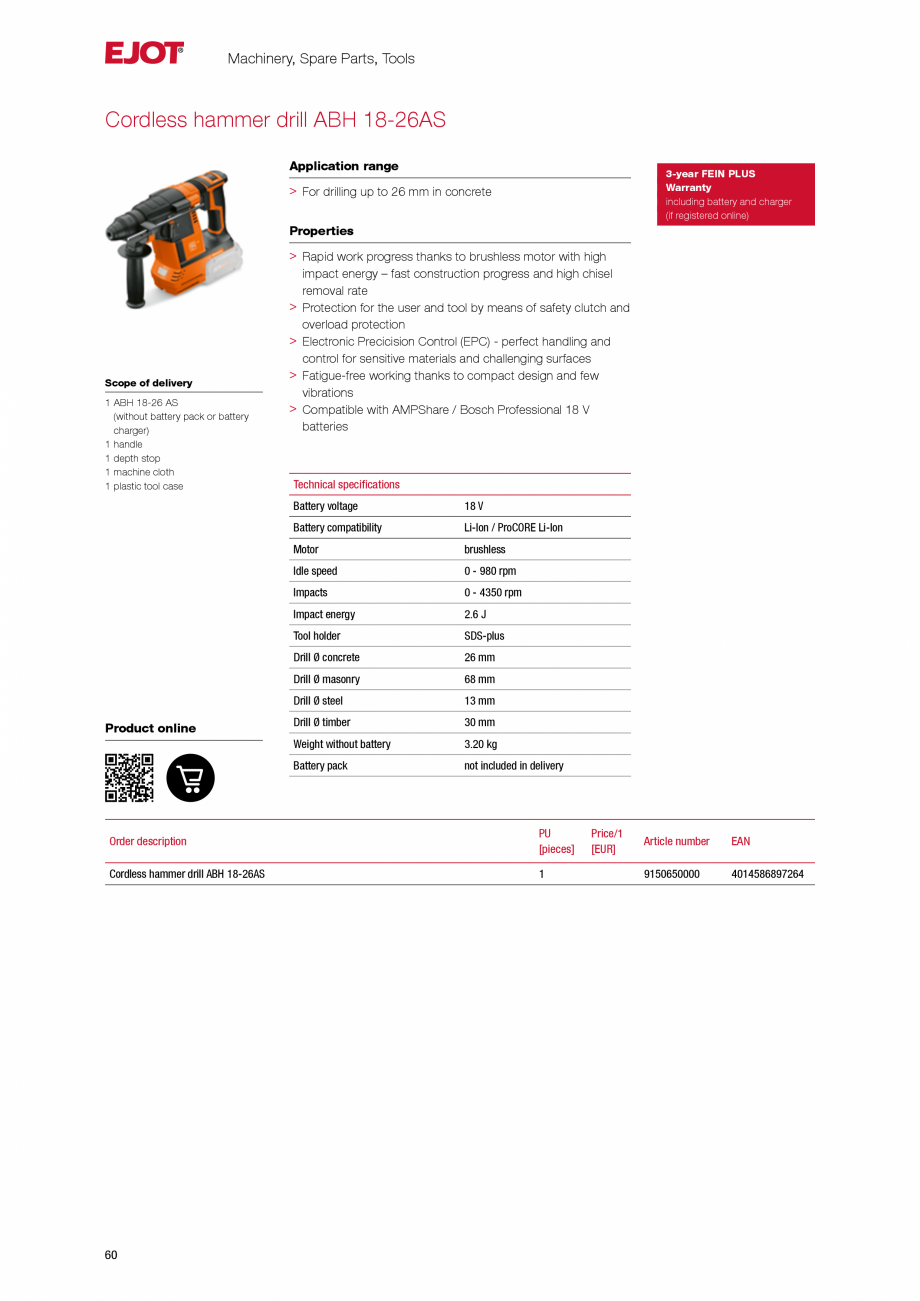

lication range 3-year FEIN PLUS Warranty including battery and charger (if registered online) > For drilling up to 26 mm in concrete Properties Scope of delivery 1 ABH 18-26 AS (without battery pack or battery charger) 1 handle 1 depth stop 1 machine cloth 1 plastic tool case Product online > R apid work progress thanks to brushless motor with high impact energy – fast construction progress and high chisel removal rate > Protection for the user and tool by means of safety clutch and overload protection > Electronic Precicision Control (EPC) - perfect handling and control for sensitive materials and challenging surfaces > Fatigue-free working thanks to compact design and few vibrations > Compatible with AMPShare / Bosch Professional 18 V batteries Technical specifications Battery voltage 18 V Battery compatibility Li-Ion / ProCORE Li-Ion Motor brushless Idle speed 0 - 980 rpm Impacts 0 - 4350 rpm Impact energy 2.6 J Tool holder SDS-plus Drill Ø concrete 26 m

Pagina 67-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza lication range

3-year FEIN...

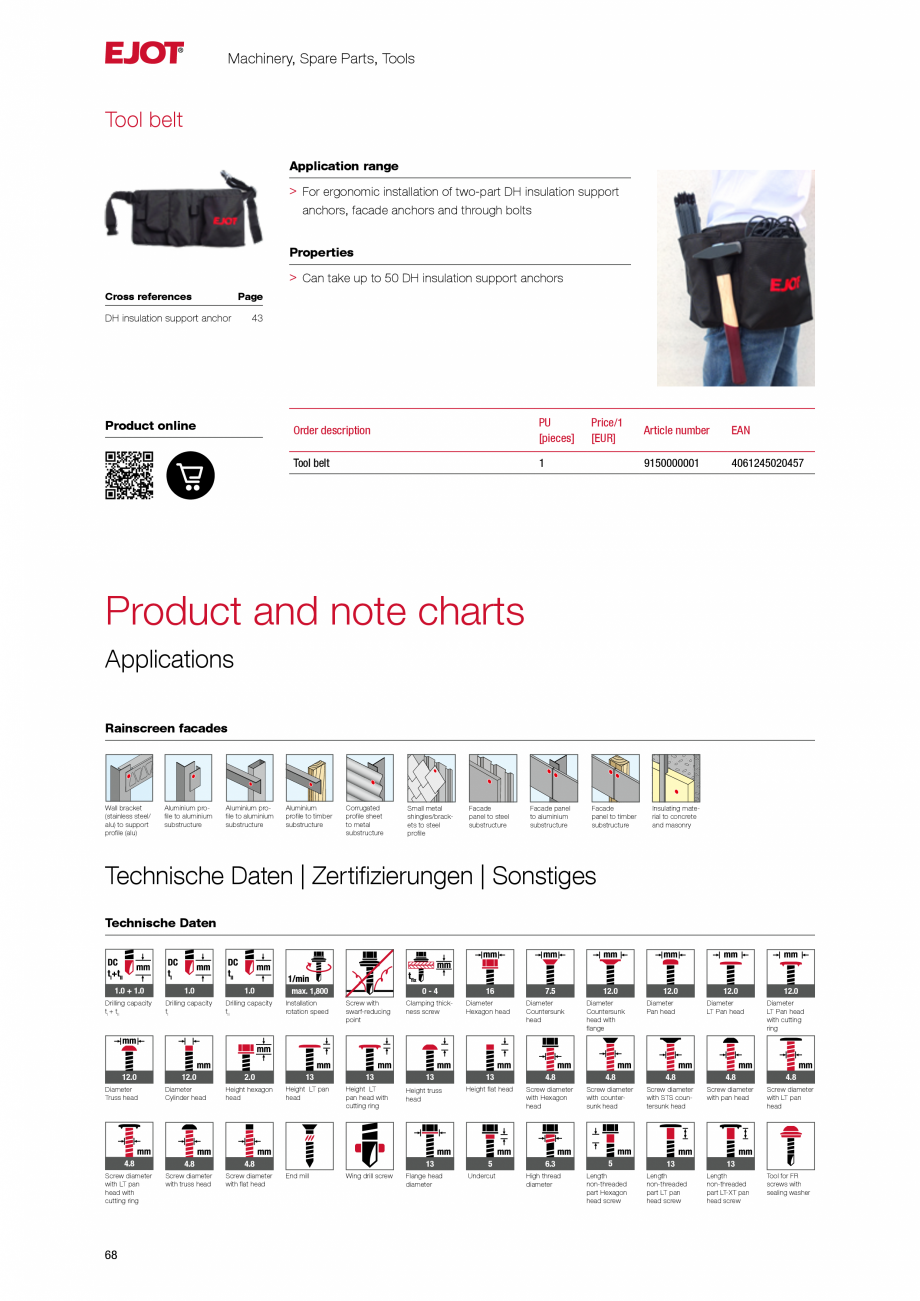

Pagina 68 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza m

Drill Ø...

m Drill Ø masonry 68 mm Drill Ø steel 13 mm Drill Ø timber 30 mm Weight without battery 3.20 kg Battery pack not included in delivery Order description PU [pieces] Cordless hammer drill ABH 18-26AS 1 60 Price/1 [EUR] Article number EAN 9150650000 4014586897264 Machinery, Spare Parts, Tools ECORIV® ONE battery riveting tool 16.0V / 2.0 Ah Application range > F or blind rivets made of aluminium, steel, copper and stainless steel up to Ø 5.0 mm > For folding blind rivets up to Ø 5.2 mm Advantages Scope of delivery 1 battery riveter ECORIV ONE 4 retention nosepieces 2 batteries 2.0 Ah 1 rapid charger 220 V 1 installation wrench 1 plastic transport box L-Boxx > > > > > eight only 1.87 kg W Transparent recuperation tank Powerful Li-Ion batteries with charge indicator Riveting point illuminated by LEDs Delivery with retention nosepieces for rivets 2.4 mm, 3.0/ 3.2 mm, 4.0 mm and 4.8/5.0 mm > High-quality fast battery recharger > Extended front sleeve op

Pagina 68-Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza m

Drill Ø masonry

68 mm
...

Pagina 69 - Fațade cu paravan împotriva ploii EJOT Catalog, brosura Engleza tionally...

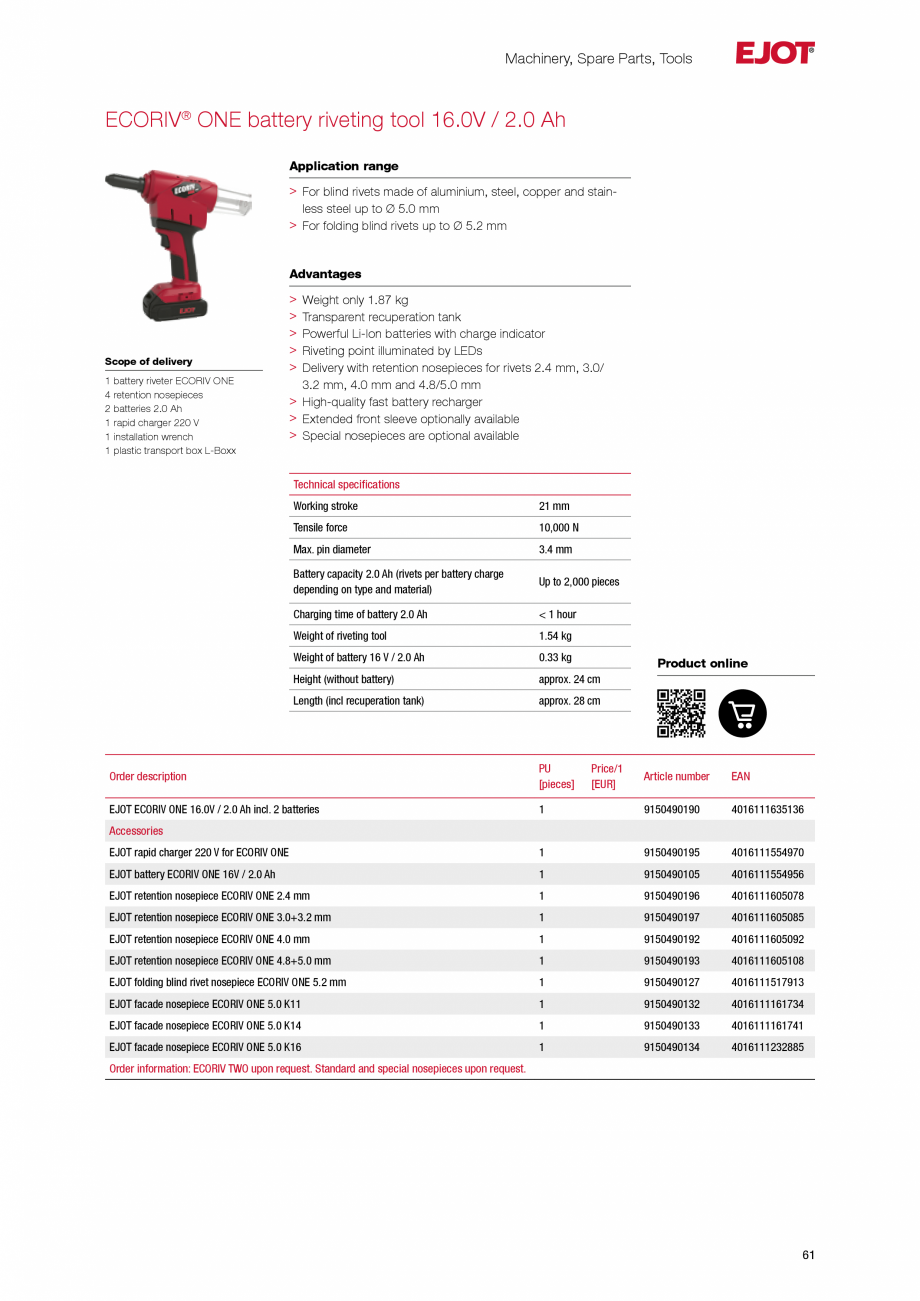

tionally available > Special nosepieces are optional available Technical specifications Working stroke 21 mm Tensile force 10,000 N Max. pin diameter 3.4 mm Battery capacity 2.0 Ah (rivets per battery charge depending on type and material) Up to 2,000 pieces Charging time of battery 2.0 Ah < 1 hour Weight of riveting tool 1.54 kg Weight of battery 16 V / 2.0 Ah 0.33 kg Height (without battery) approx. 24 cm Length (incl recuperation tank) approx. 28 cm Order description PU [pieces] EJOT ECORIV ONE 16.0V / 2.0 Ah incl. 2 batteries Product online Price/1 [EUR] Article number EAN 1 9150490190 4016111635136 EJOT rapid charger 220 V for ECORIV ONE 1 9150490195 4016111554970 EJOT battery ECORIV ONE 16V / 2.0 Ah 1 9150490105 4016111554956 EJOT retention nosepiece ECORIV ONE 2.4 mm 1 9150490196 4016111605078 EJOT retention nosepiece ECORIV ONE 3.0+3.2 mm 1 9150490197 4016111605085 EJOT retention nosepiece ECORIV ONE 4.0 mm 1 9150490192 4016111605
